1. Palo alto User-ID Concepts ( User Identity )
User‐ID enables you to identify all users on your network using a variety of techniques to ensure that you
can identify users in all locations using a variety of access methods and operating systems.
Visibility:
Improved visibility into application usage based on users gives you a more relevant picture of network activity.
Policy control:
• Security policy
• SSL-decrypt policy
• QoS policy
• Policy Based Forwarding policy
Logging, reporting, forensics:
If a security incident occurs, forensics analysis and reporting based on user information rather than just IP addresses provides a more complete
picture of the incident.

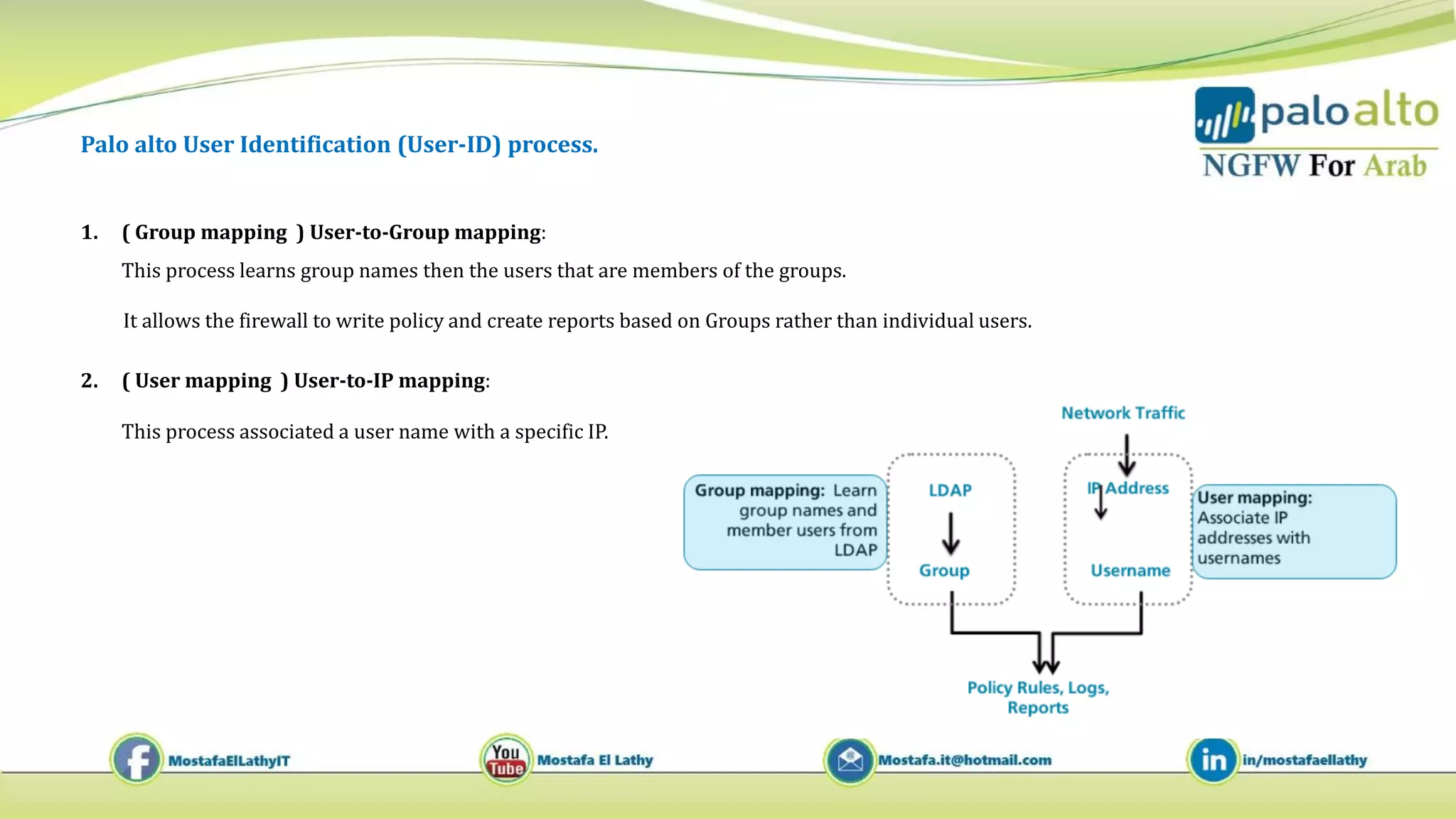

2. 1. ( Group mapping ) User-to-Group mapping:
This process learns group names then the users that are members of the groups.
It allows the firewall to write policy and create reports based on Groups rather than individual users.
2. ( User mapping ) User-to-IP mapping:
This process associated a user name with a specific IP.
Palo alto User Identification (User-ID) process.

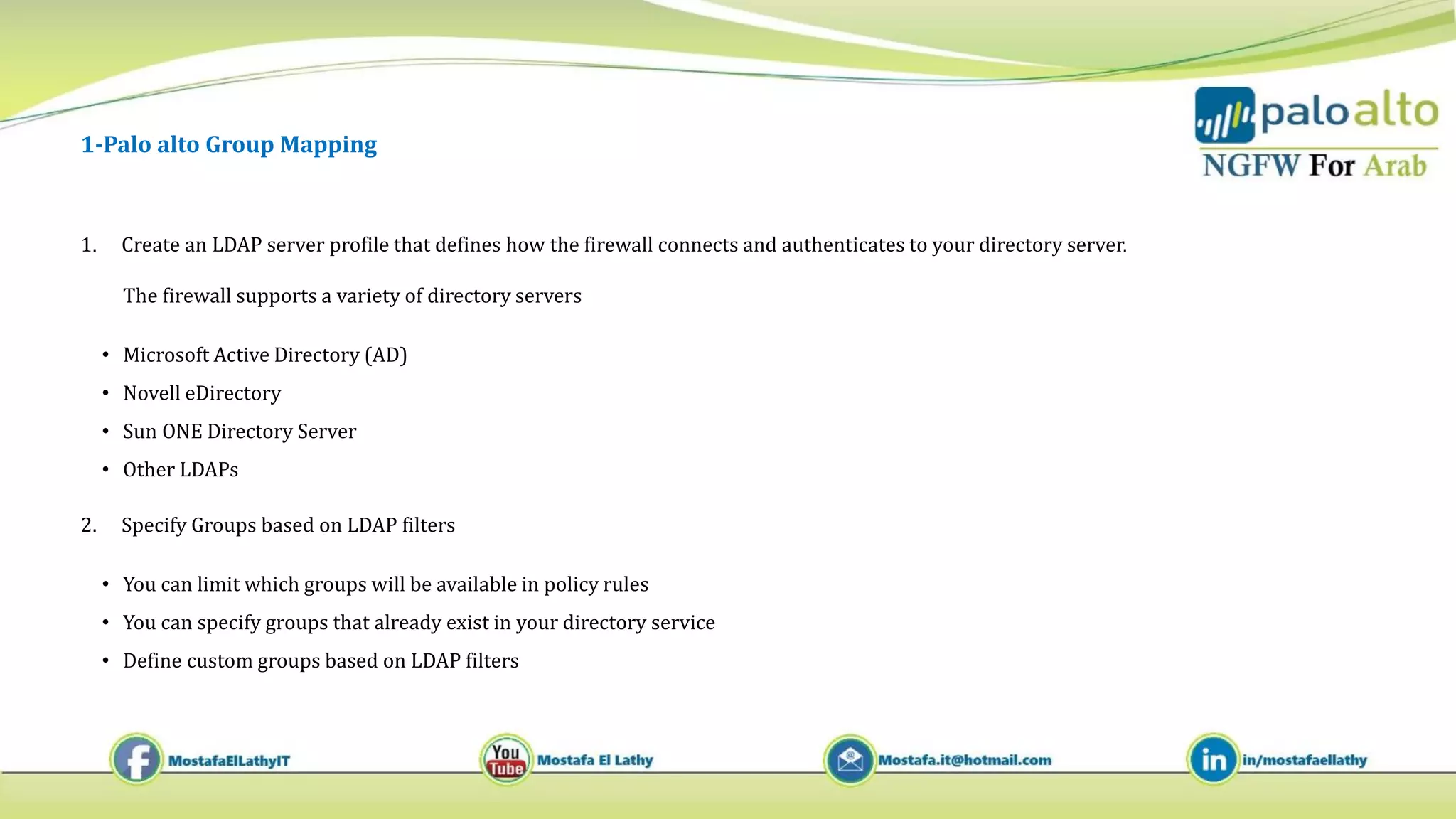

3. 1-Palo alto Group Mapping
1. Create an LDAP server profile that defines how the firewall connects and authenticates to your directory server.
The firewall supports a variety of directory servers
• Microsoft Active Directory (AD)
• Novell eDirectory
• Sun ONE Directory Server
• Other LDAPs
2. Specify Groups based on LDAP filters
• You can limit which groups will be available in policy rules
• You can specify groups that already exist in your directory service
• Define custom groups based on LDAP filters

4. Single Active Directory Domain
abc.local
Multi Active Directory Domain in Forest
abc.local
Alex.abc.local
• Domain = Logical
• Domain Controller = Server it contain Active Directory & LDAP
• Active Directory = Service installed on server to be Domain Controller
Designing User To Group Mapping

5. 2-Palo alto User Mapping Methods
1. Server Monitoring ( Active Directory)
• PAN‐OS Integrated User‐ID Agentless
• Install User-ID Agent software on Domain or member server.
1. GlobalProtect Software (VPN Client)
2. Authentication Policy and Captive Portal (Web Portal )
3. Client Probing (WMI and / or NetBIOS)
4. Port Mapping (Terminal Services Agent )
5. Syslog
6. X‐Forwarded‐For (XFF) Headers
7. XML API

6. 2-Palo alto User Mapping Methods

7. Server Monitoring ( Active Directory)
• PAN‐OS Integrated User‐ID Agentless
• Install User-ID Agent software on Domain or member server
Which Agent Should I Use?
 PAN‐OS Integrated User‐ID Agentless
• If you have small to medium deployment with 10 or less Domain controllers or Exchange servers
• If you wish to share PAN-OS sourced mappings from AD, Captive portal or Global Protect with other PA devices (max 255 devices)
 User-ID Agent Software (Windows)
• If you have medium to large deployment with more than 10 domain controllers
• If you have multi-domain setup with large number of servers to monitor
Note: Can have a combination of the two in a deployment

8. User-ID Agent Overview
• Agent major version should match PAN-OS major version (i.e. 8.0 agent for PAN-OS 8.0 devices)
• Agent does NOT need to be installed on AD server or Domain controller, it just needs to be install on any machine that is a
member of the domain.
• Need service account user with special permeation NOT required to be Domain Admin.
• For Win2008/2012, “Event Log Reader” ,“Server Operator” and “DCOM Users” group
• In addition, add the service account to “Log on as a Service”
Enable User-ID on trusted zones
• By only enabling User-ID on internal and trusted zones, there is no exposure of these services to the Internet,
which helps to keep this service protected from any potential attacks.
• User-ID should never be enabled on an untrusted zone.

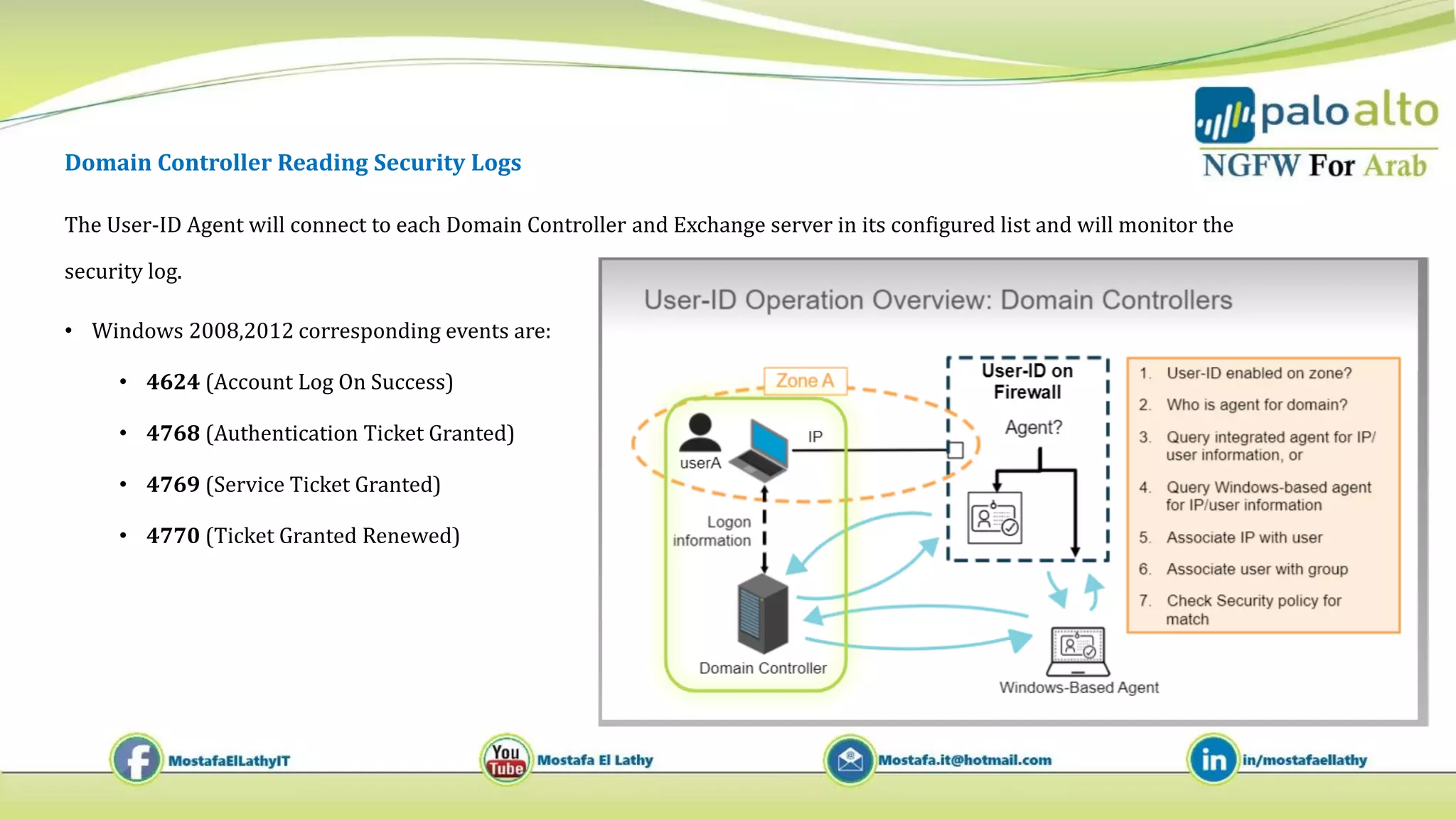

9. Domain Controller Reading Security Logs
The User-ID Agent will connect to each Domain Controller and Exchange server in its configured list and will monitor the
security log.
• Windows 2008,2012 corresponding events are:
• 4624 (Account Log On Success)
• 4768 (Authentication Ticket Granted)
• 4769 (Service Ticket Granted)
• 4770 (Ticket Granted Renewed)

10. Domain Controller Reading Security Logs
The User-ID Agent will connect to each Domain Controller and Exchange server in its configured list and will monitor the
security log.
• Windows 2008,2012 corresponding events are:
• 4624 (Account Log On Success)
• 4768 (Authentication Ticket Granted)
• 4769 (Service Ticket Granted)
• 4770 (Ticket Granted Renewed)

11. Agent and Firewall Communication
The firewall has specific, non‐configurable timers for its communication to the agent.
• 2 seconds: Get list of new IP / user mapping from agent. This is a delta of new mapping only.
• 2 seconds: Send list of Unknown IP addresses that were encountered in traffic to the agent.
• 5 seconds: Get agent status. This is a heartbeat uses to determine the status of each configured agent.
• 10 minutes: Get group membership changes from agent. This is just the delta of changes since the last check.
• 1 hour: Get full list of IP / user mappings from agent.
