Accessibility Hacks
For life's little inaccessible moments…

@coolfields
A bit about me
2
I’m a…
• Web Accessibility
Consultant
• WordPress
Developer
Photo by Mike Pead

@coolfields

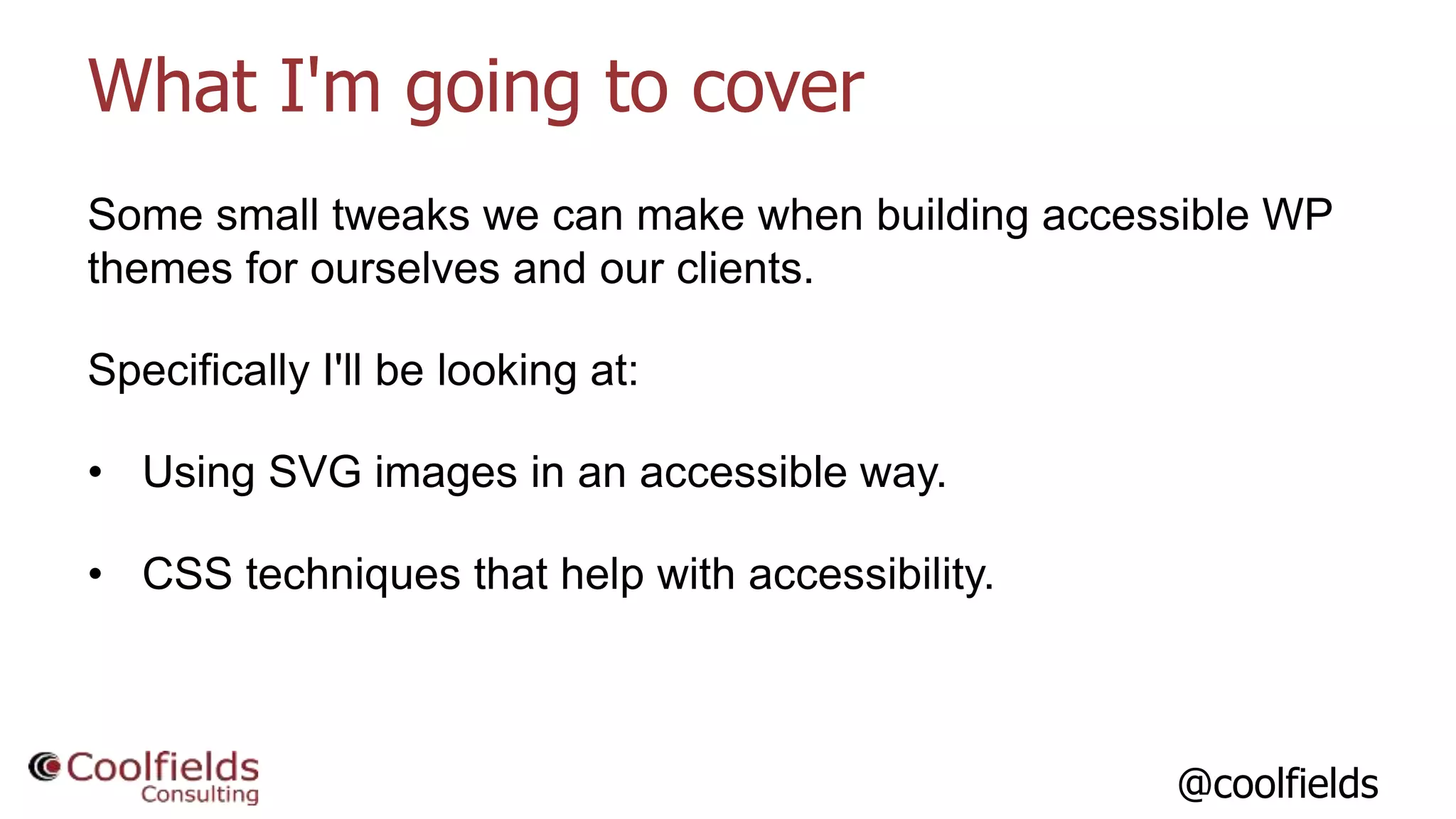

What I'm going to cover
Some small tweaks we can make when building accessible WP
themes for ourselves and our clients.
Specifically I'll be looking at:
• Using SVG images in an accessible way.
• CSS techniques that help with accessibility.

@coolfields

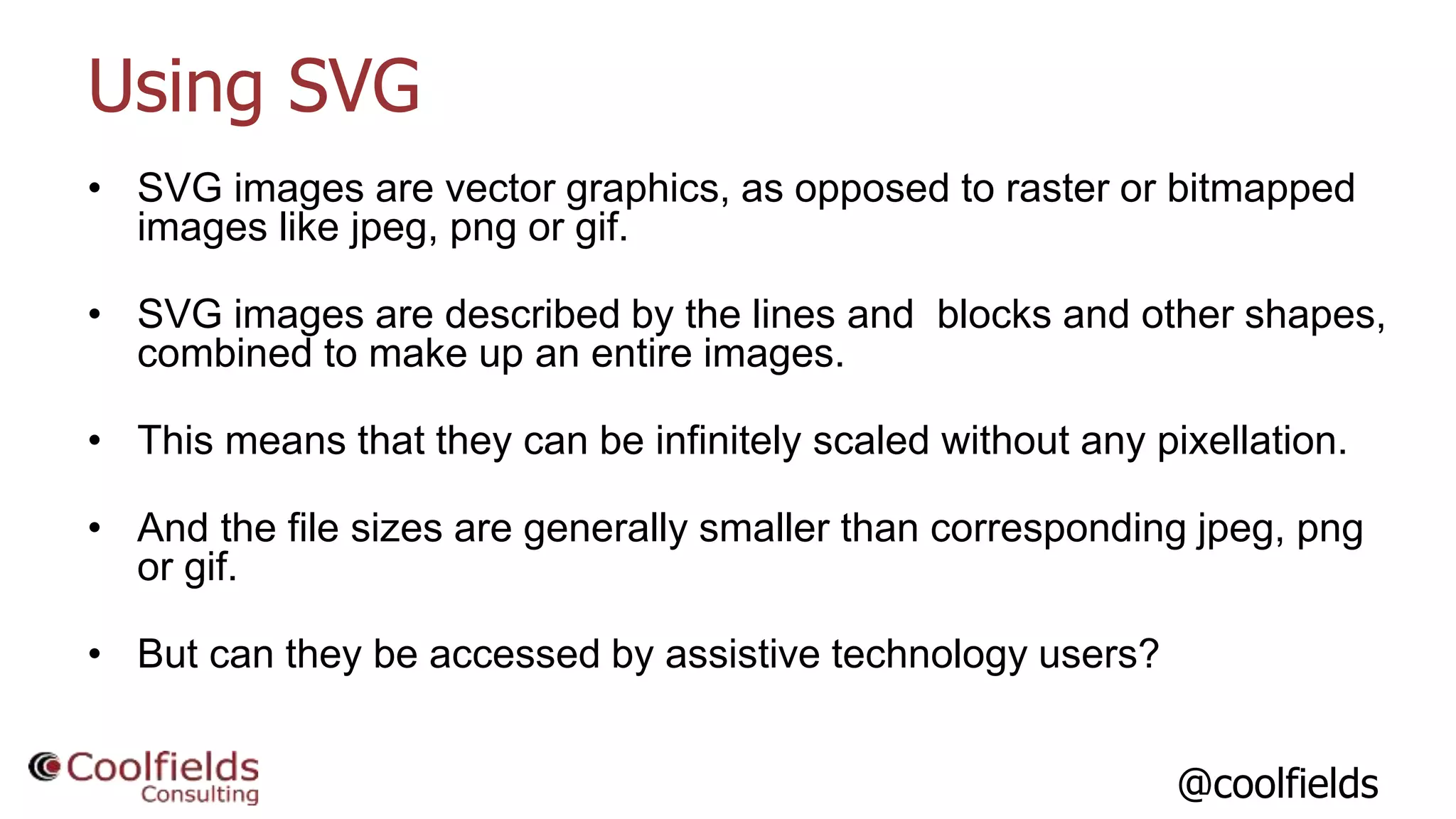

Using SVG
• SVG images are vector graphics, as opposed to raster or bitmapped
images like jpeg, png or gif.
• SVG images are described by the lines and blocks and other shapes,
combined to make up an entire images.
• This means that they can be infinitely scaled without any pixellation.
• And the file sizes are generally smaller than corresponding jpeg, png
or gif.
• But can they be accessed by assistive technology users?

@coolfields
SVG Hack 1 - SVG files

@coolfields

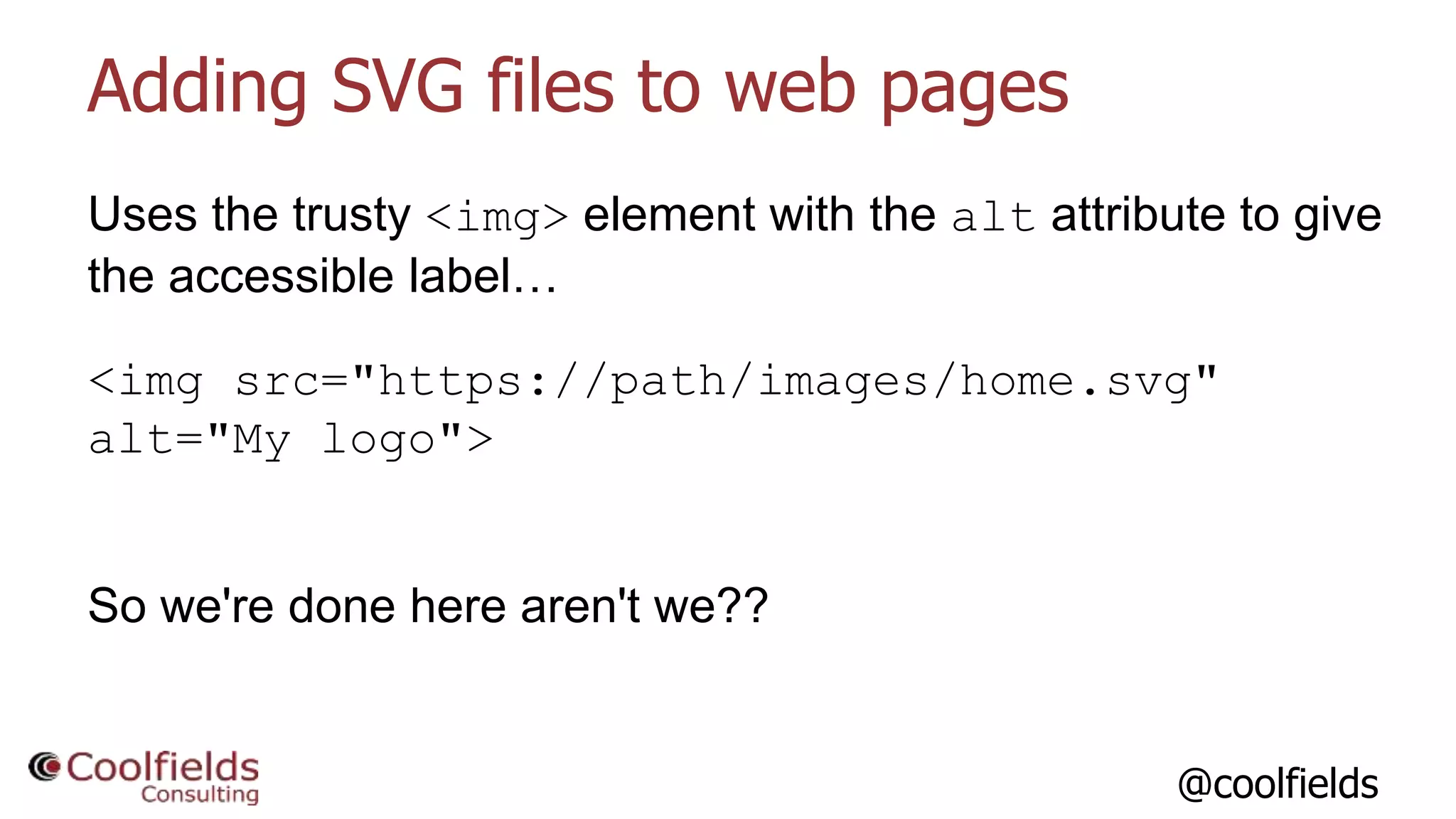

Adding SVG files to web pages
Uses the trusty <img> element with the alt attribute to give
the accessible label…
<img src="https://path/images/home.svg"
alt="My logo">
So we're done here aren't we??

@coolfields

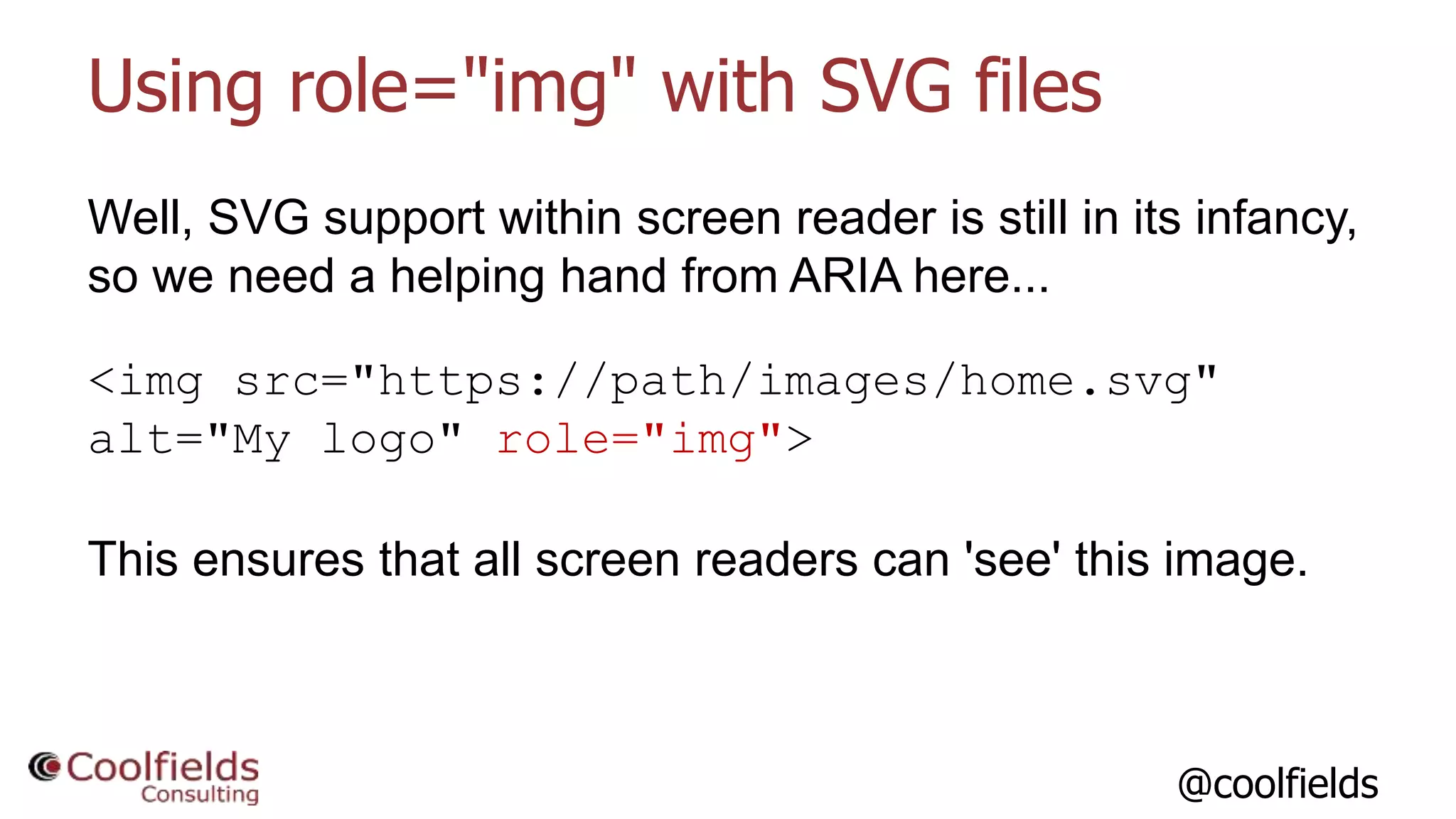

Using role="img" with SVG files
Well, SVG support within screen reader is still in its infancy,
so we need a helping hand from ARIA here...
alt="My logo" role="img">
This ensures that all screen readers can 'see' this image.

@coolfields

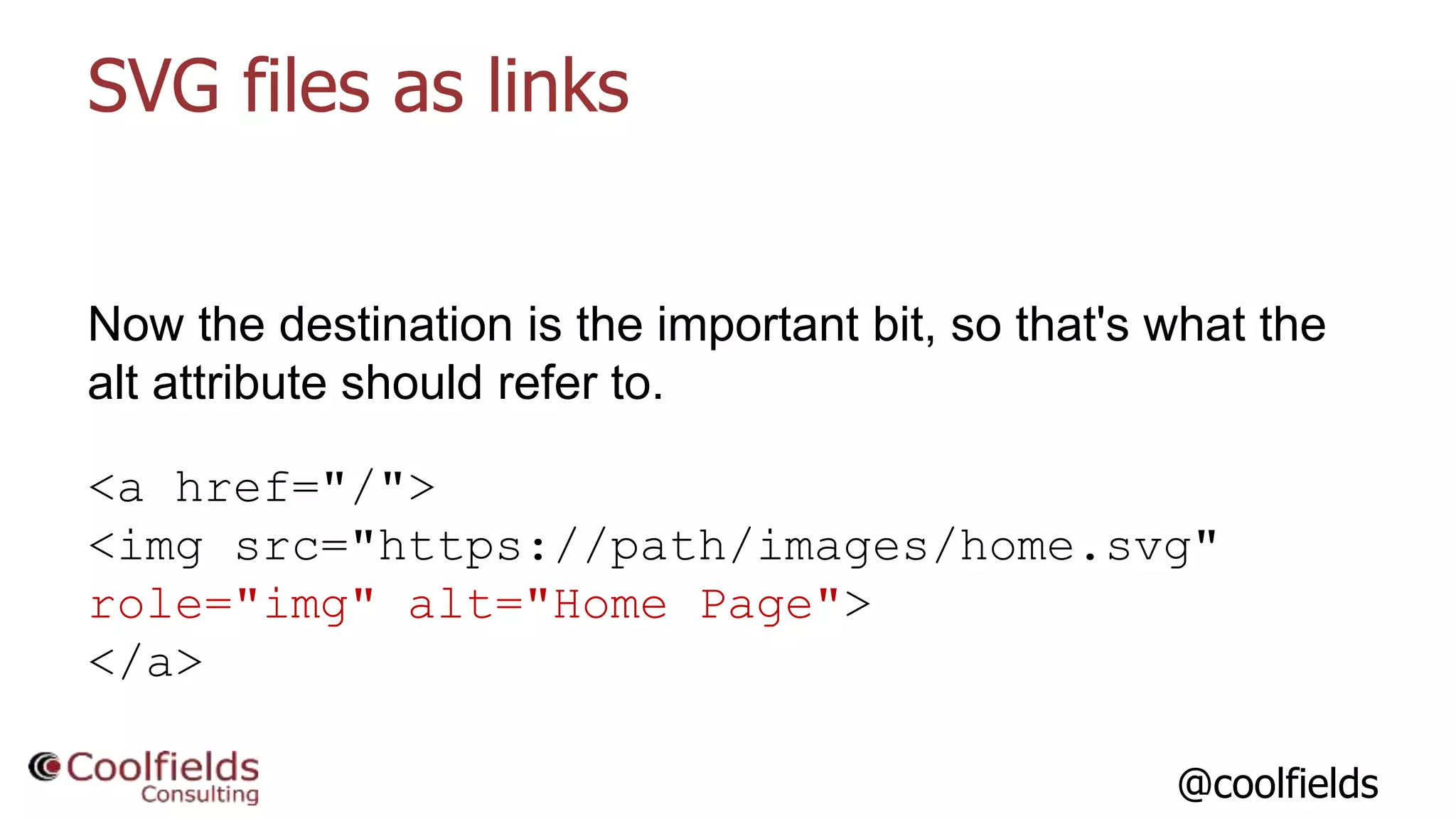

SVG files as links
Now the destination is the important bit, so that's what the
alt attribute should refer to.
<a href="/">
role="img" alt="Home Page">
</a>

@coolfields
SVG Hack 2 - Inline SVG

@coolfields

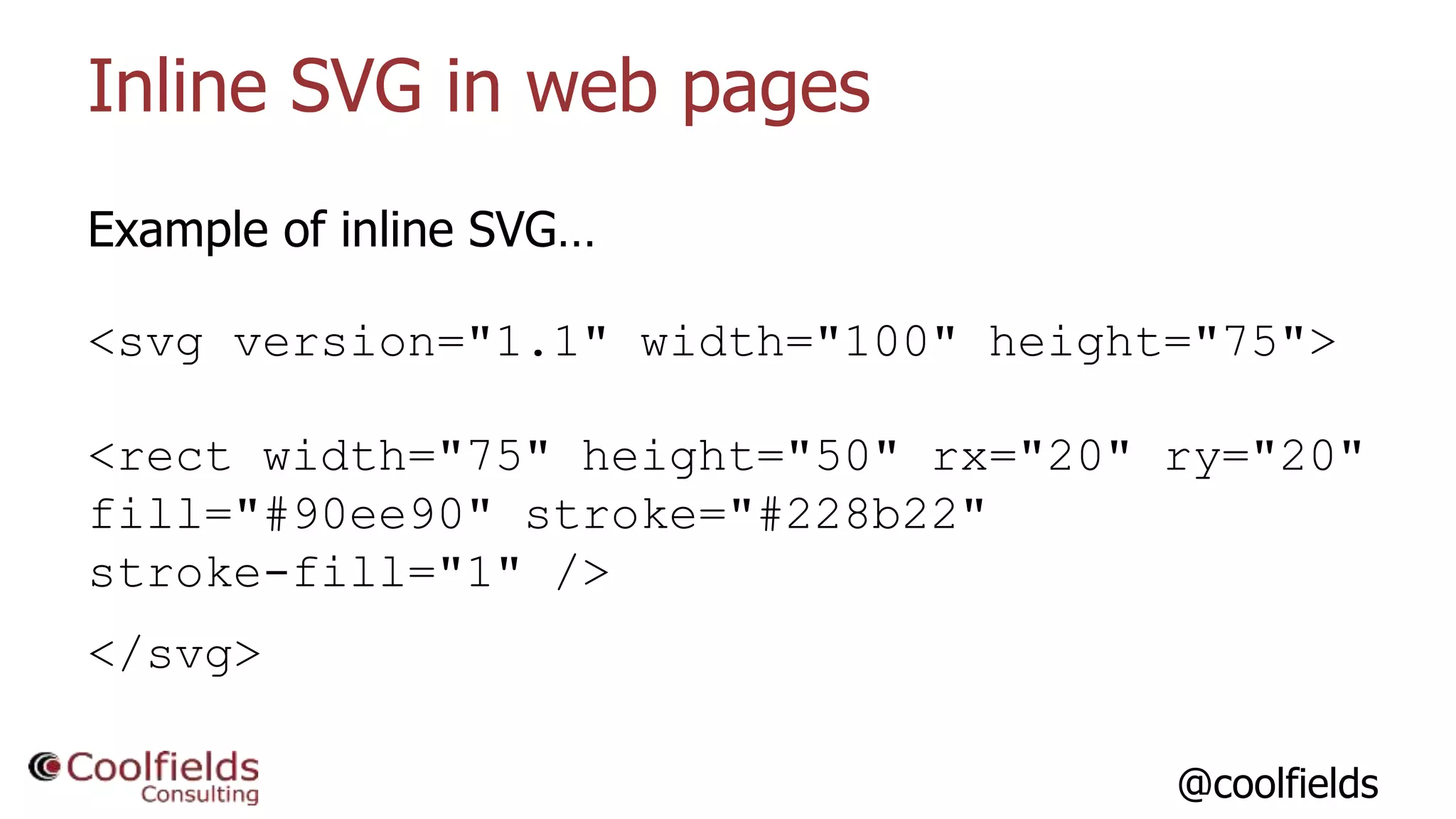

Inline SVG in web pages
Example of inline SVG…
<svg version="1.1" width="100" height="75">
<rect width="75" height="50" rx="20" ry="20"
fill="#90ee90" stroke="#228b22"
stroke-fill="1" />
</svg>

@coolfields

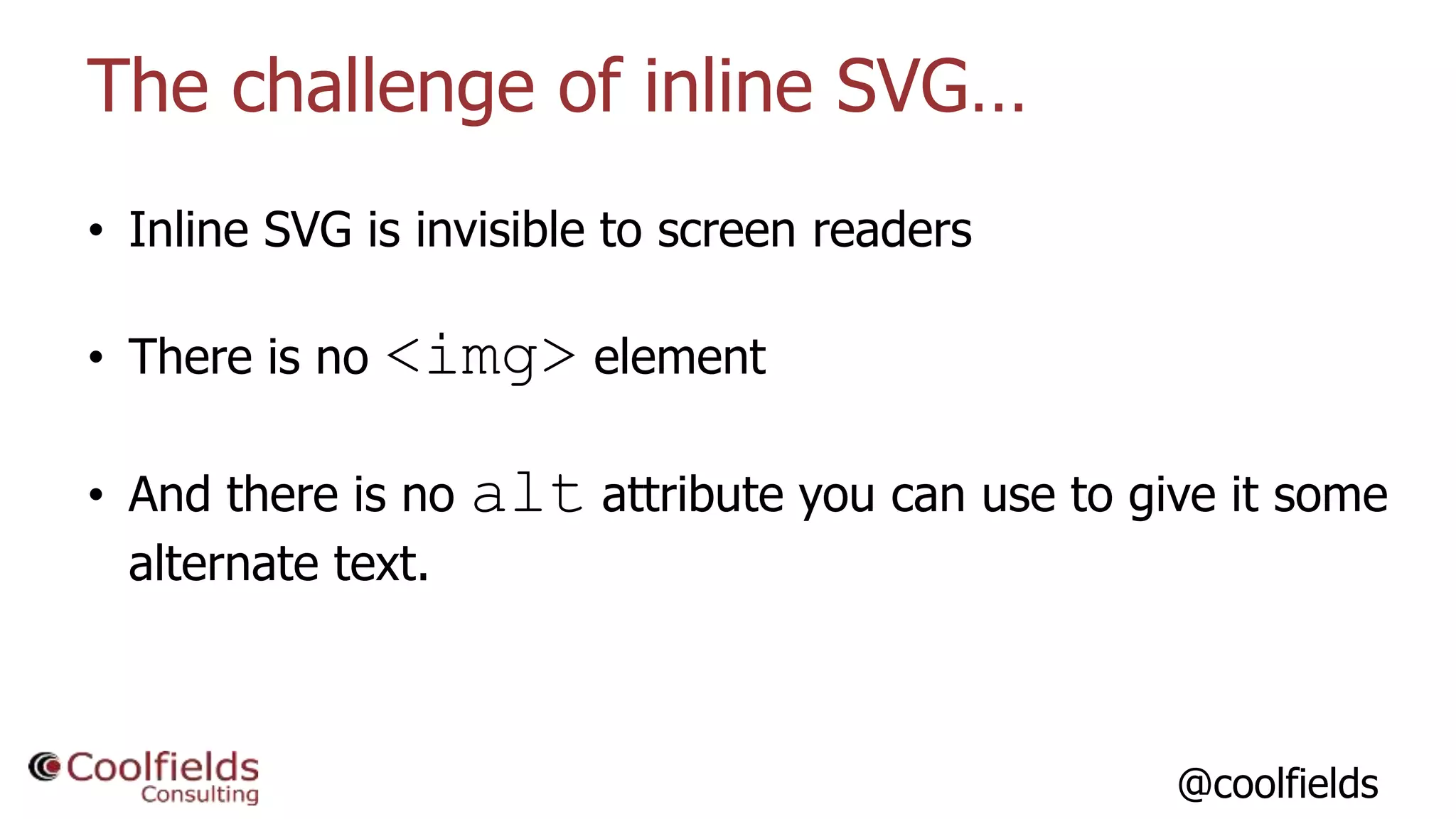

The challenge of inline SVG…
• Inline SVG is invisible to screen readers
• There is no <img> element
• And there is no alt attribute you can use to give it some
alternate text.

@coolfields

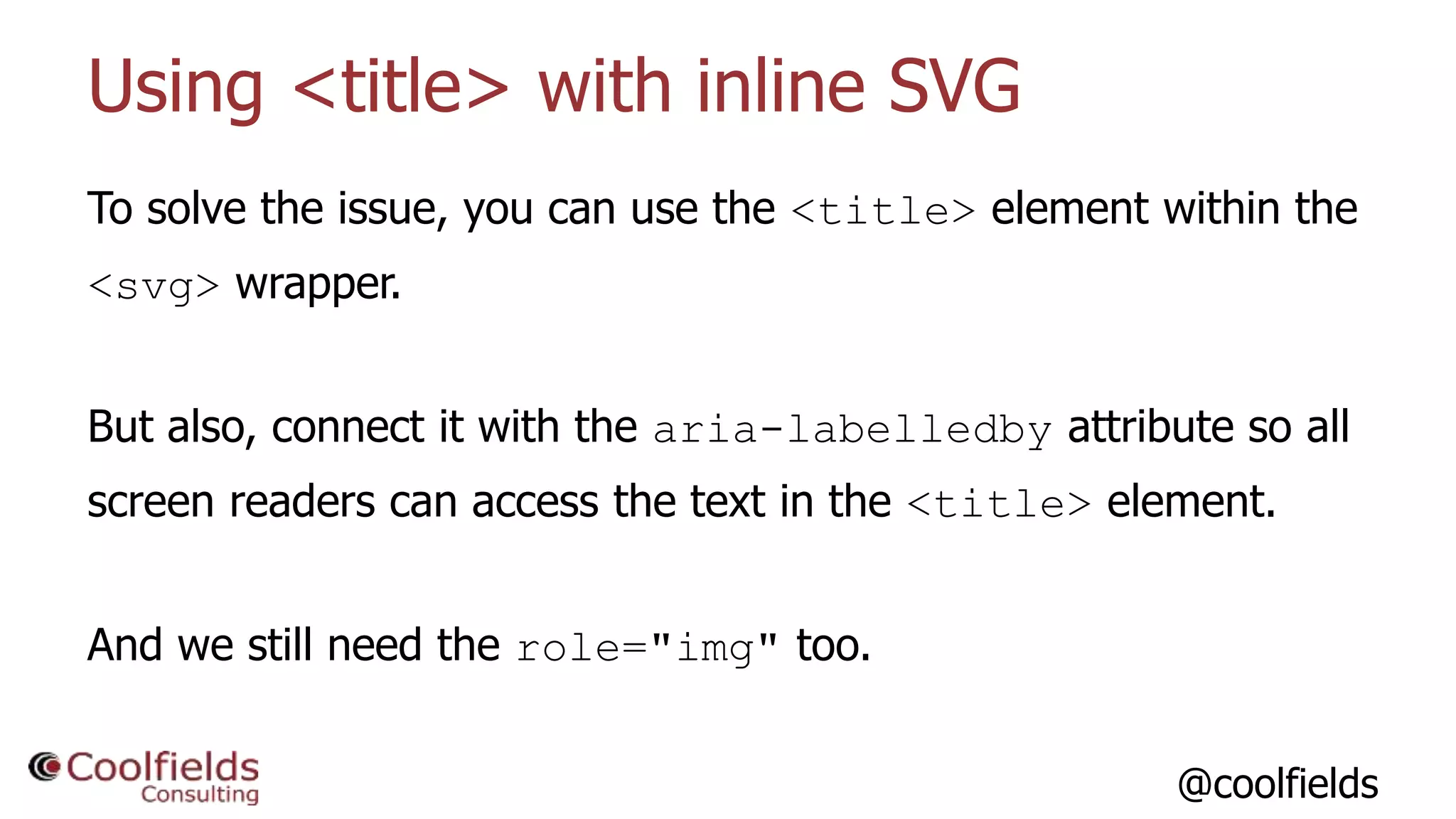

Using <title> with inline SVG
To solve the issue, you can use the <title> element within the
<svg> wrapper.
But also, connect it with the aria-labelledby attribute so all
screen readers can access the text in the <title> element.
And we still need the role="img" too.

@coolfields

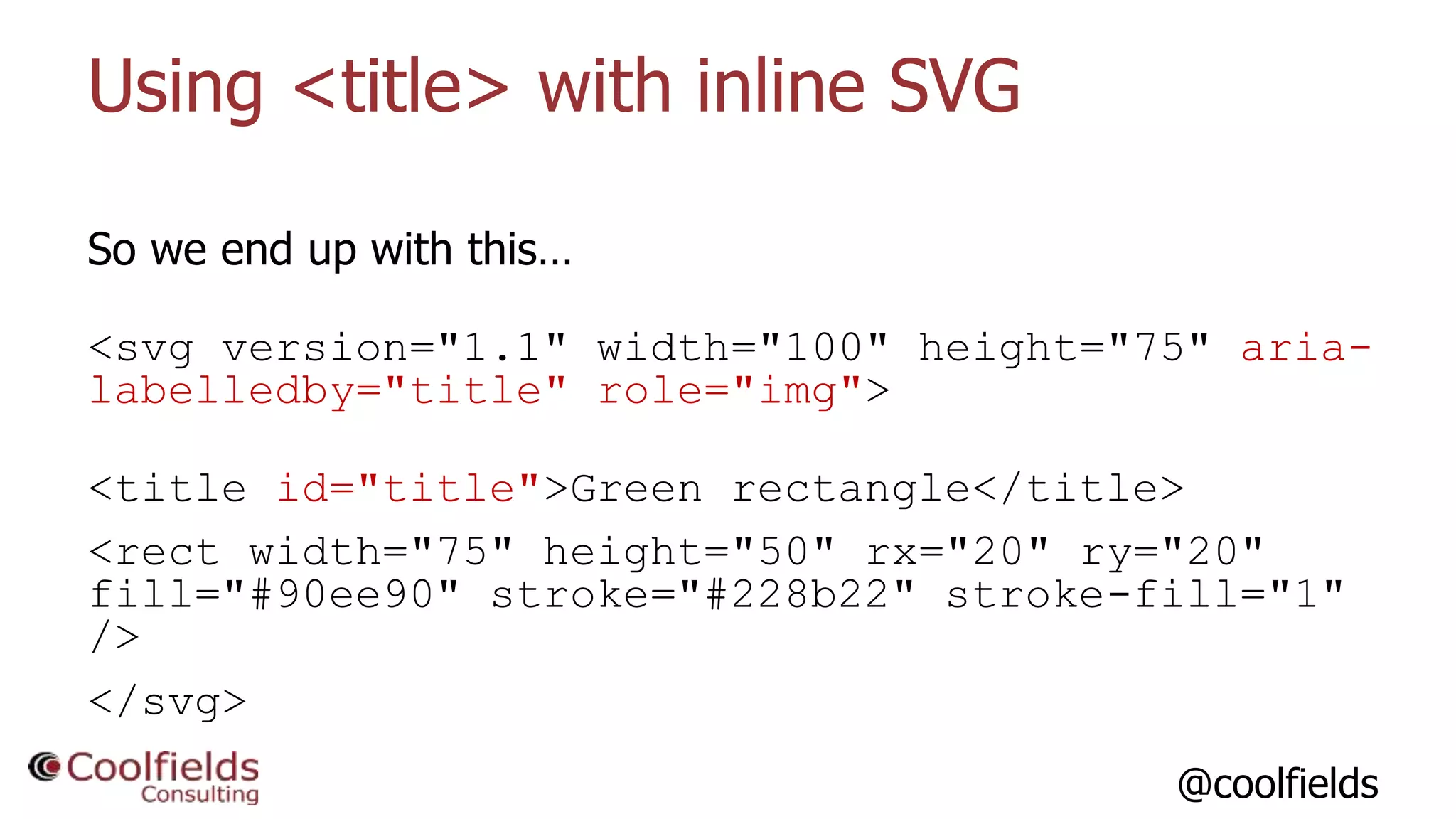

So we end up with this…
<svg version="1.1" width="100" height="75" aria-
labelledby="title" role="img">
<title id="title">Green rectangle</title>
fill="#90ee90" stroke="#228b22" stroke-fill="1"
/>
</svg>

@coolfields

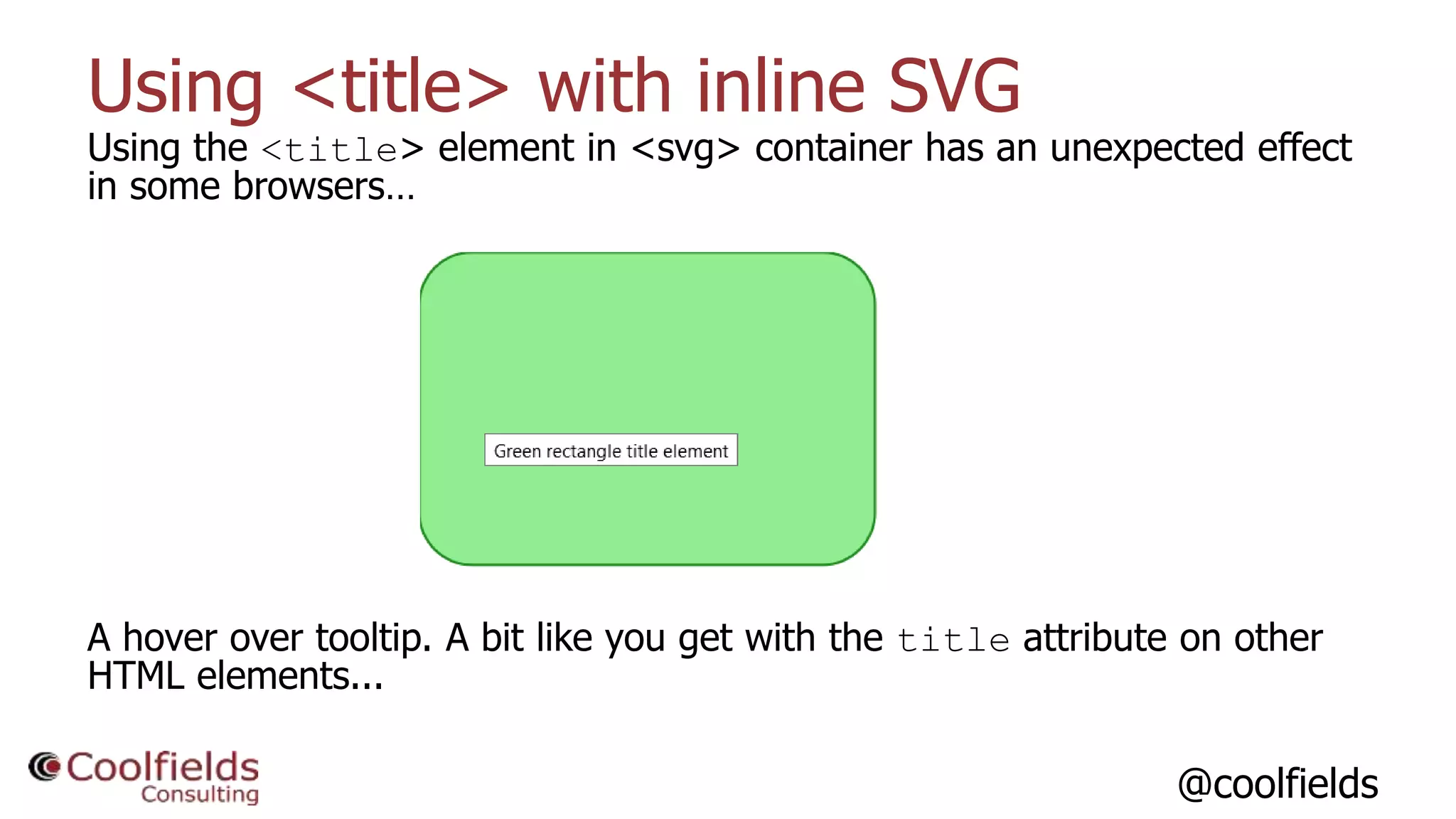

Using the <title> element in <svg> container has an unexpected effect
in some browsers…
A hover over tooltip. A bit like you get with the title attribute on other
HTML elements...

@coolfields

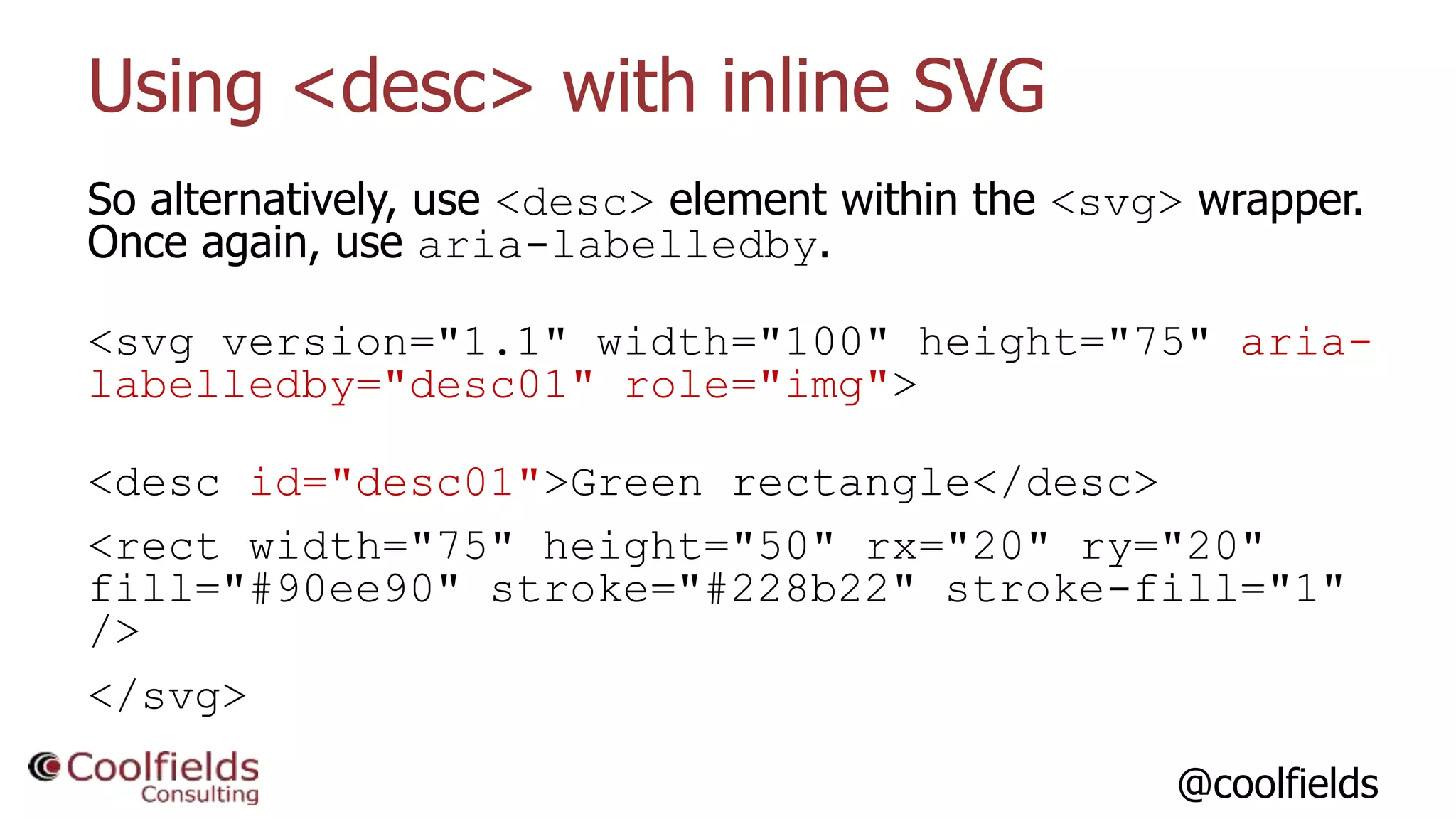

Using <desc> with inline SVG
So alternatively, use <desc> element within the <svg> wrapper.
Once again, use aria-labelledby.
labelledby="desc01" role="img">
<desc id="desc01">Green rectangle</desc>
fill="#90ee90" stroke="#228b22" stroke-fill="1"
/>
</svg>

@coolfields

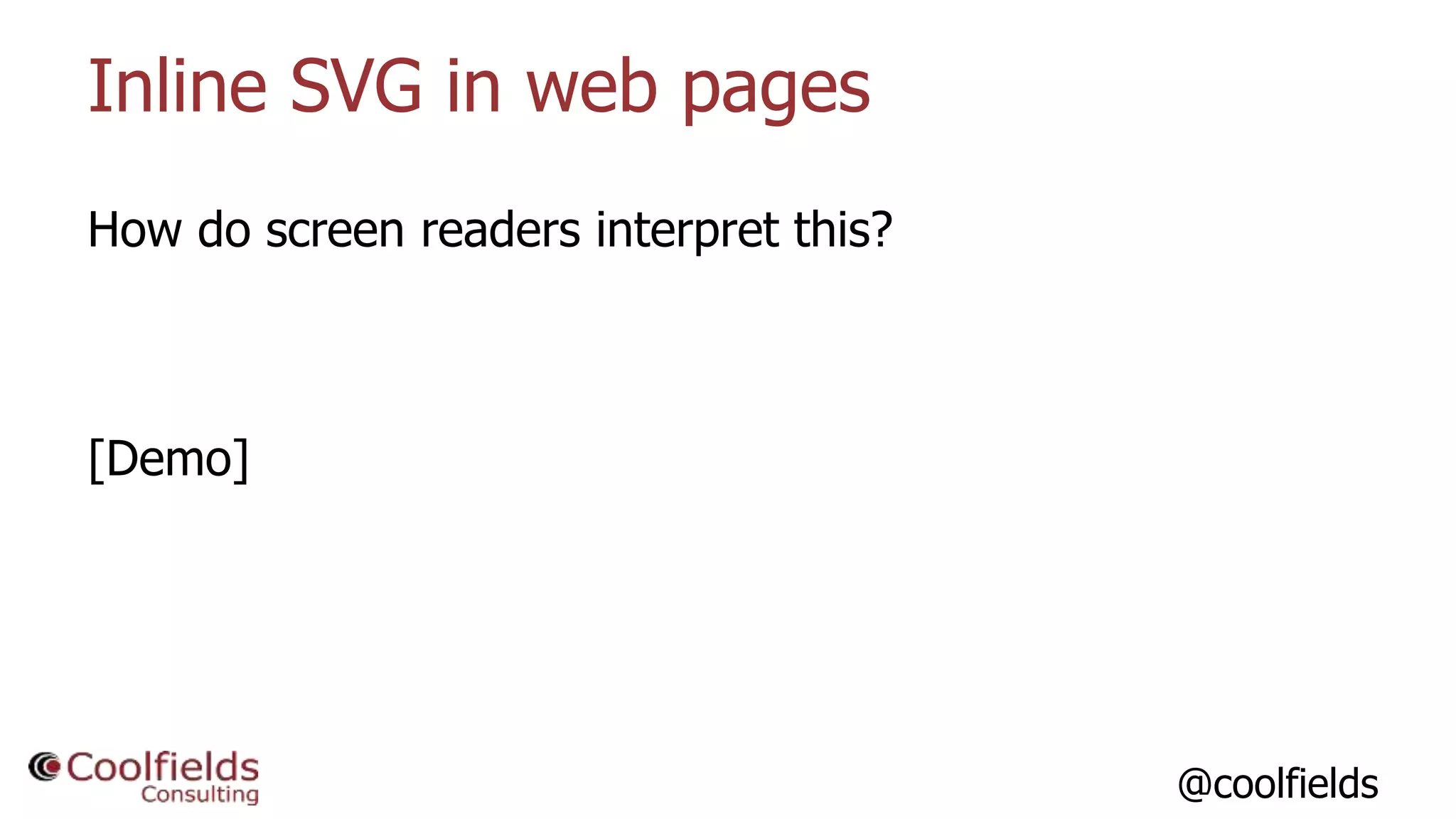

Inline SVG in web pages
How do screen readers interpret this?
[Demo]

@coolfields

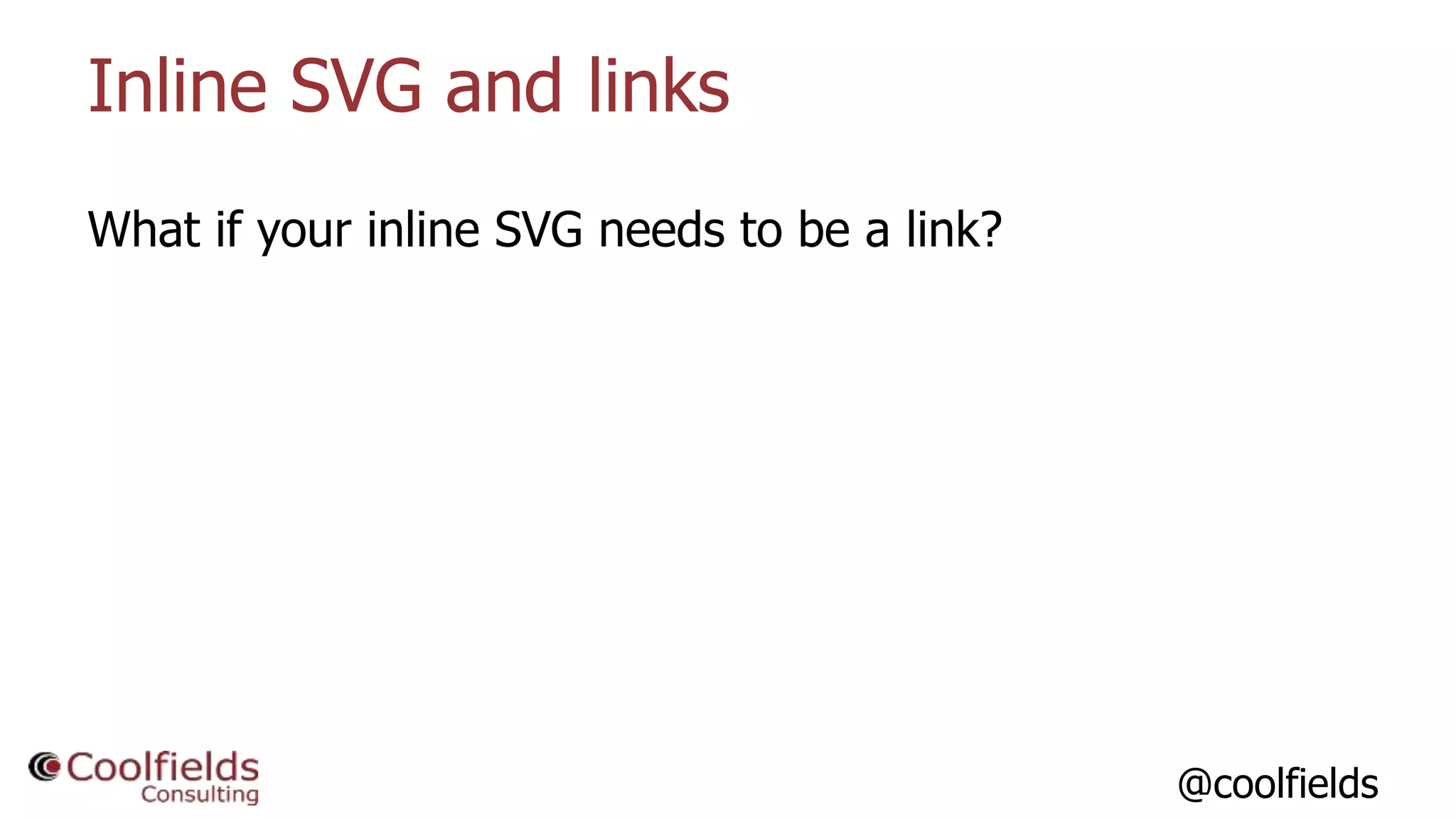

Inline SVG and links
What if your inline SVG needs to be a link?

@coolfields

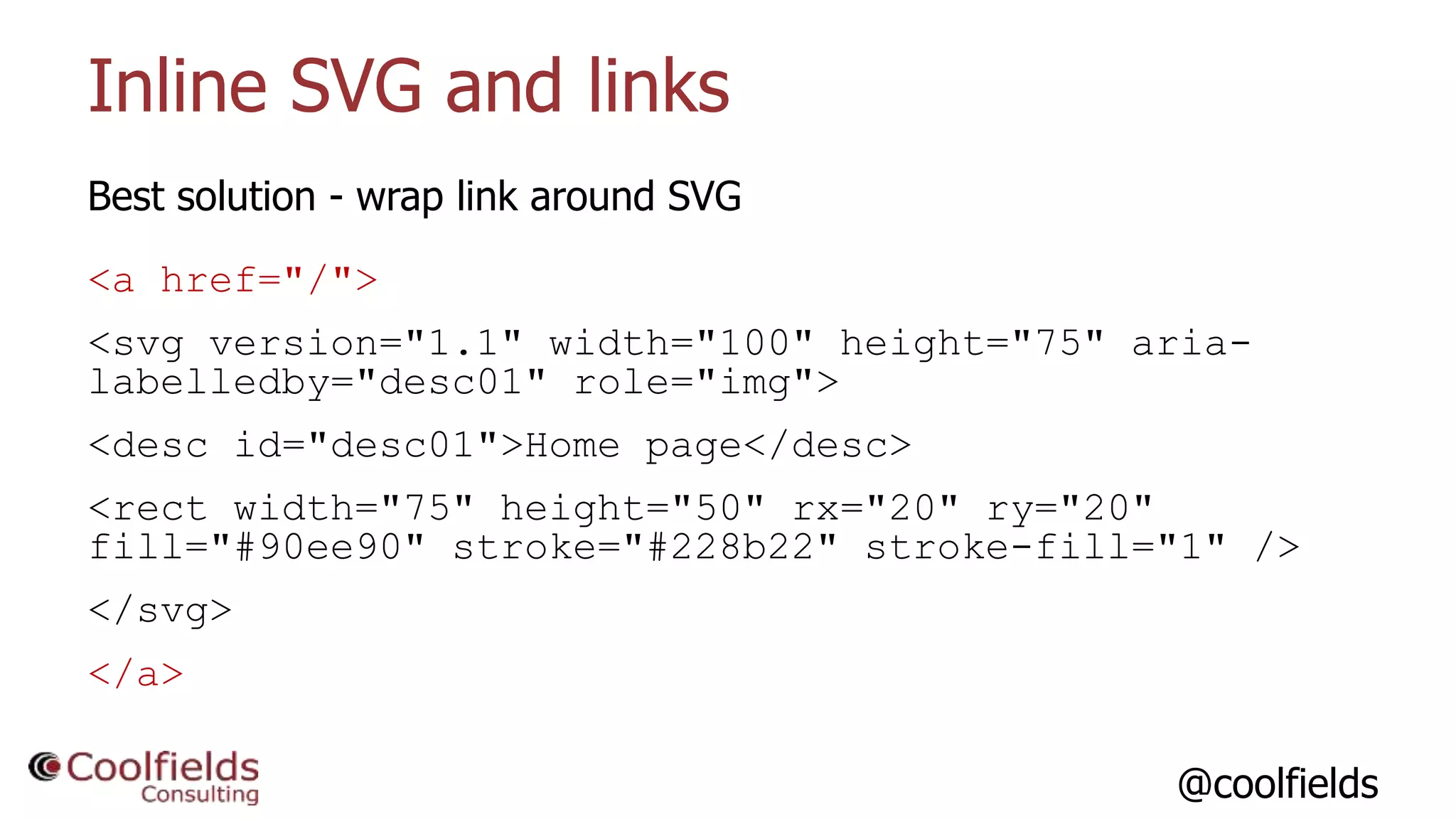

Inline SVG and links
Best solution - wrap link around SVG
<a href="/">
labelledby="desc01" role="img">
<desc id="desc01">Home page</desc>
fill="#90ee90" stroke="#228b22" stroke-fill="1" />
</svg>
</a>

@coolfields

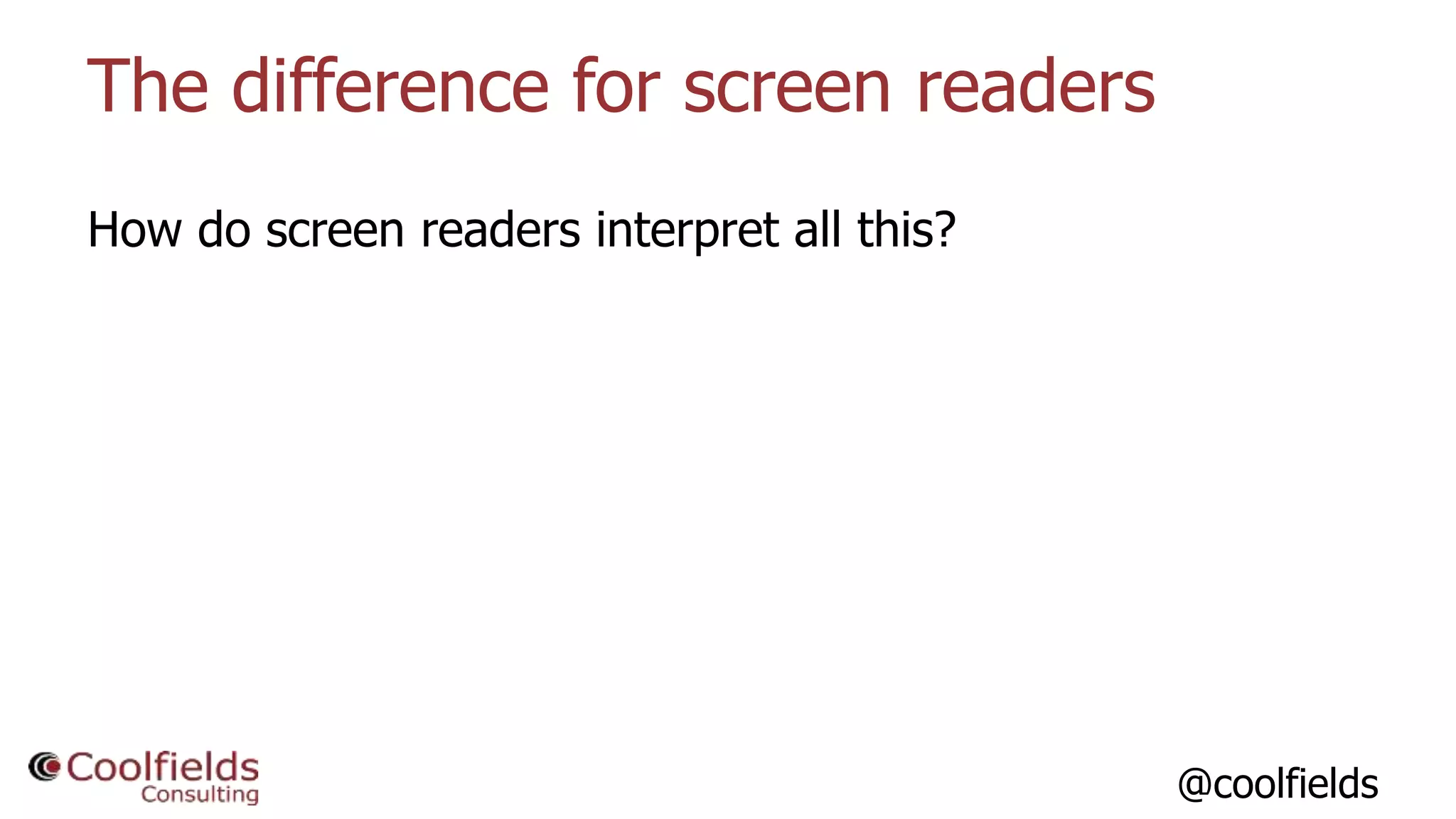

The difference for screen readers
How do screen readers interpret all this?

@coolfields

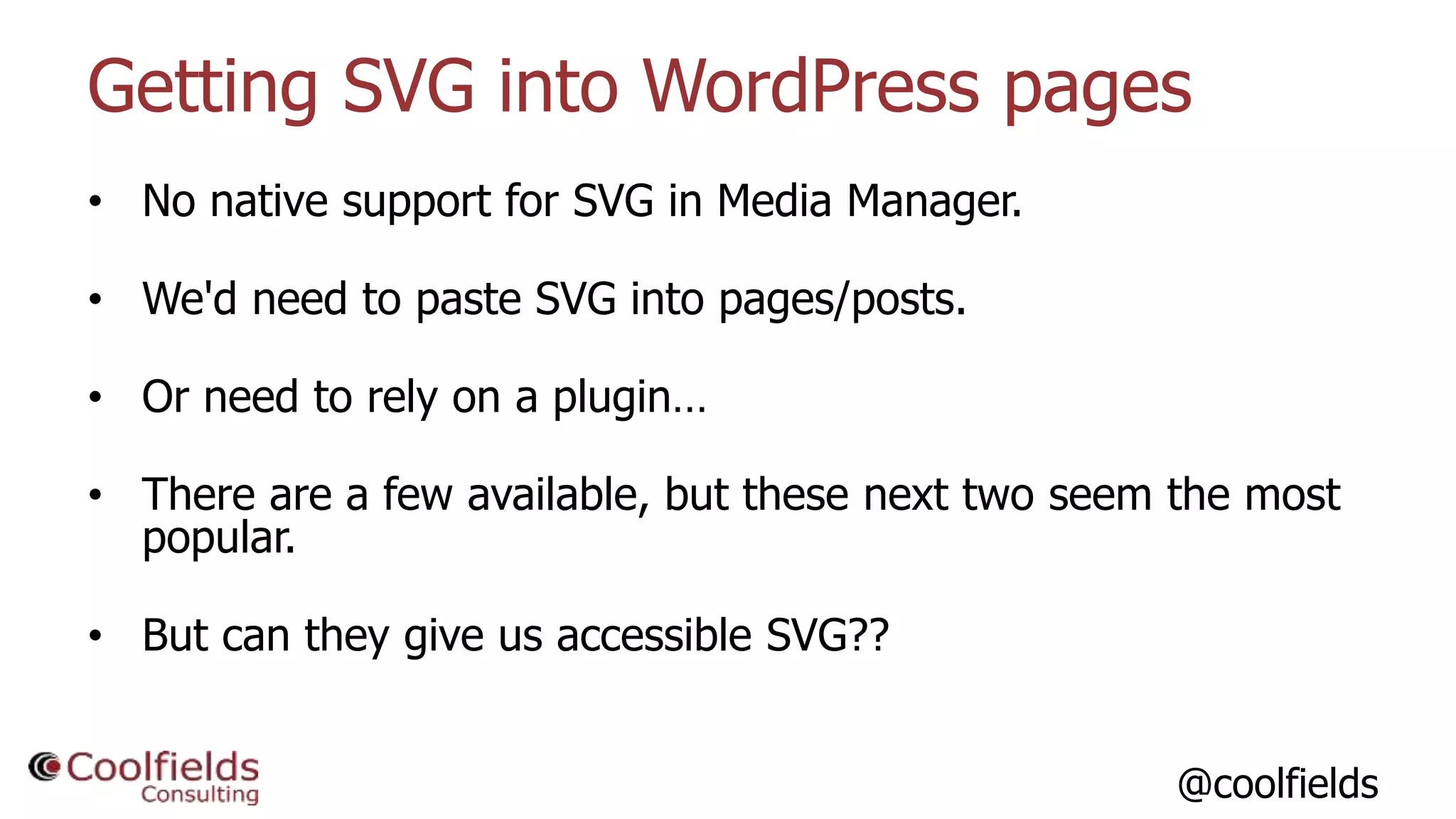

Getting SVG into WordPress pages
• No native support for SVG in Media Manager.
• We'd need to paste SVG into pages/posts.
• Or need to rely on a plugin…
• There are a few available, but these next two seem the most
popular.
• But can they give us accessible SVG??

@coolfields

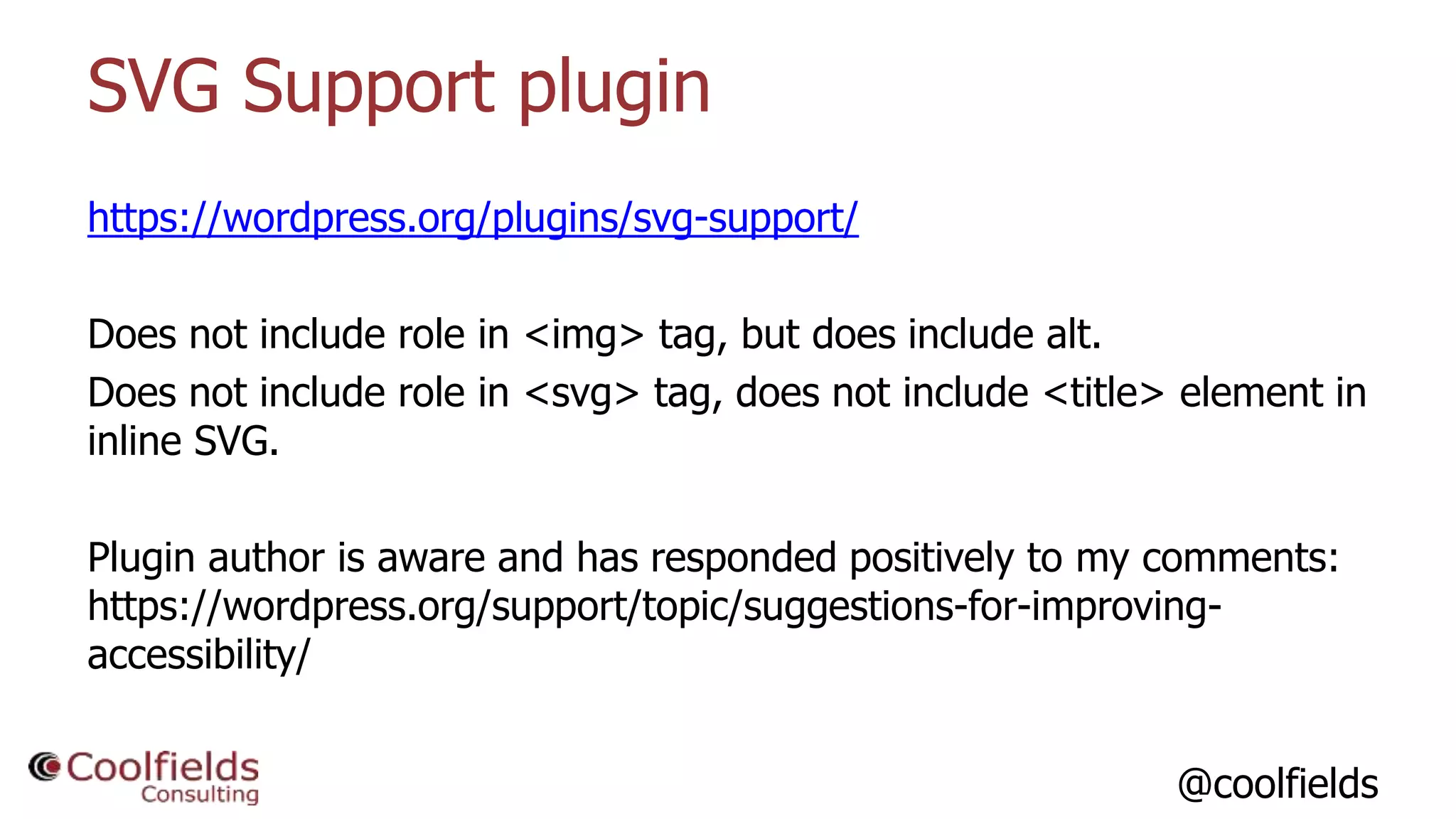

SVG Support plugin
https://wordpress.org/plugins/svg-support/
Does not include role in <img> tag, but does include alt.
Does not include role in <svg> tag, does not include <title> element in
inline SVG.
Plugin author is aware and has responded positively to my comments:
https://wordpress.org/support/topic/suggestions-for-improving-
accessibility/

@coolfields

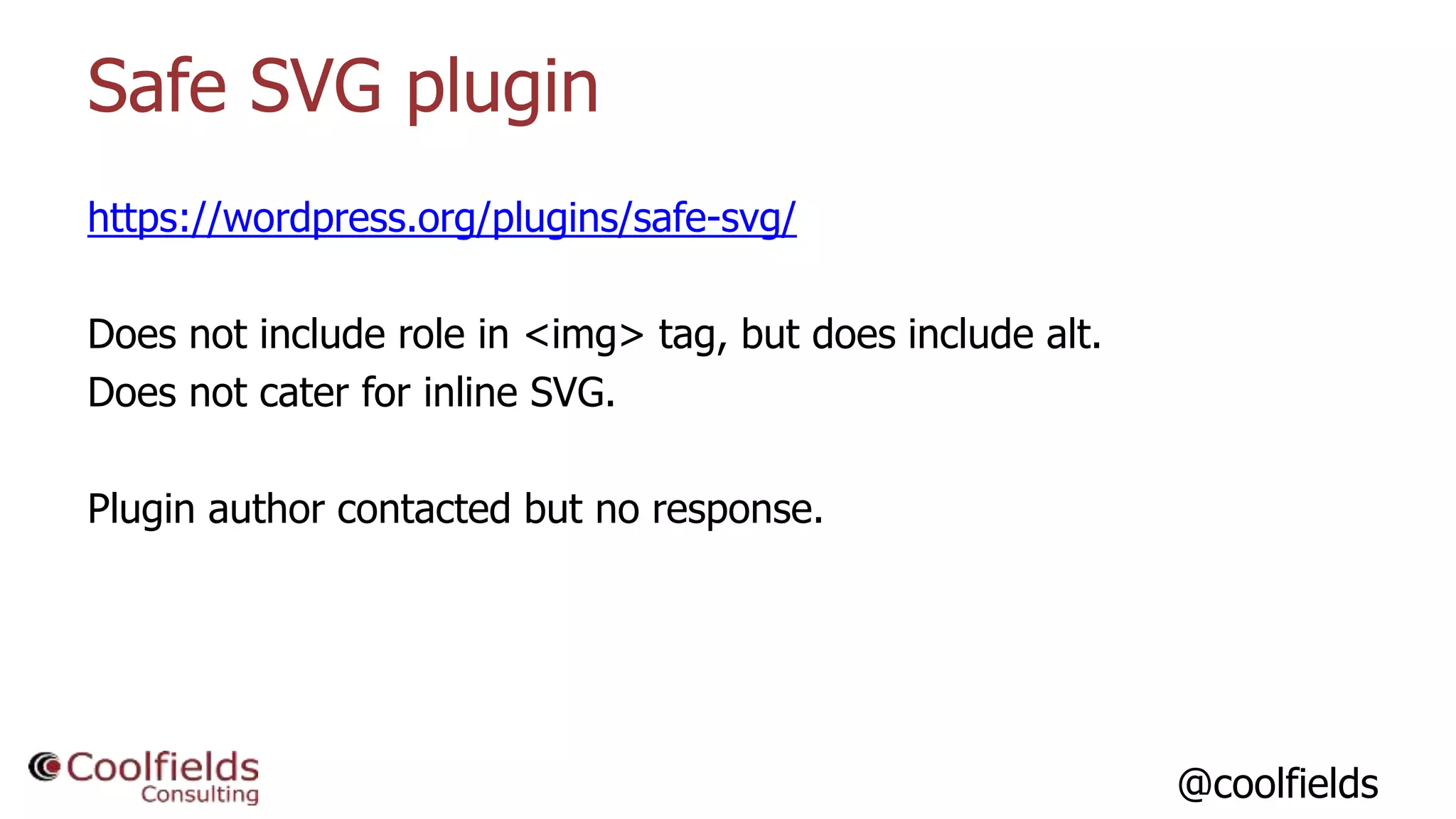

Safe SVG plugin
https://wordpress.org/plugins/safe-svg/
Does not include role in <img> tag, but does include alt.
Does not cater for inline SVG.
Plugin author contacted but no response.

@coolfields

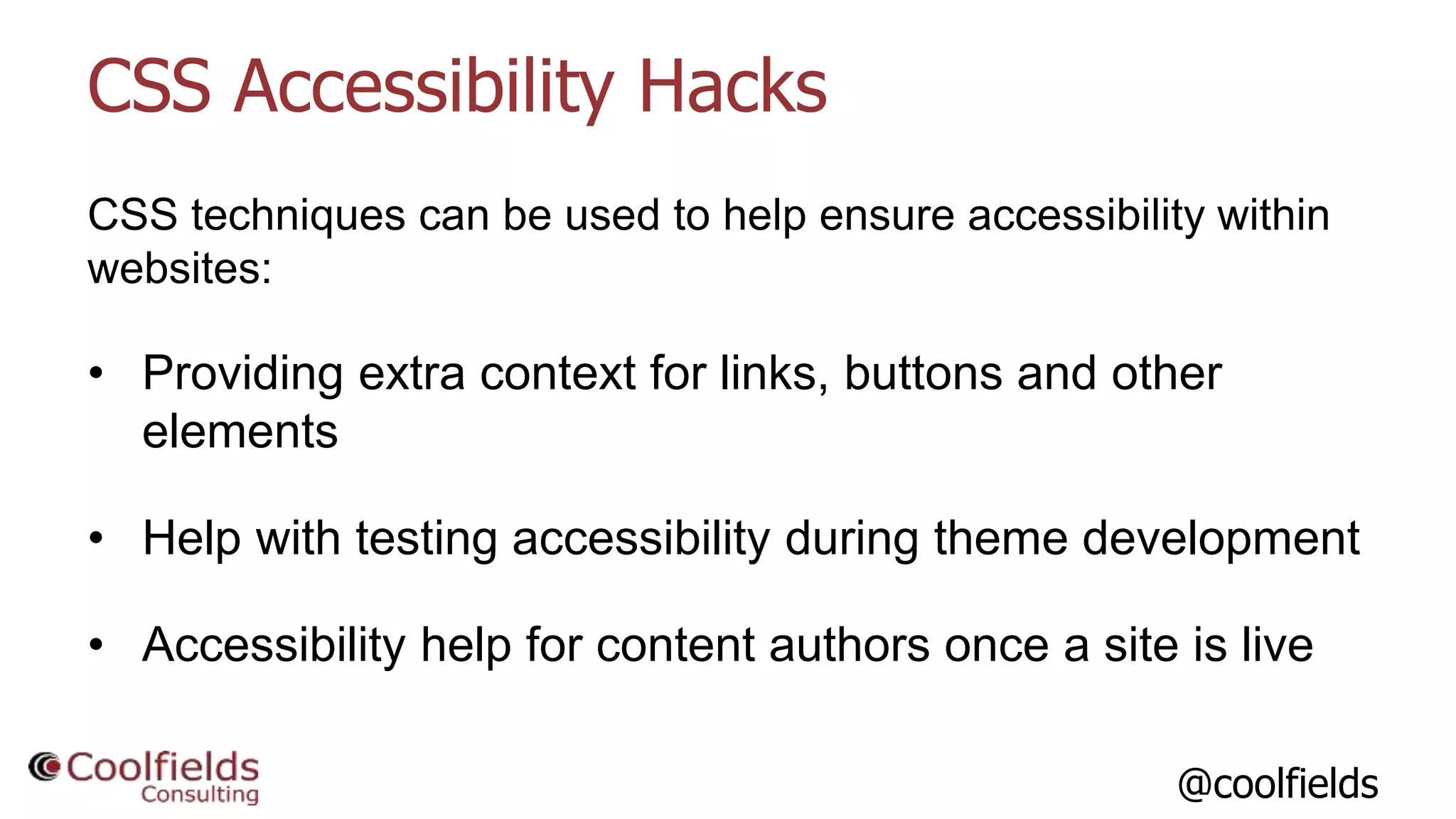

CSS Accessibility Hacks
CSS techniques can be used to help ensure accessibility within
websites:
• Providing extra context for links, buttons and other
elements
• Help with testing accessibility during theme development
• Accessibility help for content authors once a site is live

@coolfields

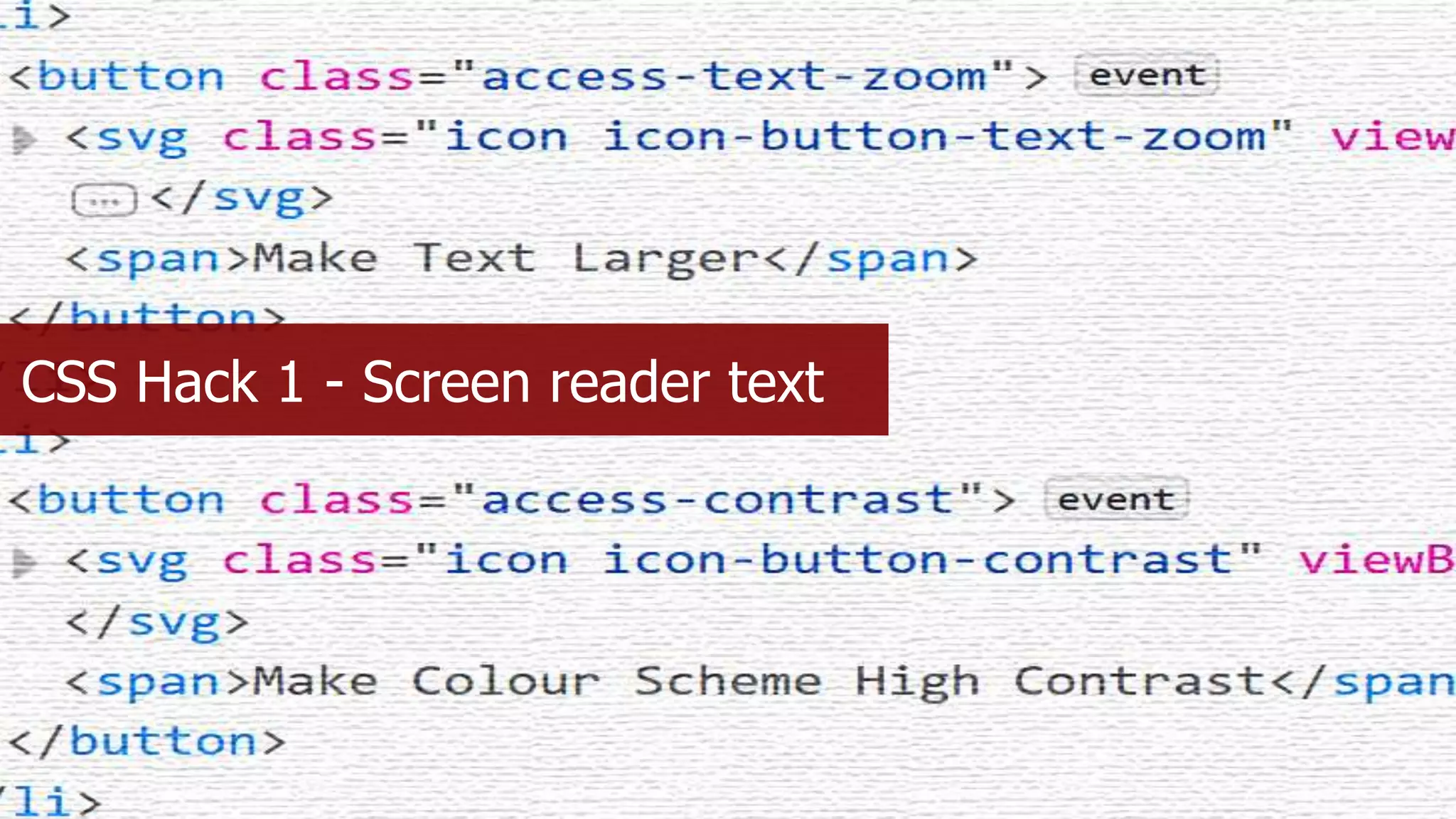

CSS Hack 1 - Screen reader text

@coolfields

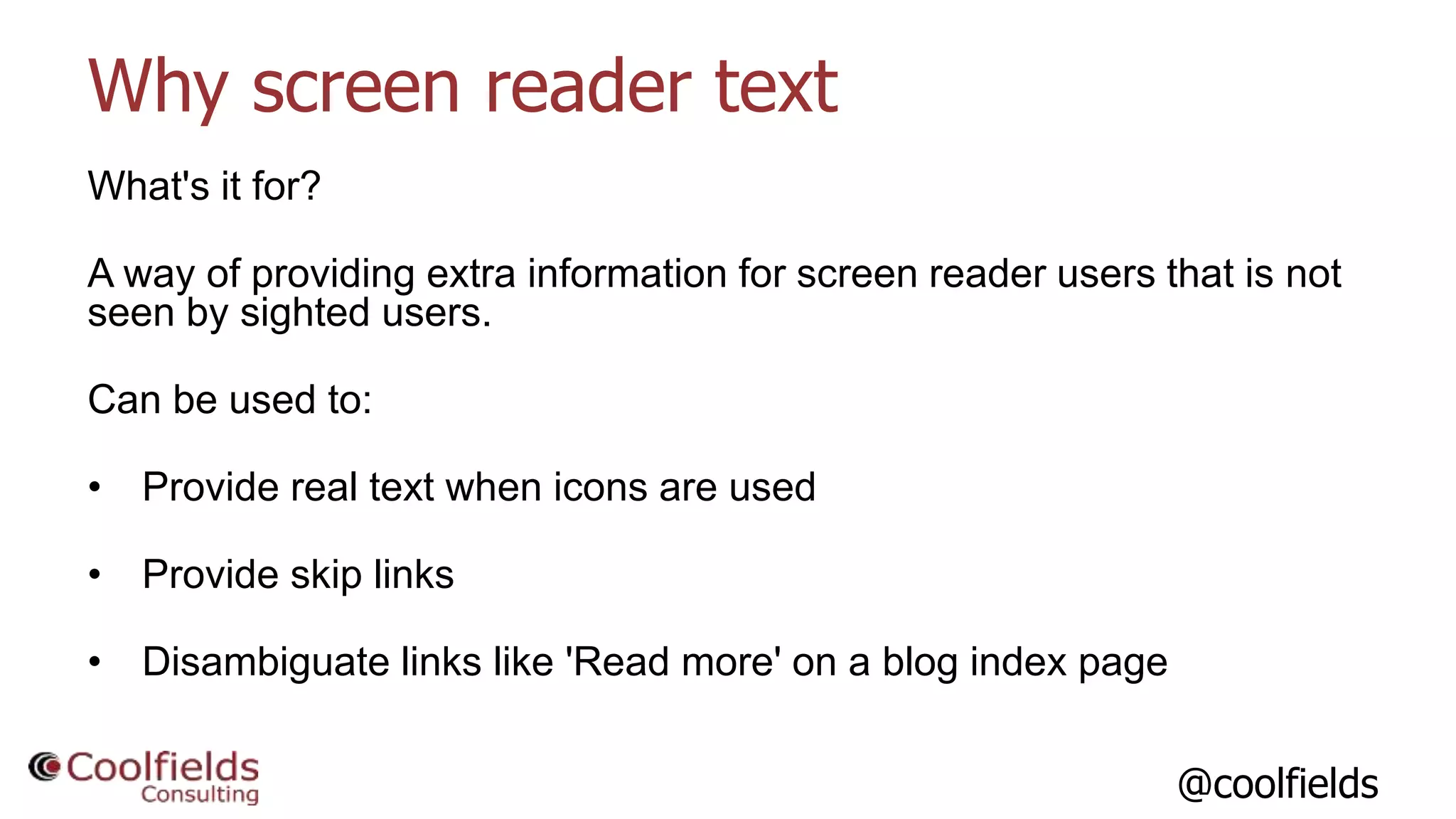

Why screen reader text
What's it for?
A way of providing extra information for screen reader users that is not
seen by sighted users.
Can be used to:
• Provide real text when icons are used
• Provide skip links
• Disambiguate links like 'Read more' on a blog index page

@coolfields

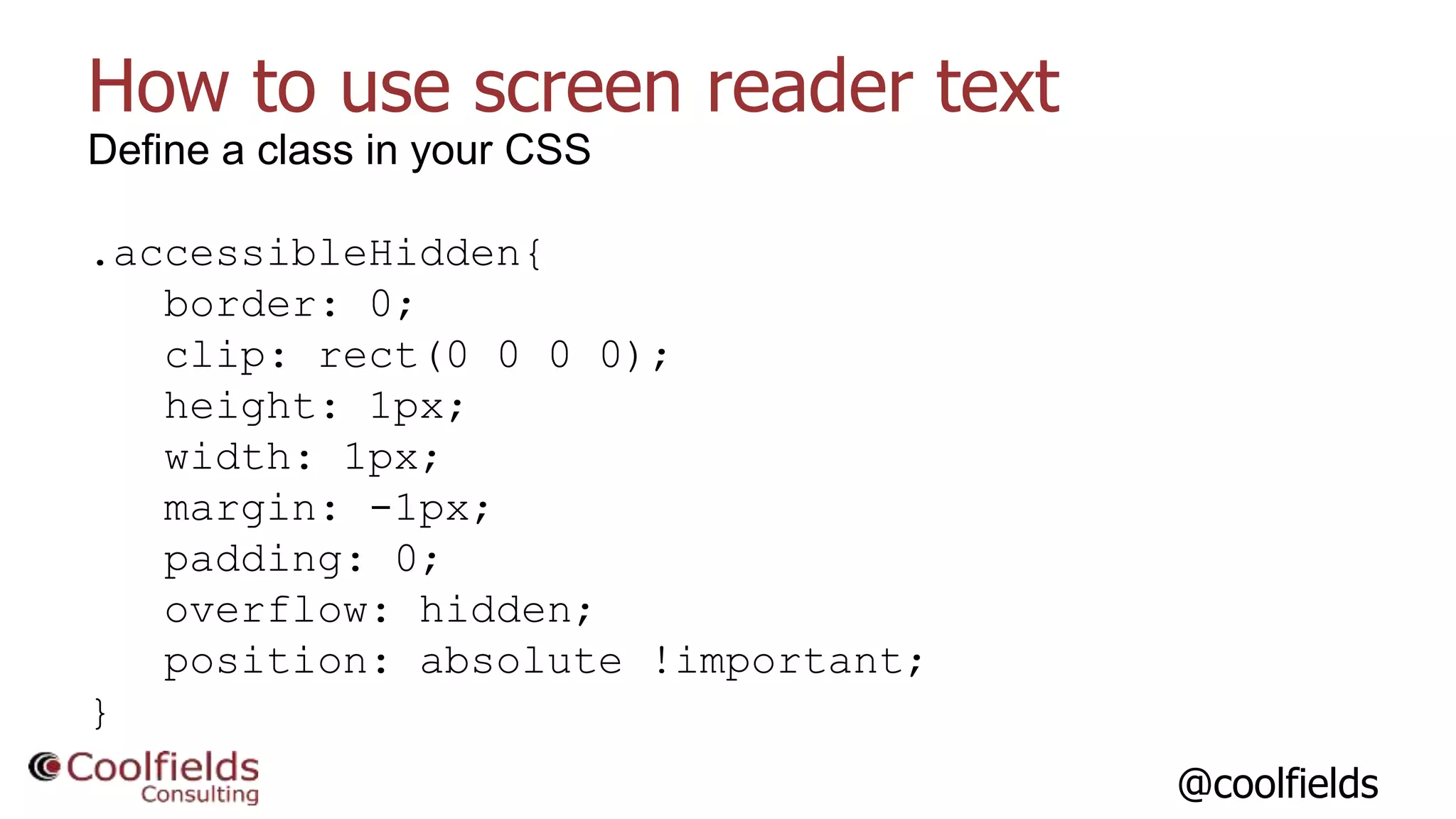

How to use screen reader text
Define a class in your CSS
.accessibleHidden{
border: 0;
clip: rect(0 0 0 0);
height: 1px;
width: 1px;
margin: -1px;
padding: 0;
overflow: hidden;
position: absolute !important;
}

@coolfields

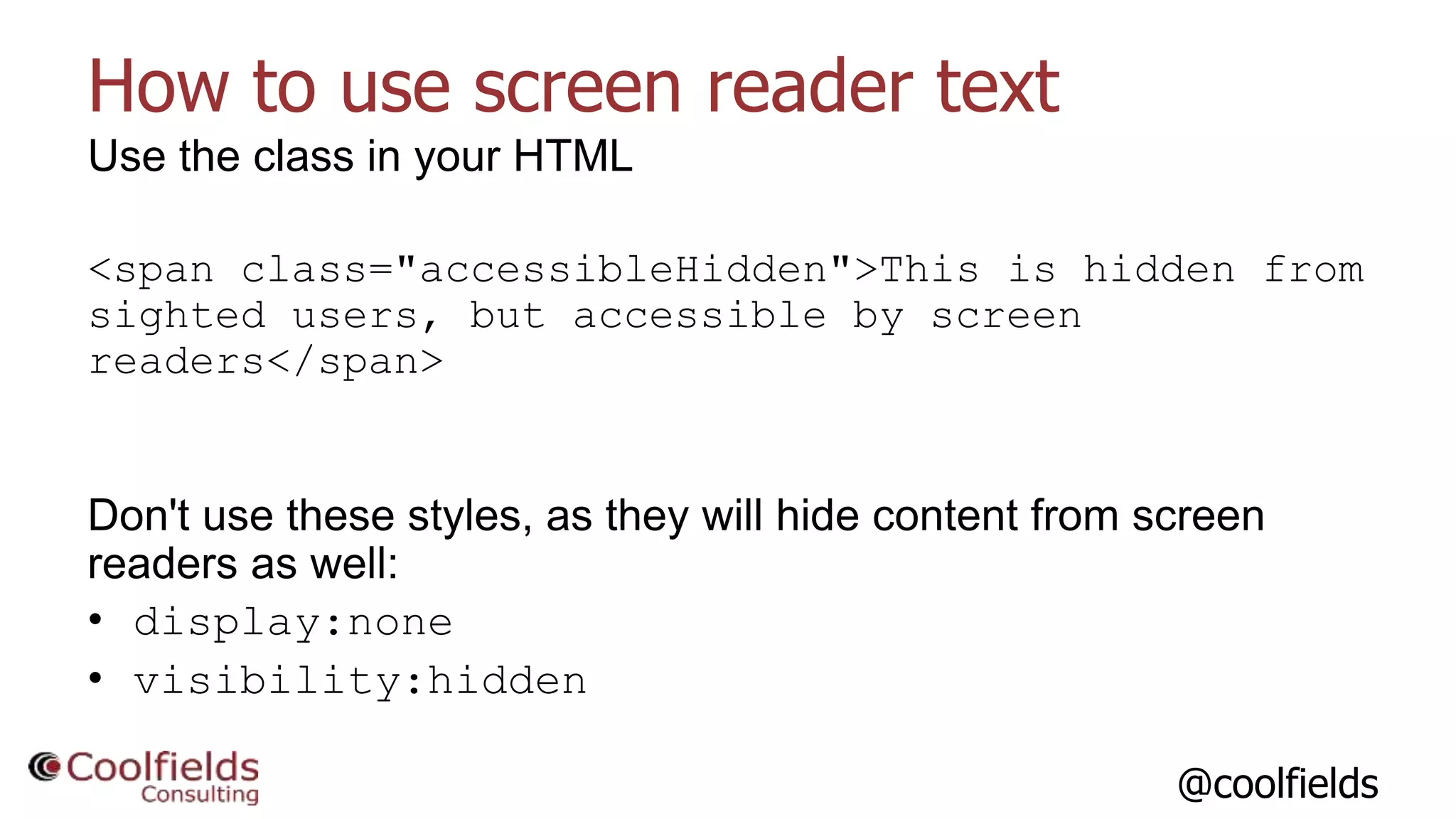

How to use screen reader text
Use the class in your HTML
<span class="accessibleHidden">This is hidden from
sighted users, but accessible by screen
readers</span>
Don't use these styles, as they will hide content from screen
readers as well:
• display:none
• visibility:hidden

@coolfields

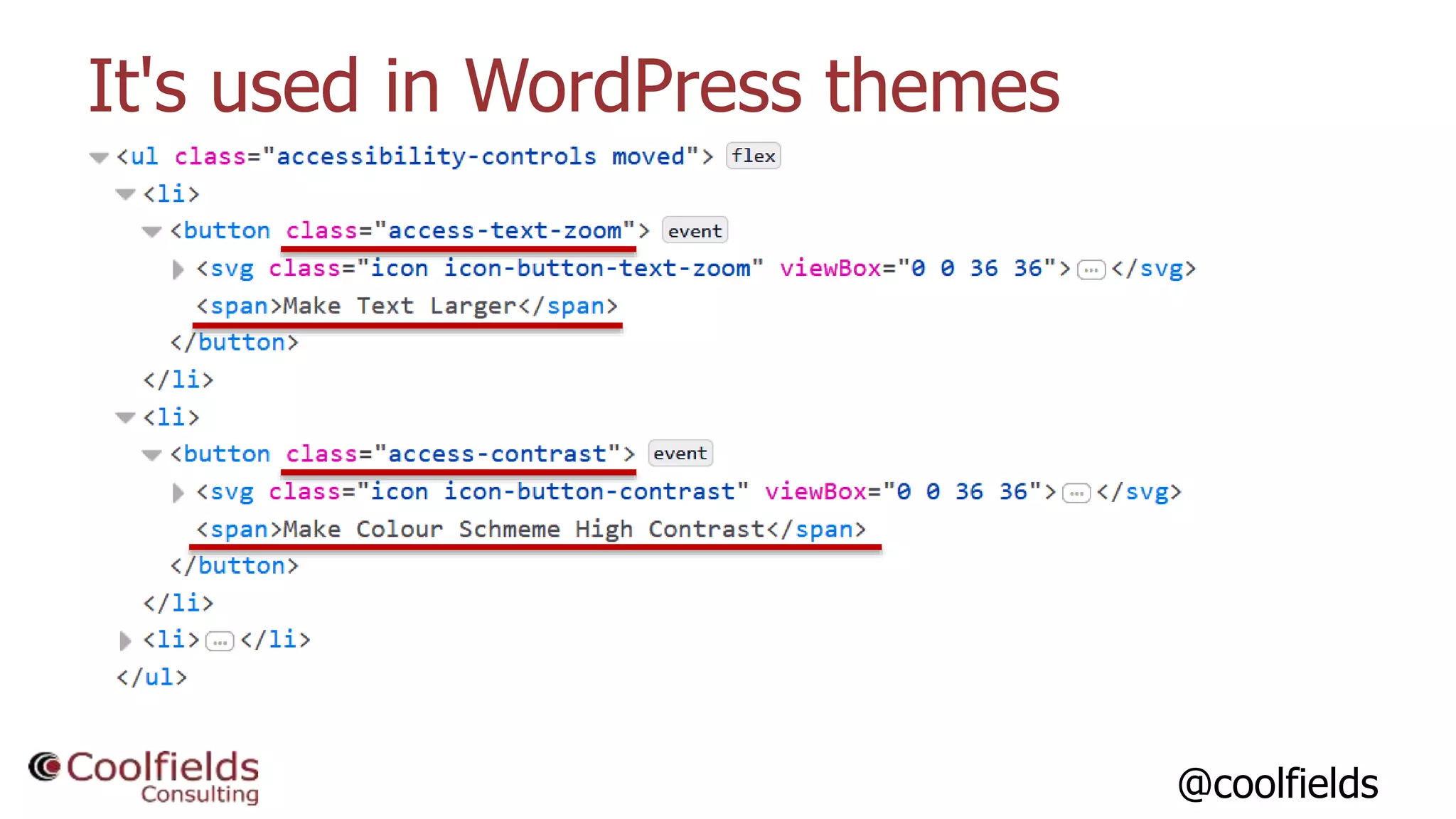

It's used in WordPress themes

@coolfields

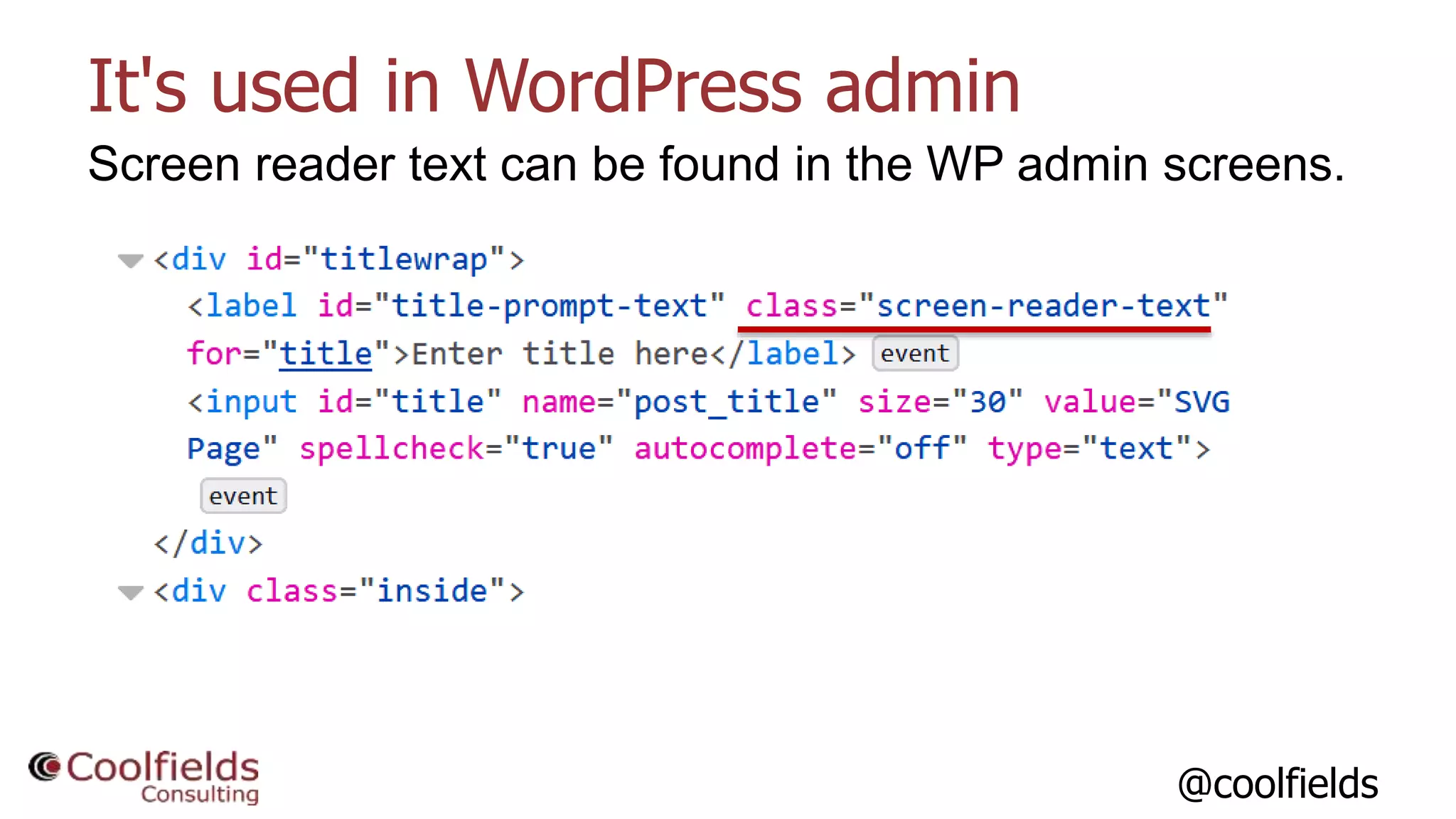

It's used in WordPress admin
Screen reader text can be found in the WP admin screens.

@coolfields

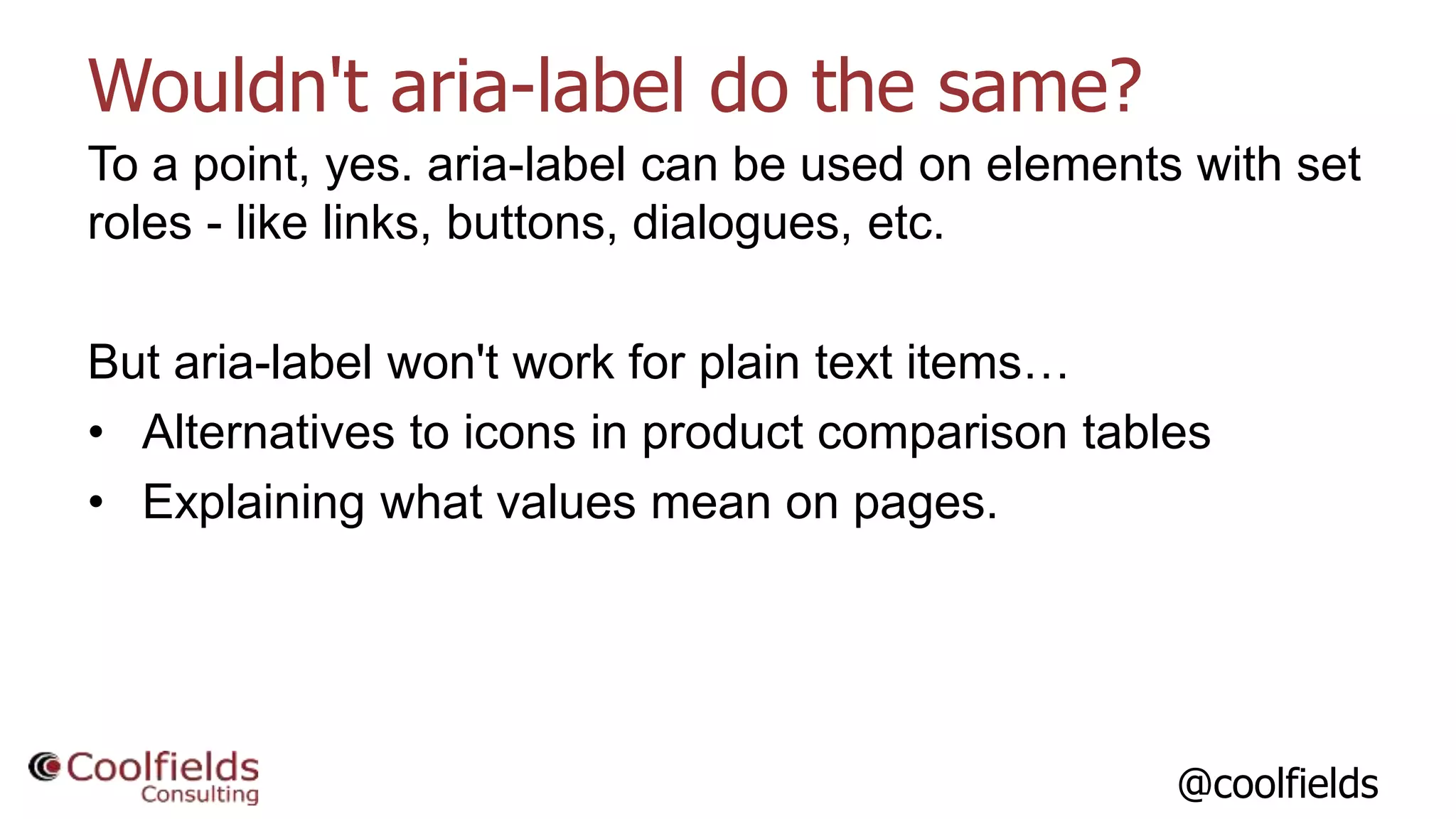

Wouldn't aria-label do the same?
To a point, yes. aria-label can be used on elements with set
roles - like links, buttons, dialogues, etc.
But aria-label won't work for plain text items…
• Alternatives to icons in product comparison tables
• Explaining what values mean on pages.

@coolfields32
CSS Hack 2 - Testing accessibility
during development

@coolfields

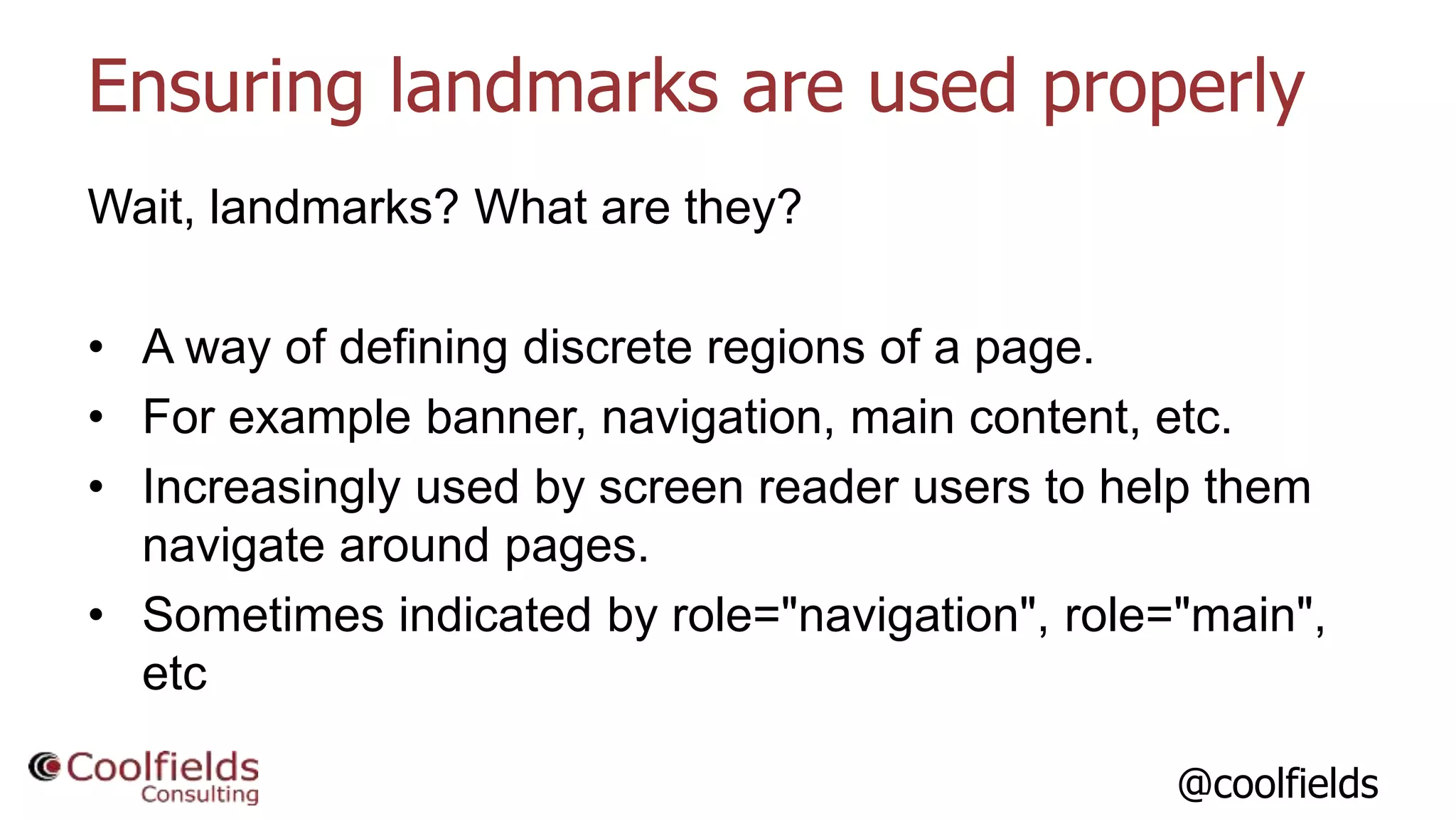

Ensuring landmarks are used properly
Wait, landmarks? What are they?
• A way of defining discrete regions of a page.
• For example banner, navigation, main content, etc.
• Increasingly used by screen reader users to help them
navigate around pages.
• Sometimes indicated by role="navigation", role="main",
etc

@coolfields

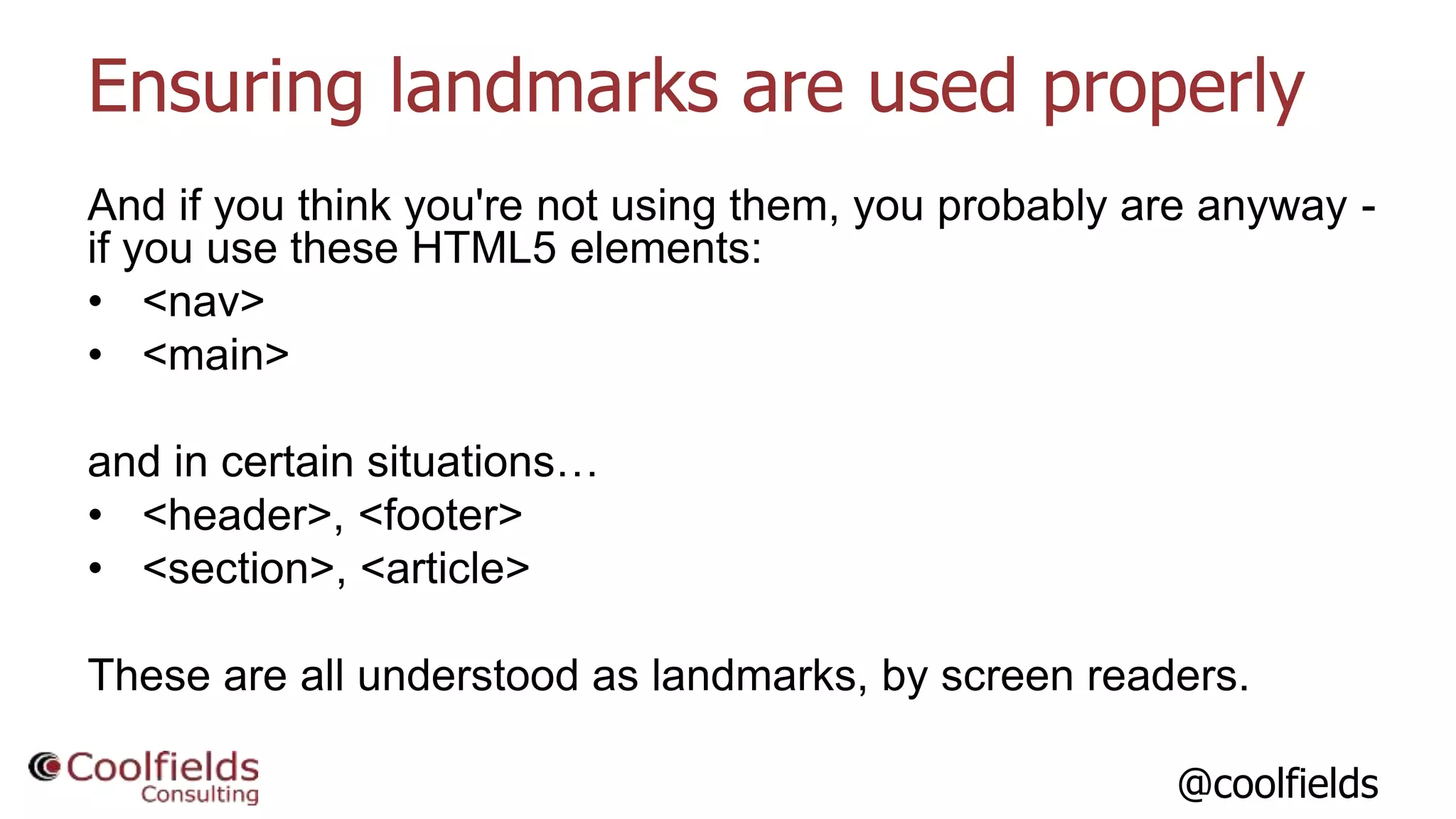

And if you think you're not using them, you probably are anyway -
if you use these HTML5 elements:
• <nav>
• <main>
and in certain situations…
• <header>, <footer>
• <section>, <article>
These are all understood as landmarks, by screen readers.

@coolfields

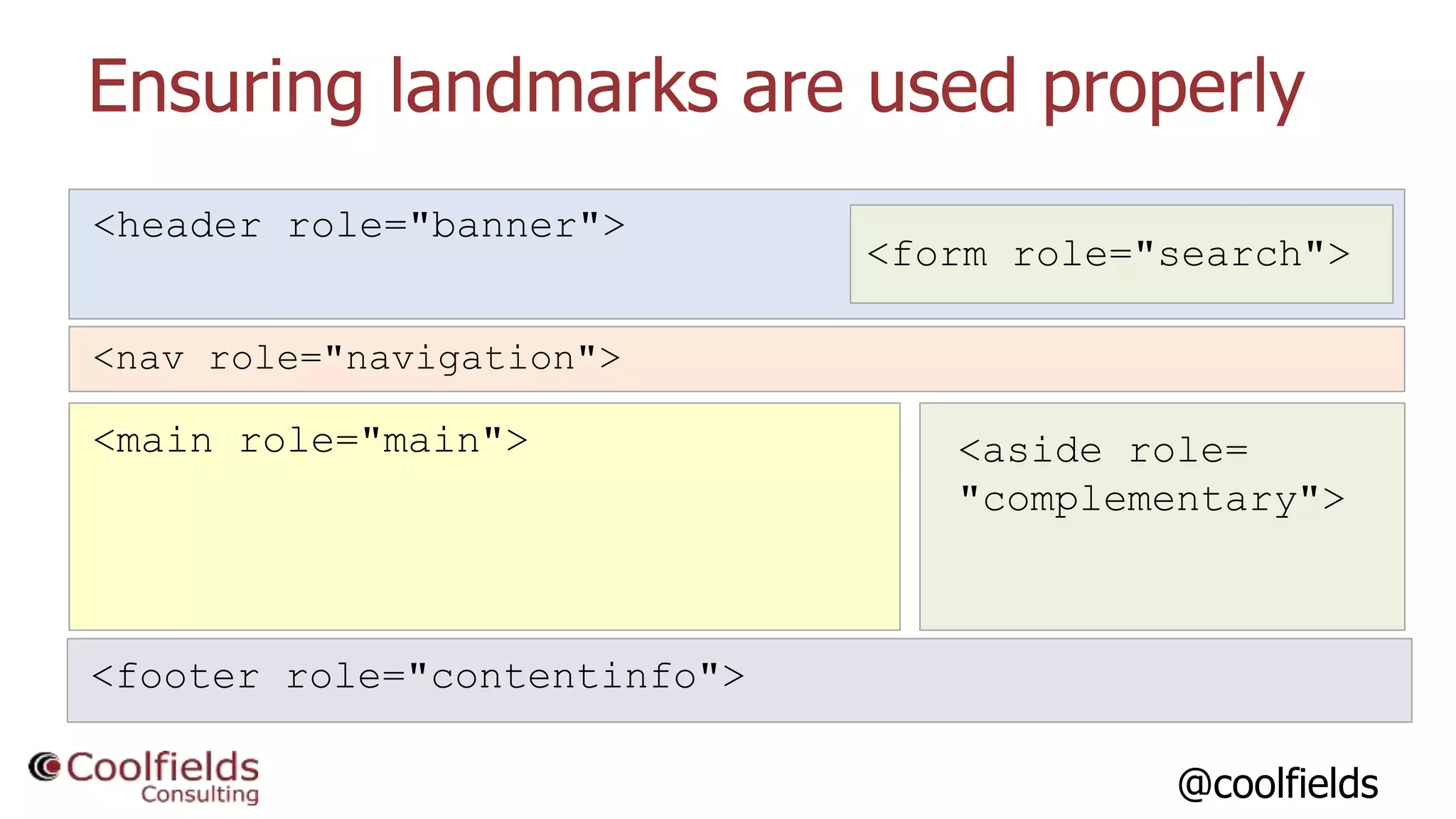

<header role="banner">
<nav role="navigation">
<footer role="contentinfo">
<main role="main"> <aside role=
"complementary">
<form role="search">

@coolfields

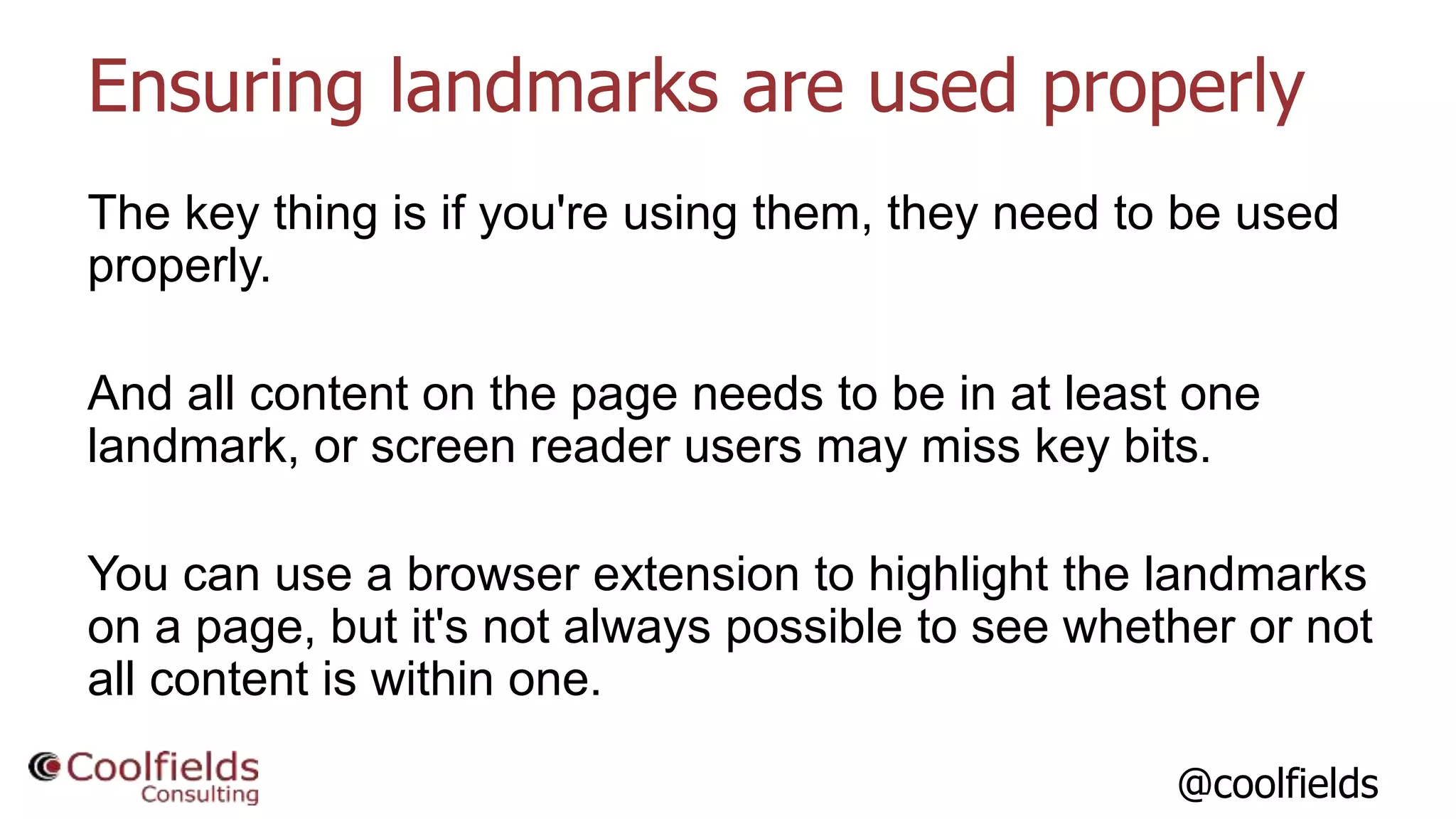

The key thing is if you're using them, they need to be used
properly.
And all content on the page needs to be in at least one
landmark, or screen reader users may miss key bits.
You can use a browser extension to highlight the landmarks
on a page, but it's not always possible to see whether or not
all content is within one.

@coolfields

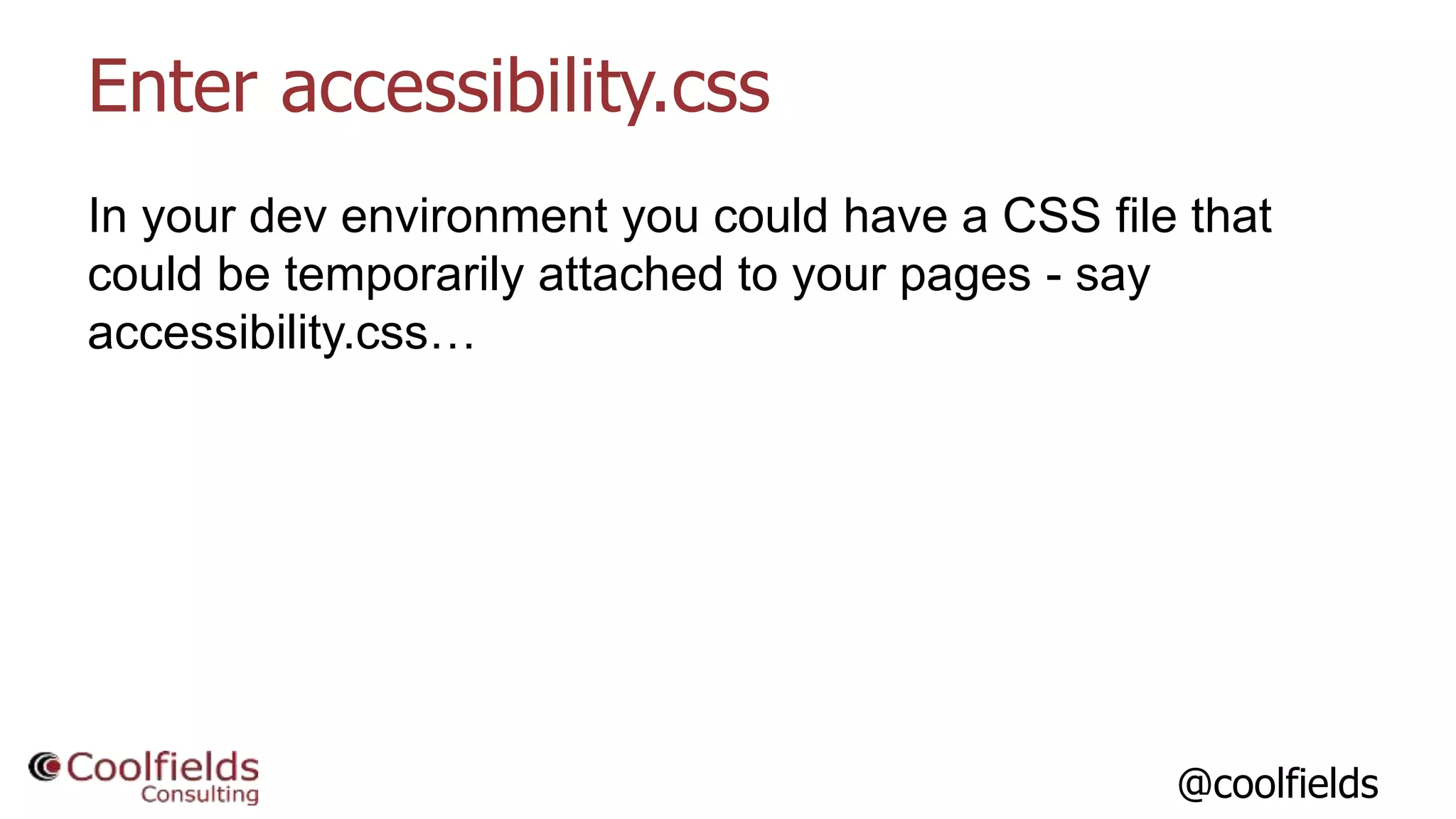

Enter accessibility.css
In your dev environment you could have a CSS file that
could be temporarily attached to your pages - say
accessibility.css…

@coolfields

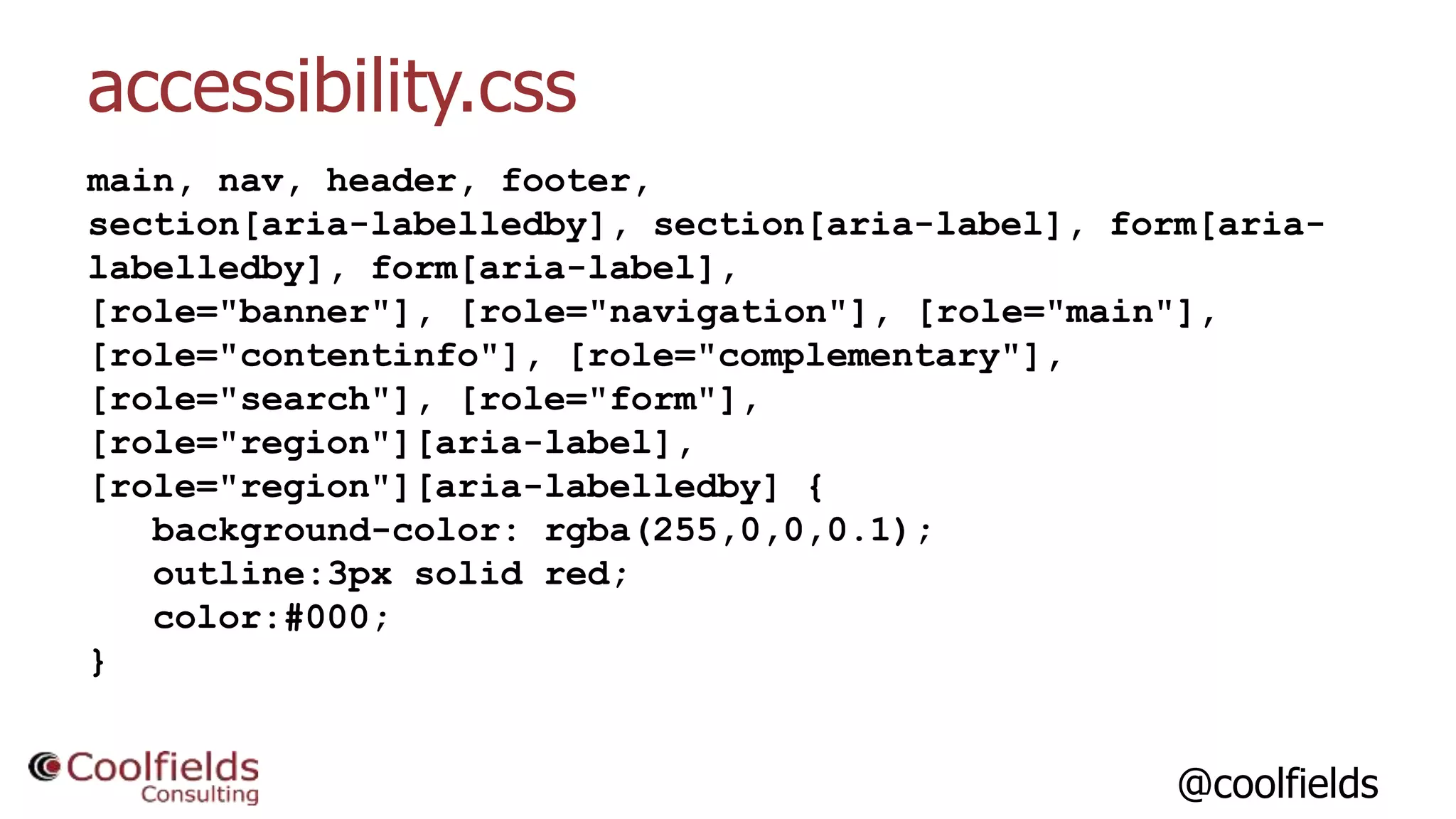

accessibility.css
main, nav, header, footer,
section[aria-labelledby], section[aria-label], form[aria-
labelledby], form[aria-label],
[role="banner"], [role="navigation"], [role="main"],
[role="contentinfo"], [role="complementary"],
[role="search"], [role="form"],
[role="region"][aria-label],
[role="region"][aria-labelledby] {
background-color: rgba(255,0,0,0.1);
outline:3px solid red;
color:#000;
}

@coolfields

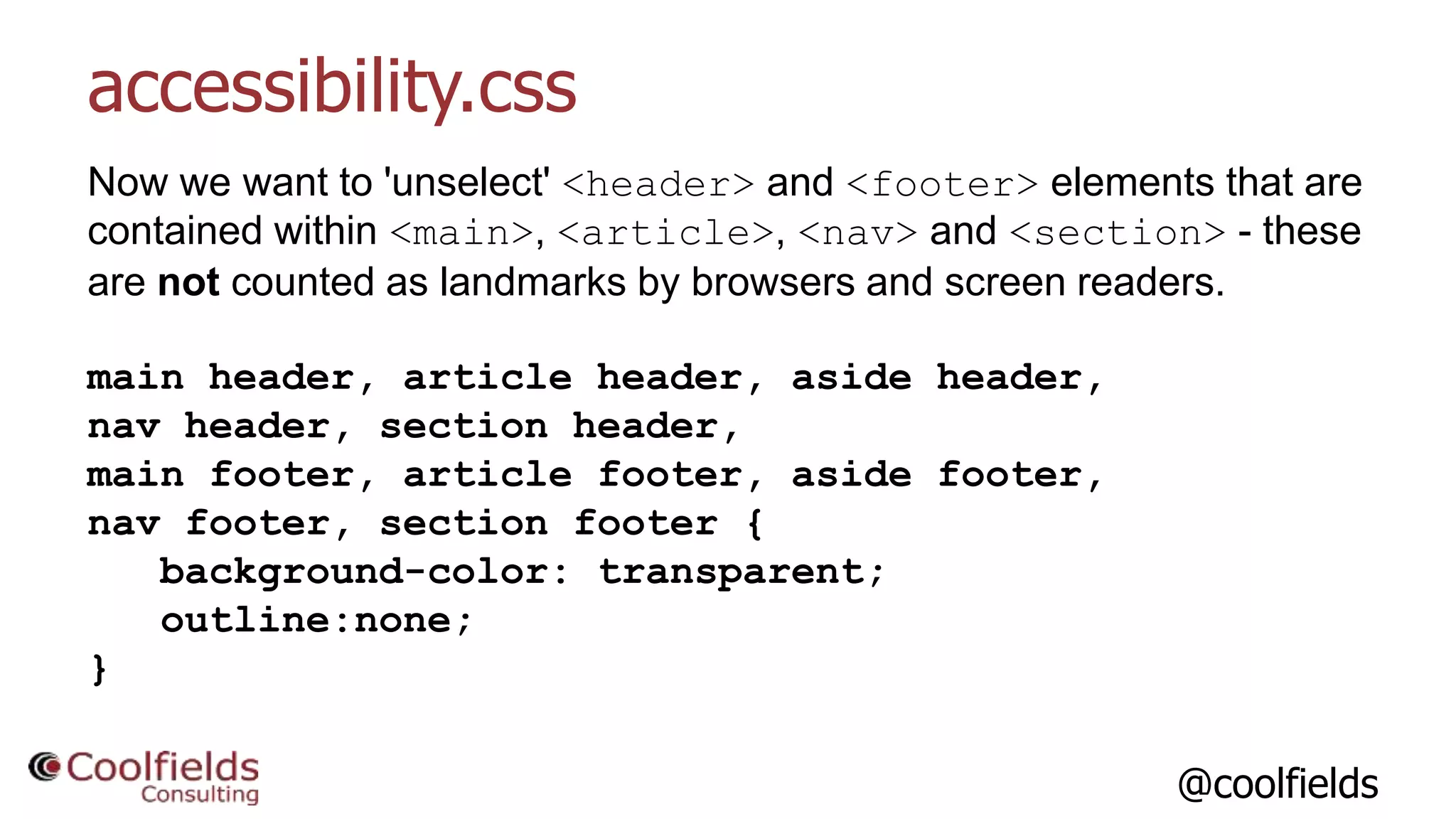

accessibility.css
Now we want to 'unselect' <header> and <footer> elements that are
contained within <main>, <article>, <nav> and <section> - these
are not counted as landmarks by browsers and screen readers.
main header, article header, aside header,
nav header, section header,
main footer, article footer, aside footer,
nav footer, section footer {
background-color: transparent;
outline:none;
}

@coolfields

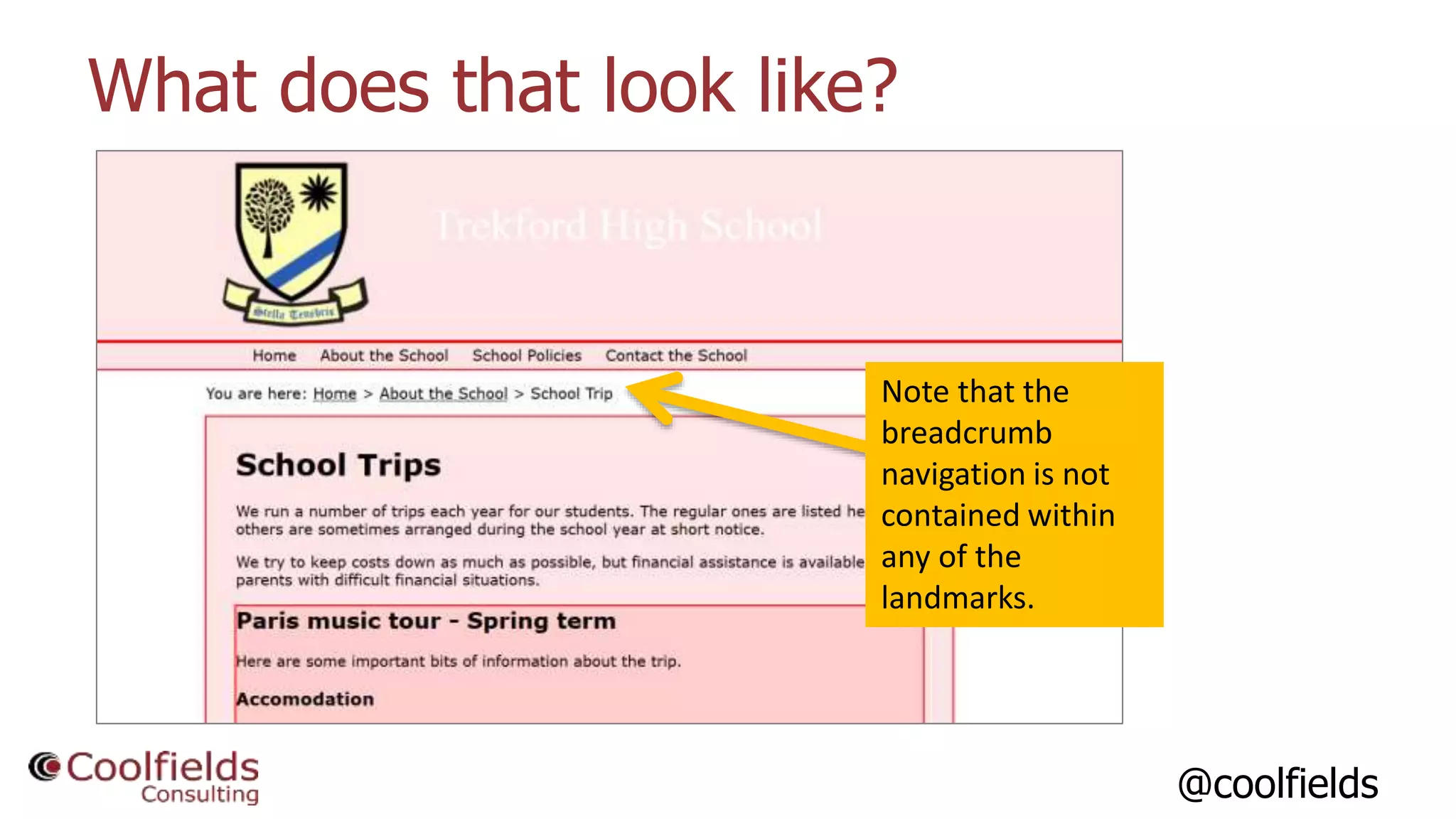

What does that look like?
Note that the
breadcrumb
navigation is not
contained within
any of the
landmarks.

@coolfields

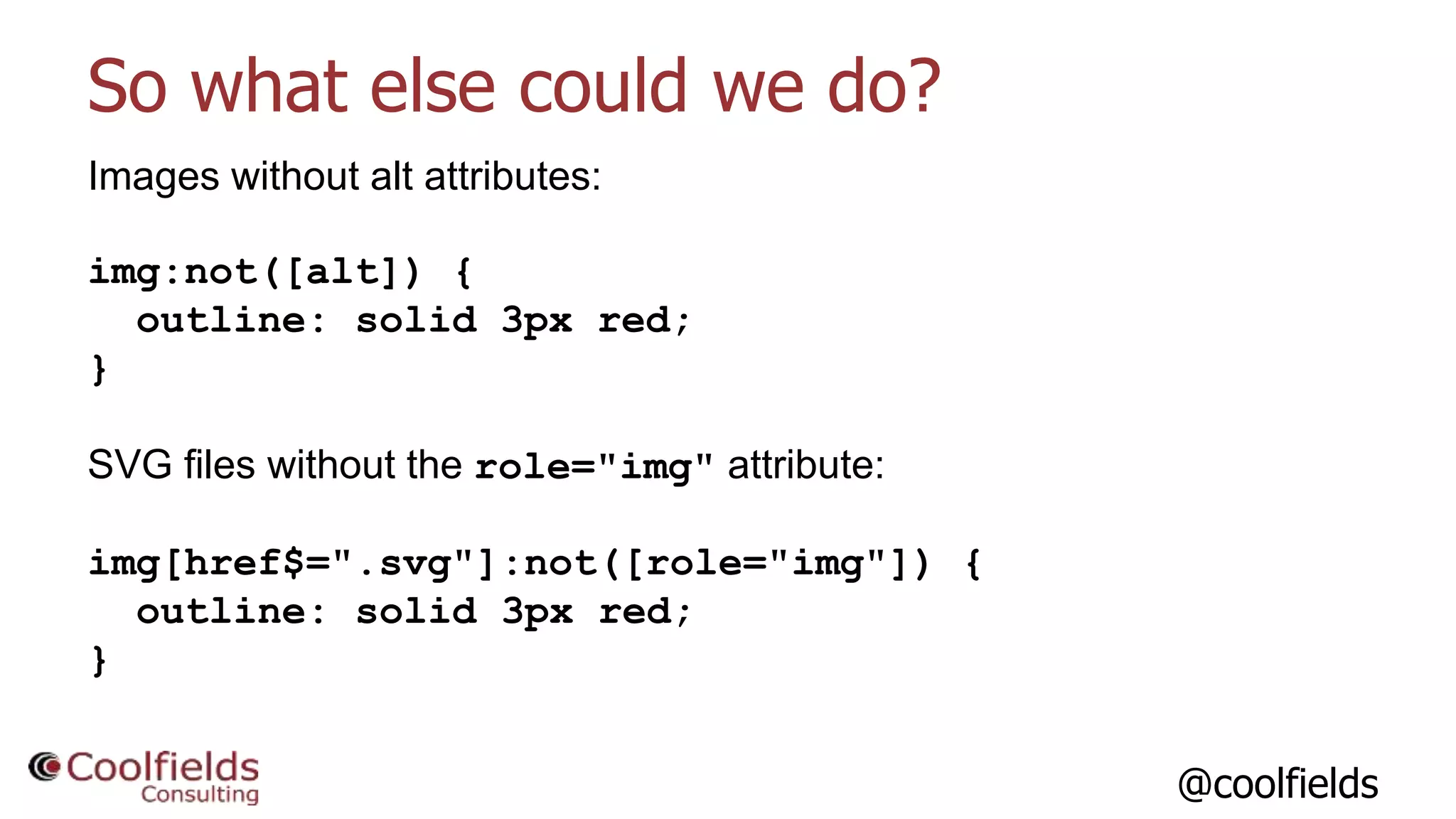

So what else could we do?
Images without alt attributes:
img:not([alt]) {
outline: solid 3px red;
}
SVG files without the role="img" attribute:
img[href$=".svg"]:not([role="img"]) {
}

@coolfields

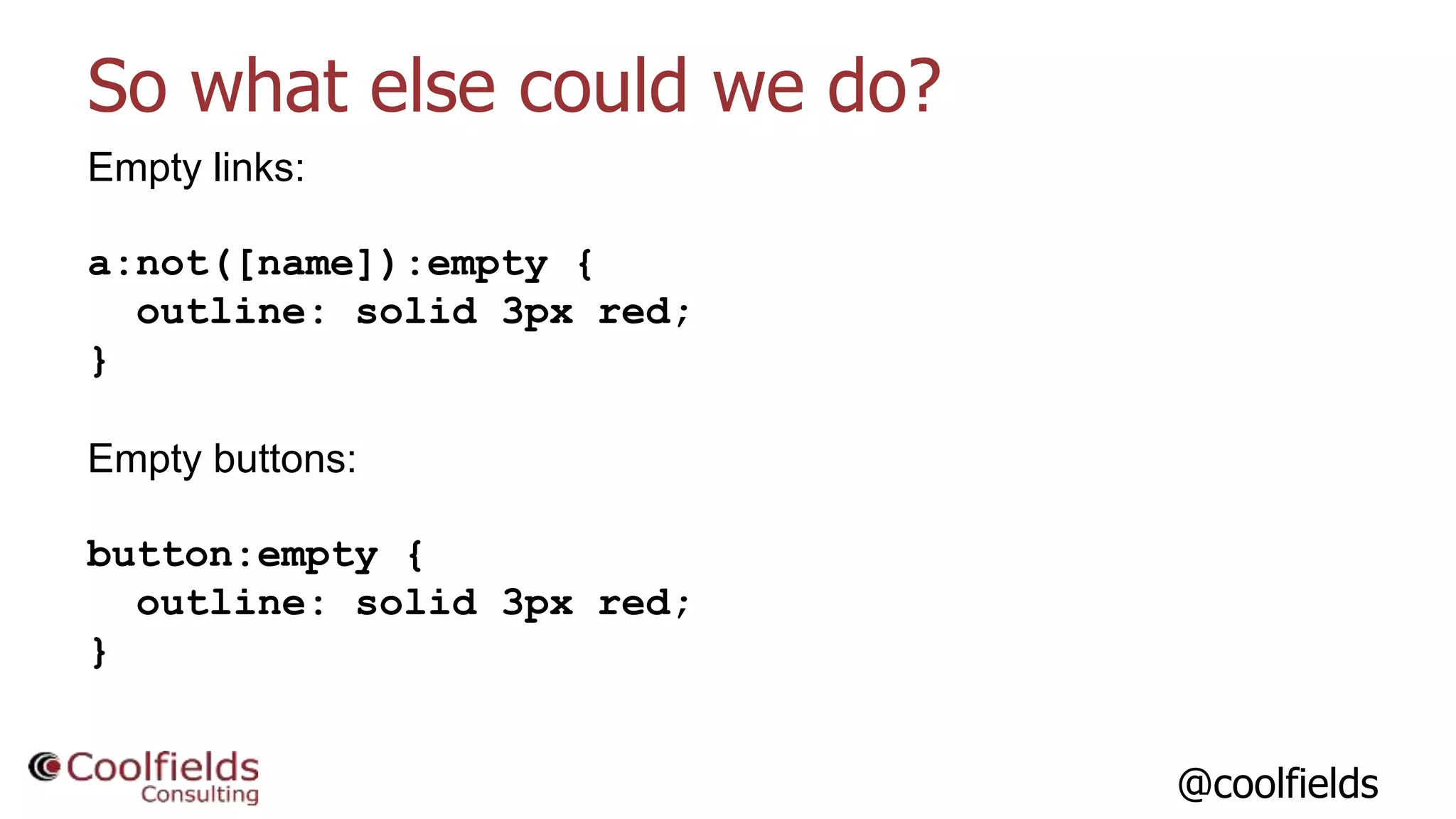

Empty links:
a:not([name]):empty {
}
Empty buttons:
button:empty {
}

@coolfields

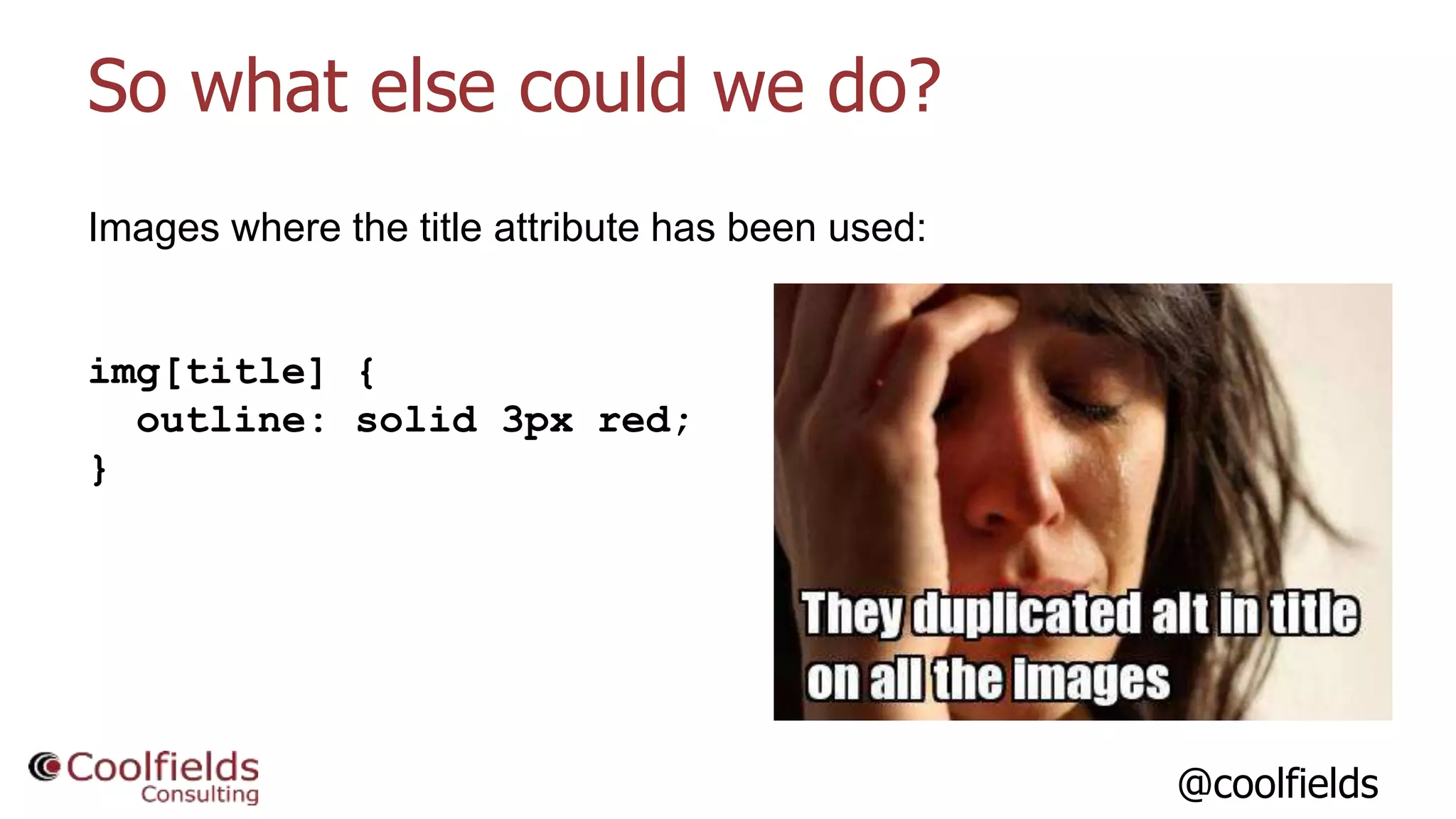

Images where the title attribute has been used:
img[title] {
}

@coolfields

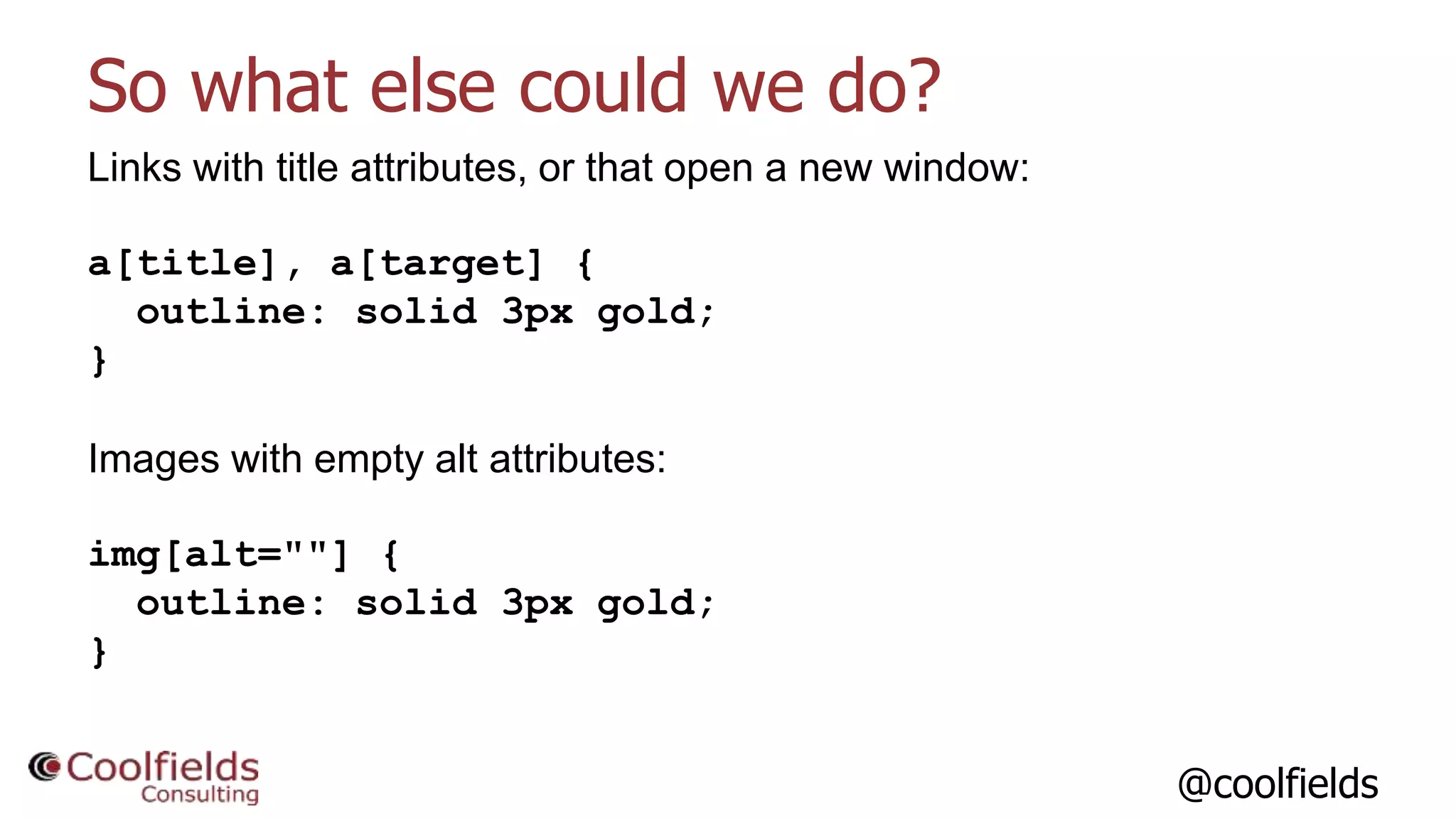

Links with title attributes, or that open a new window:
a[title], a[target] {
outline: solid 3px gold;
}
Images with empty alt attributes:
img[alt=""] {
}

@coolfields

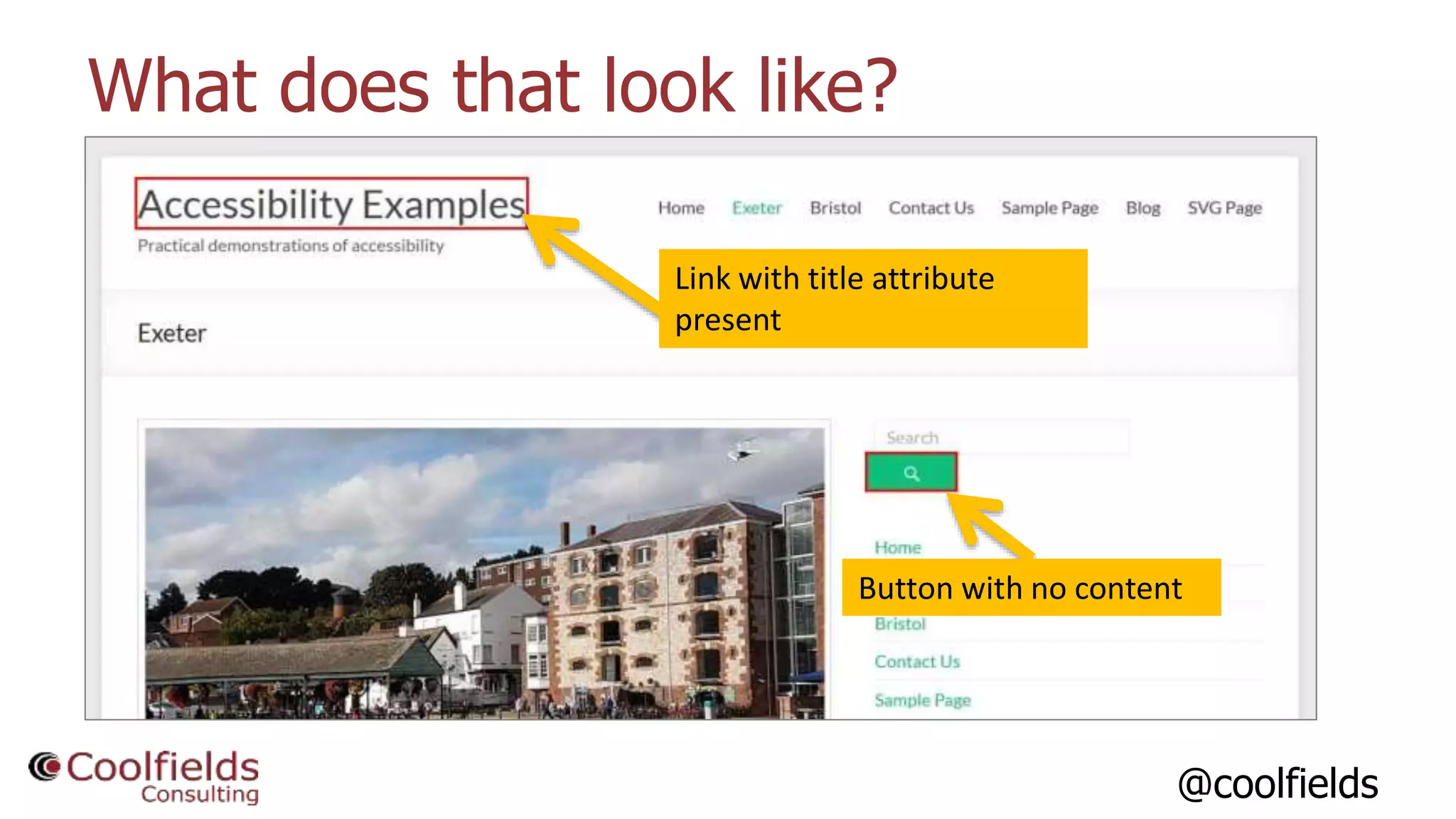

What does that look like?
Link with title attribute
present
Button with no content

@coolfields46
CSS Hack 3 - Helping your
content authors get things right

@coolfields

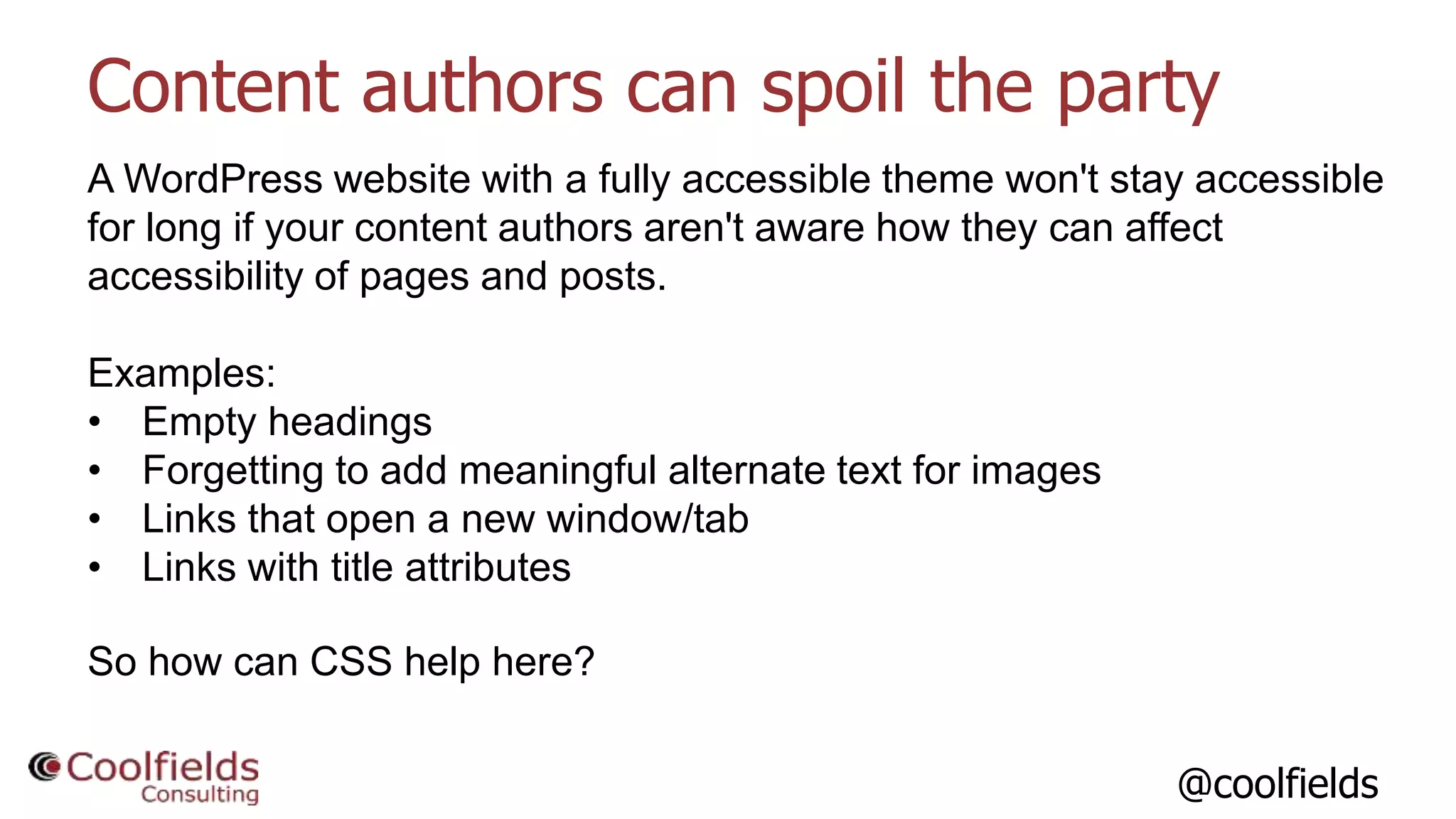

Content authors can spoil the party
A WordPress website with a fully accessible theme won't stay accessible
for long if your content authors aren't aware how they can affect
accessibility of pages and posts.
Examples:
• Empty headings
• Forgetting to add meaningful alternate text for images
• Links that open a new window/tab
• Links with title attributes
So how can CSS help here?

@coolfields

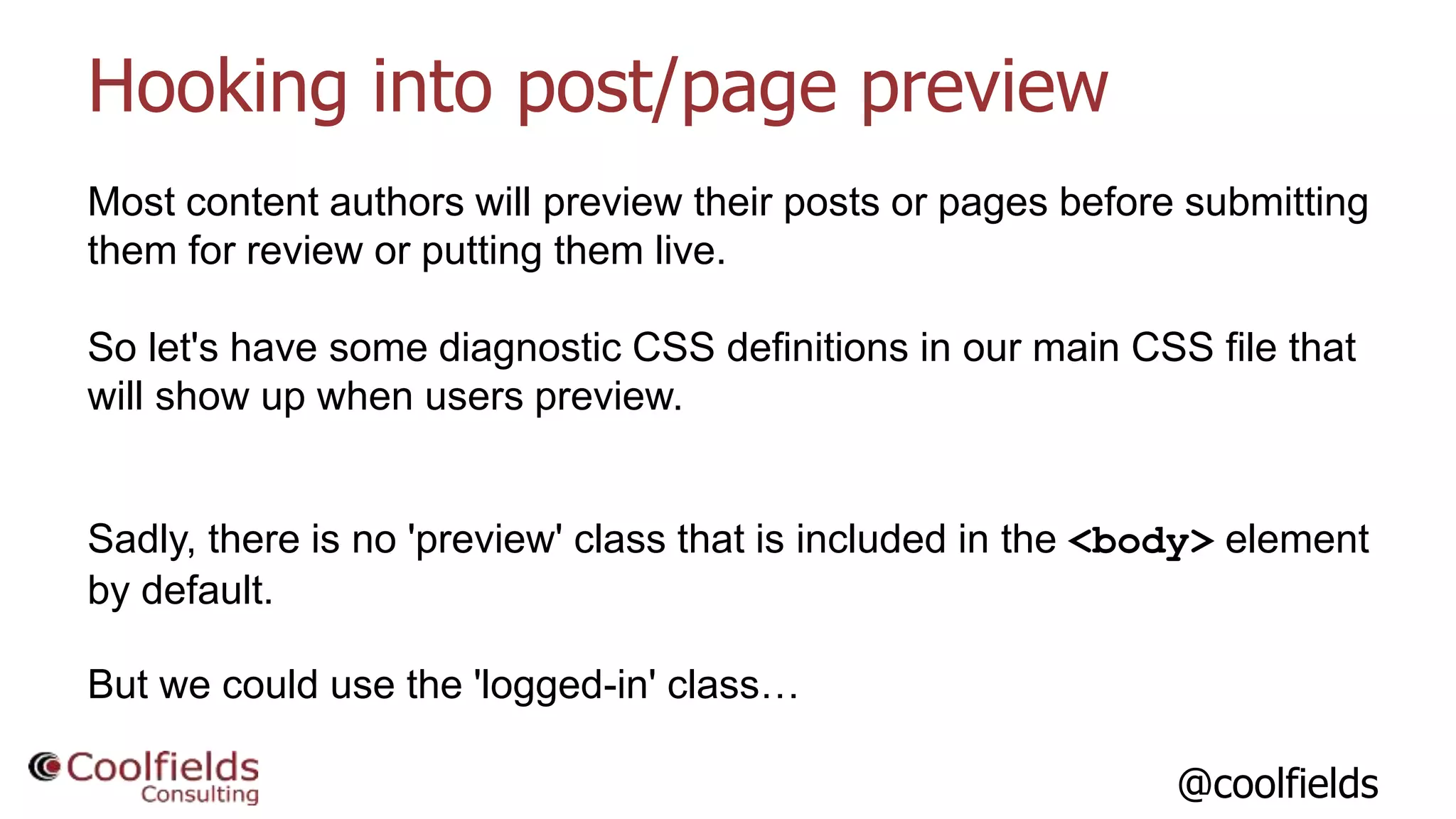

Hooking into post/page preview
Most content authors will preview their posts or pages before submitting
them for review or putting them live.
So let's have some diagnostic CSS definitions in our main CSS file that
will show up when users preview.
Sadly, there is no 'preview' class that is included in the <body> element
by default.
But we could use the 'logged-in' class…

@coolfields

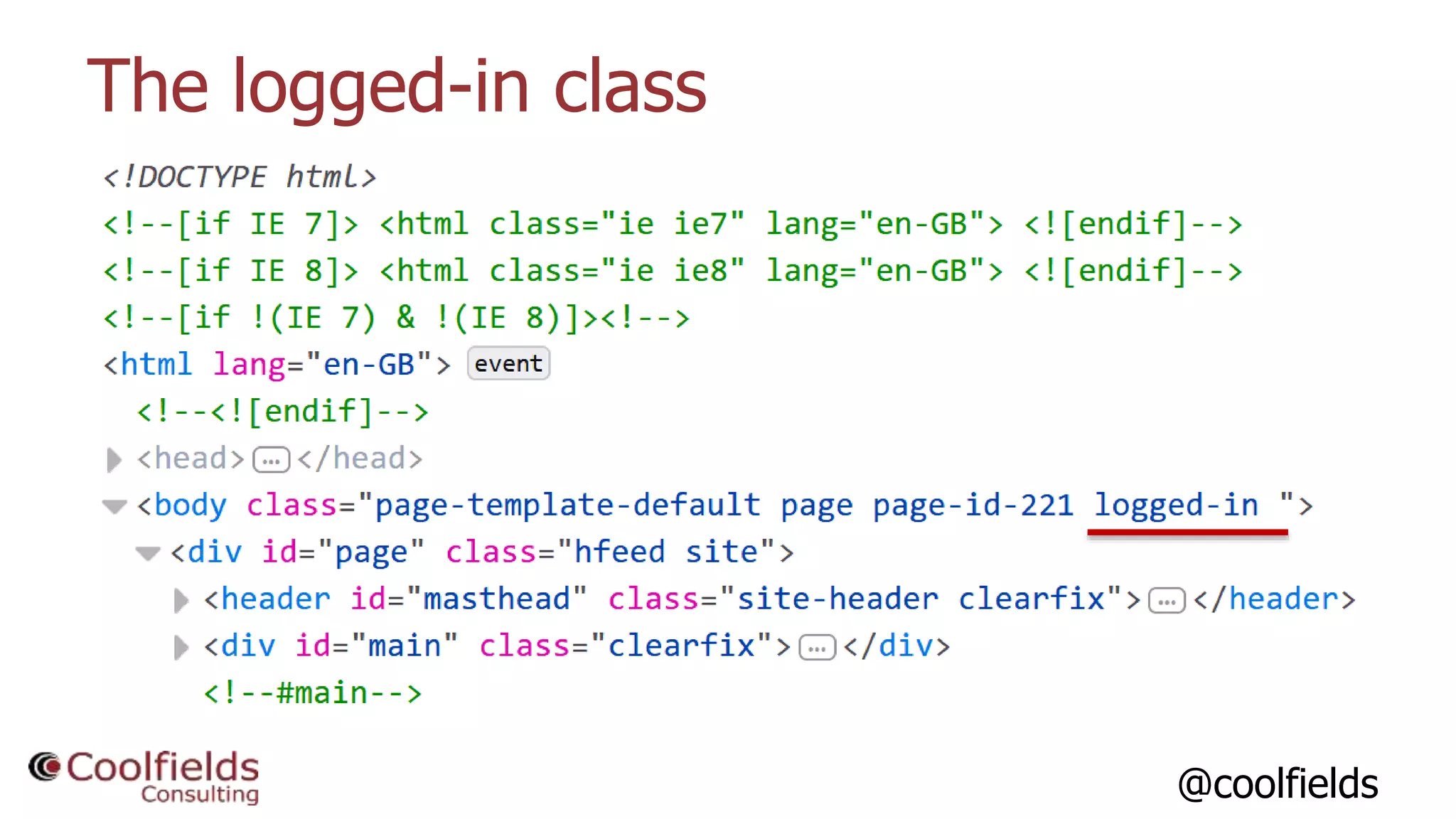

The logged-in class

@coolfields

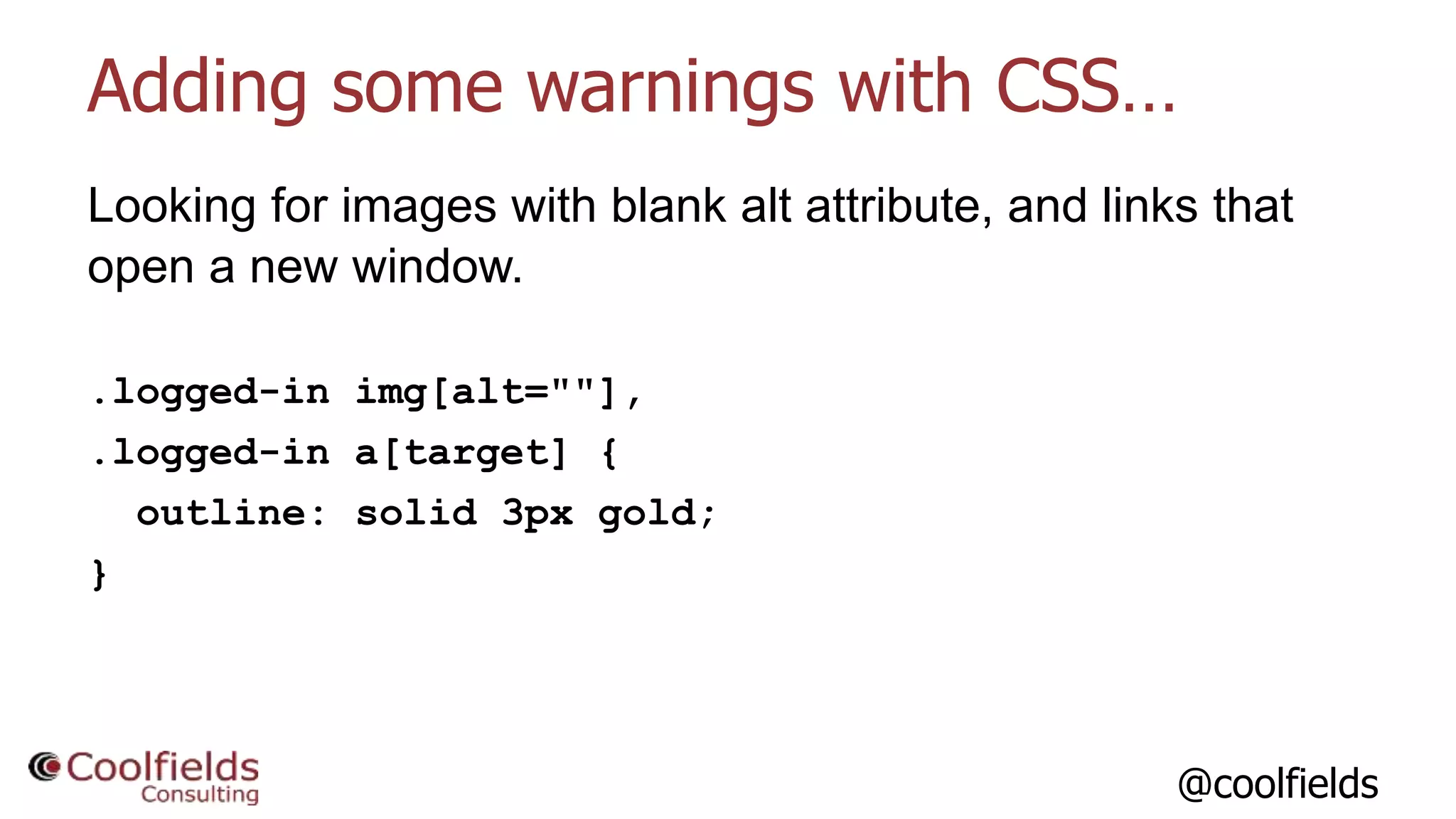

Adding some warnings with CSS…
Looking for images with blank alt attribute, and links that
open a new window.
.logged-in img[alt=""],
.logged-in a[target] {
}

@coolfields

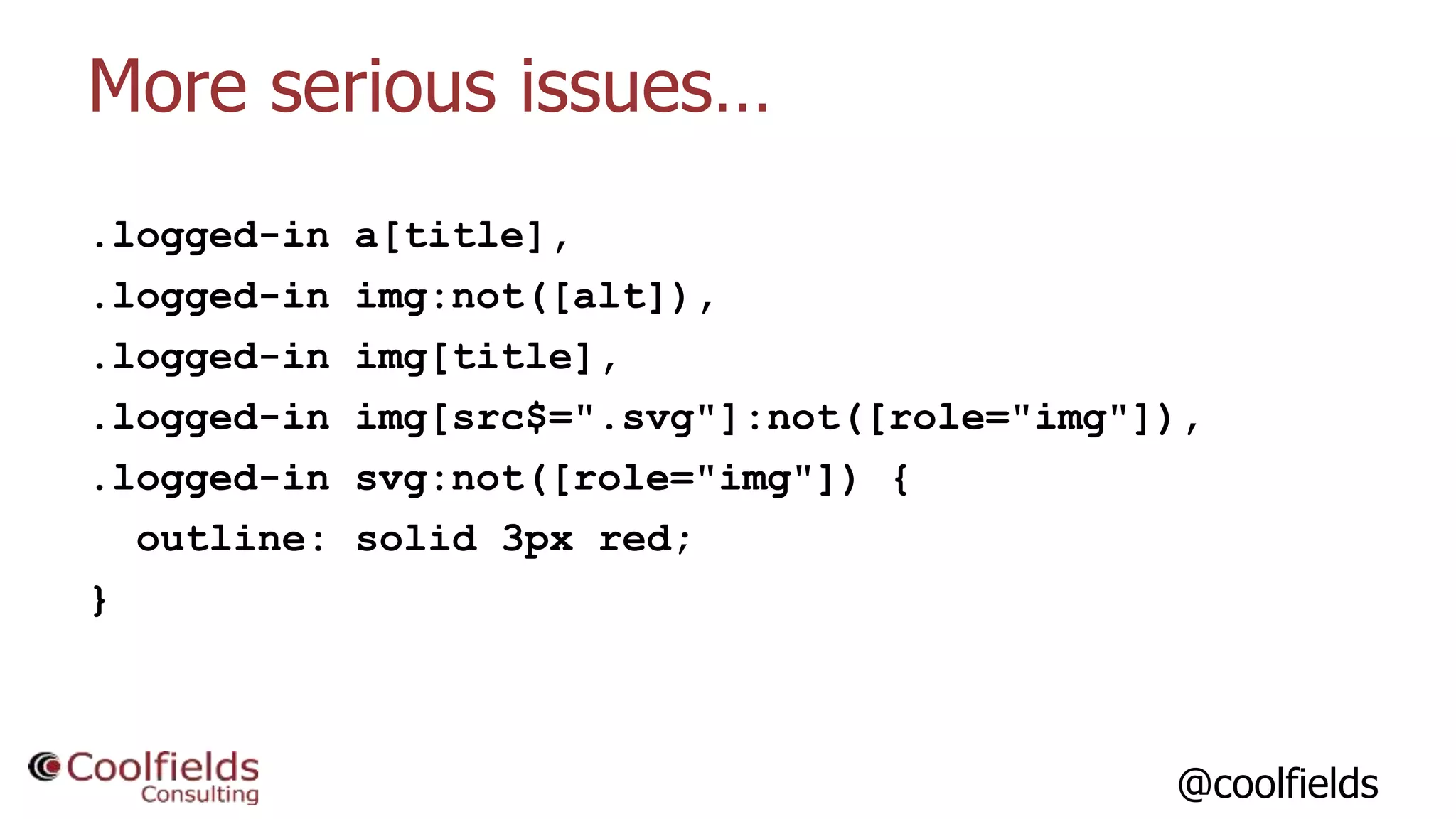

More serious issues…
.logged-in a[title],
.logged-in img:not([alt]),
.logged-in img[title],
.logged-in img[src$=".svg"]:not([role="img"]),
.logged-in svg:not([role="img"]) {
}

@coolfields

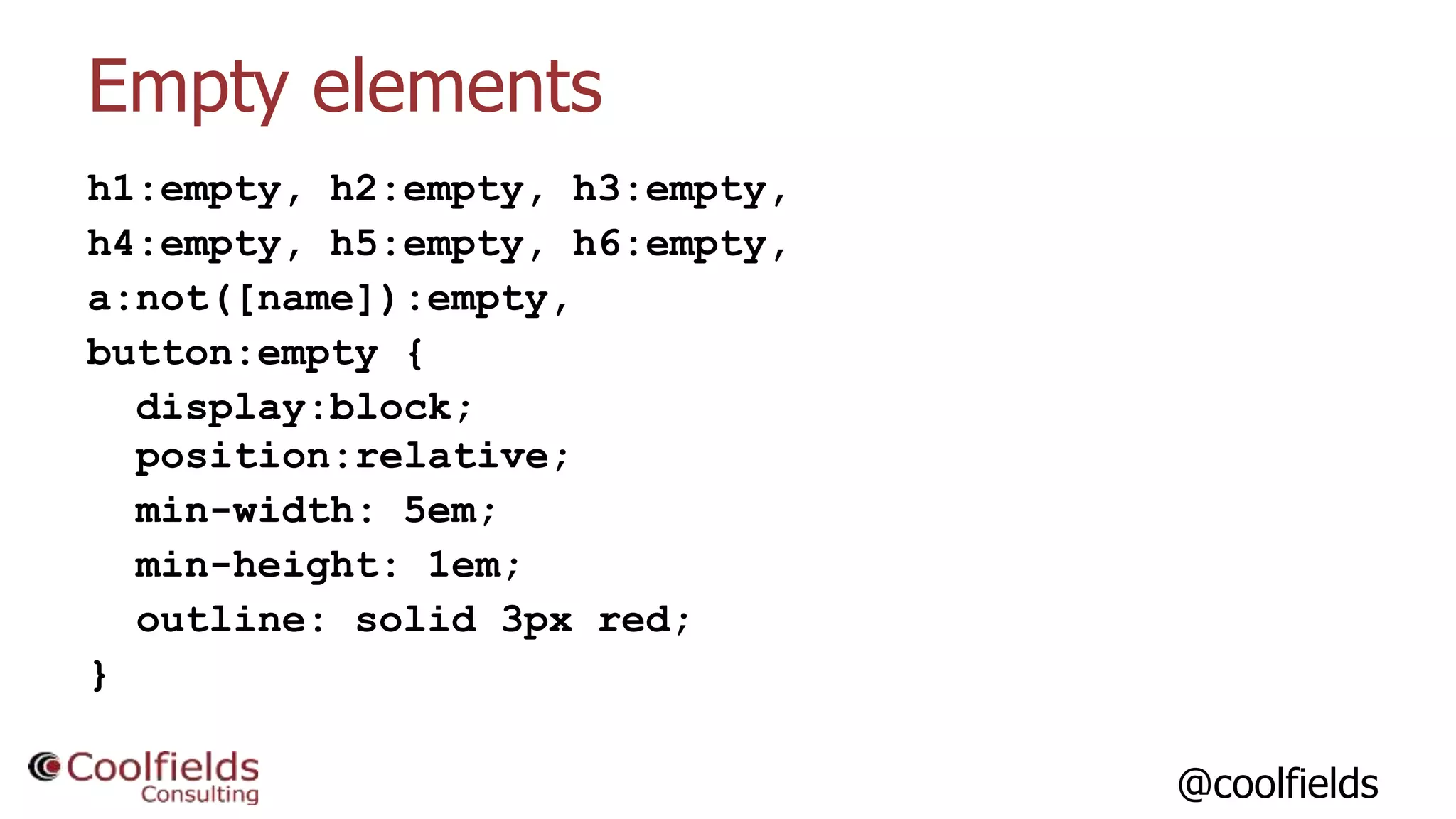

Empty elements
h1:empty, h2:empty, h3:empty,
h4:empty, h5:empty, h6:empty,
a:not([name]):empty,
button:empty {
display:block;
position:relative;
min-width: 5em;
min-height: 1em;
}

@coolfields

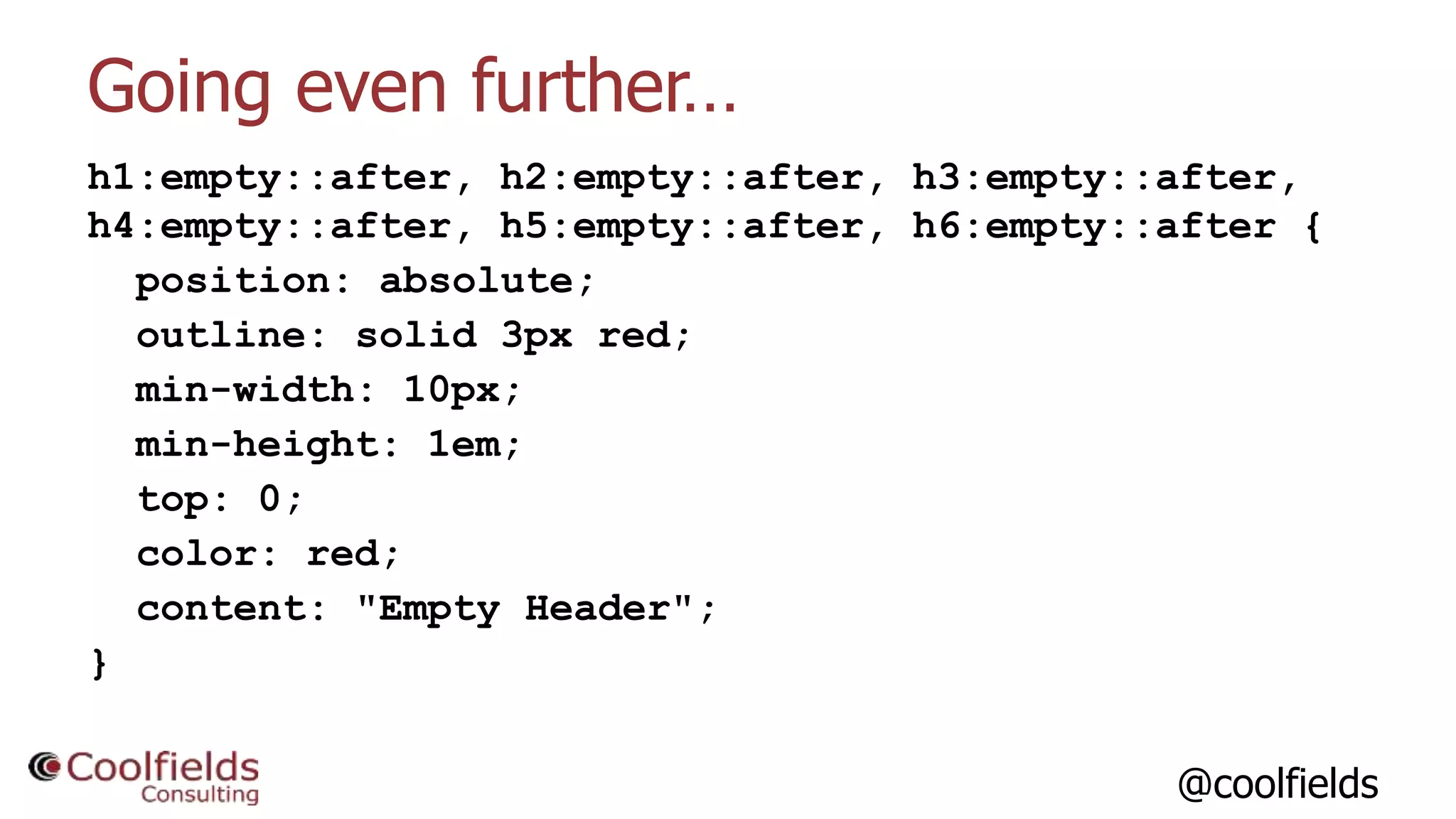

Going even further…
h1:empty::after, h2:empty::after, h3:empty::after,
h4:empty::after, h5:empty::after, h6:empty::after {
position: absolute;
min-width: 10px;
min-height: 1em;
top: 0;
color: red;
content: "Empty Header";
}

@coolfields

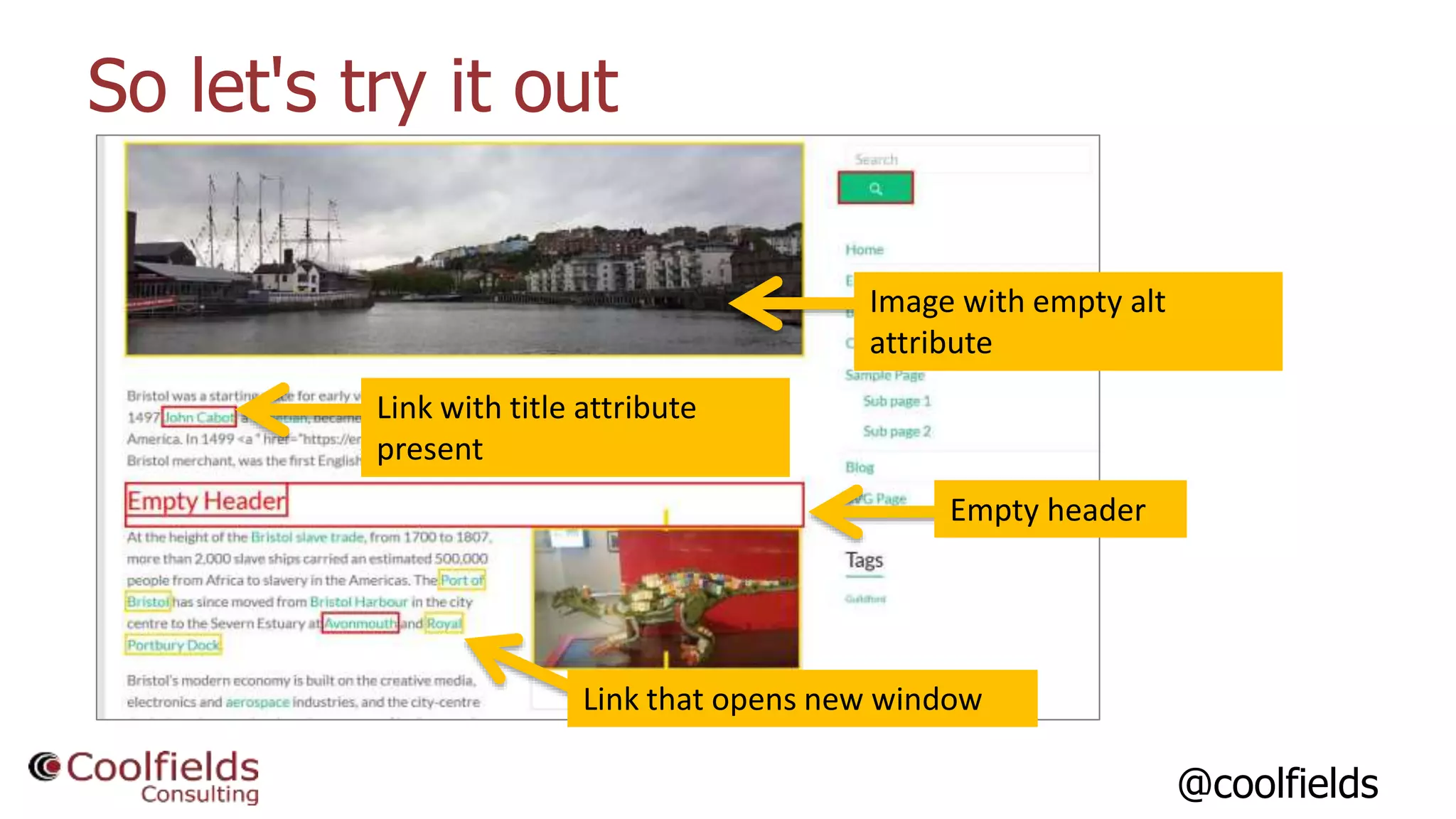

So let's try it out
Link with title attribute
present
Image with empty alt
attribute
Link that opens new window
Empty header

@coolfields

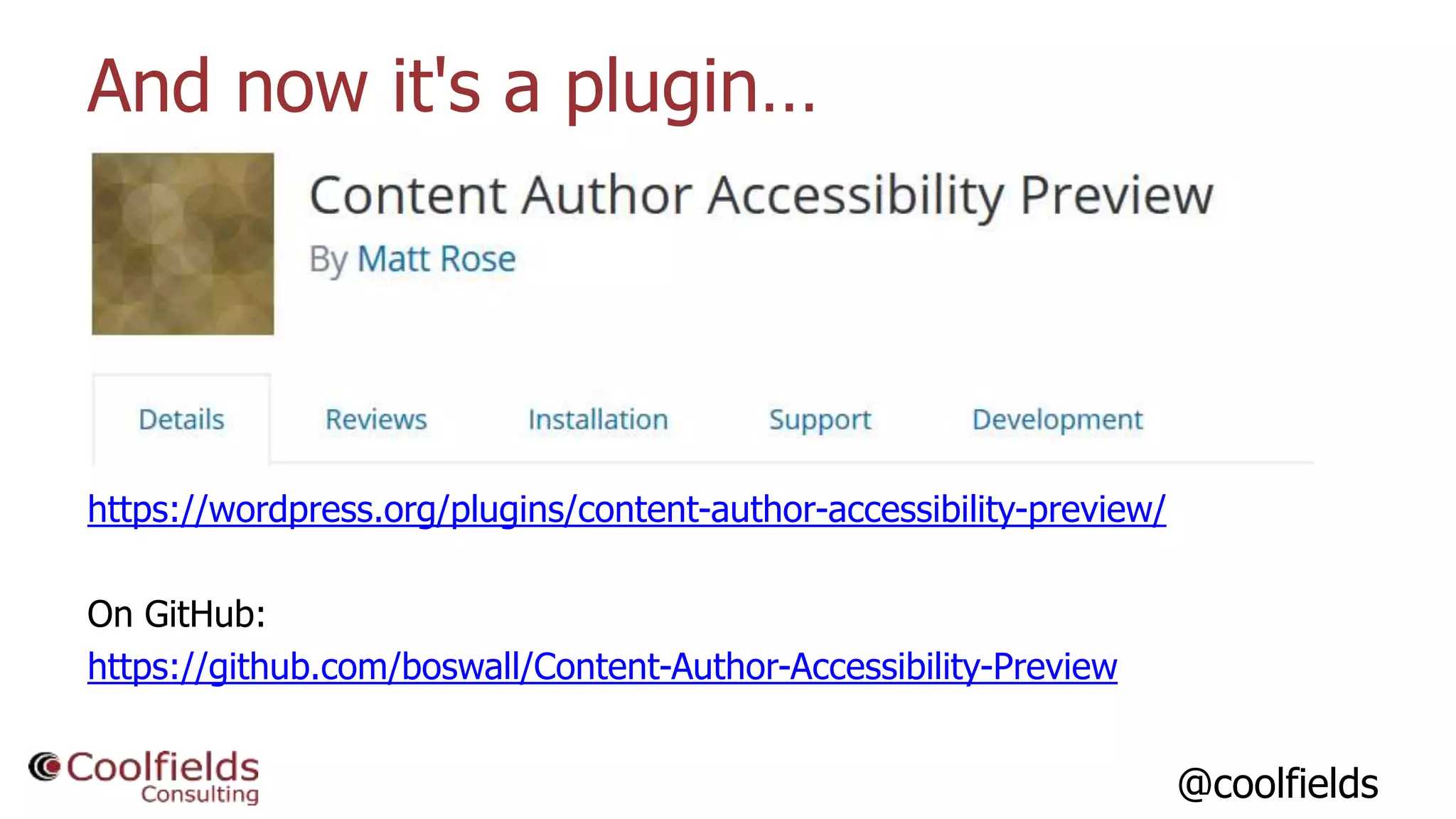

And now it's a plugin…
https://wordpress.org/plugins/content-author-accessibility-preview/
On GitHub:
https://github.com/boswall/Content-Author-Accessibility-Preview

@coolfields

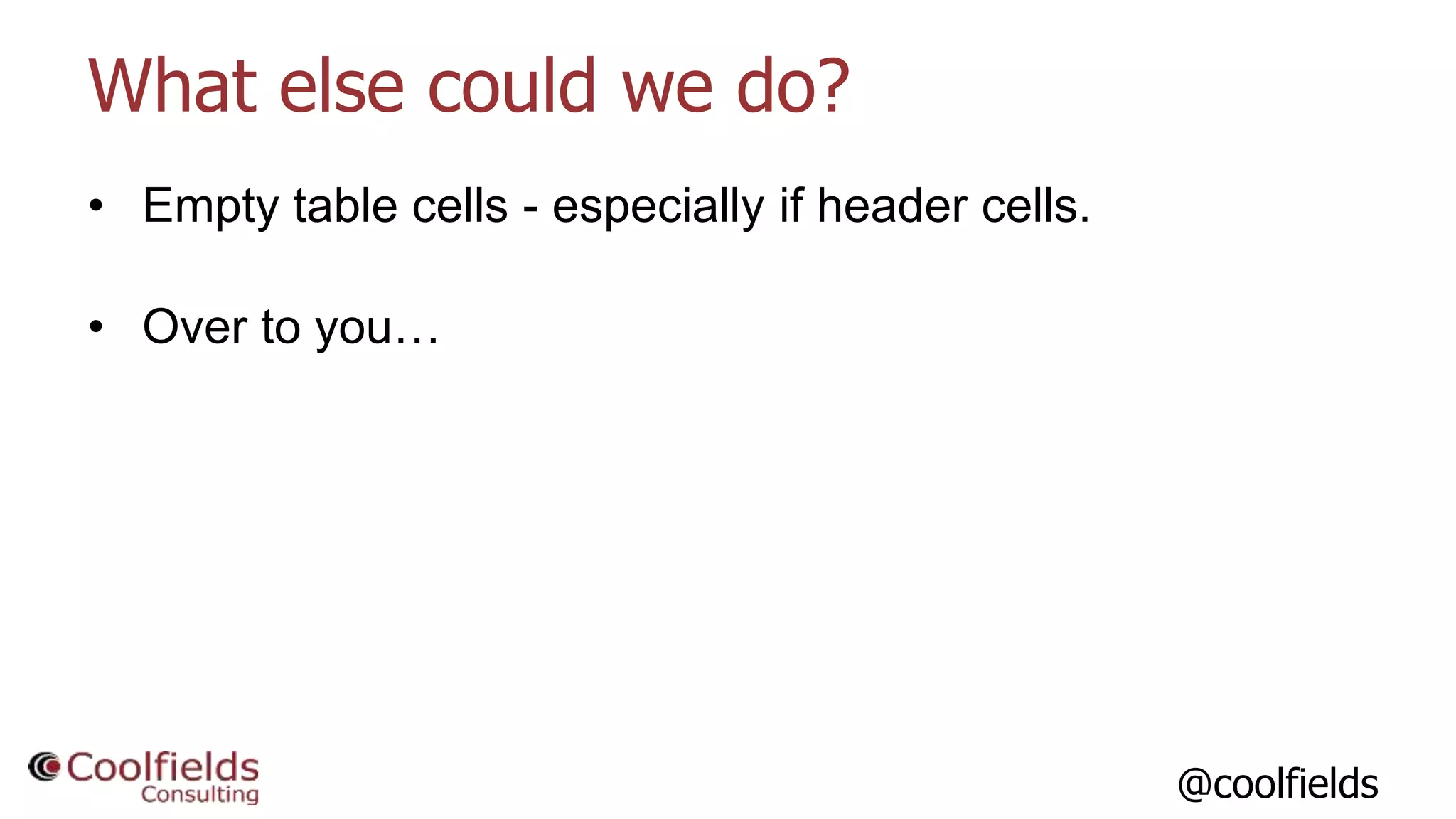

What else could we do?
• Empty table cells - especially if header cells.
• Over to you…

@coolfields
Thanks for listening
Any questions?
graham.armfield@coolfields.co.uk
@coolfields 57

Accessibility Hacks version 2

More Related Content

What's hot

Similar to Accessibility Hacks version 2

More from Graham Armfield

Recently uploaded

Accessibility Hacks version 2

Editor's Notes
