Accelerating Applications with F5
- 1. F5 Application Acceleration Reference Architecture

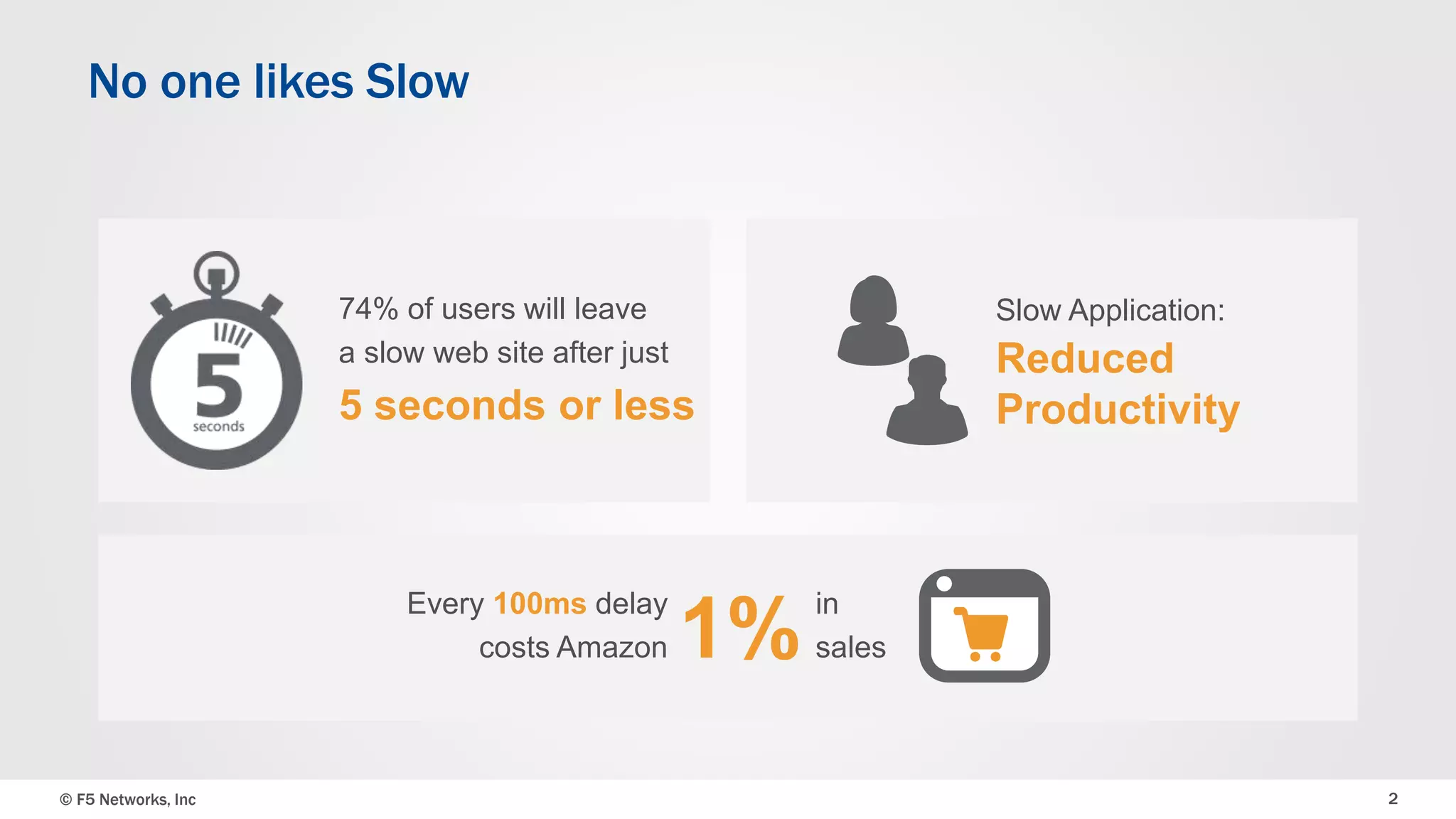

- 2. © F5 Networks, Inc 2 74% of users will leave a slow web site after just 5 seconds or less Every 100ms delay costs Amazon 1% in sales No one likes Slow Slow Application: Reduced Productivity
- 3. © F5 Networks, Inc 3 Things are not getting easier The average web page has grown since 2008 3x Mobile devices now account for15%Of global internet traffic 0 10 20 2009 2010 2011 2012 2013 Radio = Latency Fiber Cable LTE 1.8MB Growing exponentially 34% Mostly use mobile internet
- 4. © F5 Networks, Inc 4 The Application Delivery Universe FIX THE USERS? FIX THE CARRIER? FIX THE NETWORK? FIX THE APPS? Application Users Always on Always fast Everywhere Applications “Chatty” Latency Sensitive Not Optimized Proprietary Network Works pretty well, most of the time Out of your control
- 5. © F5 Networks, Inc 5 So what can you do? CDN? POINT SOLUTION?F5 ACCELERATION
- 6. © F5 Networks, Inc 6 Three Simple Steps to a Faster Web Application HIGH PERFORMANCE SERVICES FABRIC Application Users Applications Network TCP SPDY L7 TOOLS
- 7. © F5 Networks, Inc 7 TCP Optimization Optimized Server Connection F5 Advanced TCP Stack Diverse client characteristics TCP
- 8. © F5 Networks, Inc 8 SPDY - HTTP/2 Gateway HTTP HTTP is inefficient and sensitive to latency HTTP
- 9. © F5 Networks, Inc 9 SPDY - HTTP/2 Gateway HTTP • Reduced TCP Connections • Multiplexed content streams • Compressed Headers SPDY HTTP/2
- 10. © F5 Networks, Inc 10 L7 TOOLS L7 Acceleration HTTP • Cache more content on browser • Make fewer backend requests • Optimize backend connections • Compress HTTP objects • Send less data L7 TOOLS
- 11. © F5 Networks, Inc 11 Delivered by a High Performance Fabric F5 HIGH PERFORMANCE SERVICES FABRIC Scale Up Scale Out Scale Across
- 12. © F5 Networks, Inc 12 Tools to solve the most demanding web application acceleration problems. Advanced Solutions when you need them IMAGE OPTIMIZATION PDF OPTIMIZATION CONTENT MINIFICATION PAGE RE-ORDERING SYMMETRIC DEPLOYMENT WAN OPTIMIZATION HTTP CACHE COMPRESSION CONTENT IN-LINING
- 13. © F5 Networks, Inc 13 • Predict real-world acceleration gains • No additional load on your site • https://fast.f5.com • FAST tool predicted an average of 30% In page load times* FAST Tool *Where the app was a suitable candidate for acceleration.
- 14. Next Steps • Use the F5 FAST tool to estimate your potential performance gains • Review the F5 Acceleration Reference Architecture for more details
Editor's Notes
- http://www.webperformancetoday.com/2013/05/06/psychology-waiting-faster-online-checkout/ Does anyone like slow applications. 5 seconds is actually a long time.
- So more mobile devices over higher latency radio networks and larger webpages. Hmm sounds like a recipe for application performance problems. http://www.fiercewireless.com/special-reports/3g4g-wireless-network-latency-how-do-verizon-att-sprint-and-t-mobile-compar http://techcrunch.com/2013/05/29/mary-meeker-2013-internet-trends/ http://www.pewinternet.org/fact-sheets/mobile-technology-fact-sheet/
- So here we have the scenario – users want applications always on always fast and available everywhere – every location and on every device. Applications are often not written to deal with latency – they are chatty, and not optimized. The network usually works pretty well actually but you can’t alter the laws of physics For mobile users there is going to be a carrier network involved – local network admins are not going to have a lot of control over this. So what can you do Can you lower the users expectations – no, can you reduce the latency in the AT&T carrier network – no. Well the network works ok, can you recode the app? Probably not easily. So what can you do?
- You can use a CDN – and that might be a good idea – but they come with variable costs and are really just fancy caches local to your users – that might not be enough You can deploy additional infrastructure maybe some dedicated acceleration devices but they again cost money and can be complex – plus another o/s devicece learn Or you can enable acceleration as part of a new or existing F5 deployment.
- The idea here is simplicity. Turn on three things and make it go a bit faster.
- TCP – now with new features like rate pacing and advanced congestion control algorithms which have been tuned to deal better with latency rather than loss. This genuinely will make a difference.
- HTTP protocol inefficiencies exacerbated on mobile devices Additional latency inherent in WAN No multiplexing of requests in a connections – needs more connections
- SPDY Multiplexed bi-directional streams within TCP connection Fewer network connections required HTTP header compression NB we don’t support SPDY push yet – so be wary of number that give performance improvements of SPDY when comparing a SPDY enabled server vs our SPDY profile.
- Here we are talking about Compression IBR Intelligent Client Cache Content spooling These are components of the fundamental policy that we are advising be deployed.
- All this can be delivered from the all-active, highly available, elastic, multi-tenant application services fabric.
- So we have given you a simple solution – one that can deliver real results in a few hours of implementation. Have we dumbed down the product? No, all the high end features are still there. Whatever the size of your application delivery problem we have a solution to accelerate it. We will continue to innovate and simplify your life.
- So, you’re convinced – great – how about we give you some idea of the benefits you might see before you start? Use the FAST tool to quickly get a real world assessment of how much we can speed up your site or application. Where we found optimizations, they averaged 30%.
