This document discusses version control using Git. It begins with a definition of version control from Wikipedia. It then outlines some key benefits of Git like distributed version control, offline work, simple branching and merging. It provides examples of configuring and initializing a Git repository, recording changes, and working with remote repositories. It also discusses branching, undoing changes, debugging tools, tricks and tips, hooks, and more. Overall it serves as an introduction and overview of using the Git version control system.

1. Source versioning with GIT
p e n t a l
www.pentalog.fr
o g . f r

2. About Version Control
"Revision control, version control and source control (and an
aspect of software configuration management), is the
management of changes to documents, computer programs,
large web sites, and other collections of information. Changes
are usually identified by a number or letter code, termed the
"revision number", "revision level", or simply "revision". For
example, an initial set of files is "revision 1". When the first
change is made, the resulting set is "revision 2", and so on.
Each revision is associated with a timestamp and the person
making the change. Revisions can be compared, restored, and
with some types of files, merged."
Wikipedia.org
May 2013
pentalog.fr
2

3. Why Git ?
Benefits :
Distributed version control
Work offline
Everebody has a complete copy
Simple Branching
Commits quickly
Simple Merging
May 2013
pentalog.fr
3

4. Distributed VCS Example
May 2013
pentalog.fr
4

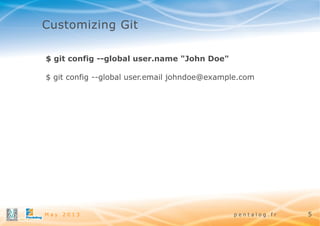

5. Customizing Git
$ git config --global user.name "John Doe"
$ git config --global user.email johndoe@example.com
May 2013
pentalog.fr
5

6. Starting a REPO
Setup :
~$ git init
~$ git add remote origin ssh://some-git-repository.git
~$ git checkout master
Clonning project :
~$ git clone ssh://some-git-repository.git
May 2013
pentalog.fr
6

7. Recording Changes to the Repository
May 2013
pentalog.fr
7

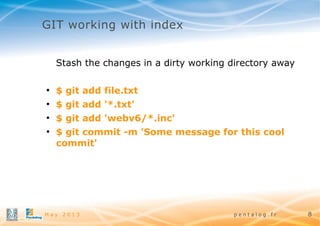

8. GIT working with index
Stash the changes in a dirty working directory away
●
$ git add file.txt
●
$ git add '*.txt'
●
$ git add 'webv6/*.inc'
●
$ git commit -m 'Some message for this cool
commit'
May 2013
pentalog.fr
8

9. GIT working with remote
Git can work with a set of repositories
$ git remote add remote_name remote_host
Manipulation with remote repositories
●
$ git pull origin master
//update local repository index from
tracked branch
●
$ git fetch remote_name -p
●
$ git merge origin/master
//update local repository index
//merge remote master to the local
branch
●
$ git push origin branch_name
//send local branch to
remote repository
May 2013
pentalog.fr
9

10. GIT branching
●
$ git checkout -b b_name source_branch
●
$ git branch (-r/-a)
●
$ git branch (-m / -M)
●
$ git branch (-d/-D)
●
$ git merge branch_name
●
$ git push origin :b_name
May 2013
pentalog.fr
10

11. Undoing Things
●
$ git reset octofamily/octodog.txt
//removing just from
stage
●
$ git reset --hard HEAD~5 (5 commits back)
●
$ git reset --hard HEAD
●
$ git checkout -- octocat.txt
●
$ git rm '*.txt'
May 2013
//reset all project to the HEAD state
//revert to the last commit/HEAD
//removed files are deleted and staged
pentalog.fr
11

12. Git useful commands
●
$ git status
●
$ git log
●
$ git diff HEAD (--staged)
●
$ git reflog
●
$ git cherry-pick
May 2013
//Show the working tree status
//Show commit logs
// diff between HEAD or Staged files
//show local history
//Apply the changes introduced by some existing commits
pentalog.fr
12

13. GIT Stash
Stash the changes in a dirty working directory away
●
$ git stash save
●
$ git stash apply
●
$ git stash pop
●
$ git stash list / show
●
$ git stash drop / clear
May 2013
pentalog.fr
13

14. Debugging with GIT
●
$ git blame file.php
●
$ git bisect start
●
$ git bisect bad
●
$ git bisect good SHA-1
May 2013
pentalog.fr
14

15. Tricks and Tips
●
Git UI colors :
[color]
ui = true
[color "branch"]
current = white
local = yellow
remote = green
[color "diff"]
meta = yellow bold
frag = magenta bold
old = red bold
new = green bold
color.branch
color.diff
color.interactive
color.status
May 2013
pentalog.fr
15

16. Tricks and Tips
$ git push origin branch_name
$ git push origin HEAD =>
$ git push -u origin HEAD => git push
External Merge and Diff Tools
[merge]
tool = tortoise
[mergetool "tortoise"]
cmd = "TortoiseMerge.exe" -base:"$BASE"
-theirs:"$REMOTE" -mine:"$LOCAL" -merged:"$MERGED"
[diff]
external = "TortoiseMerge.exe" -base:"$2" -mine:"$5"
May 2013
pentalog.fr
16

17. Tricks and Tips
Git alias system :
[alias]
nb = checkout -b
rh = reset --hard HEAD
mm = merge origin/master
st = status
stat = status
May 2013
pentalog.fr
17

18. Hooks
special scripts that run for various source-control events to
enforce policy.
●
hooks are within the .git directory and not therefore under
source control, i.e., not cloned from remote repositories.
●
●
Client-side Hooks :
●
Pre-commit //inspect the snapshot that’s about to be
committed
●
Prepare-commit-msg // edit commit. Usefull for
automatic commits like mege commits
●
Commit-msg //use for some message validations
●
Post-commit //is used for notification or something
similar
Server-side Hooks
●
May 2013
pentalog.fr
18

19. www.pentalog.fr
Dmitrii Raev
draev@pentalog.fr
