II B.Tech I Semester Examinations,MAY 2011
THERMAL SCIENCE
Common to Mechatronics, Production Engineering
Time: 3 hours Max Marks: 75
Answer any FIVE Questions
All Questions carry equal marks
? ? ? ? ?

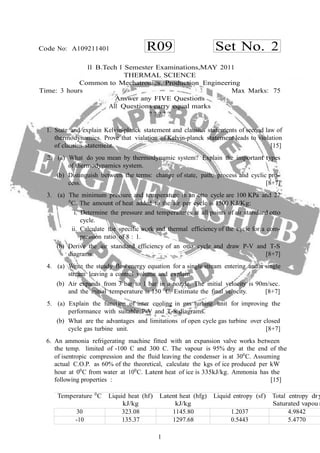

1. State and explain Kelvin-planck statement and clausius statements of second law of
thermodynamics. Prove that vialation of Kelvin-planck statement leads to violation
of clausius statement. [15]
2. (a) What do you mean by thermodynamic system? Explain the important types
of thermodynamics system.
(b) Distinguish between the terms: change of state, path, process and cyclic pro-
cess. [8+7]
3. (a) The minimum pressure and temperature in an otto cycle are 100 KPa and 27
0
C. The amount of heat added to the air per cycle is 1500 KJ/Kg:
i. Determine the pressure and temperatures at all points of air standard otto
cycle.
ii. Calculate the specific work and thermal efficiency of the cycle for a com-
pression ratio of 8 : 1.
(b) Derive the air standard efficiency of an otto cycle and draw P-V and T-S
diagrams. [8+7]
4. (a) Write the steady flowenergy equation for a single stream entering and a single
stream leaving a control volume and explain.
(b) Air expands from 3 bar to 1 bar in a nozzle. The initial velocity is 90m/sec.
and the initial temperature is 150 0
C. Estimate the final velocity. [8+7]
5. (a) Explain the function of inter cooling in gas turbine unit for improving the
performance with suitable P-V and T-S diagrams.
(b) What are the advantages and limitations of open cycle gas turbine over closed
cycle gas turbine unit. [8+7]
6. An ammonia refrigerating machine fitted with an expansion valve works between
the temp. limited of -100 C and 300 C. The vapour is 95% dry at the end of the
of isentropic compression and the fluid leaving the condenser is at 300
C. Assuming
actual C.O.P. as 60% of the theoretical, calculate the kgs of ice produced per kW
hour at 00
C from water at 100
C. Latent heat of ice is 335kJ/kg. Ammonia has the
following properties : [15]
y
r
R09 Set No. 2Code No: A109211401
2

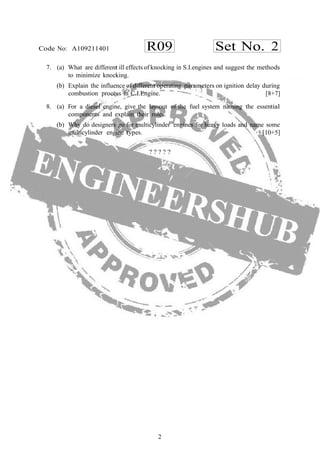

7. (a) What are different ill effects of knocking in S.I.engines and suggest the methods
to minimize knocking.
(b) Explain the influence of different operating parameters on ignition delay during
combustion process in C.I.Engine. [8+7]
8. (a) For a diesel engine, give the lay-out of the fuel system naming the essential
components and explain their roles.
(b) Why do designers go for multicylinder engines for heavy loads and name some
multicylinder engine types. [10+5]
? ? ? ? ?
3
R09 Set No. 4Code No: A109211401
II B.Tech I Semester Examinations,MAY 2011
THERMAL SCIENCE
Common to Mechatronics, Production Engineering
Time: 3 hours Max Marks: 75
Answer any FIVE Questions
All Questions carry equal marks
? ? ? ? ?

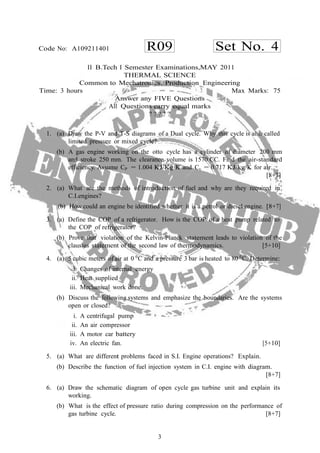

1. (a) Draw the P-V and T-S diagrams of a Dual cycle. Why this cycle is also called
limited pressure or mixed cycle?
(b) A gas engine working on the otto cycle has a cylinder of diameter 200 mm
and stroke 250 mm. The clearance volume is 1570 CC. Find the air-standard
efficiency. Assume CP = 1.004 KJ/Kg K and Cv = 0.717 KJ/kg K for air.
[8+7]
2. (a) What are the methods of introduction of fuel and why are they required in
C.I.engines?
(b) How could an engine be identified whether it is a petrol or diesel engine. [8+7]
3. (a) Define the COP of a refrigerator. How is the COP of a heat pump related to
the COP of refrigerator?
(b) Prove that violation of the Kelvin-Planck statement leads to violation of the
clausius statement of the second law of thermodynamics. [5+10]
4. (a) 5 cubic meters of air at 0 0
C and a pressure 3 bar is heated to 80 0
C. Determine:
i. Changes of internal energy
ii. Heat supplied
iii. Mechanical work done.
(b) Discuss the following systems and emphasize the boundaries. Are the systems
open or closed?
i. A centrifugal pump
ii. An air compressor
iii. A motor car battery
iv. An electric fan. [5+10]
5. (a) What are different problems faced in S.I. Engine operations? Explain.
(b) Describe the function of fuel injection system in C.I. engine with diagram.
[8+7]
6. (a) Draw the schematic diagram of open cycle gas turbine unit and explain its
working.
(b) What is the effect of pressure ratio during compression on the performance of
gas turbine cycle. [8+7]
4
R09 Set No. 4Code No: A109211401

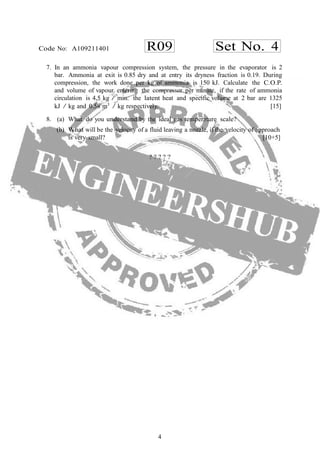

7. In an ammonia vapour compression system, the pressure in the evaporator is 2
bar. Ammonia at exit is 0.85 dry and at entry its dryness fraction is 0.19. During
compression, the work done per kg of ammonia is 150 kJ. Calculate the C.O.P.
and volume of vapour entering the compressor per minute, if the rate of ammonia
circulation is 4,5 kg / min. the latent heat and specific volume at 2 bar are 1325
kJ / kg and 0.58 m3
/ kg respectively. [15]
8. (a) What do you understand by the ideal gas temperature scale?
(b) What will be the velocity of a fluid leaving a nozzle, if the velocity of approach
is very small? [10+5]
? ? ? ? ?
5
R09 Set No. 1Code No: A109211401
V
II B.Tech I Semester Examinations,MAY 2011
THERMAL SCIENCE
Common to Mechatronics, Production Engineering
Time: 3 hours Max Marks: 75
Answer any FIVE Questions
All Questions carry equal marks
? ? ? ? ?
1. (a) What are main functions of carburetor in S.I. Engine?
(b) Describe the working principle of simple carburetor with suitable diagram.
[5+10]
2. (a) Explain thermodynamic system, surroundings and universe, illustrate the same
with examples.
(b) Discuss the macroscopic and microscopic point of view of thermodynamics.
[8+7]
3. (a) Discuss the need for lubrication in I.C. engines and explain types of lubrication
systems used in I.C.engines.
(b) Name the various fuels used in I.C. engines and the type of ignition with each
one of them. [8+7]
4. (a) Explain the operating principle of Brayton cycle with neat diagrams.
(b) Derive the thermal efficiency of Brayton cycle in terms of pressure ratio and
polytropic index. [8+7]
5. (a) Define internal energy of a system and show that it is a property of the system.
(b) In a non-flow reversible process, the pressure and volume are related by
P = v2
+ 10
where P is in bar and v is in m3
. During the process volume
changes from 1.5 to 4.5 m3
. The heat added during the process is 8000 KJ.
Determine the change in internal energy. [8+7]
6. (a) Derive the expression for irreversibility (or) energy loss in a process executed
by:
i. a closed
ii. a steady flow system, in a given environment.
(b) Calculate the available energy in 40 kg of water at 75 0
C with respect to the
surroundings at 5 0
C, the pressure of water being 1 atm. [8+7]
7. An engine working on an otto cycle has an air standard efficiency of 50% and
rejects 544 KJ/kg of air. The pressure and temperature of air at beginning of the
compression are 0.1 Mpa and 60 0
C respectively. Compute:
(a) The compression ratio of the engine
(b) Work done per kg of air
6
R09 Set No. 1Code No: A109211401

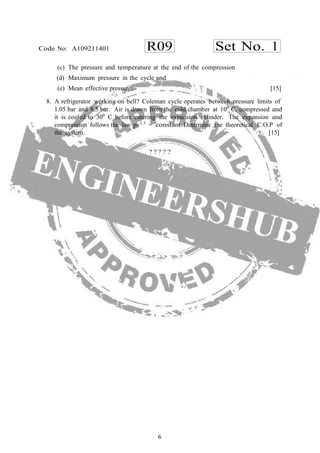

(c) The pressure and temperature at the end of the compression
(d) Maximum pressure in the cycle and
(e) Mean effective pressure. [15]
8. A refrigerator working on bell? Coleman cycle operates between pressure limits of
1.05 bar and 8.5 bar. Air is drawn from the cold chamber at 100
C, compressed and
it is cooled to 300
C before entering the expansion cylinder. The expansion and
compression follows the law pv1.3
= constant. Determine the theoretical C.O.P of
the system. [15]
? ? ? ? ?
7
R09 Set No. 3Code No: A109211401
II B.Tech I Semester Examinations,MAY 2011
THERMAL SCIENCE
Common to Mechatronics, Production Engineering
Time: 3 hours Max Marks: 75
Answer any FIVE Questions
All Questions carry equal marks
? ? ? ? ?
1. (a) Explain the principle of carburetion with a neat sketch.
(b) Explain in details of actual process involved in IC Engine cycle. [8+7]
2. (a) Give the following statements of second law of thermodynamics:
i. Clausius statement
ii. Kelvin-Planck statement.
(b) Derive expressions for entropy changes for a closed system in the following
cases:
i. Heating a gas at constent volume
ii. Poly tropic process. [5+10]
3. (a) Explain different stages of combustion in S.I.Engine along with p-θ diagram.
(b) What is diesel knock? How to minimize knocking in C.I. Engine. [8+7]
4. Nitrogen (Cp=1.0 KJ/kg 0
k, γ=1.4) Expands through a nozzle at a steady flow rate
of 1000kg/hour from 6 bar to 3.5 bar. Velocity and temperature at inlet to the
nozzle are 100 m/sec and 90 0
C respectively. Find the exit area of the nozzle. [15]
5. (a) Explain the importance of regenerator in gas turbine power plant and also
explain the influence of effectiveness of regenerator on the performance.
(b) Derive the thermal efficiency of gas turbine unit with multi stage expansion
with reheating. [8+7]
6. (a) Distinguish between path function and point function.
(b) What is a Quasi static process? What is its characteristics feature? [8+7]
7. In an open cycle air refrigeration machine, air is drawn from a cold chamber at-2o
C
and 1 bar and compressed to 11 bar. It is then cooled at this pressure, to the cooler
temperature of 200
C and then expanded in expansion cylinder and returned to the
cold room. The compression and expansion are isentropic, and follow the low pv1.3
=constant. Sketch the p-v and T-s diagrams of the cycle and the for a refrigeration
of 15 tonnes, find: 1. theoretical C.O.P; 2. rate of the air in kg/min ; 3. piston
displacement per minute in the compressor and expander ; and 4. theoretical power
per tonne of refrigeration. [15]
8. In an air standard Diesel cycle, the compression ratio is 16, and at the beginning
of isentropic compression, the temperature is 15 0
C and the pressure is 0.1 MPa.
Heat is added until the temperature at the end of the constant pressure process is
1480 0C. Calculate:
8
R09 Set No. 3Code No: A109211401
(a) The cut-off ratio
(b) The heat supplied per kg of air
(c) The cycle efficiency and
(d) The m.e.p. [15]
? ? ? ? ?

More Related Content

What's hot

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - nov dec 2011
Me2202 engineering thermodynamics   uq - nov dec 2011Me2202 engineering thermodynamics   uq - nov dec 2011
Me2202 engineering thermodynamics uq - nov dec 2011BIBIN CHIDAMBARANATHAN

Me6301 engineering thermodynamics uq - may june 2016
Me6301 engineering thermodynamics   uq - may june 2016Me6301 engineering thermodynamics   uq - may june 2016
Me6301 engineering thermodynamics uq - may june 2016BIBIN CHIDAMBARANATHAN

6470genco paper
6470genco paper6470genco paper
6470genco paperBiju Kumar

Me ies-2014-conventional-i
Me ies-2014-conventional-iMe ies-2014-conventional-i
Me ies-2014-conventional-ikrutti

Me1201 engineering thermodynamics uq - nov dec 2007
Me1201 engineering thermodynamics   uq - nov dec 2007Me1201 engineering thermodynamics   uq - nov dec 2007
Me1201 engineering thermodynamics uq - nov dec 2007BIBIN CHIDAMBARANATHAN

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - may june 2013
Me2202 engineering thermodynamics   uq - may june 2013Me2202 engineering thermodynamics   uq - may june 2013
Me2202 engineering thermodynamics uq - may june 2013BIBIN CHIDAMBARANATHAN

Me6301 engineering thermodynamics uq - nov dec 2015
Me6301 engineering thermodynamics   uq - nov dec 2015Me6301 engineering thermodynamics   uq - nov dec 2015
Me6301 engineering thermodynamics uq - nov dec 2015BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - nov dec 2015
Me2202 engineering thermodynamics   uq - nov dec 2015Me2202 engineering thermodynamics   uq - nov dec 2015
Me2202 engineering thermodynamics uq - nov dec 2015BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - may june 2016
Me2202 engineering thermodynamics   uq - may june 2016Me2202 engineering thermodynamics   uq - may june 2016
Me2202 engineering thermodynamics uq - may june 2016BIBIN CHIDAMBARANATHAN

Me6301 engineering thermodynamics uq - nov dec 2014
Me6301 engineering thermodynamics   uq - nov dec 2014Me6301 engineering thermodynamics   uq - nov dec 2014
Me6301 engineering thermodynamics uq - nov dec 2014BIBIN CHIDAMBARANATHAN

Me1201 engineering thermodynamics uq - nov dec 2006
Me1201 engineering thermodynamics   uq - nov dec 2006Me1201 engineering thermodynamics   uq - nov dec 2006
Me1201 engineering thermodynamics uq - nov dec 2006BIBIN CHIDAMBARANATHAN

Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...
Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...
Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...Catherine Maria Centanaro Chavez


What's hot (20)

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2011

Me2202 engineering thermodynamics uq - nov dec 2011
Me2202 engineering thermodynamics   uq - nov dec 2011Me2202 engineering thermodynamics   uq - nov dec 2011
Me2202 engineering thermodynamics uq - nov dec 2011

Me6301 engineering thermodynamics uq - may june 2016
Me6301 engineering thermodynamics   uq - may june 2016Me6301 engineering thermodynamics   uq - may june 2016
Me6301 engineering thermodynamics uq - may june 2016

Mcq pp
Mcq ppMcq pp
Mcq pp

6470genco paper
6470genco paper6470genco paper
6470genco paper

Heat and THERMODYNAMICS
Heat and THERMODYNAMICSHeat and THERMODYNAMICS
Heat and THERMODYNAMICS

Me ies-2014-conventional-i
Me ies-2014-conventional-iMe ies-2014-conventional-i
Me ies-2014-conventional-i

Me1201 engineering thermodynamics uq - nov dec 2007
Me1201 engineering thermodynamics   uq - nov dec 2007Me1201 engineering thermodynamics   uq - nov dec 2007
Me1201 engineering thermodynamics uq - nov dec 2007

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007

Me2202 engineering thermodynamics uq - may june 2013
Me2202 engineering thermodynamics   uq - may june 2013Me2202 engineering thermodynamics   uq - may june 2013
Me2202 engineering thermodynamics uq - may june 2013

Atd a sec
Atd a secAtd a sec
Atd a sec

Me6301 engineering thermodynamics uq - nov dec 2015
Me6301 engineering thermodynamics   uq - nov dec 2015Me6301 engineering thermodynamics   uq - nov dec 2015
Me6301 engineering thermodynamics uq - nov dec 2015

Me2202 engineering thermodynamics uq - nov dec 2015
Me2202 engineering thermodynamics   uq - nov dec 2015Me2202 engineering thermodynamics   uq - nov dec 2015
Me2202 engineering thermodynamics uq - nov dec 2015

Me2202 engineering thermodynamics uq - may june 2016
Me2202 engineering thermodynamics   uq - may june 2016Me2202 engineering thermodynamics   uq - may june 2016
Me2202 engineering thermodynamics uq - may june 2016

India study i g c c
India study i g c cIndia study i g c c
India study i g c c

Me6301 engineering thermodynamics uq - nov dec 2014
Me6301 engineering thermodynamics   uq - nov dec 2014Me6301 engineering thermodynamics   uq - nov dec 2014
Me6301 engineering thermodynamics uq - nov dec 2014

Condenser pg test
Condenser pg testCondenser pg test
Condenser pg test

Thermodynamic, sheet 2
Thermodynamic, sheet 2Thermodynamic, sheet 2
Thermodynamic, sheet 2

Me1201 engineering thermodynamics uq - nov dec 2006
Me1201 engineering thermodynamics   uq - nov dec 2006Me1201 engineering thermodynamics   uq - nov dec 2006
Me1201 engineering thermodynamics uq - nov dec 2006

Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...
Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...
Solucionario Introducción a la Termodinamica en Ingeniería Química: Smith, Va...


Viewers also liked

James street garage
James street garageJames street garage
James street garageflandreau

Symmetry Electronics
Symmetry ElectronicsSymmetry Electronics
Symmetry Electronicsdjohnlink

Technopreneur tugas 1 - kelompok 3
Technopreneur tugas 1 - kelompok 3Technopreneur tugas 1 - kelompok 3
Technopreneur tugas 1 - kelompok 3Asriyanthi Mandala

Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldaba
Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika AldabaLightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldaba
Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldabaux singapore

SEO: Getting Personal
SEO: Getting PersonalSEO: Getting Personal
SEO: Getting PersonalKirsty Hulse


Viewers also liked (7)

James street garage
James street garageJames street garage
James street garage

Symmetry Electronics
Symmetry ElectronicsSymmetry Electronics
Symmetry Electronics

Technopreneur tugas 1 - kelompok 3
Technopreneur tugas 1 - kelompok 3Technopreneur tugas 1 - kelompok 3
Technopreneur tugas 1 - kelompok 3

Namo
NamoNamo
Namo

Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldaba
Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika AldabaLightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldaba
Lightning Talk #9: How UX and Data Storytelling Can Shape Policy by Mika Aldaba

SEO: Getting Personal
SEO: Getting PersonalSEO: Getting Personal
SEO: Getting Personal

Succession “Losers”: What Happens to Executives Passed Over for the CEO Job?
Succession “Losers”: What Happens to Executives Passed Over for the CEO Job? Succession “Losers”: What Happens to Executives Passed Over for the CEO Job?
Succession “Losers”: What Happens to Executives Passed Over for the CEO Job?


Similar to A109211401 thermalscience1

Me2202 engineering thermodynamics uq - may june 2014
Me2202 engineering thermodynamics   uq - may june 2014Me2202 engineering thermodynamics   uq - may june 2014
Me2202 engineering thermodynamics uq - may june 2014BIBIN CHIDAMBARANATHAN

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.BIBIN CHIDAMBARANATHAN

Me8391 engineering thermodynamics uq - nov dec 2018
Me8391 engineering thermodynamics   uq - nov dec 2018Me8391 engineering thermodynamics   uq - nov dec 2018
Me8391 engineering thermodynamics uq - nov dec 2018BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - nov dec 2010
Me2202 engineering thermodynamics   uq - nov dec 2010Me2202 engineering thermodynamics   uq - nov dec 2010
Me2202 engineering thermodynamics uq - nov dec 2010BIBIN CHIDAMBARANATHAN

Mech 0036 exam 12 13 with answers (revision)
Mech 0036 exam 12 13  with answers (revision)Mech 0036 exam 12 13  with answers (revision)
Mech 0036 exam 12 13 with answers (revision)Mostafa Tamish

Engineering thermodynamics
Engineering thermodynamicsEngineering thermodynamics
Engineering thermodynamicsAnand Gadge

Ic engine ies gate ias 20 years question and answers
Ic engine ies gate ias 20 years question and answersIc engine ies gate ias 20 years question and answers
Ic engine ies gate ias 20 years question and answersRamnarayan Meena

Me6301 engineering thermodynamics uq - nov dec 2018
Me6301 engineering thermodynamics   uq - nov dec 2018Me6301 engineering thermodynamics   uq - nov dec 2018
Me6301 engineering thermodynamics uq - nov dec 2018BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - nov dec 2018
Me2202 engineering thermodynamics   uq - nov dec 2018Me2202 engineering thermodynamics   uq - nov dec 2018
Me2202 engineering thermodynamics uq - nov dec 2018BIBIN CHIDAMBARANATHAN

final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docx
final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docxfinal#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docx
final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docxvoversbyobersby

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.BIBIN CHIDAMBARANATHAN

Ptme8201 engineering thermodynamics uq - april may 2014
Ptme8201 engineering thermodynamics   uq -  april may 2014Ptme8201 engineering thermodynamics   uq -  april may 2014
Ptme8201 engineering thermodynamics uq - april may 2014BIBIN CHIDAMBARANATHAN

At231 engineering thermodynamics uq - may june 2007.
At231 engineering thermodynamics   uq -  may june 2007.At231 engineering thermodynamics   uq -  may june 2007.
At231 engineering thermodynamics uq - may june 2007.BIBIN CHIDAMBARANATHAN

Me2202 engineering thermodynamics uq - nov dec 2009
Me2202 engineering thermodynamics   uq - nov dec 2009Me2202 engineering thermodynamics   uq - nov dec 2009
Me2202 engineering thermodynamics uq - nov dec 2009BIBIN CHIDAMBARANATHAN

gas reheat and intercooling
gas reheat and intercoolinggas reheat and intercooling
gas reheat and intercoolingCik Minn


Similar to A109211401 thermalscience1 (19)

Me2202 engineering thermodynamics uq - may june 2014
Me2202 engineering thermodynamics   uq - may june 2014Me2202 engineering thermodynamics   uq - may june 2014
Me2202 engineering thermodynamics uq - may june 2014

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2014.

X10694 (me8391)
X10694 (me8391)X10694 (me8391)
X10694 (me8391)

Me8391 engineering thermodynamics uq - nov dec 2018
Me8391 engineering thermodynamics   uq - nov dec 2018Me8391 engineering thermodynamics   uq - nov dec 2018
Me8391 engineering thermodynamics uq - nov dec 2018

Me2202 ENGINEERING THERMODYNAMICS
Me2202 ENGINEERING THERMODYNAMICSMe2202 ENGINEERING THERMODYNAMICS
Me2202 ENGINEERING THERMODYNAMICS

X10705 (me8595)
X10705 (me8595)X10705 (me8595)
X10705 (me8595)

Me2202 engineering thermodynamics uq - nov dec 2010
Me2202 engineering thermodynamics   uq - nov dec 2010Me2202 engineering thermodynamics   uq - nov dec 2010
Me2202 engineering thermodynamics uq - nov dec 2010

Mech 0036 exam 12 13 with answers (revision)
Mech 0036 exam 12 13  with answers (revision)Mech 0036 exam 12 13  with answers (revision)
Mech 0036 exam 12 13 with answers (revision)

Engineering thermodynamics
Engineering thermodynamicsEngineering thermodynamics
Engineering thermodynamics

Ic engine ies gate ias 20 years question and answers
Ic engine ies gate ias 20 years question and answersIc engine ies gate ias 20 years question and answers
Ic engine ies gate ias 20 years question and answers

Applied Thermodynamics Question Papers
Applied Thermodynamics Question Papers Applied Thermodynamics Question Papers
Applied Thermodynamics Question Papers

Me6301 engineering thermodynamics uq - nov dec 2018
Me6301 engineering thermodynamics   uq - nov dec 2018Me6301 engineering thermodynamics   uq - nov dec 2018
Me6301 engineering thermodynamics uq - nov dec 2018

Me2202 engineering thermodynamics uq - nov dec 2018
Me2202 engineering thermodynamics   uq - nov dec 2018Me2202 engineering thermodynamics   uq - nov dec 2018
Me2202 engineering thermodynamics uq - nov dec 2018

final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docx
final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docxfinal#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docx
final#2.jpgfina#1.pdfME370 Final(fall-TuTh-2013).doc.docx

ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.
ME6301 ENGINEERING THERMODYNAMICS ANNA UNIVERSITY QUESTION PAPER may june 2007.

Ptme8201 engineering thermodynamics uq - april may 2014
Ptme8201 engineering thermodynamics   uq -  april may 2014Ptme8201 engineering thermodynamics   uq -  april may 2014
Ptme8201 engineering thermodynamics uq - april may 2014

At231 engineering thermodynamics uq - may june 2007.
At231 engineering thermodynamics   uq -  may june 2007.At231 engineering thermodynamics   uq -  may june 2007.
At231 engineering thermodynamics uq - may june 2007.

Me2202 engineering thermodynamics uq - nov dec 2009
Me2202 engineering thermodynamics   uq - nov dec 2009Me2202 engineering thermodynamics   uq - nov dec 2009
Me2202 engineering thermodynamics uq - nov dec 2009

gas reheat and intercooling
gas reheat and intercoolinggas reheat and intercooling
gas reheat and intercooling


More from jntuworld

A109212102 mechanicsoffluids1
A109212102 mechanicsoffluids1A109212102 mechanicsoffluids1
A109212102 mechanicsoffluids1jntuworld

A109211802 physicalmetallurgy1
A109211802 physicalmetallurgy1A109211802 physicalmetallurgy1
A109211802 physicalmetallurgy1jntuworld

A109211201 data-communication-systems1
A109211201 data-communication-systems1A109211201 data-communication-systems1
A109211201 data-communication-systems1jntuworld

A109211002 switchingtheoryandlogicdesign1
A109211002 switchingtheoryandlogicdesign1A109211002 switchingtheoryandlogicdesign1
A109211002 switchingtheoryandlogicdesign1jntuworld

A109210503 digitallogicdesign1
A109210503 digitallogicdesign1A109210503 digitallogicdesign1
A109210503 digitallogicdesign1jntuworld

A109210204 electrical-circuits1
A109210204 electrical-circuits1A109210204 electrical-circuits1
A109210204 electrical-circuits1jntuworld

Metallurgy and material_science
Metallurgy and material_scienceMetallurgy and material_science
Metallurgy and material_sciencejntuworld

Mechanics of solids1
Mechanics of solids1Mechanics of solids1
Mechanics of solids1jntuworld

Mathematicalfoundationofcomputerscience
MathematicalfoundationofcomputerscienceMathematicalfoundationofcomputerscience
Mathematicalfoundationofcomputersciencejntuworld

Electrical circuits1
Electrical circuits1Electrical circuits1
Electrical circuits1jntuworld

Digital logic design1
Digital logic design1Digital logic design1
Digital logic design1jntuworld

09 a11291 engineering drawing (1)
09 a11291 engineering drawing (1)09 a11291 engineering drawing (1)
09 a11291 engineering drawing (1)jntuworld

09 a10591 engg drawing
09 a10591 engg drawing09 a10591 engg drawing
09 a10591 engg drawingjntuworld

09 a10591 engg drawing (1)
09 a10591 engg drawing (1)09 a10591 engg drawing (1)
09 a10591 engg drawing (1)jntuworld

09 a10491 engg drawing
09 a10491 engg drawing09 a10491 engg drawing
09 a10491 engg drawingjntuworld

09 a10291 engineering drawing
09 a10291 engineering drawing09 a10291 engineering drawing
09 a10291 engineering drawingjntuworld

09 a1ec01 c programming and data structures
09 a1ec01 c programming and data structures09 a1ec01 c programming and data structures
09 a1ec01 c programming and data structuresjntuworld

09 a1bs06 fundamentalsofbiology
09 a1bs06 fundamentalsofbiology09 a1bs06 fundamentalsofbiology
09 a1bs06 fundamentalsofbiologyjntuworld

09 a1bs02 engineeringphysics
09 a1bs02 engineeringphysics09 a1bs02 engineeringphysics
09 a1bs02 engineeringphysicsjntuworld


More from jntuworld (20)

A109212102 mechanicsoffluids1
A109212102 mechanicsoffluids1A109212102 mechanicsoffluids1
A109212102 mechanicsoffluids1

A109211802 physicalmetallurgy1
A109211802 physicalmetallurgy1A109211802 physicalmetallurgy1
A109211802 physicalmetallurgy1

A109211201 data-communication-systems1
A109211201 data-communication-systems1A109211201 data-communication-systems1
A109211201 data-communication-systems1

A109211002 switchingtheoryandlogicdesign1
A109211002 switchingtheoryandlogicdesign1A109211002 switchingtheoryandlogicdesign1
A109211002 switchingtheoryandlogicdesign1

A109210503 digitallogicdesign1
A109210503 digitallogicdesign1A109210503 digitallogicdesign1
A109210503 digitallogicdesign1

A109210204 electrical-circuits1
A109210204 electrical-circuits1A109210204 electrical-circuits1
A109210204 electrical-circuits1

Surveying1
Surveying1Surveying1
Surveying1

Metallurgy and material_science
Metallurgy and material_scienceMetallurgy and material_science
Metallurgy and material_science

Mechanics of solids1
Mechanics of solids1Mechanics of solids1
Mechanics of solids1

Mathematicalfoundationofcomputerscience
MathematicalfoundationofcomputerscienceMathematicalfoundationofcomputerscience
Mathematicalfoundationofcomputerscience

Electrical circuits1
Electrical circuits1Electrical circuits1
Electrical circuits1

Digital logic design1
Digital logic design1Digital logic design1
Digital logic design1

09 a11291 engineering drawing (1)
09 a11291 engineering drawing (1)09 a11291 engineering drawing (1)
09 a11291 engineering drawing (1)

09 a10591 engg drawing
09 a10591 engg drawing09 a10591 engg drawing
09 a10591 engg drawing

09 a10591 engg drawing (1)
09 a10591 engg drawing (1)09 a10591 engg drawing (1)
09 a10591 engg drawing (1)

09 a10491 engg drawing
09 a10491 engg drawing09 a10491 engg drawing
09 a10491 engg drawing

09 a10291 engineering drawing
09 a10291 engineering drawing09 a10291 engineering drawing
09 a10291 engineering drawing

09 a1ec01 c programming and data structures
09 a1ec01 c programming and data structures09 a1ec01 c programming and data structures
09 a1ec01 c programming and data structures

09 a1bs06 fundamentalsofbiology
09 a1bs06 fundamentalsofbiology09 a1bs06 fundamentalsofbiology
09 a1bs06 fundamentalsofbiology

09 a1bs02 engineeringphysics
09 a1bs02 engineeringphysics09 a1bs02 engineeringphysics
09 a1bs02 engineeringphysics


Recently uploaded

4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptxmary850239

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptxmary850239

THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONTHEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONHumphrey A Beña

ROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxVanesaIglesias10

31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...Nguyen Thanh Tu Collection

How to Make a Duplicate of Your Odoo 17 Database
How to Make a Duplicate of Your Odoo 17 DatabaseHow to Make a Duplicate of Your Odoo 17 Database
How to Make a Duplicate of Your Odoo 17 DatabaseCeline George

Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptx
Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptxQ4-PPT-Music9_Lesson-1-Romantic-Opera.pptx
Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptxlancelewisportillo

How to Fix XML SyntaxError in Odoo the 17
How to Fix XML SyntaxError in Odoo the 17How to Fix XML SyntaxError in Odoo the 17
How to Fix XML SyntaxError in Odoo the 17Celine George

Reading and Writing Skills 11 quarter 4 melc 1
Reading and Writing Skills 11 quarter 4 melc 1Reading and Writing Skills 11 quarter 4 melc 1
Reading and Writing Skills 11 quarter 4 melc 1GloryAnnCastre1

Daily Lesson Plan in Mathematics Quarter 4
Daily Lesson Plan in Mathematics Quarter 4Daily Lesson Plan in Mathematics Quarter 4
Daily Lesson Plan in Mathematics Quarter 4JOYLYNSAMANIEGO

DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxDIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxMichelleTuguinay1

BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxBIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxSayali Powar

IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...
IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...
IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...MerlizValdezGeronimo

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Projectjordimapav

Grade Three -ELLNA-REVIEWER-ENGLISH.pptx
Grade Three -ELLNA-REVIEWER-ENGLISH.pptxGrade Three -ELLNA-REVIEWER-ENGLISH.pptx
Grade Three -ELLNA-REVIEWER-ENGLISH.pptxkarenfajardo43

ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnv
ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnvESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnv
ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnvRicaMaeCastro1

Textual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSTextual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSMae Pangan


Recently uploaded (20)

4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx

Mattingly "AI & Prompt Design: Large Language Models"
Mattingly "AI & Prompt Design: Large Language Models"Mattingly "AI & Prompt Design: Large Language Models"
Mattingly "AI & Prompt Design: Large Language Models"

THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONTHEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION

ROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptx

31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...

How to Make a Duplicate of Your Odoo 17 Database
How to Make a Duplicate of Your Odoo 17 DatabaseHow to Make a Duplicate of Your Odoo 17 Database
How to Make a Duplicate of Your Odoo 17 Database

Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptx
Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptxQ4-PPT-Music9_Lesson-1-Romantic-Opera.pptx
Q4-PPT-Music9_Lesson-1-Romantic-Opera.pptx

How to Fix XML SyntaxError in Odoo the 17
How to Fix XML SyntaxError in Odoo the 17How to Fix XML SyntaxError in Odoo the 17
How to Fix XML SyntaxError in Odoo the 17

Reading and Writing Skills 11 quarter 4 melc 1
Reading and Writing Skills 11 quarter 4 melc 1Reading and Writing Skills 11 quarter 4 melc 1
Reading and Writing Skills 11 quarter 4 melc 1

Daily Lesson Plan in Mathematics Quarter 4
Daily Lesson Plan in Mathematics Quarter 4Daily Lesson Plan in Mathematics Quarter 4
Daily Lesson Plan in Mathematics Quarter 4

prashanth updated resume 2024 for Teaching Profession
prashanth updated resume 2024 for Teaching Professionprashanth updated resume 2024 for Teaching Profession
prashanth updated resume 2024 for Teaching Profession

DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxDIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx

BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxBIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx

IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...
IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...
IPCRF/RPMS 2024 Classroom Observation tool is your access to the new performa...

INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx
INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptxINCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx
INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Project

Grade Three -ELLNA-REVIEWER-ENGLISH.pptx
Grade Three -ELLNA-REVIEWER-ENGLISH.pptxGrade Three -ELLNA-REVIEWER-ENGLISH.pptx
Grade Three -ELLNA-REVIEWER-ENGLISH.pptx

ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnv
ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnvESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnv
ESP 4-EDITED.pdfmmcncncncmcmmnmnmncnmncmnnjvnnv

Textual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSTextual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHS


A109211401 thermalscience1

  • 1. R09 Set No. 2Code No: A109211401 1 Temperature 0 C Liquid heat (hf) kJ/kg Latent heat (hfg) kJ/kg Liquid entropy (sf) Total entropy dr Saturated vapou 30 323.08 1145.80 1.2037 4.9842 -10 135.37 1297.68 0.5443 5.4770 II B.Tech I Semester Examinations,MAY 2011 THERMAL SCIENCE Common to Mechatronics, Production Engineering Time: 3 hours Max Marks: 75 Answer any FIVE Questions All Questions carry equal marks ? ? ? ? ? 1. State and explain Kelvin-planck statement and clausius statements of second law of thermodynamics. Prove that vialation of Kelvin-planck statement leads to violation of clausius statement. [15] 2. (a) What do you mean by thermodynamic system? Explain the important types of thermodynamics system. (b) Distinguish between the terms: change of state, path, process and cyclic pro- cess. [8+7] 3. (a) The minimum pressure and temperature in an otto cycle are 100 KPa and 27 0 C. The amount of heat added to the air per cycle is 1500 KJ/Kg: i. Determine the pressure and temperatures at all points of air standard otto cycle. ii. Calculate the specific work and thermal efficiency of the cycle for a com- pression ratio of 8 : 1. (b) Derive the air standard efficiency of an otto cycle and draw P-V and T-S diagrams. [8+7] 4. (a) Write the steady flowenergy equation for a single stream entering and a single stream leaving a control volume and explain. (b) Air expands from 3 bar to 1 bar in a nozzle. The initial velocity is 90m/sec. and the initial temperature is 150 0 C. Estimate the final velocity. [8+7] 5. (a) Explain the function of inter cooling in gas turbine unit for improving the performance with suitable P-V and T-S diagrams. (b) What are the advantages and limitations of open cycle gas turbine over closed cycle gas turbine unit. [8+7] 6. An ammonia refrigerating machine fitted with an expansion valve works between the temp. limited of -100 C and 300 C. The vapour is 95% dry at the end of the of isentropic compression and the fluid leaving the condenser is at 300 C. Assuming actual C.O.P. as 60% of the theoretical, calculate the kgs of ice produced per kW hour at 00 C from water at 100 C. Latent heat of ice is 335kJ/kg. Ammonia has the following properties : [15] y r
  • 2. R09 Set No. 2Code No: A109211401 2 7. (a) What are different ill effects of knocking in S.I.engines and suggest the methods to minimize knocking. (b) Explain the influence of different operating parameters on ignition delay during combustion process in C.I.Engine. [8+7] 8. (a) For a diesel engine, give the lay-out of the fuel system naming the essential components and explain their roles. (b) Why do designers go for multicylinder engines for heavy loads and name some multicylinder engine types. [10+5] ? ? ? ? ?
  • 3. 3 R09 Set No. 4Code No: A109211401 II B.Tech I Semester Examinations,MAY 2011 THERMAL SCIENCE Common to Mechatronics, Production Engineering Time: 3 hours Max Marks: 75 Answer any FIVE Questions All Questions carry equal marks ? ? ? ? ? 1. (a) Draw the P-V and T-S diagrams of a Dual cycle. Why this cycle is also called limited pressure or mixed cycle? (b) A gas engine working on the otto cycle has a cylinder of diameter 200 mm and stroke 250 mm. The clearance volume is 1570 CC. Find the air-standard efficiency. Assume CP = 1.004 KJ/Kg K and Cv = 0.717 KJ/kg K for air. [8+7] 2. (a) What are the methods of introduction of fuel and why are they required in C.I.engines? (b) How could an engine be identified whether it is a petrol or diesel engine. [8+7] 3. (a) Define the COP of a refrigerator. How is the COP of a heat pump related to the COP of refrigerator? (b) Prove that violation of the Kelvin-Planck statement leads to violation of the clausius statement of the second law of thermodynamics. [5+10] 4. (a) 5 cubic meters of air at 0 0 C and a pressure 3 bar is heated to 80 0 C. Determine: i. Changes of internal energy ii. Heat supplied iii. Mechanical work done. (b) Discuss the following systems and emphasize the boundaries. Are the systems open or closed? i. A centrifugal pump ii. An air compressor iii. A motor car battery iv. An electric fan. [5+10] 5. (a) What are different problems faced in S.I. Engine operations? Explain. (b) Describe the function of fuel injection system in C.I. engine with diagram. [8+7] 6. (a) Draw the schematic diagram of open cycle gas turbine unit and explain its working. (b) What is the effect of pressure ratio during compression on the performance of gas turbine cycle. [8+7]
  • 4. 4 R09 Set No. 4Code No: A109211401 7. In an ammonia vapour compression system, the pressure in the evaporator is 2 bar. Ammonia at exit is 0.85 dry and at entry its dryness fraction is 0.19. During compression, the work done per kg of ammonia is 150 kJ. Calculate the C.O.P. and volume of vapour entering the compressor per minute, if the rate of ammonia circulation is 4,5 kg / min. the latent heat and specific volume at 2 bar are 1325 kJ / kg and 0.58 m3 / kg respectively. [15] 8. (a) What do you understand by the ideal gas temperature scale? (b) What will be the velocity of a fluid leaving a nozzle, if the velocity of approach is very small? [10+5] ? ? ? ? ?
  • 5. 5 R09 Set No. 1Code No: A109211401 V II B.Tech I Semester Examinations,MAY 2011 THERMAL SCIENCE Common to Mechatronics, Production Engineering Time: 3 hours Max Marks: 75 Answer any FIVE Questions All Questions carry equal marks ? ? ? ? ? 1. (a) What are main functions of carburetor in S.I. Engine? (b) Describe the working principle of simple carburetor with suitable diagram. [5+10] 2. (a) Explain thermodynamic system, surroundings and universe, illustrate the same with examples. (b) Discuss the macroscopic and microscopic point of view of thermodynamics. [8+7] 3. (a) Discuss the need for lubrication in I.C. engines and explain types of lubrication systems used in I.C.engines. (b) Name the various fuels used in I.C. engines and the type of ignition with each one of them. [8+7] 4. (a) Explain the operating principle of Brayton cycle with neat diagrams. (b) Derive the thermal efficiency of Brayton cycle in terms of pressure ratio and polytropic index. [8+7] 5. (a) Define internal energy of a system and show that it is a property of the system. (b) In a non-flow reversible process, the pressure and volume are related by P = v2 + 10 where P is in bar and v is in m3 . During the process volume changes from 1.5 to 4.5 m3 . The heat added during the process is 8000 KJ. Determine the change in internal energy. [8+7] 6. (a) Derive the expression for irreversibility (or) energy loss in a process executed by: i. a closed ii. a steady flow system, in a given environment. (b) Calculate the available energy in 40 kg of water at 75 0 C with respect to the surroundings at 5 0 C, the pressure of water being 1 atm. [8+7] 7. An engine working on an otto cycle has an air standard efficiency of 50% and rejects 544 KJ/kg of air. The pressure and temperature of air at beginning of the compression are 0.1 Mpa and 60 0 C respectively. Compute: (a) The compression ratio of the engine (b) Work done per kg of air
  • 6. 6 R09 Set No. 1Code No: A109211401 (c) The pressure and temperature at the end of the compression (d) Maximum pressure in the cycle and (e) Mean effective pressure. [15] 8. A refrigerator working on bell? Coleman cycle operates between pressure limits of 1.05 bar and 8.5 bar. Air is drawn from the cold chamber at 100 C, compressed and it is cooled to 300 C before entering the expansion cylinder. The expansion and compression follows the law pv1.3 = constant. Determine the theoretical C.O.P of the system. [15] ? ? ? ? ?
  • 7. 7 R09 Set No. 3Code No: A109211401 II B.Tech I Semester Examinations,MAY 2011 THERMAL SCIENCE Common to Mechatronics, Production Engineering Time: 3 hours Max Marks: 75 Answer any FIVE Questions All Questions carry equal marks ? ? ? ? ? 1. (a) Explain the principle of carburetion with a neat sketch. (b) Explain in details of actual process involved in IC Engine cycle. [8+7] 2. (a) Give the following statements of second law of thermodynamics: i. Clausius statement ii. Kelvin-Planck statement. (b) Derive expressions for entropy changes for a closed system in the following cases: i. Heating a gas at constent volume ii. Poly tropic process. [5+10] 3. (a) Explain different stages of combustion in S.I.Engine along with p-θ diagram. (b) What is diesel knock? How to minimize knocking in C.I. Engine. [8+7] 4. Nitrogen (Cp=1.0 KJ/kg 0 k, γ=1.4) Expands through a nozzle at a steady flow rate of 1000kg/hour from 6 bar to 3.5 bar. Velocity and temperature at inlet to the nozzle are 100 m/sec and 90 0 C respectively. Find the exit area of the nozzle. [15] 5. (a) Explain the importance of regenerator in gas turbine power plant and also explain the influence of effectiveness of regenerator on the performance. (b) Derive the thermal efficiency of gas turbine unit with multi stage expansion with reheating. [8+7] 6. (a) Distinguish between path function and point function. (b) What is a Quasi static process? What is its characteristics feature? [8+7] 7. In an open cycle air refrigeration machine, air is drawn from a cold chamber at-2o C and 1 bar and compressed to 11 bar. It is then cooled at this pressure, to the cooler temperature of 200 C and then expanded in expansion cylinder and returned to the cold room. The compression and expansion are isentropic, and follow the low pv1.3 =constant. Sketch the p-v and T-s diagrams of the cycle and the for a refrigeration of 15 tonnes, find: 1. theoretical C.O.P; 2. rate of the air in kg/min ; 3. piston displacement per minute in the compressor and expander ; and 4. theoretical power per tonne of refrigeration. [15] 8. In an air standard Diesel cycle, the compression ratio is 16, and at the beginning of isentropic compression, the temperature is 15 0 C and the pressure is 0.1 MPa. Heat is added until the temperature at the end of the constant pressure process is 1480 0C. Calculate:
  • 8. 8 R09 Set No. 3Code No: A109211401 (a) The cut-off ratio (b) The heat supplied per kg of air (c) The cycle efficiency and (d) The m.e.p. [15] ? ? ? ? ?
