A presentation on urinary stone disease: pathophysiology, incidence, diagnosis and treatment plan.

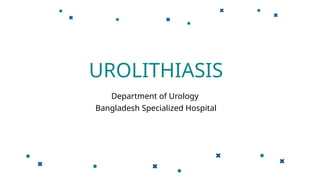

1. UROLITHIASIS
Department of Urology
Bangladesh Specialized Hospital

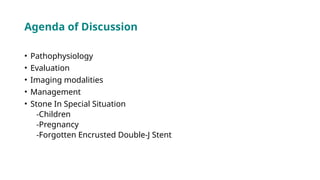

2. Agenda of Discussion
• Pathophysiology
• Evaluation
• Imaging modalities
• Management
• Stone In Special Situation
-Children
-Pregnancy
-Forgotten Encrusted Double-J Stent

3. Pre-test

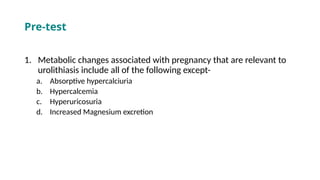

1. Metabolic changes associated with pregnancy that are relevant to
urolithiasis include all of the following except-
a. Absorptive hypercalciuria
b. Hypercalcemia
c. Hyperuricosuria
d. Increased Magnesium excretion

4. Pre-test
1. Metabolic changes associated with pregnancy that are relevant to
urolithiasis include all of the following except-
a. Absorptive hypercalciuria
b. Hypercalcemia
c. Hyperuricosuria
d. Increased Magnesium excretion

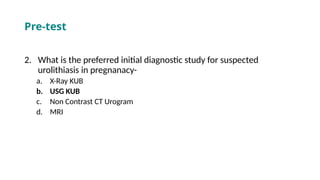

5. 2. What is the preferred initial diagnostic study for suspected
urolithiasis in pregnanacy-
a. X-Ray KUB
b. USG KUB
c. Non Contrast CT Urogram
d. MRI
Pre-test

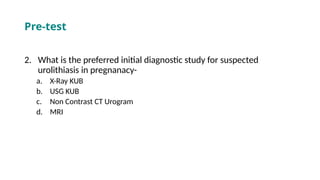

6. 2. What is the preferred initial diagnostic study for suspected
urolithiasis in pregnanacy-
a. X-Ray KUB
b. USG KUB
c. Non Contrast CT Urogram
d. MRI
Pre-test

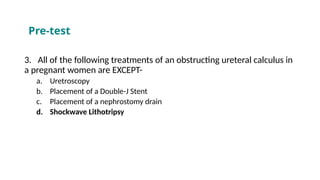

7. 3. All of the following treatments of an obstructing ureteral calculus in
a pregnant women are EXCEPT-
a. Uretroscopy
b. Placement of a Double-J Stent
c. Placement of a nephrostomy drain
d. Shockwave Lithotripsy
Pre-test

8. 3. All of the following treatments of an obstructing ureteral calculus in
a pregnant women are EXCEPT-
a. Uretroscopy
b. Placement of a Double-J Stent
c. Placement of a nephrostomy drain
d. Shockwave Lithotripsy
Pre-test

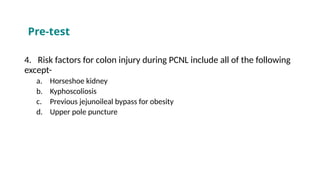

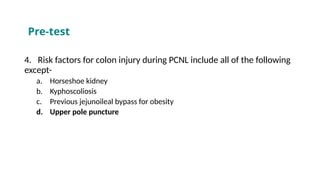

9. 4. Risk factors for colon injury during PCNL include all of the following
except-
a. Horseshoe kidney
b. Kyphoscoliosis
c. Previous jejunoileal bypass for obesity
d. Upper pole puncture
Pre-test

10. 4. Risk factors for colon injury during PCNL include all of the following
except-
a. Horseshoe kidney
b. Kyphoscoliosis
c. Previous jejunoileal bypass for obesity
d. Upper pole puncture
Pre-test

11. G
G
G
G

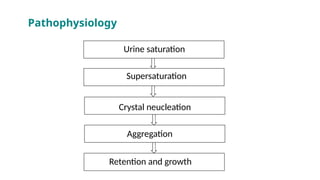

Urine saturation
Supersaturation
Crystal neucleation
Aggregation
Retention and growth
Pathophysiology

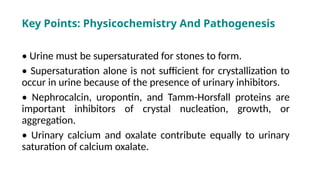

12. • Urine must be supersaturated for stones to form.
• Supersaturation alone is not sufficient for crystallization to
occur in urine because of the presence of urinary inhibitors.
• Nephrocalcin, uropontin, and Tamm-Horsfall proteins are
important inhibitors of crystal nucleation, growth, or
aggregation.
• Urinary calcium and oxalate contribute equally to urinary
saturation of calcium oxalate.
Key Points: Physicochemistry And Pathogenesis

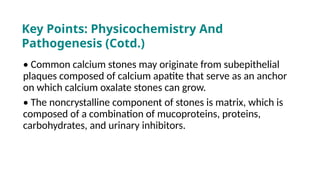

13. • Common calcium stones may originate from subepithelial
plaques composed of calcium apatite that serve as an anchor
on which calcium oxalate stones can grow.
• The noncrystalline component of stones is matrix, which is
composed of a combination of mucoproteins, proteins,
carbohydrates, and urinary inhibitors.
Key Points: Physicochemistry And
Pathogenesis (Cotd.)

14. Classification of Stones
Stone size
Stone size is usually given in one or two dimensions, and stratified into those
measuring up to 5, 5-10, 10-20, and > 20 mm in largest diameter.
Stone location
Stones can be classified according to anatomical position: upper, middle, or
lower calyx; renal pelvis; upper, middle, or distal ureter; and urinary bladder.
X-ray characteristics
Stones can be classified according to plain X-ray appearance [kidney-ureter-
bladder (KUB) radiography]
Kim, S.C., Burns, E.K., Lingeman, J.E. et al. Cystine calculi: correlation of CT-visible structure, CT number,
and stone morphology with fragmentation by shock wave lithotripsy. Urol Res 35, 319–324 (2007).

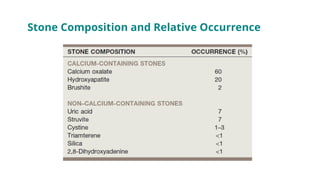

15. Stone Composition and Relative Occurrence

16. Types of Stone According to Its Aetiology

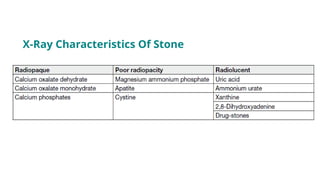

17. X-Ray Characteristics Of Stone

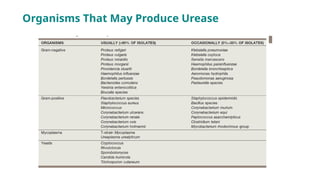

18. Organisms That May Produce Urease

19. Microscopic Appearance of Common Urinary Calculi

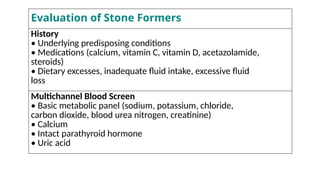

20. Evaluation of Stone Formers
History
• Underlying predisposing conditions
• Medications (calcium, vitamin C, vitamin D, acetazolamide,
steroids)
• Dietary excesses, inadequate fluid intake, excessive fluid
loss
Multichannel Blood Screen
• Basic metabolic panel (sodium, potassium, chloride,
carbon dioxide, blood urea nitrogen, creatinine)
• Calcium
• Intact parathyroid hormone
• Uric acid

21. Evaluation of Stone Formers(contd.)

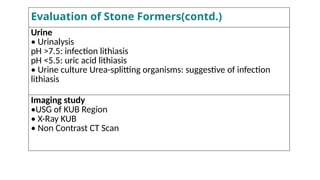

Urine
• Urinalysis
pH >7.5: infection lithiasis
pH <5.5: uric acid lithiasis
• Urine culture Urea-splitting organisms: suggestive of infection
lithiasis
Imaging study
•USG of KUB Region
• X-Ray KUB
• Non Contrast CT Scan

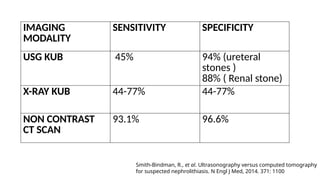

22. IMAGING
MODALITY
SENSITIVITY SPECIFICITY
USG KUB 45% 94% (ureteral
stones )
88% ( Renal stone)
X-RAY KUB 44-77% 44-77%
NON CONTRAST
CT SCAN
93.1% 96.6%
Smith-Bindman, R., et al. Ultrasonography versus computed tomography
for suspected nephrolithiasis. N Engl J Med, 2014. 371: 1100

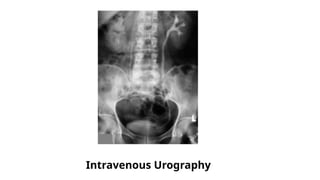

23. Intravenous Urography

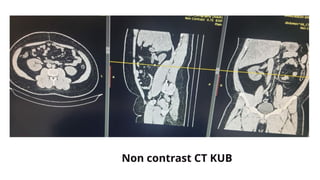

24. Non contrast CT KUB

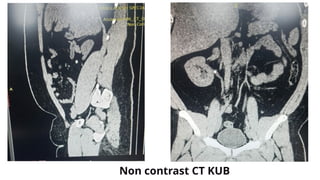

25. Non contrast CT KUB

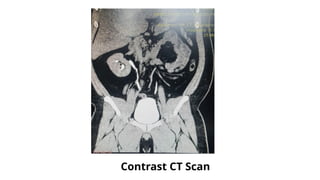

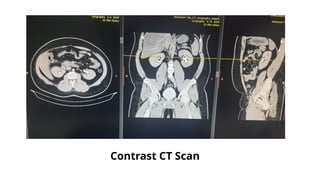

26. Contrast CT Scan

27. Contrast CT Scan

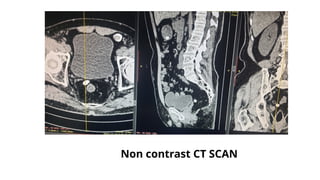

28. Non contrast CT SCAN

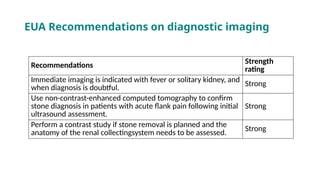

29. EUA Recommendations on diagnostic imaging
Recommendations Strength
rating
Immediate imaging is indicated with fever or solitary kidney, and
when diagnosis is doubtful.
Strong
Use non-contrast-enhanced computed tomography to confirm
stone diagnosis in patients with acute flank pain following initial
ultrasound assessment.
Strong
Perform a contrast study if stone removal is planned and the
anatomy of the renal collectingsystem needs to be assessed.
Strong

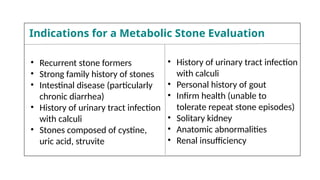

30. • Recurrent stone formers
• Strong family history of stones
• Intestinal disease (particularly
chronic diarrhea)
• History of urinary tract infection
with calculi
• Stones composed of cystine,
uric acid, struvite
• History of urinary tract infection
with calculi
• Personal history of gout
• Infirm health (unable to
tolerate repeat stone episodes)
• Solitary kidney
• Anatomic abnormalities
• Renal insufficiency
Indications for a Metabolic Stone Evaluation

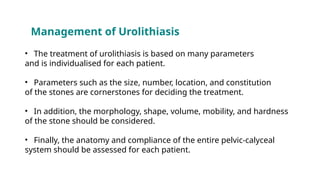

31. Management of Urolithiasis
• The treatment of urolithiasis is based on many parameters
and is individualised for each patient.
• Parameters such as the size, number, location, and constitution
of the stones are cornerstones for deciding the treatment.
• In addition, the morphology, shape, volume, mobility, and hardness
of the stone should be considered.
• Finally, the anatomy and compliance of the entire pelvic-calyceal
system should be assessed for each patient.

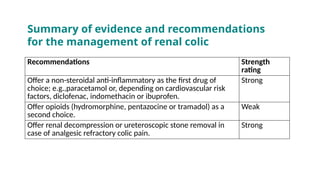

32. Recommendations Strength
rating
Offer a non-steroidal anti-inflammatory as the first drug of
choice; e.g.,paracetamol or, depending on cardiovascular risk
factors, diclofenac, indomethacin or ibuprofen.
Strong
Offer opioids (hydromorphine, pentazocine or tramadol) as a
second choice.
Weak
Offer renal decompression or ureteroscopic stone removal in
case of analgesic refractory colic pain.
Strong
Summary of evidence and recommendations
for the management of renal colic

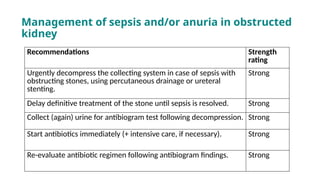

33. Management of sepsis and/or anuria in obstructed
kidney
Recommendations Strength
rating
Urgently decompress the collecting system in case of sepsis with
obstructing stones, using percutaneous drainage or ureteral
stenting.
Strong
Delay definitive treatment of the stone until sepsis is resolved. Strong
Collect (again) urine for antibiogram test following decompression. Strong
Start antibiotics immediately (+ intensive care, if necessary). Strong
Re-evaluate antibiotic regimen following antibiogram findings. Strong

34. Recommendations Strength rating
Consider α-blockers as medical expulsive therapy as one of the treatment options for
(distal) ureteral stones > 5 mm.
Strong

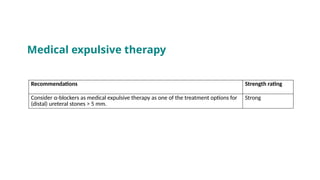

Medical expulsive therapy

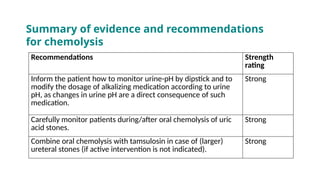

35. Summary of evidence and recommendations
for chemolysis
Recommendations Strength
rating
Inform the patient how to monitor urine-pH by dipstick and to
modify the dosage of alkalizing medication according to urine
pH, as changes in urine pH are a direct consequence of such
medication.
Strong
Carefully monitor patients during/after oral chemolysis of uric
acid stones.
Strong
Combine oral chemolysis with tamsulosin in case of (larger)
ureteral stones (if active intervention is not indicated).
Strong

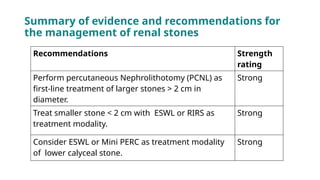

36. Summary of evidence and recommendations for
the management of renal stones
Recommendations Strength
rating
Perform percutaneous Nephrolithotomy (PCNL) as
first-line treatment of larger stones > 2 cm in
diameter.
Strong
Treat smaller stone < 2 cm with ESWL or RIRS as
treatment modality.
Strong
Consider ESWL or Mini PERC as treatment modality
of lower calyceal stone.
Strong

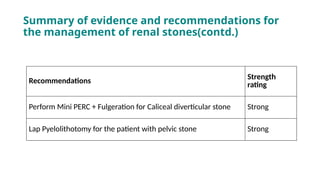

37. Summary of evidence and recommendations for
the management of renal stones(contd.)
Recommendations
Strength
rating
Perform Mini PERC + Fulgeration for Caliceal diverticular stone Strong
Lap Pyelolithotomy for the patient with pelvic stone Strong

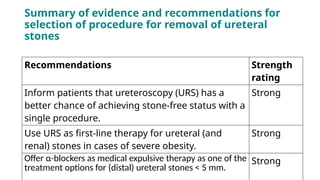

38. Summary of evidence and recommendations for
selection of procedure for removal of ureteral
stones
Recommendations Strength
rating
Inform patients that ureteroscopy (URS) has a
better chance of achieving stone-free status with a
single procedure.
Strong
Use URS as first-line therapy for ureteral (and
renal) stones in cases of severe obesity.
Strong
Offer α-blockers as medical expulsive therapy as one of the
treatment options for (distal) ureteral stones < 5 mm.
Strong

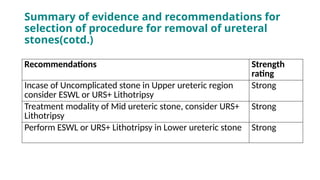

39. Summary of evidence and recommendations for
selection of procedure for removal of ureteral
stones(cotd.)
Recommendations Strength
rating
Incase of Uncomplicated stone in Upper ureteric region
consider ESWL or URS+ Lithotripsy
Strong
Treatment modality of Mid ureteric stone, consider URS+
Lithotripsy
Strong
Perform ESWL or URS+ Lithotripsy in Lower ureteric stone Strong

40. Recommendations Strength
rating
Complete a metabolic evaluation based on stone
analysis in all children.
Strong
Perform ultrasound as first-line imaging modality in
children when a stone is suspected; it should include
the kidney, fluid-filled bladder, and the ureter.
Strong
Perform a kidney-ureter-bladder radiography (or low-
dose non-contrast-enhanced computed tomography) if
ultrasound will not provide the required information.
Strong
Urolithiasis in children

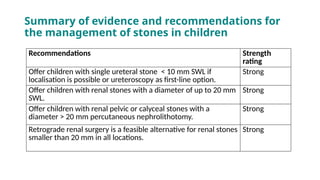

41. Summary of evidence and recommendations for
the management of stones in children
Recommendations Strength
rating
Offer children with single ureteral stone < 10 mm SWL if
localisation is possible or ureteroscopy as first-line option.
Strong
Offer children with renal stones with a diameter of up to 20 mm
SWL.
Strong
Offer children with renal pelvic or calyceal stones with a
diameter > 20 mm percutaneous nephrolithotomy.
Strong
Retrograde renal surgery is a feasible alternative for renal stones
smaller than 20 mm in all locations.
Strong

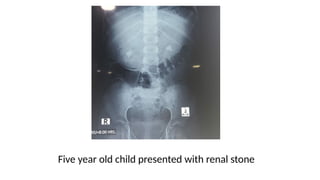

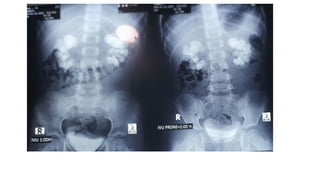

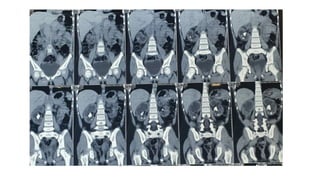

42. Five year old child presented with renal stone

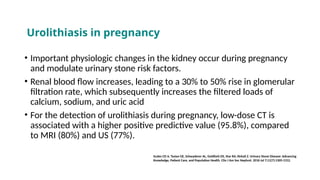

45. • Important physiologic changes in the kidney occur during pregnancy
and modulate urinary stone risk factors.
• Renal blood flow increases, leading to a 30% to 50% rise in glomerular
filtration rate, which subsequently increases the filtered loads of
calcium, sodium, and uric acid
• For the detection of urolithiasis during pregnancy, low-dose CT is
associated with a higher positive predictive value (95.8%), compared
to MRI (80%) and US (77%).
Scales CD Jr, Tasian GE, Schwaderer AL, Goldfarb DS, Star RA, Kirkali Z. Urinary Stone Disease: Advancing
Knowledge, Patient Care, and Population Health. Clin J Am Soc Nephrol. 2016 Jul 7;11(7):1305-1312.
Urolithiasis in pregnancy

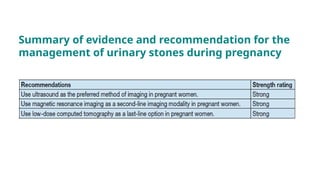

46. Summary of evidence and recommendation for the
management of urinary stones during pregnancy

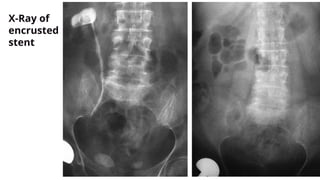

47. X-Ray of
encrusted
stent

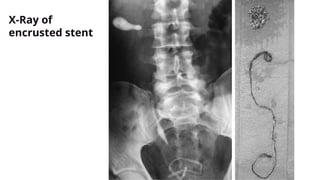

48. X-Ray of
encrusted stent

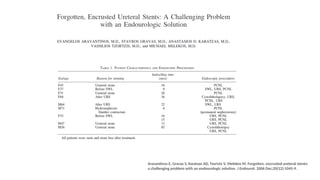

49. Aravantinos E, Gravas S, Karatzas AD, Tzortzis V, Melekos M. Forgotten, encrusted ureteral stents:
a challenging problem with an endourologic solution. J Endourol. 2006 Dec;20(12):1045-9.

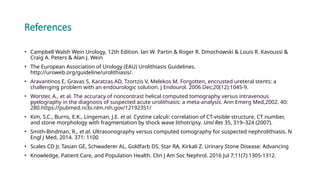

50. References
• Campbell Walsh Wein Urology, 12th Edition. lan W. Partin & Roger R. Dmochowski & Louis R. Kavoussi &
Craig A. Peters & Alan J. Wein
• The European Association of Urology (EAU) Urolithiasis Guidelines.
http://uroweb.org/guideline/urolithiasis/.
• Aravantinos E, Gravas S, Karatzas AD, Tzortzis V, Melekos M. Forgotten, encrusted ureteral stents: a
challenging problem with an endourologic solution. J Endourol. 2006 Dec;20(12):1045-9.
• Worster, A., et al. The accuracy of noncontrast helical computed tomography versus intravenous
pyelography in the diagnosis of suspected acute urolithiasis: a meta-analysis. Ann Emerg Med,2002. 40:
280.https://pubmed.ncbi.nlm.nih.gov/12192351/
• Kim, S.C., Burns, E.K., Lingeman, J.E. et al. Cystine calculi: correlation of CT-visible structure, CT number,
and stone morphology with fragmentation by shock wave lithotripsy. Urol Res 35, 319–324 (2007).
• Smith-Bindman, R., et al. Ultrasonography versus computed tomography for suspected nephrolithiasis. N
Engl J Med, 2014. 371: 1100
• Scales CD Jr, Tasian GE, Schwaderer AL, Goldfarb DS, Star RA, Kirkali Z. Urinary Stone Disease: Advancing
• Knowledge, Patient Care, and Population Health. Clin J Am Soc Nephrol. 2016 Jul 7;11(7):1305-1312.

51. Life so short, the craft so long to learn (Hippocrates)
