A Non-Standard use Case of Hadoop: High Scale Image Processing and Analytics
- 1. Hadoop ImageProcessing Pipeline(HIP) June 10, 2015 Russell Foltz-Smith Anil Gupta

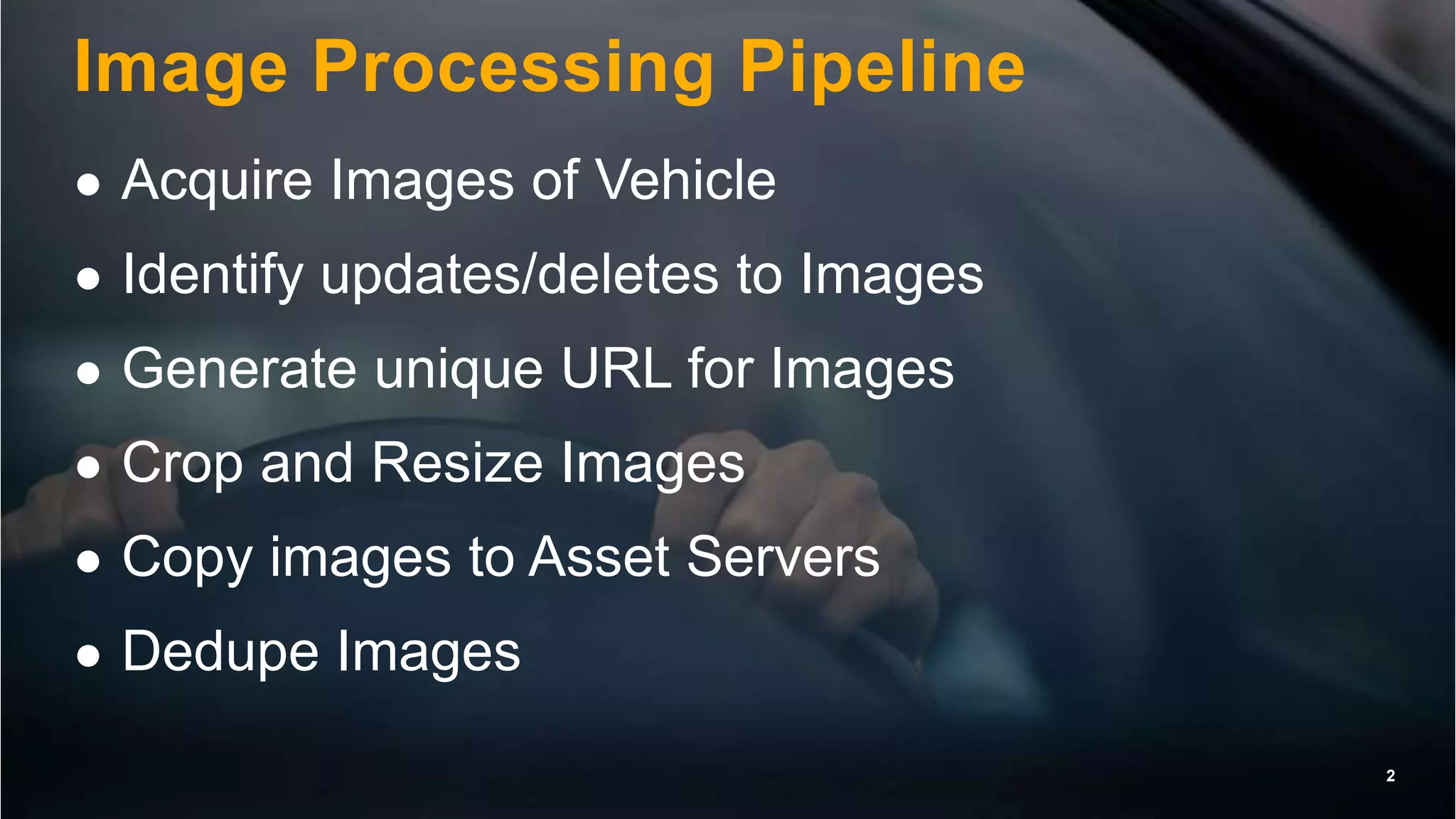

- 2. 2 Image Processing Pipeline ● Acquire Images of Vehicle ● Identify updates/deletes to Images ● Generate unique URL for Images ● Crop and Resize Images ● Copy images to Asset Servers ● Dedupe Images
- 3. 3 Image Processing Pipeline Example HIP
- 4. 4 Why Hadoop? ● High Scalability ● Store historical data of Images ● Fault tolerance ● Identify updates to images on basis of content of URL
- 5. 5 HIP Components 1. HBase: Datastore for Images and archiving Images 2. MapReduce: Computation engine for Image Processor 3. Kafka: Publisher/Subscriber for pushing images to Asset Servers 4. OpenCV Java: Image Processing library 5. Avro: Serialization library for storing data on HDFS
- 6. 6 HBase Data Model Tables: 1. IMAGE: Store current set of Images with some metadata 2. IMAGE_ARCHIVE: Stores historical data of Vehicles and Original Images
- 7. 7 Column Family Description Versions I • Store all images of vehicle. • Stores an Image in each Column 1 H • Stores metadata of all Images 1 Table: IMAGE RowKey: <Vin_Number> HBase Data Model Read patterns for “I” and “H” are mutually exclusive
- 8. 8 Column Family Description Versions I Store original images of vehicle. Only 1 column is stored. 10 A Stores fields of Avro Object of Vehicle and Image for analytics 10 Table: IMAGE_ARCHIVE RowKey: <Provider_id><Dealer_Id><vehicle_vin><Image_Index> HBase Data Model
- 9. 9 HBase Tuning ● Pre-split tables ● Keep Column names short(2-8 letters) ● Region size 8-10 GB ● Asynchronous clients should buffer(autoFlush=false) Put operations ● Disable periodic Major Compaction
- 10. Pipeline Dataflow Overview 10 InventoryProcessor Output [Mapper] Parse & Validate Records [Reducer] Identify CRUD Operation Kafka HBase Asset Servers
- 11. CRUD in Reducer 11 Start Is Deleted? Yes Delete Row in HBase No Is Insert? Yes Download Images Generate 6 Sizes of Image No Get HTTP Headers of ImageURL and Compare with Existing NoHeader Mismatch? Do Nothing Yes 1. Write to HBase 2. Write to Kafka
- 12. Cascading Downloads 12 One JVM Process Yes [ChainReducer] ImageProcessorReducer NoSocket timeout in 500 milliseconds? No 1. Write to HBase 2. Write to Kafka ImageProcessorMapper ImageProcessorRetryMapper Socket timeout in 5 seconds? Mark URL as “Cannot Process”
- 13. 1313 Kafka Producer ● One message per Image file ● Producer Message Format: ● Key: ImageFileName (kafka.serializer.StringEncoder) ● Value: Image (kafka.serializer.DefaultEncoder) Key: /inventory/10584/15/5YJSA1DP0DFP1156/6ZBQHFKBVMY7OTBO-251.jpg Value:
- 14. 14 Kafka Producer Tuning Property Value Default Value request.required.acks 1 0 message.send.max.retries 30 3 retry.backoff.ms 5000 100 client.id HIP “” For Producer, to sustain NODE failure: retry.backoff.ms * message.send.max.retries(default:100*3) > Zookeeper Timeout(default:60000) Failure recovery in 300ms. Really?
- 15. Kafka Brokers Tuning Property Value Default Value log.retention.bytes 24 GB -1(unlimited) socket.send.buffer.bytes 10485760 1048576 socket.receive.buffer.bytes 10485760 1048576 1. Data is purged when any of log.retention.bytes OR log.retention.hours exceeds. 2. log.retention.bytes = diskspace/number_of_partitions on each node
- 16. 161616 OpenCV ● Used Java bindings of OpenCV to avoid using Hadoop Streaming ● Java api is quite straight forward to encode, decode, crop and resize. Memory Leak: Mat.release() has to be used to free up memory used by Mat.
- 17. 17 Performance 0 50 100 150 200 250 300 350 400 3 6 9 12 15 18 H o u r s Images(Millions) HIP ImageProcessor1.0 HIP scales Linearly and at least 10x faster
- 18. 18 Cascading Downloads 0 2 4 6 8 10 12 14 3 6 9 12 15 18 H o u r s Images(Millions) HIP with Cascading HIP without Cascading 20% performance gain
