1. The magic is in the glue
XQuery+Cloud
Daniela Florescu
Oracle

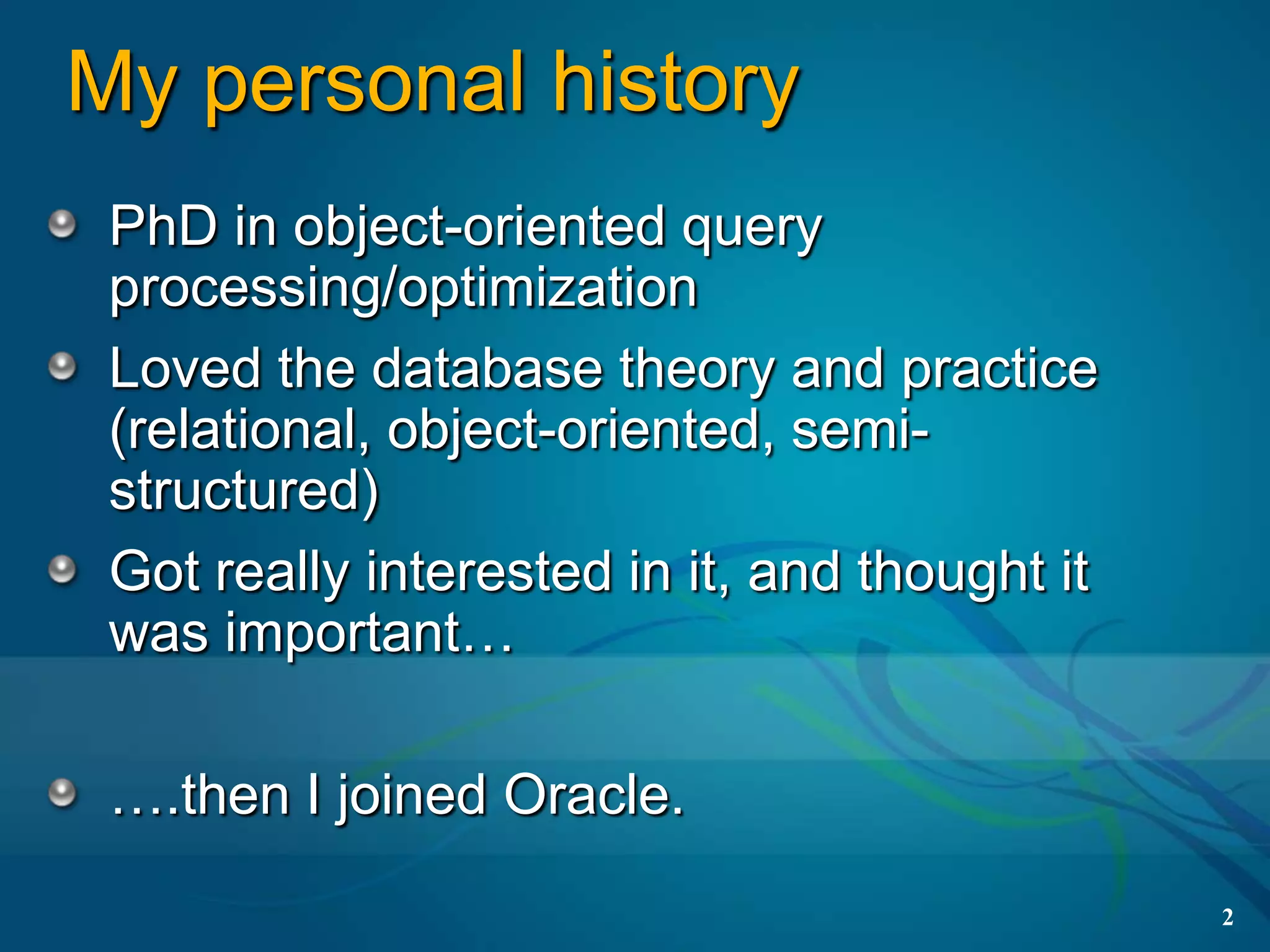

2. My personal history
PhD in object-oriented query
processing/optimization
Loved the database theory and practice
(relational, object-oriented, semi-
structured)
Got really interested in it, and thought it
was important…
….then I joined Oracle.
2

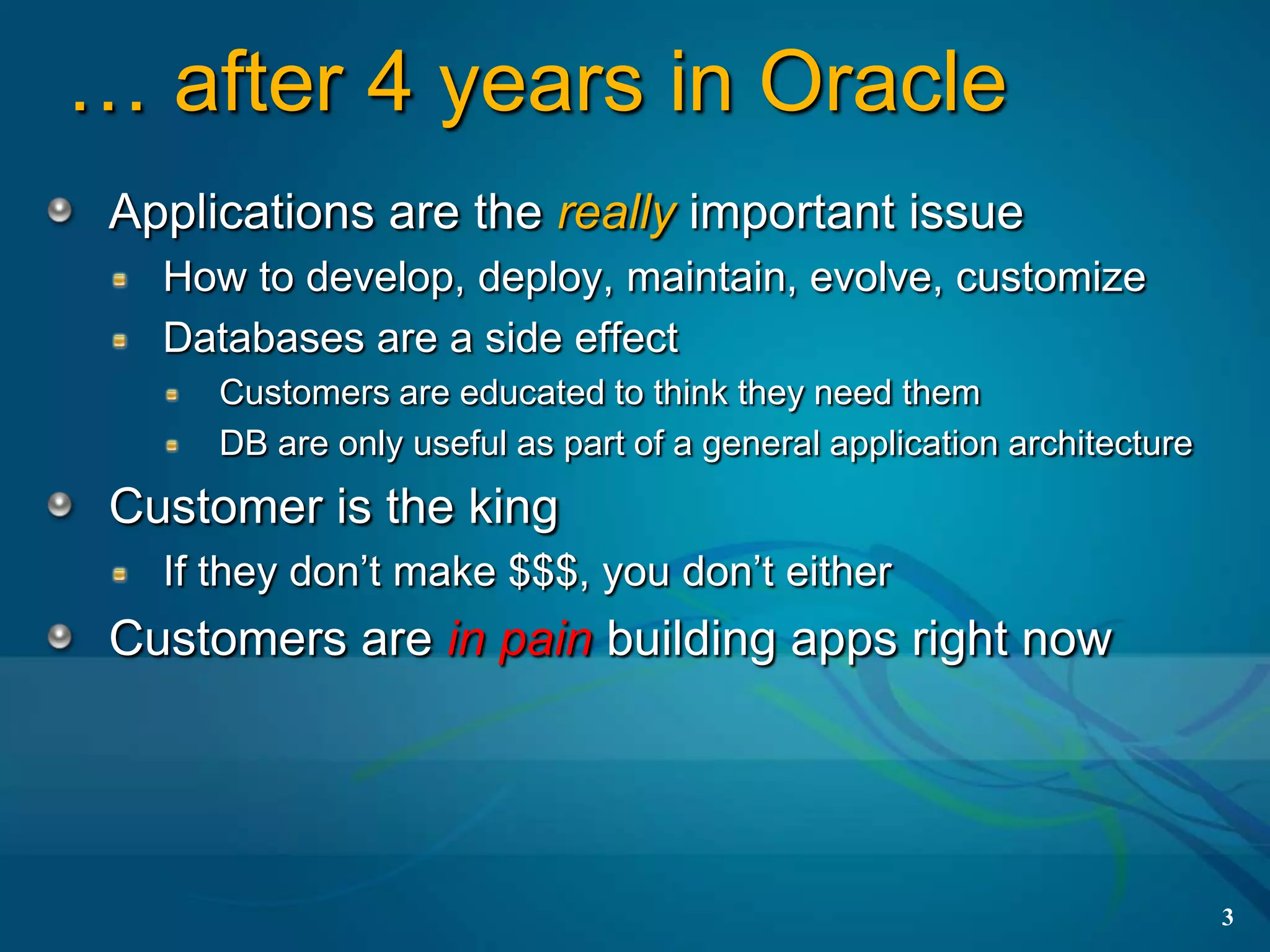

3. … after 4 years in Oracle
Applications are the really important issue
How to develop, deploy, maintain, evolve, customize
Databases are a side effect
Customers are educated to think they need them
DB are only useful as part of a general application architecture
Customer is the king
If they don’t make $$$, you don’t either
Customers are in pain building apps right now
3

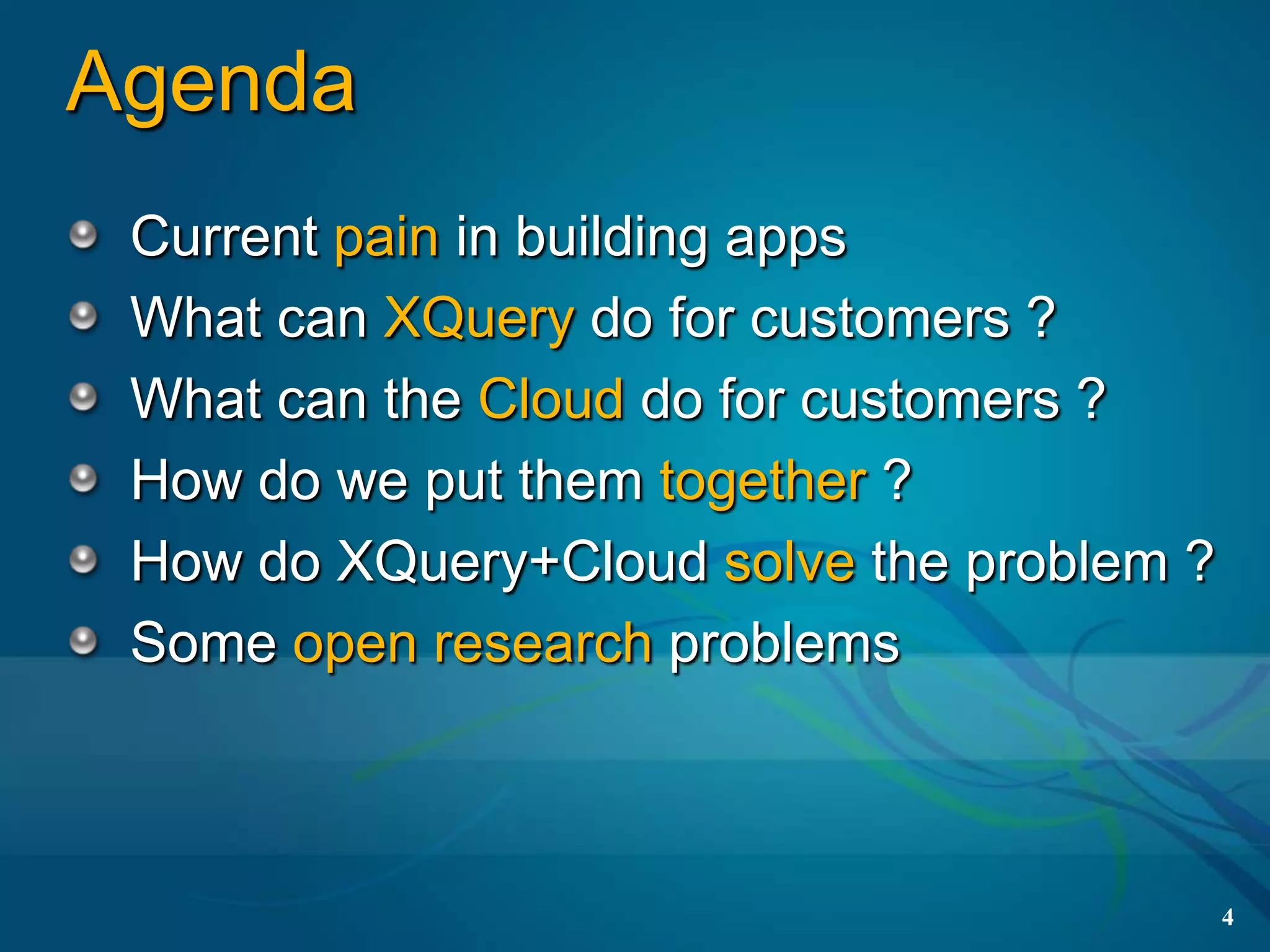

4. Agenda
Current pain in building apps
What can XQuery do for customers ?
What can the Cloud do for customers ?
How do we put them together ?
How do XQuery+Cloud solve the problem ?
Some open research problems
4

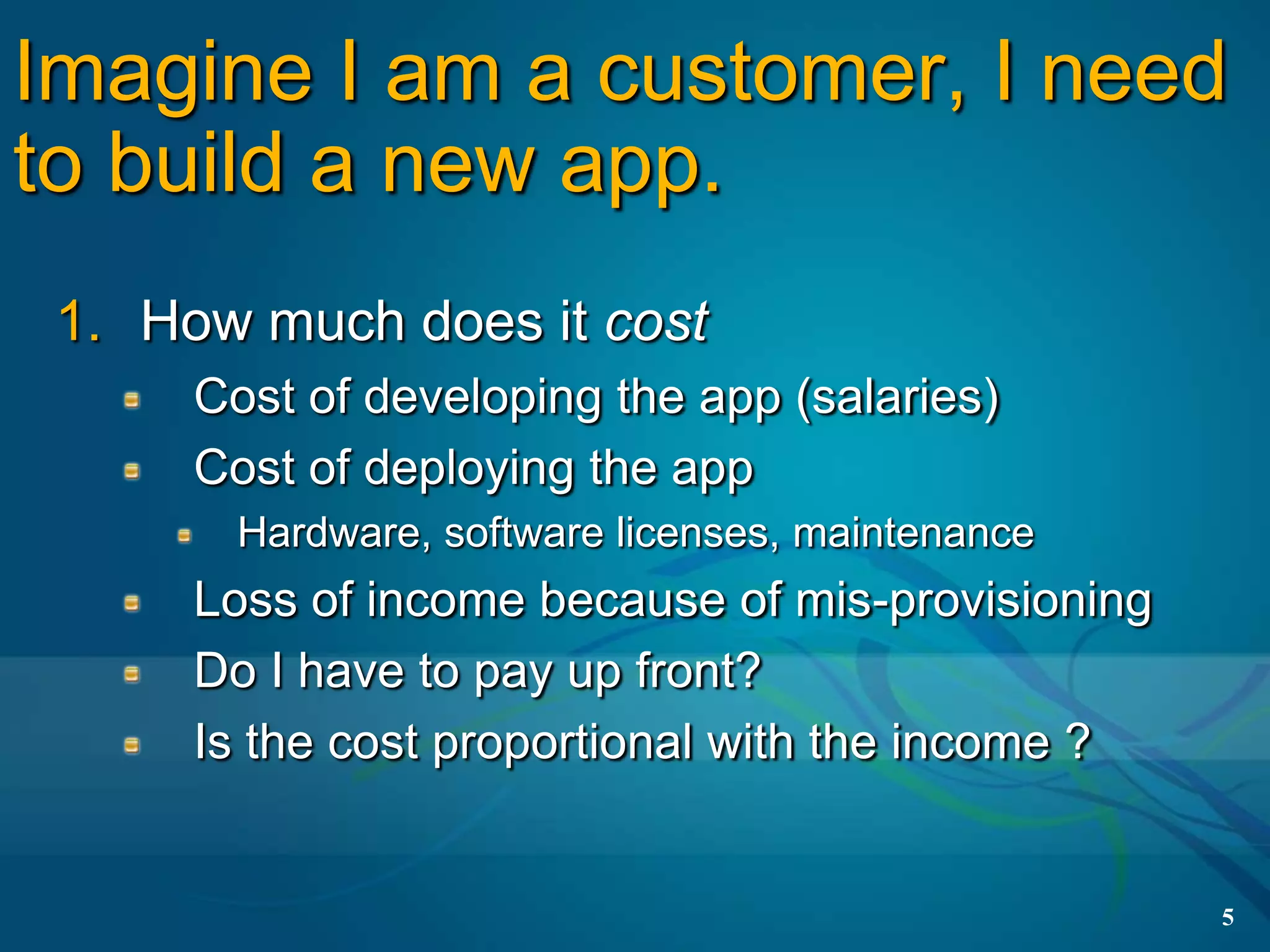

5. Imagine I am a customer, I need
to build a new app.
1. How much does it cost
Cost of developing the app (salaries)
Cost of deploying the app
Hardware, software licenses, maintenance
Loss of income because of mis-provisioning
Do I have to pay up front?
Is the cost proportional with the income ?
5

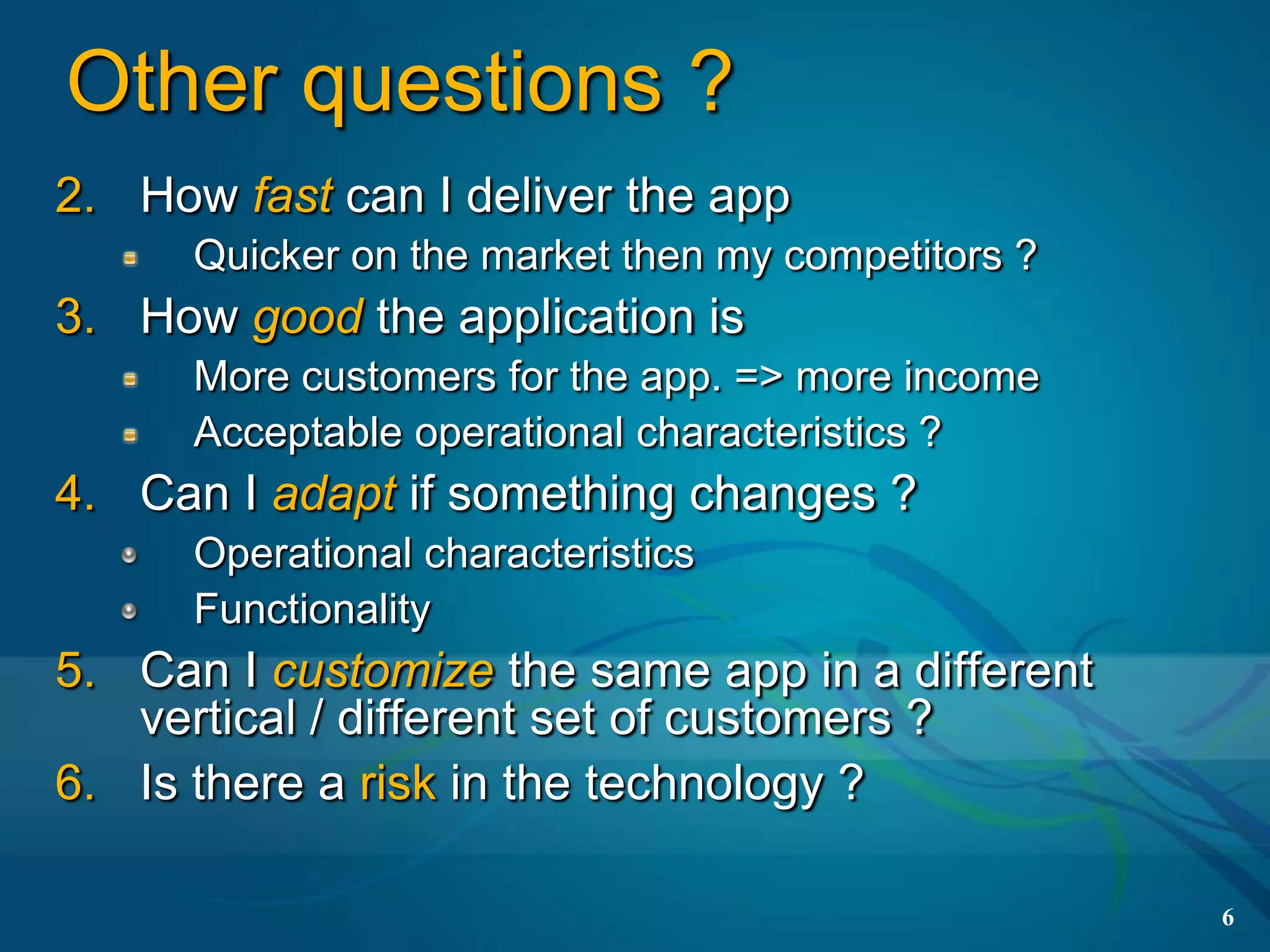

6. Other questions ?
2. How fast can I deliver the app
Quicker on the market then my competitors ?
3. How good the application is
More customers for the app. => more income
Acceptable operational characteristics ?
4. Can I adapt if something changes ?
Operational characteristics
Functionality
5. Can I customize the same app in a different
vertical / different set of customers ?
6. Is there a risk in the technology ?
6

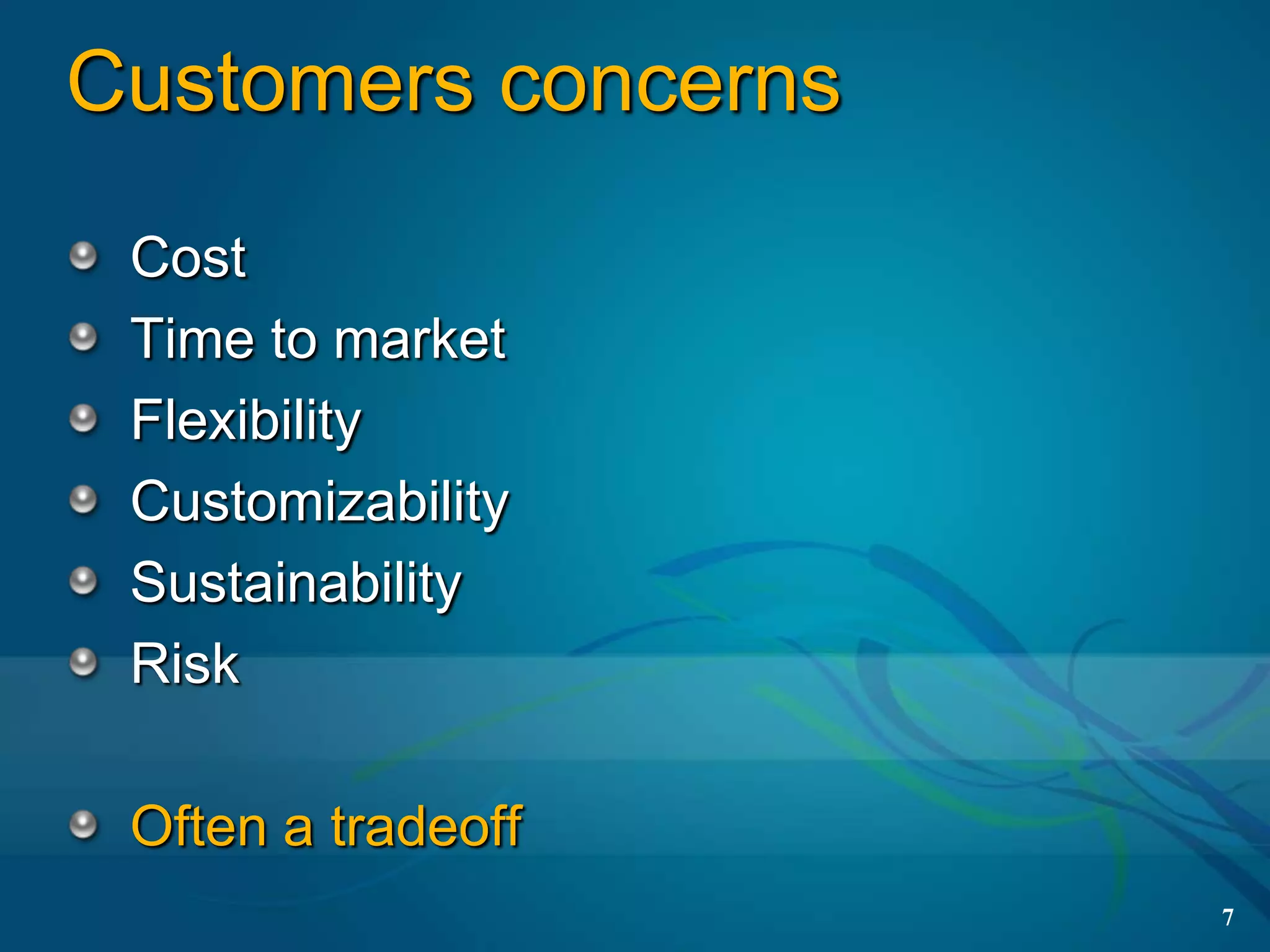

7. Customers concerns
Cost
Time to market
Flexibility
Customizability
Sustainability
Risk
Often a tradeoff
7

8. Different classes of customers
Enterprise (e.g. Bank of America)
Cost
Sustainability
Risk
Customizability
Flexibility
Time to market
Government agency (eg. DoD)
Sustainability
Cost
Time to market (?)
Flexibility (?)
Customizability
Risk
Consumer (e.g Craiglist)
Time to market
Cost
Flexibility
Customizability
Sustainability
Risk 8

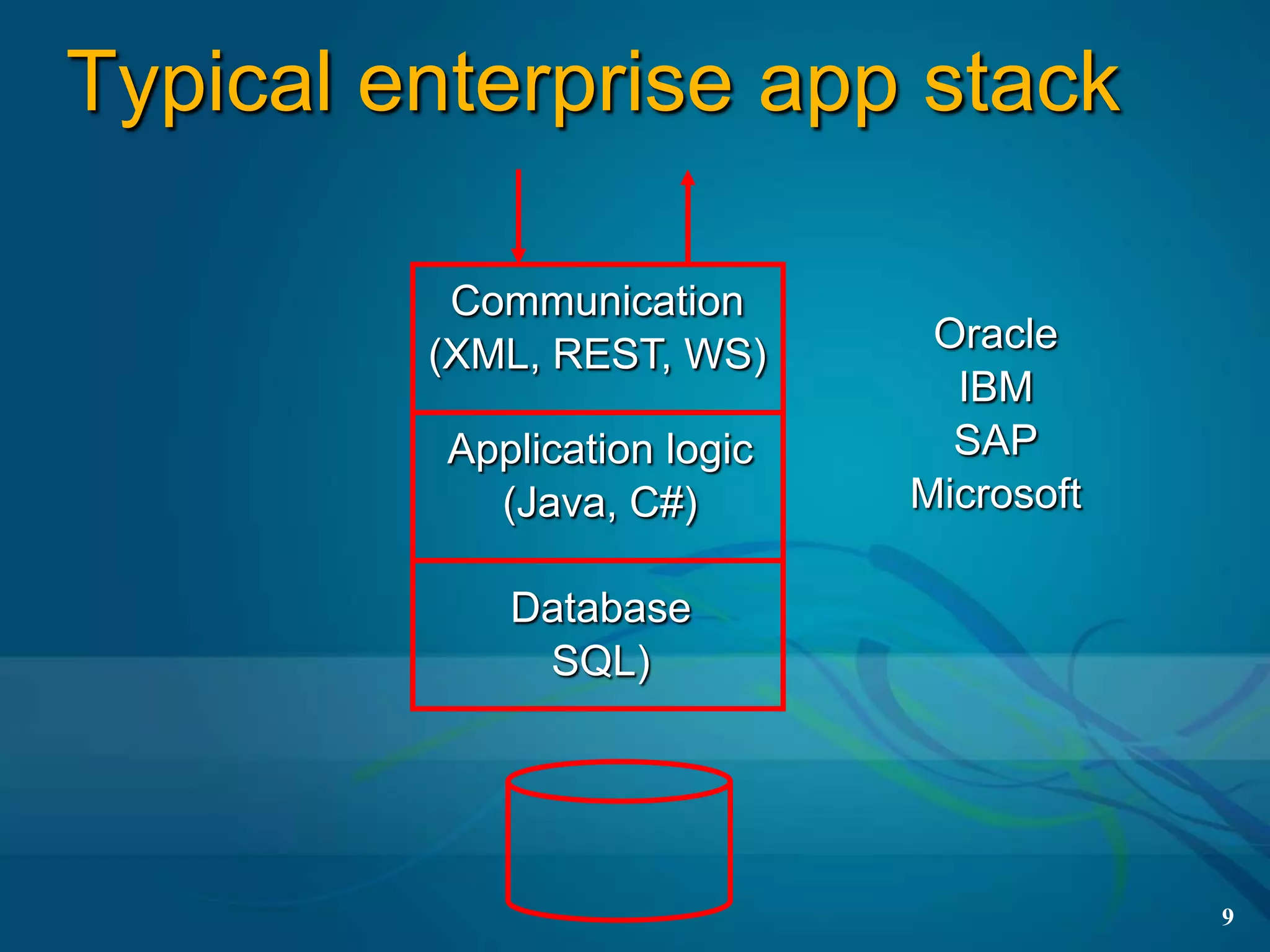

9. Typical enterprise app stack
Communication
(XML, REST, WS) Oracle
IBM
Application logic SAP
(Java, C#) Microsoft
Database
SQL)
9

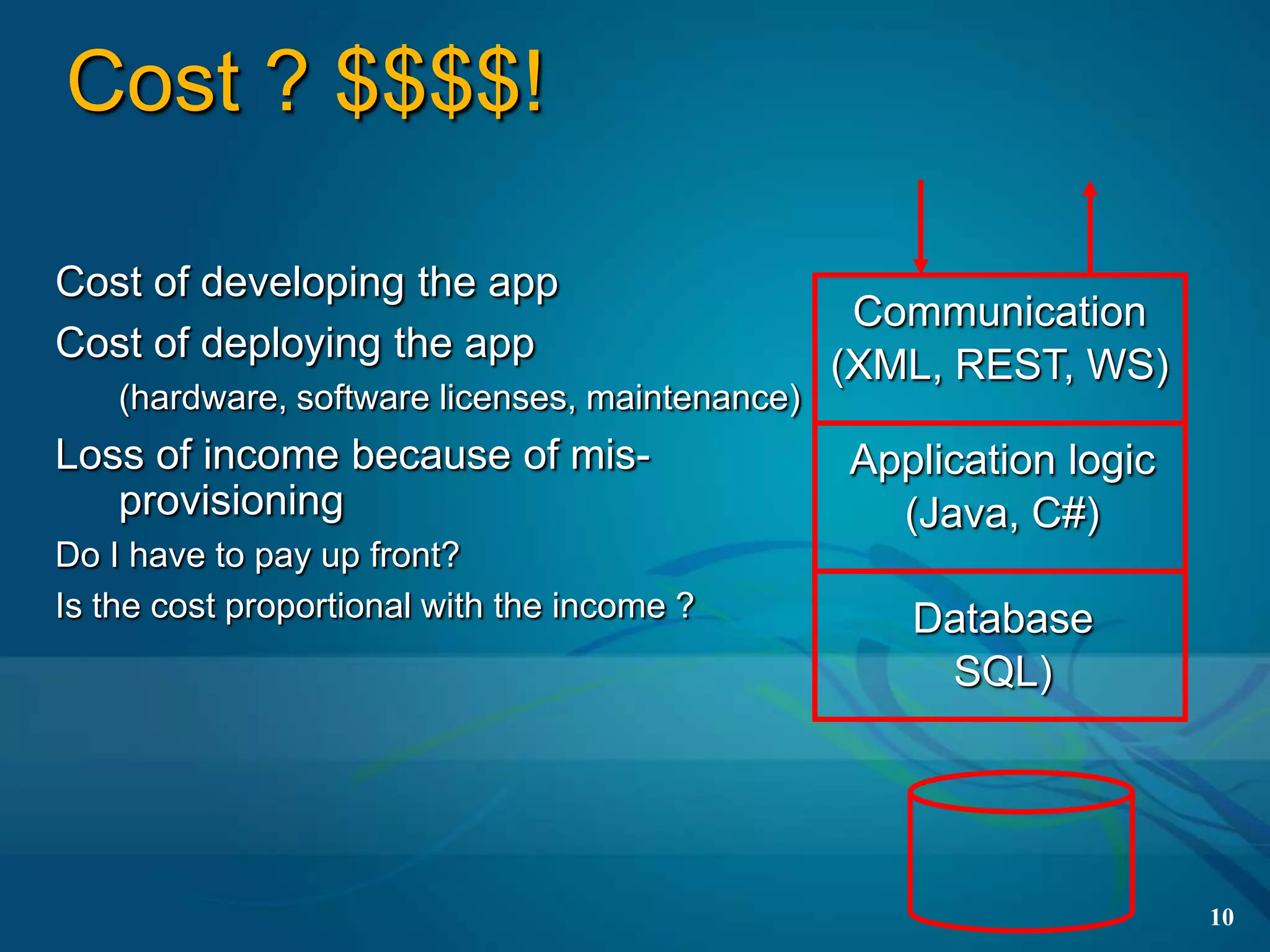

10. Cost ? $$$$!
Cost of developing the app
Communication
Cost of deploying the app
(XML, REST, WS)
(hardware, software licenses, maintenance)
Loss of income because of mis- Application logic
provisioning (Java, C#)
Do I have to pay up front?
Is the cost proportional with the income ? Database
SQL)
10

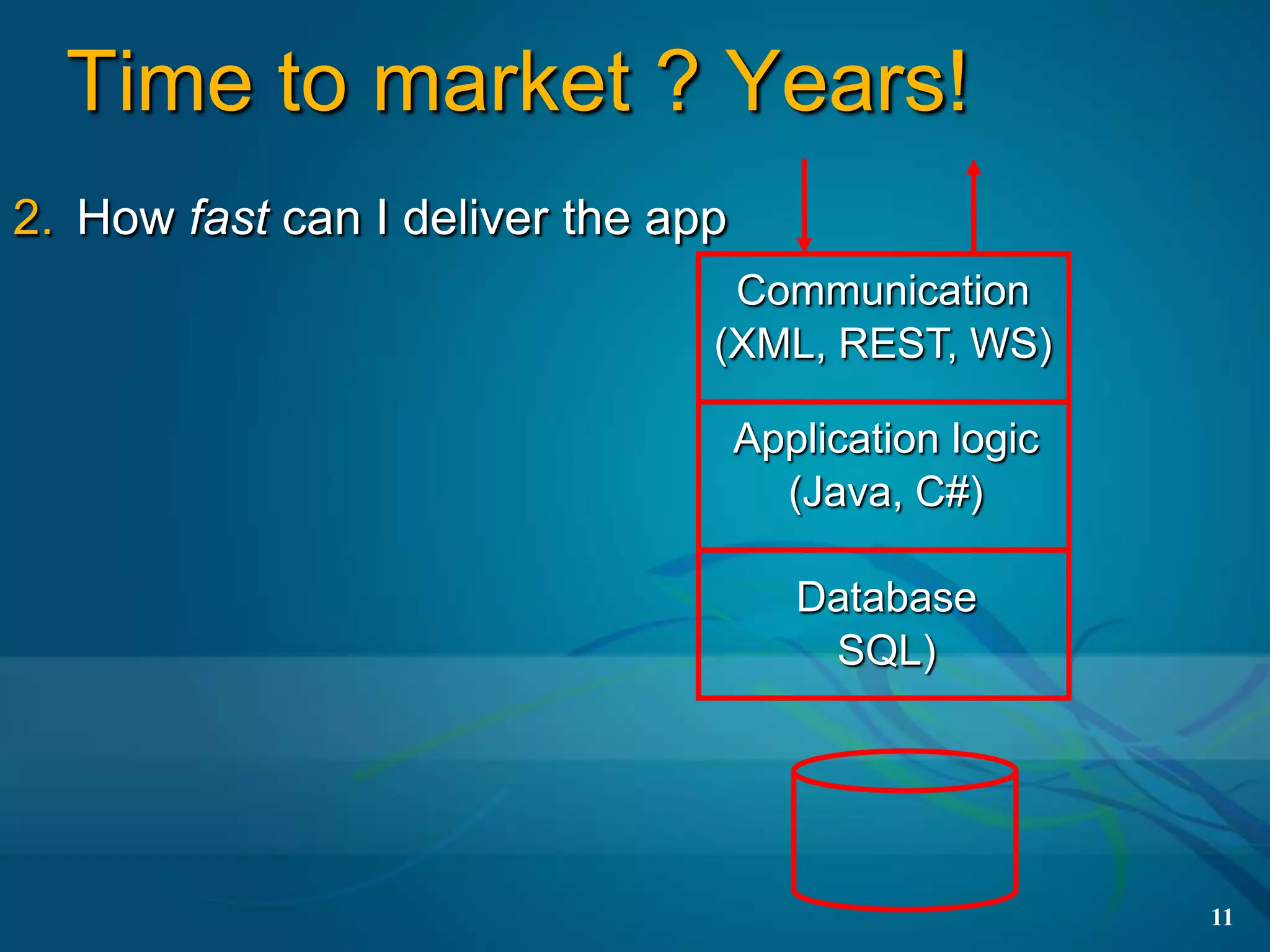

11. Time to market ? Years!
2. How fast can I deliver the app
Communication
(XML, REST, WS)
Application logic
(Java, C#)
Database
SQL)
11

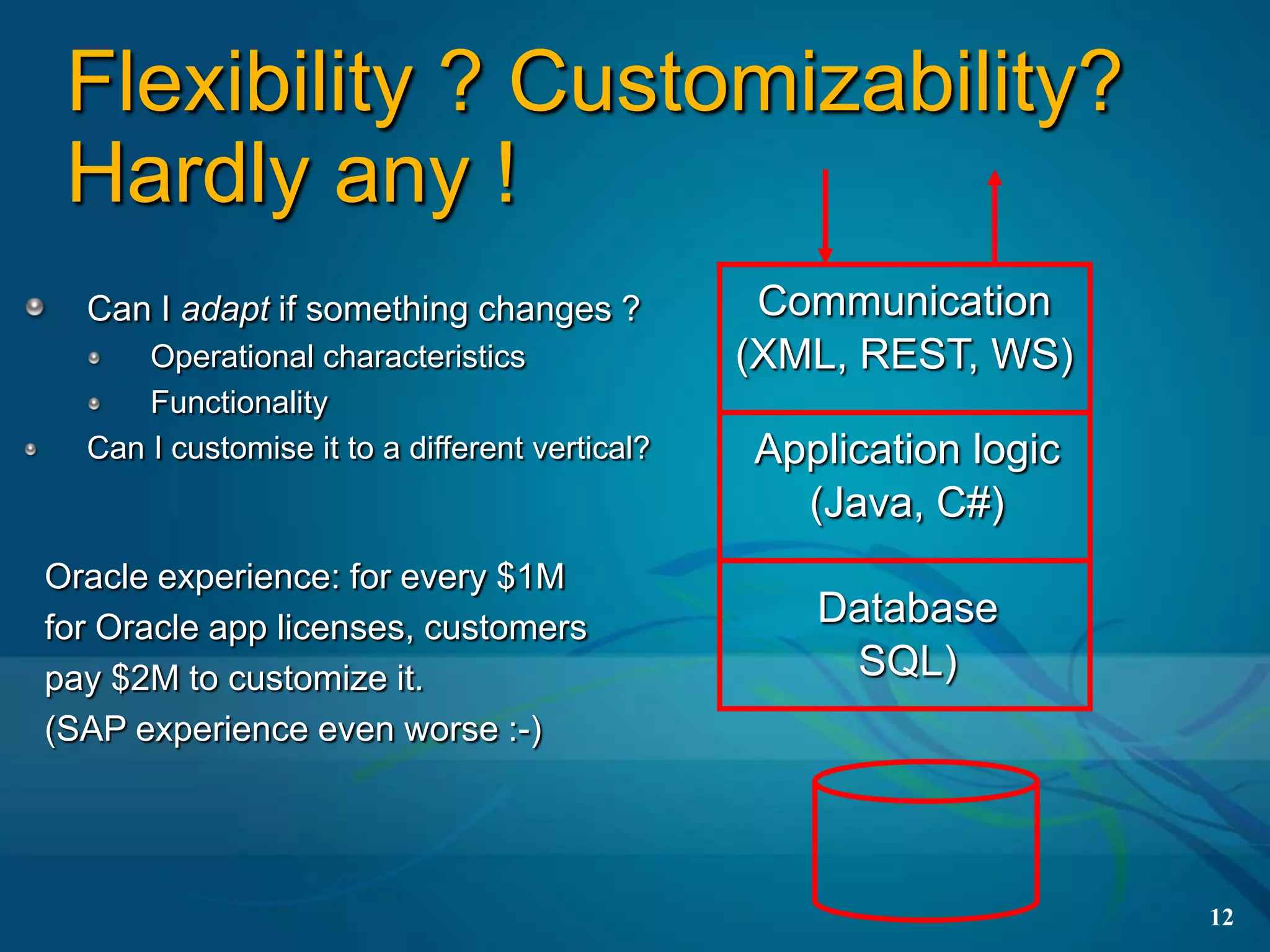

12. Flexibility ? Customizability?
Hardly any !
Can I adapt if something changes ? Communication
Operational characteristics (XML, REST, WS)
Functionality
Can I customise it to a different vertical? Application logic
(Java, C#)
Oracle experience: for every $1M
for Oracle app licenses, customers Database
pay $2M to customize it. SQL)
(SAP experience even worse :-)
12

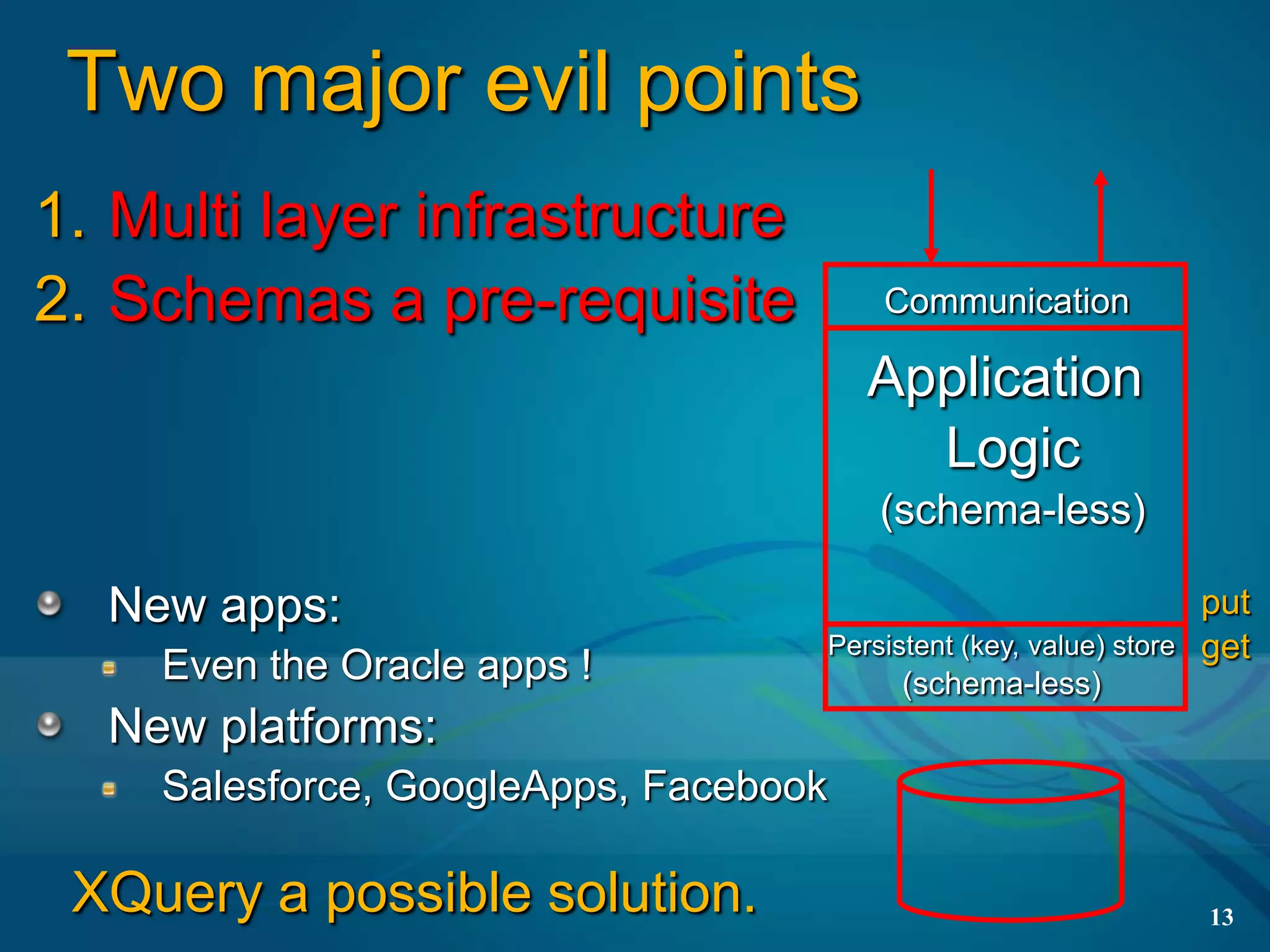

13. Two major evil points
1. Multi layer infrastructure
2. Schemas a pre-requisite Communication
Application
Logic
(schema-less)
New apps: put
Persistent (key, value) store get
Even the Oracle apps ! (schema-less)
New platforms:
Salesforce, GoogleApps, Facebook
XQuery a possible solution. 13

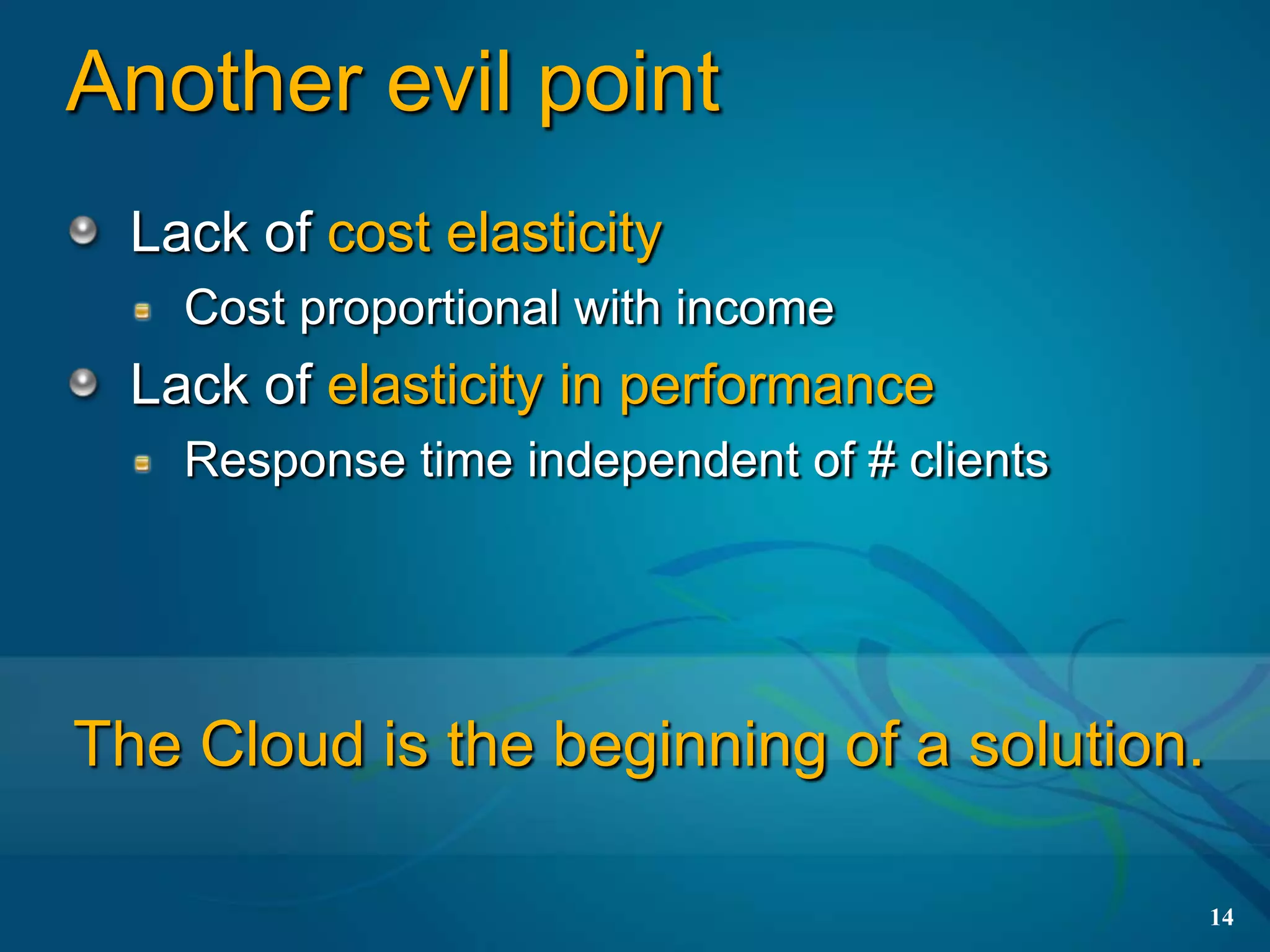

14. Another evil point
Lack of cost elasticity
Cost proportional with income
Lack of elasticity in performance
Response time independent of # clients
The Cloud is the beginning of a solution.
14

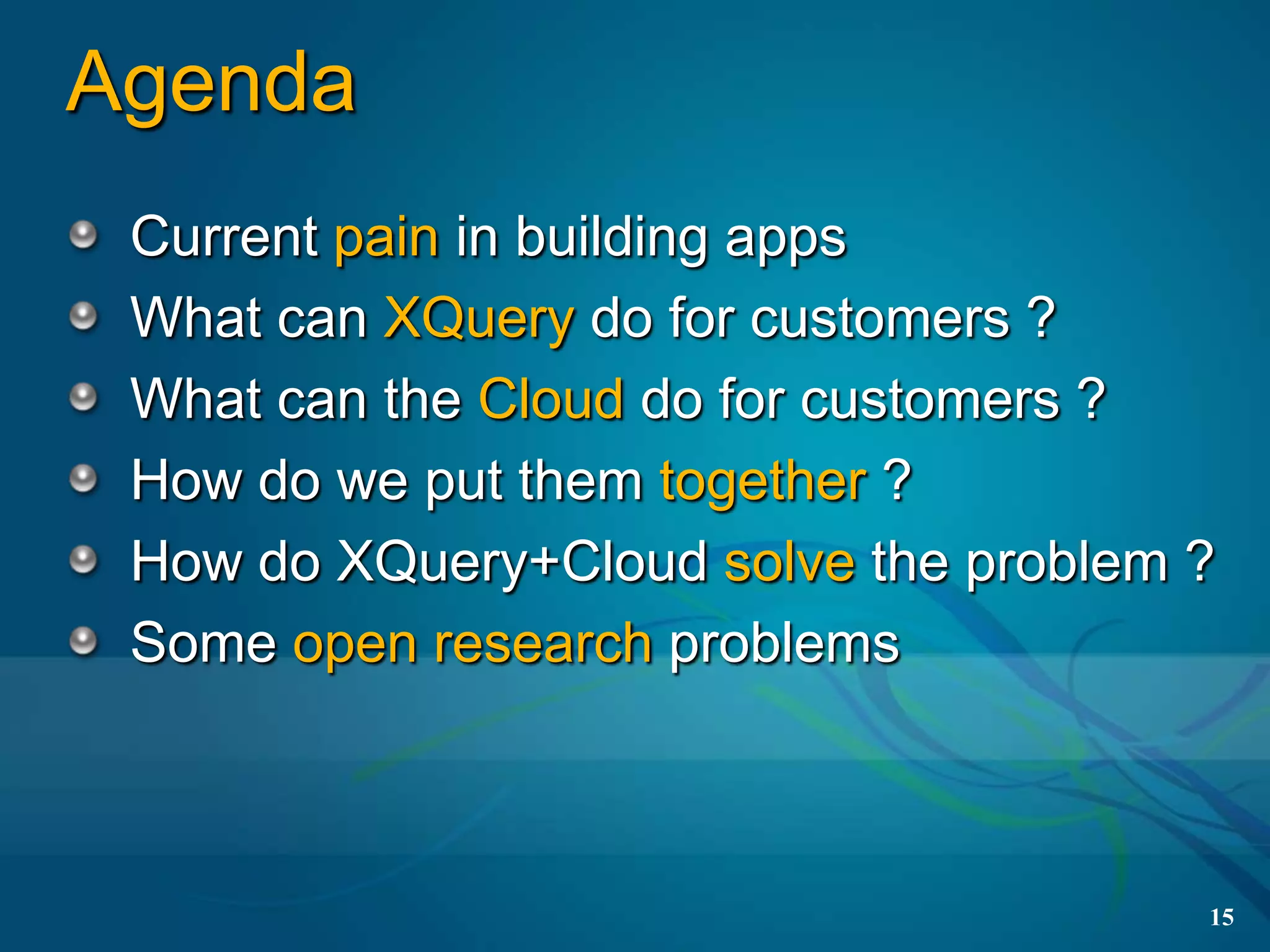

15. Agenda
Current pain in building apps
What can XQuery do for customers ?
What can the Cloud do for customers ?
How do we put them together ?
How do XQuery+Cloud solve the problem ?
Some open research problems
15

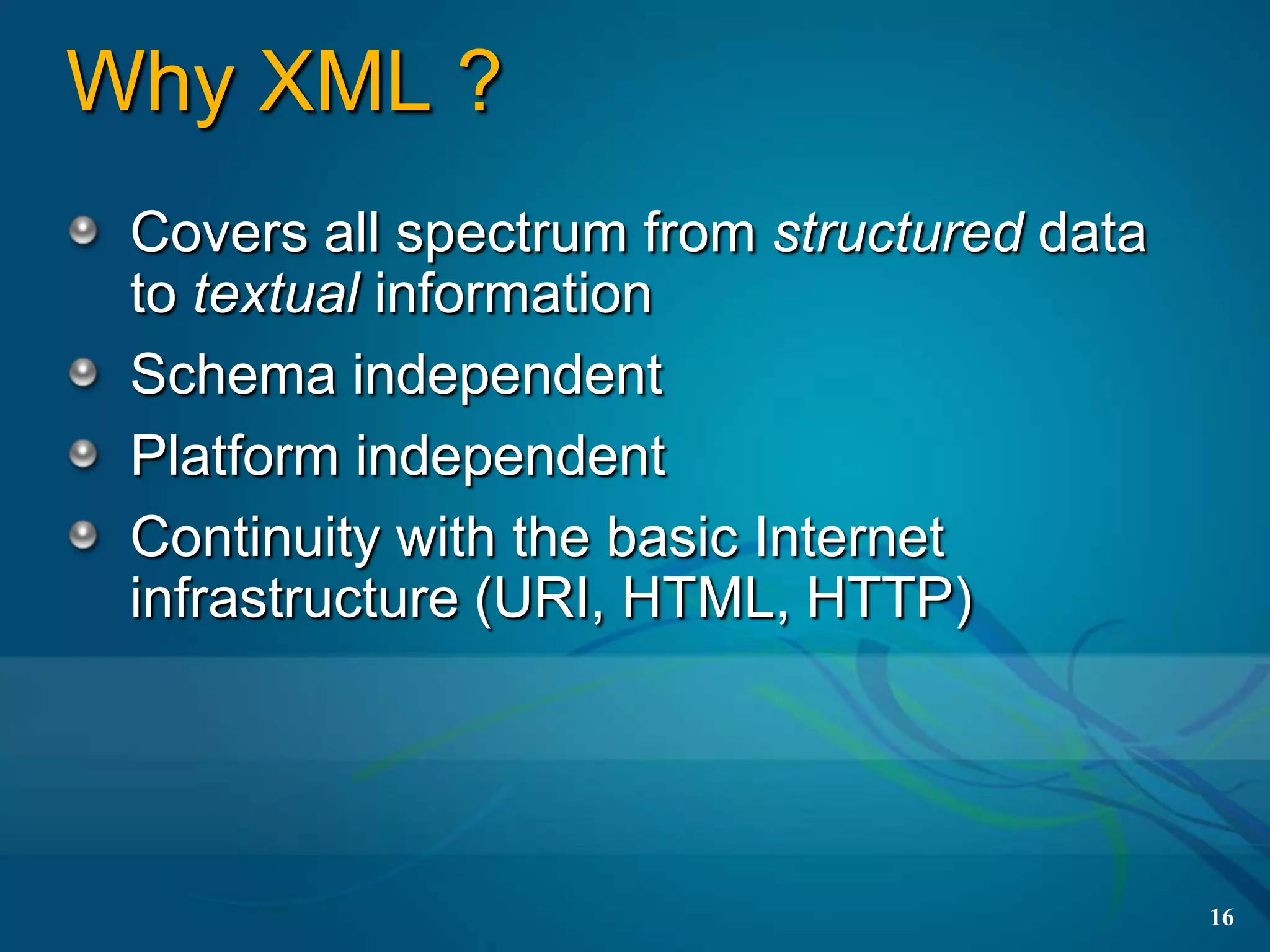

16. Why XML ?
Covers all spectrum from structured data
to textual information
Schema independent
Platform independent
Continuity with the basic Internet
infrastructure (URI, HTML, HTTP)
16

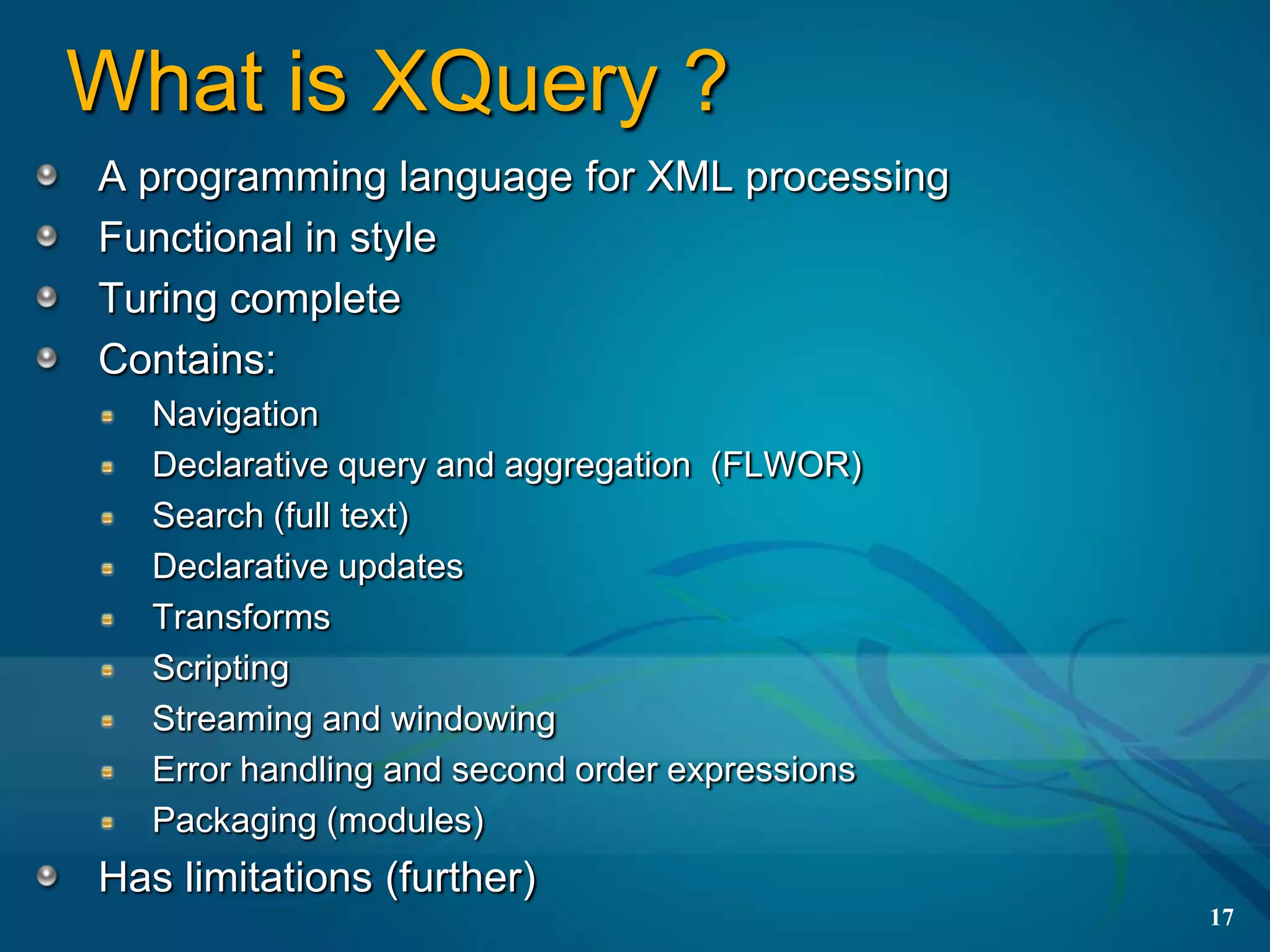

17. What is XQuery ?
A programming language for XML processing
Functional in style
Turing complete
Contains:
Navigation
Declarative query and aggregation (FLWOR)
Search (full text)
Declarative updates
Transforms
Scripting
Streaming and windowing
Error handling and second order expressions
Packaging (modules)
Has limitations (further)
17

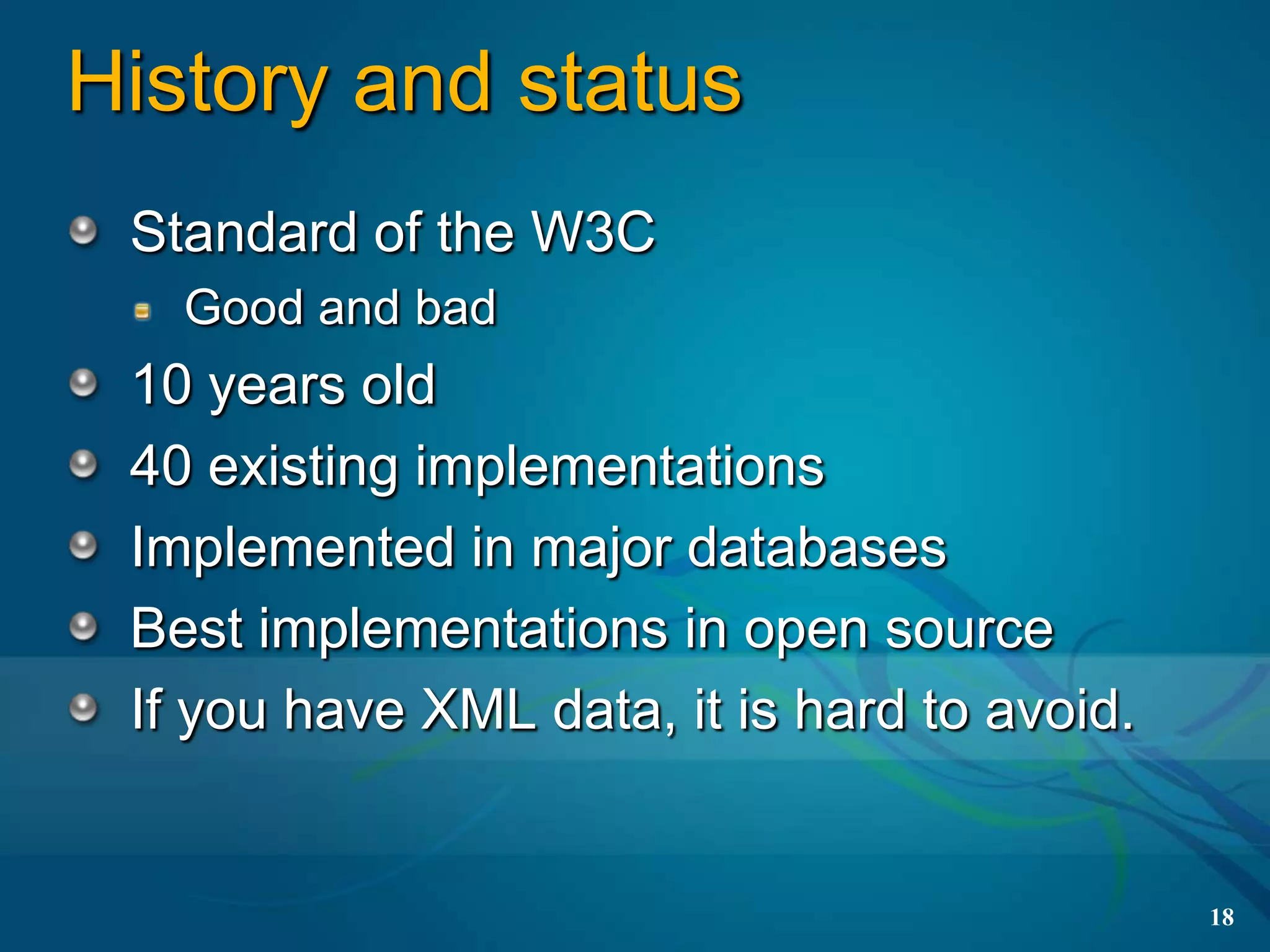

18. History and status
Standard of the W3C
Good and bad
10 years old
40 existing implementations
Implemented in major databases
Best implementations in open source
If you have XML data, it is hard to avoid.
18

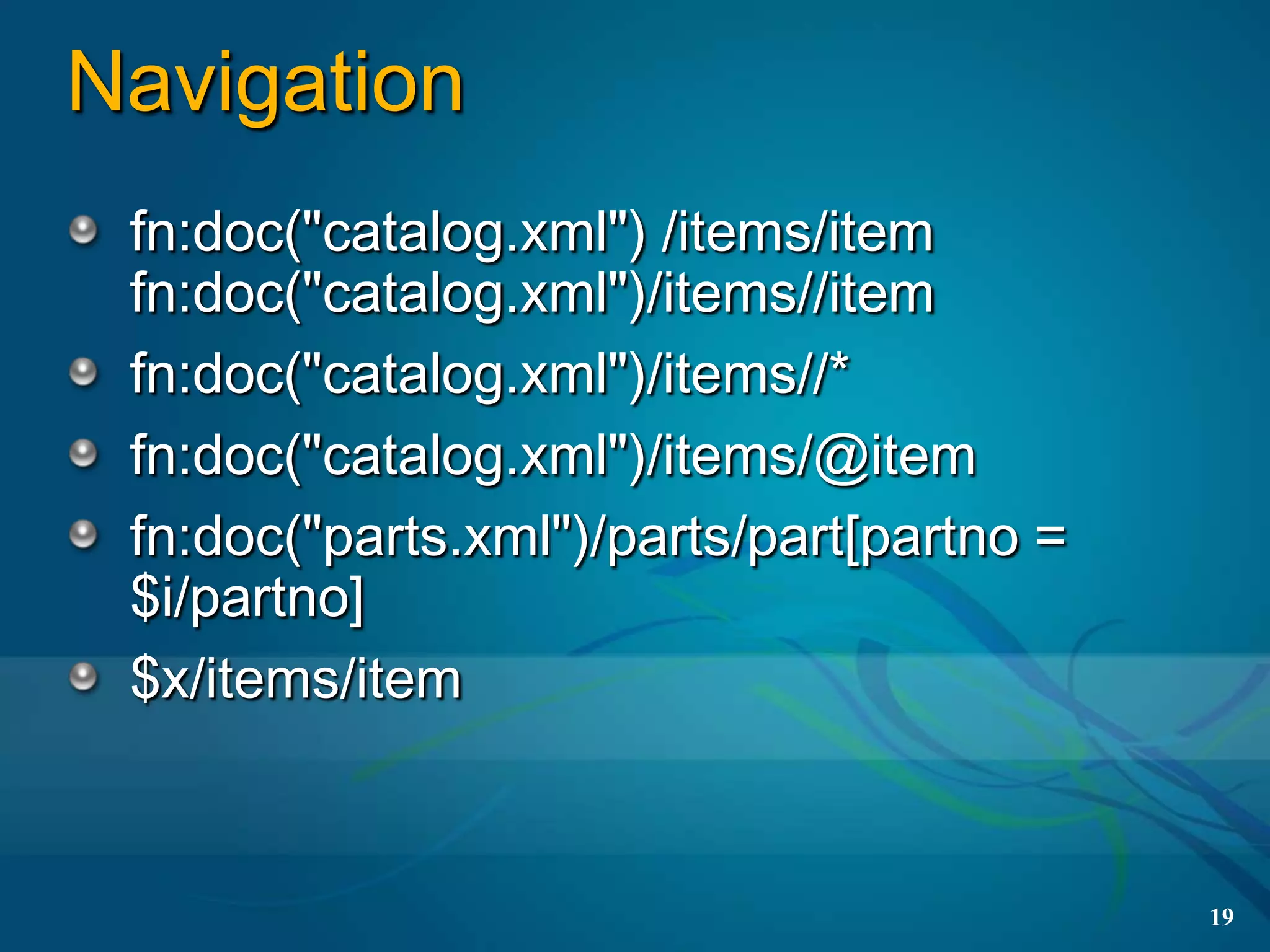

19. Navigation
fn:doc("catalog.xml") /items/item
fn:doc("catalog.xml")/items//item
fn:doc("catalog.xml")/items//*
fn:doc("catalog.xml")/items/@item
fn:doc("parts.xml")/parts/part[partno =
$i/partno]
$x/items/item
19

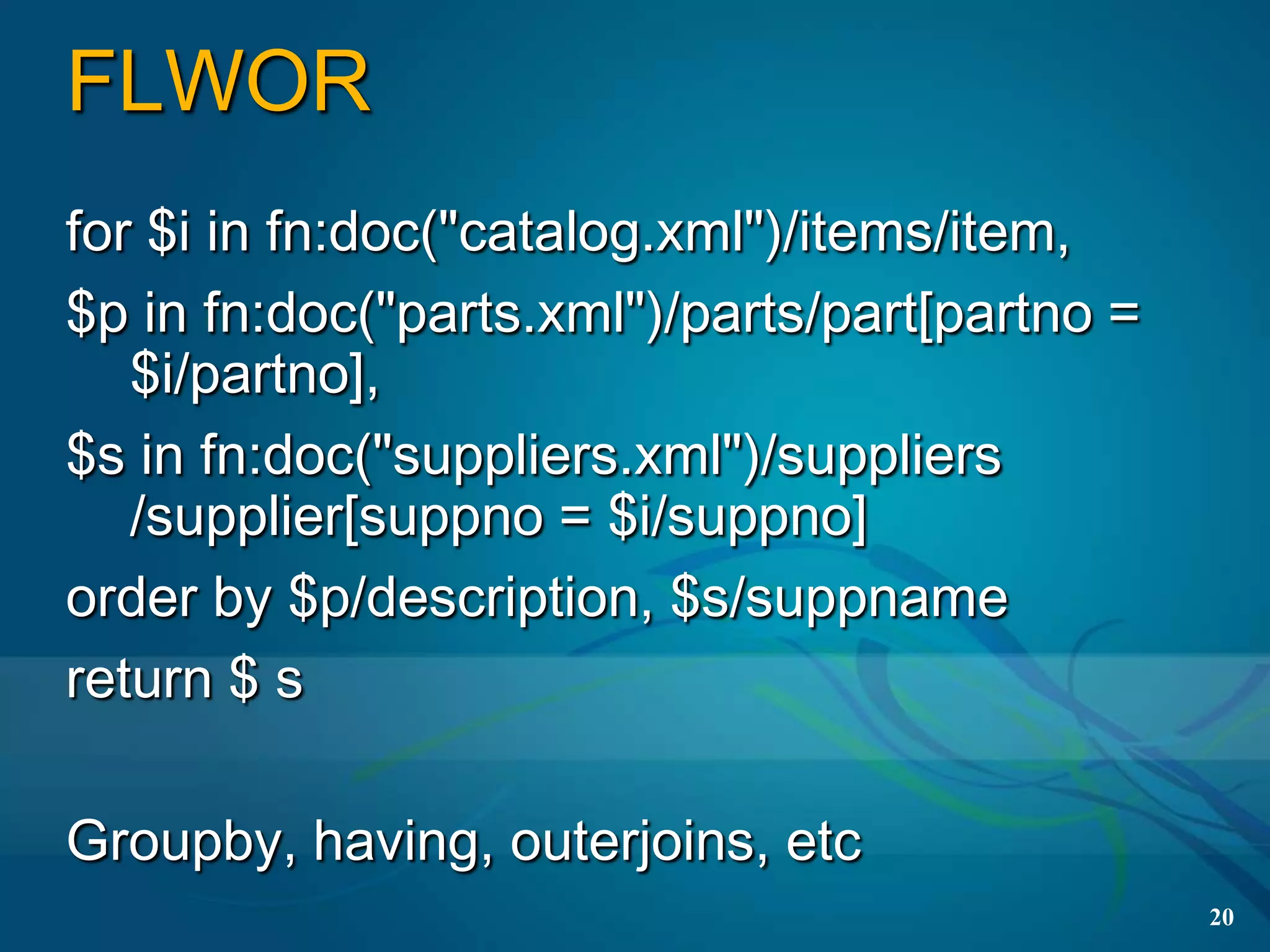

20. FLWOR
for $i in fn:doc("catalog.xml")/items/item,
$p in fn:doc("parts.xml")/parts/part[partno =
$i/partno],
$s in fn:doc("suppliers.xml")/suppliers
/supplier[suppno = $i/suppno]
order by $p/description, $s/suppname
return $ s
Groupby, having, outerjoins, etc
20

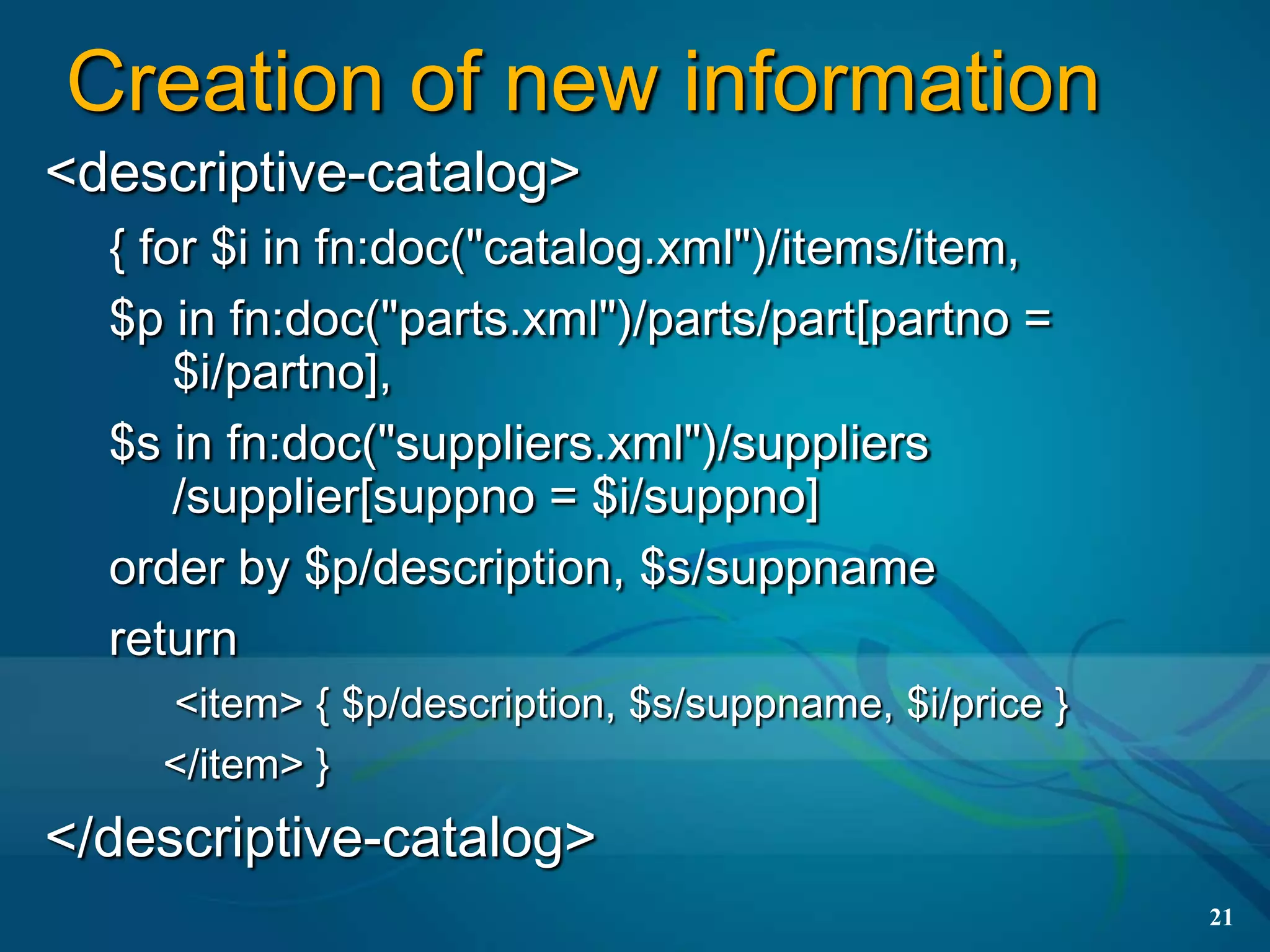

21. Creation of new information
<descriptive-catalog>
{ for $i in fn:doc("catalog.xml")/items/item,
$p in fn:doc("parts.xml")/parts/part[partno =
$i/partno],
$s in fn:doc("suppliers.xml")/suppliers
/supplier[suppno = $i/suppno]
order by $p/description, $s/suppname
return
<item> { $p/description, $s/suppname, $i/price }
</item> }
</descriptive-catalog>
21

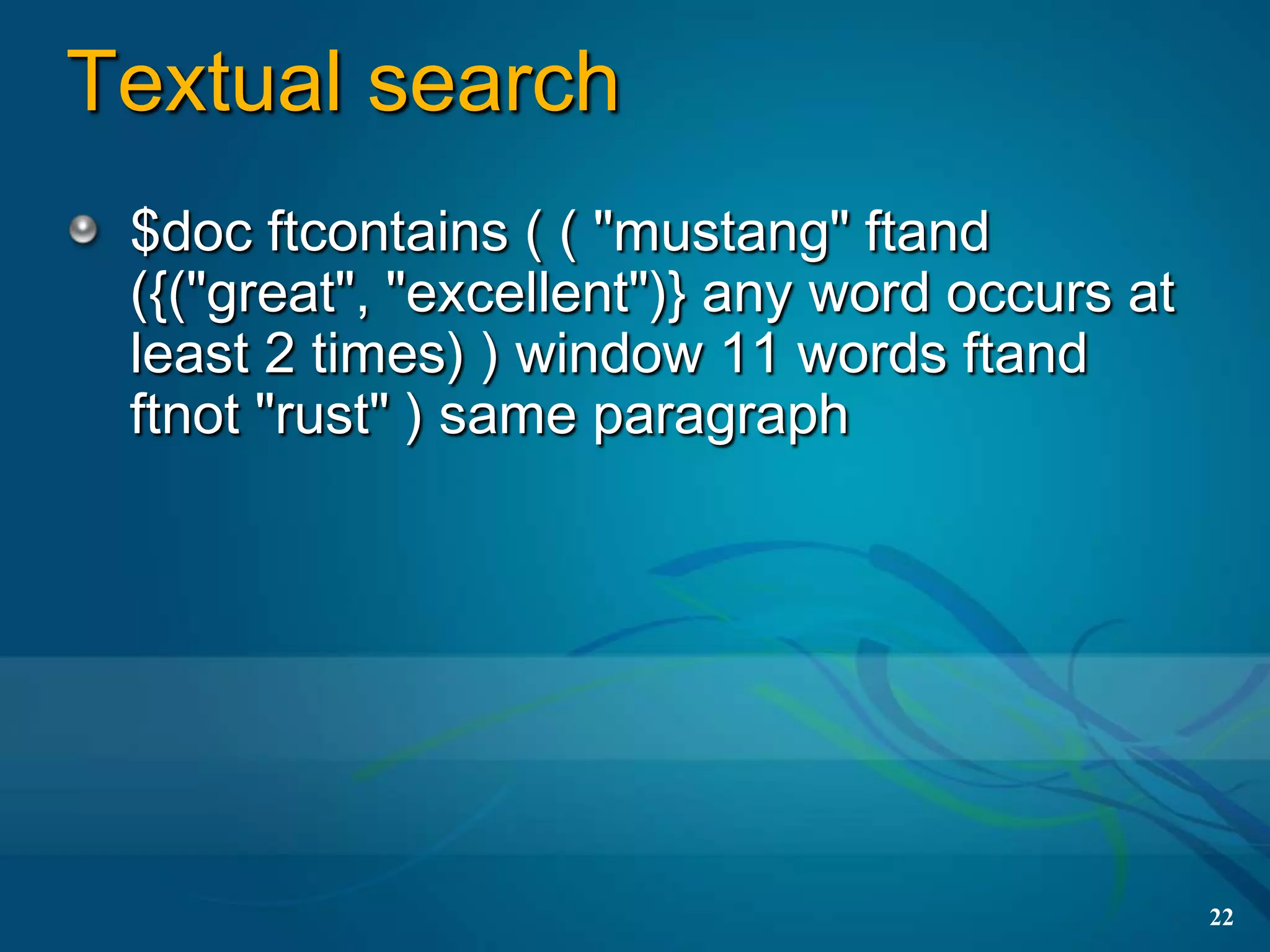

22. Textual search
$doc ftcontains ( ( "mustang" ftand
({("great", "excellent")} any word occurs at
least 2 times) ) window 11 words ftand
ftnot "rust" ) same paragraph
22

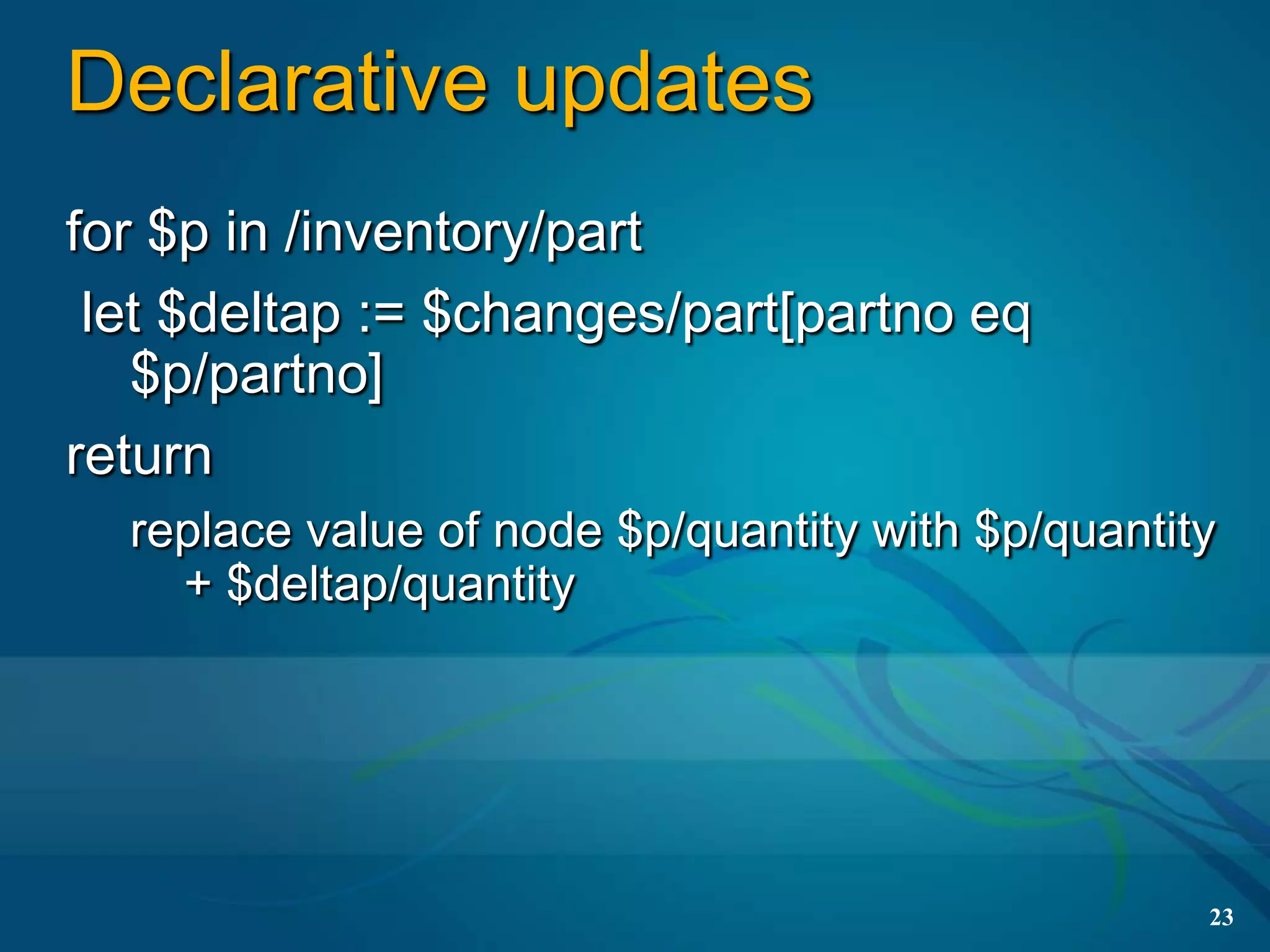

23. Declarative updates
for $p in /inventory/part
let $deltap := $changes/part[partno eq
$p/partno]
return
replace value of node $p/quantity with $p/quantity
+ $deltap/quantity
23

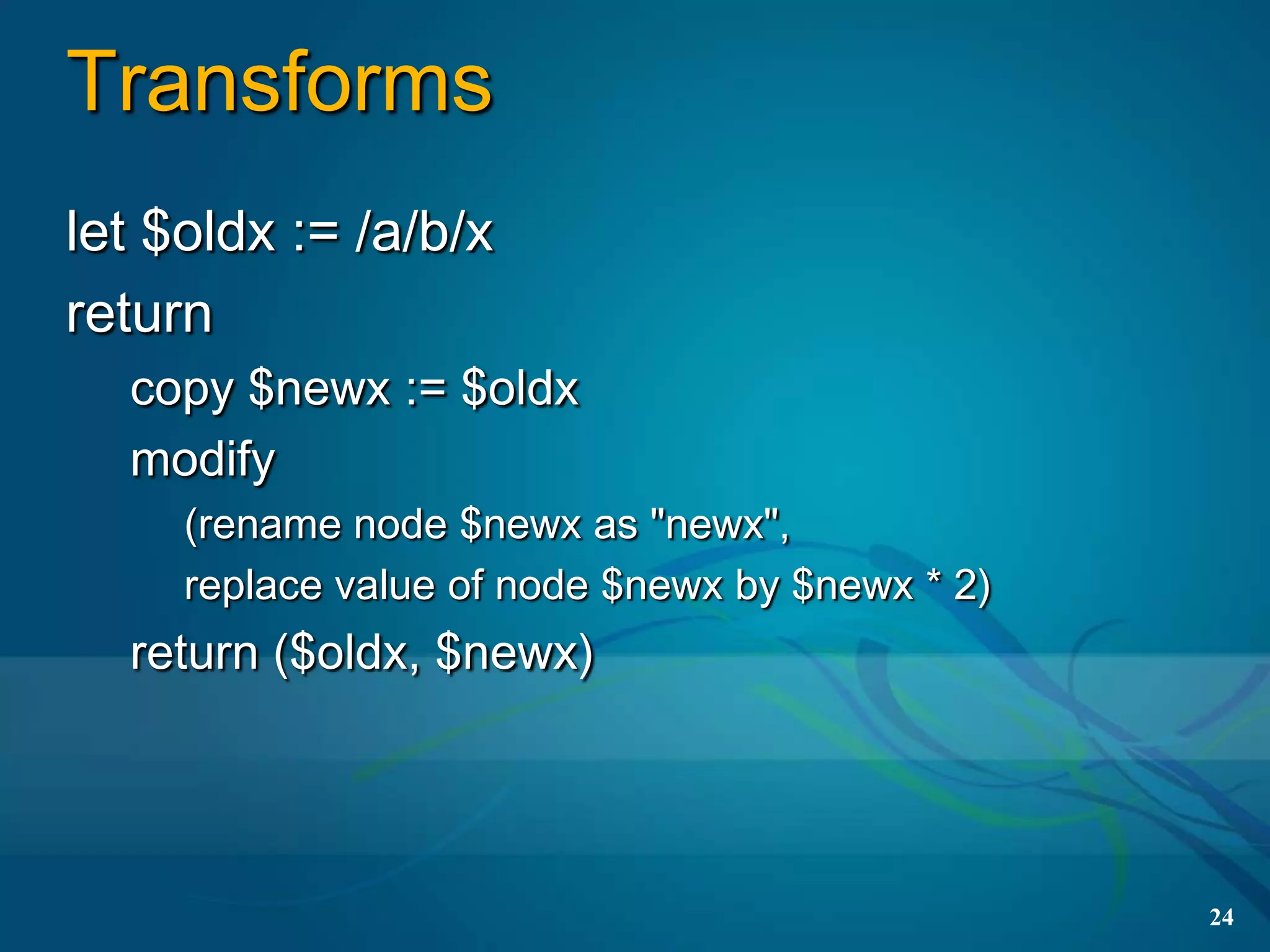

24. Transforms
let $oldx := /a/b/x
return
copy $newx := $oldx
modify
(rename node $newx as "newx",
replace value of node $newx by $newx * 2)
return ($oldx, $newx)
24

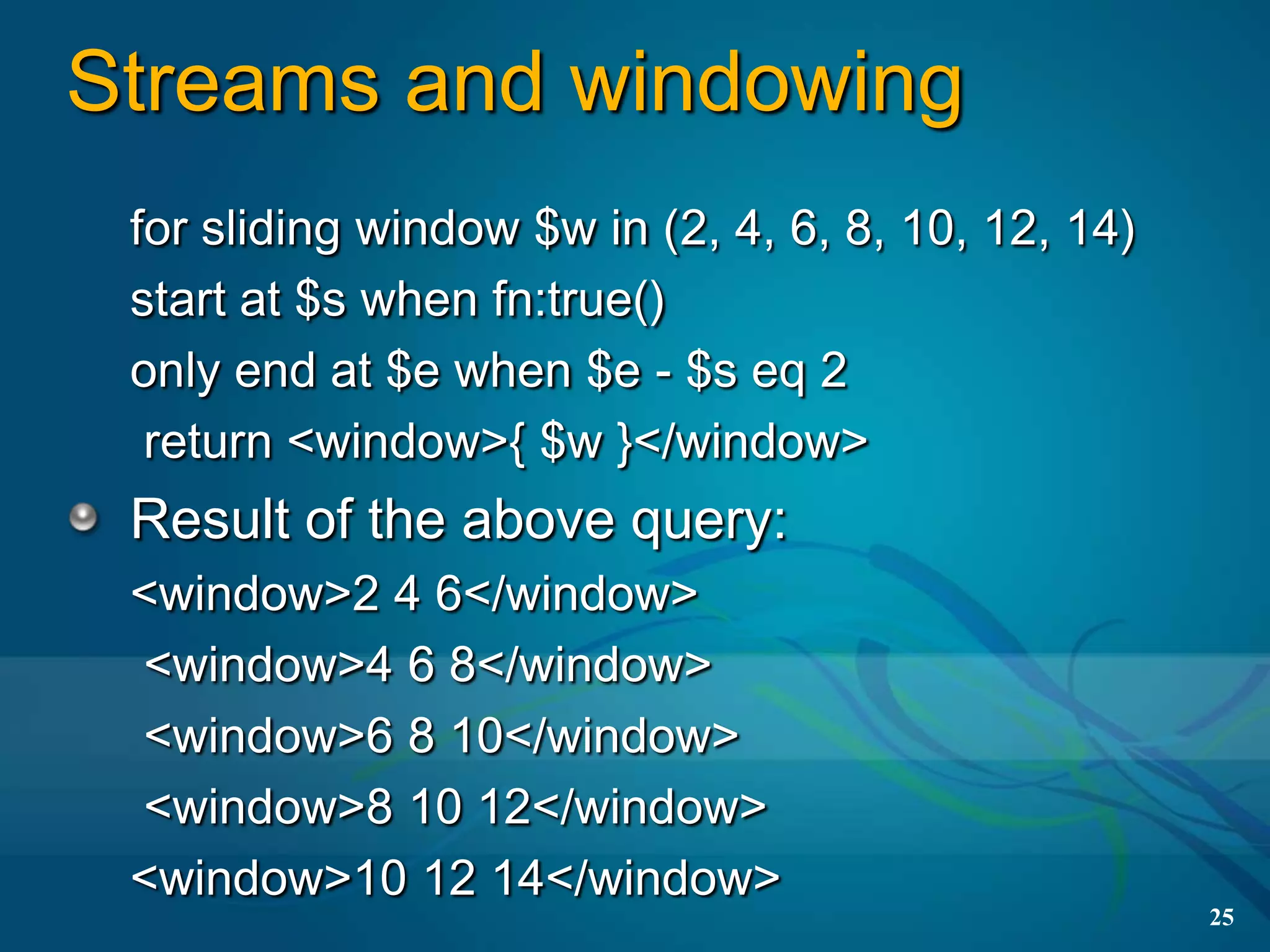

25. Streams and windowing
for sliding window $w in (2, 4, 6, 8, 10, 12, 14)
start at $s when fn:true()
only end at $e when $e - $s eq 2
return <window>{ $w }</window>
Result of the above query:
<window>2 4 6</window>
<window>4 6 8</window>
<window>6 8 10</window>
<window>8 10 12</window>
<window>10 12 14</window>
25

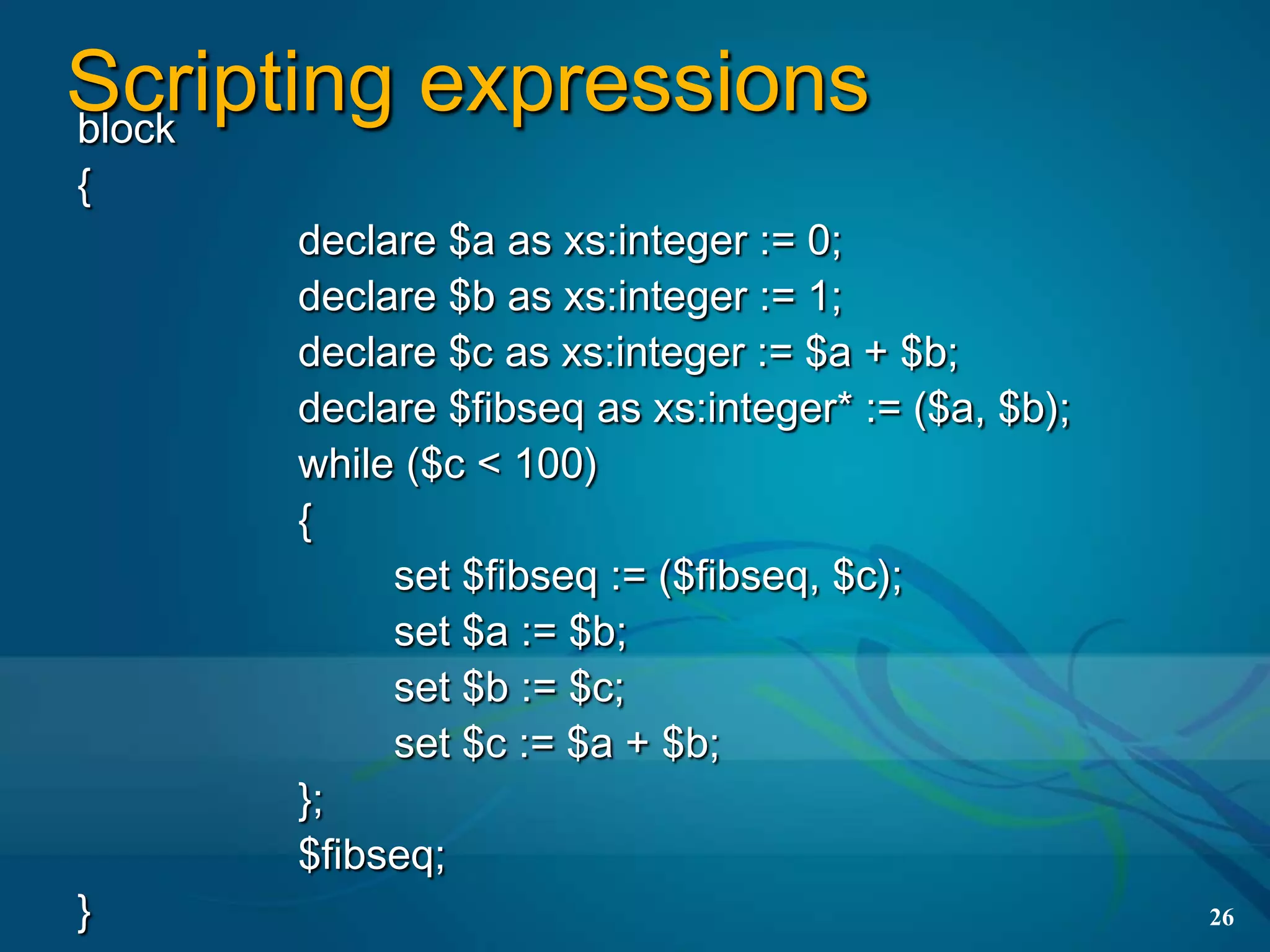

26. Scripting expressions
block
{
declare $a as xs:integer := 0;
declare $b as xs:integer := 1;
declare $c as xs:integer := $a + $b;
declare $fibseq as xs:integer* := ($a, $b);
while ($c < 100)
{
set $fibseq := ($fibseq, $c);
set $a := $b;
set $b := $c;
set $c := $a + $b;
};
$fibseq;
} 26

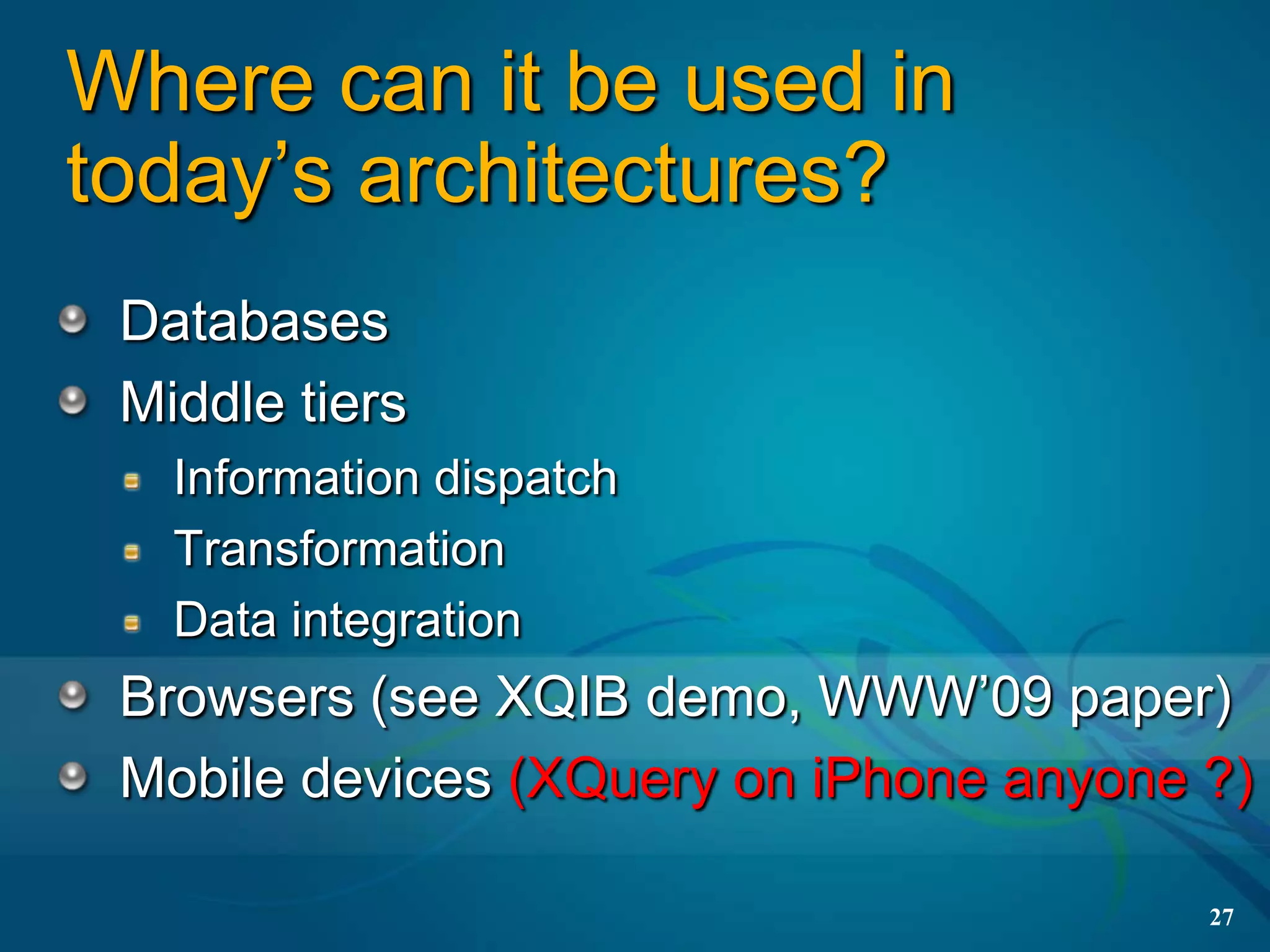

27. Where can it be used in
today’s architectures?
Databases
Middle tiers
Information dispatch
Transformation
Data integration
Browsers (see XQIB demo, WWW’09 paper)
Mobile devices (XQuery on iPhone anyone ?)
27

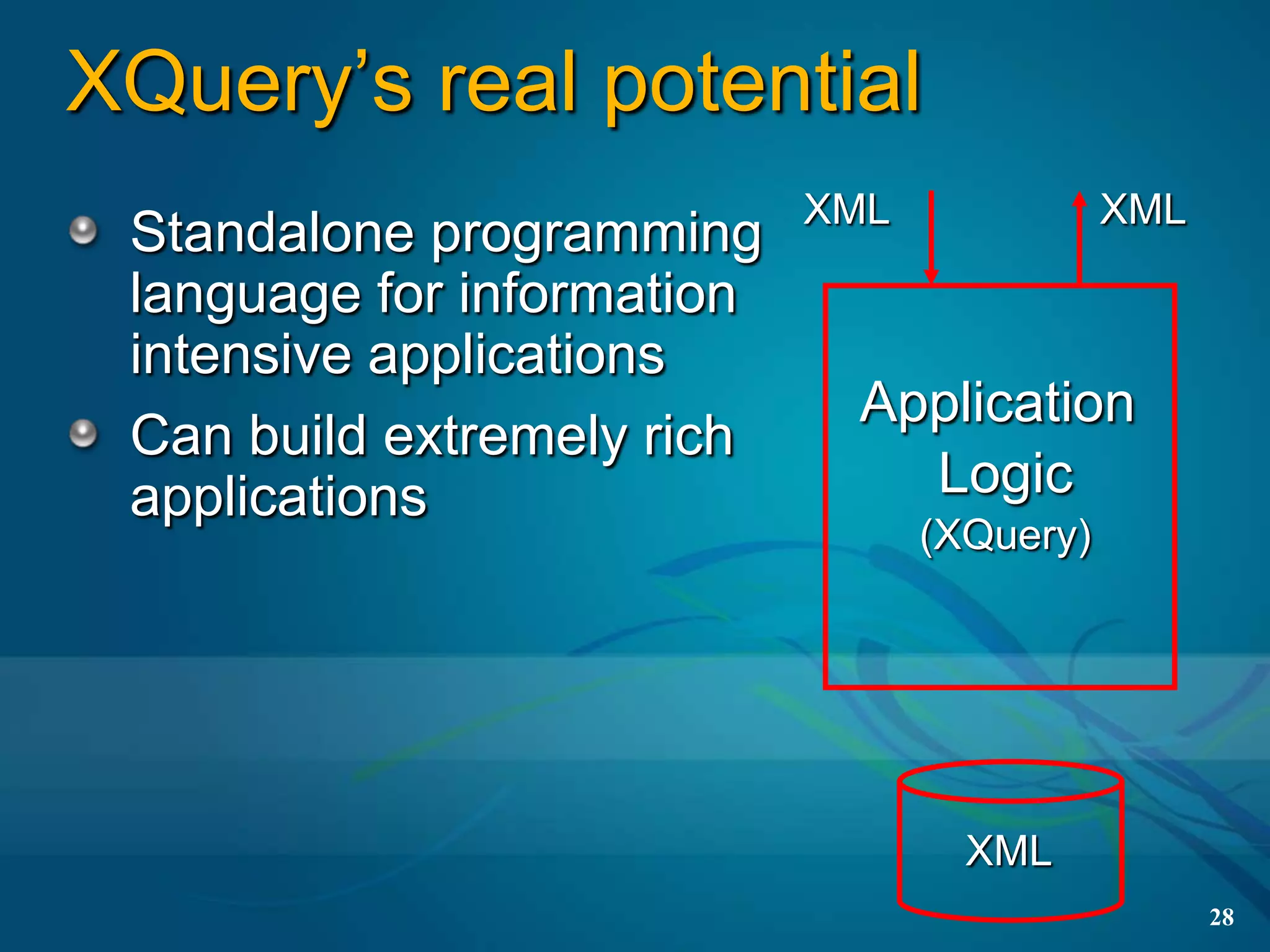

28. XQuery’s real potential
XML XML
Standalone programming
language for information
intensive applications
Application
Can build extremely rich
applications Logic
(XQuery)
XML
28

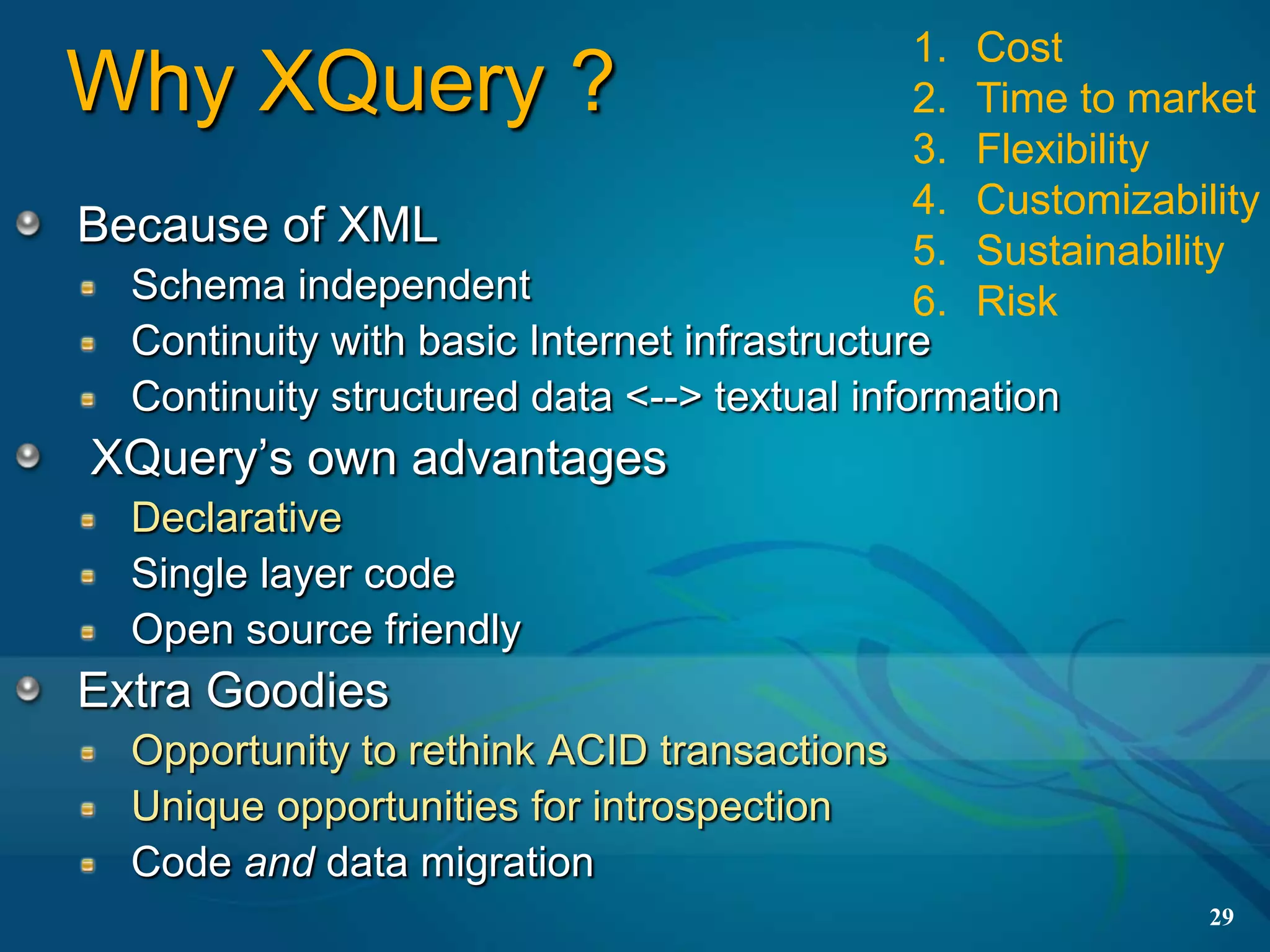

29. 1. Cost
Why XQuery ? 2. Time to market
3. Flexibility
4. Customizability
Because of XML 5. Sustainability
Schema independent 6. Risk
Continuity with basic Internet infrastructure
Continuity structured data <--> textual information
XQuery’s own advantages
Declarative
Single layer code
Open source friendly
Extra Goodies
Opportunity to rethink ACID transactions
Unique opportunities for introspection
Code and data migration
29

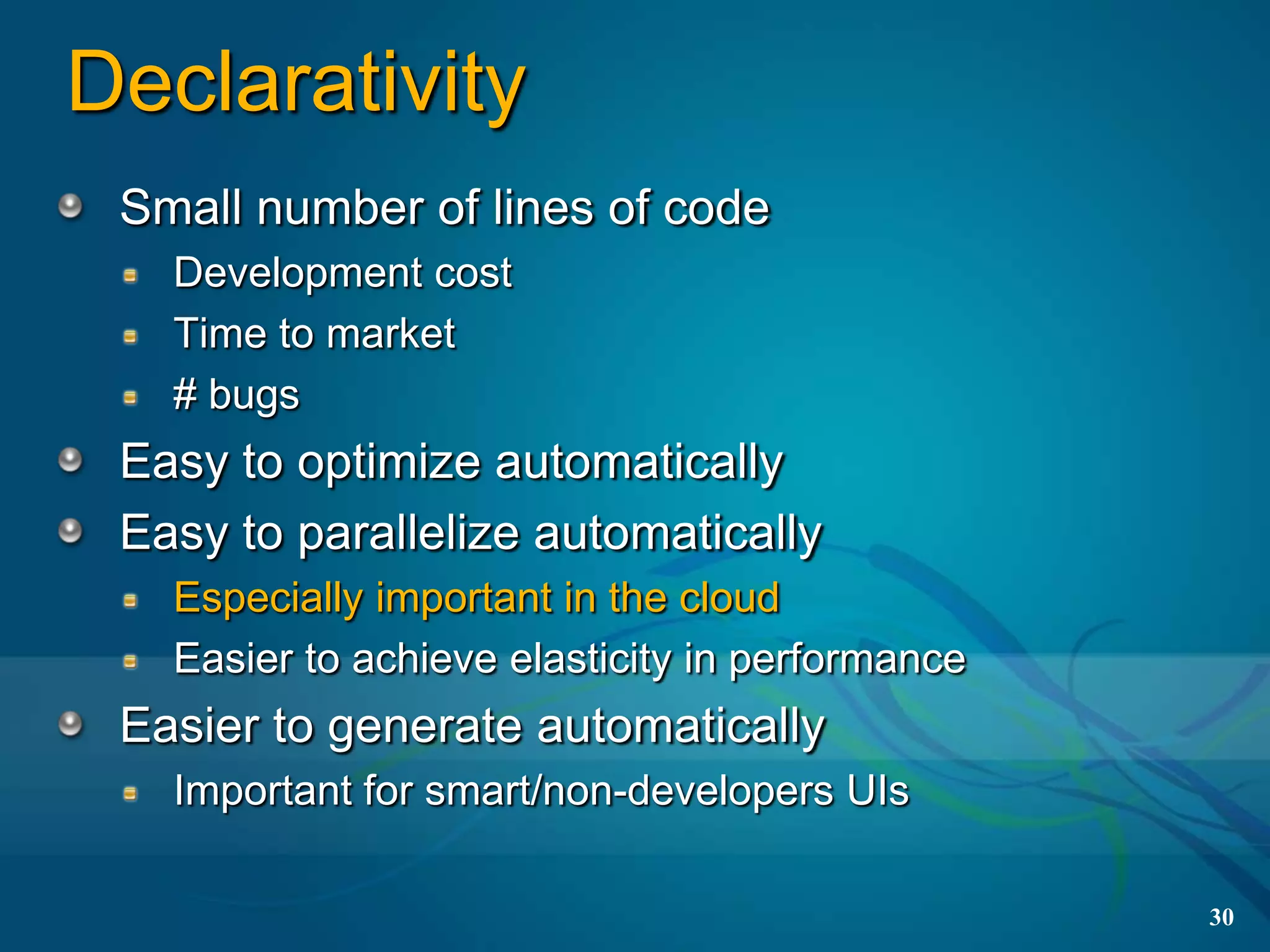

30. Declarativity
Small number of lines of code
Development cost
Time to market
# bugs
Easy to optimize automatically
Easy to parallelize automatically
Especially important in the cloud
Easier to achieve elasticity in performance
Easier to generate automatically
Important for smart/non-developers UIs
30

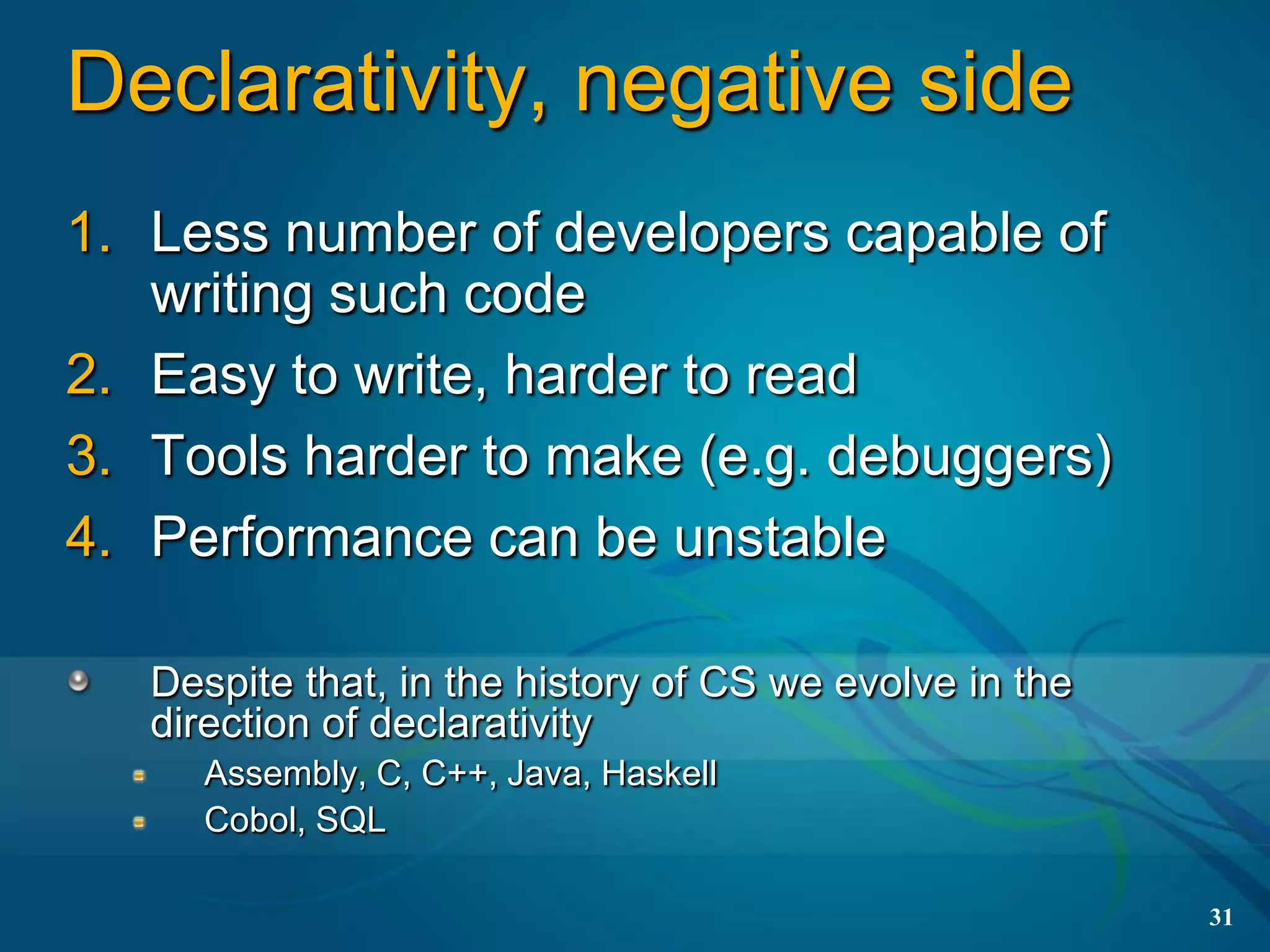

31. Declarativity, negative side
1. Less number of developers capable of
writing such code
2. Easy to write, harder to read
3. Tools harder to make (e.g. debuggers)
4. Performance can be unstable
Despite that, in the history of CS we evolve in the
direction of declarativity
Assembly, C, C++, Java, Haskell
Cobol, SQL
31

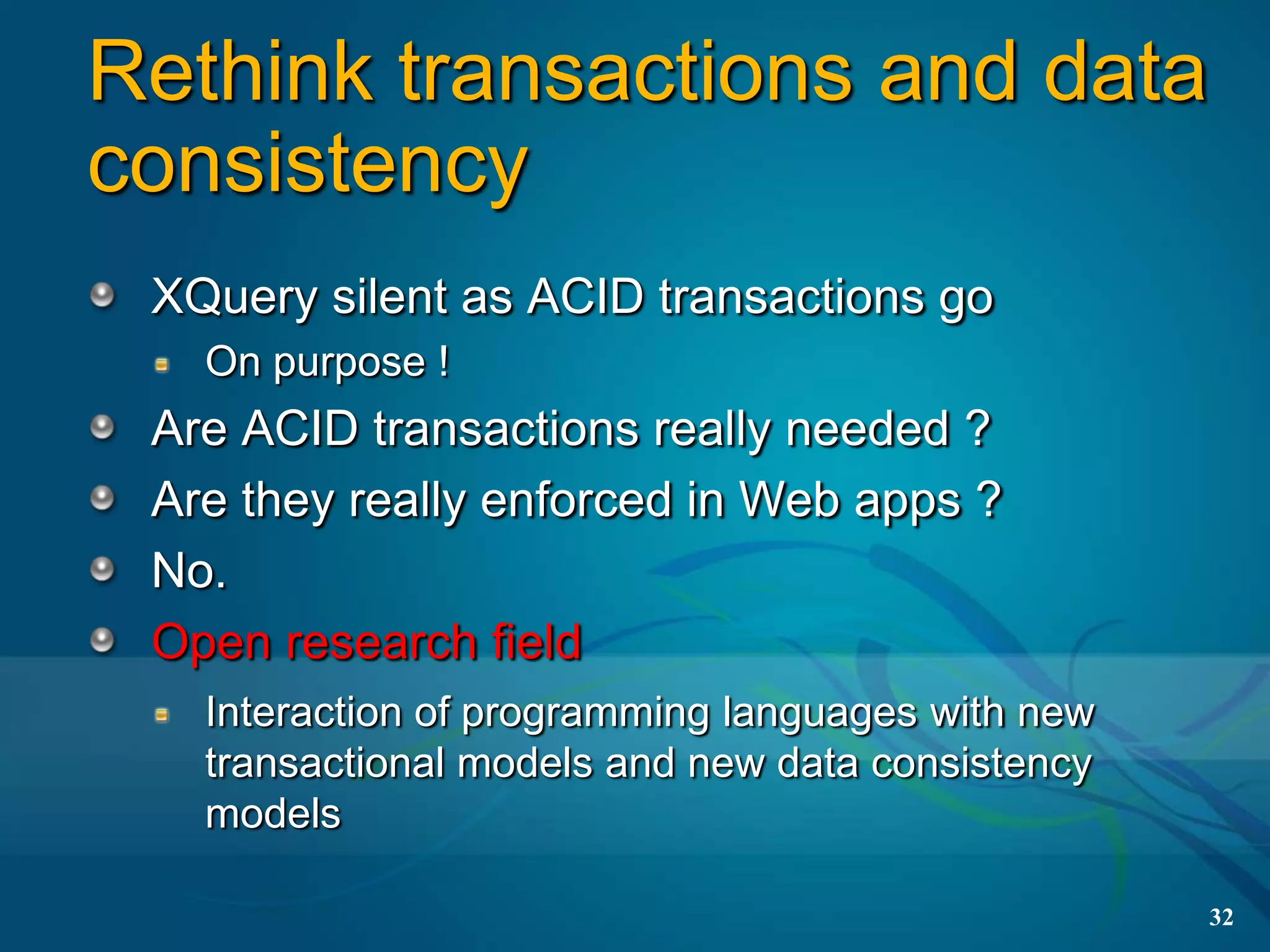

32. Rethink transactions and data
consistency
XQuery silent as ACID transactions go
On purpose !
Are ACID transactions really needed ?
Are they really enforced in Web apps ?
No.
Open research field
Interaction of programming languages with new
transactional models and new data consistency
models
32

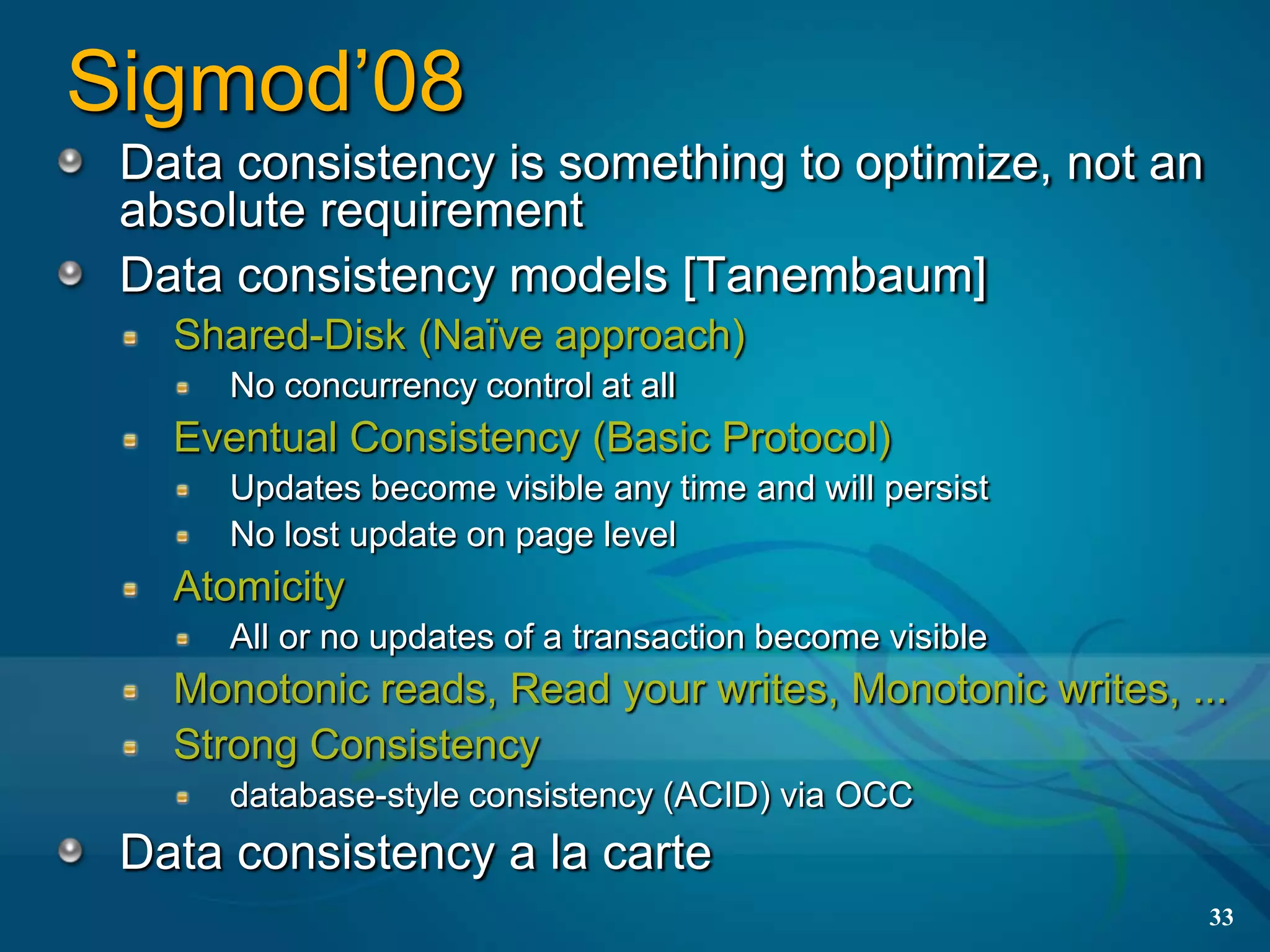

33. Sigmod’08
Data consistency is something to optimize, not an
absolute requirement
Data consistency models [Tanembaum]
Shared-Disk (Naïve approach)
No concurrency control at all
Eventual Consistency (Basic Protocol)
Updates become visible any time and will persist
No lost update on page level
Atomicity
All or no updates of a transaction become visible
Monotonic reads, Read your writes, Monotonic writes, ...
Strong Consistency
database-style consistency (ACID) via OCC
Data consistency a la carte
33

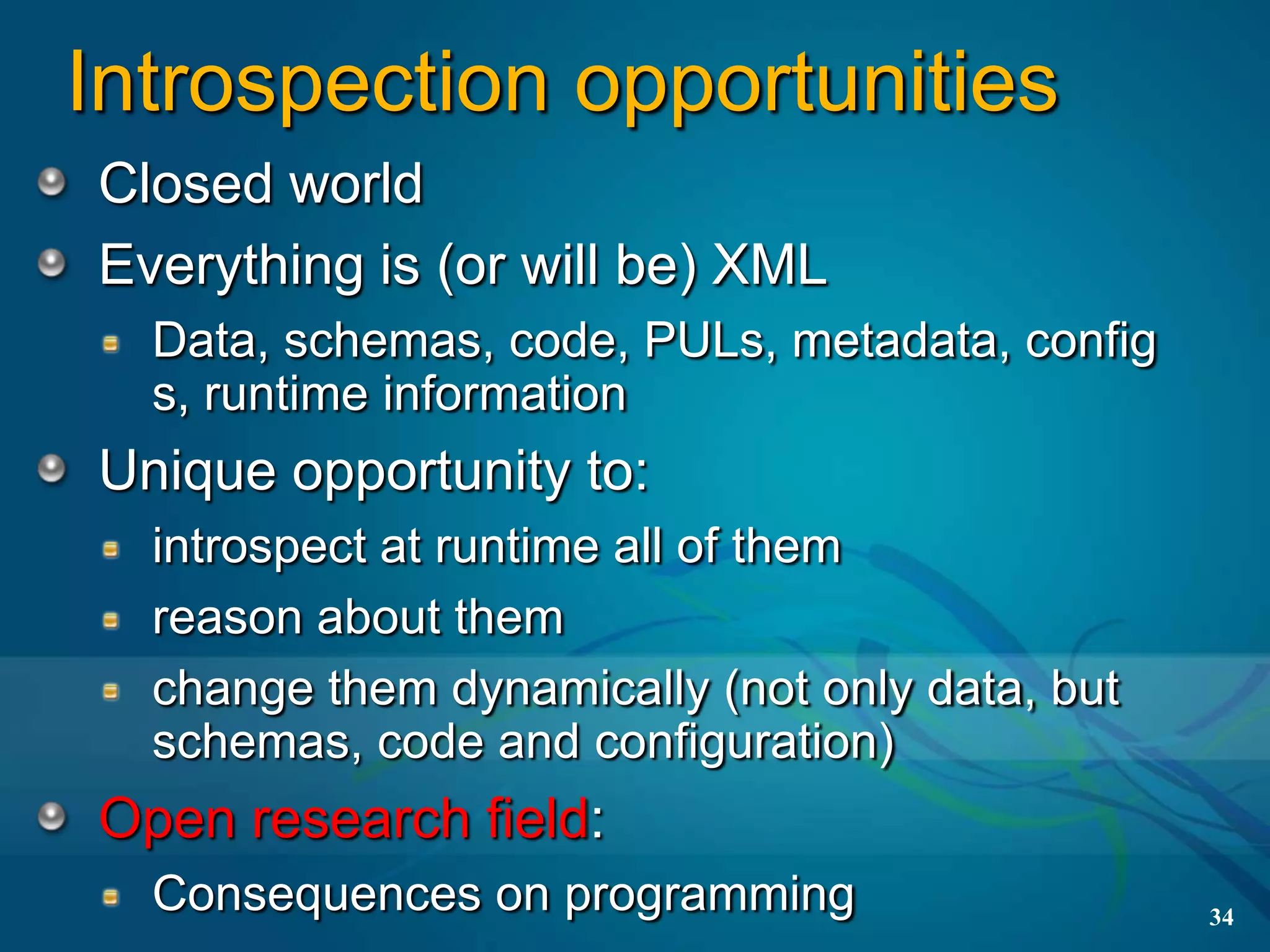

34. Introspection opportunities
Closed world
Everything is (or will be) XML
Data, schemas, code, PULs, metadata, config
s, runtime information
Unique opportunity to:
introspect at runtime all of them
reason about them
change them dynamically (not only data, but
schemas, code and configuration)
Open research field:
Consequences on programming 34

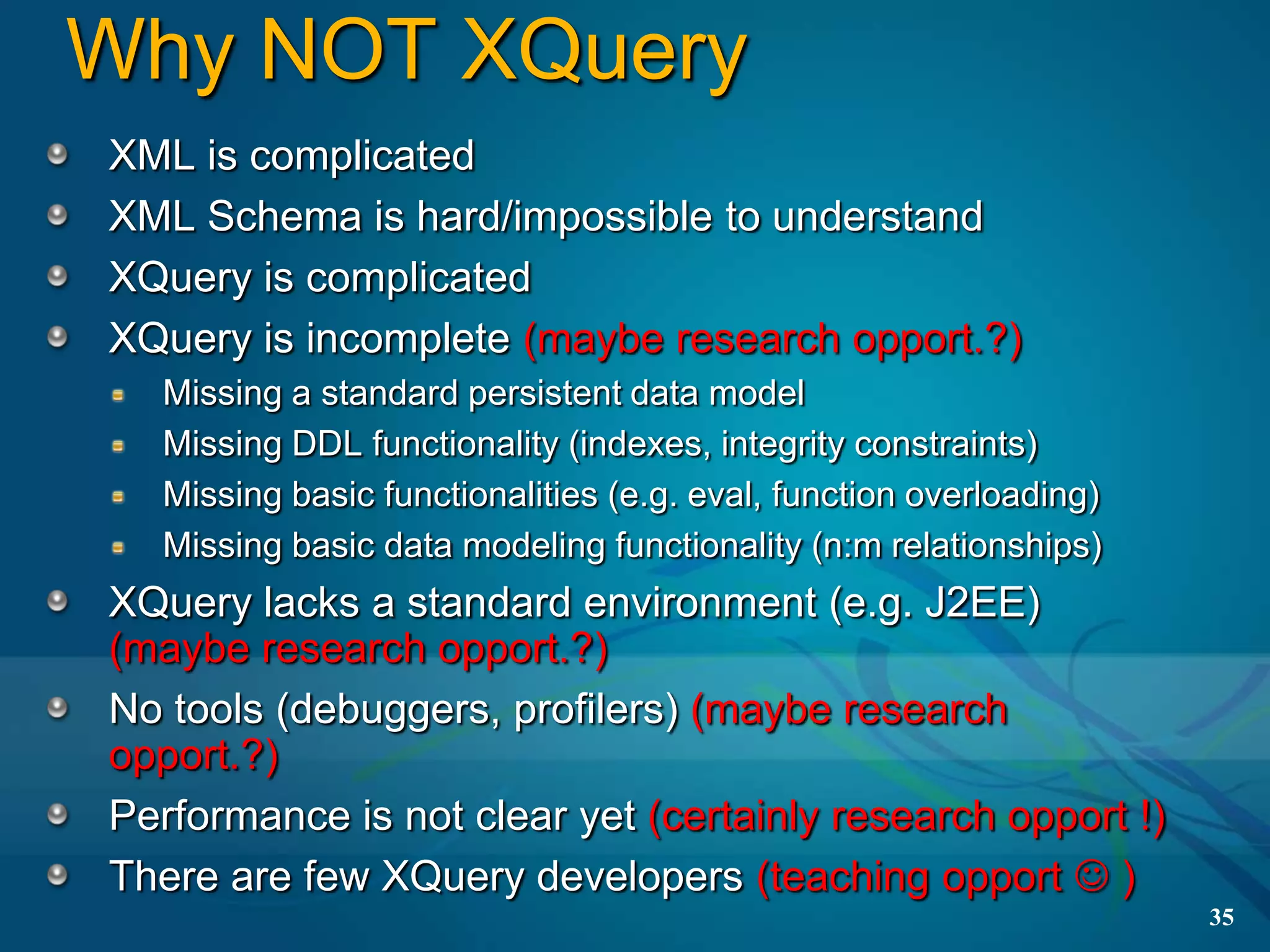

35. Why NOT XQuery
XML is complicated
XML Schema is hard/impossible to understand
XQuery is complicated
XQuery is incomplete (maybe research opport.?)
Missing a standard persistent data model
Missing DDL functionality (indexes, integrity constraints)
Missing basic functionalities (e.g. eval, function overloading)
Missing basic data modeling functionality (n:m relationships)
XQuery lacks a standard environment (e.g. J2EE)
(maybe research opport.?)
No tools (debuggers, profilers) (maybe research
opport.?)
Performance is not clear yet (certainly research opport !)
There are few XQuery developers (teaching opport  )
35

36. Agenda
Current pain in building apps
What can XQuery do for customers ?
What can the Cloud do for customers ?
How do we put them together ?
How do XQuery+Cloud solve the problem ?
Some open research problems
36

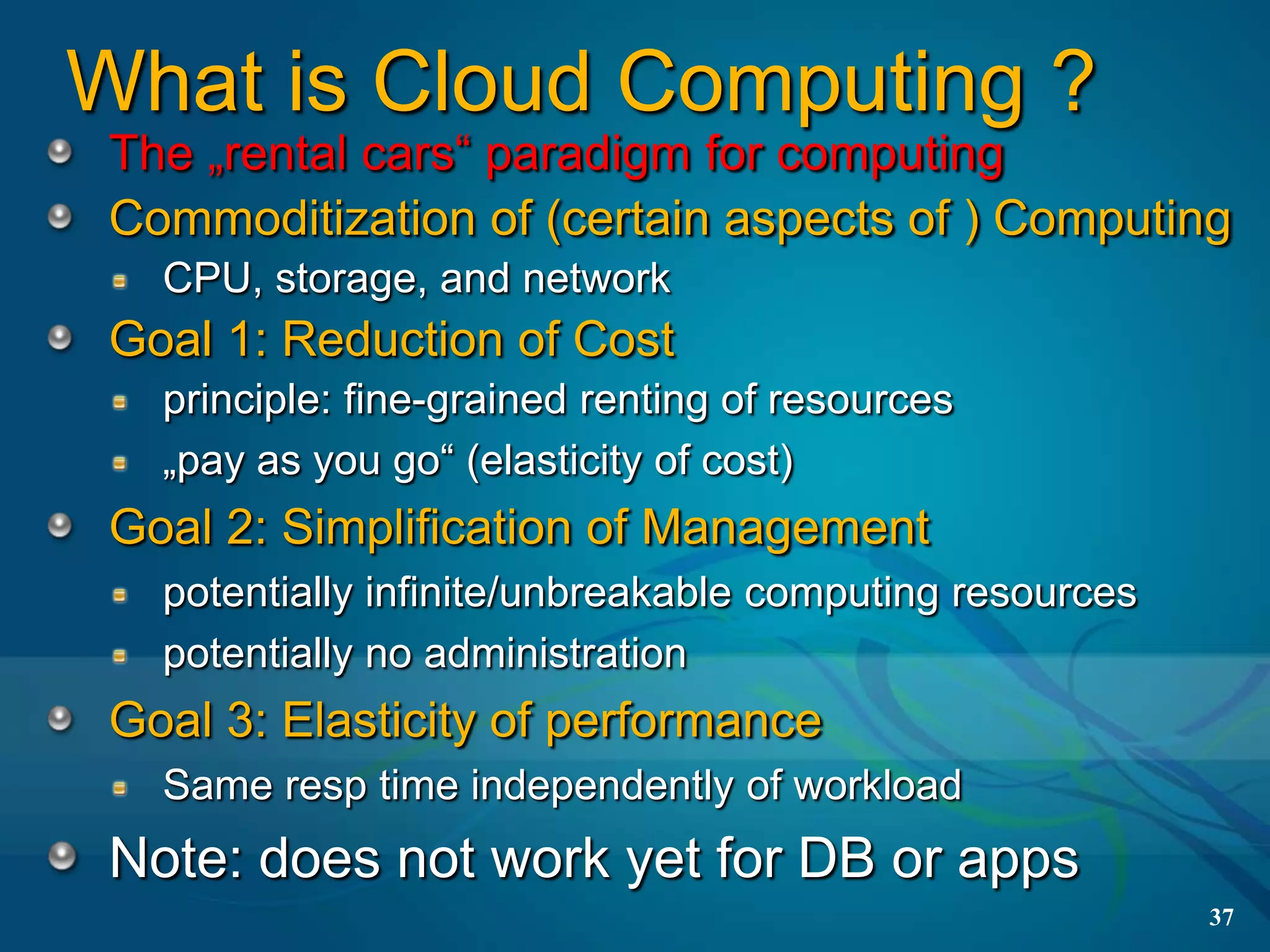

37. What is Cloud Computing ?
The „rental cars“ paradigm for computing
Commoditization of (certain aspects of ) Computing
CPU, storage, and network
Goal 1: Reduction of Cost
principle: fine-grained renting of resources
„pay as you go“ (elasticity of cost)
Goal 2: Simplification of Management
potentially infinite/unbreakable computing resources
potentially no administration
Goal 3: Elasticity of performance
Same resp time independently of workload
Note: does not work yet for DB or apps
37

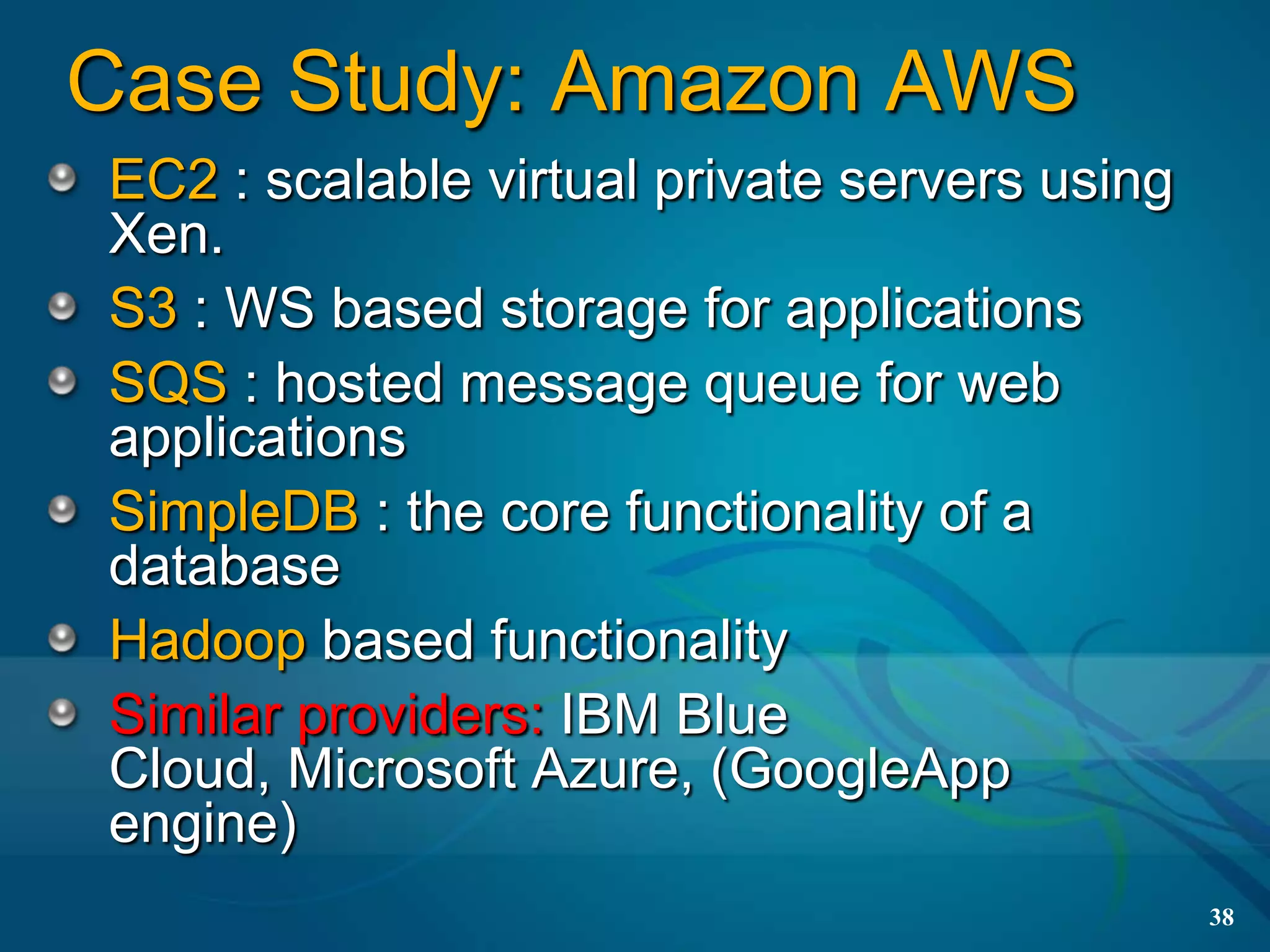

38. Case Study: Amazon AWS
EC2 : scalable virtual private servers using
Xen.
S3 : WS based storage for applications
SQS : hosted message queue for web
applications
SimpleDB : the core functionality of a
database
Hadoop based functionality
Similar providers: IBM Blue
Cloud, Microsoft Azure, (GoogleApp
engine)
38

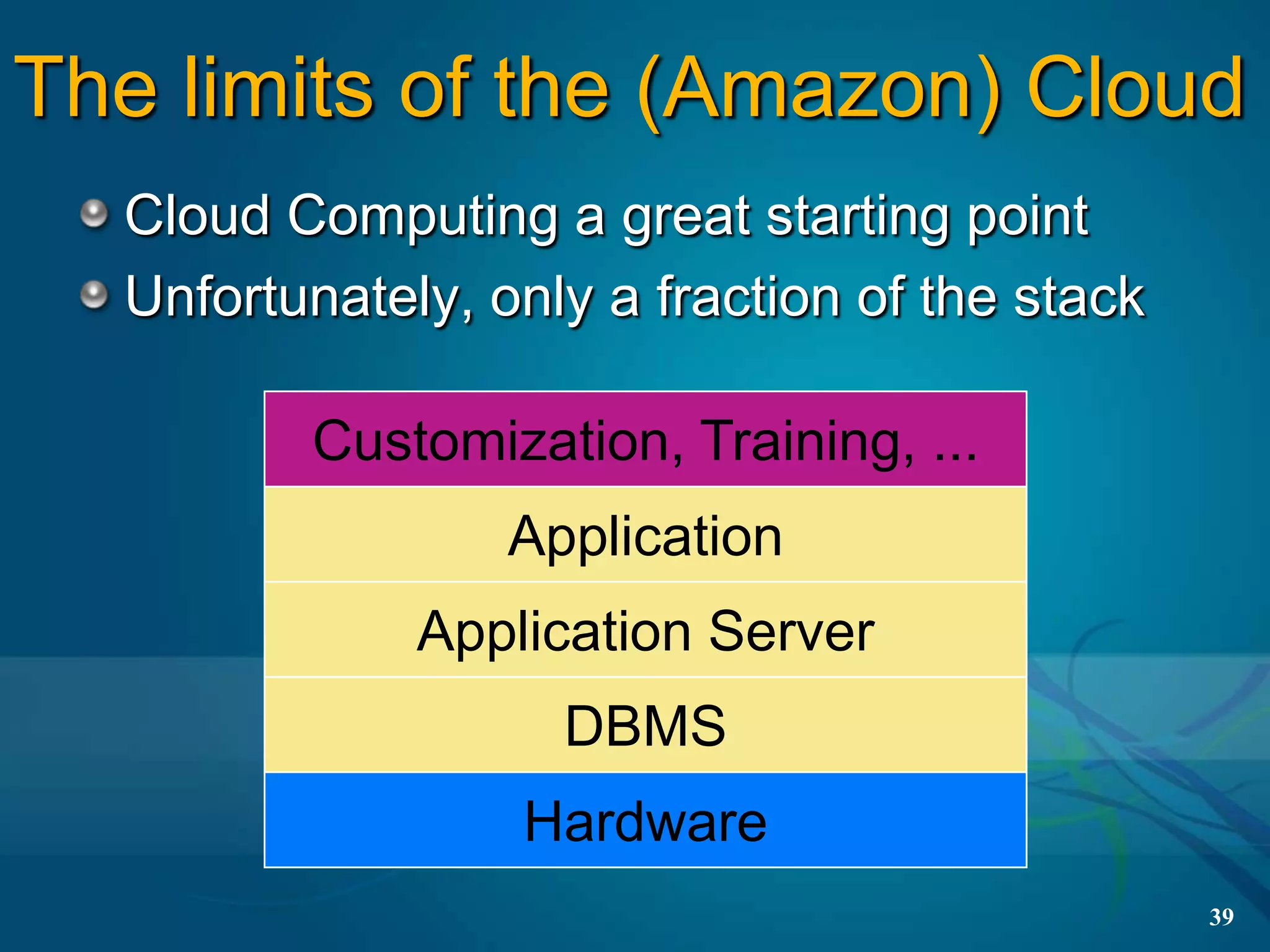

39. The limits of the (Amazon) Cloud
Cloud Computing a great starting point
Unfortunately, only a fraction of the stack
Customization, Training, ...
Application
Application Server
DBMS
Hardware
39

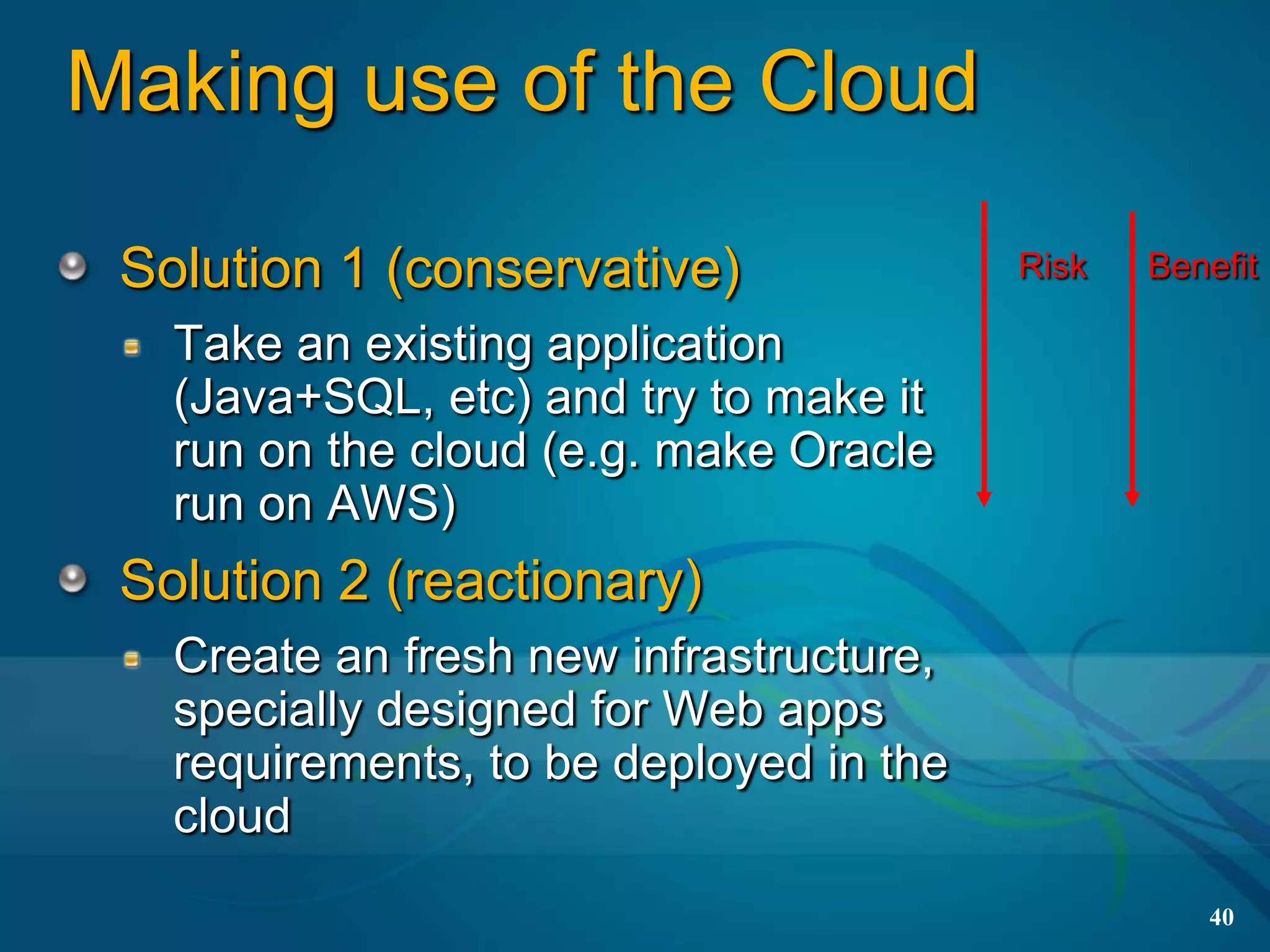

40. Making use of the Cloud
Solution 1 (conservative) Risk Benefit
Take an existing application
(Java+SQL, etc) and try to make it
run on the cloud (e.g. make Oracle
run on AWS)
Solution 2 (reactionary)
Create an fresh new infrastructure,
specially designed for Web apps
requirements, to be deployed in the
cloud
40

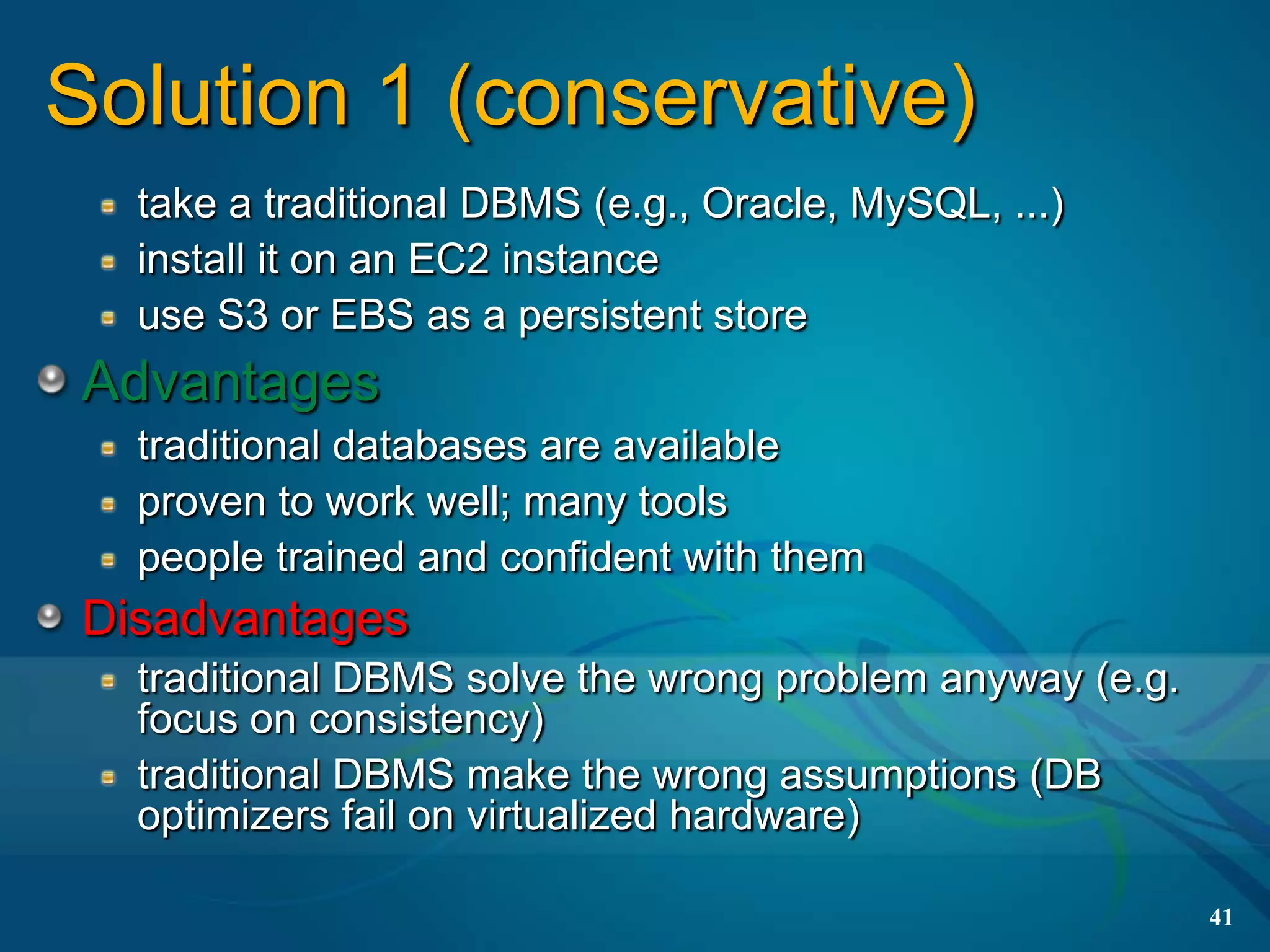

41. Solution 1 (conservative)
take a traditional DBMS (e.g., Oracle, MySQL, ...)
install it on an EC2 instance
use S3 or EBS as a persistent store
Advantages
traditional databases are available
proven to work well; many tools
people trained and confident with them
Disadvantages
traditional DBMS solve the wrong problem anyway (e.g.
focus on consistency)
traditional DBMS make the wrong assumptions (DB
optimizers fail on virtualized hardware)
41

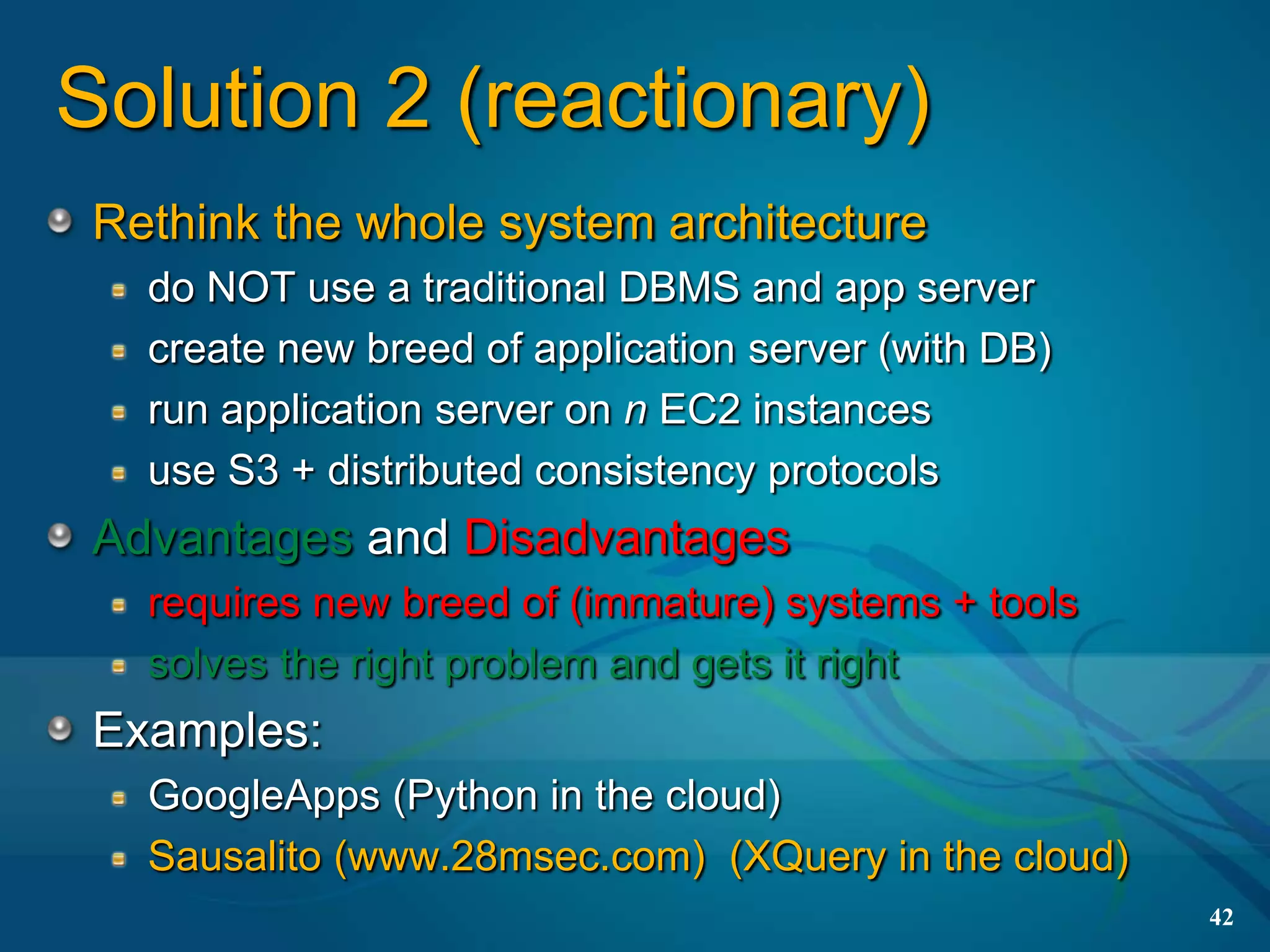

42. Solution 2 (reactionary)
Rethink the whole system architecture
do NOT use a traditional DBMS and app server
create new breed of application server (with DB)
run application server on n EC2 instances
use S3 + distributed consistency protocols
Advantages and Disadvantages
requires new breed of (immature) systems + tools
solves the right problem and gets it right
Examples:
GoogleApps (Python in the cloud)
Sausalito (www.28msec.com) (XQuery in the cloud)
42

43. Agenda
Current pain in building apps
What can XQuery do for customers ?
What can the Cloud do for customers ?
How do we put them together ?
How do XQuery+Cloud solve the problem ?
Some open research problems
43

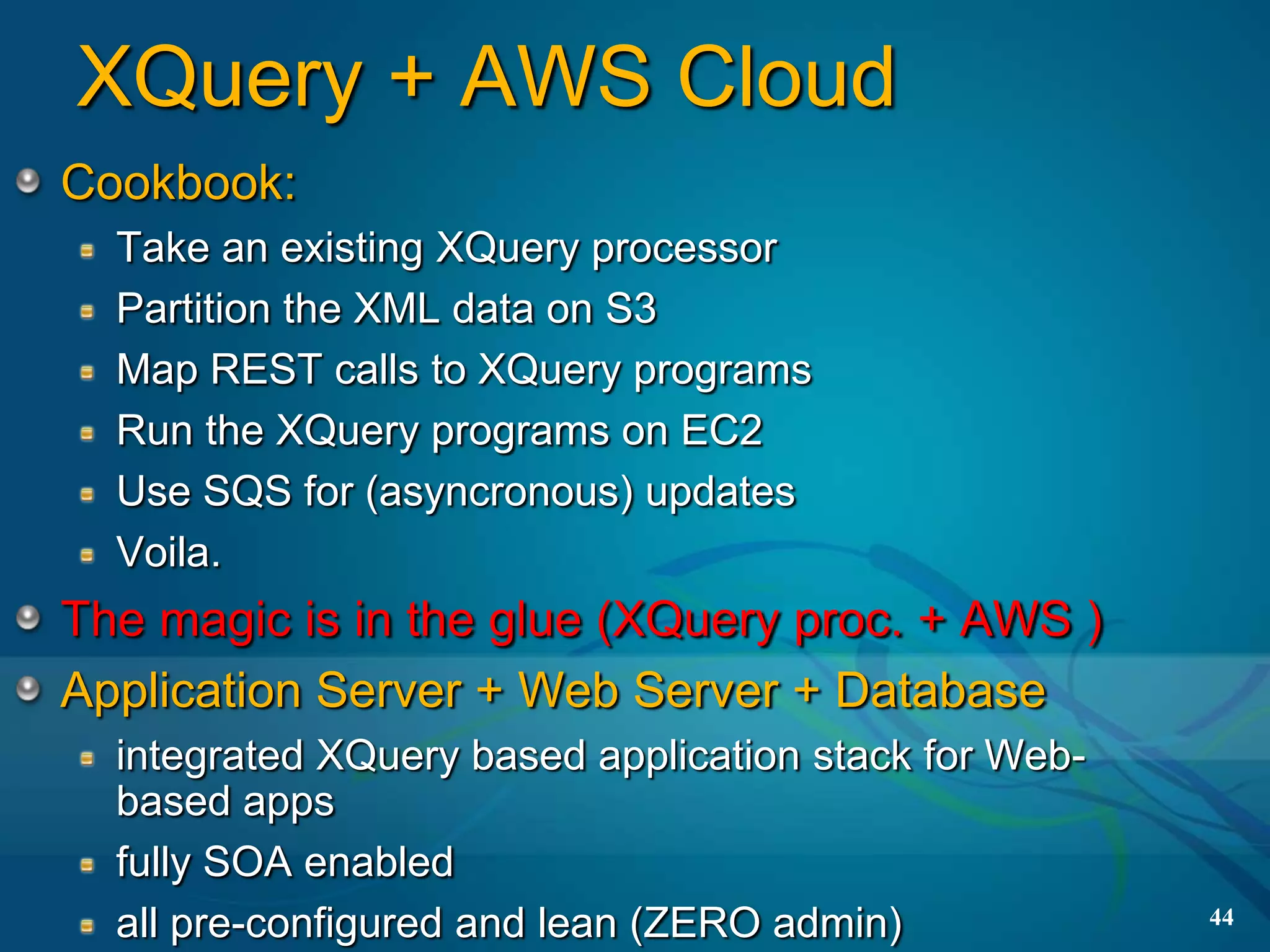

44. XQuery + AWS Cloud
Cookbook:
Take an existing XQuery processor
Partition the XML data on S3
Map REST calls to XQuery programs
Run the XQuery programs on EC2
Use SQS for (asyncronous) updates
Voila.
The magic is in the glue (XQuery proc. + AWS )
Application Server + Web Server + Database
integrated XQuery based application stack for Web-
based apps
fully SOA enabled
all pre-configured and lean (ZERO admin) 44

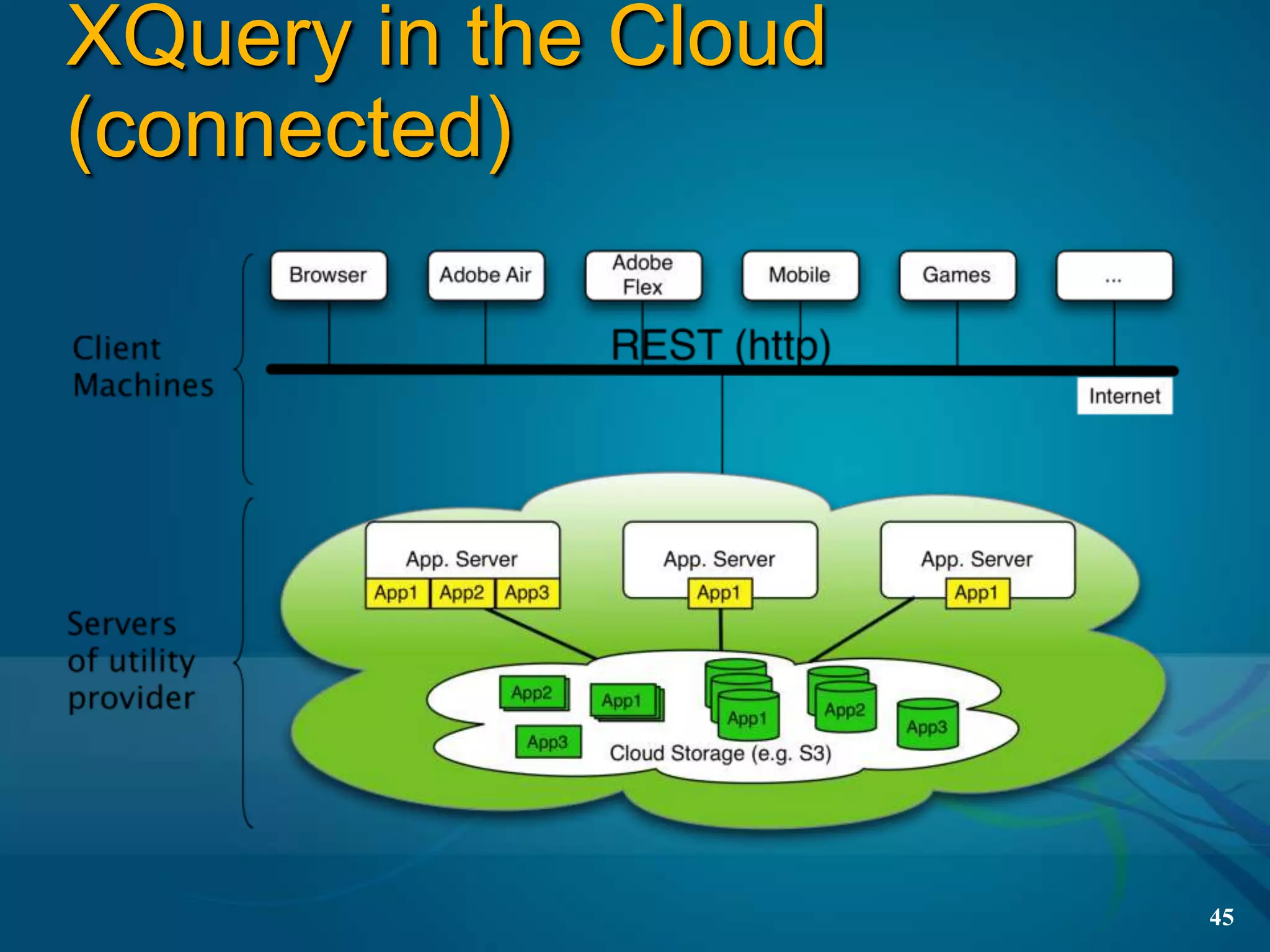

45. XQuery in the Cloud
(connected)
45

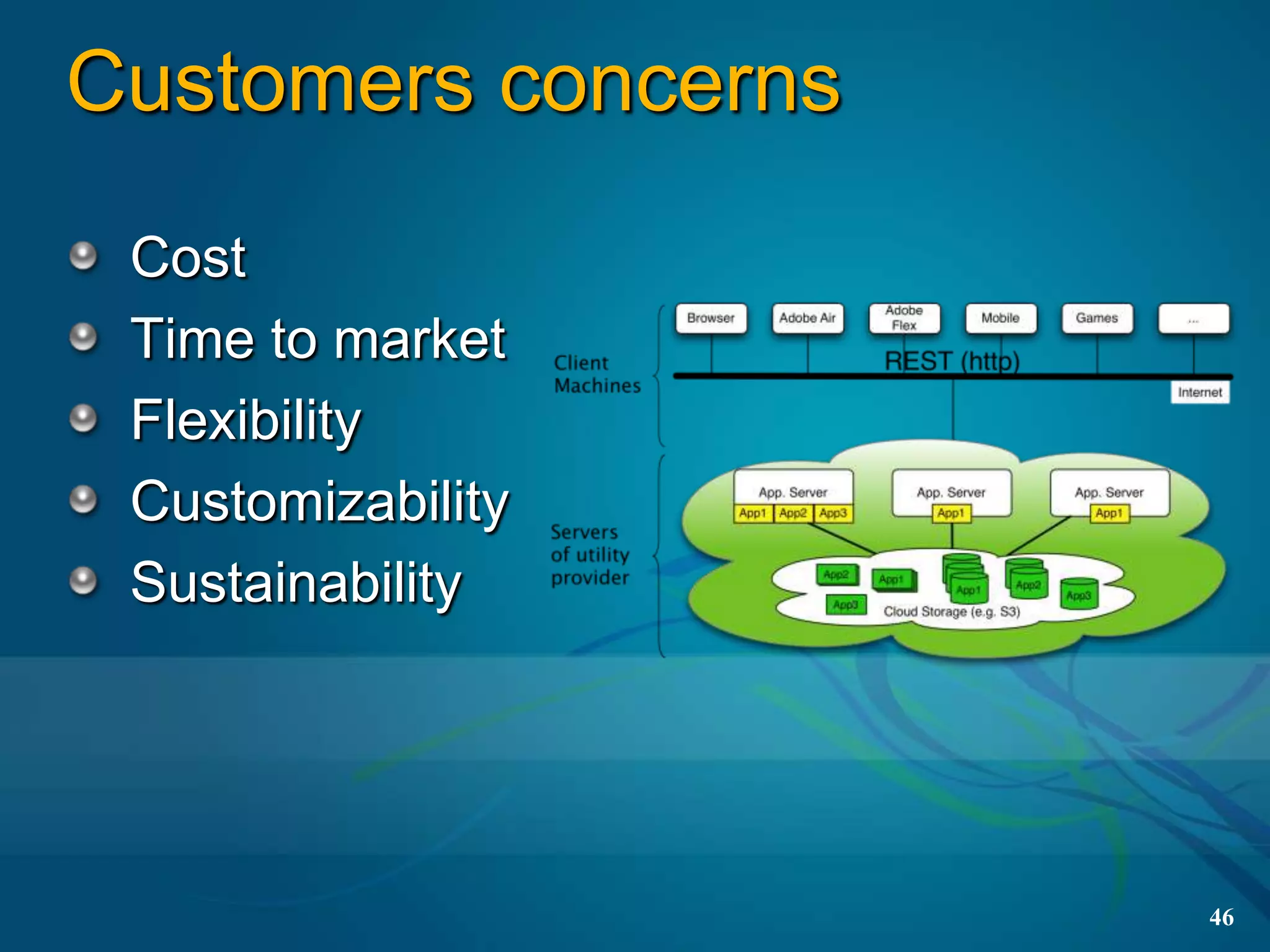

46. Customers concerns
Cost
Time to market
Flexibility
Customizability
Sustainability
46

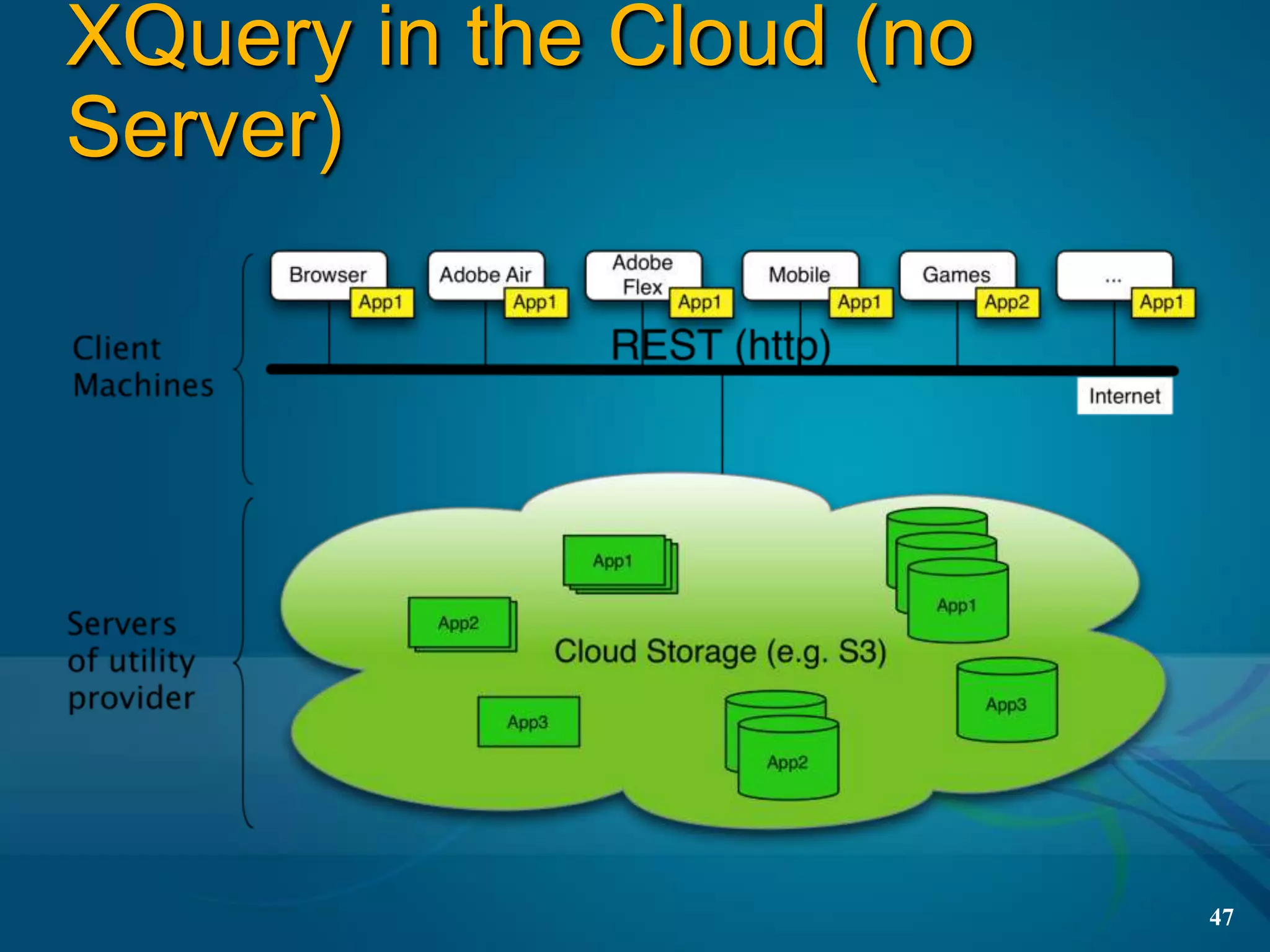

47. XQuery in the Cloud (no
Server)
47

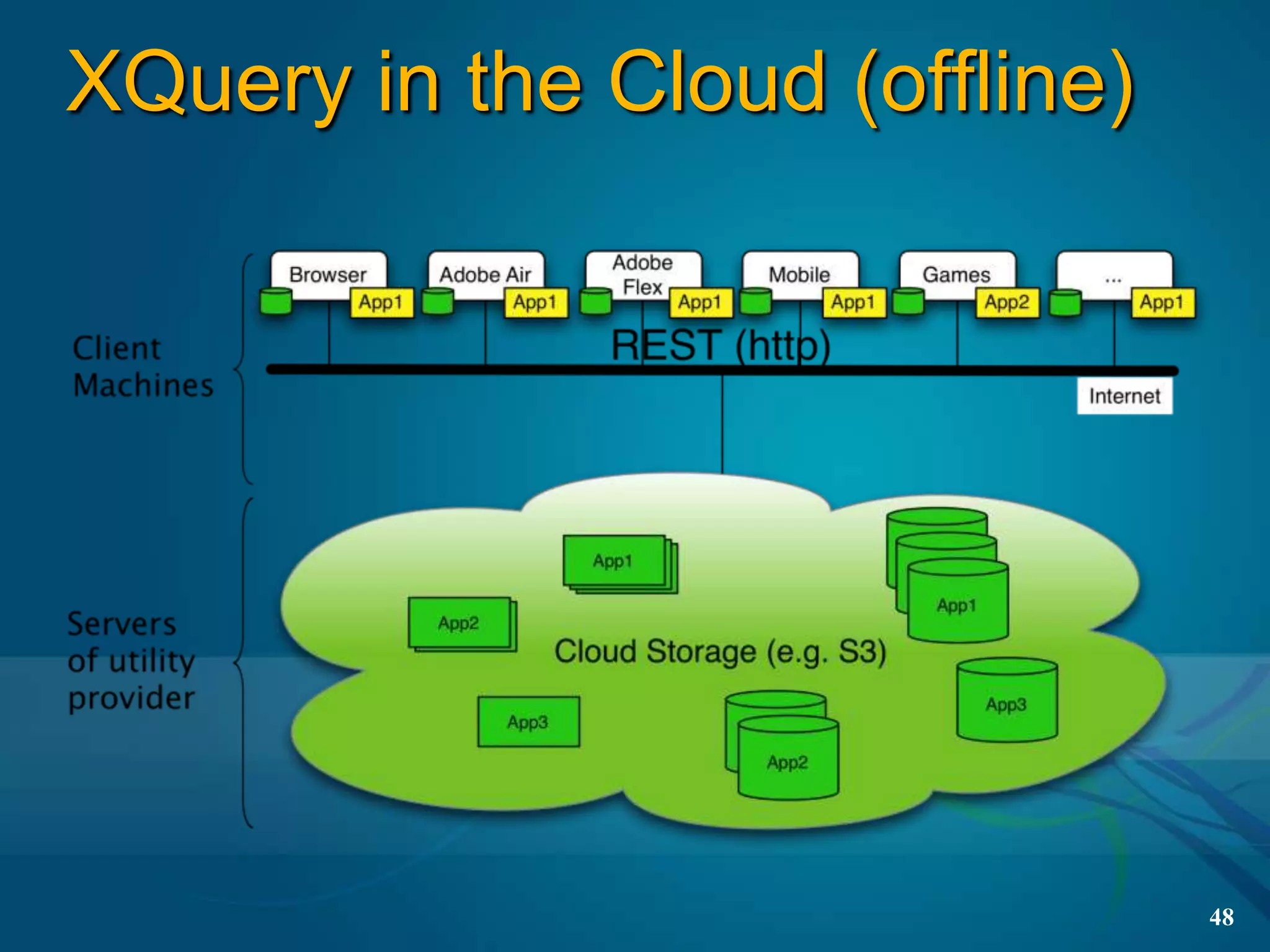

48. XQuery in the Cloud (offline)
48

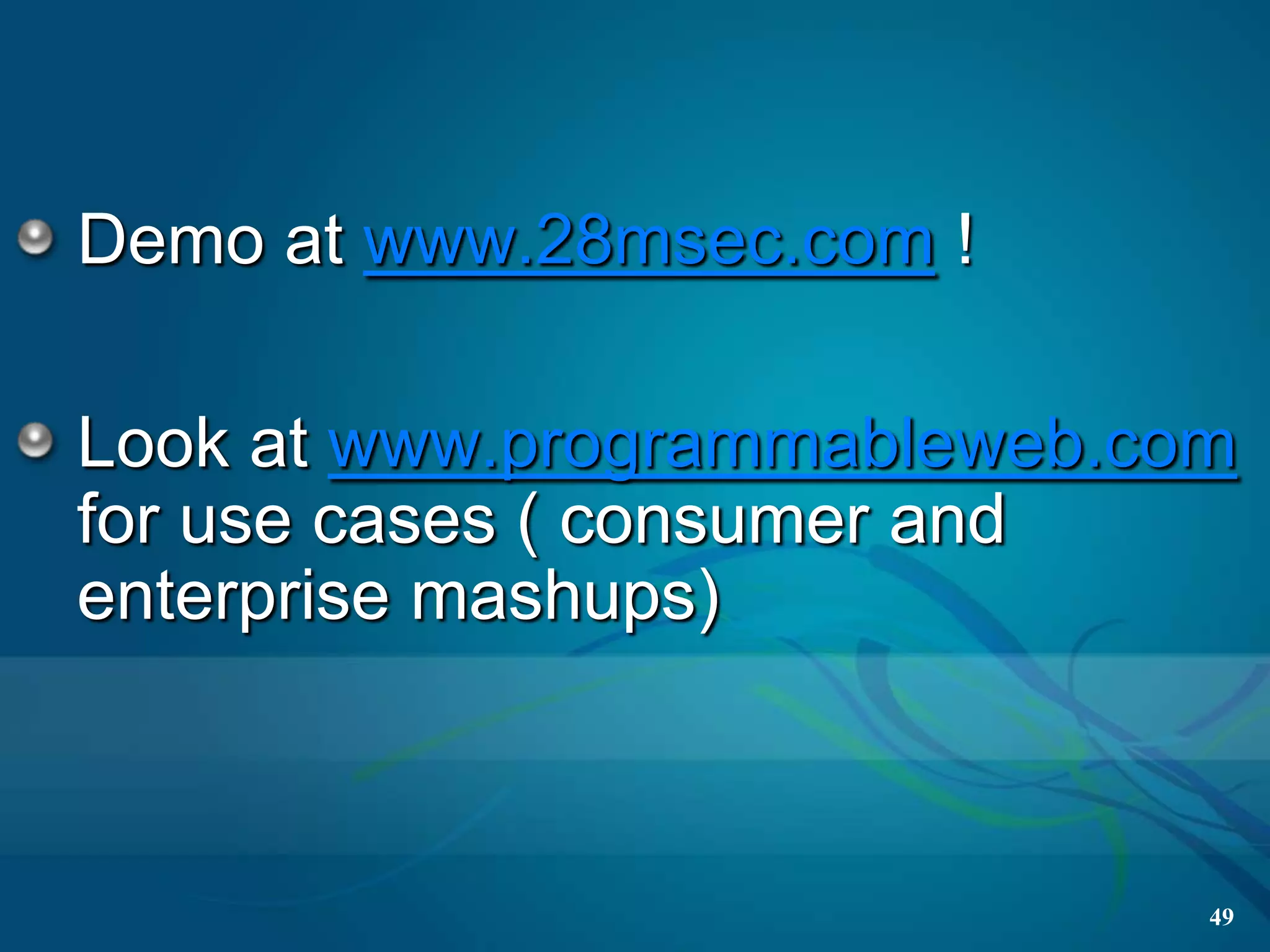

49. Demo at www.28msec.com !
Look at www.programmableweb.com
for use cases ( consumer and
enterprise mashups)
49

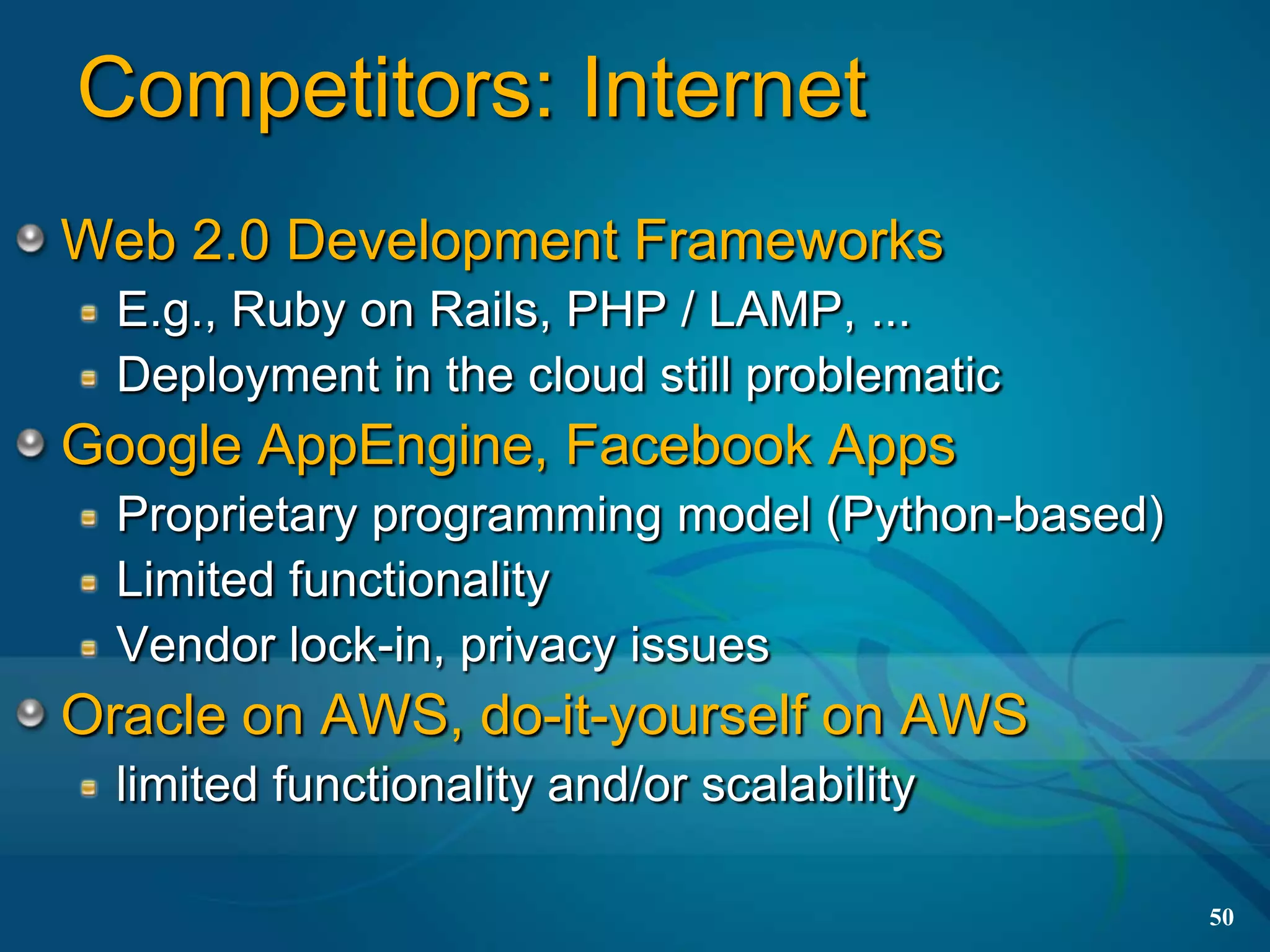

50. Competitors: Internet
Web 2.0 Development Frameworks
E.g., Ruby on Rails, PHP / LAMP, ...
Deployment in the cloud still problematic
Google AppEngine, Facebook Apps
Proprietary programming model (Python-based)
Limited functionality
Vendor lock-in, privacy issues
Oracle on AWS, do-it-yourself on AWS
limited functionality and/or scalability
50

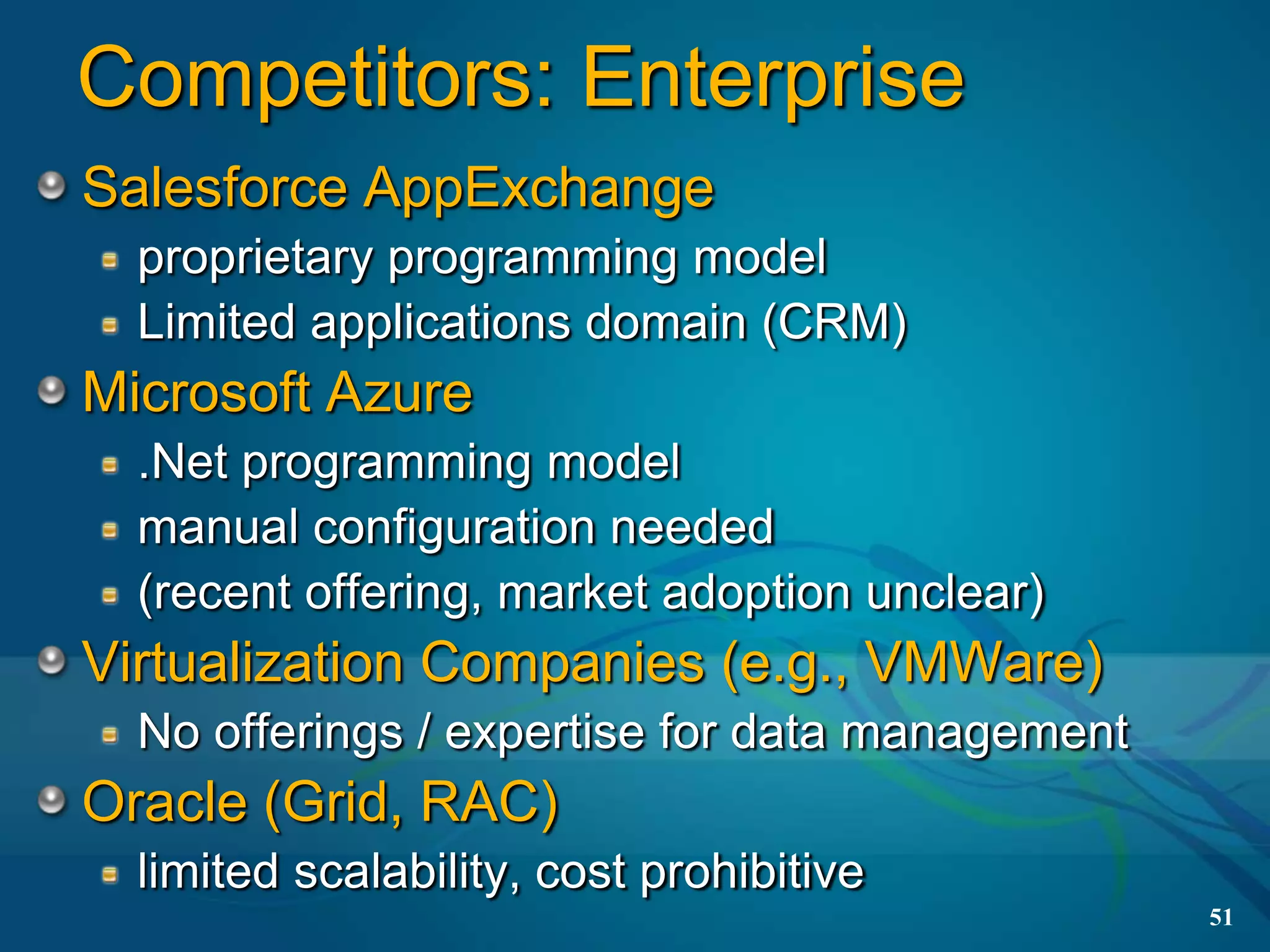

51. Competitors: Enterprise
Salesforce AppExchange
proprietary programming model
Limited applications domain (CRM)
Microsoft Azure
.Net programming model
manual configuration needed
(recent offering, market adoption unclear)
Virtualization Companies (e.g., VMWare)
No offerings / expertise for data management
Oracle (Grid, RAC)
limited scalability, cost prohibitive
51

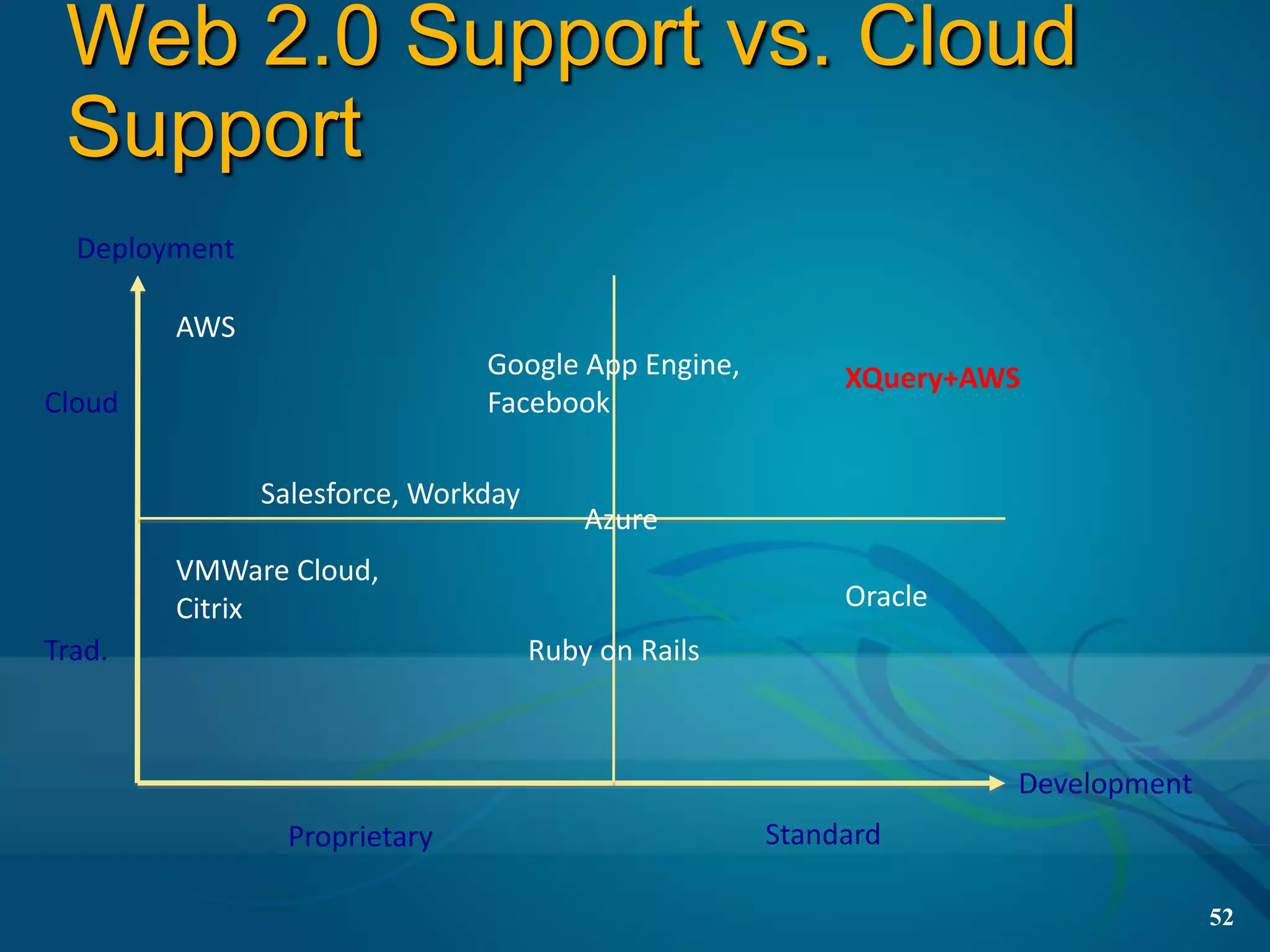

52. Web 2.0 Support vs. Cloud
Support
Deployment
AWS
Google App Engine, XQuery+AWS
Cloud Facebook
Salesforce, Workday
Azure
VMWare Cloud,
Citrix Oracle
Trad. Ruby on Rails
Development
Proprietary Standard
52

53. Agenda
Current pain in building apps
What can XQuery do for customers ?
What can the Cloud do for customers ?
How do we put them together ?
How do XQuery+Cloud solve the problem ?
Some open research problems
53

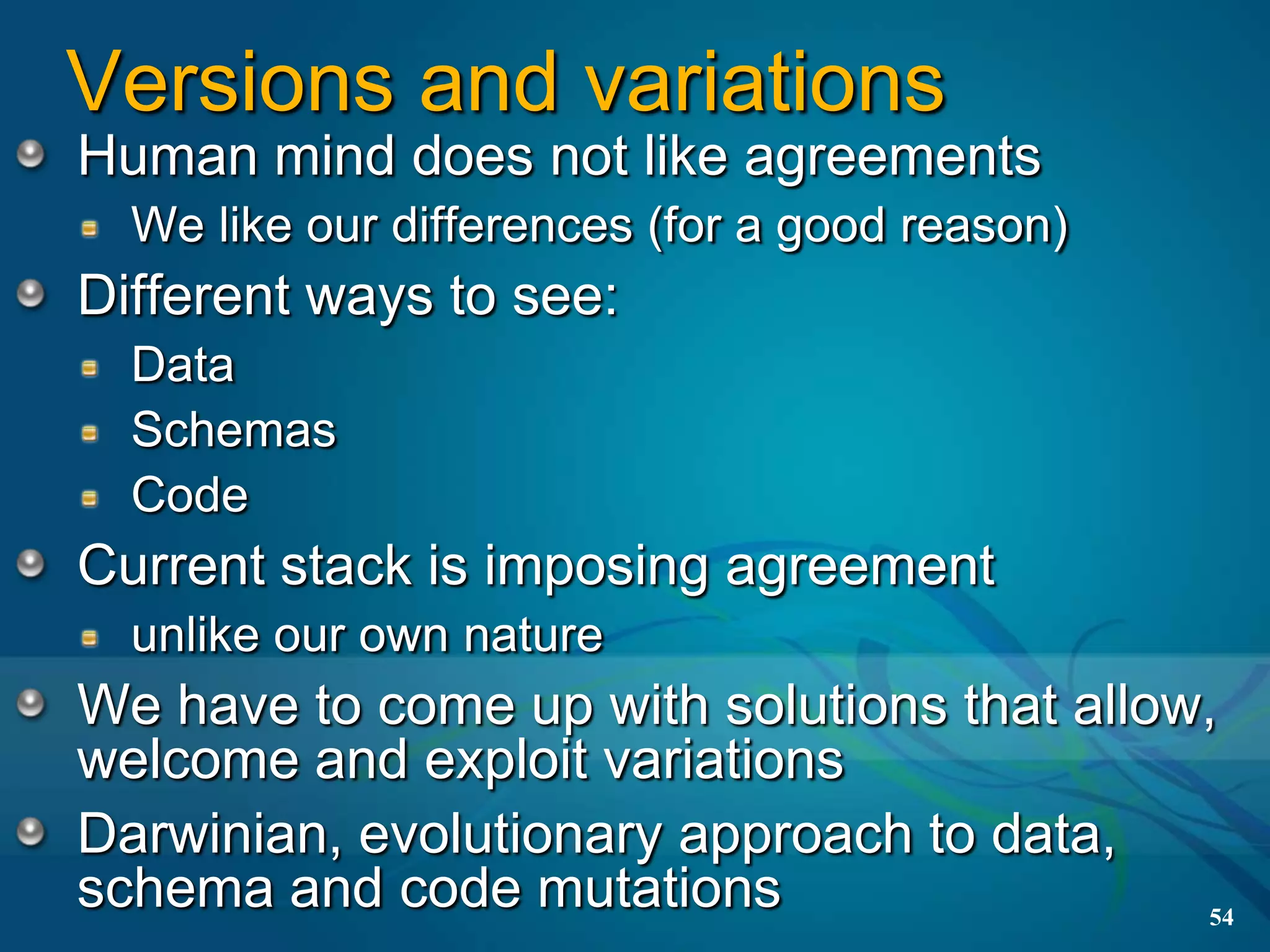

54. Versions and variations
Human mind does not like agreements
We like our differences (for a good reason)
Different ways to see:
Data
Schemas
Code
Current stack is imposing agreement
unlike our own nature
We have to come up with solutions that allow,
welcome and exploit variations
Darwinian, evolutionary approach to data,
schema and code mutations 54

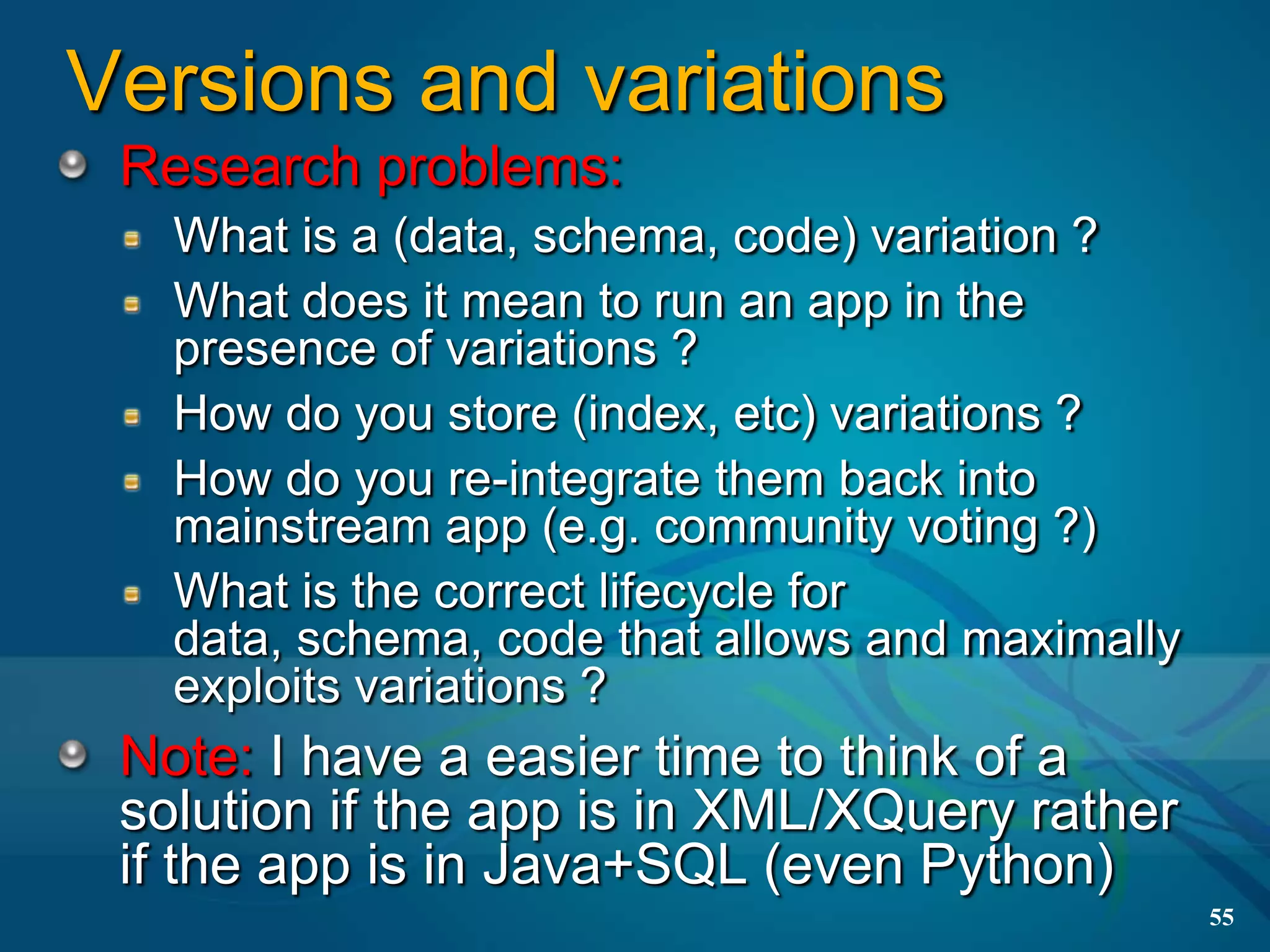

55. Versions and variations
Research problems:
What is a (data, schema, code) variation ?
What does it mean to run an app in the
presence of variations ?
How do you store (index, etc) variations ?
How do you re-integrate them back into
mainstream app (e.g. community voting ?)
What is the correct lifecycle for
data, schema, code that allows and maximally
exploits variations ?
Note: I have a easier time to think of a
solution if the app is in XML/XQuery rather
if the app is in Java+SQL (even Python)
55

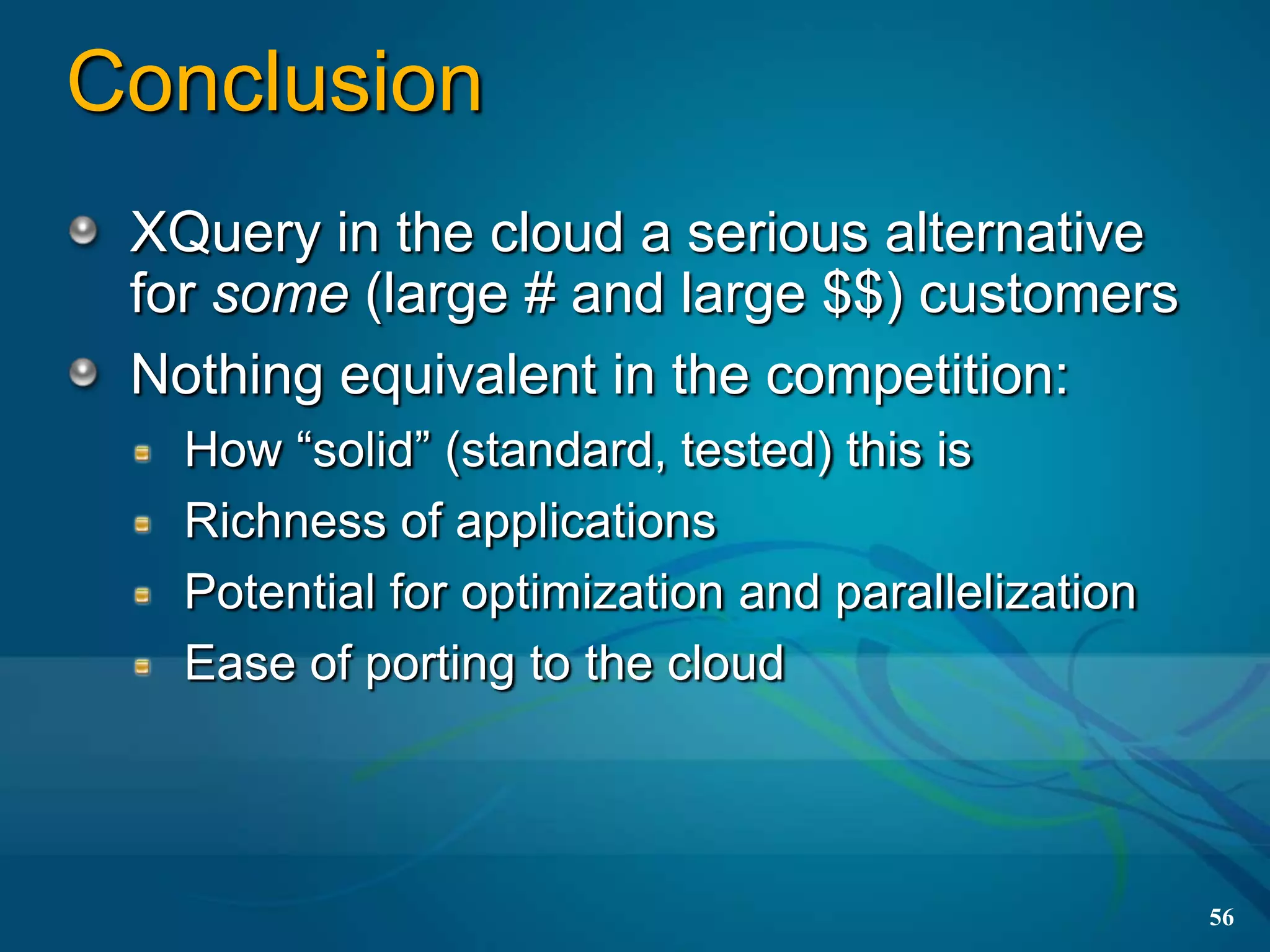

56. Conclusion
XQuery in the cloud a serious alternative
for some (large # and large $$) customers
Nothing equivalent in the competition:
How “solid” (standard, tested) this is
Richness of applications
Potential for optimization and parallelization
Ease of porting to the cloud
56

57. My advice
Keep the eye on the apps, not db
Keep the customer in mind
Rethink the entire stack
Don’t be afraid to shake down
existing ideas about how
applications are supposed to work
Thank you! 57
