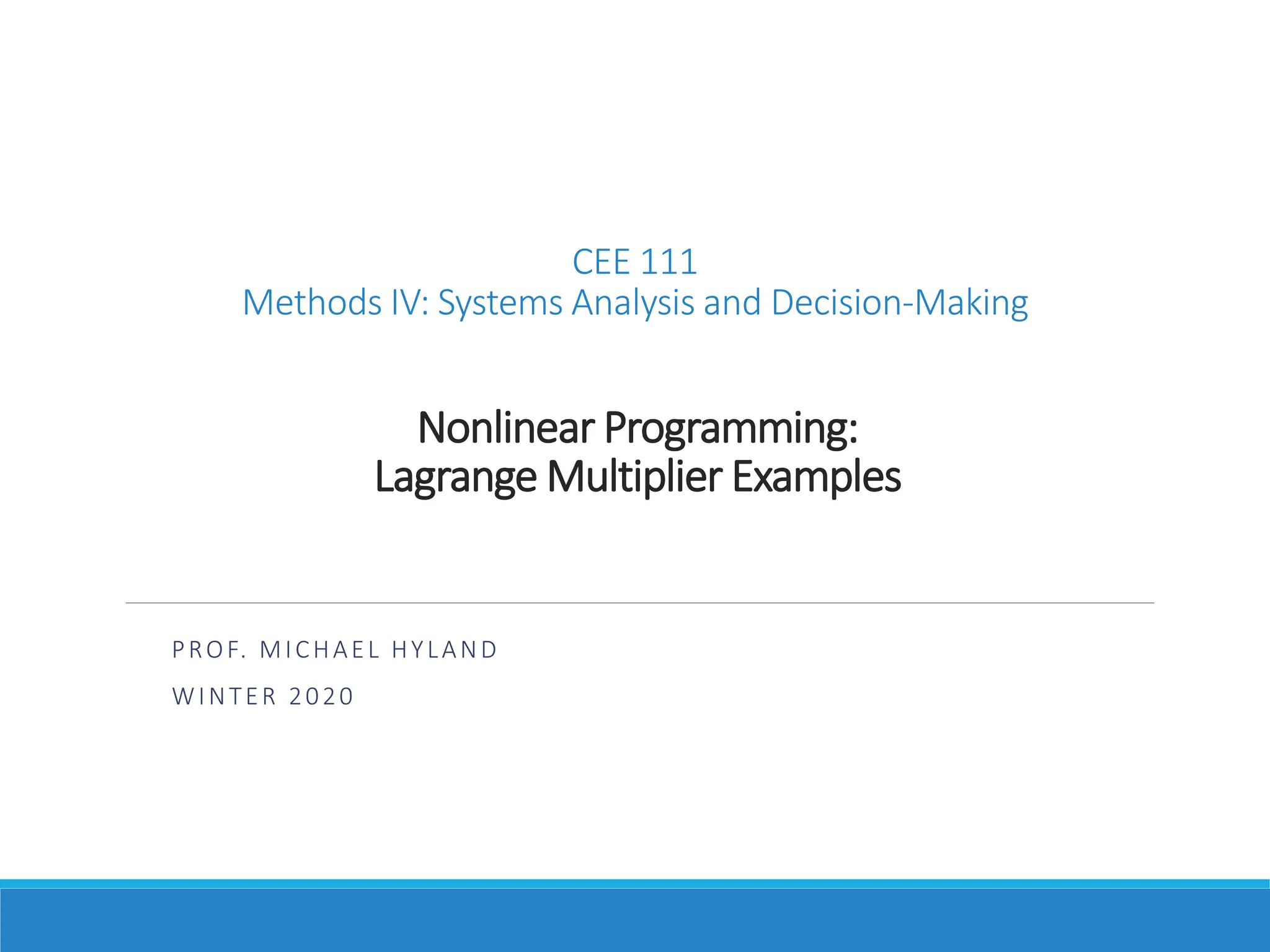

Nonlinear Programming:
Lagrange Multiplier Examples
PROF. MICHAEL HYLAND
WINTER 2020
CEE 111
Methods IV: Systems Analysis and Decision-Making

Today’s Outline
Review
Lagrangian Method
◦ Introduction
◦ Formulation
New Material
Lagrangian Method
◦ Examples

Announcements
Homework 4
◦ Due: Last day of Class: March 13th
Design Project
◦ Due: Wednesday March 18
Final Exam
◦ Monday March 16th
Self + Peer Evaluation on Group Assignments
◦ Due: Wednesday

Design Problem
Goals & Objectives
Constraints in Achieving Goals & Objectives
Linear Problems
Nonlinear
Problems
Continuous
Variables
Binary/Integer
Variables
Branch &
Bound
Single
Objective
Multiple
Objectives
Weighted
Single Goal
Primary Goal
+ Bounded
Secondary
Goals
Single Objective Linear Programming Problem
Exact Solutions
Approximate
Solutions
Lagrangian
+ Calculus
Nonlinear System of
Algebraic Equations
Kuhn-
Tucker
Conditions
Linearization
Search
Techniques
Taylor
Series
Piecewise
Linearization
Gradient
Search
Single Objective Linear
Programming Problem
4

Lagrange Multipliers
A technique to handle constrained
nonlinear programs
Basic Idea:
◦ Take original nonlinear constrained
program with objective function
and constraints
◦ Move all the constraints into the
objective function
◦ Multiply each constraint by Lagrangian
multiplier
◦ Obtain one objective function with
no constraints
Example with 3 variables and 2
constraints
◦ Ideas extend to more variables and
more constraints
𝑀𝑖𝑛 𝑜𝑟 𝑀𝑎𝑥 𝑍 = 𝑓 𝑥1, 𝑥2, 𝑥3
Subject to:
𝑔1 𝑥1, 𝑥2, 𝑥3 = 𝑏1
𝑔2 𝑥1, 𝑥2, 𝑥3 = 𝑏2

𝑀𝑖𝑛 𝑜𝑟 𝑀𝑎𝑥 𝑍 =
𝑓 𝑥1, 𝑥2, 𝑥3
Subject to:
𝑔1 𝑥1, 𝑥2, 𝑥3 = 𝑏1
𝑔2 𝑥1, 𝑥2, 𝑥3 = 𝑏2
Now, remember, we
want one objective
function equation
and no constraints
Let 𝜆1and 𝜆2 be the Lagrange Multipliers associated with
the first and second constraints, respectively.
Then:
𝐿 = 𝑓 𝑥1, 𝑥2, 𝑥3 + 𝜆1 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1 + 𝜆2 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2
Where, 𝐿 is the Lagrangian Function

𝐿 = 𝑓 𝑥1, 𝑥2, 𝑥3 + 𝜆1 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1 + 𝜆2 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2
We now have one objective function and no constraints
◦ Therefore, we can apply calculus methods from unconstrained optimization
We need to take five partial derivatives to determine necessary
conditions of a stationary point
◦ 𝑥1, 𝑥2, 𝑥3, 𝜆1, 𝜆2
𝜆1, 𝜆2 are now decision variables in the unconstrained optimization
problem

Lagrangian Method
Set the 5 Partial Derivatives equal to zero
𝜕𝐿
𝜕𝑥1
=
𝜕𝑓 𝑥1, 𝑥2, 𝑥3
𝜕𝑥1
+ 𝜆1
𝜕 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1
𝜕𝑥1
+ 𝜆2
𝜕 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2
𝜕𝑥1
= 0
𝜕𝐿
𝜕𝑥2
=
𝜕𝑓 𝑥1, 𝑥2, 𝑥3
𝜕𝑥2
+ 𝜆1
𝜕 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1
𝜕𝑥2
+ 𝜆2
𝜕 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2
𝜕𝑥2
= 0
𝜕𝐿
𝜕𝑥3
=
𝜕𝑓 𝑥1, 𝑥2, 𝑥3
𝜕𝑥3
+ 𝜆1
𝜕 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1
𝜕𝑥3
+ 𝜆2
𝜕 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2
𝜕𝑥3
= 0
𝜕𝐿
𝜕𝜆1
= 𝑔1 𝑥1, 𝑥2, 𝑥3 − 𝑏1 = 0
𝜕𝐿
𝜕𝜆2
= 𝑔2 𝑥1, 𝑥2, 𝑥3 − 𝑏2 = 0
