7 regulatory aspects to accelerate the deployment of 4 g networks in brazil
The document provides an overview of the telecommunications sector and trends in Brazil. It discusses challenges around improving infrastructure to meet growing mobile broadband demand. Key points include expanding fiber networks and spectrum to increase capacity. The document outlines Brazil's plan to auction 700MHz spectrum and accelerate 4G deployment through initiatives like regulating femtocells and standardizing antenna laws. The goal is to improve coverage, especially in rural areas, to drive economic and social gains from increased connectivity.
More Related Content
Similar to 7 regulatory aspects to accelerate the deployment of 4 g networks in brazil
7 regulatory aspects to accelerate the deployment of 4 g networks in brazil
- 1. AGOSTINHO LINHARES Advisor ofthe Board of Directors National Telecommunications Agency - ANATEL November 6th 2013

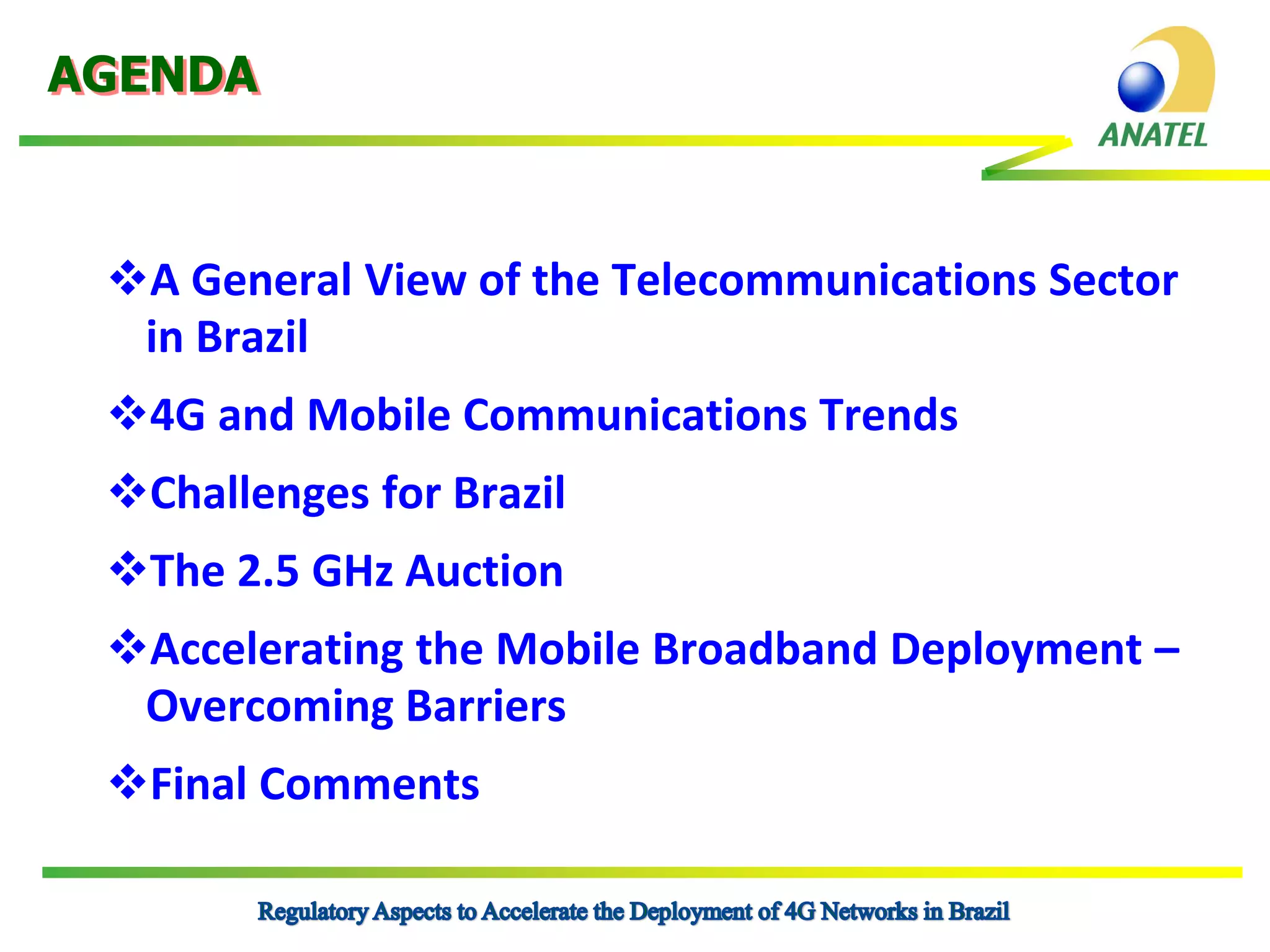

- 2. AGENDA A General Viewof the Telecommunications Sector in Brazil 4G and Mobile Communications Trends Challenges for Brazil The 2.5 GHz Auction Accelerating the Mobile Broadband Deployment – Overcoming Barriers Final Comments

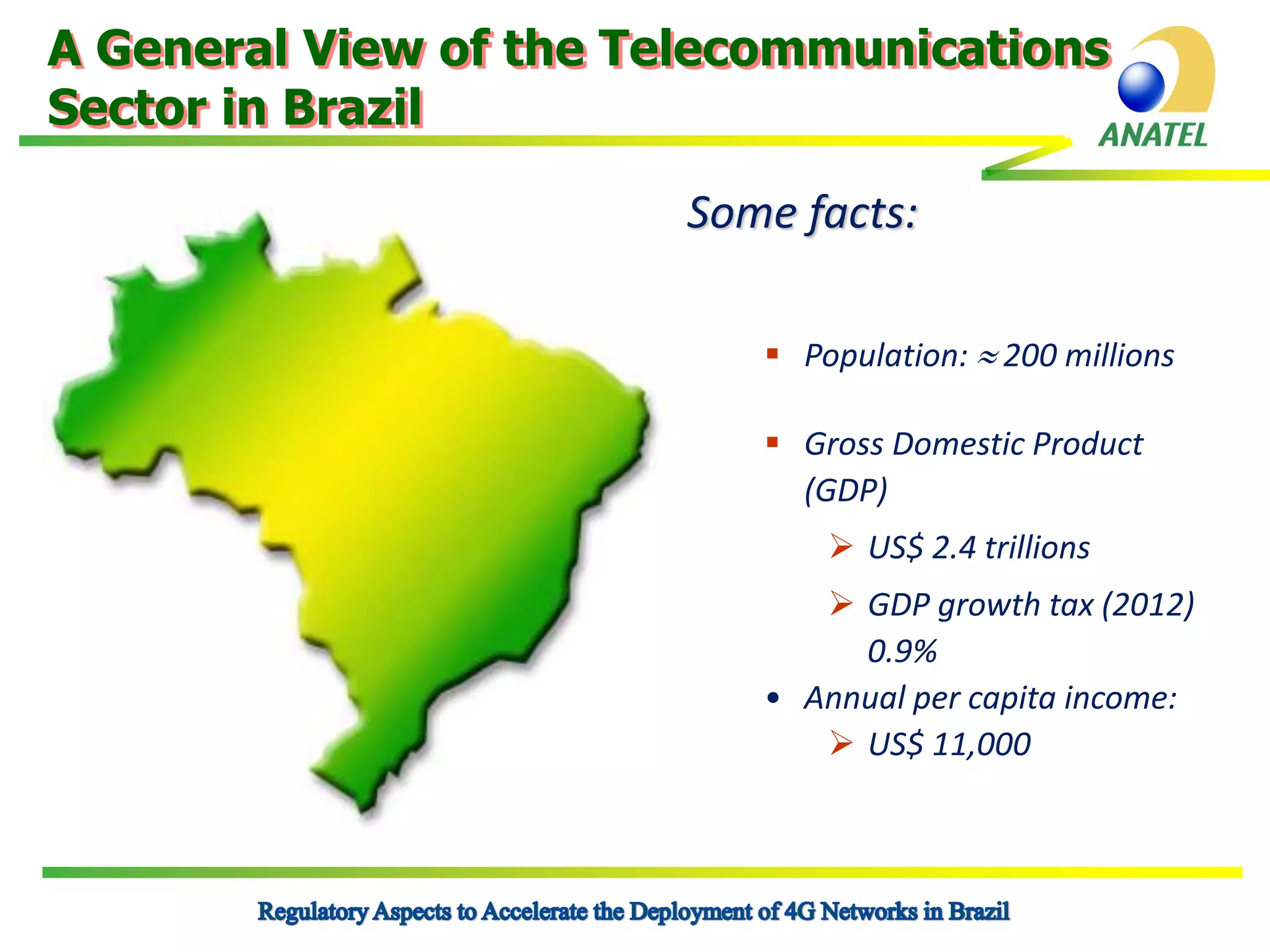

- 3. A General Viewof the Telecommunications Sector in Brazil Some facts: Population: 200 millions Gross Domestic Product (GDP) US$ 2.4 trillions GDP growth tax (2012) 0.9% • Annual per capita income: US$ 11,000

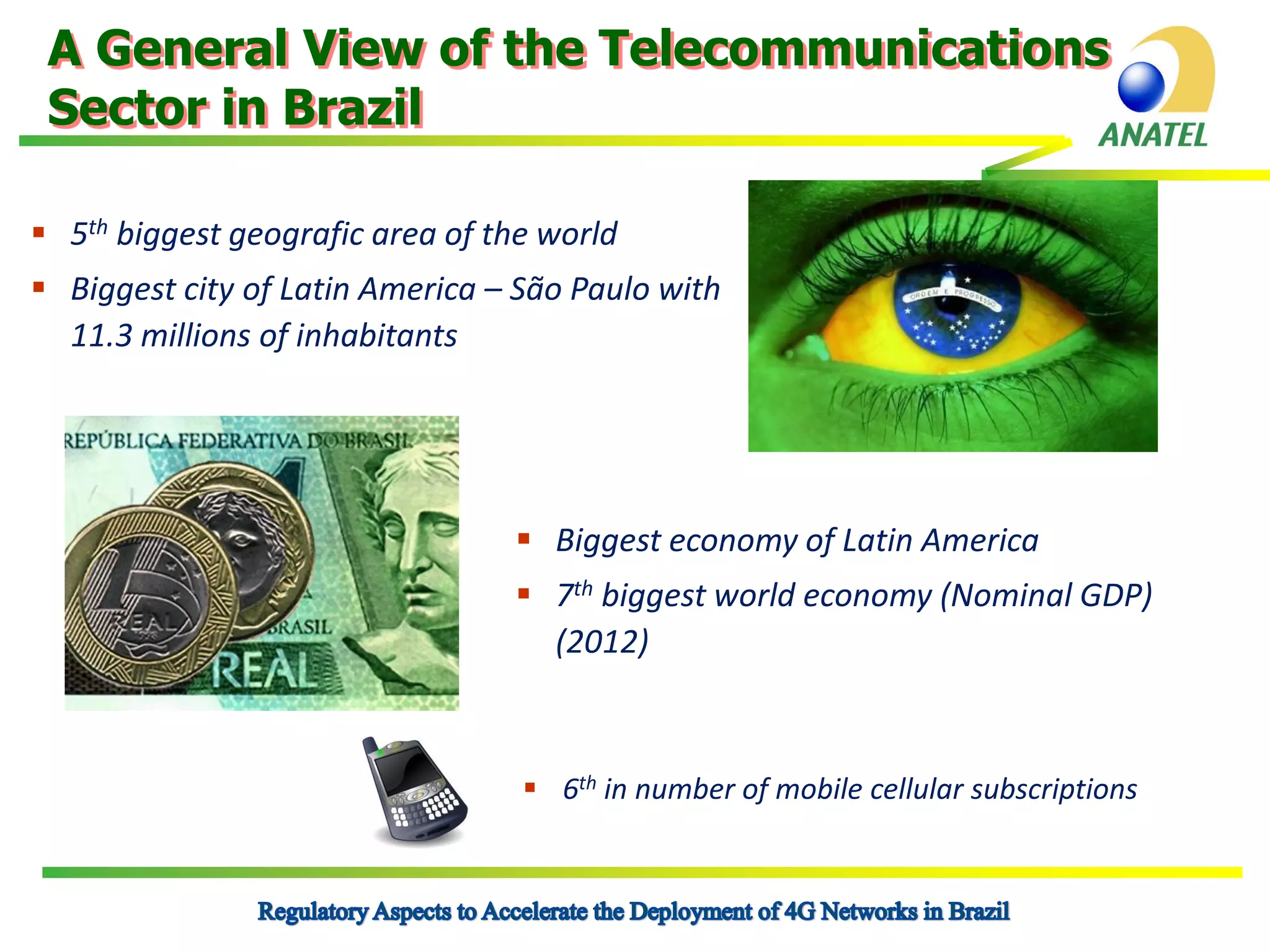

- 4. A General Viewof the Telecommunications Sector in Brazil 5th biggest geografic area of the world Biggest city of Latin America – São Paulo with 11.3 millions of inhabitants Biggest economy of Latin America 7th biggest world economy (Nominal GDP) (2012) 6th in number of mobile cellular subscriptions

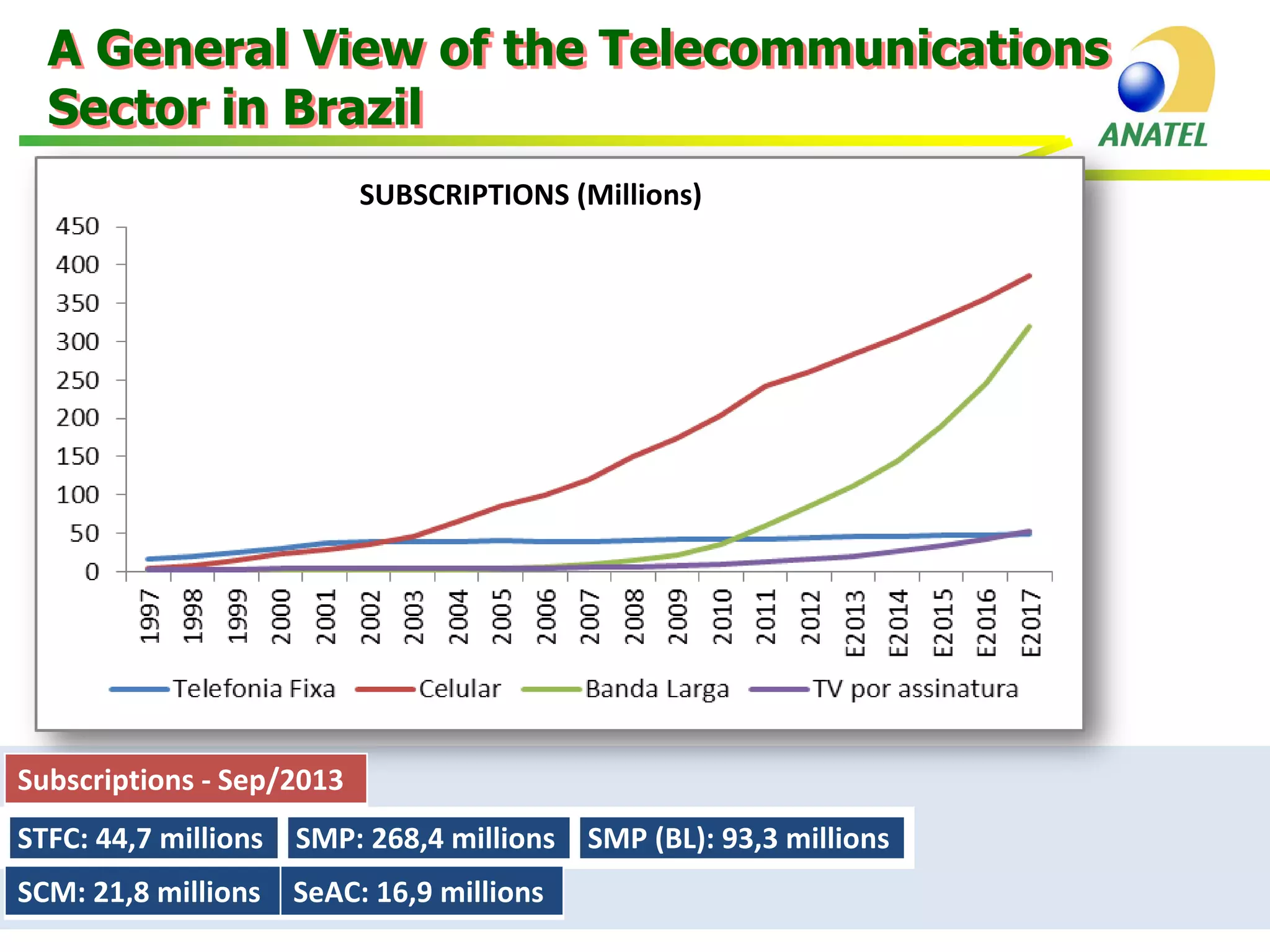

- 5. A General Viewof the Telecommunications Sector in Brazil SUBSCRIPTIONS (Millions) Subscriptions - Sep/2013 STFC: 44,7 millions SMP: 268,4 millions SCM: 21,8 millions SeAC: 16,9 millions SMP (BL): 93,3 millions

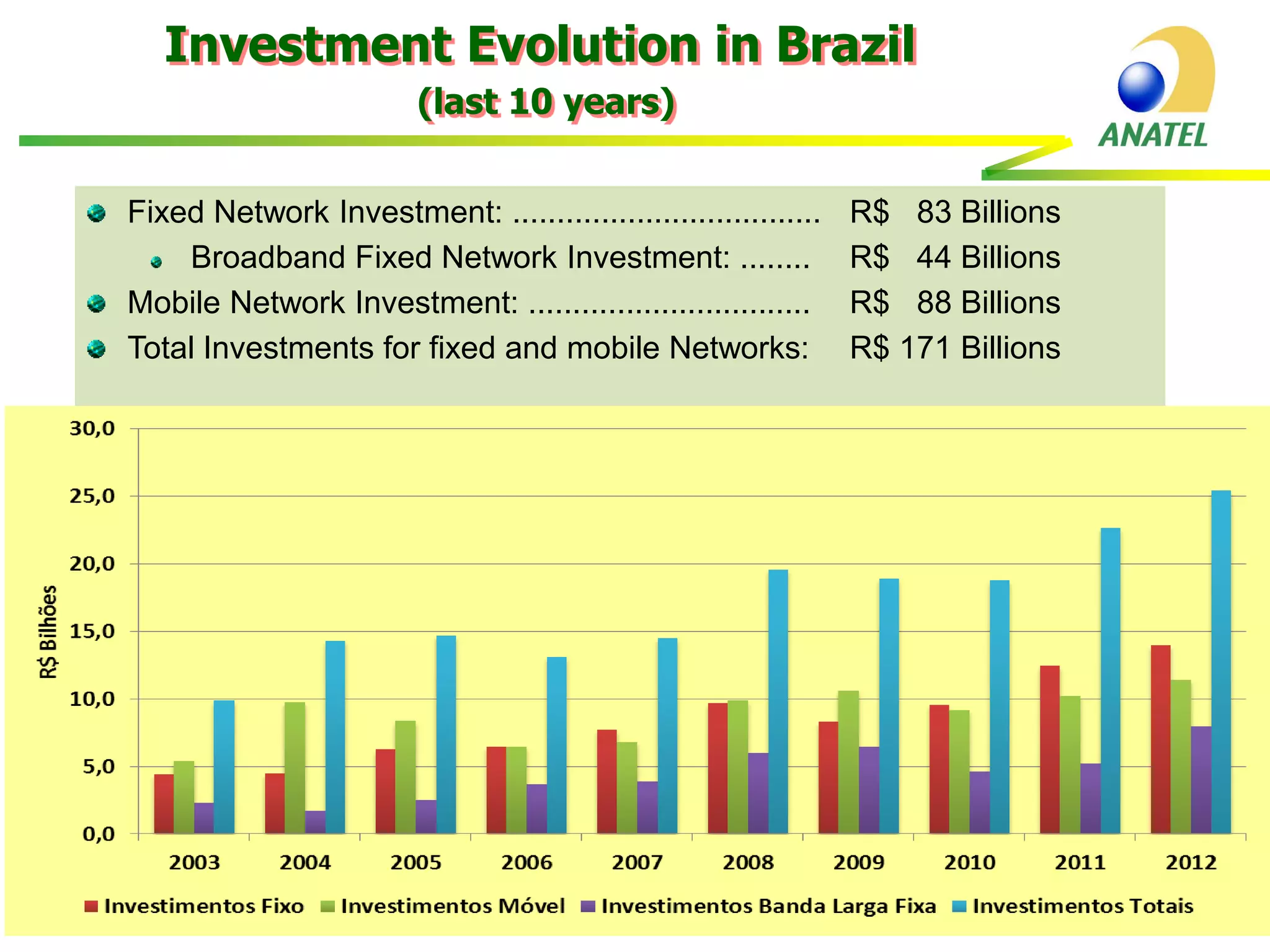

- 6. Investment Evolution inBrazil (last 10 years) Fixed Network Investment: ................................... Broadband Fixed Network Investment: ........ Mobile Network Investment: ................................ Total Investments for fixed and mobile Networks: Valores não atualizados monetariamente Fonte: Telebrasil R$ 83 Billions R$ 44 Billions R$ 88 Billions R$ 171 Billions

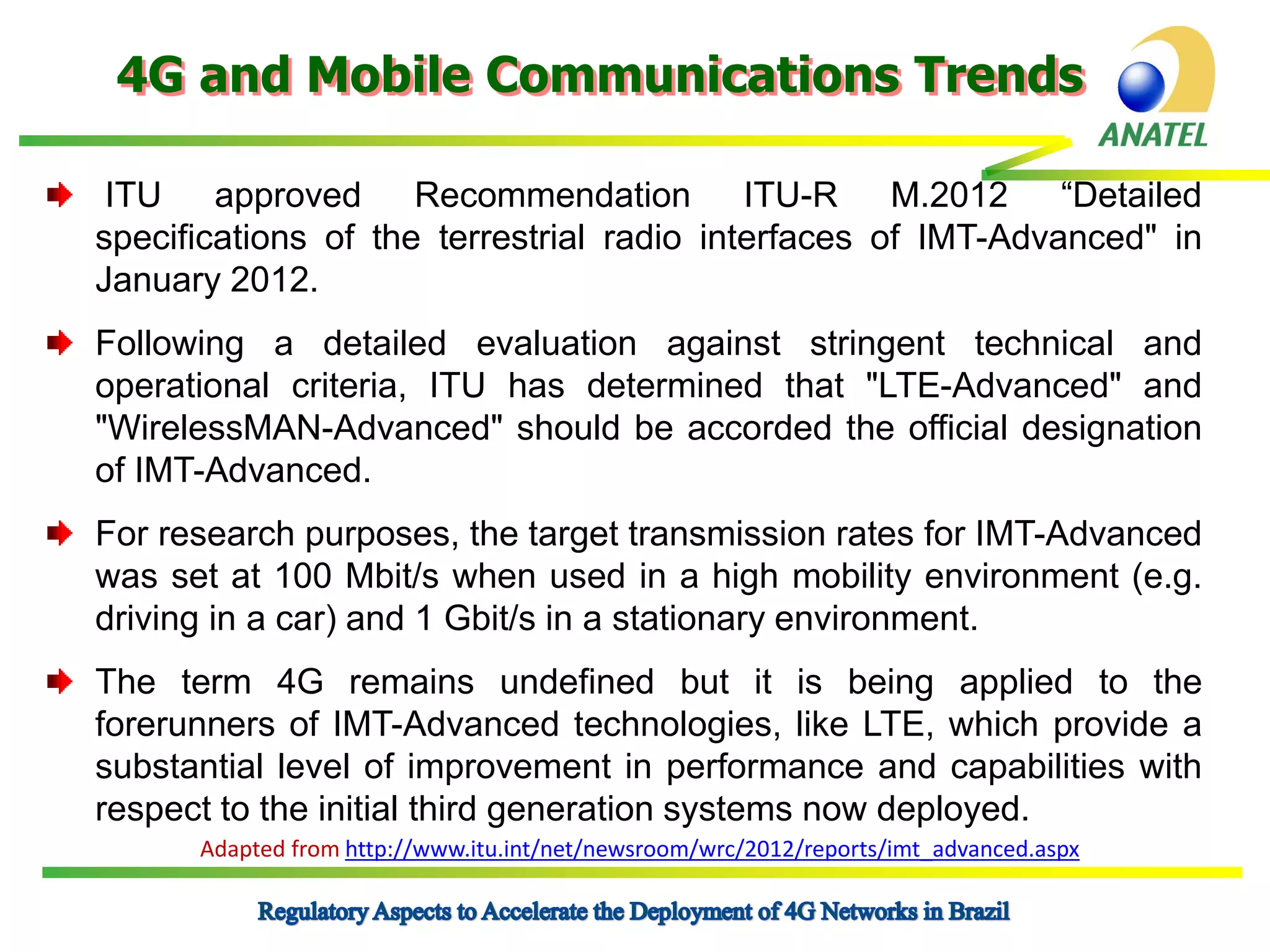

- 7. 4G and MobileCommunications Trends ITU approved Recommendation ITU-R M.2012 “Detailed specifications of the terrestrial radio interfaces of IMT-Advanced" in January 2012. Following a detailed evaluation against stringent technical and operational criteria, ITU has determined that "LTE-Advanced" and "WirelessMAN-Advanced" should be accorded the official designation of IMT-Advanced. For research purposes, the target transmission rates for IMT-Advanced was set at 100 Mbit/s when used in a high mobility environment (e.g. driving in a car) and 1 Gbit/s in a stationary environment. The term 4G remains undefined but it is being applied to the forerunners of IMT-Advanced technologies, like LTE, which provide a substantial level of improvement in performance and capabilities with respect to the initial third generation systems now deployed. Adapted from http://www.itu.int/net/newsroom/wrc/2012/reports/imt_advanced.aspx

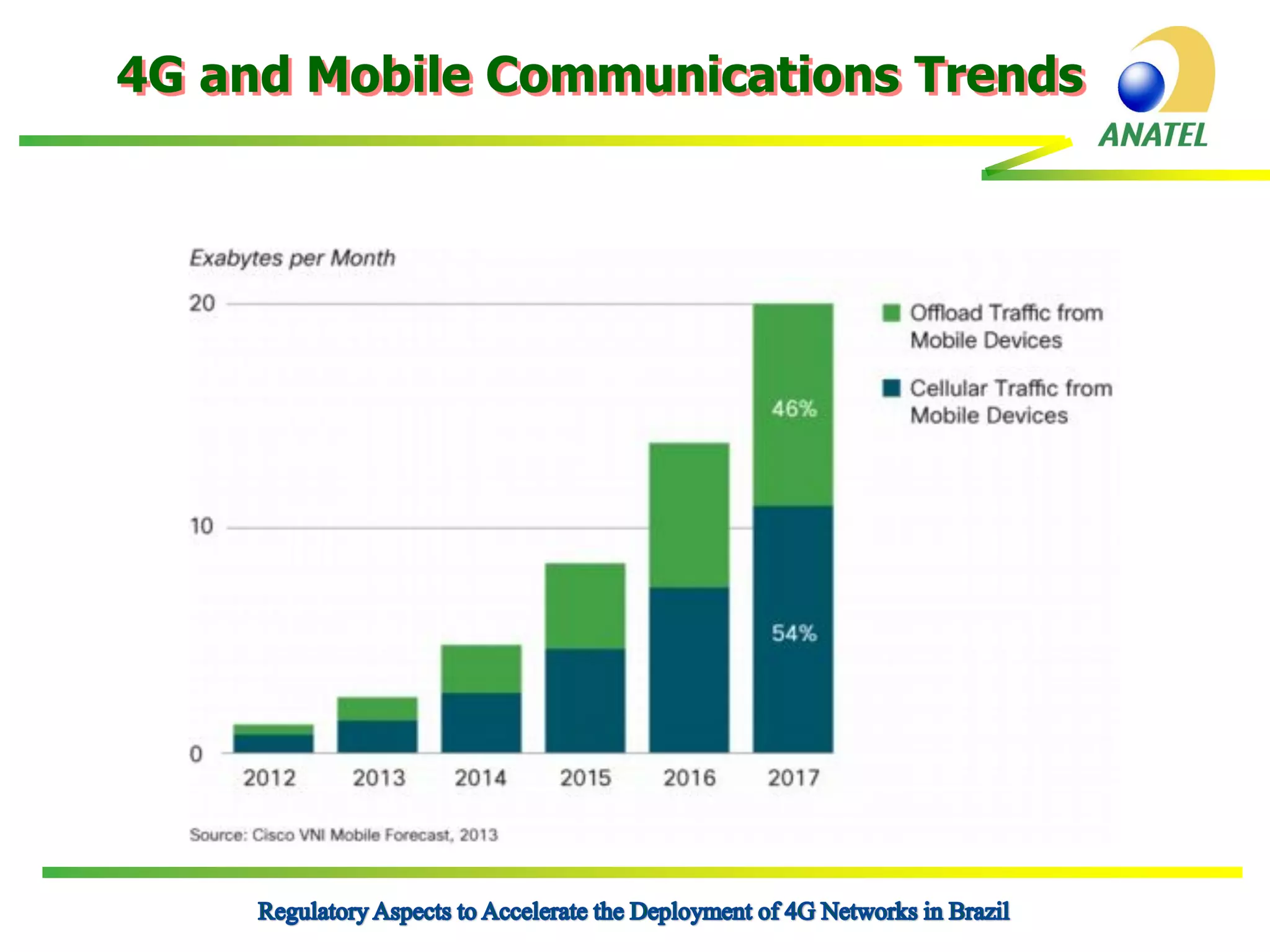

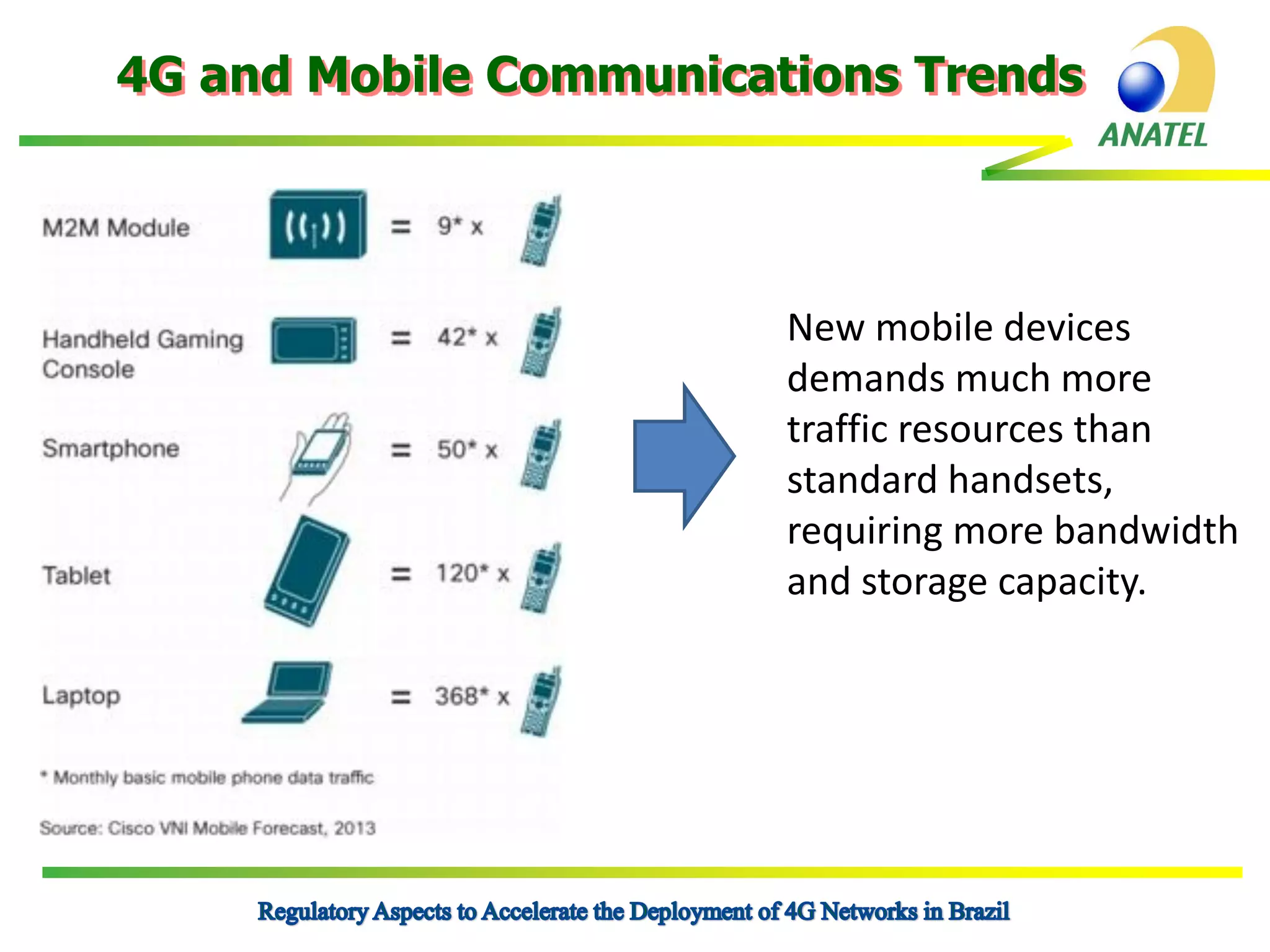

- 8. 4G and MobileCommunications Trends New mobile devices demands much more traffic resources than standard handsets, requiring more bandwidth and storage capacity.

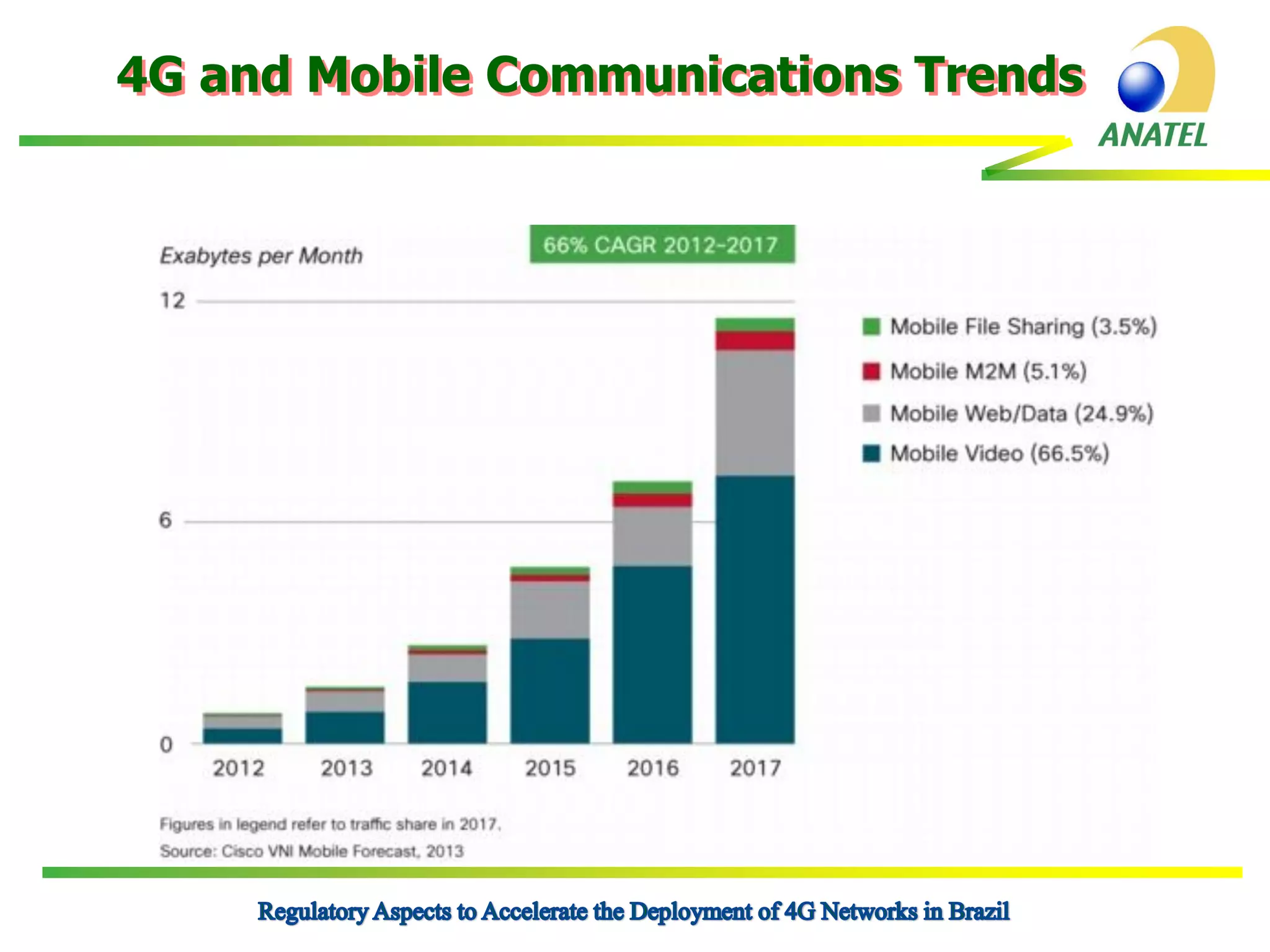

- 9. 4G and MobileCommunications Trends
- 10. 4G and MobileCommunications Trends

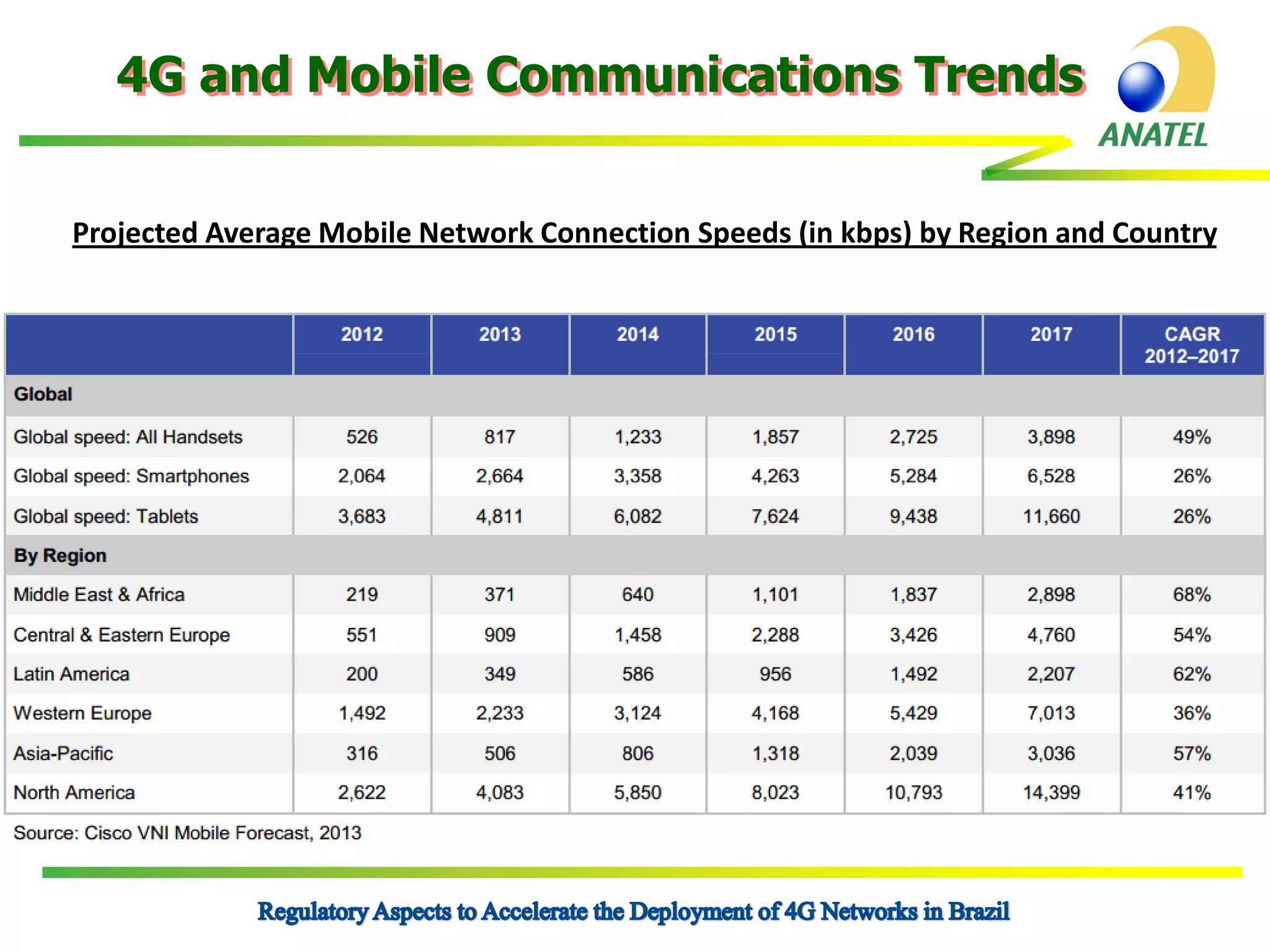

- 11. 4G and MobileCommunications Trends Projected Average Mobile Network Connection Speeds (in kbps) by Region and Country
- 12.

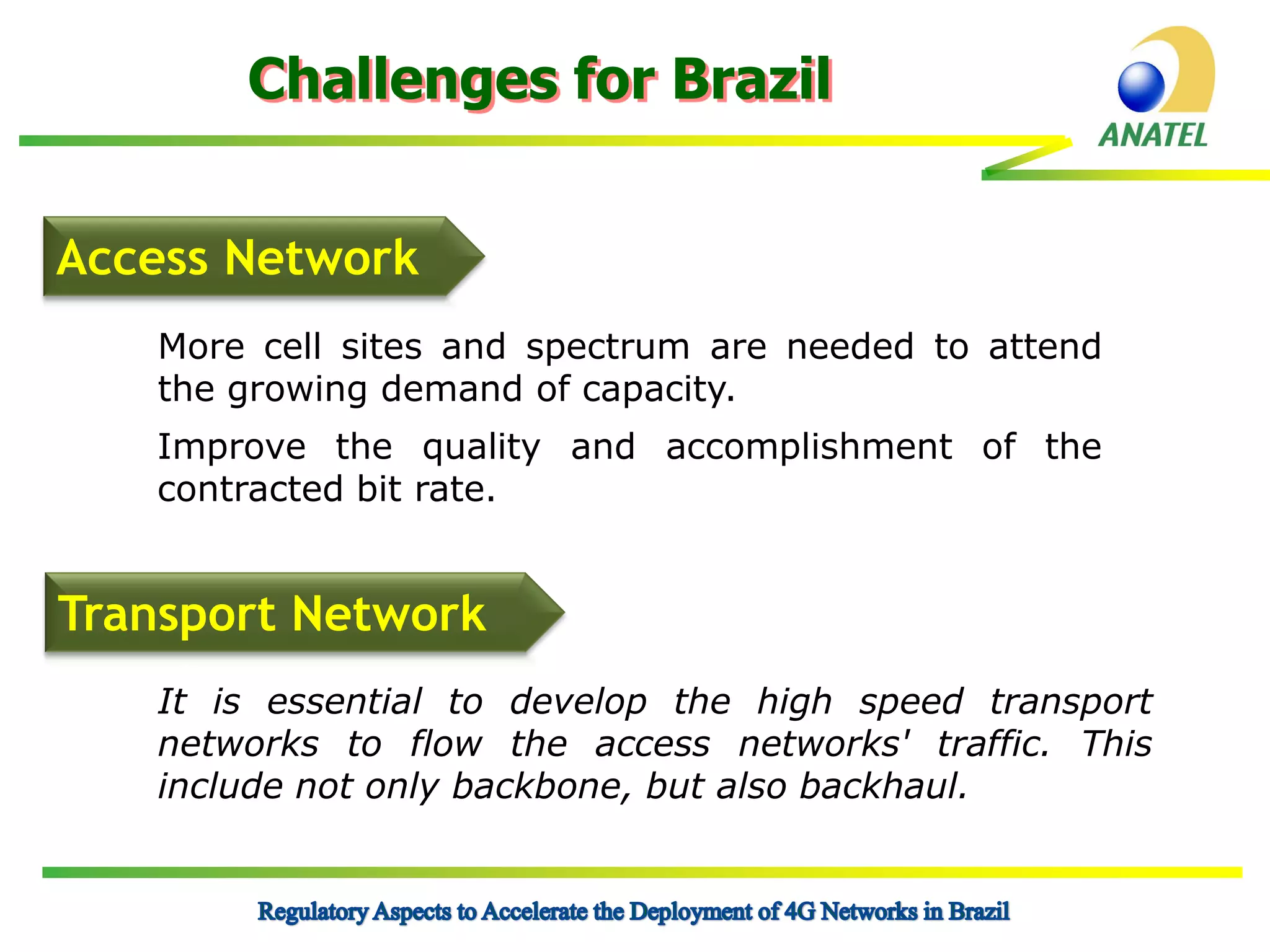

- 13. Challenges for Brazil AccessNetwork More cell sites and spectrum are needed to attend the growing demand of capacity. Improve the quality and accomplishment of the contracted bit rate. Transport Network It is essential to develop the high speed transport networks to flow the access networks' traffic. This include not only backbone, but also backhaul.

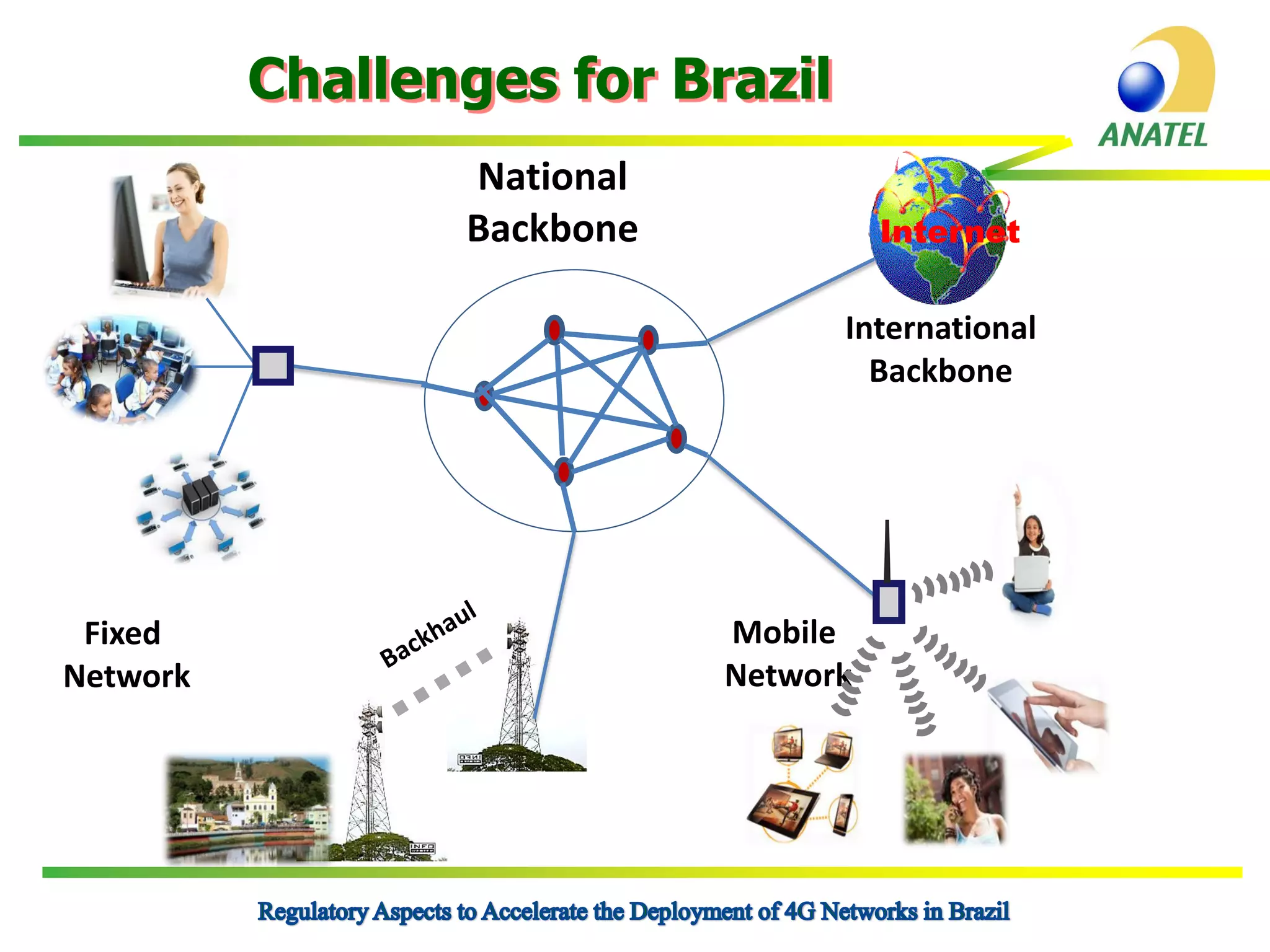

- 14.

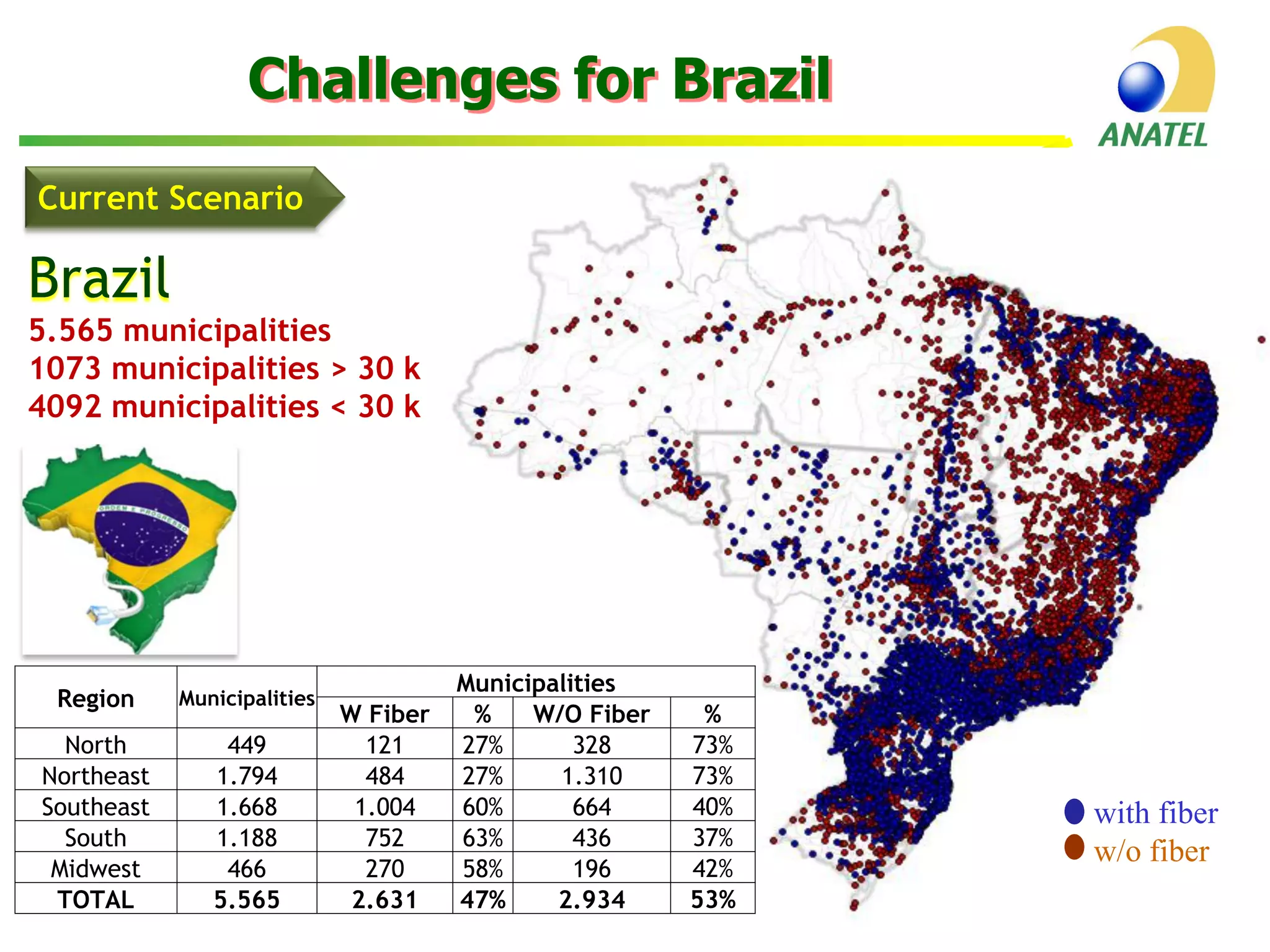

- 15. Challenges for Brazil CurrentScenario Brazil 5.565 municipalities 1073 municipalities > 30 k 4092 municipalities < 30 k Region Municipalities North Northeast Southeast South Midwest TOTAL 449 1.794 1.668 1.188 466 5.565 W Fiber 121 484 1.004 752 270 2.631 Municipalities % W/O Fiber 27% 328 27% 1.310 60% 664 63% 436 58% 196 47% 2.934 % 73% 73% 40% 37% 42% 53% with fiber w/o fiber

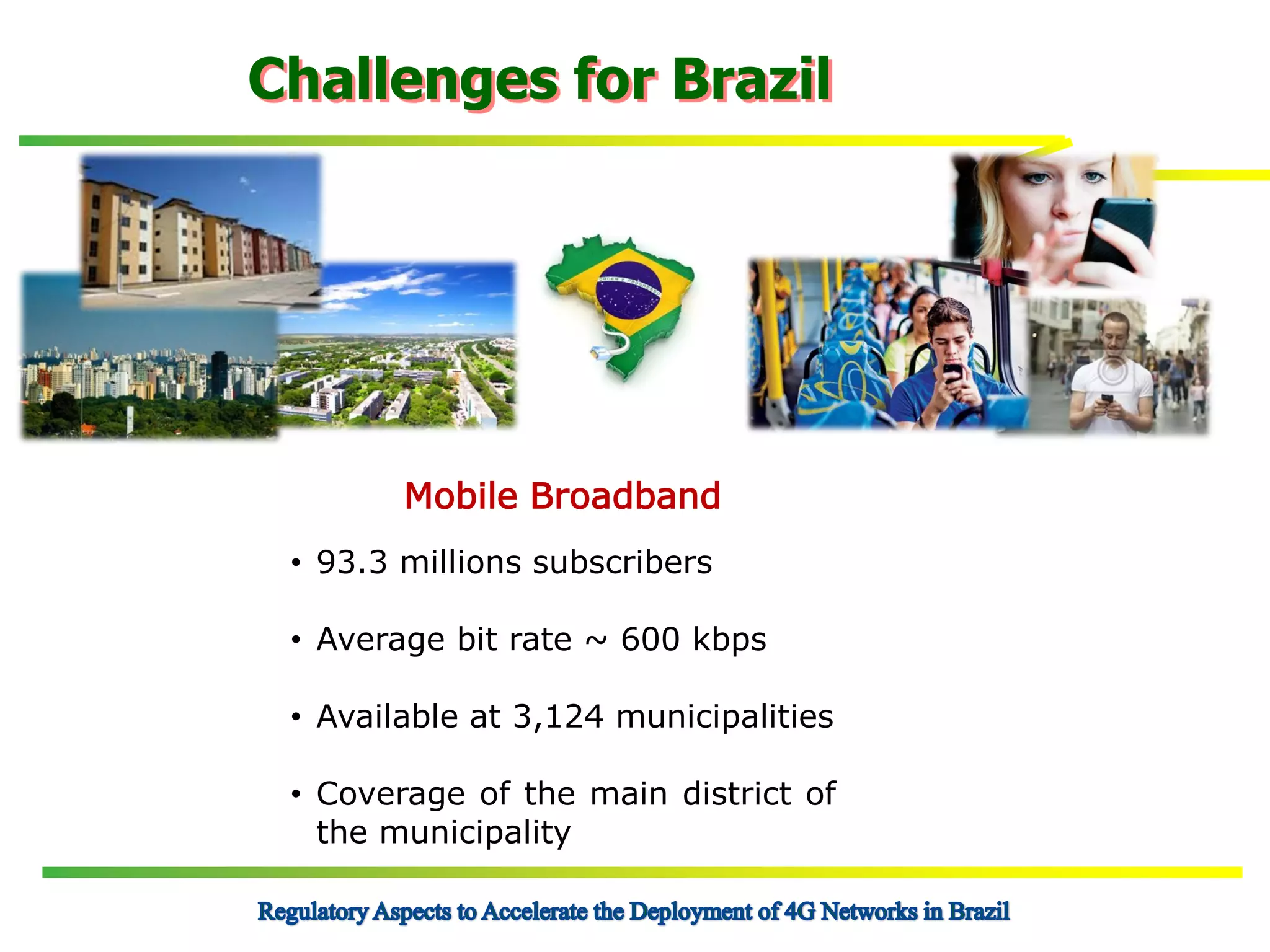

- 16. Challenges for Brazil MobileBroadband • 93.3 millions subscribers • Average bit rate ~ 600 kbps • Available at 3,124 municipalities • Coverage of the main district of the municipality

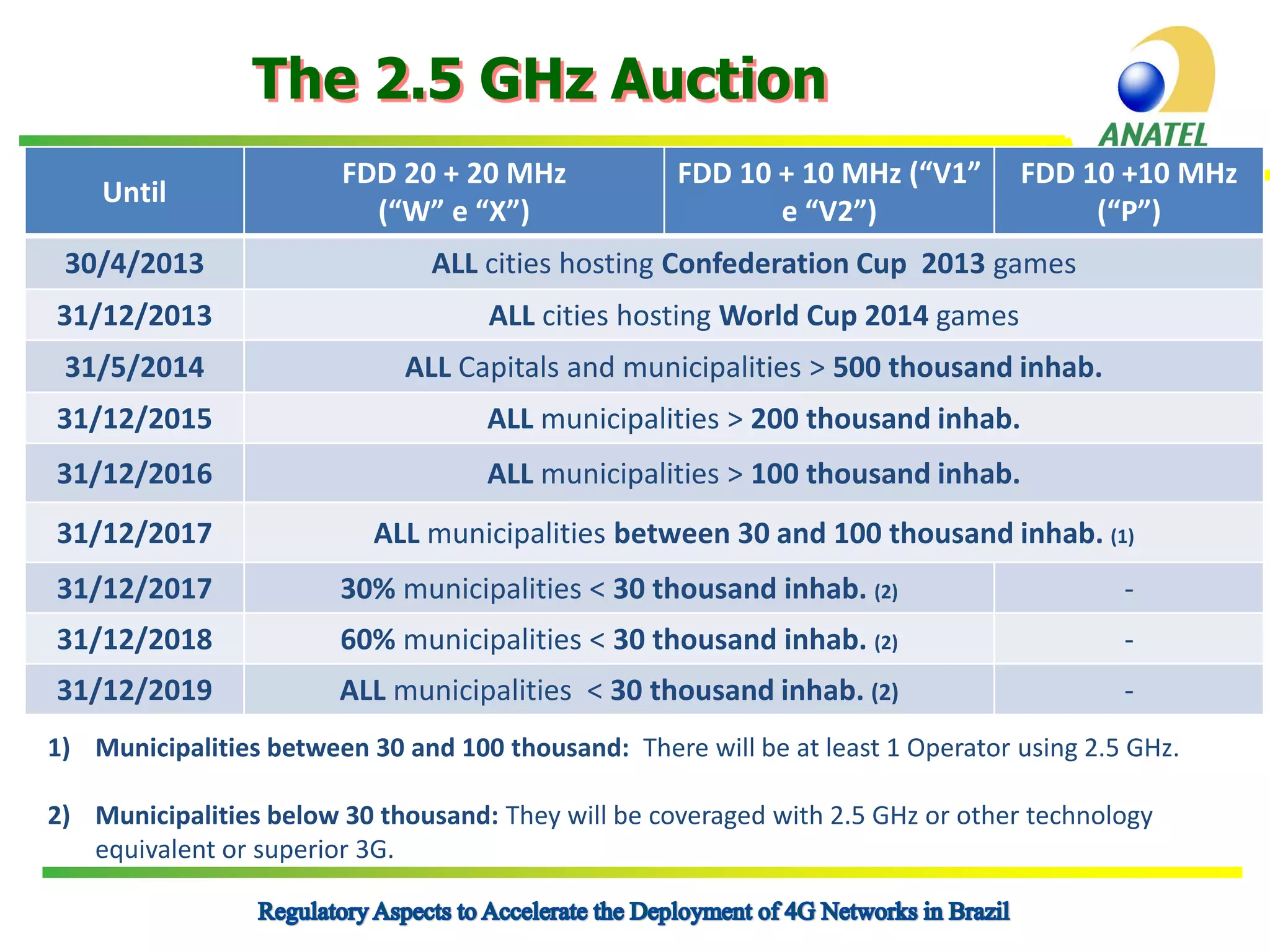

- 17. The 2.5 GHzAuction Until FDD 20 + 20 MHz (“W” e “X”) FDD 10 + 10 MHz (“V1” e “V2”) FDD 10 +10 MHz (“P”) 30/4/2013 ALL cities hosting Confederation Cup 2013 games 31/12/2013 ALL cities hosting World Cup 2014 games 31/5/2014 ALL Capitals and municipalities > 500 thousand inhab. 31/12/2015 ALL municipalities > 200 thousand inhab. 31/12/2016 ALL municipalities > 100 thousand inhab. 31/12/2017 ALL municipalities between 30 and 100 thousand inhab. (1) 31/12/2017 30% municipalities < 30 thousand inhab. (2) - 31/12/2018 60% municipalities < 30 thousand inhab. (2) - 31/12/2019 ALL municipalities < 30 thousand inhab. (2) - 1) Municipalities between 30 and 100 thousand: There will be at least 1 Operator using 2.5 GHz. 2) Municipalities below 30 thousand: They will be coveraged with 2.5 GHz or other technology equivalent or superior 3G.

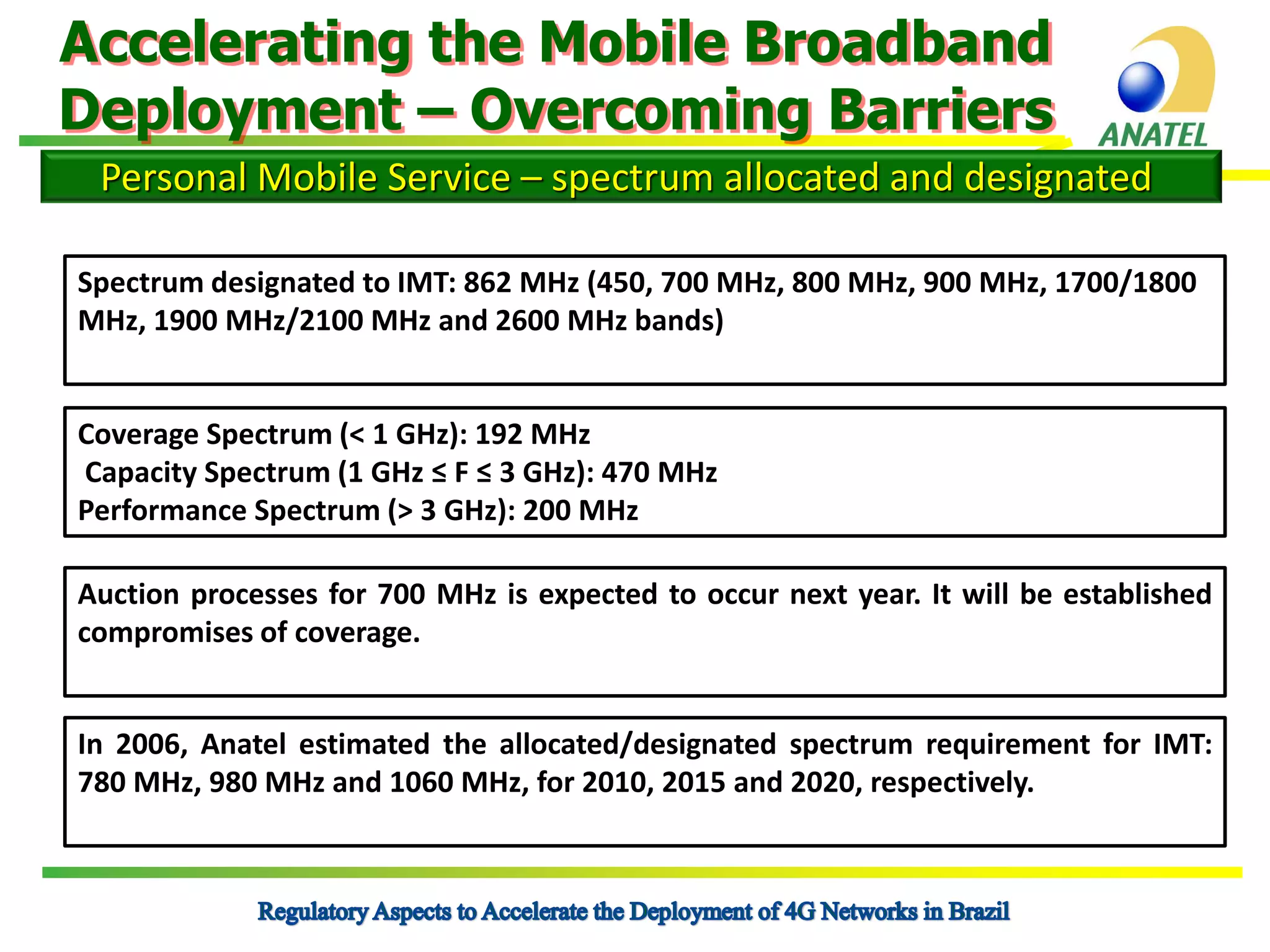

- 18. Accelerating the MobileBroadband Deployment – Overcoming Barriers Personal Mobile Service – spectrum allocated and designated Spectrum designated to IMT: 862 MHz (450, 700 MHz, 800 MHz, 900 MHz, 1700/1800 MHz, 1900 MHz/2100 MHz and 2600 MHz bands) Coverage Spectrum (< 1 GHz): 192 MHz Capacity Spectrum (1 GHz ≤ F ≤ 3 GHz): 470 MHz Performance Spectrum (> 3 GHz): 200 MHz Auction processes for 700 MHz is expected to occur next year. It will be established compromises of coverage. In 2006, Anatel estimated the allocated/designated spectrum requirement for IMT: 780 MHz, 980 MHz and 1060 MHz, for 2010, 2015 and 2020, respectively.

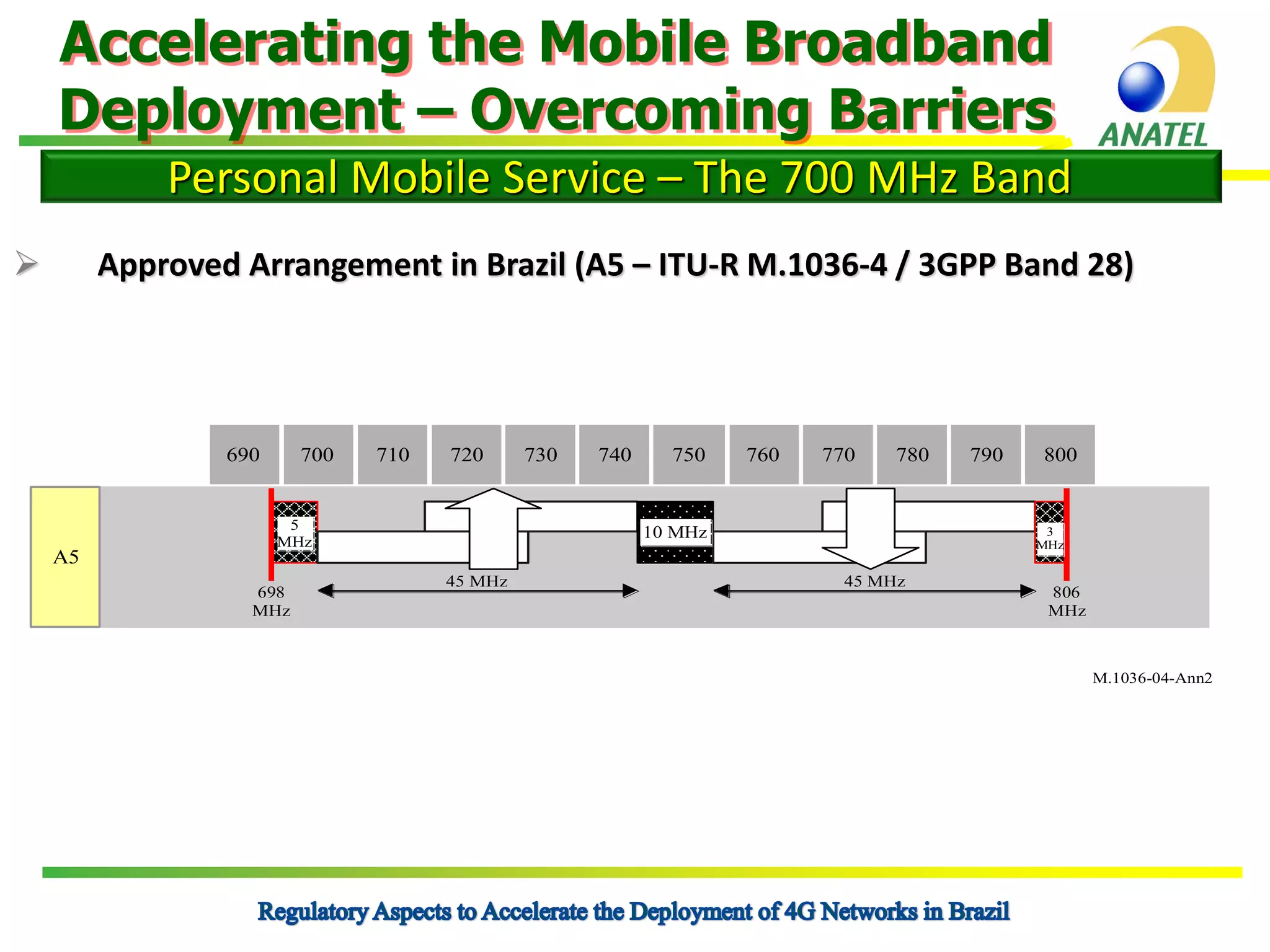

- 19. Accelerating the MobileBroadband Deployment – Overcoming Barriers Personal Mobile Service – The 700 MHz Band Approved Arrangement in Brazil (A5 – ITU-R M.1036-4 / 3GPP Band 28) 690 A5 700 710 720 5 MHz 698 MHz 730 740 750 760 770 780 10 MHz 45 MHz 790 800 3 MHz 45 MHz 806 MHz M.1036-04-Ann2

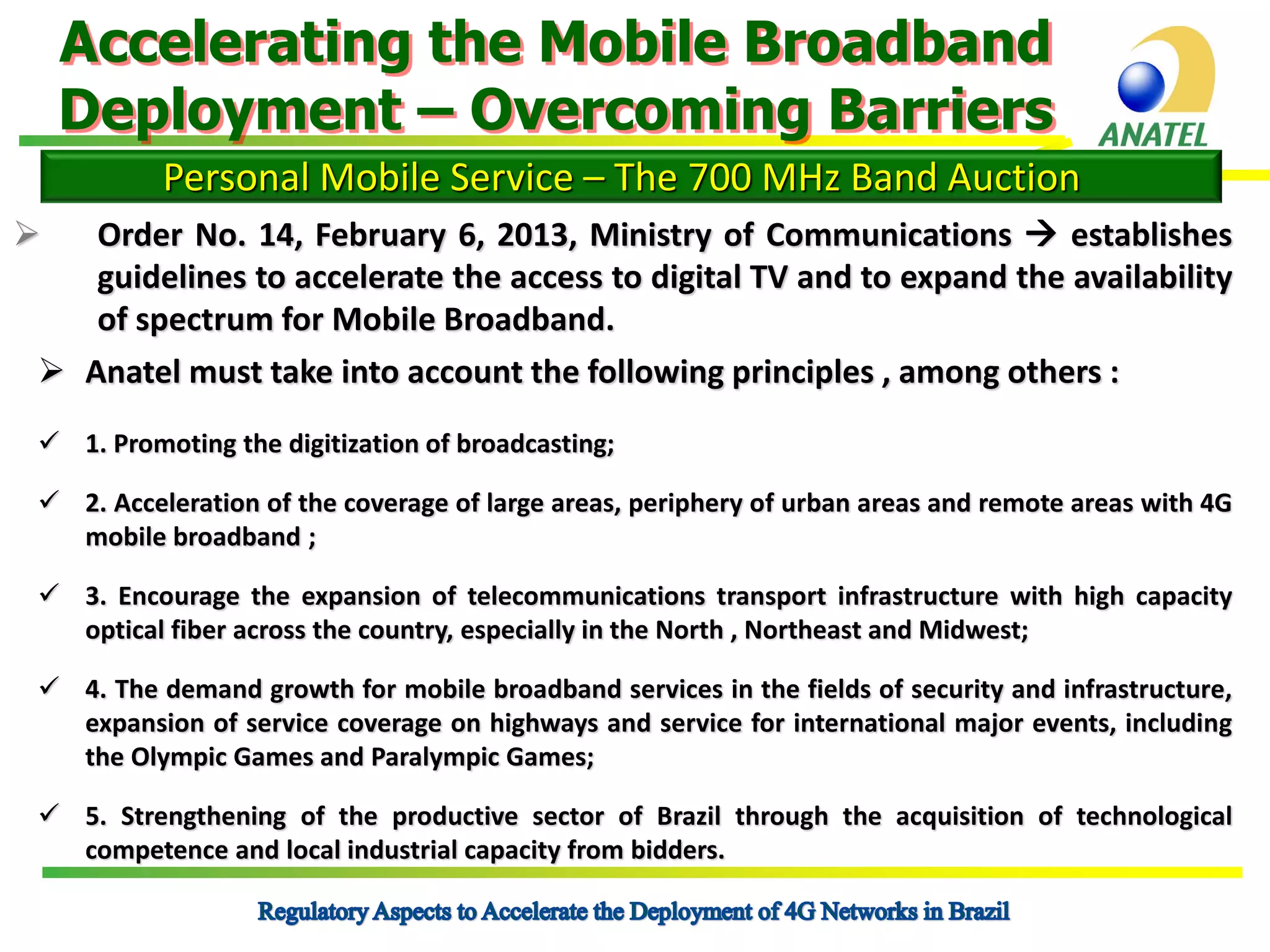

- 20. Accelerating the MobileBroadband Deployment – Overcoming Barriers Personal Mobile Service – The 700 MHz Band Auction Order No. 14, February 6, 2013, Ministry of Communications establishes guidelines to accelerate the access to digital TV and to expand the availability of spectrum for Mobile Broadband. Anatel must take into account the following principles , among others : 1. Promoting the digitization of broadcasting; 2. Acceleration of the coverage of large areas, periphery of urban areas and remote areas with 4G mobile broadband ; 3. Encourage the expansion of telecommunications transport infrastructure with high capacity optical fiber across the country, especially in the North , Northeast and Midwest; 4. The demand growth for mobile broadband services in the fields of security and infrastructure, expansion of service coverage on highways and service for international major events, including the Olympic Games and Paralympic Games; 5. Strengthening of the productive sector of Brazil through the acquisition of technological competence and local industrial capacity from bidders.

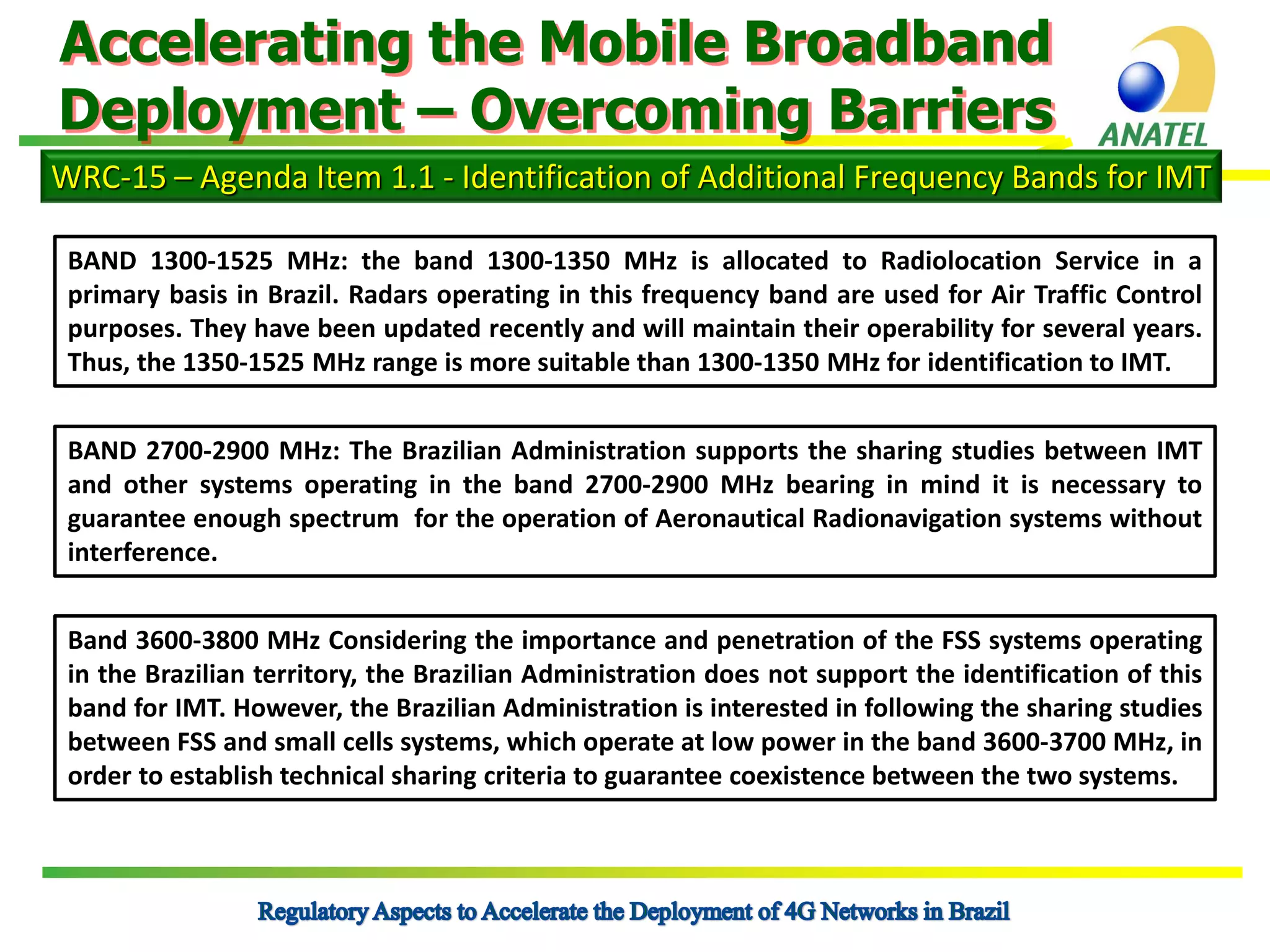

- 21. Accelerating the MobileBroadband Deployment – Overcoming Barriers WRC-15 – Agenda Item 1.1 - Identification of Additional Frequency Bands for IMT BAND 1300-1525 MHz: the band 1300-1350 MHz is allocated to Radiolocation Service in a primary basis in Brazil. Radars operating in this frequency band are used for Air Traffic Control purposes. They have been updated recently and will maintain their operability for several years. Thus, the 1350-1525 MHz range is more suitable than 1300-1350 MHz for identification to IMT. BAND 2700-2900 MHz: The Brazilian Administration supports the sharing studies between IMT and other systems operating in the band 2700-2900 MHz bearing in mind it is necessary to guarantee enough spectrum for the operation of Aeronautical Radionavigation systems without interference. Band 3600-3800 MHz Considering the importance and penetration of the FSS systems operating in the Brazilian territory, the Brazilian Administration does not support the identification of this band for IMT. However, the Brazilian Administration is interested in following the sharing studies between FSS and small cells systems, which operate at low power in the band 3600-3700 MHz, in order to establish technical sharing criteria to guarantee coexistence between the two systems.

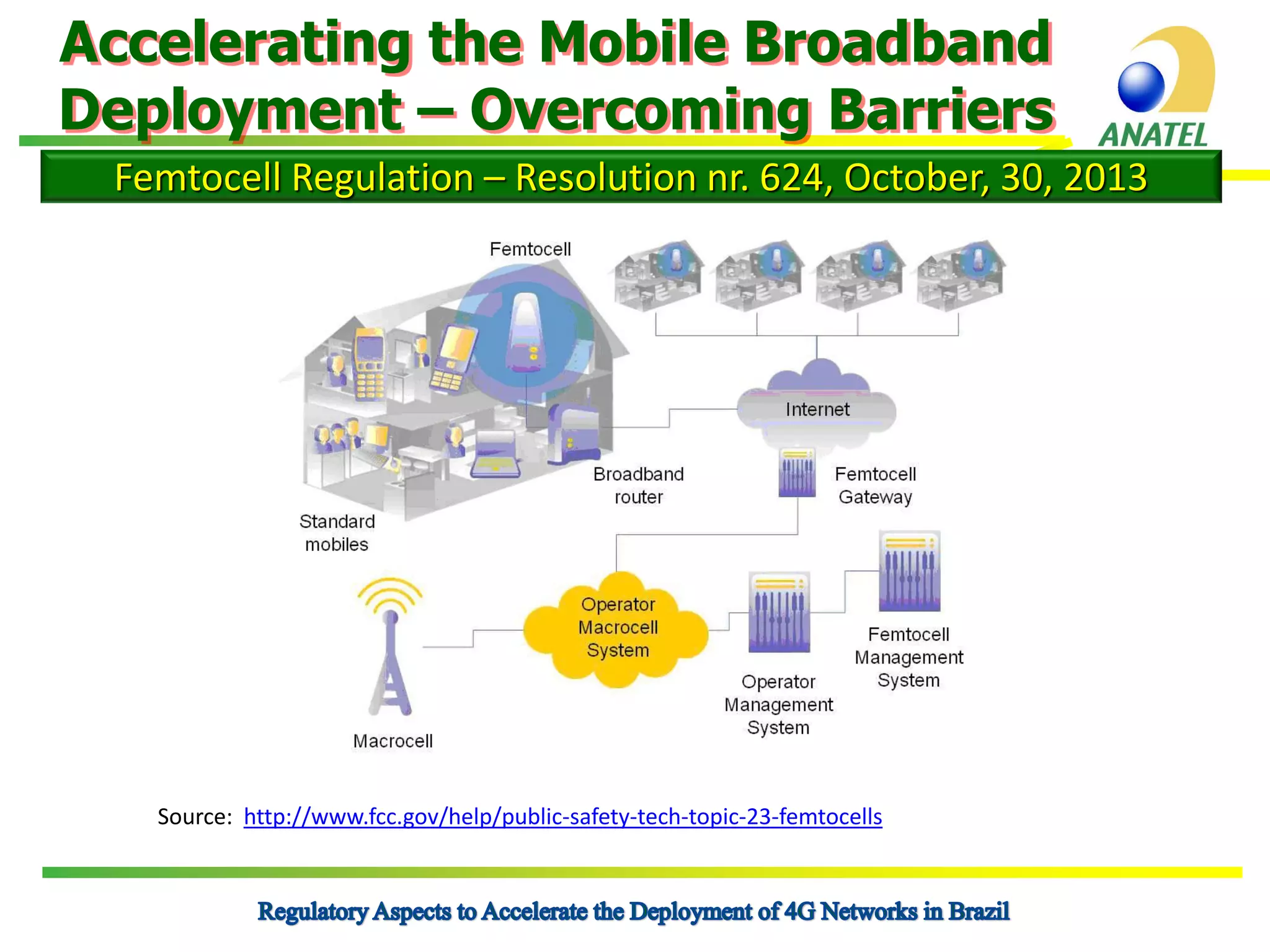

- 22. Accelerating the MobileBroadband Deployment – Overcoming Barriers Femtocell Regulation – Resolution nr. 624, October, 30, 2013 Source: http://www.fcc.gov/help/public-safety-tech-topic-23-femtocells

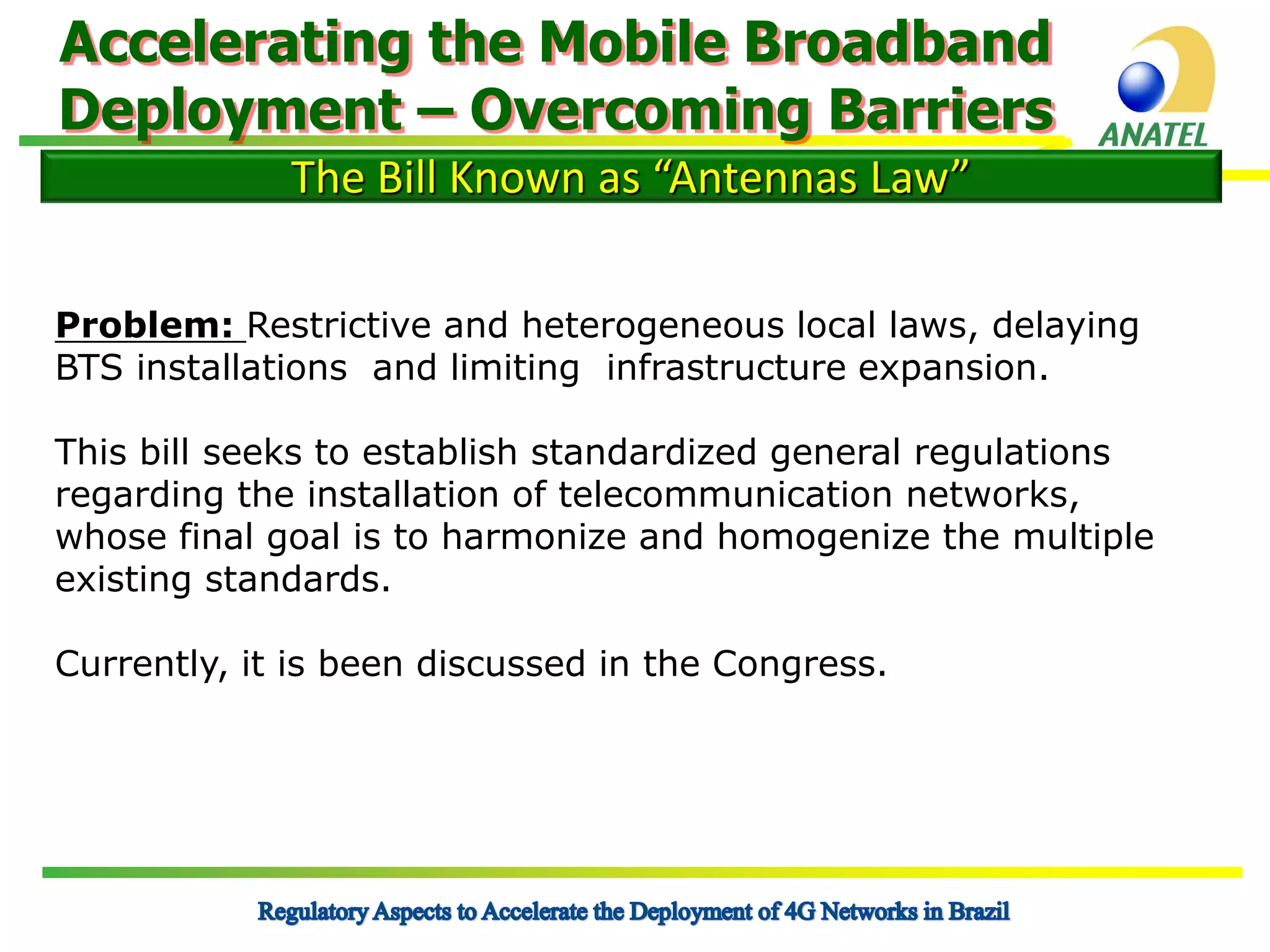

- 23. Accelerating the MobileBroadband Deployment – Overcoming Barriers The Bill Known as “Antennas Law” Problem: Restrictive and heterogeneous local laws, delaying BTS installations and limiting infrastructure expansion. This bill seeks to establish standardized general regulations regarding the installation of telecommunication networks, whose final goal is to harmonize and homogenize the multiple existing standards. Currently, it is been discussed in the Congress.

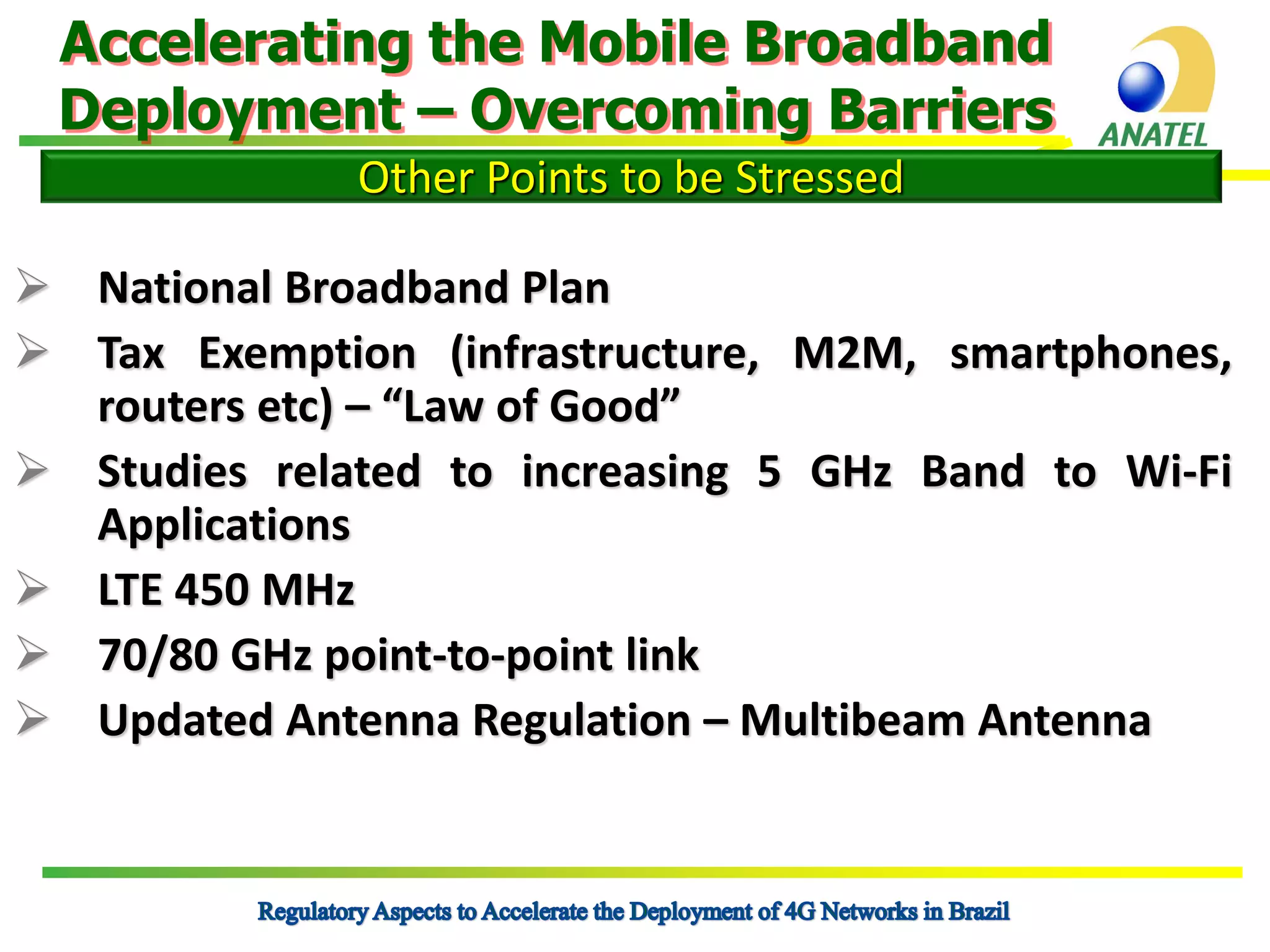

- 24. Accelerating the MobileBroadband Deployment – Overcoming Barriers Other Points to be Stressed National Broadband Plan Tax Exemption (infrastructure, M2M, smartphones, routers etc) – “Law of Good” Studies related to increasing 5 GHz Band to Wi-Fi Applications LTE 450 MHz 70/80 GHz point-to-point link Updated Antenna Regulation – Multibeam Antenna

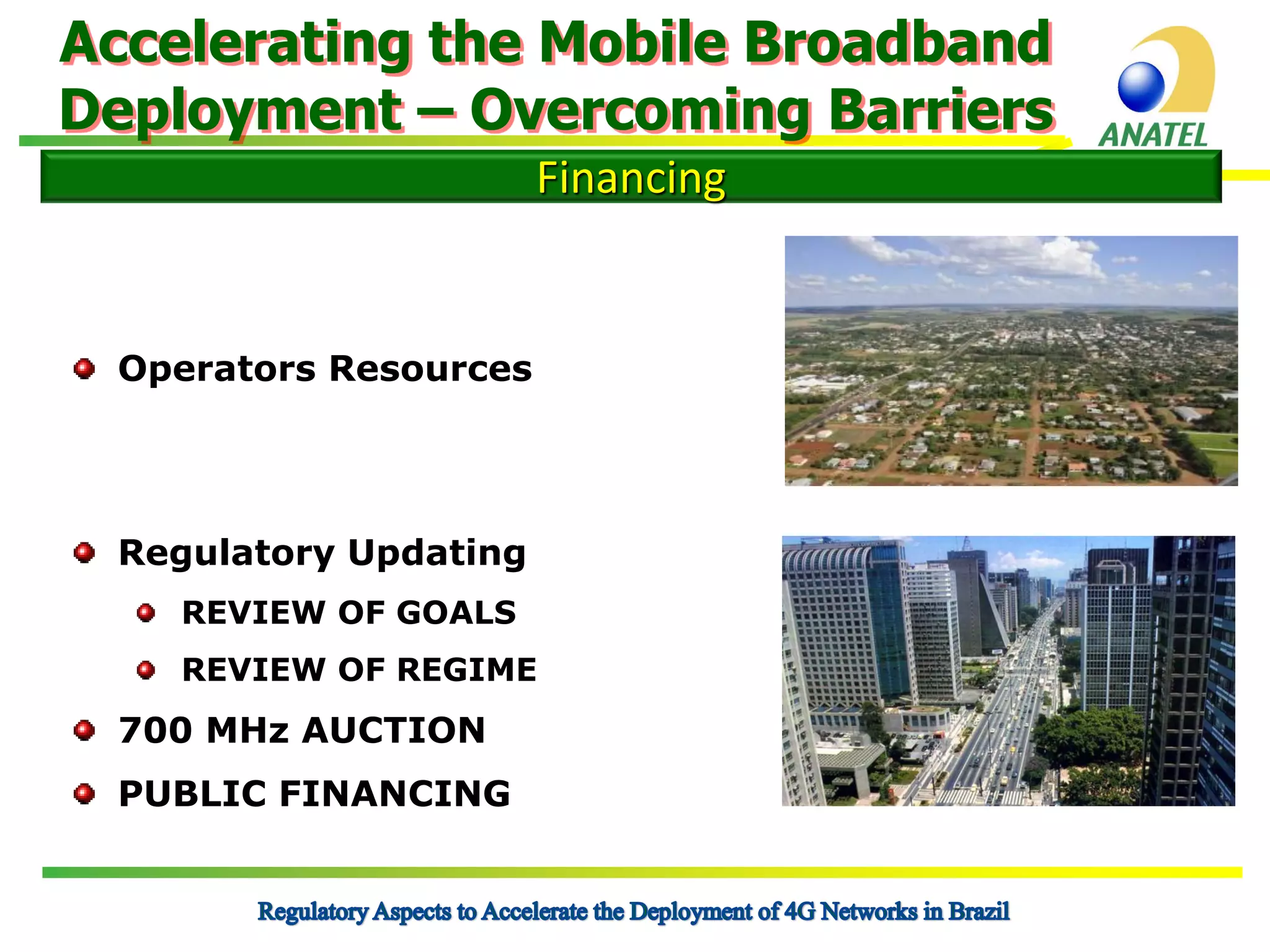

- 25. Accelerating the MobileBroadband Deployment – Overcoming Barriers Financing Operators Resources Regulatory Updating REVIEW OF GOALS REVIEW OF REGIME 700 MHz AUCTION PUBLIC FINANCING

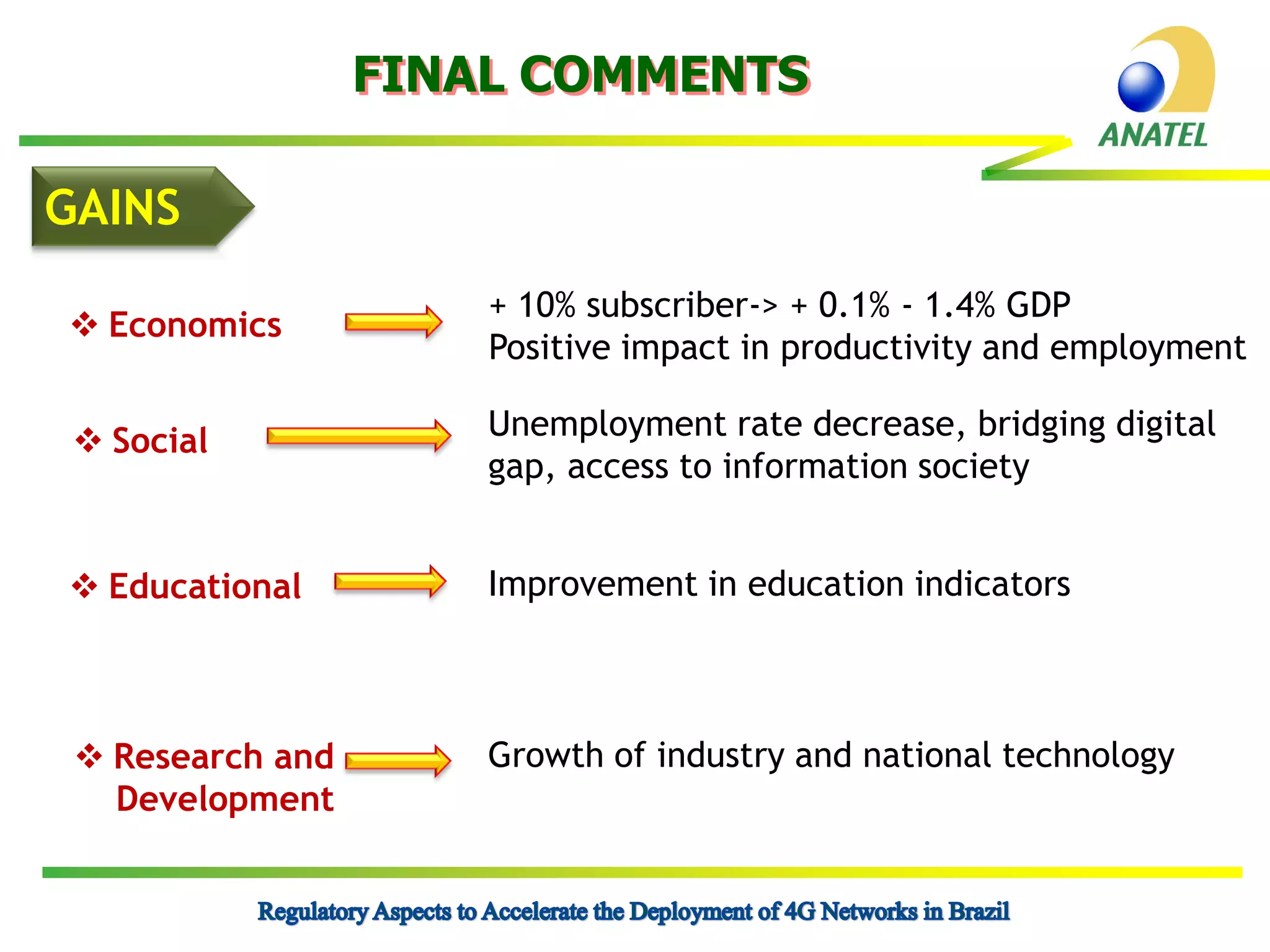

- 26. FINAL COMMENTS GAINS Economics +10% subscriber-> + 0.1% - 1.4% GDP Positive impact in productivity and employment Social Unemployment rate decrease, bridging digital gap, access to information society Educational Improvement in education indicators Research and Development Growth of industry and national technology
- 27.
