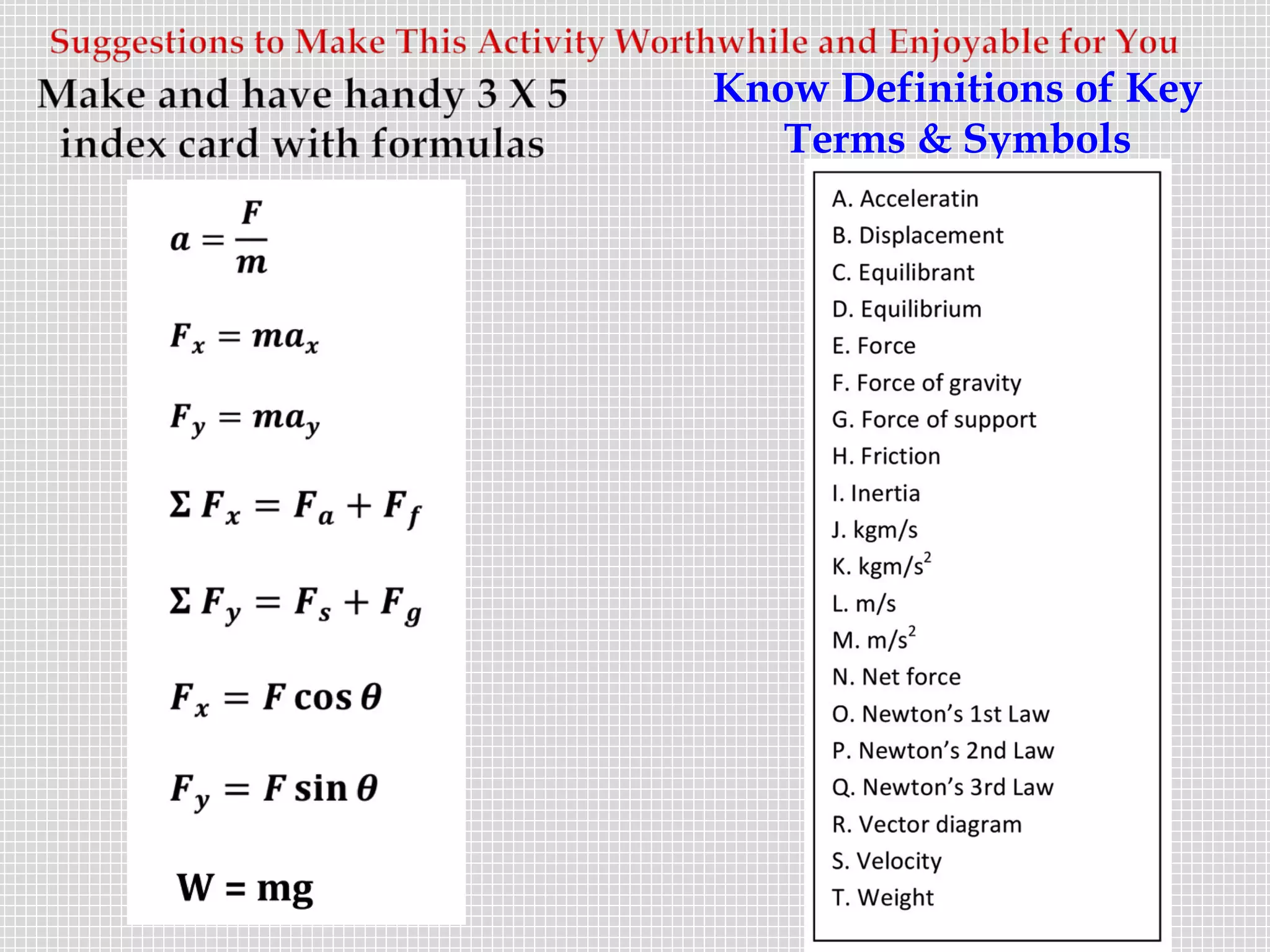

Know Definitions of Key
   Terms & Symbols

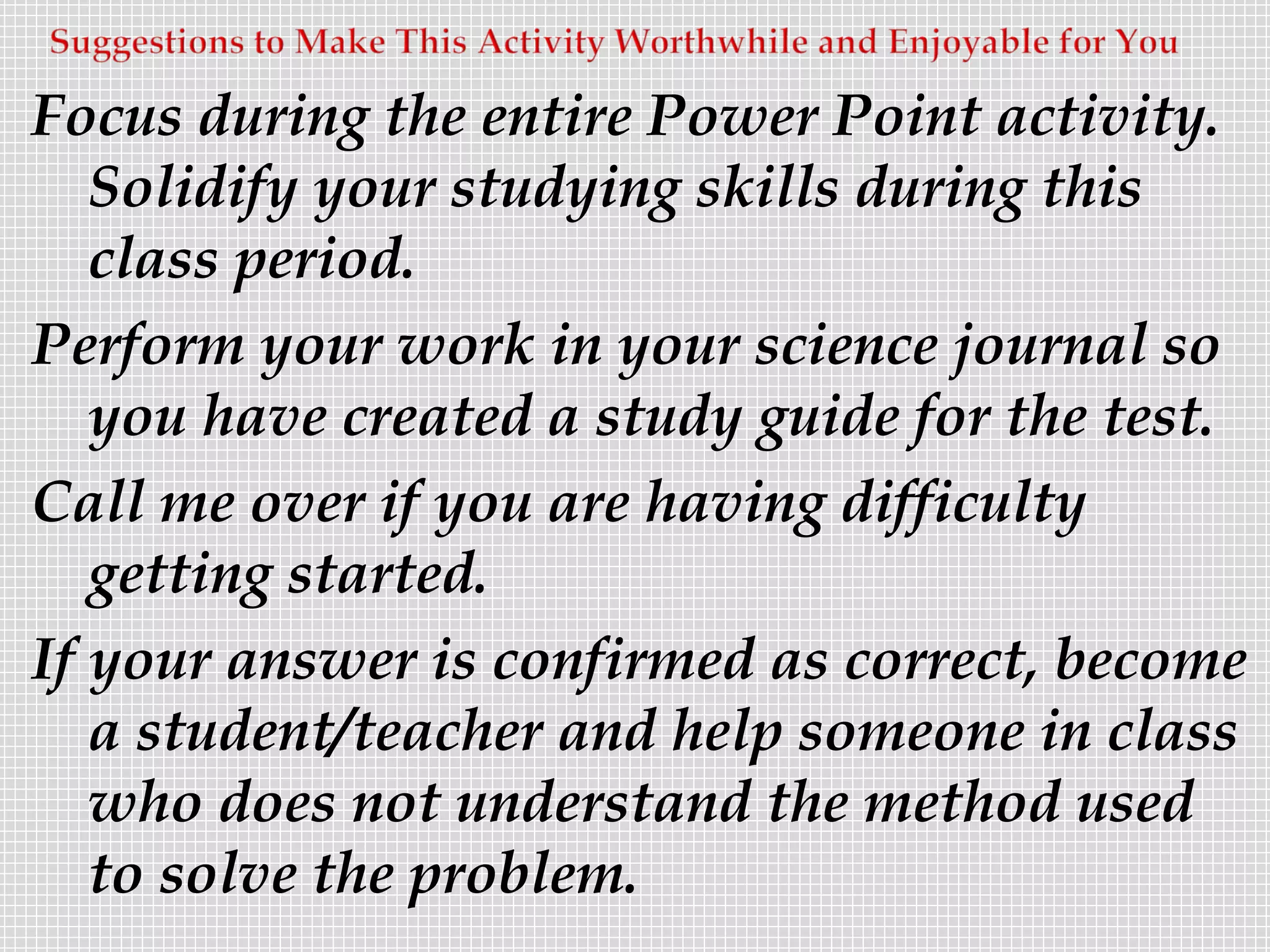

Focus during the entire Power Point activity.
   Solidify your studying skills during this
   class period.
Perform your work in your science journal so
   you have created a study guide for the test.
Call me over if you are having difficulty
   getting started.
If your answer is confirmed as correct, become
   a student/teacher and help someone in class
   who does not understand the method used
   to solve the problem.
Batfink, who has a mass of 75 kg is
placed in a 25 kg stationary barrel.
What is the Fg on Batfink and the
barrel?

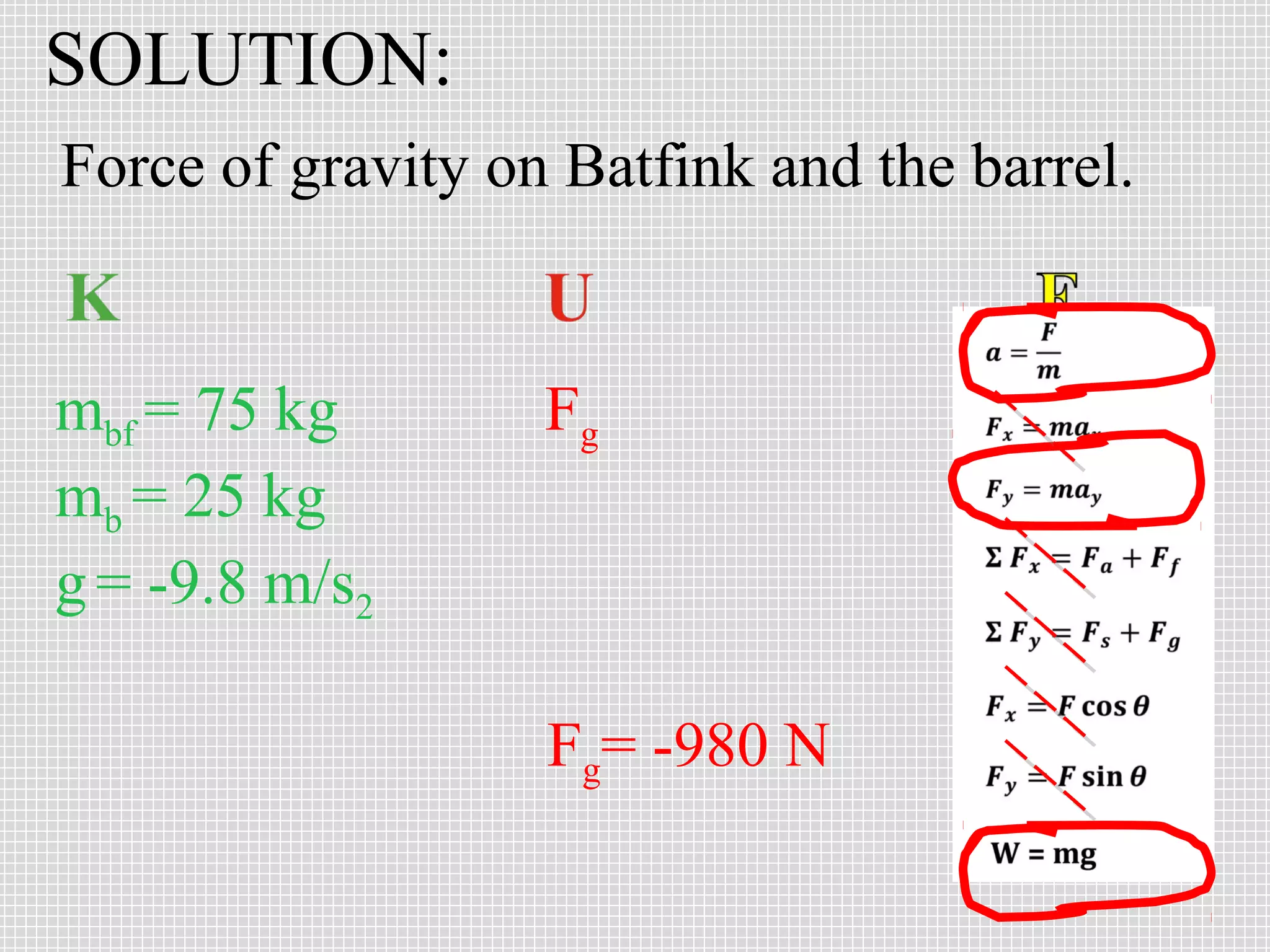

SOLUTION:
Force of gravity on Batfink and the barrel.


mbf = 75 kg        Fg
mb = 25 kg
g = -9.8 m/s2

                   Fg= -980 N
Batfink and the barrel are raised at
1.1 m/s2. What is the force of
support acting on Batfink and the
Barrel?

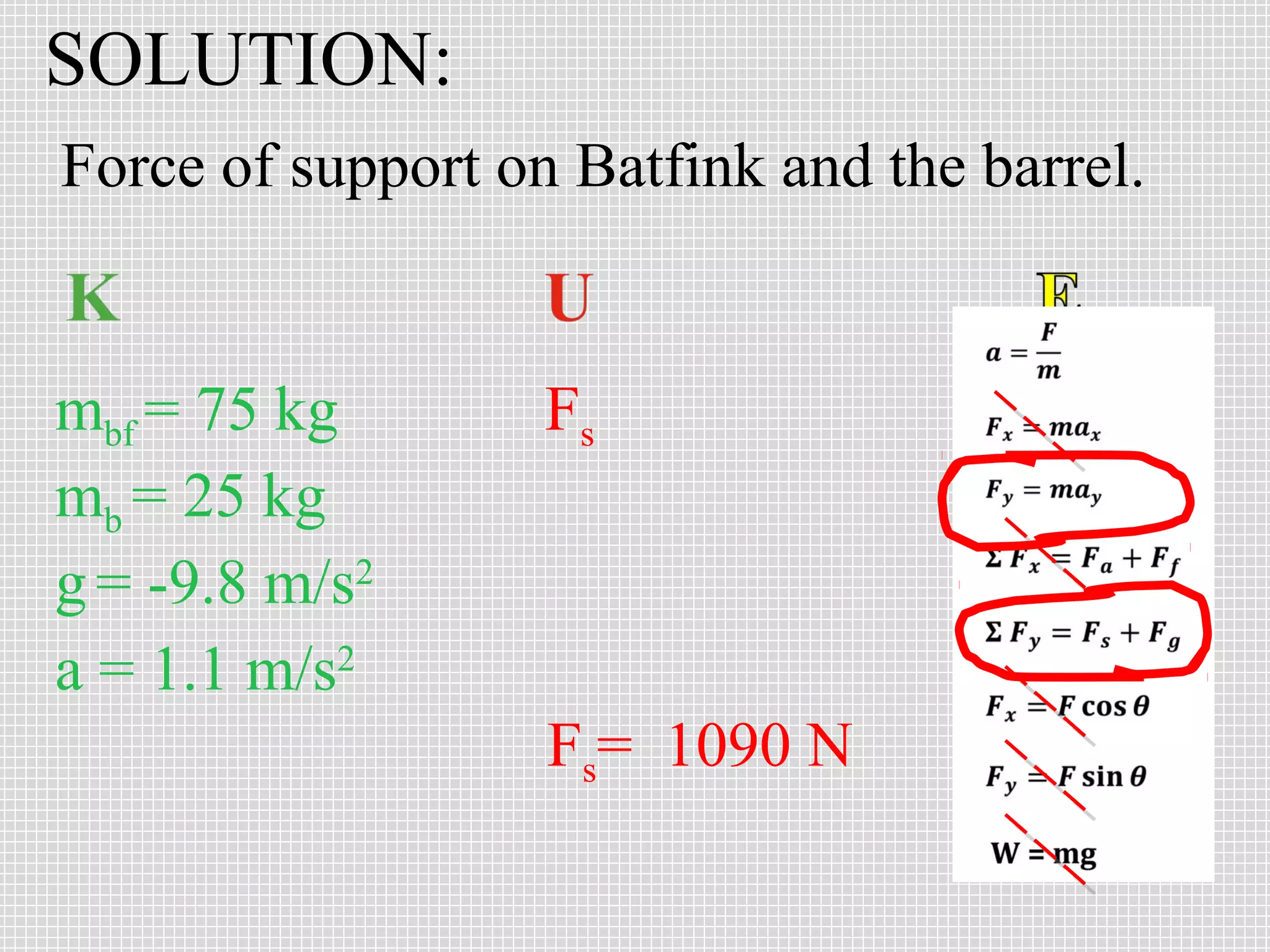

SOLUTION:
Force of support on Batfink and the barrel.


mbf = 75 kg        Fs
mb = 25 kg
g = -9.8 m/s2
a = 1.1 m/s2
                   Fs= 1090 N
Suddenly, Batfink and the
barrel are lowered at 1.1
m/s . What is the force of
    2


support acting on Batfink
and the Barrel?

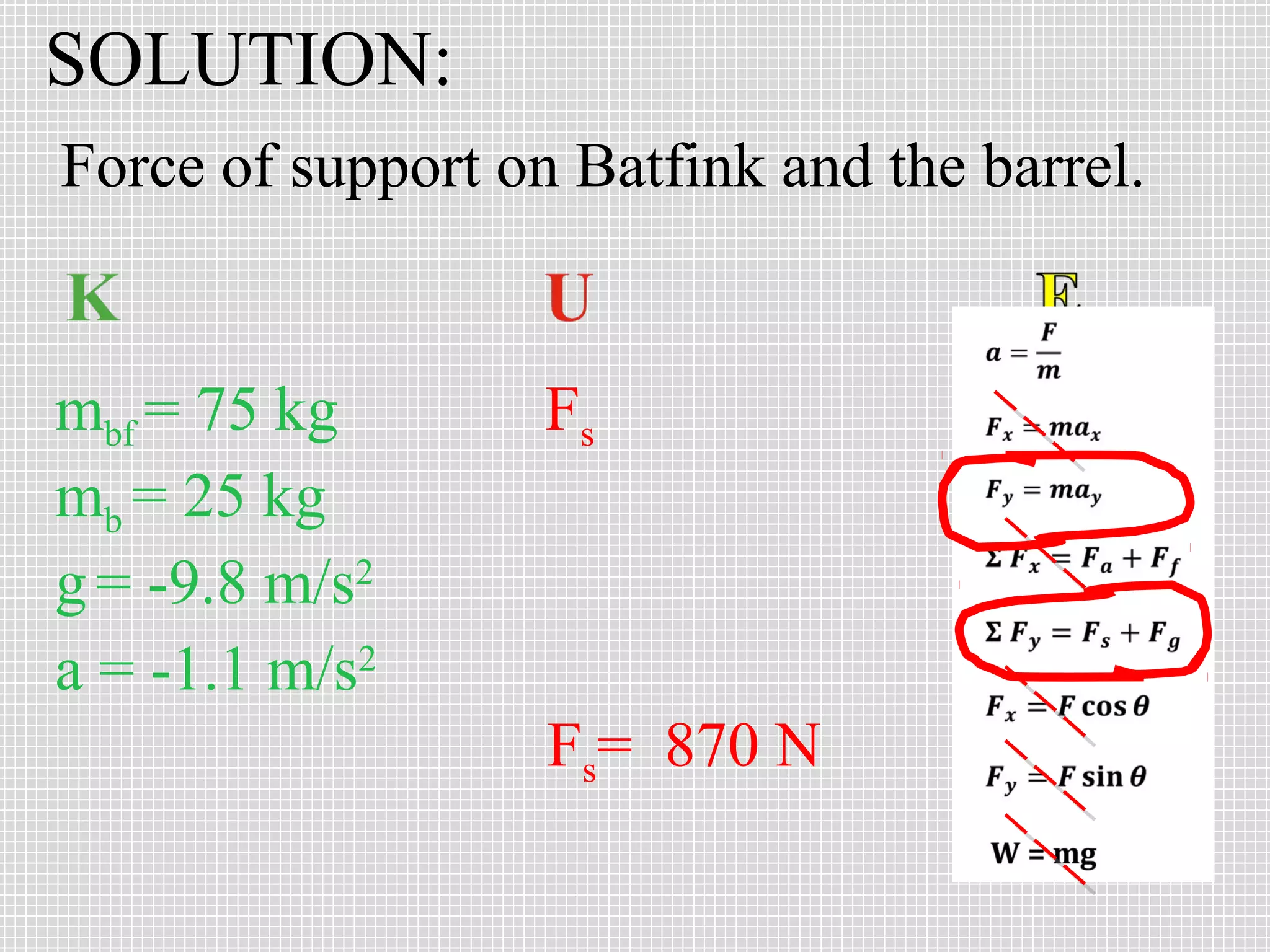

SOLUTION:
Force of support on Batfink and the barrel.


mbf = 75 kg        Fs
mb = 25 kg
g = -9.8 m/s2
a = -1.1 m/s2
                   Fs= 870 N
Hugo Ago-go pushes the barrel with
Batfink in it towards the end of the
cliff with a 100 N force over a
distance of 10 m before the barrel
leaves the cliff. The force of friction
is 8 N. Draw a force diagram of the
situation.

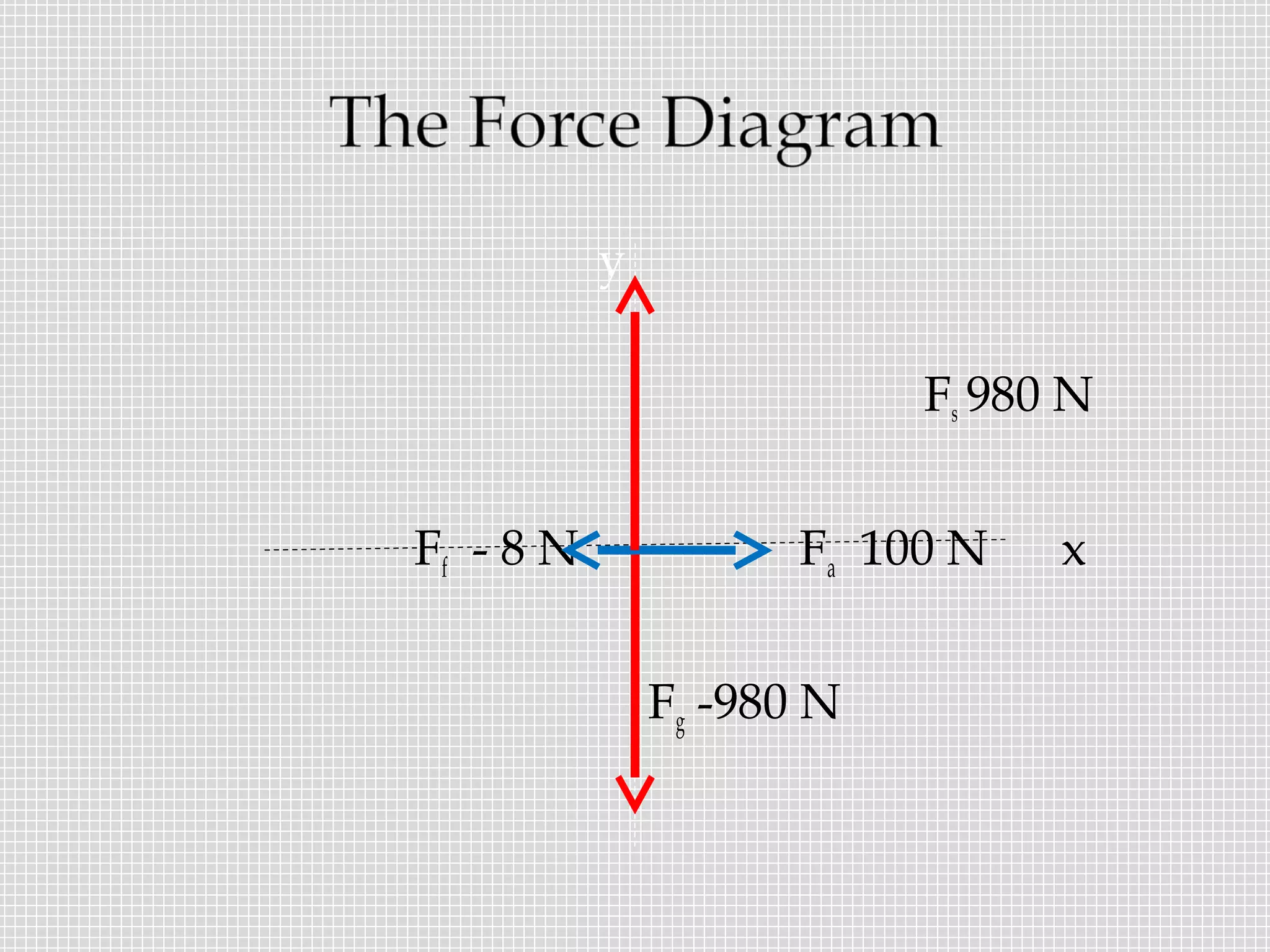

y

                           Fs 980 N


Ff - 8 N              Fa 100 N   x


               Fg -980 N
Calculate the acceleration
of the barrel in the x
axis.

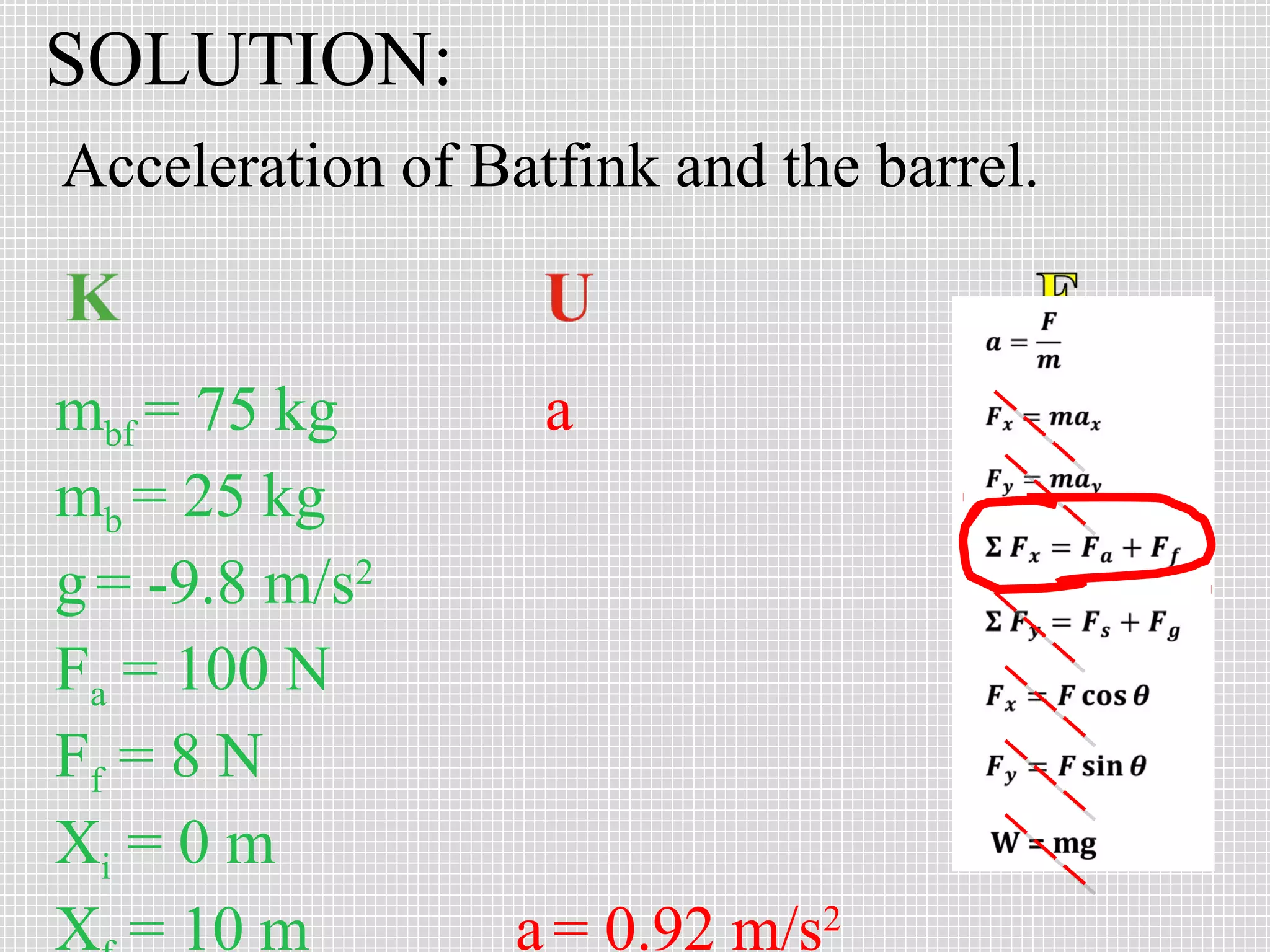

SOLUTION:
Acceleration of Batfink and the barrel.


mbf = 75 kg        a
mb = 25 kg
g = -9.8 m/s2
Fa = 100 N
Ff = 8 N
Xi = 0 m
X = 10 m          a = 0.92 m/s2
What is the Vf of the
barrel just before it falls
off the cliff?

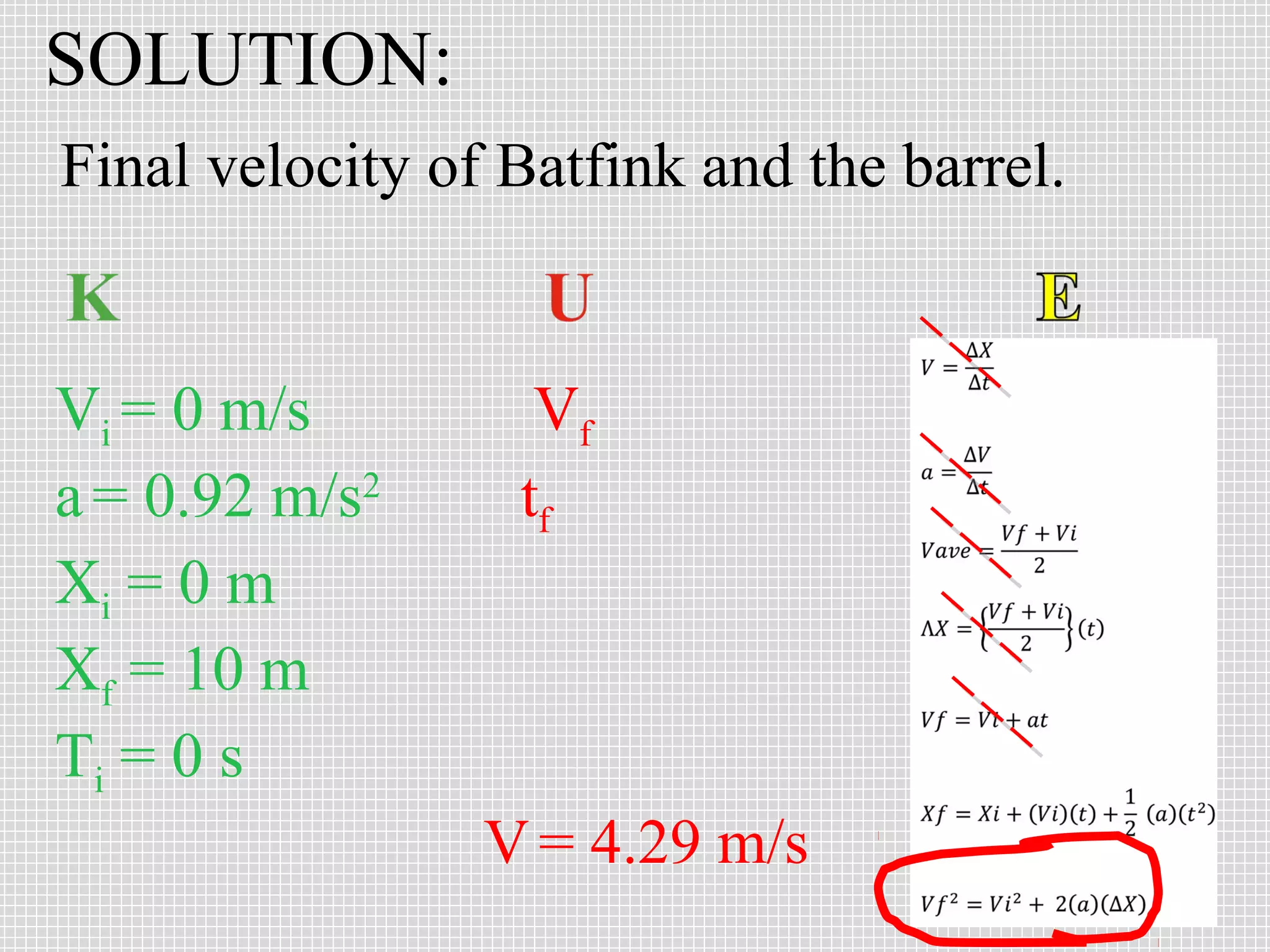

SOLUTION:
Final velocity of Batfink and the barrel.


Vi = 0 m/s         Vf
a = 0.92 m/s2     tf
Xi = 0 m
Xf = 10 m
Ti = 0 s
                 V = 4.29 m/s

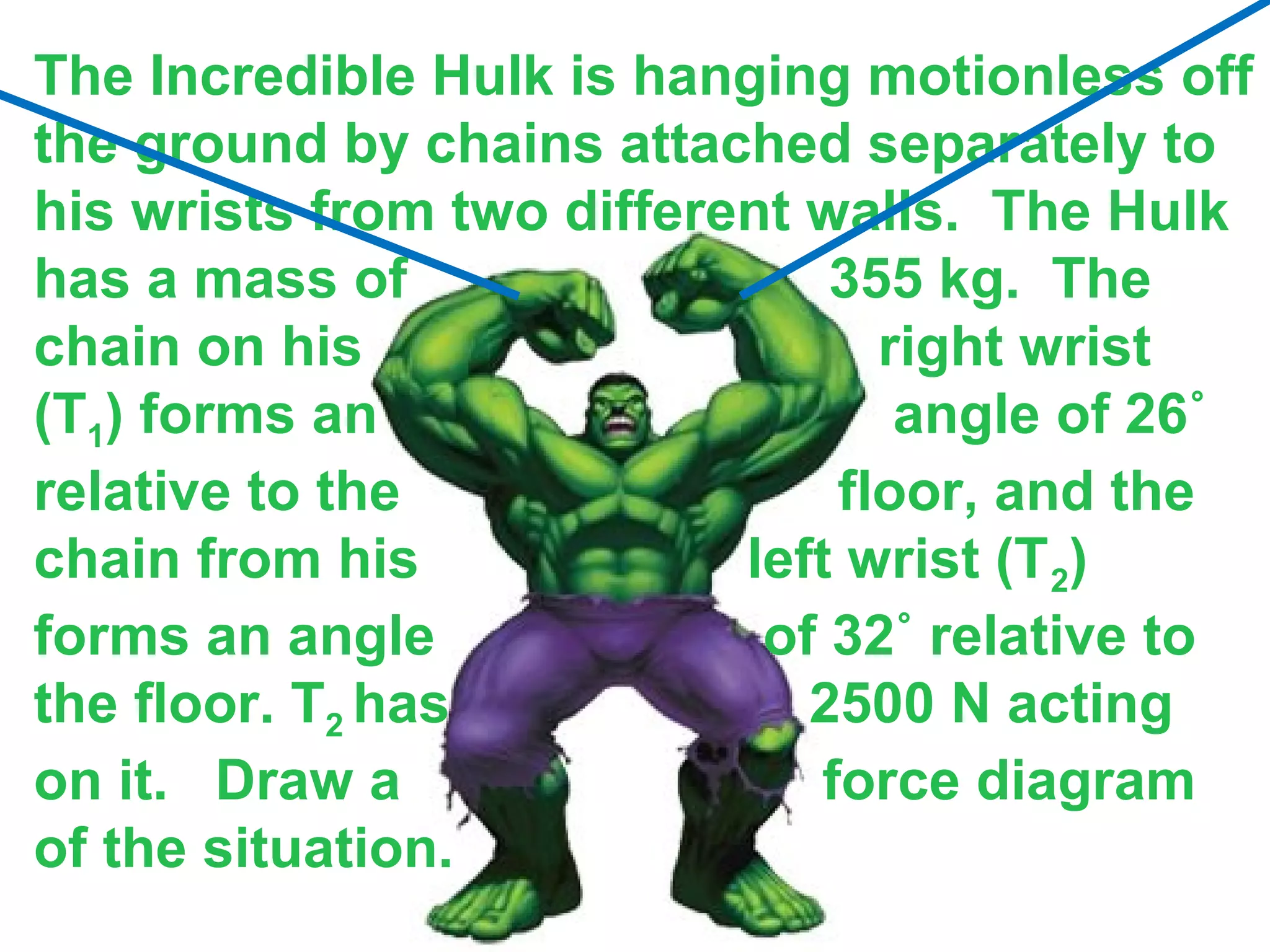

The Incredible Hulk is hanging motionless off
the ground by chains attached separately to
his wrists from two different walls. The Hulk
has a mass of                  355 kg. The
chain on his                     right wrist
(T1) forms an                     angle of 26˚
relative to the                floor, and the
chain from his             left wrist (T 2)
forms an angle              of 32˚ relative to
the floor. T2 has             2500 N acting
on it. Draw a                 force diagram
of the situation.

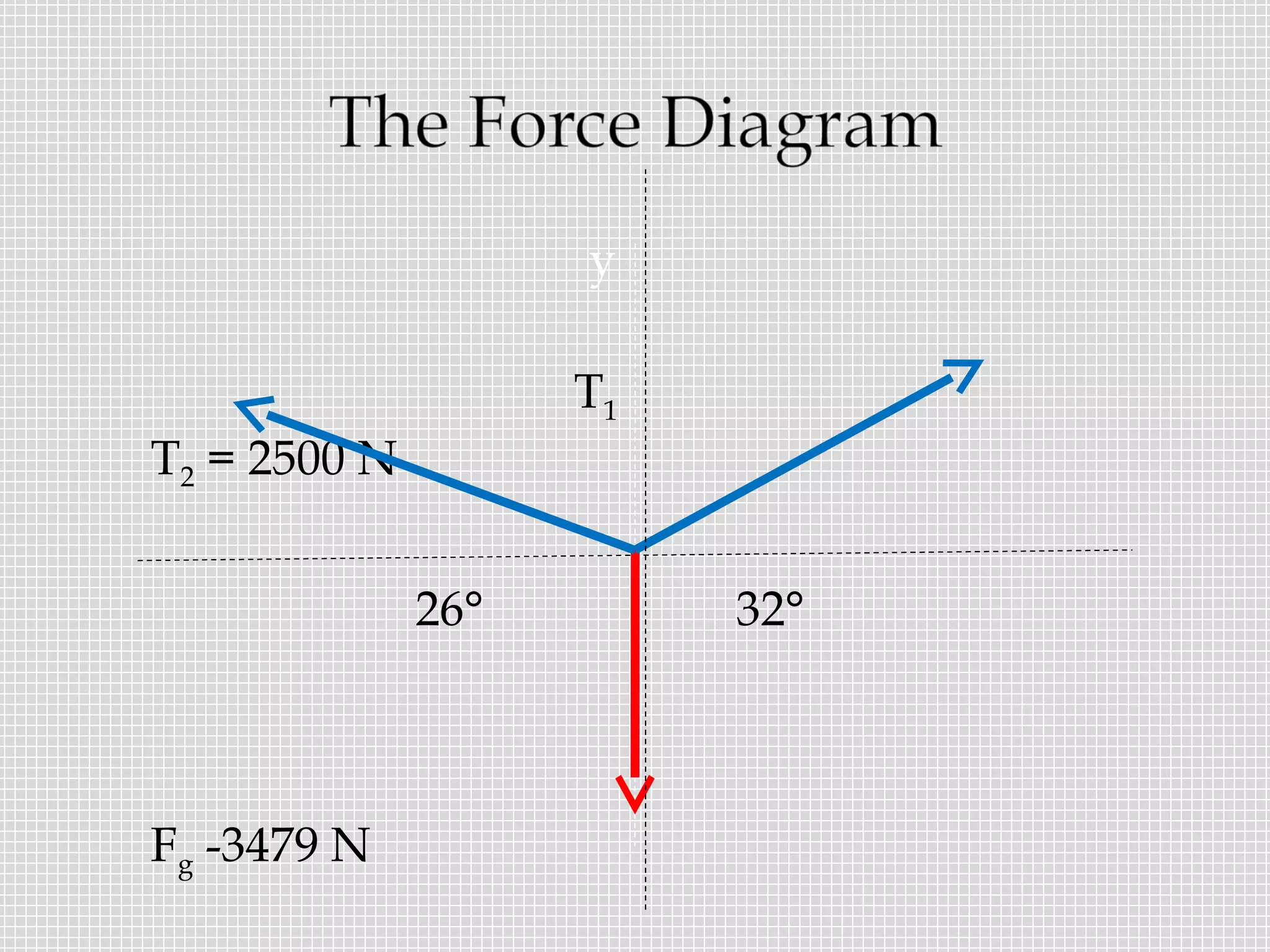

y

                    T1
T2 = 2500 N


              26°        32°



Fg -3479 N
Determine the tension in T2X.

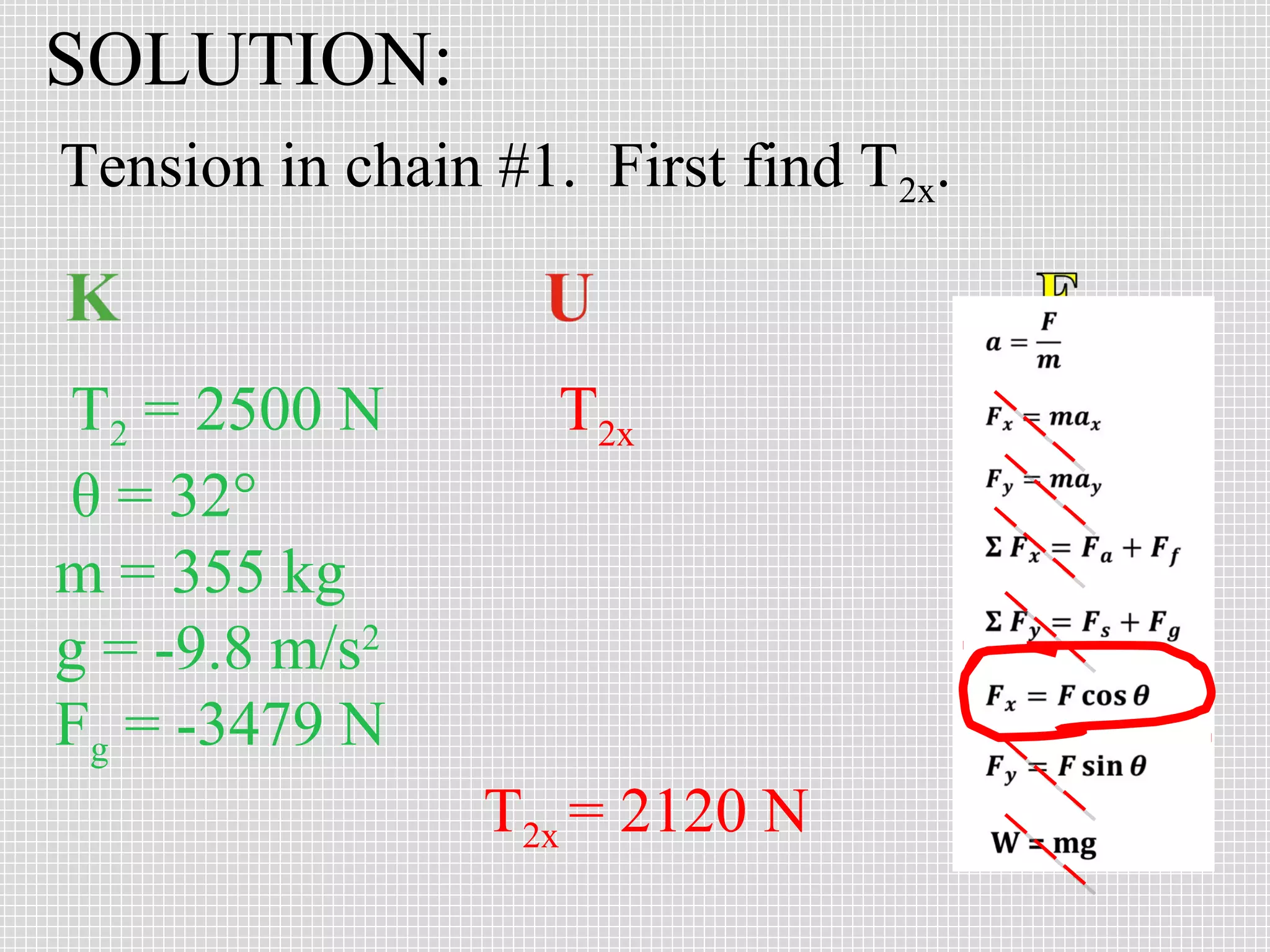

SOLUTION:
Tension in chain #1. First find T2x.


 T2 = 2500 N        T2x
 θ = 32°
m = 355 kg
g = -9.8 m/s2
Fg = -3479 N
                 T2x = 2120 N

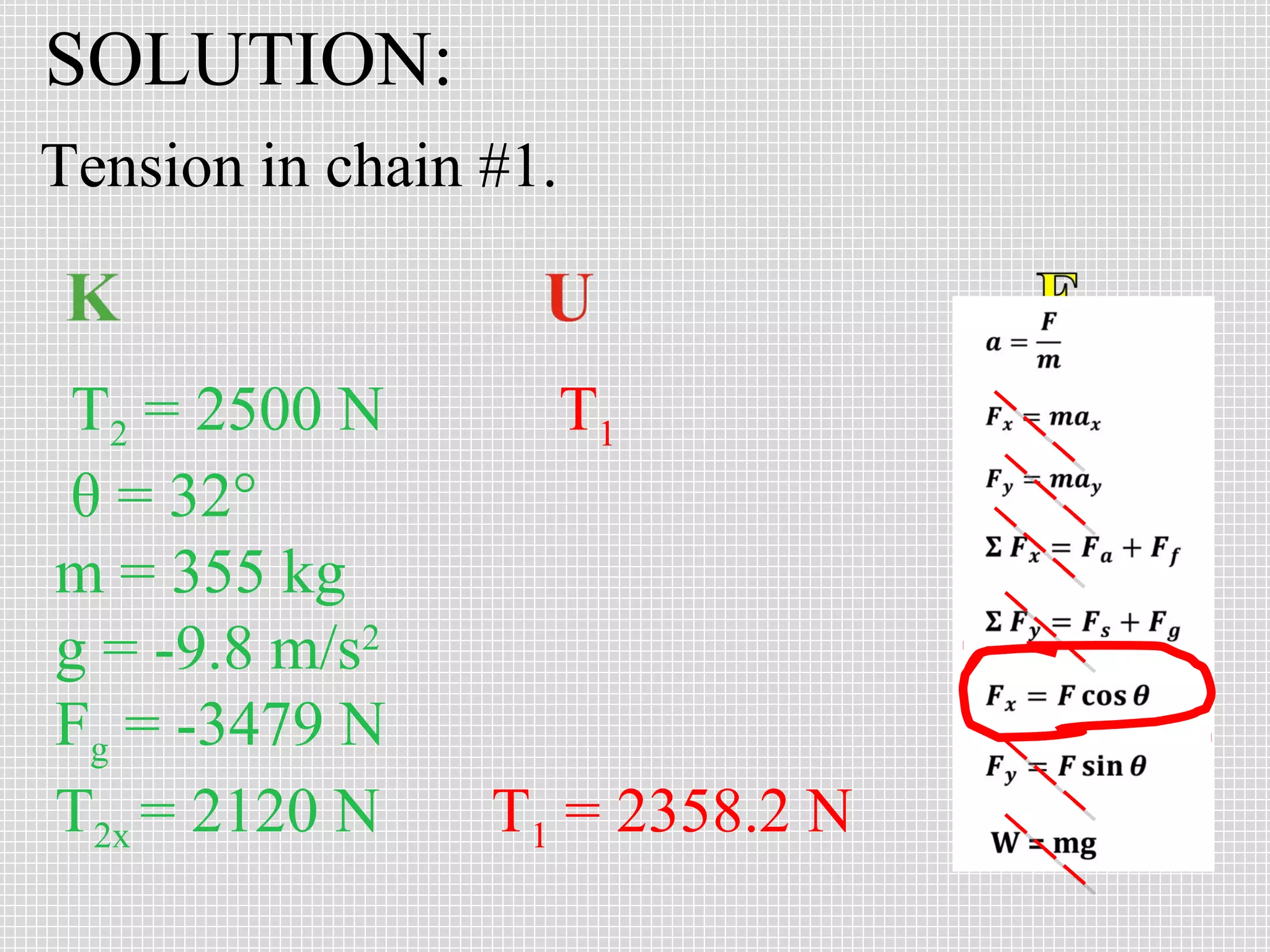

SOLUTION:
Tension in chain #1.


 T2 = 2500 N           T1
 θ = 32°
m = 355 kg
g = -9.8 m/s2
Fg = -3479 N
T2x = 2120 N     T1 = 2358.2 N
