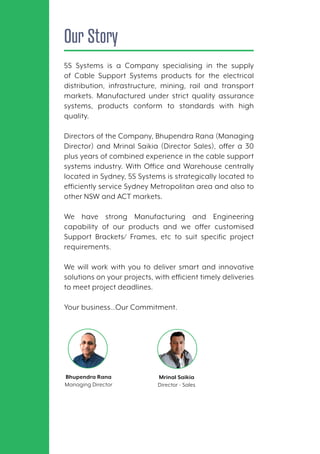

2. Our Story
5S Systems is a Company specialising in the supply
of Cable Support Systems products for the electrical
distribution, infrastructure, mining, rail and transport
markets. Manufactured under strict quality assurance
systems, products conform to standards with high
quality.
Directors of the Company, Bhupendra Rana (Managing
Director) and Mrinal Saikia (Director Sales), offer a 30
plus years of combined experience in the cable support
systems industry. With Office and Warehouse centrally
located in Sydney, 5S Systems is strategically located to
efficiently service Sydney Metropolitan area and also to
other NSW and ACT markets.
We have strong Manufacturing and Engineering
capability of our products and we offer customised
Support Brackets/ Frames, etc to suit specific project
requirements.
We will work with you to deliver smart and innovative
solutions on your projects, with efficient timely deliveries
to meet project deadlines.
Your business…Our Commitment.
Mrinal Saikia
Director - Sales
Bhupendra Rana
Managing Director

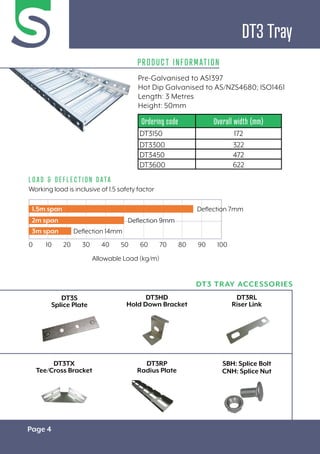

4. Page 4
DT3 TRAY ACCESSORIES
PRODUCT INFORMATION
L O A D & D E F L E C T I O N D ATA
Working load is inclusive of 1.5 safety factor
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680; ISO1461
Length: 3 Metres
Height: 50mm
Allowable Load (kg/m)
DT3 Tray
Ordering code Overall width (mm)
DT3150 172
DT3300 322
DT3450 472
DT3600 622
DT3TX
Tee/Cross Bracket
DT3RP
Radius Plate
SBH: Splice Bolt
CNH: Splice Nut
DT3S
Splice Plate
DT3HD
Hold Down Bracket
DT3RL
Riser Link
Deflection 7mm
Deflection 9mm
Deflection 14mm
0 10 20 30 40 50 60 70 80 90 100
1.5m span
2m span
3m span
5. Page 5
L O A D I N G D ATA
DT5 TRAY ACCESSORIES
PRODUCT INFORMATION
Note: Deflections are only a guide based on continuous spans.
Allowable Load (kg/m)
Deflection 1mm
Deflection 3mm
Deflection 5mm
0 20 40 60 80 100 120 140
DT5 Tray
DT5TX
Tee/Cross Bracket
DT5RP
Radius Plate
SBH: Splice Bolt
CNH: Splice Nut
DT5S
Splice Plate
DT5HD
Hold Down Bracket
DT5RL
Riser Link
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680; ISO1461
Length: 3 Metres
Height: 85mm
Ordering code Overall width (mm)
DT5150 172
DT5300 322
DT5450 472
DT5600 622

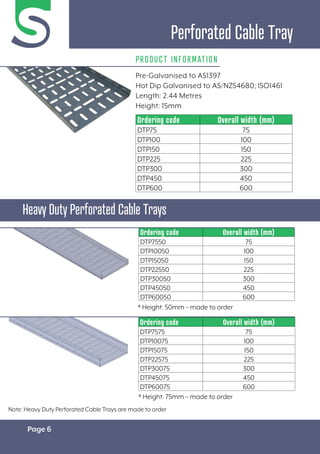

6. Page 6
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680; ISO1461
Length: 2.44 Metres
Height: 15mm
PRODUCT INFORMATION
Perforated Cable Tray
Heavy Duty Perforated Cable Trays
Ordering code Overall width (mm)
DTP75 75
DTP100 100
DTP150 150
DTP225 225
DTP300 300
DTP450 450
DTP600 600
Ordering code Overall width (mm)
DTP7575 75
DTP10075 100
DTP15075 150
DTP22575 225
DTP30075 300
DTP45075 450
DTP60075 600
* Height: 75mm – made to order
Ordering code Overall width (mm)
DTP7550 75
DTP10050 100
DTP15050 150
DTP22550 225
DTP30050 300
DTP45050 450
DTP60050 600
* Height: 50mm – made to order
Note: Heavy Duty Perforated Cable Trays are made to order

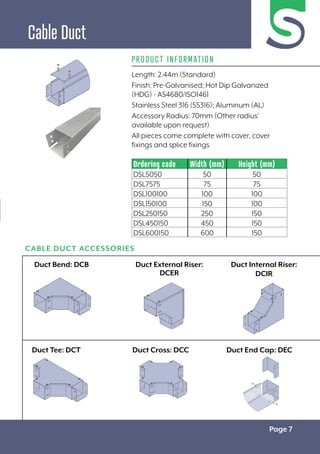

7. Page 7
PRODUCT INFORMATION
Ordering code Width (mm) Height (mm)
DSL5050 50 50
DSL7575 75 75
DSL100100 100 100
DSL150100 150 100
DSL250150 250 150
DSL450150 450 150
DSL600150 600 150
Length: 2.44m (Standard)
Finish: Pre-Galvanised; Hot Dip Galvanized
(HDG) - AS4680/ISO1461
Stainless Steel 316 (SS316); Aluminum (AL)
Accessory Radius: 70mm (Other radius’
available upon request)
All pieces come complete with cover, cover
fixings and splice fixings
CABLE DUCT ACCESSORIES
Cable Duct
Duct Bend: DCB
Duct Tee: DCT
Duct External Riser:
DCER
Duct Cross: DCC Duct End Cap: DEC
Duct Internal Riser:
DCIR
8. Page 8

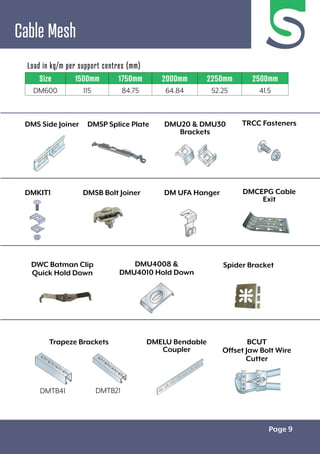

Cable Mesh
Ordering code Cable laying width (mm) Finish
DM100_ 100 PG = Pre-Galvanised
DM150_ 150 H = Hot Dip Galvanised
DM200_ 200 S = Stainless Steel 316 Grade
DM300_ 300 PC = Powder Coated (colour)
DM400_ 400
DM450_ 450
DM500_ 500
DM600_ 600
Ordering code Cable laying width (mm) Finish
DM100100_ 100 PG = Pre-Galvanised
DM150100_ 150 H = Hot Dip Galvanised
DM200100_ 200 S = Stainless Steel 316 Grade
DM300100_ 300 PC = Powder Coated (colour)
DM400100_ 400
DM450100_ 450
DM500100_ 500
DM600100_ 600
PRODUCT INFORMATION
Cable Mesh products have
been tested in accordance with
Nema Standards VE1-2009.
Loading applies to 600mm
section and loading may vary
for other widths.
*150mm high sided Cable Mesh also available.
9. Page 9
Cable Mesh
Load in kg/m per support centres (mm)
Size 1500mm 1750mm 2000mm 2250mm 2500mm
DM600 115 84.75 64.84 52.25 41.5
DMTB41 DMTB21
DMS Side Joiner
DMKIT1
DMSP Splice Plate
DMSB Bolt Joiner
TRCC Fasteners
DMCEPG Cable
Exit
DMU20 & DMU30
Brackets
DM UFA Hanger
Spider Bracket
DMELU Bendable
Coupler
BCUT
Offset Jaw Bolt Wire
Cutter
DMU4008 &
DMU4010 Hold Down
DWC Batman Clip
Quick Hold Down
Trapeze Brackets
10. Page 10

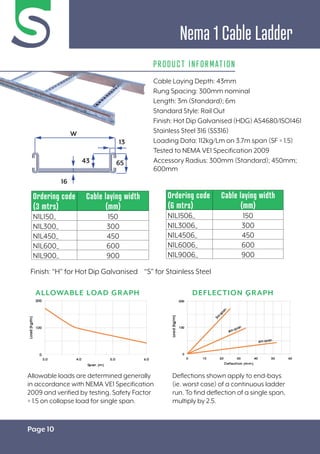

Nema 1 Cable Ladder
PRODUCT INFORMATION
Cable Laying Depth: 43mm
Rung Spacing: 300mm nominal
Length: 3m (Standard); 6m
Standard Style: Rail Out
Finish: Hot Dip Galvanised (HDG) AS4680/ISO1461
Stainless Steel 316 (SS316)
Loading Data: 112kg/Lm on 3.7m span (SF = 1.5)
Tested to NEMA VE1 Specification 2009
Accessory Radius: 300mm (Standard); 450mm;
600mm
Allowable loads are determined generally
in accordance with NEMA VE1 Specification
2009 and verified by testing. Safety Factor
= 1.5 on collapse load for single span.
Deflections shown apply to end-bays
(ie. worst case) of a continuous ladder
run. To find deflection of a single span,
multiply by 2.5.
ALLOWABLE LOAD GRAPH DEFLECTION GRAPH
Ordering code
(3 mtrs)
Cable laying width
(mm)
N1L150_ 150
N1L300_ 300
N1L450_ 450
N1L600_ 600
N1L900_ 900
Ordering code
(6 mtrs)
Cable laying width
(mm)
N1L1506_ 150
N1L3006_ 300
N1L4506_ 450
N1L6006_ 600
N1L9006_ 900
Finish: “H” for Hot Dip Galvanised “S” for Stainless Steel
13
43
16
W
65
11. Page 11

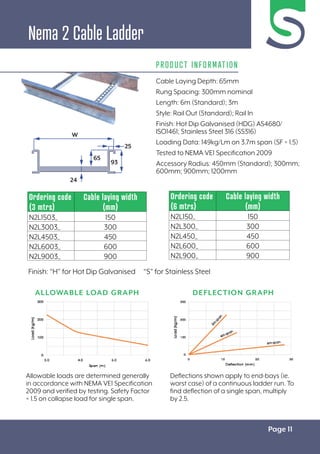

Nema 2 Cable Ladder
PRODUCT INFORMATION
Cable Laying Depth: 65mm
Rung Spacing: 300mm nominal
Length: 6m (Standard); 3m
Style: Rail Out (Standard); Rail In
Finish: Hot Dip Galvanised (HDG) AS4680/
ISO1461; Stainless Steel 316 (SS316)
Loading Data: 149kg/Lm on 3.7m span (SF = 1.5)
Tested to NEMA VE1 Specification 2009
Accessory Radius: 450mm (Standard); 300mm;
600mm; 900mm; 1200mm
Allowable loads are determined generally
in accordance with NEMA VE1 Specification
2009 and verified by testing. Safety Factor
= 1.5 on collapse load for single span.
Deflections shown apply to end-bays (ie.
worst case) of a continuous ladder run. To
find deflection of a single span, multiply
by 2.5.
ALLOWABLE LOAD GRAPH DEFLECTION GRAPH
Ordering code
(3 mtrs)
Cable laying width
(mm)
N2L1503_ 150
N2L3003_ 300
N2L4503_ 450
N2L6003_ 600
N2L9003_ 900
Ordering code
(6 mtrs)
Cable laying width
(mm)
N2L150_ 150
N2L300_ 300
N2L450_ 450
N2L600_ 600
N2L900_ 900
Finish: “H” for Hot Dip Galvanised “S” for Stainless Steel
25
65
24
W
93
12. Page 12
PRODUCT INFORMATION
Cable Laying Depth: 102mm
Rung Spacing: 300mm nominal
Length: 6m (Standard); 3m
Style: Rail Out (Standard); Rail In
Finish: Hot Dip Galvanised (HDG) AS4680/ISO1461;
Stainless Steel 316 (SS316)
Loading Data: 112kg/lm on 6m span
Tested to NEMA VE1 Specification 2009
Accessory Radius: 450mm (Standard); 300mm;
600mm; 900mm; 1200mm
Allowable loads are determined generally
in accordance with NEMA VE1 Specification
2009 and verified by testing. Safety Factor =
1.5 on collapse load for single span.
Deflections shown apply to end-bays
(ie. worst case) of a continuous ladder
run. To find deflection of a single span,
multiply by 2.5.
ALLOWABLE LOAD GRAPH DEFLECTION GRAPH
Ordering code
(3 mtrs)
Cable laying width
(mm)
N3L1503_ 150
N3L3003_ 300
N3L4503_ 450
N3L6003_ 600
N3L9003_ 900
Ordering code
(6 mtrs)
Cable laying width
(mm)
N3L150_ 150
N3L300_ 300
N3L450_ 450
N3L600_ 600
N3L900_ 900
Finish: “H” for Hot Dip Galvanised “S” for Stainless Steel
Nema 3 Cable Ladder
32
102
24
W
130

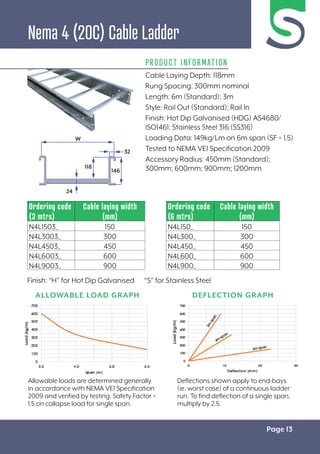

13. Page 13
PRODUCT INFORMATION
Cable Laying Depth: 118mm
Rung Spacing: 300mm nominal
Length: 6m (Standard); 3m
Style: Rail Out (Standard); Rail In
Finish: Hot Dip Galvanised (HDG) AS4680/
ISO1461; Stainless Steel 316 (SS316)
Loading Data: 149kg/Lm on 6m span (SF = 1.5)
Tested to NEMA VE1 Specification 2009
Accessory Radius: 450mm (Standard);
300mm; 600mm; 900mm; 1200mm
Allowable loads are determined generally
in accordance with NEMA VE1 Specification
2009 and verified by testing. Safety Factor =
1.5 on collapse load for single span.
Deflections shown apply to end-bays
(ie. worst case) of a continuous ladder
run. To find deflection of a single span,
multiply by 2.5.
ALLOWABLE LOAD GRAPH DEFLECTION GRAPH
Ordering code
(3 mtrs)
Cable laying width
(mm)
N4L1503_ 150
N4L3003_ 300
N4L4503_ 450
N4L6003_ 600
N4L9003_ 900
Ordering code
(6 mtrs)
Cable laying width
(mm)
N4L150_ 150
N4L300_ 300
N4L450_ 450
N4L600_ 600
N4L900_ 900
Nema 4 (20C) Cable Ladder
Finish: “H” for Hot Dip Galvanised “S” for Stainless Steel
32
118
24
W
146
14. Page 14

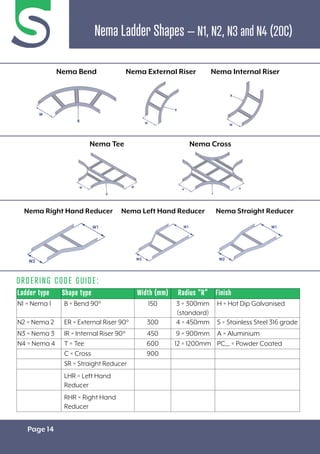

Nema Ladder Shapes – N1, N2, N3 and N4 (20C)
ORDERING CODE GUIDE:
Ladder type Shape type Width (mm) Radius “R” Finish
N1 = Nema 1 B = Bend 90° 150 3 = 300mm
(standard)
H = Hot Dip Galvanised
N2 = Nema 2 ER = External Riser 90° 300 4 = 450mm S = Stainless Steel 316 grade
N3 = Nema 3 IR = Internal Riser 90° 450 9 = 900mm A = Aluminium
N4 = Nema 4 T = Tee 600 12 = 1200mm PC__ = Powder Coated
C = Cross 900
SR = Straight Reducer
LHR = Left Hand
Reducer
RHR = Right Hand
Reducer
Nema Bend Nema External Riser Nema Internal Riser
Nema Tee
Nema Right Hand Reducer Nema Left Hand Reducer Nema Straight Reducer
Nema Cross
15. Page 15

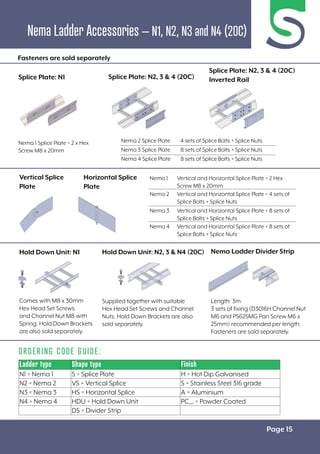

ORDERING CODE GUIDE:
Nema Ladder Accessories – N1, N2, N3 and N4 (20C)
Ladder type Shape type Finish
N1 = Nema 1 S = Splice Plate H = Hot Dip Galvanised
N2 = Nema 2 VS = Vertical Splice S = Stainless Steel 316 grade
N3 = Nema 3 HS = Horizontal Splice A = Aluminium
N4 = Nema 4 HDU = Hold Down Unit PC__ = Powder Coated
DS = Divider Strip
Nema 1 Vertical and Horizontal Splice Plate = 2 Hex
Screw M8 x 20mm
Nema 2 Vertical and Horizontal Splice Plate = 4 sets of
Splice Bolts + Splice Nuts
Nema 3 Vertical and Horizontal Splice Plate = 8 sets of
Splice Bolts + Splice Nuts
Nema 4 Vertical and Horizontal Splice Plate = 8 sets of
Splice Bolts + Splice Nuts
Nema 2 Splice Plate 4 sets of Splice Bolts + Splice Nuts
Nema 3 Splice Plate 8 sets of Splice Bolts + Splice Nuts
Nema 4 Splice Plate 8 sets of Splice Bolts + Splice Nuts
Length: 3m
3 sets of fixing (D3016H Channel Nut
M6 and PS625MG Pan Screw M6 x
25mm) recommended per length.
Fasteners are sold separately.
Supplied together with suitable
Hex Head Set Screws and Channel
Nuts. Hold Down Brackets are also
sold separately.
Nema 1 Splice Plate = 2 x Hex
Screw M8 x 20mm
Comes with M8 x 30mm
Hex Head Set Screws
and Channel Nut M8 with
Spring. Hold Down Brackets
are also sold separately.
Hold Down Unit: N2, 3 & N4 (20C) Nema Ladder Divider Strip
Vertical Splice
Plate
Horizontal Splice
Plate
Fasteners are sold separately
Splice Plate: N1 Splice Plate: N2, 3 & 4 (20C)
Splice Plate: N2, 3 & 4 (20C)
Inverted Rail
Hold Down Unit: N1
16. Page 16

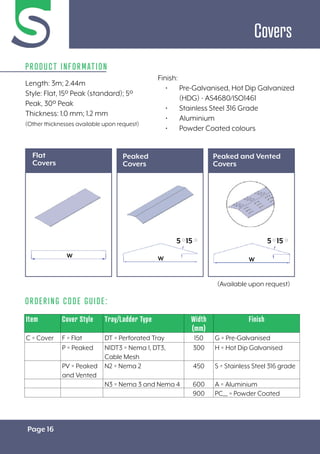

Covers
Length: 3m; 2.44m
Style: Flat, 15º Peak (standard); 5º
Peak, 30º Peak
Thickness: 1.0 mm; 1.2 mm
(Other thicknesses available upon request)
Flat
Covers
ORDERING CODE GUIDE:
Item Cover Style Tray/Ladder Type Width
(mm)
Finish
C = Cover F = Flat DT = Perforated Tray 150 G = Pre-Galvanised
P = Peaked N1DT3 = Nema 1, DT3,
Cable Mesh
300 H = Hot Dip Galvanised
PV = Peaked
and Vented
N2 = Nema 2 450 S = Stainless Steel 316 grade
N3 = Nema 3 and Nema 4 600 A = Aluminium
900 PC__ = Powder Coated
PRODUCT INFORMATION
W
W
W
W
W
W
Finish:
• Pre-Galvanised, Hot Dip Galvanized
(HDG) - AS4680/ISO1461
• Stainless Steel 316 Grade
• Aluminium
• Powder Coated colours
Peaked
Covers
Peaked and Vented
Covers
(Available upon request)
W
W W
W
15
15
5
5 15
15
5
5
17. Page 17
ORDERING CODE GUIDE:
Ladder Shape Covers
Ladder type Shape type Width
(mm)
Radius
(mm)
Finish
C = Cover B = Bend 150 3 = 300 G = Pre-Galvanised
ER = External Riser 300 4 = 450 H = Hot Dip Galvanised
IR = Internal Riser 450 6 = 600 S = Stainless Steel 316 grade
T = Tee 600 9 = 900 A = Aluminium
C = Cross 900 PC__ = Powder Coated
LHR = Left Hand Reducer
RHR = Right Hand Reducer
SR = Straight Reducer
Bend Cover
Left Hand Reduce
Cover
External Riser Cover
Right Hand Reduce
Cover
Internal Riser Cover
Straight Reduce
Cover
Tee Cover Cross Cover
18. Page 18
Channels
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680;
ISO1461
PRODUCT INFORMATION
Stainless Steel 316 Grade
Standard length: 6 Metres
Thickness: 2.5mm
41
T 41
41
T 41
41
T
62
T
22
41
T
22
41
D1000 Plain Channel
Weight: 2.65kgs/mtr
D1000 Slotted Channel
Weight: 2.32kgs/mtr
D3300 Plain Channel
Weight: 1.88kgs/mtr
D3300 Slotted Channel
Weight: 1.55kgs/mtr
D5500 Plain Channel
Weight: 3.43kgs/mtr

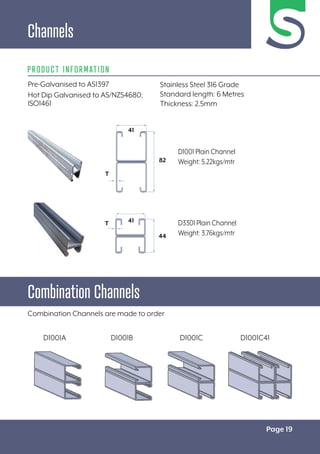

19. Page 19
Channels
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680;
ISO1461
PRODUCT INFORMATION
Combination Channels
Combination Channels are made to order
41
44
T
D1001A D1001B D1001C D1001C41
Stainless Steel 316 Grade
Standard length: 6 Metres
Thickness: 2.5mm
D1001 Plain Channel
Weight: 5.22kgs/mtr
D3301 Plain Channel
Weight: 3.76kgs/mtr
41
82
T

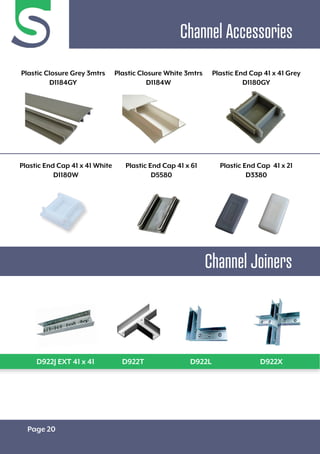

20. Page 20
Channel Accessories
Channel Joiners
Plastic Closure Grey 3mtrs
D1184GY
Plastic End Cap 41 x 61
D5580
Plastic Closure White 3mtrs
D1184W
Plastic End Cap 41 x 21
D3380
Plastic End Cap 41 x 41 Grey
D1180GY
Plastic End Cap 41 x 41 White
D1180W
D922J EXT 41 x 41 D922T D922L D922X
21. Page 21

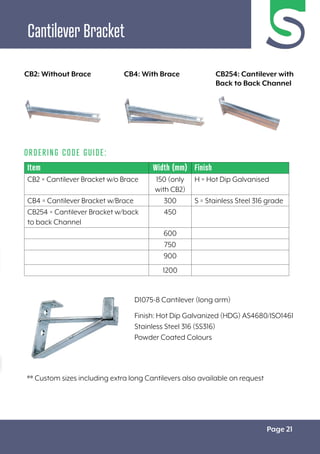

Cantilever Bracket
Item Width (mm) Finish
CB2 = Cantilever Bracket w/o Brace 150 (only
with CB2)
H = Hot Dip Galvanised
CB4 = Cantilever Bracket w/Brace 300 S = Stainless Steel 316 grade
CB254 = Cantilever Bracket w/back
to back Channel
450
600
750
900
1200
ORDERING CODE GUIDE:
D1075-8 Cantilever (long arm)
Finish: Hot Dip Galvanized (HDG) AS4680/ISO1461
Stainless Steel 316 (SS316)
Powder Coated Colours
** Custom sizes including extra long Cantilevers also available on request
CB2: Without Brace CB4: With Brace CB254: Cantilever with
Back to Back Channel
31. Page 31

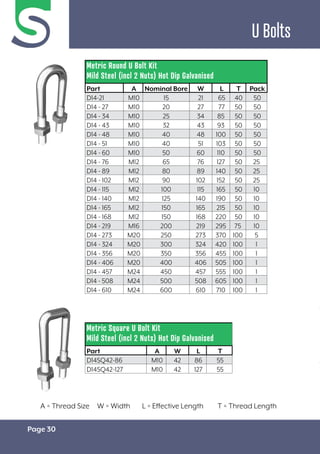

U Bolts
Metric Round U Bolt Kit
Mild Steel (incl 2 Nuts) Hot Dip Galvanised
Part A L Y T
EB38234H 3/8” 2” 3/4” 1 1/2”
EB38334H 3/8” 3” 3/4” 1 1/2”
EB38434H 3/8” 4” 3/4” 1 1/2”
EB38634H 3/8” 6” 3/4” 1 1/2”
EB38834H 3/8” 8” 3/4” 2 1/4”
EB1381234H 3/8” 12” 3/4” 3”
EB12334H 1/2” 3” 3/4” 2 1/2”
EB12434H 1/2” 4” 3/4” 2 1/2”
EB12534H 1/2” 5” 3/4” 2 1/2”
EB12634H 1/2” 6” 3/4” 2 1/2”
EB12834H 1/2” 8” 3/4” 2 1/2”
EB12934H 1/2” 9” 3/4” 2 1/2”
EB5841H 5/8” 4” 1” 2 1/2”
A = Thread Size W = Width L = Effective Length T = Thread Length
Rod Hangers
DCRH10 Central Hanger
Side Hanger (Steel)
DHRH10 Horizontal Hanger
Socket Drivers
Concrete Steel Timber
DVRH10 Vertical Hanger
Vertical Hanger (Concrete) Vertical Hanger (Steel) Vertical Hanger (Timber)
32. Page 32
Flat Washer
ID OD Part #
6.4
8.4
10.5
13.0
12.9
16.0
20.0
24.0
NW6
NW8
NW10
NW12
Top Hat (Bush) Hex Set Screw
ID OD Part # Size (mm) Part #
6.0
8.4
10.5
13.0
9.0
16.0
20.0
24.0
TR6N
TR8N
TR10N
TR12N
M6 x 20
M6 x 30
M8 x 20
M8 x 25
M8 x 30
M10 x 20
M10 x 25
M10 x 30
M10 x 40
M12 x 30
M12 x 40
NHS620
NHS630
NHS820
NHS825
NHS830
NHS1020
NHS1025
NHS1030
NHS1040
NHS1230
NHS1240
Threaded Rod Hex Nut Wing Nut
Thread
Size
Part # Thread
Size
Part # Thread
Size
Part #
M6
M8
M10
M12
TR6N
TR8N
TR10N
TR12N
M6
M8
M10
M12
NHN6
NHN8
NHN10
NHN12
M6
M8
M10
NHN6
NHN8
NHN10
Nylon Range Fasteners
Comes in 1mtr length
Other thread sizes available

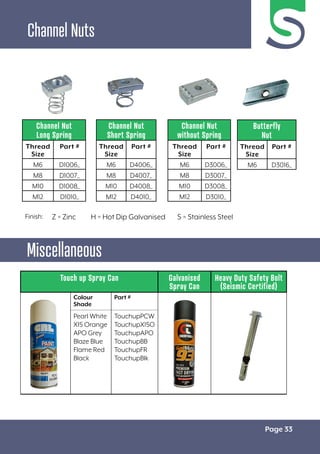

33. Page 33
Channel Nuts
Channel Nut
Long Spring
Thread
Size
Part #
M6 D1006_
M8 D1007_
M10 D1008_
M12 D1010_
Butterfly
Nut
Thread
Size
Part #
M6 D3016_
Channel Nut
Short Spring
Thread
Size
Part #
M6 D4006_
M8 D4007_
M10 D4008_
M12 D4010_
Channel Nut
without Spring
Thread
Size
Part #
M6 D3006_
M8 D3007_
M10 D3008_
M12 D3010_
Miscellaneous
Finish: Z = Zinc H = Hot Dip Galvanised S = Stainless Steel
Touch up Spray Can Galvanised
Spray Can
Heavy Duty Safety Bolt
(Seismic Certified)
Colour
Shade
Part #
Pearl White
X15 Orange
APO Grey
Blaze Blue
Flame Red
Black
TouchupPCW
TouchupX15O
TouchupAPO
TouchupBB
TouchupFR
TouchupBlk
34. Page 34

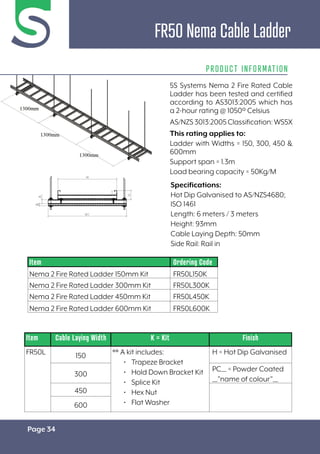

FR50 Nema Cable Ladder
PRODUCT INFORMATION
Specifications:
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 6 meters / 3 meters
Height: 93mm
Cable Laying Depth: 50mm
Side Rail: Rail in
Item Cable Laying Width K = Kit Finish
FR50L 150 ** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
300
PC__ = Powder Coated
__”name of colour”__
450
600
Item Ordering Code
Nema 2 Fire Rated Ladder 150mm Kit FR50L150K
Nema 2 Fire Rated Ladder 300mm Kit FR50L300K
Nema 2 Fire Rated Ladder 450mm Kit FR50L450K
Nema 2 Fire Rated Ladder 600mm Kit FR50L600K
5S Systems Nema 2 Fire Rated Cable
Ladder has been tested and certified
according to AS3013:2005 which has
a 2-hour rating @ 1050º Celsius
AS/NZS3013:2005Classification:WS5X
This rating applies to:
Ladder with Widths = 150, 300, 450 &
600mm
Support span = 1.3m
Load bearing capacity = 50Kg/M
35. Page 35

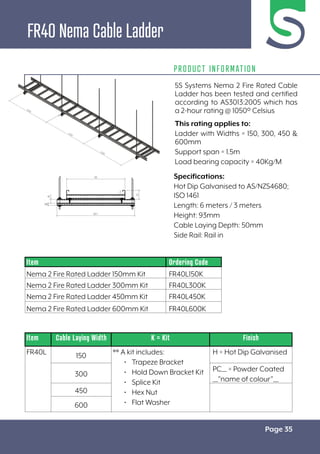

FR40 Nema Cable Ladder
PRODUCT INFORMATION
Specifications:
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 6 meters / 3 meters
Height: 93mm
Cable Laying Depth: 50mm
Side Rail: Rail in
Item Cable Laying Width K = Kit Finish
FR40L 150 ** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
300
PC__ = Powder Coated
__”name of colour”__
450
600
Item Ordering Code
Nema 2 Fire Rated Ladder 150mm Kit FR40L150K
Nema 2 Fire Rated Ladder 300mm Kit FR40L300K
Nema 2 Fire Rated Ladder 450mm Kit FR40L450K
Nema 2 Fire Rated Ladder 600mm Kit FR40L600K
5S Systems Nema 2 Fire Rated Cable
Ladder has been tested and certified
according to AS3013:2005 which has
a 2-hour rating @ 1050º Celsius
This rating applies to:
Ladder with Widths = 150, 300, 450 &
600mm
Support span = 1.5m
Load bearing capacity = 40Kg/M
36. Page 36

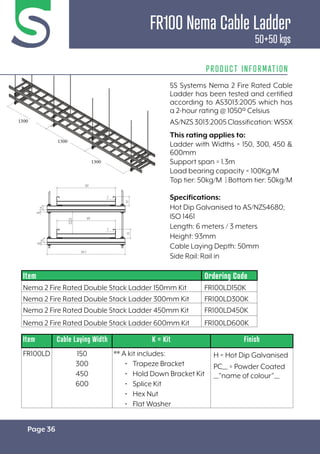

FR100 Nema Cable Ladder
50+50 kgs
PRODUCT INFORMATION
Specifications:
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 6 meters / 3 meters
Height: 93mm
Cable Laying Depth: 50mm
Side Rail: Rail in
Item Cable Laying Width K = Kit Finish
FR100LD 150
300
450
600
** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
PC__ = Powder Coated
__”name of colour”__
Item Ordering Code
Nema 2 Fire Rated Double Stack Ladder 150mm Kit FR100LD150K
Nema 2 Fire Rated Double Stack Ladder 300mm Kit FR100LD300K
Nema 2 Fire Rated Double Stack Ladder 450mm Kit FR100LD450K
Nema 2 Fire Rated Double Stack Ladder 600mm Kit FR100LD600K
5S Systems Nema 2 Fire Rated Cable
Ladder has been tested and certified
according to AS3013:2005 which has
a 2-hour rating @ 1050º Celsius
AS/NZS3013:2005Classification:WS5X
This rating applies to:
Ladder with Widths = 150, 300, 450 &
600mm
Support span = 1.3m
Load bearing capacity = 100Kg/M
Top tier: 50kg/M | Bottom tier: 50kg/M
37. Page 37

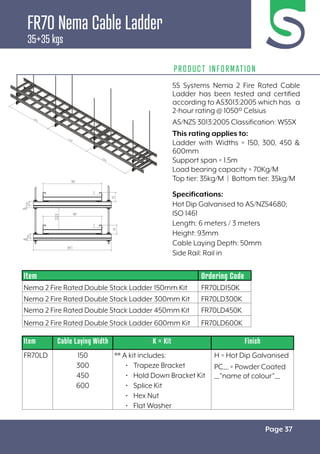

FR70 Nema Cable Ladder
35+35 kgs
PRODUCT INFORMATION
Specifications:
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 6 meters / 3 meters
Height: 93mm
Cable Laying Depth: 50mm
Side Rail: Rail in
Item Cable Laying Width K = Kit Finish
FR70LD 150
300
450
600
** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
PC__ = Powder Coated
__”name of colour”__
Item Ordering Code
Nema 2 Fire Rated Double Stack Ladder 150mm Kit FR70LD150K
Nema 2 Fire Rated Double Stack Ladder 300mm Kit FR70LD300K
Nema 2 Fire Rated Double Stack Ladder 450mm Kit FR70LD450K
Nema 2 Fire Rated Double Stack Ladder 600mm Kit FR70LD600K
5S Systems Nema 2 Fire Rated Cable
Ladder has been tested and certified
according to AS3013:2005 which has a
2-hour rating @ 1050º Celsius
AS/NZS 3013:2005 Classification: WS5X
This rating applies to:
Ladder with Widths = 150, 300, 450 &
600mm
Support span = 1.5m
Load bearing capacity = 70Kg/M
Top tier: 35kg/M | Bottom tier: 35kg/M
38. Page 38

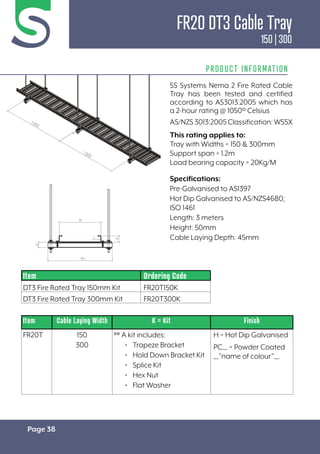

PRODUCT INFORMATION
Specifications:
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 3 meters
Height: 50mm
Cable Laying Depth: 45mm
Item Cable Laying Width K = Kit Finish
FR20T 150
300
** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
PC__ = Powder Coated
__”name of colour”__
Item Ordering Code
DT3 Fire Rated Tray 150mm Kit FR20T150K
DT3 Fire Rated Tray 300mm Kit FR20T300K
5S Systems Nema 2 Fire Rated Cable
Tray has been tested and certified
according to AS3013:2005 which has
a 2-hour rating @ 1050º Celsius
AS/NZS3013:2005Classification:WS5X
This rating applies to:
Tray with Widths = 150 & 300mm
Support span = 1.2m
Load bearing capacity = 20Kg/M
FR20 DT3 Cable Tray
150 | 300
39. Page 39

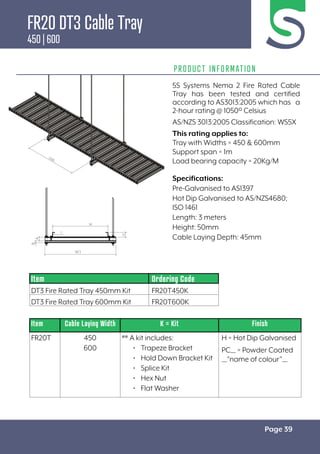

PRODUCT INFORMATION
Specifications:
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 3 meters
Height: 50mm
Cable Laying Depth: 45mm
Item Cable Laying Width K = Kit Finish
FR20T 450
600
** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
PC__ = Powder Coated
__”name of colour”__
Item Ordering Code
DT3 Fire Rated Tray 450mm Kit FR20T450K
DT3 Fire Rated Tray 600mm Kit FR20T600K
5S Systems Nema 2 Fire Rated Cable
Tray has been tested and certified
according to AS3013:2005 which has a
2-hour rating @ 1050º Celsius
AS/NZS 3013:2005 Classification: WS5X
This rating applies to:
Tray with Widths = 450 & 600mm
Support span = 1m
Load bearing capacity = 20Kg/M
FR20 DT3 Cable Tray
450 | 600
40. Page 40

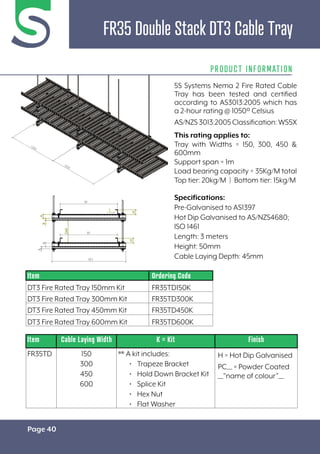

FR35 Double Stack DT3 Cable Tray
PRODUCT INFORMATION
Specifications:
Pre-Galvanised to AS1397
Hot Dip Galvanised to AS/NZS4680;
ISO 1461
Length: 3 meters
Height: 50mm
Cable Laying Depth: 45mm
Item Cable Laying Width K = Kit Finish
FR35TD 150
300
450
600
** A kit includes:
• Trapeze Bracket
• Hold Down Bracket Kit
• Splice Kit
• Hex Nut
• Flat Washer
H = Hot Dip Galvanised
PC__ = Powder Coated
__”name of colour”__
Item Ordering Code
DT3 Fire Rated Tray 150mm Kit FR35TD150K
DT3 Fire Rated Tray 300mm Kit FR35TD300K
DT3 Fire Rated Tray 450mm Kit FR35TD450K
DT3 Fire Rated Tray 600mm Kit FR35TD600K
5S Systems Nema 2 Fire Rated Cable
Tray has been tested and certified
according to AS3013:2005 which has
a 2-hour rating @ 1050º Celsius
AS/NZS3013:2005Classification:WS5X
This rating applies to:
Tray with Widths = 150, 300, 450 &
600mm
Support span = 1m
Load bearing capacity = 35Kg/M total
Top tier: 20kg/M | Bottom tier: 15kg/M
41. Page 41
Custom Fabrication
** Please contact your 5S Systems Representative for more information.
5S Systems specialise in manufacturing products
to suit customer’s needs as per design. Be it Flat
Plate design or made out of various Channels
or a total mixture, we are able to fabricate and
supply to construction site requirements.
42. Page 42

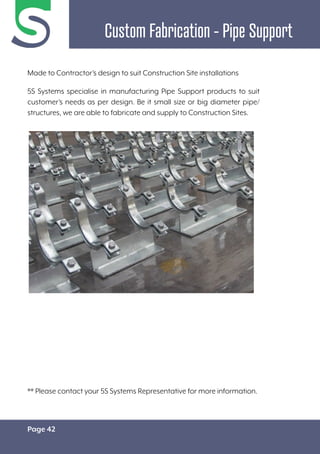

Custom Fabrication - Pipe Support
Made to Contractor’s design to suit Construction Site installations
5S Systems specialise in manufacturing Pipe Support products to suit
customer’s needs as per design. Be it small size or big diameter pipe/
structures, we are able to fabricate and supply to Construction Sites.
** Please contact your 5S Systems Representative for more information.
43. Page 43

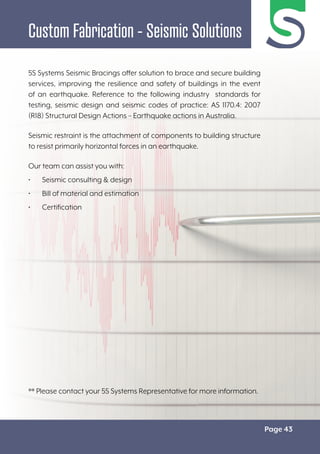

Custom Fabrication - Seismic Solutions
5S Systems Seismic Bracings offer solution to brace and secure building
services, improving the resilience and safety of buildings in the event
of an earthquake. Reference to the following industry standards for
testing, seismic design and seismic codes of practice: AS 1170.4: 2007
(R18) Structural Design Actions – Earthquake actions in Australia.
Seismic restraint is the attachment of components to building structure
to resist primarily horizontal forces in an earthquake.
Our team can assist you with:
• Seismic consulting & design
• Bill of material and estimation
• Certification
** Please contact your 5S Systems Representative for more information.
44. Your business...Our commitment
Catalogue edition 3: March 2022
Disclaimer: This catalogue, designs, data and specifications therein are the property of 5S Systems Pty Ltd
and must not be used, reproduced or copied, wholly or part, without the written permission of 5S Systems.
5S Systems reserves the right to change designs and dimensions within the catalogue without prior notice.
5S Systems Pty. Ltd.
1 Mary Street, Melrose Park NSW 2114
Email: admin@5ssystems.com.au
Website: www.5ssystems.com.au
Scan the QR code from your smart phone
camera to save contact information.
Bhupendra Rana Mrinal Saikia Seemanto Nath
