1. 4G and 5G Architecture
Presented By
Hafiz Muhammad Attaullah
attaullahshafiq10@gmail.com
From
Telecommunication Engineering
University of Sindh, Jamshoro
Assigned By
Sir M. Aslam Kumbhar
aslamiit@usindh.edu.pk

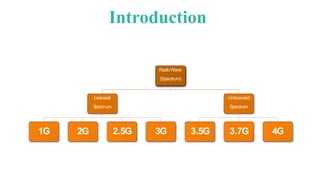

2. Introduction
RadioWave
(Spectrum)
Licensed
Spectrum
1G 2G 2.5G 3G
Unlicensed
Spectrum
3.5G 3.7G 4G

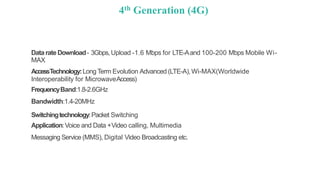

3. 4th Generation (4G)
DatarateDownload- 3Gbps,Upload -1.6 Mbps for LTE-Aand 100-200 Mbps Mobile Wi-
MAX
AccessTechnology:LongTerm Evolution Advanced (LTE-A),Wi-MAX(Worldwide
Interoperability for MicrowaveAccess)
FrequencyBand:1.8-2.6GHz
Bandwidth:1.4-20MHz
Switchingtechnology:Packet Switching
Application:Voice and Data +Video calling, Multimedia
Messaging Service (MMS), Digital Video Broadcasting etc.

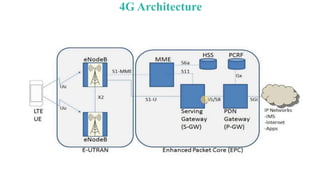

4. 4G Architecture

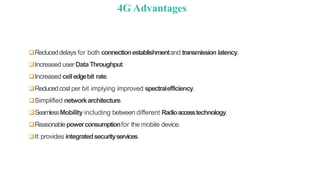

5. 4G Advantages
Reduceddelays for both connectionestablishmentand transmission latency.
Increased user DataThroughput.
Increased celledgebit rate.
Reducedcostper bit implying improved spectralefficiency.
Simplified networkarchitecture.
SeamlessMobility including between different Radioaccesstechnology.
Reasonablepowerconsumptionfor the mobile device.
It provides integratedsecurityservices.

6. 5G Architecture

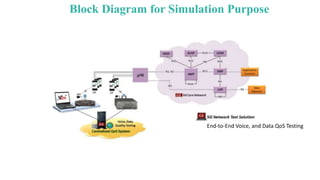

7. Block Diagram for Simulation Purpose
End-to-End Voice, and Data QoS Testing

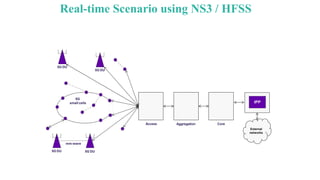

8. External
networks
Access Aggregation Core
5G DU
5G DU
IPP
5G DU
mm-wave
5G
small cells
5G DU
Real-time Scenario using NS3 / HFSS

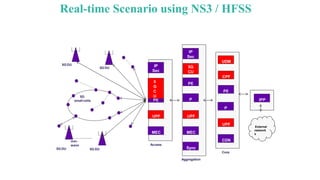

9. External
network
s
PE
Access
Aggregation
Core
5G DU
5G DU
P
Sync
PE
CPF
UPF
CDN
P
IPP
5G DU
mm-
wave
5G
small cells
UDM
5G DU 5G
CU
IP
Sec
PE
UPF
MEC
IP
Sec
UPF
MEC
5
G
C
U
Real-time Scenario using NS3 / HFSS

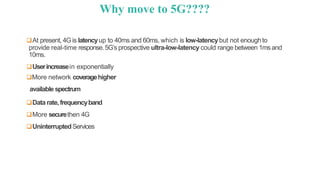

10. Why move to 5G????
At present, 4Gis latencyup to 40ms and 60ms, which is low-latencybut not enoughto
provide real-time response.5G’s prospective ultra-low-latency could range between 1msand
10ms.
Userincreasein exponentially
More network coveragehigher
available spectrum
Datarate,frequencyband
More securethen 4G
UninterruptedServices

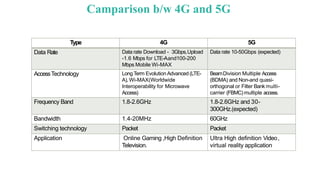

11. Type 4G 5G
Data Rate Data rate Download - 3Gbps,Upload
-1.6 Mbps for LTE-Aand100-200
Mbps Mobile Wi-MAX
Data rate 10-50Gbps (expected)
AccessTechnology LongTerm EvolutionAdvanced(LTE-
A), Wi-MAX(Worldwide
Interoperability for Microwave
Access)
BeamDivision Multiple Access
(BDMA) and Non-and quasi-
orthogonal or Filter Bank multi-
carrier (FBMC)multiple access.
Frequency Band 1.8-2.6GHz 1.8-2.6GHz and 30-
300GHz.(expected)
Bandwidth 1.4-20MHz 60GHz
Switching technology Packet Packet
Application Online Gaming ,High Definition
Television.
Ultra High definition Video,
virtual reality application
Camparison b/w 4G and 5G

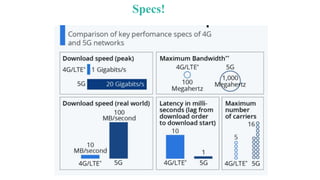

12. Specs!

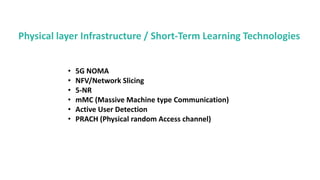

13. Physical layer Infrastructure / Short-Term Learning Technologies
• 5G NOMA
• NFV/Network Slicing
• 5-NR
• mMC (Massive Machine type Communication)
• Active User Detection
• PRACH (Physical random Access channel)

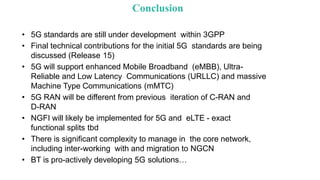

14. Conclusion
• 5G standards are still under development within 3GPP
• Final technical contributions for the initial 5G standards are being
discussed (Release 15)
• 5G will support enhanced Mobile Broadband (eMBB), Ultra-
Reliable and Low Latency Communications (URLLC) and massive
Machine Type Communications (mMTC)
• 5G RAN will be different from previous iteration of C-RAN and
D-RAN
• NGFI will likely be implemented for 5G and eLTE - exact
functional splits tbd
• There is significant complexity to manage in the core network,
including inter-working with and migration to NGCN
• BT is pro-actively developing 5G solutions…

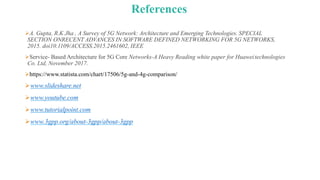

15. A. Gupta, R.K Jha , A Survey of 5G Network: Architecture and Emerging Technologies. SPECIAL
SECTION ONRECENT ADVANCES IN SOFTWARE DEFINED NETWORKING FOR 5G NETWORKS,
2015. doi10.1109/ACCESS.2015.2461602, IEEE
Service- Based Architecture for 5G Core Networks-A Heavy Reading white paper for Huaweitechnologies
Co. Ltd, November 2017.
https://www.statista.com/chart/17506/5g-and-4g-comparison/
www.slideshare.net
www.youtube.com
www.tutorialpoint.com
www.3gpp.org/about-3gpp/about-3gpp
References

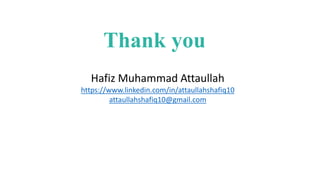

16. Thank you
