INVESTIGACION

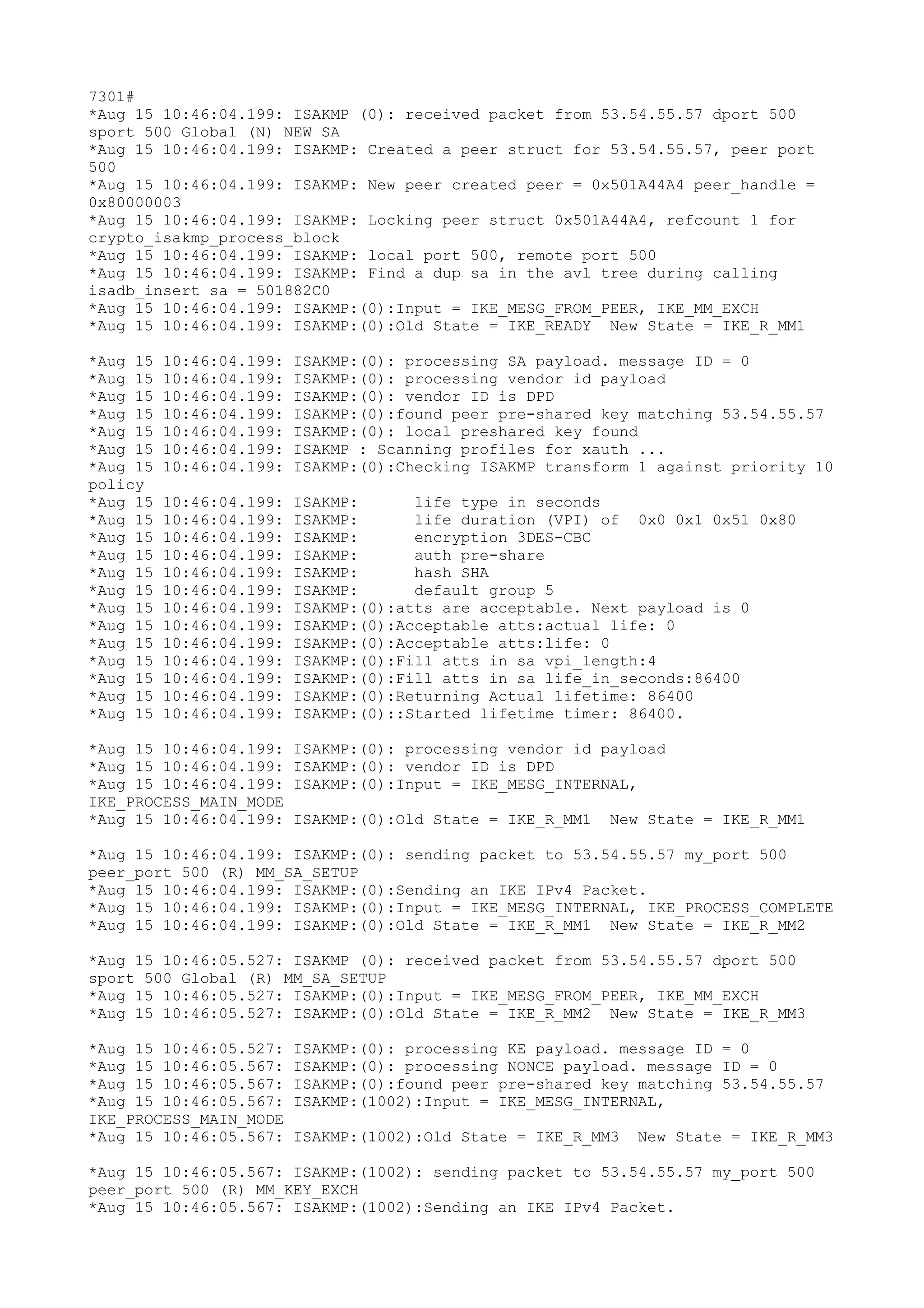

1. 7301#
*Aug 15 10:46:04.199: ISAKMP (0): received packet from 53.54.55.57 dport 500
sport 500 Global (N) NEW SA
*Aug 15 10:46:04.199: ISAKMP: Created a peer struct for 53.54.55.57, peer port
500
*Aug 15 10:46:04.199: ISAKMP: New peer created peer = 0x501A44A4 peer_handle =
0x80000003
*Aug 15 10:46:04.199: ISAKMP: Locking peer struct 0x501A44A4, refcount 1 for
crypto_isakmp_process_block
*Aug 15 10:46:04.199: ISAKMP: local port 500, remote port 500
*Aug 15 10:46:04.199: ISAKMP: Find a dup sa in the avl tree during calling
isadb_insert sa = 501882C0
*Aug 15 10:46:04.199: ISAKMP:(0):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
*Aug 15 10:46:04.199: ISAKMP:(0):Old State = IKE_READY New State = IKE_R_MM1
*Aug 15 10:46:04.199: ISAKMP:(0): processing SA payload. message ID = 0
*Aug 15 10:46:04.199: ISAKMP:(0): processing vendor id payload
*Aug 15 10:46:04.199: ISAKMP:(0): vendor ID is DPD
*Aug 15 10:46:04.199: ISAKMP:(0):found peer pre-shared key matching 53.54.55.57
*Aug 15 10:46:04.199: ISAKMP:(0): local preshared key found
*Aug 15 10:46:04.199: ISAKMP : Scanning profiles for xauth ...
*Aug 15 10:46:04.199: ISAKMP:(0):Checking ISAKMP transform 1 against priority 10
policy
*Aug 15 10:46:04.199: ISAKMP: life type in seconds
*Aug 15 10:46:04.199: ISAKMP: life duration (VPI) of 0x0 0x1 0x51 0x80
*Aug 15 10:46:04.199: ISAKMP: encryption 3DES-CBC
*Aug 15 10:46:04.199: ISAKMP: auth pre-share
*Aug 15 10:46:04.199: ISAKMP: hash SHA
*Aug 15 10:46:04.199: ISAKMP: default group 5
*Aug 15 10:46:04.199: ISAKMP:(0):atts are acceptable. Next payload is 0
*Aug 15 10:46:04.199: ISAKMP:(0):Acceptable atts:actual life: 0
*Aug 15 10:46:04.199: ISAKMP:(0):Acceptable atts:life: 0
*Aug 15 10:46:04.199: ISAKMP:(0):Fill atts in sa vpi_length:4
*Aug 15 10:46:04.199: ISAKMP:(0):Fill atts in sa life_in_seconds:86400
*Aug 15 10:46:04.199: ISAKMP:(0):Returning Actual lifetime: 86400
*Aug 15 10:46:04.199: ISAKMP:(0)::Started lifetime timer: 86400.
*Aug 15 10:46:04.199: ISAKMP:(0): processing vendor id payload
*Aug 15 10:46:04.199: ISAKMP:(0): vendor ID is DPD
*Aug 15 10:46:04.199: ISAKMP:(0):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_MAIN_MODE
*Aug 15 10:46:04.199: ISAKMP:(0):Old State = IKE_R_MM1 New State = IKE_R_MM1
*Aug 15 10:46:04.199: ISAKMP:(0): sending packet to 53.54.55.57 my_port 500
peer_port 500 (R) MM_SA_SETUP
*Aug 15 10:46:04.199: ISAKMP:(0):Sending an IKE IPv4 Packet.
*Aug 15 10:46:04.199: ISAKMP:(0):Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE
*Aug 15 10:46:04.199: ISAKMP:(0):Old State = IKE_R_MM1 New State = IKE_R_MM2
*Aug 15 10:46:05.527: ISAKMP (0): received packet from 53.54.55.57 dport 500
sport 500 Global (R) MM_SA_SETUP
*Aug 15 10:46:05.527: ISAKMP:(0):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
*Aug 15 10:46:05.527: ISAKMP:(0):Old State = IKE_R_MM2 New State = IKE_R_MM3
*Aug 15 10:46:05.527: ISAKMP:(0): processing KE payload. message ID = 0
*Aug 15 10:46:05.567: ISAKMP:(0): processing NONCE payload. message ID = 0
*Aug 15 10:46:05.567: ISAKMP:(0):found peer pre-shared key matching 53.54.55.57
*Aug 15 10:46:05.567: ISAKMP:(1002):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_MAIN_MODE
*Aug 15 10:46:05.567: ISAKMP:(1002):Old State = IKE_R_MM3 New State = IKE_R_MM3
*Aug 15 10:46:05.567: ISAKMP:(1002): sending packet to 53.54.55.57 my_port 500
peer_port 500 (R) MM_KEY_EXCH
*Aug 15 10:46:05.567: ISAKMP:(1002):Sending an IKE IPv4 Packet.

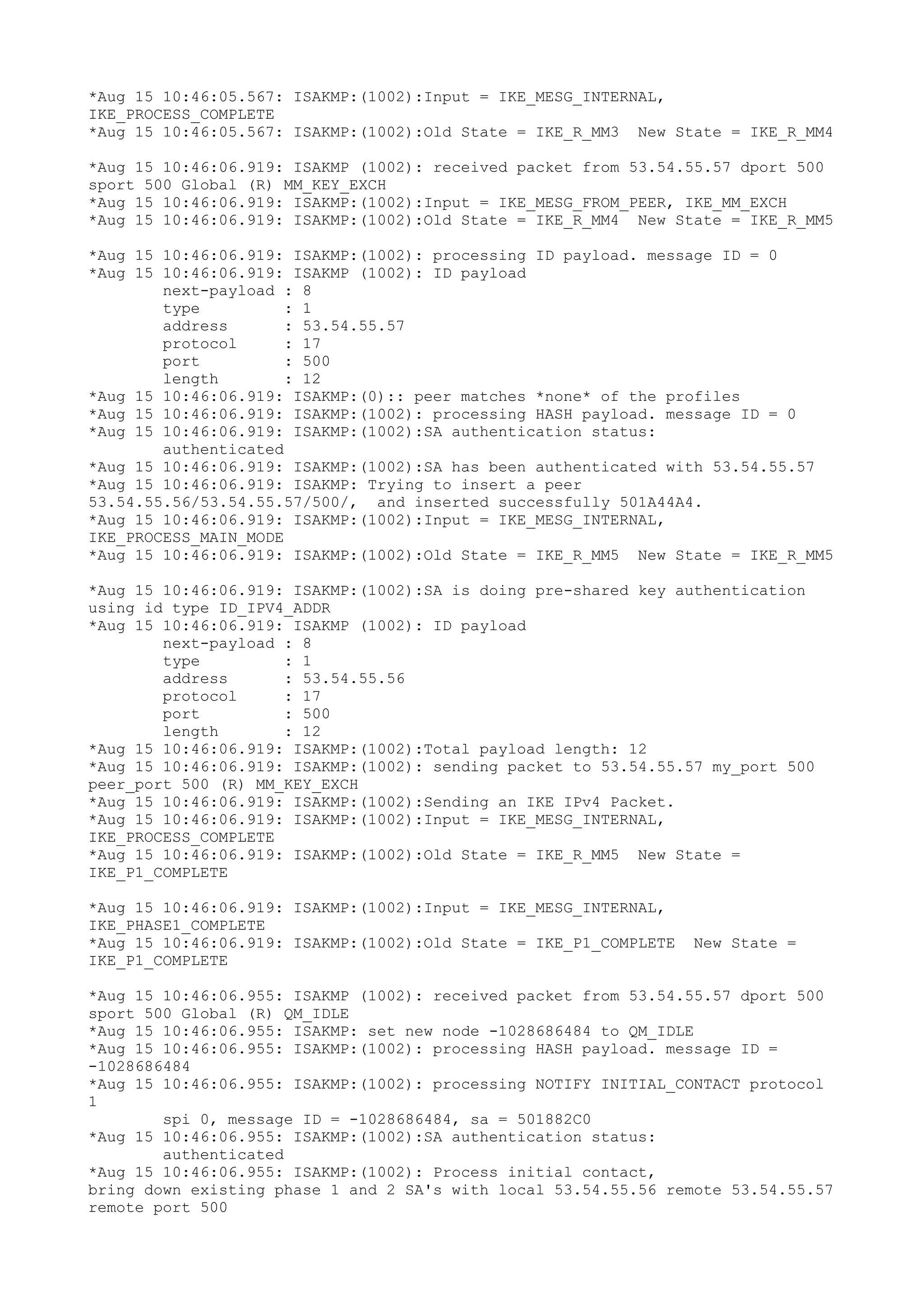

2. *Aug 15 10:46:05.567: ISAKMP:(1002):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_COMPLETE
*Aug 15 10:46:05.567: ISAKMP:(1002):Old State = IKE_R_MM3 New State = IKE_R_MM4
*Aug 15 10:46:06.919: ISAKMP (1002): received packet from 53.54.55.57 dport 500
sport 500 Global (R) MM_KEY_EXCH
*Aug 15 10:46:06.919: ISAKMP:(1002):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
*Aug 15 10:46:06.919: ISAKMP:(1002):Old State = IKE_R_MM4 New State = IKE_R_MM5
*Aug 15 10:46:06.919: ISAKMP:(1002): processing ID payload. message ID = 0
*Aug 15 10:46:06.919: ISAKMP (1002): ID payload
next-payload : 8
type : 1
address : 53.54.55.57
protocol : 17
port : 500
length : 12
*Aug 15 10:46:06.919: ISAKMP:(0):: peer matches *none* of the profiles
*Aug 15 10:46:06.919: ISAKMP:(1002): processing HASH payload. message ID = 0
*Aug 15 10:46:06.919: ISAKMP:(1002):SA authentication status:
authenticated
*Aug 15 10:46:06.919: ISAKMP:(1002):SA has been authenticated with 53.54.55.57
*Aug 15 10:46:06.919: ISAKMP: Trying to insert a peer
53.54.55.56/53.54.55.57/500/, and inserted successfully 501A44A4.
*Aug 15 10:46:06.919: ISAKMP:(1002):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_MAIN_MODE
*Aug 15 10:46:06.919: ISAKMP:(1002):Old State = IKE_R_MM5 New State = IKE_R_MM5
*Aug 15 10:46:06.919: ISAKMP:(1002):SA is doing pre-shared key authentication
using id type ID_IPV4_ADDR
*Aug 15 10:46:06.919: ISAKMP (1002): ID payload
next-payload : 8
type : 1
address : 53.54.55.56
protocol : 17
port : 500
length : 12
*Aug 15 10:46:06.919: ISAKMP:(1002):Total payload length: 12
*Aug 15 10:46:06.919: ISAKMP:(1002): sending packet to 53.54.55.57 my_port 500
peer_port 500 (R) MM_KEY_EXCH
*Aug 15 10:46:06.919: ISAKMP:(1002):Sending an IKE IPv4 Packet.
*Aug 15 10:46:06.919: ISAKMP:(1002):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_COMPLETE
*Aug 15 10:46:06.919: ISAKMP:(1002):Old State = IKE_R_MM5 New State =
IKE_P1_COMPLETE
*Aug 15 10:46:06.919: ISAKMP:(1002):Input = IKE_MESG_INTERNAL,
IKE_PHASE1_COMPLETE
*Aug 15 10:46:06.919: ISAKMP:(1002):Old State = IKE_P1_COMPLETE New State =
IKE_P1_COMPLETE
*Aug 15 10:46:06.955: ISAKMP (1002): received packet from 53.54.55.57 dport 500
sport 500 Global (R) QM_IDLE
*Aug 15 10:46:06.955: ISAKMP: set new node -1028686484 to QM_IDLE
*Aug 15 10:46:06.955: ISAKMP:(1002): processing HASH payload. message ID =
-1028686484
*Aug 15 10:46:06.955: ISAKMP:(1002): processing NOTIFY INITIAL_CONTACT protocol
1
spi 0, message ID = -1028686484, sa = 501882C0
*Aug 15 10:46:06.955: ISAKMP:(1002):SA authentication status:
authenticated
*Aug 15 10:46:06.955: ISAKMP:(1002): Process initial contact,
bring down existing phase 1 and 2 SA's with local 53.54.55.56 remote 53.54.55.57
remote port 500

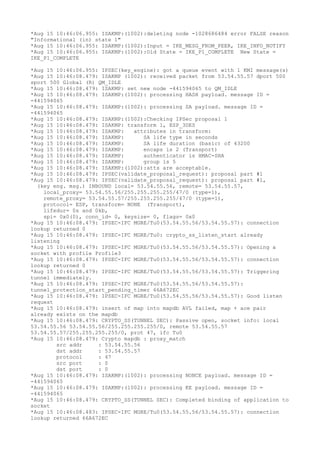

3. *Aug 15 10:46:06.955: ISAKMP:(1002):deleting node -1028686484 error FALSE reason
"Informational (in) state 1"
*Aug 15 10:46:06.955: ISAKMP:(1002):Input = IKE_MESG_FROM_PEER, IKE_INFO_NOTIFY
*Aug 15 10:46:06.955: ISAKMP:(1002):Old State = IKE_P1_COMPLETE New State =
IKE_P1_COMPLETE
*Aug 15 10:46:06.955: IPSEC(key_engine): got a queue event with 1 KMI message(s)
*Aug 15 10:46:08.479: ISAKMP (1002): received packet from 53.54.55.57 dport 500
sport 500 Global (R) QM_IDLE
*Aug 15 10:46:08.479: ISAKMP: set new node -441594065 to QM_IDLE
*Aug 15 10:46:08.479: ISAKMP:(1002): processing HASH payload. message ID =
-441594065
*Aug 15 10:46:08.479: ISAKMP:(1002): processing SA payload. message ID =
-441594065
*Aug 15 10:46:08.479: ISAKMP:(1002):Checking IPSec proposal 1
*Aug 15 10:46:08.479: ISAKMP: transform 1, ESP_3DES
*Aug 15 10:46:08.479: ISAKMP: attributes in transform:
*Aug 15 10:46:08.479: ISAKMP: SA life type in seconds
*Aug 15 10:46:08.479: ISAKMP: SA life duration (basic) of 43200
*Aug 15 10:46:08.479: ISAKMP: encaps is 2 (Transport)
*Aug 15 10:46:08.479: ISAKMP: authenticator is HMAC-SHA
*Aug 15 10:46:08.479: ISAKMP: group is 5
*Aug 15 10:46:08.479: ISAKMP:(1002):atts are acceptable.
*Aug 15 10:46:08.479: IPSEC(validate_proposal_request): proposal part #1
*Aug 15 10:46:08.479: IPSEC(validate_proposal_request): proposal part #1,
(key eng. msg.) INBOUND local= 53.54.55.56, remote= 53.54.55.57,
local_proxy= 53.54.55.56/255.255.255.255/47/0 (type=1),
remote_proxy= 53.54.55.57/255.255.255.255/47/0 (type=1),
protocol= ESP, transform= NONE (Transport),
lifedur= 0s and 0kb,
spi= 0x0(0), conn_id= 0, keysize= 0, flags= 0x0
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): connection
lookup returned 0
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0: crypto_ss_listen_start already
listening
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): Opening a
socket with profile Profile3
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): connection
lookup returned 0
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): Triggering
tunnel immediately.
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57):
tunnel_protection_start_pending_timer 66A672EC
*Aug 15 10:46:08.479: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): Good listen
request
*Aug 15 10:46:08.479: insert of map into mapdb AVL failed, map + ace pair
already exists on the mapdb
*Aug 15 10:46:08.479: CRYPTO_SS(TUNNEL SEC): Passive open, socket info: local
53.54.55.56 53.54.55.56/255.255.255.255/0, remote 53.54.55.57
53.54.55.57/255.255.255.255/0, prot 47, ifc Tu0
*Aug 15 10:46:08.479: Crypto mapdb : proxy_match
src addr : 53.54.55.56
dst addr : 53.54.55.57
protocol : 47
src port : 0
dst port : 0
*Aug 15 10:46:08.479: ISAKMP:(1002): processing NONCE payload. message ID =
-441594065
*Aug 15 10:46:08.479: ISAKMP:(1002): processing KE payload. message ID =
-441594065
*Aug 15 10:46:08.479: CRYPTO_SS(TUNNEL SEC): Completed binding of application to
socket
*Aug 15 10:46:08.483: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): connection
lookup returned 66A672EC

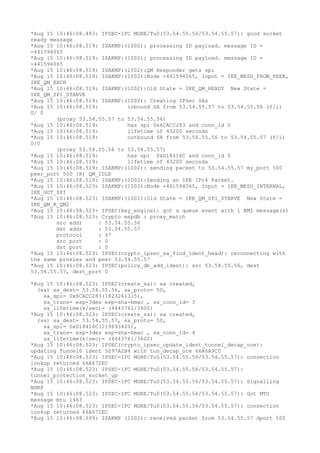

4. *Aug 15 10:46:08.483: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): good socket
ready message
*Aug 15 10:46:08.519: ISAKMP:(1002): processing ID payload. message ID =
-441594065
*Aug 15 10:46:08.519: ISAKMP:(1002): processing ID payload. message ID =
-441594065
*Aug 15 10:46:08.519: ISAKMP:(1002):QM Responder gets spi
*Aug 15 10:46:08.519: ISAKMP:(1002):Node -441594065, Input = IKE_MESG_FROM_PEER,
IKE_QM_EXCH
*Aug 15 10:46:08.519: ISAKMP:(1002):Old State = IKE_QM_READY New State =
IKE_QM_SPI_STARVE
*Aug 15 10:46:08.519: ISAKMP:(1002): Creating IPSec SAs
*Aug 15 10:46:08.519: inbound SA from 53.54.55.57 to 53.54.55.56 (f/i)
0/ 0
(proxy 53.54.55.57 to 53.54.55.56)
*Aug 15 10:46:08.519: has spi 0x6CACC283 and conn_id 0
*Aug 15 10:46:08.519: lifetime of 43200 seconds
*Aug 15 10:46:08.519: outbound SA from 53.54.55.56 to 53.54.55.57 (f/i)
0/0
(proxy 53.54.55.56 to 53.54.55.57)
*Aug 15 10:46:08.519: has spi 0xD18416C and conn_id 0
*Aug 15 10:46:08.519: lifetime of 43200 seconds
*Aug 15 10:46:08.519: ISAKMP:(1002): sending packet to 53.54.55.57 my_port 500
peer_port 500 (R) QM_IDLE
*Aug 15 10:46:08.519: ISAKMP:(1002):Sending an IKE IPv4 Packet.
*Aug 15 10:46:08.523: ISAKMP:(1002):Node -441594065, Input = IKE_MESG_INTERNAL,
IKE_GOT_SPI
*Aug 15 10:46:08.523: ISAKMP:(1002):Old State = IKE_QM_SPI_STARVE New State =
IKE_QM_R_QM2
*Aug 15 10:46:08.523: IPSEC(key_engine): got a queue event with 1 KMI message(s)
*Aug 15 10:46:08.523: Crypto mapdb : proxy_match
src addr : 53.54.55.56
dst addr : 53.54.55.57
protocol : 47
src port : 0
dst port : 0
*Aug 15 10:46:08.523: IPSEC(crypto_ipsec_sa_find_ident_head): reconnecting with
the same proxies and peer 53.54.55.57
*Aug 15 10:46:08.523: IPSEC(policy_db_add_ident): src 53.54.55.56, dest
53.54.55.57, dest_port 0
*Aug 15 10:46:08.523: IPSEC(create_sa): sa created,
(sa) sa_dest= 53.54.55.56, sa_proto= 50,
sa_spi= 0x6CACC283(1823261315),
sa_trans= esp-3des esp-sha-hmac , sa_conn_id= 3
sa_lifetime(k/sec)= (4443761/3600)
*Aug 15 10:46:08.523: IPSEC(create_sa): sa created,
(sa) sa_dest= 53.54.55.57, sa_proto= 50,
sa_spi= 0xD18416C(219693420),
sa_trans= esp-3des esp-sha-hmac , sa_conn_id= 4
sa_lifetime(k/sec)= (4443761/3600)
*Aug 15 10:46:08.523: IPSEC(crypto_ipsec_update_ident_tunnel_decap_oce):
updating Tunnel0 ident 5097A2B4 with tun_decap_oce 66A6A9C0
*Aug 15 10:46:08.523: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): connection
lookup returned 66A672EC
*Aug 15 10:46:08.523: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57):
tunnel_protection_socket_up
*Aug 15 10:46:08.523: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): Signalling
NHRP
*Aug 15 10:46:08.523: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): Got MTU
message mtu 1463
*Aug 15 10:46:08.523: IPSEC-IFC MGRE/Tu0(53.54.55.56/53.54.55.57): connection
lookup returned 66A672EC
*Aug 15 10:46:08.599: ISAKMP (1002): received packet from 53.54.55.57 dport 500

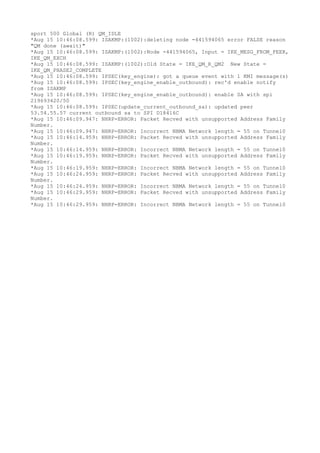

5. sport 500 Global (R) QM_IDLE
*Aug 15 10:46:08.599: ISAKMP:(1002):deleting node -441594065 error FALSE reason
"QM done (await)"
*Aug 15 10:46:08.599: ISAKMP:(1002):Node -441594065, Input = IKE_MESG_FROM_PEER,
IKE_QM_EXCH
*Aug 15 10:46:08.599: ISAKMP:(1002):Old State = IKE_QM_R_QM2 New State =
IKE_QM_PHASE2_COMPLETE
*Aug 15 10:46:08.599: IPSEC(key_engine): got a queue event with 1 KMI message(s)
*Aug 15 10:46:08.599: IPSEC(key_engine_enable_outbound): rec'd enable notify
from ISAKMP
*Aug 15 10:46:08.599: IPSEC(key_engine_enable_outbound): enable SA with spi
219693420/50
*Aug 15 10:46:08.599: IPSEC(update_current_outbound_sa): updated peer
53.54.55.57 current outbound sa to SPI D18416C
*Aug 15 10:46:09.947: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:09.947: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:14.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:14.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:19.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:19.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:24.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:24.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:29.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:29.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0

6. sport 500 Global (R) QM_IDLE
*Aug 15 10:46:08.599: ISAKMP:(1002):deleting node -441594065 error FALSE reason
"QM done (await)"
*Aug 15 10:46:08.599: ISAKMP:(1002):Node -441594065, Input = IKE_MESG_FROM_PEER,
IKE_QM_EXCH
*Aug 15 10:46:08.599: ISAKMP:(1002):Old State = IKE_QM_R_QM2 New State =
IKE_QM_PHASE2_COMPLETE
*Aug 15 10:46:08.599: IPSEC(key_engine): got a queue event with 1 KMI message(s)
*Aug 15 10:46:08.599: IPSEC(key_engine_enable_outbound): rec'd enable notify
from ISAKMP
*Aug 15 10:46:08.599: IPSEC(key_engine_enable_outbound): enable SA with spi
219693420/50
*Aug 15 10:46:08.599: IPSEC(update_current_outbound_sa): updated peer
53.54.55.57 current outbound sa to SPI D18416C
*Aug 15 10:46:09.947: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:09.947: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:14.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:14.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:19.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:19.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:24.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:24.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
*Aug 15 10:46:29.959: NHRP-ERROR: Packet Recved with unsupported Address Family
Number.
*Aug 15 10:46:29.959: NHRP-ERROR: Incorrect NBMA Network length = 55 on Tunnel0
