1. Prof. Vaishali P. Argade
Lecturer in PRES, Institute of Pharmacy, Loni
Email:vaishali.argade@pravara.in
Mobile:9158813767
Biphasic Liquid Dosage Form
EMulsion

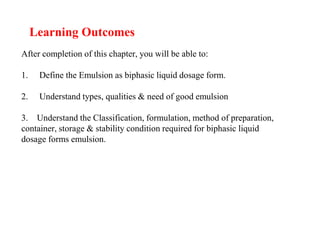

2. Learning Outcomes
After completion of this chapter, you will be able to:
1. Define the Emulsion as biphasic liquid dosage form.
2. Understand types, qualities & need of good emulsion
3. Understand the Classification, formulation, method of preparation,
container, storage & stability condition required for biphasic liquid
dosage forms emulsion.

3. Definition:
emulsion are heterogeneous, biphasic, thermodynamically unstable liquid
system in which one phase is dispersed as globules (Discontinuous/dispersed
/Internal phase) in to another phase (continuous/external phase /Dispersion
medium) & stabilized by emulsifying agent.
• The globules size of emulsion varies from 0.25 to 25 micrometer in
diameter.

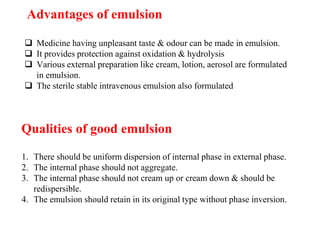

4. Advantages of emulsion
 Medicine having unpleasant taste & odour can be made in emulsion.
 It provides protection against oxidation & hydrolysis
 Various external preparation like cream, lotion, aerosol are formulated
in emulsion.
 The sterile stable intravenous emulsion also formulated
1. There should be uniform dispersion of internal phase in external phase.
2. The internal phase should not aggregate.
3. The internal phase should not cream up or cream down & should be
redispersible.
4. The emulsion should retain in its original type without phase inversion.
Qualities of good emulsion

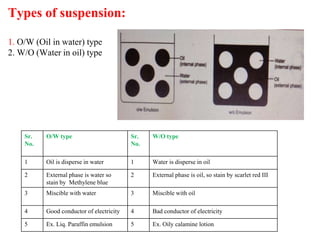

5. Types of suspension:
1. O/W (Oil in water) type
2. W/O (Water in oil) type
Sr.
No.
O/W type Sr.
No.
W/O type
1 Oil is disperse in water 1 Water is disperse in oil
2 External phase is water so
stain by Methylene blue
2 External phase is oil, so stain by scarlet red III
3 Miscible with water 3 Miscible with oil
4 Good conductor of electricity 4 Bad conductor of electricity
5 Ex. Liq. Paraffin emulsion 5 Ex. Oily calamine lotion

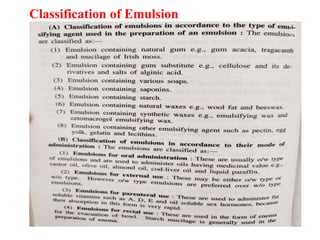

6. Classification of Emulsion

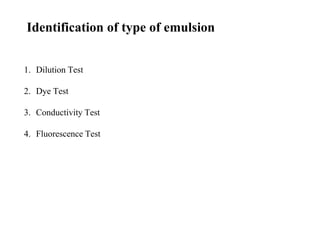

7. Identification of type of emulsion
1. Dilution Test
2. Dye Test
3. Conductivity Test
4. Fluorescence Test

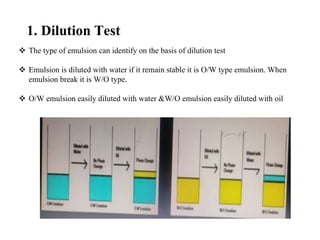

8. 1. Dilution Test
 The type of emulsion can identify on the basis of dilution test
 Emulsion is diluted with water if it remain stable it is O/W type emulsion. When
emulsion break it is W/O type.
 O/W emulsion easily diluted with water &W/O emulsion easily diluted with oil

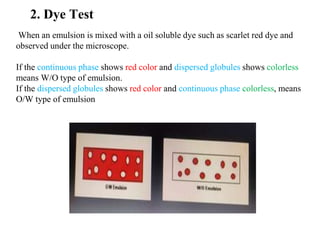

9. 2. Dye Test
When an emulsion is mixed with a oil soluble dye such as scarlet red dye and
observed under the microscope.
If the continuous phase shows red color and dispersed globules shows colorless
means W/O type of emulsion.
If the dispersed globules shows red color and continuous phase colorless, means
O/W type of emulsion

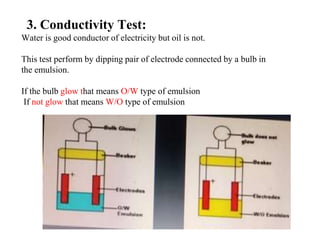

10. 3. Conductivity Test:
Water is good conductor of electricity but oil is not.
This test perform by dipping pair of electrode connected by a bulb in
the emulsion.
If the bulb glow that means O/W type of emulsion
If not glow that means W/O type of emulsion

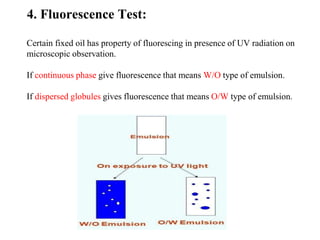

11. 4. Fluorescence Test:
Certain fixed oil has property of fluorescing in presence of UV radiation on
microscopic observation.
If continuous phase give fluorescence that means W/O type of emulsion.
If dispersed globules gives fluorescence that means O/W type of emulsion.

12. Formulation of Emulsion
1. Emulsifying agents/ Emulgent /Emulsifiers
 The emulsifying agent reduces the interfacial tension between the two
phases i.e. oily phase & aqueous phase & thus make them miscible with
each other & form a stable emulsion.
 Griffin provide a useful method to calculate the balanced mixture of
emulsifying agent called as hydrophile lipophile balance (HLB method).
 Every emulsifying agent given a number on HLB scale, which is divided
in to 18 units.
 Emulgent with high number (8-18) indicates hydrophilic properties &
produce o/w type of emulsion.
 Emulgent with Lower number (3-6) represent lipophilic property &
produce w/o type of emulsion.

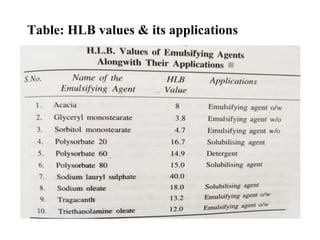

13. Table: HLB values & its applications

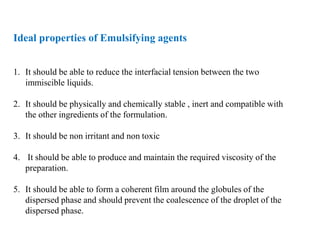

14. Ideal properties of Emulsifying agents
1. It should be able to reduce the interfacial tension between the two
immiscible liquids.
2. It should be physically and chemically stable , inert and compatible with
the other ingredients of the formulation.
3. It should be non irritant and non toxic
4. It should be able to produce and maintain the required viscosity of the
preparation.
5. It should be able to form a coherent film around the globules of the
dispersed phase and should prevent the coalescence of the droplet of the
dispersed phase.

15. Classification of Emulsifying agents

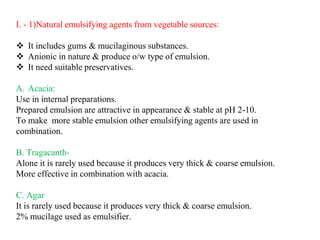

16. I. - 1)Natural emulsifying agents from vegetable sources:
 It includes gums & mucilaginous substances.
 Anionic in nature & produce o/w type of emulsion.
 It need suitable preservatives.
A. Acacia:
Use in internal preparations.
Prepared emulsion are attractive in appearance & stable at pH 2-10.
To make more stable emulsion other emulsifying agents are used in
combination.
B. Tragacanth-
Alone it is rarely used because it produces very thick & coarse emulsion.
More effective in combination with acacia.
C. Agar
It is rarely used because it produces very thick & coarse emulsion.
2% mucilage used as emulsifier.

17. D. Pectin- 1% mucilage is used
E. Starch-
 It is rarely used because it produces very thick & coarse emulsion.
 It is used to prepared the enemas
F. Irish moss-
 Used as a thickening agent
 3% solution is generally used.
I. - 2)Natural emulsifying agents from animal sources:
A. Wool fat:
 Use in external preparations.
 Produces O/W type of emulsion as it absorb 50 % of water.
B. Egg yolk:
 Use in internal preparations.
 Need proper preservation & storage in refrigerator.
 Used in 12-15% conc.
C. Gelatin-
 Used in 1% conc.
 Need proper preservation

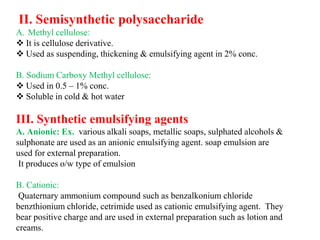

18. II. Semisynthetic polysaccharide
A. Methyl cellulose:
 It is cellulose derivative.
 Used as suspending, thickening & emulsifying agent in 2% conc.
B. Sodium Carboxy Methyl cellulose:
 Used in 0.5 – 1% conc.
 Soluble in cold & hot water
III. Synthetic emulsifying agents
A. Anionic: Ex. various alkali soaps, metallic soaps, sulphated alcohols &
sulphonate are used as an anionic emulsifying agent. soap emulsion are
used for external preparation.
It produces o/w type of emulsion
B. Cationic:
Quaternary ammonium compound such as benzalkonium chloride
benzthionium chloride, cetrimide used as cationic emulsifying agent. They
bear positive charge and are used in external preparation such as lotion and
creams.

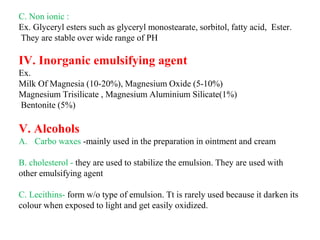

19. C. Non ionic :
Ex. Glyceryl esters such as glyceryl monostearate, sorbitol, fatty acid, Ester.
They are stable over wide range of PH
IV. Inorganic emulsifying agent
Ex.
Milk Of Magnesia (10-20%), Magnesium Oxide (5-10%)
Magnesium Trisilicate , Magnesium Aluminium Silicate(1%)
Bentonite (5%)
V. Alcohols
A. Carbo waxes -mainly used in the preparation in ointment and cream
B. cholesterol - they are used to stabilize the emulsion. They are used with
other emulsifying agent
C. Lecithins- form w/o type of emulsion. Tt is rarely used because it darken its
colour when exposed to light and get easily oxidized.

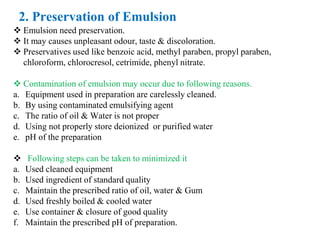

20. 2. Preservation of Emulsion
 Emulsion need preservation.
 It may causes unpleasant odour, taste & discoloration.
 Preservatives used like benzoic acid, methyl paraben, propyl paraben,
chloroform, chlorocresol, cetrimide, phenyl nitrate.
 Contamination of emulsion may occur due to following reasons.
a. Equipment used in preparation are carelessly cleaned.
b. By using contaminated emulsifying agent
c. The ratio of oil & Water is not proper
d. Using not properly store deionized or purified water
e. pH of the preparation
 Following steps can be taken to minimized it
a. Used cleaned equipment
b. Used ingredient of standard quality
c. Maintain the prescribed ratio of oil, water & Gum
d. Used freshly boiled & cooled water
e. Use container & closure of good quality
f. Maintain the prescribed pH of preparation.

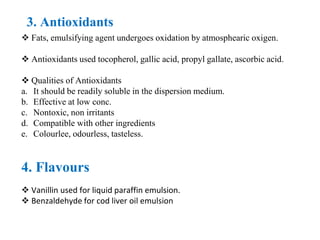

21. 3. Antioxidants
 Fats, emulsifying agent undergoes oxidation by atmosphearic oxigen.
 Antioxidants used tocopherol, gallic acid, propyl gallate, ascorbic acid.
 Qualities of Antioxidants
a. It should be readily soluble in the dispersion medium.
b. Effective at low conc.
c. Nontoxic, non irritants
d. Compatible with other ingredients
e. Colourlee, odourless, tasteless.
4. Flavours
 Vanillin used for liquid paraffin emulsion.
 Benzaldehyde for cod liver oil emulsion

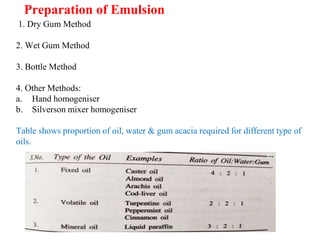

22. 1. Dry Gum Method
2. Wet Gum Method
3. Bottle Method
4. Other Methods:
a. Hand homogeniser
b. Silverson mixer homogeniser
Table shows proportion of oil, water & gum acacia required for different type of
oils.
Preparation of Emulsion

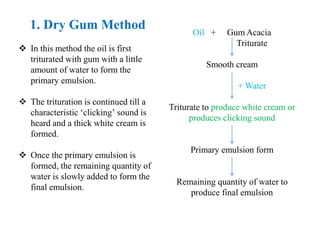

23. 1. Dry Gum Method
 In this method the oil is first
triturated with gum with a little
amount of water to form the
primary emulsion.
 The trituration is continued till a
characteristic ‘clicking’ sound is
heard and a thick white cream is
formed.
 Once the primary emulsion is
formed, the remaining quantity of
water is slowly added to form the
final emulsion.
Oil + Gum Acacia
Triturate
Smooth cream
+ Water
Triturate to produce white cream or
produces clicking sound
Primary emulsion form
Remaining quantity of water to
produce final emulsion

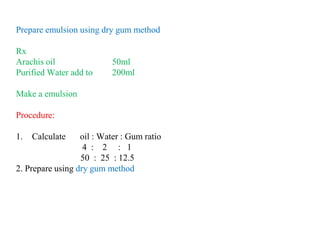

24. Prepare emulsion using dry gum method
Rx
Arachis oil 50ml
Purified Water add to 200ml
Make a emulsion
Procedure:
1. Calculate oil : Water : Gum ratio
4 : 2 : 1
50 : 25 : 12.5
2. Prepare using dry gum method

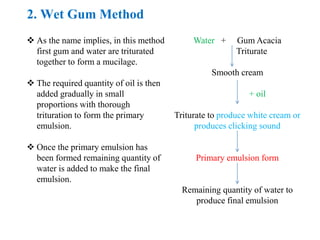

25. 2. Wet Gum Method
 As the name implies, in this method
first gum and water are triturated
together to form a mucilage.
 The required quantity of oil is then
added gradually in small
proportions with thorough
trituration to form the primary
emulsion.
 Once the primary emulsion has
been formed remaining quantity of
water is added to make the final
emulsion.
Water + Gum Acacia
Triturate
Smooth cream
+ oil
Triturate to produce white cream or
produces clicking sound
Primary emulsion form
Remaining quantity of water to
produce final emulsion

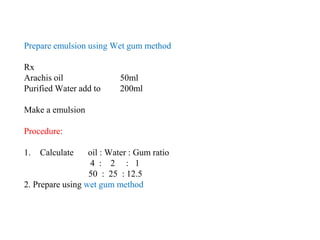

26. Prepare emulsion using Wet gum method
Rx
Arachis oil 50ml
Purified Water add to 200ml
Make a emulsion
Procedure:
1. Calculate oil : Water : Gum ratio
4 : 2 : 1
50 : 25 : 12.5
2. Prepare using wet gum method

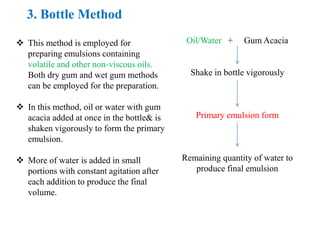

27. 3. Bottle Method
 This method is employed for
preparing emulsions containing
volatile and other non-viscous oils.
Both dry gum and wet gum methods
can be employed for the preparation.
 In this method, oil or water with gum
acacia added at once in the bottle& is
shaken vigorously to form the primary
emulsion.
 More of water is added in small
portions with constant agitation after
each addition to produce the final
volume.
Oil/Water + Gum Acacia
Shake in bottle vigorously
Primary emulsion form
Remaining quantity of water to
produce final emulsion

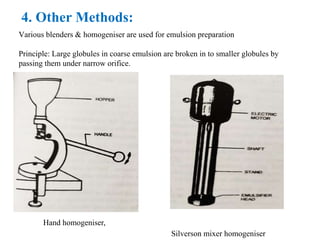

28. 4. Other Methods:
Various blenders & homogeniser are used for emulsion preparation
Principle: Large globules in coarse emulsion are broken in to smaller globules by
passing them under narrow orifice.
Hand homogeniser,
Silverson mixer homogeniser

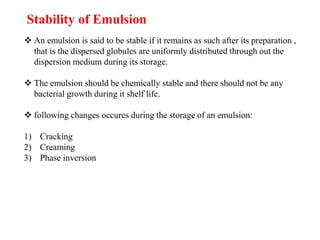

29. Stability of Emulsion
 An emulsion is said to be stable if it remains as such after its preparation ,
that is the dispersed globules are uniformly distributed through out the
dispersion medium during its storage.
 The emulsion should be chemically stable and there should not be any
bacterial growth during it shelf life.
 following changes occures during the storage of an emulsion:
1) Cracking
2) Creaming
3) Phase inversion

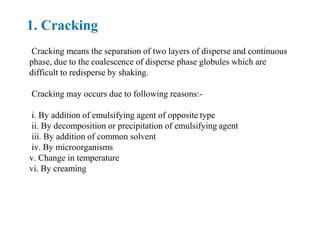

30. 1. Cracking
Cracking means the separation of two layers of disperse and continuous
phase, due to the coalescence of disperse phase globules which are
difficult to redisperse by shaking.
Cracking may occurs due to following reasons:-
i. By addition of emulsifying agent of opposite type
ii. By decomposition or precipitation of emulsifying agent
iii. By addition of common solvent
iv. By microorganisms
v. Change in temperature
vi. By creaming

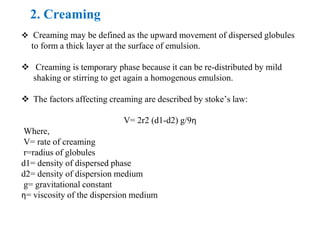

31. 2. Creaming
 Creaming may be defined as the upward movement of dispersed globules
to form a thick layer at the surface of emulsion.
 Creaming is temporary phase because it can be re-distributed by mild
shaking or stirring to get again a homogenous emulsion.
 The factors affecting creaming are described by stoke’s law:
V= 2r2 (d1-d2) g/9η
Where,
V= rate of creaming
r=radius of globules
d1= density of dispersed phase
d2= density of dispersion medium
g= gravitational constant
η= viscosity of the dispersion medium

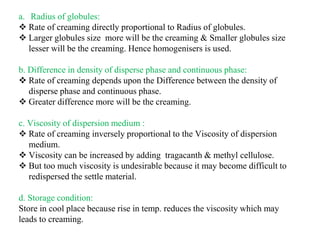

32. a. Radius of globules:
 Rate of creaming directly proportional to Radius of globules.
 Larger globules size more will be the creaming & Smaller globules size
lesser will be the creaming. Hence homogenisers is used.
b. Difference in density of disperse phase and continuous phase:
 Rate of creaming depends upon the Difference between the density of
disperse phase and continuous phase.
 Greater difference more will be the creaming.
c. Viscosity of dispersion medium :
 Rate of creaming inversely proportional to the Viscosity of dispersion
medium.
 Viscosity can be increased by adding tragacanth & methyl cellulose.
 But too much viscosity is undesirable because it may become difficult to
redispersed the settle material.
d. Storage condition:
Store in cool place because rise in temp. reduces the viscosity which may
leads to creaming.

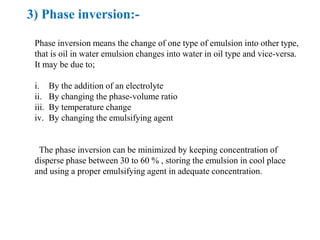

33. 3) Phase inversion:-
Phase inversion means the change of one type of emulsion into other type,
that is oil in water emulsion changes into water in oil type and vice-versa.
It may be due to;
i. By the addition of an electrolyte
ii. By changing the phase-volume ratio
iii. By temperature change
iv. By changing the emulsifying agent
The phase inversion can be minimized by keeping concentration of
disperse phase between 30 to 60 % , storing the emulsion in cool place
and using a proper emulsifying agent in adequate concentration.

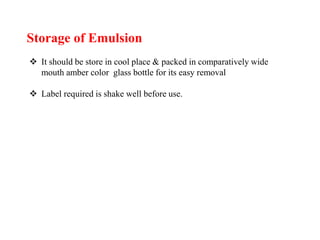

35. Storage of Emulsion
 It should be store in cool place & packed in comparatively wide
mouth amber color glass bottle for its easy removal
 Label required is shake well before use.

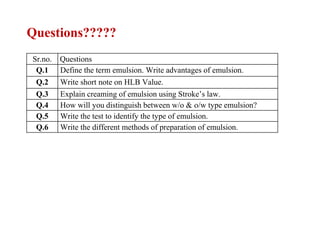

37. Questions?????
Sr.no. Questions
Q.1 Define the term emulsion. Write advantages of emulsion.
Q.2 Write short note on HLB Value.
Q.3 Explain creaming of emulsion using Stroke’s law.
Q.4 How will you distinguish between w/o & o/w type emulsion?
Q.5 Write the test to identify the type of emulsion.
Q.6 Write the different methods of preparation of emulsion.

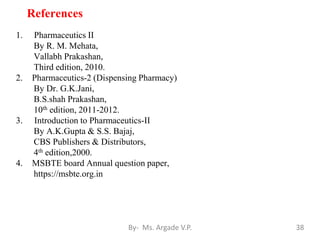

38. References
1. Pharmaceutics II
By R. M. Mehata,
Vallabh Prakashan,
Third edition, 2010.
2. Pharmaceutics-2 (Dispensing Pharmacy)
By Dr. G.K.Jani,
B.S.shah Prakashan,
10th edition, 2011-2012.
3. Introduction to Pharmaceutics-II
By A.K.Gupta & S.S. Bajaj,
CBS Publishers & Distributors,
4th edition,2000.
4. MSBTE board Annual question paper,
https://msbte.org.in
38
By- Ms. Argade V.P.

39. Thank you………..
