1. Copyright © 2017, Oracle and/or its affiliates. All rights reserved. |
Visual Analysis of Social Media Data from
Meetup.com using Graph Technologies
code.talks 2018 | October 18/19, 2018 | Hamburg
1
Karin Patenge | Principal Solution Engineer | BU Cloud & Core Technologies
@kpatenge | karin.patenge@oracle.com | www.slideshare.net/kpatenge
Oracle Deutschland B.V. & Co. KG

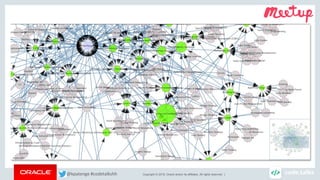

2. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |@kpatenge #codetalkshh

3. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

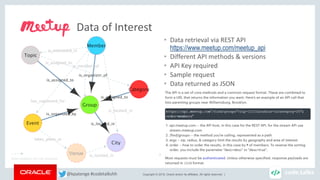

Data of Interest
• Data retrieval via REST API
https://www.meetup.com/meetup_api
• Different API methods & versions
• API Key required
• Sample request
• Data returned as JSON
@kpatenge #codetalkshh
Direct relations not (yet) analyzed
is_interested_in
is_member_of
is_assigned_to
has_registered_for
is_located_in
is_located_in
takes_place_at
Venue

4. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

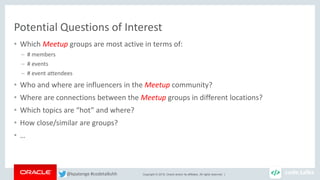

Potential Questions of Interest
• Which Meetup groups are most active in terms of:
– # members
– # events
– # event attendees
• Who and where are influencers in the Meetup community?
• Where are connections between the Meetup groups in different locations?
• Which topics are “hot” and where?
• How close/similar are groups?
• …
@kpatenge #codetalkshh

5. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

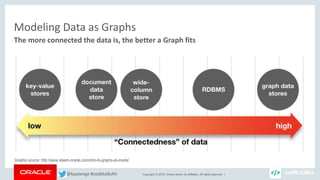

Modeling Data as Graphs
The more connected the data is, the better a Graph fits
Graphic source: http://www.ateam-oracle.com/intro-to-graphs-at-oracle/
@kpatenge #codetalkshh

6. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
• A set of nodes (aka vertices)
– each vertex has a unique identifier
– each vertex has a set of in/out edges
– each vertex has a collection of key-value
properties
• A set of edges
– each edge has a unique identifier
– each edge has a head/tail vertex
– each edge has a label denoting type of
relationship between two vertices
– each edge has a collection of key-value properties
• Blueprints Java APIs
• Implementations
– Oracle (Spatial and Graph, Big Data Spatial and
Graph), Neo4j, DataStax (Titan), InfiniteGraph,
Dex, Sail, MongoDB, …

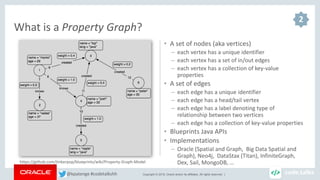

What is a Property Graph?
https://github.com/tinkerpop/blueprints/wiki/Property-Graph-Model
2
@kpatenge #codetalkshh

7. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
• PageRank, Weighted PageRank
– Find influencers, critical vertices
• Personalized PageRank
– Find important people/products/...
with respect to a given starting point
• Sparsification
– Trim down the graph to make it more
fragmented
• Clustering
– Find communities which can be the
basis of segmentation, and/or
recommendation/anomaly detection,
churn analysis
• Centrality
– Find critical people/devices/...
• Shortest path
– Discover links, find suspect‘s close
collaborators, transportation routing
• Breadth-First-Search (BFS)
– Impact analysis, link analysis
• Matric factorization
– Recommendation
• Reachability
– Connectivity test
• ...

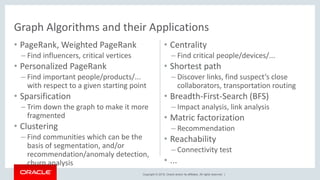

Graph Algorithms and their Applications

8. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Architecture of Property Graph Support
3
Graph Data Access Layer (DAL)
Graph Analytics
Blueprints & Lucene/SolrCloud RDF (RDF/XML, N-
Triples, N-Quads,
TriG,N3,JSON)
REST/Web
Service/Notebooks
Java,Groovy,Python,…
Java APIs
Java APIs/JDBC/SQL/PLSQL
Property Graph
formats
GraphML
GML
GraphSON
Flat FilesScalable and Persistent Storage Management
Parallel In-Memory Graph
Analytics (PGX) /
Graph Querying (PGQL)
Oracle NoSQL
Database
Oracle RDBMS Apache HBase
Apache
Spark
@kpatenge #codetalkshh

9. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

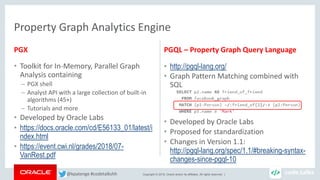

PGX
• Toolkit for In-Memory, Parallel Graph
Analysis containing
– PGX shell
– Analyst API with a large collection of built-in
algorithms (45+)
– Tutorials and more
• Developed by Oracle Labs
• https://docs.oracle.com/cd/E56133_01/latest/i
ndex.html
• https://event.cwi.nl/grades/2018/07-
VanRest.pdf
PGQL – Property Graph Query Language
• http://pgql-lang.org/
• Graph Pattern Matching combined with
SQL
• Developed by Oracle Labs
• Proposed for standardization
• Changes in Version 1.1:
http://pgql-lang.org/spec/1.1/#breaking-syntax-
changes-since-pgql-10
Property Graph Analytics Engine
@kpatenge #codetalkshh

10. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

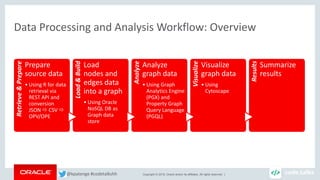

Data Processing and Analysis Workflow: Overview
Retrieve&Prepare
Prepare
source data
• Using R for data
retrieval via
REST API and
conversion
JSON  CSV 
OPV/OPE
Load&Build
Load
nodes and
edges data
into a graph
• Using Oracle
NoSQL DB as
Graph data
store
Analyze
Analyze
graph data
• Using Graph
Analytics Engine
(PGX) and
Property Graph
Query Language
(PGQL)
Visualize
Visualize
graph data
• Using
Cytoscape
Results
Summarize
results
@kpatenge #codetalkshh

11. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

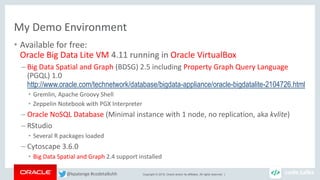

My Demo Environment
• Available for free:
Oracle Big Data Lite VM 4.11 running in Oracle VirtualBox
– Big Data Spatial and Graph (BDSG) 2.5 including Property Graph Query Language
(PGQL) 1.0
http://www.oracle.com/technetwork/database/bigdata-appliance/oracle-bigdatalite-2104726.html
• Gremlin, Apache Groovy Shell
• Zeppelin Notebook with PGX Interpreter
– Oracle NoSQL Database (Minimal instance with 1 node, no replication, aka kvlite)
– RStudio
• Several R packages loaded
– Cytoscape 3.6.0
• Big Data Spatial and Graph 2.4 support installed
@kpatenge #codetalkshh

12. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

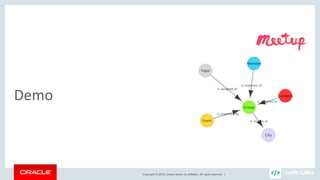

Demo

13. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

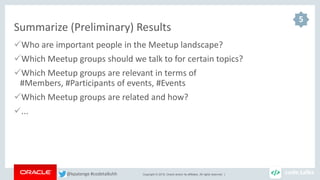

Summarize (Preliminary) Results
✓Who are important people in the Meetup landscape?
✓Which Meetup groups should we talk to for certain topics?
✓Which Meetup groups are relevant in terms of
#Members, #Participants of events, #Events
✓Which Meetup groups are related and how?
✓...
5
@kpatenge #codetalkshh

14. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

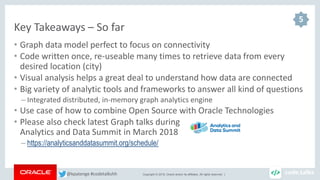

Key Takeaways – So far
• Graph data model perfect to focus on connectivity
• Code written once, re-useable many times to retrieve data from every
desired location (city)
• Visual analysis helps a great deal to understand how data are connected
• Big variety of analytic tools and frameworks to answer all kind of questions
– Integrated distributed, in-memory graph analytics engine
• Use case of how to combine Open Source with Oracle Technologies
• Please also check latest Graph talks during
Analytics and Data Summit in March 2018
– https://analyticsanddatasummit.org/schedule/
5
@kpatenge #codetalkshh

15. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Follow us @kpatenge @SpatialHannes @JeanIhm
karin.patenge@oracle.com
@kpatenge #codetalkshh
Blogs:
https://blogs.oracle.com/bigdataspatialgraph/
https://blogs.oracle.com/oraclespatial/
AskTom Office Hours for Property Graph:
https://asktom.oracle.com/pls/apex/f?p=100:551
