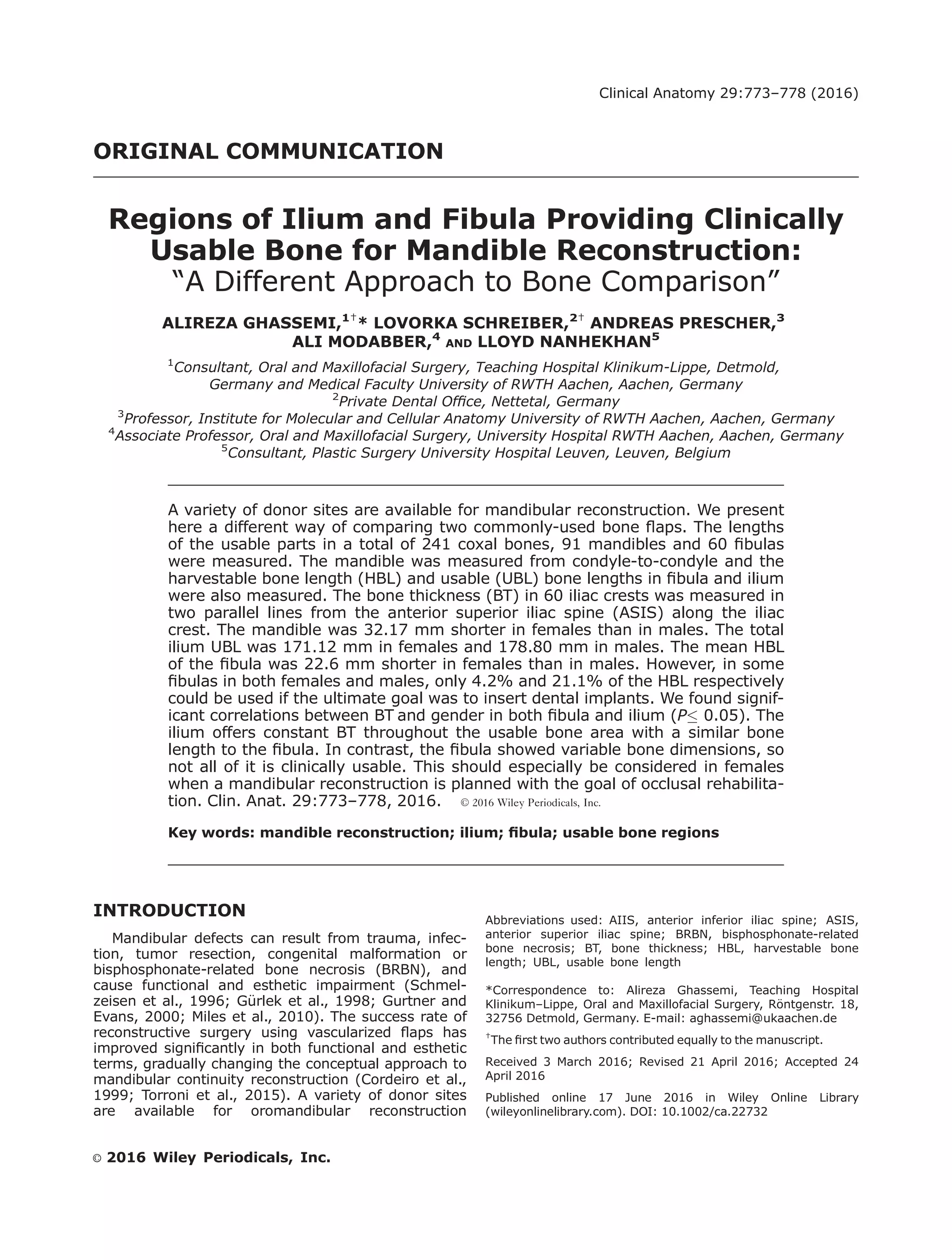

ORIGINAL COMMUNICATION
Regions of Ilium and Fibula Providing Clinically
Usable Bone for Mandible Reconstruction:
“A Different Approach to Bone Comparison”
ALIREZA GHASSEMI,1†
* LOVORKA SCHREIBER,2†
ANDREAS PRESCHER,3
ALI MODABBER,4
AND LLOYD NANHEKHAN5
1
Consultant, Oral and Maxillofacial Surgery, Teaching Hospital Klinikum-Lippe, Detmold,
Germany and Medical Faculty University of RWTH Aachen, Aachen, Germany
2
Private Dental Office, Nettetal, Germany
3
Professor, Institute for Molecular and Cellular Anatomy University of RWTH Aachen, Aachen, Germany
4
Associate Professor, Oral and Maxillofacial Surgery, University Hospital RWTH Aachen, Aachen, Germany
5
Consultant, Plastic Surgery University Hospital Leuven, Leuven, Belgium
A variety of donor sites are available for mandibular reconstruction. We present
here a different way of comparing two commonly-used bone flaps. The lengths
of the usable parts in a total of 241 coxal bones, 91 mandibles and 60 fibulas
were measured. The mandible was measured from condyle-to-condyle and the
harvestable bone length (HBL) and usable (UBL) bone lengths in fibula and ilium
were also measured. The bone thickness (BT) in 60 iliac crests was measured in
two parallel lines from the anterior superior iliac spine (ASIS) along the iliac
crest. The mandible was 32.17 mm shorter in females than in males. The total
ilium UBL was 171.12 mm in females and 178.80 mm in males. The mean HBL
of the fibula was 22.6 mm shorter in females than in males. However, in some
fibulas in both females and males, only 4.2% and 21.1% of the HBL respectively
could be used if the ultimate goal was to insert dental implants. We found signif-
icant correlations between BT and gender in both fibula and ilium (P 0.05). The
ilium offers constant BT throughout the usable bone area with a similar bone
length to the fibula. In contrast, the fibula showed variable bone dimensions, so
not all of it is clinically usable. This should especially be considered in females
when a mandibular reconstruction is planned with the goal of occlusal rehabilita-
tion. Clin. Anat. 29:773–778, 2016. VC 2016 Wiley Periodicals, Inc.
Key words: mandible reconstruction; ilium; fibula; usable bone regions
INTRODUCTION
Mandibular defects can result from trauma, infec-
tion, tumor resection, congenital malformation or
bisphosphonate-related bone necrosis (BRBN), and
cause functional and esthetic impairment (Schmel-
zeisen et al., 1996; G€urlek et al., 1998; Gurtner and
Evans, 2000; Miles et al., 2010). The success rate of
reconstructive surgery using vascularized flaps has
improved significantly in both functional and esthetic
terms, gradually changing the conceptual approach to
mandibular continuity reconstruction (Cordeiro et al.,
1999; Torroni et al., 2015). A variety of donor sites
are available for oromandibular reconstruction
Abbreviations used: AIIS, anterior inferior iliac spine; ASIS,
anterior superior iliac spine; BRBN, bisphosphonate-related
bone necrosis; BT, bone thickness; HBL, harvestable bone
length; UBL, usable bone length
*Correspondence to: Alireza Ghassemi, Teaching Hospital
Klinikum–Lippe, Oral and Maxillofacial Surgery, R€ontgenstr. 18,
32756 Detmold, Germany. E-mail: aghassemi@ukaachen.de
†
The first two authors contributed equally to the manuscript.
Received 3 March 2016; Revised 21 April 2016; Accepted 24
April 2016
Published online 17 June 2016 in Wiley Online Library
(wileyonlinelibrary.com). DOI: 10.1002/ca.22732
VVC 2016 Wiley Periodicals, Inc.
Clinical Anatomy 29:773–778 (2016)
(Moscoso et al., 1994; Disa and Cordeiro, 2000; Can-
non et al., 2012); the specific advantages and disad-
vantages of each particular flap are still debated. The
choice depends on many factors such as the length
and condition of the vascular pedicle, availability of
soft tissue, donor site morbidity, patient’s medical
condition, and last but not least the expected func-
tional and esthetic outcomes (Curtis et al., 1997; Eck-
ardt et al., 2007; Mochizuki et al., 2009; Gerressen
et al., 2013; Urken et al., 2015).
Modern reconstructive procedures should be aimed
first at restoring speech, swallowing and mastication,
and secondly should strive for a good esthetic out-
come (Schliephake et al., 1998; Rogers et al., 1998).
Functional rehabilitation without esthetic consideration
will have negative effects on the patient’s psychologi-
cal wellbeing (Villaret et al., 2008). Manchester
(1965) drew attention to the similarity and suitability
of the ilium for mandible reconstruction (Fig. 1). How-
ever, studies emphasizing flaps with a bony compo-
nent have focused on the generally available amount
of bone regardless of its real clinical usability (Frodel
et al., 1993; Beckers et al., 1998; Shimizu et al.,
2002; Khamanarong et al., 2005; S€onmez et al.,
2013; Zaker Shahrak et al., 2014). To our knowledge,
there has to date been no comparative study of clini-
cally usable bone dimensions in the two most impor-
tant flaps for mandibular reconstruction.
We measured the length and thickness of the clini-
cally usable area of the ilium and compared them with
the clinically usable bone areas of the fibula. Our
hypothesis was that the the advantage of the ilium
over the fibula in terms of clinically usable bone vol-
ume is greater than previously reported.
MATERIALS AND METHODS
The cadaver specimens for this study were obtained
after institutional approval from the Institute of Anat-
omy and Cell Biology of our University Hospital.
The lengths of useable bone parts in a total of 241
iliums (n 5 121) were measured from the anterior
inferior iliac spine (AIIS5 Ia) to the anterior superior
iliac spine (ASIS 5 Ib) and up to 3 cm before the ilio-
sacral joint (ISJ 5 Ic), as shown in Figure 1. From
these cadavers, 91 mandibles and 60 fibulas (n 5 30)
were available for measurements. The mandibles
were measured as shown in Figure 2 from condyle to
angle (Ma-Mb) and from angle to the protuberance of
the chin (Mb-Mc). The whole length (Ma-Ma) was cal-
culated as the sum of those two values. The fibula
length was measured from a point 8 cm below the
knee joint (Fa) to a point 8 cm above the ankle joint
(Fc), as shown in Figure 1. This part of the bone was
referred to as the harvestable bone length (HBL). We
then looked for the usable bone length (UBL), which
was defined as the part of the bone with
width  5 mm and height  10 mm. This criterion was
based on the minimum requirement for bone dimen-
sions for inserting adequate dental implants. We con-
sidered the anterior-posterior dimension of the fibula
as the height and the medial-lateral dimension as the
width. The bone thickness (BT) in 60 iliac crests
(n 5 30) was measured in two parallel lines from ASIS
along the iliac crest over a distance of 10 cm (Fig. 1).
The first line was 0.5 cm below and parallel to the iliac
crest. The second was 1.5 cm from the first. BT was
measured every 2 cm along each line.
Statistical Analysis
SAS Version 9.2 was used for all data analyses. Age-
related differences were assessed using Pearson’s cor-
relation coefficient. Differences and correlations con-
cerning body side and gender were analyzed by paired
and independent t-tests. Descriptive statistics recorded
were minimum, maximum and standard deviation. P
values  0.05 were considered statistically significant.
RESULTS
We measured the length and thickness of usable
bone in the fibula and the ilium, and the length of the
mandible. The specimens available were as follows:
 UBL in 241 iliums (114 females, 127 males; age
range 40-99 years) and BT in 60 iliums (35
females, 25 males; age range 52-106 years)
 Ninety-one mandibles (50 females, 41 males; age
range 40-99 years)

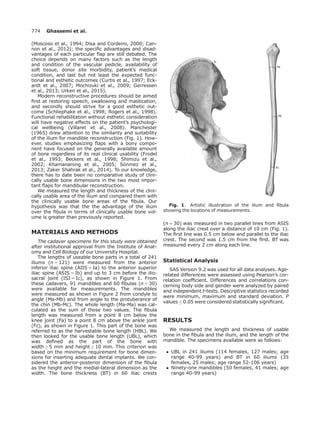

Fig. 1. Artistic illustration of the ilium and fibula
showing the locations of measurements.
774 Ghassemi et al.
BT, HBL and UBL in 60 fibulas (32 females, 28
males; age 43-100).
The total length of the mandible (Ma-Ma) in
females (mean 295.66; min-max 268–337 mm) was
32.17 mm shorter than in males (mean 327.83 mm;
min-max 289–354 mm).
Adding the bone length from Ia-Ib (females: mean
35.42 mm, SD 4.23; males: mean 35.85 mm, SD
4.25) to that from Ib-Ic (females: mean 135.70 mm,
SD 10.51; males: mean 142.95 mm, SD 12.32)
yielded a total UBL (Ia-Ic) of 171.12 mm in females
(min-max: 140–205) and 178.80 mm in males (min-
max: 150–215). The mean UBL of the iliac crest in
females was 7.68 mm shorter than males. The UBL of
the iliac crest was slightly but not significantly longer
on the right side (175.36 mm) than the left
(174.89 mm). The BTs in the iliac crest at point 2.6 in
females and points 2.4, 2.5 and 2.6 in males were
5 mm (Table 2). We found significant correlations
between the variables BT (1.1, 1.2, 2.2, 1.5, 2.5,
1.6, 2.6) and gender (P  0.05). There were no signifi-
cant correlations between the variables and age or
body side (Pearson’s correlation coefficients -0.3
and  0.3).
There was a significant difference between genders
in regard to both HBL (P 5 0.0006) and UBL
(P 5 0.002) for the fibula. The mean HBL of the fibula
(Table 1) in females was 22.6 mm shorter than in
males. In some fibulas in both females and males, only
4.2% and 21.1% respectively of the HBL could be used
satisfactorily if dental implant insertions were planned.
Although the body side differences were very minor for
both HBL (P 5 0.2693) and UBL (P 5 0.4956), we found
that some fibulas were unusable for adequate occlusal
rehabilitation (Table 1). We found no correlation
between HBL or UBL and age (Pearson’s correlation
coefficients5 20.213 and 20.155).

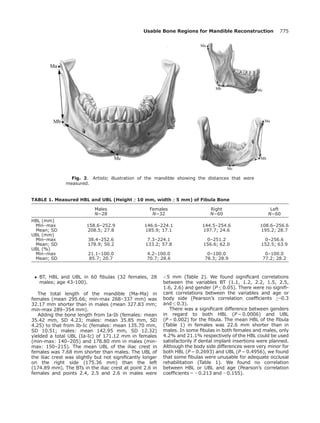

Fig. 2. Artistic illustration of the mandible showing the distances that were
measured.
TABLE 1. Measured HBL and UBL (Height  10 mm, width  5 mm) of Fibula Bone
Males Females Right Left
N528 N532 N560 N560
HBL (mm)
Min–max 158.6–252.9 146.6–224.1 144.5–254.6 108.6–256.6
Mean; SD 208.5; 27.8 185.9; 17.1 197.7; 24.6 195.2; 28.7
UBL (mm)
Min–max 38.4–252.6 7.3–224.1 0–251.2 0–256.6
Mean; SD 178.9; 50.2 133.2; 57.8 156.6; 62.0 152.5; 63.9
UBL (%)
Min–max 21.1–100.0 4.2–100.0 0–100.0 0–100.0
Mean; SD 85.7; 20.7 70.7; 28.6 78.3; 28.9 77.2; 28.2
Usable Bone Regions for Mandible Reconstruction 775

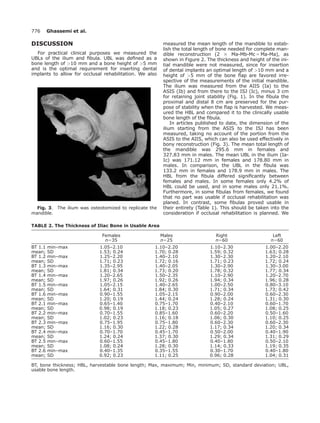

DISCUSSION
For practical clinical purposes we measured the
UBLs of the ilium and fibula. UBL was defined as a
bone length of 10 mm and a bone height of 5 mm
and is the optimal requirement for inserting dental
implants to allow for occlusal rehabilitation. We also
measured the mean length of the mandible to estab-
lish the total length of bone needed for complete man-
dible reconstruction (2 3 Ma-Mb-Mc5 Ma-Ma), as
shown in Figure 2. The thickness and height of the ini-
tial mandible were not measured, since for insertion
of dental implants an optimal length of 10 mm and a
height of 5 mm of the bone flap are favored irre-
spective of the measurements of the initial mandible.
The ilium was measured from the AIIS (Ia) to the
ASIS (Ib) and from there to the ISJ (Ic), minus 3 cm
for retaining joint stability (Fig. 1). In the fibula the
proximal and distal 8 cm are preserved for the pur-
pose of stability when the flap is harvested. We meas-
ured the HBL and compared it to the clinically usable
bone length of the fibula.
In articles published to date, the dimension of the
ilium starting from the ASIS to the ISJ has been
measured, taking no account of the portion from the
ASIS to the AIIS, which can also be used effectively in
bony reconstruction (Fig. 3). The mean total length of
the mandible was 295.6 mm in females and
327.83 mm in males. The mean UBL in the ilium (Ia-
Ic) was 171.12 mm in females and 178.80 mm in
males. In comparison, the UBL in the fibula was
133.2 mm in females and 178.9 mm in males. The
HBL from the fibula differed significantly between
females and males. In some females only 4.2% of
HBL could be used, and in some males only 21.1%.
Furthermore, in some fibulas from females, we found
that no part was usable if occlusal rehabilitation was
planed. In contrast, some fibulas proved usable in
their entirety (Table 1). This should be taken into the
consideration if occlusal rehabilitation is planned. We
TABLE 2. The Thickness of Iliac Bone in Usable Area
Females Males Right Left
n535 n525 n560 n560
BT 1.1 min–max 1.05–2.10 1.10–2.20 1.10–2.30 1.00–2.20
mean; SD 1.53; 0.24 1.70; 0.28 1.59; 0.32 1.63; 0.28
BT 1.2 min–max 1.25–2.20 1.40–2.10 1.30–2.30 1.20–2.10
mean; SD 1.71; 0.23 1.72; 0.16 1.71; 0.23 1.72; 0.24
BT 1.3 min–max 1.35–2.95 1.40–2.05 1.30–2.90 1.30–3.00
mean; SD 1.81; 0.34 1.73; 0.20 1.78; 0.32 1.77; 0.34
BT 1.4 min–max 1.20–2.65 1.50–2.35 1.10–2.90 1.20–2.70
mean; SD 1.97; 0.26 1.92; 0.26 1.94; 0.34 1.96; 0.28
BT 1.5 min–max 1.05–2.15 1.40–2.65 1.00–2.50 0.80–3.10
mean; SD 1.64; 0.31 1.84; 0.30 1.71; 0.34 1.73; 0.42
BT 1.6 min–max 0.90–1.55 1.05–2.15 0.90–2.00 0.60–2.30
mean; SD 1.20; 0.19 1.44; 0.24 1.28; 0.24 1.31; 0.30
BT 2.1 min–max 0.65–1.40 0.75–1.70 0.40–2.10 0.60–1.70
mean; SD 0.98; 0.19 1.18; 0.23 1.05; 0.27 1.08; 0.25
BT 2.2 min–max 0.70–1.55 0.85–1.60 0.60–2.20 0.50–1.60
mean; SD 1.02; 0.23 1.16; 0.18 1.06; 0.30 1.10; 0.25
BT 2.3 min–max 0.75–1.95 0.75–1.80 0.60–2.30 0.60–2.30
mean; SD 1.16; 0.30 1.22; 0.28 1.17; 0.34 1.20; 0.34
BT 2.4 min–max 0.70–1.70 0.45–1.70 0.50–2.00 0.40–1.90
mean; SD 1.24; 0.24 1.37; 0.30 1.29; 0.34 1.31; 0.29
BT 2.5 min–max 0.60–1.55 0.45–1.80 0.40–1.80 0.50–2.10
mean; SD 1.08; 0.24 1.28; 0.30 1.14; 0.33 1.19; 0.35
BT 2.6 min–max 0.40–1.35 0.35–1.55 0.30–1.70 0.40–1.80
mean; SD 0.92; 0.23 1.11; 0.25 0.96; 0.28 1.04; 0.31
BT, bone thickness; HBL, harvestable bone length; Max, maximum; Min, minimum; SD, standard deviation; UBL,
usable bone length.
Fig. 3. The ilium was osteotomized to replicate the
mandible.
776 Ghassemi et al.
performed two series of measurements of the ilium
BT. The first series were made 5 mm caudal to the
iliac crest and the second series 20 mm caudal and
parallel to the first. We selected these regions for the
following practical reasons. First, clinically, we never
need 20 mm of bone height when replacing the
mandible, and in general 15 mm should suffice for
insertion of dental implants. Second, a bone stock of
20 mm is more than sufficient to replicate the original
mandibular shape to achieve the best esthetic out-
come (Modabber et al., 2012). Third, we should also
consider the topographical anatomy of the nourishing
vessels along the inner surface of the ilium, which lie
between 5 mm and 20 mm below the crest (Urken
et al., 1995; Ting et al., 2009; Ghassemi et al.,
2013a). Many previous studies have also reported the
BT of the ilium, but they measured areas that would
never be used clinically (Beckers et al., 1998; Shimizu
et al., 2002; Khamanarong et al., 2005; S€onmez
et al., 2013). The average BT of usable bone from
ASIS to posterior was greater than 5.75 mm, making
it suitable for dental implantation. We found no signifi-
cant correlations between the iliac crest BT and age or
body side. The small differences between right and
left sides were not significant. However, we found a
significant correlation between BT (1.1, 1.2, 2.2, 1.5,
2.5, 1.6, 2.6) and gender. The first rows of measure-
ments (5 mm below the crest) in both males and
females had BT  6 mm, which is enough for insertion
of dental implants. At many points we observed a
thicker bone in males than in females, but the opposite
held at other points (Table 2). When the second level
of BT of the iliac crest in males was measured, three
points showed a BT of 6 mm or less, and in females
just one point showed a minimum BT of 6 mm. When
the left and right sides were compared, a total of eight
points on the right and left had BT  6 mm. The points
were mostly 60 mm behind the ASIS.
Our goal was to obtain systematic and objective
data defining the dimensions of clinically usable bone
for optimal reconstruction with the possibility of occlu-
sal rehabilitation using dental implants. This was
defined as the area with sufficient bone height and
width for insertion of implants, additionally offering a
similar shape to the lost mandible in order to achieve
the best esthetic outcome. We present here a realistic
approach to the bone measurements, differing from
previous reports focused on mandible reconstruction.
The ilium demonstrated unlimited vertical height and
acceptable width of clinically usable areas. It has a
natural curvature that resembles the hemi-mandible,
as mentioned by Manchester (1972) (Fig. 3). No other
donor site can supply similar bone suitable for restor-
ing the esthetic contour and offer adequate bone for
insertion of osseo-integrated implants (Riediger,
1988). Bone can be harvested by extending the resec-
tion posteriorly up to the ISJ if needed. This bone can
be contoured to reconstruct the anterior mandibular
arch with few osteotomies through the outer cortex,
which can be planned using preoperative navigated
planning (Modabber et al., 2012). Although limited in
dimensions, implant placement in the fibula and the
chance of osseo-integration are facilitated and the
thick bicortical bone material offers a good basis for
primary implant stability (Wu et al., 2008). One major
disadvantage of the fibula is its irregular shape (Fig.
4). Furthermore, the inadequate height of the recon-
structed segments can create a large distance to the
occlusal plane, which makes prosthetic rehabilitation
difficult. To overcome this problem, the fibular bone
can be used in a “double barrel” fashion, distracted or
placed in the upper part of the neighboring mandible
(B€ahr et al., 1998; Siciliano et al., 1998; Wang et al.,
2012; Shen et al., 2013; Chang et al., 2014). The
large amount of bone provided by the vascularized
iliac crest makes it favorable for reconstruction in both
edentulous and dentate patients. Furthermore, owing
to its anatomical shape and sufficient bone height, it
provides a replicate of the mandible with excellent
esthetic results and excellent functional rehabilitation.
There is no need for bone distraction, double barrel
procedure, or other additional procedures (Schwarz
et al., 2009; Ghassemi et al., 2009; Ghassemi et al.,
2013b). Nevertheless, the free vascularized fibula flap
is a good competitor, superior in vascular pedicle
length and offering mostly sufficient bone width for
insertion of dental implants.
Overall, the ilium appears more reliable than the
fibula in terms of clinically usable bone dimensions.
The ilium offers constant BT throughout the usable
bone area with a similar bone length to the fibula. In
contrast, the fibula showed variable bone dimensions
and part of it is not clinically usable. This should espe-
cially be considered in females preoperatively when
mandibular reconstruction is planned with the inten-
tion of implant insertion.
ACKNOWLEDGMENT
Many thanks to those who donated their bodies to
science.
REFERENCES
B€ahr W, Stoll P, W€achter R. 1998. Use of the “double barrel” free
vascularized fibula in mandibular reconstruction. J Oral Maxillofac
Surg 56:38–44.
Beckers A, Schenk C, Klesper B, Koebke J. 1998. Comparative den-
sitometric study of iliac crest and scapula bone in relation to
Fig. 4. The fibula was osteotomized to replicate the
mandible.
Usable Bone Regions for Mandible Reconstruction 777
osseous integrated dental implants in microvascular mandibular
reconstruction. J Craniomaxillofac Surg 26:75–83.
Cannon TY, Strub GM, Yawn RJ, Day TA. 2012. Oromandibular recon-
struction. Clin Anat 25:108–119.
Chang YM, Wallace CG, Hsu YM, Chen YF, Tsai CY, Wei FC. 2014.
Outcome of osseointegrated dental implants in double-barrel and
vertically distracted fibula osteoseptocutaneous free flaps for
segmental mandibular defect reconstruction. Plast Reconstr Surg
134:1033–1043.
Cordeiro PG, Disa JJ, Hidalgo DA, Hu QY. 1999. Reconstruction of
the mandible with osseous free flaps: A 10-year experience with
150 consecutive patients. Plast Reconstr Surg 104:1314–1320.
Curtis DA, Plesh O, Miller AJ, Curtis TA, Sharma A, Schweitzer R,
Hilsinger RL, Schour L, Singer M. 1997. A comparison of mastica-
tory function in patients with or without reconstruction of the
mandible. Head Neck 19:287–296.
Disa JJ, Cordeiro PG. 2000. Mandible reconstruction with microvas-
cular surgery. Semin Surg Oncol 19:226–234.
Eckardt A, Meyer A, Laas U, Hausamen JE. 2007. Reconstruction of
defects in the head and neck with free flaps: 20 years experi-
ence. Br J Oral Maxillofac Surg 45:11–15.
Frodel JL, Funk GF, Capper DT, Fridrich KL, Blumer JR, Haller JR,
Hoffman HT. 1993. Osseointegrated implants: A comparative
study of bone thickness in four vascularized bone flaps. Plast
Reconstr Surg 92:449–455.
Gerressen M, Pastaschek C, Riediger D, Hilgers RD, H€olzle F, Noroozi
N, Ghassemi A. 2013. Free Flap Reconstructions of Head and
Neck Region in 406 Cases: A 13-Year Experience. J Oral Maxillo-
fac Surg 71:628–635.
Ghassemi A, Ghassemi M, Riediger D, Hilgers RD, Gerressen M.
2009. Comparison of donor-site Engraftment after harvesting
vascularized and nonvascularized iliac bone grafts. J Oral Maxillo-
fac Surg 67:1589–1594.
Ghassemi A, Furkert R, Prescher A, Riediger D, Knobe M, Odey D.,
Gerressen M, 2013a. Variants of the supplying vessels of the
vascularized iliac bone graft and their relationship to important
surgical landmarks. Clin Anat 26:509–521.
Ghassemi A, Ghassemi M, Modabber A, Knobe M, Fritz U, Riediger
D, Hilgers RD, Gerressen M. 2013b. Functional long-term results
after the harvest of vascularised iliac bone grafts bicortically with
the anterior superior iliac spine included. Br J Oral Maxillofac
Surg 51:47–50.
G€urlek A, Miller MJ, Jacob RF, Lively JA, Schusterman MA. 1998.
Functional results of dental restoration with osseointegrated
implants after mandible reconstruction. Plast Reconstr Surg 101:
650–655.
Gurtner GC, Evans GR. 2000. Advances in head and neck recon-
struction. Plast Reconstr Surg 106:672–682.
Khamanarong K, Kosuwon W, Sirichativapee W, Saejung S,
Thepsuthammarat K. 2005. Thicknesses of the Iliac Crest Appro-
priate for Anterior Cervical Interbody Fusion Grafts. J Med Assoc
Thai 88:1892–1895.
Manchester WM. 1965. Immediate reconstruction of the mandible
and temporomandibular joint. Br J Plast Surg 18:291–303.
Manchester WM. 1972. Some technical improvements in the recon-
struction of the mandible and temporomandibular joint. Plast
Reconstr Surg 50:249–256.
Miles BA, Goldstein DP, Gilbert RW, Gullane PJ. 2010. Mandible
reconstruction. Otolaryngol Head Neck Surg 18:317–322.
Mochizuki Y, Matsushima E, Omura K. 2009. Perioperative assess-
ment of psychological state and quality of life of head and neck
cancer patients undergoing surgery. Int J Oral Maxillofac Surg
38:151–159.
Modabber A, Gerressen M, Stiller M, Noroozi N, F€uglein A, H€olzle F,
Riediger D, Ghassemi A. 2012. Computer-assisted mandibular
reconstruction with vascularized iliac crest bone graft. Aesthetic
Plast Surg 36:653–659.
Moscoso JF, Keller J, Genden E, Weinberg H, Biller HF, Buchbinder D,
Urken ML. 1994. Vascularized bone flaps in oromandibular
reconstruction. A comparative anatomic study of bone stock
from various donor sites to assess suitability for enosseous den-
tal implants. Arch Otolaryngol Head Neck Surg 120:36–43.
Riediger D. 1988. Restoration of masticatory function by microsurgi-
cally revascularized iliac crest bone grafts using enosseous
implants. Plast Reconst Surg 81:861–877.
Rogers SN, Humphris G, Lowe D, Brown JS, Vaughan ED. 1998. The
impact of surgery for oral cancer on quality of life as measured
by the Medical Outcomes Short Form 36. Oral Oncol 34:171–
179.
Schliephake H, Schmelzeisen R, Sch€onweiler R, Schneller T,
Altenbernd C. 1998. Speech, deglutition and life quality after
intraoral tumor resection. A prospective study. Int J Oral Maxillo-
fac Surg 27:99–105.
Schmelzeisen R, Neukam FW, Shirota T, Specht B, Wichmann M.
1996. Postoperative function after implant insertion in vascular-
ized bone grafts in maxilla and mandible. Plast Reconstr Surg
97:719–725.
Schwarz DA, Jamali AM, Kakwan MS, Fregene A, Arman KG,
Buchman SR. 2009. Biomechanical assessment of regenerate
integrity in irradiated mandibular distraction osteogenesis. Plast
Reconstr Surg 123:114–122.
Shen Y, Guo X, Sun J, Li J, Shi J, Huang W, Ow A. 2013. Double-bar-
rel vascularised fibula graft in mandibular reconstruction: A 10-
year experience with an algorithm. J Plast Reconstr Aesthet Surg
66:364–371.
Shimizu T, Ohno K, Matsuura M, Segawa K, Michi K. 2002. An ana-
tomical study of vascularized iliac bone grafts for dental implan-
tation. J Craniomaxillofac Surg 30:184–188.
Siciliano S, Lengele B, Reychler H. 1998. Distraction osteogenesis of
a fibula free flap used for mandibular reconstruction: Preliminary
report. J Craniomaxillofac Surg 26:386–390.
S€onmez TT, Prescher A, Salama A, Kanatas A, Zor F, Mitchell D,
Zaker Shahrak A, Karaaltin MV, Knobe M, K€ulahci Y, Altuntas SH,
Ghassemi A, H€olzle F. 2013. Comparative clinicoanatomical study
of ilium and fibula as two commonly used bony donor sides for
maxillofacial reconstruction. Br J Oral Maxillofac Surg 51:736–
741.
Ting JW, Rozen WM, Grinsell D, Stella DL, Ashton MW. 2009. The in
vivo anatomy of the deep circumflex iliac artery perforators:
Defining the role for the DCIA perforator flap. Microsurgery 29:
326–329.
Torroni A, Marianetti TM, Romandini M, Gasparini G, Cervelli D, Pelo
S. 2015. Mandibular reconstruction with different techniques.
J Craniofac Surg 26:885–890.
Urken ML, Cheney ML, Sullivan MJ, Biller HF. 1995. Atlas of Regional
and Free Flaps for Head and Neck Reconstruction. New York:
Raven Press. p 1–379.
Urken ML, Buchbinder D, Weinberg H, Vickery C, Shreiner A, Parker
R, Schaefer J, Som P, Shapiro A, Lawson W, Biller HF. 2015.
Functional evaluation following microvascular oromandibular
reconstruction of the oral cancer patient: A comparative study of
reconstructed and nonreconstructed patients. Laryngoscope
125:1512.
Villaret AB, Cappiello J, Piazza C, Pedruzzi B, Nicolai P. 2008. Quality
of life in patients treated for cancer of the oral cavity requiring
reconstruction: A prospective study. Acta Otorhinolaryngol Ital
28:120–125.
Wang JJ, Chen J, Ping FY, Yan FG. 2012. Double-step transport dis-
traction osteogenesis in the reconstruction of unilateral large
mandibular defects after tumour resection using internal distrac-
tion devices. Int J Oral Maxillofac Surg 41:587–595.
Wu YQ, Huang W, Zhang ZY, Zhang ZY, Zhang CP, Sun J. 2008. Clini-
cal outcome of dental implants placed in fibula-free flaps for oro-
facial reconstruction. Chin Med J 121:1861–1865.
Zaker Shahrak A, Zor F, Kanatas A, Acikel C, Sapountzis S, Nicoli F,
Altuntas SH, Knobe M, Chen HC, Prescher A, H€olzle F, S€onmez
TT. 2014. Morphological and morphometric evaluation of the
ilium, fibula and scapula bones for oral and maxillofacial recon-
struction. Microsurgery 34:638–645.
778 Ghassemi et al.

More Related Content

What's hot

Rotator cuff-repair
Rotator cuff-repairRotator cuff-repair
Rotator cuff-repair
SoulderPain

10.1016@j.injury.2017.10.017
10.1016@j.injury.2017.10.01710.1016@j.injury.2017.10.017
10.1016@j.injury.2017.10.017
Carlos Aguilar C

Hammer Toe Correction Comparative Study
Hammer Toe Correction Comparative StudyHammer Toe Correction Comparative Study
Hammer Toe Correction Comparative Study
Wenjay Sung

Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report
Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case ReportRevision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report
Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report
skisnfeet

Holliday, A
Holliday, AHolliday, A
Holliday, A
Alex Holliday

Alveolar bone response
Alveolar bone responseAlveolar bone response
Alveolar bone response
Dr.Sai kiran Kovoor

PracticumPoster_AR - MH
PracticumPoster_AR - MHPracticumPoster_AR - MH
PracticumPoster_AR - MH
Anthony Ridding

Corticotomy
CorticotomyCorticotomy
Corticotomy
Dr.Sai kiran Kovoor

3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers
3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers
3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers
Crimson-Arthritis

Post-traumatic Osteoarthritis 2019
Post-traumatic Osteoarthritis 2019Post-traumatic Osteoarthritis 2019
Post-traumatic Osteoarthritis 2019
Guojie Lian

Anatomic Plantar Plate Repair
Anatomic Plantar Plate RepairAnatomic Plantar Plate Repair
Anatomic Plantar Plate Repair
Wenjay Sung

Fuzzy knee proprioception would be of benefit
Fuzzy knee proprioception would be of benefitFuzzy knee proprioception would be of benefit
Fuzzy knee proprioception would be of benefit
KHALIFA ELMAJRI

Rotator cuff-repair
Rotator cuff-repairRotator cuff-repair
Rotator cuff-repair
SoulderPain

Indications of orthognathic surgery and surgical procedures
Indications of orthognathic surgery and surgical proceduresIndications of orthognathic surgery and surgical procedures
Indications of orthognathic surgery and surgical procedures
MaherFouda1

BMES 2015_Poster_Revised
BMES 2015_Poster_RevisedBMES 2015_Poster_Revised
BMES 2015_Poster_Revised
Anil Oberoi

UTA KINE FALL 2011.Samraj
UTA KINE FALL 2011.SamrajUTA KINE FALL 2011.Samraj
UTA KINE FALL 2011.Samraj
Enoch Samraj, PT DPT CSCS

The search for biological adjuncts to enhance flexor tendon healing
The search for biological adjuncts to enhance flexor tendon healingThe search for biological adjuncts to enhance flexor tendon healing
The search for biological adjuncts to enhance flexor tendon healing
Alphonsus Chong

Non linear 3 d finite element analysis of the femur bone
Non linear 3 d finite element analysis of the femur boneNon linear 3 d finite element analysis of the femur bone
Non linear 3 d finite element analysis of the femur bone
eSAT Publishing House

H1302034856
H1302034856H1302034856
H1302034856
IOSR Journals

scientific research project on experimental animals
scientific research project on experimental animalsscientific research project on experimental animals
scientific research project on experimental animals
KHALIFA ELMAJRI


What's hot (20)

Rotator cuff-repair
Rotator cuff-repairRotator cuff-repair
Rotator cuff-repair

10.1016@j.injury.2017.10.017
10.1016@j.injury.2017.10.01710.1016@j.injury.2017.10.017
10.1016@j.injury.2017.10.017

Hammer Toe Correction Comparative Study
Hammer Toe Correction Comparative StudyHammer Toe Correction Comparative Study
Hammer Toe Correction Comparative Study

Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report
Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case ReportRevision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report
Revision Total Ankle Arthroplasty to Tibial Stemmed Implant: A Case Report

Holliday, A
Holliday, AHolliday, A
Holliday, A

Alveolar bone response
Alveolar bone responseAlveolar bone response
Alveolar bone response

PracticumPoster_AR - MH
PracticumPoster_AR - MHPracticumPoster_AR - MH
PracticumPoster_AR - MH

Corticotomy
CorticotomyCorticotomy
Corticotomy

3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers
3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers
3D Printing and the Future of Trabecular Bone Grafts-Crimson Publishers

Post-traumatic Osteoarthritis 2019
Post-traumatic Osteoarthritis 2019Post-traumatic Osteoarthritis 2019
Post-traumatic Osteoarthritis 2019

Anatomic Plantar Plate Repair
Anatomic Plantar Plate RepairAnatomic Plantar Plate Repair
Anatomic Plantar Plate Repair

Fuzzy knee proprioception would be of benefit
Fuzzy knee proprioception would be of benefitFuzzy knee proprioception would be of benefit
Fuzzy knee proprioception would be of benefit

Rotator cuff-repair
Rotator cuff-repairRotator cuff-repair
Rotator cuff-repair

Indications of orthognathic surgery and surgical procedures
Indications of orthognathic surgery and surgical proceduresIndications of orthognathic surgery and surgical procedures
Indications of orthognathic surgery and surgical procedures

BMES 2015_Poster_Revised
BMES 2015_Poster_RevisedBMES 2015_Poster_Revised
BMES 2015_Poster_Revised

UTA KINE FALL 2011.Samraj
UTA KINE FALL 2011.SamrajUTA KINE FALL 2011.Samraj
UTA KINE FALL 2011.Samraj

The search for biological adjuncts to enhance flexor tendon healing
The search for biological adjuncts to enhance flexor tendon healingThe search for biological adjuncts to enhance flexor tendon healing
The search for biological adjuncts to enhance flexor tendon healing

Non linear 3 d finite element analysis of the femur bone
Non linear 3 d finite element analysis of the femur boneNon linear 3 d finite element analysis of the femur bone
Non linear 3 d finite element analysis of the femur bone

H1302034856
H1302034856H1302034856
H1302034856

scientific research project on experimental animals
scientific research project on experimental animalsscientific research project on experimental animals
scientific research project on experimental animals


Similar to 2016 ghassemi-clinically-usable-fib-ilium

Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...
Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...
Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...
Prof. Hesham N. Mustafa

10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf
BRNSS Publication Hub

10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf
BRNSS Publication Hub

skjain
skjainskjain
skjain
sanjeev jain

SKJAIN
SKJAINSKJAIN
SKJAIN
sanjeev jain

Sex estimation using the second cervical vertebra
Sex estimation using the second cervical vertebraSex estimation using the second cervical vertebra
Sex estimation using the second cervical vertebra
Albino Gomes

Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...
DrKapilAmgain

Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric MethodStudy of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method
Mukesh Dhital

Jc on
Jc onJc on
Paper icchou
Paper icchouPaper icchou
Paper icchou
ssuserf35941

Swine Spine Presentation Patricia 10_28_16
Swine Spine Presentation Patricia 10_28_16Swine Spine Presentation Patricia 10_28_16
Swine Spine Presentation Patricia 10_28_16
Patricia Stan

A comparative study on the clinical and functional outcome of limb salvage su...
A comparative study on the clinical and functional outcome of limb salvage su...A comparative study on the clinical and functional outcome of limb salvage su...
A comparative study on the clinical and functional outcome of limb salvage su...
NAAR Journal

BaumannAP_EtAl_2012
BaumannAP_EtAl_2012BaumannAP_EtAl_2012
BaumannAP_EtAl_2012
Andy Baumann

DARTHROPLASTY – Practical Training – Wet Labs - Part 2
DARTHROPLASTY – Practical Training – Wet Labs - Part 2DARTHROPLASTY – Practical Training – Wet Labs - Part 2
DARTHROPLASTY – Practical Training – Wet Labs - Part 2
Rafael Lourenço

Variation in the number of sacral pieces
Variation in the number of sacral piecesVariation in the number of sacral pieces
Variation in the number of sacral pieces
iosrjce

Anterolateral ligament in pediatric knees a radiographic study
Anterolateral ligament in pediatric knees a radiographic studyAnterolateral ligament in pediatric knees a radiographic study
Anterolateral ligament in pediatric knees a radiographic study
Prof. Hesham N. Mustafa

Iatriki etireia teliko
Iatriki etireia telikoIatriki etireia teliko
Iatriki etireia teliko
STAVROS ALEVROGIANNIS

Relationship between dental arch width and vertical facial morphology in unt...
 Relationship between dental arch width and vertical facial morphology in unt... Relationship between dental arch width and vertical facial morphology in unt...
Relationship between dental arch width and vertical facial morphology in unt...
EdwardHAngle

basic concept of functional appliances
basic concept of functional appliancesbasic concept of functional appliances
basic concept of functional appliances
Syedshihaab

A Study of Interparietal Bones in Adult Human Skulls
A Study of Interparietal Bones in Adult Human SkullsA Study of Interparietal Bones in Adult Human Skulls
A Study of Interparietal Bones in Adult Human Skulls
iosrjce


Similar to 2016 ghassemi-clinically-usable-fib-ilium (20)

Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...
Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...
Morphohistometric study of the ligamentum flavum in cervical,thoracic and lum...

10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf

10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf10_IJPBA_23_18_RA.pdf
10_IJPBA_23_18_RA.pdf

skjain
skjainskjain
skjain

SKJAIN
SKJAINSKJAIN
SKJAIN

Sex estimation using the second cervical vertebra
Sex estimation using the second cervical vertebraSex estimation using the second cervical vertebra
Sex estimation using the second cervical vertebra

Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Met...

Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric MethodStudy of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method
Study of Greater Sciatic Notch in Sex Determination of Hip Bone by Metric Method

Jc on
Jc onJc on
Jc on

Paper icchou
Paper icchouPaper icchou
Paper icchou

Swine Spine Presentation Patricia 10_28_16
Swine Spine Presentation Patricia 10_28_16Swine Spine Presentation Patricia 10_28_16
Swine Spine Presentation Patricia 10_28_16

A comparative study on the clinical and functional outcome of limb salvage su...
A comparative study on the clinical and functional outcome of limb salvage su...A comparative study on the clinical and functional outcome of limb salvage su...
A comparative study on the clinical and functional outcome of limb salvage su...

BaumannAP_EtAl_2012
BaumannAP_EtAl_2012BaumannAP_EtAl_2012
BaumannAP_EtAl_2012

DARTHROPLASTY – Practical Training – Wet Labs - Part 2
DARTHROPLASTY – Practical Training – Wet Labs - Part 2DARTHROPLASTY – Practical Training – Wet Labs - Part 2
DARTHROPLASTY – Practical Training – Wet Labs - Part 2

Variation in the number of sacral pieces
Variation in the number of sacral piecesVariation in the number of sacral pieces
Variation in the number of sacral pieces

Anterolateral ligament in pediatric knees a radiographic study
Anterolateral ligament in pediatric knees a radiographic studyAnterolateral ligament in pediatric knees a radiographic study
Anterolateral ligament in pediatric knees a radiographic study

Iatriki etireia teliko
Iatriki etireia telikoIatriki etireia teliko
Iatriki etireia teliko

Relationship between dental arch width and vertical facial morphology in unt...
 Relationship between dental arch width and vertical facial morphology in unt... Relationship between dental arch width and vertical facial morphology in unt...
Relationship between dental arch width and vertical facial morphology in unt...

basic concept of functional appliances
basic concept of functional appliancesbasic concept of functional appliances
basic concept of functional appliances

A Study of Interparietal Bones in Adult Human Skulls
A Study of Interparietal Bones in Adult Human SkullsA Study of Interparietal Bones in Adult Human Skulls
A Study of Interparietal Bones in Adult Human Skulls


More from Klinikum Lippe GmbH

Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansen
Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansenKongressplakat pathologie lunge recurrent pleural effusions_prof. hansen
Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansen
Klinikum Lippe GmbH

Gunnemann harnleiterstenose v2
Gunnemann harnleiterstenose v2Gunnemann harnleiterstenose v2
Gunnemann harnleiterstenose v2
Klinikum Lippe GmbH

Kongressplakat durasinusmalformation kinderklinik zurebiani
Kongressplakat durasinusmalformation kinderklinik zurebianiKongressplakat durasinusmalformation kinderklinik zurebiani
Kongressplakat durasinusmalformation kinderklinik zurebiani
Klinikum Lippe GmbH

Kongressplakat innere amputation dermatologie quellmalz_din a0
Kongressplakat innere amputation dermatologie quellmalz_din a0Kongressplakat innere amputation dermatologie quellmalz_din a0
Kongressplakat innere amputation dermatologie quellmalz_din a0
Klinikum Lippe GmbH

Kongressplakat pathologie dworak grading system prof. hansen_din a0
Kongressplakat pathologie dworak grading system prof. hansen_din a0Kongressplakat pathologie dworak grading system prof. hansen_din a0
Kongressplakat pathologie dworak grading system prof. hansen_din a0
Klinikum Lippe GmbH

2018 kleinfeld-speech-paper-1
2018 kleinfeld-speech-paper-12018 kleinfeld-speech-paper-1
2018 kleinfeld-speech-paper-1
Klinikum Lippe GmbH

2018 ghassemi-parotis-bjoms
2018 ghassemi-parotis-bjoms2018 ghassemi-parotis-bjoms
2018 ghassemi-parotis-bjoms
Klinikum Lippe GmbH

2018 ghaneh-compsarsion
2018 ghaneh-compsarsion2018 ghaneh-compsarsion
2018 ghaneh-compsarsion
Klinikum Lippe GmbH

2018 behrens-patient-spezcific
2018 behrens-patient-spezcific2018 behrens-patient-spezcific
2018 behrens-patient-spezcific
Klinikum Lippe GmbH

2017 modabber-medial-approach-dcia-cad-cam
2017 modabber-medial-approach-dcia-cad-cam2017 modabber-medial-approach-dcia-cad-cam
2017 modabber-medial-approach-dcia-cad-cam
Klinikum Lippe GmbH

2017 modabber-ear-aps
2017 modabber-ear-aps2017 modabber-ear-aps
2017 modabber-ear-aps
Klinikum Lippe GmbH

2017 jamilian-family history-cleft
2017 jamilian-family history-cleft2017 jamilian-family history-cleft
2017 jamilian-family history-cleft
Klinikum Lippe GmbH

2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...
2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...
2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...
Klinikum Lippe GmbH

2016 movahedian- acellular-dermal-graft
2016 movahedian- acellular-dermal-graft2016 movahedian- acellular-dermal-graft
2016 movahedian- acellular-dermal-graft
Klinikum Lippe GmbH

2016 ghassemi-nasal reconstr-threelayer
2016 ghassemi-nasal reconstr-threelayer  2016 ghassemi-nasal reconstr-threelayer
2016 ghassemi-nasal reconstr-threelayer
Klinikum Lippe GmbH

2016 heinz-two-step reconstruction of non-marginal auricular defects
2016 heinz-two-step reconstruction of non-marginal auricular defects2016 heinz-two-step reconstruction of non-marginal auricular defects
2016 heinz-two-step reconstruction of non-marginal auricular defects
Klinikum Lippe GmbH

2016 ghassemi-maxillary advancement versus man
2016 ghassemi-maxillary advancement versus man2016 ghassemi-maxillary advancement versus man
2016 ghassemi-maxillary advancement versus man
Klinikum Lippe GmbH

2016 bartella-face-lift-gesichtsrekonstruktion-2
2016 bartella-face-lift-gesichtsrekonstruktion-22016 bartella-face-lift-gesichtsrekonstruktion-2
2016 bartella-face-lift-gesichtsrekonstruktion-2
Klinikum Lippe GmbH

2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...
2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...
2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...
Klinikum Lippe GmbH

2015 ghassemi-nose-reconst-esth-procedure
2015 ghassemi-nose-reconst-esth-procedure2015 ghassemi-nose-reconst-esth-procedure
2015 ghassemi-nose-reconst-esth-procedure
Klinikum Lippe GmbH


More from Klinikum Lippe GmbH (20)

Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansen
Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansenKongressplakat pathologie lunge recurrent pleural effusions_prof. hansen
Kongressplakat pathologie lunge recurrent pleural effusions_prof. hansen

Gunnemann harnleiterstenose v2
Gunnemann harnleiterstenose v2Gunnemann harnleiterstenose v2
Gunnemann harnleiterstenose v2

Kongressplakat durasinusmalformation kinderklinik zurebiani
Kongressplakat durasinusmalformation kinderklinik zurebianiKongressplakat durasinusmalformation kinderklinik zurebiani
Kongressplakat durasinusmalformation kinderklinik zurebiani

Kongressplakat innere amputation dermatologie quellmalz_din a0
Kongressplakat innere amputation dermatologie quellmalz_din a0Kongressplakat innere amputation dermatologie quellmalz_din a0
Kongressplakat innere amputation dermatologie quellmalz_din a0

Kongressplakat pathologie dworak grading system prof. hansen_din a0
Kongressplakat pathologie dworak grading system prof. hansen_din a0Kongressplakat pathologie dworak grading system prof. hansen_din a0
Kongressplakat pathologie dworak grading system prof. hansen_din a0

2018 kleinfeld-speech-paper-1
2018 kleinfeld-speech-paper-12018 kleinfeld-speech-paper-1
2018 kleinfeld-speech-paper-1

2018 ghassemi-parotis-bjoms
2018 ghassemi-parotis-bjoms2018 ghassemi-parotis-bjoms
2018 ghassemi-parotis-bjoms

2018 ghaneh-compsarsion
2018 ghaneh-compsarsion2018 ghaneh-compsarsion
2018 ghaneh-compsarsion

2018 behrens-patient-spezcific
2018 behrens-patient-spezcific2018 behrens-patient-spezcific
2018 behrens-patient-spezcific

2017 modabber-medial-approach-dcia-cad-cam
2017 modabber-medial-approach-dcia-cad-cam2017 modabber-medial-approach-dcia-cad-cam
2017 modabber-medial-approach-dcia-cad-cam

2017 modabber-ear-aps
2017 modabber-ear-aps2017 modabber-ear-aps
2017 modabber-ear-aps

2017 jamilian-family history-cleft
2017 jamilian-family history-cleft2017 jamilian-family history-cleft
2017 jamilian-family history-cleft

2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...
2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...
2016 wahl-immunotherapy with imiquimod and interferon alfa for metastasized m...

2016 movahedian- acellular-dermal-graft
2016 movahedian- acellular-dermal-graft2016 movahedian- acellular-dermal-graft
2016 movahedian- acellular-dermal-graft

2016 ghassemi-nasal reconstr-threelayer
2016 ghassemi-nasal reconstr-threelayer  2016 ghassemi-nasal reconstr-threelayer
2016 ghassemi-nasal reconstr-threelayer

2016 heinz-two-step reconstruction of non-marginal auricular defects
2016 heinz-two-step reconstruction of non-marginal auricular defects2016 heinz-two-step reconstruction of non-marginal auricular defects
2016 heinz-two-step reconstruction of non-marginal auricular defects

2016 ghassemi-maxillary advancement versus man
2016 ghassemi-maxillary advancement versus man2016 ghassemi-maxillary advancement versus man
2016 ghassemi-maxillary advancement versus man

2016 bartella-face-lift-gesichtsrekonstruktion-2
2016 bartella-face-lift-gesichtsrekonstruktion-22016 bartella-face-lift-gesichtsrekonstruktion-2
2016 bartella-face-lift-gesichtsrekonstruktion-2

2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...
2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...
2015 heinz-repairing a non-marginal full-thickness auricular defect using a r...

2015 ghassemi-nose-reconst-esth-procedure
2015 ghassemi-nose-reconst-esth-procedure2015 ghassemi-nose-reconst-esth-procedure
2015 ghassemi-nose-reconst-esth-procedure


Recently uploaded

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
Dr. Ahana Haroon

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child
Bhavyakelawadiya

pharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptxpharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptx
AdugnaWari

All about shoulder Joint ..
All about shoulder Joint .. All about shoulder Joint ..
All about shoulder Joint ..
Aswan University Hospital

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
NephroTube - Dr.Gawad

Public Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public HealthPublic Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public Health
phuakl

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Dr. Nikhilkumar Sakle

Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
MuskanShingari

Giloy in Ayurveda - Classical Categorization and Synonyms
Giloy in Ayurveda - Classical Categorization and SynonymsGiloy in Ayurveda - Classical Categorization and Synonyms
Giloy in Ayurveda - Classical Categorization and Synonyms
Planet Ayurveda

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
Kanhu Charan

13. PROM premature rupture of membranes
13.  PROM premature rupture of membranes13.  PROM premature rupture of membranes
13. PROM premature rupture of membranes
TigistuMelak

5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods
Dr. Deepika's Homeopathy - Gaur City

Nano-gold for Cancer Therapy chemistry investigatory project
Nano-gold for Cancer Therapy chemistry investigatory projectNano-gold for Cancer Therapy chemistry investigatory project
Nano-gold for Cancer Therapy chemistry investigatory project
SIVAVINAYAKPK

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
Université de Montréal

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx
Dr. Dhwani kawedia

Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOWPune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Get New Sim

TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
Donc Test

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health
phuakl

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf
Chulalongkorn Allergy and Clinical Immunology Research Group

Microbiology & Parasitology Exercises Parts of the Microscope
Microbiology & Parasitology Exercises Parts of the MicroscopeMicrobiology & Parasitology Exercises Parts of the Microscope
Microbiology & Parasitology Exercises Parts of the Microscope
ThaShee2


Recently uploaded (20)

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child

pharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptxpharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptx

All about shoulder Joint ..
All about shoulder Joint .. All about shoulder Joint ..
All about shoulder Joint ..

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad

Public Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public HealthPublic Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public Health

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes

Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)

Giloy in Ayurveda - Classical Categorization and Synonyms
Giloy in Ayurveda - Classical Categorization and SynonymsGiloy in Ayurveda - Classical Categorization and Synonyms
Giloy in Ayurveda - Classical Categorization and Synonyms

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro

13. PROM premature rupture of membranes
13.  PROM premature rupture of membranes13.  PROM premature rupture of membranes
13. PROM premature rupture of membranes

5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods

Nano-gold for Cancer Therapy chemistry investigatory project
Nano-gold for Cancer Therapy chemistry investigatory projectNano-gold for Cancer Therapy chemistry investigatory project
Nano-gold for Cancer Therapy chemistry investigatory project

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx

Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOWPune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW

TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf

Microbiology & Parasitology Exercises Parts of the Microscope
Microbiology & Parasitology Exercises Parts of the MicroscopeMicrobiology & Parasitology Exercises Parts of the Microscope
Microbiology & Parasitology Exercises Parts of the Microscope


2016 ghassemi-clinically-usable-fib-ilium

  • 1. ORIGINAL COMMUNICATION Regions of Ilium and Fibula Providing Clinically Usable Bone for Mandible Reconstruction: “A Different Approach to Bone Comparison” ALIREZA GHASSEMI,1† * LOVORKA SCHREIBER,2† ANDREAS PRESCHER,3 ALI MODABBER,4 AND LLOYD NANHEKHAN5 1 Consultant, Oral and Maxillofacial Surgery, Teaching Hospital Klinikum-Lippe, Detmold, Germany and Medical Faculty University of RWTH Aachen, Aachen, Germany 2 Private Dental Office, Nettetal, Germany 3 Professor, Institute for Molecular and Cellular Anatomy University of RWTH Aachen, Aachen, Germany 4 Associate Professor, Oral and Maxillofacial Surgery, University Hospital RWTH Aachen, Aachen, Germany 5 Consultant, Plastic Surgery University Hospital Leuven, Leuven, Belgium A variety of donor sites are available for mandibular reconstruction. We present here a different way of comparing two commonly-used bone flaps. The lengths of the usable parts in a total of 241 coxal bones, 91 mandibles and 60 fibulas were measured. The mandible was measured from condyle-to-condyle and the harvestable bone length (HBL) and usable (UBL) bone lengths in fibula and ilium were also measured. The bone thickness (BT) in 60 iliac crests was measured in two parallel lines from the anterior superior iliac spine (ASIS) along the iliac crest. The mandible was 32.17 mm shorter in females than in males. The total ilium UBL was 171.12 mm in females and 178.80 mm in males. The mean HBL of the fibula was 22.6 mm shorter in females than in males. However, in some fibulas in both females and males, only 4.2% and 21.1% of the HBL respectively could be used if the ultimate goal was to insert dental implants. We found signif- icant correlations between BT and gender in both fibula and ilium (P 0.05). The ilium offers constant BT throughout the usable bone area with a similar bone length to the fibula. In contrast, the fibula showed variable bone dimensions, so not all of it is clinically usable. This should especially be considered in females when a mandibular reconstruction is planned with the goal of occlusal rehabilita- tion. Clin. Anat. 29:773–778, 2016. VC 2016 Wiley Periodicals, Inc. Key words: mandible reconstruction; ilium; fibula; usable bone regions INTRODUCTION Mandibular defects can result from trauma, infec- tion, tumor resection, congenital malformation or bisphosphonate-related bone necrosis (BRBN), and cause functional and esthetic impairment (Schmel- zeisen et al., 1996; G€urlek et al., 1998; Gurtner and Evans, 2000; Miles et al., 2010). The success rate of reconstructive surgery using vascularized flaps has improved significantly in both functional and esthetic terms, gradually changing the conceptual approach to mandibular continuity reconstruction (Cordeiro et al., 1999; Torroni et al., 2015). A variety of donor sites are available for oromandibular reconstruction Abbreviations used: AIIS, anterior inferior iliac spine; ASIS, anterior superior iliac spine; BRBN, bisphosphonate-related bone necrosis; BT, bone thickness; HBL, harvestable bone length; UBL, usable bone length *Correspondence to: Alireza Ghassemi, Teaching Hospital Klinikum–Lippe, Oral and Maxillofacial Surgery, R€ontgenstr. 18, 32756 Detmold, Germany. E-mail: aghassemi@ukaachen.de † The first two authors contributed equally to the manuscript. Received 3 March 2016; Revised 21 April 2016; Accepted 24 April 2016 Published online 17 June 2016 in Wiley Online Library (wileyonlinelibrary.com). DOI: 10.1002/ca.22732 VVC 2016 Wiley Periodicals, Inc. Clinical Anatomy 29:773–778 (2016)
  • 2. (Moscoso et al., 1994; Disa and Cordeiro, 2000; Can- non et al., 2012); the specific advantages and disad- vantages of each particular flap are still debated. The choice depends on many factors such as the length and condition of the vascular pedicle, availability of soft tissue, donor site morbidity, patient’s medical condition, and last but not least the expected func- tional and esthetic outcomes (Curtis et al., 1997; Eck- ardt et al., 2007; Mochizuki et al., 2009; Gerressen et al., 2013; Urken et al., 2015). Modern reconstructive procedures should be aimed first at restoring speech, swallowing and mastication, and secondly should strive for a good esthetic out- come (Schliephake et al., 1998; Rogers et al., 1998). Functional rehabilitation without esthetic consideration will have negative effects on the patient’s psychologi- cal wellbeing (Villaret et al., 2008). Manchester (1965) drew attention to the similarity and suitability of the ilium for mandible reconstruction (Fig. 1). How- ever, studies emphasizing flaps with a bony compo- nent have focused on the generally available amount of bone regardless of its real clinical usability (Frodel et al., 1993; Beckers et al., 1998; Shimizu et al., 2002; Khamanarong et al., 2005; S€onmez et al., 2013; Zaker Shahrak et al., 2014). To our knowledge, there has to date been no comparative study of clini- cally usable bone dimensions in the two most impor- tant flaps for mandibular reconstruction. We measured the length and thickness of the clini- cally usable area of the ilium and compared them with the clinically usable bone areas of the fibula. Our hypothesis was that the the advantage of the ilium over the fibula in terms of clinically usable bone vol- ume is greater than previously reported. MATERIALS AND METHODS The cadaver specimens for this study were obtained after institutional approval from the Institute of Anat- omy and Cell Biology of our University Hospital. The lengths of useable bone parts in a total of 241 iliums (n 5 121) were measured from the anterior inferior iliac spine (AIIS5 Ia) to the anterior superior iliac spine (ASIS 5 Ib) and up to 3 cm before the ilio- sacral joint (ISJ 5 Ic), as shown in Figure 1. From these cadavers, 91 mandibles and 60 fibulas (n 5 30) were available for measurements. The mandibles were measured as shown in Figure 2 from condyle to angle (Ma-Mb) and from angle to the protuberance of the chin (Mb-Mc). The whole length (Ma-Ma) was cal- culated as the sum of those two values. The fibula length was measured from a point 8 cm below the knee joint (Fa) to a point 8 cm above the ankle joint (Fc), as shown in Figure 1. This part of the bone was referred to as the harvestable bone length (HBL). We then looked for the usable bone length (UBL), which was defined as the part of the bone with width 5 mm and height 10 mm. This criterion was based on the minimum requirement for bone dimen- sions for inserting adequate dental implants. We con- sidered the anterior-posterior dimension of the fibula as the height and the medial-lateral dimension as the width. The bone thickness (BT) in 60 iliac crests (n 5 30) was measured in two parallel lines from ASIS along the iliac crest over a distance of 10 cm (Fig. 1). The first line was 0.5 cm below and parallel to the iliac crest. The second was 1.5 cm from the first. BT was measured every 2 cm along each line. Statistical Analysis SAS Version 9.2 was used for all data analyses. Age- related differences were assessed using Pearson’s cor- relation coefficient. Differences and correlations con- cerning body side and gender were analyzed by paired and independent t-tests. Descriptive statistics recorded were minimum, maximum and standard deviation. P values 0.05 were considered statistically significant. RESULTS We measured the length and thickness of usable bone in the fibula and the ilium, and the length of the mandible. The specimens available were as follows: UBL in 241 iliums (114 females, 127 males; age range 40-99 years) and BT in 60 iliums (35 females, 25 males; age range 52-106 years) Ninety-one mandibles (50 females, 41 males; age range 40-99 years) Fig. 1. Artistic illustration of the ilium and fibula showing the locations of measurements. 774 Ghassemi et al.
  • 3. BT, HBL and UBL in 60 fibulas (32 females, 28 males; age 43-100). The total length of the mandible (Ma-Ma) in females (mean 295.66; min-max 268–337 mm) was 32.17 mm shorter than in males (mean 327.83 mm; min-max 289–354 mm). Adding the bone length from Ia-Ib (females: mean 35.42 mm, SD 4.23; males: mean 35.85 mm, SD 4.25) to that from Ib-Ic (females: mean 135.70 mm, SD 10.51; males: mean 142.95 mm, SD 12.32) yielded a total UBL (Ia-Ic) of 171.12 mm in females (min-max: 140–205) and 178.80 mm in males (min- max: 150–215). The mean UBL of the iliac crest in females was 7.68 mm shorter than males. The UBL of the iliac crest was slightly but not significantly longer on the right side (175.36 mm) than the left (174.89 mm). The BTs in the iliac crest at point 2.6 in females and points 2.4, 2.5 and 2.6 in males were 5 mm (Table 2). We found significant correlations between the variables BT (1.1, 1.2, 2.2, 1.5, 2.5, 1.6, 2.6) and gender (P 0.05). There were no signifi- cant correlations between the variables and age or body side (Pearson’s correlation coefficients -0.3 and 0.3). There was a significant difference between genders in regard to both HBL (P 5 0.0006) and UBL (P 5 0.002) for the fibula. The mean HBL of the fibula (Table 1) in females was 22.6 mm shorter than in males. In some fibulas in both females and males, only 4.2% and 21.1% respectively of the HBL could be used satisfactorily if dental implant insertions were planned. Although the body side differences were very minor for both HBL (P 5 0.2693) and UBL (P 5 0.4956), we found that some fibulas were unusable for adequate occlusal rehabilitation (Table 1). We found no correlation between HBL or UBL and age (Pearson’s correlation coefficients5 20.213 and 20.155). Fig. 2. Artistic illustration of the mandible showing the distances that were measured. TABLE 1. Measured HBL and UBL (Height 10 mm, width 5 mm) of Fibula Bone Males Females Right Left N528 N532 N560 N560 HBL (mm) Min–max 158.6–252.9 146.6–224.1 144.5–254.6 108.6–256.6 Mean; SD 208.5; 27.8 185.9; 17.1 197.7; 24.6 195.2; 28.7 UBL (mm) Min–max 38.4–252.6 7.3–224.1 0–251.2 0–256.6 Mean; SD 178.9; 50.2 133.2; 57.8 156.6; 62.0 152.5; 63.9 UBL (%) Min–max 21.1–100.0 4.2–100.0 0–100.0 0–100.0 Mean; SD 85.7; 20.7 70.7; 28.6 78.3; 28.9 77.2; 28.2 Usable Bone Regions for Mandible Reconstruction 775
  • 4. DISCUSSION For practical clinical purposes we measured the UBLs of the ilium and fibula. UBL was defined as a bone length of 10 mm and a bone height of 5 mm and is the optimal requirement for inserting dental implants to allow for occlusal rehabilitation. We also measured the mean length of the mandible to estab- lish the total length of bone needed for complete man- dible reconstruction (2 3 Ma-Mb-Mc5 Ma-Ma), as shown in Figure 2. The thickness and height of the ini- tial mandible were not measured, since for insertion of dental implants an optimal length of 10 mm and a height of 5 mm of the bone flap are favored irre- spective of the measurements of the initial mandible. The ilium was measured from the AIIS (Ia) to the ASIS (Ib) and from there to the ISJ (Ic), minus 3 cm for retaining joint stability (Fig. 1). In the fibula the proximal and distal 8 cm are preserved for the pur- pose of stability when the flap is harvested. We meas- ured the HBL and compared it to the clinically usable bone length of the fibula. In articles published to date, the dimension of the ilium starting from the ASIS to the ISJ has been measured, taking no account of the portion from the ASIS to the AIIS, which can also be used effectively in bony reconstruction (Fig. 3). The mean total length of the mandible was 295.6 mm in females and 327.83 mm in males. The mean UBL in the ilium (Ia- Ic) was 171.12 mm in females and 178.80 mm in males. In comparison, the UBL in the fibula was 133.2 mm in females and 178.9 mm in males. The HBL from the fibula differed significantly between females and males. In some females only 4.2% of HBL could be used, and in some males only 21.1%. Furthermore, in some fibulas from females, we found that no part was usable if occlusal rehabilitation was planed. In contrast, some fibulas proved usable in their entirety (Table 1). This should be taken into the consideration if occlusal rehabilitation is planned. We TABLE 2. The Thickness of Iliac Bone in Usable Area Females Males Right Left n535 n525 n560 n560 BT 1.1 min–max 1.05–2.10 1.10–2.20 1.10–2.30 1.00–2.20 mean; SD 1.53; 0.24 1.70; 0.28 1.59; 0.32 1.63; 0.28 BT 1.2 min–max 1.25–2.20 1.40–2.10 1.30–2.30 1.20–2.10 mean; SD 1.71; 0.23 1.72; 0.16 1.71; 0.23 1.72; 0.24 BT 1.3 min–max 1.35–2.95 1.40–2.05 1.30–2.90 1.30–3.00 mean; SD 1.81; 0.34 1.73; 0.20 1.78; 0.32 1.77; 0.34 BT 1.4 min–max 1.20–2.65 1.50–2.35 1.10–2.90 1.20–2.70 mean; SD 1.97; 0.26 1.92; 0.26 1.94; 0.34 1.96; 0.28 BT 1.5 min–max 1.05–2.15 1.40–2.65 1.00–2.50 0.80–3.10 mean; SD 1.64; 0.31 1.84; 0.30 1.71; 0.34 1.73; 0.42 BT 1.6 min–max 0.90–1.55 1.05–2.15 0.90–2.00 0.60–2.30 mean; SD 1.20; 0.19 1.44; 0.24 1.28; 0.24 1.31; 0.30 BT 2.1 min–max 0.65–1.40 0.75–1.70 0.40–2.10 0.60–1.70 mean; SD 0.98; 0.19 1.18; 0.23 1.05; 0.27 1.08; 0.25 BT 2.2 min–max 0.70–1.55 0.85–1.60 0.60–2.20 0.50–1.60 mean; SD 1.02; 0.23 1.16; 0.18 1.06; 0.30 1.10; 0.25 BT 2.3 min–max 0.75–1.95 0.75–1.80 0.60–2.30 0.60–2.30 mean; SD 1.16; 0.30 1.22; 0.28 1.17; 0.34 1.20; 0.34 BT 2.4 min–max 0.70–1.70 0.45–1.70 0.50–2.00 0.40–1.90 mean; SD 1.24; 0.24 1.37; 0.30 1.29; 0.34 1.31; 0.29 BT 2.5 min–max 0.60–1.55 0.45–1.80 0.40–1.80 0.50–2.10 mean; SD 1.08; 0.24 1.28; 0.30 1.14; 0.33 1.19; 0.35 BT 2.6 min–max 0.40–1.35 0.35–1.55 0.30–1.70 0.40–1.80 mean; SD 0.92; 0.23 1.11; 0.25 0.96; 0.28 1.04; 0.31 BT, bone thickness; HBL, harvestable bone length; Max, maximum; Min, minimum; SD, standard deviation; UBL, usable bone length. Fig. 3. The ilium was osteotomized to replicate the mandible. 776 Ghassemi et al.
  • 5. performed two series of measurements of the ilium BT. The first series were made 5 mm caudal to the iliac crest and the second series 20 mm caudal and parallel to the first. We selected these regions for the following practical reasons. First, clinically, we never need 20 mm of bone height when replacing the mandible, and in general 15 mm should suffice for insertion of dental implants. Second, a bone stock of 20 mm is more than sufficient to replicate the original mandibular shape to achieve the best esthetic out- come (Modabber et al., 2012). Third, we should also consider the topographical anatomy of the nourishing vessels along the inner surface of the ilium, which lie between 5 mm and 20 mm below the crest (Urken et al., 1995; Ting et al., 2009; Ghassemi et al., 2013a). Many previous studies have also reported the BT of the ilium, but they measured areas that would never be used clinically (Beckers et al., 1998; Shimizu et al., 2002; Khamanarong et al., 2005; S€onmez et al., 2013). The average BT of usable bone from ASIS to posterior was greater than 5.75 mm, making it suitable for dental implantation. We found no signifi- cant correlations between the iliac crest BT and age or body side. The small differences between right and left sides were not significant. However, we found a significant correlation between BT (1.1, 1.2, 2.2, 1.5, 2.5, 1.6, 2.6) and gender. The first rows of measure- ments (5 mm below the crest) in both males and females had BT 6 mm, which is enough for insertion of dental implants. At many points we observed a thicker bone in males than in females, but the opposite held at other points (Table 2). When the second level of BT of the iliac crest in males was measured, three points showed a BT of 6 mm or less, and in females just one point showed a minimum BT of 6 mm. When the left and right sides were compared, a total of eight points on the right and left had BT 6 mm. The points were mostly 60 mm behind the ASIS. Our goal was to obtain systematic and objective data defining the dimensions of clinically usable bone for optimal reconstruction with the possibility of occlu- sal rehabilitation using dental implants. This was defined as the area with sufficient bone height and width for insertion of implants, additionally offering a similar shape to the lost mandible in order to achieve the best esthetic outcome. We present here a realistic approach to the bone measurements, differing from previous reports focused on mandible reconstruction. The ilium demonstrated unlimited vertical height and acceptable width of clinically usable areas. It has a natural curvature that resembles the hemi-mandible, as mentioned by Manchester (1972) (Fig. 3). No other donor site can supply similar bone suitable for restor- ing the esthetic contour and offer adequate bone for insertion of osseo-integrated implants (Riediger, 1988). Bone can be harvested by extending the resec- tion posteriorly up to the ISJ if needed. This bone can be contoured to reconstruct the anterior mandibular arch with few osteotomies through the outer cortex, which can be planned using preoperative navigated planning (Modabber et al., 2012). Although limited in dimensions, implant placement in the fibula and the chance of osseo-integration are facilitated and the thick bicortical bone material offers a good basis for primary implant stability (Wu et al., 2008). One major disadvantage of the fibula is its irregular shape (Fig. 4). Furthermore, the inadequate height of the recon- structed segments can create a large distance to the occlusal plane, which makes prosthetic rehabilitation difficult. To overcome this problem, the fibular bone can be used in a “double barrel” fashion, distracted or placed in the upper part of the neighboring mandible (B€ahr et al., 1998; Siciliano et al., 1998; Wang et al., 2012; Shen et al., 2013; Chang et al., 2014). The large amount of bone provided by the vascularized iliac crest makes it favorable for reconstruction in both edentulous and dentate patients. Furthermore, owing to its anatomical shape and sufficient bone height, it provides a replicate of the mandible with excellent esthetic results and excellent functional rehabilitation. There is no need for bone distraction, double barrel procedure, or other additional procedures (Schwarz et al., 2009; Ghassemi et al., 2009; Ghassemi et al., 2013b). Nevertheless, the free vascularized fibula flap is a good competitor, superior in vascular pedicle length and offering mostly sufficient bone width for insertion of dental implants. Overall, the ilium appears more reliable than the fibula in terms of clinically usable bone dimensions. The ilium offers constant BT throughout the usable bone area with a similar bone length to the fibula. In contrast, the fibula showed variable bone dimensions and part of it is not clinically usable. This should espe- cially be considered in females preoperatively when mandibular reconstruction is planned with the inten- tion of implant insertion. ACKNOWLEDGMENT Many thanks to those who donated their bodies to science. REFERENCES B€ahr W, Stoll P, W€achter R. 1998. Use of the “double barrel” free vascularized fibula in mandibular reconstruction. J Oral Maxillofac Surg 56:38–44. Beckers A, Schenk C, Klesper B, Koebke J. 1998. Comparative den- sitometric study of iliac crest and scapula bone in relation to Fig. 4. The fibula was osteotomized to replicate the mandible. Usable Bone Regions for Mandible Reconstruction 777
  • 6. osseous integrated dental implants in microvascular mandibular reconstruction. J Craniomaxillofac Surg 26:75–83. Cannon TY, Strub GM, Yawn RJ, Day TA. 2012. Oromandibular recon- struction. Clin Anat 25:108–119. Chang YM, Wallace CG, Hsu YM, Chen YF, Tsai CY, Wei FC. 2014. Outcome of osseointegrated dental implants in double-barrel and vertically distracted fibula osteoseptocutaneous free flaps for segmental mandibular defect reconstruction. Plast Reconstr Surg 134:1033–1043. Cordeiro PG, Disa JJ, Hidalgo DA, Hu QY. 1999. Reconstruction of the mandible with osseous free flaps: A 10-year experience with 150 consecutive patients. Plast Reconstr Surg 104:1314–1320. Curtis DA, Plesh O, Miller AJ, Curtis TA, Sharma A, Schweitzer R, Hilsinger RL, Schour L, Singer M. 1997. A comparison of mastica- tory function in patients with or without reconstruction of the mandible. Head Neck 19:287–296. Disa JJ, Cordeiro PG. 2000. Mandible reconstruction with microvas- cular surgery. Semin Surg Oncol 19:226–234. Eckardt A, Meyer A, Laas U, Hausamen JE. 2007. Reconstruction of defects in the head and neck with free flaps: 20 years experi- ence. Br J Oral Maxillofac Surg 45:11–15. Frodel JL, Funk GF, Capper DT, Fridrich KL, Blumer JR, Haller JR, Hoffman HT. 1993. Osseointegrated implants: A comparative study of bone thickness in four vascularized bone flaps. Plast Reconstr Surg 92:449–455. Gerressen M, Pastaschek C, Riediger D, Hilgers RD, H€olzle F, Noroozi N, Ghassemi A. 2013. Free Flap Reconstructions of Head and Neck Region in 406 Cases: A 13-Year Experience. J Oral Maxillo- fac Surg 71:628–635. Ghassemi A, Ghassemi M, Riediger D, Hilgers RD, Gerressen M. 2009. Comparison of donor-site Engraftment after harvesting vascularized and nonvascularized iliac bone grafts. J Oral Maxillo- fac Surg 67:1589–1594. Ghassemi A, Furkert R, Prescher A, Riediger D, Knobe M, Odey D., Gerressen M, 2013a. Variants of the supplying vessels of the vascularized iliac bone graft and their relationship to important surgical landmarks. Clin Anat 26:509–521. Ghassemi A, Ghassemi M, Modabber A, Knobe M, Fritz U, Riediger D, Hilgers RD, Gerressen M. 2013b. Functional long-term results after the harvest of vascularised iliac bone grafts bicortically with the anterior superior iliac spine included. Br J Oral Maxillofac Surg 51:47–50. G€urlek A, Miller MJ, Jacob RF, Lively JA, Schusterman MA. 1998. Functional results of dental restoration with osseointegrated implants after mandible reconstruction. Plast Reconstr Surg 101: 650–655. Gurtner GC, Evans GR. 2000. Advances in head and neck recon- struction. Plast Reconstr Surg 106:672–682. Khamanarong K, Kosuwon W, Sirichativapee W, Saejung S, Thepsuthammarat K. 2005. Thicknesses of the Iliac Crest Appro- priate for Anterior Cervical Interbody Fusion Grafts. J Med Assoc Thai 88:1892–1895. Manchester WM. 1965. Immediate reconstruction of the mandible and temporomandibular joint. Br J Plast Surg 18:291–303. Manchester WM. 1972. Some technical improvements in the recon- struction of the mandible and temporomandibular joint. Plast Reconstr Surg 50:249–256. Miles BA, Goldstein DP, Gilbert RW, Gullane PJ. 2010. Mandible reconstruction. Otolaryngol Head Neck Surg 18:317–322. Mochizuki Y, Matsushima E, Omura K. 2009. Perioperative assess- ment of psychological state and quality of life of head and neck cancer patients undergoing surgery. Int J Oral Maxillofac Surg 38:151–159. Modabber A, Gerressen M, Stiller M, Noroozi N, F€uglein A, H€olzle F, Riediger D, Ghassemi A. 2012. Computer-assisted mandibular reconstruction with vascularized iliac crest bone graft. Aesthetic Plast Surg 36:653–659. Moscoso JF, Keller J, Genden E, Weinberg H, Biller HF, Buchbinder D, Urken ML. 1994. Vascularized bone flaps in oromandibular reconstruction. A comparative anatomic study of bone stock from various donor sites to assess suitability for enosseous den- tal implants. Arch Otolaryngol Head Neck Surg 120:36–43. Riediger D. 1988. Restoration of masticatory function by microsurgi- cally revascularized iliac crest bone grafts using enosseous implants. Plast Reconst Surg 81:861–877. Rogers SN, Humphris G, Lowe D, Brown JS, Vaughan ED. 1998. The impact of surgery for oral cancer on quality of life as measured by the Medical Outcomes Short Form 36. Oral Oncol 34:171– 179. Schliephake H, Schmelzeisen R, Sch€onweiler R, Schneller T, Altenbernd C. 1998. Speech, deglutition and life quality after intraoral tumor resection. A prospective study. Int J Oral Maxillo- fac Surg 27:99–105. Schmelzeisen R, Neukam FW, Shirota T, Specht B, Wichmann M. 1996. Postoperative function after implant insertion in vascular- ized bone grafts in maxilla and mandible. Plast Reconstr Surg 97:719–725. Schwarz DA, Jamali AM, Kakwan MS, Fregene A, Arman KG, Buchman SR. 2009. Biomechanical assessment of regenerate integrity in irradiated mandibular distraction osteogenesis. Plast Reconstr Surg 123:114–122. Shen Y, Guo X, Sun J, Li J, Shi J, Huang W, Ow A. 2013. Double-bar- rel vascularised fibula graft in mandibular reconstruction: A 10- year experience with an algorithm. J Plast Reconstr Aesthet Surg 66:364–371. Shimizu T, Ohno K, Matsuura M, Segawa K, Michi K. 2002. An ana- tomical study of vascularized iliac bone grafts for dental implan- tation. J Craniomaxillofac Surg 30:184–188. Siciliano S, Lengele B, Reychler H. 1998. Distraction osteogenesis of a fibula free flap used for mandibular reconstruction: Preliminary report. J Craniomaxillofac Surg 26:386–390. S€onmez TT, Prescher A, Salama A, Kanatas A, Zor F, Mitchell D, Zaker Shahrak A, Karaaltin MV, Knobe M, K€ulahci Y, Altuntas SH, Ghassemi A, H€olzle F. 2013. Comparative clinicoanatomical study of ilium and fibula as two commonly used bony donor sides for maxillofacial reconstruction. Br J Oral Maxillofac Surg 51:736– 741. Ting JW, Rozen WM, Grinsell D, Stella DL, Ashton MW. 2009. The in vivo anatomy of the deep circumflex iliac artery perforators: Defining the role for the DCIA perforator flap. Microsurgery 29: 326–329. Torroni A, Marianetti TM, Romandini M, Gasparini G, Cervelli D, Pelo S. 2015. Mandibular reconstruction with different techniques. J Craniofac Surg 26:885–890. Urken ML, Cheney ML, Sullivan MJ, Biller HF. 1995. Atlas of Regional and Free Flaps for Head and Neck Reconstruction. New York: Raven Press. p 1–379. Urken ML, Buchbinder D, Weinberg H, Vickery C, Shreiner A, Parker R, Schaefer J, Som P, Shapiro A, Lawson W, Biller HF. 2015. Functional evaluation following microvascular oromandibular reconstruction of the oral cancer patient: A comparative study of reconstructed and nonreconstructed patients. Laryngoscope 125:1512. Villaret AB, Cappiello J, Piazza C, Pedruzzi B, Nicolai P. 2008. Quality of life in patients treated for cancer of the oral cavity requiring reconstruction: A prospective study. Acta Otorhinolaryngol Ital 28:120–125. Wang JJ, Chen J, Ping FY, Yan FG. 2012. Double-step transport dis- traction osteogenesis in the reconstruction of unilateral large mandibular defects after tumour resection using internal distrac- tion devices. Int J Oral Maxillofac Surg 41:587–595. Wu YQ, Huang W, Zhang ZY, Zhang ZY, Zhang CP, Sun J. 2008. Clini- cal outcome of dental implants placed in fibula-free flaps for oro- facial reconstruction. Chin Med J 121:1861–1865. Zaker Shahrak A, Zor F, Kanatas A, Acikel C, Sapountzis S, Nicoli F, Altuntas SH, Knobe M, Chen HC, Prescher A, H€olzle F, S€onmez TT. 2014. Morphological and morphometric evaluation of the ilium, fibula and scapula bones for oral and maxillofacial recon- struction. Microsurgery 34:638–645. 778 Ghassemi et al.
