2015-Vol-10-Polydeck-Product-Catalog

SERVING THE MINING, AGGREGATE, AND COAL INDUSTRIES
CATALOG OF SCREEN MEDIA, SYSTEMS, AND ACCESSORIES
YOUR TRUSTED
SCREENING RESOURCE
Volume 10

ii Performance. Guaranteed! Polydeck Screen Corporation
• If you have an emergency in your screening
operation, we will bend over backwards to get you
up and running quicker than anyone;
• Our quality personnel will act as your
representatives on the plant floor to ensure that
every screen panel and frame we ship will meet
our stringent quality standards;
• If we make a mistake, we’ll accept responsibility
and make it right, period.
• Our screening solution will be more cost-effective
than your existing screen media;
• Your screening efficiency will be maintained or
increased;
• You will meet your product specification;
• Our sales, applications and engineering
professionals are the best trained, most highly
qualified in the industry and they will partner
with you to maximize the efficiency of your
screening operation;
At Polydeck, performance means more than screen media throughput. It means:
When you choose Polydeck Screen Corporation to be your screening partner, you’re not simply choosing
product performance, you’re choosing company performance. Guaranteed!
View a video tour of the Polydeck factory at polydeckscreen.com/factorytour
The expanded Polydeck Screen Corporation headquarters and manufacturing complex in Spartanburg, South Carolina

Your Trusted Screening Resource Contents 1
View an on-line version of our catalog at polydeckscreen.com/catalog
Contents
The PipeTop II™ Stringer System . . . . . . . . . 2-3
Fastening Systems . . . . . . . . . . . . . . . . . . . . . 4
Screen Openings . . . . . . . . . . . . . . . . . . . . . . 5
Screen Media: Polydex® & Rubberdex® . . . . . . . 6
Screen Media: Armadex™ . . . . . . . . . . . . . . . . 7
Surface Features . . . . . . . . . . . . . . . . . . . . 8-9
Specialty Screen Panels . . . . . . . . . . . . . . 10-11
Frames . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Liners, Feed Boxes, & Discharge Lips . . . . . . . 14
Side Wear Plates . . . . . . . . . . . . . . . . . . . . . 15
Protection & Repair . . . . . . . . . . . . . . . . . 16-17
Accessories . . . . . . . . . . . . . . . . . . . . . . . 18-19
Conversion Accessories . . . . . . . . . . . . . . . . . 20
Screen & Process Evaluation Services . . . . . . . 21
Converting Your Screen to Polydeck . . . . . . 22-23
Pin Options . . . . . . . . . . . . . . . . . . . . . . . . . 24
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Never Complacent.
As a privately-held company whose only business
is screen media solutions, Polydeck is focused on
the continuous development of our products and
services. The 2014 calendar year brought several
changes to ensure that we are always using the
feedback we get from our customers and Regional
Managers to improve the selection and performance
of our screen media. First, we expanded our Product
Innovation Team (PIT) to include dedicated Product
Managers in each of the industries we serve. Next
we created a Director of Research and Development
position, whose primary responsibility is to manage
the process of designing, testing and releasing new
products. And finally, we expanded our campus with
the addition of a 36,400 sq. ft. building which will
house, among other things, a complete R&D test lab.
We will never stop improving and innovating in order
to remain Your Trusted Screening Solution.
Our Mission
To build upon our position as the leader in the synthetic
screen media industry by partnering with our customers
and using continuous improvement to provide optimal
screening solutions, focusing on:
• Total Customer Satisfaction
• Uncompromising Quality
• Superior Service
• Guaranteed Performance
• Research and Development
• Unmatched Technical Support
Our Core Values
We are a company grounded in the Christian values of
humility, honesty, integrity, respect, kindness and a sense
of social responsibility. Our goal is to create eternal value
by striving to honor God in all we do. This is reflected
in how we conduct our business and how we care for our
employees - our greatest asset.
Our Vision
To serve our customers and stakeholders with excellence
to achieve profitable growth which enables us to care for
people in a way that honors God.
Polydeck Chile

Polydeck’s MAXI screen panels
are designed specifically to take
advantage of the added open area the
PipeTop II™ system provides.
View videos on Polydeck’s open area at polydeckscreen.com/openarea
2 The PipeTop II™ Stringer System Polydeck Screen Corporation
The Incredible Versatility and
Open Area of the PipeTop II™
Stringer System
The beauty of the PipeTop II™ stringer system lies in its
simplicity, versatility, and flexibility. No other stringer system
can offer the benefits and range of options that the PipeTop
II™ system can. As your needs or production specs change, the
PipeTop II™ stringer system can change along with them.
PipeTop II™ creates maximum open area by utilizing narrow ½” wide
rails. This combined with MAXI screen panels produce as much as 30%
more open area than competitive screening systems.
Stringer Attachment Options
Conversion Options
Pin & Sleeve
Enables high-impact, thick
scalping panels to be fastened
onto existing pin-style ferrule
inserts. Available for 65mm,
80mm, and 100mm thick
screen panels.
PolySnap®
A patented Polydeck design
that quickly and easily snaps
a screen panel into place,
requiring only a mallet for
installation and a screwdriver
for removal.
Pin-Style
The standard in the mining
and aggregate industries for
years, pin design options
are available for all Polydeck
screen panels from 30mm to
100mm thick.
Bolt Down
Our heaviest duty fastening
option, for use on top deck
scalping applications as well
as our Armadex™ product
line for high-impact, extreme
duty applications.
See page 4 for fastening item numbers.
See pages 12-13 for all conversion options.
Individual stringer Rails
bundled and shipped directly
to any Original Equipment
Manufacturer (OEM), to be
installed in your new frame.
Complete Deck Frame with
PipeTop II™ stringer rails
to be bolted into position
when replacing a deck on an
existing vibrating screen.
Jigged Assemblies with end plates
and spacers can be custom made
for on-site installation when
converting an existing
deck to the PipeTop
II™ stringer
system.

Your Trusted Screening Resource The PipeTop II™ Stringer System 3
Material Options
PipeTop II™ stringer
assemblies are typically made
of industrial-grade steel.
However, Polydeck offers
stainless steel ferrules with
standard stringers or the
entire stringer and ferrule
assembly in stainless steel,
preventing corrosion and
adding months or even years
to the life of your frame.
Wire Cloth Options
PipeTop II™ Crown
Adapters
Polyurethane crown adapters,
available in both pin-style
and PolySnap® versions, are
molded at different heights
enabling a quick and simple
switch from a flat deck fitted
with our modular screen
panels to a crown deck using
wire cloth. See page 20.
PipeTop II™ threaded
ferrule inserts provide
a versatility of
fastening options.
Stainless steel ferrule on
standard rail after years of
use in adverse conditions.
Threaded ferrules
are available in steel or
stainless steel.
½”
PipeTop II™ stringers
with their narrow
½”wide rails create
maximum open area.

4 Fastening Systems Polydeck Screen Corporation
Specialty ferrule inserts for bolt-down applications
PART # TYPE THREAD TOP
030567002 Steel 3/8” - 16 Flat
030567012 Stainless Steel 3/8” - 16 Flat
030567004 Steel 1/2” - 20 Hex
030567016 Stainless Steel 1/2” - 13 Flat
030567026 Steel 1/2” - 13 Flat
F3000323 Steel 1/2" - 13 Hex
030567003 Steel 3/4” - 10 Flat
Pin-Style
Our basic pin design is
available in more than 20
options (see page 24).
Pin & Sleeve
An alternate fastening system
for high impact applications.
For 65mm, 80mm and
100mm thick screen panels.
PART # TYPE
F3000547 Black polyurethane
standard head
PART # TYPE
F3000558 Red polyurethane
large head
PolySnap® Standard Head Ferrule Insert Large Head Ferrule Insert
A patented Polydeck design
that quickly and easily snaps
a screen panel into place,
requiring only a mallet for
installation and a screwdriver
for removal.
Bolt-down
Bolt-down rubber is effective
for tough applications such as
scalping screens where open
area is not as critical.
Pin-style and Pin & Sleeve
ferrule insert
ITEM
F3000329
Pin Pin-Style Pin & Sleeve
See page 17 for info on our
PolyRail™ stringer protectors.
PolyRail™
This PolyRail™ system provides a simple bolt-on rail that converts a
profile wire or punch plate deck for our 2’ wide by 1’ long PolyRail™
panels. Most commonly used in the coal industry where the standard
support frames use either 3” wide channel or
angle iron stringers located on 2’ centers.

See pages 10-11 for specialty screening panels.
Your Trusted Screening Resource Screen Openings 5
Square
Our most common opening
style with over 250 variations.
Polydex®:
1mm - 200mm
Rubberdex®:
2mm - 152mm
Round
Highly effective in primary
scalping operations to
minimize or eliminate
plugging or pegging.
Rubberdex® and Polydex®:
88mm to 230mm
Solid
Installed at the feed end of a
screen deck where heavy wear
is experienced or can be used
as a discharge lip.
Slotted
Polydeck offers a variety of designs with slotted openings for
draining liquid or where elongated material is acceptable.
Polydex®
0.1mm x 9mm
to 150mm x 175mm
Rubberdex®
0.5mm x 10mm
to 177.8mm x 215.9mm
VST - Vector Slot Technology
For heavy media recovery,
this design incorporates slots
at 45 degree angles which
create speed vectors in the Z
axis of a vibrating screen.
Polydex®:
0.65mm, 0.85mm, & 1mm slots
See page 10 for more info on the VST Panel.
VR - Zigzag
In over 135 panel variations,
the VR’s zigzag openings
reduce or eliminate plugging
with a “spring-like” vibrating
action in the bridge sections.
Polydex®:
2mm - 75mm
Rubberdex®:
11mm - 90mm
SVR - Slotted Zigzag
For applications that allow
elongated materials, the
slotted VR (SVR) panel
features flexible vibrating
bridges to prevent plugging.
Polydex®:
0.65mm x 75mm to 60mm x 105mm
Rubberdex®:
10mm x 40mm to 141mm x 255mm
SSP - Static Screen Panel
This design features ridges
molded with flow to intensify
dewatering in smaller materials
like sand and fines.
Polydex®:
0.25mm x 9mm
to 1.2mm x 14.5mm.
Continuous Slot
Available in 6 slot widths,
the continuous slot is a long
wearing alternative to profile
wire that doesn’t sacrifice
open area. Most commonly
used in the coal industry.
Polydex®:
0.5mm x 304mm to 2.0mm x 304mm
Cutter Panel
For static flume applications
this unidirectional design
features surface features that
pull water into slots more
efficiently than profile wire.
Polydex®:
0.65mm, 0.85mm, & 1mm slots
See page 10 for more info on the Cutter Panel.
NEW PRODUCTNEW PRODUCT

6 Section Header Polydeck Screen Corporation6 Screen Media: Polydex®
& Rubberdex®
Polydeck Screen Corporation
Polydex® represents our line of modular polyurethane screen
media. Polyurethane offers the most options, not only in terms
of screen openings, but also in the integration of performance
enhancing features like dams, restricted flow bars, skid bars,
and deflectors. These features are not glued on but actually
molded into, and a part of the panel itself (see pages 8 &
9). Poly panels are typically the best choice for wet or wash
applications. Polyurethane material variations include:
STD - Our most common polyurethane compound, it’s the
right choice for most general applications.
85 durometer, Shore A. Effective between -5º F. (-20º C.)
and 150º F. (66º C.).
LD - A softer poly compound for applications that require
the screen panel surface to be flexible in order to prevent
blinding caused by sticky materials.
65 durometer, Shore A.
FL - A special formulation for applications where microbial
action degrades the standard polyurethane structure.
Extreme FL - For applications with persistent microbial or
hydrolytic breakdown of poly even after using the FL poly
formulation, this material offers a more potent punch.
Flexi Rubber
Rubberdex® represents our line of modular rubber screen
media. Rubber performs best in dry applications, and typically
offers the longest wear life of any screen media material in the
most difficult, aggressive scalping applications. Rubber panels
are also effective in reducing noise levels by up to 9 decibels
when compared to steel media, about a 50% reduction as
recorded by the human ear.
PD65 - Our standard rubber compound that is best for
high-wear or heavy feed rate applications like scalping.
Effective between -60º F. (-51º C.) and 150º F. (66º C.).
PD40 - Softer “Flexi”
rubber that’s proven
extremely effective in
solving the toughest
blinding problems.
Effective between
-40º F. (-40º C.) and
150º F. (70º C.).
PD60 - A “middle of the road” blend for applications where
a softer material is needed to discourage blinding, but where
loading may be too heavy for our PD40 Flexi rubber.
PD60HT - Used in situations like slag where screen panels
are exposed to high temperatures.
Effective up to 203º F. (95º C.).
FRDX60 (Ferrodex™) - Special formulation that extends
the wear life in certain coarse, wet screening applications.
Notable by the red coloration of the rubber panels.
What is “Durometer?”
Durometer is a measure
of surface resistivity or
the resistance of plastics
toward indentation.
Polydeck uses the Shore A
scale in selecting plastic
and rubber compounds
for its screen panels. The
higher the number, the
harder the material.

Your Trusted Screening Resource Section Header 7Your Trusted Screening Resource Screen Media: Armadex™ 7
Description
High performance, extreme duty screening applications
have historically posed challenges for plant operations. Wire
cloth wears out quickly and modular synthetic media is only
marginally effective in dealing with the sheer volume and
weight of feed material. Bolt-down rubber has often proved to
be the most effective solution to meet these challenges.
Now with Armadex™, you get a new level of performance along
with the quality, service, and reliability you’ve come to expect
from Polydeck.
Options
Section sizes:
Standard section sizes up to 48” x 96” and 52” x 60”
Section thicknesses (including steel backing):
2”, 2.5”, 3”, 3.5”, 4”
Opening sizes:
2” to 8”
Opening shapes:
Square, round, slotted, and custom
Steel backing thicknesses:
1/8”, 3/16”, 1/4”, 3/8”, 1/2”
Steel backing:
HSLA (High Strength Low Alloy) steel backing.
Opening locations:
Can be customized to meet specific requirements such as
optimizing wear life or increasing open area.
Bolt hole locations:
Customized to fit any existing frame configuration.
Typical Applications Include
• Liners (See page 14)
• Scalping Decks
• Trommels
What Sets Armadex™ Apart?
Binary Injection Molding Technology
Armadex™ sections are made with a proprietary molding method
that places premium gum rubber under extreme pressure in a
staged sequence to produce rubber media of unprecedented
strength, structural uniformity, and wear life that has proven to
outlast the competition by as much as 2 to 1.
Premium Gum Rubber
All Armadex™ screen sections utilize a premium blend of
natural non-synthetic gum rubbers.
Choice of Rubber Types
Standard Armadex™ screen sections are best for high wear
resistance and Armaflex sections are a softer, more flexible
durometer best for sticky material.
High Strength Steel
All Armadex™ sections utilize high-strength, low alloy (HSLA)
steel plate backing which has 38% higher yield strength than
the steel most competitors use.
Full Customization
Unlike traditional bolt-down screen media, Armadex™ aperture
shapes and sizes are customized and bolt hole locations are
placed to properly fit your existing frame.
Performance. Guaranteed!
Like our modular screen panels, all Armadex™ sections are
backed by renowned Polydeck service and support, and provide
the longest wear life, and shortest lead time . . . GUARANTEED!
BINARY INJECTION MOLDED MEDIA
Armadex™
View an Armadex™ video featuring Dexter at polydeckscreen.com/armadex

8 Section Header Polydeck Screen Corporation8 Surface Features Polydeck Screen Corporation
Rubberdex® Integrated Dams
Used to slow travel rates and distribute material evenly across
the deck, Rubberdex® integrated dams are molded into the
panels and are available in 1” and 2” heights for Rubberdex® or
Ferrodex™ screen panels.
PANEL TYPE DAMS FOR THICKNESSES
8 PIN
STANDARD PIN-STYLE PANELS
1” or 2” 30, 40, 45, 50, and
55mm
12 PIN
STANDARD PIN-STYLE PANELS
1” or 2” 45, 50, 55, 65, and
80mm
8 SNAP
STANDARD POLYSNAP®
PANELS
1” or 2” 30, 40, and 45mm
Polydex® Integrated Dams
Used to slow travel rates and distribute material evenly across
the deck, Polydex® integrated dams are molded into the panels
and are available in 1”, 2” or 3” sizes on either pin-style or
PolySnap® type screen panels. Larger dams are also available for
custom applications.

Your Trusted Screening Resource Section Header 9Your Trusted Screening Resource Surface Features 9
Diverter Panel Kits
Polyurethane, injection molded, and easy to install, bolt on
diverters can be used in several ways:
ITEM # DESCRIPTION FOR THICKNESSES
DIVERTERKIT-S 2” x 6” x 12.38”
3 bolts
30-45mm
DIVERTERKIT-M 2” x 10.5” x 12.38”
3 bolts
30-55mm
DIVERTERKIT-L 2” x 10.5” x 12.38”
3 bolts
60-100mm
DIVERTERKIT-XL 2” x 11” x 22.7”
4 bolts
55-100mm
Scrolls
Scrolls can be bolted on or molded into polyurethane screen
panels and arranged within the trommel to orient and slow
down the flow of material.
Molded scrolls available for 30mm panels only.
Bolt-on scrolls available in heights up to 10.5”.
Restricted Flow or Shallow Dams
Effective in fine sizing applications to control material flow
rates and create a tumbling effect to intensify the dewatering
and washing effect and to break up clumping.
Skid Bars
Can increase wear life by preventing extra-large material
from hitting the panel surface. Available on Polydex® and
Rubberdex®.
• To redirect material in
uneven loading conditions.
• On a screen’s discharge end
to divert material to the
middle, reducing
chute wear.
• To divert material away
from mechanism flanges,
reducing wear on through-
type shaft mechanisms.
Each kit comes
with all the needed
hardware:
bolts,
backing plate,
lock nuts,
and washers.
Deflectors
Molded into the sides of screen panels, deflectors help redirect
material toward the middle of the panels to maximize screening
efficiency. This option is currently available only for certain
screen panel types.

10 Section Header Polydeck Screen Corporation
VST - Vector Slot Technology for Heavy Media Recovery
This PATENT PENDING design incorporates slots at opposing 45
degree angles creating a zigzag flow which reduces fines racing,
the tendency for particles on a vibratory screen to ride or race
on top of a screen panel. The VST design also reduces plugging
or pegging problems associated with fine sizing by reducing the
retention time a particle has over a slotted opening.
VST panels are available
in both hard and soft
durometer polyurethane.
10 Specialty Screen Panels Polydeck Screen Corporation
Cutter Panel for Heavy Media Recovery
Especially suited for static flume applications, the newly
designed Cutter screen panel is installed slot against flow and
is used to achieve significant moisture reduction and aid in
magnetite recovery.
Herringbone
The unique herringbone design increases drainage rates,
particularly for static sieve applications where recovery of
heavy media is critical.
APERTURE SIZE THICKNESS FASTENING
1 x 304mm 12” x 12” 30mm 4 pin, 4 snap
0.65, 0.85, and 1mm 12” x 12” 30mm 4 pin, 4 snap
1 x 21mm, 3 x 21mm 12” x 12” 30mm 4 pin, 4 snap
Small surface humps
that are higher in the front
and shorter in the back pull water
down into the aperture at the leading edge.

Your Trusted Screening Resource Section Header 11
Rubberdex® Trampoline Panel for blinding and buildup
For dry screening applications where material blinding and
buildup is a problem such as at discharge, our trampoline panel
may be the answer. These panels have a hollow bottom which
allows the wear surface to be thinner, creating the trampoline/
flexing effect. Standard trampoline panels utilize our soft
rubber compound but are also available in a harder durometer
for heavier duty applications.
Available in:
8 pin fastenings for 40, 45, and 50mm thicknesses.
12 pin or 12 pin & sleeve fastenings for 65, 80, and 100mm
thicknesses.
Trampoline Panel
Your Trusted Screening Resource Specialty Screen Panels 11
Heavy Duty Dewatering Panel
This screen panel was designed to carry the weight of thick bed
depths and heavy loads. With its deep bridges, heavy duty steel
inserts, and extra lateral supports, this panel adds the kind of
stability to your screen that could eliminate the need for added
sub-structure. At 40mm thick and with slot widths as small as
0.1mm, this panel is a dewatering workhorse.
The heavy duty dewatering panel derives much of its strength
from a more substantial steel insert featuring two lateral center
bars instead of one.
Available as slot with flow or slot against flow.
0.1 x 15mm 12” x 12” 40mm 4 or 8 pin or snap
0.25 x 15mm 12” x 12” 40mm 4, 6, or 8 pin or snap
0.5 x 15mm 12” x 12” 40mm 4, 6, or 8 pin or snap
Deeper bridges add strength
and extend wear life.
SSP - Static Screen Panel
The SSP screen panel features ridges molded with flow to
intensify dewatering in smaller materials like sand and fines.
Polydex®:
0.25mm x 9mm to 1.2mm x 14.5mm.

12 Frames Polydeck Screen Corporation
Stringer Assemblies PipeTop II™ Channel
Stringer rails can be jigged into a
user-friendly assembly for delivery to a
quarry or operation site, enabling easy
conversion of an existing deck frame to a
Polydeck system.
Available in modular sections to fit flat,
reverse incline, and banana screens.
Complete Support Frames PipeTop II™ Channel
Stringer rails are welded onto the actual
deck cross members at the Polydeck
plant to produce a complete screen deck
support frame that allows easy, bolt-in
installation to replace a worn out frame.
Available in modular sections to fit flat,
reverse incline, and banana screens.

Your Trusted Screening Resource Frames 13
Individual Stringers PipeTop II™ Channel
Stringer bundles are typically provided to
original equipment manufacturers (OEMs)
to be welded on the cross members of
the OEM support frame. Precision jigs are
available to aid in positioning stringers.
Extreme Duty (XD) frames have upgraded
components and added structural
elements to help provide extended wear
life in applications where extra durability
is needed.
Available in PipeTop II™ only in widths
up to 8 ft. wide (2 per foot fastenings).
Additional gussets and reinforced cross
members.
High quality 572 grade steel side and
end members.
Cross tubes of 500 grade steel with
tube caps for additional wear and load-
bearing support.
Stringer construction is mild steel rails
with stainless steel ferrules.
Rolled side
members
provide added
strength
XD Frame NEW PRODUCTNEW PRODUCT
Detail of extra
gussetting
Trommels Small Trommels Large Trommels
Each of our trommel frames is custom
designed and accommodate most
Polydeck screen panel options. Utilizing
our PipeTop II™ design, our trommels
deliver 25-35% more open area than
conventional steel cage trommels. Our
small trommels typically have a 33” to
53” working surface diameter and are
3 to 5 feet long. Our large SAG and ball
mill versions start at 72”.

14 Section Header Polydeck Screen Corporation14 Liners, Feed Boxes, & Discharge Lips Polydeck Screen Corporation
Polydex® Chute Liners
Solid polyurethane blocks that are typically 12” wide, can be
cut to size, are available for 1/4” and 3/8” plates, and made
with up to nine 23mm nipples per foot.
Thicknesses:
30mm, 40mm, 45mm,
50mm, and 65mm
For lip depths:
4”, 5”, 6”, 7”, 8”, 10”, 12”
PART # THICKNESS
SDRDXL11A 1’ x 1’ - 25mm thick; Standard duty
HDRDXL11A 1’ x 1’ - 50mm thick; Heavy duty
SDRDXL12A 1’ x 2’ - 25mm thick; Standard duty
HDRDXL12A 1’ x 2’ - 50mm thick; Heavy duty
BDRPLUG Bolt hole plug
Armadex™ Custom Liners
A great solution when extra heavy loads, large top sizes, and
high volumes are involved. Made with rugged Armadex™ rubber
and a steel plate backing, they can be cut to nearly any shape
and even beveled to ensure total coverage of the target area.
For more on Armadex™, see page 7.
Outside dimensions: Up to 4’ x 8’
Thicknesses (including steel):
1”, 1-1/8”, 1-1/4”, 1-1/2”,
2”,2-1/2”,3”, 3-1/2”, 4”
Discharge Lips
Welded or bolted on decks to provide protection
at the discharge section.
Standard or made to order for lip depths
up to 12”.
Feed Boxes
Custom made to replace a worn feed box and can be
sandblasted, primed and epoxy-coated to extend service life.
Can be welded or bolted to match existing frame
bolt patterns.
Rubberdex® Custom Reinforced Feed-box Liners
Rubberdex® steel reinforced feed-box liners are a simple bolt-on
option for single deck screens or the top deck of multi-deck
screens. Made of heavy duty, injection molded rubber bonded to
a 1/4” thick mild steel plate.
Thicknesses:
30mm - Standard duty
55mm - Heavy duty
80mm - Extreme duty
Rubberdex® Standard Liners
Rubberdex® chute liners are a versatile bolt-on option for
combating wear in chutes, transfer points, or any high impact
zone. Made of heavy duty, injection molded rubber bonded to a
1/8” thick mild steel plate.

Your Trusted Screening Resource Section Header 15Your Trusted Screening Resource Side Wear Plates 15
SB (Steel Backed) Rubber
Typically used in dry-coarse applications.
1-1/8” thick in 6”, 8”, 10”, and 12”
heights.
Angle Clip
Angle clips are 6” long pieces of formed
steel that can be bolted to the side plate
of the machine. Polyurethane wedges
are then driven between the wedge clip
and the side wear plate in the direction
of material flow to secure the side wear
plate down upon the screen panels on
both sides of the machine. This option
can be used with either polyurethane or
UHMW side wear plates.
Universal Wedge Clip and Wedge
The universal wedge clip is bolted or
welded to the side plate of the vibrating
screen and a polyurethane wedge is
driven between it and the side liner to
ensure that the outside screen panels
stay firmly in place.
Bolt-On
Various configurations are possible
based on each individual situation. Bolt
patterns are typically custom-drilled to
fit the screen deck bolt spacing.
Polydeck also offers a slotted wear plate
option to ensure a snug fit to the deck
surface and allows the ability to adjust
its position if thicker/thinner panels are
used in the future.
Steel-Reinforced Polyurethane
Typically used in wet-fine applications.
3/4” thick x 5” high
or 1-1/4” thick x 8” high
UHMW (Ultra High Molecular
Weight) Thermoplastic
Ideal for installations requiring custom
cuts. An easy option that costs less to
install but offers shorter service life
than polyurethane or rubber in heavier
applications.
Sizes made to order.
Side Wear Plate Material Options
Side Wear Plate Attachment Options
PART # ITEM
020776003 Angle Clip
F4000028 Angle Wedge left side: as
viewed from discharge end.
F4000029 Angle Wedge right side: as
viewed from discharge end.
PART # ITEM
060622001 Wear Plate Wedge Clip
060622002
(left & right)
Polyurethane Wedge
Slotted option
FEED

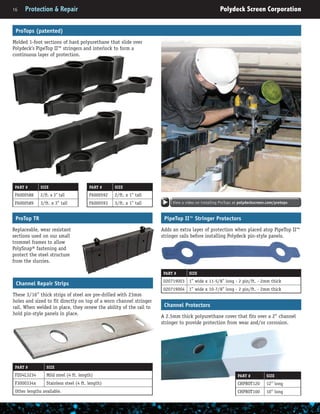

16 Protection & Repair Polydeck Screen Corporation
ProTops (patented)
Molded 1-foot sections of hard polyurethane that slide over
Polydeck’s PipeTop II™ stringers and interlock to form a
continuous layer of protection.
PART # SIZE
F6000592 2/ft. x 1” tall
F6000593 3/ft. x 1” tall
PART # SIZE
F6000588 2/ft. x 3” tall
F6000589 3/ft. x 3” tall
PipeTop II™ Stringer Protectors
Adds an extra layer of protection when placed atop PipeTop II™
stringer rails before installing Polydeck pin-style panels.
PART # SIZE
020719003 1” wide x 11-5/8” long - 2 pin/ft. - 2mm thick
020719004 1” wide x 10-7/8” long - 2 pin/ft. - 2mm thick
Channel Protectors
A 2.5mm thick polyurethane cover that fits over a 2” channel
stringer to provide protection from wear and/or corrosion.
PART # SIZE
CHPROT120 12” long
CHPROT100 10” long
ProTop TR
Replaceable, wear resistant
sections used on our small
trommel frames to allow
PolySnap® fastening and
protect the steel structure
from the slurries.
View a video on installing ProTops at polydeckscreen.com/protops
Channel Repair Strips
These 3/16” thick strips of steel are pre-drilled with 23mm
holes and sized to fit directly on top of a worn channel stringer
rail. When welded in place, they renew the ability of the rail to
hold pin-style panels in place.
PART # SIZE
FZO4L3234 Mild steel (4 ft. length)
F3000334x Stainless steel (4 ft. length)
Other lengths available.

Your Trusted Screening Resource Section Header 17Your Trusted Screening Resource Protection & Repair 17
ProStrip
ProStrips minimize the
accumulation of fines between
the adjoining edges of high
wear rubber scalping panels
and prolong the life of both the
underlying screen panels and
the fastening systems.
PART # SIZE
PROSTRIP30-1 2 per foot for 30mm thick screen panels
PROSTRIP50 3 per foot for 50mm thick screen panels
PROSTRIP65PSL 3 per foot for 65mm thick pin and sleeve
screen panels
PROSTRIP80 For 80mm thick screen panels
PROSTRIP80PSL For 80mm thick pin and sleeve screen panels
PROSTRIP100 For 100mm thick screen panels
PROSTRIP100PSL For 100mm thick pin and sleeve screen panels
PART # SIZE
051014001 5mm thick x 12” long (2 wings)
051014003 5mm thick x 12” long (1 wing) can be used as a side
ledge angle protector.
051014004 Side ledge angle protector with 1/4” shim attached
for 10mm over-width sides.
PART # SIZE
PROAN48 3” x 48” - Holes custom drilled
PROAP48 3” x 48” - Holes at 2”, 8”, 4”, 8”, 4”, 8”, 4”, 8”, and 2”
PROAD48 3” x 48” - Holes at 3”, 14”, 14”, 14”, and 3”
or 6”, 12”, 12”, 12”, and 6“
PROAL48 3” x 48” - Holes at 4½”, 12½”, 14”, 12½”, and 4½”
5mm thick with
6mm thick wings
PolyRail™ adapter strips
are placed on top of the
PolyRail™ stringer protectors.
Angle Iron Stringer Protectors
Made of polyurethane - to lay on top of angle iron to provide
additional wear protection. Most commonly used on banana
screens in coal and mining applications.
PolyRail™ Stringer Protectors
Made of polyurethane - for use with PolyRail™ on stringers
up to 3” wide providing additional wear protection. Most
commonly used on banana screens in coal and mining.

Pin Puller
Our newly re-designed pin removal tool makes removing pins
from Polydeck pin-style screen panel installations much quicker
and easier – even in tight lower deck spaces. A second hole is
available on the pivot arm for an even lower handle position for
extremely low clearance situations.
2
3
18 Accessories Polydeck Screen Corporation
Clamp Bar Plug
Polyurethane plugs for 2”
wide unused clamp bar holes.
PART # SIZE
080909001 3/8” thick
Ferrule Nut Cover
Polyurethane plugs used in
Polydeck’s modular bolt-down
panels to protect the bolts
used to fasten the panel.
PART # SIZE
F3000562 Used on 45-50mm Thick Panels (Shown)
F3000330 Used on 80-100mm Thick Panels
PART # DESCRIPTION
131115000P Pin Puller
F6000700 Pin Puller Replacement Handle
F6000701 Pin Puller Replacement Pivot Leg
F6000702 Pin Puller Replacement Jaw
Ferrule Insert Installation Kits
These kits are included with all conversion orders and include
spare polyurethane ferrule inserts that match the type of
screen panels
shipped, as well
as an installation
tool. All PolySnap®
kits also include
a spray bottle
of soapy water
to make panel
installation easier.
PART # DESCRIPTION
PININSTKIT Pin-style kit
POLYSNPINST Standard-head polyurethane, PolySnap® kit
SNAPLHINSTKIT Large-head polyurethane, PolySnap® kit
POLYRALINST Polyurethane, PolyRail™ kit
Ferrule Insert Installation Tool
Customized tool to make
installing and removing
pin-style or PolySnap® ferrule
inserts quick and easy. Has
a hex-shaped shank to fit a
1/2” drill or socket.
PART #
F4000382
Modular Screen Panel Racks
These fabricated steel storage
racks have 8 screen panel
sections and each section
holds up to:
24 - 1’ x 1’ screen panels or
12 - 1’ x 2’ panels.
Wide tabs on the base allow
panel racks to be bolted to
the floor.
PART # DESCRIPTION
060324001 4’ wide by 2’
deep by 6’ high
1

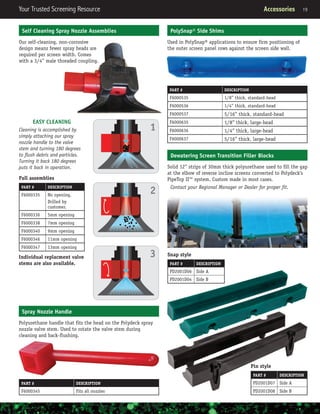

Your Trusted Screening Resource Section Header 19Your Trusted Screening Resource Accessories 19
PolySnap® Side Shims
Used in PolySnap® applications to ensure firm positioning of
the outer screen panel rows against the screen side wall.
PART # DESCRIPTION
F6000535 1/8” thick, standard-head
F6000635 1/8” thick, large-head
Dewatering Screen Transition Filler Blocks
Solid 12” strips of 30mm thick polyurethane used to fill the gap
at the elbow of reverse incline screens converted to Polydeck’s
PipeTop II™ system. Custom made in most cases.
Contact your Regional Manager or Dealer for proper fit.
Self Cleaning Spray Nozzle Assemblies
Our self-cleaning, non-corrosive
design means fewer spray heads are
required per screen width. Comes
with a 3/4” male threaded coupling.
Full assemblies
PART # DESCRIPTION
F6000335 No opening.
Drilled by
customer.
F6000336 5mm opening
Individual replacment valve
stems are also available.
Spray Nozzle Handle
Polyurethane handle that fits the head on the Polydeck spray
nozzle valve stem. Used to rotate the valve stem during
cleaning and back-flushing.
PART # DESCRIPTION
F6000345 Fits all nozzles
1
2
3
EASY CLEANING
Cleaning is accomplished by
simply attaching our spray
nozzle handle to the valve
stem and turning 180 degrees
to flush debris and particles.
Turning it back 180 degrees
puts it back in operation.
Pin style
PART # DESCRIPTION
PD2001D07 Side A
PD2001D08 Side B
Snap style
PART # DESCRIPTION
PD2001D06 Side A
PD2001D04 Side B

20 Conversion Accessories Polydeck Screen Corporation
PipeTop II™ Crown Adapters
Easily switch from a flat deck with our modular panels to a
crowned deck using wire cloth. Molded to various heights, they
enable a crown to be formed when using side-tensioned wire.
Pin-Style
PART # SIZE
F6000385 1/2” high
F6000388 5/8” high
F6000391 3/4” high
F6000389 7/8” high
F6000395 1” high
F6000383 1-1/8” high
F6000392 1-1/4” high
F6000394 1-3/8” high
F6000390 1-1/2” high
F6000384 1-5/8” high
F6000393 1-3/4” high
F6000381 1-7/8” high
F6000387 2” high
F6000386 2-1/4” high
F6000382 2-1/8” high
PolySnap®
PART # SIZE
F6000566 1” high
F6000567 1-1/8” high
F6000568 1-1/4” high
F6000569 1-3/8” high
F6000570 1-1/2” high
F6000571 1-5/8” high
F6000572 1-3/4” high
F6000573 2” high
F6000574 2-1/4” high
F6000590 2-1/8” high
PolySnap® Adapter Strips For Angle Iron Frames
Polyurethane strip that fits on angle irons with 23mm holes
protecting the steel and allowing the use of PolySnap® fastening.
PART # SIZE
080306001 3” wide x 3/8” thick
Doubledex System
Doubledex pillars are used to:
• produce additional product.
• improve screening efficiencies.
• convert a single deck to a double deck to protect a small
aperture panel from excessive impact or wear.
HEIGHTS COMPATIBLE PANELS
80mm, 120mm, 160mm 30mm and 40mm thick pin-style panels
PolySnap® Adapter Pins
Complete the conversion of older style frame systems to accept
our versatile PolySnap® fastening system when coupled with
any of the adapter strips.
PART # TYPE
F3000559 Standard-head, black
F3000560 Large-head, red
071222031 Standard-head extended shank, green - P15
071222002 Standard-head extended shank, red - P20
PolySnap® Adapter Strips For Channel Frames
A 2” wide polyurethane strip placed atop a channel stringer
to allow quick and inexpensive conversion to our PolySnap®
fastening.
PART # SIZE
040729004 2” wide x 12” long, black (2 pin/ft.)
040729006 2” wide x 12” long, green (3 pin/ft.)
040729007 2” wide x 10” long, green (3 pin/ft., for grid frames)

Your Trusted Screening Resource Section Header 21Your Trusted Screening Resource Screen & Process Evaluation Services 21
To request your evaluation, contact your Regional Manager or fill
out our on-line request at www.polydeckscreen.com/evaluation.
Utilizing high-tech electronic instruments and industry
expertise, all aspects of a screen’s operation are measured
and evaluated with a Screen Performance Evaluation.
From the findings, a comprehensive report is produced with
recommendations to increase reliability, remedy problems, and
bring the screen up to its peak screening performance.
A Screen Performance Evaluation Records:
• A screen’s orbits at each spring base and at each vibrator.
• A screen’s motor speed in RPMs.
• A screen’s harmful deflections
along the Z axis.
• A screen’s material travel rates.
• Any movement of the structure
supporting the screen.
A Screen Performance Evaluation Report includes:
• A screen’s G force (Acceleration), its stroke (Displacement),
its deflections (aberrations in its movements).
• A screen’s critical frequencies - which help determine the
screen’s optimal speed and stroke.
• The integrity of the structure supporting the screen.
• The effect variances in RPMs, G force, Velocity, Displacement,
and Travel Rate that may have on a screen’s efficiency.
• Recommended adjustments to a screen’s operating
parameters and/or media to maximize its operating potential
for its particular application.
View a video on PolyFlow™ at polydeckscreen.com/polyflow
If you’re designing a new processing plant or making upgrades
to an existing one, consider using Polydeck as your “screening
consultants” to maximize your operation. We help you “dial in”
your screen media choices and identify solutions that will bring
you the greatest potential ROI.
Timing: The earlier you can include us in your planning, the
more likely we can identify areas of cost savings and help you
justify capital expenditures.
Why Polydeck? Traditional screen application reviews
incorporate basic flow sheet programs to arrive at predictive
solutions. Although this approach is adequate for simple
applications, it leaves out many variables that can significantly
affect the results. Polydeck’s evaluations are much more
comprehensive due to the decades of screening experience we
bring and our whole plant approach.
Along with AggFlow and comprehensive data collection,
we utilize PolyFlow™, our proprietary software tool that
helps accurately access our media’s performance in various
applications. Polyflow™ utilizes specific screen set-up and
material characteristics to ensure proper media selection.
POLYFLOW
APPLIC TION DESIGNER
TM
Screening Process Evaluations
Screen Performance Evaluations NEW SERVICENEW SERVICE

22 Section Header Polydeck Screen Corporation22 Converting Your Screen to Polydeck Polydeck Screen Corporation
1. HOLD PLANNING MEETING & LOCK-OUT
To help ensure the safety of the
installation team, it’s a good idea
to hold a short meeting to review
installation procedures before
starting the conversion process.
Before any work begins, always
be sure to lock-out the screen
and all related equipment.
2. REMOVE SIDE CLAMP RAILS
Unbolt and remove the side
clamp rails and, on a double
crowned deck, the center hold-
down bar is also removed.
3. LIFT OUT WIRE CLOTH SECTIONS
Next, the wire cloth sections are
lifted out. Inspect the sub-frame
for excessive wear to ensure that
the existing deck frame is in
serviceable shape. Remove crown
bar rubber from the top of the
bucker bars to expose the area
that will be worked on.
4. REMOVE BUCKER BARS
Use a cutting torch to cut away
the bucker bars from the cross
members, thereby removing them
from the frame. Be careful not
to damage the cross members
during this process.
5. GRIND FLAT
Grind off any excess welds left
on the cross members that
interfere with the 12” on-center
placement of the stringer rails.
Once this is done, you’re now
ready to install your PipeTop II™
conversion rails.
7. ENSURE CENTERING AND SQUARING
When positioning the assembly
sections, it’s critical that they
be centered and squared within
the machine to ensure that the
screen panels fit accurately and
securely.
Converting a Screen Deck from Existing
Media to Polydeck’s Modular PipeTop
II™ Stringer System.
With a little preplanning, converting a screen deck to take
advantage of the versatility and open area of the Polydeck
PipeTop II™ system can be done efficiently and quickly. The
steps below describe converting a screen deck from side
tension wire cloth to PipeTop II™, but the same basic steps
can be followed for converting other deck types as well.
6. MOVE JIGGED ASSEMBLIES INTO PLACE
Our jigged frame assemblies will
help ensure accurate spacing and
a simpler, safer installation.
Move the jigged assembly
sections into place centered on
the cross members and carefully
aligned with each other and with
the side plates of the screen.
For decks with crowned sub-
frames, coped stringer assemblies
can be custom made.
See pages 12-13 for a complete
list of available frame types.
8. ATTACH SHIM STRIPS
If necessary to ensure uniform
height or proper fit, flat bar or
angle iron shim strips should be
welded to the side ledge of the
deck frame.
Use extreme care during this step.

Your Trusted Screening Resource Section Header 23Your Trusted Screening Resource Converting Your Screen to Polydeck 23
9. TACK FRAMES INTO PLACE
Once alignment has been
verified, the frame sections
should be clamped down and
tack-welded into place.
11. PERFORM FINAL WELDING
If no adjustments are necessary,
all screen panels should be
removed and final welding of all
jigged stringer rails should be
completed.
12. INSTALL SCREEN PANELS
Now the screen panels are ready to be installed.
A light application of soapy water to lubricate the sides and fastening
areas of the screen panels will make the installation easier. Should you
decide to use another type of lubricant, please be sure that petroleum-
based products are never used on rubber screen panels.
14. WELD END PLATE
In some cases, the final step is
to weld an end plate onto the
discharge end of the screen
deck, thereby completing the
installation of your Polydeck
PipeTop II™ system.
13. ATTACH SIDE WEAR PLATES
Once all panels have been
installed, side wear plates are
attached to the sides of the
vibrating screen. Depending
on the application or vibrating
screen design, various options
are available for attaching side
liners.
It’s important that the screen
panels are resting on the shim
strips and that the side wear
plates are firmly pressed down
on the screen panels to prevent
panels from working loose.
With your modular Polydeck PipeTop II™ system you’ll benefit
from a flat surface for even product distribution; you won’t
need to inspect your screen panels for wear as often; modular
screen panel replacement will take minutes, not hours; you’ll
have a range of screen design options to eliminate plugging and
blinding; and your operation will be noticeably quieter.
View animated steps of a conversion at polydeckscreen.com/conversion
10. VERIFY ALIGNMENT
At this point, install some screen
panels to check positioning
before beginning final welding of
the frame sections.
Screen panels should be installed
on the feed, center joint, and
discharge sections to confirm
alignment of all frame sections
and shim strips.
Continue to measure for accuracy
and alignment throughout the
installation process.

24 Section Header Polydeck Screen Corporation24 Pin Options Polydeck Screen Corporation
Specialty
Part # F6000411
For some dewatering
applications.
30mm white, poly
half-pin;
Regular shaft.
For 30mm thick panels
Part # F6000410
White poly pin;
Regular shaft.
Part # F6000413
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000415
Black poly pin;
Extended shank
(10mm) for thicker
steel.
Part # F6000587
Orange poly pin;
Extended shank
(15mm) for thicker
steel.
Part # F6000431
Black poly pin;
Extended shank
(15mm) for thicker
steel.
Part # F6000424
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000563
Black poly pin;
Oversized shaft for
rubber only;
Extended shank
(15mm) for thicker
steel.
Part # F6000418
Red poly pin;
Regular shaft.
Part # F6000429
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000431
Black poly pin;
Extended shank
(15mm) for thicker
steel.
Part # F6000432
Green poly pin;
Oversized shaft for
rubber only;
Extended shank
(15mm) for thicker
steel.
Part # F6000426
Yellow poly pin;
Regular shaft.
Part # F6000435
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000432
Green poly pin;
Oversized shaft for
rubber only;
Extended shank
(15mm) for thicker
steel.
Part # F6000408
Green poly pin;
Oversized shaft for
rubber only.
For 55, 60, & 65mm thick panels
Part # F6000445
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000561
Green poly pin;
Oversized shaft for
rubber only;
Extended shank
(15mm) for thicker
steel.
Part # F6000533
Pin & sleeve.
65mm black, poly
pin; For use with
sleeve F6000534
Part # F6000443
Red poly pin;
Regular shaft.
Part # F6000538
Pin & sleeve.
80mm green, poly
pin; For use with
sleeve F6000534
Part # F6000586
Green poly pin;
Oversized shaft for
rubber only;
Extended shank
(15mm) for thicker
steel.
Part # F6000454
Green poly pin;
Oversized shaft for
rubber only.
Part # F6000534
Red poly sleeve
For use with
pins F6000533 and
F6000538
NEW Pin Puller Tool.
See page 18.
Ferrule Insert Installation
Tool. See page 18.
Related Accessories

Original Equipment Manufacturer Standard Screen Width
Astec Industries:
JCI nom + 4” or + 1½” if 5’ wide
Kolberg-Pioneer (KPI) nom + 0”
Telsmith
nom + 5/8” (VibroKing)
nom + 0” (SpecMaker)
Conn-Weld nom + ¼”
Deister nom + ½”
FLSmidth Ludowici nom + ¼” (varies)
Metso Corporation:
Allis-Chalmers nom + ¼”
Hewitt-Robins
nom + 4” (newer machines)
nom - ½” (older machines)
Nordberg Series nom + 0” (varies)
Svedala nom + ¼”
Schenck Process nom + 10mm (~3/8”)
SECO nom + 0”
Tabor Machine Company nom + ¼”
Terex Minerals Processing Systems
Cedarapids Series nom + 4” (varies) or + 1½” if 5’ wide.
Simplicity Series nom + 2”
TRIO Engineered Products, Inc.
nom + 4” (horizontal)
nom + 2” (inclined)
W.S. Tyler nom + 0”
Your Trusted Screening Resource Reference 25
OEM Screen Width Standards
Use only as a guide (widths may vary). Actual measurements
are needed for replacement frames and conversions.
Calculating Open Area of Modular Synthetic Screen Media
Synthetic screen media manufacturers of standard border screen
panels often claim their screen media has “the highest open
area in the industry”. Since it’s obviously impossible for more
than one company to make that claim, make sure your supplier
is using the formula below to ensure that “true open area” is
being evaluated.
Particle Size Cross Reference Guide
Inches Millimeters Decimal
Nearest U.S.
Sieve Equiv.
Nearest Tyler
Mesh Equiv.
1-1/2” 38.100 1.5000
1-3/8” 34.925 1.3750
1-1/4” 31.750 1.2500
1-1/8” 28.575 1.1250
1” 25.400 1.0000
7/8” 22.225 0.8750
3/4” 19.050 0.7500
5/8” 15.875 0.6250
1/2” 12.700 0.5000
7/16” 11.113 0.4375
3/8” 9.525 0.3750
5/16” 7.938 0.3125
9/32” 7.144 0.2810
1/4” 6.350 0.2500
7/32” 5.556 0.2190
3/16” 4.763 0.1875 No. 4 4 Mesh
11/64” 4.366 0.1720
5/32” 3.969 0.1560 No. 5 5 Mesh
9/64” 3.572 0.1406 No. 6 6 Mesh
1/8” 3.175 0.1250
2.830 0.1110 No. 7 7 Mesh
7/64” 2.778 0.1094
3/32” 2.381 0.0937 No. 8 8 Mesh
5/64” 1.984 0.0781 No. 10 9 Mesh
1.679 0.0661 No. 12 10 Mesh
1/16” 1.588 0.0625
1.410 0.0555 No. 14 12 Mesh
3/64” 1.191 0.0469 No. 16 14 Mesh
1.000 0.0394 No. 18 16 Mesh
0.841 0.0331 No. 20 20 Mesh
1/32” 0.794 0.0313
0.707 0.0278 No. 25 24 Mesh
0.594 0.0234 No. 30 28 Mesh
0.500 0.0197 No. 35 32 Mesh
0.419 0.0165 No. 40 35 Mesh
1/64” 0.397 0.0156
0.354 0.0139 No. 45 42 Mesh
0.297 0.0117 No. 50 48 Mesh
0.250 0.0098 No. 60 60 Mesh
0.210 0.0083 No. 70 65 Mesh
0.177 0.0070 No. 80 80 Mesh
0.150 0.0059 No. 100 100 Mesh
0.125 0.0049 No. 120 115 Mesh
0.105 0.0041 No. 140 150 Mesh
0.088 0.0035 No. 170 170 Mesh
0.075 0.0029 No. 200 200 Mesh
0.063 0.0025 No. 230 250 Mesh
0.053 0.0021 No. 270 270 Mesh
0.044 0.0017 No. 325 325 Mesh
0.037 0.0015 No. 400 400 Mesh
To request a FREE Particle
Size Cross Reference slide
chart, visit polydeckscreen.
com/particles
Once the open area of each screen panel is calculated based on the
entire screen panel surface, it becomes obvious that Polydeck’s Maxi
screen panel design has more open area than competitive designs of
identical dimensions.
Or, if you prefer, when comparing panels with the same size
opening, a simpler, yet equally effective measure is to COUNT THE
HOLES!
Make sure the calculation is based on the
ENTIRE surface area of the screen panel,
not just the area where the holes are.
37,125mm2
(165 holes x 225mm2
/ hole)
92,903mm2
(304.8mm (12”) x 304.8mm)
Yields 39.96% open area (165 holes)
View videos on Polydeck’s open area at polydeckscreen.com/openarea

Polydeck Screen Corporation
Blinding a Problem? Flexi.
Our Flexi screen panel design features softer
compounds in either rubber or polyurethane
and increased gusseting to greatly reduce and
even eliminate fine particle blinding problems
in wet and/or humid conditions.
Need Consistency?
Polydeck Injection Molding.
All our screen panels are injection molded
to ensure accurate openings and consistent
construction panel after panel after panel.
Need to Reduce Noise?
Polydeck Materials.
Our rubber and polyurethane screen panels
drastically reduce noise levels, sometimes as
much as 50%, compared to steel media.
Need Reliable Delivery?
Best Lead Times.
We can ship stocked screen panels from one
of our plants or regional distribution centers
in a few days and our lead times for non-
stock orders are the best in the industry. Our
injection molding process enables us to get
non-stock orders to you in weeks, not months.
Need Support?
Best People.
Our sales, applications, engineering, and
quality professionals are the best trained
and most qualified in the industry. They will
partner with you to maximize the efficiency
of your screening operation. Both in the field
and at our plant, the Polydeck team is behind
you and dedicated to your success.
Need More Throughput?
Polydeck MAXI Screen Panel.
Our MAXI screen panels combined with our
patented PipeTop II™ frame system produce
the highest open area in the industry.
Find Your Regional
Manager, Agent, or Dealer
Scan the QR code for your
industry and region.
AGGREGATE
North America
COAL
North America
MINING
North America
South America
Central America/Mexico
Corporate Headquarters
1790 Dewberry Road
Spartanburg, SC 29307
Call: +1 864 579 4594
Polydeck Chile, Ltda.
San Fernando 1173
San Bernardo, Santiago, Chile
Contactenos a +56-22-952-3739
www.polydeckscreen.com
CONNECT WITH US
BEFORE AFTER
Look for Polydeck products on the hit TV show on the Discovery Channel.

2015-Vol-10-Polydeck-Product-Catalog

More Related Content

What's hot

Viewers also liked

Similar to 2015-Vol-10-Polydeck-Product-Catalog

2015-Vol-10-Polydeck-Product-Catalog
