Immutable Infrastructure: the new App Deployment
- 1. Immutable Infrastructure The NewApp Deployment AXEL FONTAINE @axelfontaine axel@boxfuse.com
- 2. About Axel Fontaine •Founder and CEO of Boxfuse • Over 15 years industry experience • Continuous Delivery expert • Regular speaker at tech conferences • JavaOne RockStar in 2014 @axelfontaine
- 3.
- 4.
- 5. Let’s start witha small story
- 6.

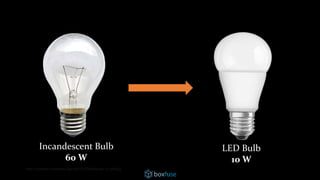

- 7. Heater that givesoff a little bit of light Light that gives off a little bit of heat

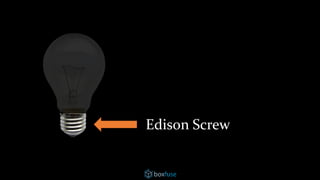

- 9.
- 10. Simple, stable, standards-compliant interface with aclear contract My responsibility The electricity company’s responsibility

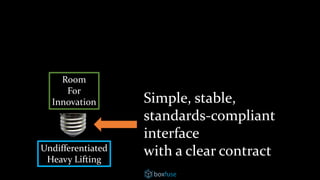

- 11. Simple, stable, standards-compliant interface with aclear contract Room For Innovation Undifferentiated Heavy Lifting
- 12. back to ITinfrastructure …

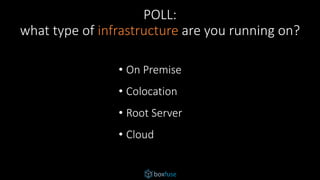

- 13. POLL: what type ofinfrastructure are you running on? • On Premise • Colocation • Root Server • Cloud

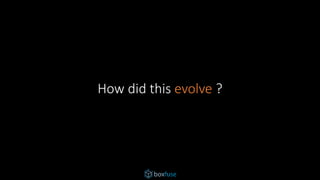

- 14. How did thisevolve ?
- 15. sometime in the20th century …
- 17.

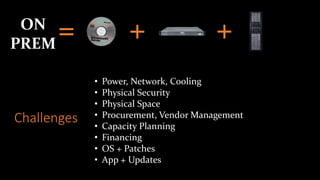

- 19. +=ON PREM + Challenges • Power, Network,Cooling • Physical Security • Physical Space • Procurement, Vendor Management • Capacity Planning • Financing • OS + Patches • App + Updates
- 20.
- 21.

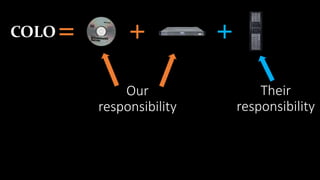

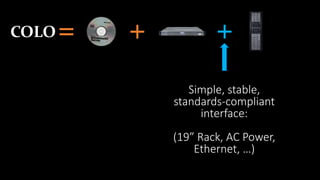

- 22. +=COLO + Simple, stable, standards-compliant interface: (19”Rack, AC Power, Ethernet, …)

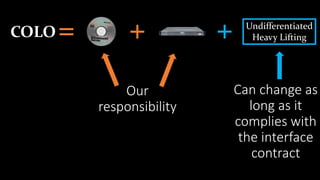

- 23. Can change as longas it complies with the interface contract +=COLO + Undifferentiated Heavy Lifting Our responsibility

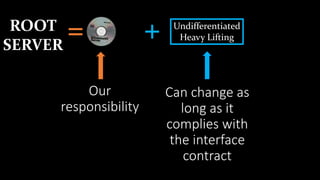

- 24. =ROOT SERVER + Undifferentiated Heavy Lifting Our responsibility Canchange as long as it complies with the interface contract
- 25. =ROOT SERVER + Undifferentiated Heavy Lifting Simple,stable, standards- compliant interface Software <-> Hardware

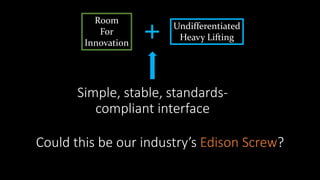

- 26. Room For Innovation + Undifferentiated Heavy Lifting Couldthis be our industry’s Edison Screw? Simple, stable, standards- compliant interface
- 27. Let’s talk aboutsoftware
- 28. POLL: which level ofautomation are you at? • Build • Unit Tests • Continuous Integration • Acceptance Tests • Continuous Deployment (Code) • Continuous Deployment (Code + DB + Configuration) • Infrastructure

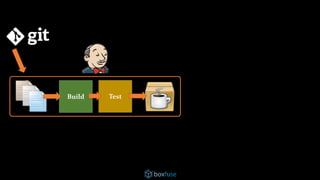

- 29.
- 30. • One immutableunit • Regenerated after every change • Promoted from Environment to Environment Classic Mistake: Build per Environment
- 31.

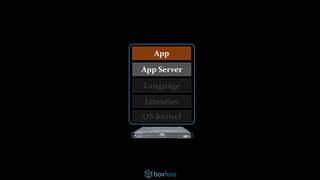

- 32.
- 33. why aren’t wedoing the same for the layers this is running on ???

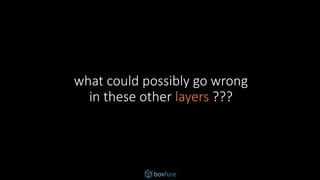

- 34. what could possiblygo wrong in these other layers ???
- 35.
- 36.
- 37.
- 38.
- 39.

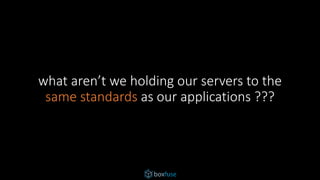

- 40. what aren’t weholding our servers to the same standards as our applications ???
- 42.

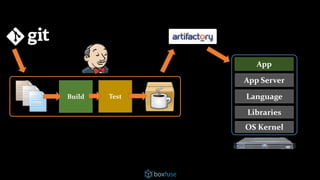

- 43.
- 44. OS Kernel Libraries Language App Server App OSKernel Libraries Language App Server App OS Kernel Libraries Language App Server App Multiple instances in multiple Environments

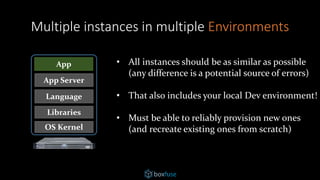

- 45. OS Kernel Libraries Language App Server App Multipleinstances in multiple Environments • All instances should be as similar as possible (any difference is a potential source of errors) • That also includes your local Dev environment! • Must be able to reliably provision new ones (and recreate existing ones from scratch)

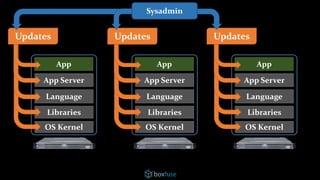

- 46. OS Kernel Libraries Language App Server App OSKernel Libraries Language App Server App OS Kernel Libraries Language App Server App Updates UpdatesUpdates Sysadmin
- 47. If I hadasked my customers what they wanted they would have said a faster horse. Henry Ford
- 48. OS Kernel Libraries Language App Server App OSKernel Libraries Language App Server App OS Kernel Libraries Language App Server App Updates UpdatesUpdates Sysadmin

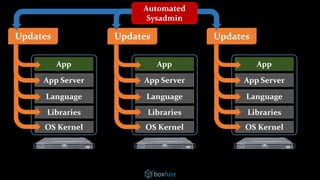

- 49. OS Kernel Libraries Language App Server App OSKernel Libraries Language App Server App OS Kernel Libraries Language App Server App Updates UpdatesUpdates Automated Sysadmin
- 50. fast forward to2015 …

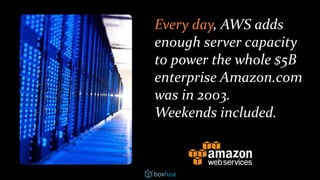

- 51. Every day, AWSadds enough server capacity to power the whole $5B enterprise Amazon.com was in 2003. Weekends included.

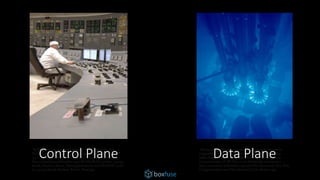

- 52. "Advanced Test Reactor"by Argonne National Laboratory - originally posted to Flickr as Advanced Test Reactor core, Idaho National LaboratoryUploaded using F2ComButton. Licensed under CC BY-SA 2.0 via Wikimedia Commons - http://commons.wikimedia.org/wiki/File:Advanced_Test_Reac tor.jpg#mediaviewer/File:Advanced_Test_Reactor.jpg "RIAN archive 341194 Kursk Nuclear Power Plant" by RIA Novosti archive, image #341194 / Sergey Pyatakov / CC-BY-SA 3.0. Licensed under CC BY-SA 3.0 via Wikimedia Commons - http://commons.wikimedia.org/wiki/File:RIAN_archive_341194_ Kursk_Nuclear_Power_Plant.jpg#mediaviewer/File:RIAN_archi ve_341194_Kursk_Nuclear_Power_Plant.jpg Control Plane Data Plane

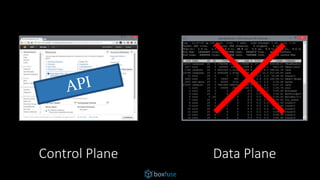

- 53. Control Plane DataPlane
- 54. • Shift toa world of abundance (no more resource scarcity) • Clean Control Plane/Data Plane split with API-based provisioning • Cost-based Architectures with the ability to turn infrastructure off Benefits of the cloud
- 55. it is timeto rethink the faster horse
- 56.

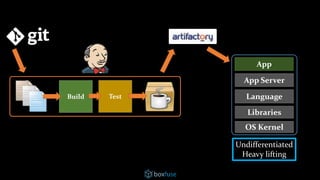

- 57. App OS Kernel Libraries Language App Server BuildTest Undifferentiated Heavy lifting
- 58.

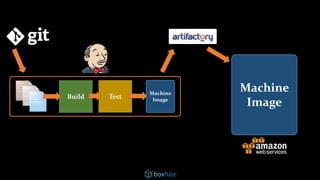

- 59. App Machine Image OS Kernel Libraries Language App Server BuildTest Machine Image

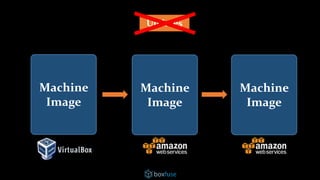

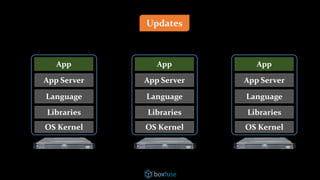

- 60. OS Kernel Libraries Language App Server App OSKernel Libraries Language App Server App OS Kernel Libraries Language App Server App Updates
- 61.

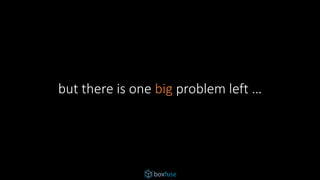

- 62. but there isone big problem left …
- 63.
- 64.
- 65. Running servers in productionshould be like going backpacking. You take the bare minimum with you. Anything else is going to hurt. A Wise Man
- 66. what is reallyadding business value ???
- 67.

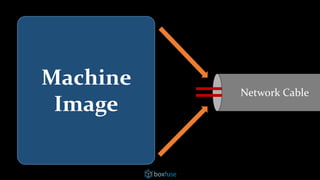

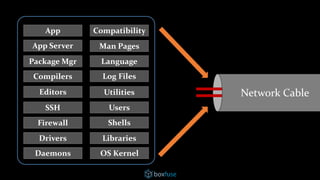

- 68. Editors Daemons OS Kernel Libraries Utilities Drivers App AppServer Package Mgr Compilers SSH Firewall Compatibility Man Pages Language Log Files Users Shells Network Cable
- 69.
- 70.
- 71.

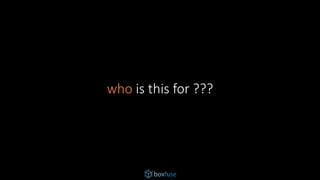

- 72. who is thisfor ???
- 73.
- 74.
- 75. What are theimplications ???

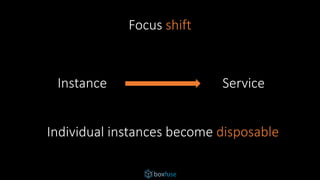

- 76. Focus shift Individual instancesbecome disposable Instance Service
- 77. Treat servers likecattle instead of pets
- 78. high uptime isa liability The longer an instance is up, the harder it becomes to recreate exactly (and it will fail eventually!)

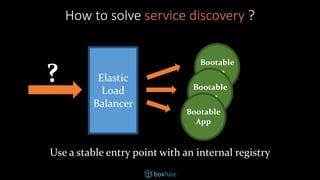

- 79. How to solveservice discovery ? Use a stable entry point with an internal registry Bootable App Bootable App Bootable App ? Elastic Load Balancer
- 80. What about security? When was the last time your toaster got hacked?

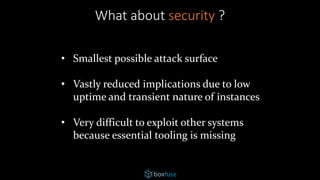

- 81. What about security? • Smallest possible attack surface • Vastly reduced implications due to low uptime and transient nature of instances • Very difficult to exploit other systems because essential tooling is missing

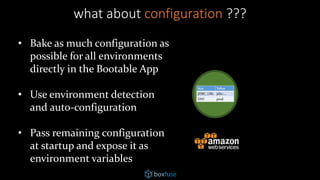

- 82. • Bake asmuch configuration as possible for all environments directly in the Bootable App • Use environment detection and auto-configuration • Pass remaining configuration at startup and expose it as environment variables what about configuration ???
- 83. what about thedatabase ???

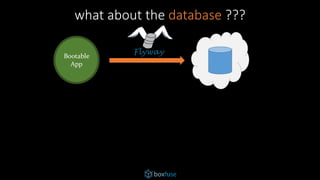

- 84. Bootable App what about thedatabase ???

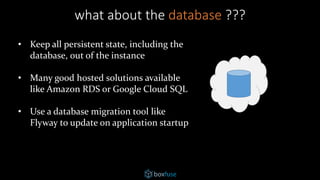

- 85. what about thedatabase ??? • Keep all persistent state, including the database, out of the instance • Many good hosted solutions available like Amazon RDS or Google Cloud SQL • Use a database migration tool like Flyway to update on application startup
- 86. Bootable App what about thelogs ??? Ship logs to a central log server where they can be • aggregated • stored and backuped • indexed • searched through a nice web UI Many good hosted solutions • Loggly • Logentries • Papertrail • …

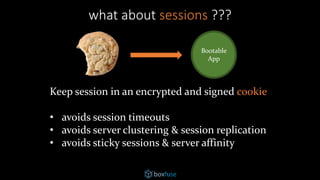

- 87. what about sessions??? Bootable App Keep session in an encrypted and signed cookie • avoids session timeouts • avoids server clustering & session replication • avoids sticky sessions & server affinity

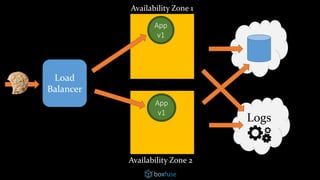

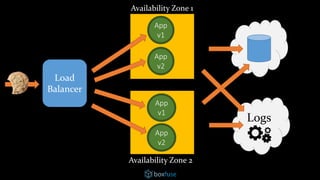

- 88. what about rollingout new versions ???
- 89.
- 90.
- 91.
- 92.

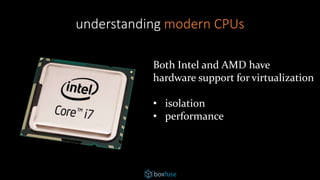

- 93. understanding modern CPUs BothIntel and AMD have hardware support for virtualization • isolation • performance
- 94.
- 95. Bootable App Hardware Hypervisor Bootable App Hardware Hypervisor OS+Container Runtime BootableApp Hardware OS+Container Runtime On PremOn Prem / Cloud Cloud Only makes sense if you cannot afford $9.60/month granularity

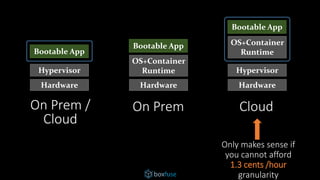

- 96. Bootable App Hardware Hypervisor Bootable App Hardware Hypervisor OS+Container Runtime BootableApp Hardware OS+Container Runtime On PremOn Prem / Cloud Cloud Only makes sense if you cannot afford 1.3 cents /hour granularity
- 97.

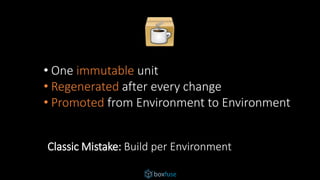

- 98. • One immutableunit • Regenerated after every change • Promoted from Environment to Environment Classic Mistake: Build per Environment
- 99. Bootable App • One immutableunit • Regenerated after every change • Promoted from Environment to Environment Classic Mistake: Build per Environment
- 100.
