1. Printing standardization trial
for high-‐‑‒definition printing method
utilizing Staccato-‐‑‒10 micron dots
1
Dr. SHIMIZU, Hirokazu
Vice-‐‑‒President, WILL-‐‑‒POWER CONSULTING INC.
President, SHIMIZU PRINTING INC.
Visiting Senior Researcher, Waseda University Environmental Research Institute
Expert, ISO TC130 (Graphic technology) WG11(Environmental impact of graphic technology)

2. Agenda
1.Purpose of printing analysis
2.High-‐‑‒definition printing method
3.Kodakʼ’s printing analyzer “ColorFlow”
4.Analysis of printing condition in practice
5.Summary
2

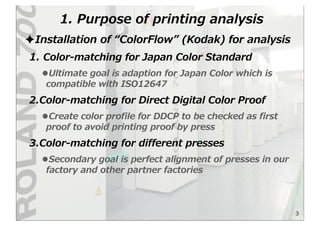

3. 1. Purpose of printing analysis
3
✦Installation of “ColorFlow” (Kodak) for analysis
1. Color-‐‑‒matching for Japan Color Standard
•Ultimate goal is adaption for Japan Color which is
compatible with ISO12647
2.Color-‐‑‒matching for Direct Digital Color Proof
•Create color profile for DDCP to be checked as first
proof to avoid printing proof by press
3.Color-‐‑‒matching for different presses
•Secondary goal is perfect alignment of presses in our
factory and other partner factories

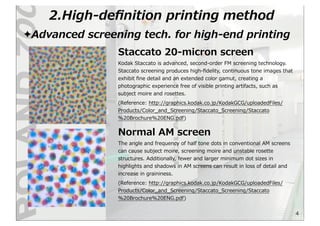

4. 2.High-‐‑‒definition printing method
4
✦Advanced screening tech. for high-‐‑‒end printing
Staccato 20-‐‑‒micron screen
Kodak Staccato is advanced, second-‐‑‒order FM screening technology.
Staccato screening produces high-‐‑‒fidelity, continuous tone images that
exhibit fine detail and an extended color gamut, creating a
photographic experience free of visible printing artifacts, such as
subject moire and rosettes.
(Reference: http://graphics.kodak.co.jp/KodakGCG/uploadedFiles/
Products/Color_̲and_̲Screening/Staccato_̲Screening/Staccato
%20Brochure%20ENG.pdf)
The angle and frequency of half tone dots in conventional AM screens
can cause subject moire, screening moire and unstable rosette
structures. Additionally, fewer and larger minimum dot sizes in
highlights and shadows in AM screens can result in loss of detail and
increase in graininess.
(Reference: http://graphics.kodak.co.jp/KodakGCG/uploadedFiles/
Products/Color_̲and_̲Screening/Staccato_̲Screening/Staccato
%20Brochure%20ENG.pdf)
Normal AM screen

5. 2.High-‐‑‒definition printing method
5

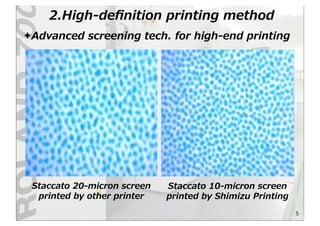

✦Advanced screening tech. for high-‐‑‒end printing
Staccato 20-‐‑‒micron screen
printed by other printer
Staccato 10-‐‑‒micron screen
printed by Shimizu Printing

6. 6
✦Color-‐‑‒chart analysis by “ColorFlow”
3.Kodakʼ’s printing analyzer “ColorFlow”

7. 7

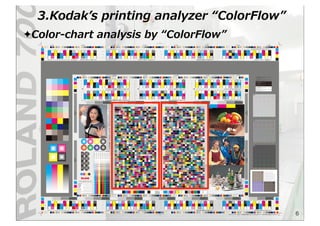

✦Color-‐‑‒chart analysis by “ColorFlow”
3.Kodakʼ’s printing analyzer “ColorFlow”

8. 8

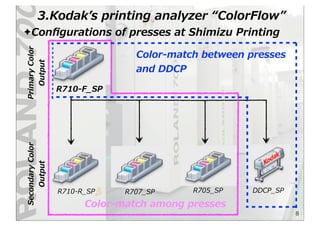

✦Configurations of presses at Shimizu Printing
R710-‐‑‒F_̲SP
R710-‐‑‒R_̲SP R707_̲SP R705_̲SP DDCP_̲SP
Primary Color
Output
Secondary Color
Output
3.Kodakʼ’s printing analyzer “ColorFlow”
Color-‐‑‒match among presses
Color-‐‑‒match between presses
and DDCP

9. 9

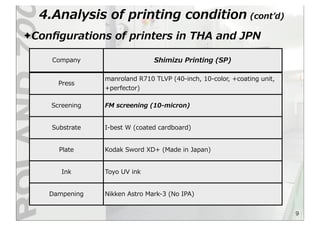

✦Configurations of printers in THA and JPN
Company Shimizu Printing (SP)
Press
manroland R710 TLVP (40-‐‑‒inch, 10-‐‑‒color, +coating unit,
+perfector)
Screening FM screening (10-‐‑‒micron)
Substrate I-‐‑‒best W (coated cardboard)
Plate Kodak Sword XD+ (Made in Japan)
Ink Toyo UV ink
Dampening Nikken Astro Mark-‐‑‒3 (No IPA)
4.Analysis of printing condition (contʼ’d)

10. 10
✦Basic knowledge about “color”
Magenta
Cyan
Yellow
Green
Red
Blue
a+(0〜～100)
a-‐‑‒(0〜～-‐‑‒100)
b+(0〜～100)
b-‐‑‒(0〜～-‐‑‒100)
4.Analysis of printing condition (contʼ’d)

11. 4.Analysis of printing condition (contʼ’d)
11
✦Absolute density of solid inks
SP
Avg. Min. Max. Dif. Dif./Avg.
K 1.76 1.71 1.78 0.07 4.0%
C 1.56 1.55 1.58 0.03 1.9%
M 1.46 1.41 1.49 0.08 5.5%
Y 1.01 0.98 1.03 0.05 5.0%

12. ✦Absolute density of solid inks
4.Analysis of printing condition (contʼ’d)
12
0.90
1.05
1.20
1.35
1.50
1.65
1.80
SP-‐‑‒K
Min. Max.
0.90
1.05
1.20
1.35
1.50
1.65
1.80
SP-‐‑‒C
Min. Max.
0.90
1.05
1.20
1.35
1.50
1.65
1.80
SP-‐‑‒M
Min. Max.
0.90
1.05
1.20
1.35
1.50
1.65
1.80
SP-‐‑‒Y
Min. Max.
Range of difference should be as minimum as possible

13. ✦Variations of solid density
4.Analysis of printing condition (contʼ’d)
13
Variations of solid patches across the press sheet_̲SP
Color density of all are within allowable range

14. ✦Apparent Trap Density (%)
4.Analysis of printing condition (contʼ’d)
14
SP
Target color
C
M
Y
Apparent Trap density 65.1% 74.8% 66.8%
A bit lower than expected values

15. ✦Tonal value increase for all inks
4.Analysis of printing condition (contʼ’d)
15
Tonal value increase (TVI)_̲SP
Dot gains of all colors are fairly consistent

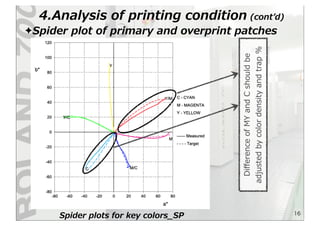

16. ✦Spider plot of primary and overprint patches
4.Analysis of printing condition (contʼ’d)
16
Spider plots for key colors_̲SP
Difference of MY and C should be
adjusted by color density and trap %

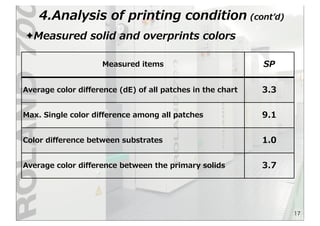

17. ✦Measured solid and overprints colors
4.Analysis of printing condition (contʼ’d)
17
Measured items SP
Average color difference (dE) of all patches in the chart 3.3
Max. Single color difference among all patches 9.1
Color difference between substrates 1.0
Average color difference between the primary solids 3.7

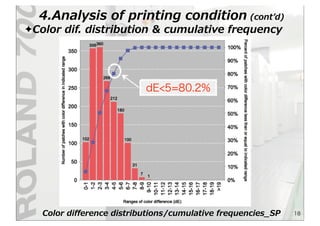

18. ✦Color dif. distribution & cumulative frequency
4.Analysis of printing condition (contʼ’d)
18Color difference distributions/cumulative frequencies_̲SP
dE<5=80.2%

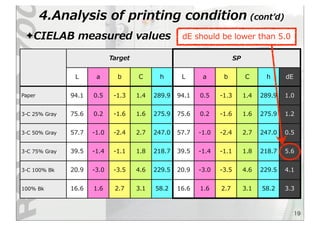

19. ✦CIELAB measured values
4.Analysis of printing condition (contʼ’d)
19
Target SPSP
L a b C h L a b C h dE
Paper 94.1 0.5 -‐‑‒1.3 1.4 289.9 94.1 0.5 -‐‑‒1.3 1.4 289.9 1.0
3-‐‑‒C 25% Gray 75.6 0.2 -‐‑‒1.6 1.6 275.9 75.6 0.2 -‐‑‒1.6 1.6 275.9 1.2
3-‐‑‒C 50% Gray 57.7 -‐‑‒1.0 -‐‑‒2.4 2.7 247.0 57.7 -‐‑‒1.0 -‐‑‒2.4 2.7 247.0 0.5
3-‐‑‒C 75% Gray 39.5 -‐‑‒1.4 -‐‑‒1.1 1.8 218.7 39.5 -‐‑‒1.4 -‐‑‒1.1 1.8 218.7 5.6
3-‐‑‒C 100% Bk 20.9 -‐‑‒3.0 -‐‑‒3.5 4.6 229.5 20.9 -‐‑‒3.0 -‐‑‒3.5 4.6 229.5 4.1
100% Bk 16.6 1.6 2.7 3.1 58.2 16.6 1.6 2.7 3.1 58.2 3.3
dE should be lower than 5.0

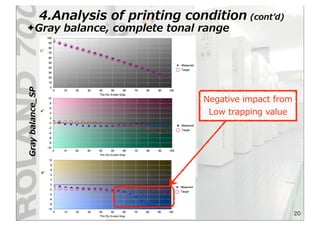

20. ✦Gray balance, complete tonal range
4.Analysis of printing condition (contʼ’d)
20
Gray balance_̲SP
Negative impact from
Low trapping value

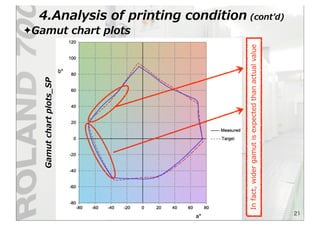

21. ✦Gamut chart plots
4.Analysis of printing condition (contʼ’d)
21
Gamut chart plots_̲SP
In fact, wider gamut is expected than actual value

22. 22

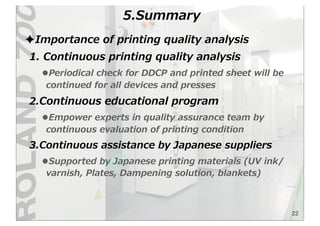

5.Summary
✦Importance of printing quality analysis
1. Continuous printing quality analysis
•Periodical check for DDCP and printed sheet will be
continued for all devices and presses
2.Continuous educational program
•Empower experts in quality assurance team by
continuous evaluation of printing condition
3.Continuous assistance by Japanese suppliers
•Supported by Japanese printing materials (UV ink/
varnish, Plates, Dampening solution, blankets)
