The document discusses color management in printing. It defines color management as using ICC profiles to accurately portray colors across different devices and color spaces. It explains that ICC profiles describe how a device or color space represents colors, allowing colors to be converted between devices and spaces. The document provides examples of common ICC profiles used in printing and outlines important aspects of color management like solid ink density values, adjusting tonal value increase curves, and standards for contract proofs.

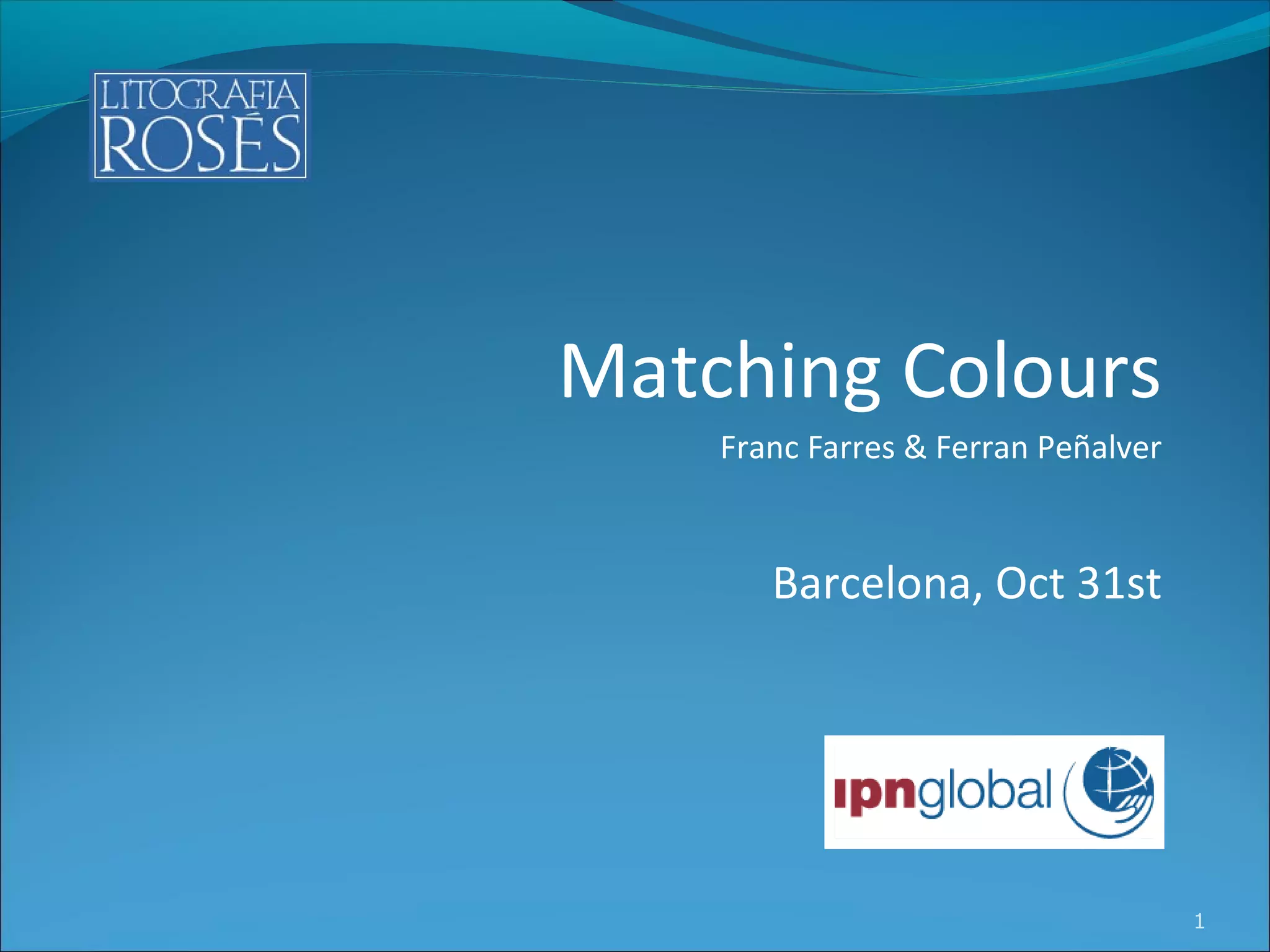

1. Matching Colours
Franc Farres & Ferran Peñalver
Barcelona, Oct 31st
1

2. Do we really need...
color management ?
2

3. What is Color Managemet ?
 CM is everywhere !
Adobe Creative Suite
3

4. What is Color Managemet ?
 PDF Export from ID
 In this field it is very important to
select the proper colour conversion
settings yourself:
– please check with your output
provider which ICC profile is
appropriate, or select the ICC
profile that was used for converting
images to CMYK in PhotoShop or
InDesign.
– For WebCmykHiRes _1v4, we
recommend you to use the
ISOcoated_v2_300_eci ICC profile
 Colours in your document will
change if:
– objects in RGB colour space with
or without ICC profiles are used in
the document
– CMYK objects with different ICC
profiles are placed in the document
4

5. What is Color Managemet ?
5

6. What is Color Managemet ?
6

7. What is Color Managemet ?
7

8. ICC profiles
 In color management, an ICC profile is a set of data that characterizes a
color input or output device, or a color space, according to standards
promulgated by the International Color Consortium (ICC).
 Profiles describe the color attributes of a particular device or viewing
requirement by defining a mapping between the device source or target
color space and a profile connection space (PCS). This PCS is either CIELAB
(L*a*b*) or CIEXYZ. Mappings may be specified using tables, to which
interpolation is applied, or through a series of parameters for
transformations.
8

9. ICC profiles
 Every device that captures or displays color can be profiled. Some
manufacturers provide profiles for their products, and there are several
products that allow an end user to generate his or her own color profiles,
typically through the use of a tristimulus colorimeter or preferably a
spectrophotometer.
9

10. ICC profiles and LAB
 www.color.org
 rgb profiles, cmyk profiles (printer profiles)
10

11. 3 Levels of standards
 The word “standard” is often used wrongly
11

12. 3 Levels of standards
 The word “standard” is often used wrongly
 ISO, CIE, IEC Standard – Following the procedures of a worldwide
recognized authority => norm
12

13. 3 Levels of standards
 The word “standard” is often used wrongly
 ISO, CIE, IEC Standard – Following the procedures of a worldwide
recognized authority => norm
 De-Facto standards – Code of practices defined by a industry, sector,
branch => technical specification
13

14. 3 Levels of standards
 The word “standard” is often used wrongly
 ISO, CIE, IEC Standard – Following the procedures of a worldwide
recognized authority => norm
 De-Facto standards – Code of practices defined by a industry, sector,
branch => technical specification
 House standard – Company grown procedures and requirements
14

15. Where to find the standard
profiles for offset printing?
 ISO Coated v2 (ECI)
 ISO Coated v2 300% (ECI)
 PSO LWC Improved (ECI)
 www.eci.org
 PSO LWC Standard (ECI)
 PSO Uncoated ISO12647 (ECI)
 The download archive ECI Offset 2009
contains the following ICC profiles:  ISO Uncoated Yellowish
 SC Paper (ECI)
 PSO MFC Paper (ECI)
 PSO SNP Paper (ECI)
 PSO Coated NPscreen ISO12647 (ECI)
 PSO Coated 300% NPscreen ISO12647 (ECI)
 PSO Uncoated NPscreen ISO12647 (ECI)
15

16. 16

17. 17

18. 18

19. 19

20. Key Players
Paper Type / Substrate
Printing Device or Press
(sheet-fed offset, web-offset, digital, inkjet, etc...)
Inks
Plates and platemaking process
Dot Shape
Screening/Ruling
20

21. 21

22. Solid Ink Density (SID values)
CIAN (Fogra39) – Target Values: L55.00 a-37.00 b-50.00
SID: 1,20  deltaE 7.43
22

23. Solid Ink Density (SID values)
CIAN (Fogra39) – Target Values: L55.00 a-37.00 b-50.00
SID: 1,20  deltaE 7.43
SID: 1,45  deltaE 2.30
23

24. Adjusting TVI curves (DGC in-Rip)
24

25. Adjusting TVI curves (DGC in-Rip)
25

26. Adjusting TVI curves (DGC in-Rip)
26

27. Adjusting TVI curves (DGC in-Rip)
27

28. ISO 12647-7 (contract proofs)
28

29. 29

30. Managing LUTs on HP
30

31. Managing LUTs on HP
31

32. Managing LUTs on HP
32

33. PSD Handbook 2012 (fogra)
33

34. 34

35. If You Don't Measure It, You Won't Manage It
35
