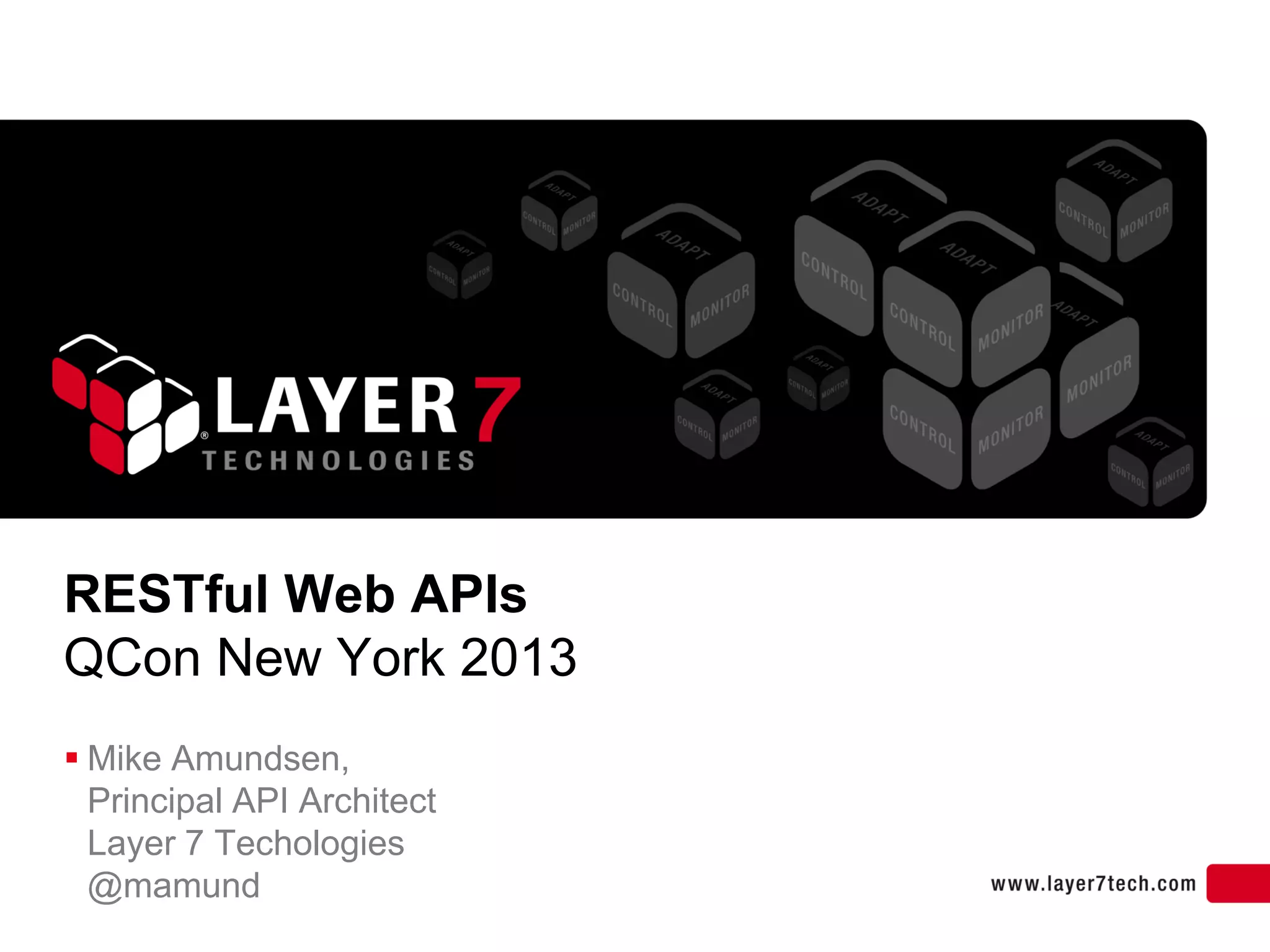

Mike Amundsen's presentation at QCon New York 2013 focuses on building RESTful web APIs, outlining seven key steps and challenges in designing hypermedia APIs. He highlights the importance of semantic descriptors, implementation constraints, and different hypermedia design patterns, providing practical examples. The session also discusses strategies for implementing hypermedia servers and clients, emphasizing the flexibility and adaptability required for effective API design.

1. 1
RESTful Web APIs
QCon New York 2013
 Mike Amundsen,
Principal API Architect
Layer 7 Techologies
@mamund

2. 2
Mike Amundsen
 Author, Web Architect, Presenter
 Principal API Architect
 Building Hypermedia APIs with HTML5 and Node
 RESTful Web APIs (Richardson, Amundsen, Ruby)

3. 3

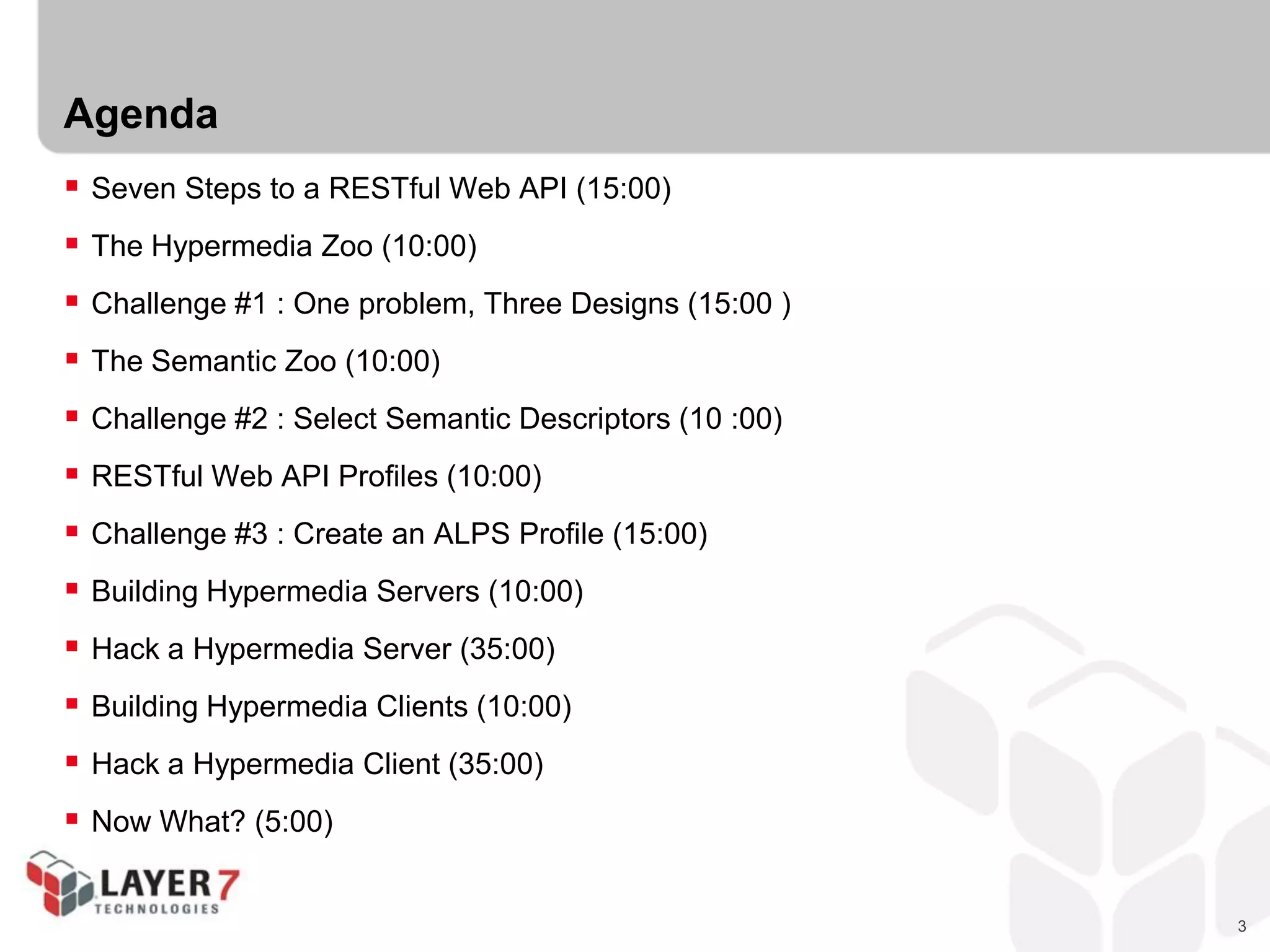

Agenda
 Seven Steps to a RESTful Web API (15:00)
 The Hypermedia Zoo (10:00)
 Challenge #1 : One problem, Three Designs (15:00 )
 The Semantic Zoo (10:00)
 Challenge #2 : Select Semantic Descriptors (10 :00)
 RESTful Web API Profiles (10:00)
 Challenge #3 : Create an ALPS Profile (15:00)
 Building Hypermedia Servers (10:00)
 Hack a Hypermedia Server (35:00)
 Building Hypermedia Clients (10:00)
 Hack a Hypermedia Client (35:00)
 Now What? (5:00)

4. 4

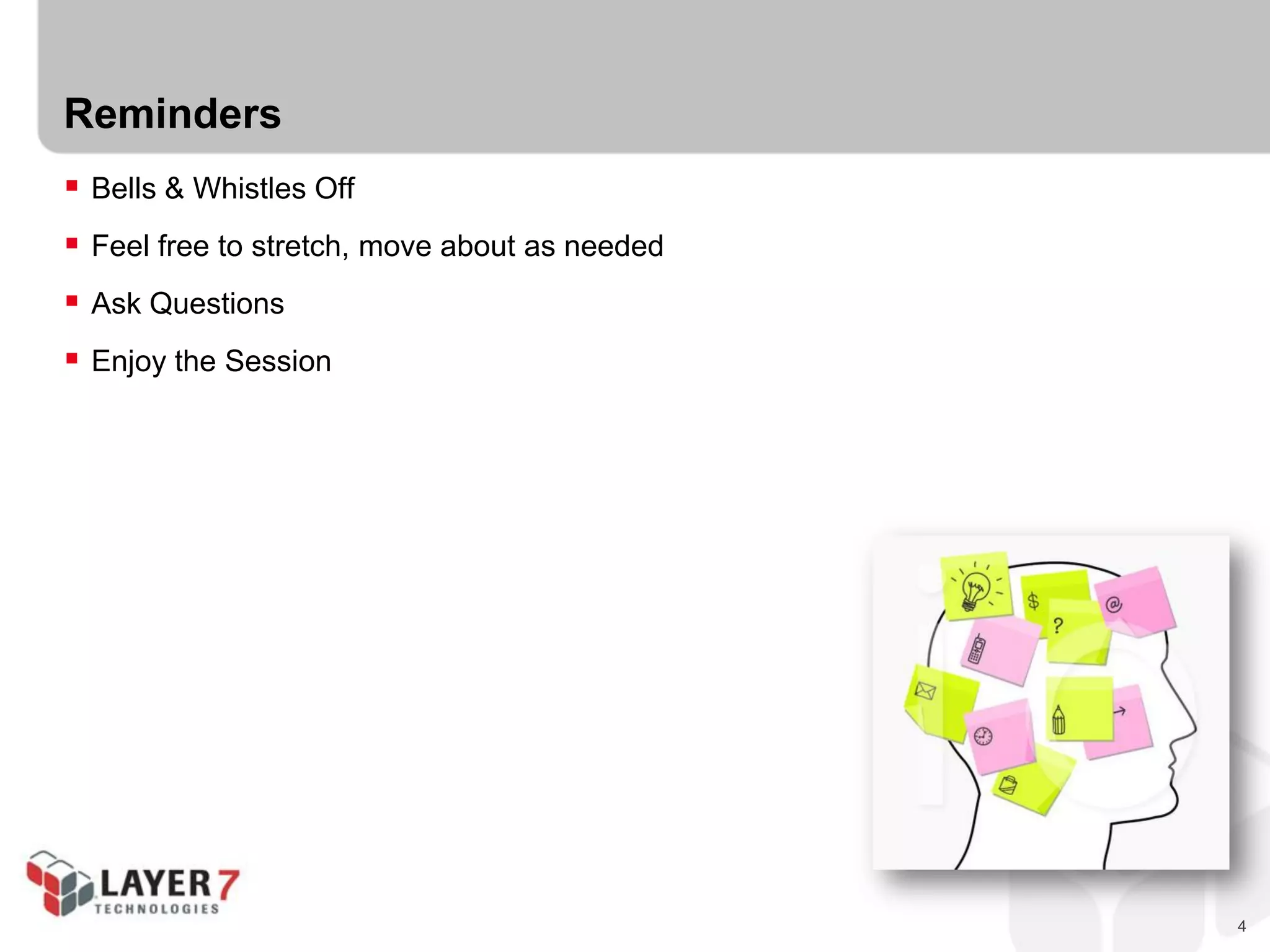

Reminders
 Bells & Whistles Off
 Feel free to stretch, move about as needed
 Ask Questions
 Enjoy the Session

5. 5
SEVEN STEPS TO A
RESTFUL API

6. 6

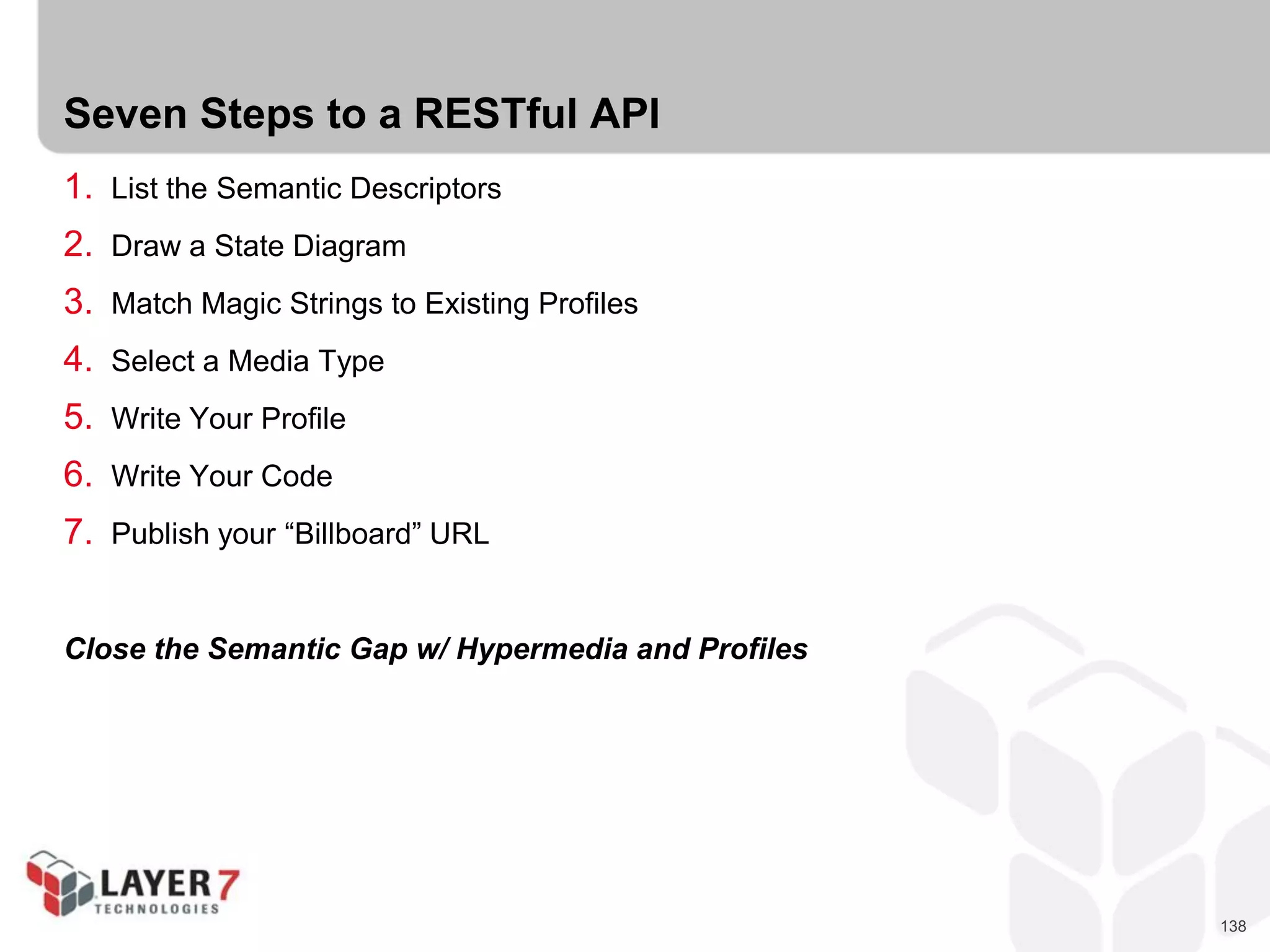

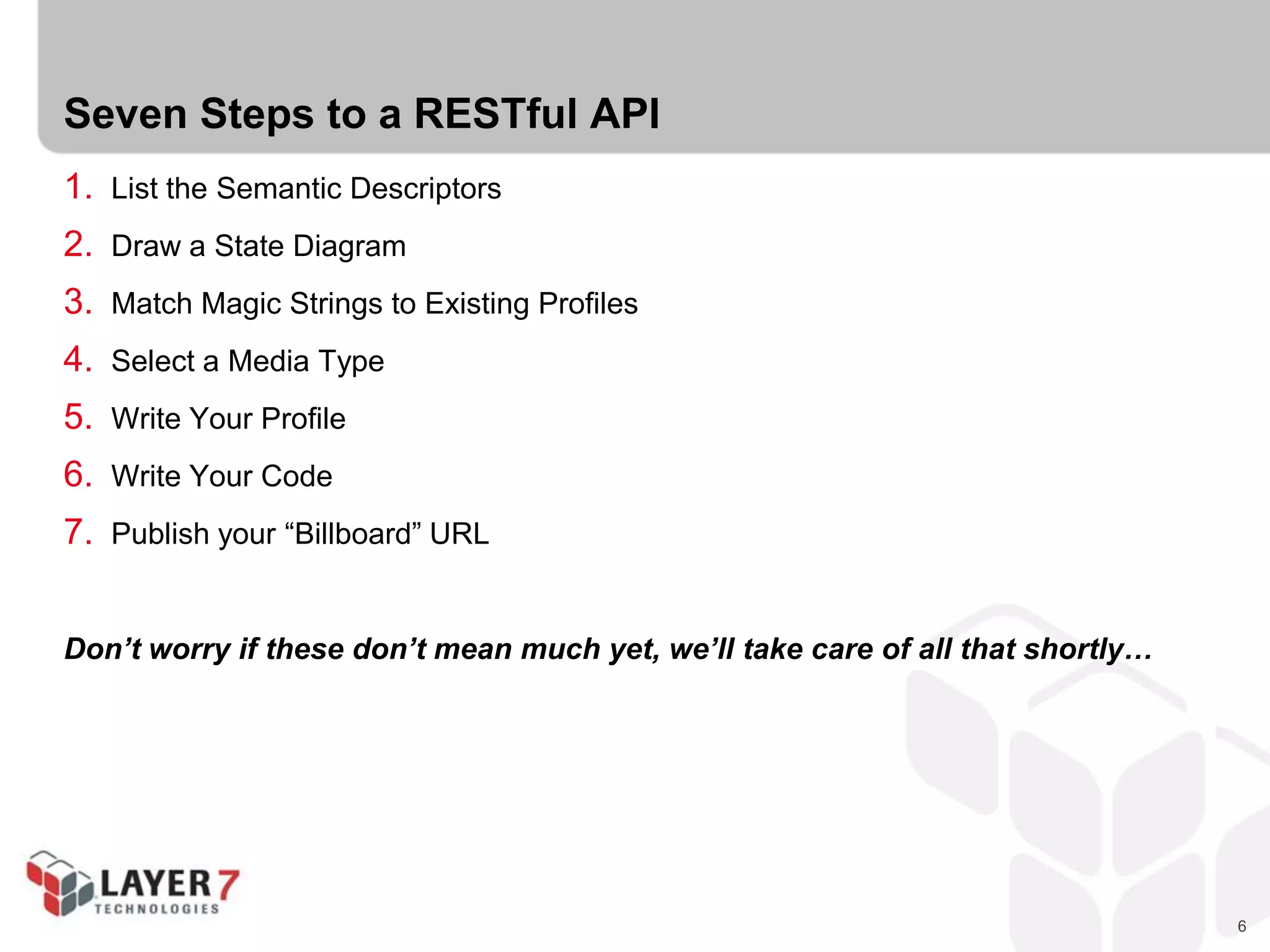

Seven Steps to a RESTful API
1. List the Semantic Descriptors
2. Draw a State Diagram
3. Match Magic Strings to Existing Profiles
4. Select a Media Type
5. Write Your Profile
6. Write Your Code
7. Publish your “Billboard” URL
Don’t worry if these don’t mean much yet, we’ll take care of all that shortly…

7. 7

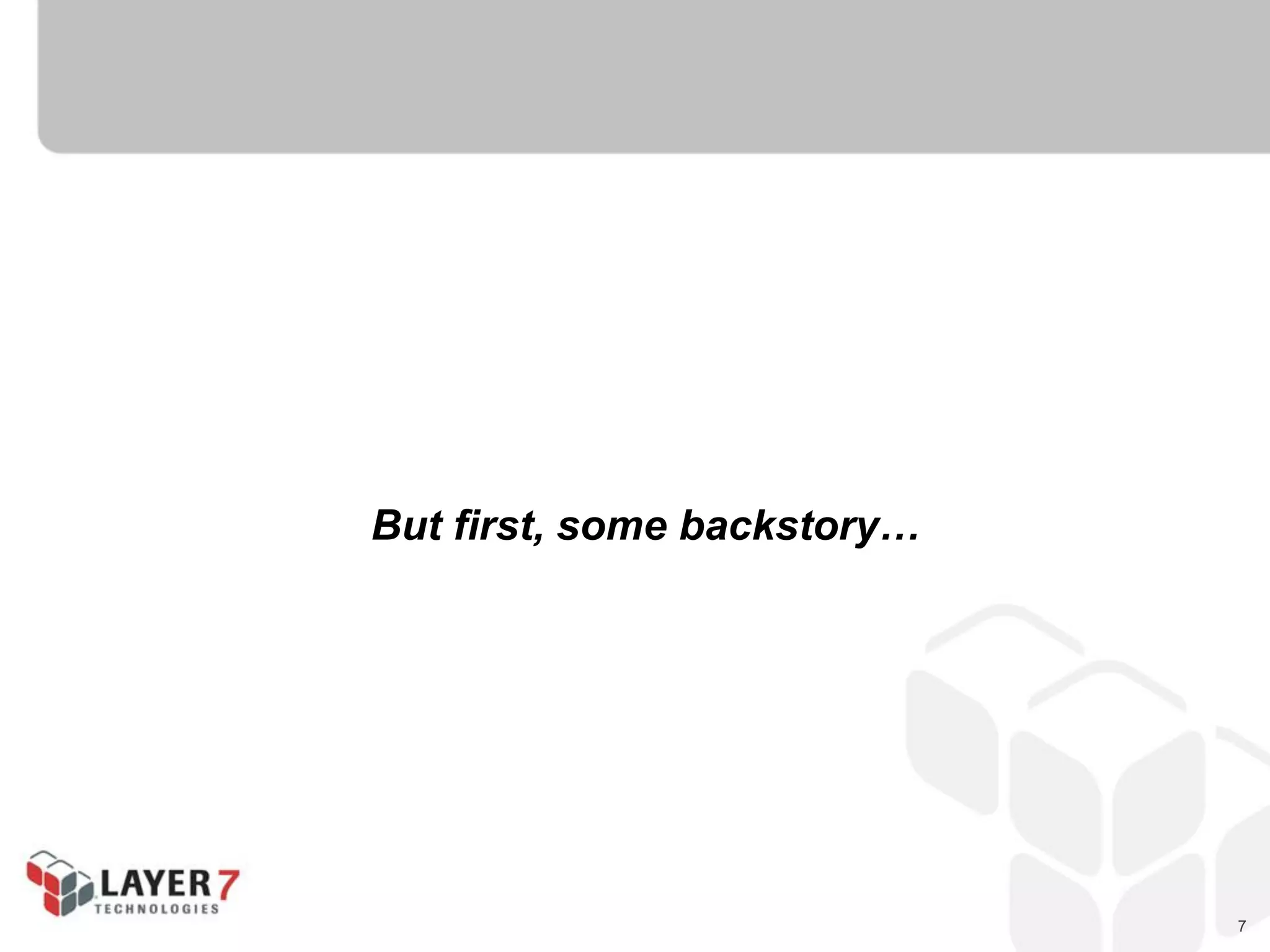

But first, some backstory…

8. 8

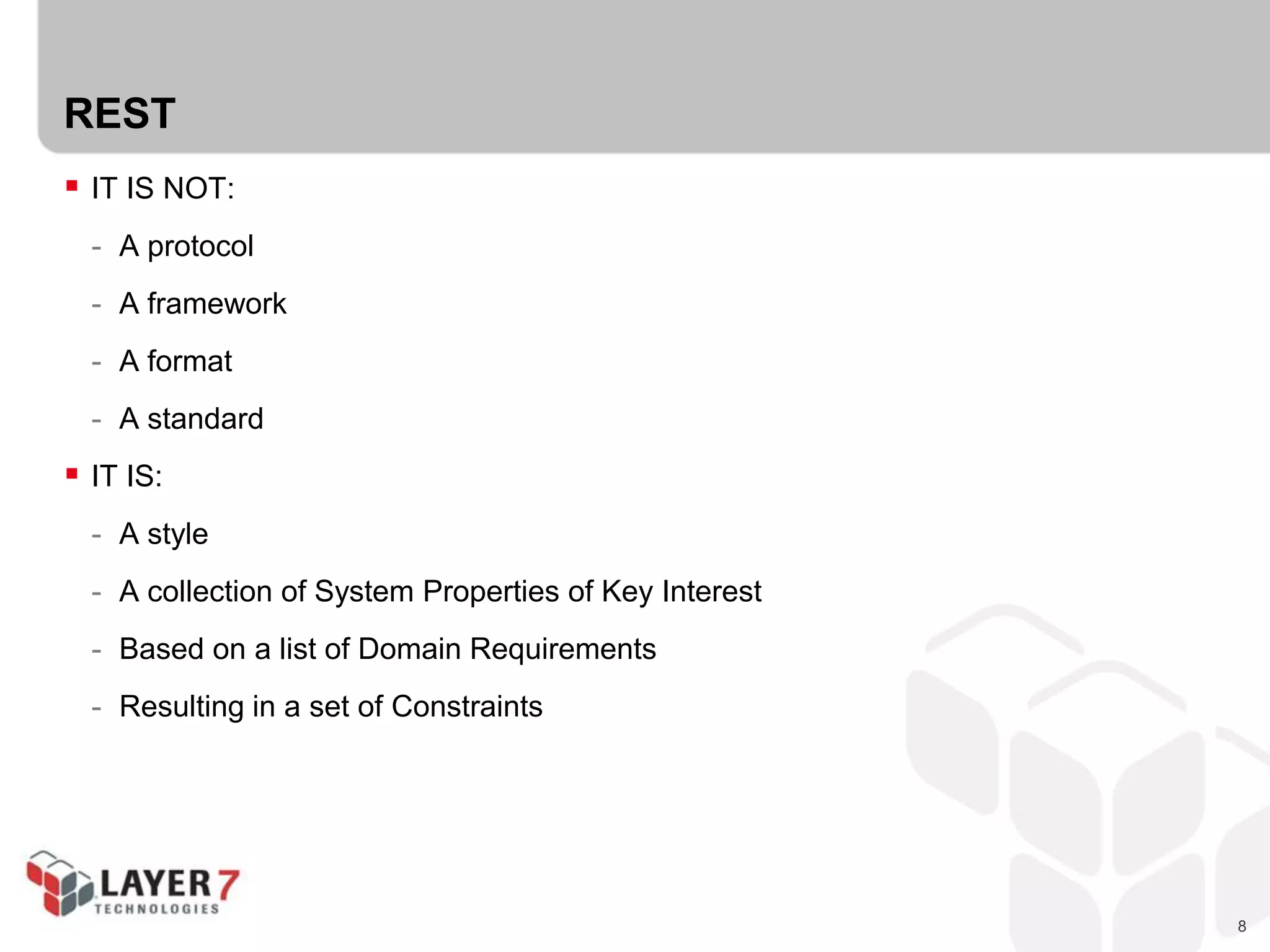

REST
 IT IS NOT:
- A protocol
- A framework
- A format
- A standard
 IT IS:
- A style
- A collection of System Properties of Key Interest
- Based on a list of Domain Requirements
- Resulting in a set of Constraints

9. 9

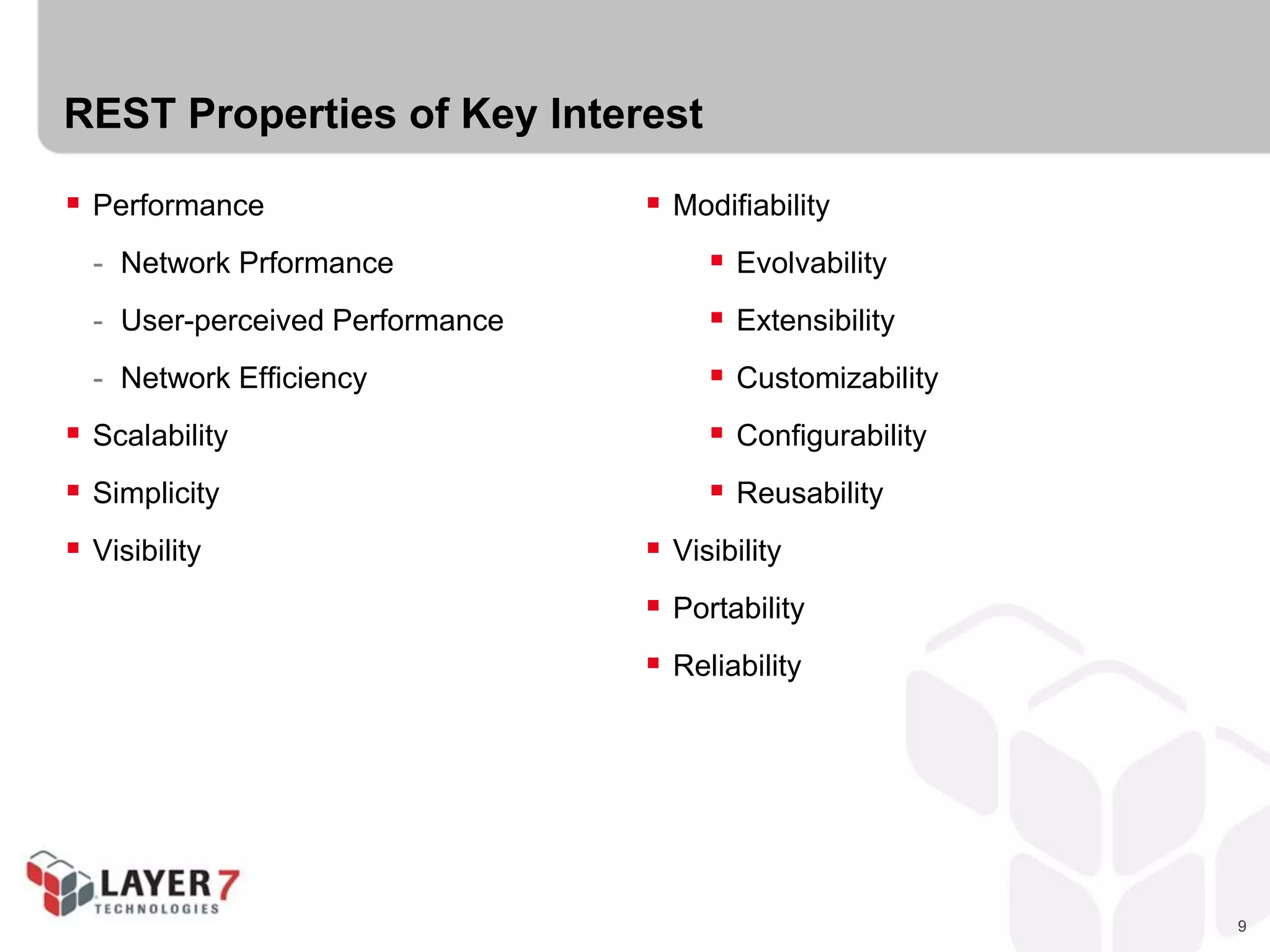

REST Properties of Key Interest
 Performance
- Network Prformance
- User-perceived Performance
- Network Efficiency
 Scalability
 Simplicity
 Visibility
 Modifiability
 Evolvability
 Extensibility
 Customizability
 Configurability
 Reusability
 Visibility
 Portability
 Reliability

10. 10

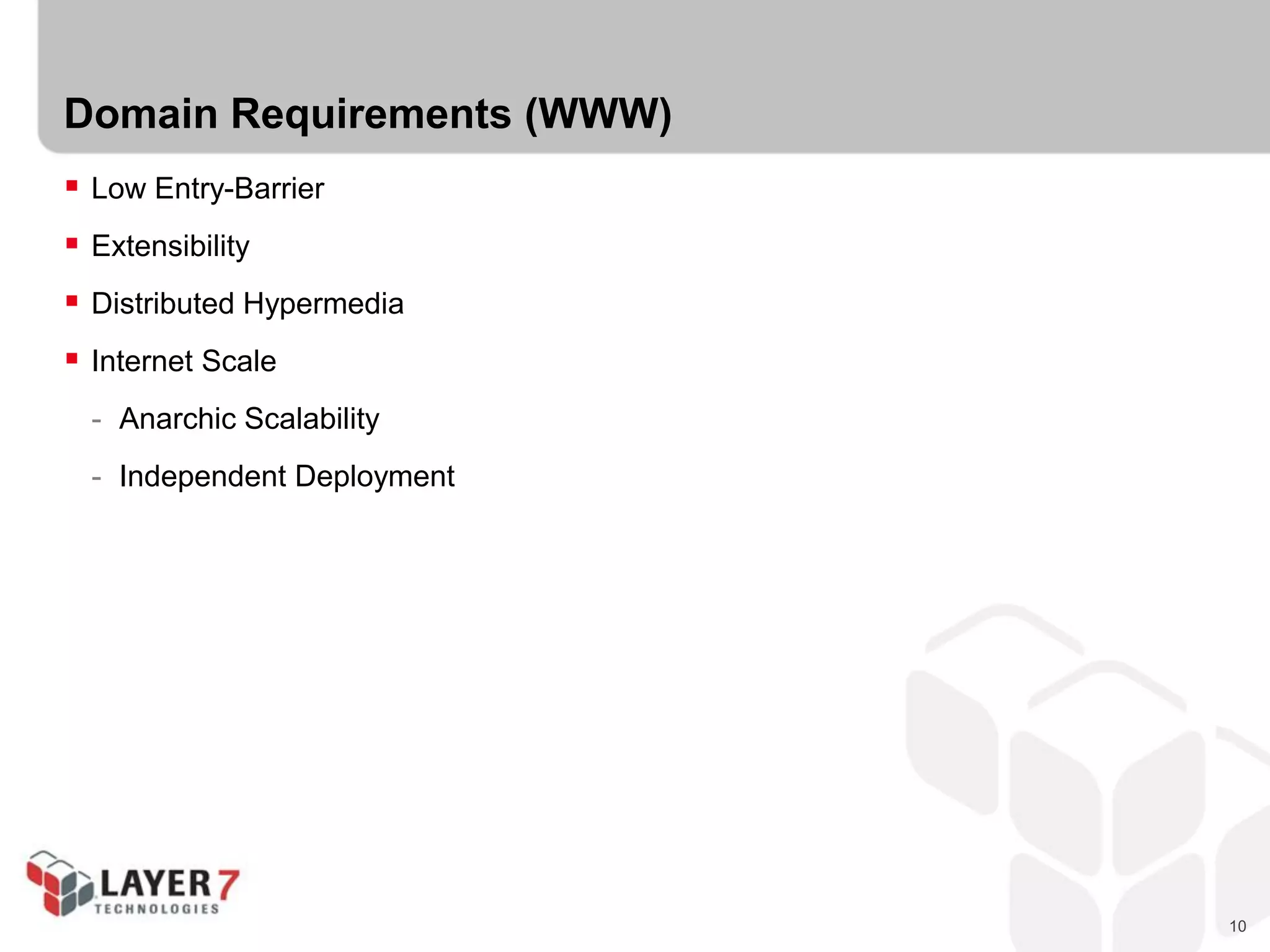

Domain Requirements (WWW)
 Low Entry-Barrier
 Extensibility
 Distributed Hypermedia
 Internet Scale
- Anarchic Scalability
- Independent Deployment

11. 11

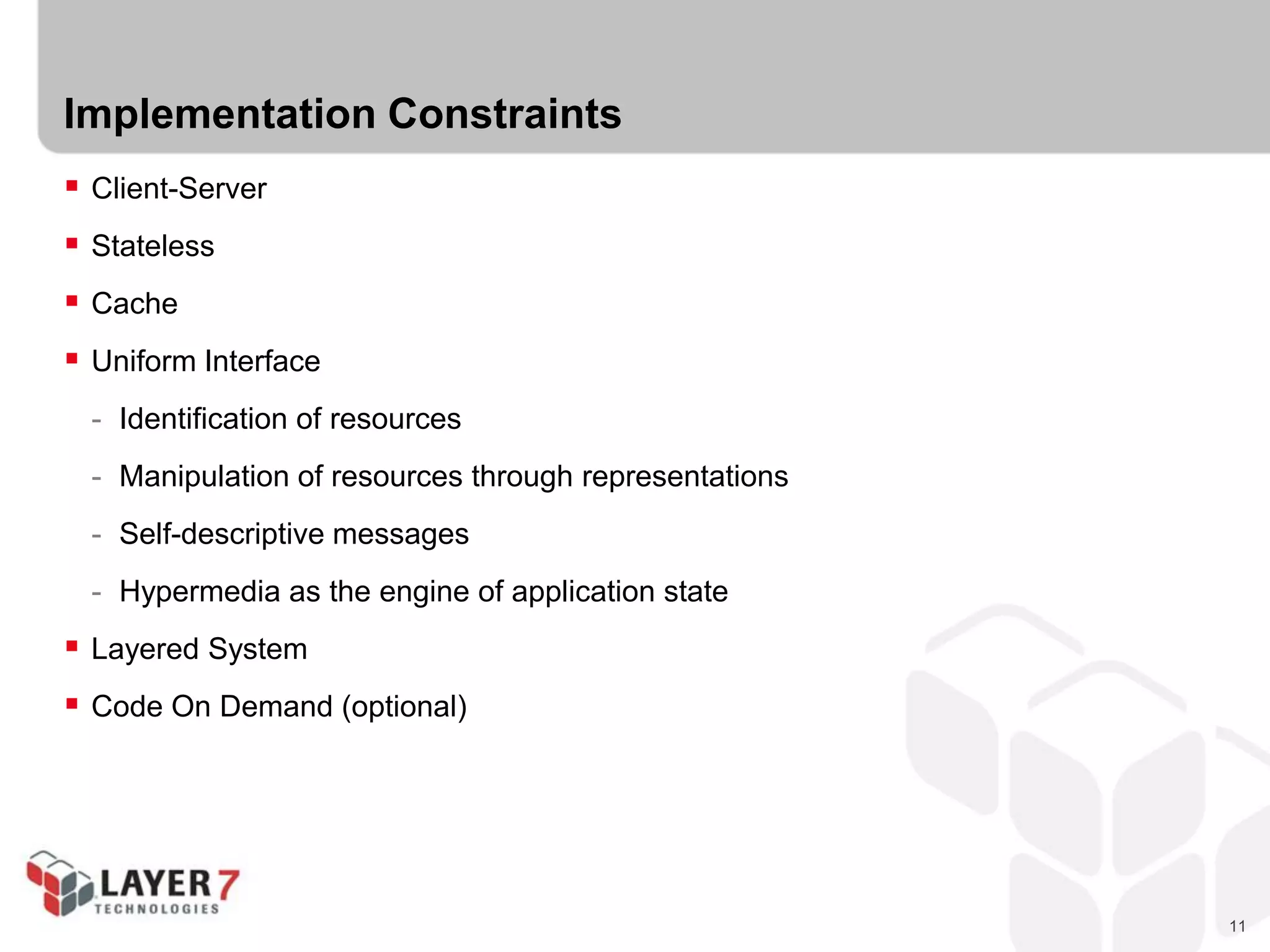

Implementation Constraints
 Client-Server
 Stateless
 Cache
 Uniform Interface
- Identification of resources
- Manipulation of resources through representations
- Self-descriptive messages
- Hypermedia as the engine of application state
 Layered System
 Code On Demand (optional)

12. 12

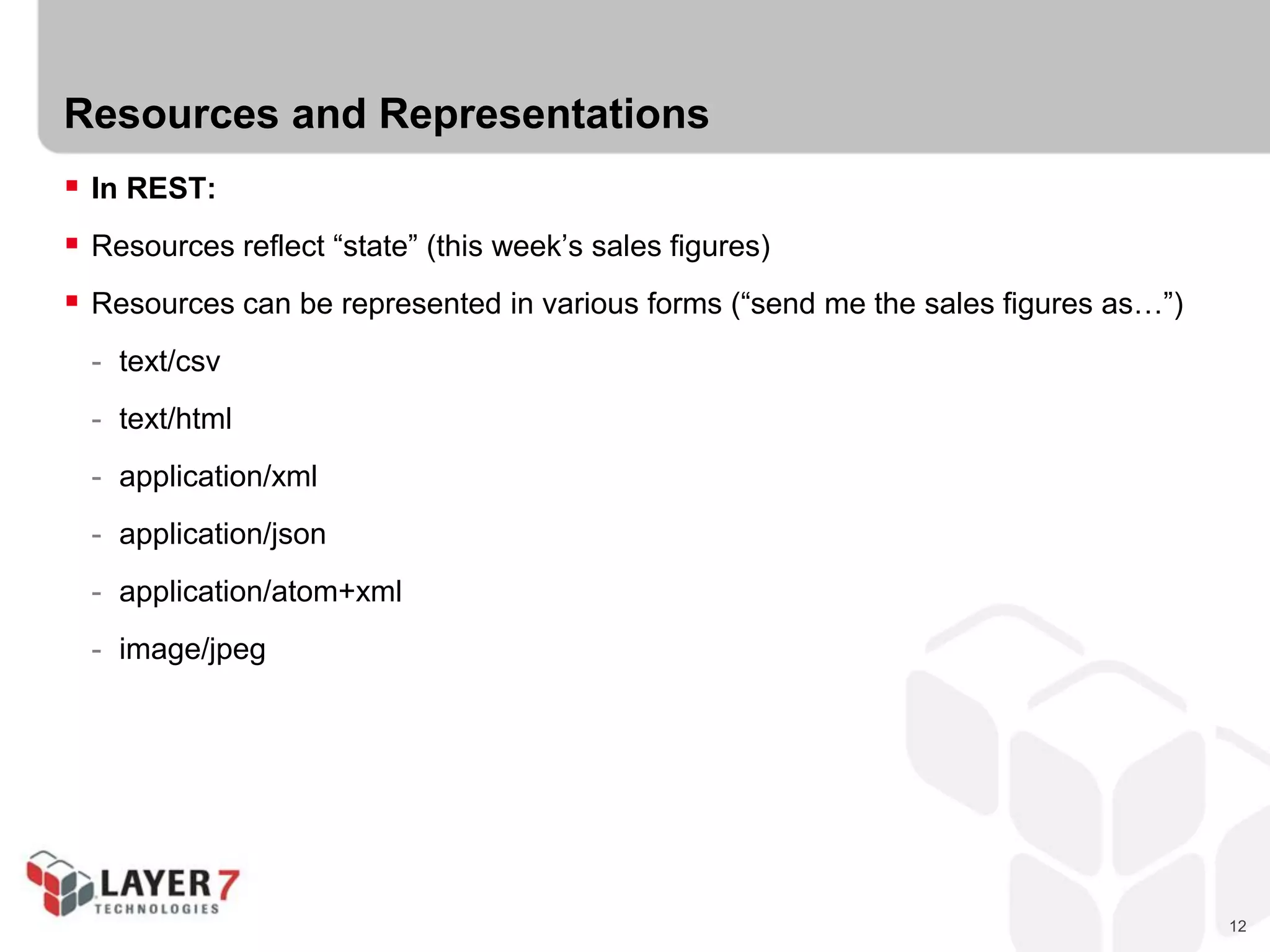

Resources and Representations
 In REST:
 Resources reflect “state” (this week’s sales figures)
 Resources can be represented in various forms (“send me the sales figures as…”)
- text/csv
- text/html
- application/xml
- application/json
- application/atom+xml
- image/jpeg

13. 13

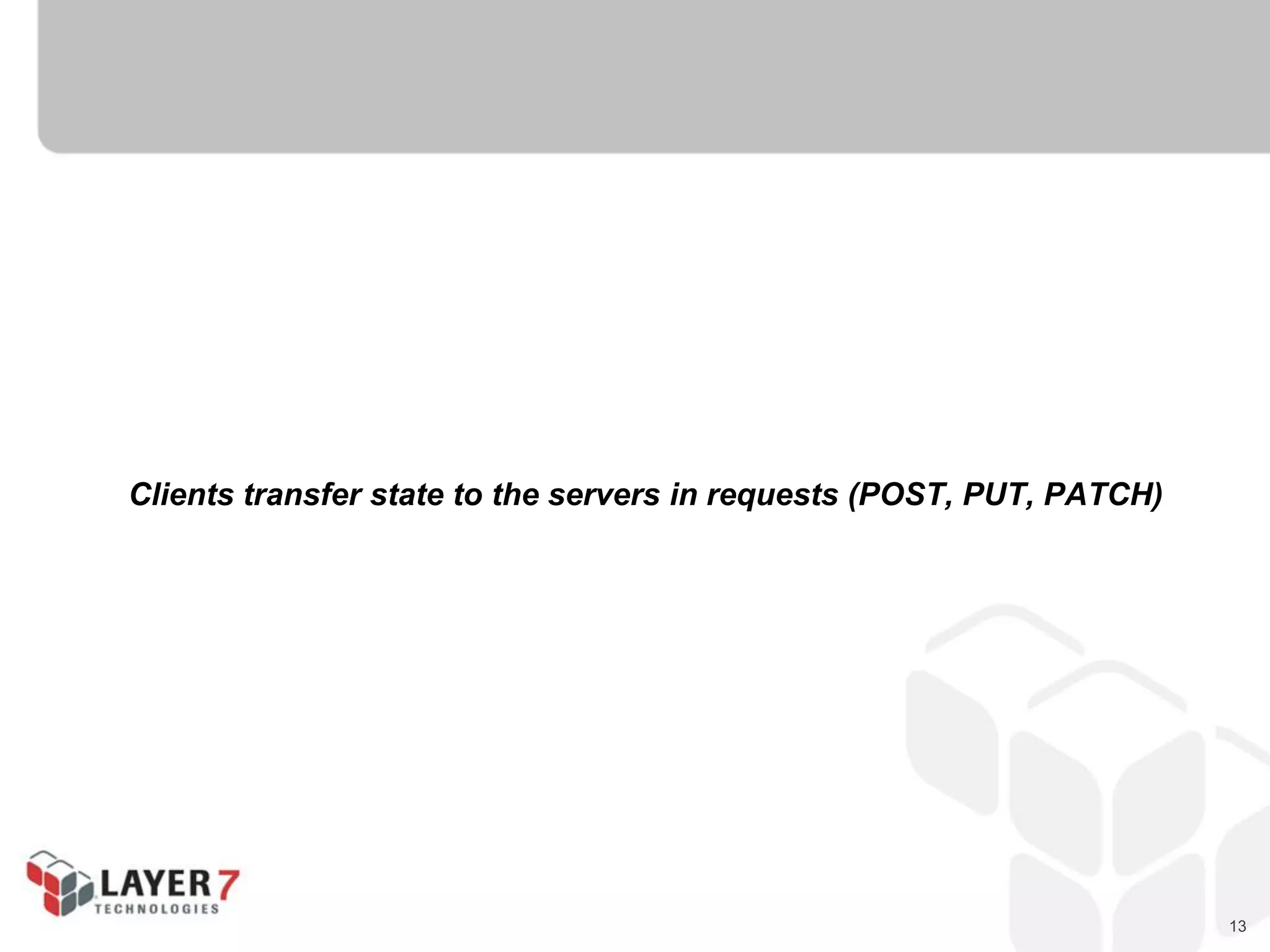

Clients transfer state to the servers in requests (POST, PUT, PATCH)

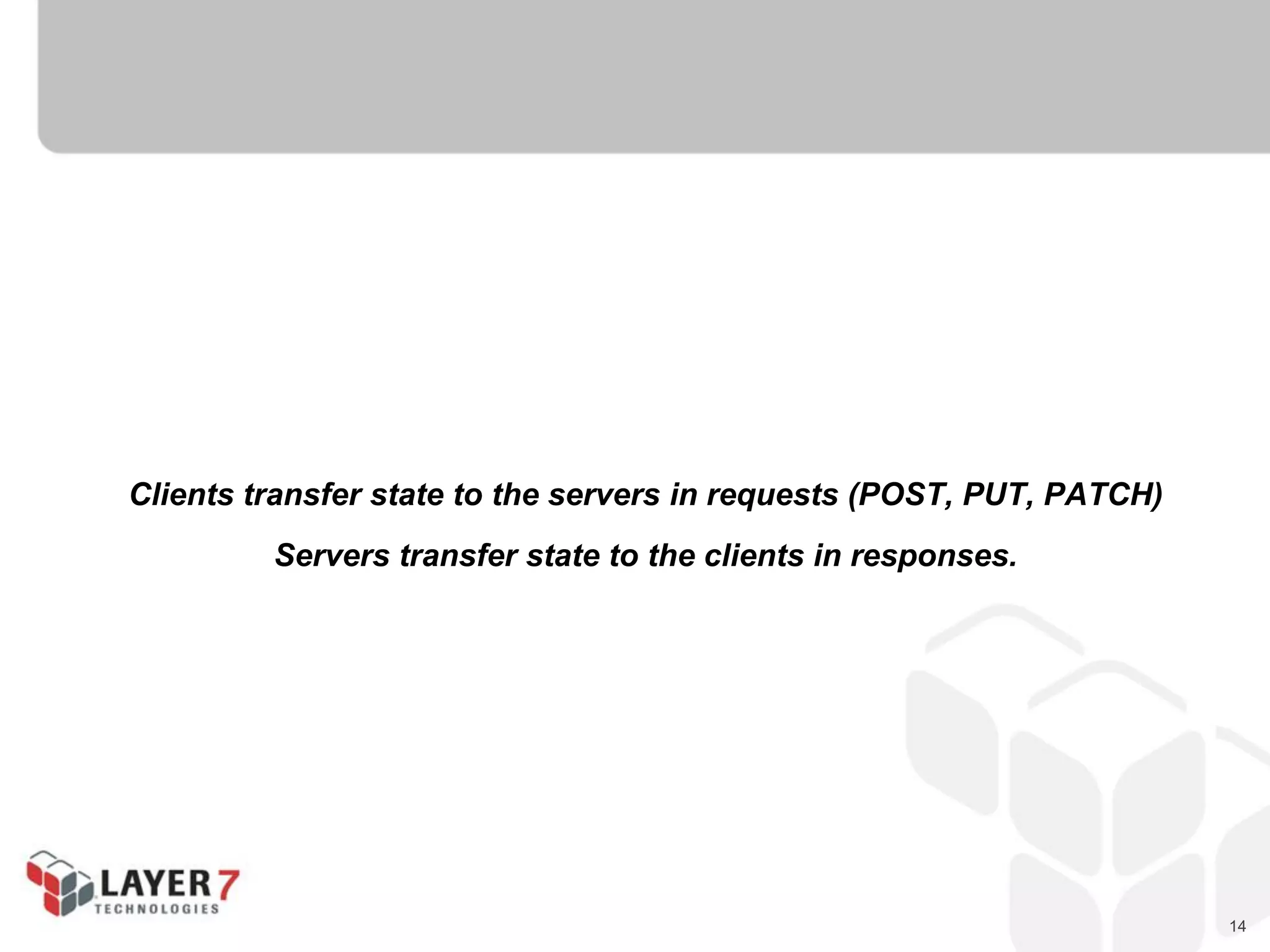

14. 14
Clients transfer state to the servers in requests (POST, PUT, PATCH)
Servers transfer state to the clients in responses.

15. 15

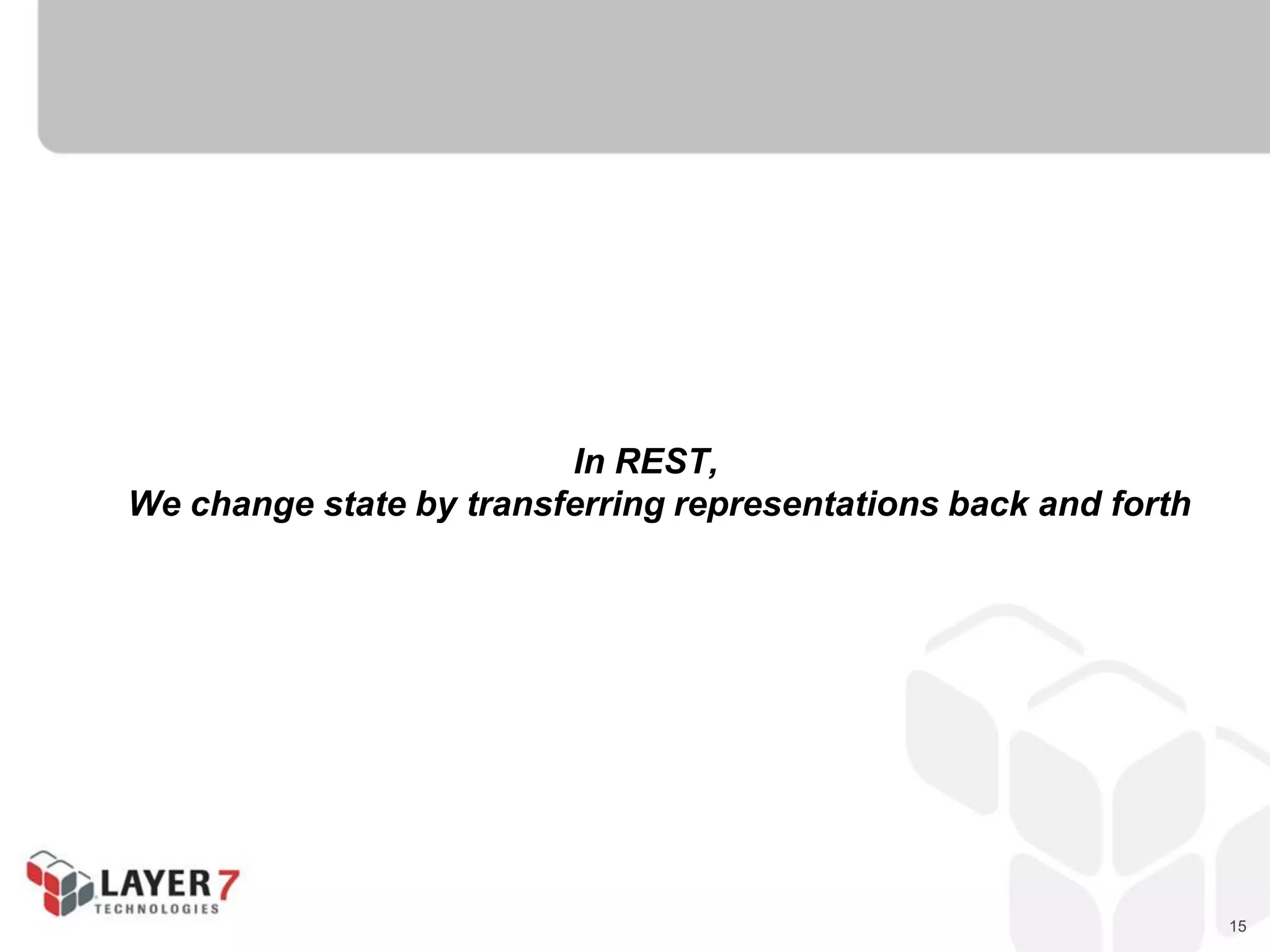

In REST,
We change state by transferring representations back and forth

16. 16

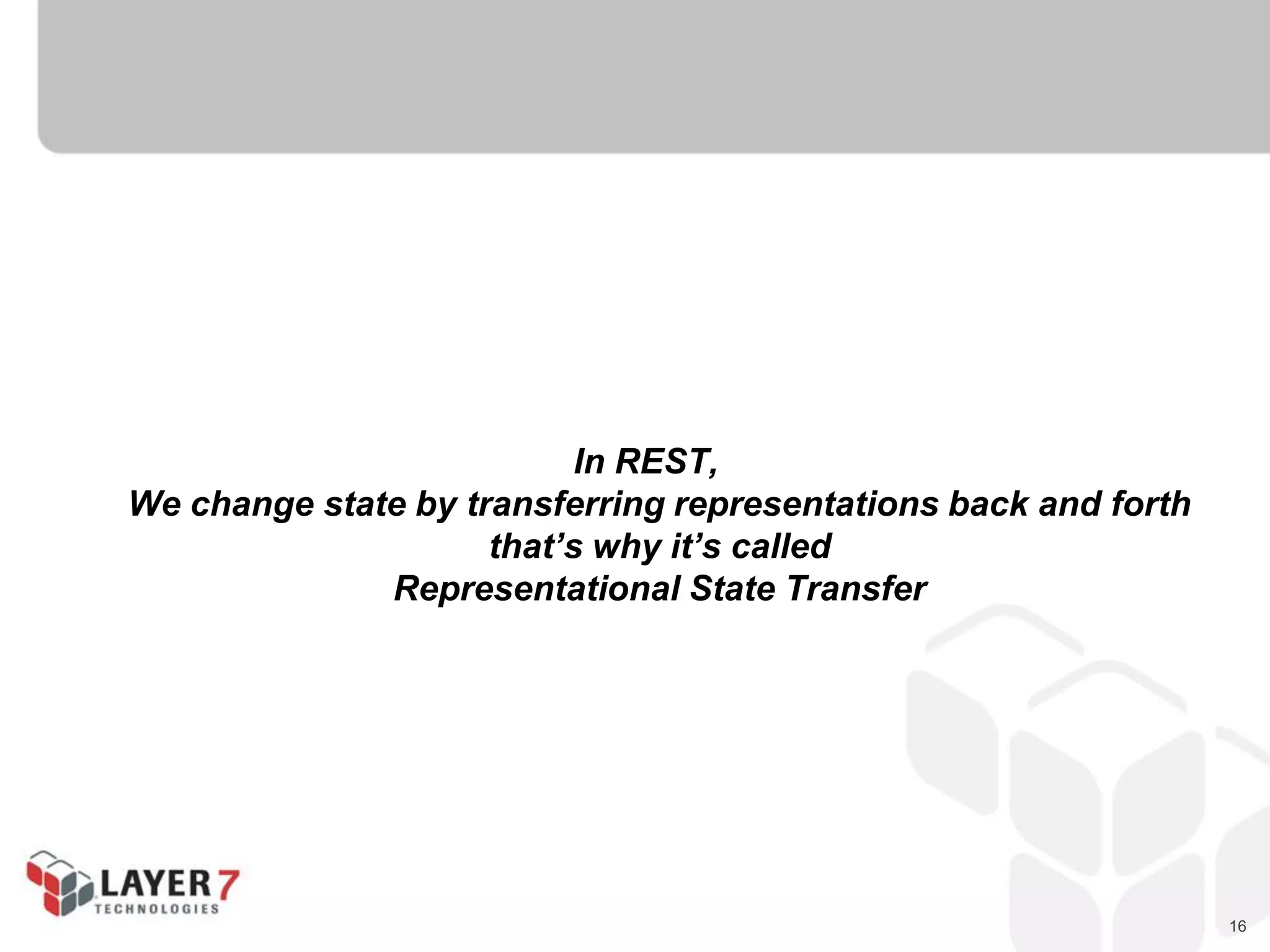

In REST,
We change state by transferring representations back and forth
that’s why it’s called
Representational State Transfer

17. 17

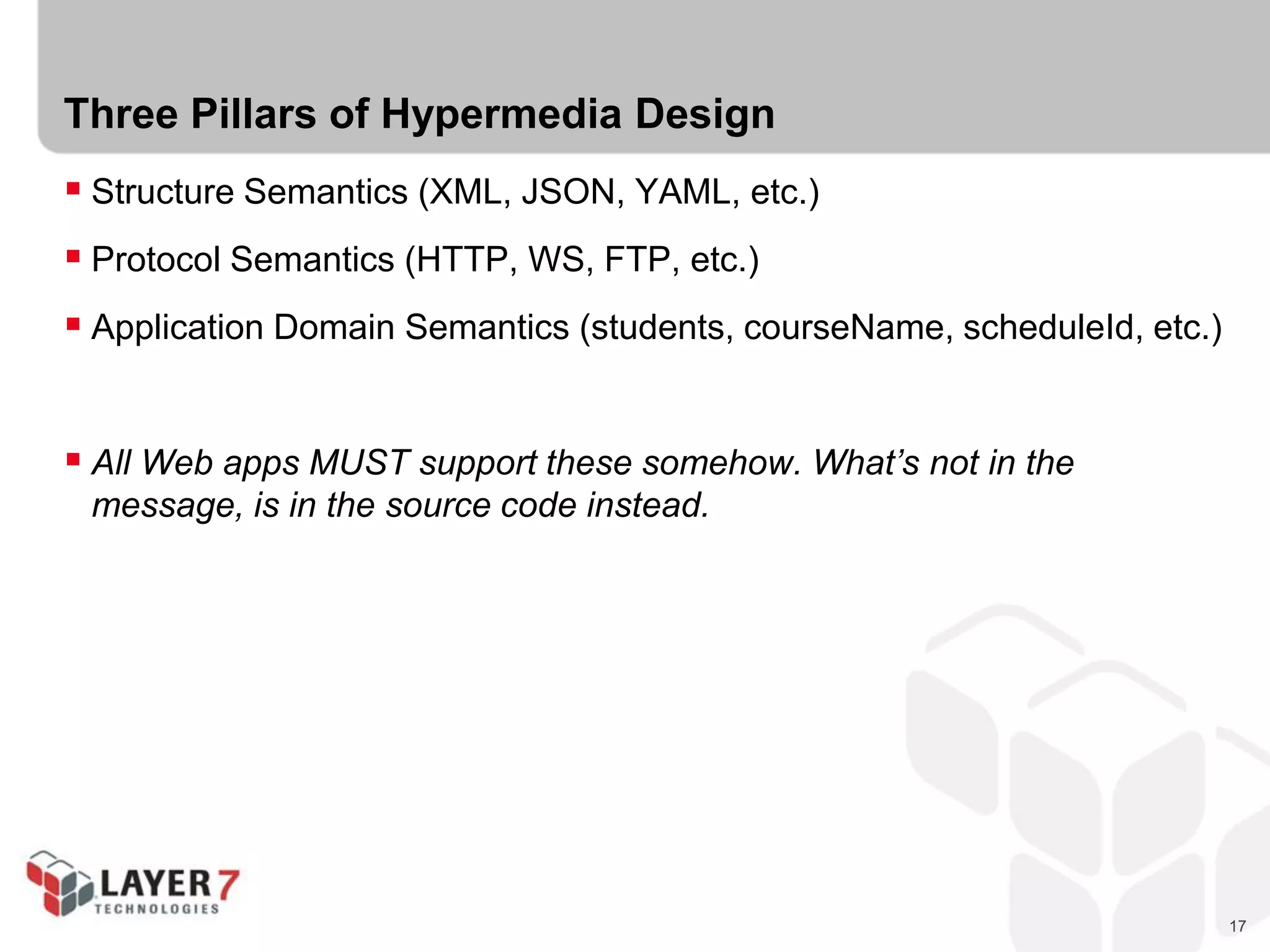

Three Pillars of Hypermedia Design
 Structure Semantics (XML, JSON, YAML, etc.)
 Protocol Semantics (HTTP, WS, FTP, etc.)
 Application Domain Semantics (students, courseName, scheduleId, etc.)
 All Web apps MUST support these somehow. What’s not in the
message, is in the source code instead.

18. 18

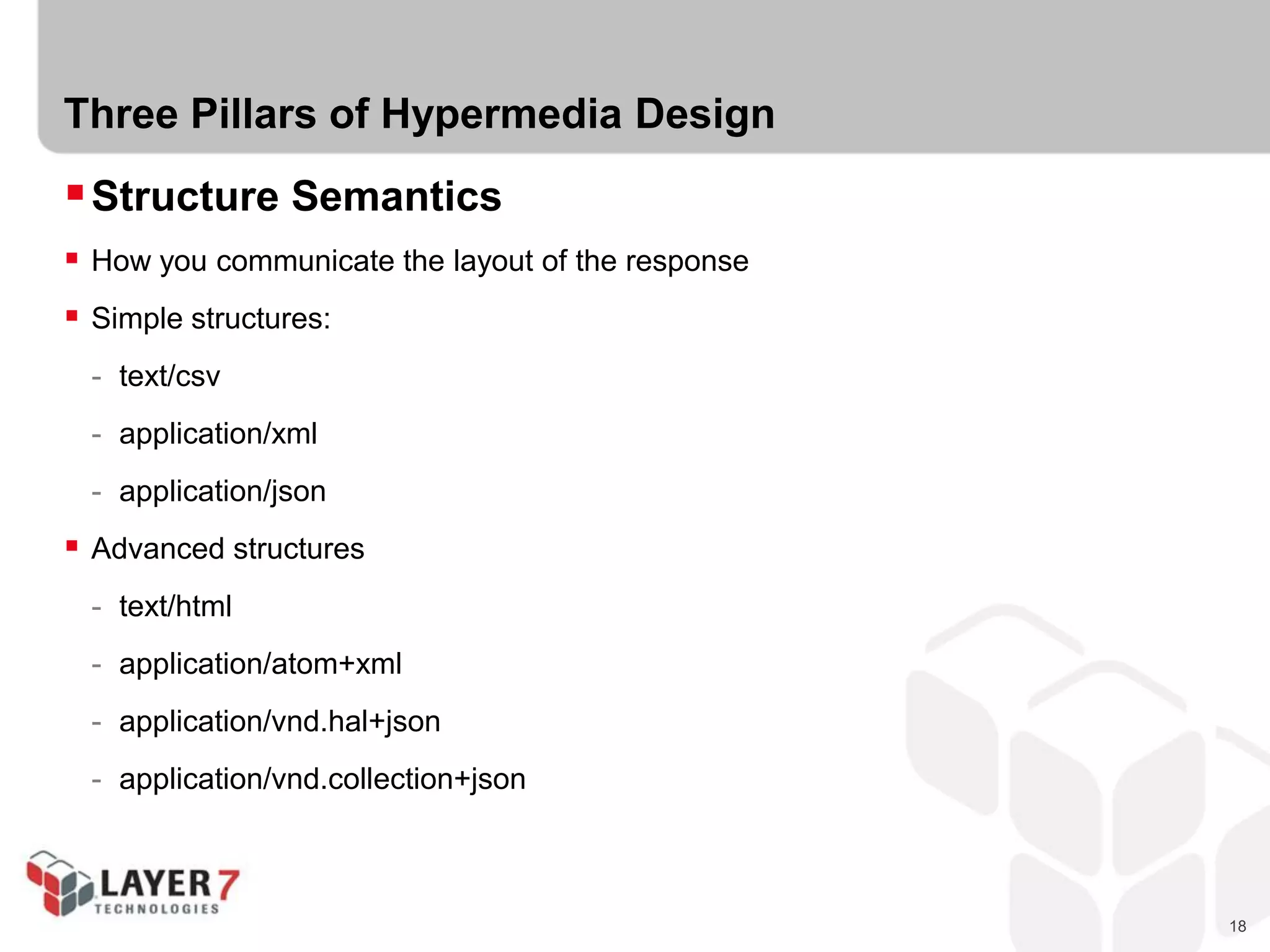

Three Pillars of Hypermedia Design
Structure Semantics
 How you communicate the layout of the response
 Simple structures:
- text/csv
- application/xml
- application/json
 Advanced structures
- text/html
- application/atom+xml
- application/vnd.hal+json
- application/vnd.collection+json

19. 19

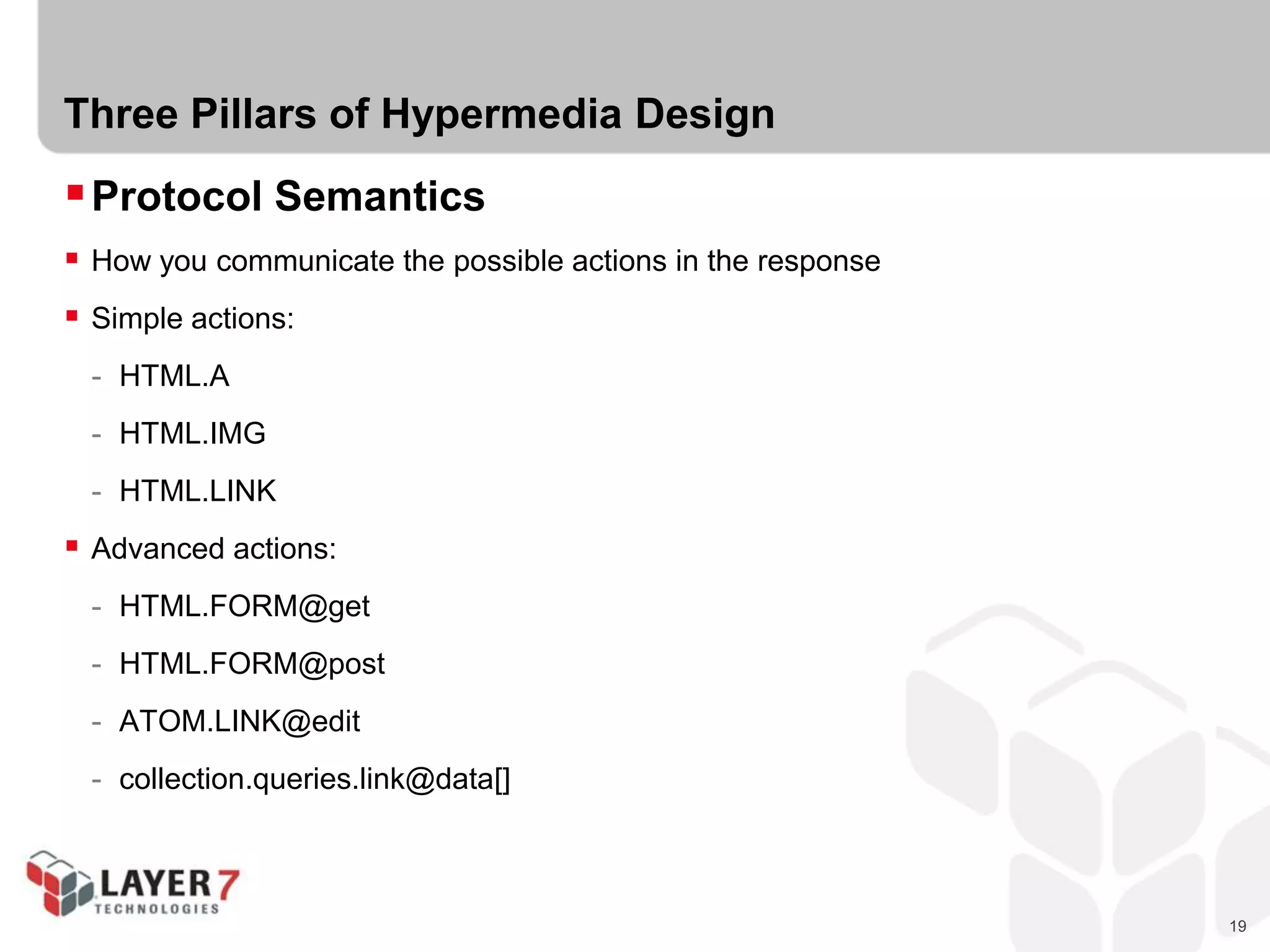

Three Pillars of Hypermedia Design
Protocol Semantics
 How you communicate the possible actions in the response
 Simple actions:
- HTML.A
- HTML.IMG
- HTML.LINK
 Advanced actions:
- HTML.FORM@get
- HTML.FORM@post
- ATOM.LINK@edit
- collection.queries.link@data[]

20. 20

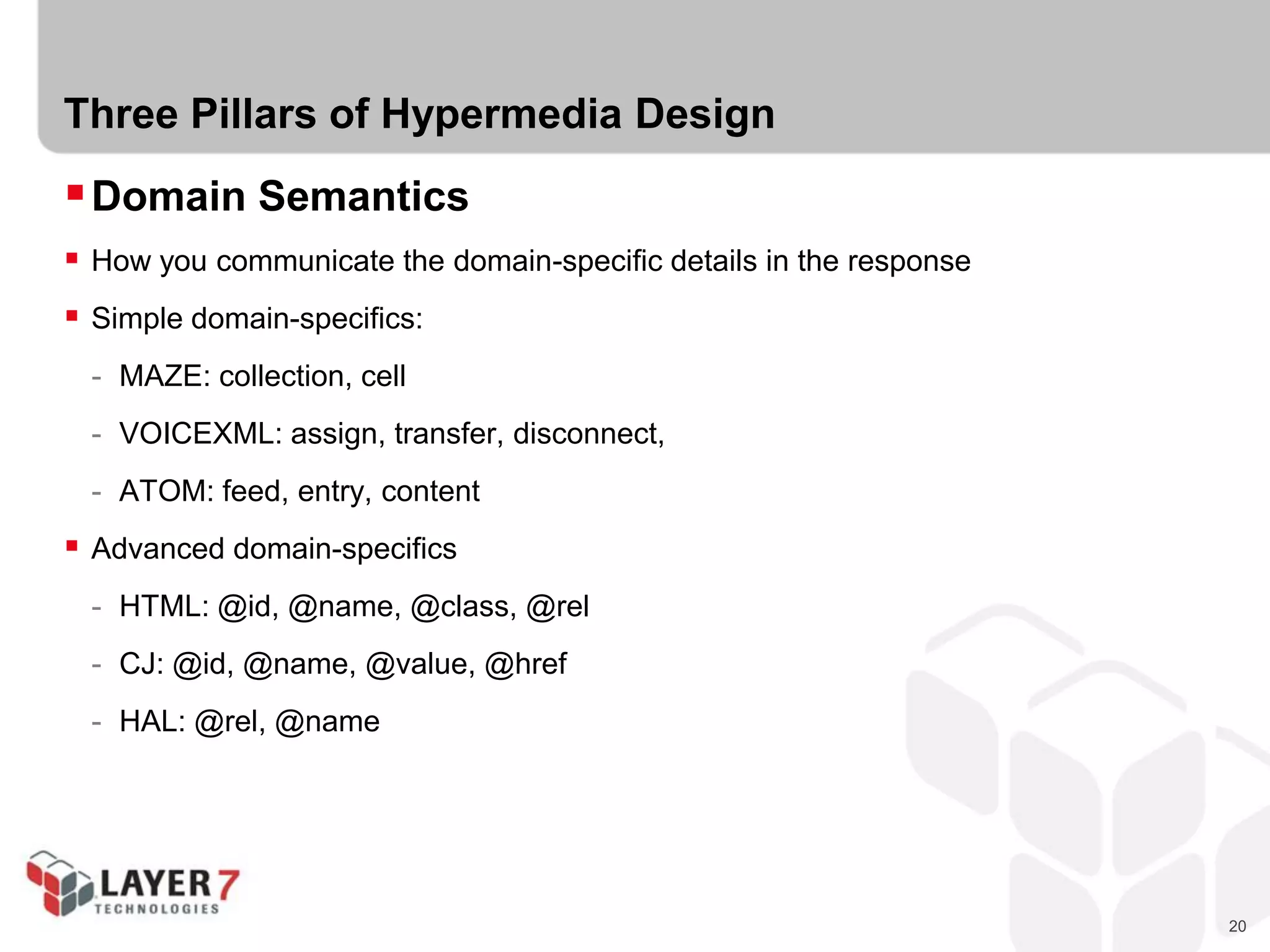

Three Pillars of Hypermedia Design
Domain Semantics
 How you communicate the domain-specific details in the response
 Simple domain-specifics:
- MAZE: collection, cell
- VOICEXML: assign, transfer, disconnect,
- ATOM: feed, entry, content
 Advanced domain-specifics
- HTML: @id, @name, @class, @rel
- CJ: @id, @name, @value, @href
- HAL: @rel, @name

21. 21

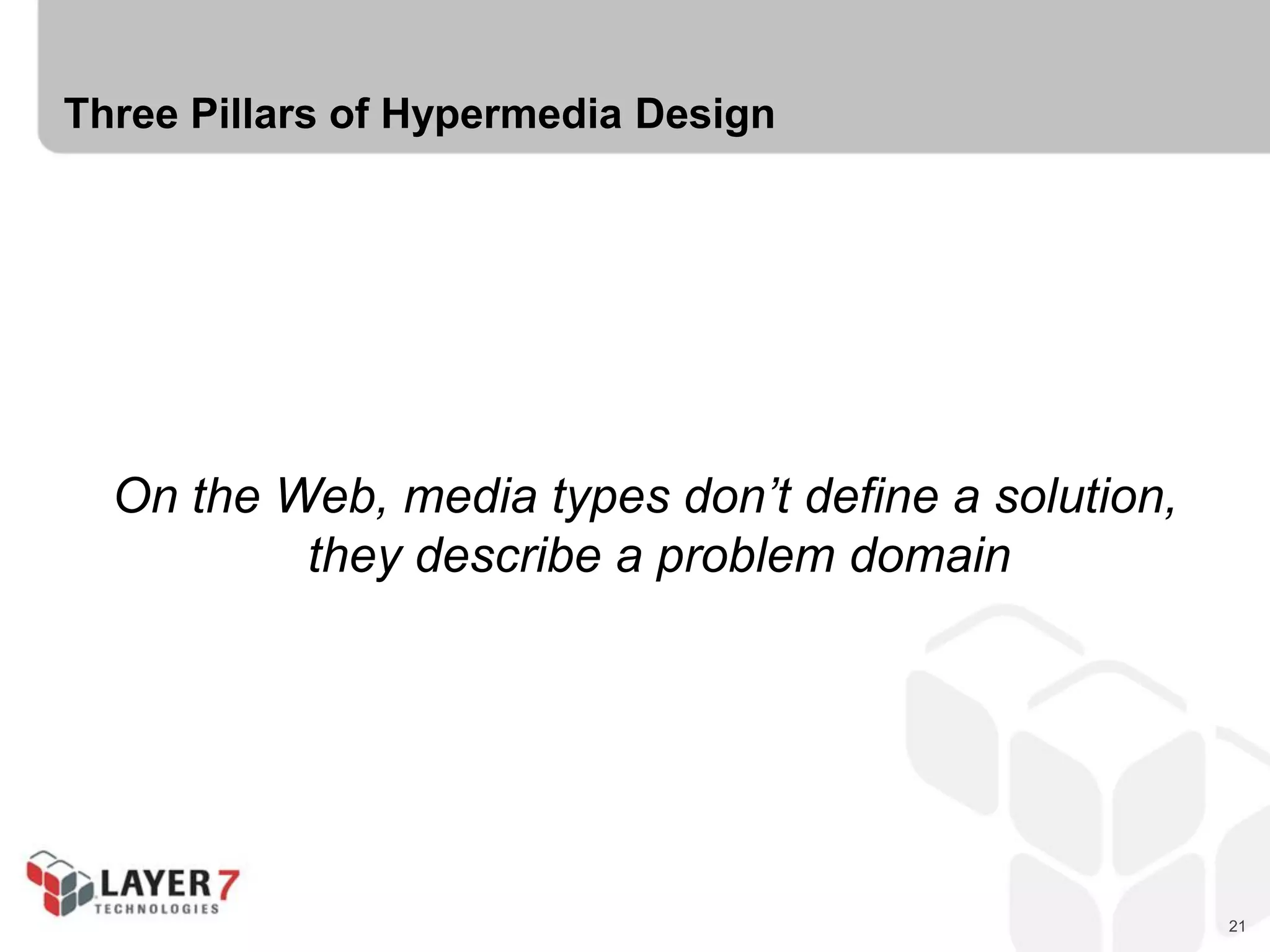

Three Pillars of Hypermedia Design
On the Web, media types don’t define a solution,
they describe a problem domain

22. 22

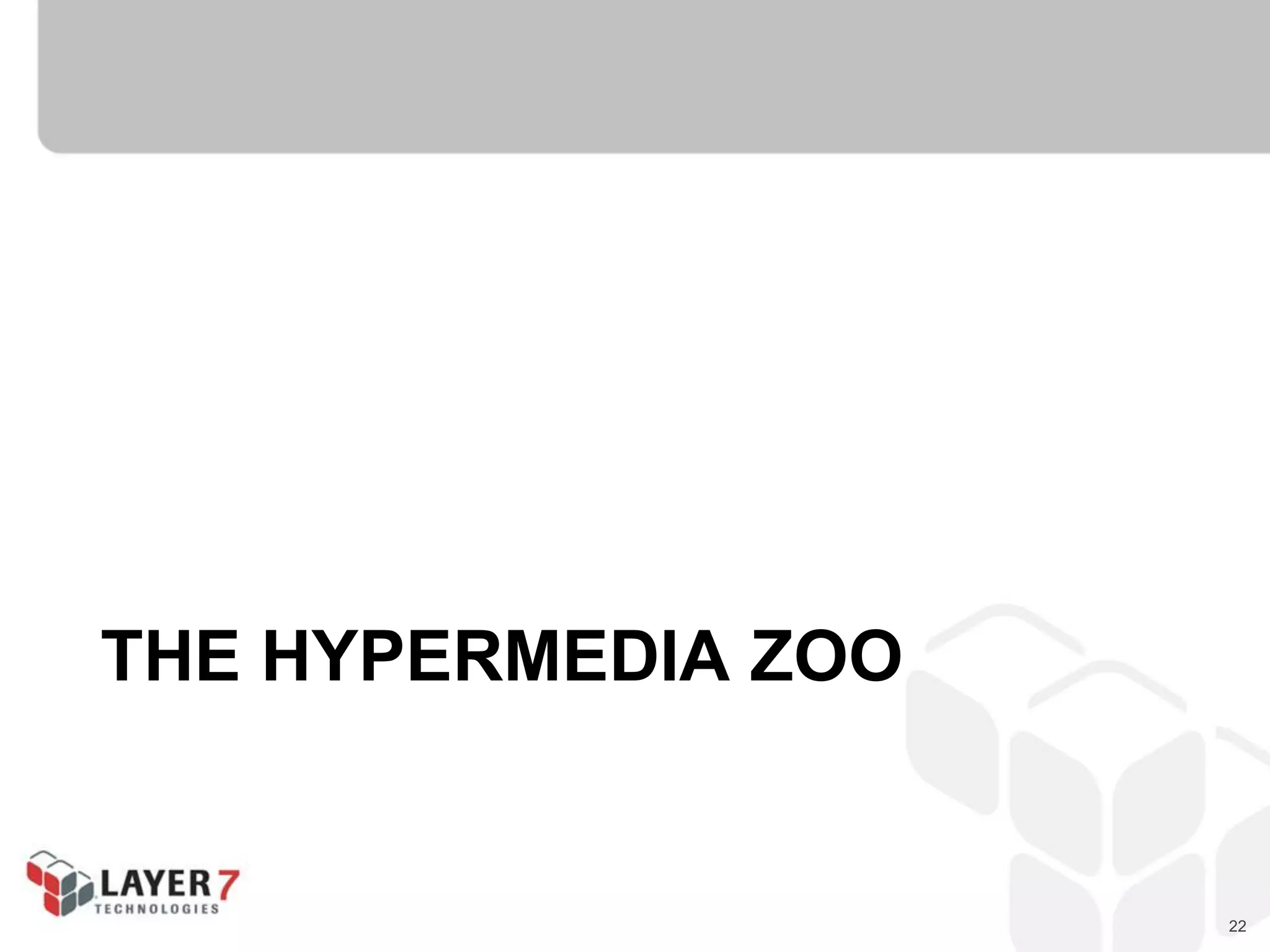

THE HYPERMEDIA ZOO

23. 23

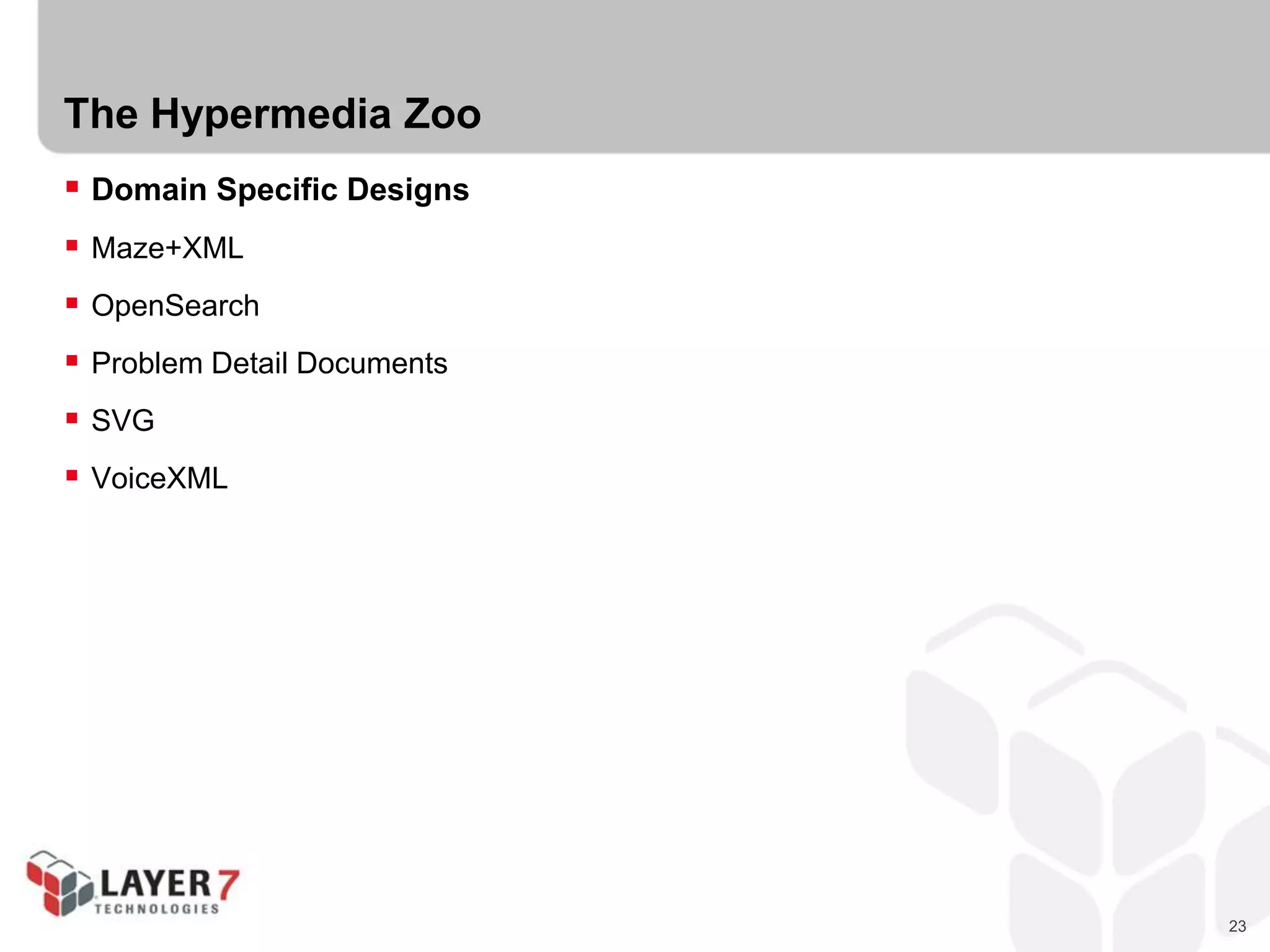

The Hypermedia Zoo
 Domain Specific Designs
 Maze+XML
 OpenSearch
 Problem Detail Documents
 SVG
 VoiceXML

24. 24

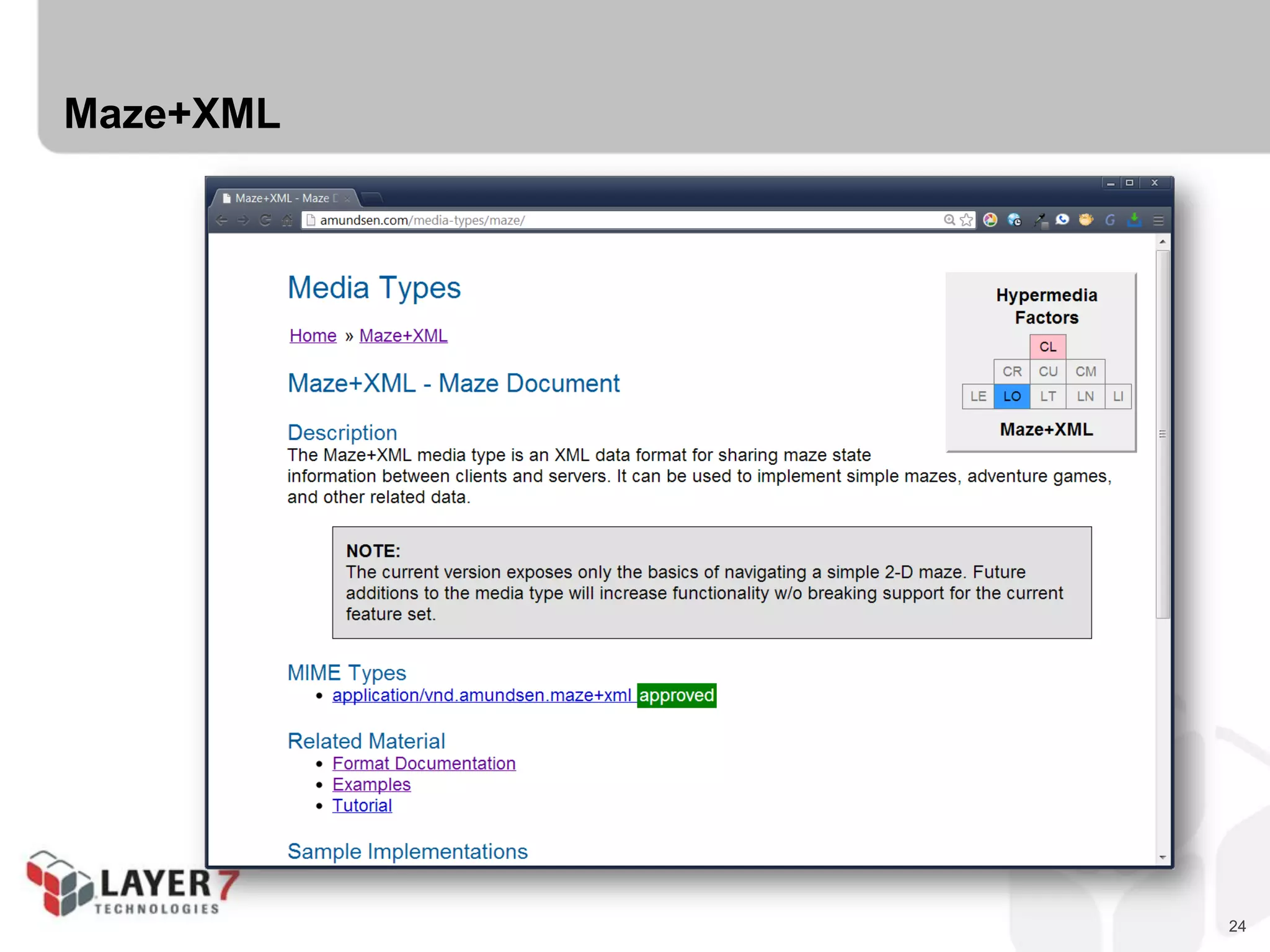

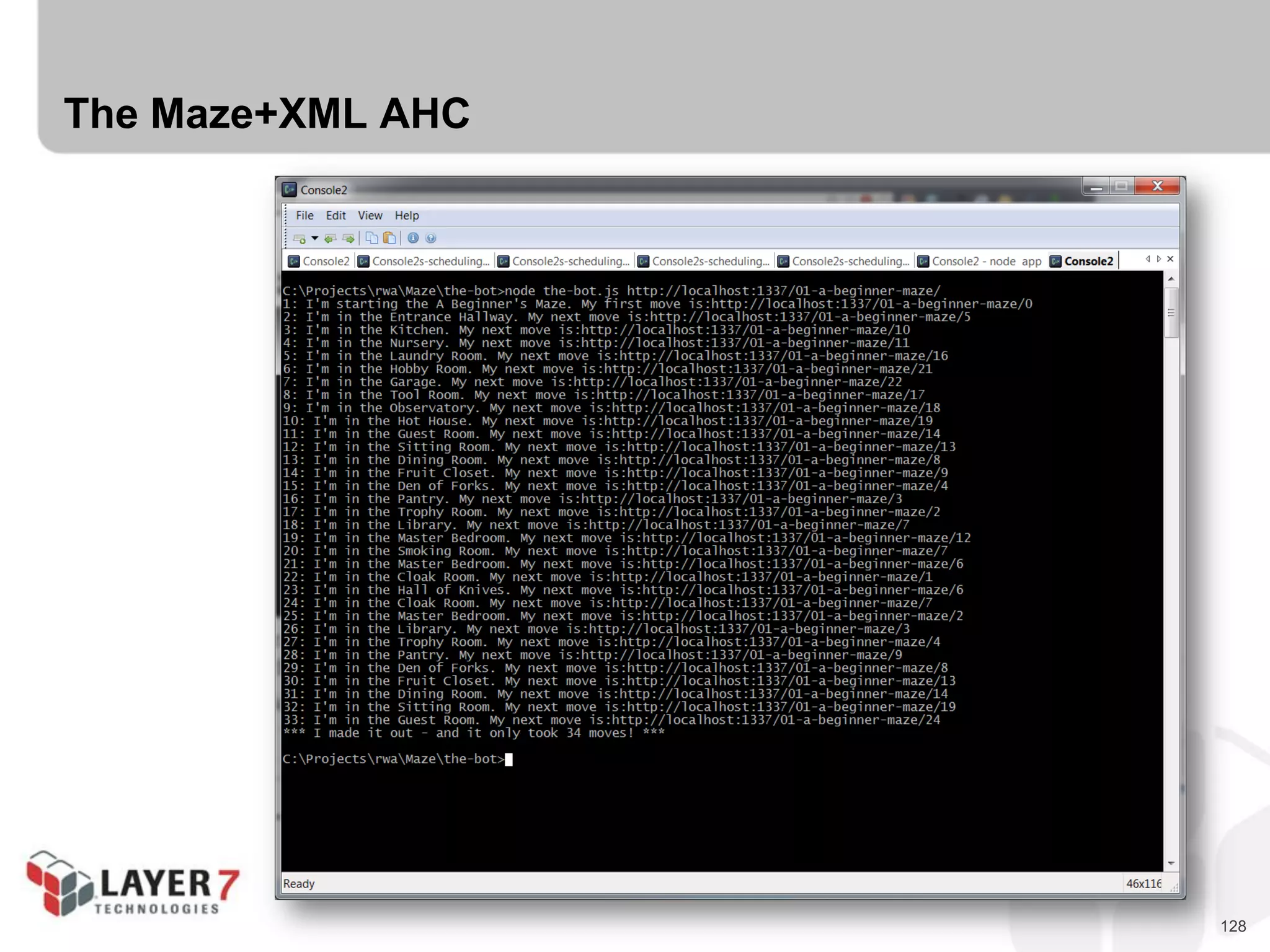

Maze+XML

25. 25

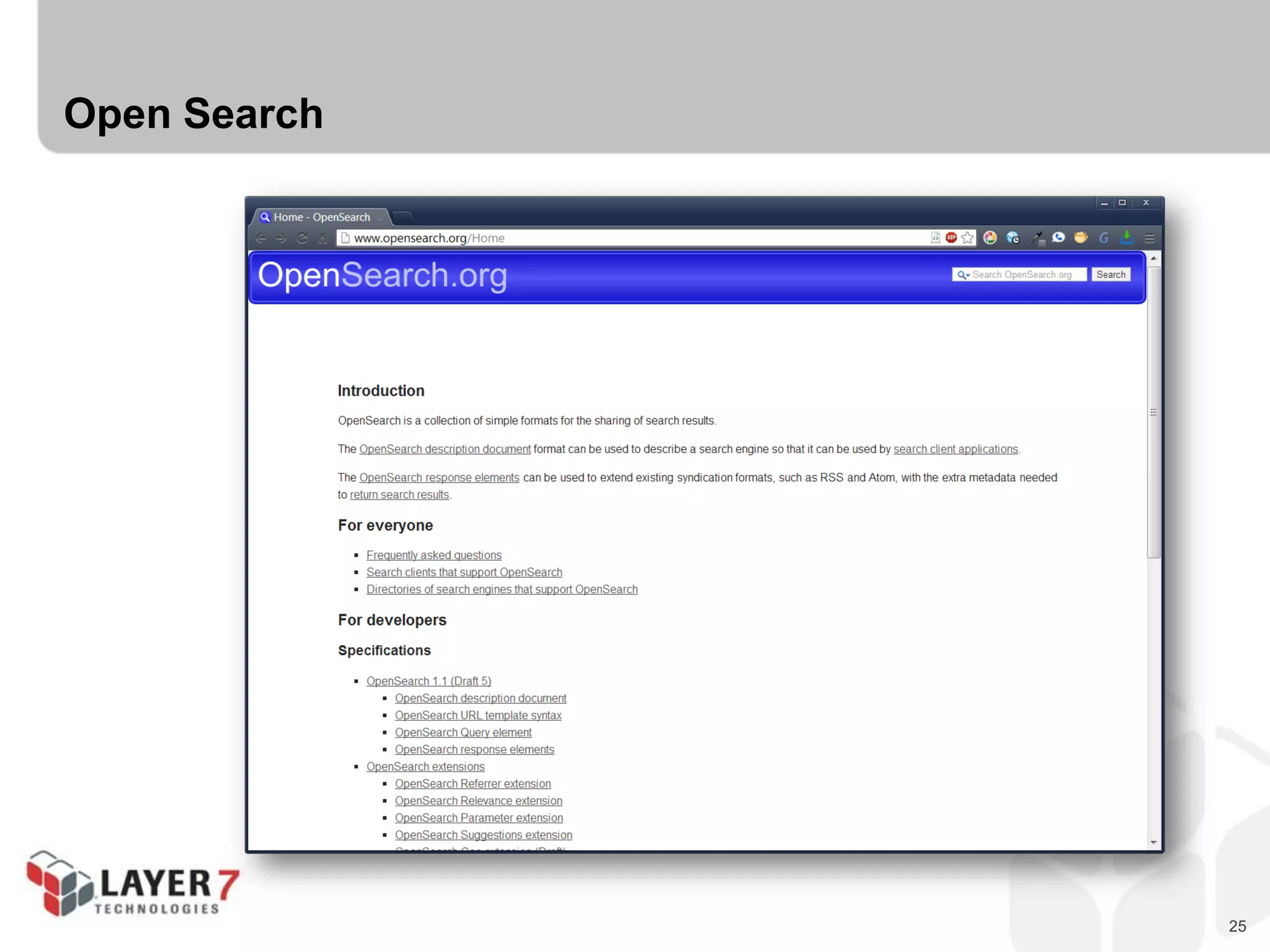

Open Search

26. 26

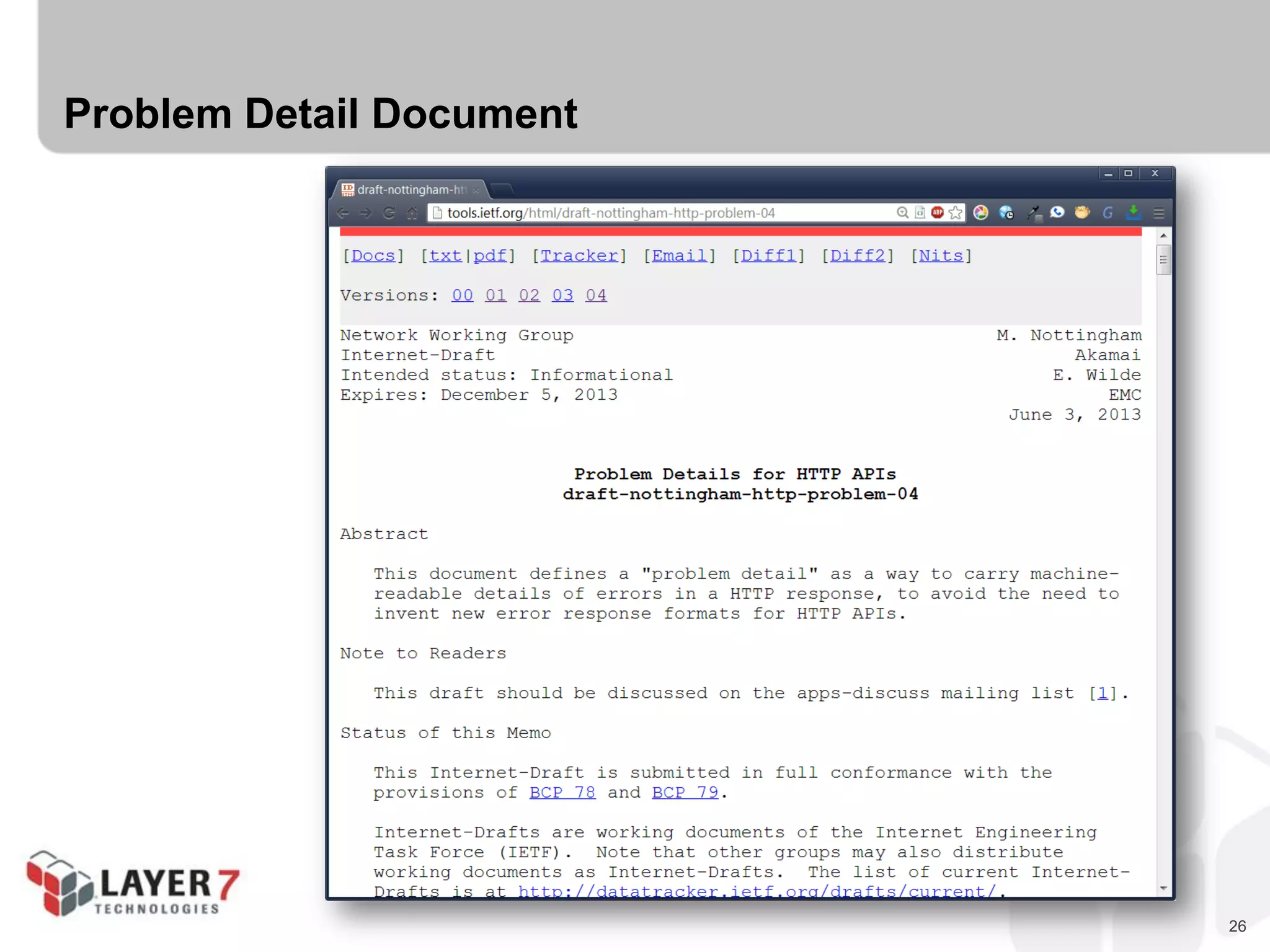

Problem Detail Document

27. 27

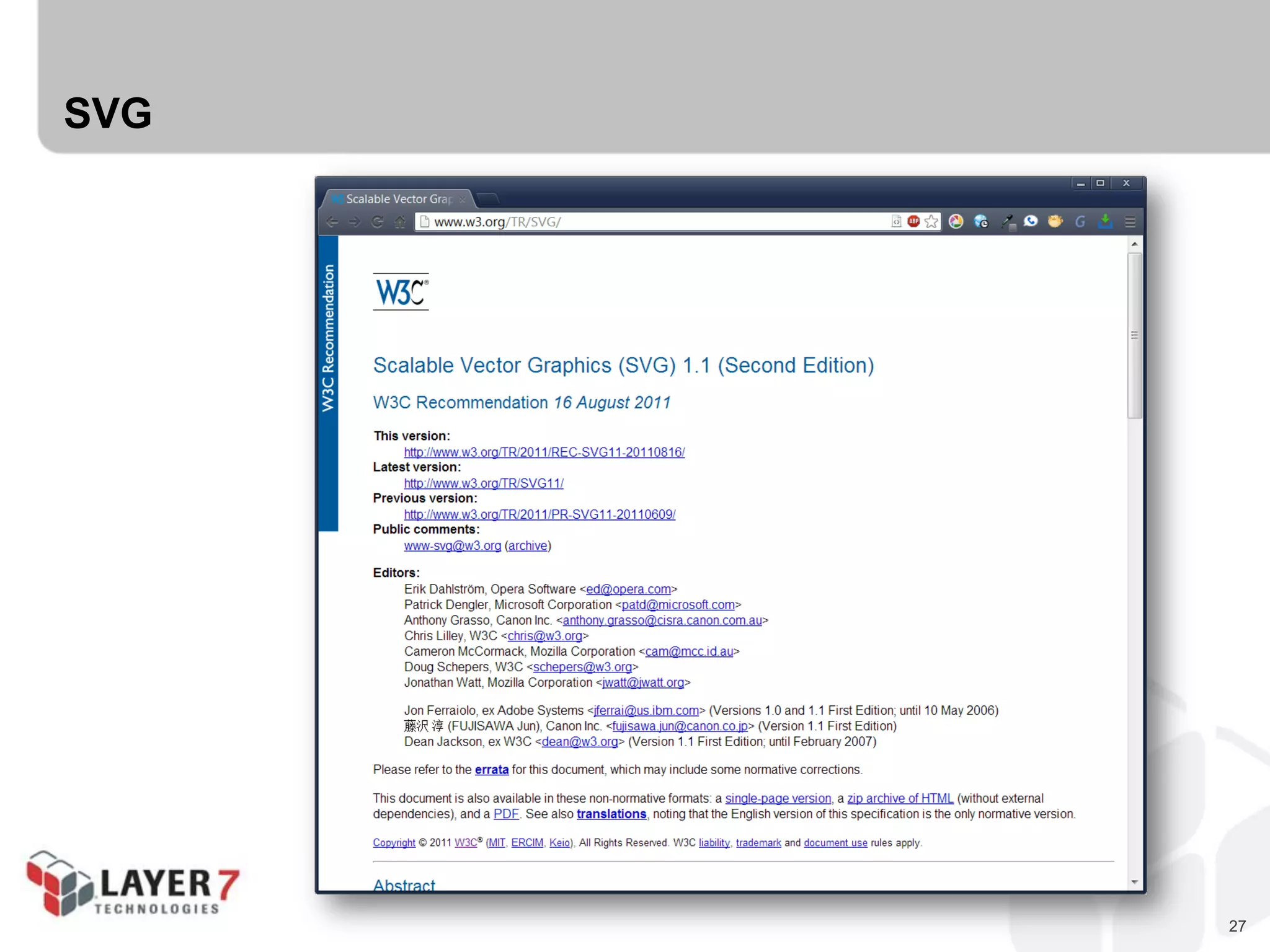

SVG

28. 28

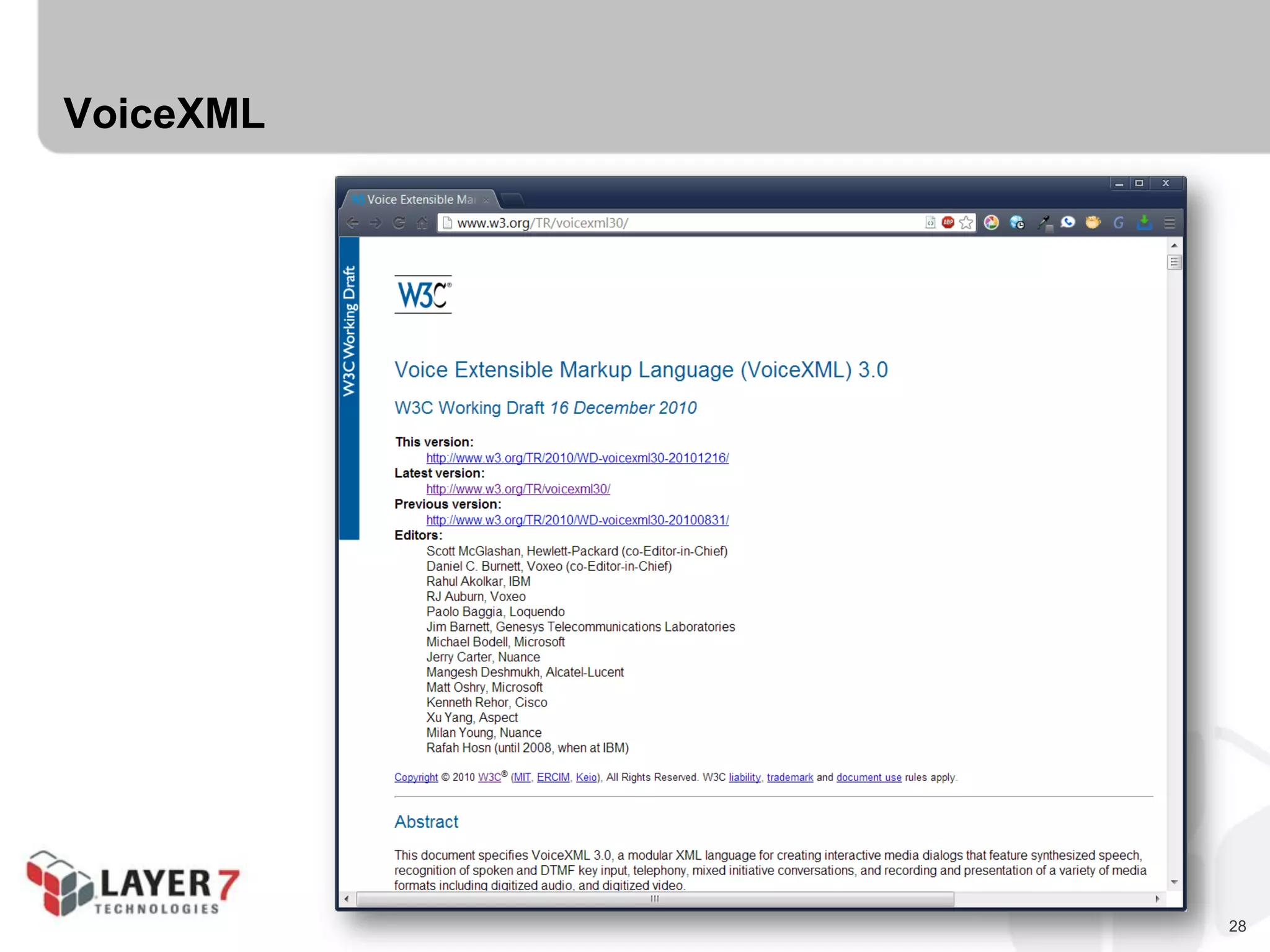

VoiceXML

29. 29
The Hypermedia Zoo
 Collection Pattern Designs
 Collection+JSON
 Atom Pub
 OData

30. 30

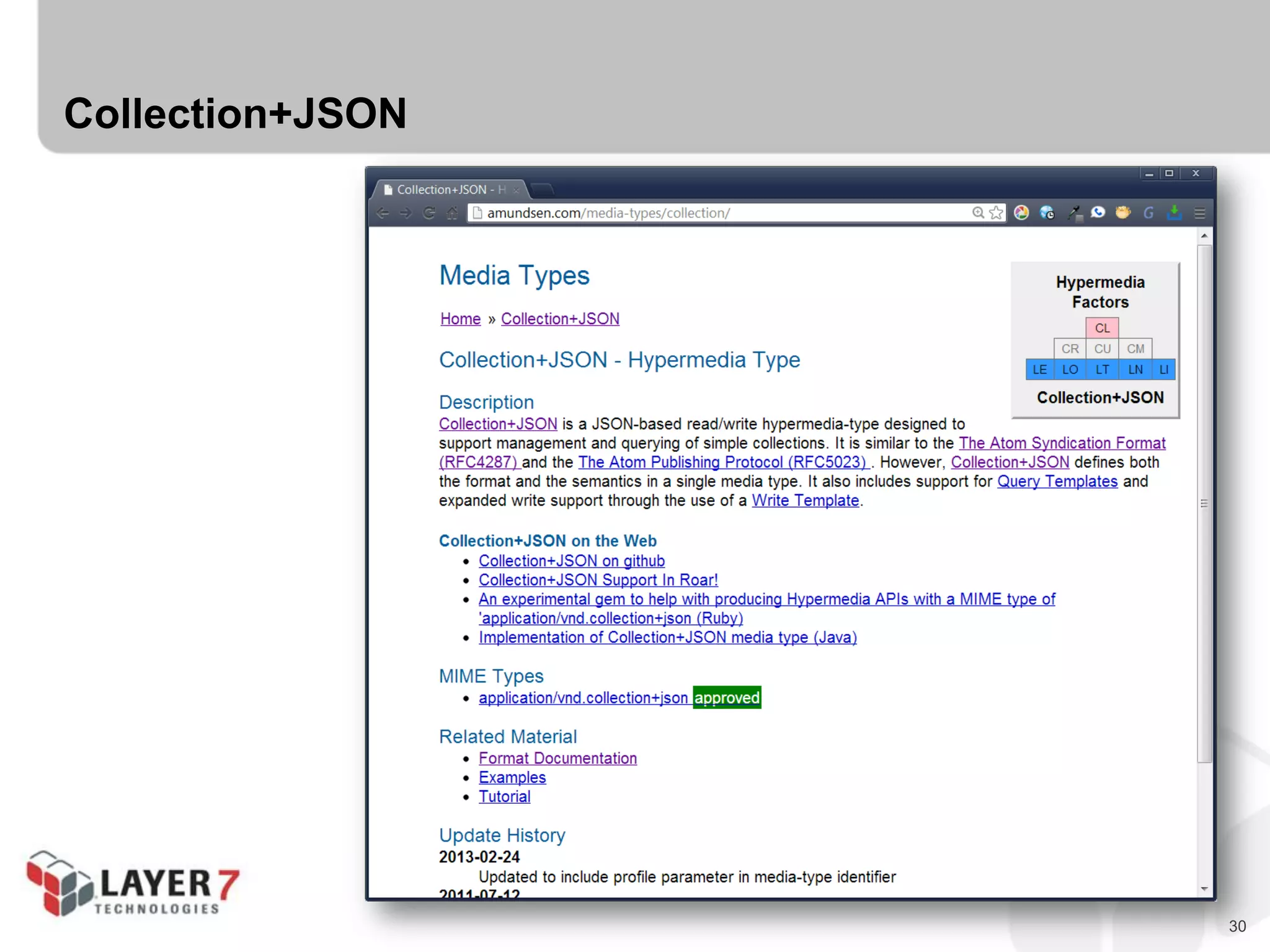

Collection+JSON

31. 31

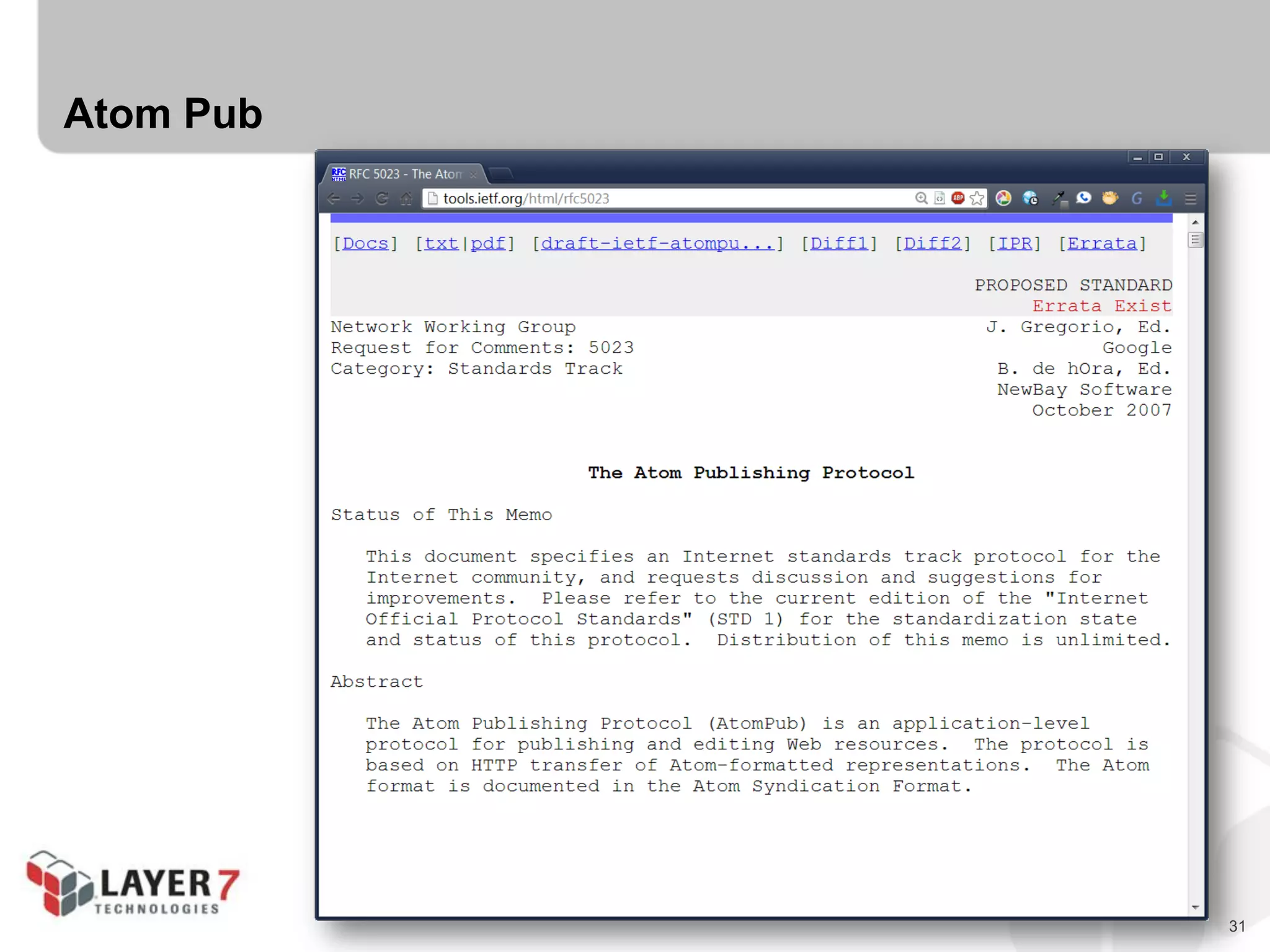

Atom Pub

32. 32

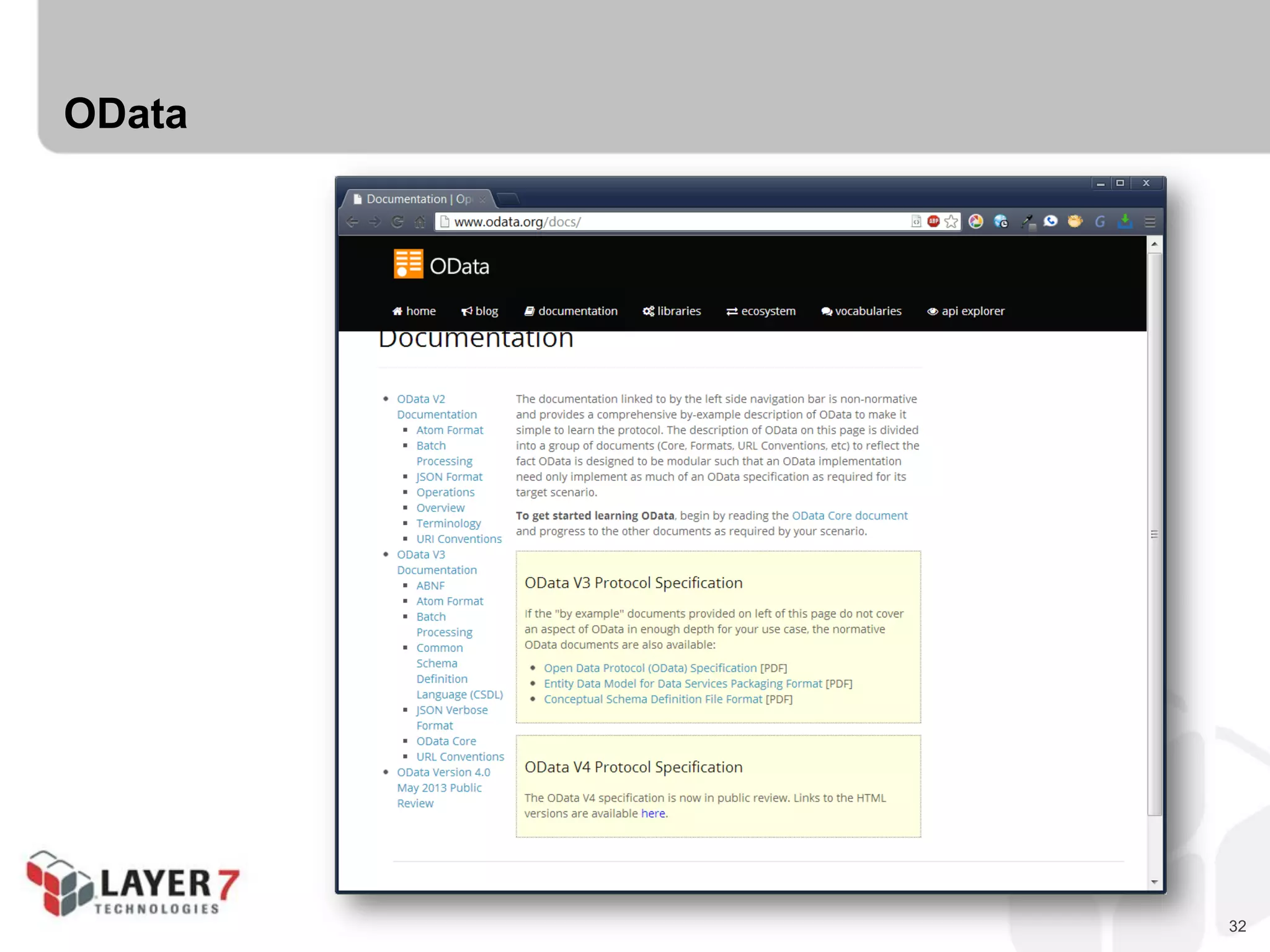

OData

33. 33

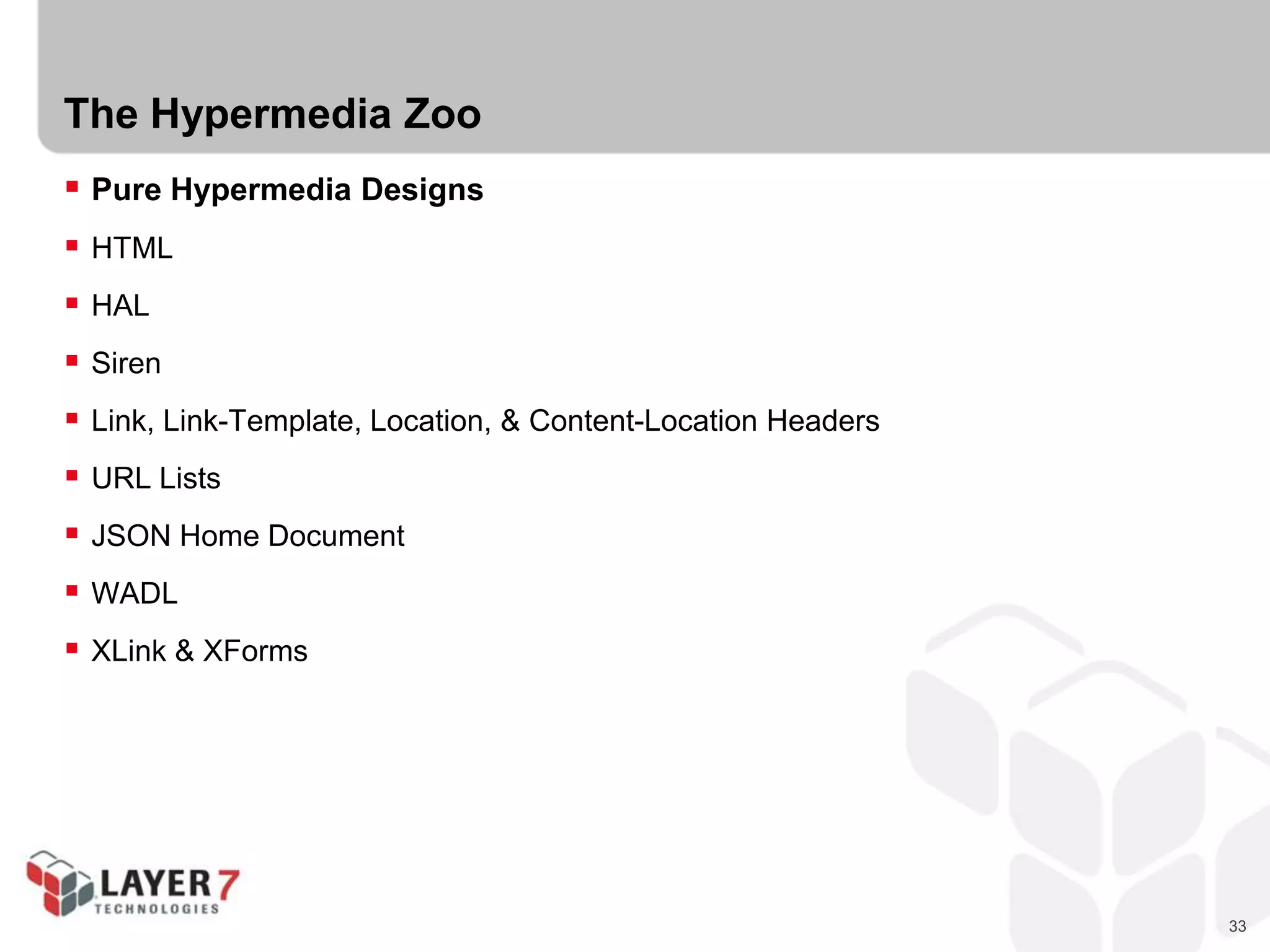

The Hypermedia Zoo
 Pure Hypermedia Designs
 HTML
 HAL
 Siren
 Link, Link-Template, Location, & Content-Location Headers
 URL Lists
 JSON Home Document
 WADL
 XLink & XForms

34. 34

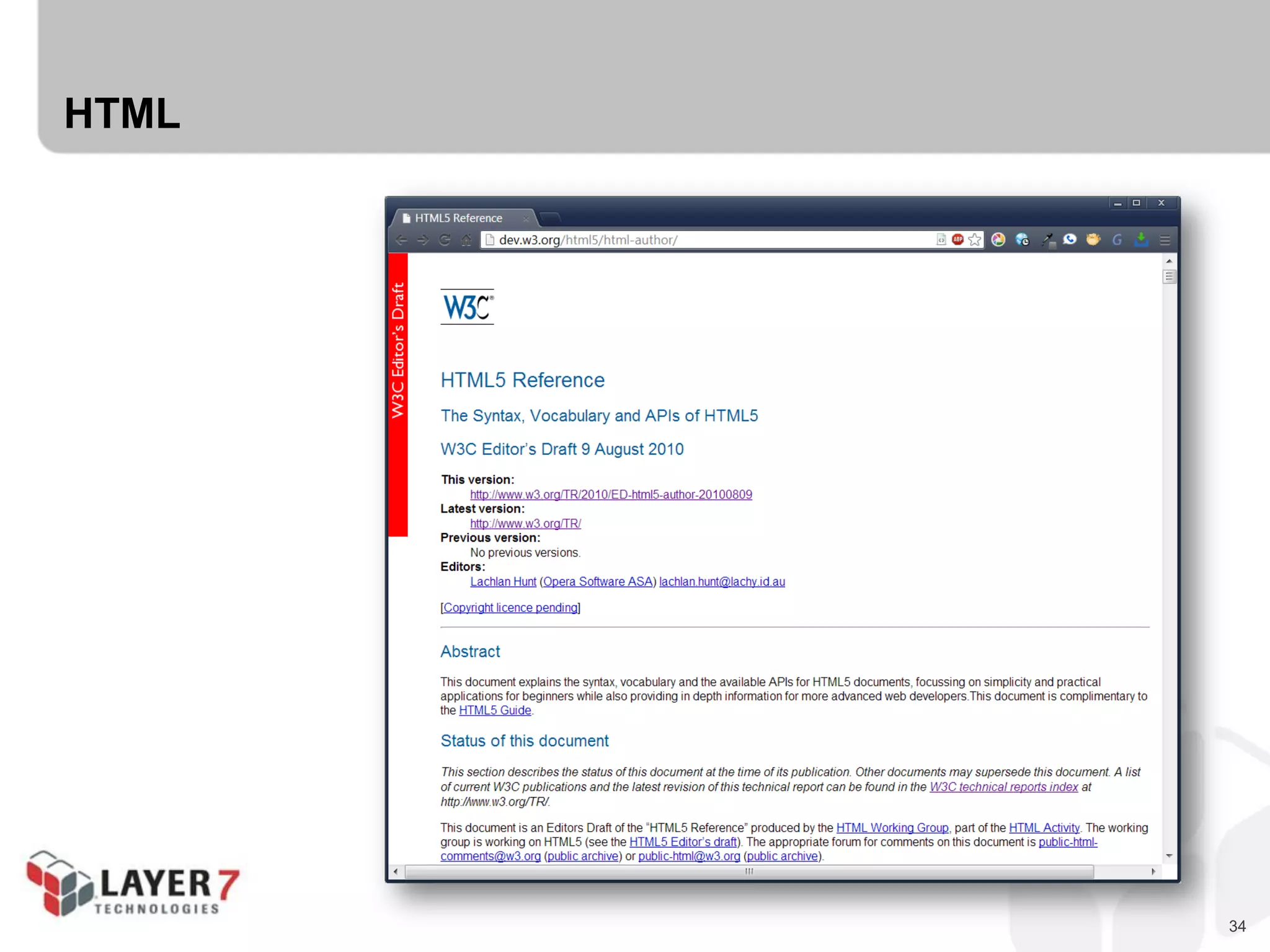

HTML

35. 35

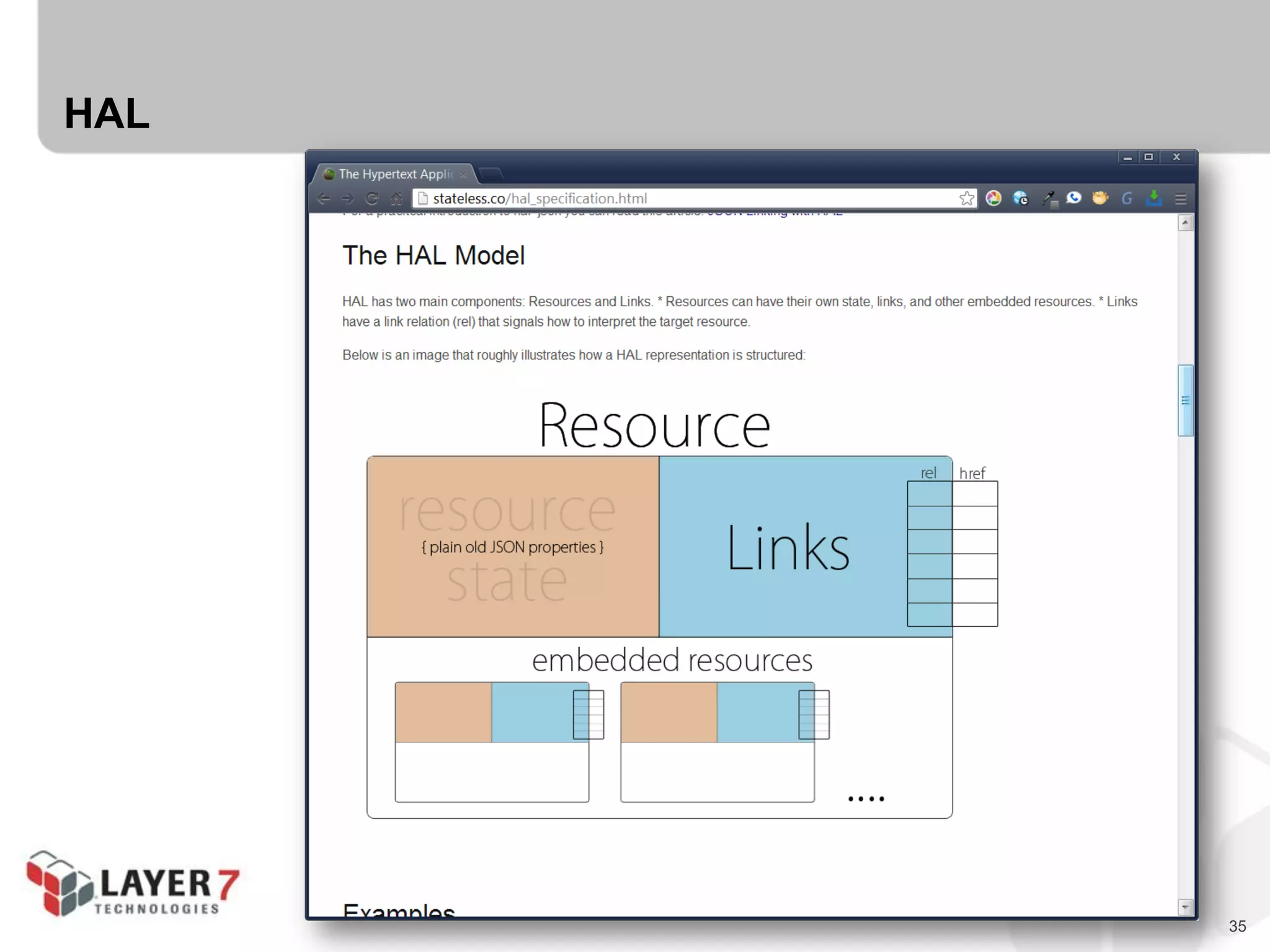

HAL

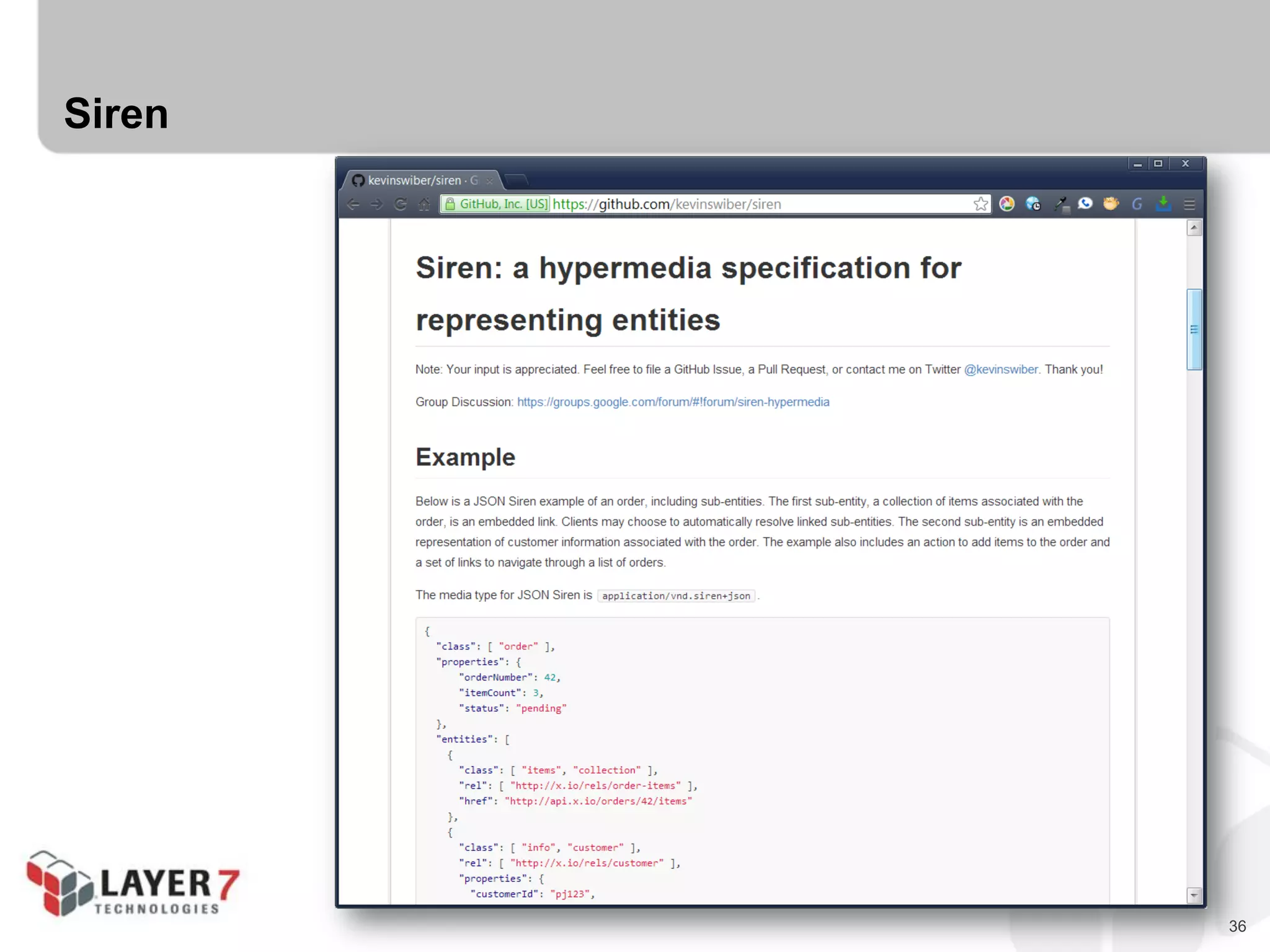

36. 36
Siren

37. 37

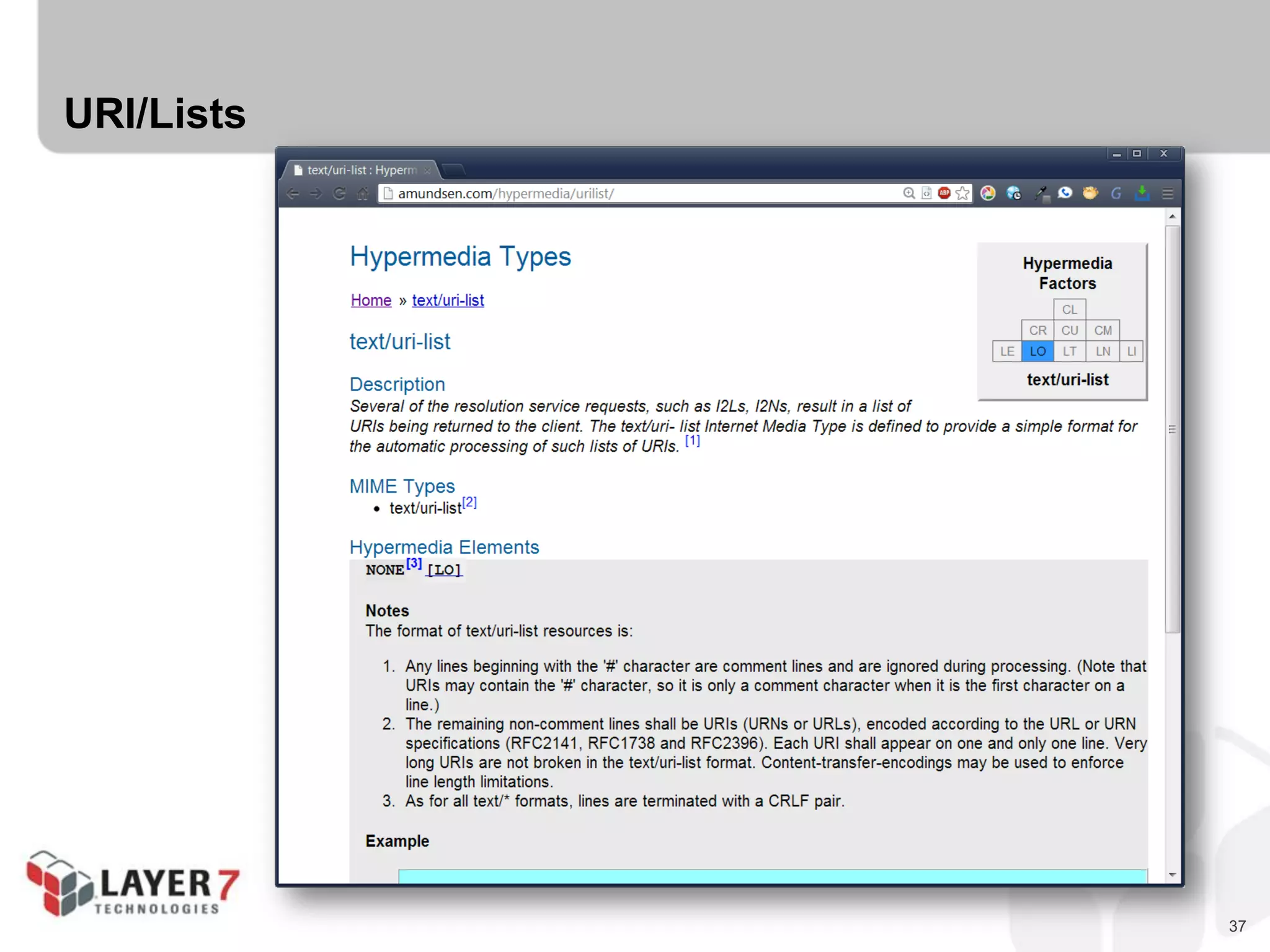

URI/Lists

38. 38

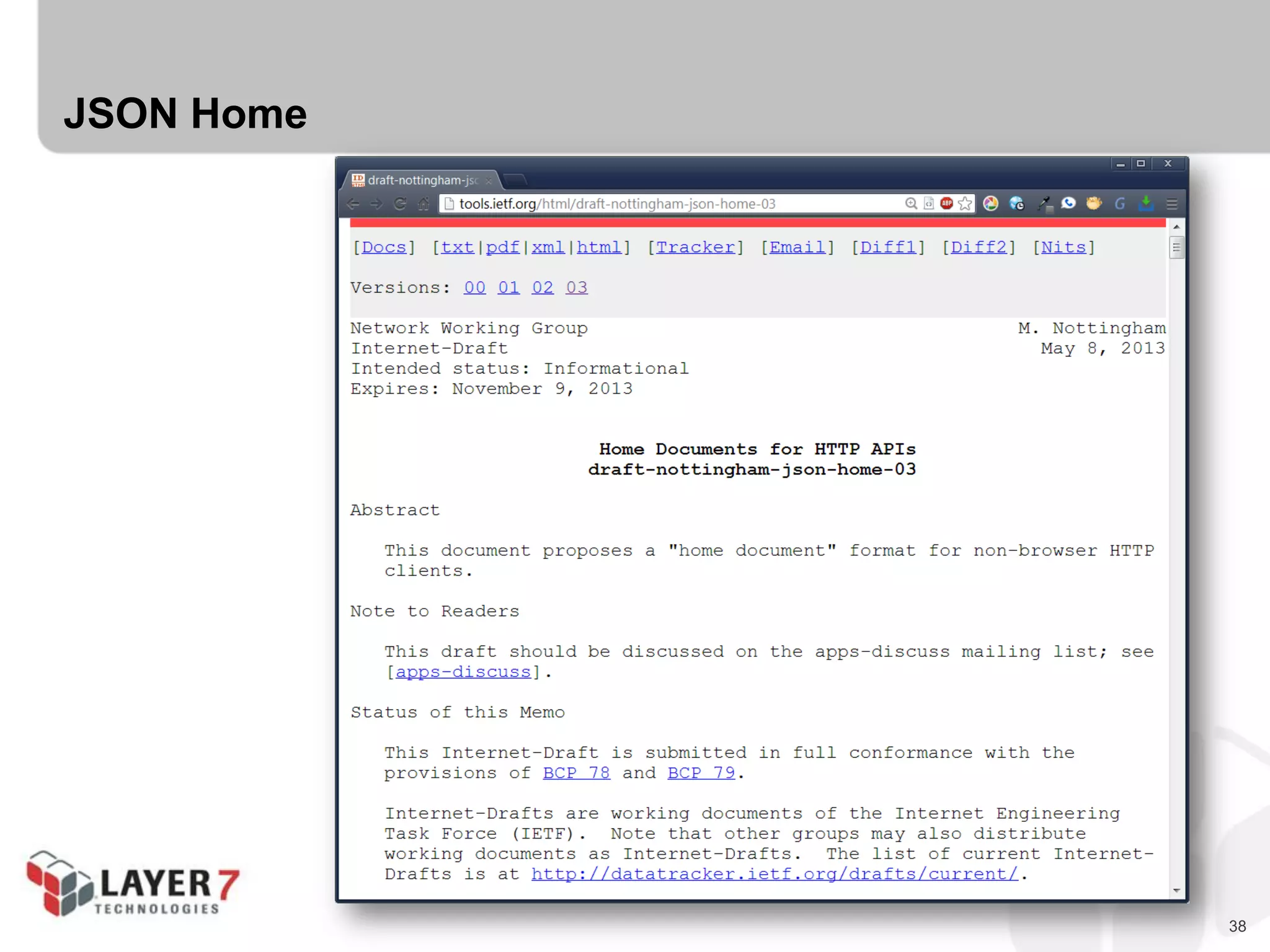

JSON Home

39. 39

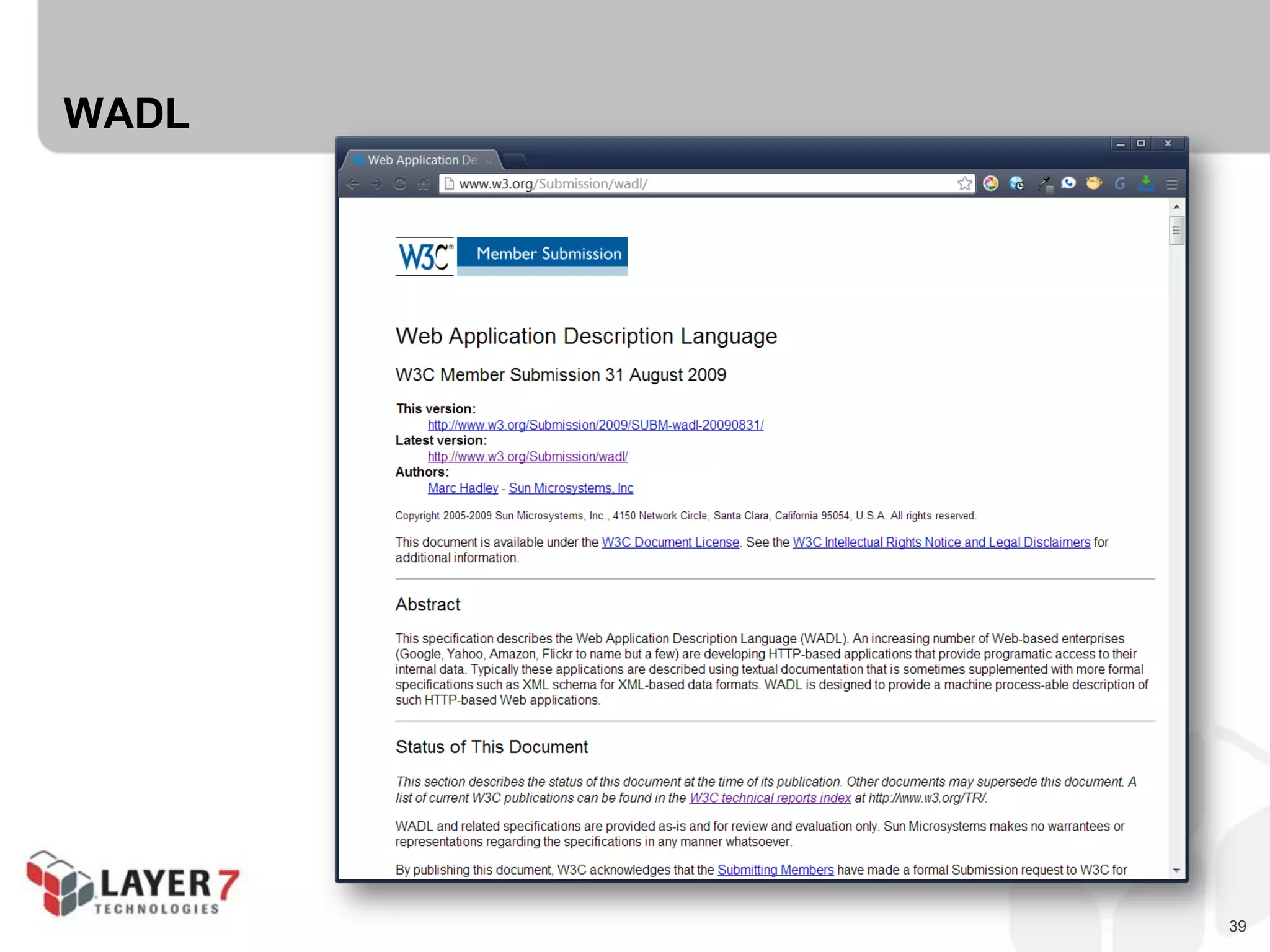

WADL

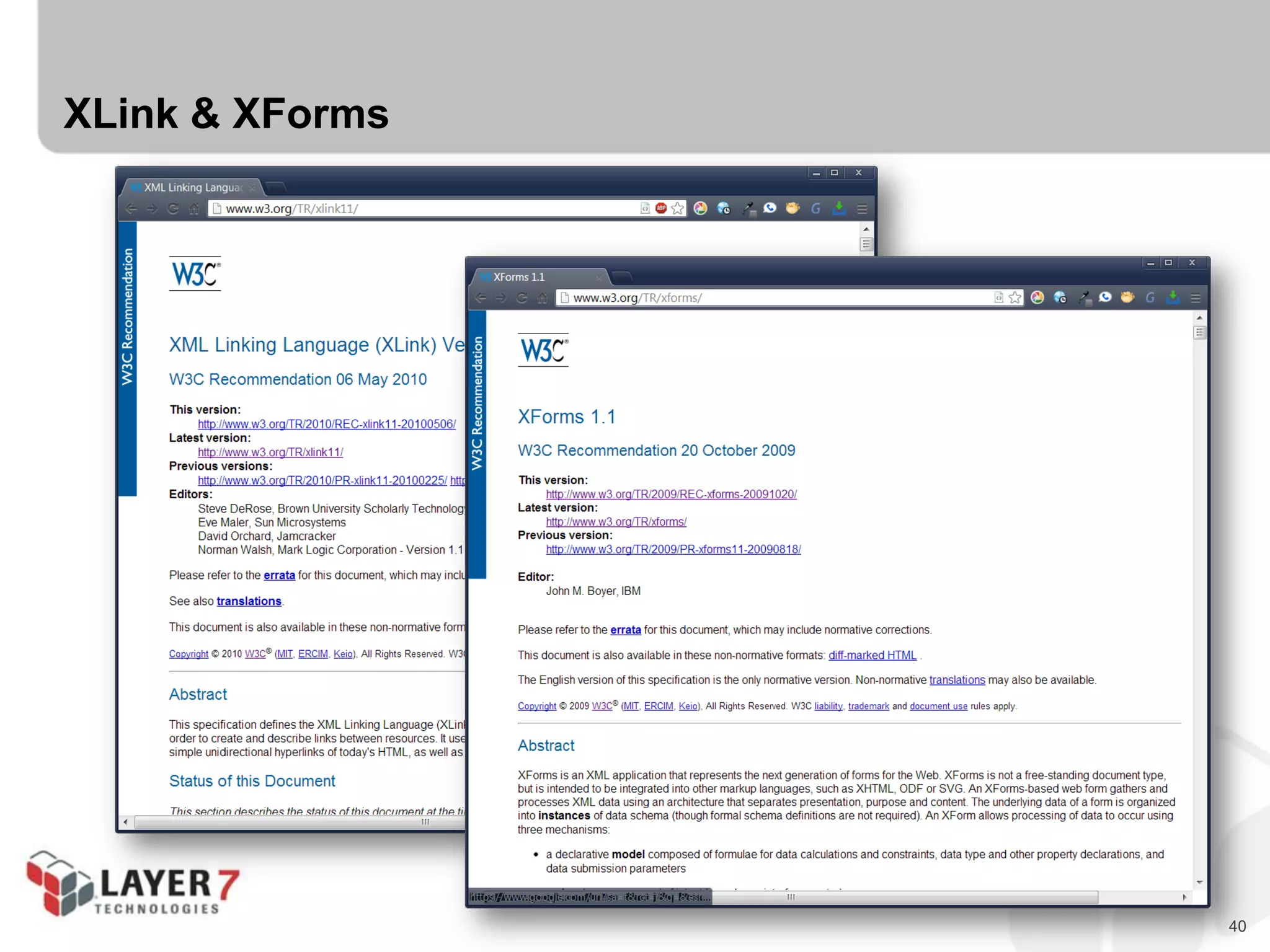

40. 40
XLink & XForms

41. 41
The Hypermedia Zoo
is full of options.

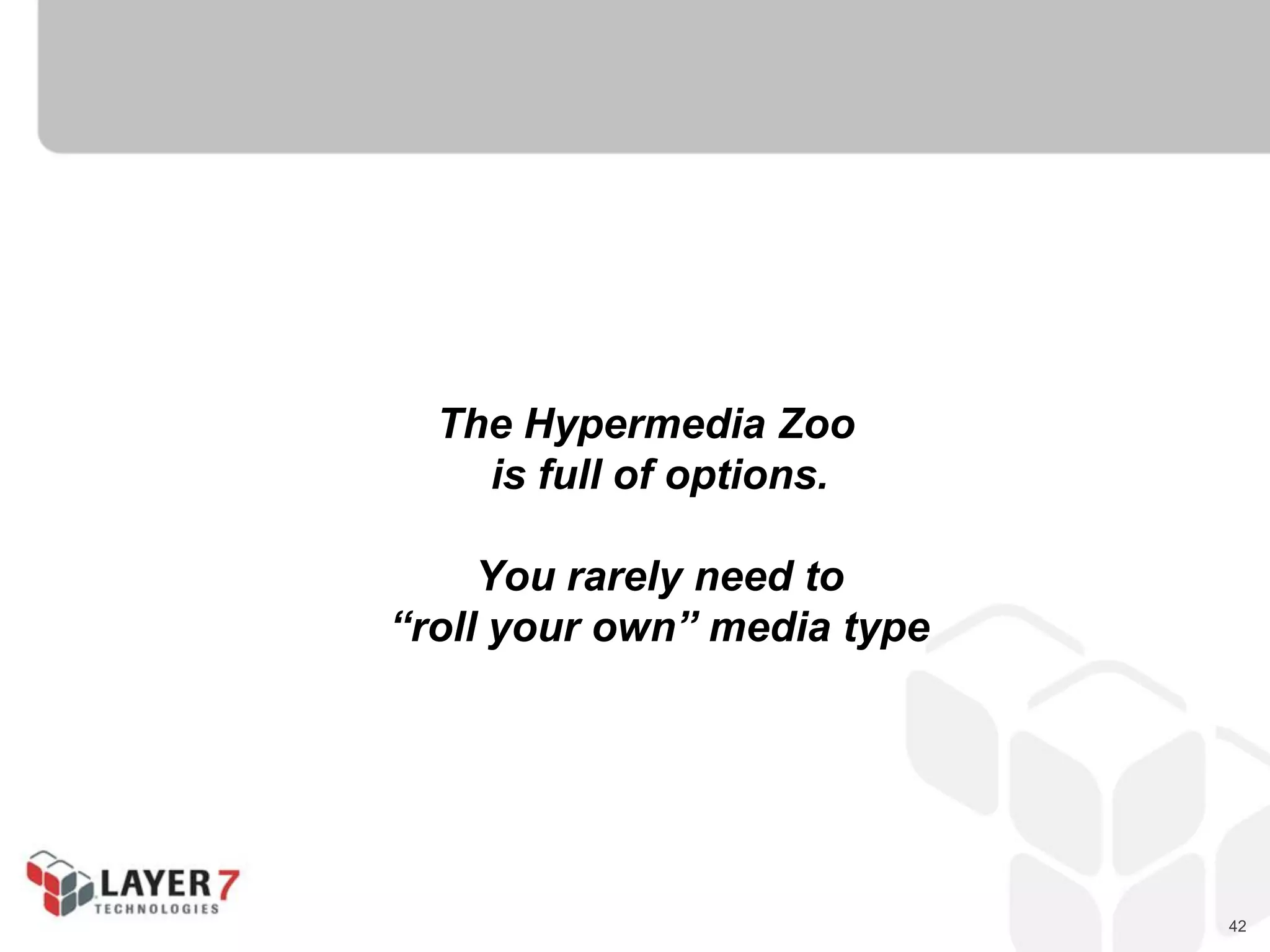

42. 42
The Hypermedia Zoo
is full of options.
You rarely need to
“roll your own” media type

43. 43
CHALLENGE #1:
ONE PROBLEM, THREE DESIGNS

44. 44

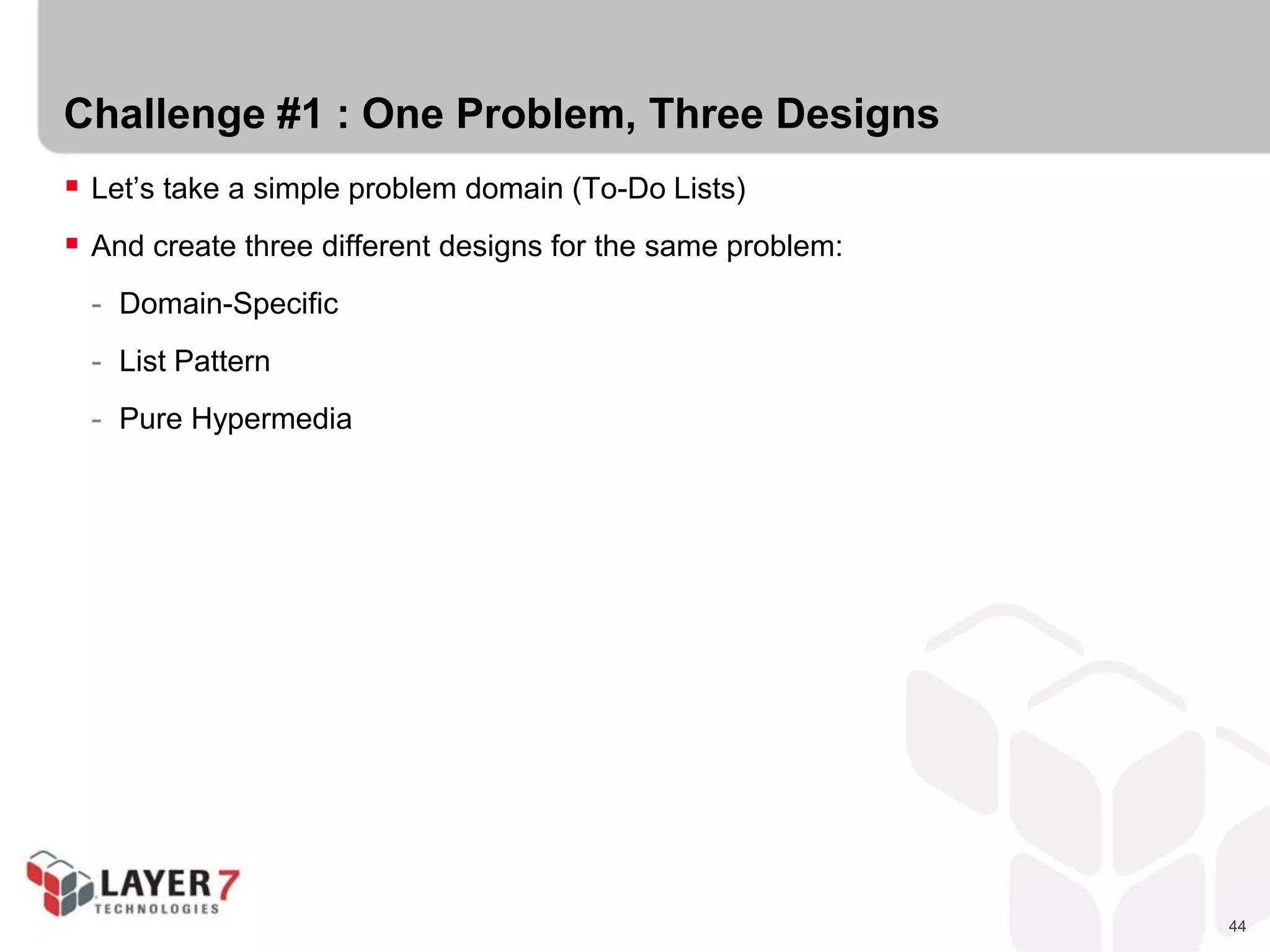

Challenge #1 : One Problem, Three Designs
 Let’s take a simple problem domain (To-Do Lists)
 And create three different designs for the same problem:
- Domain-Specific
- List Pattern
- Pure Hypermedia

45. 45

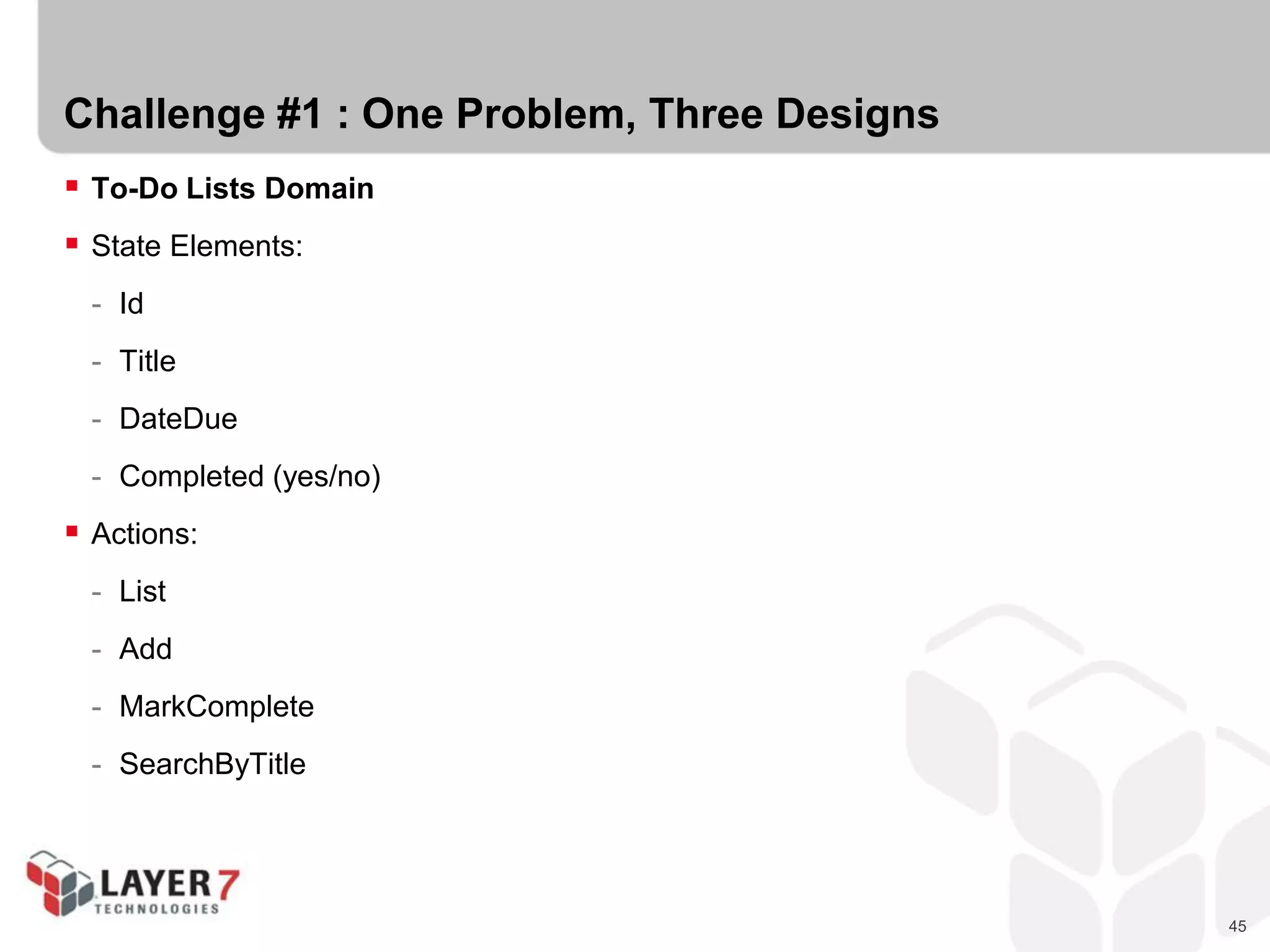

Challenge #1 : One Problem, Three Designs
 To-Do Lists Domain
 State Elements:
- Id
- Title
- DateDue
- Completed (yes/no)
 Actions:
- List
- Add
- MarkComplete
- SearchByTitle

46. 46
Challenge #1 : One Problem, Three Designs
 Domain-Specific Example:

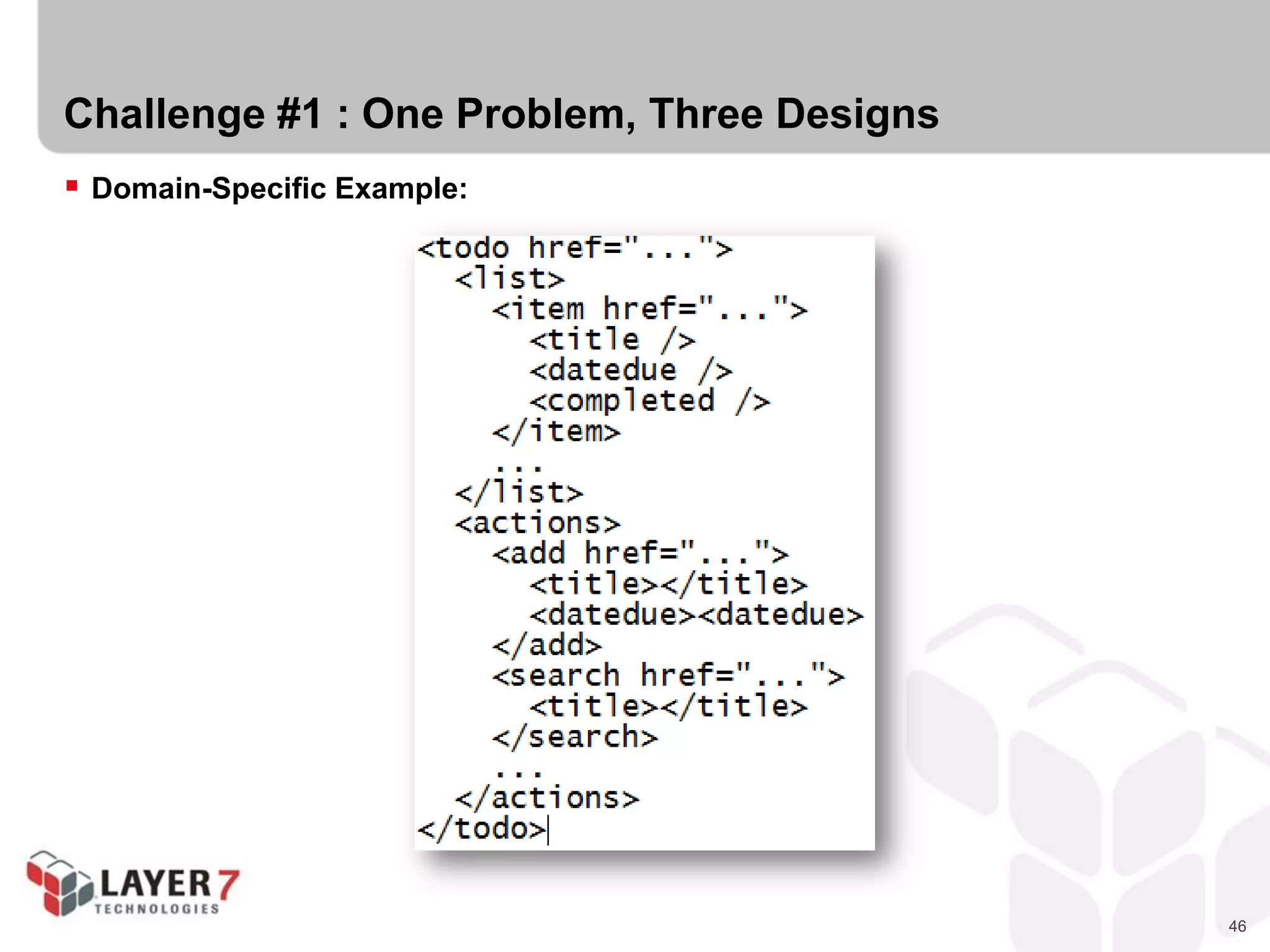

47. 47
Challenge #1 : One Problem, Three Designs

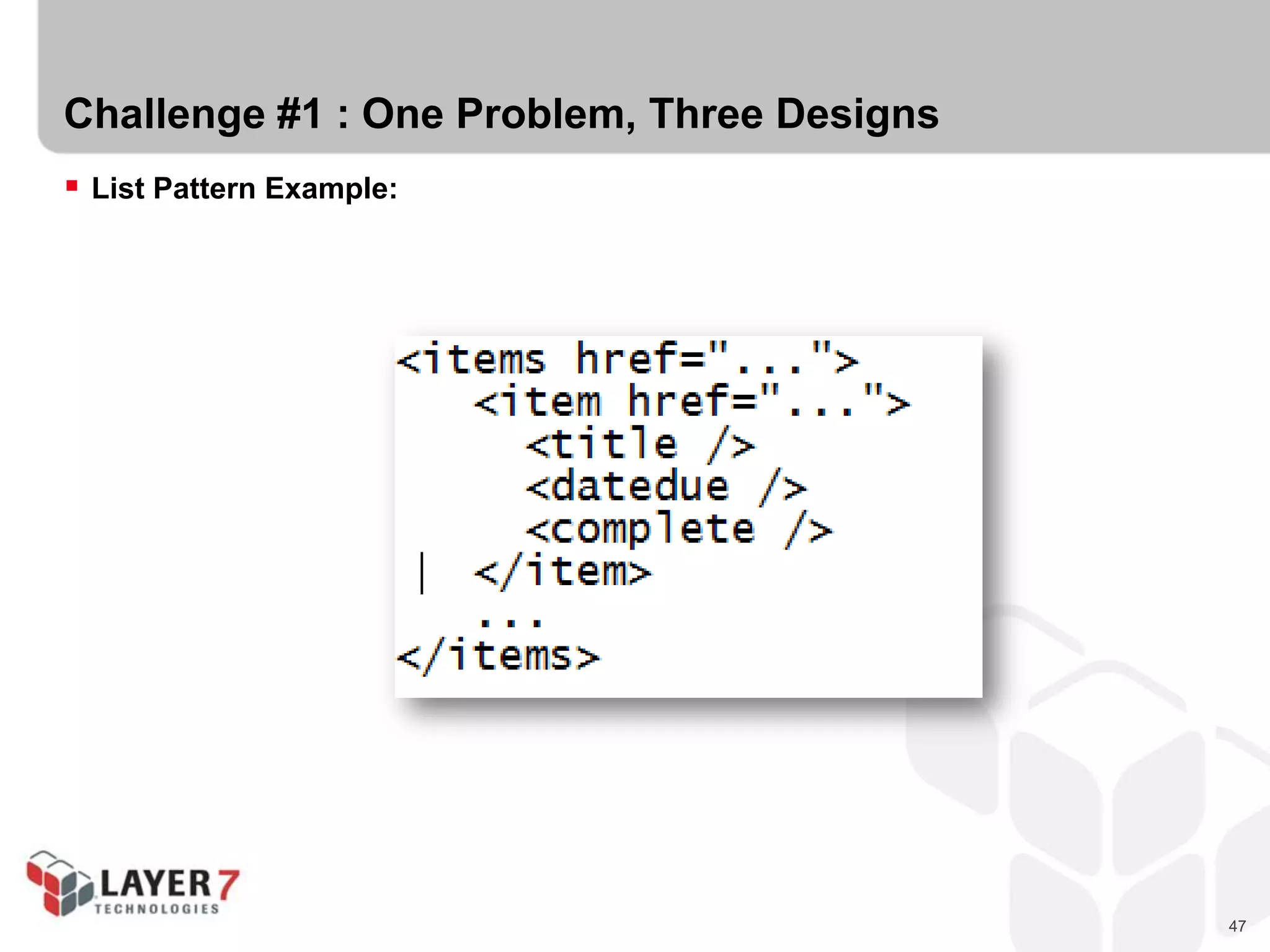

 List Pattern Example:

48. 48

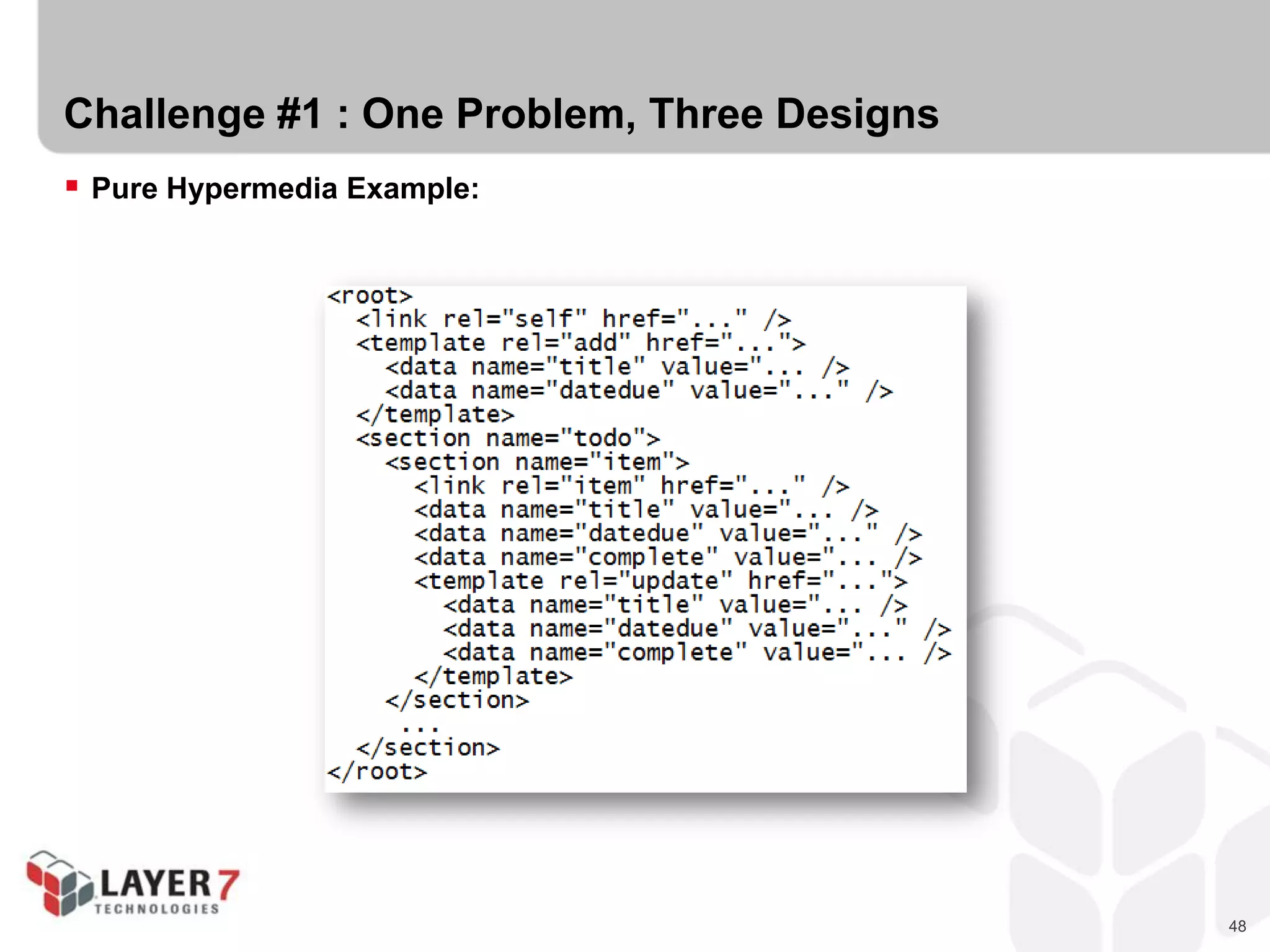

Challenge #1 : One Problem, Three Designs
 Pure Hypermedia Example:

49. 49

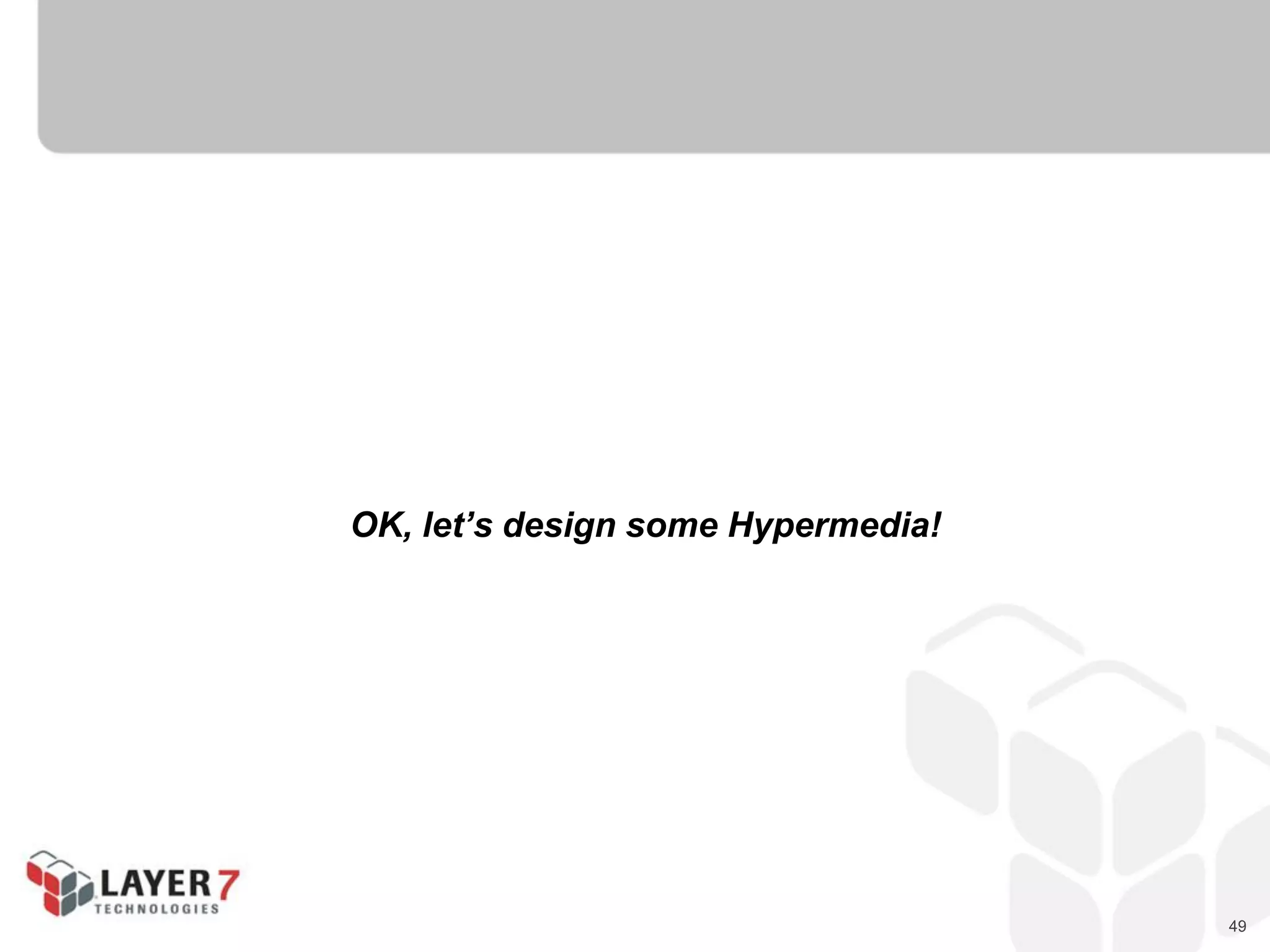

OK, let’s design some Hypermedia!

50. 50
THE SEMANTIC ZOO

51. 51

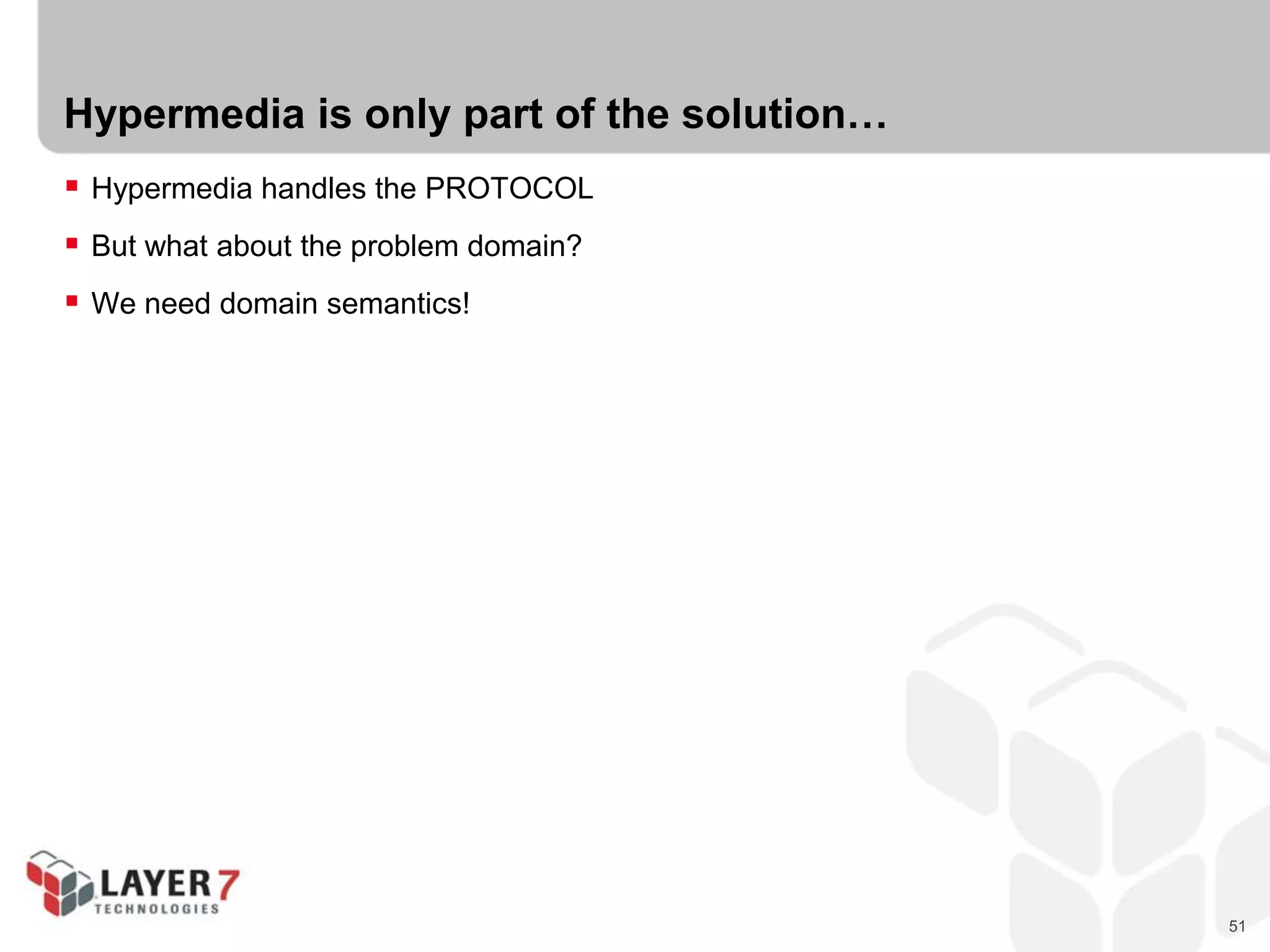

Hypermedia is only part of the solution…
 Hypermedia handles the PROTOCOL
 But what about the problem domain?
 We need domain semantics!

52. 52

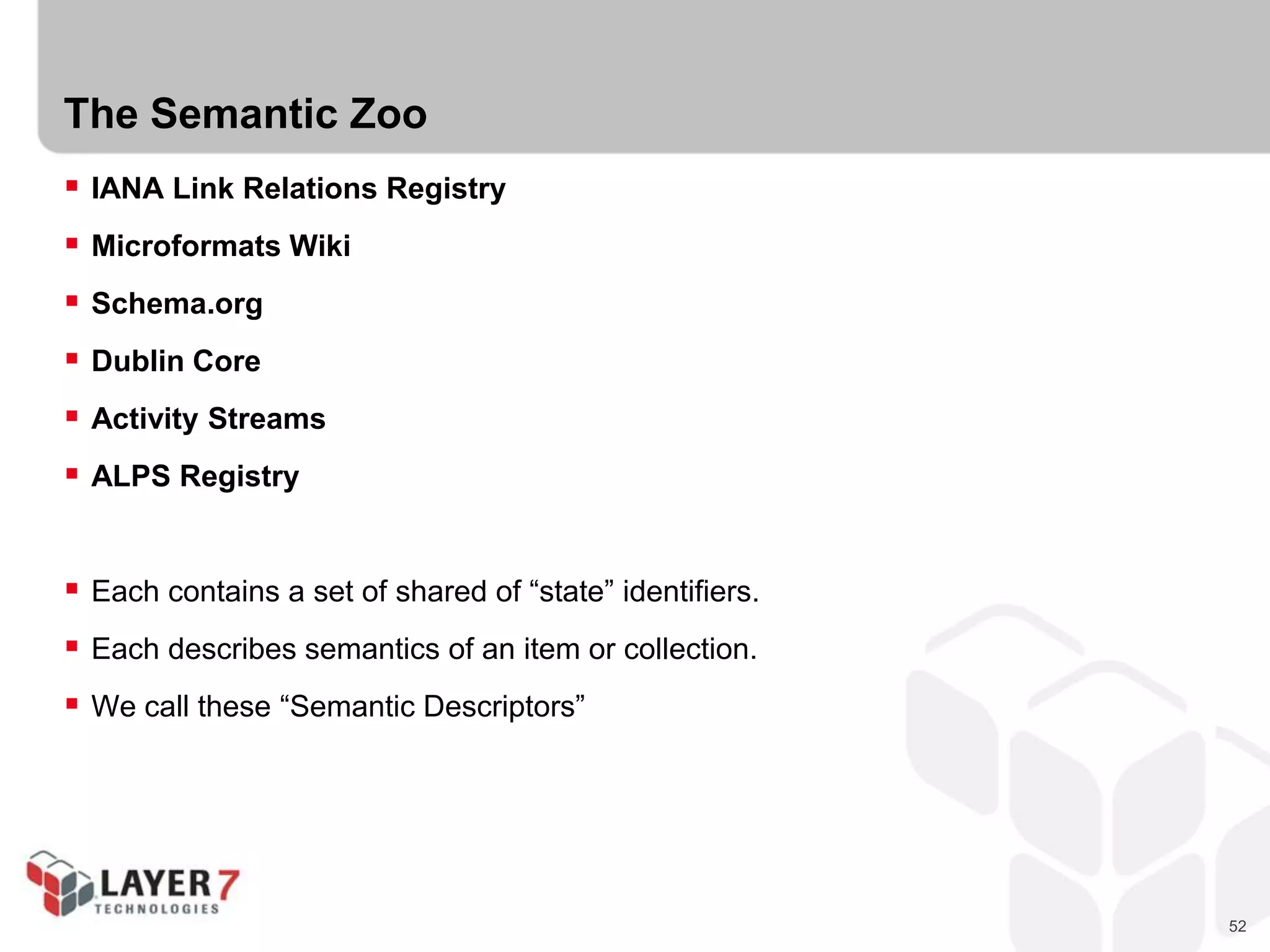

The Semantic Zoo
 IANA Link Relations Registry
 Microformats Wiki
 Schema.org
 Dublin Core
 Activity Streams
 ALPS Registry
 Each contains a set of shared of “state” identifiers.
 Each describes semantics of an item or collection.
 We call these “Semantic Descriptors”

53. 53
The Semantic Zoo
 http://www.iana.org/assignments/link-relations/link-relations.xml

54. 54

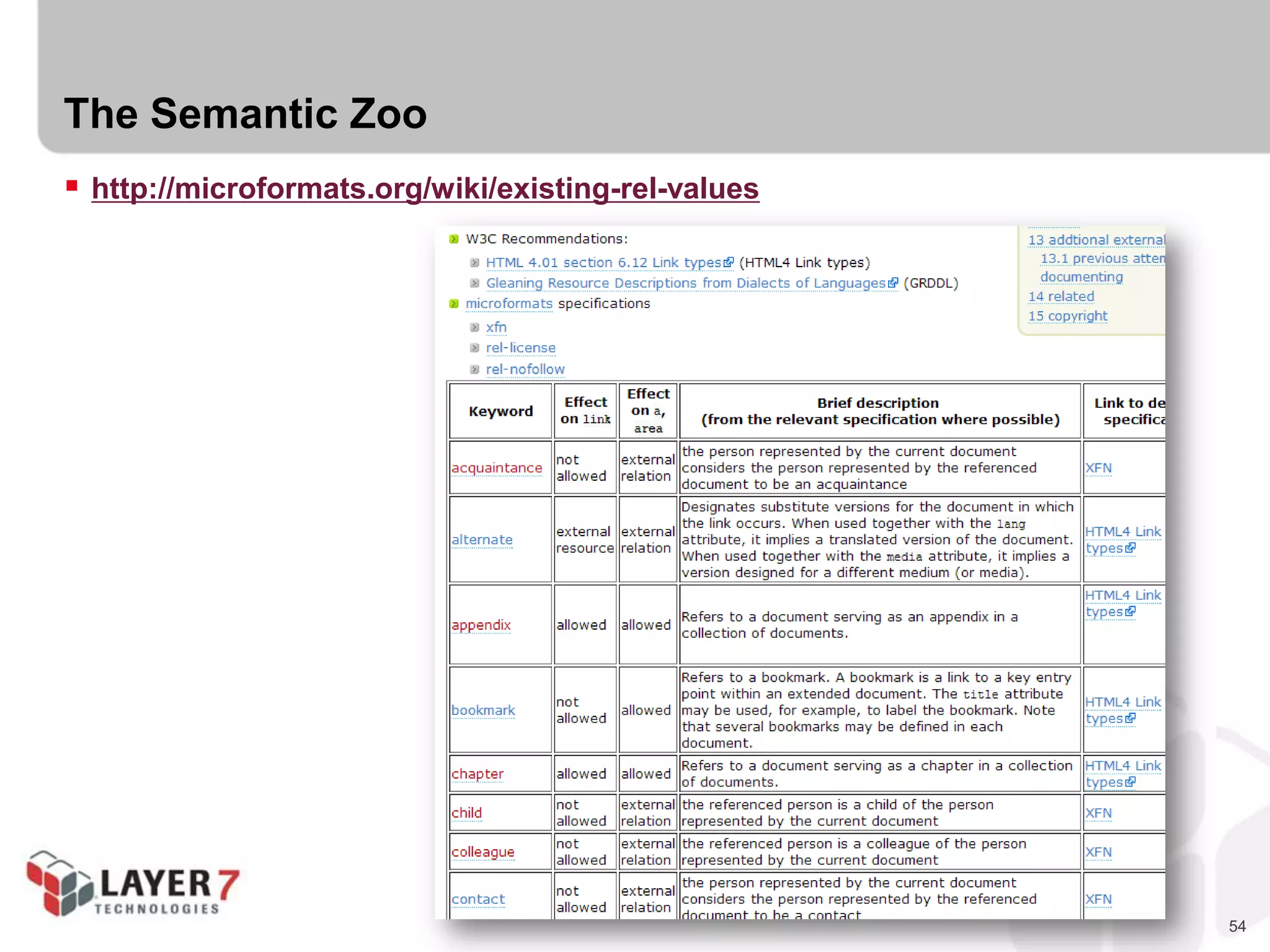

The Semantic Zoo
 http://microformats.org/wiki/existing-rel-values

55. 55
The Semantic Zoo

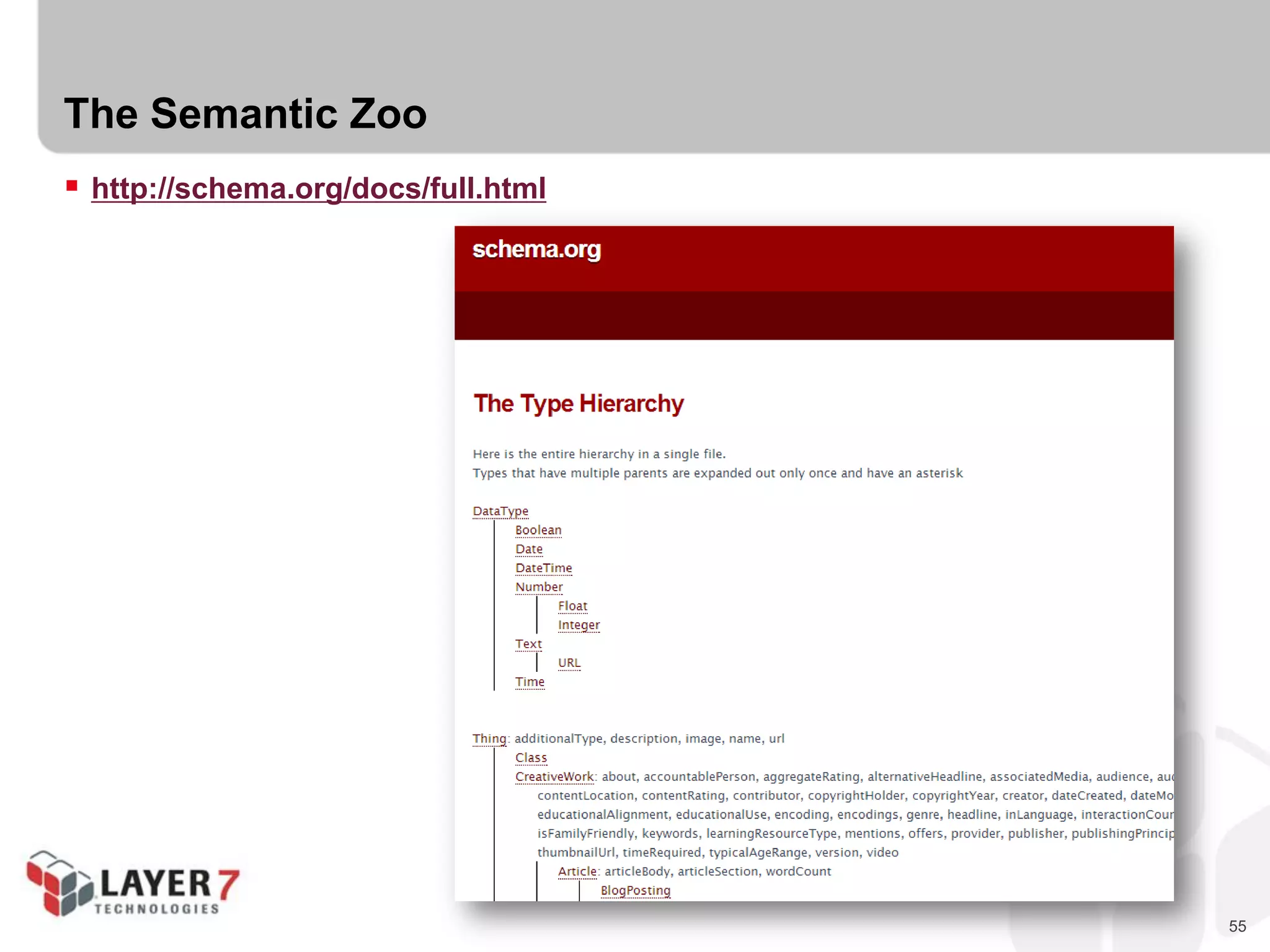

 http://schema.org/docs/full.html

56. 56
The Semantic Zoo
 http://dublincore.org/documents/dces/

57. 57

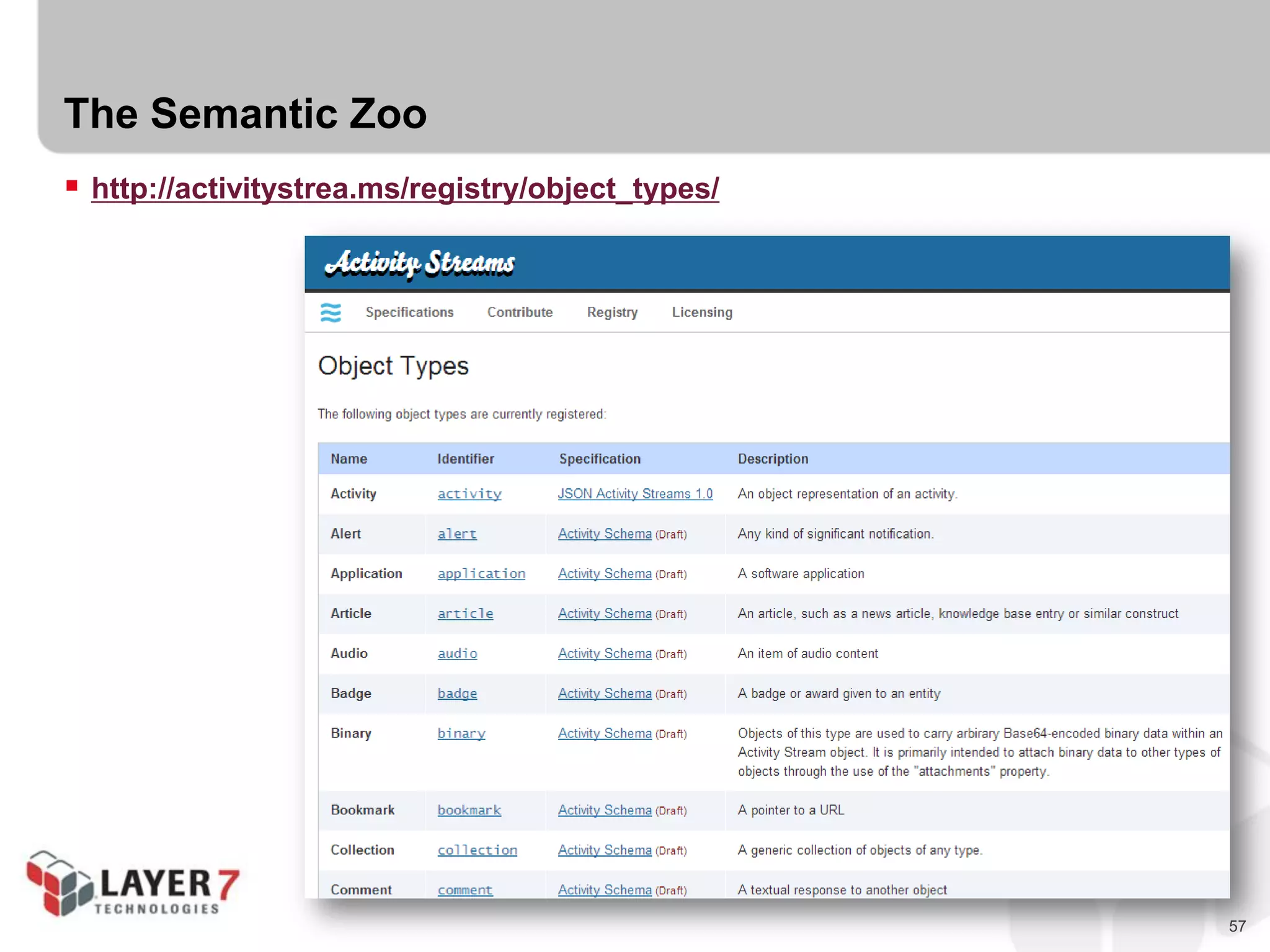

The Semantic Zoo
 http://activitystrea.ms/registry/object_types/

58. 58

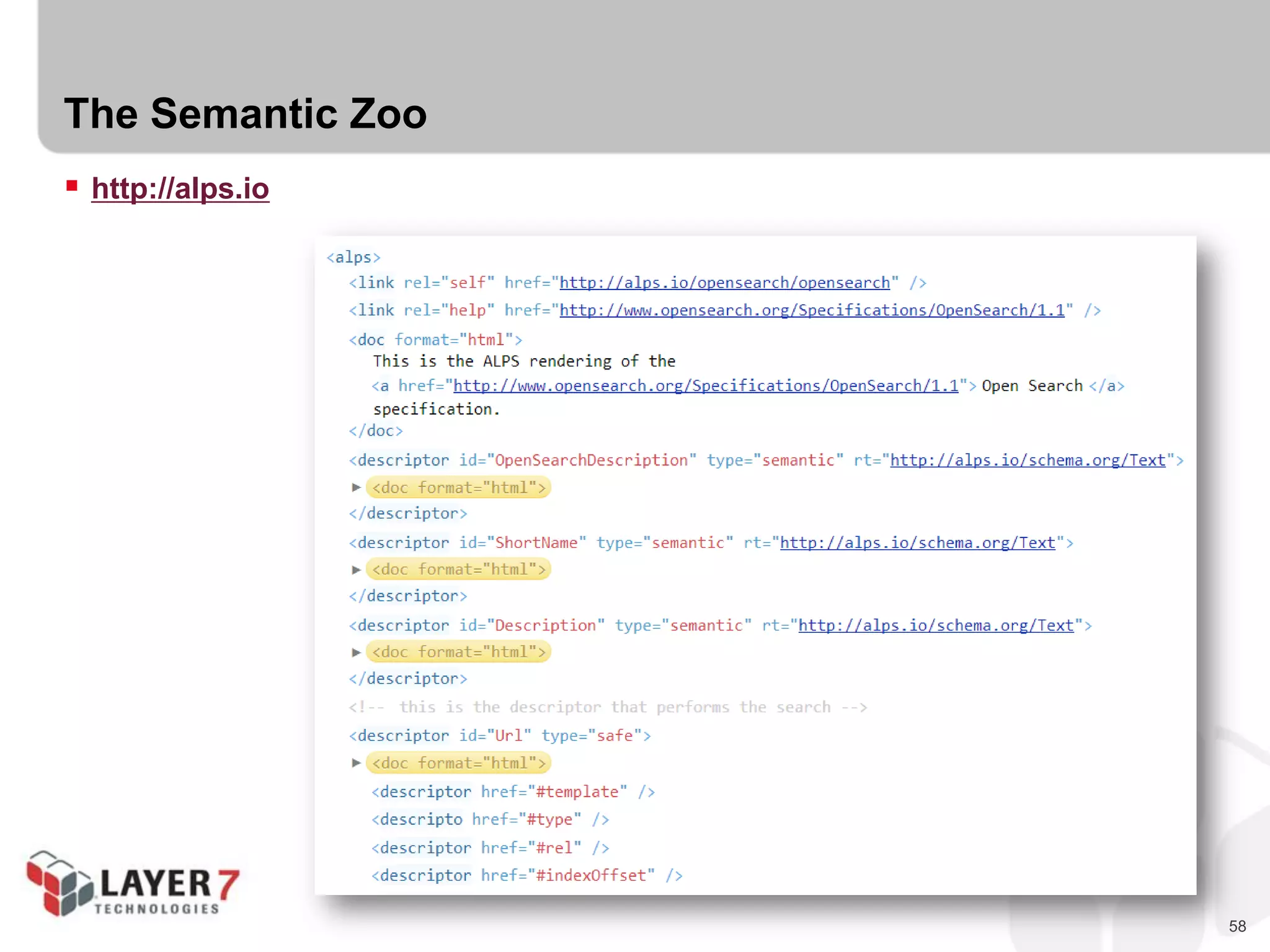

The Semantic Zoo
 http://alps.io

59. 59
The Semantic Zoo
 IANA Link Relations Registry
 Microformats Wiki
 Schema.org
 Dublin Core
 Activity Streams
 ALPS Registry
 Each contains a set of shared of “state” identifiers.
 Each describes semantics of an item or collection.
 We call these “Semantic Descriptors”

60. 60

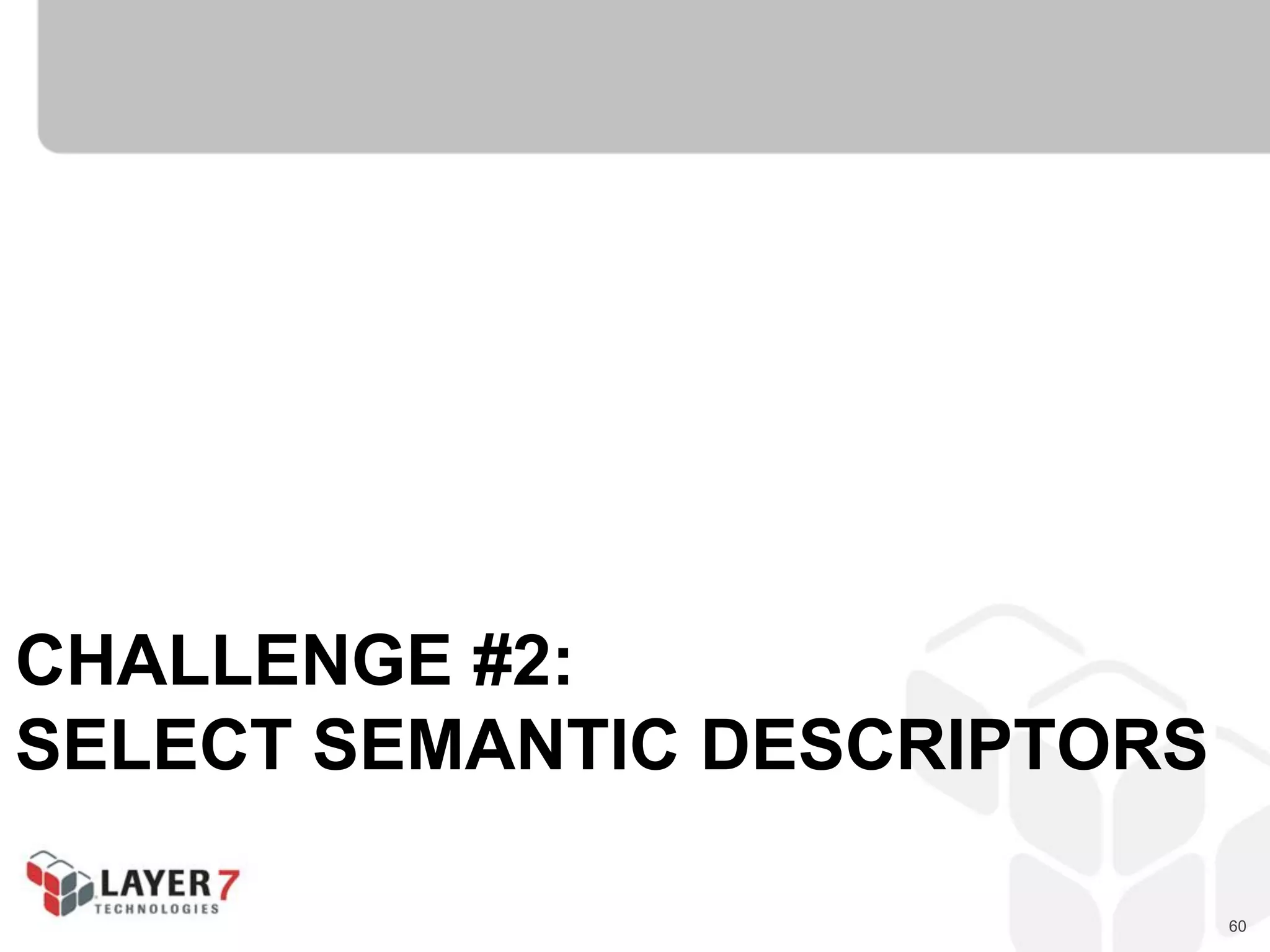

CHALLENGE #2:
SELECT SEMANTIC DESCRIPTORS

61. 61

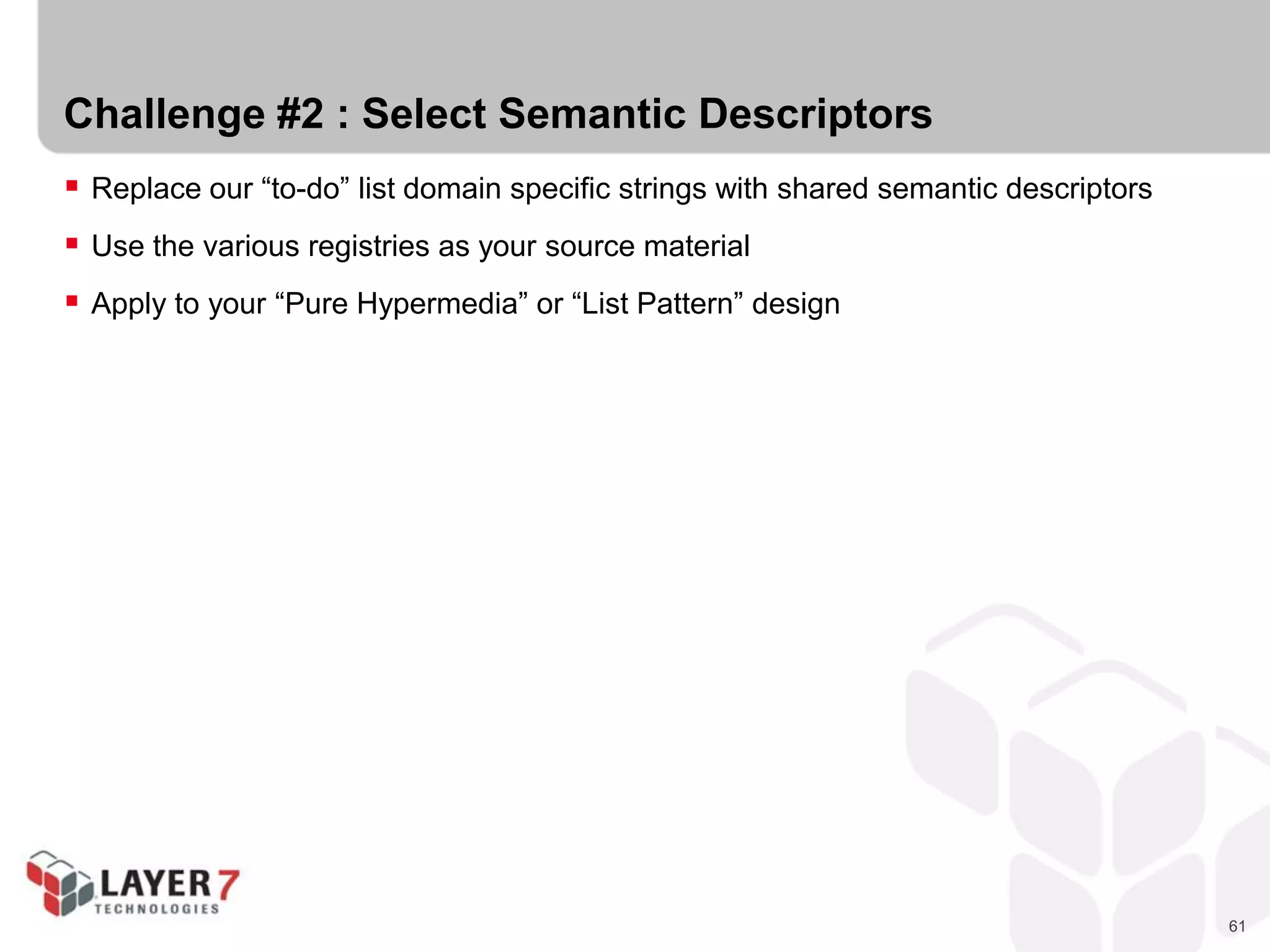

Challenge #2 : Select Semantic Descriptors
 Replace our “to-do” list domain specific strings with shared semantic descriptors
 Use the various registries as your source material
 Apply to your “Pure Hypermedia” or “List Pattern” design

62. 62

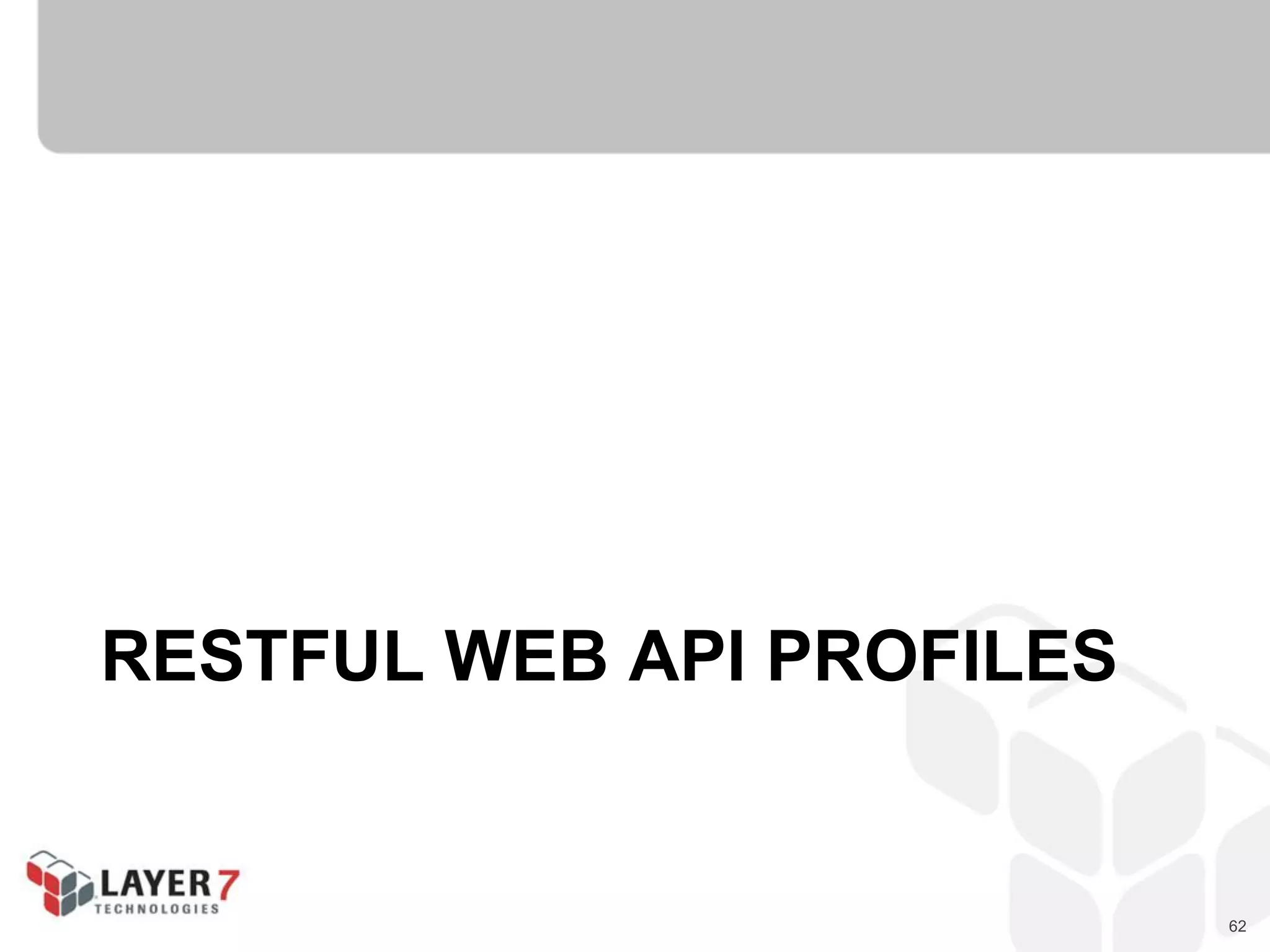

RESTFUL WEB API PROFILES

63. 63
API Profiles

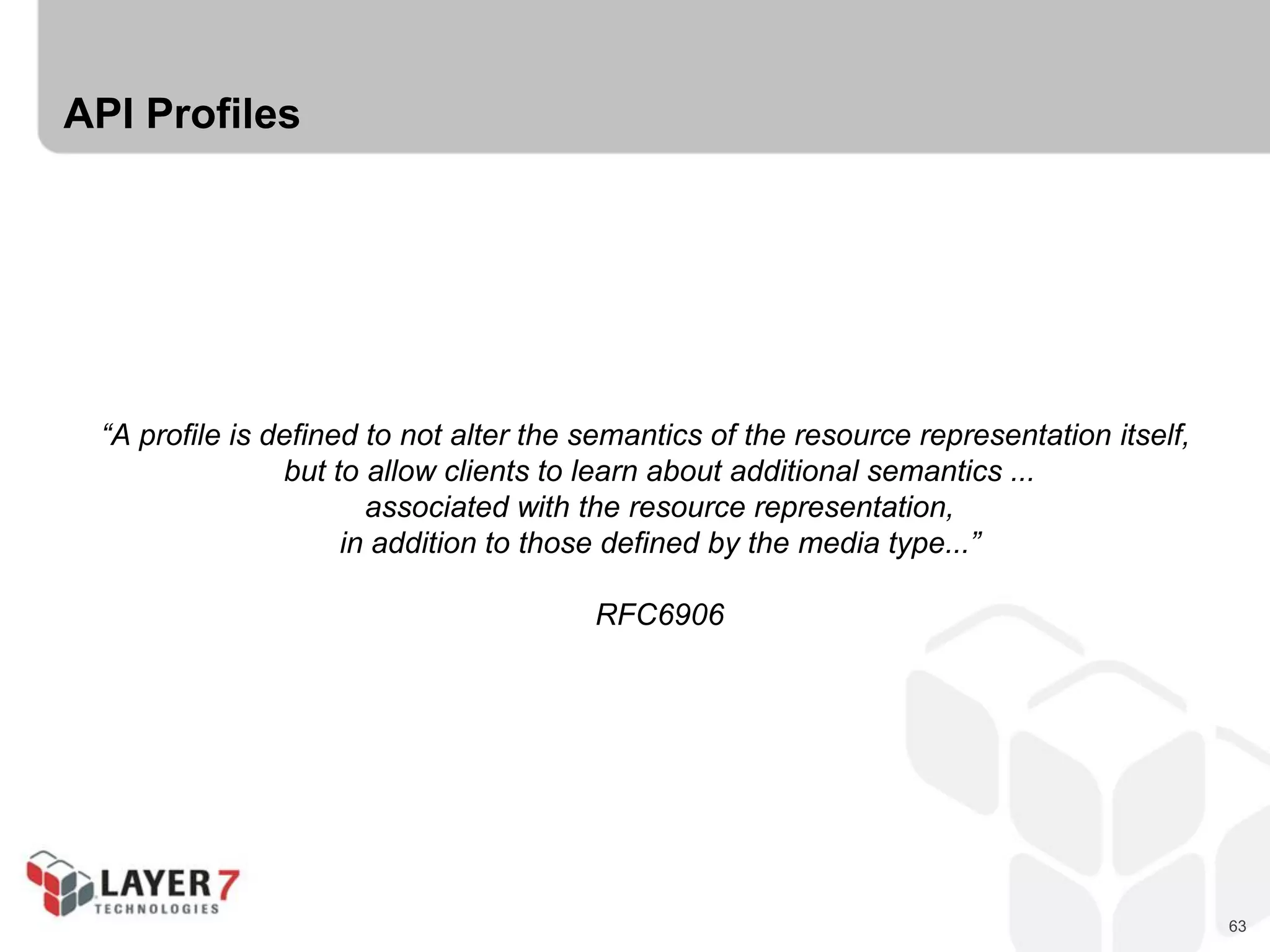

“A profile is defined to not alter the semantics of the resource representation itself,
but to allow clients to learn about additional semantics ...
associated with the resource representation,
in addition to those defined by the media type...”
RFC6906

64. 64

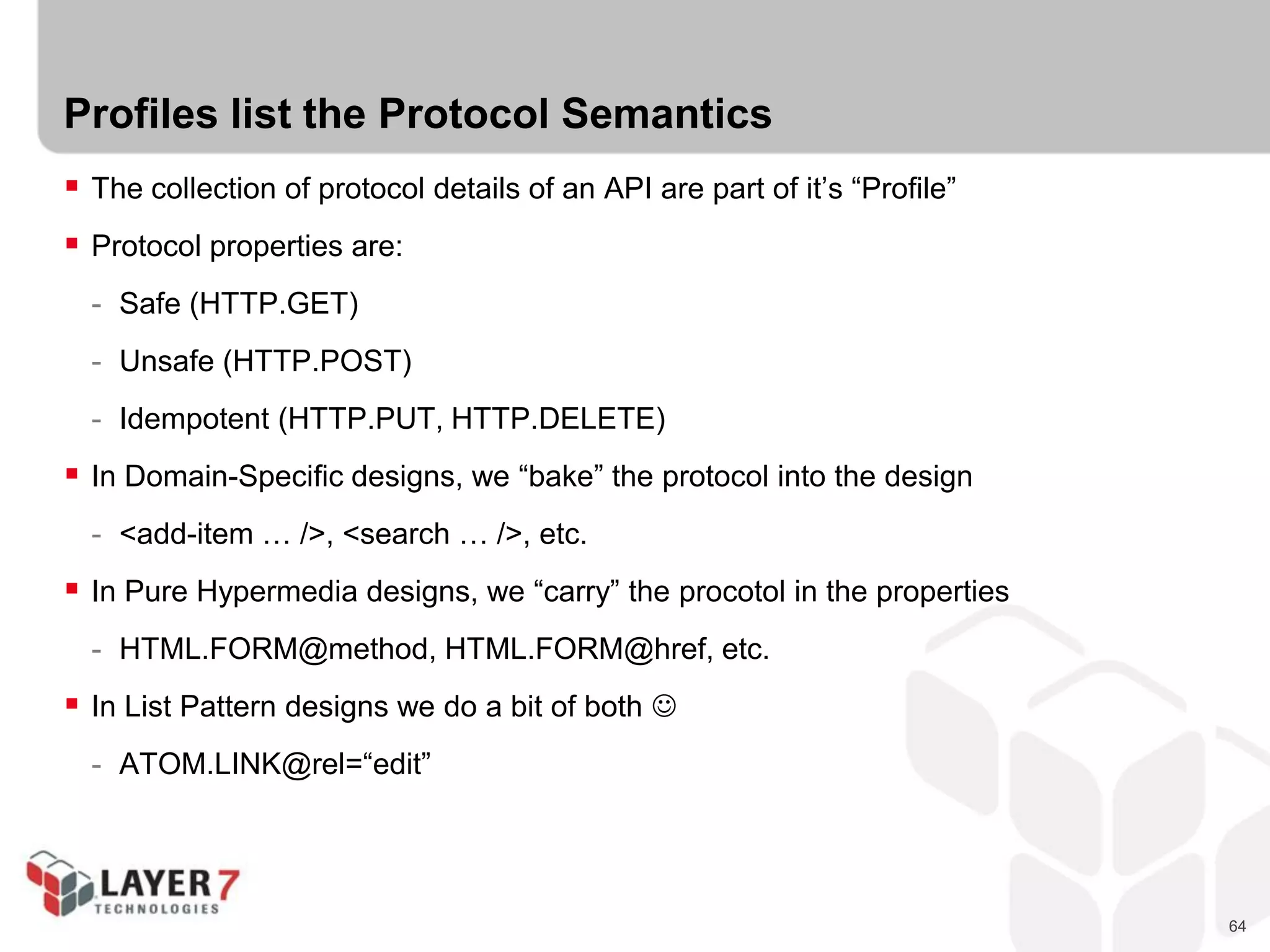

Profiles list the Protocol Semantics
 The collection of protocol details of an API are part of it’s “Profile”
 Protocol properties are:
- Safe (HTTP.GET)
- Unsafe (HTTP.POST)
- Idempotent (HTTP.PUT, HTTP.DELETE)
 In Domain-Specific designs, we “bake” the protocol into the design
- <add-item … />, <search … />, etc.
 In Pure Hypermedia designs, we “carry” the procotol in the properties
- HTML.FORM@method, HTML.FORM@href, etc.
 In List Pattern designs we do a bit of both 
- ATOM.LINK@rel=“edit”

65. 65

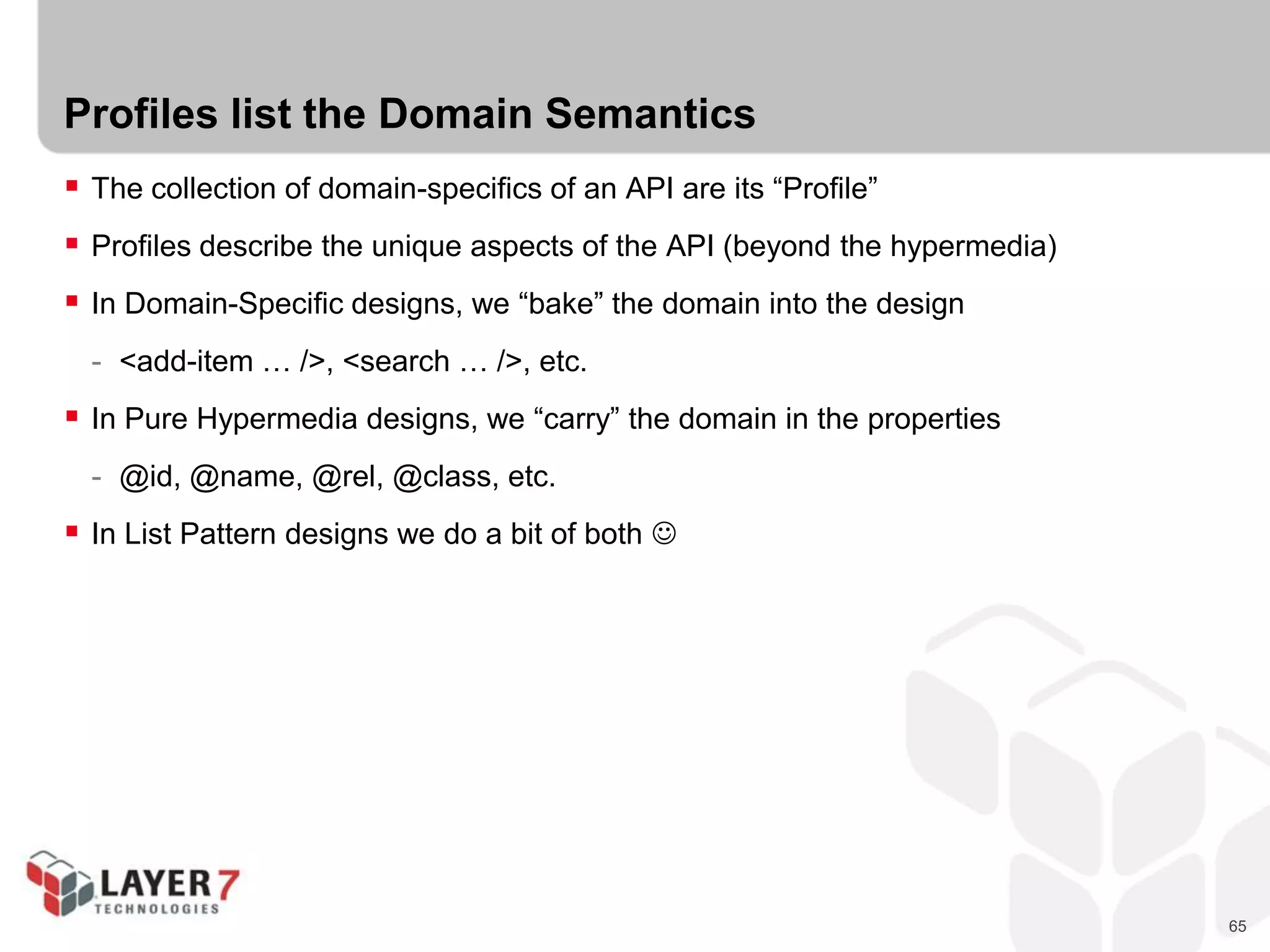

Profiles list the Domain Semantics
 The collection of domain-specifics of an API are its “Profile”
 Profiles describe the unique aspects of the API (beyond the hypermedia)
 In Domain-Specific designs, we “bake” the domain into the design
- <add-item … />, <search … />, etc.
 In Pure Hypermedia designs, we “carry” the domain in the properties
- @id, @name, @rel, @class, etc.
 In List Pattern designs we do a bit of both 

66. 66

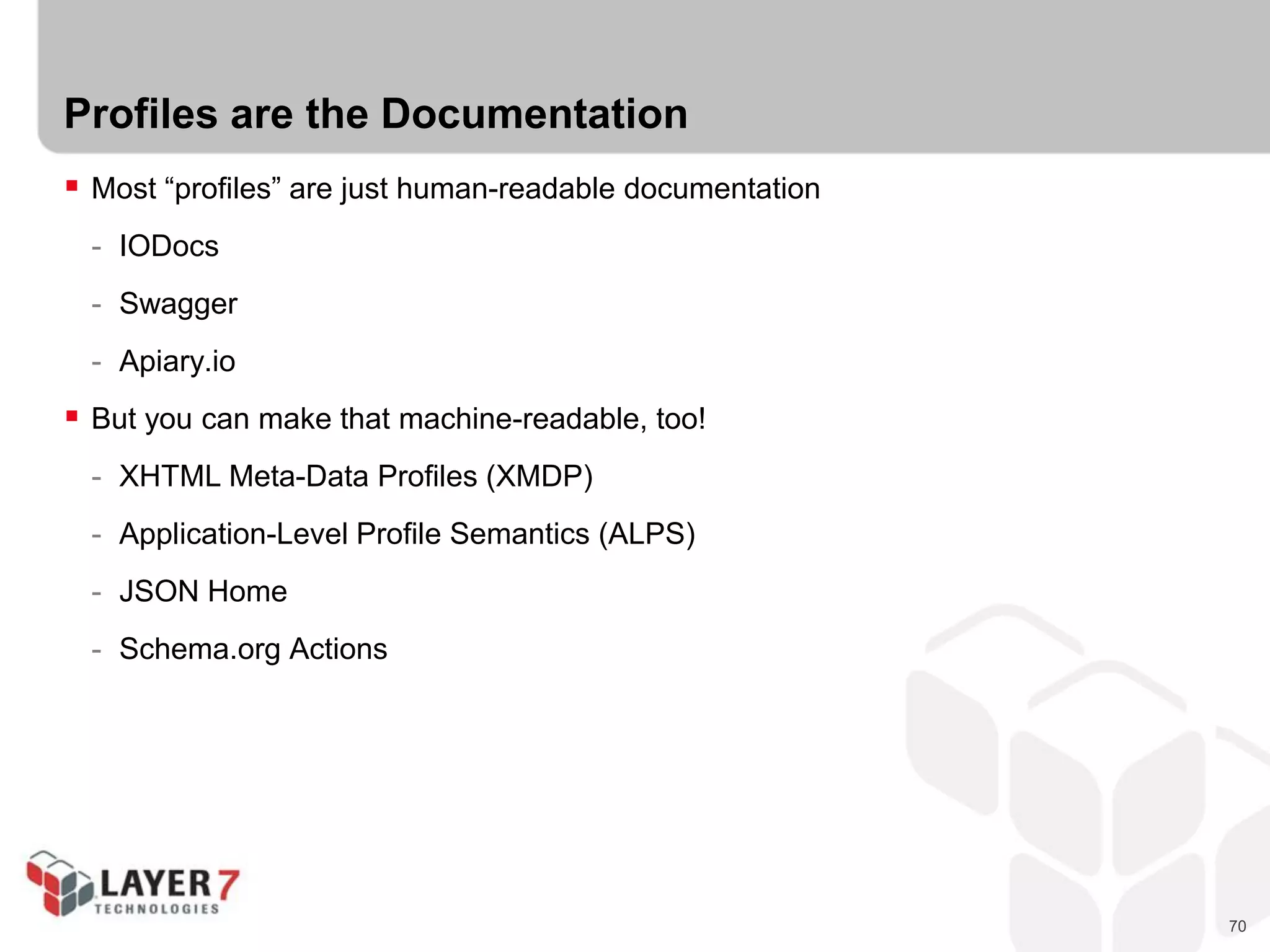

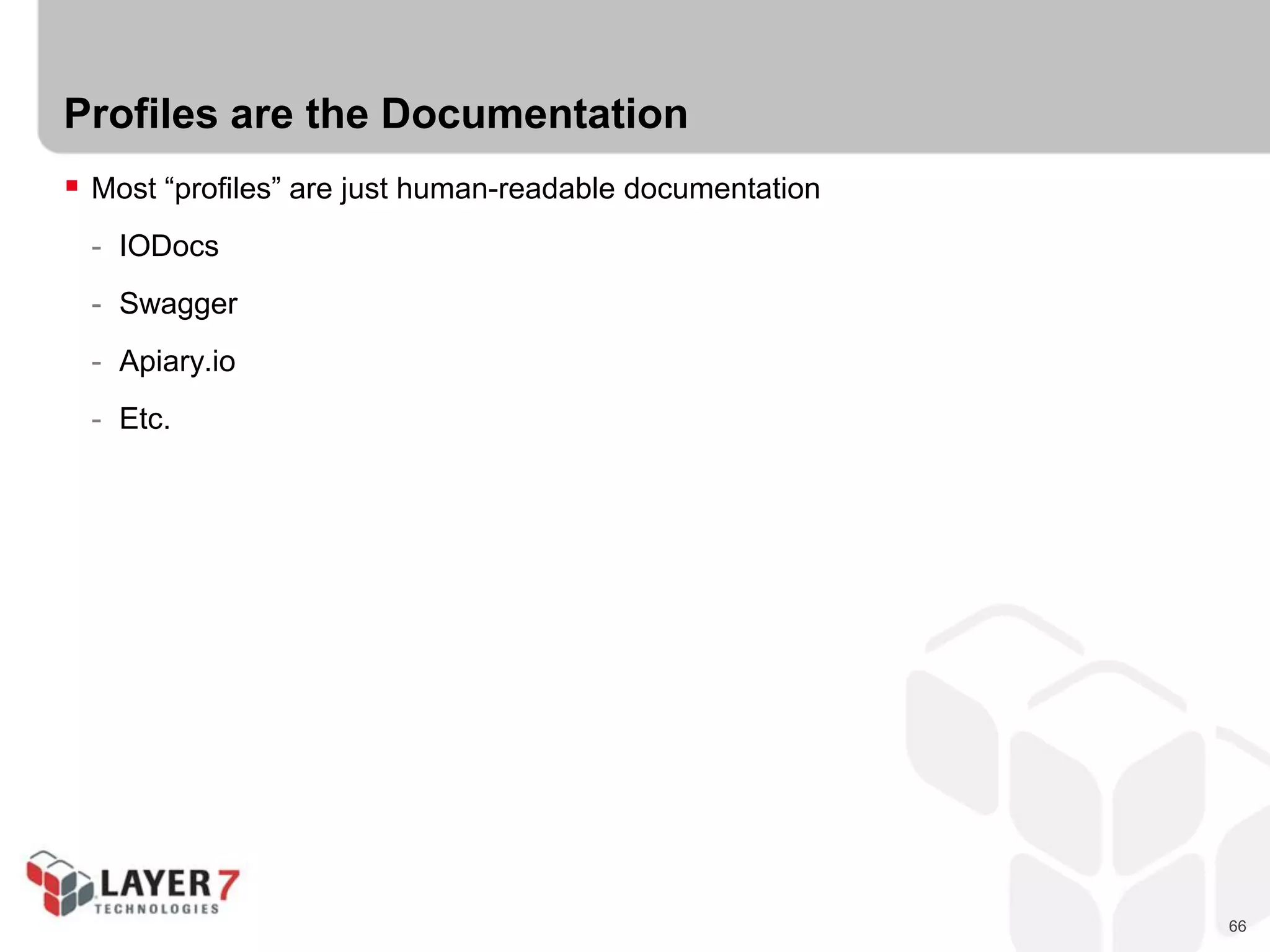

Profiles are the Documentation
 Most “profiles” are just human-readable documentation
- IODocs
- Swagger
- Apiary.io
- Etc.

67. 67

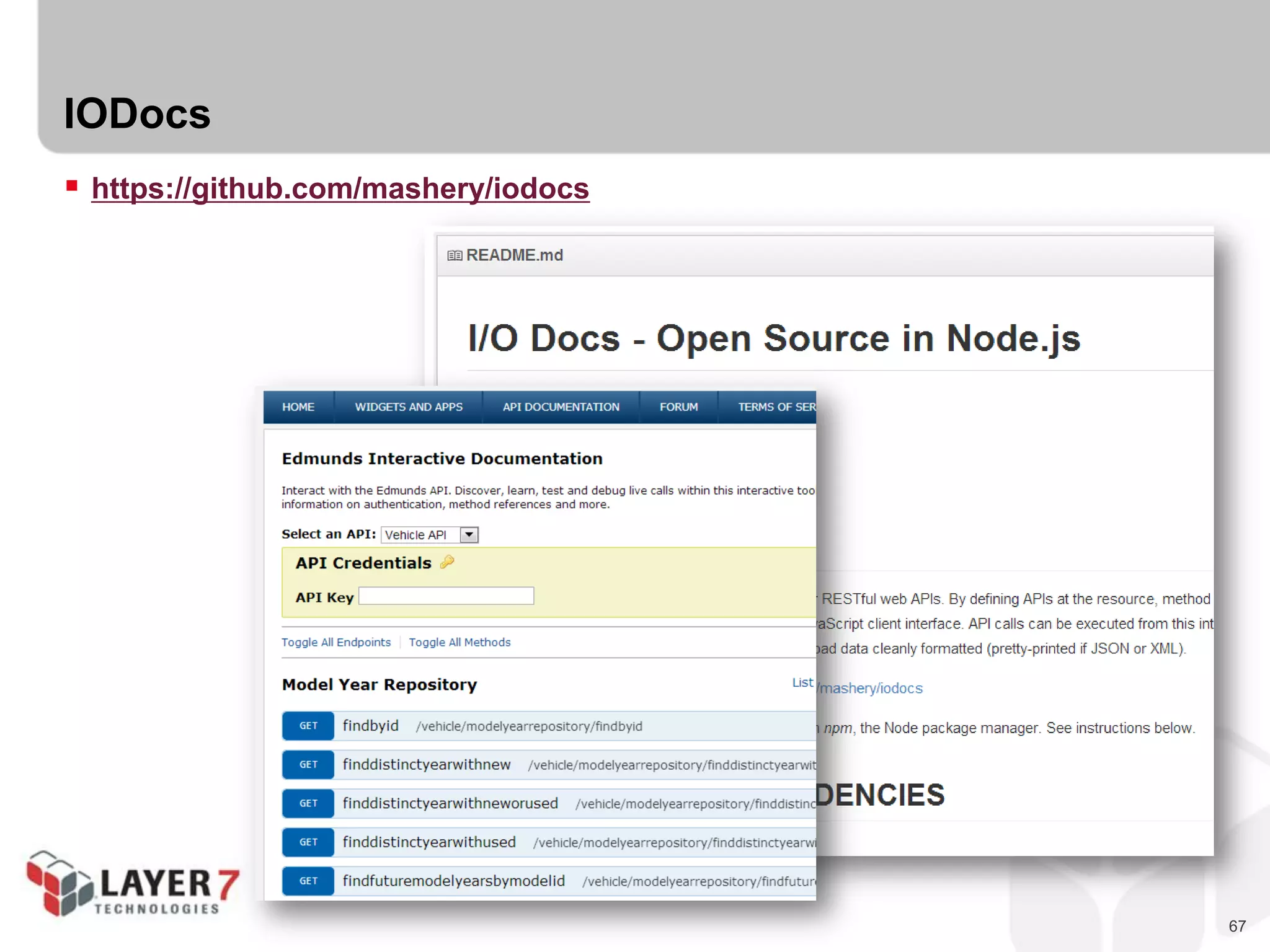

IODocs
 https://github.com/mashery/iodocs

68. 68

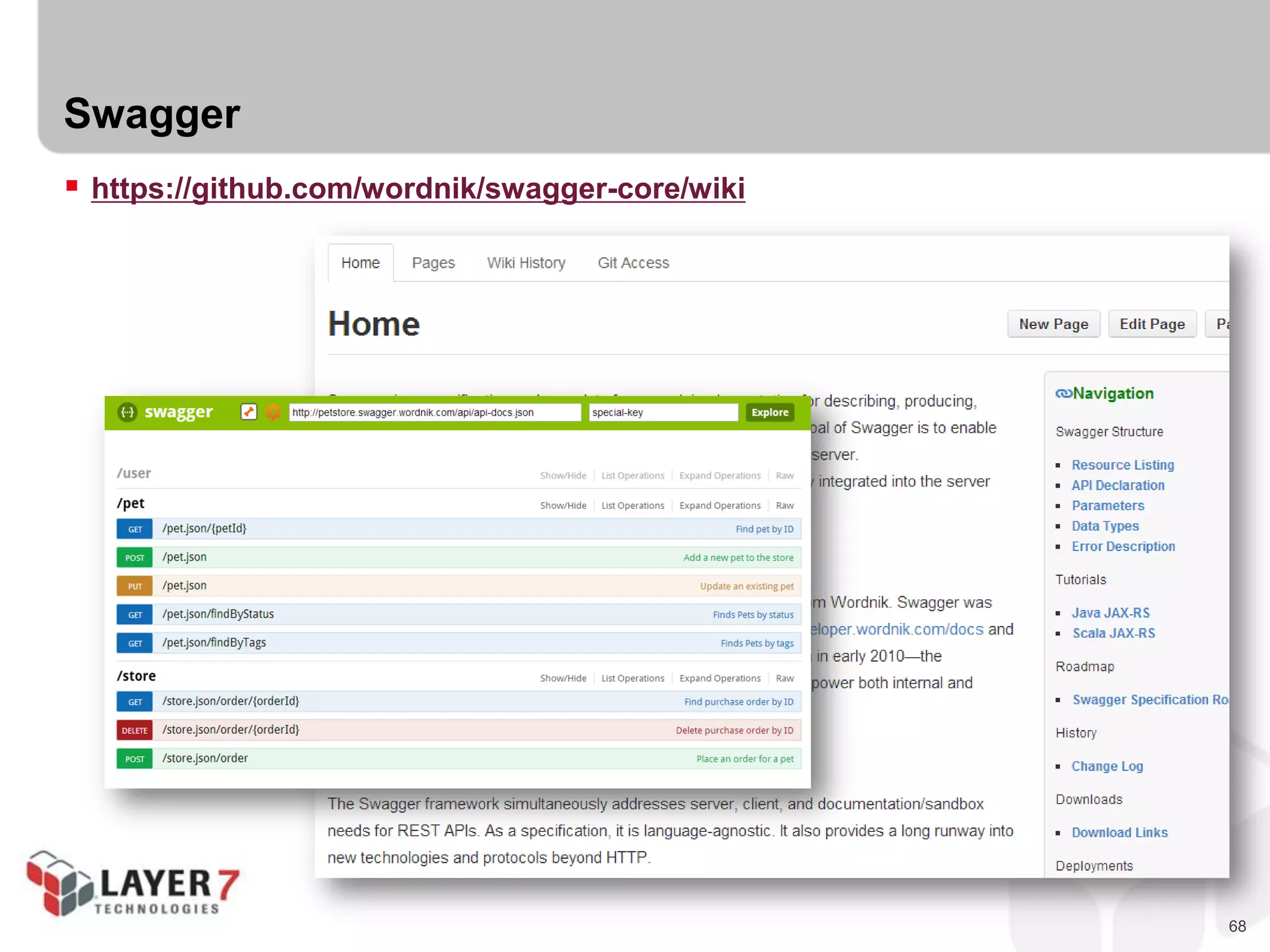

Swagger
 https://github.com/wordnik/swagger-core/wiki

69. 69

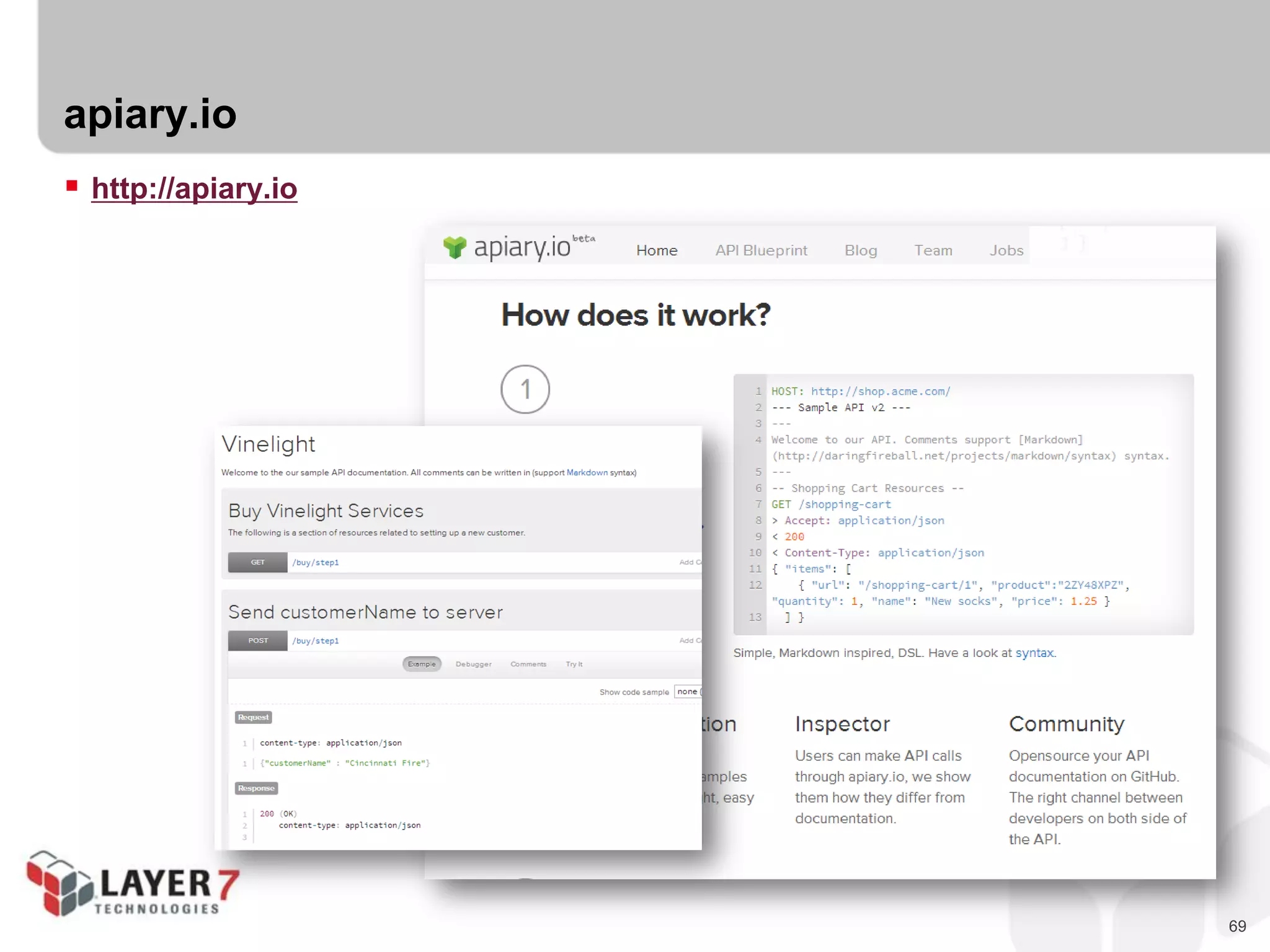

apiary.io
 http://apiary.io

70. 70
Profiles are the Documentation
 Most “profiles” are just human-readable documentation
- IODocs
- Swagger
- Apiary.io
 But you can make that machine-readable, too!
- XHTML Meta-Data Profiles (XMDP)
- Application-Level Profile Semantics (ALPS)
- JSON Home
- Schema.org Actions

71. 71
XHTML Meta-Data Profiles (XMDP)
 http://gmpg.org/xmdp/

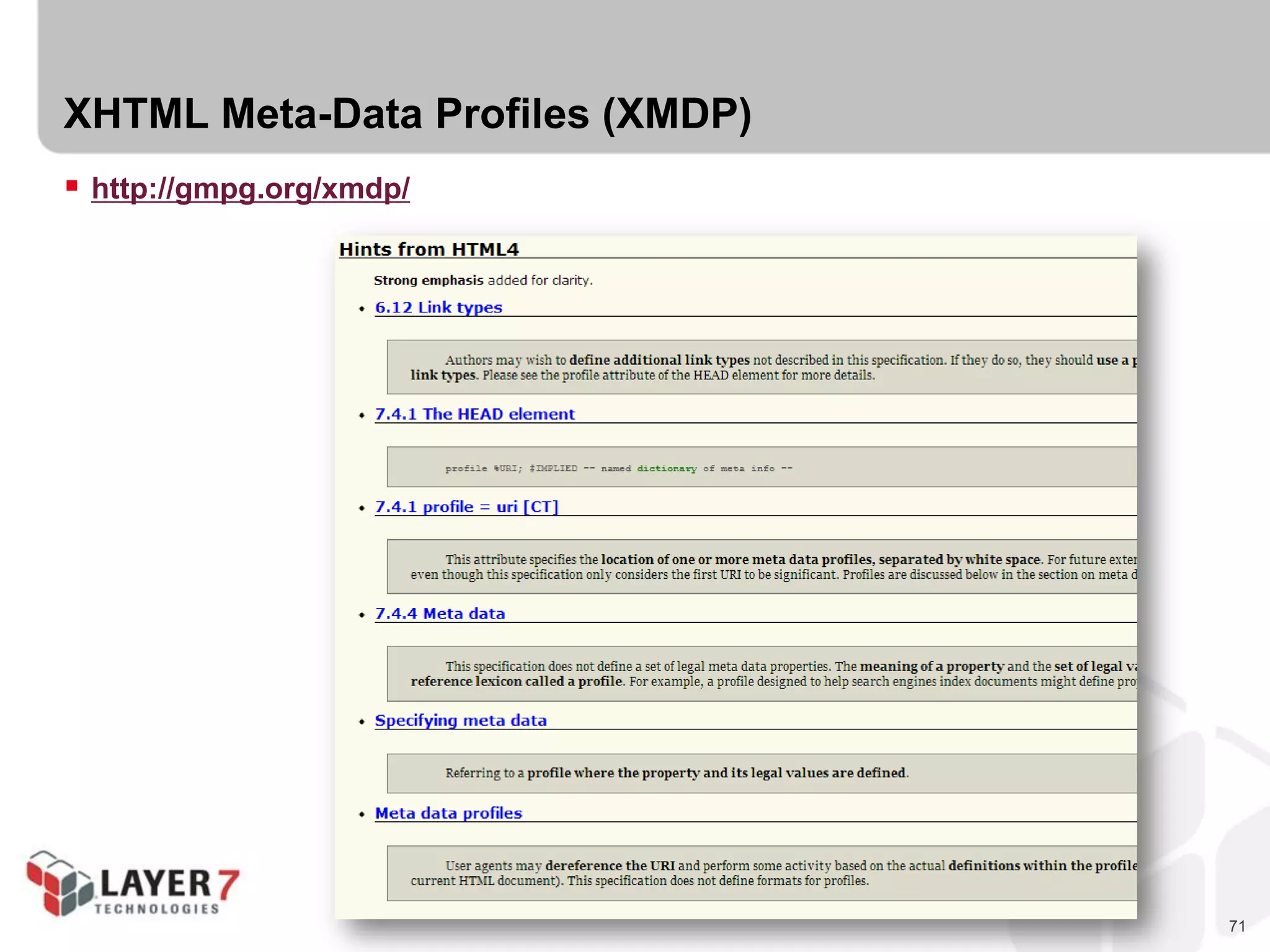

72. 72

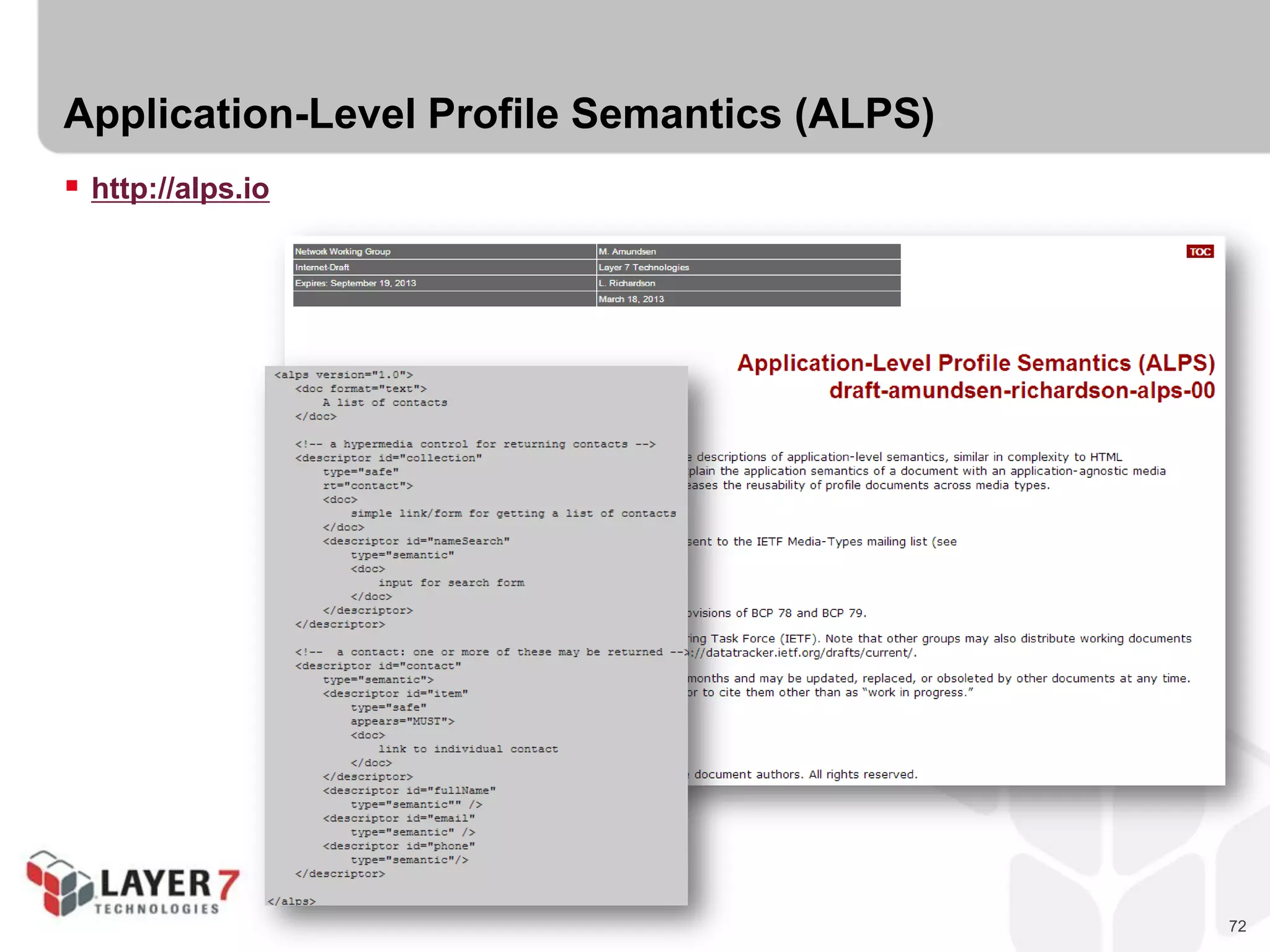

Application-Level Profile Semantics (ALPS)
 http://alps.io

73. 73
JSON Home Documents
 http://tools.ietf.org/html/draft-nottingham-json-home-03

74. 74

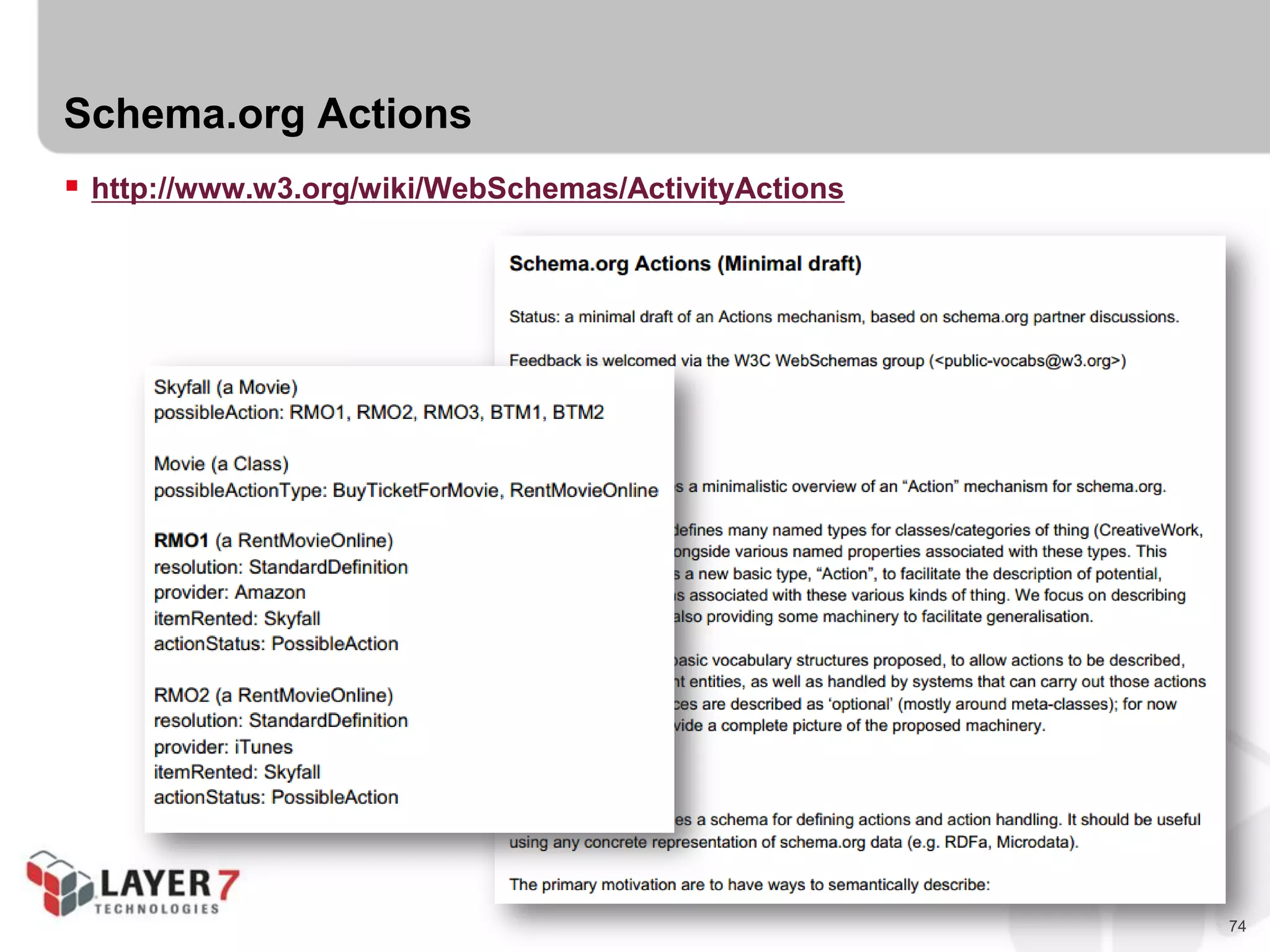

Schema.org Actions
 http://www.w3.org/wiki/WebSchemas/ActivityActions

75. 75

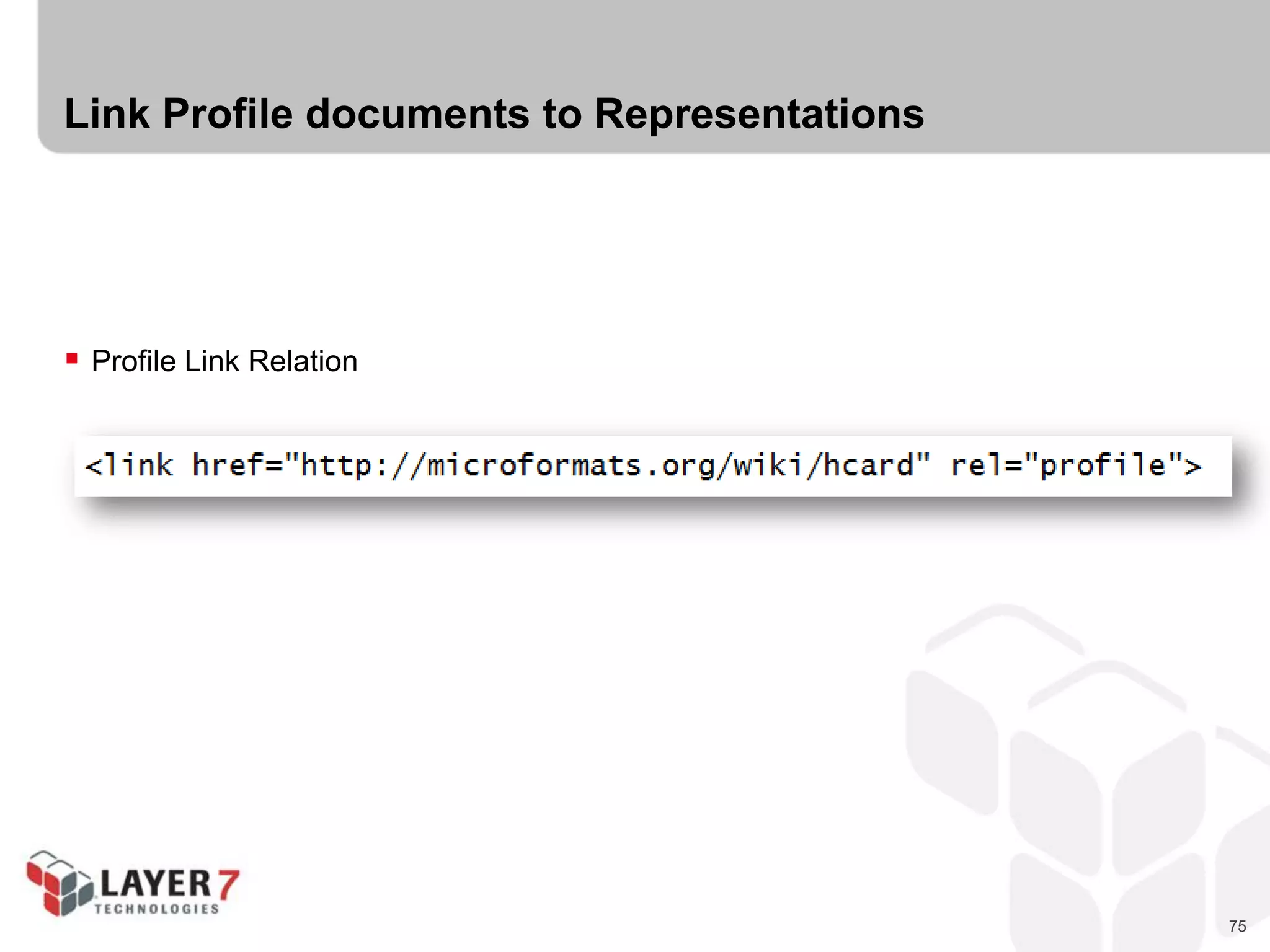

Link Profile documents to Representations
 Profile Link Relation

76. 76

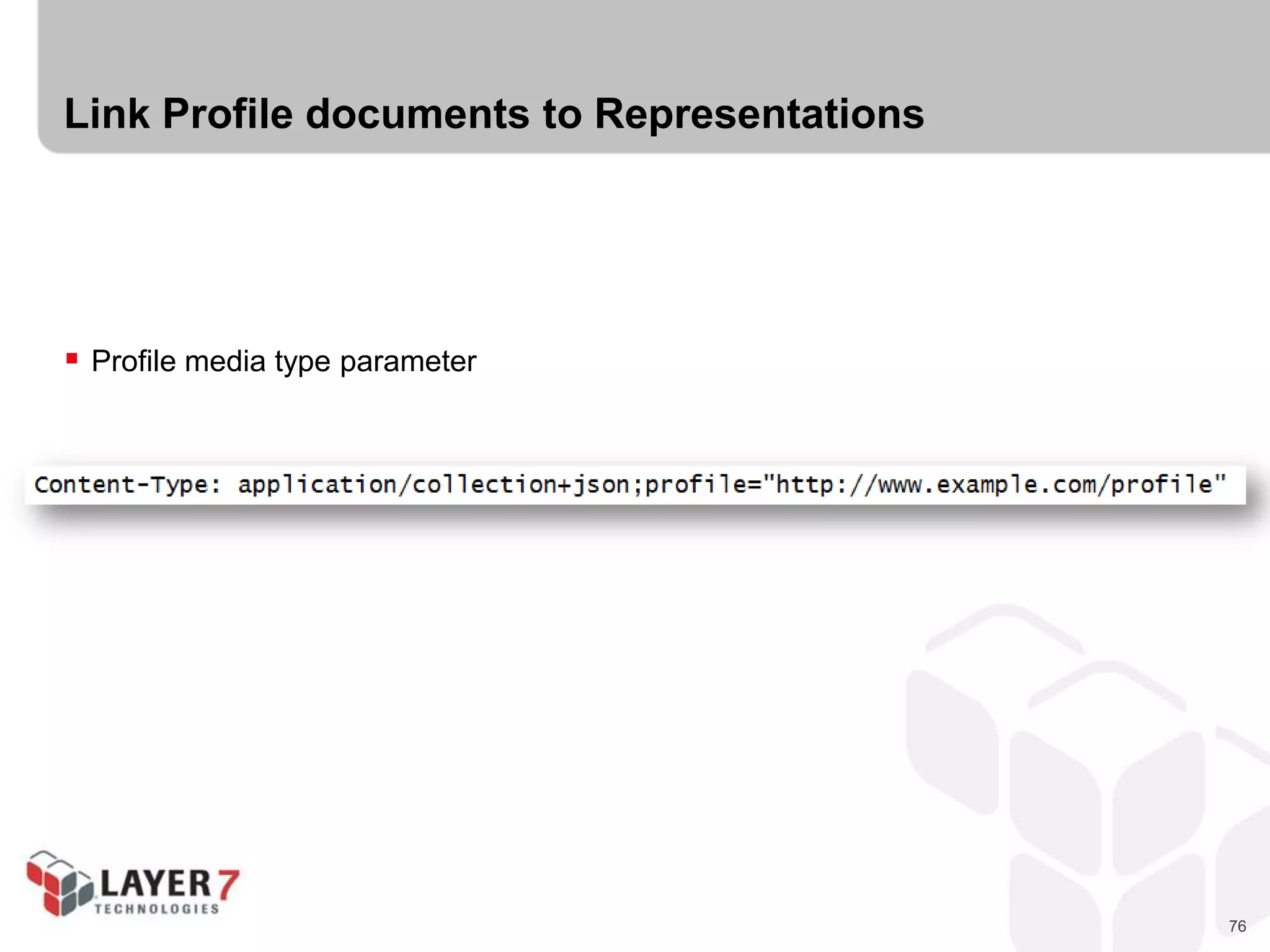

Link Profile documents to Representations
 Profile media type parameter

77. 77

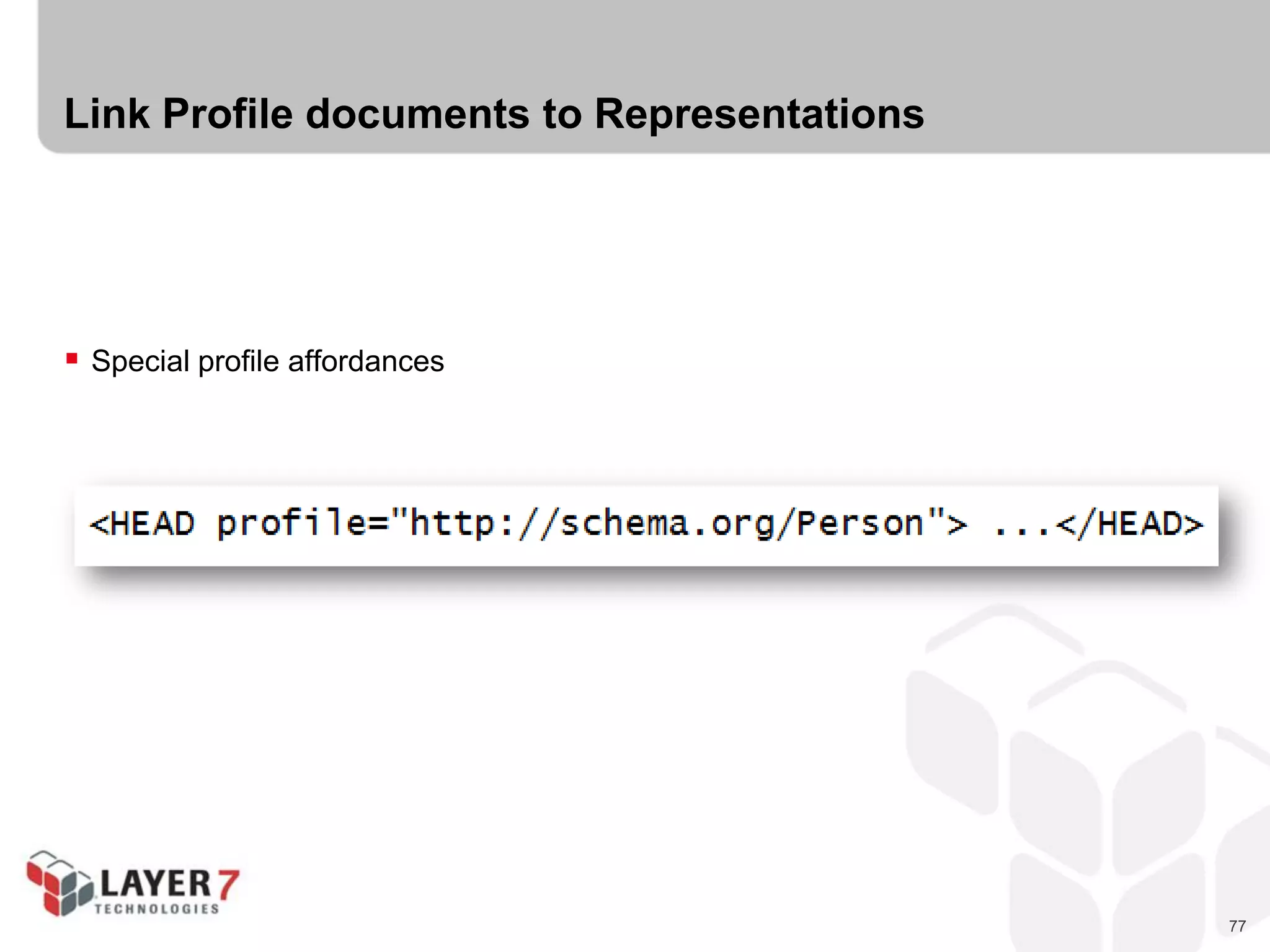

Link Profile documents to Representations
 Special profile affordances

78. 78

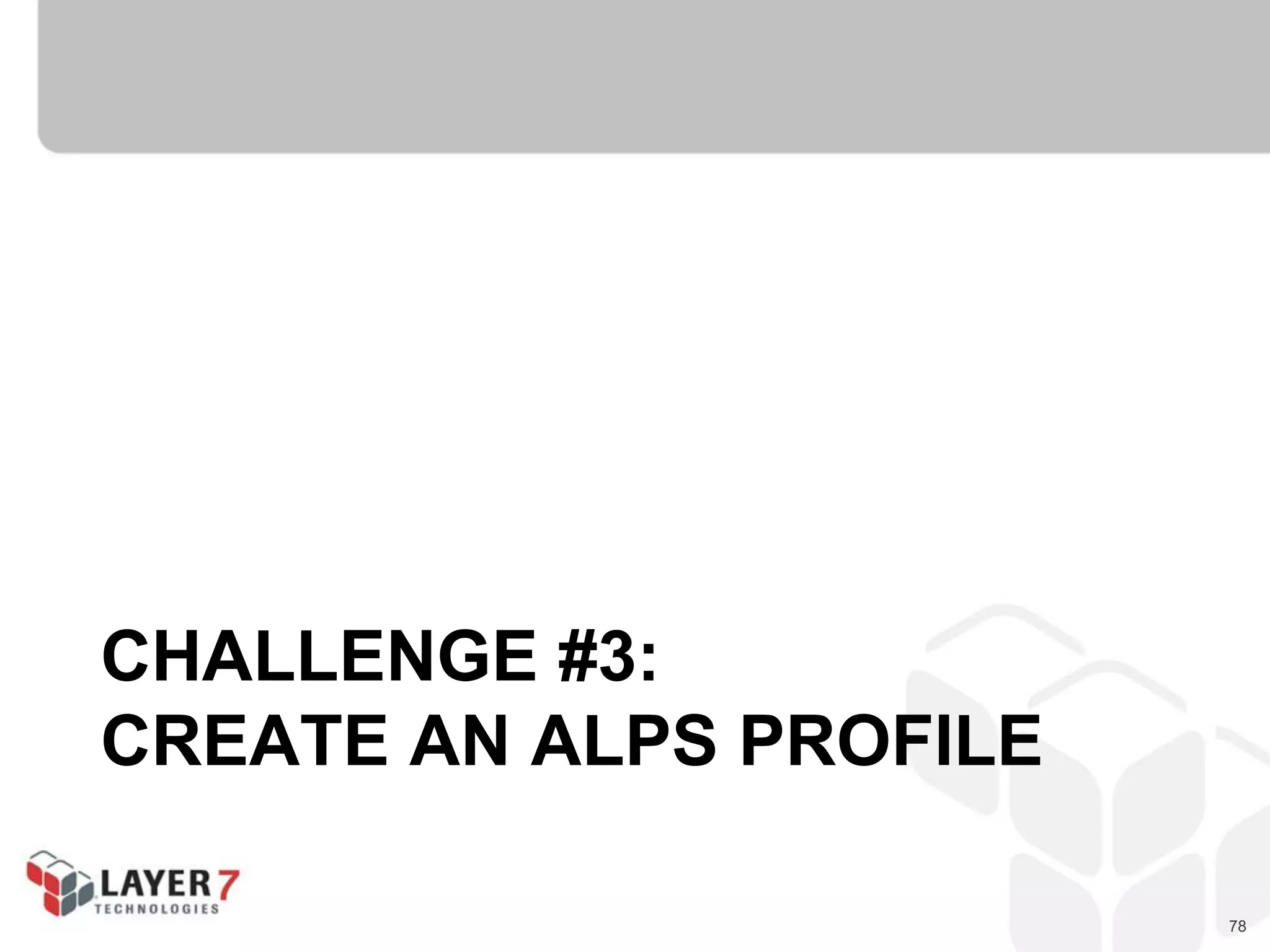

CHALLENGE #3:
CREATE AN ALPS PROFILE

79. 79

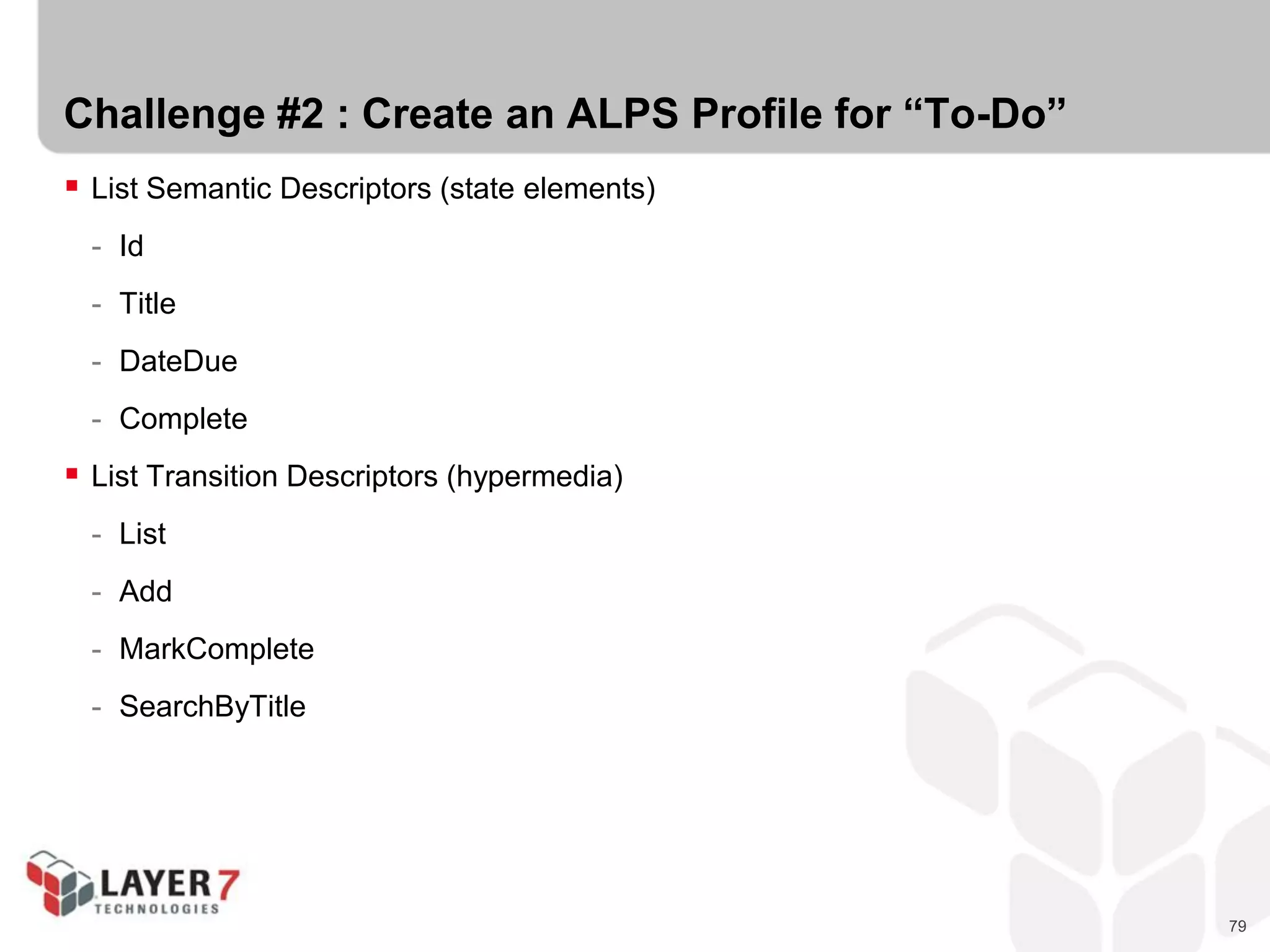

Challenge #2 : Create an ALPS Profile for “To-Do”
 List Semantic Descriptors (state elements)
- Id
- Title
- DateDue
- Complete
 List Transition Descriptors (hypermedia)
- List
- Add
- MarkComplete
- SearchByTitle

80. 80

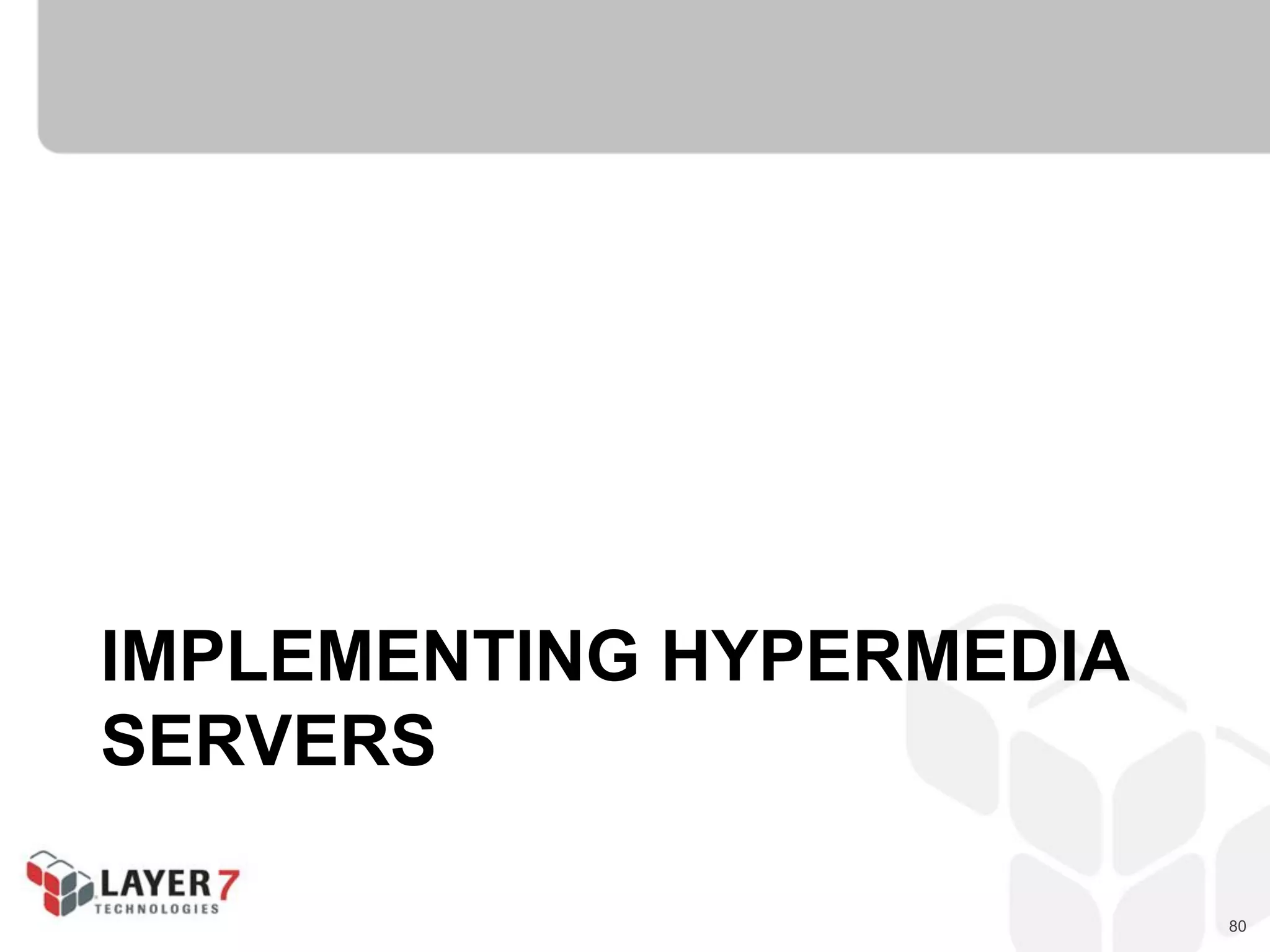

IMPLEMENTING HYPERMEDIA
SERVERS

81. 81

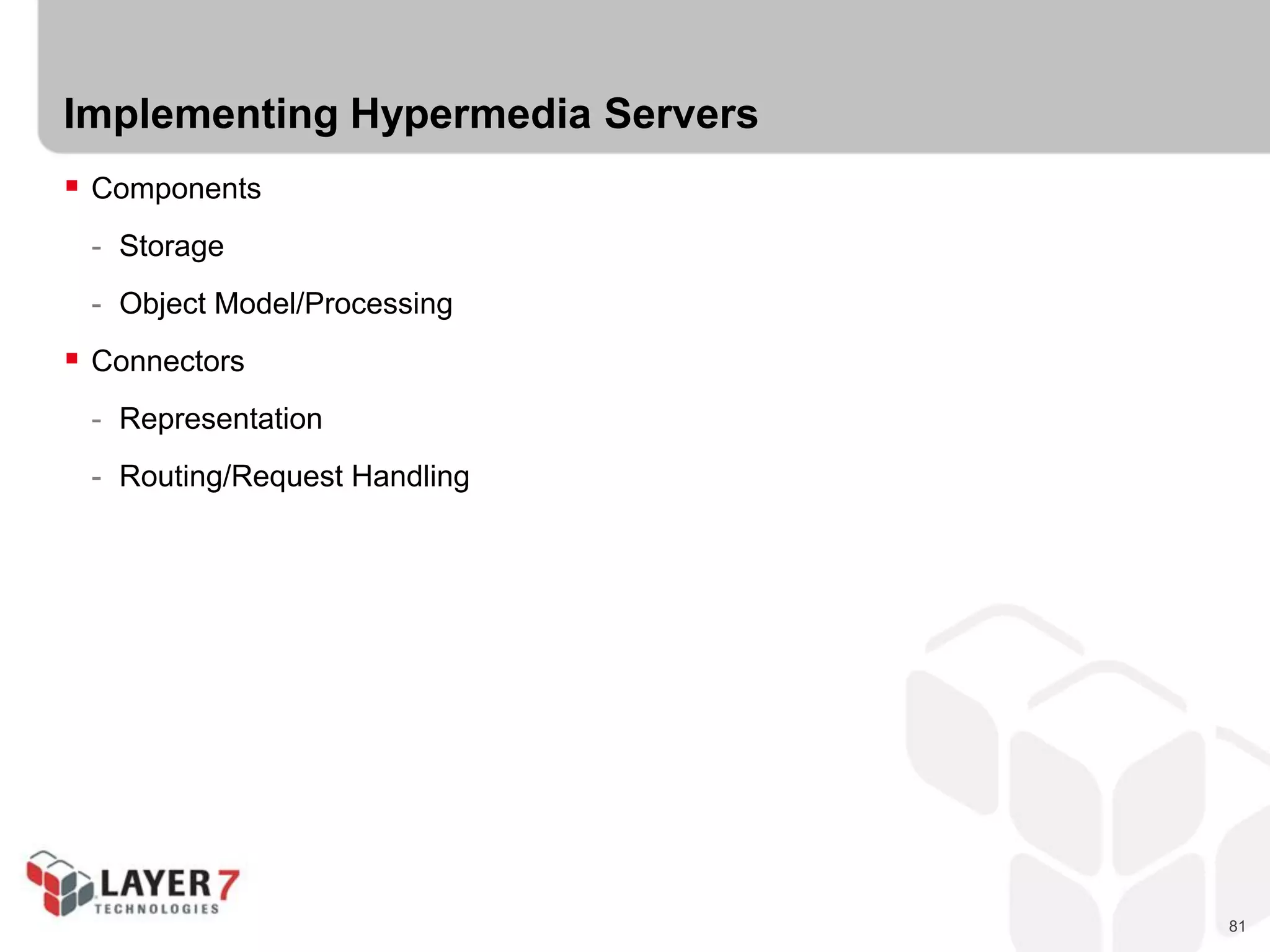

Implementing Hypermedia Servers
 Components
- Storage
- Object Model/Processing
 Connectors
- Representation
- Routing/Request Handling

82. 82
Component != Connector

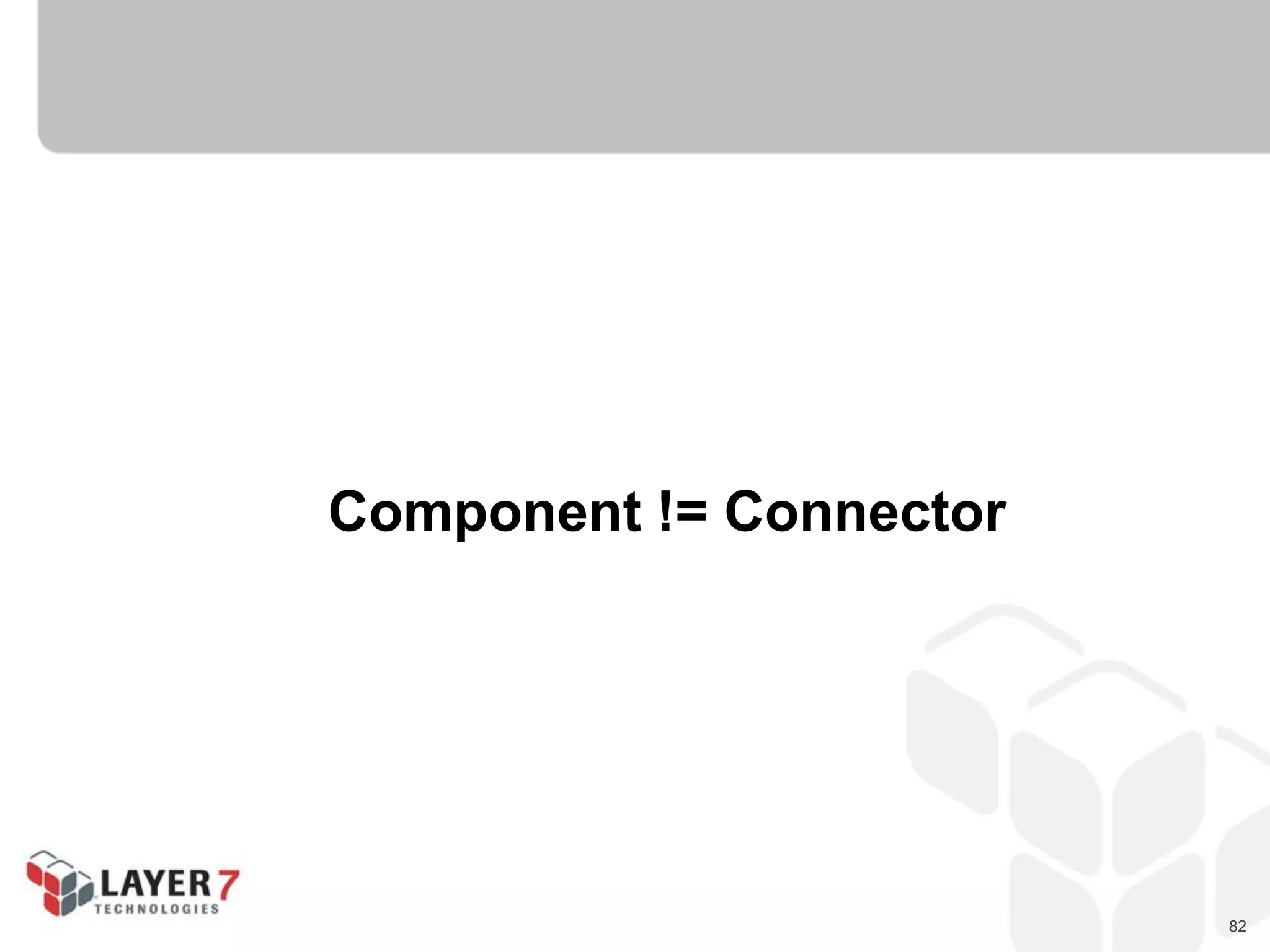

83. 83
Component
Database
File System
Message Queue
Transaction Manager
Source Code

84. 84

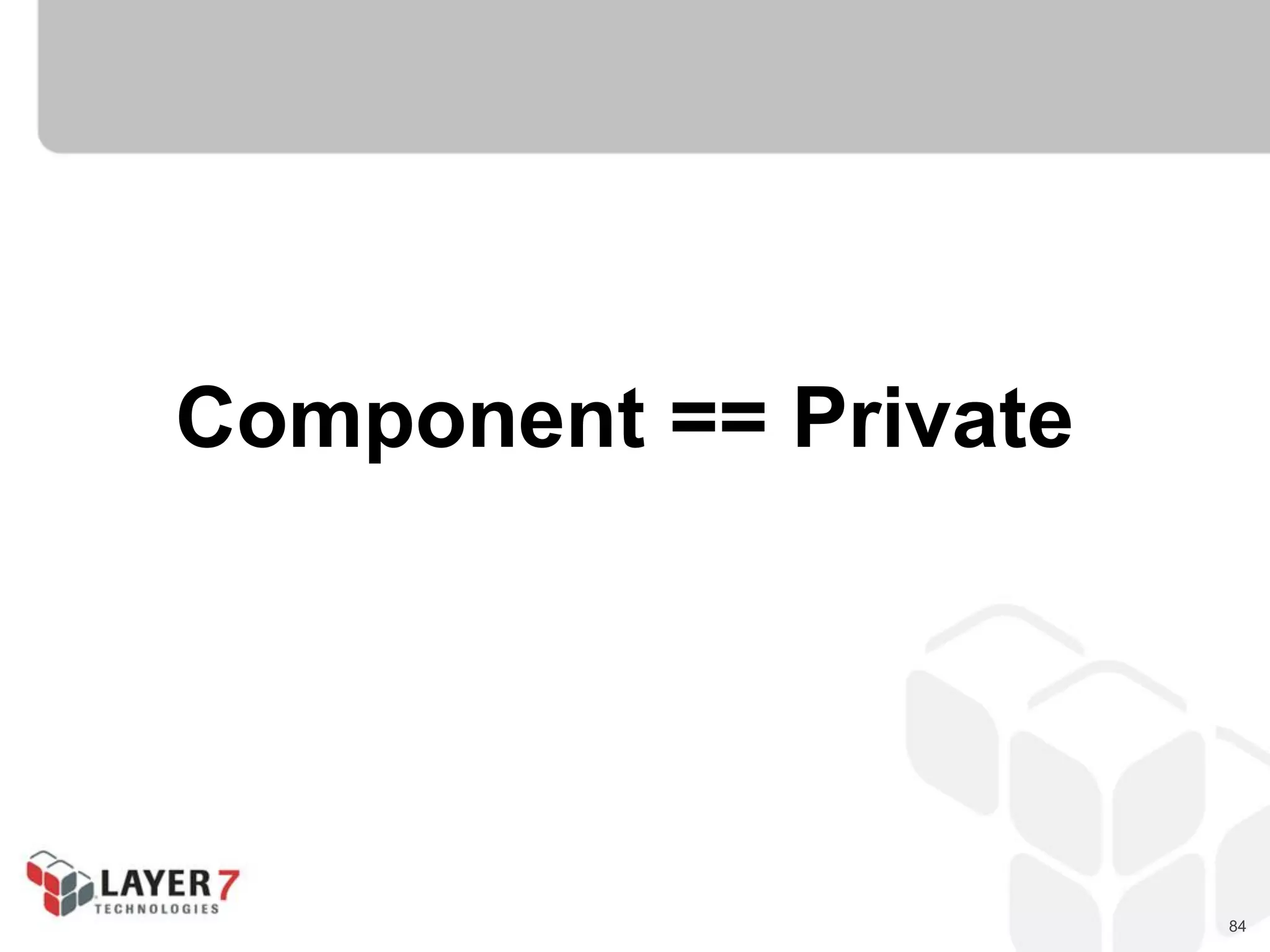

Component == Private

85. 85

86. 86

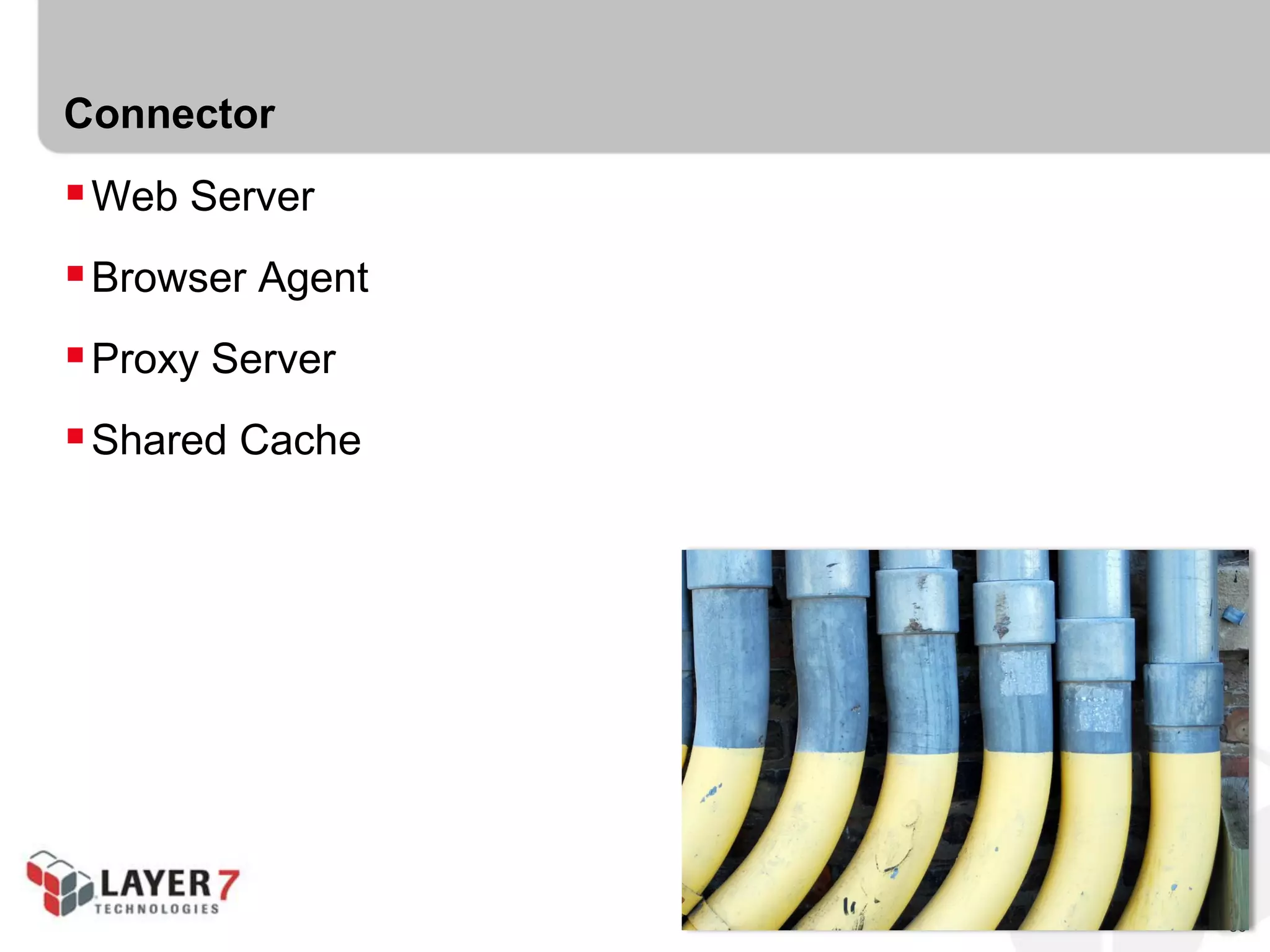

Connector
Web Server
Browser Agent
Proxy Server
Shared Cache

87. 87

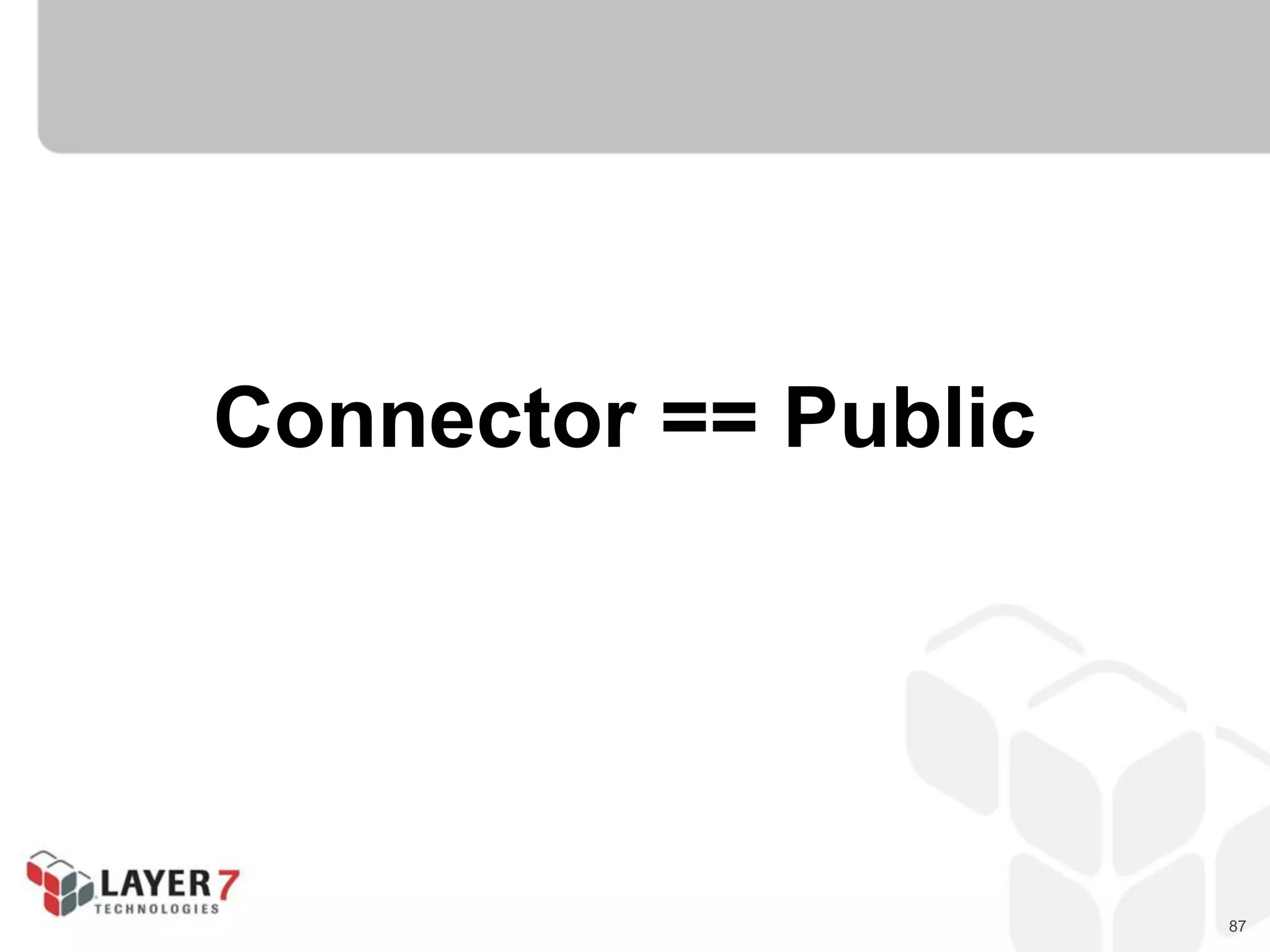

Connector == Public

88. 88

89. 89

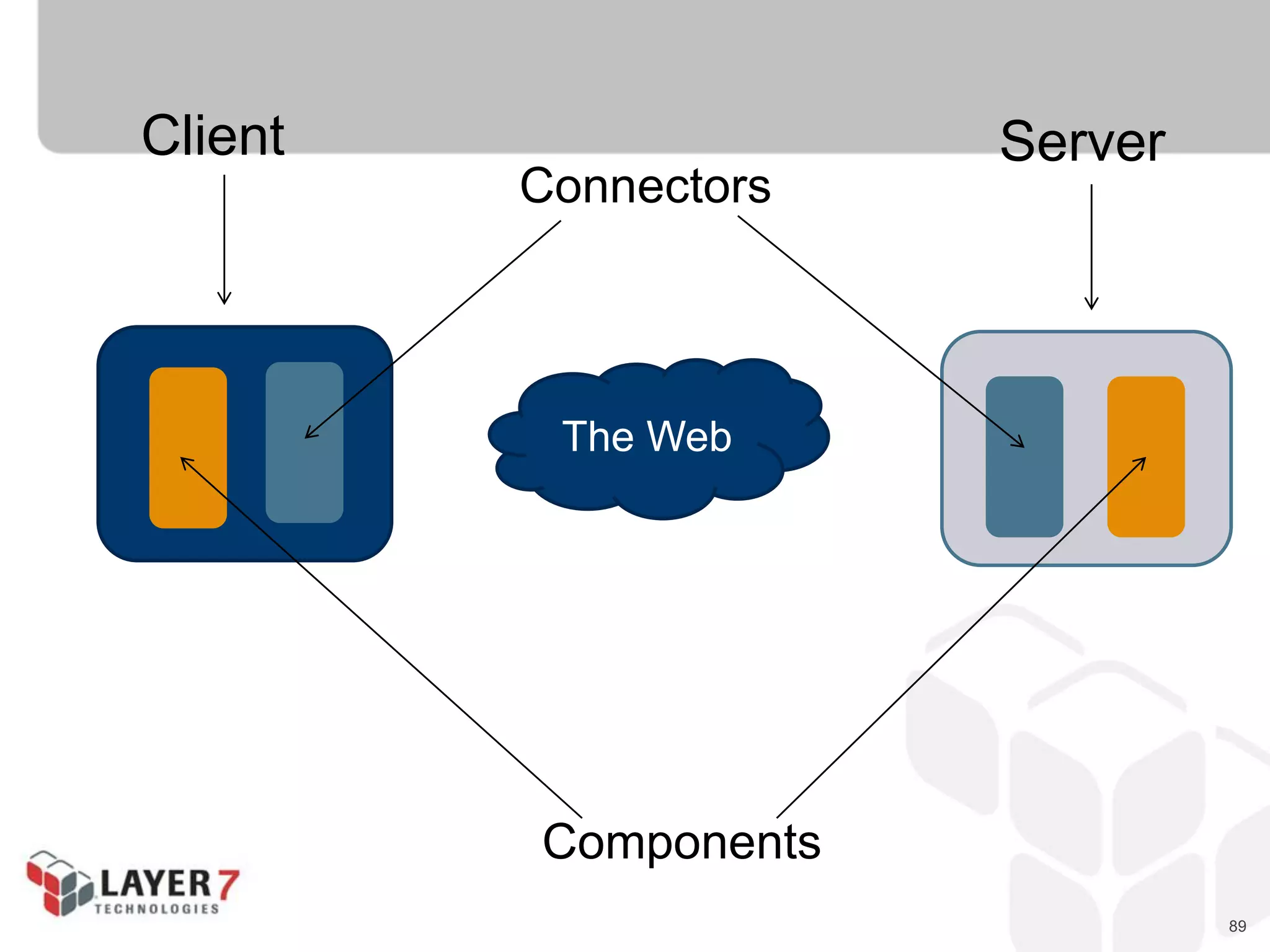

Client Server
Connectors
Components
The Web

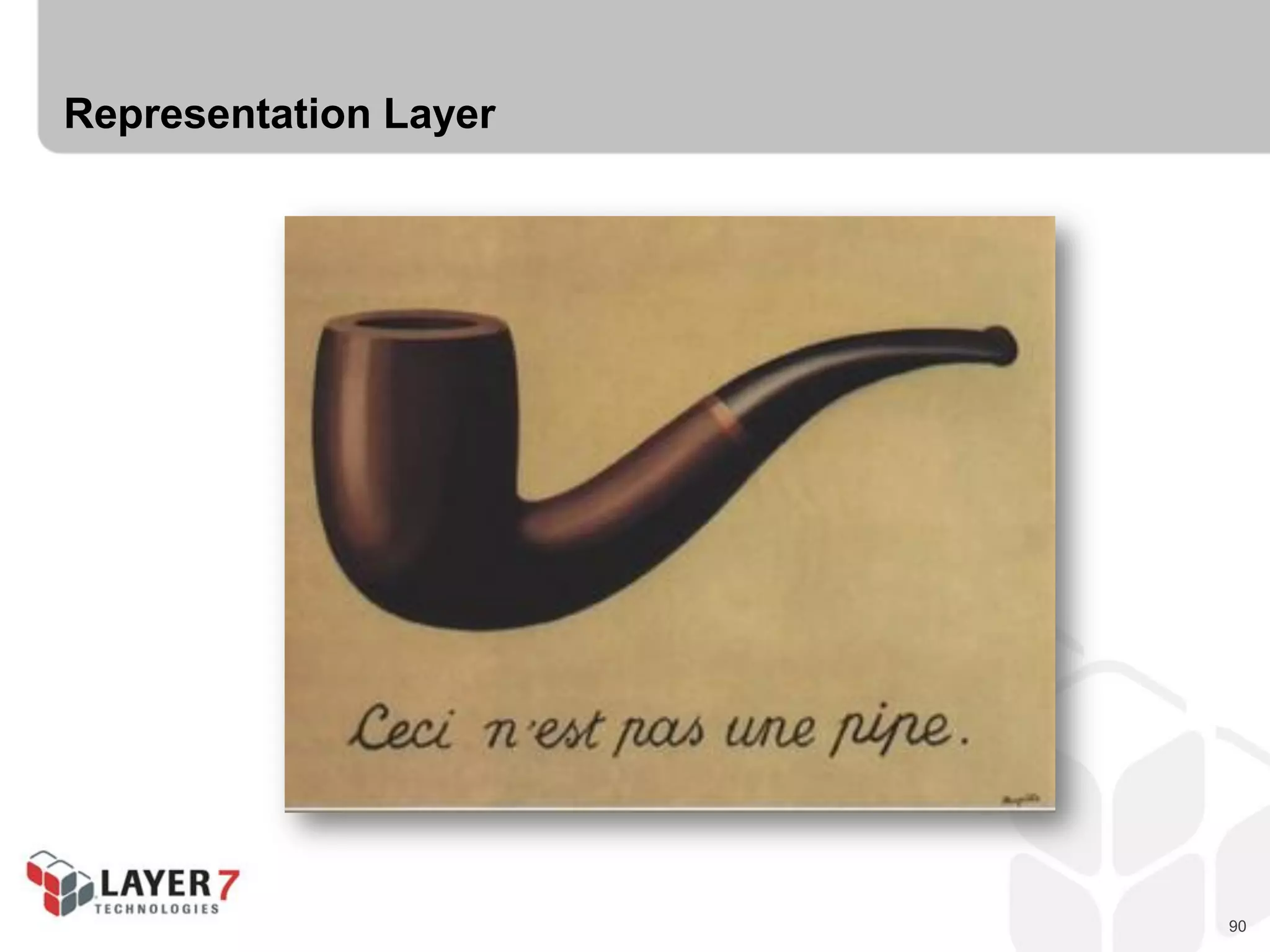

90. 90
Representation Layer

91. 91

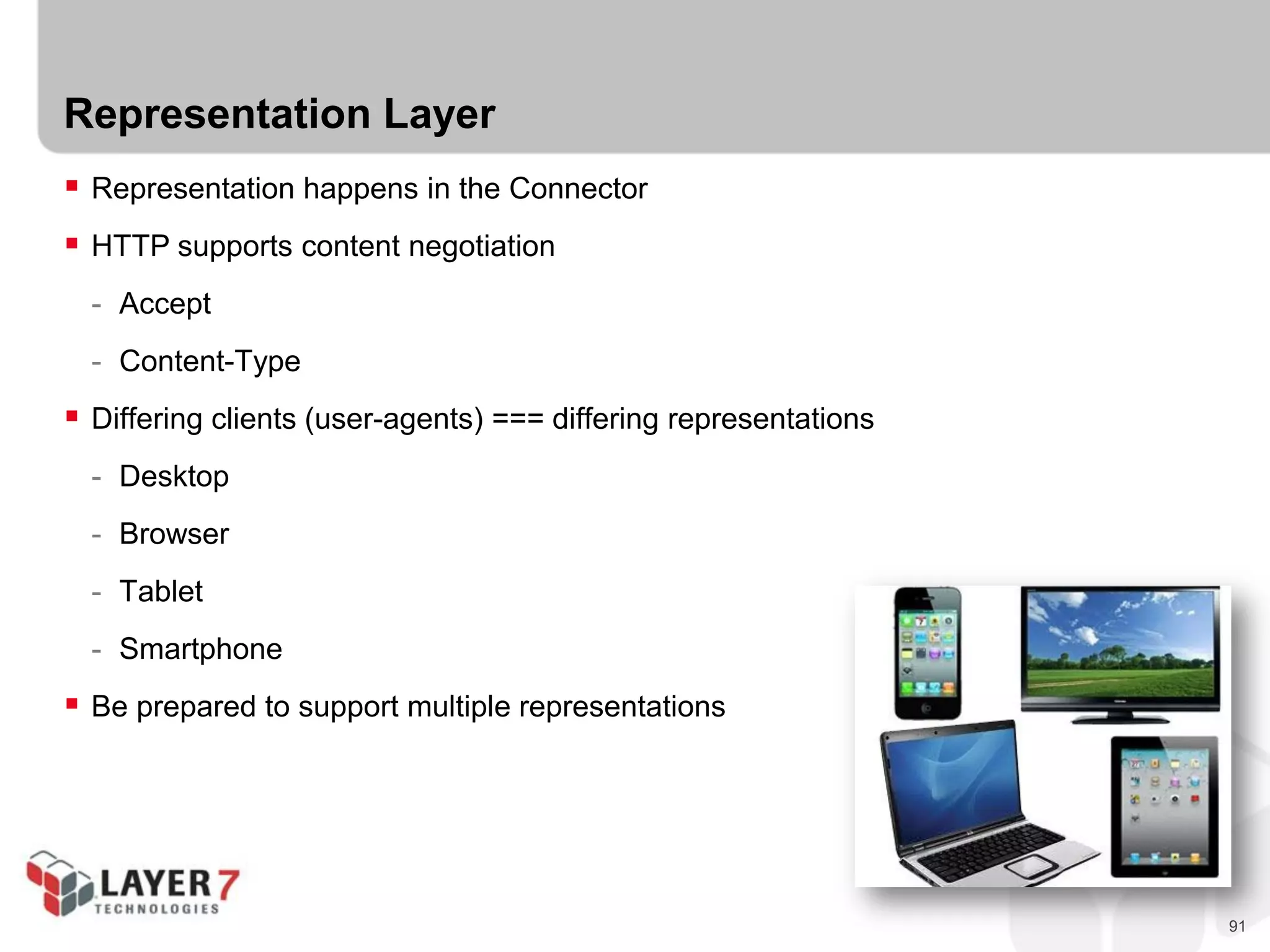

Representation Layer
 Representation happens in the Connector
 HTTP supports content negotiation
- Accept
- Content-Type
 Differing clients (user-agents) === differing representations
- Desktop
- Browser
- Tablet
- Smartphone
 Be prepared to support multiple representations

92. 92
Implementing Hypermedia Servers
 Storage
 Handles direct access to stored content (if any)
 Database (MySQL, SQLServer, Oracle, CouchDB, Mongo, etc.)
 File system (Local File I/O)
 External Service (Salesforce, Amazon, Azure, etc.)
 In-Memory (memcacheD, etc.)
 Advice for this event:
- Keep it simple
- Use in-memory array for starter, add perm storage later
- Use existing APIs (see listing today)

93. 93
Implementing Hypermedia Servers
 Components
 Handles business rules and any processing/computing, etc.
 Validate data/objects
 Create any defaults or related data/objects
 Enforce data integrity on writes
 Enforce ACLs on reads/writes (skip for today)
 Advice for this event:
- Keep it simple
- Consider read-only for today
- Use existing APIs (see listing today)

94. 94

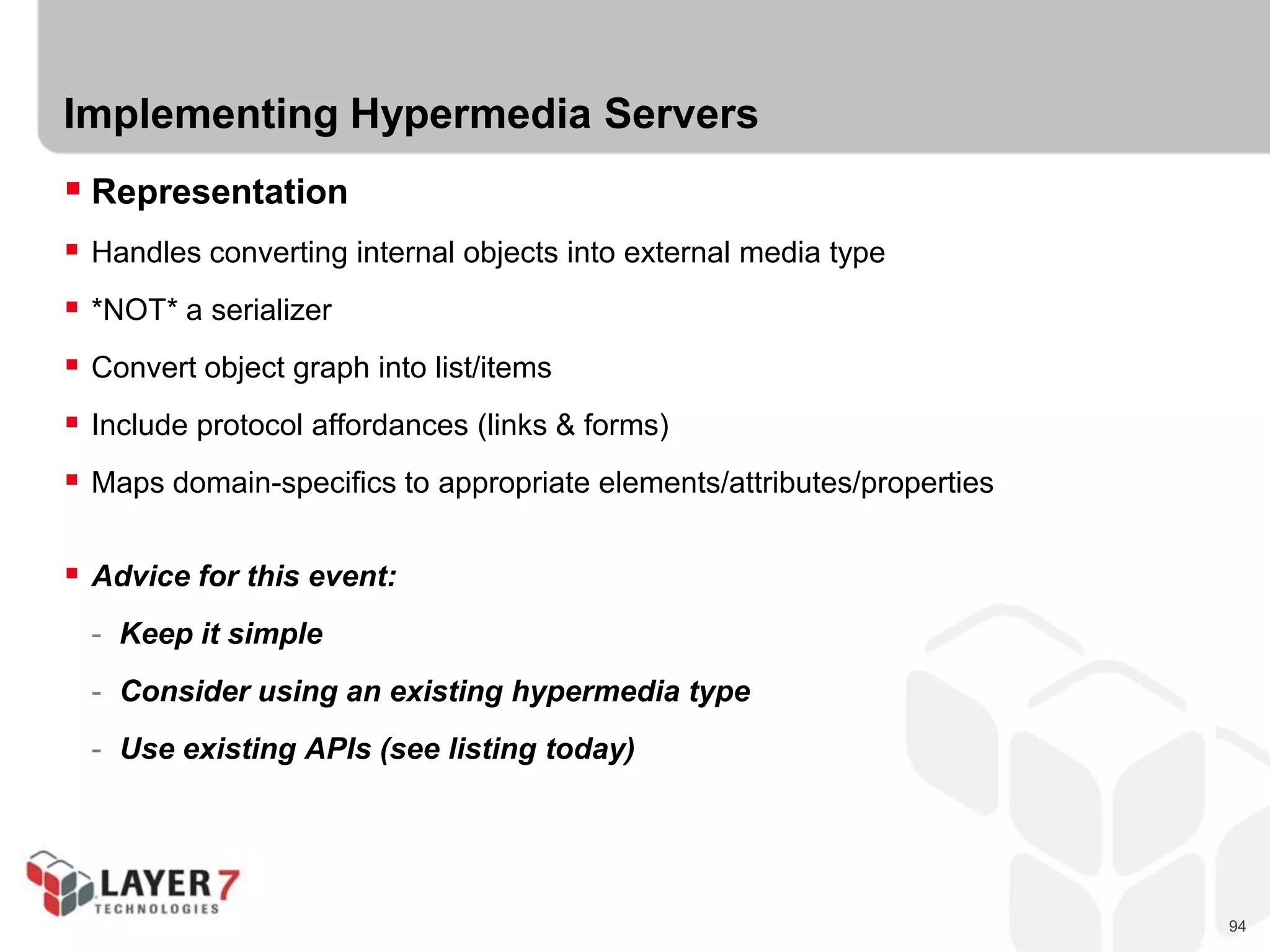

Implementing Hypermedia Servers
 Representation
 Handles converting internal objects into external media type
 *NOT* a serializer
 Convert object graph into list/items
 Include protocol affordances (links & forms)
 Maps domain-specifics to appropriate elements/attributes/properties
 Advice for this event:
- Keep it simple
- Consider using an existing hypermedia type
- Use existing APIs (see listing today)

95. 95

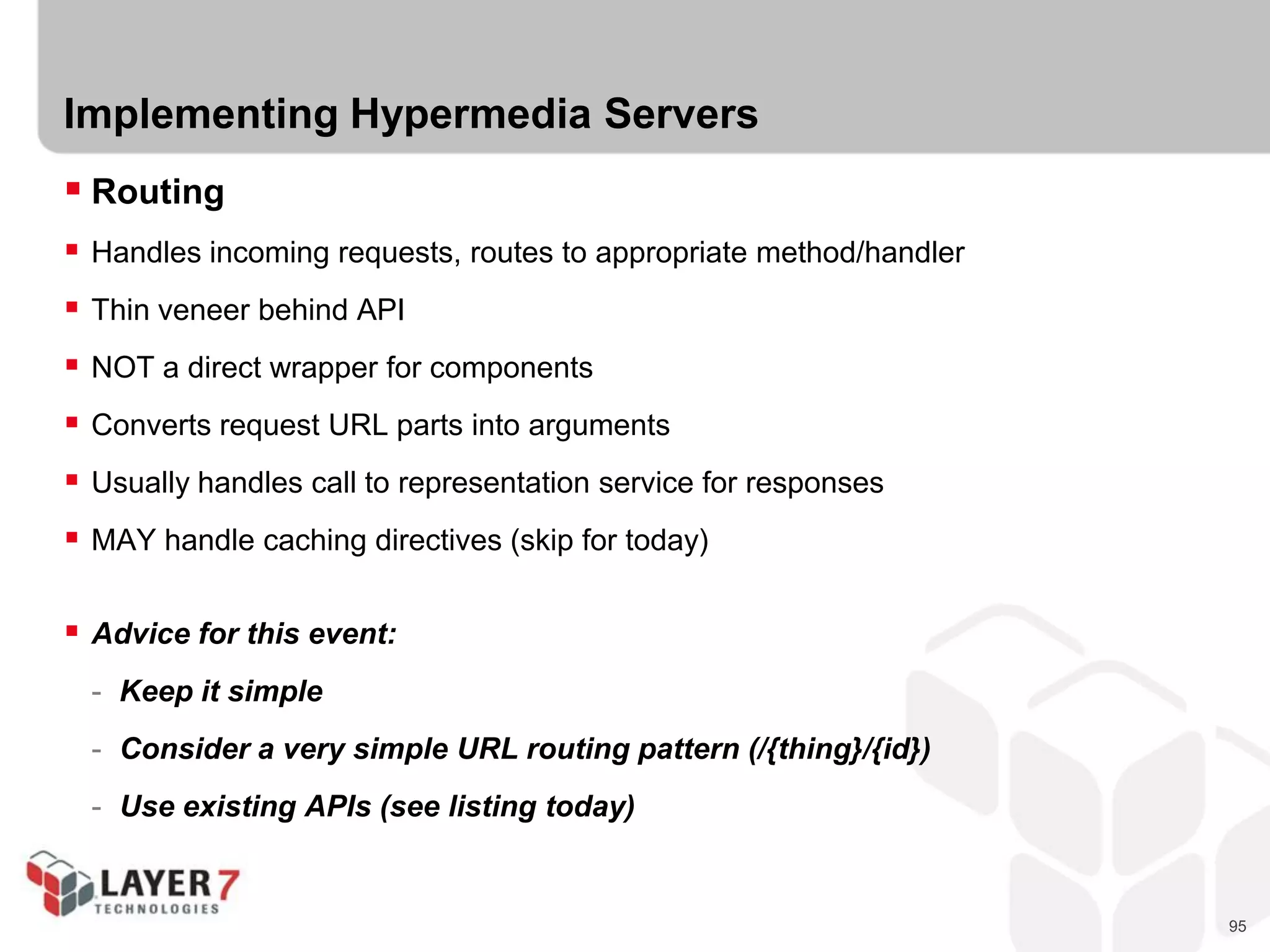

Implementing Hypermedia Servers
 Routing
 Handles incoming requests, routes to appropriate method/handler
 Thin veneer behind API
 NOT a direct wrapper for components
 Converts request URL parts into arguments
 Usually handles call to representation service for responses
 MAY handle caching directives (skip for today)
 Advice for this event:
- Keep it simple
- Consider a very simple URL routing pattern (/{thing}/{id})
- Use existing APIs (see listing today)

96. 96

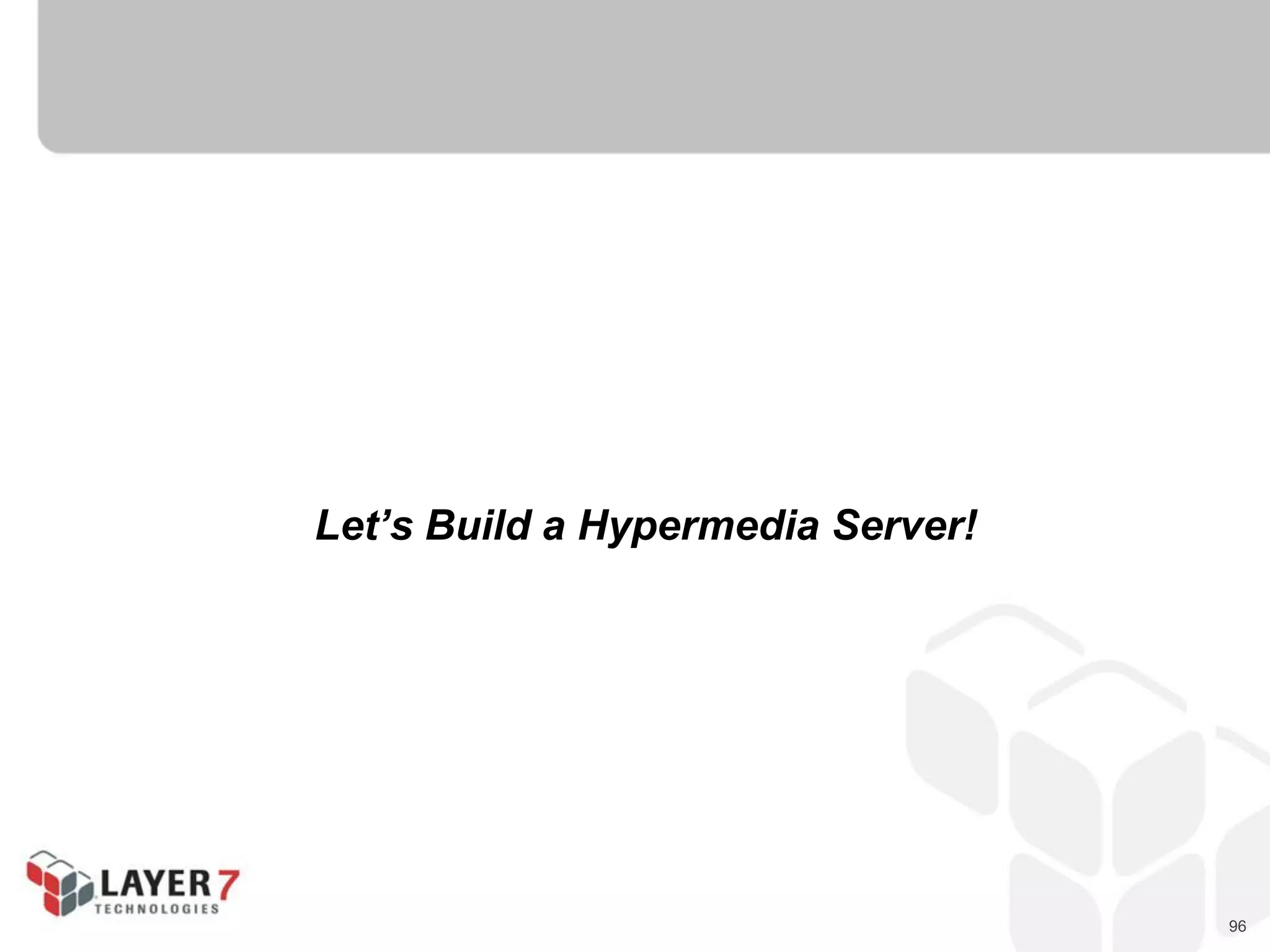

Let’s Build a Hypermedia Server!

97. 97

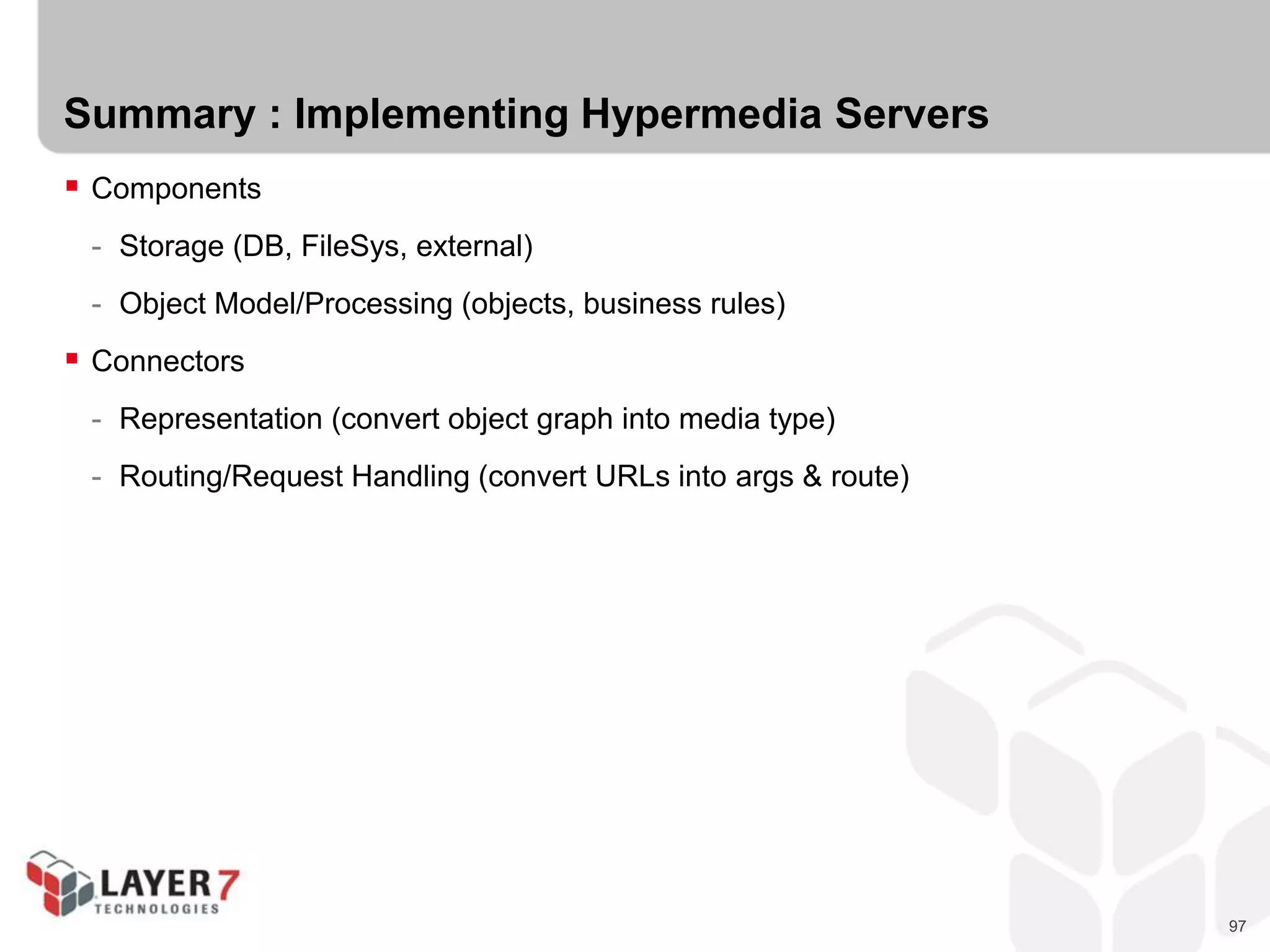

Summary : Implementing Hypermedia Servers
 Components
- Storage (DB, FileSys, external)
- Object Model/Processing (objects, business rules)
 Connectors
- Representation (convert object graph into media type)
- Routing/Request Handling (convert URLs into args & route)

98. 98

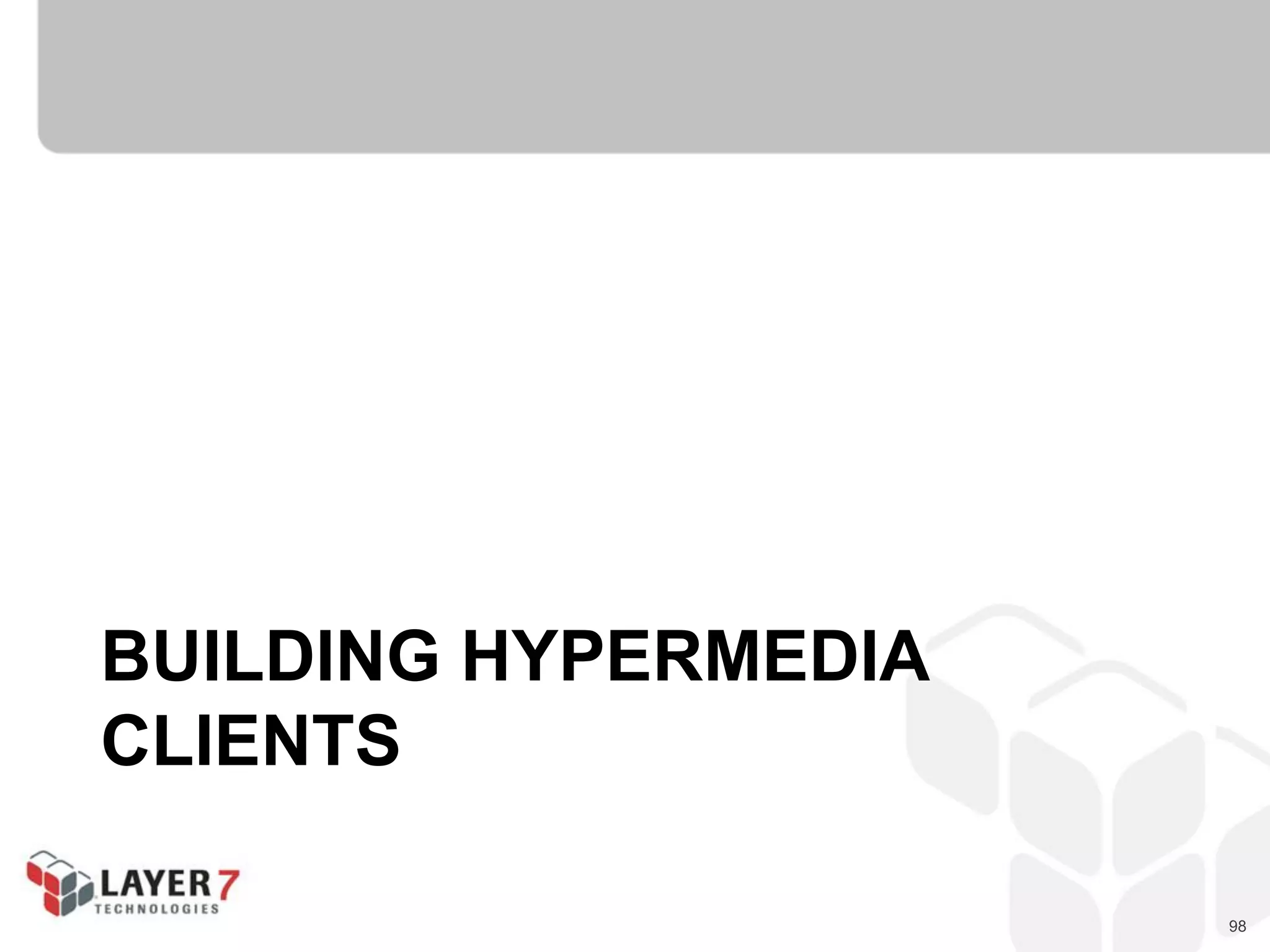

BUILDING HYPERMEDIA
CLIENTS

99. 99

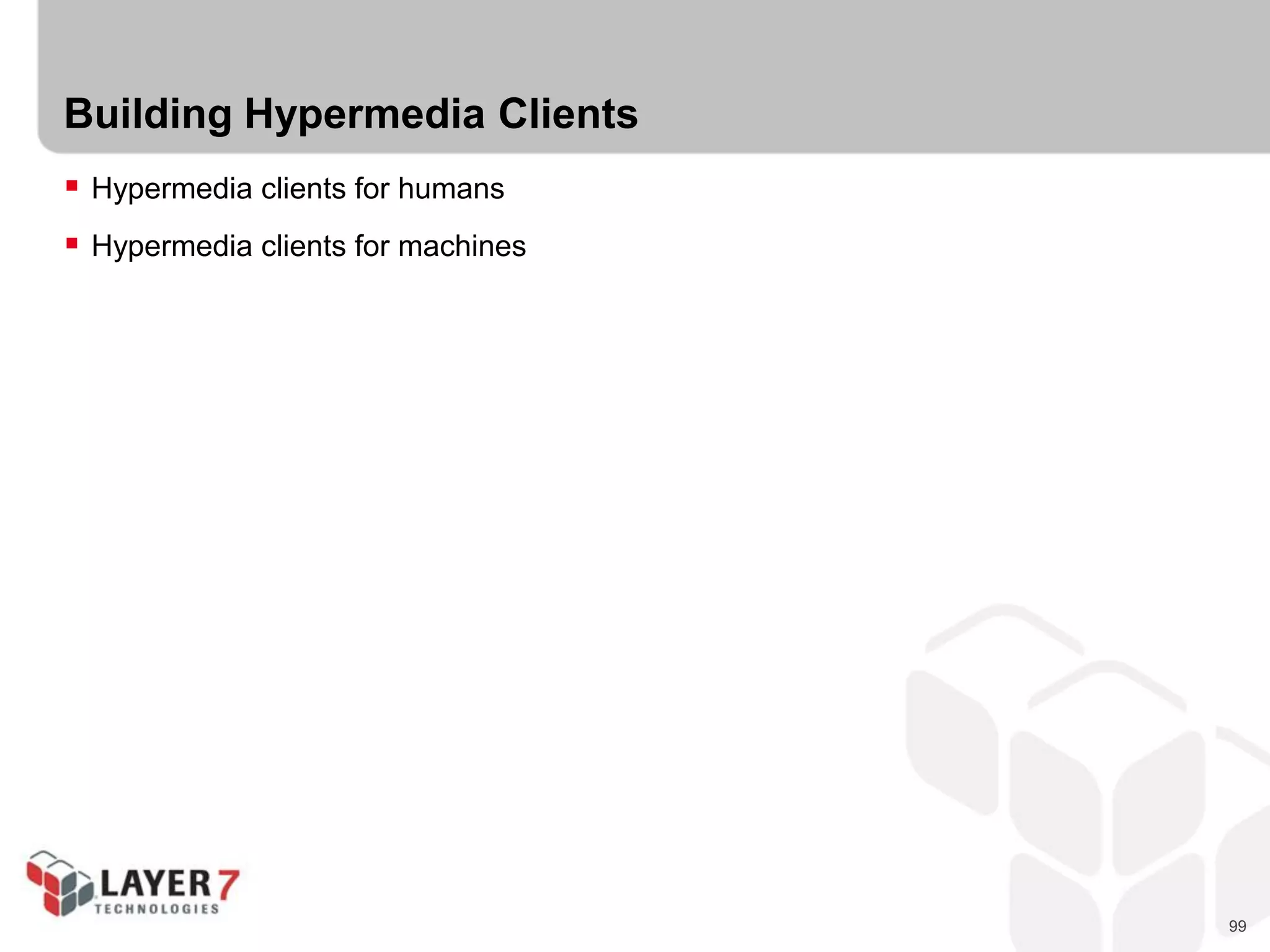

Building Hypermedia Clients
 Hypermedia clients for humans
 Hypermedia clients for machines

100. 100
Hypermedia for Humans

101. 101
What is a Hypermedia for Humans client?
A client that is able to
determine possible protocol-level choices at runtime
using only the links and forms in the message itself as a guide.

102. 102
Some things to keep in mind…
Hypermedia clients are based on the “Action Lifecycle”

103. 103

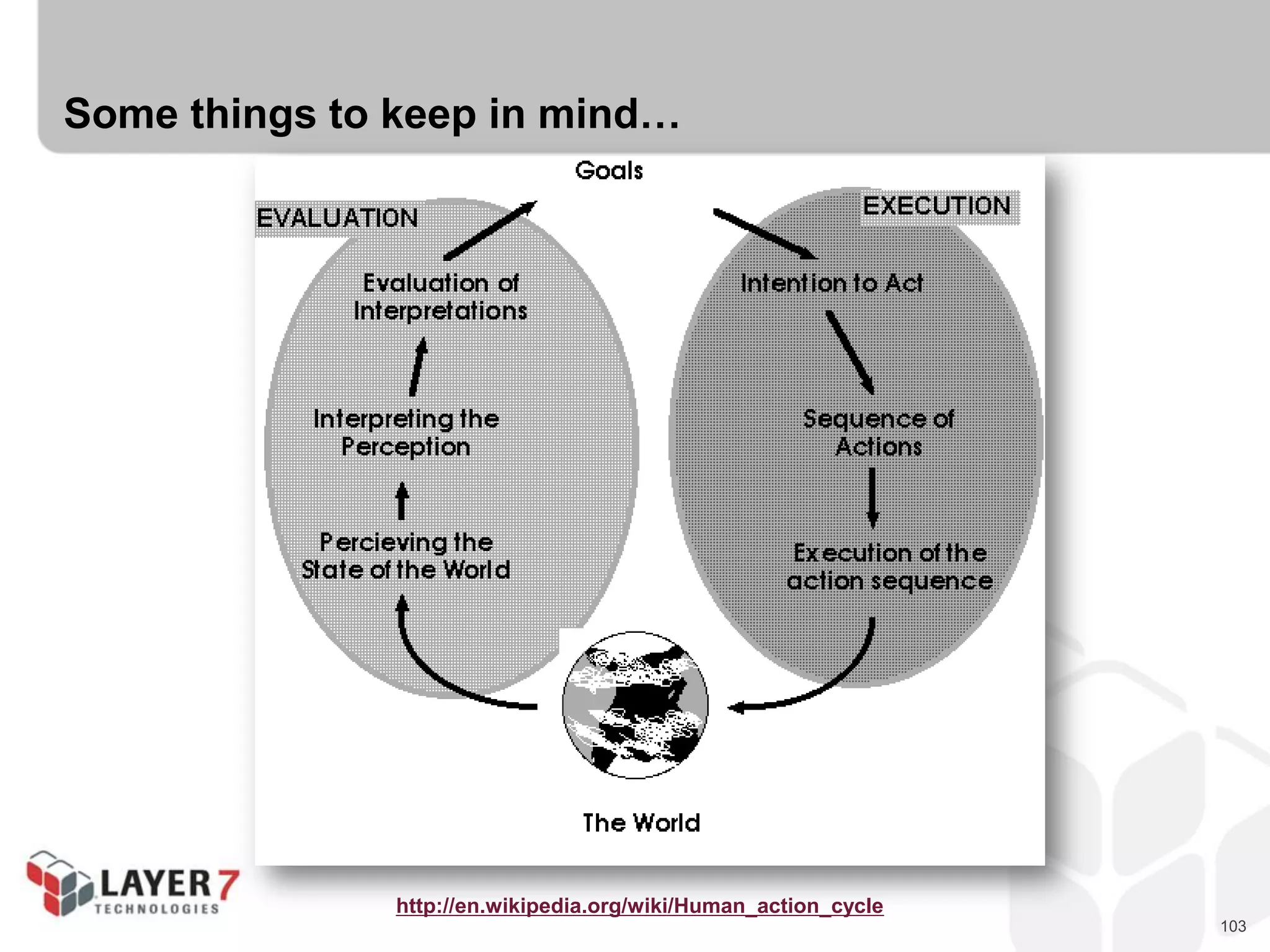

Some things to keep in mind…
http://en.wikipedia.org/wiki/Human_action_cycle

104. 104
Some things to keep in mind…
Oh!, I almost forgot…

105. 105
Hypermedia clients

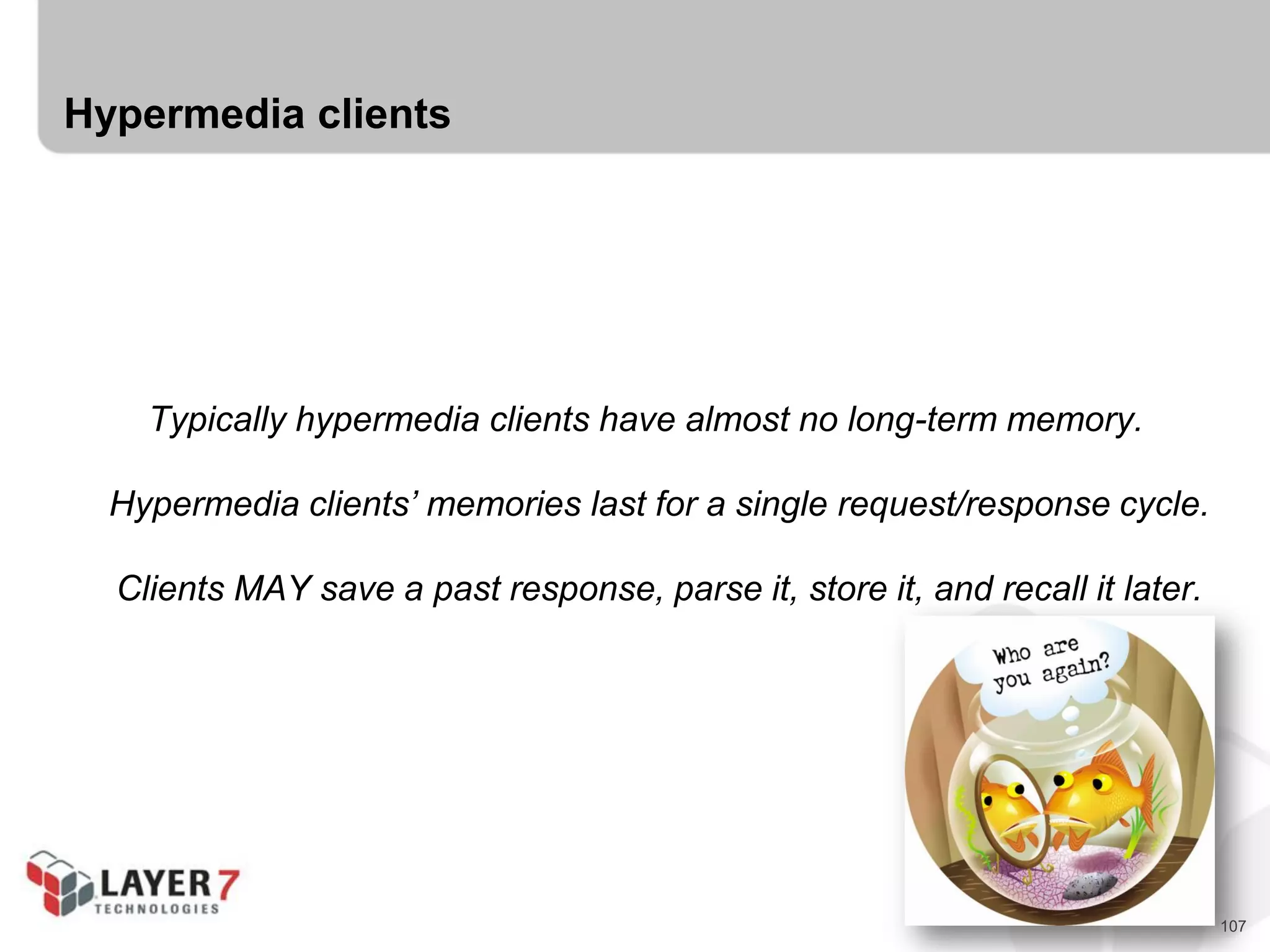

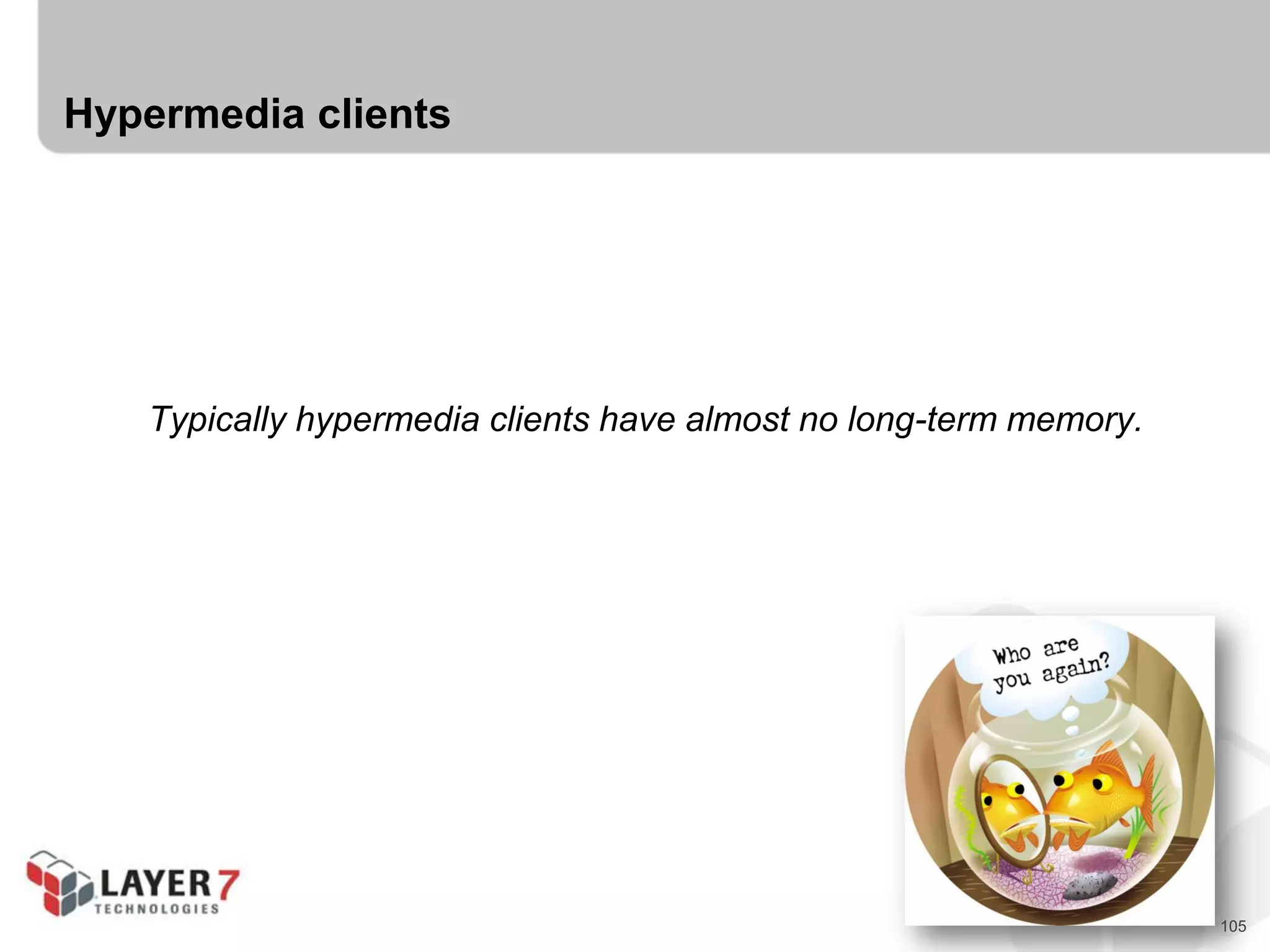

Typically hypermedia clients have almost no long-term memory.

106. 106
Hypermedia clients
Typically hypermedia clients have almost no long-term memory.
Hypermedia clients’ memories last for a single request/response cycle.

107. 107
Hypermedia clients
Typically hypermedia clients have almost no long-term memory.
Hypermedia clients’ memories last for a single request/response cycle.
Clients MAY save a past response, parse it, store it, and recall it later.

108. 108

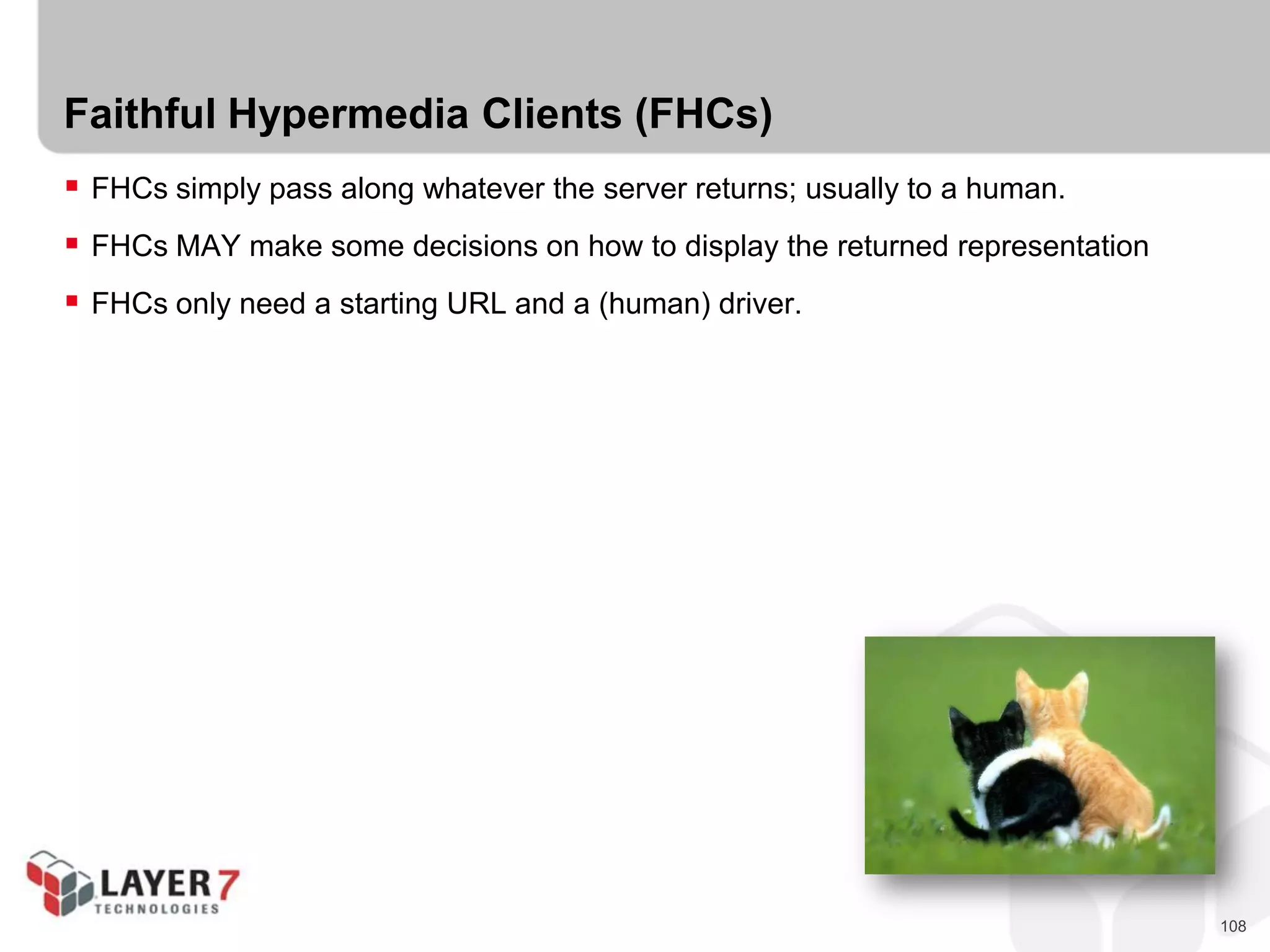

Faithful Hypermedia Clients (FHCs)
 FHCs simply pass along whatever the server returns; usually to a human.
 FHCs MAY make some decisions on how to display the returned representation
 FHCs only need a starting URL and a (human) driver.

109. 109

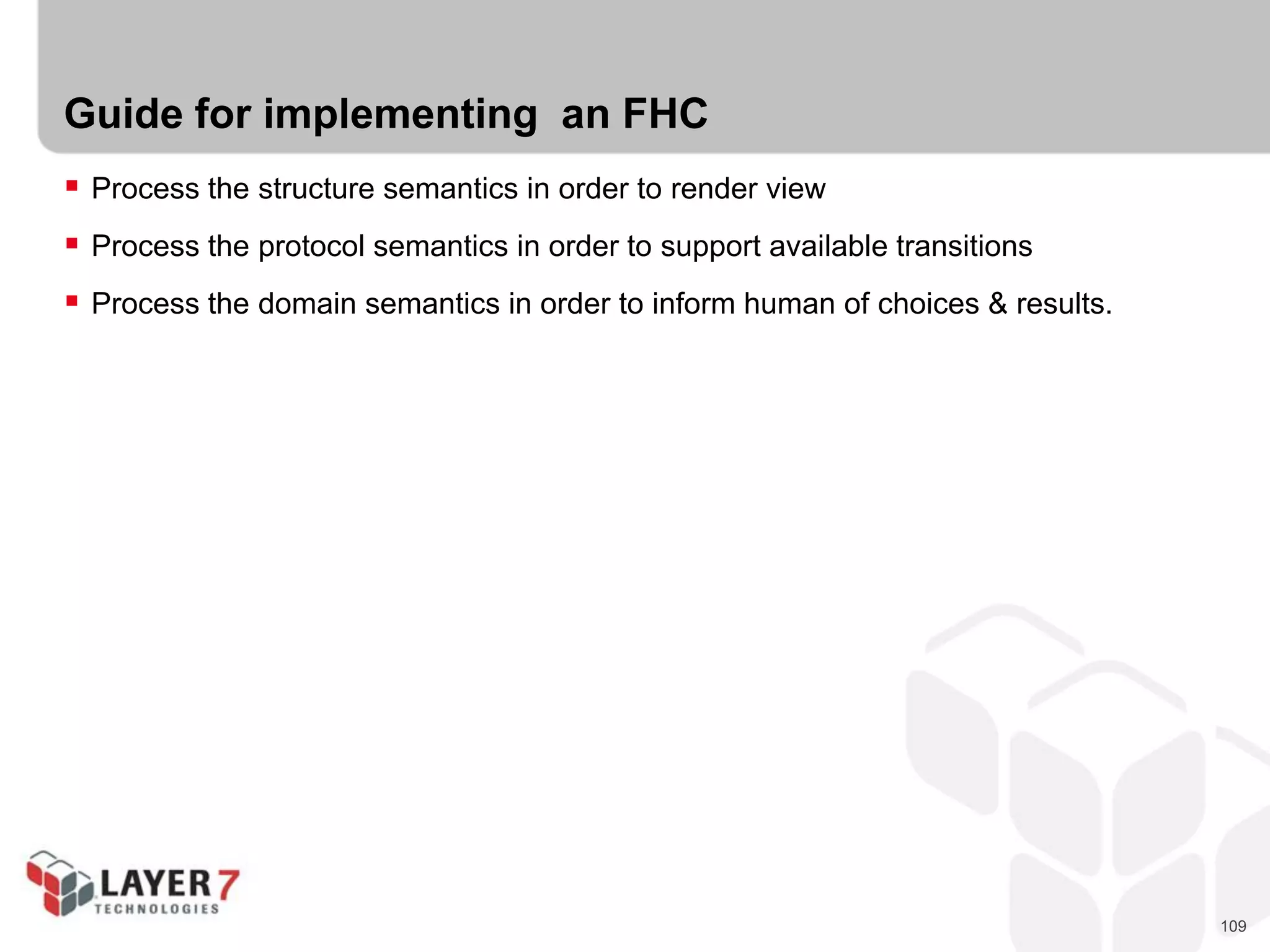

Guide for implementing an FHC
 Process the structure semantics in order to render view
 Process the protocol semantics in order to support available transitions
 Process the domain semantics in order to inform human of choices & results.

110. 110

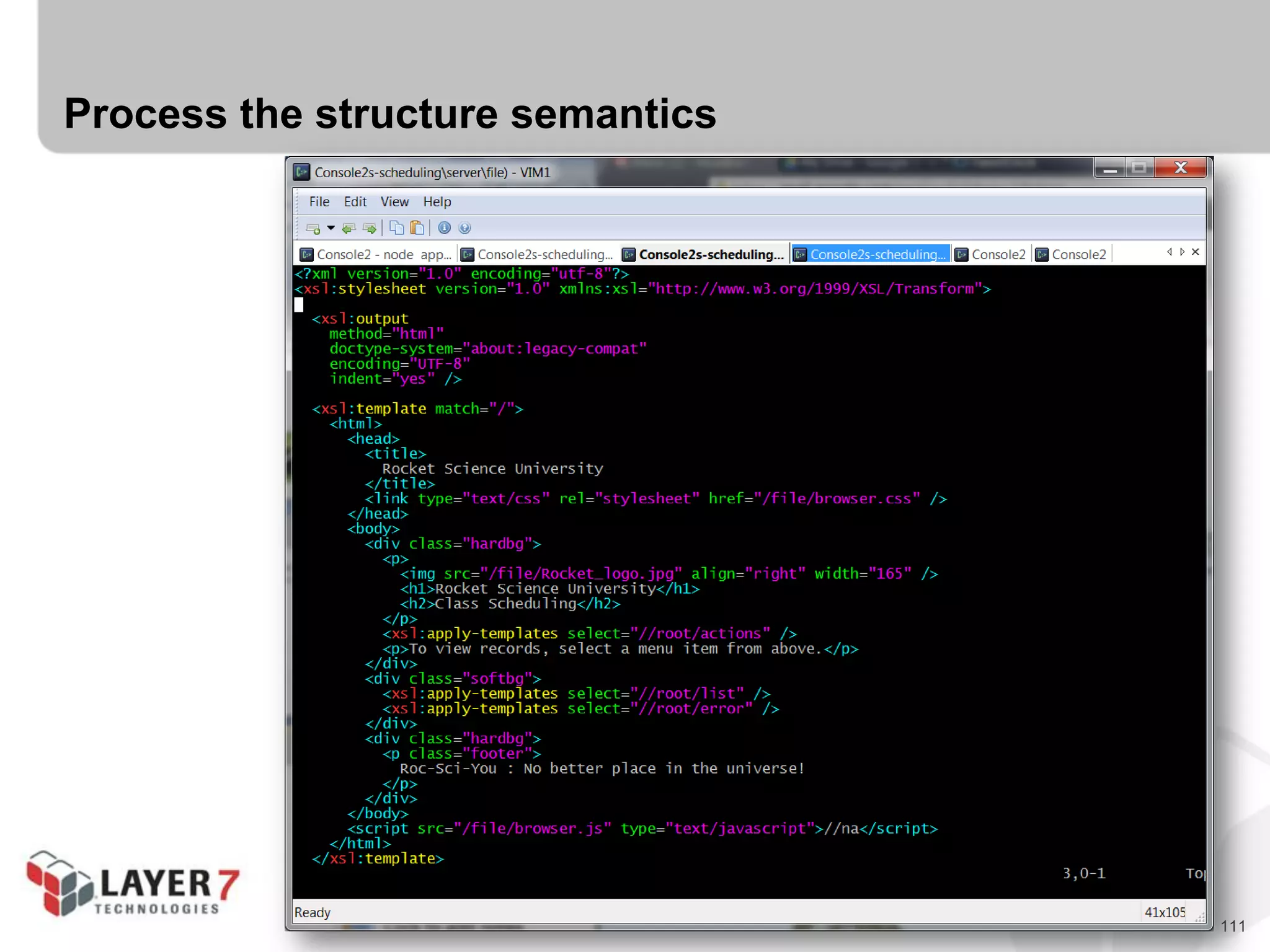

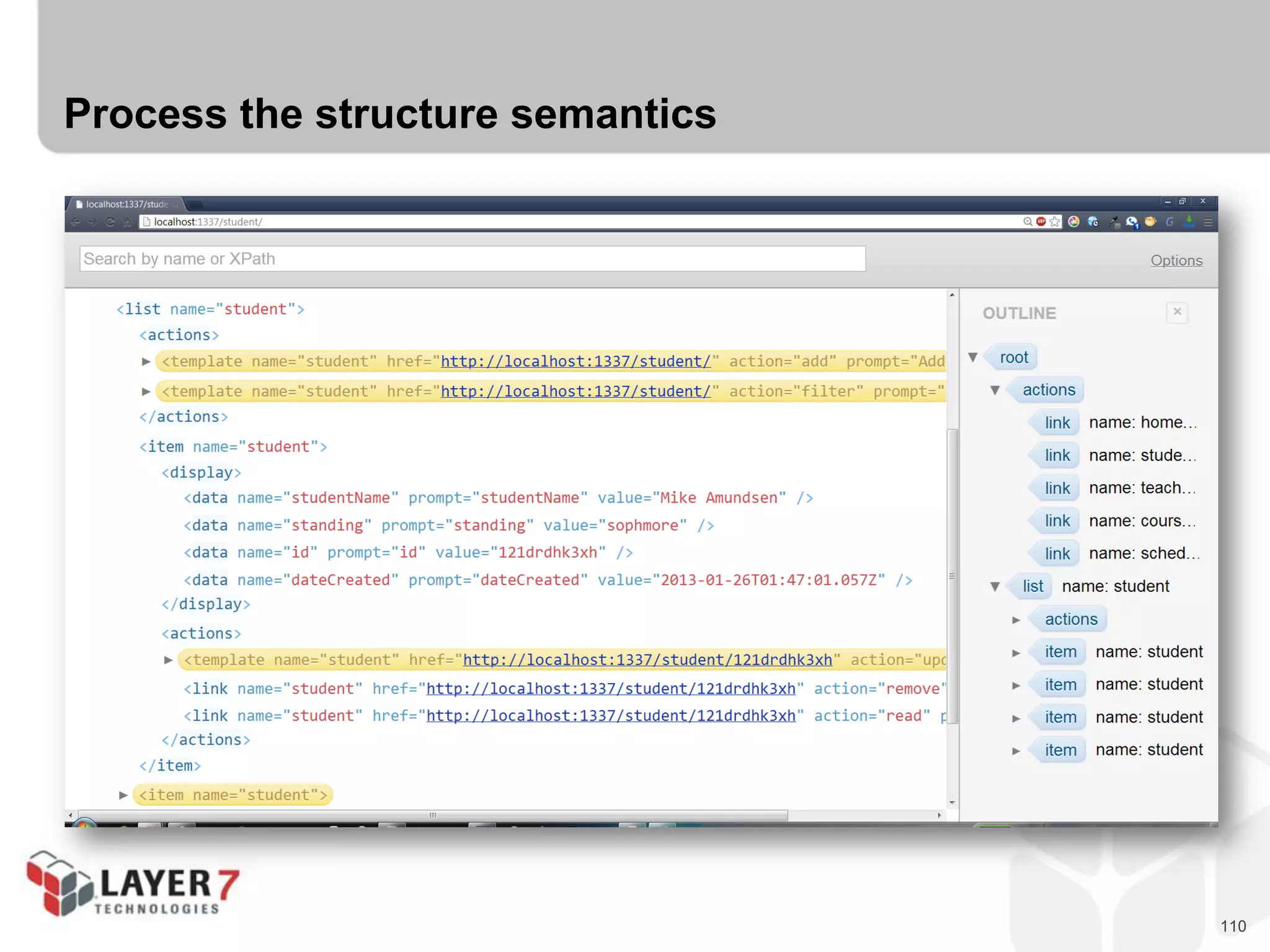

Process the structure semantics

111. 111

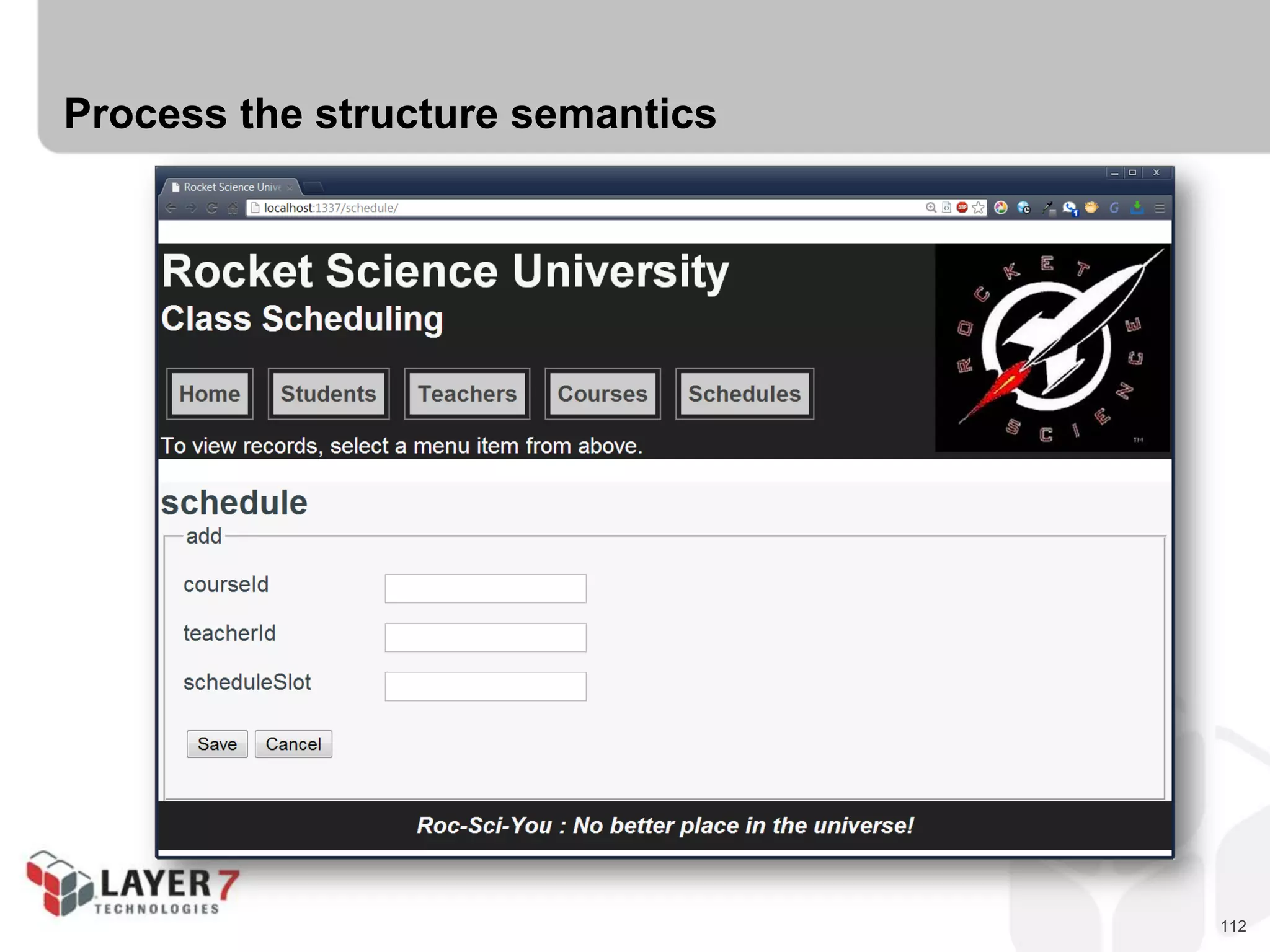

Process the structure semantics

112. 112
Process the structure semantics

113. 113

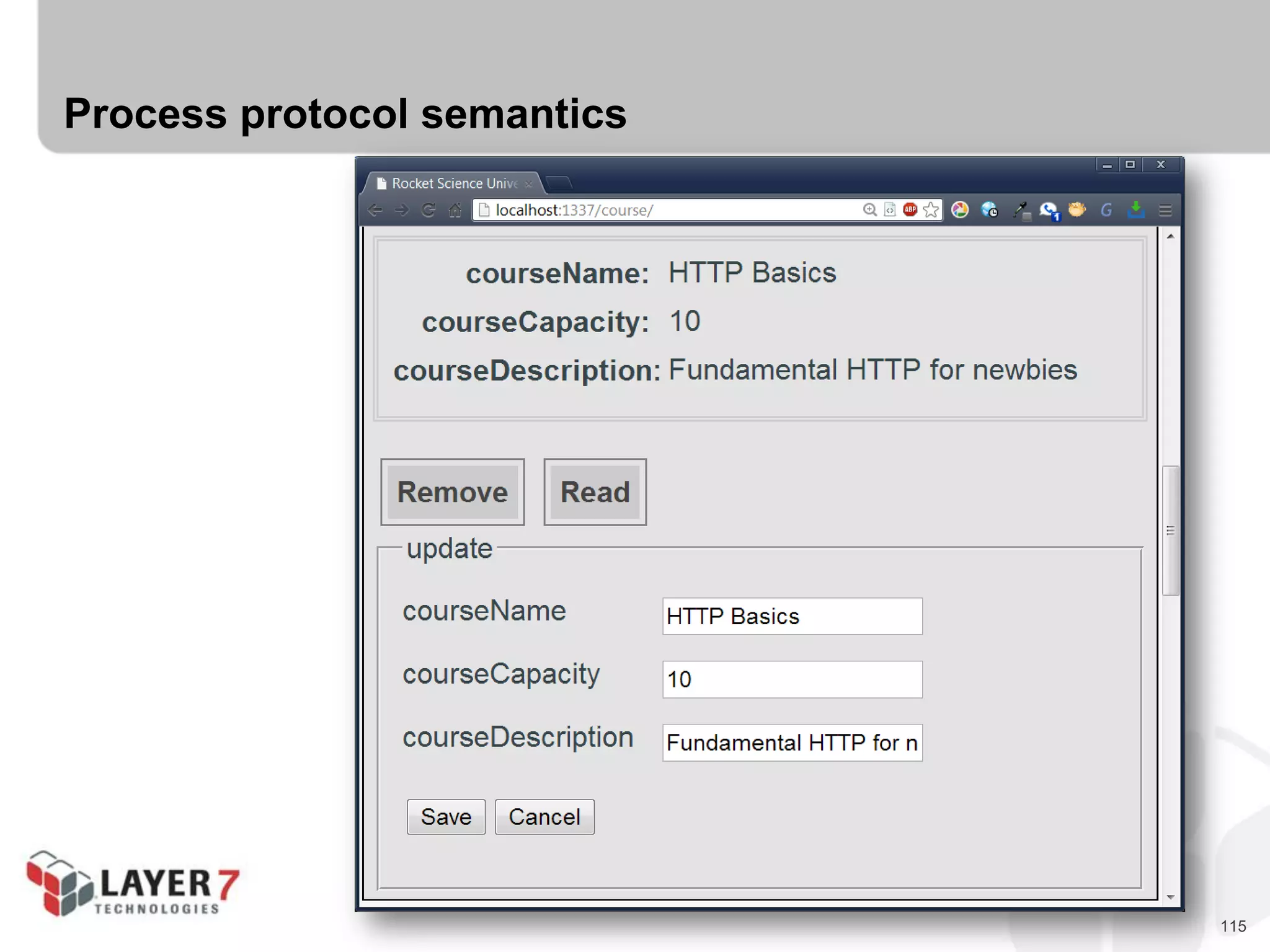

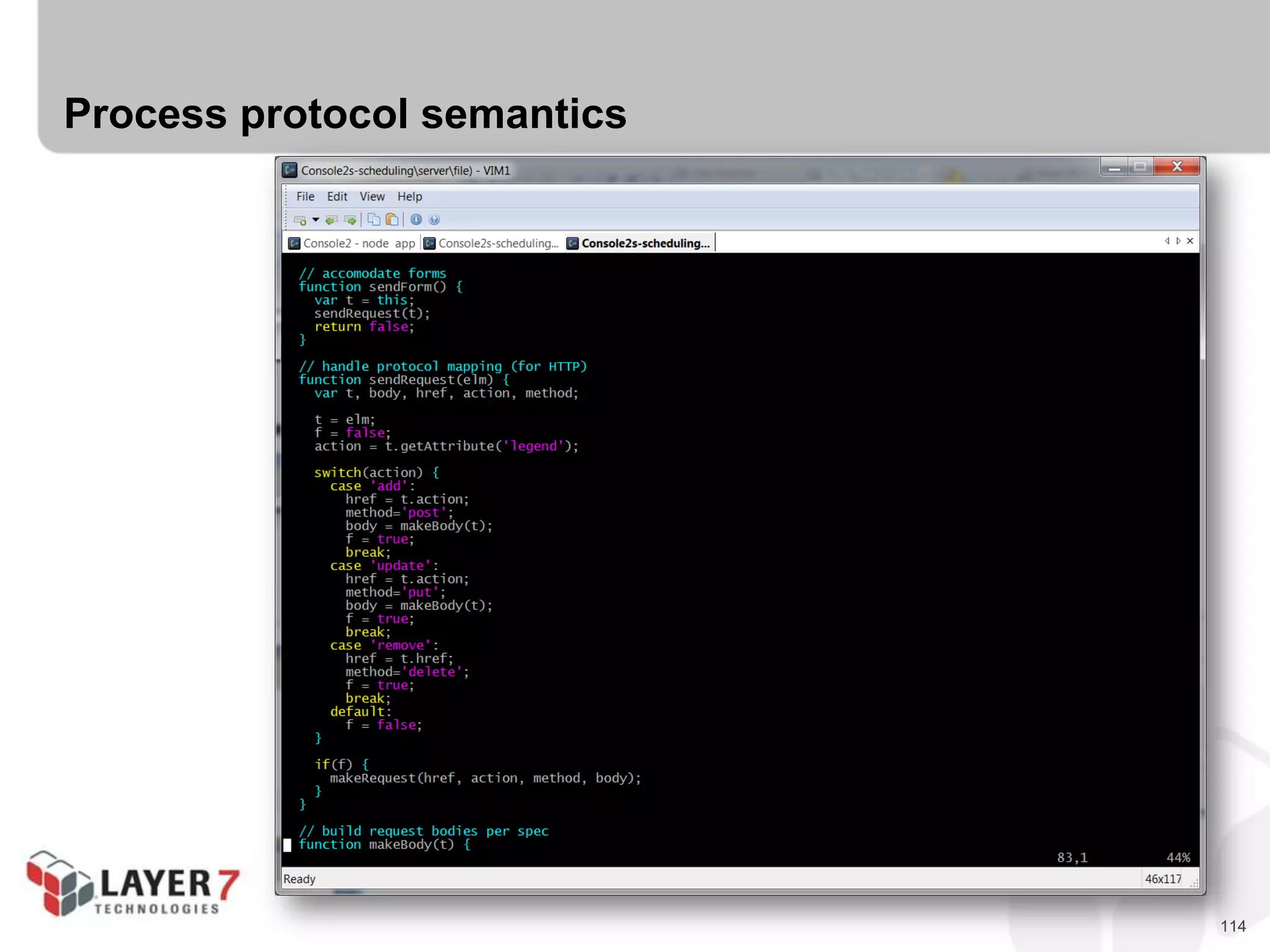

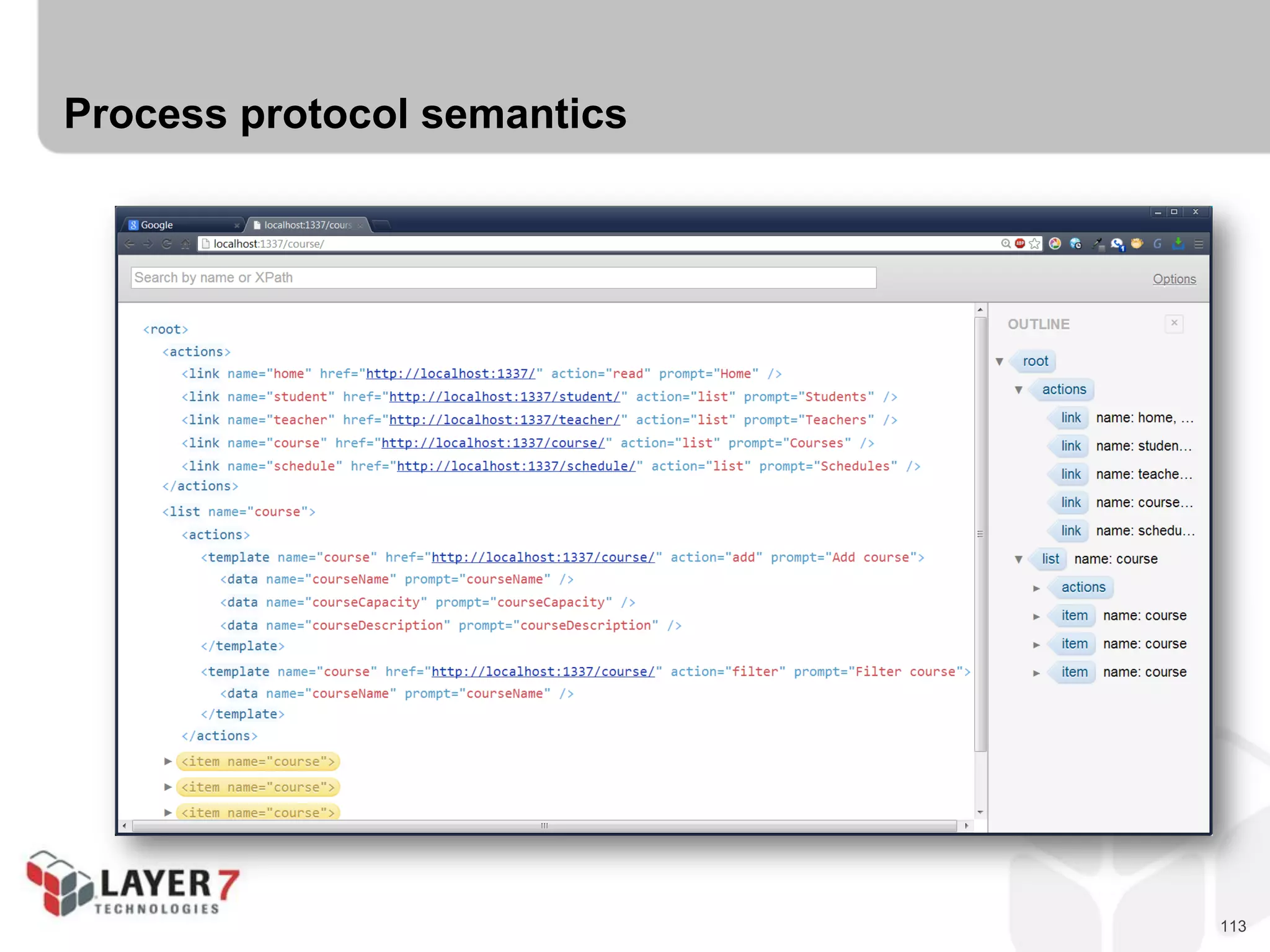

Process protocol semantics

114. 114
Process protocol semantics

115. 115
Process protocol semantics

116. 116

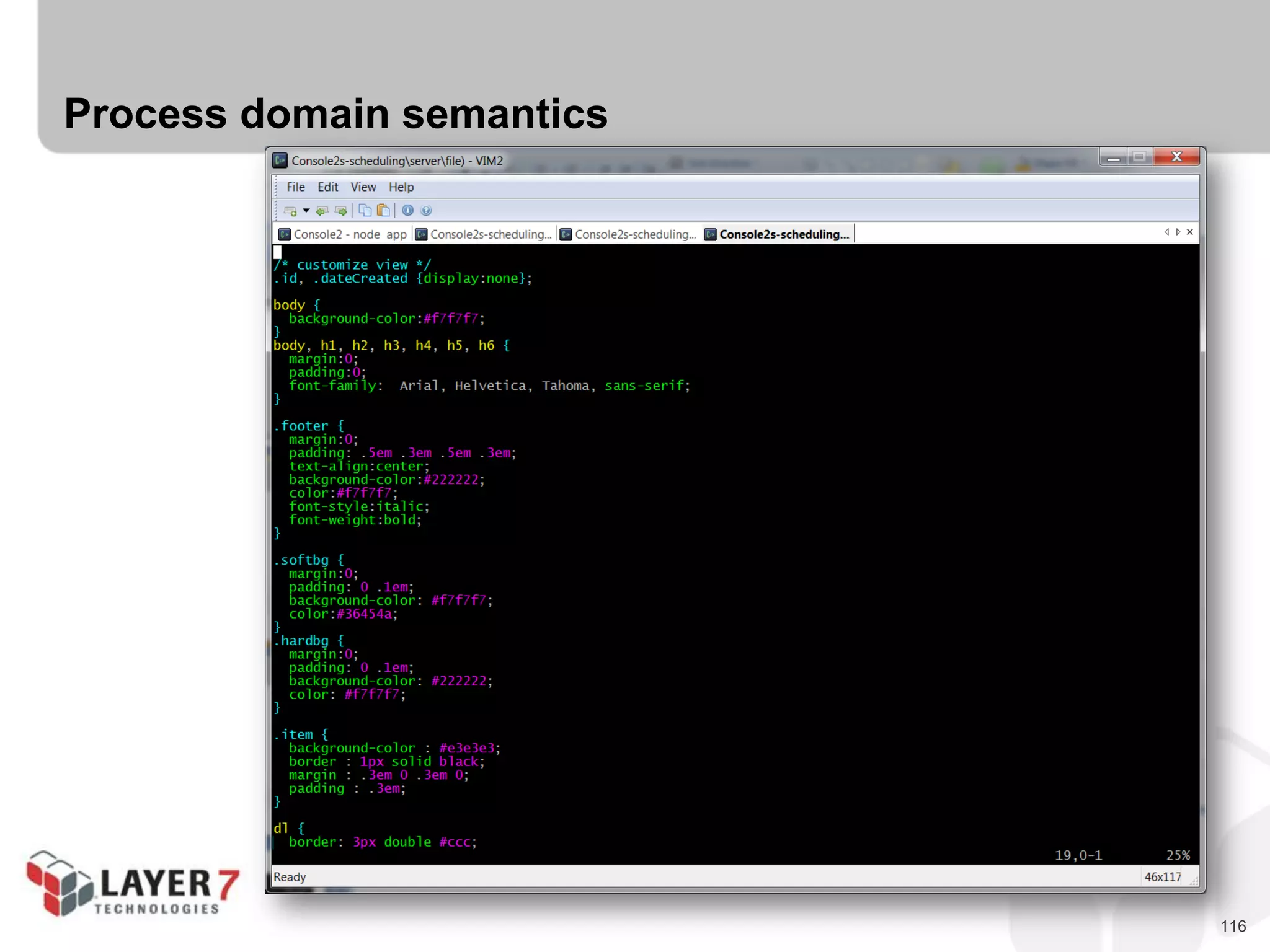

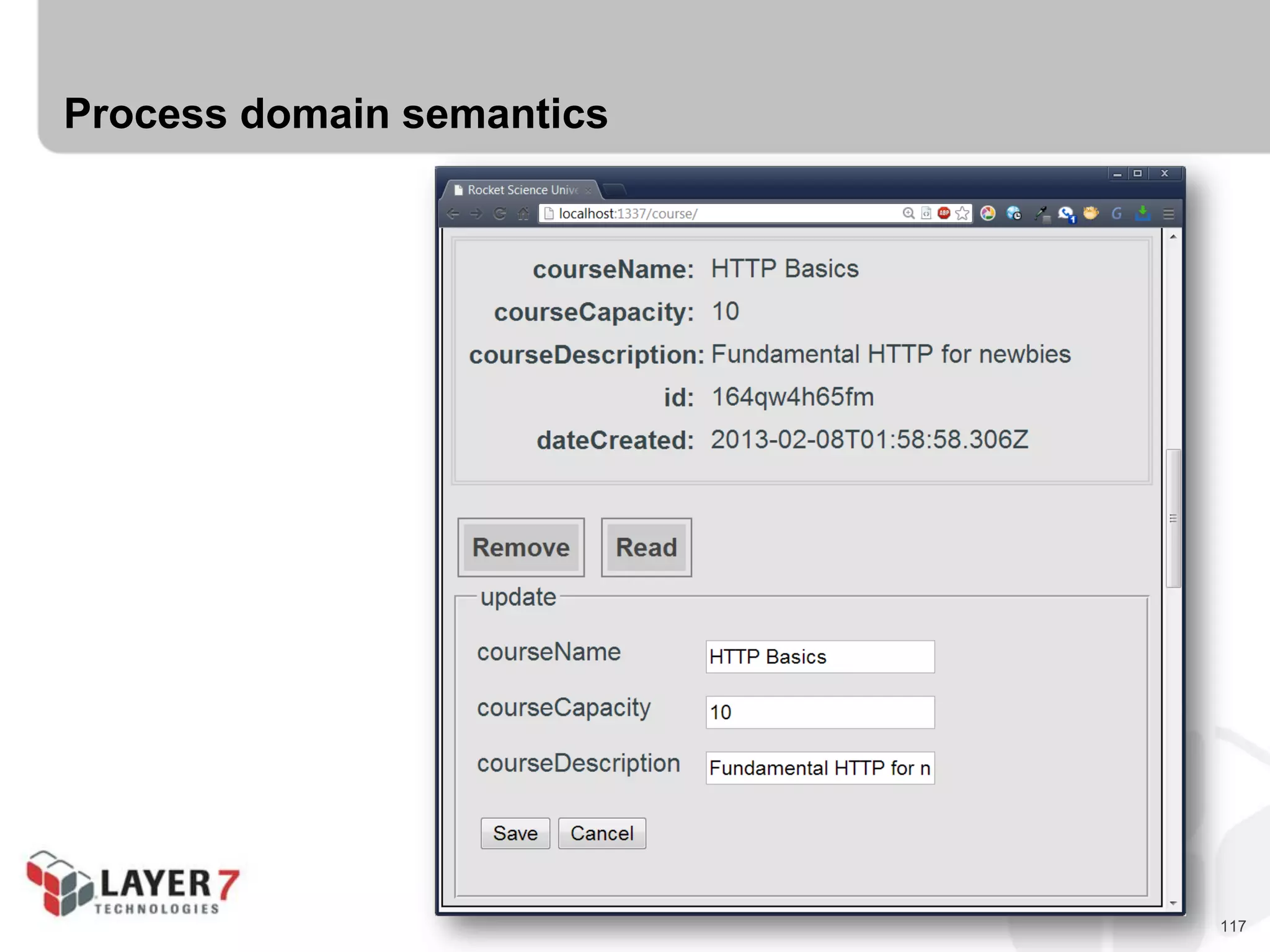

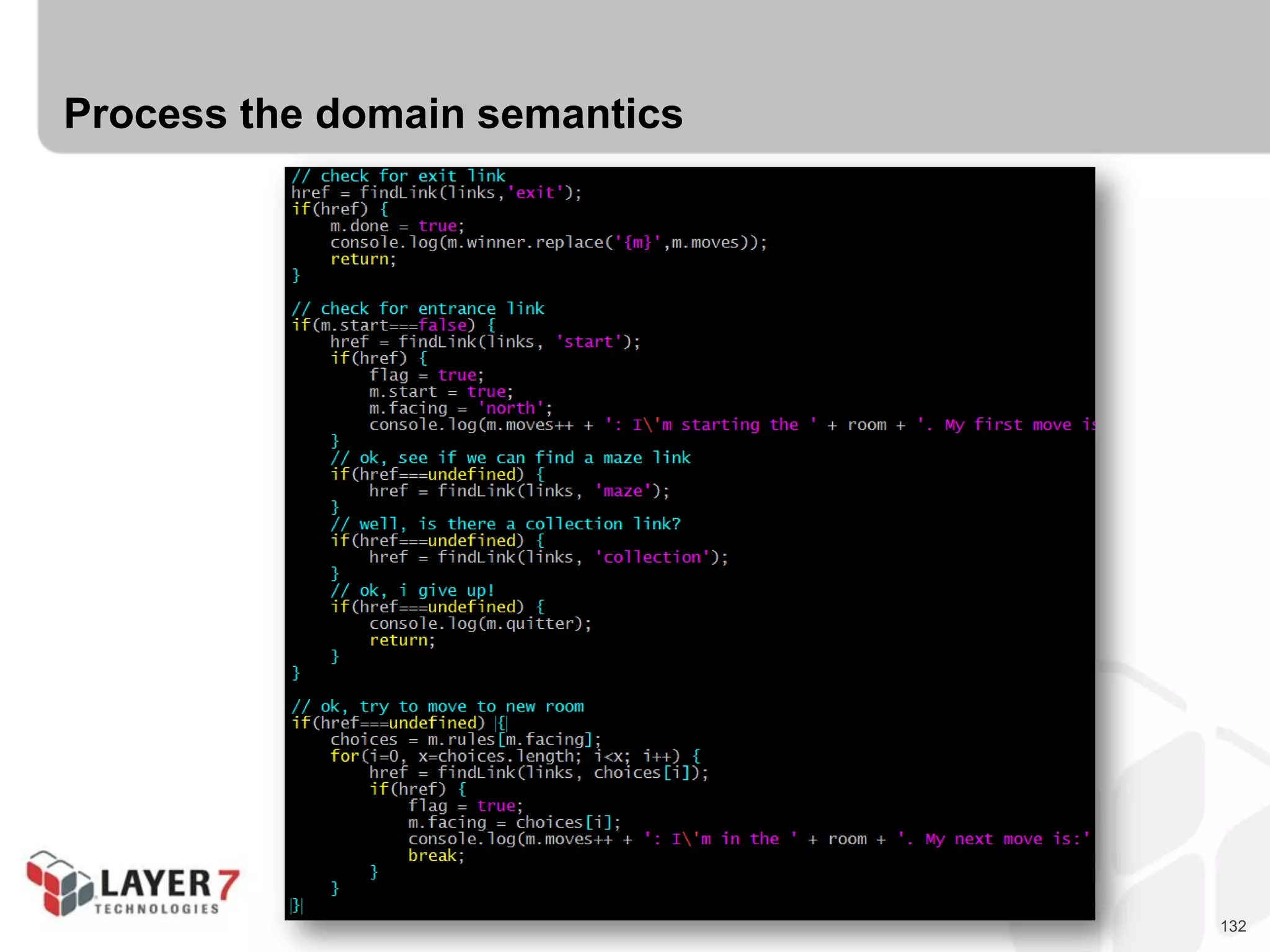

Process domain semantics

117. 117
Process domain semantics

118. 118

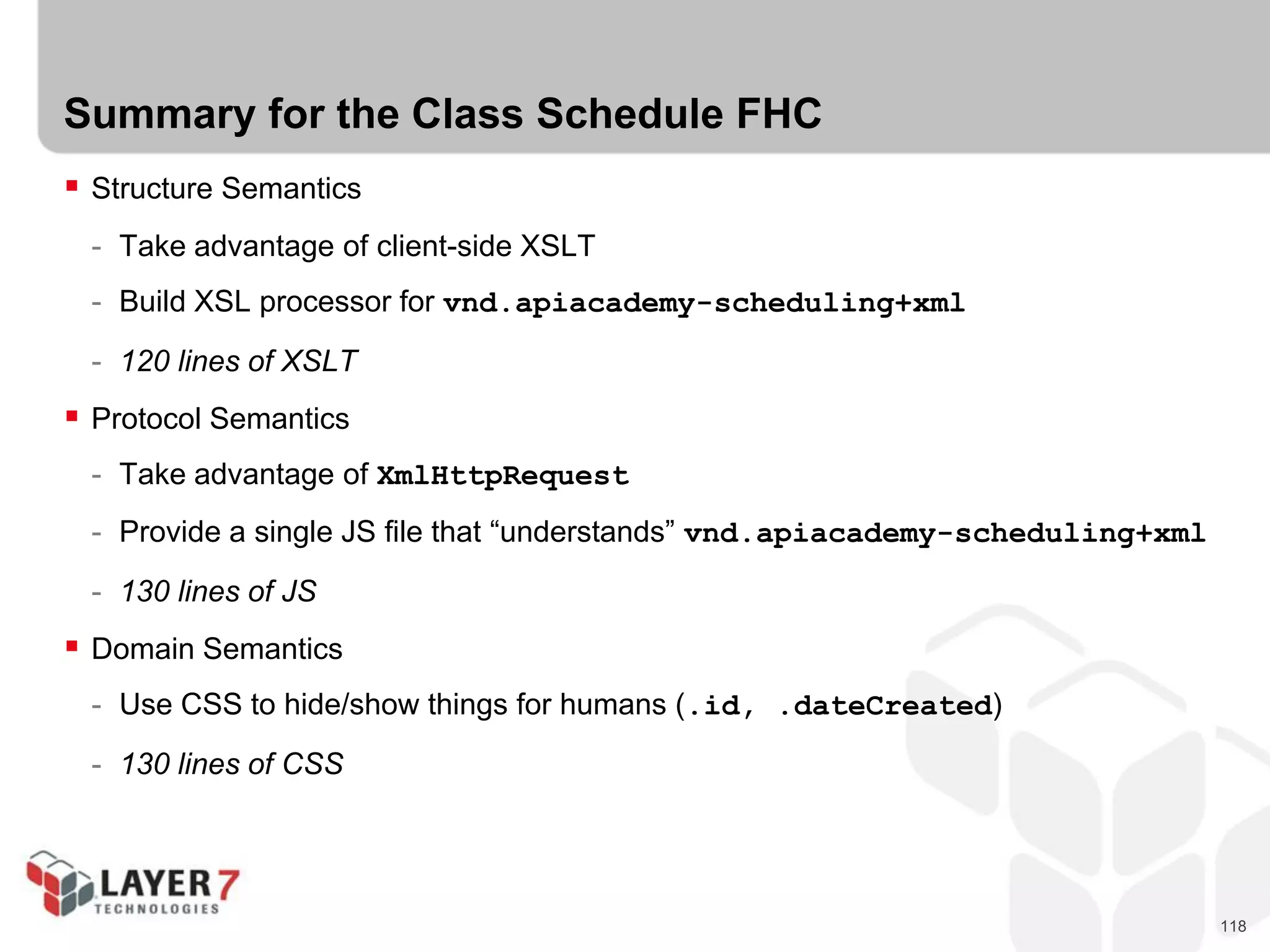

Summary for the Class Schedule FHC
 Structure Semantics
- Take advantage of client-side XSLT
- Build XSL processor for vnd.apiacademy-scheduling+xml
- 120 lines of XSLT
 Protocol Semantics
- Take advantage of XmlHttpRequest
- Provide a single JS file that “understands” vnd.apiacademy-scheduling+xml
- 130 lines of JS
 Domain Semantics
- Use CSS to hide/show things for humans (.id, .dateCreated)
- 130 lines of CSS

119. 119

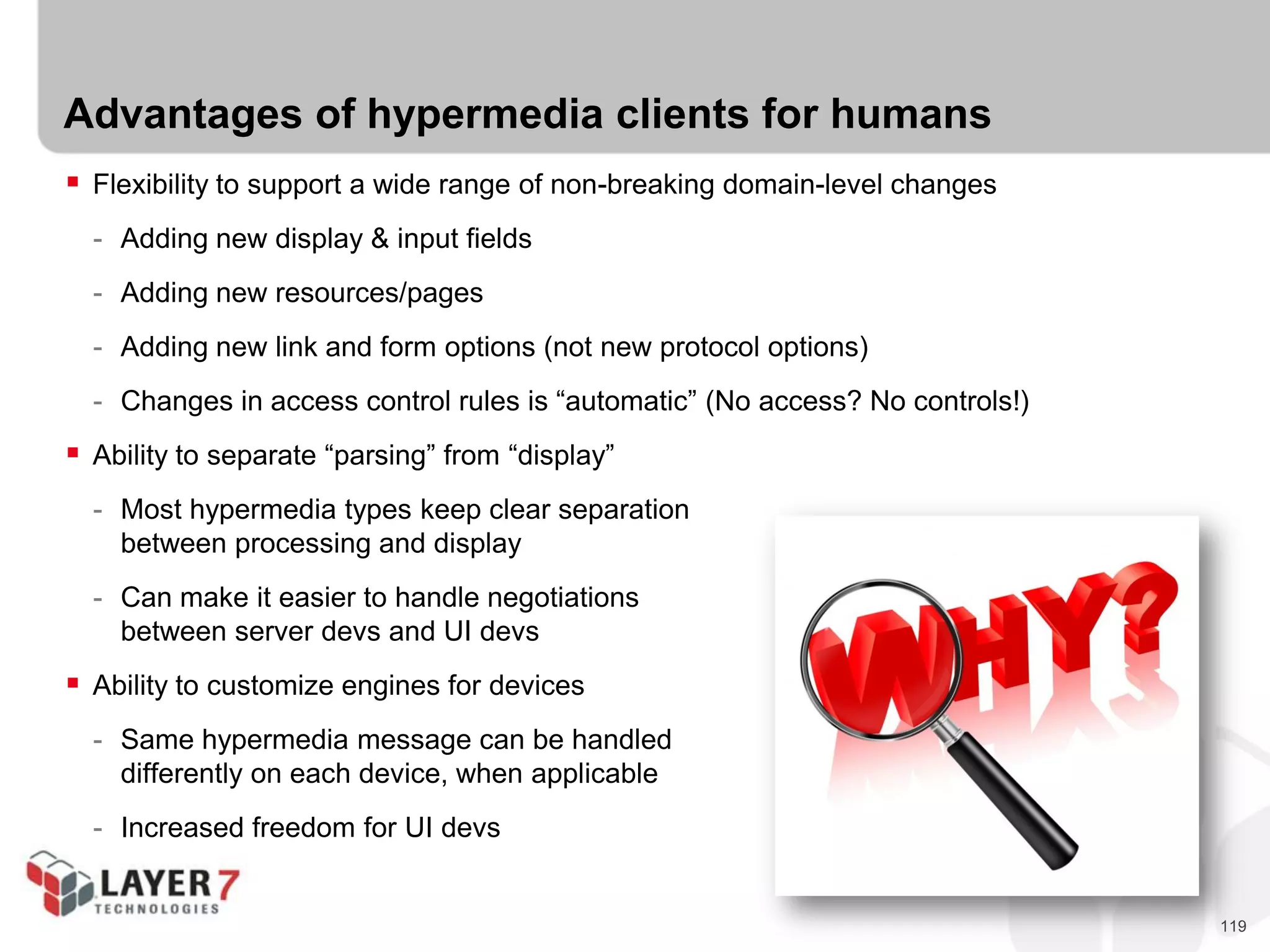

Advantages of hypermedia clients for humans
 Flexibility to support a wide range of non-breaking domain-level changes
- Adding new display & input fields
- Adding new resources/pages
- Adding new link and form options (not new protocol options)
- Changes in access control rules is “automatic” (No access? No controls!)
 Ability to separate “parsing” from “display”
- Most hypermedia types keep clear separation
between processing and display
- Can make it easier to handle negotiations
between server devs and UI devs
 Ability to customize engines for devices
- Same hypermedia message can be handled
differently on each device, when applicable
- Increased freedom for UI devs

120. 120
Drawbacks of hypermedia clients for humans
 SoC can mean extra work for clients
- Need to keep structure, protocol, domain clearly separated
 Possibility of changes in server can limit UI options
- UI devs must plan for change (even before it happens)
 Anything short of FHC risks client adaptability
- If client determines what to display, new fields will not appear.
- If client determines what transitions to support
and in what order they appear, changes (add/
move forms & links) may break the client.
 If the message format is unstable (breaking
changes occurring), FHCs have no real
advantage over one-off client coding.

121. 121

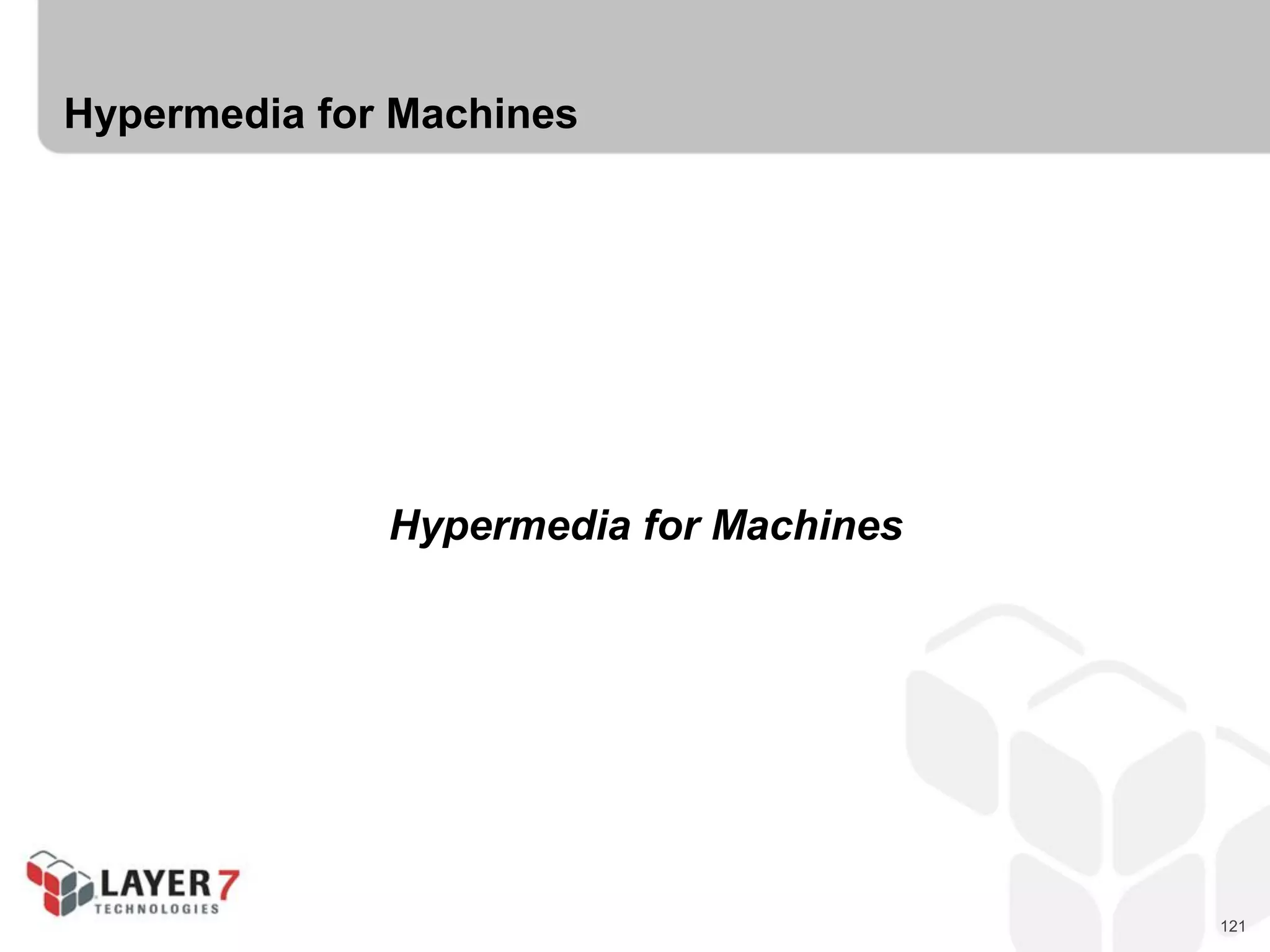

Hypermedia for Machines
Hypermedia for Machines

122. 122

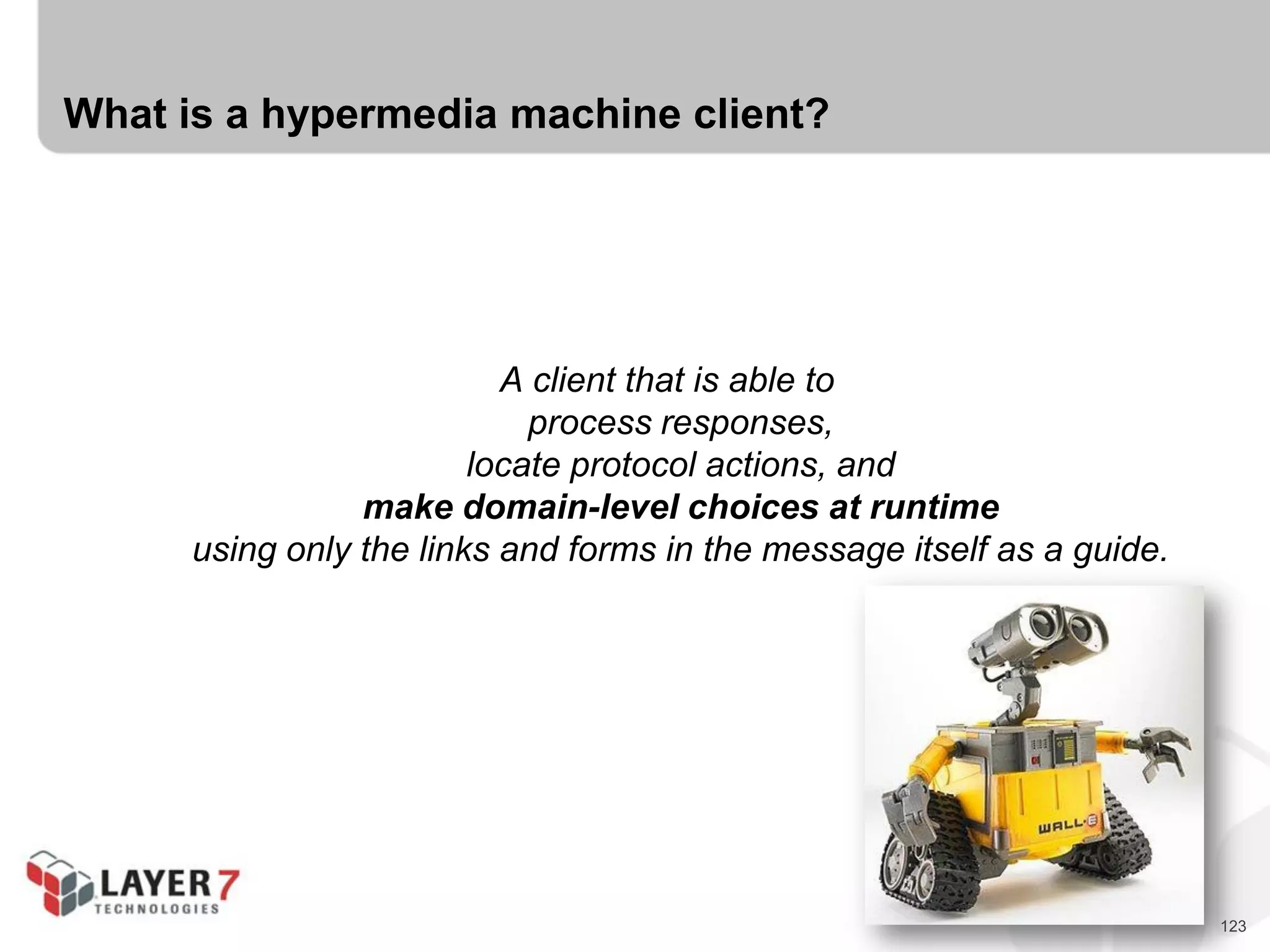

What is a hypermedia machine client?
A client that is able to
process responses,
locate protocol actions, and
make domain-level choices at runtime
using only the links and forms in the message itself as a guide.

123. 123
What is a hypermedia machine client?
A client that is able to
process responses,
locate protocol actions, and
make domain-level choices at runtime
using only the links and forms in the message itself as a guide.

124. 124

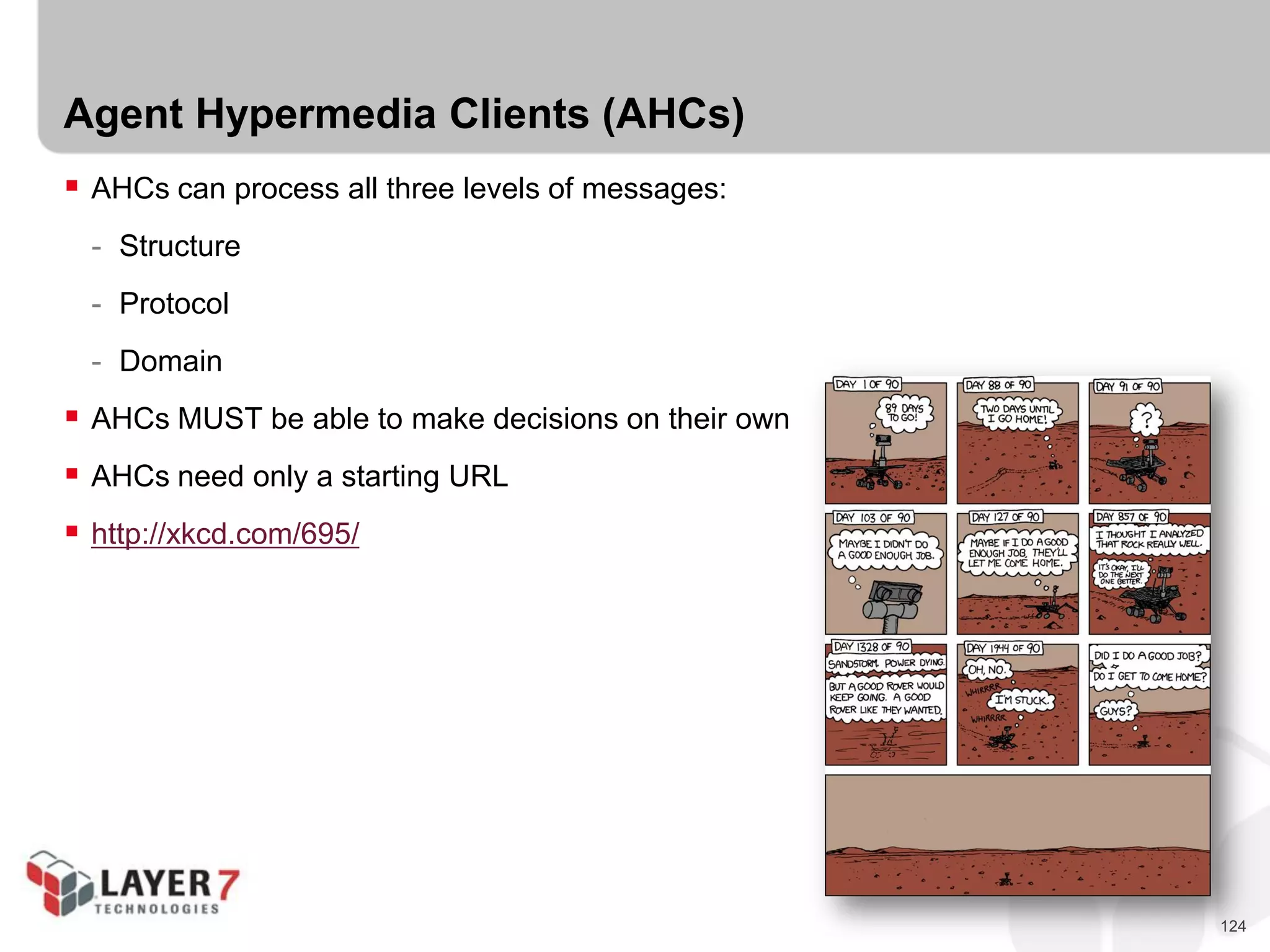

Agent Hypermedia Clients (AHCs)
 AHCs can process all three levels of messages:
- Structure
- Protocol
- Domain
 AHCs MUST be able to make decisions on their own
 AHCs need only a starting URL
 http://xkcd.com/695/

125. 125

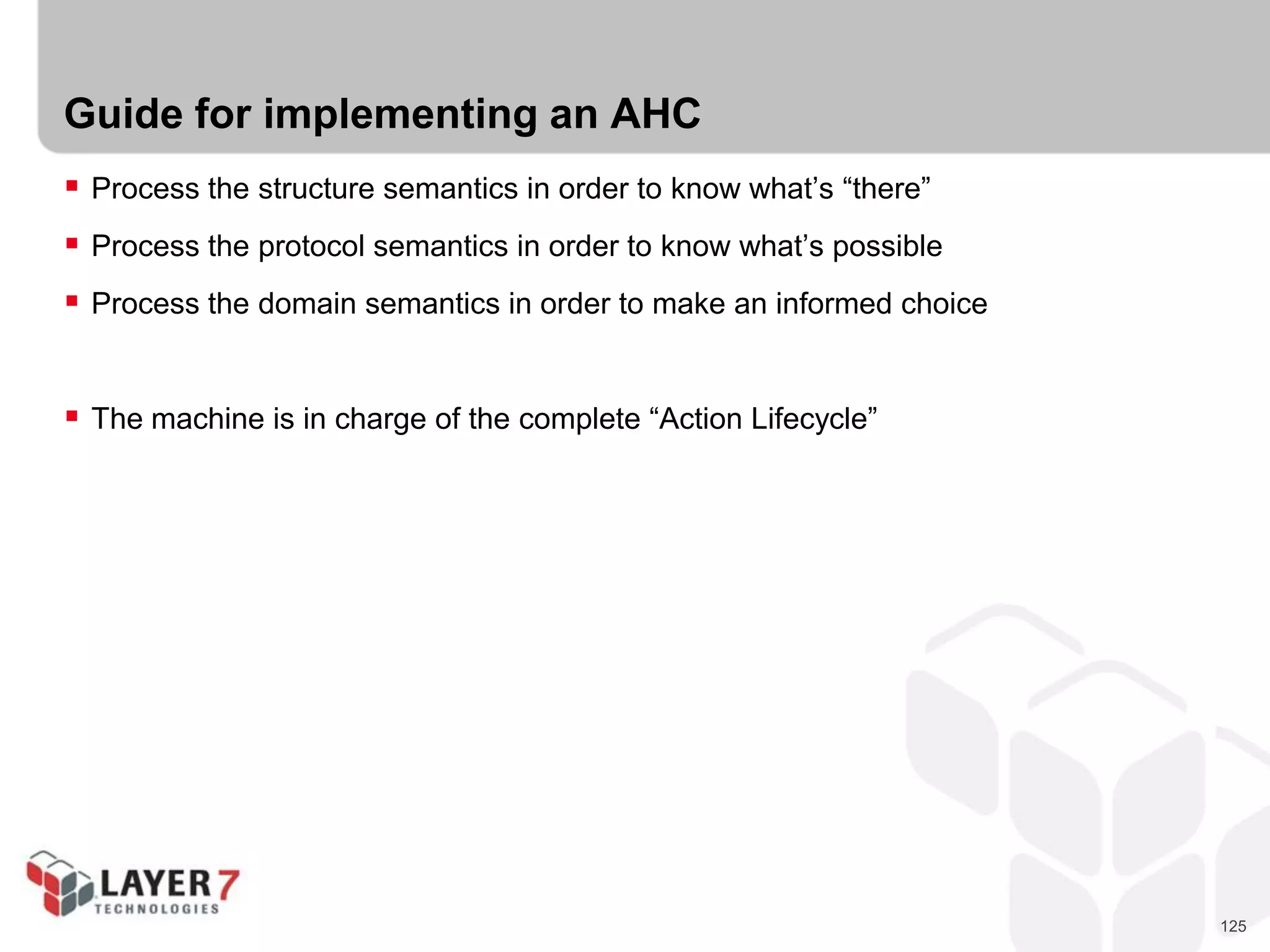

Guide for implementing an AHC
 Process the structure semantics in order to know what’s “there”
 Process the protocol semantics in order to know what’s possible
 Process the domain semantics in order to make an informed choice
 The machine is in charge of the complete “Action Lifecycle”

126. 126

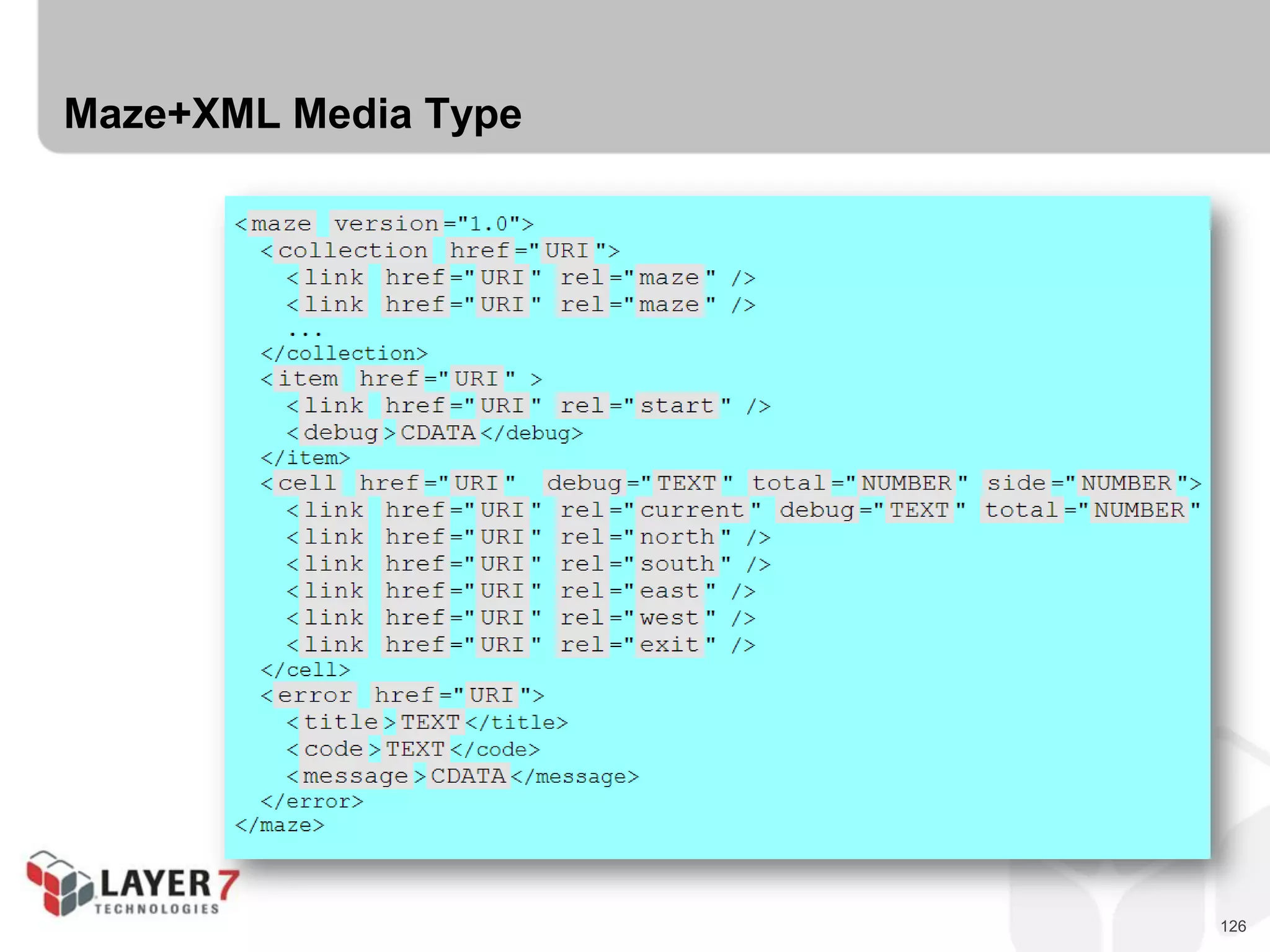

Maze+XML Media Type

127. 127

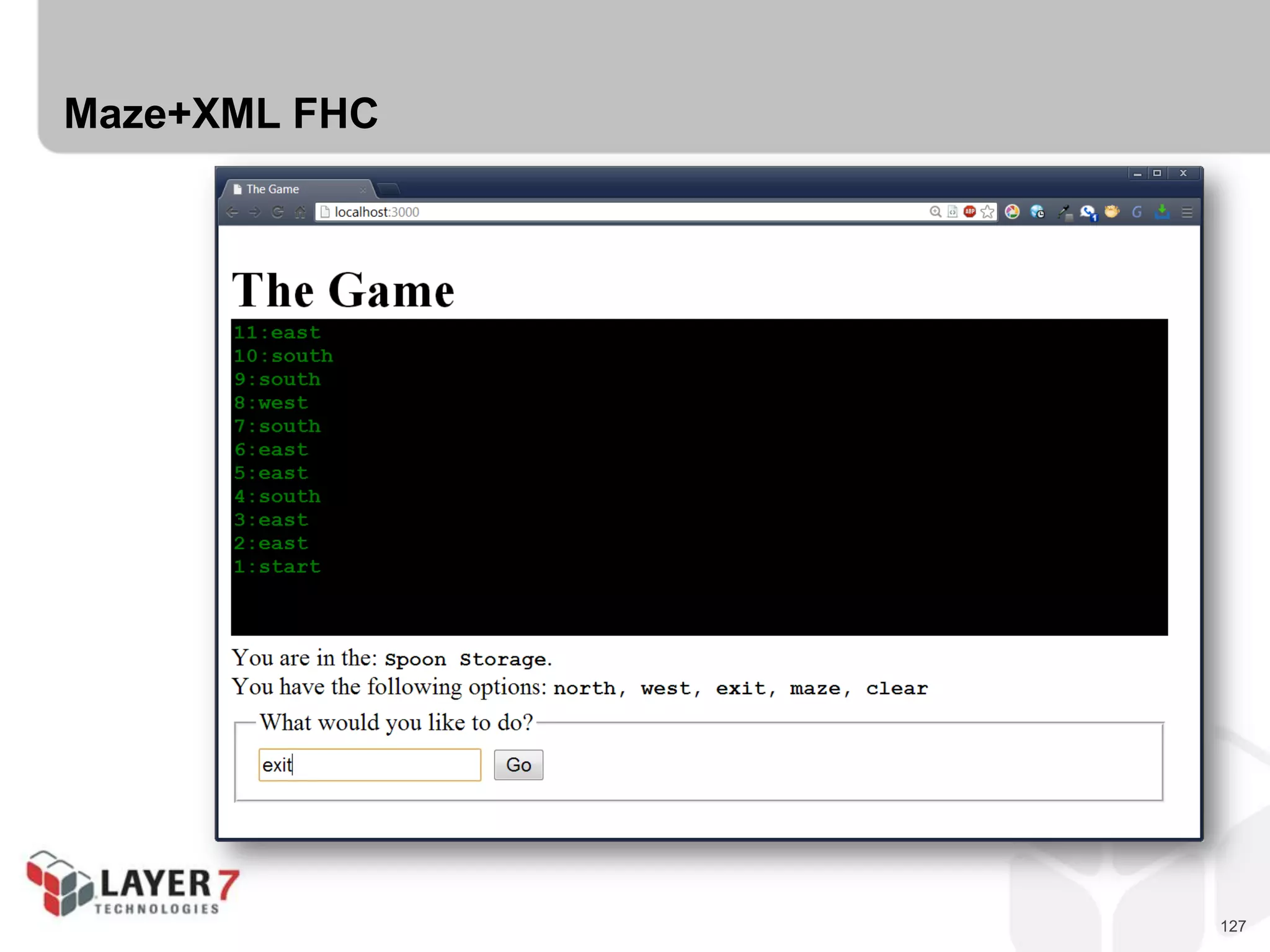

Maze+XML FHC

128. 128
The Maze+XML AHC

129. 129

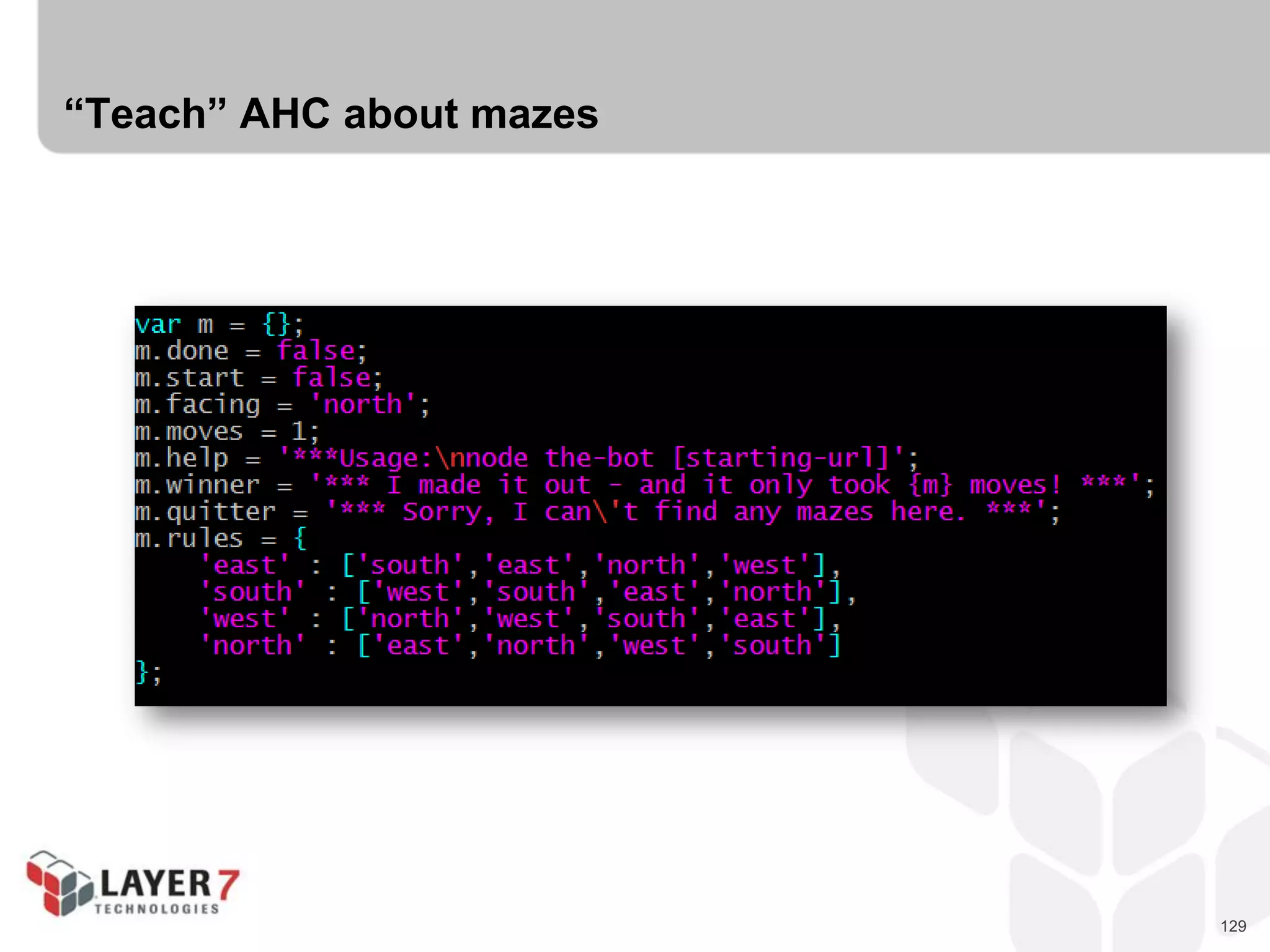

“Teach” AHC about mazes

130. 130

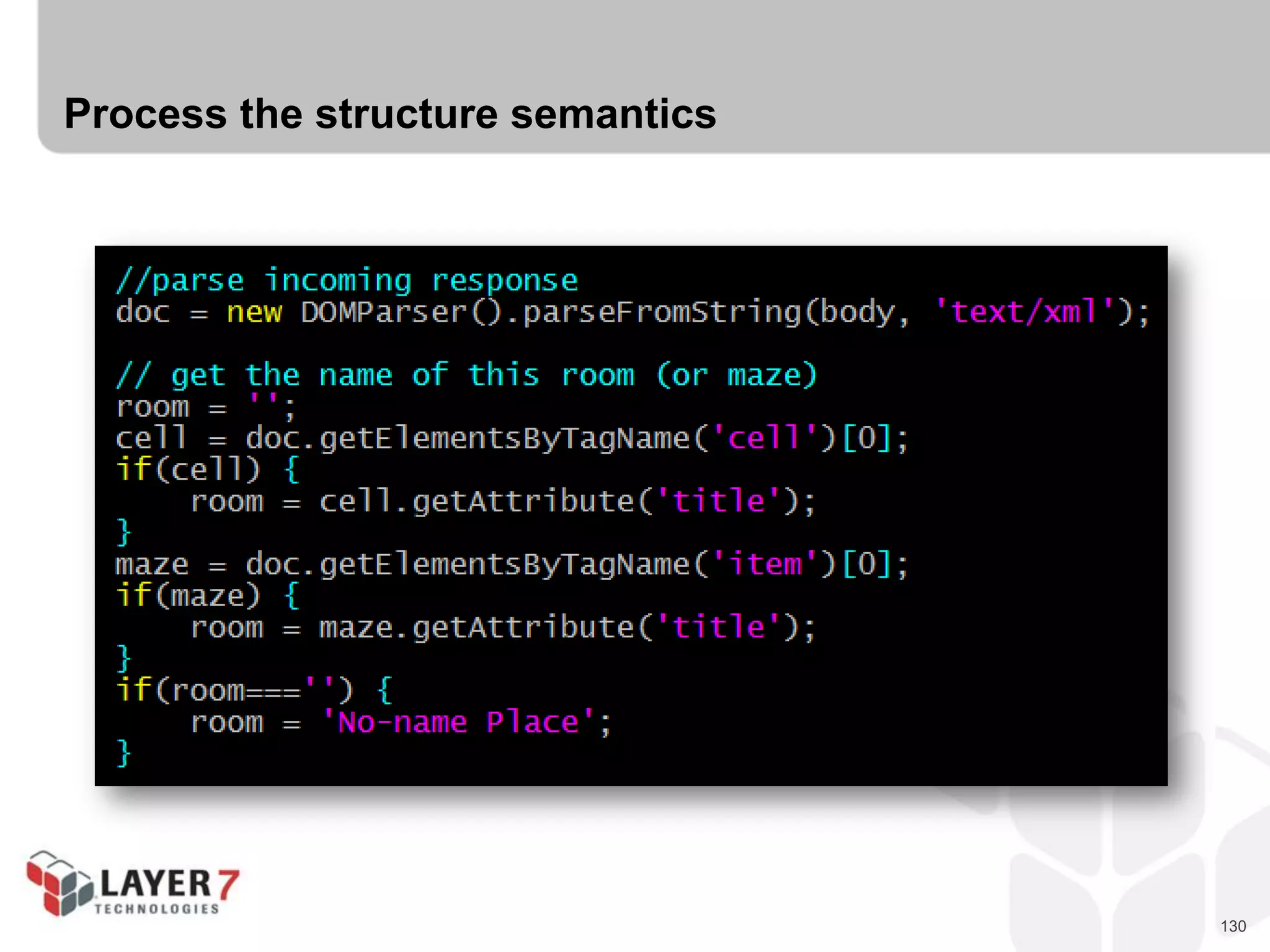

Process the structure semantics

131. 131

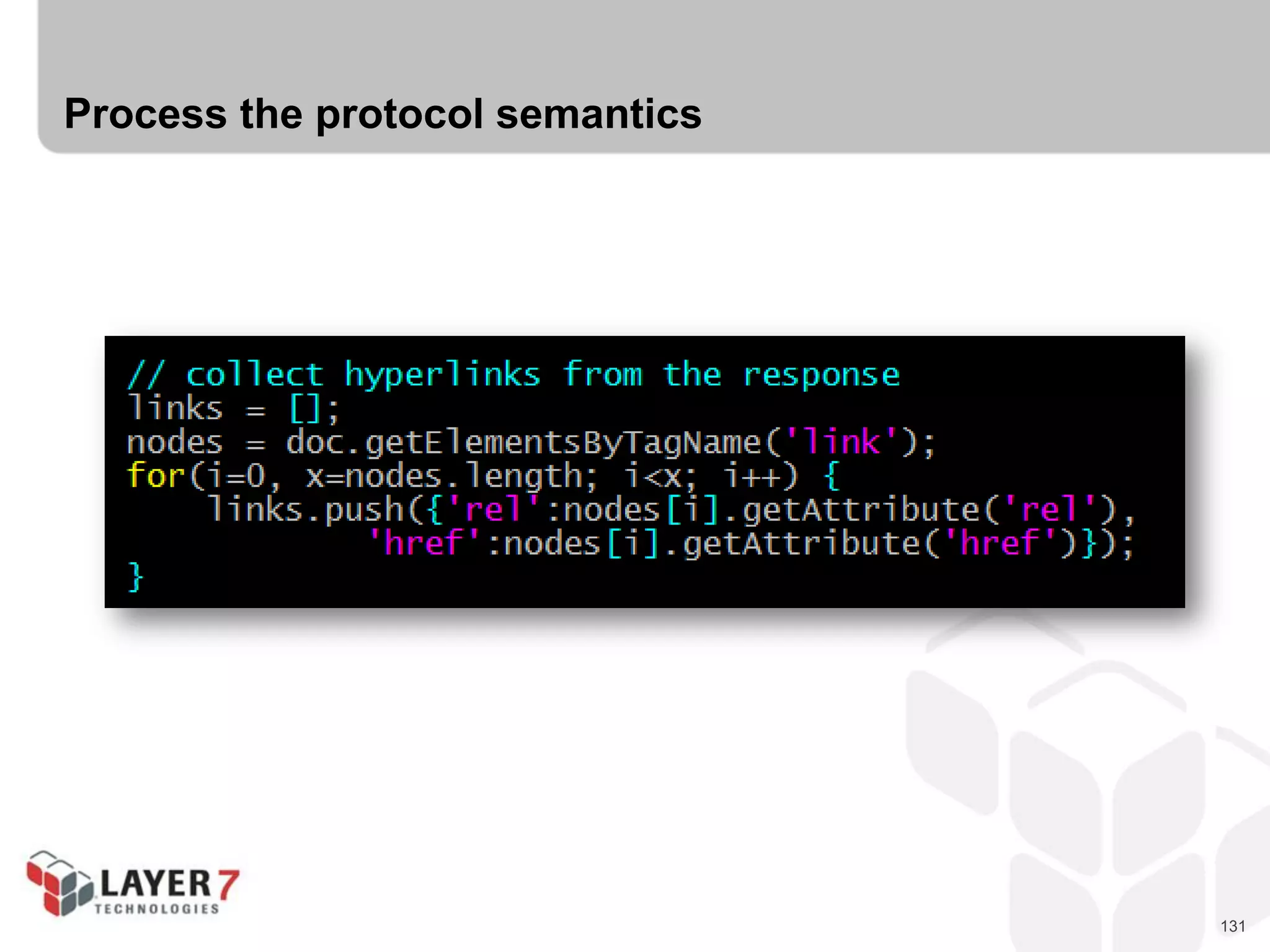

Process the protocol semantics

132. 132
Process the domain semantics

133. 133

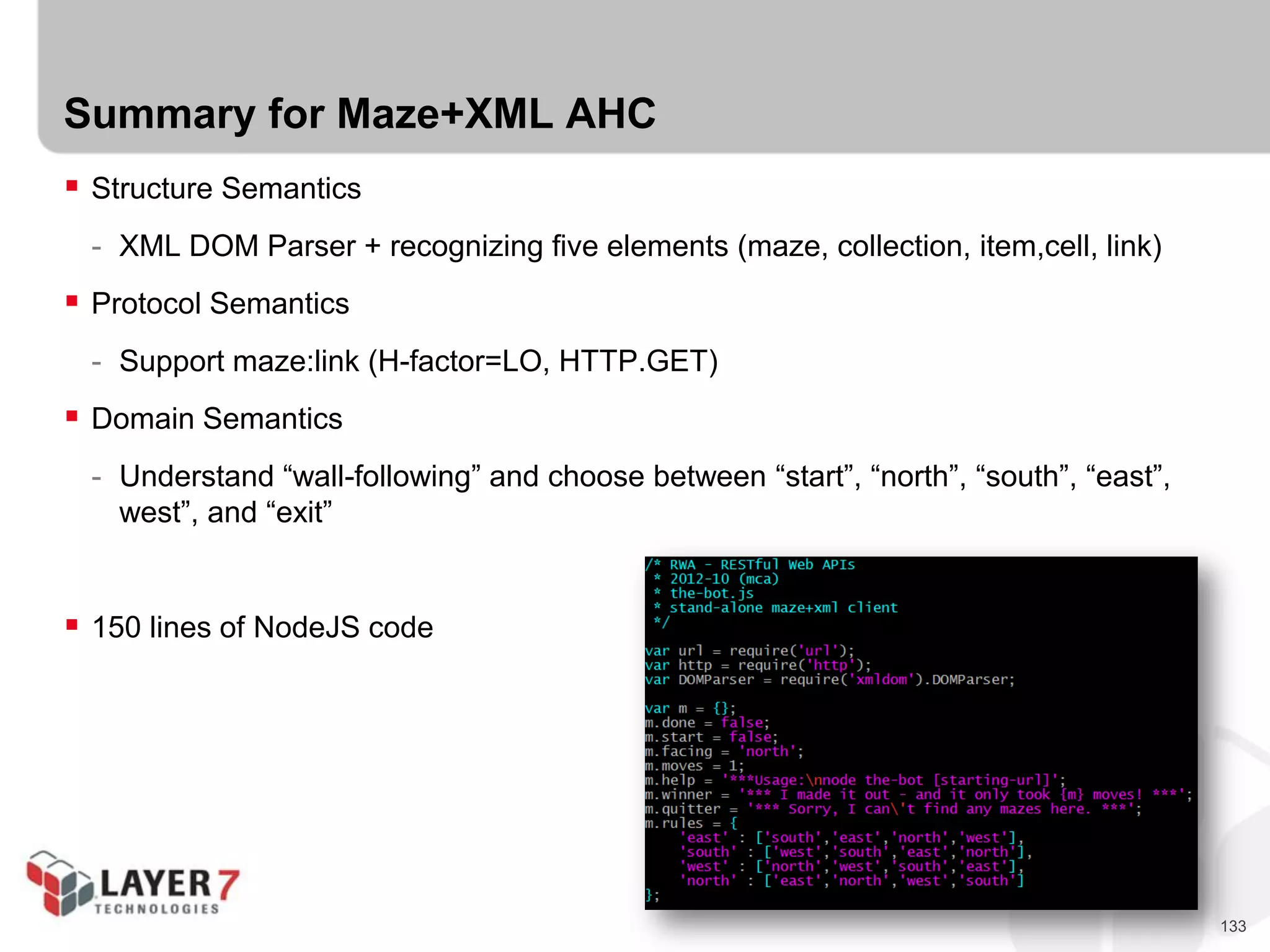

Summary for Maze+XML AHC
 Structure Semantics
- XML DOM Parser + recognizing five elements (maze, collection, item,cell, link)
 Protocol Semantics
- Support maze:link (H-factor=LO, HTTP.GET)
 Domain Semantics
- Understand “wall-following” and choose between “start”, “north”, “south”, “east”,
west”, and “exit”
 150 lines of NodeJS code

134. 134
Advantages of hypermedia clients for machines
 Ability to hand off tedious work to “smart” machine
 Using “generic” media types makes it possible to use the same client code for
several different tasks/projects
 Coding new tasks gets faster over time since the baseline code already exists
 Simple modifications in the server (order to items in message) don’t break clients

135. 135

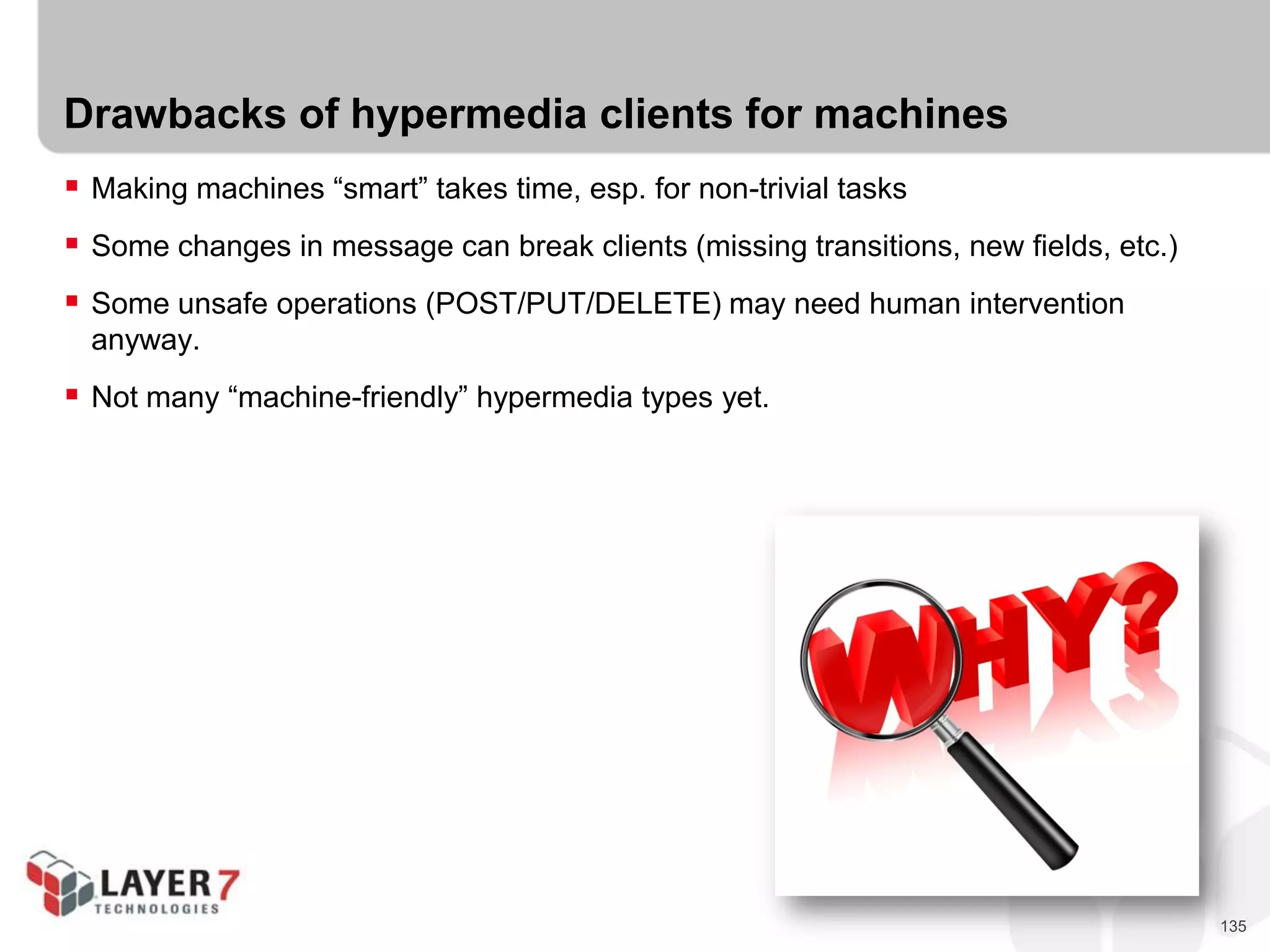

Drawbacks of hypermedia clients for machines
 Making machines “smart” takes time, esp. for non-trivial tasks
 Some changes in message can break clients (missing transitions, new fields, etc.)
 Some unsafe operations (POST/PUT/DELETE) may need human intervention
anyway.
 Not many “machine-friendly” hypermedia types yet.

136. 136
Let’s Build a Hypermedia Client!

137. 137
NOW WHAT?

138. 138
Seven Steps to a RESTful API
1. List the Semantic Descriptors
2. Draw a State Diagram
3. Match Magic Strings to Existing Profiles
4. Select a Media Type
5. Write Your Profile
6. Write Your Code
7. Publish your “Billboard” URL
Close the Semantic Gap w/ Hypermedia and Profiles

139. 139

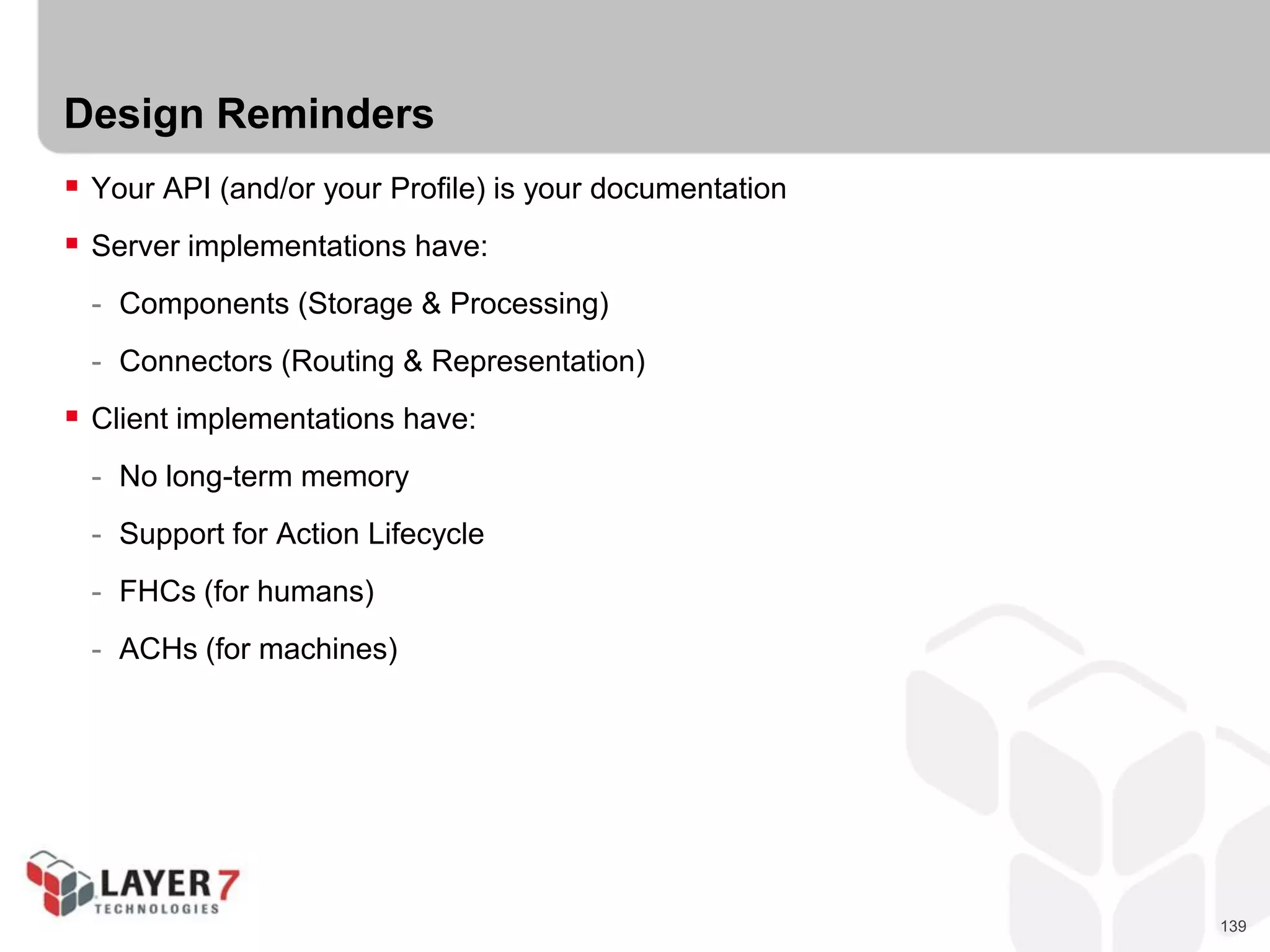

Design Reminders
 Your API (and/or your Profile) is your documentation
 Server implementations have:
- Components (Storage & Processing)
- Connectors (Routing & Representation)
 Client implementations have:
- No long-term memory
- Support for Action Lifecycle
- FHCs (for humans)
- ACHs (for machines)

140. 140

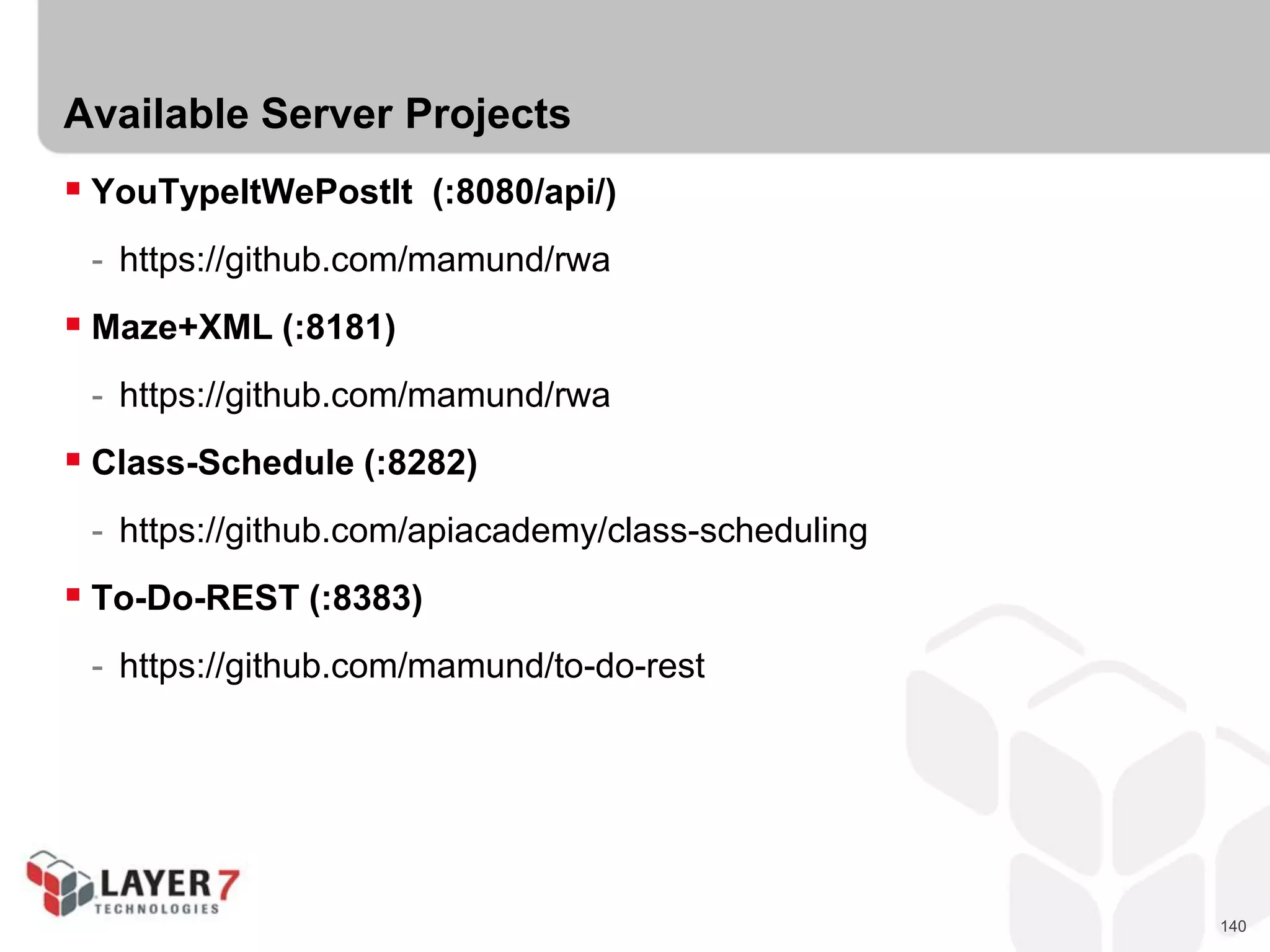

Available Server Projects
 YouTypeItWePostIt (:8080/api/)
- https://github.com/mamund/rwa
 Maze+XML (:8181)
- https://github.com/mamund/rwa
 Class-Schedule (:8282)
- https://github.com/apiacademy/class-scheduling
 To-Do-REST (:8383)
- https://github.com/mamund/to-do-rest

141. 141
RESTful Web APIs
QCon New York 2013
 Mike Amundsen,
Principal API Architect
Layer 7 Techologies
@mamund
