1. Napster REST API

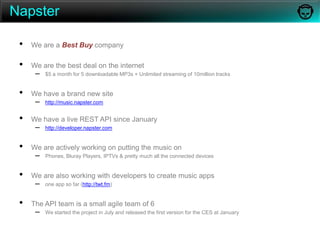

2. NapsterWe are a Best Buy company We are the best deal on the internet$5 a month for 5 downloadable MP3s + Unlimited streaming of 10million tracksWe have a brand new sitehttp://music.napster.comWe have a live REST API since Januaryhttp://developer.napster.comWe are actively working on putting the music onPhones, Bluray Players, IPTVs & pretty much all the connected devices We are also working with developers to create music appsone app so far (http://twt.fm)The API team is a small agile team of 6We started the project in July and released the first version for the CES at January

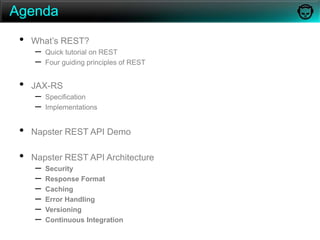

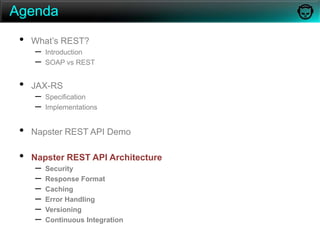

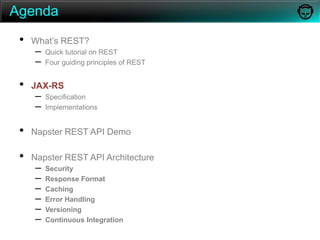

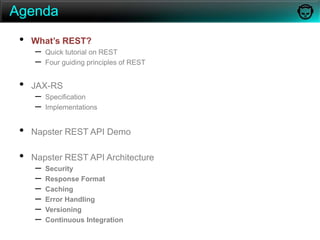

3. AgendaWhat’s REST?Quick tutorial on RESTFour guiding principles of RESTJAX-RS Specification ImplementationsNapster REST API DemoNapster REST API ArchitectureSecurityResponse FormatCachingError HandlingVersioningContinuous Integration

4. AgendaWhat’s REST?Quick tutorial on RESTFour guiding principles of RESTJAX-RS Specification ImplementationsNapster REST API DemoNapster REST API ArchitectureSecurityResponse FormatCachingError HandlingVersioningContinuous Integration

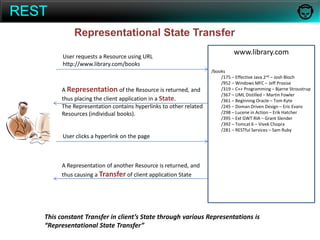

5. REST Representational State Transfer www.library.comUser requests a Resource using URLhttp://www.library.com/books/books /175 – Effective Java 2nd – Josh Bloch /952 – Windows MFC – Jeff Prosise /319 – C++ Programming – Bjarne Stroustrup /367 – UML Distilled – Martin Fowler /361 – Beginning Oracle – Tom Kyte /245 – Doman Driven Design – Eric Evans /298 – Lucene in Action – Erik Hatcher /395 – Ext GWT RIA – Grant Slender /392 – Tomcat 6 – Vivek Chopra /281 – RESTful Services – Sam RubyA Representation of the Resource is returned, and thus placing the client application in a State. The Representation contains hyperlinks to other related Resources (individual books).User clicks a hyperlink on the pageA Representation of another Resource is returned, and thus causing a Transfer of client application State This constant Transfer in client’s State through various Representations is “Representational State Transfer”

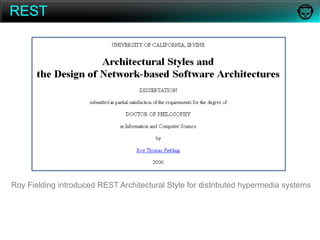

6. RESTRoy Fielding introduced REST Architectural Style for distributed hypermedia systems

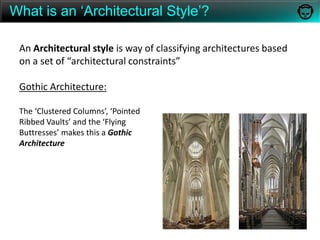

7. What is an ‘Architectural Style’?An Architectural style is way of classifying architectures based on a set of “architectural constraints”Gothic Architecture:The ‘Clustered Columns’, ‘Pointed Ribbed Vaults’ and the ‘Flying Buttresses’ makes this a Gothic Architecture

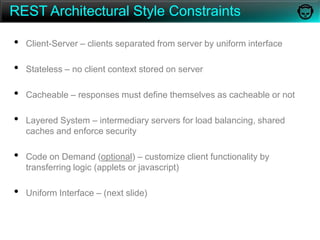

8. REST Architectural Style ConstraintsClient-Server – clients separated from server by uniform interface

9. Stateless – no client context stored on server

10. Cacheable – responses must define themselves as cacheable or not

11. Layered System – intermediary servers for load balancing, shared caches and enforce security

12. Code on Demand (optional) – customize client functionality by transferring logic (applets or javascript)

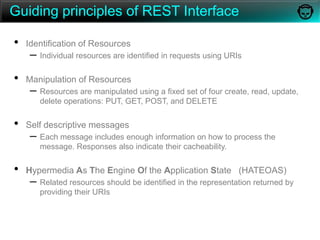

13. Uniform Interface – (next slide) Guiding principles of REST InterfaceIdentification of Resources

14. Individual resources are identified in requests using URIs

15. Manipulation of Resources

16. Resources are manipulated using a fixed set of four create, read, update, delete operations: PUT, GET, POST, and DELETE

17. Self descriptive messages

18. Each message includes enough information on how to process the message. Responses also indicate their cacheability.

19. Hypermedia As The Engine Of the Application State (HATEOAS)

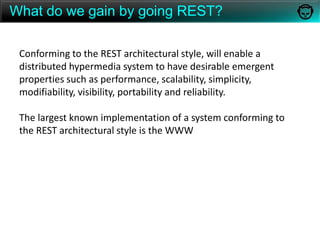

20. Related resources should be identified in the representation returned by providing their URIsWhat do we gain by going REST?Conforming to the REST architectural style, will enable a distributed hypermedia system to have desirable emergent properties such as performance, scalability, simplicity, modifiability, visibility, portability and reliability.The largest known implementation of a system conforming to the REST architectural style is the WWW

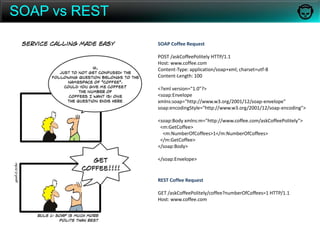

21. SOAP vs RESTSOAP Coffee RequestPOST /askCoffeePolitelyHTTP/1.1Host: www.coffee.comContent-Type: application/soap+xml; charset=utf-8Content-Length: 100<?xml version="1.0"?><soap:Envelopexmlns:soap="http://www.w3.org/2001/12/soap-envelope"soap:encodingStyle="http://www.w3.org/2001/12/soap-encoding"><soap:Bodyxmlns:m="http://www.coffee.com/askCoffeePolitely"><m:GetCoffee> <m:NumberOfCoffees>1</m:NumberOfCoffees> </m:GetCoffee></soap:Body></soap:Envelope>REST Coffee Request GET /askCoffeePolitely/coffee?numberOfCoffees=1 HTTP/1.1Host: www.coffee.com

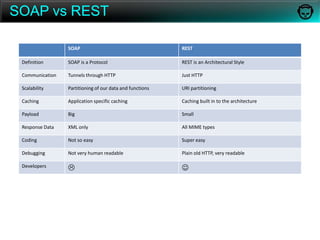

22. SOAP vs REST

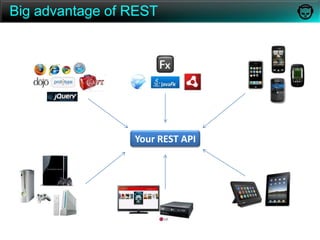

23. Big advantage of RESTYour REST API

24. AgendaWhat’s REST?Quick tutorial on RESTFour guiding principles of RESTJAX-RS Specification ImplementationsNapster REST API DemoNapster REST API ArchitectureSecurityResponse FormatCachingError HandlingVersioningContinuous Integration

25. JAX-RS SpecificationDefines a set of Java APIs for development of Web Services build according to the REST architectural style. Goals:POJO Based - Provides a set of annotations and associated classes/interfaces that can be used with POJOs to expose them as Web Resources. HTTP Centric - Provide clear mappings between HTTP & URI elements and corresponding API classes and annotationsFormat Independent - Provide necessary pluggability of content typesContainer Independent - Artifacts using the API will be deployable in a variety of web-tier containers

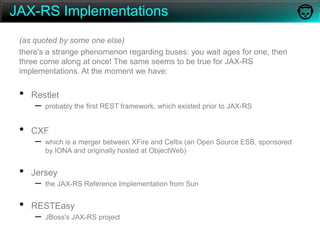

26. JAX-RS Implementations(as quoted by some one else)there's a strange phenomenon regarding buses: you wait ages for one, then three come along at once! The same seems to be true for JAX-RS implementations. At the moment we have:Restletprobably the first REST framework, which existed prior to JAX-RSCXFwhich is a merger between XFire and Celtix (an Open Source ESB, sponsored by IONA and originally hosted at ObjectWeb) Jerseythe JAX-RS Reference Implementation from SunRESTEasyJBoss's JAX-RS project

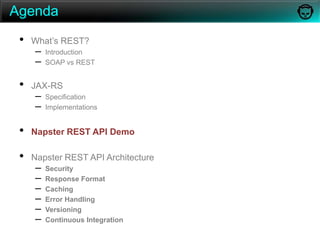

27. AgendaWhat’s REST?Introduction SOAP vs RESTJAX-RS Specification ImplementationsNapster REST API DemoNapster REST API ArchitectureSecurityResponse FormatCachingError HandlingVersioningContinuous Integration

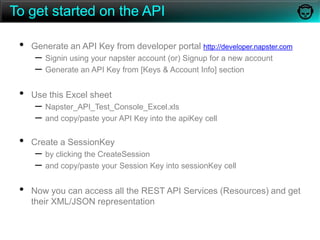

28. To get started on the APIGenerate an API Key from developer portal http://developer.napster.com

29. Signin using your napster account (or) Signup for a new account

30. Generate an API Key from [Keys & Account Info] section

31. Use this Excel sheet

32. Napster_API_Test_Console_Excel.xls

33. and copy/paste your API Key into the apiKey cell

34. Create a SessionKey

35. by clicking the CreateSession

36. and copy/paste your Session Key into sessionKey cell

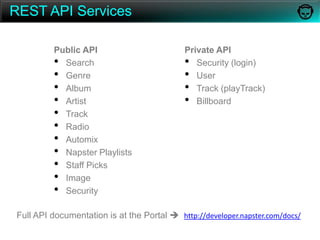

37. Now you can access all the REST API Services (Resources) and get their XML/JSON representationREST API ServicesPublic APISearch

38. Genre

39. Album

40. Artist

41. Track

42. Radio

43. Automix

44. Napster Playlists

45. Staff Picks

46. Image

47. SecurityPrivate APISecurity (login)

48. User

49. Track (playTrack)

50. BillboardFull API documentation is at the Portal  http://developer.napster.com/docs/

51. AgendaWhat’s REST?Introduction SOAP vs RESTJAX-RS Specification ImplementationsNapster REST API DemoNapster REST API ArchitectureSecurityResponse FormatCachingError HandlingVersioningContinuous Integration

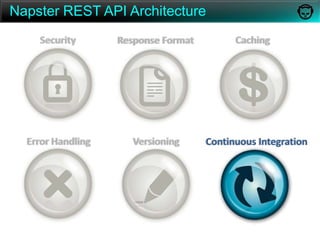

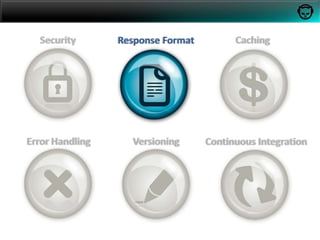

52. Napster REST API ArchitectureSecurityCachingResponse FormatError HandlingVersioningContinuous Integration

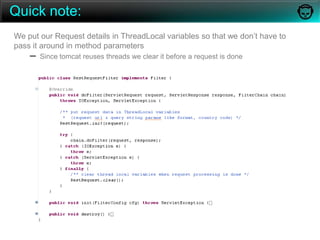

53. Quick note:We put our Request details in ThreadLocal variables so that we don’t have to pass it around in method parametersSince tomcat reuses threads we clear it before a request is doneSecurityCachingResponse FormatError HandlingVersioningContinuous Integration

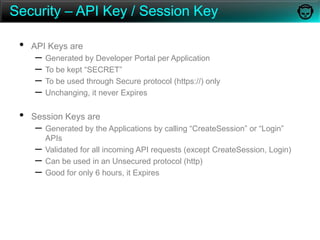

54. Security – API Key / Session KeyAPI Keys are

55. Generated by Developer Portal per Application

56. To be kept “SECRET”

57. To be used through Secure protocol (https://) only

58. Unchanging, it never Expires

59. Session Keys are

60. Generated by the Applications by calling “CreateSession” or “Login” APIs

61. Validated for all incoming API requests (except CreateSession, Login)

62. Can be used in an Unsecured protocol (http)

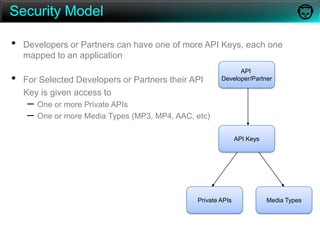

63. Good for only 6 hours, it ExpiresSecurity ModelDevelopers or Partners can have one of more API Keys, each one mapped to an application

64. For Selected Developers or Partners their API Key is given access to One or more Private APIs
