1. Multi-cloud scenarios for tomorrow’s applications
Alex Heneveld / @ahtweetin
FIA/Cloud4SOA Workshop
7 May 2013

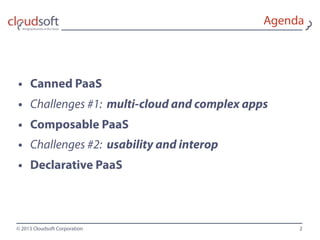

2. © 2013 Cloudsoft Corporation
Agenda
• Canned PaaS
• Challenges #1: multi-cloud and complex apps
• Composable PaaS
• Challenges #2: usability and interop
• Declarative PaaS
2

3. © 2013 Cloudsoft Corporation
Canned PaaS
3

4. © 2013 Cloudsoft Corporation

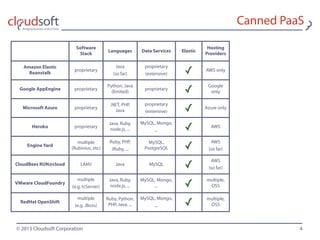

Canned PaaS
4
Software
Stack
Languages Data Services Elastic
Hosting
Providers
Amazon Elastic
Beanstalk
proprietary
Java
(so far)
proprietary
(extensive) ✓ AWS only
Google AppEngine proprietary
Python, Java
(limited)
proprietary
✓
Google
only
Microsoft Azure proprietary
.NET, PHP,
Java
proprietary
(extensive) ✓ Azure only
Heroku proprietary
Java, Ruby,
node.js, ...
MySQL, Mongo,
... ✓ AWS
Engine Yard
multiple
(Rubinius, etc)
Ruby, PHP,
JRuby, ...
MySQL,
PostgreSQL ✓
AWS
(so far)
CloudBees RUN@cloud LAMJ Java MySQL
✓
AWS
(so far)
VMware CloudFoundry
multiple
(e.g. tcServer)
Java, Ruby,
node.js, ...
MySQL, Mongo,
... ✓
multiple,
OSS
RedHat OpenShift
multiple
(e.g. JBoss)
Ruby, Python,
PHP, Java, ...
MySQL, Mongo,
... ✓
multiple,
OSS

5. © 2013 Cloudsoft Corporation

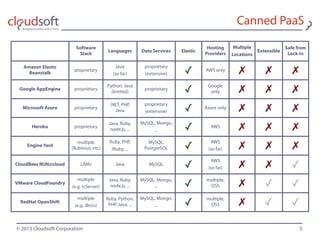

Canned PaaS
5
Software
Stack
Languages Data Services Elastic
Hosting
Providers
Multiple
Locations
Extensible
Safe from
Lock-in
Amazon Elastic
Beanstalk
proprietary
Java
(so far)
proprietary
(extensive) ✓ AWS only ✗ ✗ ✗
Google AppEngine proprietary
Python, Java
(limited)
proprietary
✓
Google
only ✗ ✗ ✗
Microsoft Azure proprietary
.NET, PHP,
Java
proprietary
(extensive) ✓ Azure only ✗ ✗ ✗
Heroku proprietary
Java, Ruby,
node.js, ...
MySQL, Mongo,
... ✓ AWS ✗ ✗ ✗
Engine Yard
multiple
(Rubinius, etc)
Ruby, PHP,
JRuby, ...
MySQL,
PostgreSQL ✓
AWS
(so far) ✗ ✗ ✗
CloudBees RUN@cloud LAMJ Java MySQL
✓
AWS
(so far) ✗ ✗ ✓
VMware CloudFoundry
multiple
(e.g. tcServer)
Java, Ruby,
node.js, ...
MySQL, Mongo,
... ✓
multiple,
OSS ✗ ✓ ✓
RedHat OpenShift
multiple
(e.g. JBoss)
Ruby, Python,
PHP, Java, ...
MySQL, Mongo,
... ✓
multiple,
OSS ✗ ✓ ✓

6. © 2013 Cloudsoft Corporation

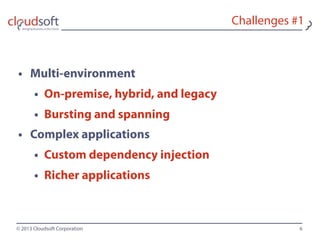

Challenges #1
• Multi-environment
• On-premise, hybrid, and legacy
• Bursting and spanning
• Complex applications
• Custom dependency injection
• Richer applications
6

7. © 2013 Cloudsoft Corporation

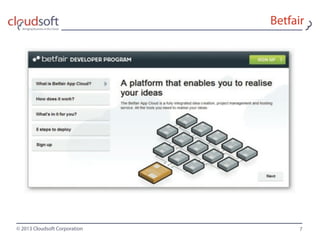

Betfair
7

8. © 2013 Cloudsoft Corporation
Betfair
8
• cloud: Rackspace
• on-prem: vSphere
• lightweight virt’n (LXC)
• nginx dev / F5 live

9. © 2013 Cloudsoft Corporation
The Elephant in the Room
9

10. © 2013 Cloudsoft Corporation
Betfair
10

11. © 2013 Cloudsoft Corporation
GSLB
11
✗
◦ ◦ ◦

12. © 2013 Cloudsoft Corporation
Composable PaaS
12

13. © 2013 Cloudsoft Corporation
Composable PaaS
13

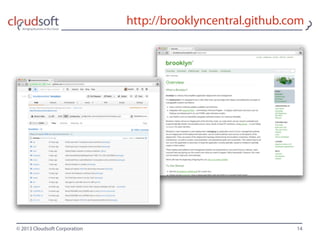

14. © 2013 Cloudsoft Corporation
http://brooklyncentral.github.com
14

15. © 2013 Cloudsoft Corporation 15

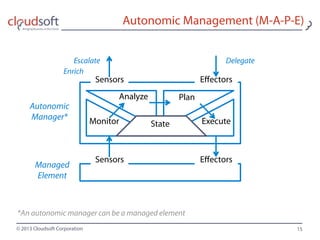

Autonomic Management (M-A-P-E)
Monitor
Analyze Plan
ExecuteState
Sensors Effectors
Enrich
Delegate
Autonomic
Manager*
Sensors Effectors
Escalate
Managed
Element
*An autonomic manager can be a managed element

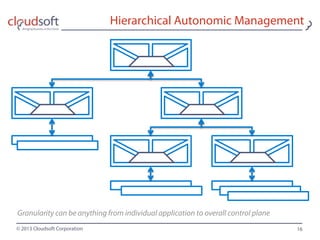

16. © 2013 Cloudsoft Corporation 16
Hierarchical Autonomic Management
Granularity can be anything from individual application to overall control plane

17. © 2013 Cloudsoft Corporation

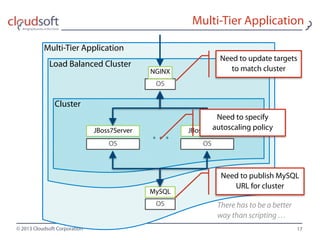

Multi-Tier Application
Load Balanced Cluster
Cluster
Multi-Tier Application
17
OS
MySQL
OS
NGINX
OS
JBoss7Server
OS
JBoss7Server
…
Need to update targets
to match cluster
Need to publish MySQL
URL for cluster
Need to specify
autoscaling policy
There has to be a better
way than scripting …

18. © 2013 Cloudsoft Corporation

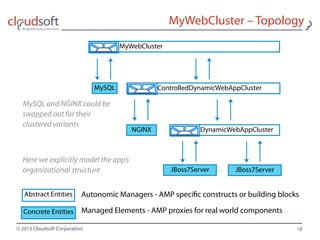

MyWebCluster – Topology
18
…
MyWebCluster
ControlledDynamicWebAppCluster
DynamicWebAppCluster
JBoss7Server
NGINX
MySQL
JBoss7Server
Concrete Entities
Abstract Entities
Managed Elements - AMP proxies for real world components
Autonomic Managers - AMP specific constructs or building blocks
Here we explicitly model the app’s
organizational structure
MySQL and NGINX could be
swapped out for their
clustered variants

19. © 2013 Cloudsoft Corporation

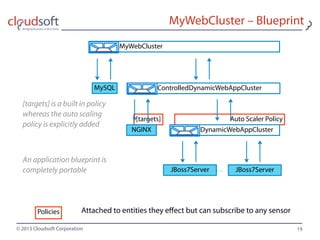

MyWebCluster – Blueprint
19
Auto Scaler Policy[targets]
…
MyWebCluster
ControlledDynamicWebAppCluster
DynamicWebAppCluster
JBoss7Server
NGINX
MySQL
JBoss7Server
Policies Attached to entities they effect but can subscribe to any sensor
[targets] is a built in policy
whereas the auto scaling
policy is explicitly added
An application blueprint is
completely portable

20. © 2013 Cloudsoft Corporation

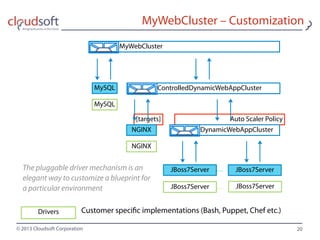

MyWebCluster – Customization
20
…JBoss7Server
NGINX
MySQL
JBoss7Server
Auto Scaler Policy[targets]
…
MyWebCluster
ControlledDynamicWebAppCluster
DynamicWebAppCluster
JBoss7Server
NGINX
MySQL
JBoss7Server
Drivers Customer specific implementations (Bash, Puppet, Chef etc.)
The pluggable driver mechanism is an
elegant way to customize a blueprint for
a particular environment

21. © 2013 Cloudsoft Corporation

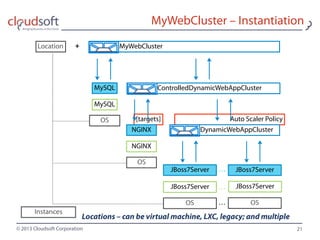

MyWebCluster – Instantiation
21
Location
OS
OS
OS
… OS
…JBoss7Server
NGINX
MySQL
JBoss7Server
+
Auto Scaler Policy[targets]
…
MyWebCluster
ControlledDynamicWebAppCluster
DynamicWebAppCluster
JBoss7Server
NGINX
MySQL
JBoss7Server
Instances
Locations – can be virtual machine, LXC, legacy; and multiple

22. © 2013 Cloudsoft Corporation 22

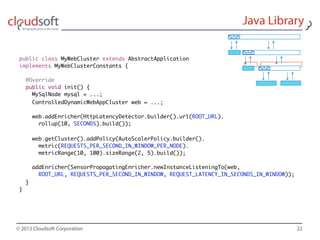

Java Library
public class MyWebCluster extends AbstractApplication
implements MyWebClusterConstants {
@Override
public void init() {
MySqlNode mysql = ...;
ControlledDynamicWebAppCluster web = ...;
web.addEnricher(HttpLatencyDetector.builder().url(ROOT_URL).
rollup(10, SECONDS).build());
web.getCluster().addPolicy(AutoScalerPolicy.builder().
metric(REQUESTS_PER_SECOND_IN_WINDOW_PER_NODE).
metricRange(10, 100).sizeRange(2, 5).build());
addEnricher(SensorPropagatingEnricher.newInstanceListeningTo(web,
ROOT_URL, REQUESTS_PER_SECOND_IN_WINDOW, REQUEST_LATENCY_IN_SECONDS_IN_WINDOW));
}
}

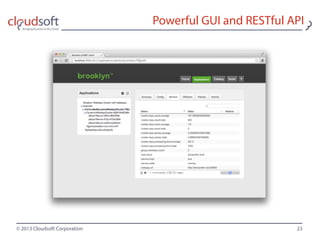

23. © 2013 Cloudsoft Corporation
Powerful GUI and RESTful API
23

24. © 2013 Cloudsoft Corporation
Uses
24

25. © 2013 Cloudsoft Corporation

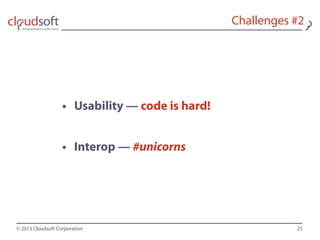

Challenges #2
• Usability — code is hard!
• Interop — #unicorns
25

26. © 2013 Cloudsoft Corporation

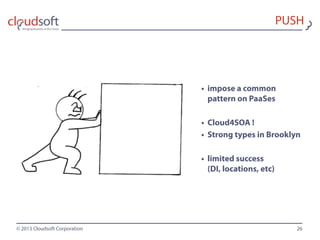

PUSH
26
• impose a common
pattern on PaaSes
• Cloud4SOA !
• Strong types in Brooklyn
• limited success
(DI, locations, etc)

27. © 2013 Cloudsoft Corporation
PULL
27
• standards: create desire
and make them achievable
• Oasis CAMP, TOSCA; OCCI
• Cloud4SOA, SeaClouds (FP7)
• OpenStack Heat, Cloudstack 576
• early days ...
but huge momentum!

28. © 2013 Cloudsoft Corporation
PUSH AND PULL
28

29. © 2013 Cloudsoft Corporation 29

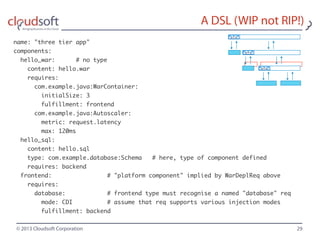

A DSL (WIP not RIP!)
name: "three tier app"
components:
hello_war: # no type
content: hello.war
requires:
com.example.java:WarContainer:
initialSize: 3
fulfillment: frontend
com.example.java:Autoscaler:
metric: request.latency
max: 120ms
hello_sql:
content: hello.sql
type: com.example.database:Schema # here, type of component defined
requires: backend
frontend: # "platform component" implied by WarDeplReq above
requires:
database: # frontend type must recognise a named "database" req
mode: CDI # assume that req supports various injection modes
fulfillment: backend
