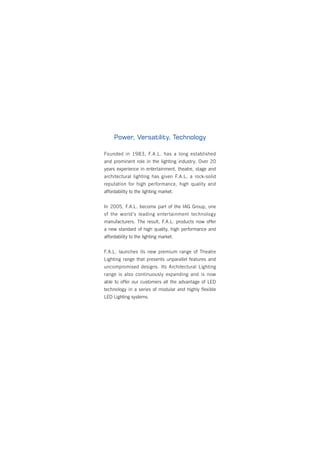

3. Power, Versatility, Technology
Founded in 1983, F.A.L. has a long established
and prominent role in the lighting industry. Over 20
years experience in entertainment, theatre, stage and
architectural lighting has given F.A.L. a rock-solid
reputation for high performance, high quality and
affordability to the lighting market.
In 2005, F.A.L. become part of the IAG Group, one
of the world’s leading enter tainment technology
manufacturers. The result, F.A.L. products now offer
a new standard of high quality, high performance and
affordability to the lighting market.
F.A.L. launches its new premium range of Theatre
Lighting range that presents unparallel features and
uncompromised designs. Its Architectural Lighting
range is also continuously expanding and is now
able to offer our customers all the advantage of LED
technology in a series of modular and highly flexible
LED Lighting systems.

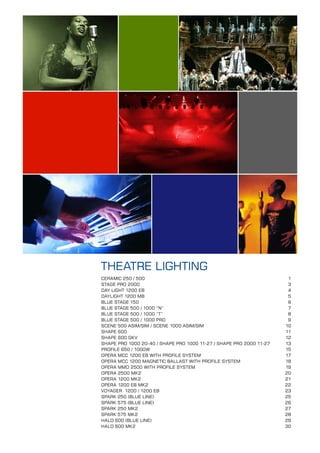

5. THEATRE LIGHTING
CERAMIC 250 / 500 1
STAGE PRO 2000 3
DAY LIGHT 1200 EB 4
DAYLIGHT 1200 MB 5
BLUE STAGE 150 6
BLUE STAGE 500 / 1000 “N” 7
BLUE STAGE 500 / 1000 “T” 8
BLUE STAGE 500 / 1000 PRO 9

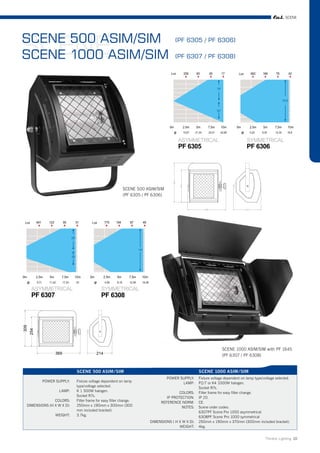

SCENE 500 ASIM/SIM / SCENE 1000 ASIM/SIM 10

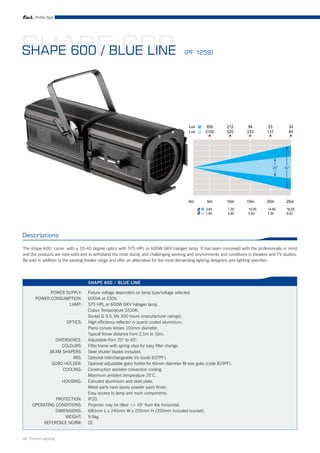

SHAPE 600 11

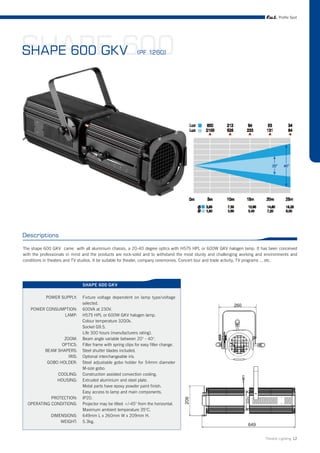

SHAPE 600 GKV 12

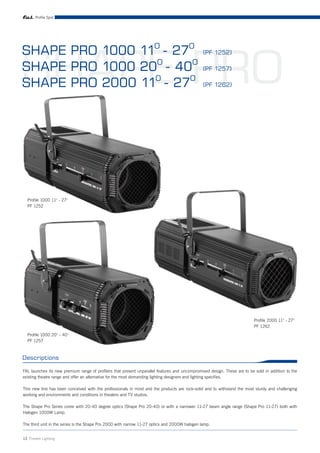

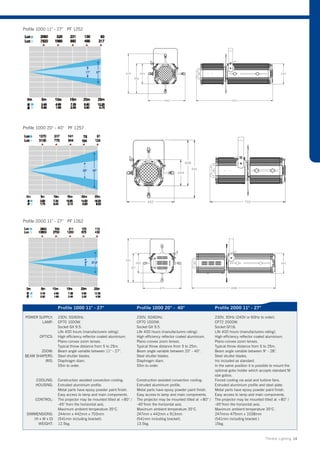

SHAPE PRO 1000 20-40 / SHAPE PRO 1000 11-27 / SHAPE PRO 2000 11-27 13

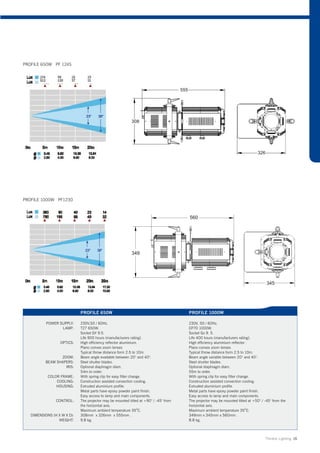

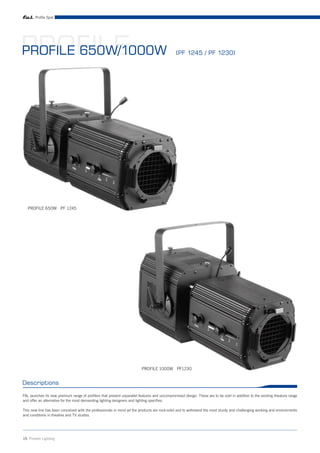

PROFILE 650 / 1000W 15

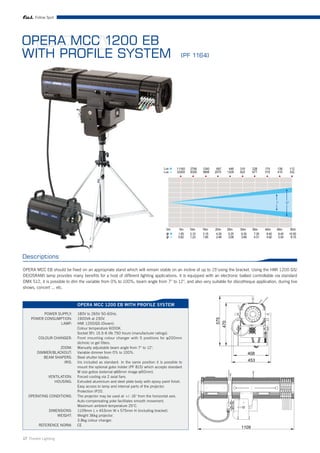

OPERA MCC 1200 EB WITH PROFILE SYSTEM 17

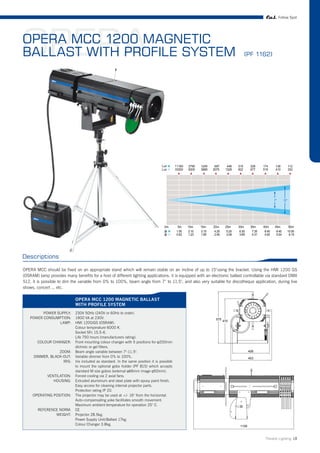

OPERA MCC 1200 MAGNETIC BALLAST WITH PROFILE SYSTEM 18

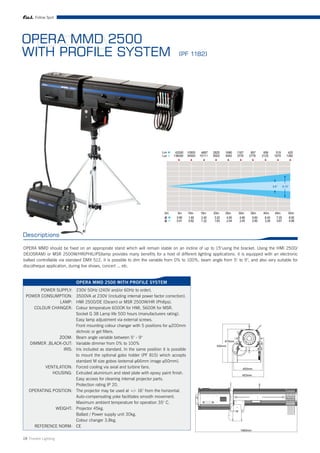

OPERA MMD 2500 WITH PROFILE SYSTEM 19
OPERA 2500 MK2 20
OPERA 1200 MK2 21

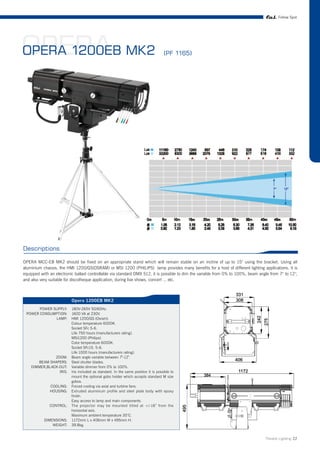

OPERA 1200 EB MK2 22

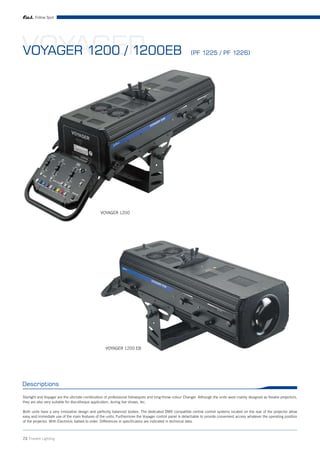

VOYAGER 1200 / 1200 EB 23

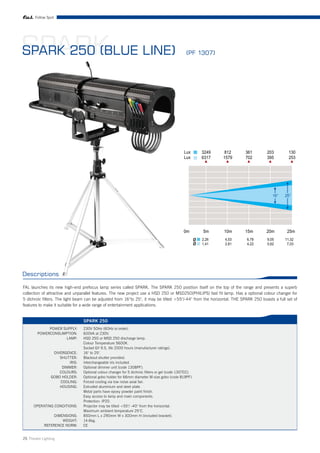

SPARK 250 (BLUE LINE) 25
SPARK 575 (BLUE LINE) 26
SPARK 250 MK2 27
SPARK 575 MK2 28
HALO 600 (BLUE LINE) 29
HALO 600 MK2 30

6. STAGE PRO
CERAMIC
CERAMIC 250 / 575 (PF 1077 / PF 1078)
CERAMIC 250
PF1077
CERAMIC 575
PF1078
Descriptions
CERAMIC 250
The F.A.L. Ceramic 250 offers an optimum solution for all professional lighting designers. Using the Ceramic CST 250 HR lamp provides many benefits
for a host of different lighting applications. Not only does the lamp provide a greatly extended 4000 hours of life, transmitted heat is significantly
reduced, as is the power consumption. The lamp performance is equal to that of a 1kW halogen lamp, it has a Colour Rendering Index of greater
than 90 and a colour temperature of 3200K, add to this a hot restrike capability and the result is a highly versatile luminaire.
CERAMIC 575
The F.A.L. Ceramic 575 offers an optimum solution for all professional lighting designers. Using the Ceramic CST 500 HR lamp it provides many
benefits for a host of different lighting applications. The lamp will allow to reduce greatly the heat generated compared to a halogen lamp, and also will
significantly reduced the power consumption. The lamp performance is equal to that of a 2.0kW halogen lamp, it has a Color Rendering Index greater
than 90 and a color temperature of 3200K. Furthermore, its hot restrike capability makes it a highly versatile luminaries.
1 Theatre Lighting

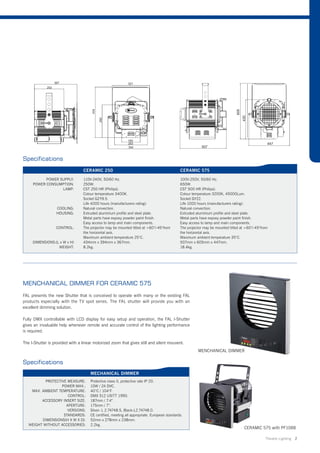

7. Specifications
CERAMIC 250 CERAMIC 575
POWER SUPPLY: 110V-240V, 50/60 Hz. 100V-250V, 50/60 Hz.
POWER CONSUMPTION: 250W. 650W.
LAMP: CST 250 HR (Philips). CST 500 HR (Philips).
Colour temperature 3400K. Colour temperature 3200K, 45000Lum.
Socket GZY9.5. Socket GY22.
Life 4000 hours (manufacturers rating). Life 1000 hours (manufacturers rating).
COOLING: Natural convection. Natural convection.
HOUSING: Extruded aluminium profile and steel plate. Extruded aluminium profile and steel plate.
Metal parts have expoxy powder paint finish. Metal parts have expoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +60°/-45°from The projector may be mounted titled at +60°/-45°from
the horizontal axis. the horizontal axis.
Maximum ambient temperature 25°C. Maximum ambient temperature 35°C.
DIMENSIONS:(L x W x H) 434mm x 394mm x 367mm. 507mm x 605mm x 447mm.
WEIGHT: 8.2kg. 18.4kg.
MENCHANICAL DIMMER FOR CERAMIC 575
FAL presents the new Shutter that is conceived to operate with many or the existing FAL
products especially with the TV spot series. The FAL shutter will provide you with an
excellent dimming solution.
Fully DMX controllable with LCD display for easy setup and operation, the FAL I-Shutter
gives an invaluable help whenever remote and accurate control of the lighting performance
is required.
The I-Shutter is provided with a linear motorized zoom that gives still and silent mouvent.
MENCHANICAL DIMMER
Specifications
MECHANICAL DIMMER
PROTECTIVE MEASURE: Protective class II, protective rate IP 20.
POWER MAX.: 10W / 24 DVC.
MAX. AMBIENT TEMPERATURE: 40°C / 104°F.
CONTROL: DMX 512 USITT 1990.
ACCESSORY INSERT SIZE: 187mm / 7.4”.
APERTURE: 175mm / 7”.
VERSIONS: Silver- L 2.74748.S, Black-L2.74748.0.
STANDARDS: CE certified, meeting all appropriate. European standards.
DIMENSIONS(H X W X D): 52mm x 278mm x 238mm.
WEIGHT WITHOUT ACCESSORIES: 2.2kg.
CERAMIC 575 with PF1088
Theatre Lighting 2

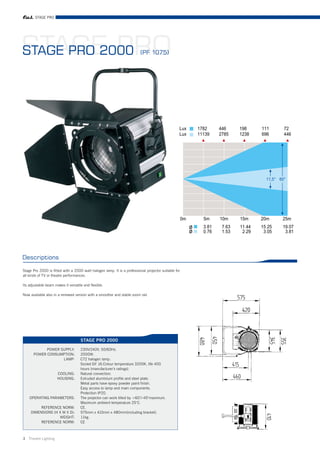

8. STAGE PRO
STAGE PRO
STAGE PRO 2000 (PF 1075)
Descriptions
Stage Pro 2000 is fitted with a 2000 watt halogen lamp. It is a professional projector suitable for
all kinds of TV or theatre performances.
Its adjustable beam makes it versatile and flexible.
Now available also in a renewed version with a smoother and stable zoom rail.
STAGE PRO 2000
POWER SUPPLY: 230V/240V, 50/60Hz.
POWER CONSUMPTION: 2000W.
LAMP: C72 halogen lamp.
Socket GY 16.Colour temperature 3200K, life 400
hours (manufacturer’s ratings).
COOLING: Natural convection.
HOUSING: Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection IP20.
OPERATING PARAMETERS: The projector can work tilted by +60°/-45°maximum.
Maximum ambient temperature 25°C.
REFERENCE NORM: CE.
DIMENSIONS (H X W X D): 575mm x 410mm x 480mm(including bracket).
WEIGHT: 11kg.
REFERENCE NORM: CE
3 Theatre Lighting

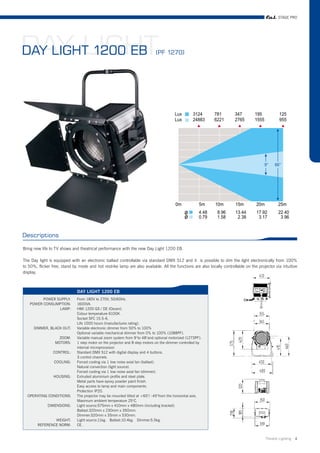

9. STAGE PRO
DAY LIGHT
DAY LIGHT 1200 EB (PF 1270)
Descriptions
Bring new life to TV shows and theatrical performance with the new Day Light 1200 EB.
The Day light is equipped with an electronic ballast controllable via standard DMX 512 and it is possible to dim the light electronically from 100%
to 50%, flicker free, stand by mode and hot restrike lamp are also available. All the functions are also locally controllable on the projector via intuitive
display.
DAY LIGHT 1200 EB
POWER SUPPLY: From 180V to 270V, 50/60Hz.
POWER CONSUMPTION: 1600VA.
LAMP: HMI 1200 GS / DE (Osram).
Colour temperature 6100K.
Socket SFC 15.5-6.
Life 1000 hours (manufactures rating).
DIMMER, BLACK OUT: Variable electronic dimmer from 50% to 100%
Optional variable mechanical dimmer from 0% to 100% (1088PF).
ZOOM: Variable manual zoom system from 9°to 48°and optional motorized (1273PF).
MOTORS: 1 step motor on the projector and 8 step motors on the dimmer controlled by
internal microprocessor.
CONTROL: Standard DMX 512 with digital display and 4 buttons.
3 control channels.
COOLING: Forced cooling via 1 low noise axial fan (ballast).
Natural convection (light source).
Forced cooling via 1 low noise axial fan (dimmer).
HOUSING: Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection IP20.
OPERATING CONDITIONS: The projector may be mounted titled at +60°/ -45°from the horizontal axis.
Maximum ambient temperature 25°C.
DIMENSIONS: Light source:575mm x 410mm x 480mm (including bracket).
Ballast:320mm x 230mm x 350mm.
Dimmer:320mm x 35mm x 530mm.
WEIGHT: Light source:11kg. Ballast:10.4kg. Dimmer:5.5kg.
REFERENCE NORM: CE.
Theatre Lighting 4

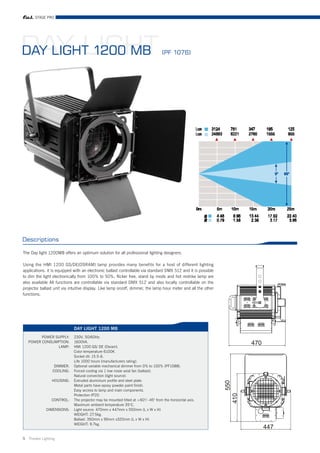

10. STAGE PRO
DAY LIGHT
DAY LIGHT 1200 MB (PF 1076)
Descriptions
The Day light 1200MB offers an optimum solution for all professional lighting designers.
Using the HMI 1200 GS/DE(OSRAM) lamp provides many benefits for a host of different lighting
applications. it is equipped with an electronic ballast controllable via standard DMX 512 and it is possible
to dim the light electronically from 100% to 50%, flicker free, stand by mode and hot restrike lamp are
also available All functions are controllable via standard DMX 512 and also locally controllable on the
projector ballast unit via intuitive display. Like lamp on/off, dimmer, the lamp hour meter and all the other
functions.
DAY LIGHT 1200 MB
POWER SUPPLY: 230V, 50/60Hz.
POWER CONSUMPTION: 1600VA.
LAMP: HMI 1200 GS/ DE (Osram).
Color temperature 6100K.
Socket sfc 15.5-6.
Life 1000 hours (manufacturers rating).
DIMMER: Optional variable mechanical dimmer from 0% to 100% (PF1088).
COOLING: Forced cooling via 1 low nosie axial fan (ballast).
Natural convection (light source).
HOUSING: Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection IP20.
CONTROL: The projector may be mounted titled at +60°/ -45° from the horizontal axis.
Maximum ambient temperature 35°C.
DIMENSIONS: Light source: 470mm x 447mm x 550mm (L x W x H)
WEIGHT: 27.5kg.
Ballast: 350mm x 95mm x320mm (L x W x H)
WEIGHT: 9.7kg.
5 Theatre Lighting

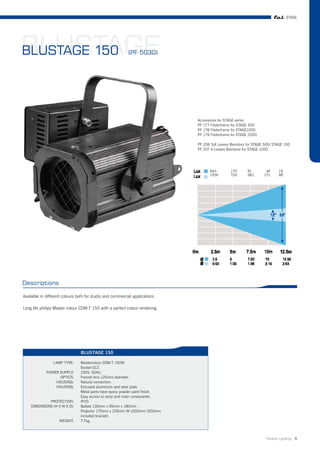

11. STAGE
BLUSTAGE
BLUSTAGE 150 (PF 5030)
Accessories for STAGE series
PF 177 Fileterframe for STAGE 500
PF 178 Fileterframe for STAGE1000
PF 179 Fileterframe for STAGE 2000
PF 206 3/4 Leaves Barndoor for STAGE 500/ STAGE 150
PF 207 4 Leaves Barndoor for STAGE 1000
Descriptions
Available in different colours both for studio and commercial applications.
Long life philips Master colour CDM-T 150 with a perfect colour rendering.
BLUSTAGE 150
LAMP TYPE: Mastercolour CDM-T 150W.
Socket G12.
POWER SUPPLY: 230V, 50Hz.
OPTICS: Fresnel lens 120mm diameter.
HOUSING: Natural convection.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
PROTECTION: IP20.
DIMENSIONS (H X W X D): Ballast 130mm x 95mm x 180mm .
Projector 170mm x 235mm W x300mm (300mm
included bracket).
WEIGHT: 7.7kg.
Theatre Lighting 6

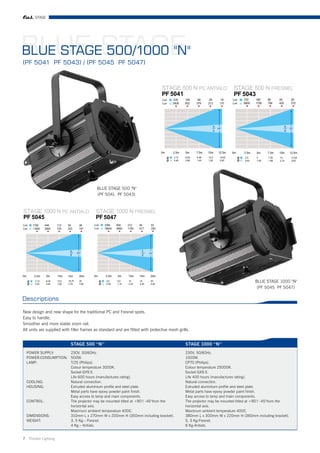

12. STAGE
BLUE STAGE
BLUE STAGE 500/1000 "N"
(PF 5041 PF 5043) / (PF 5045 PF 5047)
BLUE STAGE 500 "N"
(PF 5041 PF 5043)
BLUE STAGE 1000 "N"
(PF 5045 PF 5047)
Descriptions
New design and new shape for the traditional PC and Fresnel spots.
Easy to handle.
Smoother and more stable zoom rail.
All units are supplied with filter frames as standard and are fitted with protective mesh grills.
STAGE 500 “N” STAGE 1000 “N”
POWER SUPPLY: 230V, 50/60Hz. 230V, 50/60Hz.
POWER:CONSUMPTION: 500W. 1000W.
LAMP: T/25 (Philips). CP70 (Philips).
Colour temperature 3000K. Colour temperature 25000K.
Socket GY9.5. Socket GX9.5.
Life 600 hours (manufactures rating). Life 400 hours (manufactures rating).
COOLING: Natural convection. Natural convection.
HOUSING: Extruded aluminium profile and steel plate. Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +90°/ -45°from the The projector may be mounted titled at +90°/ -45°from the
horizontal axis. horizontal axis.
Maximum ambient temperature 40OC. Maximum ambient temperature 40OC.
DIMENSIONS: 310mm L x 270mm W x 200mm H (350mm including bracket). 380mm L x 300mm W x 220mm H (360mm including bracket).
WEIGHT: 3, 5 Kg – Fresnel. 5, 3 Kg-Fresnel.
4 Kg – Antialo. 6 Kg-Antialo.
7 Theatre Lighting

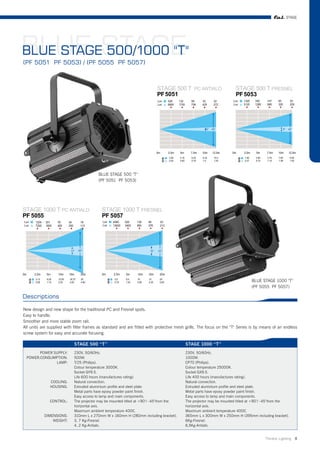

13. STAGE
BLUE STAGE
BLUE STAGE 500/1000 "T"
(PF 5051 PF 5053) / (PF 5055 PF 5057)
BLUE STAGE 500 "T"
(PF 5051 PF 5053)
BLUE STAGE 1000 "T"
(PF 5055 PF 5057)
Descriptions
New design and new shape for the traditional PC and Fresnel spots.
Easy to handle.
Smoother and more stable zoom rail.
All units are supplied with filter frames as standard and are fitted with protective mesh grills. The focus on the "T" Series is by means of an endless
screw system for easy and accurate focusing.
STAGE 500 “T” STAGE 1000 “T”
POWER SUPPLY: 230V, 50/60Hz. 230V, 50/60Hz.
POWER:CONSUMPTION: 500W. 1000W.
LAMP: T/25 (Philips). CP70 (Philips).
Colour temperature 3000K. Colour temperature 25000K.
Socket GY9.5. Socket GX9.5.
Life 600 hours (manufactures rating). Life 400 hours (manufactures rating).
COOLING: Natural convection. Natural convection.
HOUSING: Extruded aluminium profile and steel plate. Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +90°/ -45°from the The projector may be mounted titled at +90°/ -45°from the
horizontal axis. horizontal axis.
Maximum ambient temperature 40OC. Maximum ambient temperature 40OC.
DIMENSIONS: 310mm L x 270mm W x 160mm H (280mm including bracket). 365mm L x 300mm W x 250mm H (395mm including bracket).
WEIGHT: 3, 7 Kg-Fresnel. 6Kg-Fresnel.
4, 2 Kg-Antialo. 6,5Kg-Antialo.
Theatre Lighting 8

14. STAGE
BLUSTAGE PRO
BLUSTAGE 500/1000 PRO (PF 5056 / PF5058)
BLUSTAGE 500 PRO BLUSTAGE 1000 PRO
PF 5056 PF5058
Descriptions
FAL launches its new premium range of spots that present unparallel features and uncompromised design. These are to be sold in addition to the
existing theatre range and offer an alternative for the most demanding lighting designers and lighting specifies.
This new line has been conceived with the professionals in mind and the products are rock-solid and to withstand the most sturdy and challenging
working and environments and conditions in theaters and TV studios.
The Bluestage Pro Series is available for both 500W (Bluestage Pro 500) or 1000W (Bluestage Pro 1000) halogen lamps.
BLUSTAGE 500 PRO BLUSTAGE 1000 PRO
POWER SUPPLY: 230V, 50/60Hz. 230V, 50/60Hz.
POWER CONSUMPTION: 500W. 1000W.
LAMP: CP70 (Philips). CP70 (Philips).
Colour temperature 25000K. Colour temperature 25000K.
Socket GX9.5. Socket GX9.5.
Life 4000 hours (manufactures rating). Life 4000 hours (manufactures rating).
COOLING: Natural convection. Natural convection.
HOUSING: Extruded aluminium profile and steel plate. Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +60°/ -45°from the The projector may be mounted titled at +60°/ -45°from the
horizontal axis. horizontal axis.
Maximum ambient temperature 35OC. Maximum ambient temperature 35OC.
DIMENSIONS(H X W X D): 385mm x 349mm x 403mm . 385mm x 349mm x 403mm .
WEIGHT: 5.6kg. 5.6kg.
9 Theatre Lighting

15. SCENE
SCENE
SCENE 500 ASIM/SIM
SCENE 1000 ASIM/SIM
(PF 6305 / PF 6306)
(PF 6307 / PF 6308)
SCENE 500 ASIM/SIM
(PF 6305 / PF 6306)
SCENE 1000 ASIM/SIM with PF 1645
(PF 6307 / PF 6308)
SCENE 500 ASIM/SIM SCENE 1000 ASIM/SIM
POWER SUPPLY: Fixture voltage dependent on lamp type/voltage selected.
POWER SUPPLY: Fixture voltage dependent on lamp LAMP: P2/7 or K4 1000W halogen.
type/voltage selected. Socket R7s.
LAMP: K 1 500W halogen. COLORS: Filter frame for easy filter change.
Socket R7s. IP PROTECTION: IP 20.
COLORS: Filter frame for easy filter change. REFERENCE NORM: CE.
DIMENSIONS (H X W X D): 250mm x 190mm x 300mm (300 NOTES: Scene order codes:
mm included bracket). 6307PF Scene Pro 1000 asymmetrical
WEIGHT: 3.7kg. 6308PF Scene Pro 1000 symmetrical
DIMENSIONS ( H X W X D): 250mm x 190mm x 370mm (300mm included bracket).
WEIGHT: 4kg.
Theatre Lighting 10

16. Profile Spot
SHAPEBLUE LINE
SHAPE 600 / 600 (PF 1259)
Descriptions
The shape 600 came with a 20-40 degree optics with 575 HPL or 600W GKV halogen lamp. It has been conceived with the professionals in mind
and the products are rock-solid and to withstand the most sturdy and challenging working and environments and conditions in theaters and TV studios.
Be sold in addition to the existing theater range and offer an alternative for the most demanding lighting designers and lighting specifies.
SHAPE 600 / BLUE LINE
POWER SUPPLY: Fixture voltage dependent on lamp type/voltage selected.
POWER CONSUMPTION: 600VA at 230V.
LAMP: 575 HPL or 600W GKV halogen lamp.
Colour Temperature 3200K.
Socket G 9.5, life 300 hours (manufacturer ratings).
OPTICS: High efficiency reflector in quartz coated aluminium.
Plano convex lenses 100mm diameter.
Typical throw distance from 2.5m to 10m.
DIVERGENCE: Adjustable from 20° to 40°.
COLOURS: Filter frame with spring clips for easy filter change.
BEAM SHAPERS: Steel shutter blades included.
IRIS: Optional interchangeable iris (code 837PF).
GOBO HOLDER: Optional adjustable gobo holder for 66mm diameter M-size gobo (code 819PF).
COOLING: Construction assisted convection cooling.
Maximum ambient temperature 25°C.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
PROTECTION: IP20.
OPERATING CONDITIONS: Projector may be tilted +/- 45° from the horizontal.
DIMENSIONS: 680mm L x 240mm W x 200mm H (350mm included bracket).
WEIGHT: 9.5kg.
REFERENCE NORM: CE
11 Theatre Lighting

17. Profile Spot
SHAPE 600
SHAPE 600 GKV (PF 1260)
Descriptions
The shape 600 GKV came with all aluminium chassis, a 20-40 degree optics with H575 HPL or 600W GKV halogen lamp. It has been conceived
with the professionals in mind and the products are rock-solid and to withstand the most sturdy and challenging working and environments and
conditions in theaters and TV studios. It be suitable for theater, company ceremonies. Concert tour and trade activity, TV programs ... etc.
SHAPE 600 GKV
POWER SUPPLY: Fixture voltage dependent on lamp type/voltage
selected.
POWER CONSUMPTION: 600VA at 230V.
LAMP: H575 HPL or 600W GKV halogen lamp.
Colour temperature 3200k.
Socket G9.5.
Life 300 hours (manufacturers rating).
ZOOM: Beam angle variable between 20° - 40°.
OPTICS: Filter frame with spring clips for easy filter change.
BEAM SHAPERS: Steel shutter blades included.
IRIS: Optional interchangeable iris.
GOBO HOLDER: Steel adjustable gobo holder for 54mm diameter
M-size gobo.
COOLING: Construction assisted convection cooling.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
PROTECTION: IP20.
OPERATING CONDITIONS: Projector may be tilted +/-45° from the horizontal.
Maximum ambient temperature 35°C.
DIMENSIONS: 649mm L x 260mm W x 209mm H.
WEIGHT: 5.3kg.
Theatre Lighting 12

18. Profile Spot
SHAPE PRO
SHAPE PRO 1000 11O - 27O (PF 1252)
SHAPE PRO 1000 20O - 40O (PF 1257)
SHAPE PRO 2000 11O - 27O (PF 1262)
Profile 1000 11° - 27°
PF 1252
Profile 2000 11° - 27°
PF 1262
Profile 1000 20° - 40°
PF 1257
Descriptions
FAL launches its new premium range of profilers that present unparallel features and uncompromised design. These are to be sold in addition to the
existing theatre range and offer an alternative for the most demanding lighting designers and lighting specifies.
This new line has been conceived with the professionals in mind and the products are rock-solid and to withstand the most sturdy and challenging
working and environments and conditions in theaters and TV studios.
The Shape Pro Series come with 20-40 degree optics (Shape Pro 20-40) or with a narrower 11-27 beam angle range (Shape Pro 11-27) both with
Halogen 1000W Lamp.
The third unit in the series is the Shape Pro 2000 with narrow 11-27 optics and 2000W halogen lamp.
13 Theatre Lighting

19. Profile 1000 11° - 27° PF 1252
Profile 1000 20° - 40° PF 1257
Profile 2000 11° - 27° PF 1262
Profile 1000 11° - 27° Profile 1000 20° - 40° Profile 2000 11° - 27°
POWER SUPPLY: 230V, 50/60Hz. 230V, 50/60Hz. 230V, 50Hz (240V or 60Hz to order).
LAMP: CP70 1000W. CP70 1000W. CP72 2000W.
Socket GX 9.5. Socket GX 9.5. Socket GY16.
Life 400 hours (manufacturers rating). Life 400 hours (manufacturers rating). Life 400 hours (manufacturers rating).
OPTICS: High efficiency reflector coated aluminium. High efficiency reflector coated aluminium. High efficiency reflector coated aluminium.
Plano-convex zoom lenses. Plano-convex zoom lenses. Plano-convex zoom lenses.
Typical throw distance from 5 to 25m. Typical throw distance from 5 to 25m. Typical throw distance from 5 to 25m.
ZOOM: Beam angle variable between 11° - 27°. Beam angle variable between 20° - 40°. Beam angle variable between 9° - 28°.
BEAM SHAPERS: Steel shutter blades. Steel shutter blades. Steel shutter blades.
IRIS: Diaphragm diam. Diaphragm diam. Iris included as standard.
55m to order. 55m to order. In the same position it is possible to mount the
optional gobo holder which accepts standard M
size gobos.
COOLING: Construction assisted convection cooling. Construction assisted convection cooling. Forced cooling via axial and turbine fans.
HOUSING: Extruded aluminium profile. Extruded aluminium profile. Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +80° / The projector may be mounted titled at +80° / The projector may be mounted titled at +80° /
-45° from the horizontal axis. -45°from the horizontal axis. -45°from the horizontal axis.
Maximum ambient temperature 35°C. Maximum ambient temperature 35°C. Maximum ambient temperature 35°C.
DIMMENSIONS: 244mm x 442mm x 703mm 247mm x 442mm x 913mm 247mmx 475mm x 1038mm
(H x W x D) (541mm including bracket). (541mm including bracket). (541mm including bracket.)
WEIGHT: 12.5kg. 13.5kg. 15kg.
Theatre Lighting 14

20. Profile Spot
PROFILE
PROFILE 650W/1000W (PF 1245 / PF 1230)
PROFILE 650W PF 1245
PROFILE 1000W PF1230
Descriptions
FAL launches its new premium range of profilers that present unparallel features and uncompromised design. These are to be sold in addition to the existing theature range
and offer an alternative for the most demanding lighting designers and lighting specifies.
This new line has been conceived with the professionals in mind ad the products are rock-solid and to withstand the most sturdy and challenging working and environments
and conditions in theatres and TV studios.
15 Theatre Lighting

21. PROFILE 650W PF 1245
PROFILE 1000W PF1230
PROFILE 650W PROFILE 1000W
POWER SUPPLY: 230V,50 / 60Hz. 230V, 50 / 60Hz.
LAMP: T27 650W. CP70 1000W.
Socket GY 9.5. Socket Gx 9. 5.
Life 900 hours (manufacturers rating). Life 400 hours (manufacturers rating).
OPTICS: High efficiency reflector aluminium. High efficiency aluminium reflector .
Plano convex zoom lenses Plano convex zoom lenses
Typical throw distance form 2.5 to 10m. Typical throw distance form 2.5 to 10m.
ZOOM: Beam angle evadable between 20° and 40°. Beam angle variable between 20° and 40°.
BEAM SHAPERS: Steel shutter blades. Steel shutter blades.
IRIS: Optional diaphragm diam. Optional diaphragm diam.
54m to order. 55m to order.
COLOR FRAME: With spring clip for easy filter change. With spring clip for easy filter change.
COOLING: Construction assisted convection cooling. Construction assisted convection cooling.
HOUSING: Extruded aluminium profile. Extruded aluminium profile.
Metal parts have epoxy powder paint finish. Metal parts have epoxy powder paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +90° / -45° from The projector may be mounted titled at +50° / -45° from the
the horizontal axis. horizontal axis.
Maximum ambient temperature 35OC. Maximum ambient temperature 35OC.
DIMENSIONS (H X W X D): 308mm x 326mm x 555mm . 349mm x 345mm x 560mm .
WEIGHT: 9.8 kg. 8.8 kg.
Theatre Lighting 16

22. Follow Spot
OPERA
OPERA MCC 1200 EB
WITH PROFILE SYSTEM (PF 1164)
Descriptions
OPERA MCC EB should be fixed on an appropriate stand which will remain stable on an incline of up to 15°using the bracket. Using the HMI 1200 GS/
DE(OSRAM) lamp provides many benefits for a host of different lighting applications. it is equipped with an electronic ballast controllable via standard
DMX 512, it is possible to dim the variable from 0% to 100%, beam angle from 7° to 12°, and also very suitable for discotheque application, during live
shows, concert ... etc.
OPERA MCC 1200 EB WITH PROFILE SYSTEM
POWER SUPPLY: 180V to 265V 50-60Hz.
POWER CONSUMPTION: 1900VA at 230V.
575
470
LAMP: HMI 1200/GS (Osram).
Colour temperature 6000K.
Socket SFc 15.5-6 life 750 hours (manufacturer ratings).
COLOUR CHANGER: Front mounting colour changer with 5 positions for 200mm
dichroic or gel filters.
ZOOM: Manually adjustable beam angle from 7° to 12°.
DIMMER/BLACKOUT: Variable dimmer from 0% to 100%. 408
BEAM SHAPERS: Steel shutter blades.
IRIS: Iris included as standard. In the same position it is possible to 453
mount the optional gobo holder (PF 815) which accepts standard
M size gobos (external 66mm image 50mm).
VENTILATION: Forced cooling via 2 axial fans.
HOUSING: Extruded aluminium and steel plate body with epoxy paint finish.
Easy access to lamp and internal parts of the projector.
Protection IP20.
OPERATING CONDITIONS: The projector may be used at +/- 16° from the horizontal axis.
Auto-compensating yoke facilitates smooth movement.
Maximum ambient temperature 25°C.
DIMENSIONS: 1109mm L x 453mm W x 575mm H (including bracket).
WEIGHT: Weight 36kg projector.
3.8kg colour changer.
REFERENCE NORM: CE
1109
17 Theatre Lighting

23. Follow Spot
OPERA
OPERA MCC 1200 MAGNETIC
BALLAST WITH PROFILE SYSTEM (PF 1162)
Descriptions
OPERA MCC should be fixed on an appropriate stand which will remain stable on an incline of up to 15°using the bracket. Using the HMI 1200 GS
(OSRAM) lamp provides many benefits for a host of different lighting applications. it is equipped with an electronic ballast controllable via standard DMX
512, it is possible to dim the variable from 0% to 100%, beam angle from 7° to 11.5°, and also very suitable for discotheque application, during live
shows, concert ... etc.
OPERA MCC 1200 MAGNETIC BALLAST
WITH PROFILE SYSTEM
POWER SUPPLY: 230V 50Hz (240V or 60Hz to order).
POWER CONSUMPTION: 1900 VA at 230V. 575
470
LAMP: HMI 1200/GS (OSRAM).
Colour temperature 6000 K.
Socket SFc 15,5-6.
Life 750 hours (manufacturers rating).
COLOUR CHANGER: Front mounting colour changer with 5 positions for 200mm
dichroic or gel filters.
ZOOM: Beam angle variable between 7°-11.5°. 408
DIMMER, BLACK-OUT: Variable dimmer from 0% to 100%. 453
IRIS: Iris included as standard. In the same position it is possible
to mount the optional gobo holder (PF 815) which accepts
standard M size gobos (external 66mm image 50mm).
VENTILATION: Forced cooling via 2 axial fans.
HOUSING: Extruded aluminium and steel plate with epoxy paint finish.
Easy access for cleaning internal projector parts.
Protection rating IP 20.
OPERATING POSITION: The projector may be used at +/- 16° from the horizontal.
Auto-compensating yoke facilitates smooth movement.
Maximum ambient temperature for operation 25° C.
REFERENCE NORM: CE
WEIGHT: Projector 28.5kg.
Power Supply Unit/Ballast 17kg.
Colour Changer 3.8kg. 1109
Theatre Lighting 18

24. Follow Spot
OPERA
OPERA MMD 2500
WITH PROFILE SYSTEM (PF 1182)
Descriptions
OPERA MMD should be fixed on an appropriate stand which will remain stable on an incline of up to 15°using the bracket. Using the HMI 2500/
DE(OSRAM) or MSR 2500W/HR(PHILIPS)lamp provides many benefits for a host of different lighting applications. it is equipped with an electronic
ballast controllable via standard DMX 512, it is possible to dim the variable from 0% to 100%, beam angle from 5° to 9°, and also very suitable for
discotheque application, during live shows, concert ... etc.
OPERA MMD 2500 WITH PROFILE SYSTEM
POWER SUPPLY: 230V 50Hz (240V and/or 60Hz to order).
POWER CONSUMPTION: 3500VA at 230V (including internal power factor correction).
LAMP: HMI 2500/DE (Osram) or MSR 2500W/HR (Philips).
COLOUR CHANGER: Colour temperature 6000K for HMI, 5600K for MSR.
Socket G 38 Lamp life 500 hours (manufacturers rating).
Easy lamp adjustment via external screws.
Front mounting colour changer with 5 positions for 200mm
dichroic or gel filters.
ZOOM: Beam angle variable between 5° - 9°
DIMMER ,BLACK-OUT: Variable dimmer from 0% to 100%
IRIS: Iris included as standard. In the same position it is possible
to mount the optional gobo holder (PF 815) which accepts
standard M size gobos (external 66mm image 50mm).
VENTILATION: Forced cooling via axial and turbine fans.
HOUSING: Extruded aluminium and steel plate with epoxy paint finish.
Easy access for cleaning internal projector parts.
Protection rating IP 20.
OPERATING POSITION: The projector may be used at +/- 16° from the horizontal.
Auto-compensating yoke facilitates smooth movement.
Maximum ambient temperature for operation 35° C.
WEIGHT: Projector 45kg.
Ballast / Power supply unit 30kg.
Colour changer 3,8kg.
REFERENCE NORM: CE
19 Theatre Lighting

25. Follow Spot
OPERAMK2

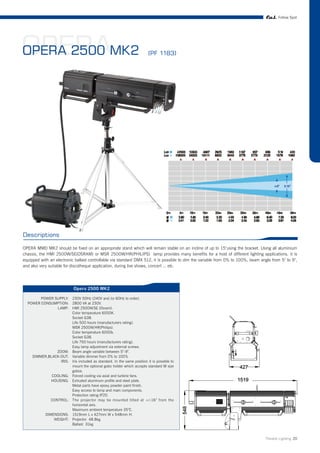

OPERA 2500 (PF 1183)
Descriptions
OPERA MMD MK2 should be fixed on an appropriate stand which will remain stable on an incline of up to 15°using the bracket. Using all aluminium
chassis, the HMI 2500W/SE(OSRAM) or MSR 2500W/HR(PHILIPS) lamp provides many benefits for a host of different lighting applications. it is
equipped with an electronic ballast controllable via standard DMX 512, it is possible to dim the variable from 0% to 100%, beam angle from 5° to 9°,
and also very suitable for discotheque application, during live shows, concert ... etc.
Opera 2500 MK2
POWER SUPPLY: 230V 50Hz (240V and /or 60Hz to order).
POWER CONSUMPTION: 2800 VA at 230V.
LAMP: HMI 2500W/SE (Osram).
Color temperature 6000K.
Socket G38.
Life 500 hours (manufacturers rating).
MSR 2500W/HR(Philips).
Color temperature 6000k.
Socket G38.
Life 750 hours (manufacturers rating).
Easy lamp adjustment via external screws.
ZOOM: Beam angle variable between 5o-9o.
DIMMER,BLACK-OUT: Variable dimmer from 0% to 100%
IRIS: Iris included as standard. In the same position it is possible to
mount the optional gobo holder which accepts standard M size
gobos.
COOLING: Forced cooling via axial and turbine fans.
HOUSING: Extruded aluminum profile and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection rating IP20.
CONTROL: The projector may be mounted titled at +/-16 o from the
horizontal axis.
Maximum ambient temperature 35oC.
DIMENSIONS: 1519mm L x 427mm W x 548mm H.
WEIGHT: Projector 48.8kg
Ballast 31kg
Theatre Lighting 20

26. Follow Spot
OPERAMK2
OPERA 1200 (PF 1163)
Descriptions
OPERA MMC-CB MK2 should be fixed on an appropriate stand which will remain stable on an incline of up to 15°using the bracket. Using all
aluminium chassis, the HMI 1200/GS(OSRAM) or MSR 1200 (PHILIPS) lamp provides many benefits for a host of different lighting applications. it is
equipped with an electronic ballast controllable via standard DMX 512, it is possible to dim the variable from 0% to 100%, beam angle from 5° to 12°,
and also very suitable for discotheque application, during live shows, concert ... etc.
Opera 1200 MK2
POWER SUPPLY: 230V 50Hz (240V and / or 60Hz to order).
POWER CONSUMPTION: 1600 VA at 230 V.
LAMP: HMI1200/ GS (Osram).
Color temperature 6000K
Socket SFc15. 5-6
Life 750 hours (manufacturers rating).
MSI1200 (Philips)
Color temperature 6000K.
Socket SFc15. 5-6.
Life 1000 hours (manufacturers rating).
ZOOM: Beam angle variable between 5o-12o.
DIMMER,BLACK-OUT: Variable dimmer from 0% to 100%.
IRIS: Iris included as standard. In the same position it is
possible to mount the optional gobo holder which accepts
standard M size gobos.
COOLING: Forced cooling via 2 axial fans.
HOUSING: Extruded aluminium profile and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main componerts.
CONTROL: The projector may be mounted titled at +/16 o from the
horizontal axis.
Maximum ambient temperature 35°C.
DIMENSIONS: 1172mm L x 406mm W x 495 mm H.
WEIGHT: Projector 52.8kg.
Ballast: 35kg.
21 Theatre Lighting

27. Follow Spot
OPERA MK2
OPERA 1200EB (PF 1165)
Descriptions
OPERA MCC-EB MK2 should be fixed on an appropriate stand which will remain stable on an incline of up to 15° using the bracket. Using all
aluminium chassis, the HMI 1200/GS(OSRAM) or MSI 1200 (PHILIPS) lamp provides many benefits for a host of different lighting applications. it is
equipped with an electronic ballast controllable via standard DMX 512, it is possible to dim the variable from 0% to 100%, beam angle from 7° to 12°,
and also very suitable for discotheque application, during live shows, concert ... etc.
Opera 1200EB MK2
POWER SUPPLY: 180V-265V 50/60Hz.
POWER CONSUMPTION: 1600 VA at 230V.
LAMP: HMI 1200/GS (Osram).
Colour temperature 6000K.
Socket SFc 5-6.
Life 750 hours (manufacturers rating).
MSI1200 (Philips).
Color temperature 6000K.
Socket SFc15. 5-6.
Life 1000 hours (manufacturers rating).
ZOOM: Beam angle variable between 7o-12o.
BEAM SHAPERS: Steel shutter blades.
DIMMER,BLACK-OUT: Variable dimmer from 0% to 100%.
IRIS: Iris included as standard. In the same position it is possible to
mount the optional gobo holder which accepts standard M size
gobos.
COOLING: Forced cooling via axial and turbine fans.
HOUSING: Extruded aluminium profile and steel plate body with epoxy
finish.
Easy access to lamp and main components.
CONTROL: The projector may be mounted titled at +/-16 o from the
horizontal axis.
Maximum ambient temperature 35°C.
DIMENSIONS: 1172mm L x 406mm W x 495mm H.
WEIGHT: 39.8kg.
Theatre Lighting 22

28. Follow Spot
VOYAGER
VOYAGER 1200 / 1200EB (PF 1225 / PF 1226)
VOYAGER 1200
VOYAGER 1200 EB
Descriptions
Starlight and Voyager are the ultimate combination of professional followspots and long-throw colour Changer. Although the units were mainly designed as theatre projectors,
they are also very suitable for discotheque application, during live shows, tec.
Both units have a very innovative design and perfectly balanced bodies. The dedicated DMX compatible central control systems located on the rear of the projector allow
easy and immediate use of the main features of the units. Furthermore the Voyager control panel is detachable to provide convenient access whatever the operating position
of the projector. With Electronic ballast to order. Differences in specification are indicated in technical data.
23 Theatre Lighting

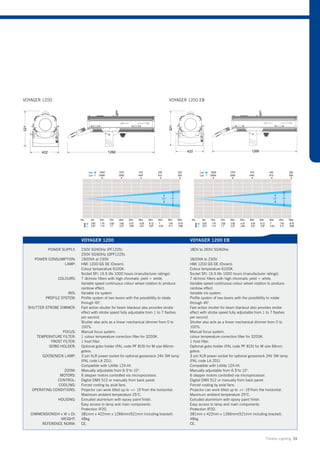

29. VOYAGER 1200 VOYAGER 1200 EB
VOYAGER 1200 VOYAGER 1200 EB
POWER SUPPLY: 230V 50/60Hz (PF1225). 180V to 265V 50/60Hz.
200V 50/60Hz (DPF1225).
POWER CONSUMPTION: 1900VA at 230V. 1600VA to 230V.
LAMP: HMI 1200 GS DE (Osram). HMI 1200 GS DE (Osram).
Colour temperature 6100K. Colour temperature 6100K.
Socket SFc 15.5 life 1000 hours (manufacturer ratings). Socket SFc 15.5 life 1000 hours (manufacturer ratings).
COLOURS: 7 dichroic filters with high chromatic yield + white. 7 dichroic filters with high chromatic yield + white.
Variable speed continuous colour wheel rotation to produce Variable speed continuous colour wheel rotation to produce
rainbow effect. rainbow effect.
IRIS: Variable iris system. Variable iris system.
PROFILE SYSTEM: Profile system of two levers with the possiblility to rotate Profile system of two levers with the possiblility to rotate
through 45°. through 45°.
SHUTTER STROBE DIMMER: Fast action shutter for beam blackout also provides strobe Fast action shutter for beam blackout also provides strobe
effect with strobe speed fully adjustable from 1 to 7 flashes effect with strobe speed fully adjustable from 1 to 7 flashes
per second. per second.
Shutter also acts as a linear mechanical dimmer from 0 to Shutter also acts as a linear mechanical dimmer from 0 to
100%. 100%.
FOCUS: Manual focus system. Manual focus system.
TEMPERATURE FILTER: 1 colour temperature correction filter for 3200K. colour temperature correction filter for 3200K.
FROST FILTER: 1 frost filter. 1 frost filter.
GOBO HOLDER: Optional gobo holder (FAL code PF 815) for M size 66mm Optional gobo holder (FAL code PF 815) for M size 66mm
gobos. gobos.
GOOSENECK LAMP: 3 pin XLR power socket for optional gooseneck 24V 3W lamp 3 pin XLR power socket for optional gooseneck 24V 3W lamp
(FAL code LA 201). (FAL code LA 201).
Compatible with Littlite 12X-HI. Compatible with Littlite 12X-HI.
ZOOM: Manually adjustable from 6.5°to 10°. Manually adjustable from 6.5°to 10°.
MOTORS: 6 stepper motors controlled via microprocessor. 6 stepper motors controlled via microprocessor.
CONTROL: Digital DMX 512 or manually from back panel. Digital DMX 512 or manually from back panel.
COOLING: Forced cooling by axial fans. Forced cooling by axial fans.
OPERATING CONDITIONS: Projector can work tilted up to +/- 15°from the horizontal. Projector can work tilted up to +/- 15°from the horizontal.
Maximum ambient temperature 25°C. Maximum ambient temperature 25°C.
HOUSING: Extruded aluminium with epoxy paint finish. Extruded aluminium with epoxy paint finish.
Easy access to lamp and main components. Easy access to lamp and main components.
Protection IP20. Protection IP20.
DIMMENSIONS(H x W x D): 381mm x 422mm x 1266mm(521mm including bracket). 381mm x 422mm x 1266mm(521mm including bracket).
WEIGHT: 48kg 48kg
REFERENCE NORM: CE. CE.
Theatre Lighting 24

30. Follow Spot
SPARK LINE)
SPARK 250 (BLUE (PF 1307)
Descriptions
FAL launches its new high-end prefocus lamp series called SPARK. The SPARK 250 position itself on the top of the range and presents a superb
collection of attractive and unparallel features. The new project use a HSD 250 or MSD250(PHILIPS) fast fit lamp. Has a optional colour changer for
5 dichroic filters. The light beam can be adjusted from 16°to 25°, it may be tilted +55°/-44° from the horizontal. THE SPARK 250 boasts a full set of
features to make it suitable for a wide range of entertainment applications.
SPARK 250
POWER SUPPLY: 230V 50Hz (60Hz to order).
POWERCONSUMPTION: 600VA at 230V.
LAMP: HSD 250 or MSD 250 discharge lamp.
Colour Temperature 5600K.
Socket GY 9.5, life 2000 hours (manufacturer ratings).
DIVERGENCE: 16° to 25°.
SHUTTER: Blackout shutter provided.
IRIS: Interchangeable iris included.
DIMMER: Optional dimmer unit (code 1308PF).
COLOURS: Optional colour changer for 5 dichroic filters or gel (code 1307CC).
GOBO HOLDER: Optional gobo holder for 66mm diameter M-size gobo (code 819PF).
COOLING: Forced cooling via low noise axial fan.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection: IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/ -40° from the horizontal.
Maximum ambient temperature 25°C.
DIMENSIONS: 850mm L x 290mm W x 300mm H (included bracket).
WEIGHT: 14.6kg.
REFERENCE NORM: CE
25 Theatre Lighting

31. Follow Spot
SPARK LINE)
SPARK 575 (BLUE (PF 1309)
Descriptions
FAL launches its new high-end prefocus lamp series called SPARK. The SPARK 575 position itself on the top of the range and presents a superb
collection of attractive and unparallel features. The new project use a HSR 575 or MSD575(PHILIPS) fast fit lamp. Has a optional colour changer for
5 dichroic filters. The light beam can be adjusted from 10° to 20°, it may be tilted +55°/-44°from the horizontal. THE SPARK 575 boasts a full set of
features to make it suitable for a wide range of entertainment applications.
SPARK 575
POWER SUPPLY: 230V 50Hz (60Hz to order).
POWERCONSUMPTION: 800VA at 230V.
LAMP: MSR 575, MSR 575/2, HSR 575/60, HSR 575/72, HSD 575, MSD 575 discharge lamp.
Colour Temperature 5600K.
Socket GX 9.5, life 2000 hours (manufacturer ratings).
DIVERGENCE: 10° to 20°.
SHUTTER: Blackout shutter provided.
IRIS: Interchangeable iris included.
DIMMER: Variable dimmer from 0% to 100%.
COLOURS: Optional colour changer for 5 dichroic filters or gel (code 1309CC).
GOBO HOLDER: Optional gobo holder for 66mm diameter M-size gobo (code 819PF).
COOLING: Forced cooling via low noise axial fan.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection: IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/ -40° from the horizontal.
Maximum ambient temperature 25°C.
DIMENSIONS: 910mm L x 340mm W x 320mm H (included bracket).
WEIGHT: 26kg.
REFERENCE NORM: CE
Theatre Lighting 26

32. Follow Spot
SPARK
SPARK 250 MK2 (PF 1308)
Descriptions
FAL launches its new high-end prefocus lamp series called SPARK. The SPARK 250 MK2 position itself on the top of the range and presents a superb
collection of attractive and unparallel features. The new project use all aluminium chassis, a HSD 250 or MSD250 fast fit lamp. Has a optional colour
changer for 5 dichroic filters. The light beam can be adjusted from 16° to 25°, it may be tilted +55°/-44°from the horizontal. THE SPARK 250 MK2
boasts a full set of features to make it suitable for a wide range of entertainment applications.
SPARK 250 MK2
POWER SUPPLY: 230V 50Hz (60 to order).
POWER CONSUMPTION: 400VA at 230V.
LAMP: HSD 250 or MSD 250 discharge lamp.
Colour Temperature 5600K.
Socket GY 9.5,life 2000 hours (manufacturer ratings)
ZOOM: Beam angle variable between 16° - 25°.
IRIS: Optional colour changer for 5 dichroic filters or gel.
DIMMER: Optional interchangeable iris.
HOUSING: Forced cooling via low noise axial fan,
Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection: IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/-40° from the horizontal.
DIMENSIONS: 861mm L x 283mm W x 305mm H.
WEIGHT: 12.2kg.
27 Theatre Lighting

33. Follow Spot
SPARK
SPARK 575 MK2 (PF 1310)
SPARK 575 MK2
Descriptions
FAL launches its new high-end prefocus lamp series called SPARK. The SPARK 575 MK2 position itself on the top of the range and presents a superb
collection of attractive and unparallel features. The new project use all aluminium chassis, a HSR 575 or MSD575(PHILIPS) fast fit lamp. Has a optional
colour changer for 5 dichroic filters. The light beam can be adjusted from 10° to 20°, it may be tilted +55°/-44°from the horizontal. THE SPARK 575
MK2 boasts a full set of features to make it suitable for a wide range of entertainment applications.
SPARK 575 MK2
POWER SUPPLY: 230V, 50Hz (60 to order).
POWER CONSUMPTION: 800VA at 230v.
LAMP: MSR 575, MSR 575/2, HSR 575/60, HSR 575/72, HSD 575,
MSD 575 discharge lamp.
Colour Temperature 5600k.
ZOOM: Socket GY 9.5, life 2000 hours (manufacturer ratings).
BLACKOUT: Beam angle variable between 10° - 20°.
COLOURS: Blackout shutter provided.
IRIS: Optional colour changer for 5 dichroic filters or gel.
DIMMER: Optional interchangeable iris.
COOLING: Variable dimmer from 0% to 100%
HOUSING: Forced cooling via low noise axial fan.
Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection:IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/-40° form the horizontal.
Maximum ambient temperature 35°C.
DIMENSIONS: 1088mm L x 365mm W x 310mm H.
WEIGHT: 17.8kg.
Theatre Lighting 28

34. Follow Spot
HALO(BLUE LINE)
HALO 600 (PF 1302)
Descriptions
HALO 600 offers technically advanced electronics, a sophisticated mechanism and an extremely compact body ,the new project use a HSD 250 or
MSD250 fast fit lamp. And can be adjusted from 16° to 25°, with be tilted +55°/-40° from the horizontal, HALO 600 is one of the smallest, most
professional profile of the highest quality available today on the world market.
HALO 600
POWER SUPPLY: 230V 50Hz (60Hz to order).
POWER CONSUMPTION: 600VA at 230V.
LAMP: 575 HPL or 600W GKV halogen lamp.
Colour Temperature 3200K.
Socket G 9.5, life 300 hours (manufacturer ratings).
DIVERGENCE: 16° to 25°.
SHUTTER: Blackout shutter provided.
IRIS: Interchangeable iris included.
DIMMER: Optional dimmer unit (code 1308PF).
Optional colour changer for 5 dichroic filters or gel (code 1307CC).
COLOURS: Optional gobo holder for 66mm diameter M-size gobo (code 819PF).
Forced cooling via low noise axial fan.
GOBO HOLDER: Extruded aluminium and steel plate.
COOLING: Metal parts have epoxy powder paint finish.
HOUSING: Easy access to lamp and main components.
Protection: IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/ -40° from the horizontal.
DIMENSIONS: 720mm L x 320mm W x 305mm H (included bracket).
WEIGHT: 13.3kg.
REFERENCE NORM: CE
29 Theatre Lighting

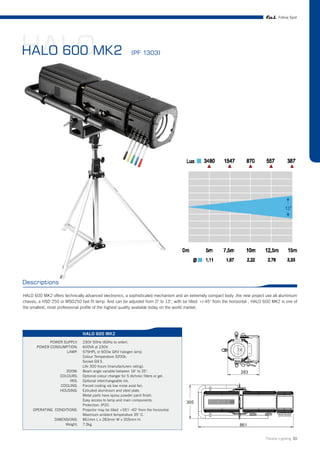

35. Follow Spot
HALOMK2
HALO 600 (PF 1303)
Descriptions
HALO 600 MK2 offers technically advanced electronics, a sophisticated mechanism and an extremely compact body ,the new project use all aluminium
chassis, a HSD 250 or MSD250 fast fit lamp. And can be adjusted from 0° to 13°, with be tilted +/-45° from the horizontal , HALO 600 MK2 is one of
the smallest, most professional profile of the highest quality available today on the world market.
HALO 600 MK2
POWER SUPPLY: 230V 50Hz (60Hz to order).
POWER CONSUMPTION: 600VA at 230V.
LAMP: 575HPL or 600w GKV halogen lamp.
Colour Temperature 3200k.
Socket G9.5.
Life 300 hours (manufacturers rating).
ZOOM: Beam angle variable between 16° to 25°.
COLOURS: Optional colour changer for 5 dichroic filters or gel.
IRIS: Optional interchangeable iris.
COOLING: Forced cooling via low noise axial fan.
HOUSING: Extruded aluminium and steel plate.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection: IP20.
OPERATING CONDITIONS: Projector may be tilted +55°/ -40° from the horizontal.
Maximum ambient temperature 35° C.
DIMENSIONS: 861mm L x 283mm W x 305mm H.
Weight: 7.3kg.
Theatre Lighting 30

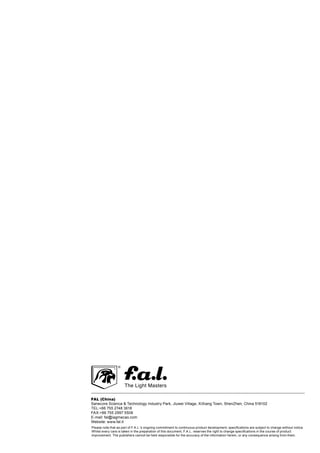

36. FAL (China)
Sanecore Science & Technology Industry Park, Jiuwei Village, XiXiang Town, ShenZhen, China 518102
TEL:+86 755 2748 3618
FAX:+86 755 2997 5508
E-mail: fal@iagmacao.com
Website: www.fal.it
Please note that as part of F.A.L.'s ongoing commitment to continuous product development, specifications are subject to change without notice.
Whilst every care is taken in the preparation of this document, F.A.L. reserves the right to change specifications in the course of product
improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them.
