1. Towards an industry-wide

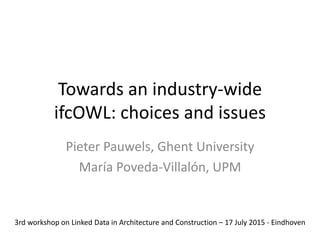

ifcOWL: choices and issues
Pieter Pauwels, Ghent University
María Poveda Villalón, UPM
3rd workshop on Linked Data in Architecture and Construction – 17 July 2015 - Eindhoven

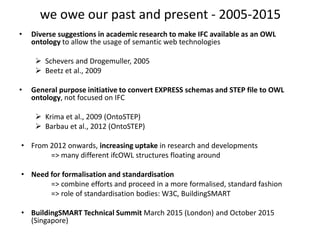

2. • Diverse suggestions in academic research to make IFC available as an OWL
ontology to allow the usage of semantic web technologies
 Schevers and Drogemuller, 2005
 Beetz et al., 2009
• General purpose initiative to convert EXPRESS schemas and STEP file to OWL
ontology, not focused on IFC
 Krima et al., 2009 (OntoSTEP)
 Barbau et al., 2012 (OntoSTEP)
• From 2012 onwards, increasing uptake in research and developments
=> many different ifcOWL structures floating around
• Need for formalisation and standardisation
=> combine efforts and proceed in a more formalised, standard fashion
=> role of standardisation bodies: W3C, BuildingSMART
• BuildingSMART Technical Summit March 2015 (London) and October 2015
(Singapore)
we owe our past and present - 2005-2015

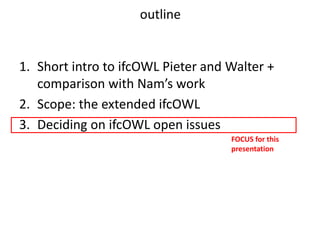

3. 1. Short intro to ifcOWL Pieter and Walter +
comparison with Nam’s work
2. Scope: the extended ifcOWL
3. Deciding on ifcOWL open issues
FOCUS for this
presentation
outline

4. SHORT INTRO TO IFCOWL (W&P)

5. Image courtesy: Nam Vu Hoang, Aalto University
conversion procedure / approach Nam

6. DOWNSTREAM
Image courtesy: Nam Vu Hoang, Aalto University
conversion procedure / approach Nam

7. DOWNSTREAM
EXTENDED IFCOWL
Image courtesy: Nam Vu Hoang, Aalto University
conversion procedure / approach Nam

8. DOWNSTREAM
EXTENDED IFCOWL
FILE-BASED CONVERSION RELYING
ON THE IFCOWL ONTOLOGY
Image courtesy: Nam Vu Hoang, Aalto University

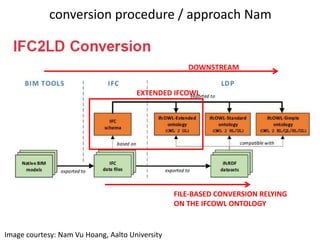

conversion procedure / approach Nam

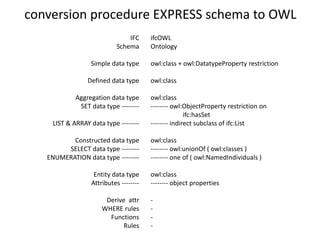

9. conversion procedure EXPRESS schema to OWL
IFC
Schema
Simple data type
Defined data type
Aggregation data type
SET data type --------
LIST & ARRAY data type --------
Constructed data type
SELECT data type --------
ENUMERATION data type --------
Entity data type
Attributes --------
Derive attr
WHERE rules
Functions
Rules
ifcOWL
Ontology
owl:class + owl:DatatypeProperty restriction
owl:class
owl:class
-------- owl:ObjectProperty restriction on
ifc:hasSet
-------- indirect subclass of ifc:List
owl:class
-------- owl:unionOf ( owl:classes )
-------- one of ( owl:NamedIndividuals )
owl:class
-------- object properties
-
-
-
-

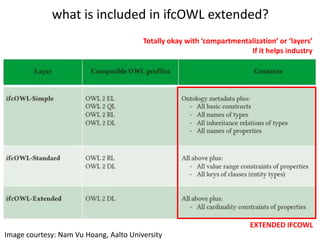

10. what is included in ifcOWL extended?
Image courtesy: Nam Vu Hoang, Aalto University
EXTENDED IFCOWL
Totally okay with ‘compartmentalization’ or ‘layers’
If it helps industry

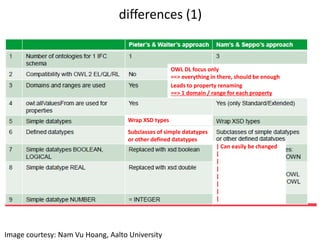

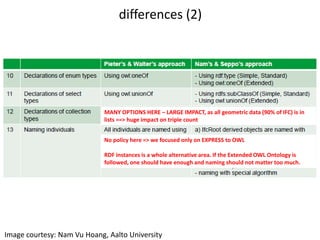

11. differences (1)
Image courtesy: Nam Vu Hoang, Aalto University

12. differences (2)
Image courtesy: Nam Vu Hoang, Aalto University
OWL DL focus only
==> everything in there, should be enough

13. differences (3)
Image courtesy: Nam Vu Hoang, Aalto University
Leads to property renaming
==> 1 domain / range for each property

14. differences (4)
Image courtesy: Nam Vu Hoang, Aalto University
Wrap XSD types

15. differences (5)
Image courtesy: Nam Vu Hoang, Aalto University
Subclasses of simple datatypes
or other defined datatypes

16. differences (6)
Image courtesy: Nam Vu Hoang, Aalto University
| Can easily be changed
|
|
|
|
|
|
|

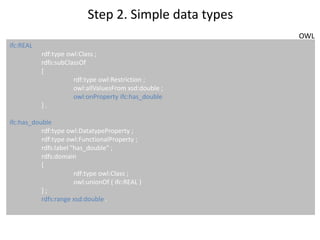

17. Step 2. Simple data types
ifc:REAL
rdf:type owl:Class ;
rdfs:subClassOf
[
rdf:type owl:Restriction ;
owl:allValuesFrom xsd:double ;
owl:onProperty ifc:has_double
] .
ifc:has_double
rdf:type owl:DatatypeProperty ;
rdf:type owl:FunctionalProperty ;
rdfs:label "has_double" ;
rdfs:domain
[
rdf:type owl:Class ;
owl:unionOf ( ifc:REAL )
] ;
rdfs:range xsd:double .
OWL

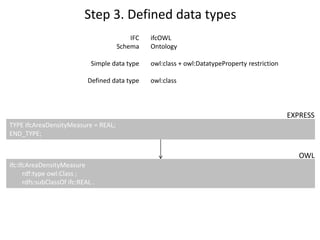

18. Step 3. Defined data types
IFC
Schema
Simple data type
Defined data type
ifcOWL
Ontology
owl:class + owl:DatatypeProperty restriction
owl:class
TYPE IfcAreaDensityMeasure = REAL;
END_TYPE;
ifc:IfcAreaDensityMeasure
rdf:type owl:Class ;
rdfs:subClassOf ifc:REAL .
EXPRESS
OWL

19. differences (6)
Image courtesy: Nam Vu Hoang, Aalto University

20. differences (7)
Image courtesy: Nam Vu Hoang, Aalto University
MANY OPTIONS HERE – LARGE IMPACT, as all geometric data (90% of IFC) is in
lists ==> huge impact on triple count

21. differences (8)
Image courtesy: Nam Vu Hoang, Aalto University

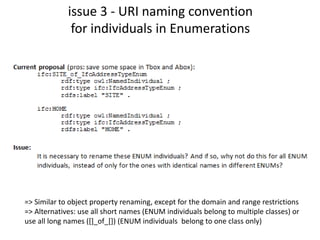

No policy here => we focused only on EXPRESS to OWL
RDF instances is a whole alternative area. If the Extended OWL Ontology is
followed, one should have enough and naming should not matter too much.

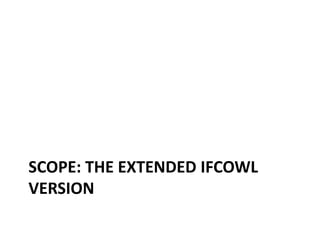

22. SCOPE: THE EXTENDED IFCOWL
VERSION

23. Image courtesy: Nam Vu Hoang, Aalto University

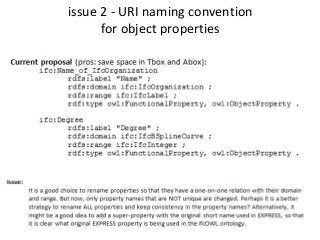

current status
ifcOWL
Walter
ifcOWL
Pieter
= identic. =
~ equiv. ~

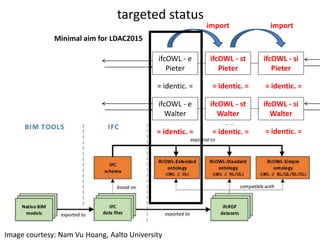

24. Image courtesy: Nam Vu Hoang, Aalto University
targeted status
ifcOWL - e
Walter
ifcOWL - e
Pieter
= identic. =
= identic. =
ifcOWL - si
Walter
ifcOWL - si
Pieter
ifcOWL - st
Walter
ifcOWL - st
Pieter
= identic. =
= identic. =
= identic. =
= identic. =
importimport
Minimal aim for LDAC2015

25. DECIDING ON IFCOWL OPEN ISSUES

26. issue 1 - ontology name and provenance

27. issue 2 - URI naming convention
for object properties

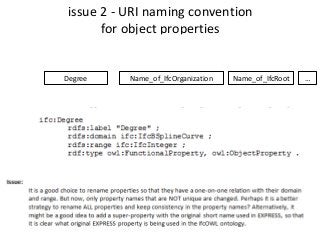

28. issue 2 - URI naming convention
for object properties
Name_of_IfcRootName_of_IfcOrganization …Degree

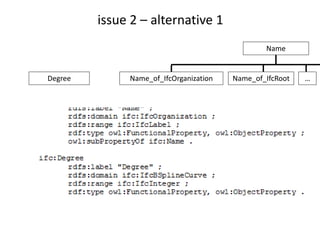

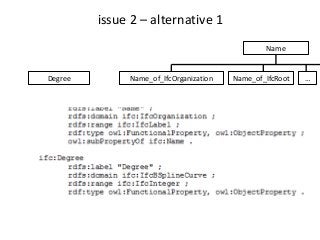

29. issue 2 – alternative 1

30. issue 2 – alternative 1
Name
Name_of_IfcRootName_of_IfcOrganization …Degree

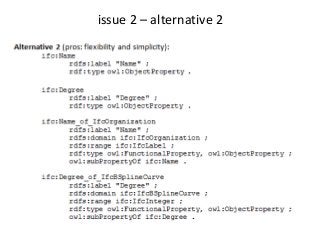

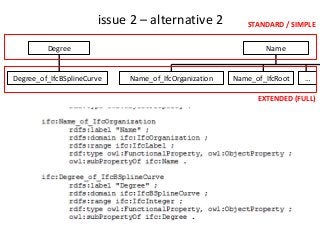

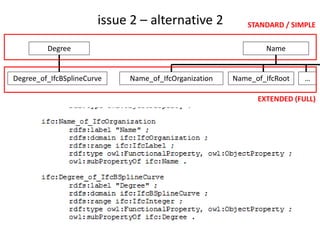

31. issue 2 – alternative 2

32. issue 2 – alternative 2
Name
Name_of_IfcRootName_of_IfcOrganization …Degree_of_IfcBSplineCurve
Degree
STANDARD / SIMPLE
EXTENDED (FULL)

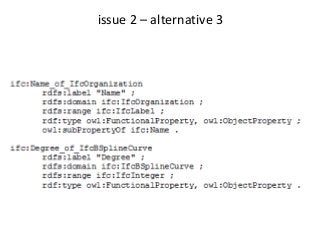

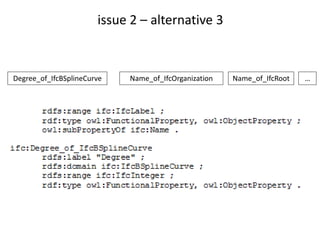

33. issue 2 – alternative 3

34. issue 2 – alternative 3
Name_of_IfcRootName_of_IfcOrganization …Degree_of_IfcBSplineCurve

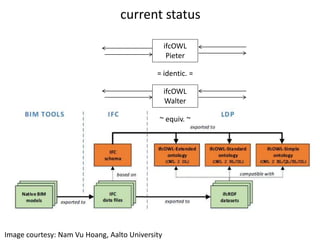

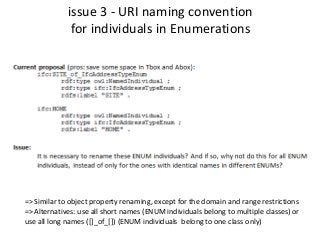

35. issue 3 - URI naming convention
for individuals in Enumerations
=> Similar to object property renaming, except for the domain and range restrictions
=> Alternatives: use all short names (ENUM individuals belong to multiple classes) or
use all long names ([]_of_[]) (ENUM individuals belong to one class only)

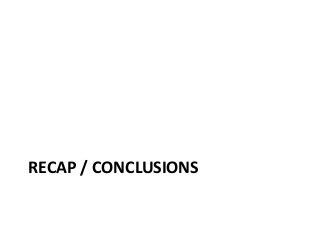

36. RECAP / CONCLUSIONS

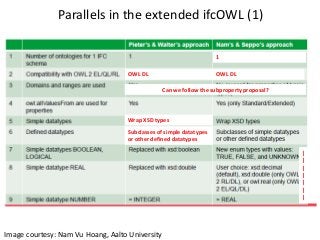

37. Parallels in the extended ifcOWL (1)
Image courtesy: Nam Vu Hoang, Aalto University
OWL DL
Wrap XSD types
Subclasses of simple datatypes
or other defined datatypes
|
|
|
|
|
|
|
OWL DL
1
Can we follow the subproperty proposal?

38. Parallels in the extended ifcOWL (2)
Image courtesy: Nam Vu Hoang, Aalto University

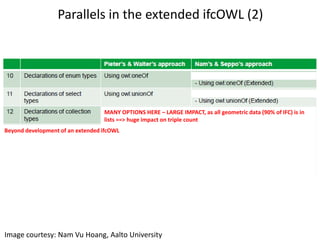

MANY OPTIONS HERE – LARGE IMPACT, as all geometric data (90% of IFC) is in
lists ==> huge impact on triple count
Beyond development of an extended ifcOWL

39. Image courtesy: Nam Vu Hoang, Aalto University

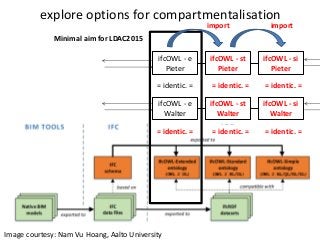

explore options for compartmentalisation
ifcOWL - e
Walter
ifcOWL - e
Pieter
= identic. =
= identic. =
ifcOWL - si
Walter
ifcOWL - si
Pieter
ifcOWL - st
Walter
ifcOWL - st
Pieter
= identic. =
= identic. =
= identic. =
= identic. =
importimport
Minimal aim for LDAC2015

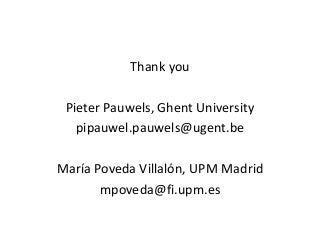

40. Thank you
Pieter Pauwels, Ghent University
pipauwel.pauwels@ugent.be
María Poveda Villalón, UPM Madrid
mpoveda@fi.upm.es
