This document contains measurement specifications for a men's slim fit t-shirt style. It includes over 30 body measurements for sizes XS through 3XL in 3 sentence increments. The t-shirt will be made of 100% cotton jersey fabric with elastic tapes at the shoulders. Care instructions specify washing inside out and with similar colors, then pulling into shape after washing.

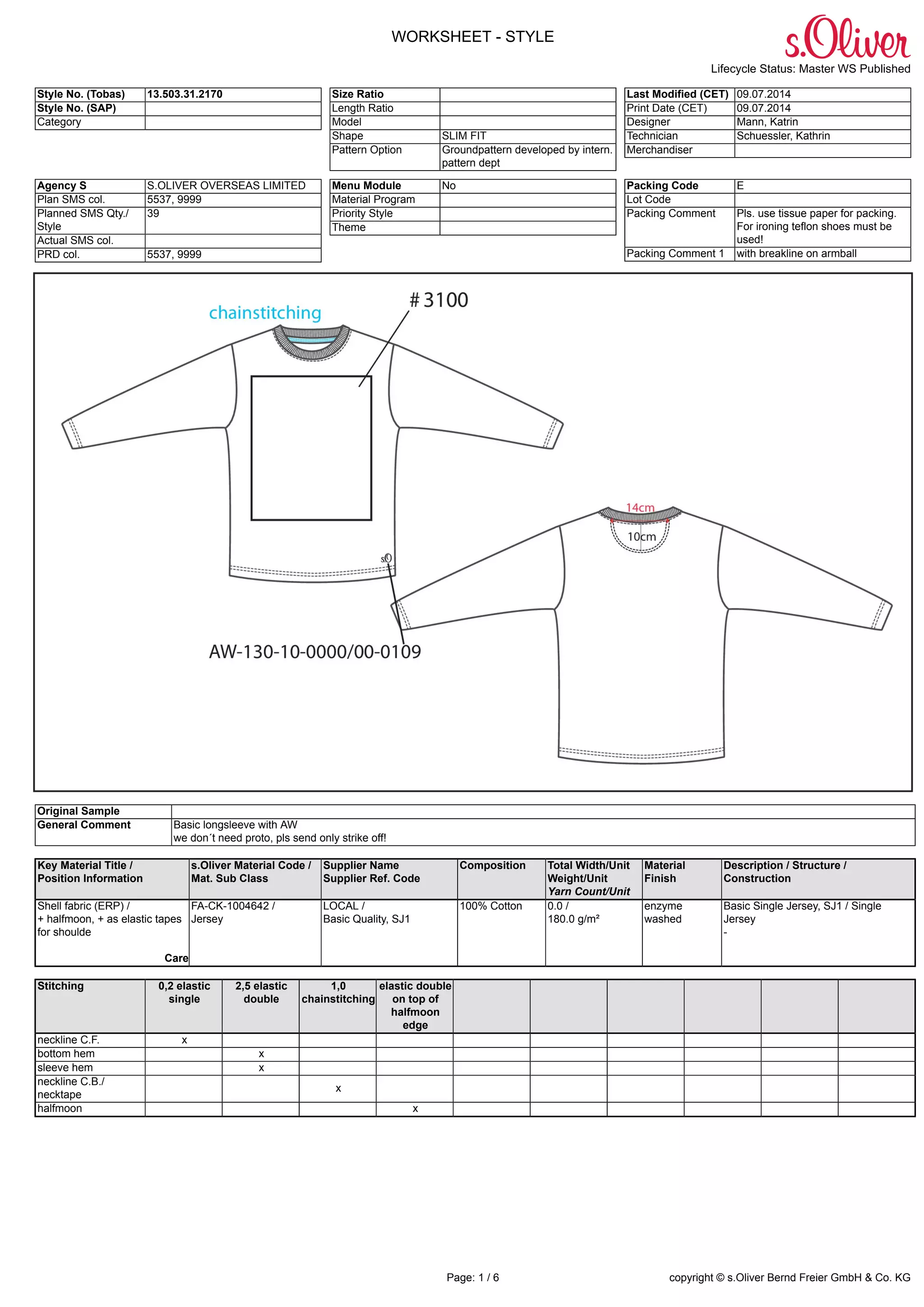

1. WORKSHEET - STYLE
Lifecycle Status: Master WS Published
Page: 1 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
Style No. (Tobas) 13.503.31.2170
Style No. (SAP)
Category
Size Ratio
Length Ratio
Model
Shape SLIM FIT
Pattern Option Groundpattern developed by intern.
pattern dept
Last Modified (CET) 09.07.2014
Print Date (CET) 09.07.2014
Designer Mann, Katrin
Technician Schuessler, Kathrin
Merchandiser
Agency S S.OLIVER OVERSEAS LIMITED
Plan SMS col. 5537, 9999
Planned SMS Qty./
Style
39
Actual SMS col.
PRD col. 5537, 9999
Menu Module No
Material Program
Priority Style
Theme
Packing Code E
Lot Code
Packing Comment Pls. use tissue paper for packing.
For ironing teflon shoes must be
used!
Packing Comment 1 with breakline on armball
Original Sample
General Comment Basic longsleeve with AW
we don´t need proto, pls send only strike off!
Key Material Title /
Position Information
s.Oliver Material Code /
Mat. Sub Class
Supplier Name
Supplier Ref. Code
Composition Total Width/Unit
Weight/Unit
Yarn Count/Unit
Material
Finish
Description / Structure /
Construction
Shell fabric (ERP) /
+ halfmoon, + as elastic tapes
for shoulde
Care
FA-CK-1004642 /
Jersey
LOCAL /
Basic Quality, SJ1
100% Cotton 0.0 /
180.0 g/m²
enzyme
washed
Basic Single Jersey, SJ1 / Single
Jersey
-
Stitching 0,2 elastic
single
2,5 elastic
double
1,0
chainstitching
elastic double
on top of
halfmoon
edge
neckline C.F. x
bottom hem x
sleeve hem x
neckline C.B./
necktape
x
halfmoon x

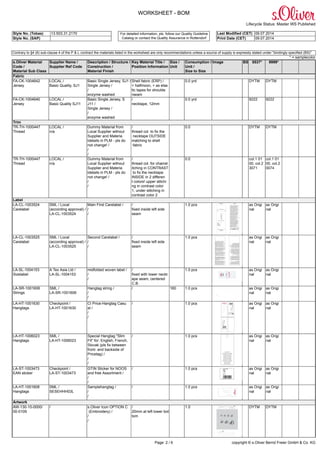

2. WORKSHEET - BOM
Lifecycle Status: Master WS Published
Style No. (Tobas) 13.503.31.2170 Last Modified (CET) 09.07.2014
Style No. (SAP)
For detailed information, pls. follow our Quality Guideline
Catalog or contact the Quality Assurance in Rottendorf Print Date (CET) 09.07.2014
Page: 2 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
Contrary to §4 (6) sub-clause 4 of the P & L contract the materials listed in the worksheet are only recommendations unless a source of supply is expressly stated under "bindingly specified (BS)"
* = samplecolor
s.Oliver Material
Code /
Material Sub Class
Supplier Name /
Supplier Ref Code
Description / Structure /
Construction /
Material Finish
Key Material Title /
Position Information
Size /
Unit
Consumption /
Unit /
Size to Size
Image BS 5537* 9999*
Fabric
FA-CK-1004642
Jersey
LOCAL /
Basic Quality, SJ1
Basic Single Jersey, SJ1 /
Single Jersey /
/
enzyme washed
Shell fabric (ERP) /
+ halfmoon, + as elas
tic tapes for shoulde
rseam
0.0 yrd DYTM DYTM
FA-CK-1004640
Jersey
LOCAL /
Basic Quality SJ11
Basic Single Jersey, S
J11 /
Single Jersey /
/
enzyme washed
/
necktape, 12mm
0.0 yrd 9222 9222
Trim
TR-TH-1000447
Thread
LOCAL /
n/a
Dummy Material from
Local Supplier without
Supplier and Materia
ldetails in PLM - pls do
not change! /
/
/
/
thread col. to fix the
necktape OUTSIDE
matching to shell
fabric
0.0 DYTM DYTM
TR-TH-1000447
Thread
LOCAL /
n/a
Dummy Material from
Local Supplier without
Supplier and Materia
ldetails in PLM - pls do
not change! /
/
/
/
thread col. for chainst
itching in CONTRAST
to fix the necktape
INSIDE in 2 differen
t colors! upper stitchi
ng in contrast color
1, under stitching in
contrast color 2
0.0 col.1 01
00, col.2
3071
col.1 01
00, col.2
0074
Label
LA-CL-1003524
Carelabel
SML / Local
(according approval) /
LA-CL-1003524
Main First Carelabel /
/
/
/
fixed inside left side
seam
1.0 pcs as Origi
nal
as Origi
nal
LA-CL-1003525
Carelabel
SML / Local
(according approval) /
LA-CL-1003525
Second Carelabel /
/
/
/
fixed inside left side
seam
1.0 pcs as Origi
nal
as Origi
nal
LA-SL-1004153
Sizelabel
A Tex Asia Ltd /
LA-SL-1004153
midfolded woven label /
/
/
/
fixed with lower neckt
ape seam, centered
C.B.
1.0 pcs as Origi
nal
as Origi
nal
LA-SR-1001606
Strings
SML /
LA-SR-1001606
Hangtag string /
/
/
/ 160 1.0 pcs as Origi
nal
as Origi
nal
LA-HT-1001630
Hangtags
Checkpoint /
LA-HT-1001630
CI Price-Hangtag Casu
al /
/
/
/ 1.0 pcs as Origi
nal
as Origi
nal
LA-HT-1006023
Hangtags
SML /
LA-HT-1006023
Special Hangtag "Slim
Fit" for: English, French,
Slovak (pls fix between
front- and backside of
Pricetag) /
/
/
/ 1.0 pcs as Origi
nal
as Origi
nal
LA-ST-1003473
EAN sticker
Checkpoint /
LA-ST-1003473
GTIN Sticker for NOOS
and free Assortment /
/
/
/ 1.0 pcs as Origi
nal
as Origi
nal
LA-HT-1001608
Hangtags
SML /
SESEHHH03L
Samplehangtag /
/
/
/ 1.0 pcs as Origi
nal
as Origi
nal
Artwork
AW-130-10-0000/
00-0109
/ s.Oliver Icon OPTION C
(Embroidery) /
/
/
/
20mm at left lower bot
tom
1.0 DYTM DYTM

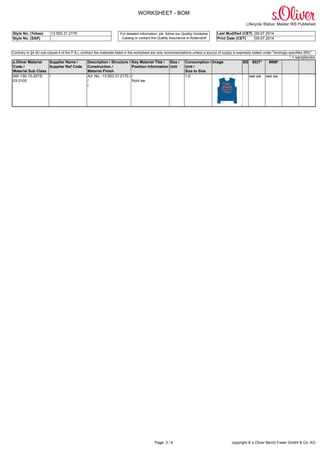

3. WORKSHEET - BOM
Lifecycle Status: Master WS Published
Style No. (Tobas) 13.503.31.2170 Last Modified (CET) 09.07.2014
Style No. (SAP)
For detailed information, pls. follow our Quality Guideline
Catalog or contact the Quality Assurance in Rottendorf Print Date (CET) 09.07.2014
Page: 3 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
Contrary to §4 (6) sub-clause 4 of the P & L contract the materials listed in the worksheet are only recommendations unless a source of supply is expressly stated under "bindingly specified (BS)"
* = samplecolor
s.Oliver Material
Code /
Material Sub Class
Supplier Name /
Supplier Ref Code
Description / Structure /
Construction /
Material Finish
Key Material Title /
Position Information
Size /
Unit
Consumption /
Unit /
Size to Size
Image BS 5537* 9999*
AW-130-10-2015/
03-3100
/ Art. No.: 13.503.31.2170 /
/
/
/
front aw
1.0 see aw see aw

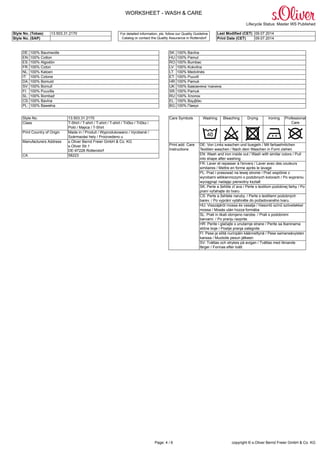

4. WORKSHEET - WASH & CARE
Lifecycle Status: Master WS Published
Style No. (Tobas) 13.503.31.2170 Last Modified (CET) 09.07.2014
Style No. (SAP)
For detailed information, pls. follow our Quality Guideline
Catalog or contact the Quality Assurance in Rottendorf Print Date (CET) 09.07.2014
Page: 4 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
DE: 100% Baumwolle SK: 100% Bavlna
EN: 100% Cotton HU: 100% Pamut
ES: 100% Algodón RO: 100% Bumbac
FR: 100% Coton LV: 100% Kokvilna
NL: 100% Katoen LT: 100% Medvilnės
IT: 100% Cotone ET: 100% Puuvill
DA: 100% Bomuld HR: 100% Pamuk
SV: 100% Bomull UK: 100% Бавовняна тканина
FI: 100% Puuvilla SR: 100% Pamuk
SL: 100% Bombaž RU: 100% Xлопок
CS: 100% Bavlna EL: 100% Βαμβάκι
PL: 100% Bawełna BG: 100% Памук
Style No. 13.503.31.2170
Class T-Shirt / T-shirt / T-shirt / T-shirt / Tričko / Tričko /
Poló / Majica / T-Shirt
Print Country of Origin Made in / Produit / Wyprodukowano / Vyrobené /
Származási hely / Proizvedeno u
Manufacturers Address s.Oliver Bernd Freier GmbH & Co. KG
s.Oliver Str.1
DE-97228 Rottendorf
CA 58223
Washing Bleaching Drying Ironing Professional
Care
Care Symbols
DE: Von Links waschen und buegeln / Mit farbaehnlichen
Textilien waschen / Nach dem Waschen in Form ziehen
EN: Wash and iron inside out / Wash with similar colors / Pull
into shape after washing
FR: Laver et repasser à l'envers / Laver avec des couleurs
similaires / Mettre en forme après le lavage
PL: Prać i prasować na lewej stronie / Prać wspólnie z
wyrobami włókienniczymi o podobnych kolorach / Po wypraniu
wyciągnąć nadając pierwotny kształt
SK: Perte a žehlite zl`ava / Perte s textilom podobnej farby / Po
praní vyťahajte do tvaru
CS: Perte a žehlete naruby. / Perte s textiliemi podobných
barev. / Po vyprání vytáhněte do požadovaného tvaru.
HU: Visszájáról mossa és vasalja / Hasonló színű szövetekkel
mossa / Mosás után húzza formába
SL: Prati in likati obrnjeno narobe. / Prati s podobnimi
barvami. / Po pranju razprite.
HR: Perite i glačajte s unutarnje strane / Perite sa tkaninama
slične boje / Poslije pranja zategnite
FI: Pese ja silitä nurinpäin käännettynä / Pese samansävyisten
kanssa / Muotoile pesun jälkeen
Print add. Care
Instructions
SV: Tvättas och strykes på avigan / Tvättas med liknande
färger / Formas efter tvätt

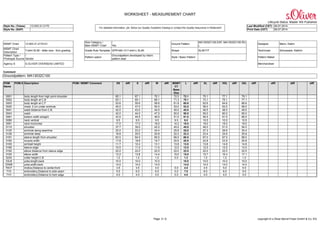

5. WORKSHEET - MEASUREMENT CHART
Lifecycle Status: Master WS Published
Style No. (Tobas) 13.503.31.2170 Last Modified (CET) 09.07.2014
Style No. (SAP)
For detailed information, pls. follow our Quality Guideline Catalog or contact the Quality Assurance in Rottendorf
Print Date (CET) 09.07.2014
Page: 5 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
MSMT Chart 13.503.31.2170-01
Size Category /
Main MSMT Chart
/
Yes
Ground Pattern
MA13032C100.DXF, MA13032C100.RU
L
Designer Mann, Katrin
MSMT Chart
Description
T-shirt SLIM - letter size - 5cm grading Grade Rule Template GPR-MA-13-T-shirt-L-SLIM Shape SLIM FIT Technician Schuessler, Kathrin
Pattern Type /
Prototype Source
/
Vendor
Pattern option
Groundpattern developed by intern.
pattern dept
Style / Basic Pattern Pattern Maker
Agency S S.OLIVER OVERSEAS LIMITED Merchandiser
Comment
Groundpattern: MA13032C100
POM
Name
POM-X Description POM / MSMT Comment XS diff. S diff. M diff. MSMT
CT
Base
Size
L diff. XL diff. XXL diff. 3XL diff. diff. diff. diff.
0001 body length from high point shoulder 65.1 67.1 70.1 72.5 72.1 75.1 77.1 79.1
0002 body length at C.B 63.1 65.1 68.1 71.3 70.1 73.1 75.1 77.1
0003 body length at C.F 53.6 55.6 58.6 61.8 60.6 62.6 64.6 66.6
0020 chest, 2 cm under armhole 45.0 47.0 50.0 53.0 53.0 58.0 63.0 68.0
0041 waist distance from C.B. 42.0 43.0 44.0 45.0 45.0 46.5 48.0 49.5
0043 waist 42.0 44.0 47.0 50.0 50.0 55.0 60.0 65.0
0081 bottom width straight 43.5 45.5 48.5 51.5 51.5 56.5 61.5 66.5
0090 neck vertical 9.5 9.5 9.5 9.5 9.5 10.5 10.5 10.5
0091 neck horizontal 17.0 17.0 18.0 14.2 18.0 19.0 19.0 19.5
0110 shoulder 37.7 39.0 42.0 45.0 45.0 48.0 51.0 54.0
0120 armhole along seamline 22.0 23.2 24.4 25.8 25.8 27.3 28.8 30.4
0126 armhole deep 18.8 20.0 20.8 22.2 22.2 23.4 24.6 25.8
0181 sleeve length from shoulder 63.5 64.5 65.5 66.5 66.5 67.0 67.5 68.0
0182 muscle width 17.8 18.8 19.7 20.9 20.9 22.8 23.9 25.8
0183 armball height 11.7 12.4 13.1 13.8 13.8 13.8 14.8 14.8
0185 sleeve edge 10.5 11.0 11.5 12.0 12.0 12.5 12.5 13.0
0192 elbow distance from sleeve edge 22.0 22.0 22.0 22.0 22.0 22.0 22.0 22.0
0193 elbow width 13.2 13.8 14.4 15.0 15.0 15.7 16.4 17.1
0234 collar height C.B 1.2 1.2 1.2 0.0 1.2 1.2 1.2 1.2
33LB yoke,length,back 10.0 10.0 10.0 10.0 10.0 10.0 10.0
33WB yoke,width,back 14.0 14.0 14.0 14.0 14.0 14.0 14.0
70CF motive,Distance to center,front 3.5 3.5 4.0 0.0 4.0 4.5 5.0 5.5
71S embroidery,Distance to side seam 5.5 6.0 6.5 0.0 7.0 8.0 8.5 9.5
71H embroidery,Distance to hem edge 4.0 4.0 4.0 0.0 4.0 4.0 4.0 4.0

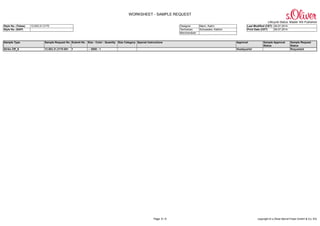

6. WORKSHEET - SAMPLE REQUEST
Lifecycle Status: Master WS Published
Style No. (Tobas) 13.503.31.2170 Designer Mann, Katrin Last Modified (CET) 09.07.2014
Style No. (SAP) Technician Schuessler, Kathrin Print Date (CET) 09.07.2014
Merchandiser
Page: 6 / 6 copyright © s.Oliver Bernd Freier GmbH & Co. KG
Sample Type Sample Request No. Submit No. Size : Color : Quantity Size Category Special Instructions Approval Sample Approval
Status
Sample Request
Status
Strike Off_S 13.503.31.2170-001 1 - : 0000 : 1 Headquarter Requested
