- CloudStack uses an optional Usage Server to aggregate usage records from the events log and store them in the cloud_usage database. - Usage records contain information about usage types like running VMs, allocated VMs, IP addresses, data transfer, volumes, templates, and more. - The Usage Server runs jobs periodically to generate usage records over a configured time period, such as hourly or daily. Admins can access and query the usage records through the API.

1. CloudStack Usage
Metering
Roxanne Chang
TrendMicro TCloud

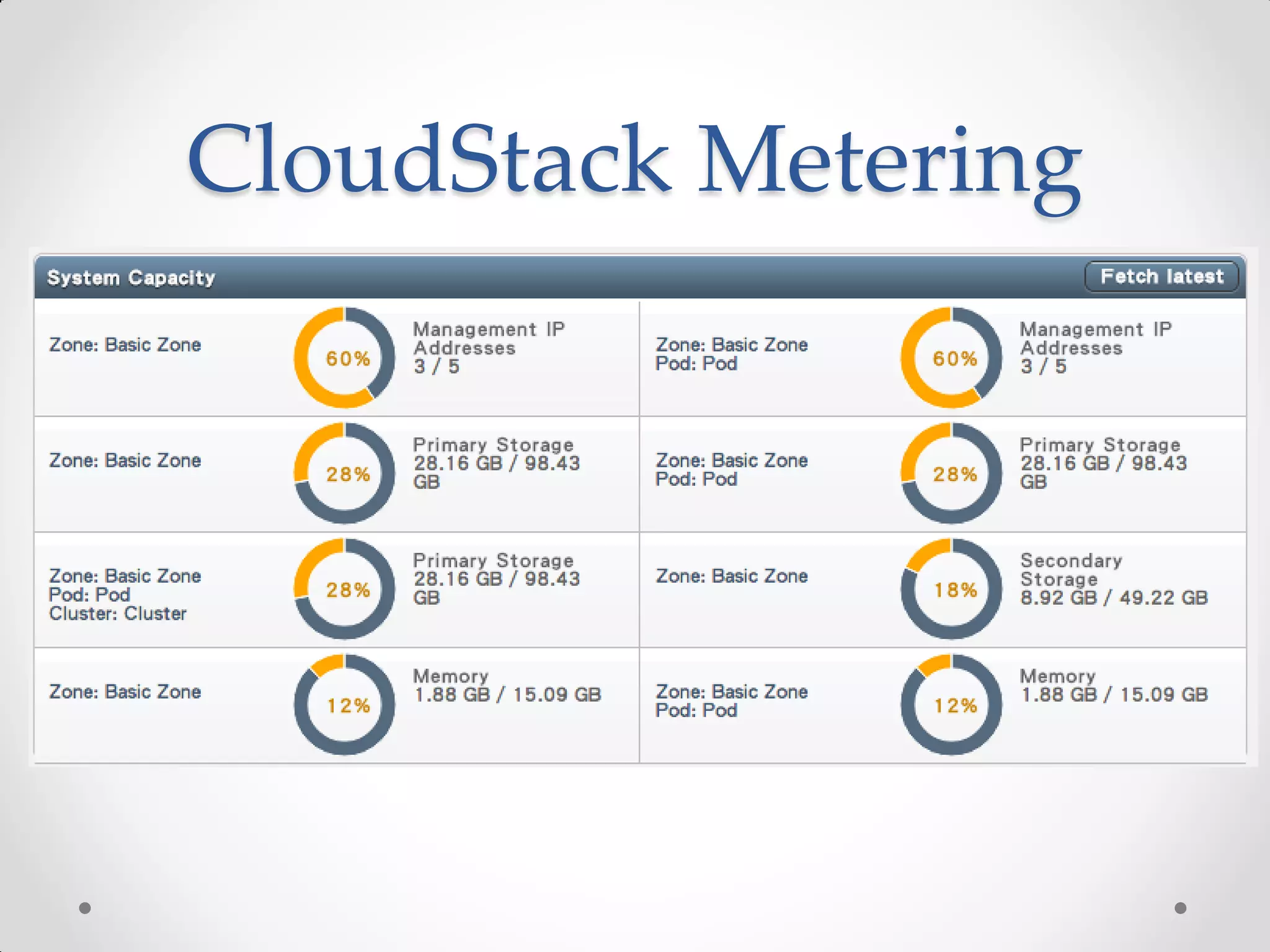

2. CloudStack Metering

3. Enough resource?

4. Make a price

5. Charge!

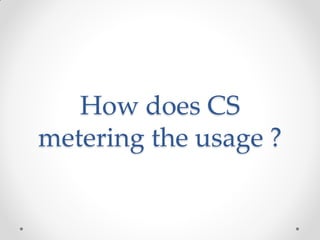

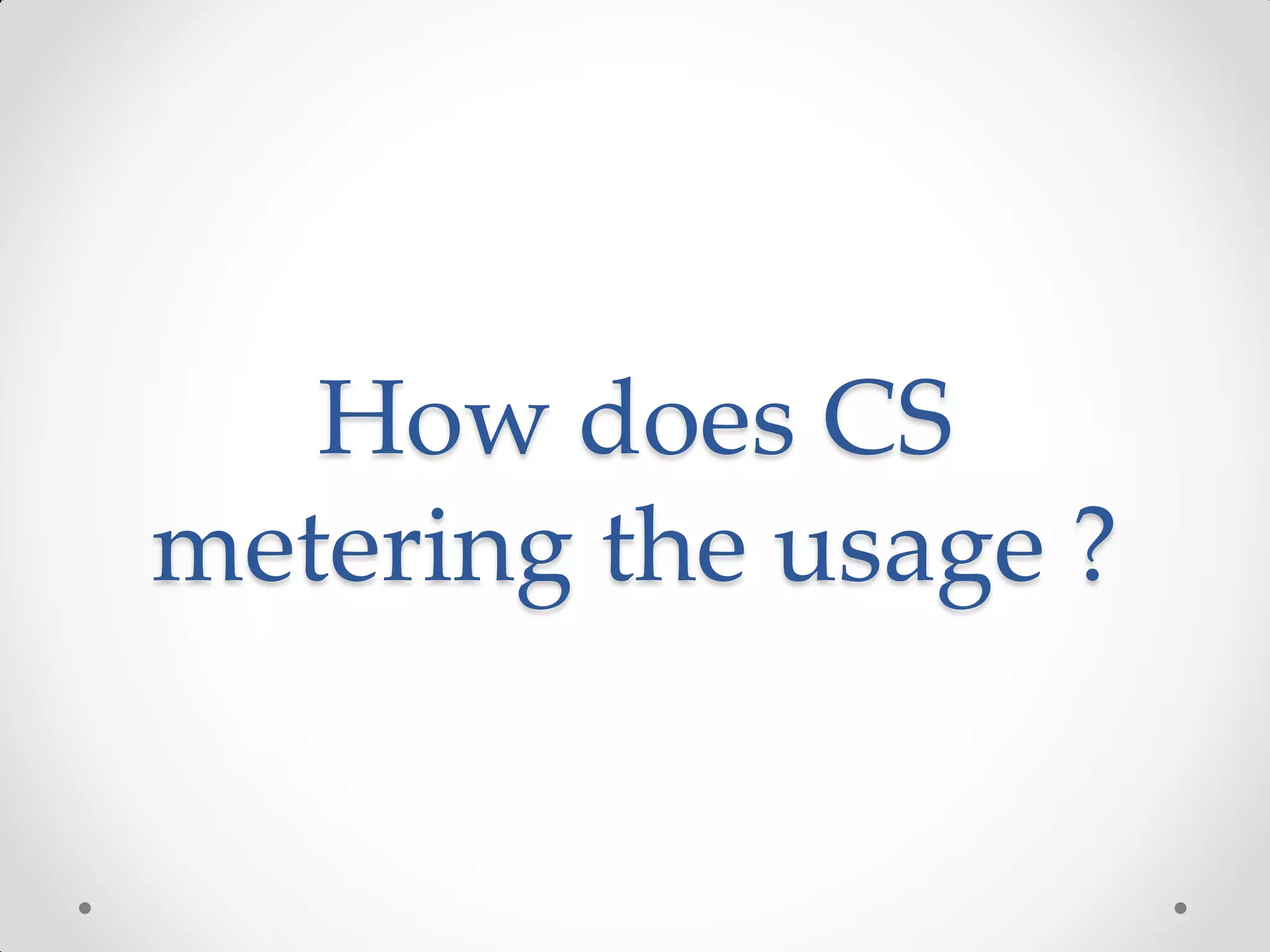

6. How does CS
metering the usage ?

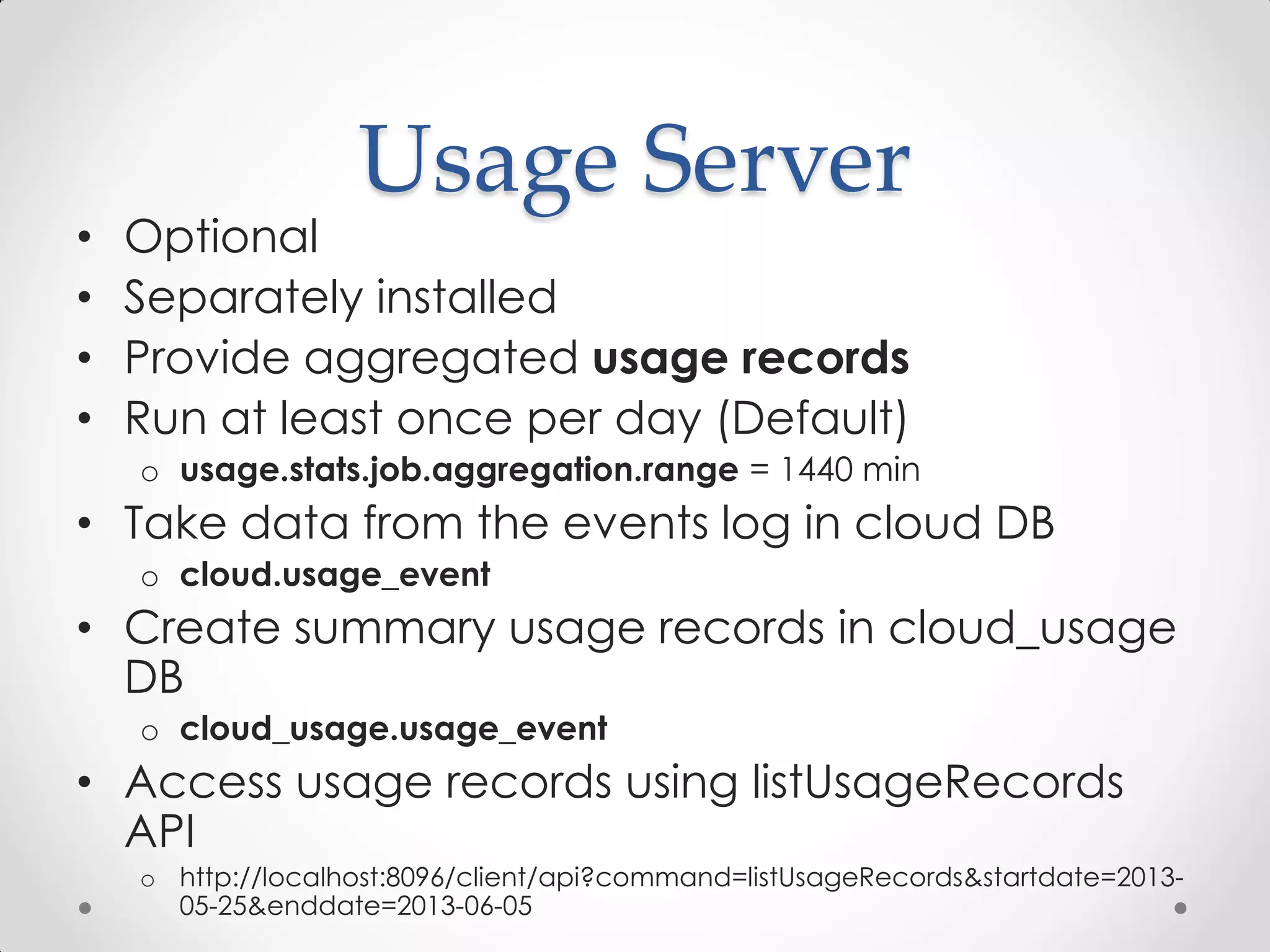

7. Usage Server
• Optional
• Separately installed
• Provide aggregated usage records
• Run at least once per day (Default)
o usage.stats.job.aggregation.range = 1440 min
• Take data from the events log in cloud DB
o cloud.usage_event
• Create summary usage records in cloud_usage
DB
o cloud_usage.usage_event
• Access usage records using listUsageRecords
API
o http://localhost:8096/client/api?command=listUsageRecords&startdate=2013-
05-25&enddate=2013-06-05

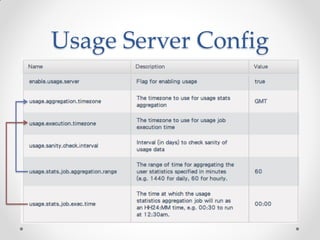

8. Usage Server Config

9. Usage Server Config
Name Value
usage.stats.job.exec.time 00:15
usage.execution.timezone PST
usage.stats.job.aggregation.range 60
usage.aggregation.timezone GMT

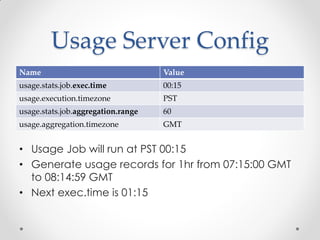

• Usage Job will run at PST 00:15
• Generate usage records for 1hr from 07:15:00 GMT
to 08:14:59 GMT
• Next exec.time is 01:15

10. Usage Server Config
Name Value
usage.stats.job.exec.time 00:15
usage.execution.timezone PST
usage.stats.job.aggregation.range 1440
usage.aggregation.timezone GMT
• Usage Job will run at PST 00:15
• Generate usage records for 24hrs from 00:00:00
GMT to 23:59:59 GMT
1440 is a special case: CloudStack considerst that
it’s a Midnight-Midnight setting

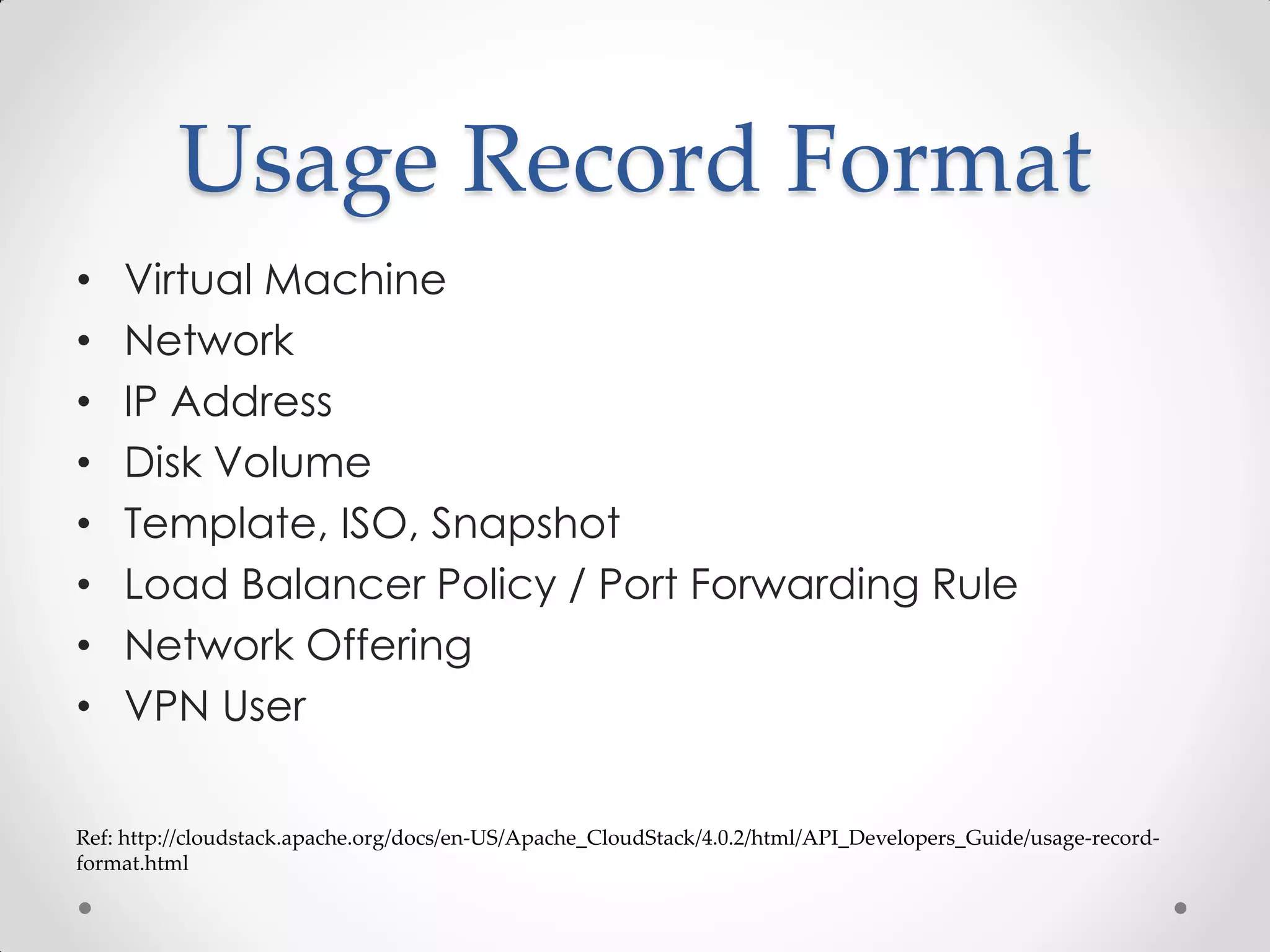

12. Usage Record Format
• Virtual Machine
• Network
• IP Address
• Disk Volume
• Template, ISO, Snapshot
• Load Balancer Policy / Port Forwarding Rule
• Network Offering
• VPN User
Ref: http://cloudstack.apache.org/docs/en-US/Apache_CloudStack/4.0.2/html/API_Developers_Guide/usage-record-
format.html

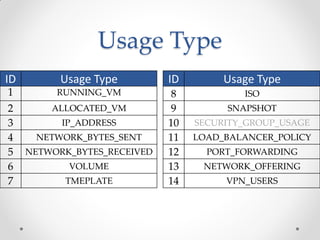

13. Usage Type
ID Usage Type
1 RUNNING_VM
2 ALLOCATED_VM
3 IP_ADDRESS
4 NETWORK_BYTES_SENT
5 NETWORK_BYTES_RECEIVED
6 VOLUME
7 TMEPLATE
ID Usage Type
8 ISO
9 SNAPSHOT
10 SECURITY_GROUP_USAGE
11 LOAD_BALANCER_POLICY
12 PORT_FORWARDING
13 NETWORK_OFFERING
14 VPN_USERS

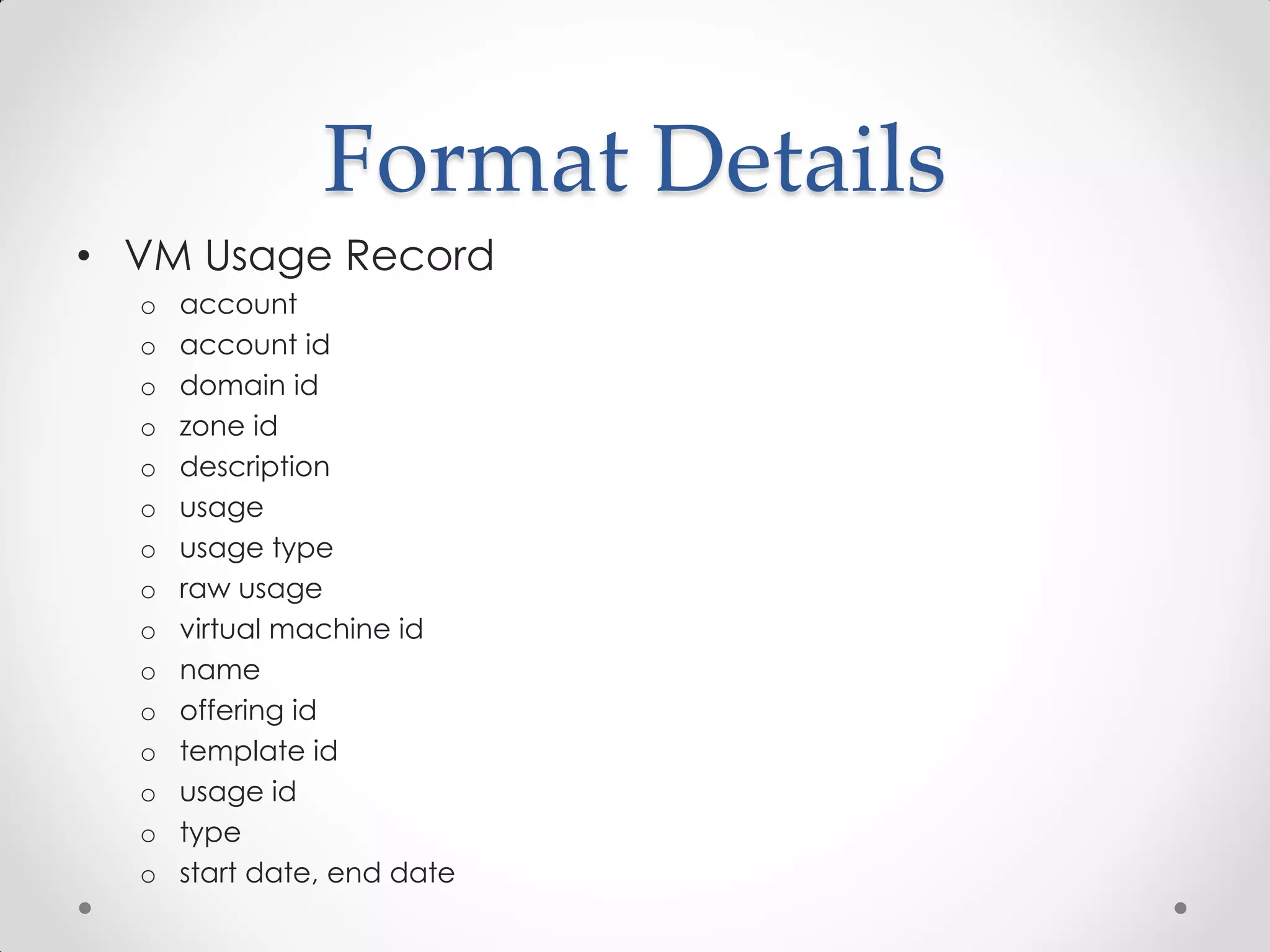

14. Format Details
• VM Usage Record
o account
o account id
o domain id
o zone id
o description
o usage
o usage type
o raw usage
o virtual machine id
o name
o offering id
o template id
o usage id
o type
o start date, end date

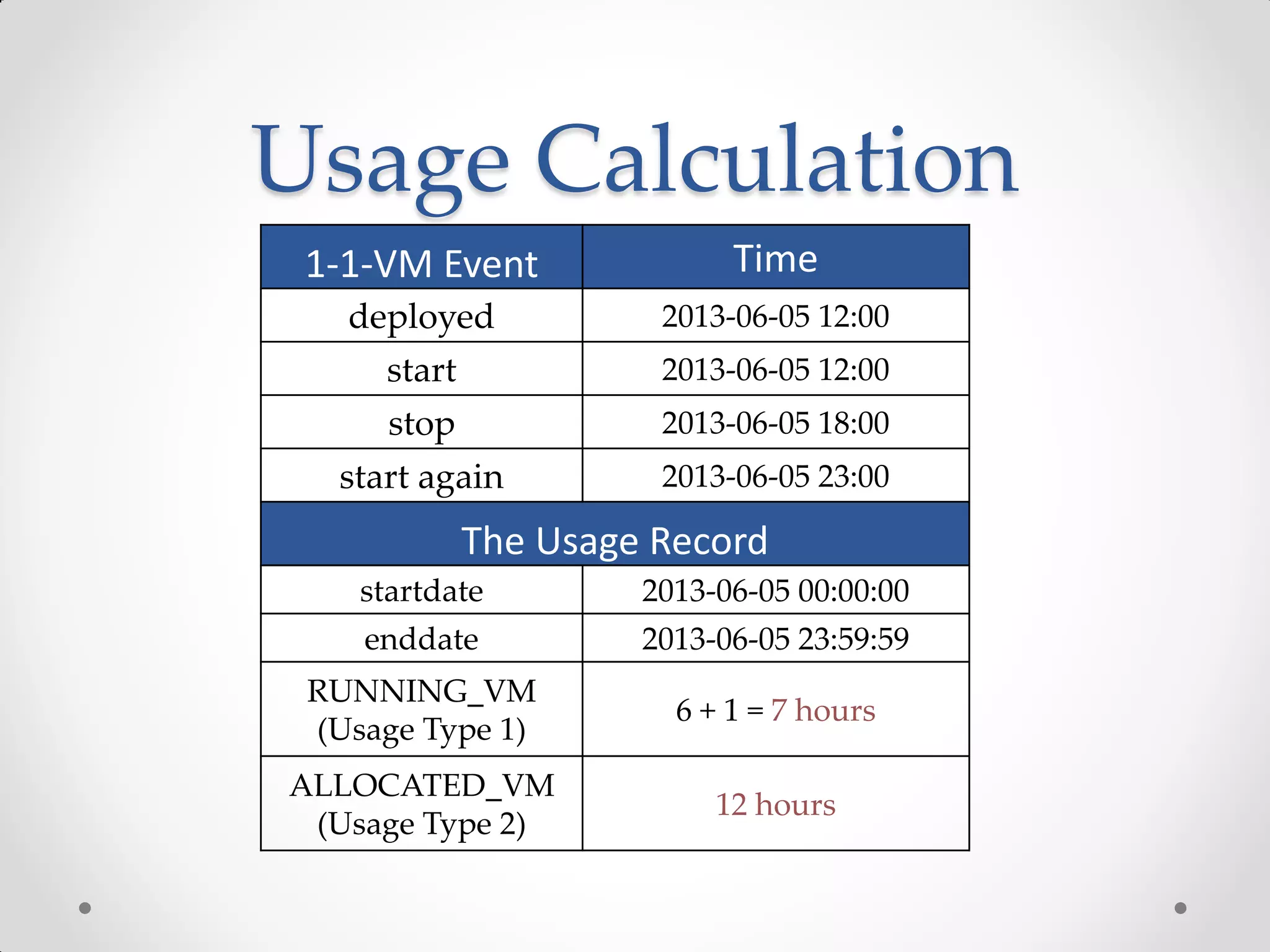

15. Usage Calculation
1-1-VM Event Time
deployed 2013-06-05 12:00
start 2013-06-05 12:00
stop 2013-06-05 18:00
start again 2013-06-05 23:00
The Usage Record
startdate 2013-06-05 00:00:00
enddate 2013-06-05 23:59:59
RUNNING_VM
(Usage Type 1)
6 + 1 = 7 hours
ALLOCATED_VM
(Usage Type 2)
12 hours

16. Get the Usage Records

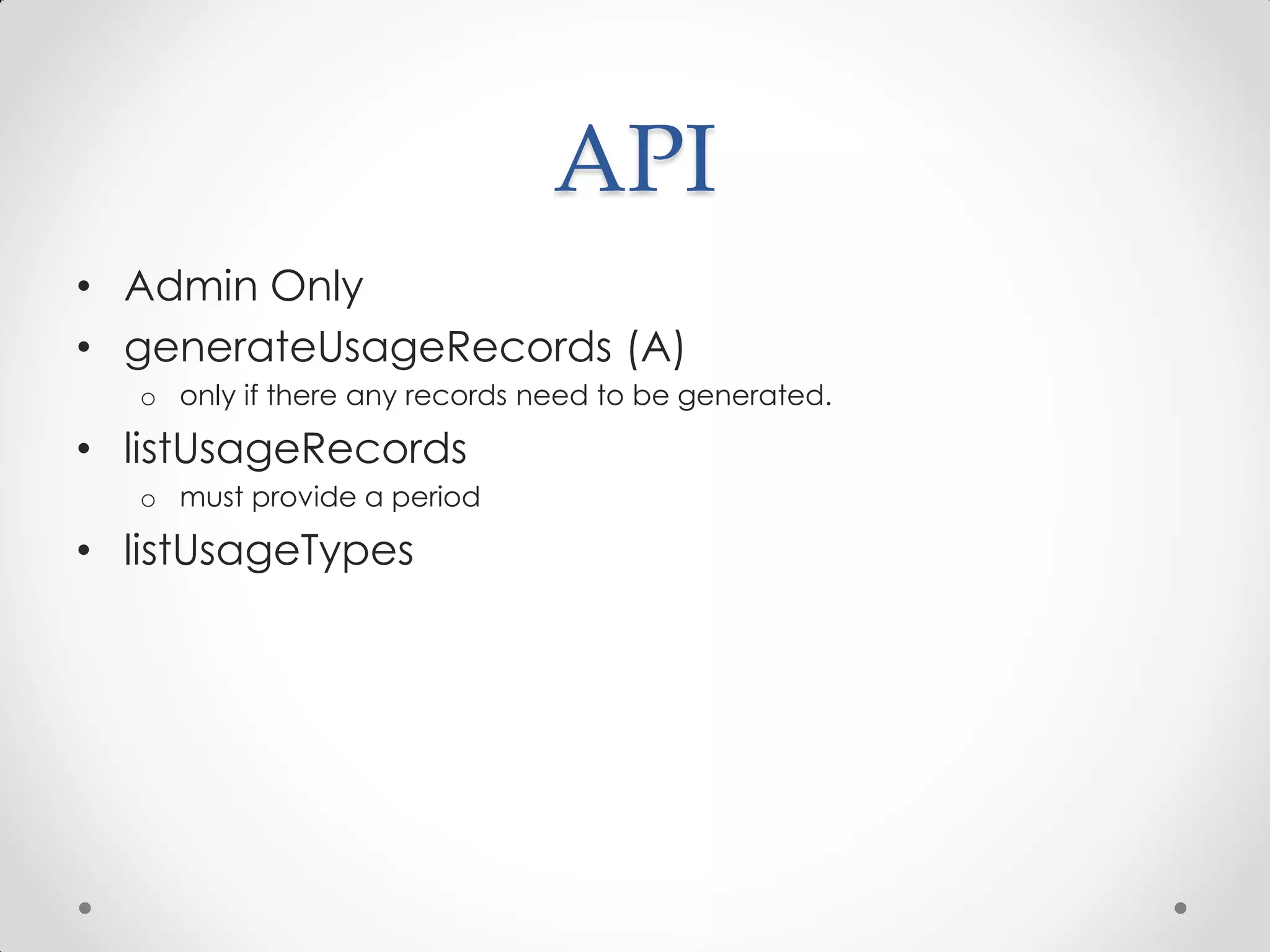

17. API
• Admin Only
• generateUsageRecords (A)
o only if there any records need to be generated.
• listUsageRecords
o must provide a period
• listUsageTypes

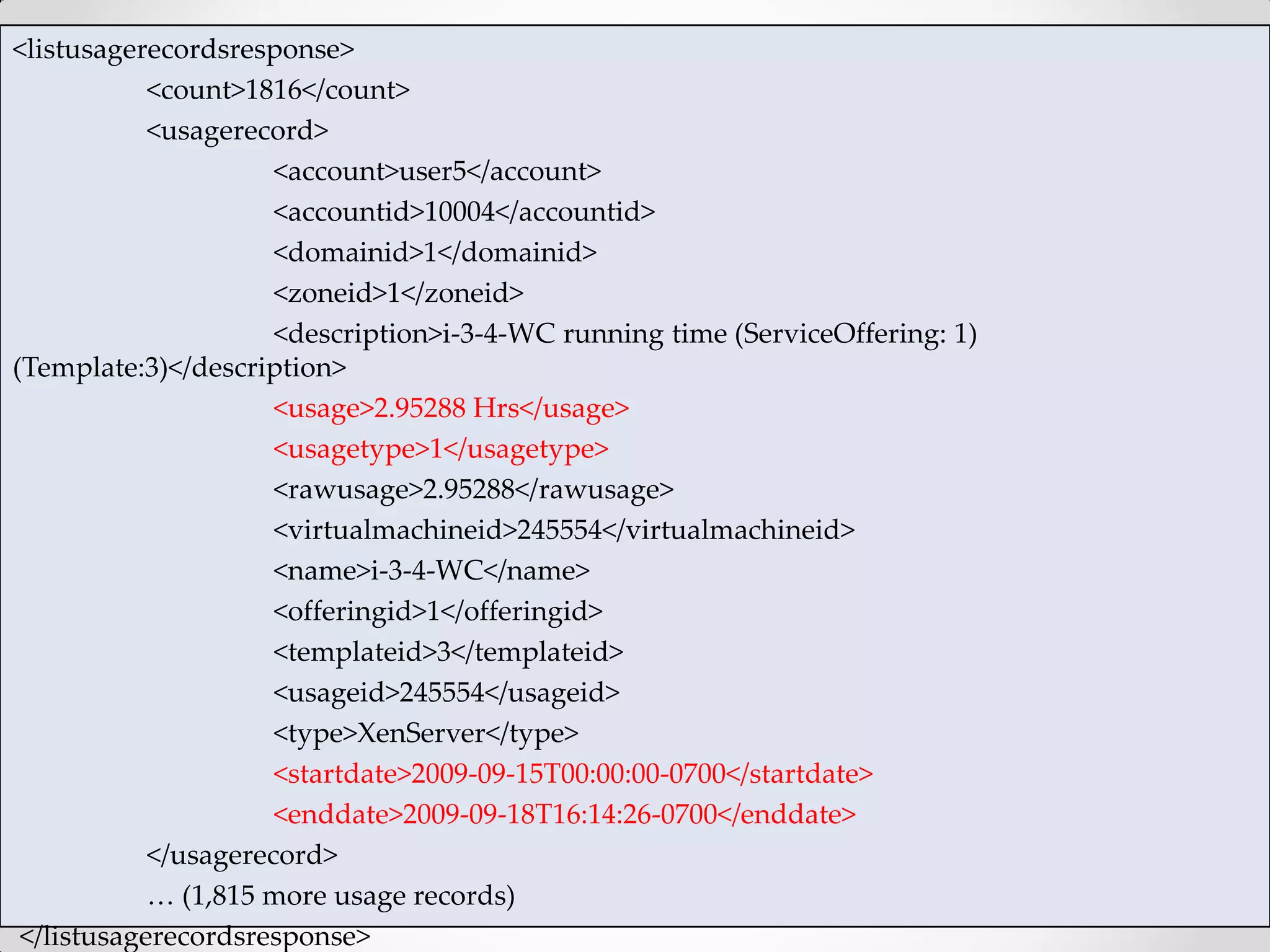

18. <listusagerecordsresponse>
<count>1816</count>
<usagerecord>
<account>user5</account>
<accountid>10004</accountid>
<domainid>1</domainid>
<zoneid>1</zoneid>
<description>i-3-4-WC running time (ServiceOffering: 1)
(Template:3)</description>
<usage>2.95288 Hrs</usage>
<usagetype>1</usagetype>
<rawusage>2.95288</rawusage>
<virtualmachineid>245554</virtualmachineid>
<name>i-3-4-WC</name>
<offeringid>1</offeringid>
<templateid>3</templateid>
<usageid>245554</usageid>
<type>XenServer</type>
<startdate>2009-09-15T00:00:00-0700</startdate>
<enddate>2009-09-18T16:14:26-0700</enddate>
</usagerecord>
… (1,815 more usage records)
</listusagerecordsresponse>

19. Need Limit ?

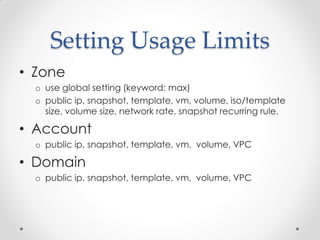

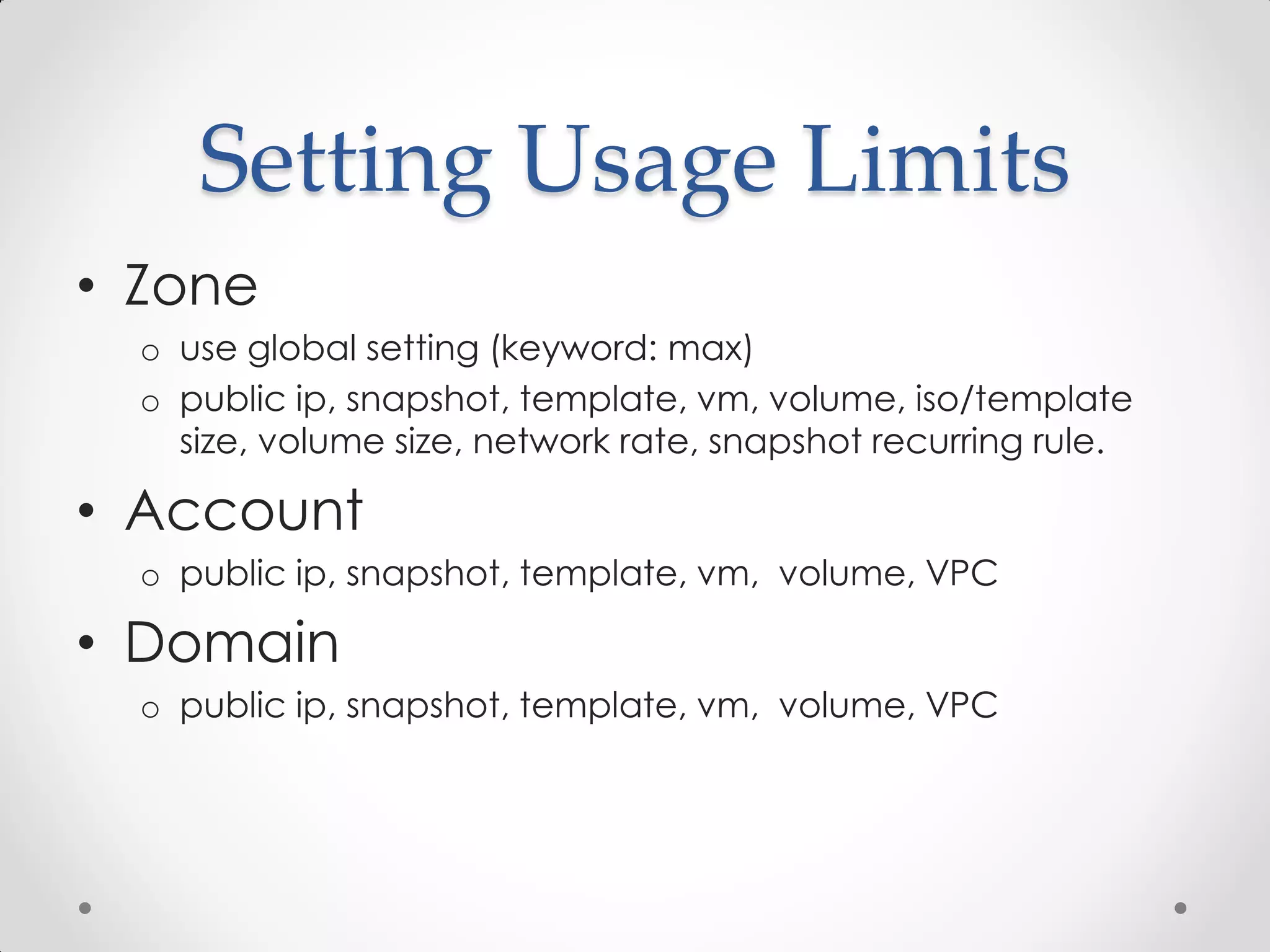

20. Setting Usage Limits
• Zone
o use global setting (keyword: max)
o public ip, snapshot, template, vm, volume, iso/template
size, volume size, network rate, snapshot recurring rule.
• Account
o public ip, snapshot, template, vm, volume, VPC
• Domain
o public ip, snapshot, template, vm, volume, VPC

21. Use Cases

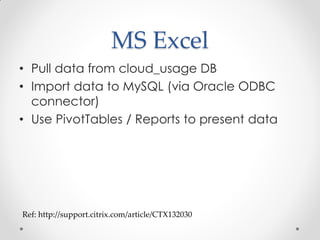

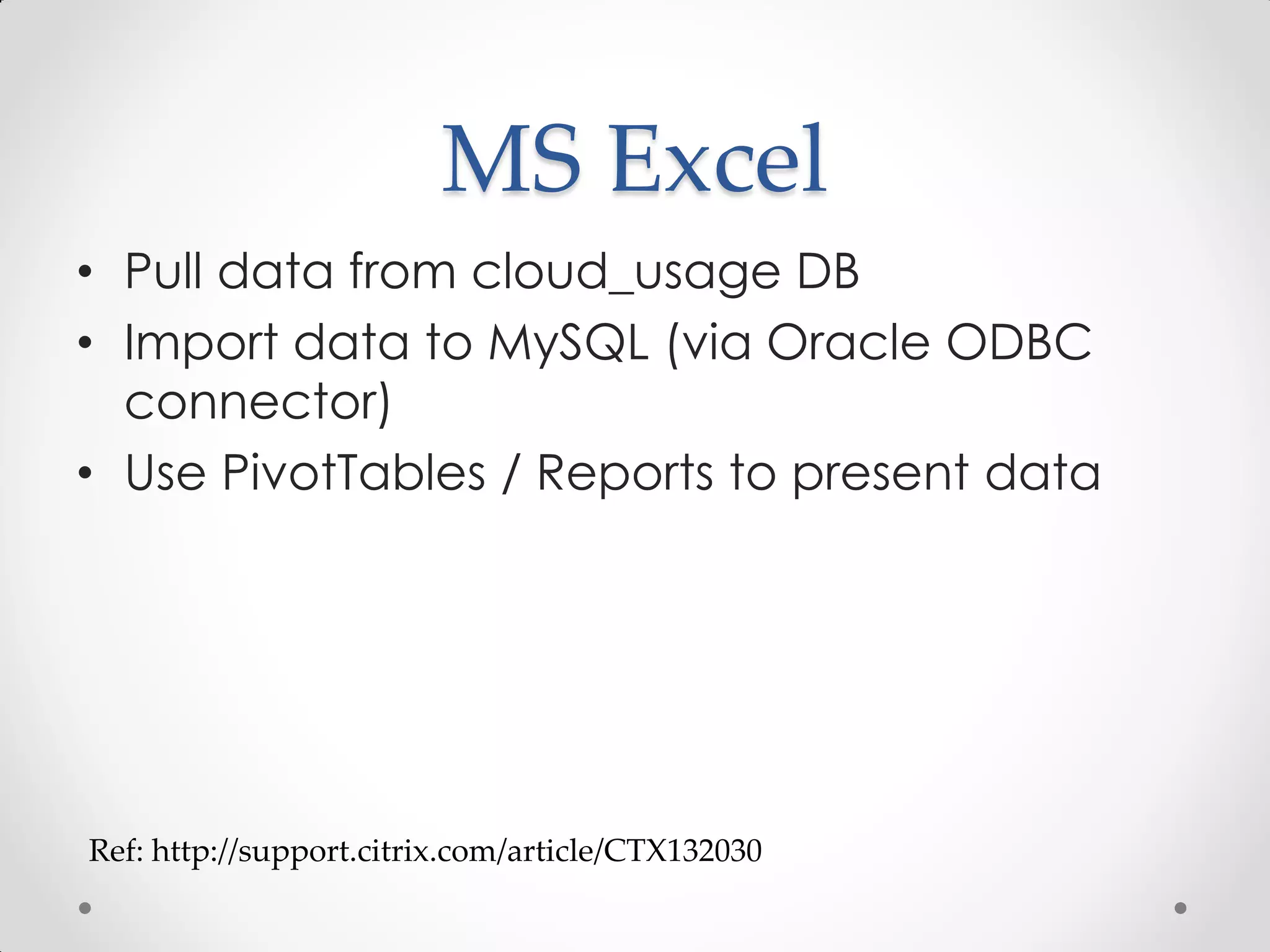

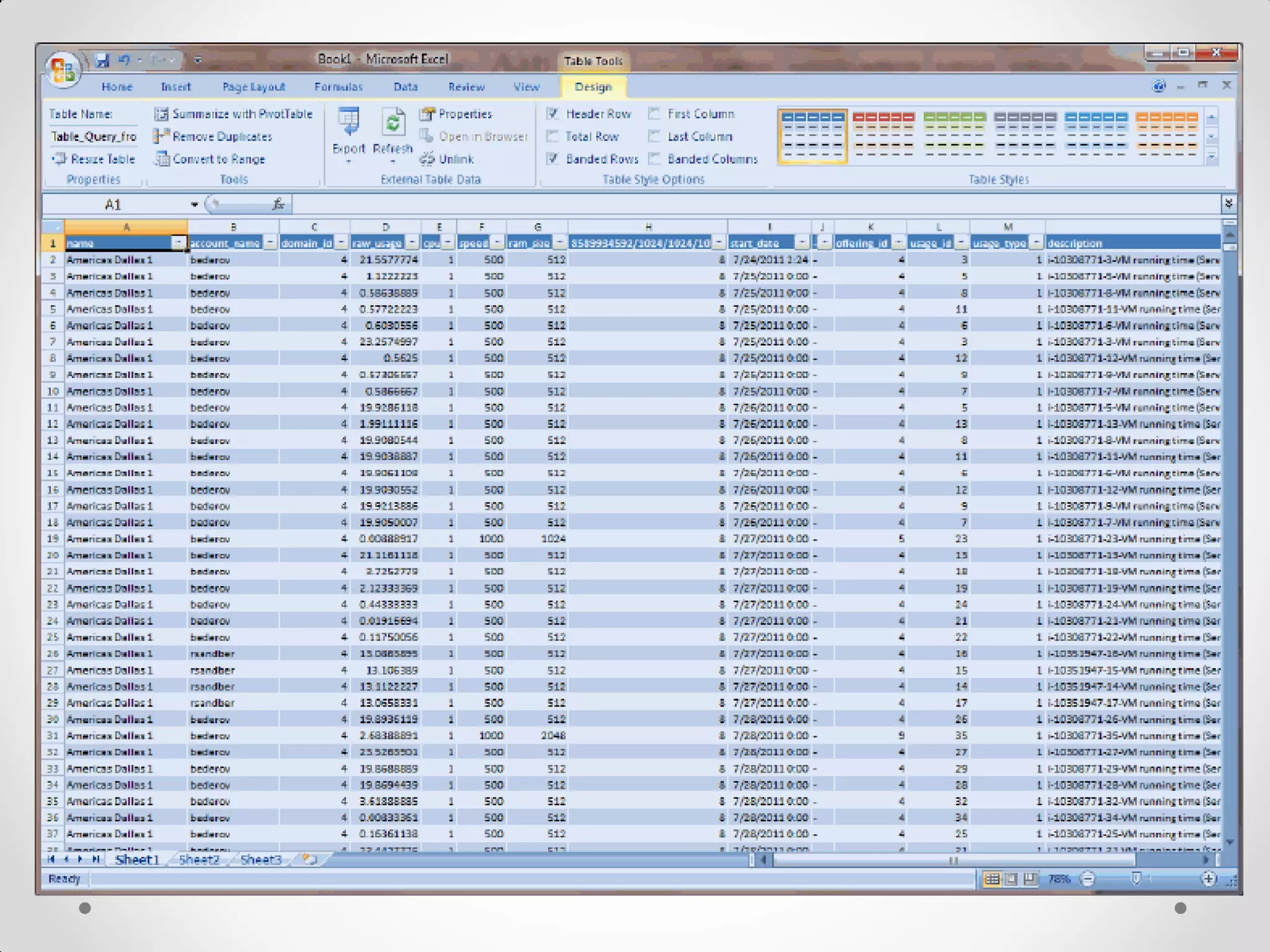

22. MS Excel
• Pull data from cloud_usage DB
• Import data to MySQL (via Oracle ODBC
connector)
• Use PivotTables / Reports to present data
Ref: http://support.citrix.com/article/CTX132030

24. Citrix CloudPortal
Business Manager
• Integrate cloud_usage DB on
CloudStack/CloudPlatform
• Make resources as products
• Make a price
• Scheduled billing

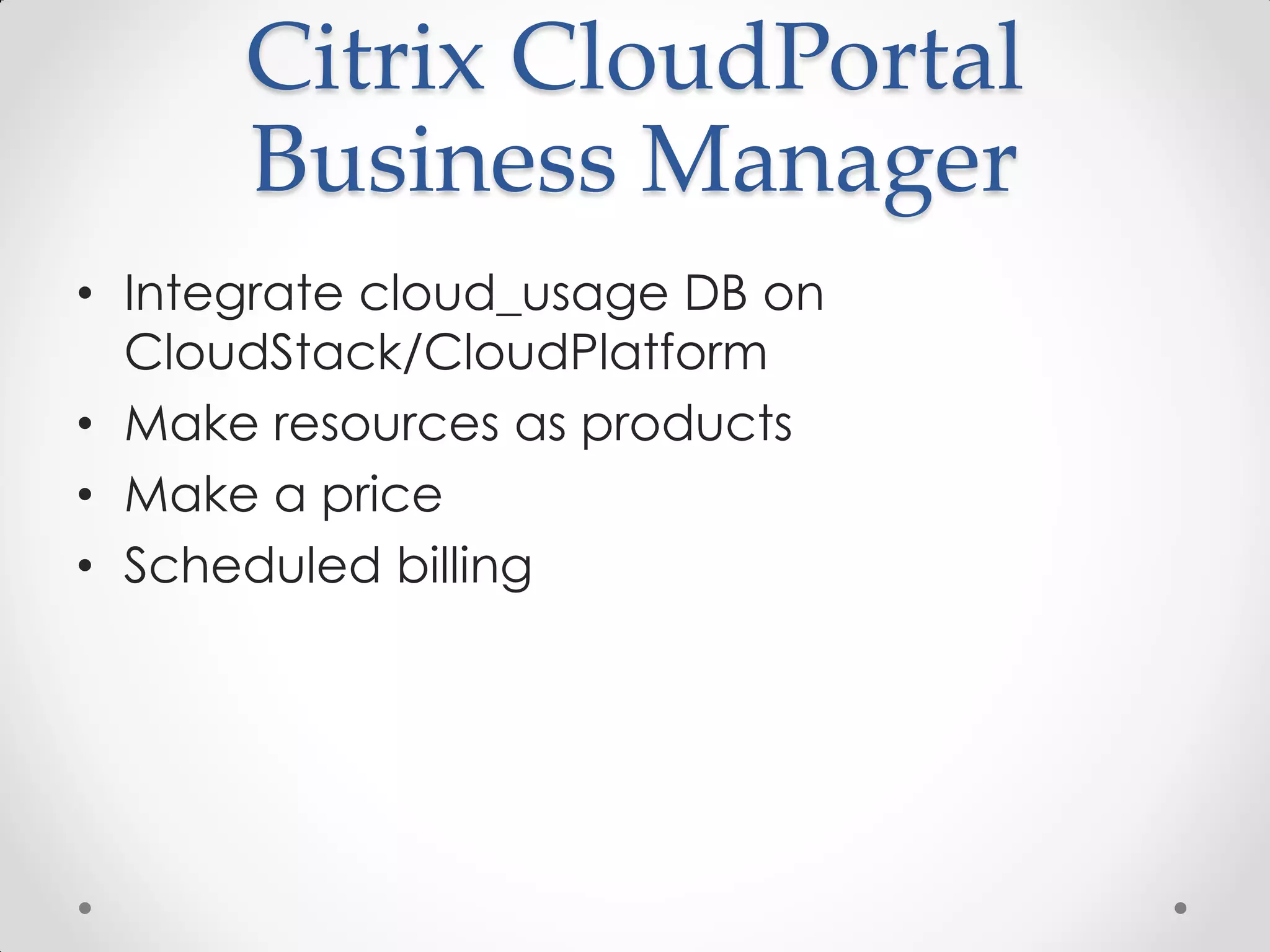

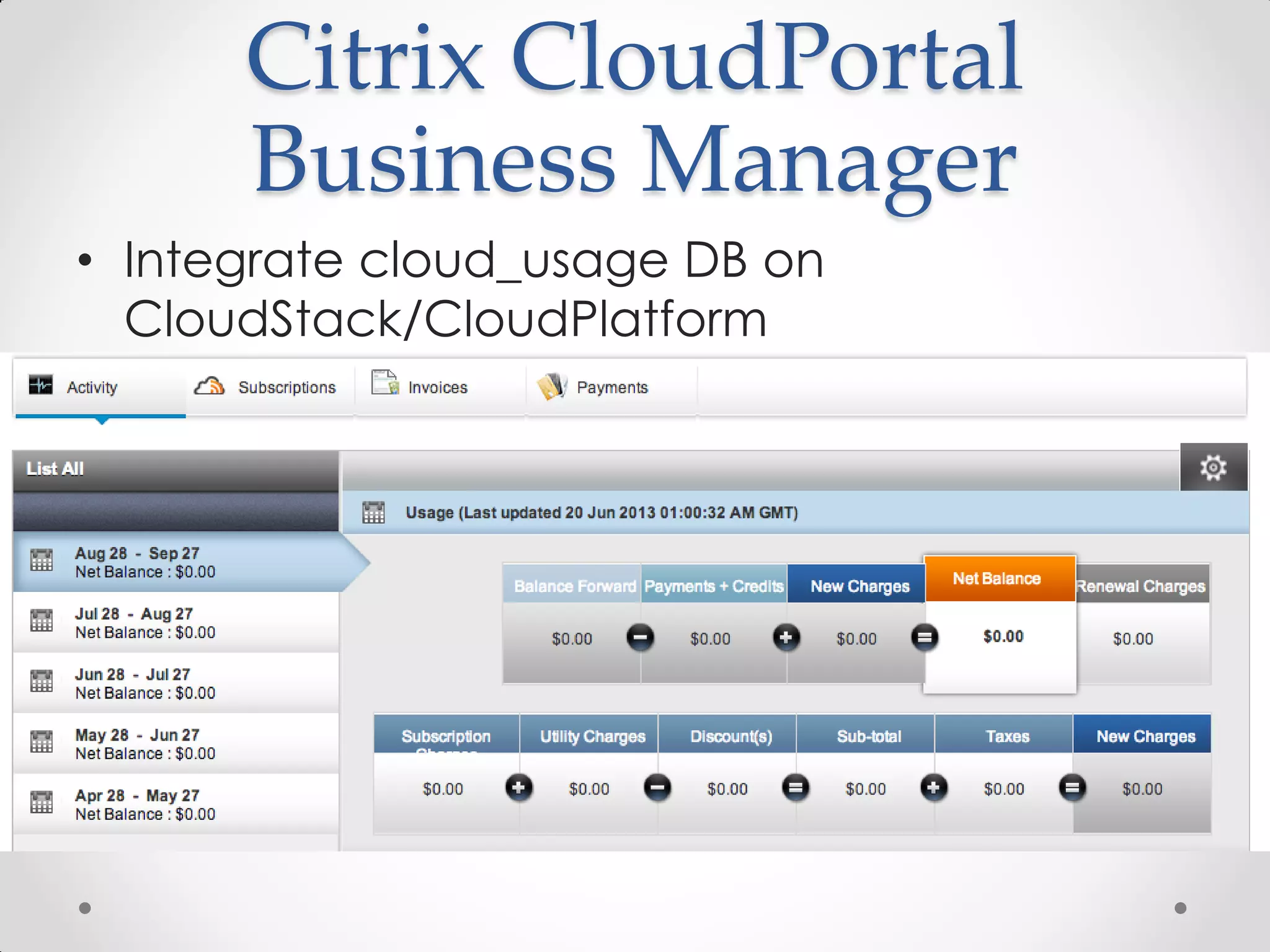

25. Citrix CloudPortal
Business Manager
• Integrate cloud_usage DB on
CloudStack/CloudPlatform
• Make resources as products
• Make a price
• Scheduled billing

26. Question ?

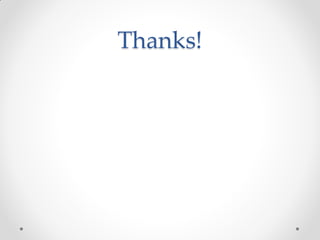

27. Thanks!
