- 1. 01 02 07. KendoPractitioner 08. Robot Dog 10. Monograph (2) 11. Remote Control Car Appendix: Learning Lab Packages 20. Monograph (4) 19. Robotic Arm 18. Missile Launcher 17. Stacking Machine 16. Race Car 15. Monograph (3) 14. Crane 13. Convection Fan 12. Ball Hitting Machine 09. Bounce Machine 04. Sorting Machine 05. Monograph (1) 06. Battle Tank 03. Printer 02. Metronome 01. Coil Winder Parts List Index Education Philosophy 01 39 03 45 09 53 17 59 23 67 31 75 02 41 05 49 13 57 21 63 27 71 35 77 Creative Ability can be Learned (v1.0) Gigo Learning Lab’s complete series includes 20 individual packages, as well as five school sets. The special features of Gigo’s Learning Lab are as follows: 1. Using GIGO’s “building block” construction-based curriculum, every class has a ready-to-assemble model, and includes time designed to promote individual creativity. 2. Promotes thinking outside-the-box of the traditional educational framework by learning innovation through play! 3. We are all innately good at something, so we should take into account both individual development and the ability to work as part of a team effort. 4. Course levels are designed from elementary to difficult, combining a life sciences- based curriculum with applications from daily life. 5. Experiment using Gigo’s “building blocks”, which can be used over and over again, saving both time and effort. 6. Comes with Gigo’s newly developed 3D Smart Manual, which makes learning how to intelligently assemble each model easier than ever before. 7. Learning Lab’s Cloud Platform allows systematic recording of learning progress. We hope that kids can enthusiastically learn scientific knowledge through fun hands- on experience, developing their problem-solving abilities, as well as a positive attitude towards science. Our mission is to help children apply their newfound knowledge to daily life, furthering their innovational skills and abilities. For any questions or inquires. please email to LL@mail.gigo.com.tw Index
- 2. 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 Long Frame Short Frame SquareFrame Long Rod 11-hole Rod 11-hole Prolate Rod 7-hole Prolate Rod 5-hole Rod 5-hole Rod-I 5-hole Rod-II 5-hole Rod-III 3-hole Rod 3-hole Dual Rod Bended Rod Motor Axle Cross Axle 3CM Cross Axle 6CM Cross Axle 7CM Cross Axle 10CM Cross Axle 15CM IR Controller IR Receiver 30x Power Pack 20T Gear 40T Gear 60T Gear 10T Sprocket 20T Sprocket 80T Gear 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 M Pulley Racing Tire M Ring L Rubber Band Cube Hinge Flat Cube Cross Axle Fixer Two-in-one Converter Cross Axle Connector Worm Gear 90 Degree Adaptor-I Roller Drive Chain Axle Loose Axle Pin L Connecting Peg S Connecting Peg Crank Cord 200CM Base Grid Connector Base Grid Spanner P a r t s L i s t 03 04 x1 1 2 x5 x3 3 x7 5 x9 8 7 x5 x1 x5 129 10 11 x4 13 x6 x1 14 x2 47 48 49 16 x3 17 x4 x1 x3 18 19 20 x2 21 30 x2 31 x4 32 x2 33 x2 x2 46 38 x2 x2 x4 x1 39 40 41 x6x1 x2 x1x26x37 x4 x10 x1 23 24 25 26 27 28 29 x3 x3 x2 x3 x2 x1 x1 x2x2x1 4 x3 6 x1 x3 x4 15 x1 22 x1 36 3734 x2 35 x3 42 43 44 45 50 51 52 53
- 3. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 05 C o i l W i n d e r One day he came to a small seaside village and met Tony.。 Tony was a fisherman, who had to eat 2 small fishes and drink 2 liters of well water every day. To n y h a d 5 t i m e s o f w o r k i n g opportunities every day, and every time he could pull up a liter of well water or catch a small fish. With Barney’s help, he got a coil winder, which could work once every day, capable of pulling up 2 liters of water or catching a big fish each time which is 3 times the size of a small one. Think it over, how should Tony utilize the coil winder to accumulate the most fishes to cover for his living cost in three days? 01 Where else can a coil winder help people with their work? 01 03 02 04 x1 x3 x1 x2 x1 x3 x1 x37 x2 x1 x1 x3 x1 x1 x1 x1 x2 06 2 16 17 19 21 31 23 24 26 27 28 22 42 43 50 51 52 S e s s i o n Brainstorming Parts List Assembly Steps
- 4. 1 2 3 Art Attack 05 09 07 11 06 10 08 12 07 Experiment Time Evaluation Model Assembled Experiment Complete Model Creation Utilize a g ear set to c hang e t he rotating speed and tension of the coil winder. 08 Check how many kilograms of object the coil winder you made can pull.

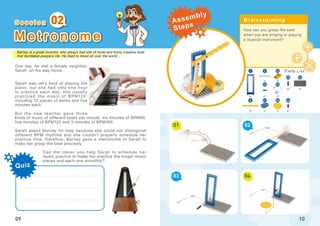

- 5. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... 02 09 M e t r o n o m e How can you grasp the beat when you are singing or playing a musical instrument? 01 03 02 04 10 x1 x1 x1x2 x1 x1 x1 x1 21 23 26 22 52 1 5 46 45 x1 x1 16 x1 4 One day, he met a female neighbor, Sarah, on his way home. Sarah was very fond of playing the piano, but she had only one hour to practice each day; she usually practiced the music of BPM120, including 12 pieces of works and five minutes each. But the new teacher gave three kinds of music of different beats per minute, six minutes of BPM80, five minutes of BPM120 and 3 minutes of BPM160. Sarah asked Barney for help because she could not distinguish different BPM rhythms and she couldn’t properly schedule her practice time; therefore, Barney gave a metronome to Sarah to make her grasp the beat precisely. Can the clever you help Sarah to schedule her music practice to make her practice the longer music pieces and each one smoothly? S e s s i o n Brainstorming Parts List Quiz Assembly Steps
- 6. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 11 Whatmethod can change the rhythm of the metronome? 12 Record how many times your metronome can record in one minute.

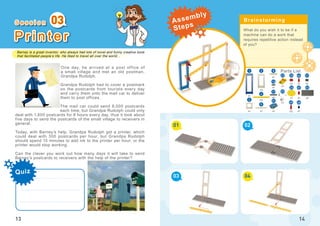

- 7. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 03 13 P r i n t e r One day, he arrived at a post office of a small village and met an old postman, Grandpa Rudolph. Grandpa Rudolph had to cover a postmark on the postcards from tourists every day and carry them onto the mail car to deliver them to post offices. The mail car could send 8,000 postcards each time, but Grandpa Rudolph could only deal with 1,600 postcards for 8 hours every day, thus it took about five days to send the postcards of the small village to receivers in general. Today, with Barney’s help, Grandpa Rudolph got a printer, which could deal with 300 postcards per hour, but Grandpa Rudolph should spend 15 minutes to add ink to the printer per hour, or the printer would stop working. Can the clever you work out how many days it will take to send Barney’s postcards to receivers with the help of the printer? What do you wish it to be if a machine can do a work that requires repetitive action instead of you? 01 03 02 04 14 x3 x1 x1 x2 x3 x1 x1 x1 52 1 5 46 4 45 x1 x1 x1 16 x2 x3 x1 x2 x1 x1 x1 x2 2 17 21 23 24 26 22 51 3 8 47 48 S e s s i o n Brainstorming Parts List Assembly Steps
- 8. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 15 Adjustthe pressing force of the printer. 16 Paint on the printer to cover a clear pattern.
- 9. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... 04 17 Sorting Machine What machineries in our daily lives make use of a wobbly driving lever? 01 03 02 04 18 x2 x1 x2 x4 x1 52 1 4 x2 16 x1 x1 x1 x4 x2 21 23 22 12 13 38 39 Quiz One day, he found a pile of coins before going out. Among the pile of coins, there were four kinds of denominations ($50, $10, $5 and $1). It would take a lot of time if he sorted the coins one by one, and thus make him unable to catch the train. If it is known that the total amount of coins is $493 and the quantity is 57, can the clever you help him work out the quantity of coins for each type? In order not to be bothered by this, Barney invented a sorting m ac hin e, w hi c h c o ul d ut i lize a wobbly driving lever to dial d i f f e r e nt c o i n s i nto d i f f e r e nt collection boxes. S e s s i o n Brainstorming Parts List Assembly Steps

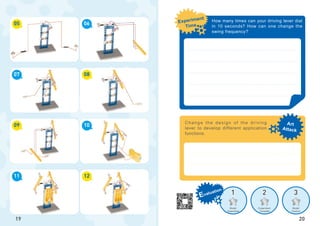

- 10. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 19 Changethe design of the driving lever to develop different application functions. 20 How many times can your driving lever dial in 10 seconds? How can one change the swing frequency?
- 11. 1 2 3 Design Concept My Artwork 22 S es s i o n Evaluation Model Design Model Creation Winner! 21 Please make a drum beating robot based on the learned models and principles. 1 05 M o n o g r a p h 01. Coil Winder 03. Printer 02. Metronome 04. Sorting Machine Model Review

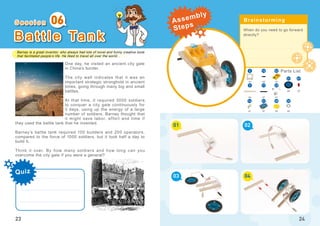

- 12. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 23 B a t t l e Ta n k One day, he visited an ancient city gate in China’s border. The city wall indicates that it was an important strategic stronghold in ancient times, going through many big and small battles. At that time, it required 3000 soldiers to conquer a city gate continuously for 3 days, using up the energy of a large number of soldiers. Barney thought that it might save labor, effort and time if they used the battle tank that he invented. Barney’s battle tank required 100 builders and 200 operators, compared to the force of 1000 soldiers, but it took half a day to build it. Think it over. By how many soldiers and how long can you overcome the city gate if you were a general? 06 When do you need to go forward directly? 01 03 02 04 24 x1 x7x2 x2 x2 5 x2 x1 x4 16 x1 x1 x1 x1 17 21 23 223 47 14 30 31 32 S e s s i o n Brainstorming Parts List Assembly Steps

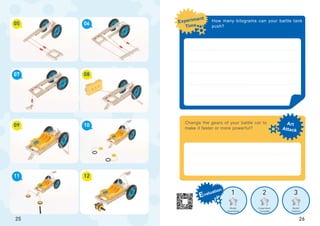

- 13. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 25 Changethe gears of your battle car to make it faster or more powerful? 26 How many kilograms can your battle tank push?

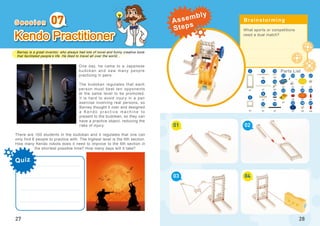

- 14. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 27 Kendo Practitioner One day, he came to a Japanese budokan and saw many people practicing in pairs. The budokan regulates that each person must beat ten opponents at the same level to be promoted. It is hard to avoid injury in a pair exercise involving real persons, so Barney thought it over and designed a Ke n d o p r a c t i c e m a c h i n e t o present to the budokan, so they can have a practice object, reducing the risks of injury. There are 100 students in the budokan and it regulates that one can only find 6 people to practice with. The highest level is the 6th section. How many Kendo robots does it need to improve to the 6th section in the shortest possible time? How many days will it take? 07 What sports or competitions need a dual match? 01 03 02 04 28 x1 x2 x4 5 46 x3 x4 x1 x1 x1 x2 x2 16 x1 x1 x1 x1 x2 x1 x1 x2 x1 x2 2 21 23 22 3 8 47 x1 1912 13 38 41 24 25 26 29 6 14 S e s s i o n Brainstorming Parts List Assembly Steps

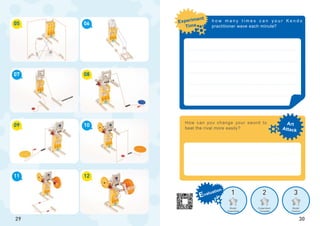

- 15. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 29 Howcan you change your sword to beat the rival more easily? 30 h o w m a n y t i m e s c a n y o u r K e n d o practitioner wave each minute?

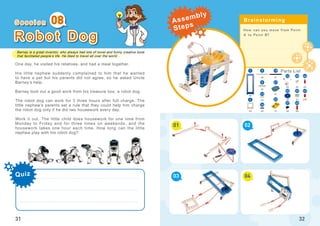

- 16. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... 31 R o b o t D o g One day, he visited his relatives, and had a meal together. His little nephew suddenly complained to him that he wanted to have a pet but his parents did not agree, so he asked Uncle Barney’s help. Barney took out a good work from his treasure box, a robot dog. The robot dog can work for 3 three hours after full charge. The little nephew’s parents set a rule that they could help him charge the robot dog only if he did two housework every day. Work it out. The little child does housework for one time from Monday to Friday and for three times on weekends, and the housework takes one hour each time. How long can the little nephew play with his robot dog? 08 How can you move from Point A to Point B? 01 03 02 04 32 x3 5 x2 x6 x1 x2 16 x1 x2 x1 x2 x4 x2 x1 21 23 223 8 x1 19 12 38 25 x2 x4 x2 x10 1 46 45 4739 37 Quiz S e s s i o n Brainstorming Parts List Assembly Steps
- 17. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 33 Whatchange will occur if you change the length of your robot dog? 34 Can your robot dog move smoothly on a plane, uphill and downhill?

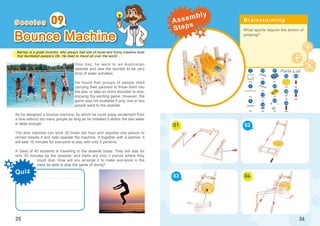

- 18. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 35 Bounce Machine One day, he went to an Australian seaside and saw the tourists to be very fond of water activities. He found that groups of people liked carrying their partners to throw them into the sea, or step on one’s shoulder to dive, enjoying the exciting game. However, the game was not available if only one or two people went to the seaside. So he designed a bounce machine, by which he could enjoy excitement from a dive without too many people as long as he installed it where the sea water is deep enough. The dive machine can work 30 times per hour and requires one person to remain beside it and help operate the machine. If together with a partner, it will take 15 minutes for everyone to play with only 5 persons. A class of 40 students is travelling to the seaside today. They will stay for only 30 minutes by the seaside, and there are only 3 places where they could dive. How will you arrange it to make everyone in the class be able to play the game of diving? 09 What sports require the action of jumping? 01 03 02 04 36 x3 5 x2 x4 x1 x4 x1 x1 16 x1 x1 x1 x2 21 23 22 3 8 12 38 x4 x2 x3 46 45 47 x2 26 10 11 S e s s i o n Brainstorming Parts List Assembly Steps
- 19. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 37 Adjustoutput force or ejection angle of the bounce machine. 38 How many kilograms can your bounce machine bounce?
- 20. 1 2 3 My Artwork 40 S es s i o n Evaluation Model Design Model Creation Winner! 39 Please design a multi-purpose vehicle having only one motor but generating multiple actions based on the learned principles and models. 2 10 M o n o g r a p h Design Concept 06. Battle Tank 08. Robot Dog 07. Kendo Practitioner 09. Bounce Machine Model Review
- 21. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 41 Remote Control Car One day, he went to a foreign city and wanted to call a taxi but there was none available. He asked others who waited for the taxi as well with curiosity, finding out that people did not like driving themselves since the urban traffic was chaotic, which caused a short supply of taxi. In general rush hours, it would take two hours on average to hail a taxi. Barney decided to use his creative idea to invent a remote control self-propelled car, which could drive to the destination as long as the route was set. It will take 60 minutes to arrive at the destination for Barney’s remote control car but 15 minutes by taxi, but the taxi is available only for every 30 minutes. There are 8 persons in total waiting for the taxi at 5 o’clock when people got off work and they all hope to get home before 7 o’clock. How can you make them get a ride in the shortest possible time? 11 What mechanisms can realize the advance and turn movements of the car? 01 03 02 04 42 x1 5 x2 x3 x2 x1 x1 16 3 12 14 x1 x6 45 47 41 15 x2 x2 x2 x2 30 31 32 x1 x2 x1 21 23 22 S e s s i o n Assembly Steps Brainstorming Parts List
- 22. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 43 Howcan you change the car design which driving wheel and steering wheel to be controlled in the same group? 組裝完成 實驗完成 創作完成 44 Please record the turning radius of your car.
- 23. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 45 Ball Hitting Machine One day, he arrived in America to check out the intensified training of a professional baseball team. In training, the batter needs to hit the baseball to make the teammate practice receiving it. The sport needs several batters every afternoon for assistance and they are not only very tired but also cannot practice receiving the baseball. Barney thought it may help if he designed an automatic ball hitting machine to improve efficiency of baseball practice. Each team has 25 members. Every member can hit 30 balls every 30 minutes. The one who finishes hitting the ball needs a 60-minute rest before practicing. 9 members can practice receiving the baseball at the same time for 60 minutes. They also need another practice round of 60 minutes after a 60-minute rest. If a ball hitting machine can do the task of batters, calculate to see whether it helps the 4-hour training of the baseball team. 12 In a baseball game, which one has the more advantages in general, the one on the offensive or on the defensive? 01 03 02 04 46 x2 x2 x1 x6x1 x1 52 4 x1 16 x2 2 3 47 x1 15 x2 11 39 29 x1 x2 x1 21 23 22 S e s s i o n Brainstorming Parts List Assembly Steps
- 24. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 47 Designa machine capable of adjusting the hitting angle and force. 48 How far can your ball hitting machine hit the ball?
- 25. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 49 Convection Fan One day, he felt very hot and turned the air conditioning on when he was at home planning his travel, and then saw the news that electricity rates have increased. Barney found it current consuming to blow air conditioning directly, so he invented a convection fan to enhance the effect of the air conditioning, so as to reduce the electricity consumption of the air conditioning and also make him plan his next travel in a comfortable environment. It could drop room temperature by 2 degrees per hour by directly using cool air but consume 10 degrees of power. Together with the convection fan, room temperature can be lowered by 1 degree by consuming only 5 degrees of power, however the convection fan also consumes 1 degree of power. The room temperature in Barney’s house is 30 degrees, but he hopes to work in an environment of 25 degrees. How long will it take you and how many degrees of power will it consume? 13 Why can it improve efficiency by matching the air conditioner with the convection fan? 01 03 02 04 50 x1 x2 52 1 5 x1 x1 x2 16 x1 x1 x1 x2 17 24 51 8 x1 x2 39 29 x1 x2 x1 21 23 22 44 S e s s i o n Brainstorming Parts List Assembly Steps
- 26. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 51 Howcan you design a convection fan capable of changing wind speed? 52 Make your convection fan rotate 270 degrees smoothly.

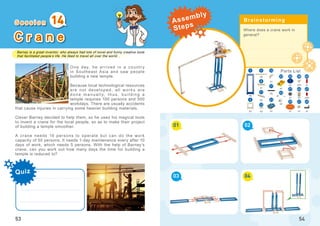

- 27. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 53 C r a n e One day, he arrived in a countr y in Southeast Asia and saw people building a new temple. Because local technological resources are not developed, all works are done manually, thus, building a temple requires 100 persons and 500 workdays. There are usually accidents that cause injuries in carrying some heavier building materials. Clever Barney decided to help them, so he used his magical tools to invent a crane for the local people, so as to make their project of building a temple smoother. A crane needs 10 persons to operate but can do the work capacity of 50 persons. It needs 1-day maintenance every after 10 days of work, which needs 5 persons. With the help of Barney’s crane, can you work out how many days the time for building a temple is reduced to? 14 Where does a crane work in general? 01 03 02 04 54 x7 5 x9 x1 x3 x1 x1 x2 x1 x2 x1 x1 x10 21 23 22 3 8 12 3825 x5 x1 x20 1 45 47 x1 x1 x2 11 29 x1 x4 14 49 17 40 41 27 S e s s i o n Brainstorming Parts List Assembly Steps

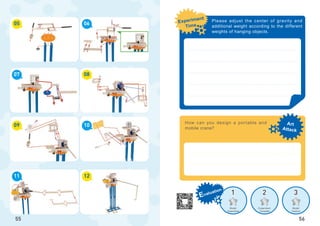

- 28. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 55 Howcan you design a portable and mobile crane? 56 Please adjust the center of gravity and additional weight according to the different weights of hanging objects.

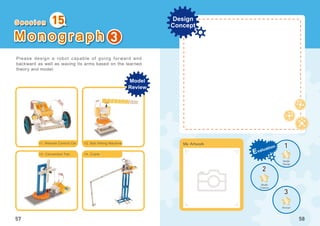

- 29. 1 2 3 Design Concept My Artwork 58 S es s i o n Evaluation Model Design Model Creation Winner! 57 Please design a robot capable of going for ward and backward as well as waving its arms based on the learned theory and model. 3 15 M o n o g r a p h 11. Remote Control Car 13. Convection Fan 12. Ball Hitting Machine 14. Crane Model Review
- 30. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 59 R a c e C a r One day, he reached a deser t in A m e r i c a a n d s a w m a n y p e o p l e gathering. He went towards the crowd and found it to be an off-road racing. Different from the common race car competing for speed, the rules of the race requires a race car to pull a big iron bucket and see how many rounds it could go within a certain time. The normal race car would be very slow if driving a heavy iron bucket as well as affect its turning property. After watching several races, Barney wanted to experience by himself. For the game, he took out his magic instrument, a three- wheel drive race car. But it needed an uncommon operation mode for its design was very special. Barney’s race car had 3 wheels in total, each of which could rotate clockwise and counterclockwise, without brakes. Can you simulate the operation mode of the car? 16 What characteristics does the race car have? 01 03 02 04 60 x3 5 x7 x2 x4 x1 x1 x2 x1 x1 x2 x3 x1 x1 21 23 22 3 8 25 x1 x19 1 47 x1 x2 x2 17 40 41 27 x2 16 12 10 19 x1 x3 24 26 31 39 S e s s i o n Brainstorming Parts List Assembly Steps
- 31. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 61 Makea race c ar c apable of gear shifting and changing speed. 62 Can you make your race car move around in circles smoothly?
- 32. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 63 Stacking Machine One day, he visited a German furniture factory manufacturing large furniture, where many auxiliary machines and tools assist the production line. He chatted with a staff responsible for shipment and learned that his work was to pack and place finished products on the delivery van. If there was only one staff, it would take him 10 minutes to pack the products and 10 minutes to transfer them, thus he could deal with 24 products every day. It was busy season for shipment at that time and the product line produced 100 products every day, but only 3 shipment staff were working, so they had to work overtime. Therefore, Barney helped them design an automatic stacking machine, facilitating them to load products on the delivery van. The stacking machine can push 10 products onto the van each hour, but it requires 30 minutes for a person to set the machine. Calculate and see whether the shipment staff in the factory need to work overtime or not with the help of an automatic stacking machine. 17 What methods can we use to carry heavy objects to a higher place? 01 03 02 04 64 x7 5 3 x9 x2 x2 x4 x1 x4 x2 x1 x2 x4 x3 x1 x2 21 23 22 8 25 x1 x26 1 47 x2 x3 x2 x1 17 40 4127 x2 16 12 10 19 x1 x3 24 31 39 x1 x6 x25 45 x3 11 49 38 37 43 20 x1 14 x1 15 S e s s i o n Brainstorming Parts List Assembly Steps
- 33. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 65 Howcan you make a stacking machine carry heavier objects? 66 How many kilograms can your stacking machine carry?
- 34. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 67 Missile Launcher O n e d ay, h e w a s i nv i t e d t o a n exhibition and introduction activity of a military base and saw many high- tech advanced weapon systems. During his visit, an officer said that the advanced weapon system is very complicated, thus the appointed soldier must have accepted complete simulated training. Among the visitors, there was a group of university students, asking whether they could experience how the weapon systems work, but they were all refused due to safety concerns. In order not to disappoint them, Barney immediately invented a simulated missile launcher by means of his creative idea for them to experience it. The officer also raised a question to challenge them. He said the air force needs 15 minutes to prepare for the attack after a war starts. A missile launcher can defend an attack of 5 missiles at the same time and it costs 10 minutes to restock on ammo. If the enemy attacks by launching 2 missiles per m i n u t e a n d i t n e e d s 10 minutes to fly the distance for the air force to fight back the opposite missile position, how many missile launchers will be set in the base to leave enough reaction time for counterattack? 18 How will you aim at the target when you use a rubber band to operate a remote direction indicator? 01 03 02 04 68 x3 5 3 x2 x1 x1 x3 x2 x5 x8 x1 x3 x1 x1 x2 x1 x2 x1 x2 x1 19 22 21 7 24 x1 x1 1 44 x1 x2 38 x1 x2 x6 14 9 x3 x2 x2 23 28 36 17 8 12 13 16 25 35 33 34 40 47 50 x2 2 31 S e s s i o n Brainstorming Parts List Assembly Steps
- 35. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 69 Howcan you make your missile fly farther? 70 How many times out of 10 can you hit the target?
- 36. Barney is agreat inventor, who always had lots of novel and funny creative tools that facilitated people’s life. He liked to travel all over the world... Quiz 71 R o b o t i c A r m One day, he wanted to rebuild his work room in his house and installed a r o b o t i c a r m t o h e l p h i m m a ke inventions more efficiently. He received a secret task from the government when he reconstructed his new work room, hoping that Barney could make 20 robotic arms in 7 days to provide robotic arm technology for the government to support researches on domestic scientific and technological industries. It will take Barney a day to make a robotic arm on his own but half a day with the help of a robotic arm. If the work is done independently by the robotic arm, it will require two robotic arms and two days. Can Barney finish the task? 19 What dangerous works are more proper to be dealt with by robots? 01 03 02 04 72 x5 x3 x1 x2 x1 21 23 22 8 12 x17 47 x5 11 x2 x1 52 4 x3 x2 x2 16 x2 x2 2 3 x2 19 38 14 x1 20 x1 x3 24 26 x2 x2 40 39 S e s s i o n Brainstorming Parts List Assembly Steps
- 37. 1 2 3 Art Attack Experiment Time Evaluation Model Assembled Experiment Complete Model Creation 05 09 07 11 06 10 08 12 73 Changethe shape of the arm clamping part to make it clamp more kinds of objects. 74 Record how many kinds of objects can your robotic arm clamp?
- 38. 1 2 3 Design Concept My Artwork 76 S es s i o n Evaluation Model Design Model Creation Winner! 75 Please design a remote control delivery car based on the learned principles and models. 4 20 M o n o g r a p h 16. Race Car 18. Missile Launcher 17. Stacking Machine 19. Robotic Arm Model Review
- 39. 77 7877 78 LearningLab- Individual Packages Learning Lab- School Packages 30 mins/ session; 30 sessions/ package 50 mins/ session; 20 sessions/ package 40 mins/ session; 20 sessions/ package #1230 Wonderful World1 #1249 Construction Set20 #1231 Theme Park2 #1232 Little Artist3 #1233 Fun Cube4 #1248 Basic Set19 #1245 Vibro & Gyro16#1244 Robot15 #1246 Programmable Controller 17 #1247 S4A Interactive Bricks 18 Creative World Technology Explorer Brick Contraption 40 mins/ session; 20 sessions/ package #1238 Gas & Pneumatics9 #1240 Light & Solar Energy11 #1242 Chemical Battery13 #1234 Force & Simple Machine 5 #1235 Motion & Mechanism 6 #1236 Electricity & Circuit7 #1237 Electromagnetism & Motor 8 #1239 Wind Power10 #1241 Liquid & Hydraulics12 #1243 Optical Devices14 Scientific Experiment Target: age 2-6 (Kindergarten) 30 mins/ session; 120 sessions in total Target: age 10+ (Jr. & Sr. High School) 50 mins/ session; 80 sessions in total Target: age 7+ (Elementary School) 40 mins/ session; 100 sessions in total Target: age 7+ 40 mins/ session; 40 sessions in total Target: age 7+ (Elementary School) 40 mins/ session; 100 sessions in total #1250 Creative World Set #1251 Scientific Experiment Set- Power Machine #1252 Scientific Experiment Set- Green Energy #1253 Technology Explorer Set #1254 Brick Contraption Set Creative Classroom
