The document discusses factors influencing lateral earth pressure on retaining structures, such as soil properties, wall movement, and drainage conditions. It compares different methods for slope stability analysis, including Bishop's, Janbu's, and Morgenstern and Price methods, noting their assumptions and limitations. Additionally, it covers soil nailing as a ground improvement technique, highlighting favorable and unfavorable geomaterial conditions, and the differences between two-dimensional and three-dimensional slope stability analyses regarding factor of safety values.

1. (1)The magnitude of lateral earth pressure acting on earth retaining structures is influenced by several
factors. Understanding these factors is crucial for the proper design and stability of retaining walls and
other earth-retaining systems. Here are the key factors:
1. Soil Properties:
Cohesion (c): The cohesive strength of the soil can affect the lateral earth pressure. Cohesive soils can
provide greater stability and lower lateral pressure compared to non-cohesive soils.
Angle of Internal Friction (ϕ): Soils with a higher angle of internal friction generate lower lateral earth
pressure because they have greater shear strength.
Unit Weight (γ): The density of the soil affects the weight of the soil mass and consequently the lateral
pressure exerted on the retaining structure.
2. Wall Movement:
Active Pressure Condition: When the wall moves away from the backfill, the lateral pressure decreases
and reaches the active earth pressure state.
Passive Pressure Condition: When the wall moves towards the backfill, the lateral pressure increases
and reaches the passive earth pressure state.
At-Rest Pressure Condition: When the wall does not move, the lateral pressure is at-rest pressure, which
is higher than active pressure but lower than passive pressure.
3. Backfill Slope:
Horizontal Backfill: Produces a uniform lateral earth pressure distribution.
Inclined Backfill: Increases the lateral earth pressure due to the additional component of soil weight
acting horizontally.
4. Water Table Position:
Above the Base of the Wall: The presence of water increases the lateral earth pressure due to
hydrostatic pressure. Saturated soil also increases the unit weight, contributing to higher lateral
pressure.
Below the Base of the Wall: The lateral pressure is only due to soil weight unless seepage forces are
present.
5. Wall Friction:

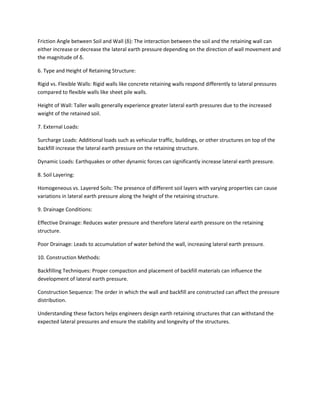

2. Friction Angle between Soil and Wall (δ): The interaction between the soil and the retaining wall can
either increase or decrease the lateral earth pressure depending on the direction of wall movement and
the magnitude of δ.
6. Type and Height of Retaining Structure:
Rigid vs. Flexible Walls: Rigid walls like concrete retaining walls respond differently to lateral pressures
compared to flexible walls like sheet pile walls.
Height of Wall: Taller walls generally experience greater lateral earth pressures due to the increased
weight of the retained soil.
7. External Loads:
Surcharge Loads: Additional loads such as vehicular traffic, buildings, or other structures on top of the
backfill increase the lateral earth pressure on the retaining structure.
Dynamic Loads: Earthquakes or other dynamic forces can significantly increase lateral earth pressure.
8. Soil Layering:
Homogeneous vs. Layered Soils: The presence of different soil layers with varying properties can cause
variations in lateral earth pressure along the height of the retaining structure.
9. Drainage Conditions:
Effective Drainage: Reduces water pressure and therefore lateral earth pressure on the retaining
structure.
Poor Drainage: Leads to accumulation of water behind the wall, increasing lateral earth pressure.
10. Construction Methods:
Backfilling Techniques: Proper compaction and placement of backfill materials can influence the
development of lateral earth pressure.
Construction Sequence: The order in which the wall and backfill are constructed can affect the pressure
distribution.
Understanding these factors helps engineers design earth retaining structures that can withstand the
expected lateral pressures and ensure the stability and longevity of the structures.

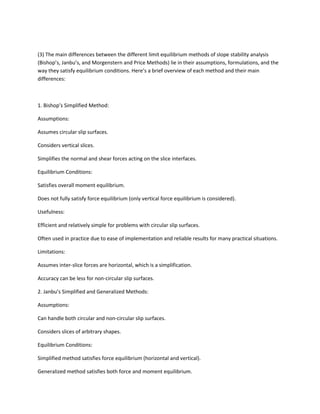

3. (3) The main differences between the different limit equilibrium methods of slope stability analysis
(Bishop’s, Janbu’s, and Morgenstern and Price Methods) lie in their assumptions, formulations, and the
way they satisfy equilibrium conditions. Here’s a brief overview of each method and their main
differences:
1. Bishop’s Simplified Method:
Assumptions:
Assumes circular slip surfaces.
Considers vertical slices.
Simplifies the normal and shear forces acting on the slice interfaces.
Equilibrium Conditions:
Satisfies overall moment equilibrium.
Does not fully satisfy force equilibrium (only vertical force equilibrium is considered).
Usefulness:
Efficient and relatively simple for problems with circular slip surfaces.
Often used in practice due to ease of implementation and reliable results for many practical situations.
Limitations:
Assumes inter-slice forces are horizontal, which is a simplification.
Accuracy can be less for non-circular slip surfaces.
2. Janbu’s Simplified and Generalized Methods:
Assumptions:
Can handle both circular and non-circular slip surfaces.
Considers slices of arbitrary shapes.
Equilibrium Conditions:
Simplified method satisfies force equilibrium (horizontal and vertical).
Generalized method satisfies both force and moment equilibrium.

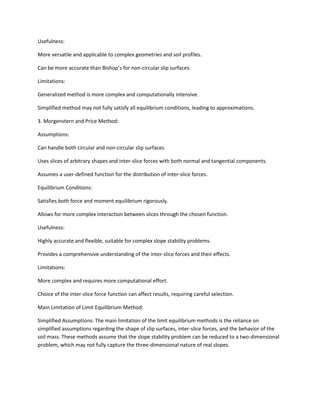

4. Usefulness:
More versatile and applicable to complex geometries and soil profiles.
Can be more accurate than Bishop’s for non-circular slip surfaces.
Limitations:
Generalized method is more complex and computationally intensive.
Simplified method may not fully satisfy all equilibrium conditions, leading to approximations.
3. Morgenstern and Price Method:
Assumptions:
Can handle both circular and non-circular slip surfaces.
Uses slices of arbitrary shapes and inter-slice forces with both normal and tangential components.
Assumes a user-defined function for the distribution of inter-slice forces.
Equilibrium Conditions:
Satisfies both force and moment equilibrium rigorously.
Allows for more complex interaction between slices through the chosen function.
Usefulness:
Highly accurate and flexible, suitable for complex slope stability problems.
Provides a comprehensive understanding of the inter-slice forces and their effects.
Limitations:
More complex and requires more computational effort.
Choice of the inter-slice force function can affect results, requiring careful selection.
Main Limitation of Limit Equilibrium Method:
Simplified Assumptions: The main limitation of the limit equilibrium methods is the reliance on
simplified assumptions regarding the shape of slip surfaces, inter-slice forces, and the behavior of the
soil mass. These methods assume that the slope stability problem can be reduced to a two-dimensional
problem, which may not fully capture the three-dimensional nature of real slopes.

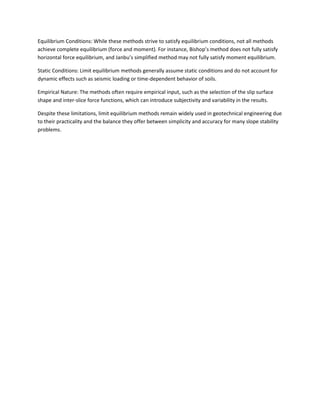

5. Equilibrium Conditions: While these methods strive to satisfy equilibrium conditions, not all methods
achieve complete equilibrium (force and moment). For instance, Bishop’s method does not fully satisfy
horizontal force equilibrium, and Janbu’s simplified method may not fully satisfy moment equilibrium.
Static Conditions: Limit equilibrium methods generally assume static conditions and do not account for
dynamic effects such as seismic loading or time-dependent behavior of soils.
Empirical Nature: The methods often require empirical input, such as the selection of the slip surface
shape and inter-slice force functions, which can introduce subjectivity and variability in the results.
Despite these limitations, limit equilibrium methods remain widely used in geotechnical engineering due
to their practicality and the balance they offer between simplicity and accuracy for many slope stability
problems.

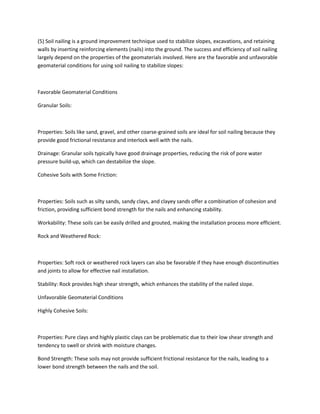

6. (5) Soil nailing is a ground improvement technique used to stabilize slopes, excavations, and retaining
walls by inserting reinforcing elements (nails) into the ground. The success and efficiency of soil nailing
largely depend on the properties of the geomaterials involved. Here are the favorable and unfavorable
geomaterial conditions for using soil nailing to stabilize slopes:
Favorable Geomaterial Conditions
Granular Soils:
Properties: Soils like sand, gravel, and other coarse-grained soils are ideal for soil nailing because they
provide good frictional resistance and interlock well with the nails.
Drainage: Granular soils typically have good drainage properties, reducing the risk of pore water
pressure build-up, which can destabilize the slope.
Cohesive Soils with Some Friction:
Properties: Soils such as silty sands, sandy clays, and clayey sands offer a combination of cohesion and
friction, providing sufficient bond strength for the nails and enhancing stability.
Workability: These soils can be easily drilled and grouted, making the installation process more efficient.
Rock and Weathered Rock:
Properties: Soft rock or weathered rock layers can also be favorable if they have enough discontinuities
and joints to allow for effective nail installation.
Stability: Rock provides high shear strength, which enhances the stability of the nailed slope.
Unfavorable Geomaterial Conditions
Highly Cohesive Soils:
Properties: Pure clays and highly plastic clays can be problematic due to their low shear strength and
tendency to swell or shrink with moisture changes.
Bond Strength: These soils may not provide sufficient frictional resistance for the nails, leading to a
lower bond strength between the nails and the soil.

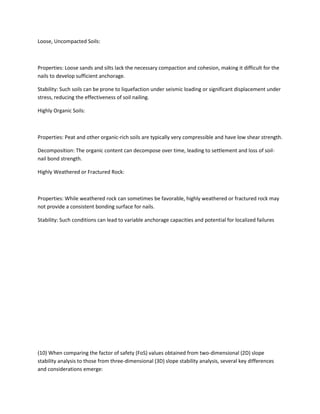

7. Loose, Uncompacted Soils:
Properties: Loose sands and silts lack the necessary compaction and cohesion, making it difficult for the
nails to develop sufficient anchorage.
Stability: Such soils can be prone to liquefaction under seismic loading or significant displacement under
stress, reducing the effectiveness of soil nailing.
Highly Organic Soils:
Properties: Peat and other organic-rich soils are typically very compressible and have low shear strength.
Decomposition: The organic content can decompose over time, leading to settlement and loss of soil-
nail bond strength.
Highly Weathered or Fractured Rock:
Properties: While weathered rock can sometimes be favorable, highly weathered or fractured rock may
not provide a consistent bonding surface for nails.
Stability: Such conditions can lead to variable anchorage capacities and potential for localized failures
(10) When comparing the factor of safety (FoS) values obtained from two-dimensional (2D) slope
stability analysis to those from three-dimensional (3D) slope stability analysis, several key differences
and considerations emerge:

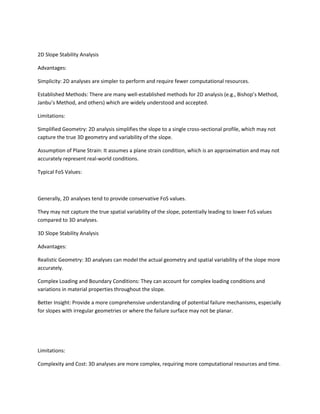

8. 2D Slope Stability Analysis
Advantages:
Simplicity: 2D analyses are simpler to perform and require fewer computational resources.
Established Methods: There are many well-established methods for 2D analysis (e.g., Bishop’s Method,
Janbu’s Method, and others) which are widely understood and accepted.
Limitations:
Simplified Geometry: 2D analysis simplifies the slope to a single cross-sectional profile, which may not
capture the true 3D geometry and variability of the slope.
Assumption of Plane Strain: It assumes a plane strain condition, which is an approximation and may not
accurately represent real-world conditions.
Typical FoS Values:
Generally, 2D analyses tend to provide conservative FoS values.
They may not capture the true spatial variability of the slope, potentially leading to lower FoS values
compared to 3D analyses.
3D Slope Stability Analysis
Advantages:
Realistic Geometry: 3D analyses can model the actual geometry and spatial variability of the slope more
accurately.
Complex Loading and Boundary Conditions: They can account for complex loading conditions and
variations in material properties throughout the slope.
Better Insight: Provide a more comprehensive understanding of potential failure mechanisms, especially
for slopes with irregular geometries or where the failure surface may not be planar.
Limitations:
Complexity and Cost: 3D analyses are more complex, requiring more computational resources and time.

9. Data Requirements: Require more detailed input data, including 3D geological models, which can be
challenging and expensive to obtain.
Typical FoS Values:
3D analyses generally yield higher FoS values compared to 2D analyses. This is because 3D analyses can
take into account the stabilizing effects of the out-of-plane forces and spatial constraints that limit the
extent of the failure surface.
The difference between 2D and 3D FoS values can be significant, especially for slopes with complex
geometries or heterogeneous material properties.
Comparison of FoS Values
Conservatism: 2D slope stability analyses are often more conservative, potentially underestimating the
stability of the slope by not considering the full 3D effects.
Accuracy: 3D analyses provide a more accurate representation of the actual slope stability, often
resulting in higher FoS values due to the additional constraints and support from surrounding materials.
Example
For a homogeneous slope with simple geometry, the difference between 2D and 3D FoS values might be
minor. However, for a slope with complex topography or varying material properties, 3D analysis can
show significantly higher FoS values due to:
Additional resistance from side constraints.
The influence of spatially variable material properties.
The ability to capture complex failure surfaces that are not planar.
Numerical Example:
A 2D analysis might yield an FoS of 1.2 for a given slope profile.
A corresponding 3D analysis could show an FoS of 1.3 to 1.5 for the same slope, reflecting the stabilizing
effects of the 3D geometry.
Conclusion
In summary, 2D analyses are simpler and more conservative, often leading to lower FoS values. In
contrast, 3D analyses provide a more detailed and realistic assessment, generally resulting in higher FoS

10. values. The choice between 2D and 3D analysis should be guided by the complexity of the slope, the
accuracy required, and the available resources for the analysis.
