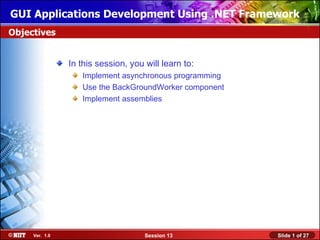

GUI Applications Development Using .NET Framework

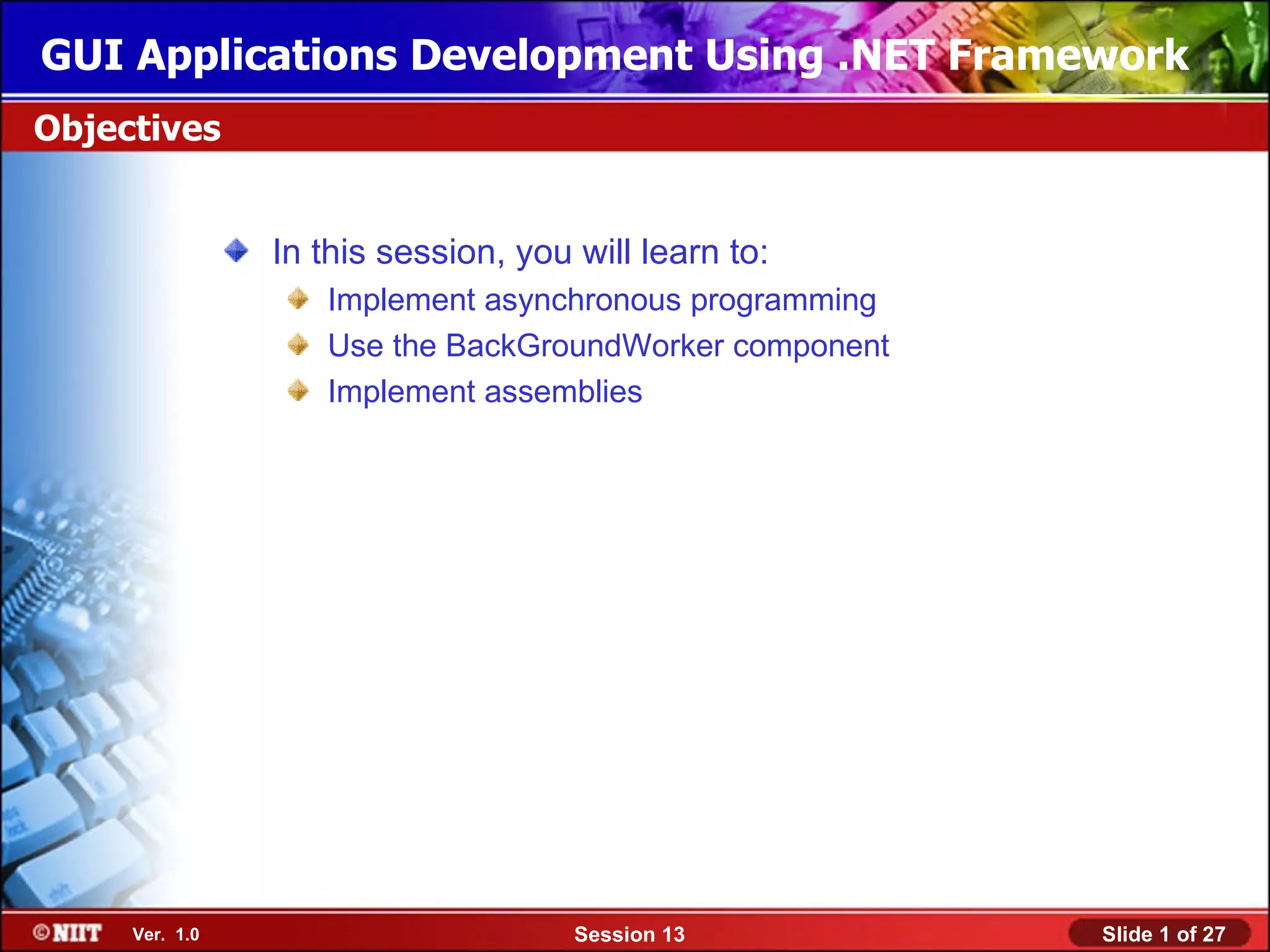

Objectives

In this session, you will learn to:
Implement asynchronous programming
Use the BackGroundWorker component
Implement assemblies

Ver. 1.0 Session 13 Slide 1 of 27

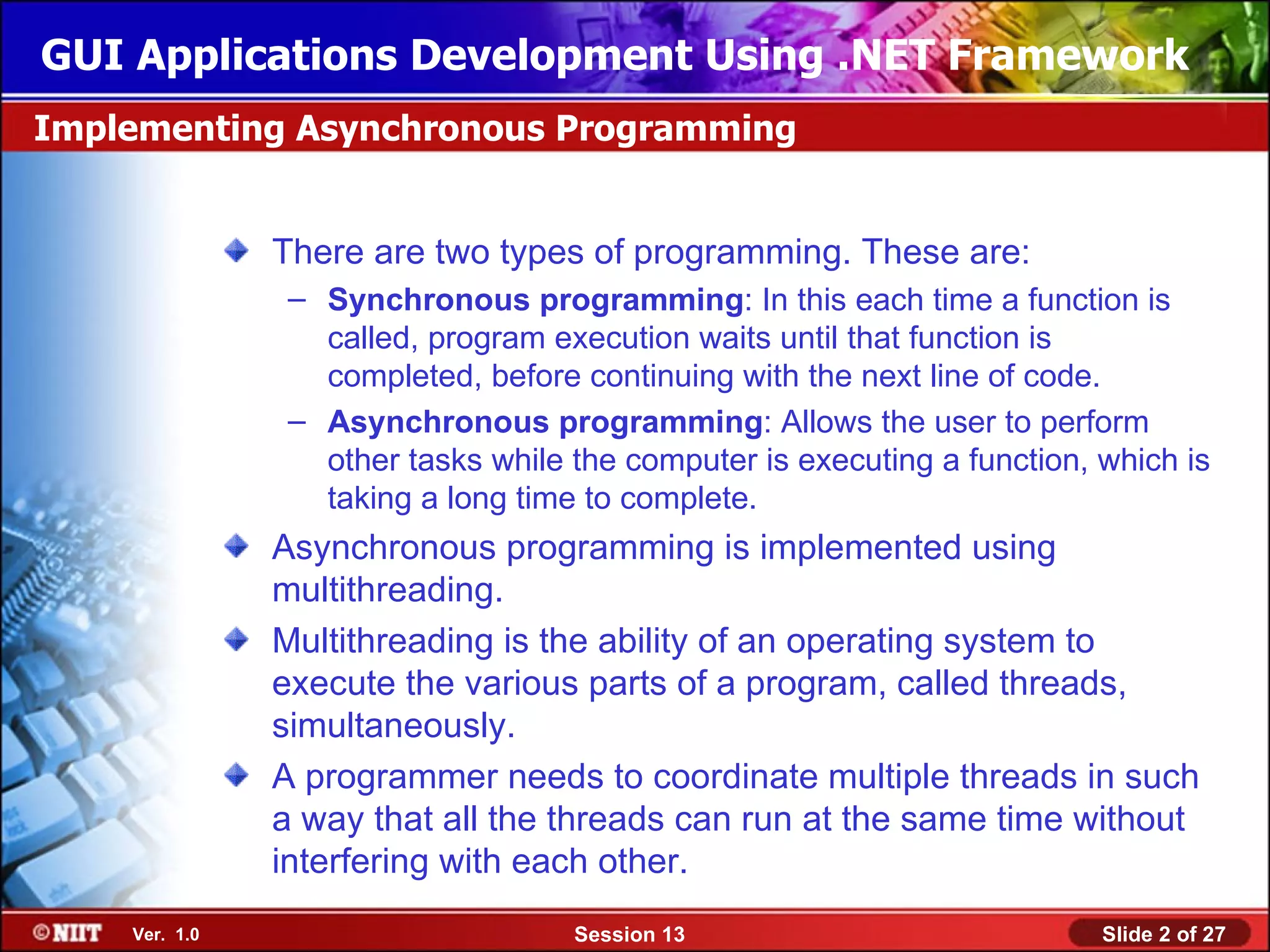

Implementing Asynchronous Programming

There are two types of programming. These are:
– Synchronous programming: In this each time a function is
called, program execution waits until that function is
completed, before continuing with the next line of code.
– Asynchronous programming: Allows the user to perform
other tasks while the computer is executing a function, which is
taking a long time to complete.
Asynchronous programming is implemented using
multithreading.
Multithreading is the ability of an operating system to
execute the various parts of a program, called threads,
simultaneously.
A programmer needs to coordinate multiple threads in such
a way that all the threads can run at the same time without
interfering with each other.

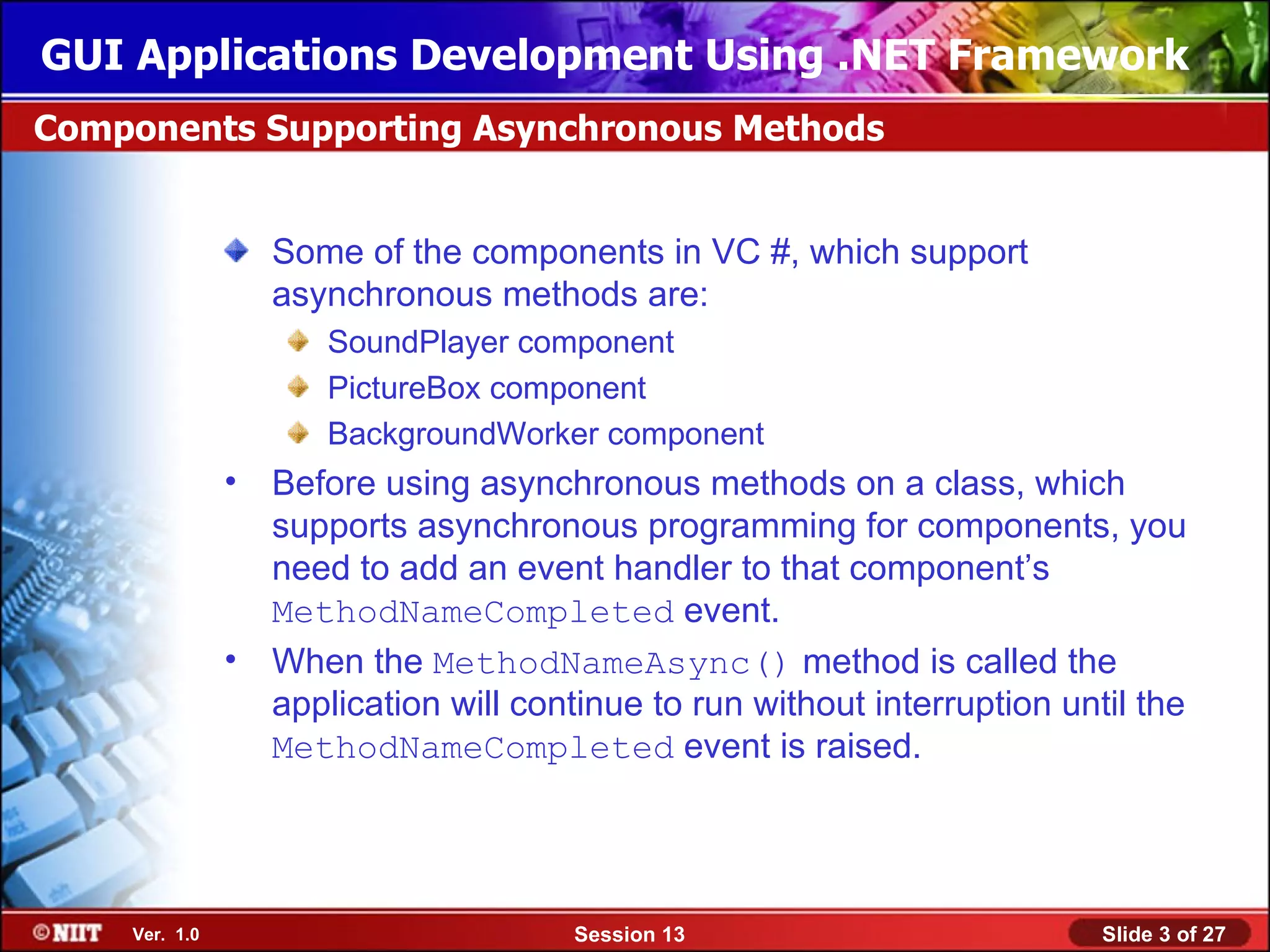

Components Supporting Asynchronous Methods

Some of the components in VC #, which support
asynchronous methods are:
SoundPlayer component
PictureBox component
BackgroundWorker component
• Before using asynchronous methods on a class, which
supports asynchronous programming for components, you
need to add an event handler to that component’s
MethodNameCompleted event.
• When the MethodNameAsync() method is called the
application will continue to run without interruption until the
MethodNameCompleted event is raised.

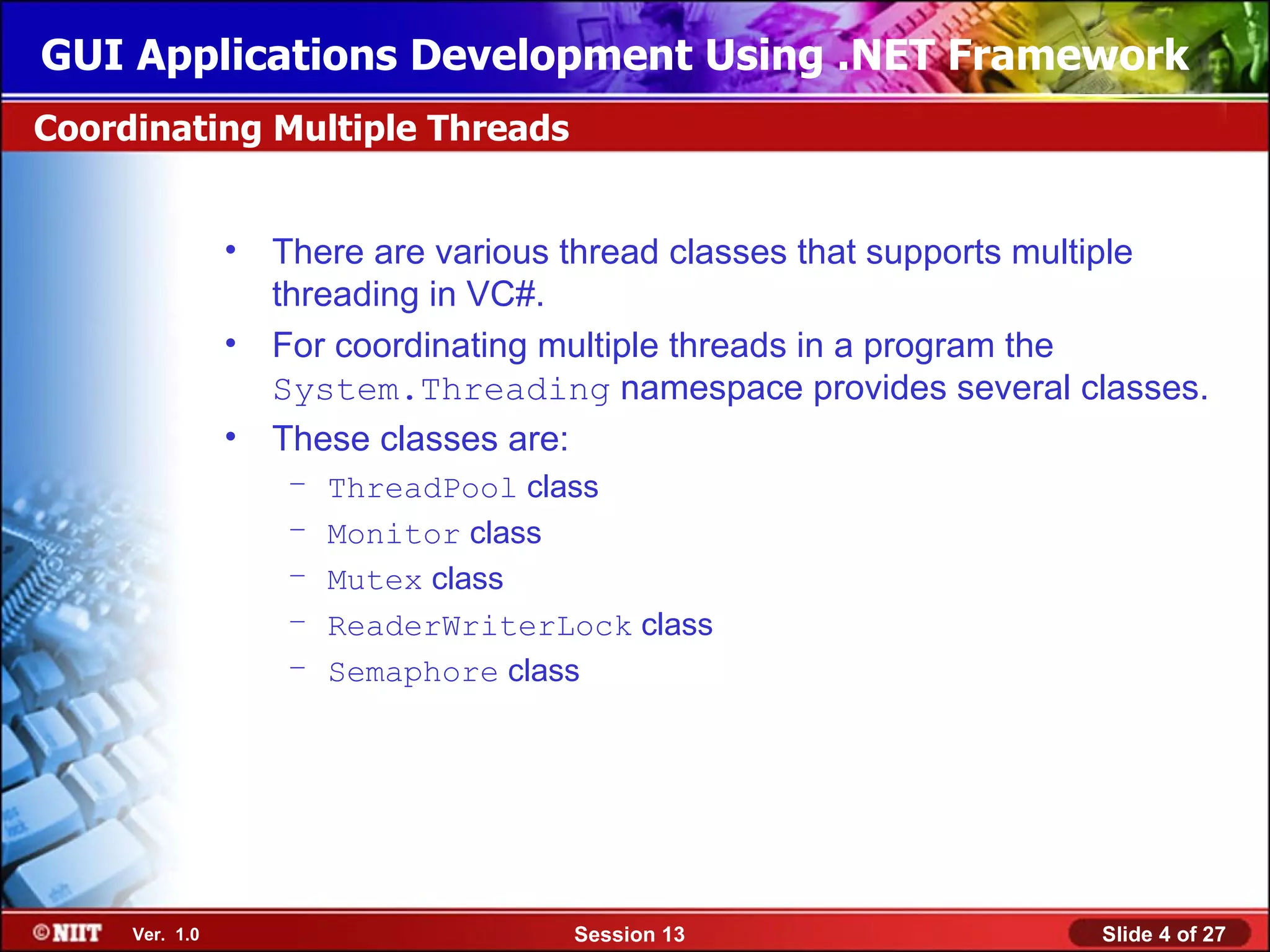

Coordinating Multiple Threads

• There are various thread classes that supports multiple
threading in VC#.
• For coordinating multiple threads in a program the
System.Threading namespace provides several classes.
• These classes are:
– ThreadPool class
– Monitor class
– Mutex class
– ReaderWriterLock class
– Semaphore class

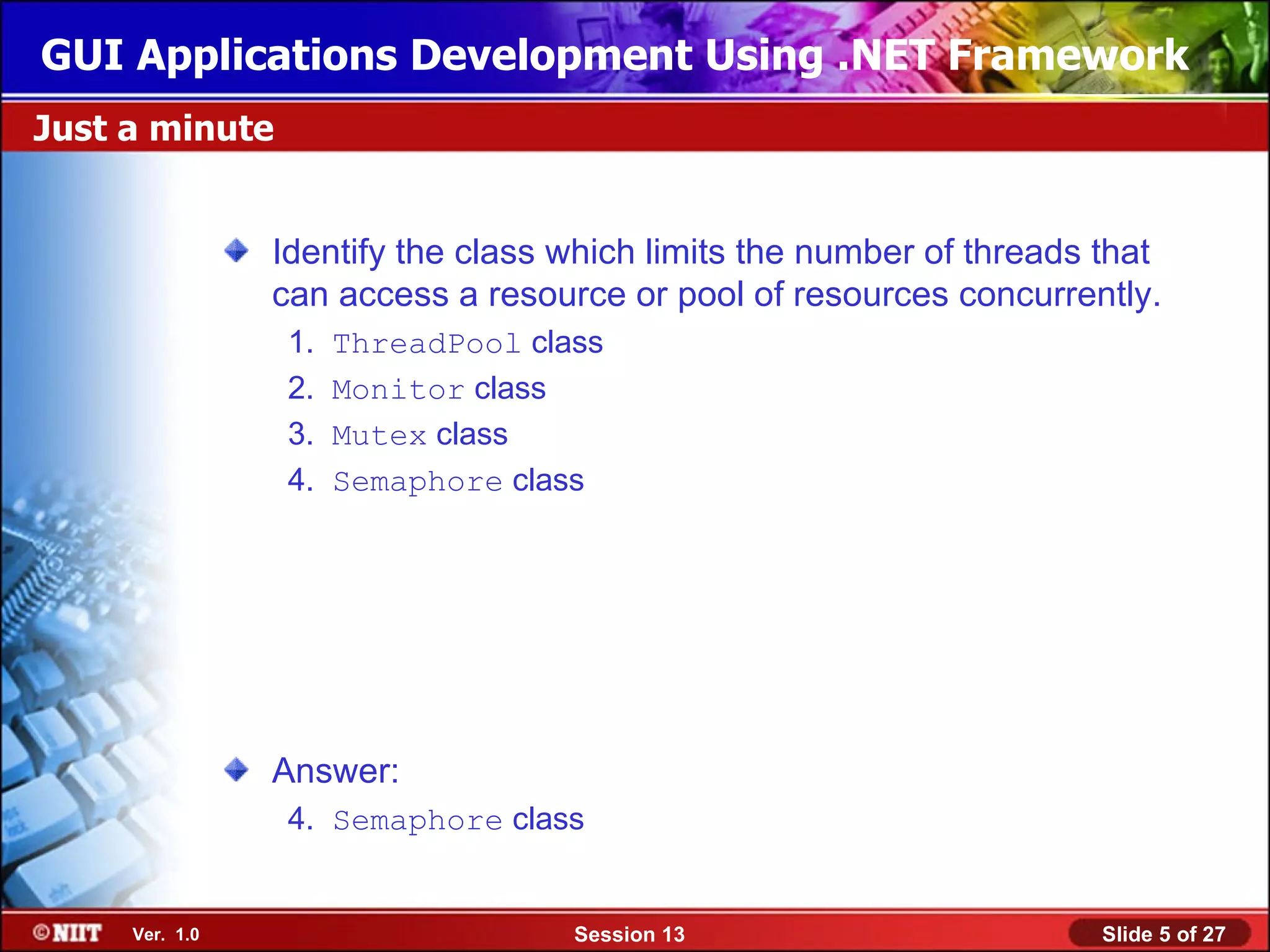

Just a minute

Identify the class which limits the number of threads that
can access a resource or pool of resources concurrently.
1. ThreadPool class
2. Monitor class
3. Mutex class
4. Semaphore class

Answer:
4. Semaphore class

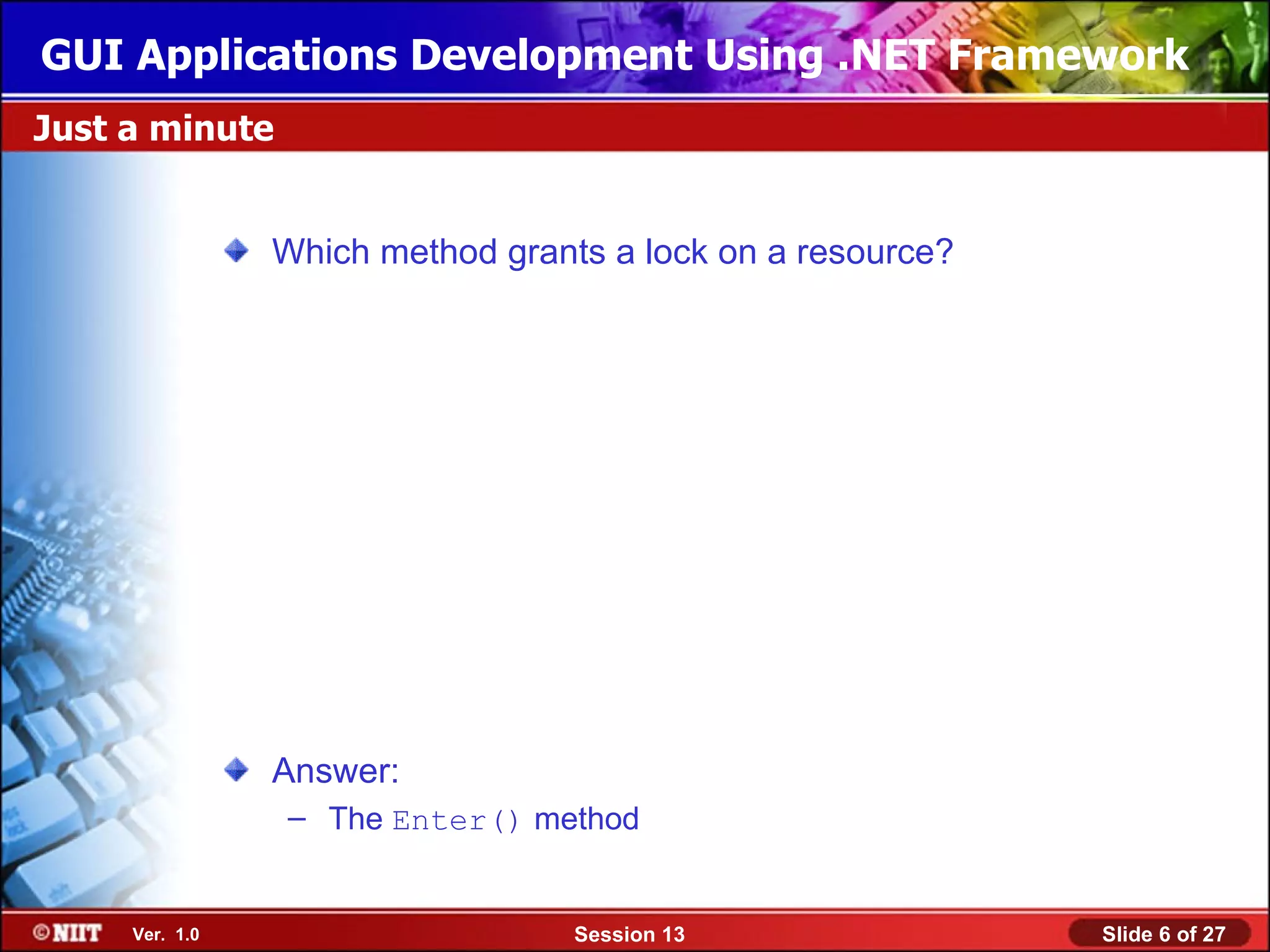

Just a minute

Which method grants a lock on a resource?

Answer:
– The Enter() method


Coordinating Multiple Threads (Contd.)

The two main situations, which could create bottlenecks in
asynchronous programming are as follows:
Race Condition
Deadlock
A race condition occurs when
the outcome of a program
A deadlock occurs when a
depends on which of the thread
thread tries to lock a resource,
gets access to a particular block
which is already locked by
of code first.
another thread. A deadlock
blocks the program.

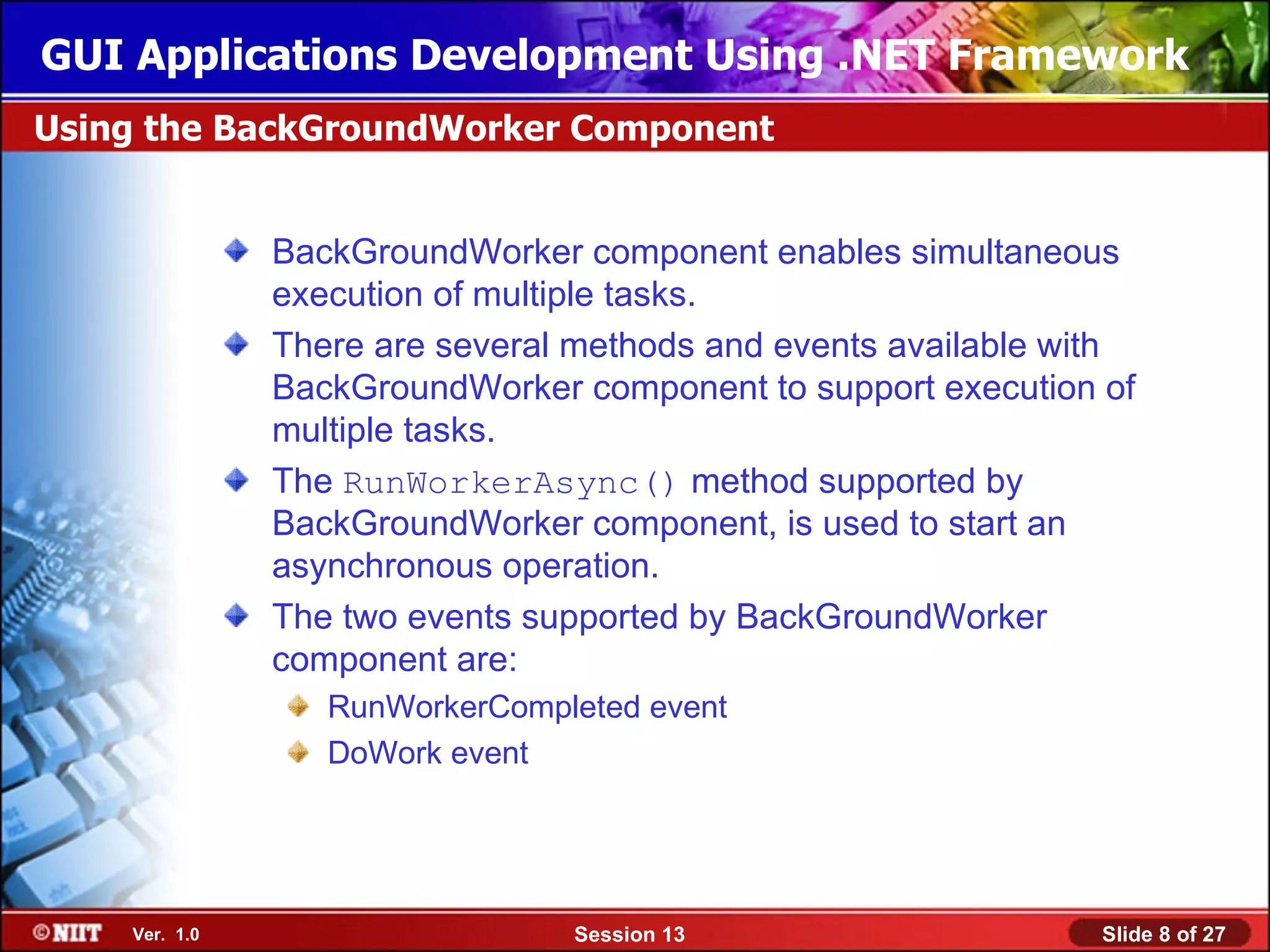

Using the BackGroundWorker Component

BackGroundWorker component enables simultaneous
execution of multiple tasks.
There are several methods and events available with
BackGroundWorker component to support execution of
multiple tasks.
The RunWorkerAsync() method supported by
BackGroundWorker component, is used to start an
asynchronous operation.
The two events supported by BackGroundWorker
component are:
RunWorkerCompleted event
DoWork event

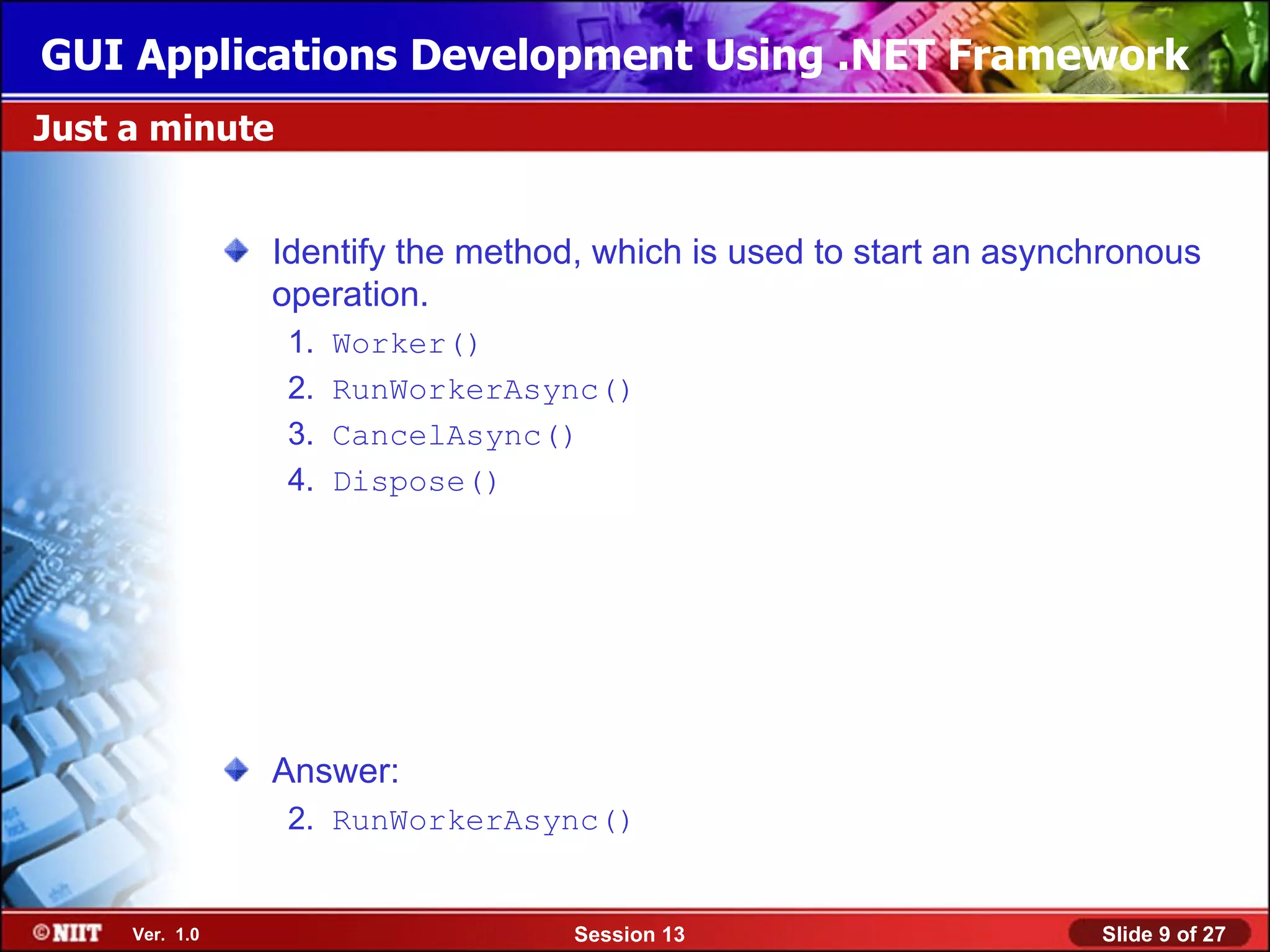

Just a minute

Identify the method, which is used to start an asynchronous
operation.
1. Worker()
2. RunWorkerAsync()
3. CancelAsync()
4. Dispose()

Answer:
2. RunWorkerAsync()

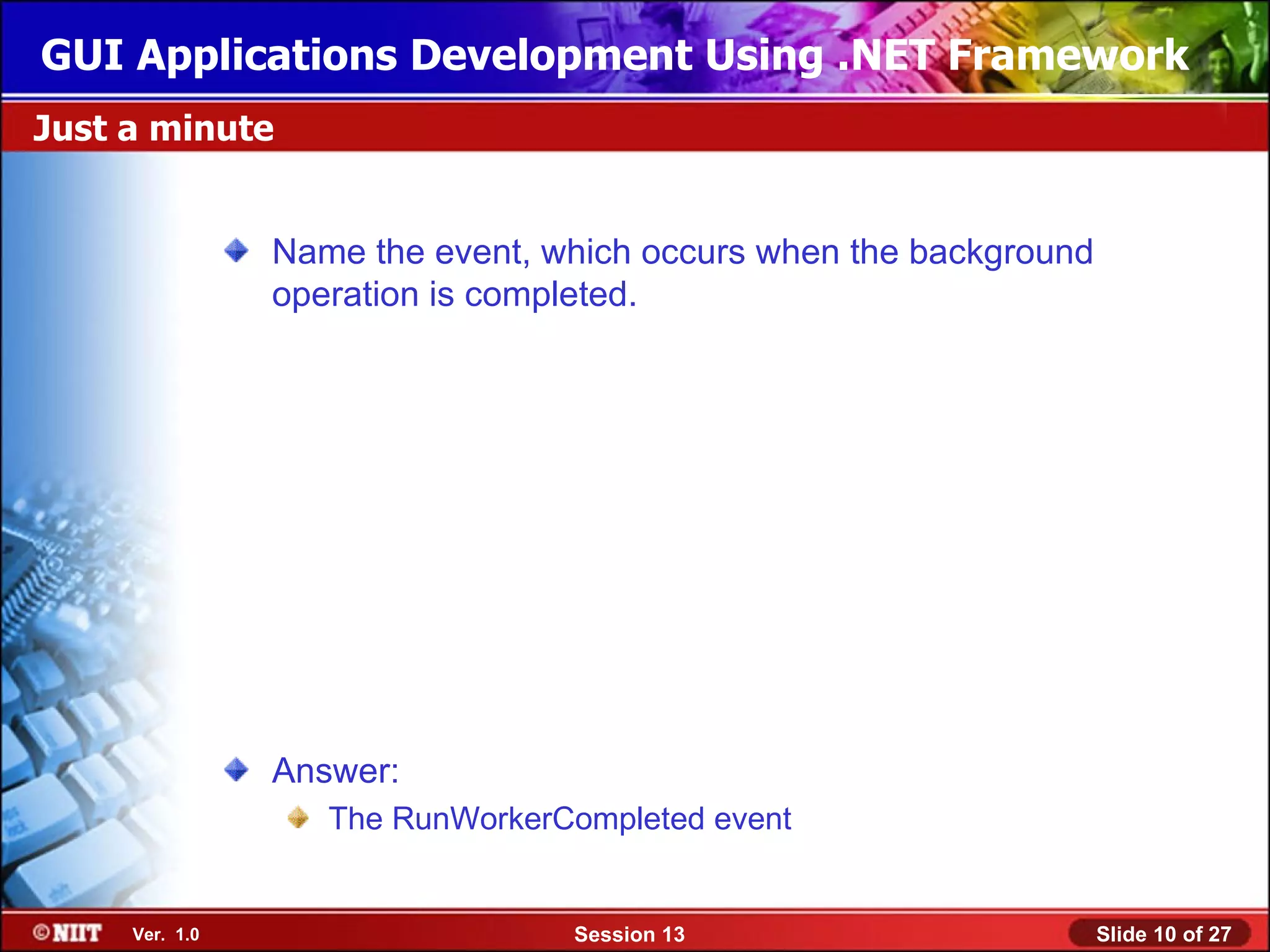

Just a minute

Name the event, which occurs when the background
operation is completed.

Answer:
The RunWorkerCompleted event

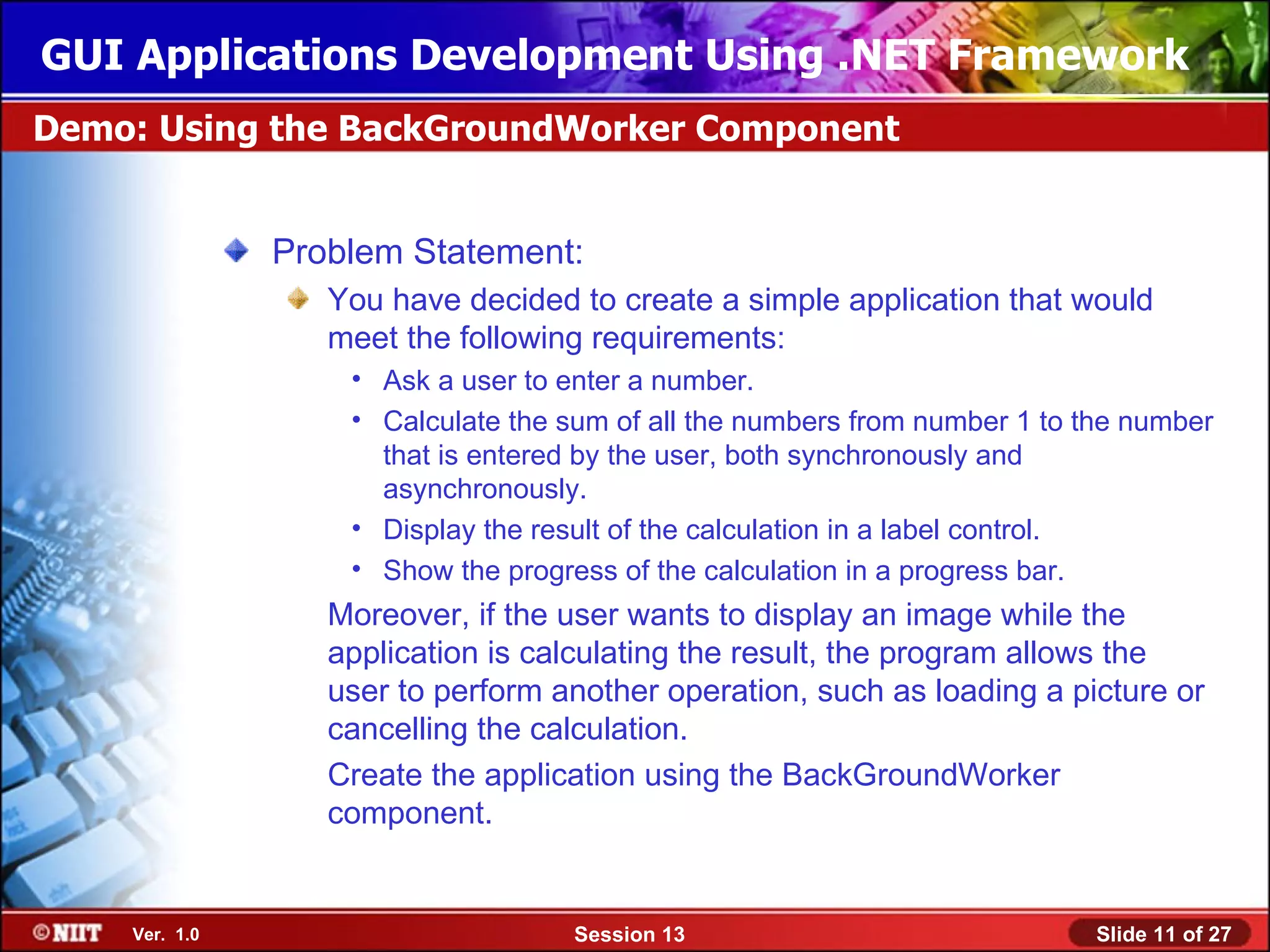

Demo: Using the BackGroundWorker Component

Problem Statement:
You have decided to create a simple application that would
meet the following requirements:
• Ask a user to enter a number.
• Calculate the sum of all the numbers from number 1 to the number
that is entered by the user, both synchronously and
asynchronously.
• Display the result of the calculation in a label control.
• Show the progress of the calculation in a progress bar.
Moreover, if the user wants to display an image while the
application is calculating the result, the program allows the
user to perform another operation, such as loading a picture or
cancelling the calculation.
Create the application using the BackGroundWorker
component.

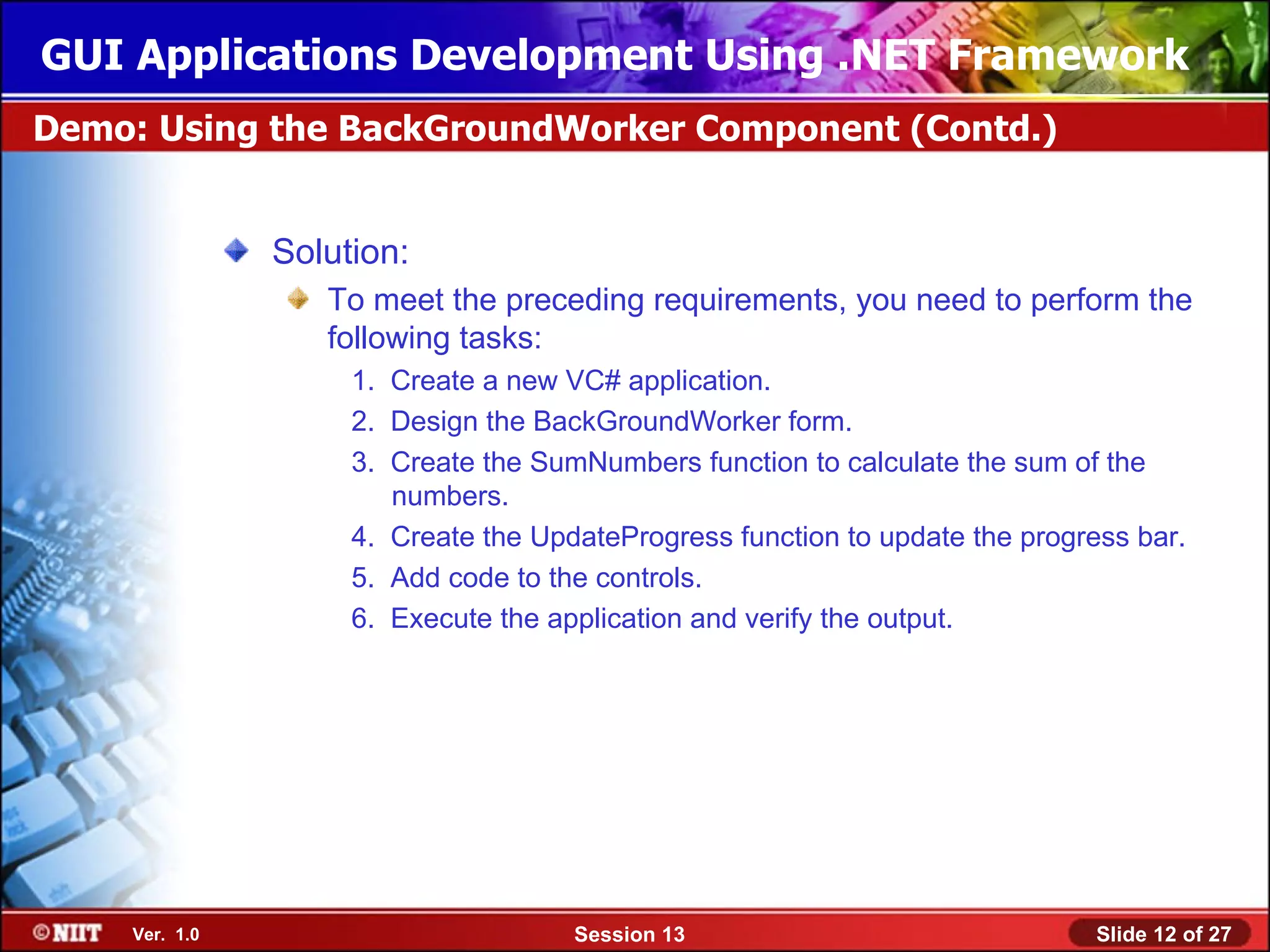

Demo: Using the BackGroundWorker Component (Contd.)

Solution:
To meet the preceding requirements, you need to perform the
following tasks:
1. Create a new VC# application.
2. Design the BackGroundWorker form.
3. Create the SumNumbers function to calculate the sum of the
numbers.
4. Create the UpdateProgress function to update the progress bar.
5. Add code to the controls.
6. Execute the application and verify the output.

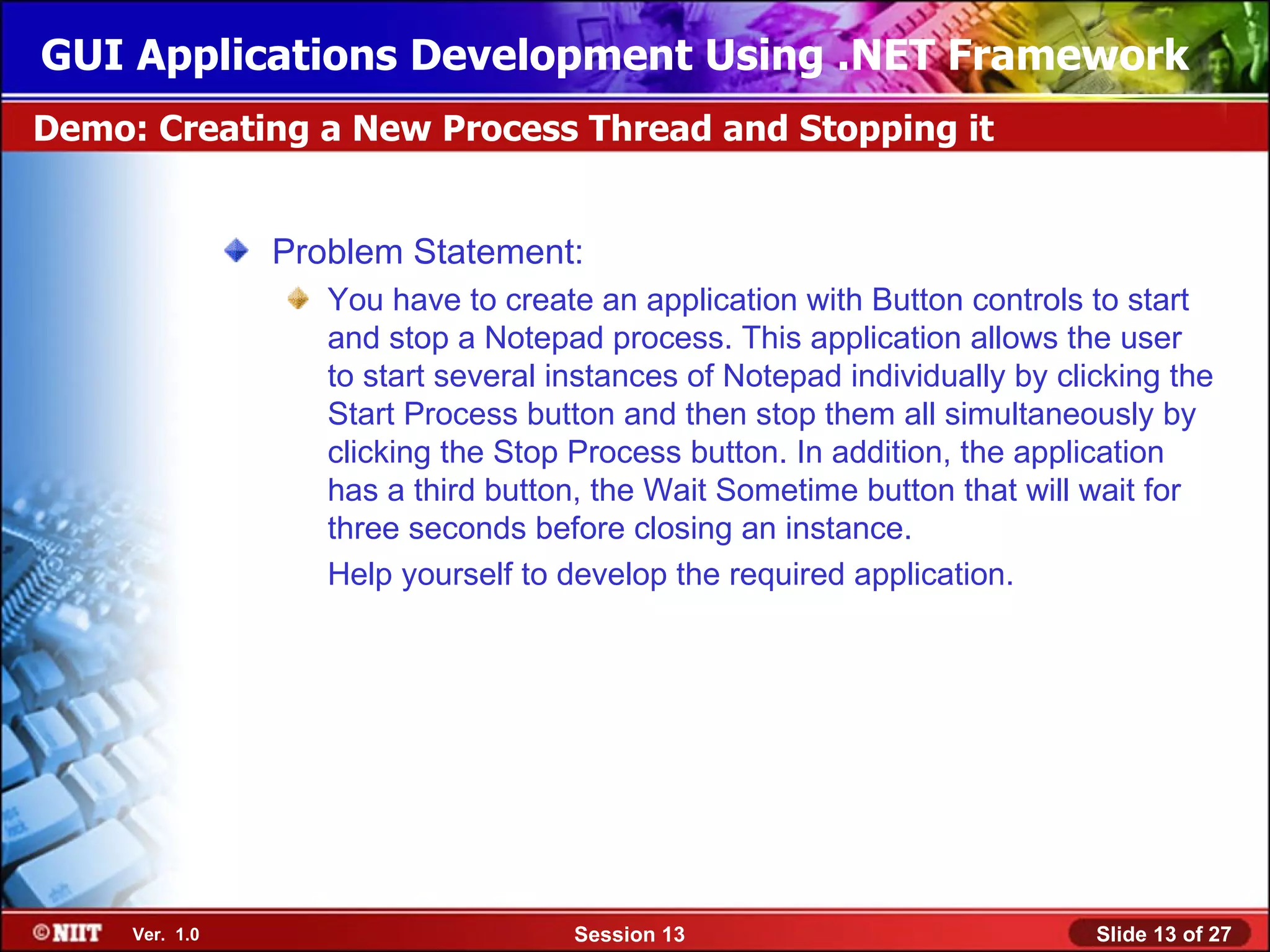

Demo: Creating a New Process Thread and Stopping it

Problem Statement:
You have to create an application with Button controls to start
and stop a Notepad process. This application allows the user
to start several instances of Notepad individually by clicking the
Start Process button and then stop them all simultaneously by
clicking the Stop Process button. In addition, the application
has a third button, the Wait Sometime button that will wait for
three seconds before closing an instance.
Help yourself to develop the required application.

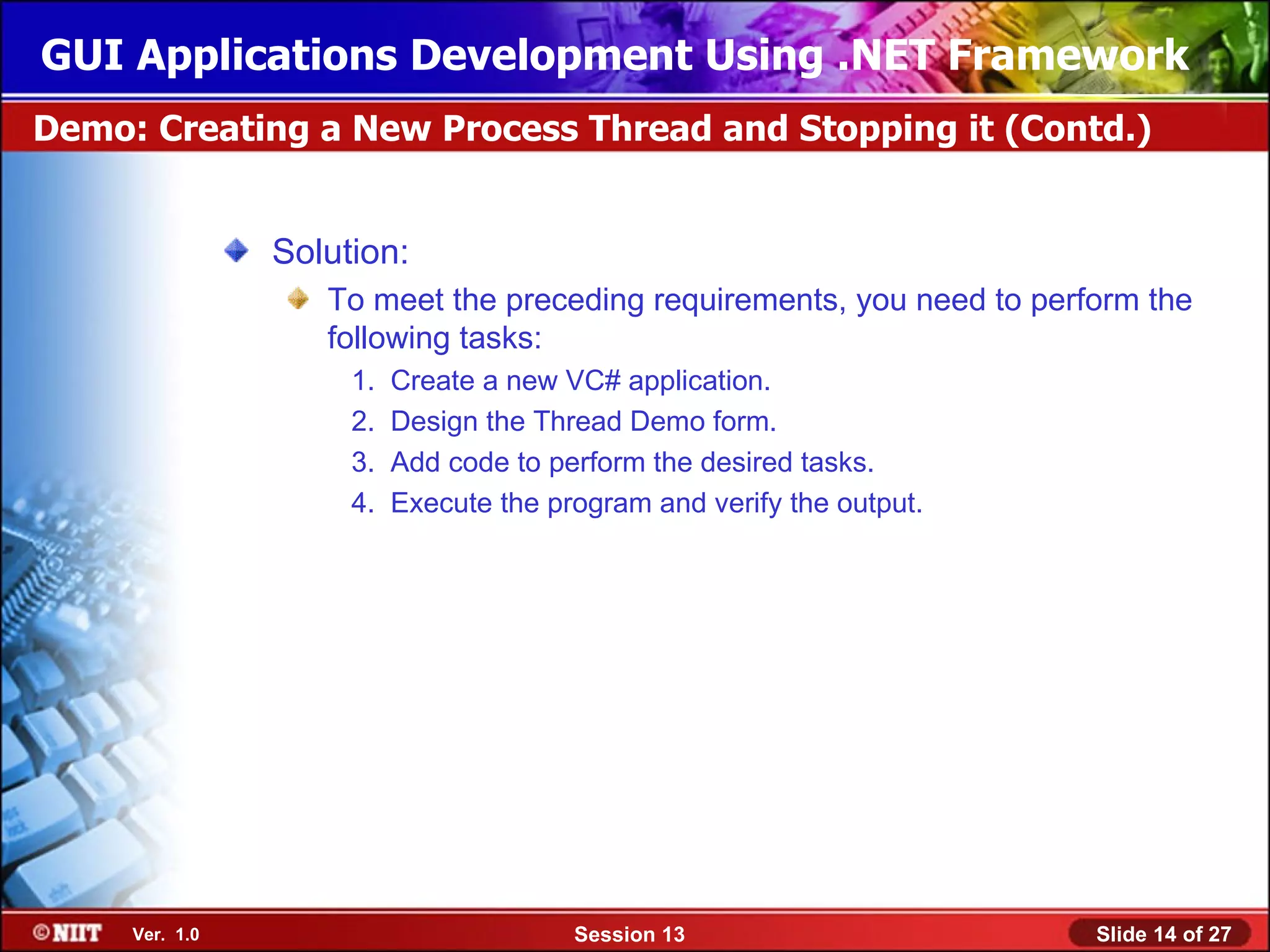

Demo: Creating a New Process Thread and Stopping it (Contd.)

Solution:
To meet the preceding requirements, you need to perform the
following tasks:
1. Create a new VC# application.
2. Design the Thread Demo form.
3. Add code to perform the desired tasks.
4. Execute the program and verify the output.

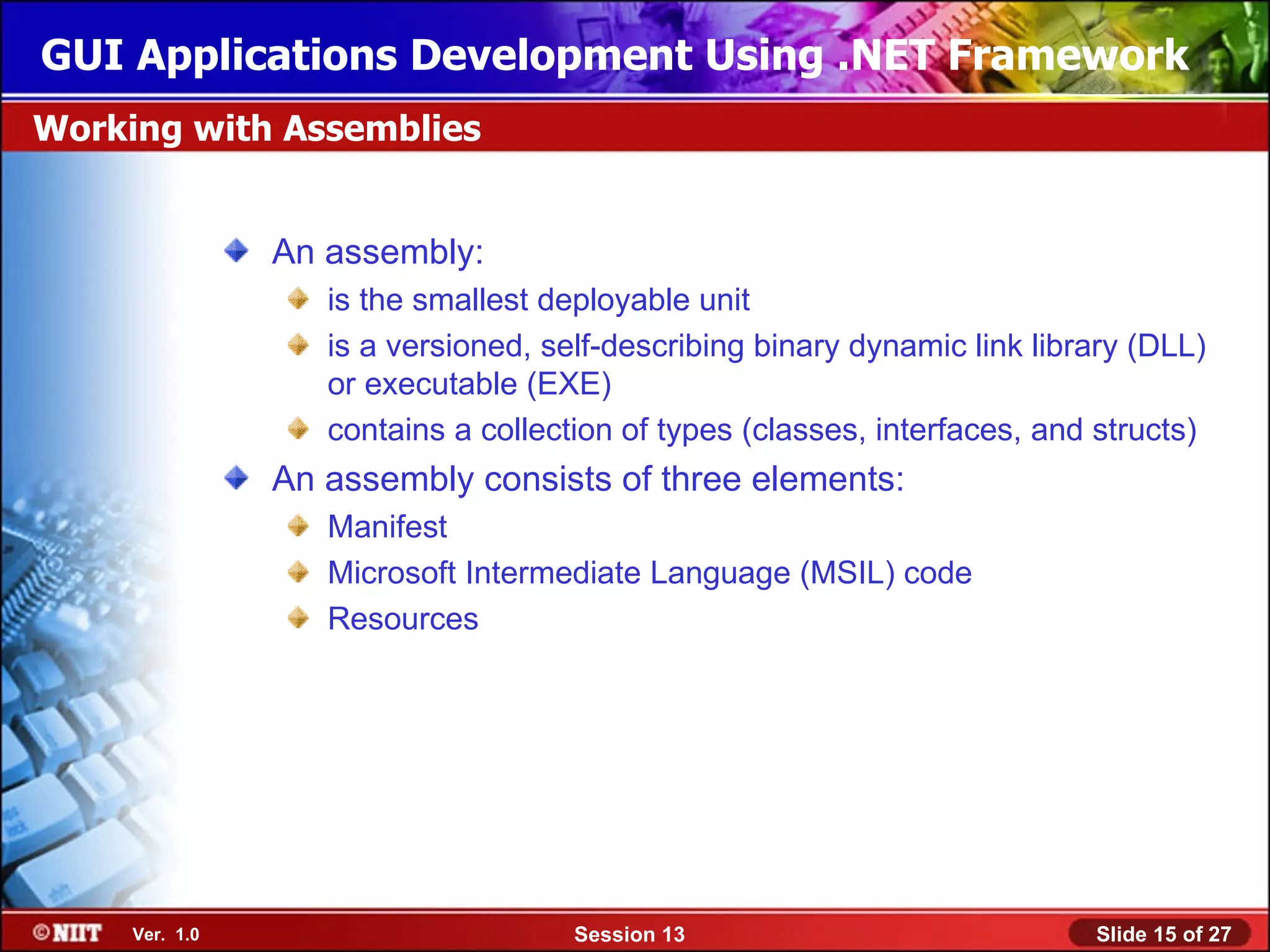

Working with Assemblies

An assembly:
is the smallest deployable unit
is a versioned, self-describing binary dynamic link library (DLL)
or executable (EXE)
contains a collection of types (classes, interfaces, and structs)
An assembly consists of three elements:
Manifest
Microsoft Intermediate Language (MSIL) code
Resources

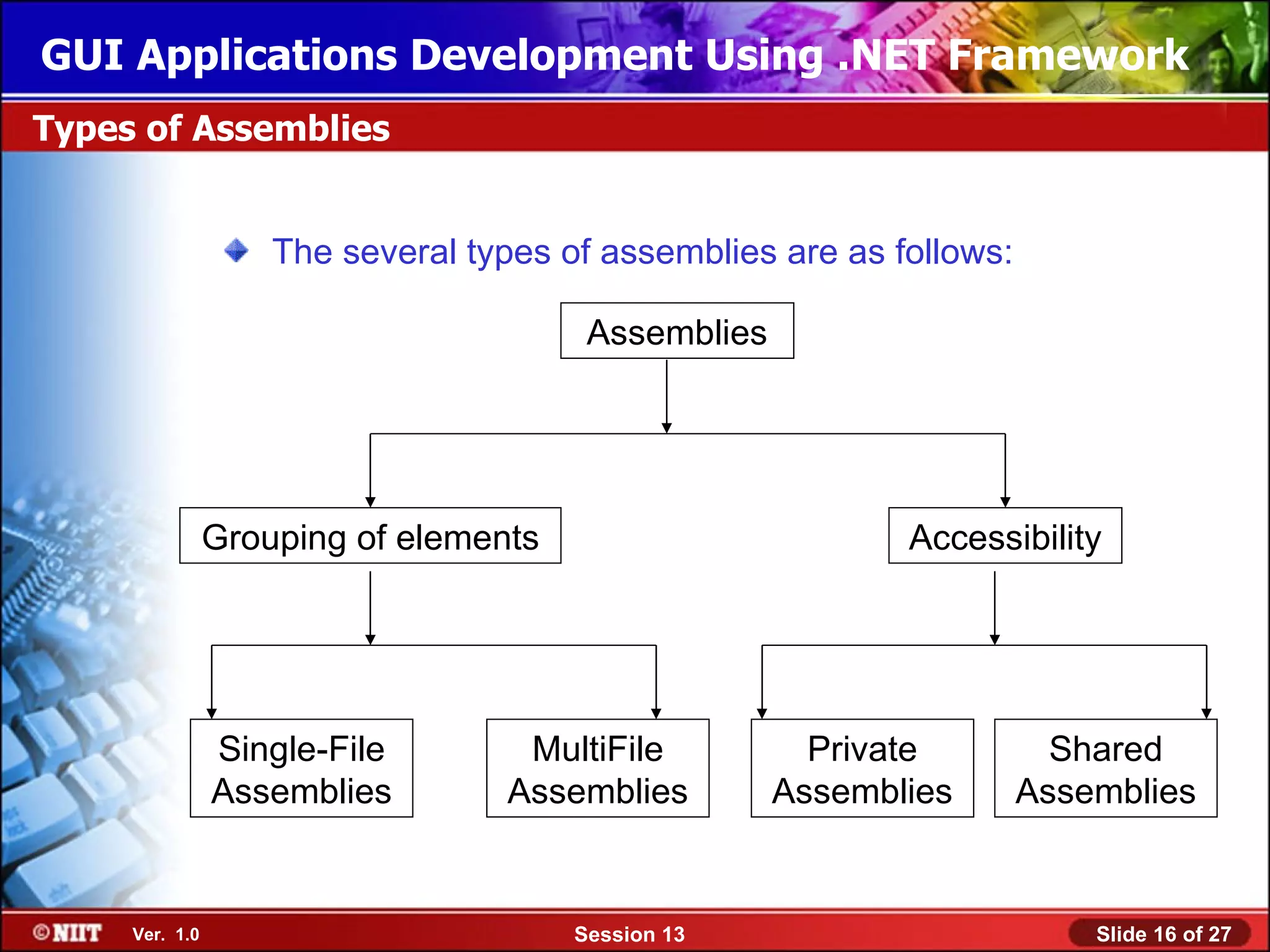

Types of Assemblies

The several types of assemblies are as follows:

Assemblies

Grouping of elements Accessibility

Single-File MultiFile Private Shared
Assemblies Assemblies Assemblies Assemblies

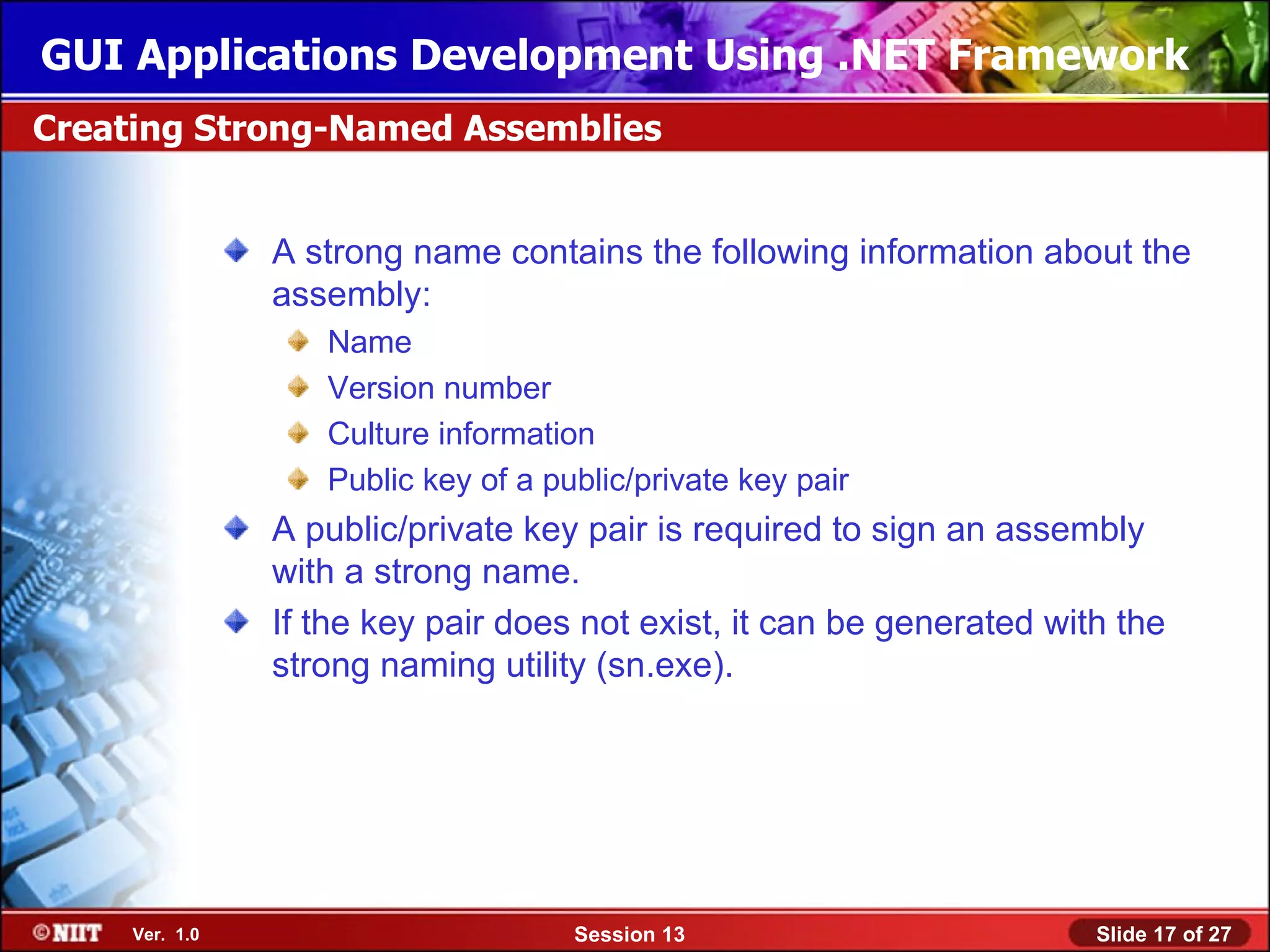

Creating Strong-Named Assemblies

A strong name contains the following information about the
assembly:
Name
Version number
Culture information
Public key of a public/private key pair
A public/private key pair is required to sign an assembly
with a strong name.
If the key pair does not exist, it can be generated with the
strong naming utility (sn.exe).

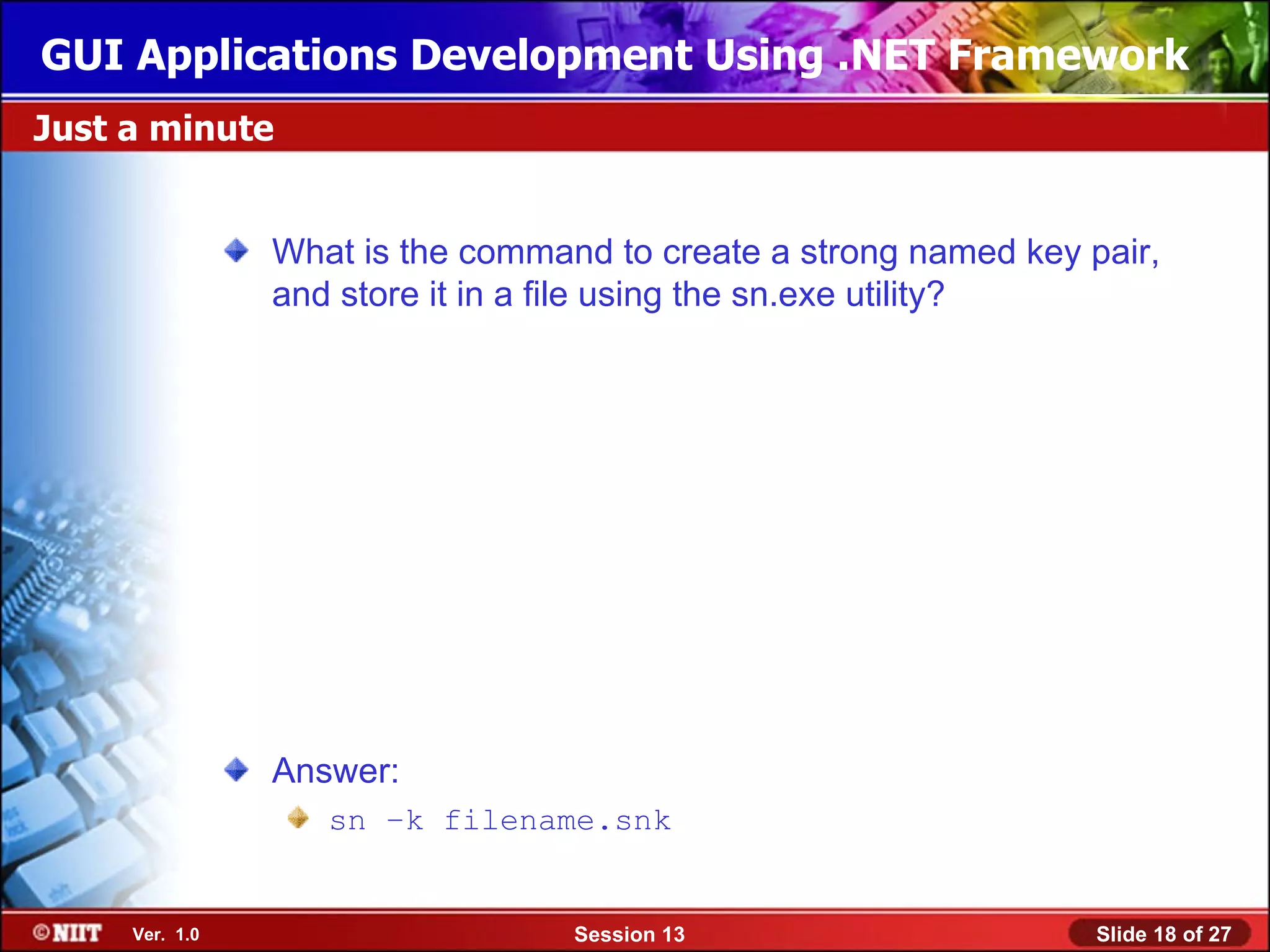

Just a minute

What is the command to create a strong named key pair,
and store it in a file using the sn.exe utility?

Answer:
sn –k filename.snk


Calling a Strong-Named Assembly

To add a reference to the strong named assembly in your
project, you need to perform the following steps:
1. Right-click the References node in Visual Studio .NET Solution
Explorer.
2. Select the Add Reference option. The Add Reference dialog
box appears.
3. Click the Browse button to locate the assembly.
4. Select the correct assembly, and click the OK button.
5. Check the References node in Solution Explorer to verify that
the reference to the assembly has been added.
6. Include the using statement for the namespace of the
strong-named assembly in all the source files that require
access to the assembly.
7. Build and run the application.

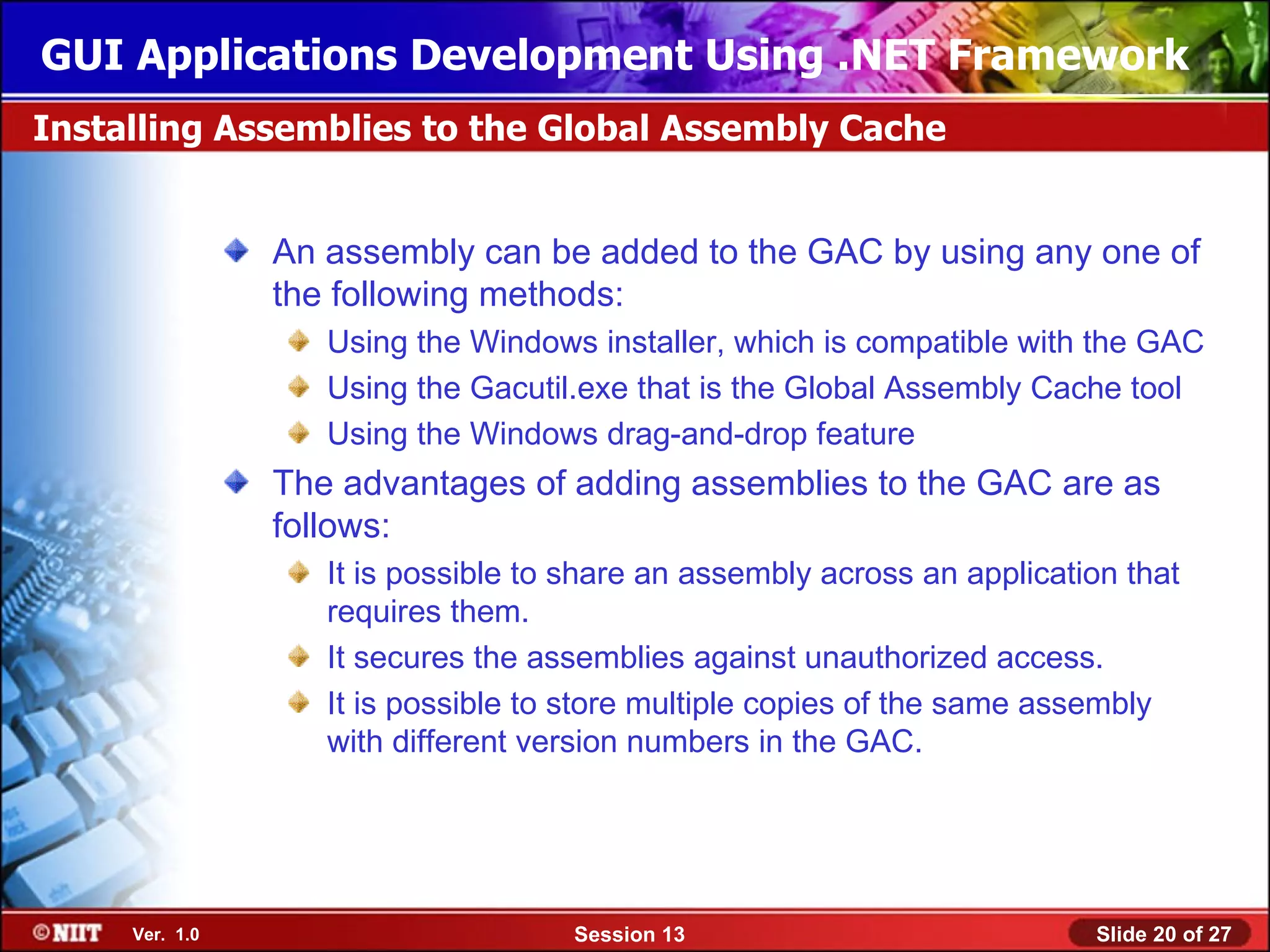

Installing Assemblies to the Global Assembly Cache

An assembly can be added to the GAC by using any one of
the following methods:
Using the Windows installer, which is compatible with the GAC
Using the Gacutil.exe that is the Global Assembly Cache tool
Using the Windows drag-and-drop feature
The advantages of adding assemblies to the GAC are as
follows:
It is possible to share an assembly across an application that
requires them.
It secures the assemblies against unauthorized access.
It is possible to store multiple copies of the same assembly
with different version numbers in the GAC.

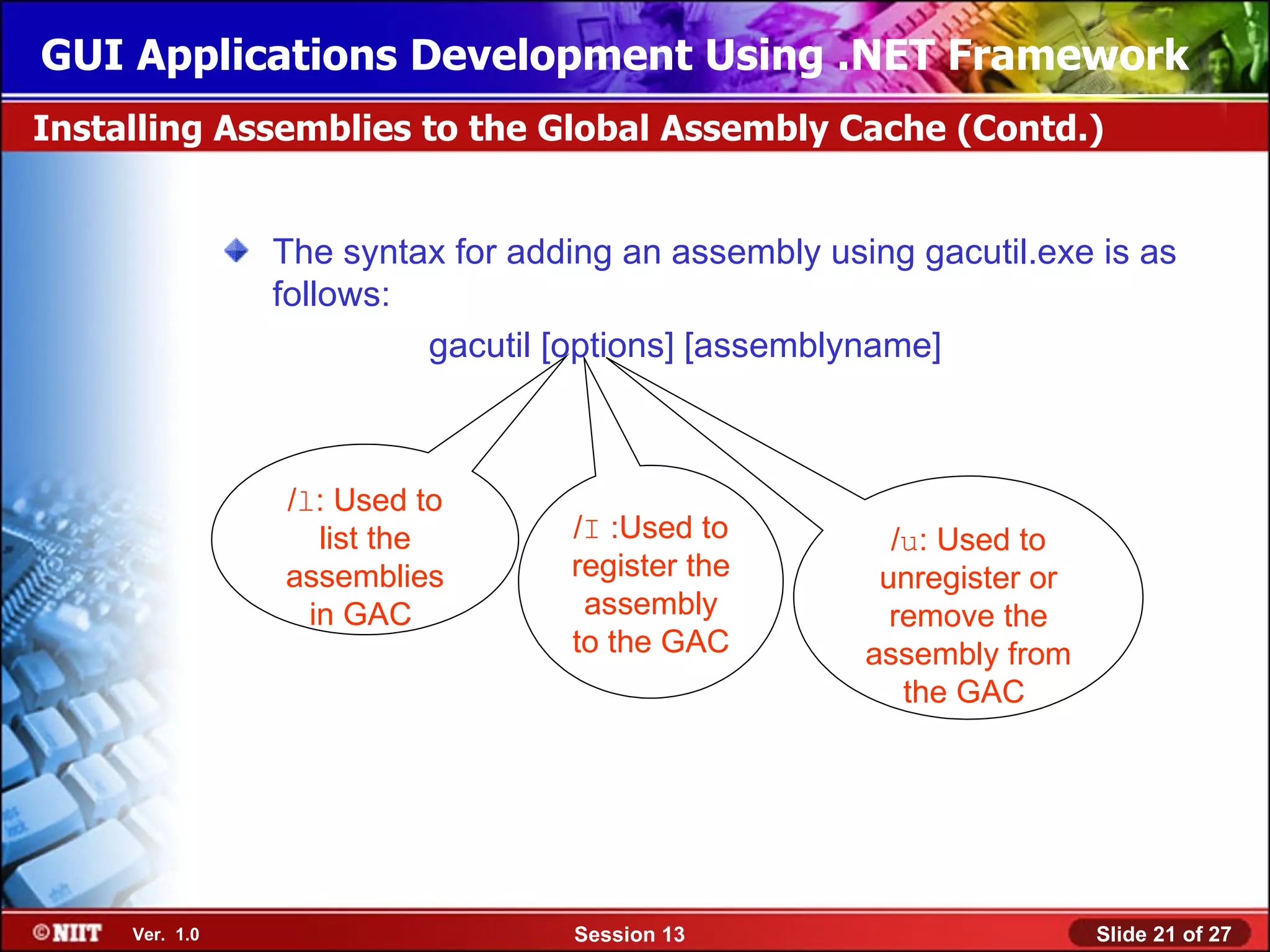

Installing Assemblies to the Global Assembly Cache (Contd.)

The syntax for adding an assembly using gacutil.exe is as
follows:
gacutil [options] [assemblyname]

/l: Used to
list the /I :Used to /u: Used to
assemblies register the unregister or
in GAC assembly remove the
to the GAC assembly from
the GAC


Just a minute

What is the full form of GAC?

Answer:
Global Assembly Cache

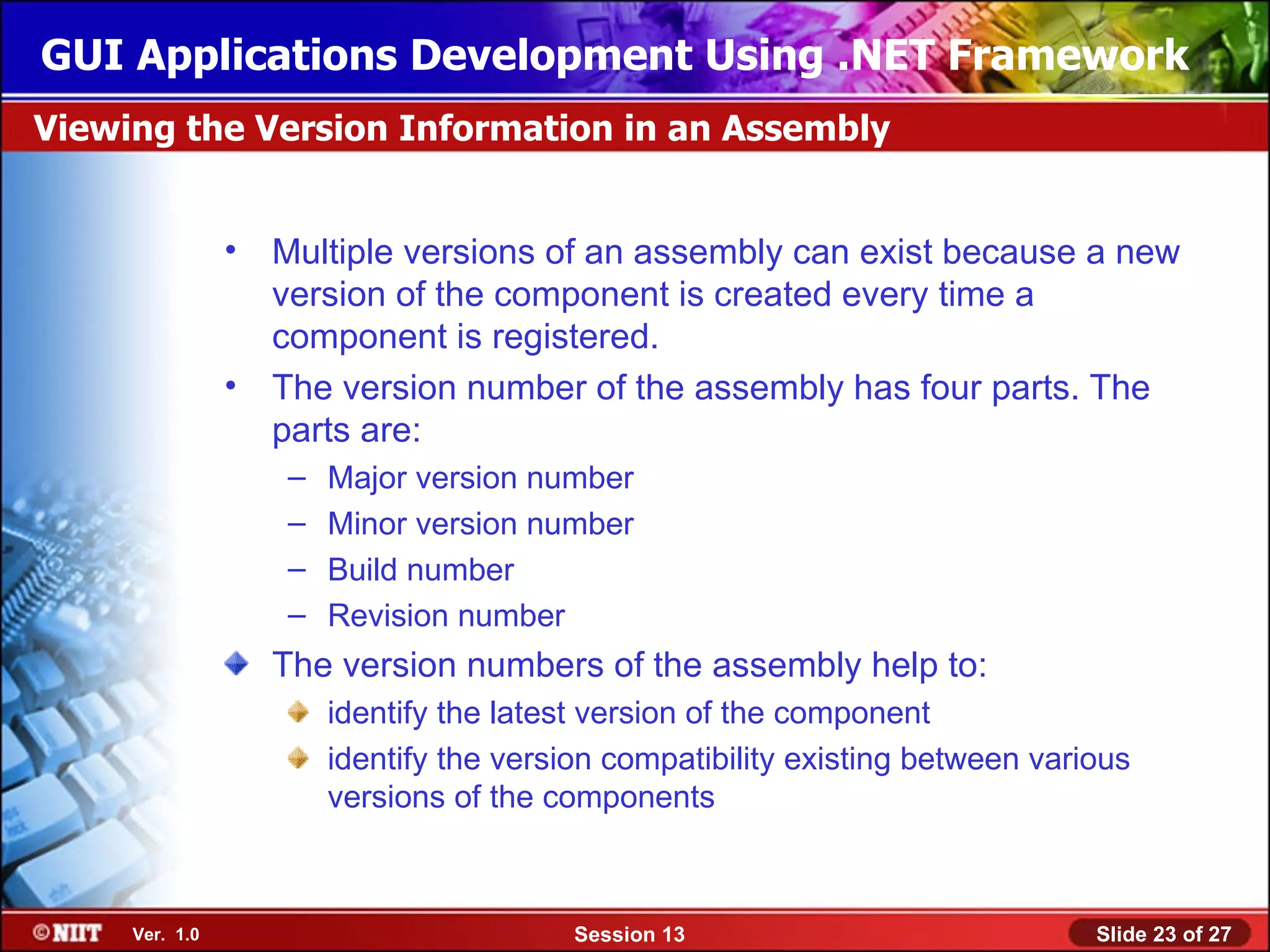

Viewing the Version Information in an Assembly

• Multiple versions of an assembly can exist because a new
version of the component is created every time a
component is registered.
• The version number of the assembly has four parts. The
parts are:
– Major version number
– Minor version number
– Build number
– Revision number
The version numbers of the assembly help to:
identify the latest version of the component
identify the version compatibility existing between various
versions of the components


Viewing the Version Information in an Assembly (Contd.)

• Whenever the application runs, the .NET platform loads the
latest component version to the application.
• The version information of an assembly is stored in the
identity section of the manifest.
• To view the contents of a manifest for a particular
assembly, you can use the ILDisassembler
(ILdasm.exe).

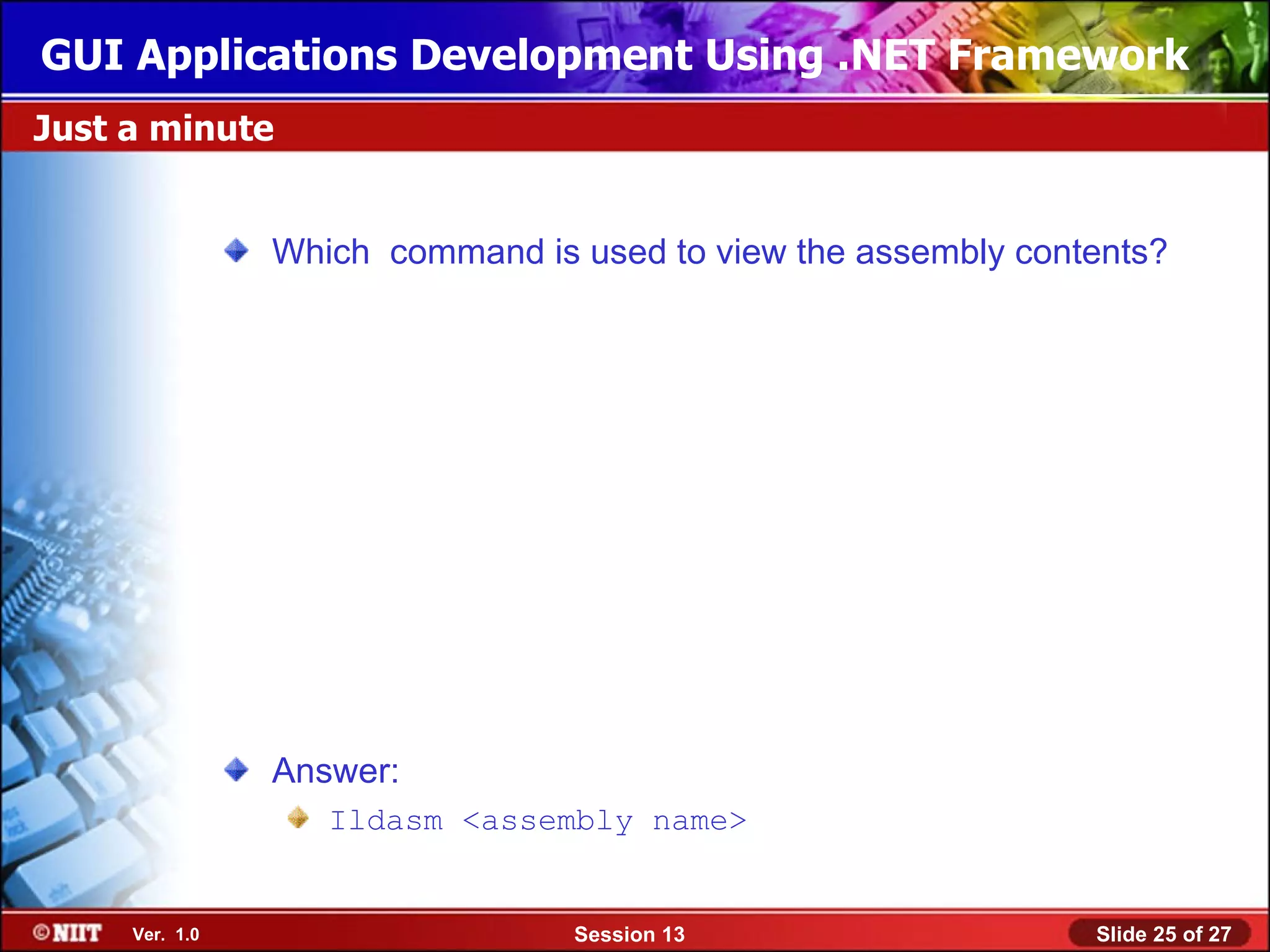

Just a minute

Which command is used to view the assembly contents?

Answer:
Ildasm <assembly name>

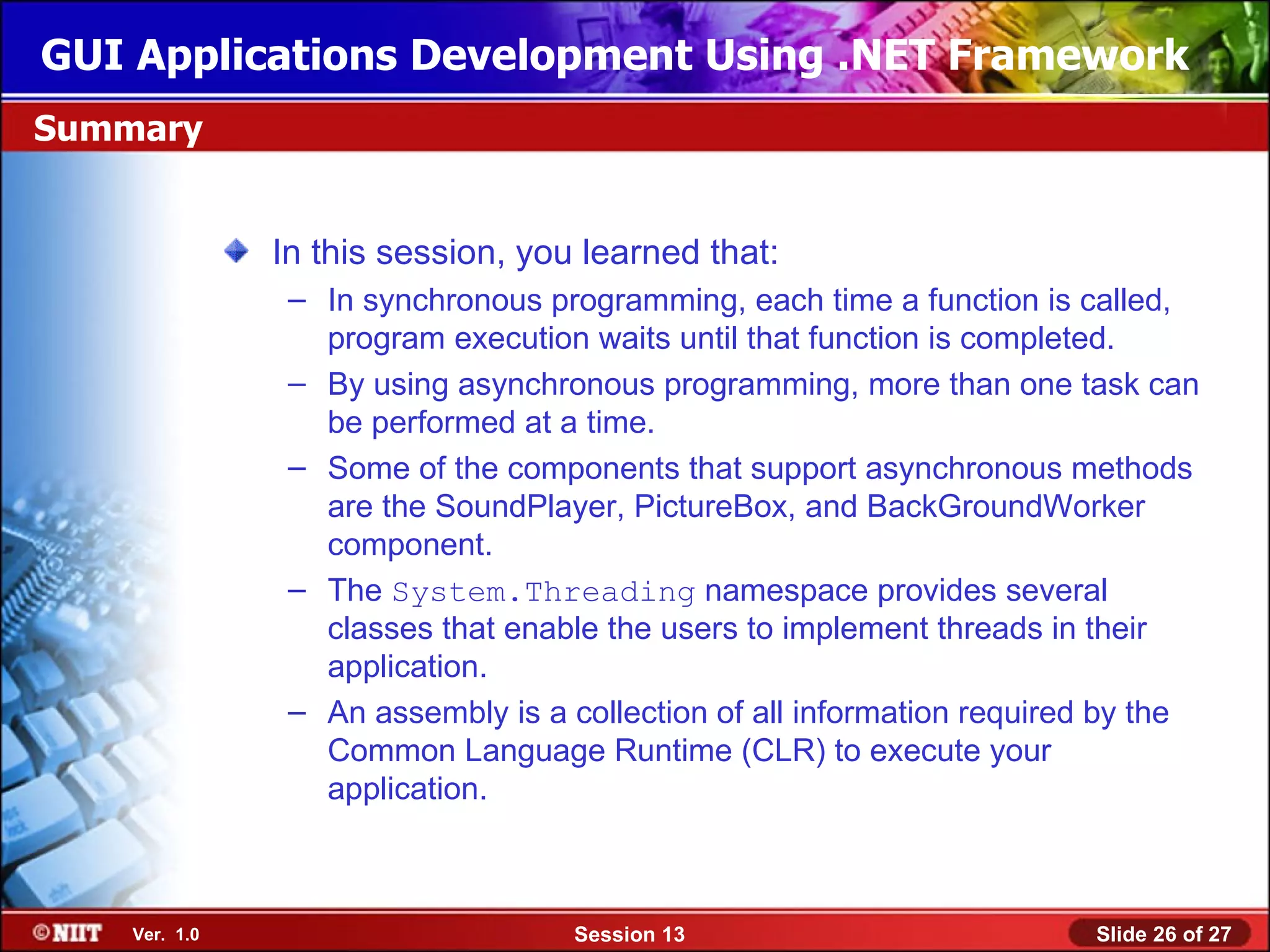

Summary

In this session, you learned that:
– In synchronous programming, each time a function is called,
program execution waits until that function is completed.
– By using asynchronous programming, more than one task can
be performed at a time.
– Some of the components that support asynchronous methods
are the SoundPlayer, PictureBox, and BackGroundWorker
component.
– The System.Threading namespace provides several
classes that enable the users to implement threads in their
application.
– An assembly is a collection of all information required by the
Common Language Runtime (CLR) to execute your
application.

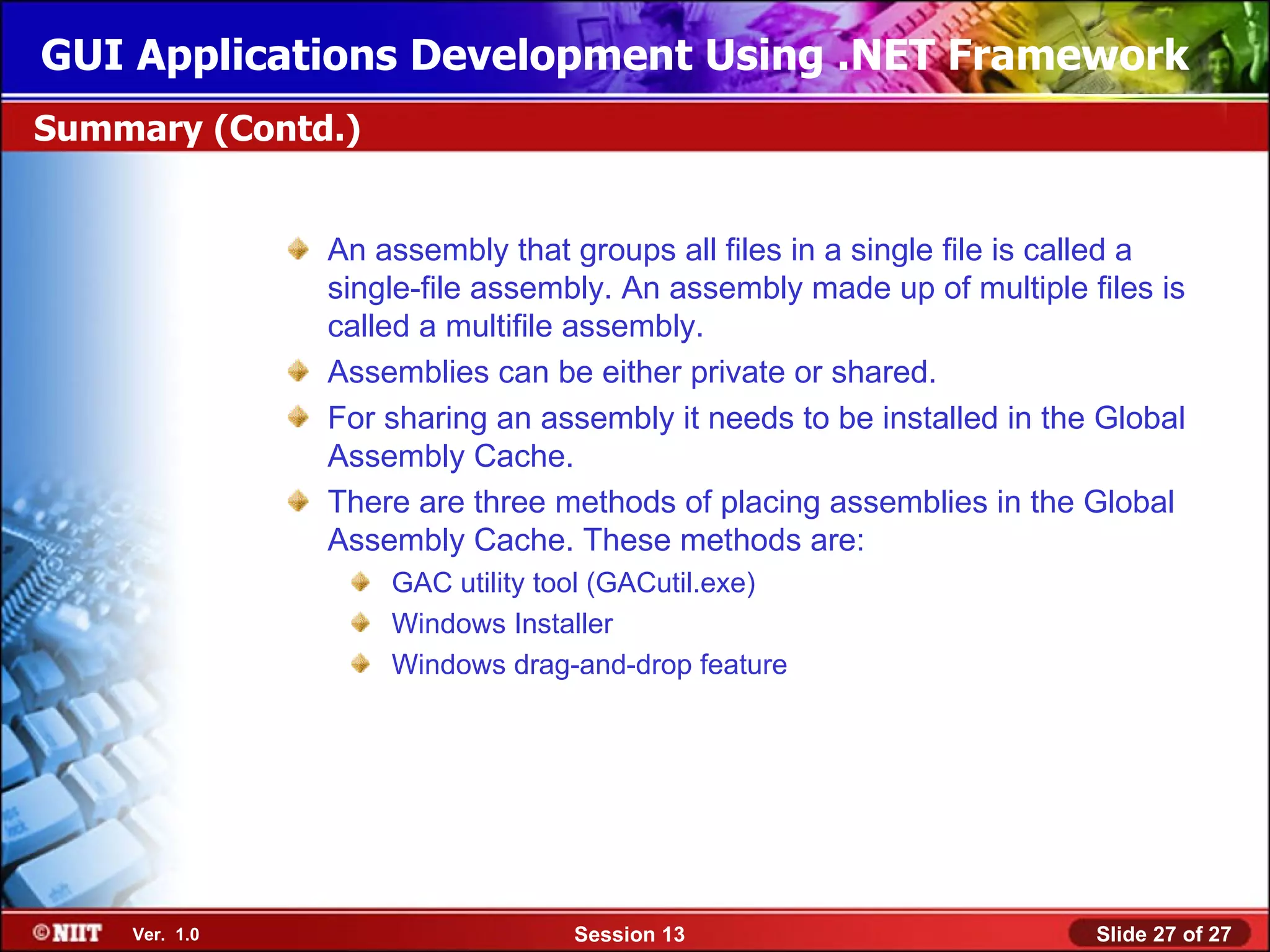

Summary (Contd.)

An assembly that groups all files in a single file is called a
single-file assembly. An assembly made up of multiple files is
called a multifile assembly.
Assemblies can be either private or shared.
For sharing an assembly it needs to be installed in the Global
Assembly Cache.
There are three methods of placing assemblies in the Global
Assembly Cache. These methods are:
GAC utility tool (GACutil.exe)
Windows Installer
Windows drag-and-drop feature
