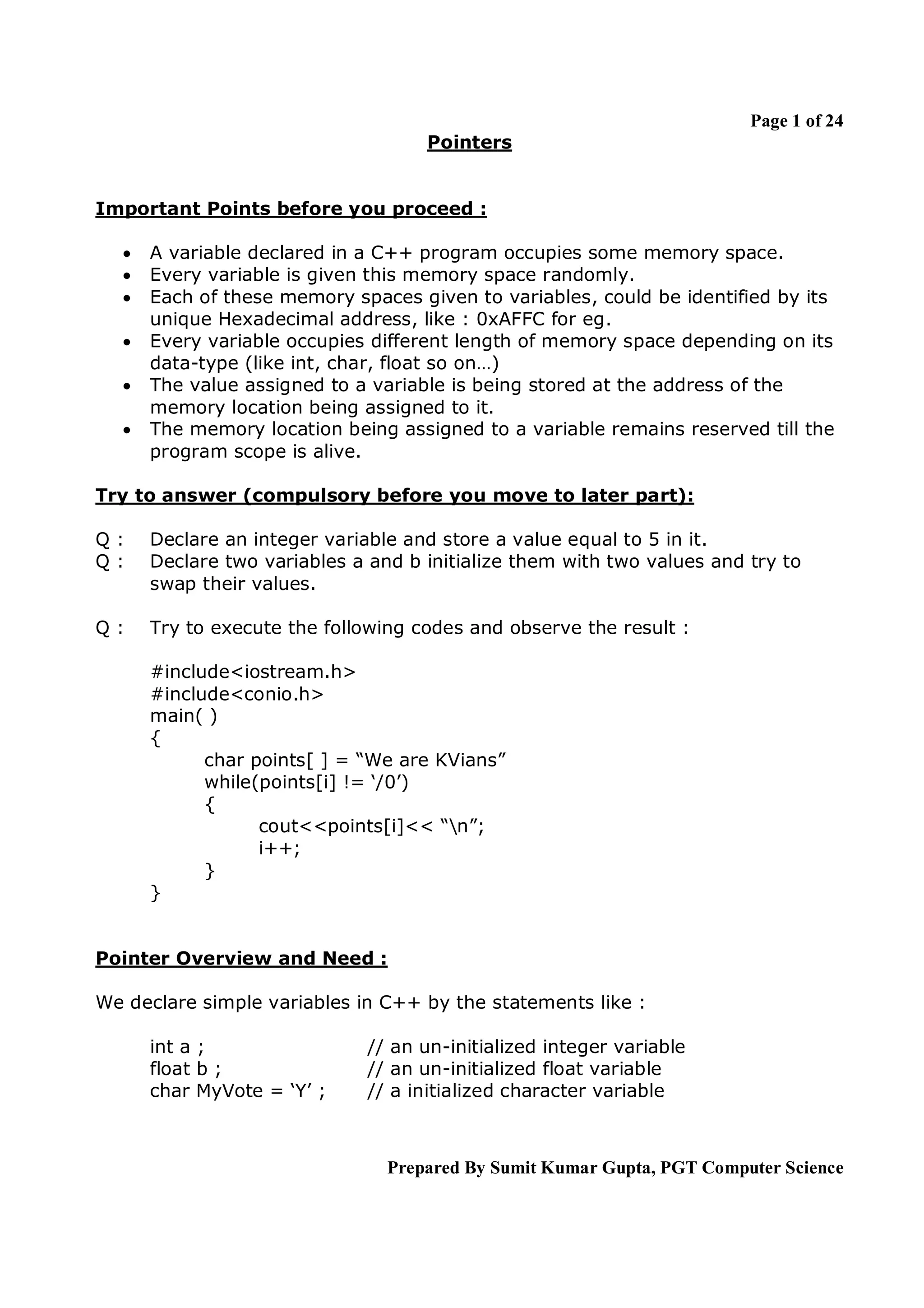

1. Page 1 of 24
Pointers
Important Points before you proceed :
A variable declared in a C++ program occupies some memory space.
Every variable is given this memory space randomly.
Each of these memory spaces given to variables, could be identified by its
unique Hexadecimal address, like : 0xAFFC for eg.
Every variable occupies different length of memory space depending on its
data-type (like int, char, float so on…)
The value assigned to a variable is being stored at the address of the
memory location being assigned to it.
The memory location being assigned to a variable remains reserved till the
program scope is alive.
Try to answer (compulsory before you move to later part):
Q:
Q:
Declare an integer variable and store a value equal to 5 in it.
Declare two variables a and b initialize them with two values and try to
swap their values.
Q:
Try to execute the following codes and observe the result :
#include<iostream.h>
#include<conio.h>
main( )
{
char points[ ] = “We are KVians”
while(points[i] != ‘/0’)
{
cout<<points[i]<< “n”;
i++;
}
}
Pointer Overview and Need :
We declare simple variables in C++ by the statements like :
int a ;
float b ;
char MyVote = ‘Y’ ;
// an un-initialized integer variable
// an un-initialized float variable
// a initialized character variable
Prepared By Sumit Kumar Gupta, PGT Computer Science

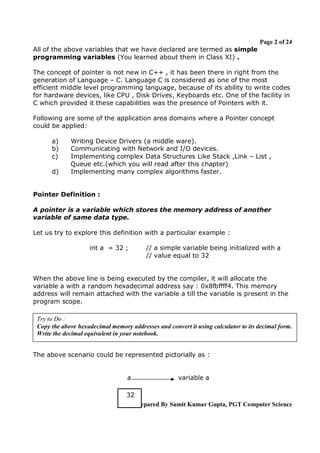

2. Page 2 of 24
All of the above variables that we have declared are termed as simple
programming variables (You learned about them in Class XI) .
The concept of pointer is not new in C++ , it has been there in right from the
generation of Language – C. Language C is considered as one of the most
efficient middle level programming language, because of its ability to write codes
for hardware devices, like CPU , Disk Drives, Keyboards etc. One of the facility in
C which provided it these capabilities was the presence of Pointers with it.
Following are some of the application area domains where a Pointer concept
could be applied:
a)
b)
c)
d)
Writing Device Drivers (a middle ware).
Communicating with Network and I/O devices.
Implementing complex Data Structures Like Stack ,Link – List ,
Queue etc.(which you will read after this chapter)
Implementing many complex algorithms faster.
Pointer Definition :
A pointer is a variable which stores the memory address of another
variable of same data type.
Let us try to explore this definition with a particular example :
int a = 32 ;
// a simple variable being initialized with a
// value equal to 32
When the above line is being executed by the compiler, it will allocate the
variable a with a random hexadecimal address say : 0x8fbffff4. This memory
address will remain attached with the variable a till the variable is present in the
program scope.
Try to Do :
Copy the above hexadecimal memory addresses and convert it using calculator to its decimal form.
Write the decimal equivalent in your notebook.
The above scenario could be represented pictorially as :
a
variable a
32
Prepared By Sumit Kumar Gupta, PGT Computer Science

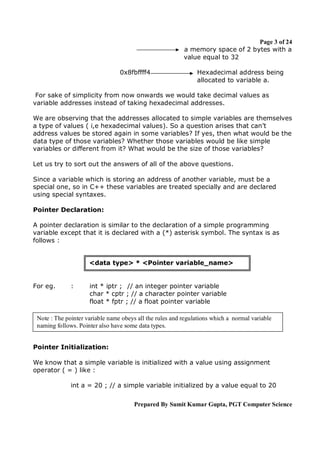

3. Page 3 of 24
a memory space of 2 bytes with a
value equal to 32
0x8fbffff4
Hexadecimal address being
allocated to variable a.
For sake of simplicity from now onwards we would take decimal values as
variable addresses instead of taking hexadecimal addresses.
We are observing that the addresses allocated to simple variables are themselves
a type of values ( i,e hexadecimal values). So a question arises that can’t
address values be stored again in some variables? If yes, then what would be the
data type of those variables? Whether those variables would be like simple
variables or different from it? What would be the size of those variables?
Let us try to sort out the answers of all of the above questions.
Since a variable which is storing an address of another variable, must be a
special one, so in C++ these variables are treated specially and are declared
using special syntaxes.
Pointer Declaration:
A pointer declaration is similar to the declaration of a simple programming
variable except that it is declared with a (*) asterisk symbol. The syntax is as
follows :
<data type> * <Pointer variable_name>
For eg.
:
int * iptr ; // an integer pointer variable
char * cptr ; // a character pointer variable
float * fptr ; // a float pointer variable
Note : The pointer variable name obeys all the rules and regulations which a normal variable
naming follows. Pointer also have some data types.
Pointer Initialization:
We know that a simple variable is initialized with a value using assignment
operator ( = ) like :
int a = 20 ; // a simple variable initialized by a value equal to 20
Prepared By Sumit Kumar Gupta, PGT Computer Science

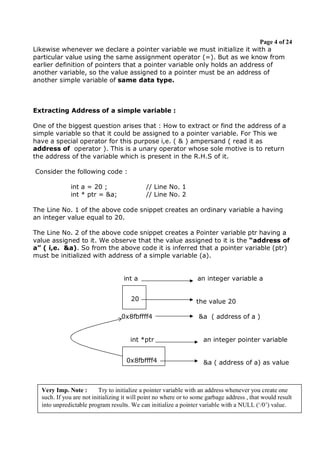

4. Page 4 of 24
Likewise whenever we declare a pointer variable we must initialize it with a
particular value using the same assignment operator (=). But as we know from
earlier definition of pointers that a pointer variable only holds an address of
another variable, so the value assigned to a pointer must be an address of
another simple variable of same data type.
Extracting Address of a simple variable :
One of the biggest question arises that : How to extract or find the address of a
simple variable so that it could be assigned to a pointer variable. For This we
have a special operator for this purpose i,e. ( & ) ampersand ( read it as
address of operator ). This is a unary operator whose sole motive is to return
the address of the variable which is present in the R.H.S of it.
Consider the following code :
int a = 20 ;
int * ptr = &a;
// Line No. 1
// Line No. 2
The Line No. 1 of the above code snippet creates an ordinary variable a having
an integer value equal to 20.
The Line No. 2 of the above code snippet creates a Pointer variable ptr having a
value assigned to it. We observe that the value assigned to it is the “address of
a” ( i,e. &a). So from the above code it is inferred that a pointer variable (ptr)
must be initialized with address of a simple variable (a).
int a
20
0x8fbffff4
an integer variable a
the value 20
&a ( address of a )
int *ptr
an integer pointer variable
0x8fbffff4
&a ( address of a) as value
Very Imp. Note :
Try to initialize a pointer variable with an address whenever you create one
such. If you are not initializing it will point no where or to some garbage address , that would result
Prepared By Sumit Kumar Gupta, PGT Computer Science
into unpredictable program results. We can initialize a pointer variable with a NULL (‘/0’) value.

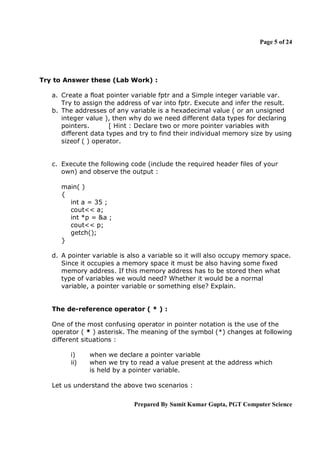

5. Page 5 of 24
Try to Answer these (Lab Work) :
a. Create a float pointer variable fptr and a Simple integer variable var.
Try to assign the address of var into fptr. Execute and infer the result.
b. The addresses of any variable is a hexadecimal value ( or an unsigned
integer value ), then why do we need different data types for declaring
pointers.
[ Hint : Declare two or more pointer variables with
different data types and try to find their individual memory size by using
sizeof ( ) operator.
c. Execute the following code (include the required header files of your
own) and observe the output :
main( )
{
int a = 35 ;
cout<< a;
int *p = &a ;
cout<< p;
getch();
}
d. A pointer variable is also a variable so it will also occupy memory space.
Since it occupies a memory space it must be also having some fixed
memory address. If this memory address has to be stored then what
type of variables we would need? Whether it would be a normal
variable, a pointer variable or something else? Explain.
The de-reference operator ( * ) :
One of the most confusing operator in pointer notation is the use of the
operator ( * ) asterisk. The meaning of the symbol (*) changes at following
different situations :
i)
ii)
when we declare a pointer variable
when we try to read a value present at the address which
is held by a pointer variable.
Let us understand the above two scenarios :
Prepared By Sumit Kumar Gupta, PGT Computer Science

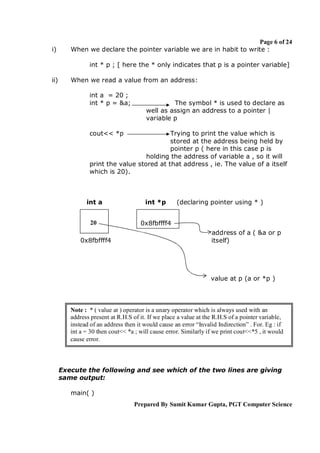

6. i)
Page 6 of 24
When we declare the pointer variable we are in habit to write :
int * p ; [ here the * only indicates that p is a pointer variable]
ii)
When we read a value from an address:
int a = 20 ;
int * p = &a;
The symbol * is used to declare as
well as assign an address to a pointer |
variable p
cout<< *p
Trying to print the value which is
stored at the address being held by
pointer p ( here in this case p is
holding the address of variable a , so it will
print the value stored at that address , ie. The value of a itself
which is 20).
int a
int *p
20
0x8fbffff4
0x8fbffff4
(declaring pointer using * )
address of a ( &a or p
itself)
value at p (a or *p )
Note : * ( value at ) operator is a unary operator which is always used with an
address present at R.H.S of it. If we place a value at the R.H.S of a pointer variable,
instead of an address then it would cause an error “Invalid Indirection” . For. Eg : if
int a = 30 then cout<< *a ; will cause error. Similarly if we print cout<<*5 , it would
cause error.
Execute the following and see which of the two lines are giving
same output:
main( )
Prepared By Sumit Kumar Gupta, PGT Computer Science

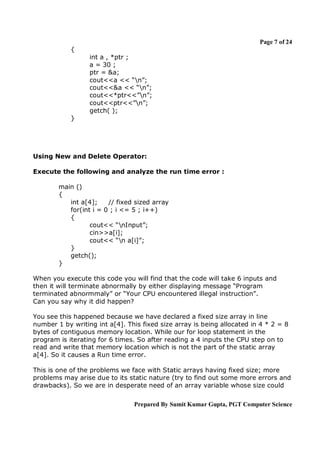

7. Page 7 of 24
{
int a , *ptr ;
a = 30 ;
ptr = &a;
cout<<a << “n”;
cout<<&a << “n”;
cout<<*ptr<<”n”;
cout<<ptr<<”n”;
getch( );
}
Using New and Delete Operator:
Execute the following and analyze the run time error :
main ()
{
int a[4];
// fixed sized array
for(int i = 0 ; i <= 5 ; i++)
{
cout<< “nInput”;
cin>>a[i];
cout<< “n a[i]”;
}
getch();
}
When you execute this code you will find that the code will take 6 inputs and
then it will terminate abnormally by either displaying message “Program
terminated abnormmaly” or “Your CPU encountered illegal instruction”.
Can you say why it did happen?
You see this happened because we have declared a fixed size array in line
number 1 by writing int a[4]. This fixed size array is being allocated in 4 * 2 = 8
bytes of contiguous memory location. While our for loop statement in the
program is iterating for 6 times. So after reading a 4 inputs the CPU step on to
read and write that memory location which is not the part of the static array
a[4]. So it causes a Run time error.
This is one of the problems we face with Static arrays having fixed size; more
problems may arise due to its static nature (try to find out some more errors and
drawbacks). So we are in desperate need of an array variable whose size could
Prepared By Sumit Kumar Gupta, PGT Computer Science

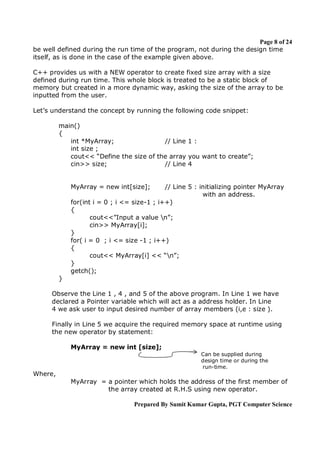

8. Page 8 of 24
be well defined during the run time of the program, not during the design time
itself, as is done in the case of the example given above.
C++ provides us with a NEW operator to create fixed size array with a size
defined during run time. This whole block is treated to be a static block of
memory but created in a more dynamic way, asking the size of the array to be
inputted from the user.
Let’s understand the concept by running the following code snippet:
main()
{
int *MyArray;
// Line 1 :
int size ;
cout<< “Define the size of the array you want to create”;
cin>> size;
// Line 4
MyArray = new int[size];
// Line 5 : initializing pointer MyArray
with an address.
for(int i = 0 ; i <= size-1 ; i++)
{
cout<<”Input a value n”;
cin>> MyArray[i];
}
for( i = 0 ; i <= size -1 ; i++)
{
cout<< MyArray[i] << “n”;
}
getch();
}
Observe the Line 1 , 4 , and 5 of the above program. In Line 1 we have
declared a Pointer variable which will act as a address holder. In Line
4 we ask user to input desired number of array members (i,e : size ).
Finally in Line 5 we acquire the required memory space at runtime using
the new operator by statement:
MyArray = new int [size];
Can be supplied during
design time or during the
run-time.
Where,
MyArray = a pointer which holds the address of the first member of
the array created at R.H.S using new operator.
Prepared By Sumit Kumar Gupta, PGT Computer Science

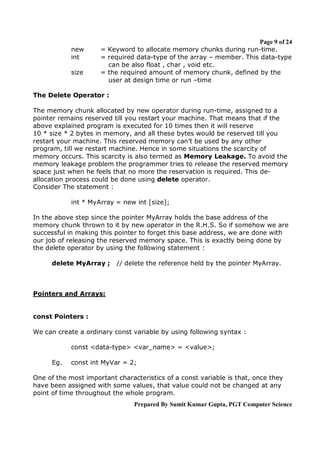

9. new
int
size
Page 9 of 24
= Keyword to allocate memory chunks during run-time.
= required data-type of the array – member. This data-type
can be also float , char , void etc.
= the required amount of memory chunk, defined by the
user at design time or run –time
The Delete Operator :
The memory chunk allocated by new operator during run-time, assigned to a
pointer remains reserved till you restart your machine. That means that if the
above explained program is executed for 10 times then it will reserve
10 * size * 2 bytes in memory, and all these bytes would be reserved till you
restart your machine. This reserved memory can’t be used by any other
program, till we restart machine. Hence in some situations the scarcity of
memory occurs. This scarcity is also termed as Memory Leakage. To avoid the
memory leakage problem the programmer tries to release the reserved memory
space just when he feels that no more the reservation is required. This deallocation process could be done using delete operator.
Consider The statement :
int * MyArray = new int [size];
In the above step since the pointer MyArray holds the base address of the
memory chunk thrown to it by new operator in the R.H.S. So if somehow we are
successful in making this pointer to forget this base address, we are done with
our job of releasing the reserved memory space. This is exactly being done by
the delete operator by using the following statement :
delete MyArray ;
// delete the reference held by the pointer MyArray.
Pointers and Arrays:
const Pointers :
We can create a ordinary const variable by using following syntax :
const <data-type> <var_name> = <value>;
Eg.
const int MyVar = 2;
One of the most important characteristics of a const variable is that, once they
have been assigned with some values, that value could not be changed at any
point of time throughout the whole program.
Prepared By Sumit Kumar Gupta, PGT Computer Science

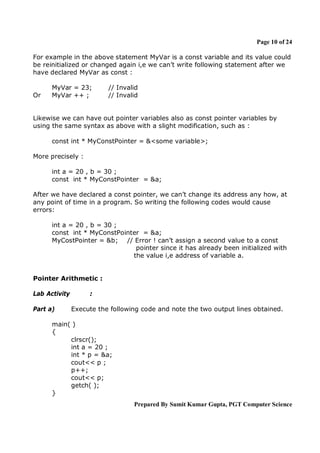

10. Page 10 of 24
For example in the above statement MyVar is a const variable and its value could
be reinitialized or changed again i,e we can’t write following statement after we
have declared MyVar as const :
Or
MyVar = 23;
MyVar ++ ;
// Invalid
// Invalid
Likewise we can have out pointer variables also as const pointer variables by
using the same syntax as above with a slight modification, such as :
const int * MyConstPointer = &<some variable>;
More precisely :
int a = 20 , b = 30 ;
const int * MyConstPointer = &a;
After we have declared a const pointer, we can’t change its address any how, at
any point of time in a program. So writing the following codes would cause
errors:
int a = 20 , b = 30 ;
const int * MyConstPointer = &a;
MyCostPointer = &b; // Error ! can’t assign a second value to a const
pointer since it has already been initialized with
the value i,e address of variable a.
Pointer Arithmetic :
Lab Activity
Part a)
:
Execute the following code and note the two output lines obtained.
main( )
{
clrscr();
int a = 20 ;
int * p = &a;
cout<< p ;
p++;
cout<< p;
getch( );
}
Prepared By Sumit Kumar Gupta, PGT Computer Science

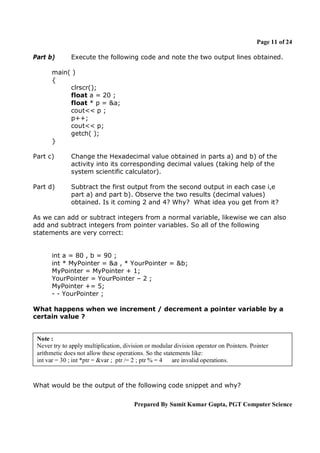

11. Page 11 of 24
Part b)
Execute the following code and note the two output lines obtained.
main( )
{
clrscr();
float a = 20 ;
float * p = &a;
cout<< p ;
p++;
cout<< p;
getch( );
}
Part c)
Change the Hexadecimal value obtained in parts a) and b) of the
activity into its corresponding decimal values (taking help of the
system scientific calculator).
Part d)
Subtract the first output from the second output in each case i,e
part a) and part b). Observe the two results (decimal values)
obtained. Is it coming 2 and 4? Why? What idea you get from it?
As we can add or subtract integers from a normal variable, likewise we can also
add and subtract integers from pointer variables. So all of the following
statements are very correct:
int a = 80 , b = 90 ;
int * MyPointer = &a , * YourPointer = &b;
MyPointer = MyPointer + 1;
YourPointer = YourPointer – 2 ;
MyPointer += 5;
- - YourPointer ;
What happens when we increment / decrement a pointer variable by a
certain value ?
Note :
Never try to apply multiplication, division or modular division operator on Pointers. Pointer
arithmetic does not allow these operations. So the statements like:
int var = 30 ; int *ptr = &var ; ptr /= 2 ; ptr % = 4
are invalid operations.
What would be the output of the following code snippet and why?
Prepared By Sumit Kumar Gupta, PGT Computer Science
12. Page 12 of 24
main ( )
{
const int * ptr ;
int a = 80 ;
ptr = &a ;
a += 3;
cout<< a;
ptr++;
cout<<ptr;
}
Creating Arrays with pointer:
We have already seen that a pointer can hold the base address returned by new
operator while allocating a required chunk of memory space. For eg :
const int * ptr = new int[5];
The above statement will allocate 5 * 2 = 10 bytes contiguously one after
another at adjacent locations (memory addresses). The first address out of all,
these set of addresses being assigned to pointer ptr. The picture we obtain can
be viewed as :
memory
addresses
8fc4fff4
8fc4fff6
8fc4fff8
8fc4fffa
8fc4fffc
ptr
If you observe the whole scenario you will find that directly or indirectly we are
getting an array containing 5 members, each of these members having a integer
values (int data-type). The base addresses being assigned to the pointer variable
ptr itself.
Now we are free to apply the pointer arithmetic to the base pointer ptr to read
and write other locations as well.
The
The
The
The
The
first location is ptr can be referred as (ptr + 0) ie. 8fc4fff4.
second location can be referred as ( ptr + 1) ie. 8fc4fff6
third location can be referred as ( ptr + 2) ie. 8fc4fff8
fourth location can be referred as ( ptr + 3) ie. 8fc4fffa
fourth location can be referred as ( ptr + 4) ie. 8fc4fffc
Prepared By Sumit Kumar Gupta, PGT Computer Science
13. Page 13 of 24

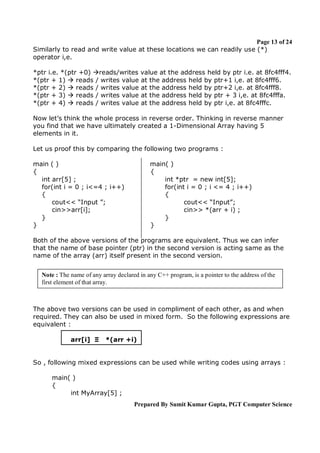

Similarly to read and write value at these locations we can readily use (*)
operator i,e.
*ptr i.e. *(ptr +0) reads/writes value at the address held by ptr i.e. at 8fc4fff4.
*(ptr + 1) reads / writes value at the address held by ptr+1 i,e. at 8fc4fff6.
*(ptr + 2) reads / writes value at the address held by ptr+2 i,e. at 8fc4fff8.
*(ptr + 3) reads / writes value at the address held by ptr + 3 i,e. at 8fc4fffa.
*(ptr + 4) reads / writes value at the address held by ptr i,e. at 8fc4fffc.
Now let’s think the whole process in reverse order. Thinking in reverse manner
you find that we have ultimately created a 1-Dimensional Array having 5
elements in it.
Let us proof this by comparing the following two programs :
main ( )
{
int arr[5] ;
for(int i = 0 ; i<=4 ; i++)
{
cout<< “Input ”;
cin>>arr[i];
}
}
main( )
{
int *ptr = new int[5];
for(int i = 0 ; i <= 4 ; i++)
{
cout<< “Input”;
cin>> *(arr + i) ;
}
}
Both of the above versions of the programs are equivalent. Thus we can infer
that the name of base pointer (ptr) in the second version is acting same as the
name of the array (arr) itself present in the second version.
Note : The name of any array declared in any C++ program, is a pointer to the address of the
first element of that array.
The above two versions can be used in compliment of each other, as and when
required. They can also be used in mixed form. So the following expressions are
equivalent :
arr[i] Ξ
*(arr +i)
So , following mixed expressions can be used while writing codes using arrays :
main( )
{
int MyArray[5] ;
Prepared By Sumit Kumar Gupta, PGT Computer Science
14. Page 14 of 24
//Inputting array elements
for(int i = 0 ; i <= 4 ;i++)
{
cout<< “Input Values : ”;
cin>> MyArray[i];
}
// Using array notation
// Showing array elements
for( i = 0 ; i<= 4 ; i++)
{
cout<< *(ptr + i) ;
}
// Using Pointer notation
}
Lab Activity (proceed sequentially) :
Part a )
:
Execute the following code and note down the error if obtained
otherwise note down the output
main( )
{
clrscr();
int arr[5] = {12 , 14 , 16 , 18} ;
for(int i = 0 ; i <= 4 ; i++)
{
cout<< arr[i];
arr++;
}
getch( );
} // end of main( )
Part b)
:
Execute the following code and note down the error if obtained
otherwise note the output
main( )
{
clrscr( );
int *arr = new int[5];
for(int i = 0 ; i <= 4 ; i++)
{
cout<< “Enter a value :” ;
Prepared By Sumit Kumar Gupta, PGT Computer Science

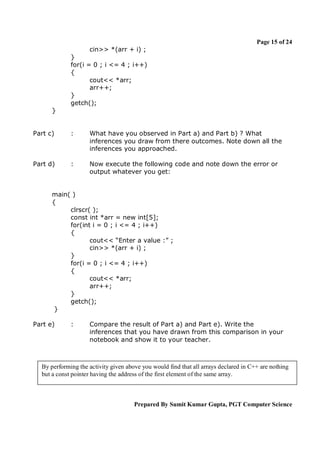

15. Page 15 of 24
cin>> *(arr + i) ;
}
for(i = 0 ; i <= 4 ; i++)
{
cout<< *arr;
arr++;
}
getch();
}
Part c)
:
What have you observed in Part a) and Part b) ? What
inferences you draw from there outcomes. Note down all the
inferences you approached.
Part d)
:
Now execute the following code and note down the error or
output whatever you get:
main( )
{
clrscr( );
const int *arr = new int[5];
for(int i = 0 ; i <= 4 ; i++)
{
cout<< “Enter a value :” ;
cin>> *(arr + i) ;
}
for(i = 0 ; i <= 4 ; i++)
{
cout<< *arr;
arr++;
}
getch();
}
Part e)
:
Compare the result of Part a) and Part e). Write the
inferences that you have drawn from this comparison in your
notebook and show it to your teacher.
By performing the activity given above you would find that all arrays declared in C++ are nothing
but a const pointer having the address of the first element of the same array.
Prepared By Sumit Kumar Gupta, PGT Computer Science
16. Page 16 of 24
Pointer with different operators :
Pointer with Assignment operator :
We know that we can assign value of a simple variable into another variable by
using assignment operator ( = ) for e.g.
int a = 90 , b = 80 ;
b=a;
The value of b is being replaced by
the value of a i.e. 90
Similarly we can use assignment operator ( = ) between two pointer variables.
So the following code snippet is very correct:
int x = 45 , y = 78 ;
int * a = &x , *b = &y;
a=b;
// assigning pointers to each other
When we write pointer a = b then the address which is being stored in b i,e a
Hexadecimal value , gets copied into pointer a removing any of its previous
contents (address).
Pointer with comparison operator ( ==)
Just like we use comparison operator (==) between two simple variables, we can
also use it between two pointer variables.
What would be the output of the following code :
main ( )
{
int a = 30 , b = 30 ;
if ( a == b)
cout<< “I Liked this study material”;
else
cout<< “Who has made it yaar!!”;
}
Yes, you are absolutely right the output would be “I Liked this study material”,
because the conditional expression a == b is evaluated to be true.
Prepared By Sumit Kumar Gupta, PGT Computer Science

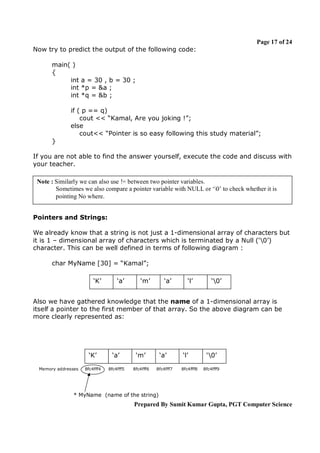

17. Page 17 of 24
Now try to predict the output of the following code:
main( )
{
int a = 30 , b = 30 ;
int *p = &a ;
int *q = &b ;
if ( p == q)
cout << “Kamal, Are you joking !”;
else
cout<< “Pointer is so easy following this study material”;
}
If you are not able to find the answer yourself, execute the code and discuss with
your teacher.
Note : Similarly we can also use != between two pointer variables.
Sometimes we also compare a pointer variable with NULL or ‘0’ to check whether it is
pointing No where.
Pointers and Strings:
We already know that a string is not just a 1-dimensional array of characters but
it is 1 – dimensional array of characters which is terminated by a Null (‘0’)
character. This can be well defined in terms of following diagram :
char MyName [30] = “Kamal”;
‘K’
‘a’
‘m’
‘a’
‘l’
‘0’
Also we have gathered knowledge that the name of a 1-dimensional array is
itself a pointer to the first member of that array. So the above diagram can be
more clearly represented as:
‘K’
Memory addresses
‘a’
‘m’
8fc4fff4
8fc4fff5
8fc4fff6
‘a’
8fc4fff7
‘l’
8fc4fff8
‘0’
8fc4fff9
* MyName (name of the string)
Prepared By Sumit Kumar Gupta, PGT Computer Science

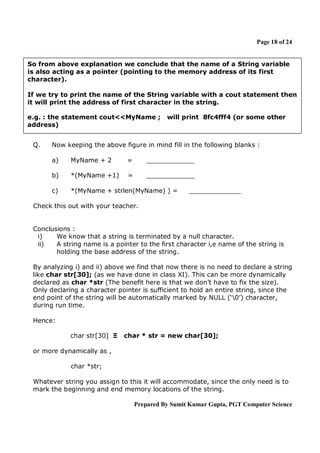

18. Page 18 of 24
So from above explanation we conclude that the name of a String variable
is also acting as a pointer (pointing to the memory address of its first
character).
If we try to print the name of the String variable with a cout statement then
it will print the address of first character in the string.
e.g. : the statement cout<<MyName ;
address)
Q.
will print 8fc4fff4 (or some other
Now keeping the above figure in mind fill in the following blanks :
a)
MyName + 2
=
____________
b)
*(MyName +1)
=
____________
c)
*(MyName + strlen(MyName) ) =
_____________
Check this out with your teacher.
Conclusions :
i)
We know that a string is terminated by a null character.
ii)
A string name is a pointer to the first character i,e name of the string is
holding the base address of the string.
By analyzing i) and ii) above we find that now there is no need to declare a string
like char str[30]; (as we have done in class XI). This can be more dynamically
declared as char *str (The benefit here is that we don’t have to fix the size).
Only declaring a character pointer is sufficient to hold an entire string, since the
end point of the string will be automatically marked by NULL (‘0’) character,
during run time.
Hence:
char str[30] Ξ
char * str = new char[30];
or more dynamically as ,
char *str;
Whatever string you assign to this it will accommodate, since the only need is to
mark the beginning and end memory locations of the string.
Prepared By Sumit Kumar Gupta, PGT Computer Science
19. Page 19 of 24
Try to find the error or output:
#include<string.h>
main( )
{
char * MyName = “Kamal Kant Gupta”;
int i = 0;
while( I <= strlen(MyName) -1 )
{
cout<< *(MyName + i)<<”nt”;
}
getch( );
}
Q:
Observe the following two codes and then put your views about one of
them which you feel is better implementation than the other. (Both the
implementations solves a same problem). Give reasons.
main( )
{
char *book = “The Alchemist”;
while( *book != ‘0’)
{
cout<< *book ;
book++;
}
}
main( )
{
char *book = “The Alchemist”;
int i = 0 ;
while( *(book+i) != ‘0’)
{
cout<< *(book+i) ;
i++;
}
}
Pointer to a Pointer:
So far we have understood that a pointer is also a special variable, which is
having a special role to play. One question that might strike in your head that if a
pointer is a variable it must also have some memory allocation with a specific
memory address (Hexadecimal address). Yes you are perfectly right. Pointers do
have their own addresses just like a simple variable.
Prepared By Sumit Kumar Gupta, PGT Computer Science
20. Page 20 of 24
Now a million dollar question arises that if pointers do have their own memory
addresses, then their might be some variable which must be having ability to
store memory address of a pointer.
Yes there are special variables which are intended to store the memory
addresses of other pointer variables. These special variables are called pointer
to a pointer or more precisely Double Pointers. The whole scenario could be
explained by following diagram:
int a
56
address of a
Ordinary Variable
value of a
8fc4fff2
int * aa
Pointer variable storing address
of a
8fc4fff2
value of aa
address of pointer aa
9acfff4
int ** aaa
9acfff4
Pointer to
a pointer
variable
Declaring Double Pointer variable:
A double pointer variable can be declared in the same way as a normal pointer
variable except that its declaration will involve two * (asterisks). For e.g.
int a = 32 ;
//simple variable having value 32
int * aa = &a;
// normal pointer variable storing the address of a
int ** aaa = &aa ; // double pointer storing the address of aa (which is
itself a pointer)
=Note
: A double pointer is always being assigned the address of another pointer variable , or the
value of another double pointer variable. If we try to assign the a value of simple pointer
variable into a Double pointer it will cause error. E.g. :
int a = 90 , b = 46 ;
int *p = &a ;
int * q = &b;
Prepared By Sumit Kumar Gupta, PGT Computer Science
int ** r = p; // Invalid assignment can’t assign simple pointer to a double pointer
int **s = &p;
int **f = s
// Correct can assign double pointer to another double pointer.

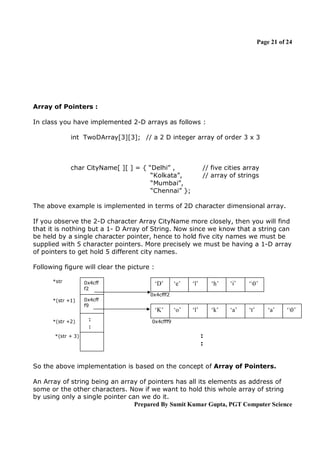

21. Page 21 of 24
Array of Pointers :
In class you have implemented 2-D arrays as follows :
int TwoDArray[3][3]; // a 2 D integer array of order 3 x 3
char CityName[ ][ ] = { “Delhi” ,
“Kolkata”,
“Mumbai”,
“Chennai” };
// five cities array
// array of strings
The above example is implemented in terms of 2D character dimensional array.
If you observe the 2-D character Array CityName more closely, then you will find
that it is nothing but a 1- D Array of String. Now since we know that a string can
be held by a single character pointer, hence to hold five city names we must be
supplied with 5 character pointers. More precisely we must be having a 1-D array
of pointers to get hold 5 different city names.
Following figure will clear the picture :
*str
0x4cff
f2
*(str +1)
0x4cff
f9
‘D’
‘e’
‘l’
‘h’
‘i’
‘0’
‘o’
‘l’
‘k’
‘a’
‘t’
0x4cfff2
*(str +2)
*(str + 3)
:
:
‘K’
‘a’
‘0’
0x4cfff9
:
:
So the above implementation is based on the concept of Array of Pointers.
An Array of string being an array of pointers has all its elements as address of
some or the other characters. Now if we want to hold this whole array of string
by using only a single pointer can we do it.
Prepared By Sumit Kumar Gupta, PGT Computer Science

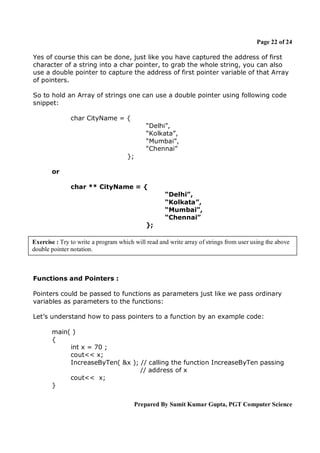

22. Page 22 of 24
Yes of course this can be done, just like you have captured the address of first
character of a string into a char pointer, to grab the whole string, you can also
use a double pointer to capture the address of first pointer variable of that Array
of pointers.
So to hold an Array of strings one can use a double pointer using following code
snippet:
char CityName = {
“Delhi”,
“Kolkata”,
“Mumbai”,
“Chennai”
};
or
char ** CityName = {
“Delhi”,
“Kolkata”,
“Mumbai”,
“Chennai”
};
Exercise : Try to write a program which will read and write array of strings from user using the above
double pointer notation.
Functions and Pointers :
Pointers could be passed to functions as parameters just like we pass ordinary
variables as parameters to the functions:
Let’s understand how to pass pointers to a function by an example code:
main( )
{
int x = 70 ;
cout<< x;
IncreaseByTen( &x ); // calling the function IncreaseByTen passing
// address of x
cout<< x;
}
Prepared By Sumit Kumar Gupta, PGT Computer Science
23. Page 23 of 24
//function IncreaseByTen
void IncreaseByTen(int *ptr )
{
*ptr += 10;
}
Predict the output of the above code.
The output of the above code snippet would be 70 and 80. This is because
we have called the function IncreaseByTen( ) by passing the address of the
variable x as an actual parameter. This address is being copied into the
formal parameter ptr of the function, which is a pointer variable. Since this
variable holds the address of the x so any changes made at this address
( by statement : *ptr+=10 ) would made changes on the value stored at
that address i.e. on the value of x.
Similarly we can have more than one pointer variables as formal parameters to a
function separated by comma.
Pointer and Structures:
A pointer variable can also hold the address of a structure variable like it holds
the address of an ordinary variable. Observe the following structure definition:
struct Point
{
XCoord ;
YCoord ;
} P1 , P2 ;
// P1 and P2 are structure variable.
Now if you want to point a pointer to these two variables P1 and P2, then
we have to declare the pointer variables like :
Point *f = &P1;
Point *l = &P2;
One big question arises that how can we access the data members of a structure
variable using these pointer variables?
Prepared By Sumit Kumar Gupta, PGT Computer Science

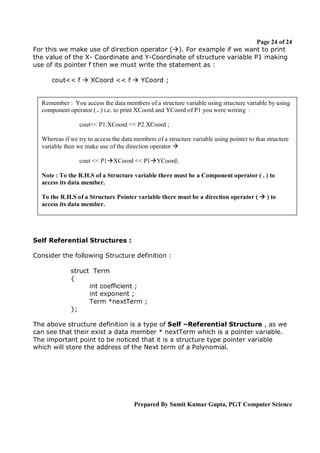

24. Page 24 of 24
For this we make use of direction operator (). For example if we want to print
the value of the X- Coordinate and Y-Coordinate of structure variable P1 making
use of its pointer f then we must write the statement as :
cout<< f XCoord << f YCoord ;
Remember : You access the data members of a structure variable using structure variable by using
component operator ( . ) i.e. to print XCoord and YCoord of P1 you were writing :
cout<< P1.XCoord << P2.XCoord ;
Whereas if we try to access the data members of a structure variable using pointer to that structure
variable then we make use of the direction operator
cout << P1XCoord << P1YCoord;
Note : To the R.H.S of a Structure variable there must be a Component operator ( . ) to
access its data member.
To the R.H.S of a Structure Pointer variable there must be a direction operator ( ) to
access its data member.
Self Referential Structures :
Consider the following Structure definition :
struct Term
{
int coefficient ;
int exponent ;
Term *nextTerm ;
};
The above structure definition is a type of Self –Referential Structure , as we
can see that their exist a data member * nextTerm which is a pointer variable.
The important point to be noticed that it is a structure type pointer variable
which will store the address of the Next term of a Polynomial.
Prepared By Sumit Kumar Gupta, PGT Computer Science
