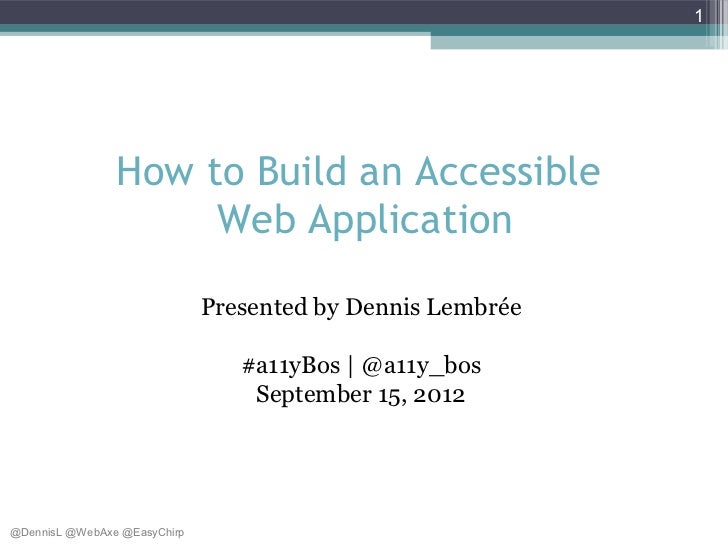

1                How to Build an Accessible                     Web Application                              Presented by ...

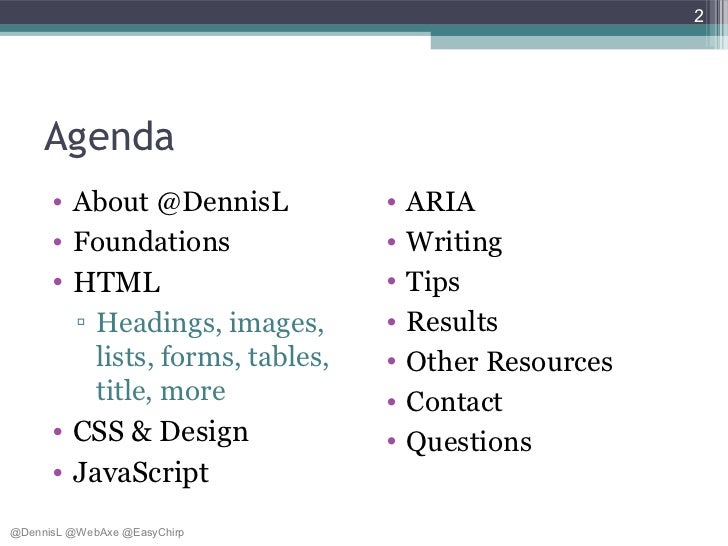

2     Agenda      • About @DennisL            •   ARIA      • Foundations               •   Writing      • HTML           ...

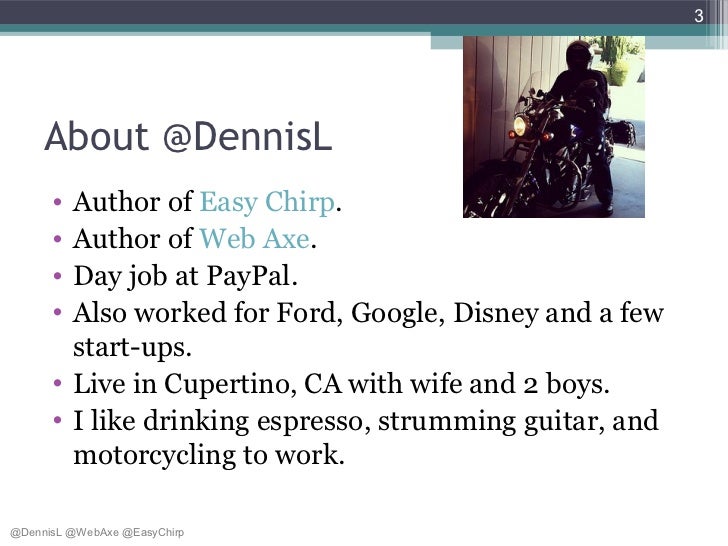

3     About @DennisL      • Author of Easy Chirp.      • Author of Web Axe.      • Day job at PayPal.      • Also worked f...

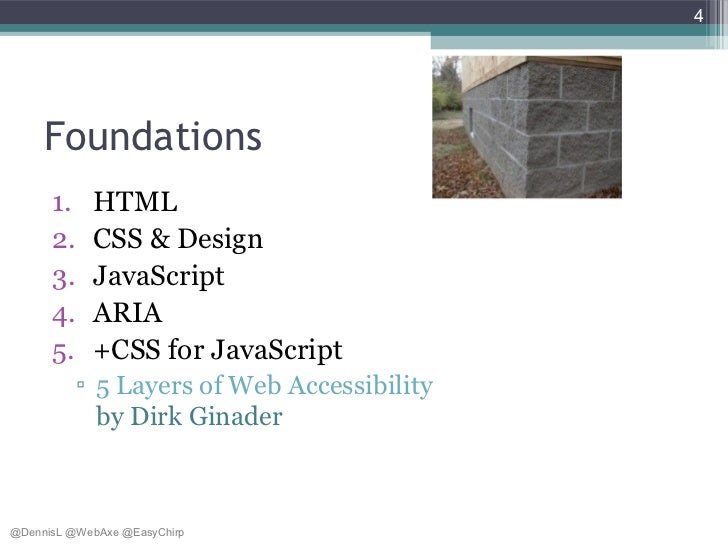

4     Foundations      1.    HTML      2.    CSS & Design      3.    JavaScript      4.    ARIA      5.    +CSS for JavaSc...

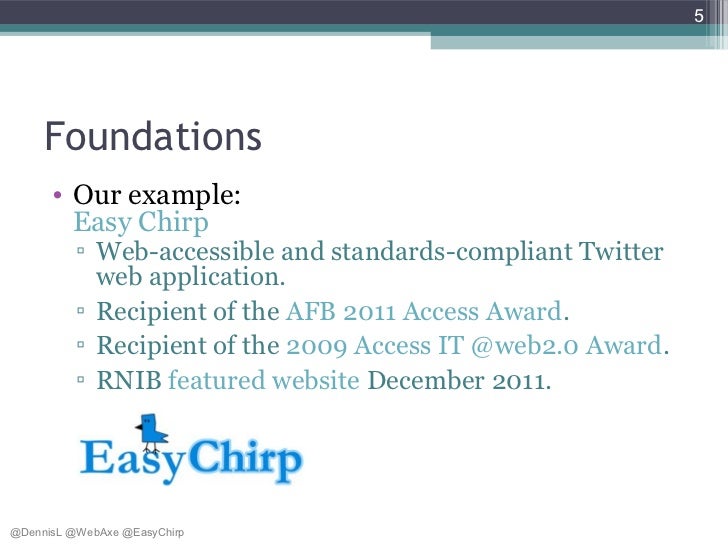

5     Foundations      • Our example:        Easy Chirp          ▫ Web-accessible and standards-compliant Twitter         ...

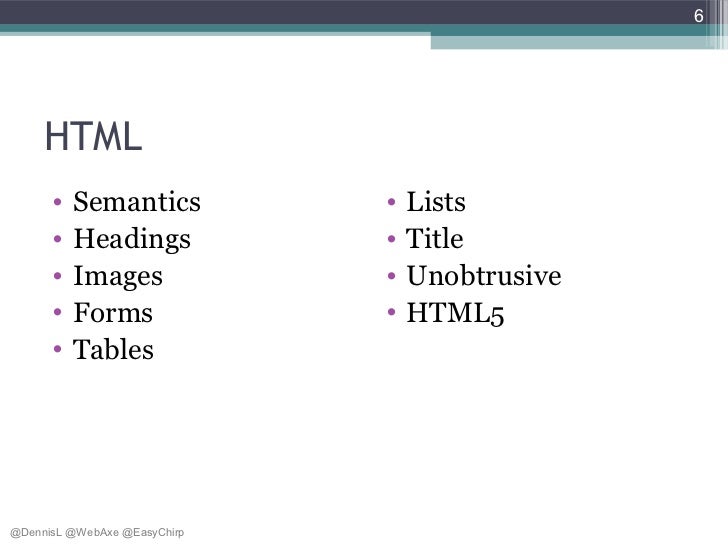

6     HTML      •   Semantics           •   Lists      •   Headings            •   Title      •   Images              •   ...

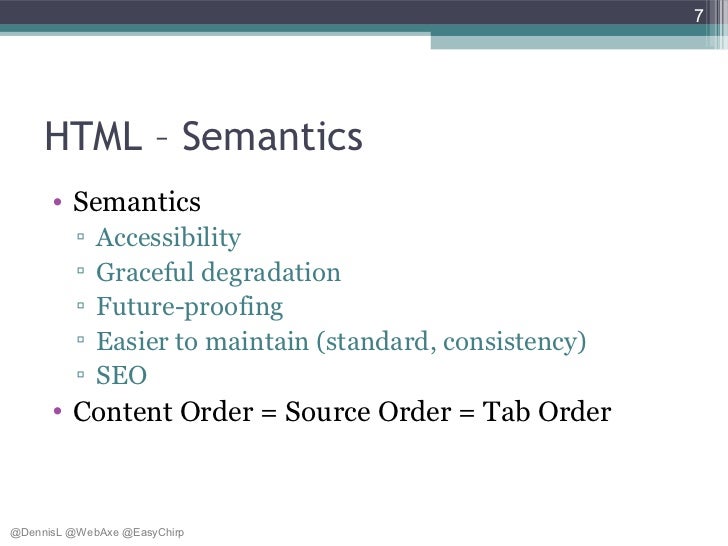

7     HTML – Semantics      • Semantics          ▫   Accessibility          ▫   Graceful degradation          ▫   Future-p...

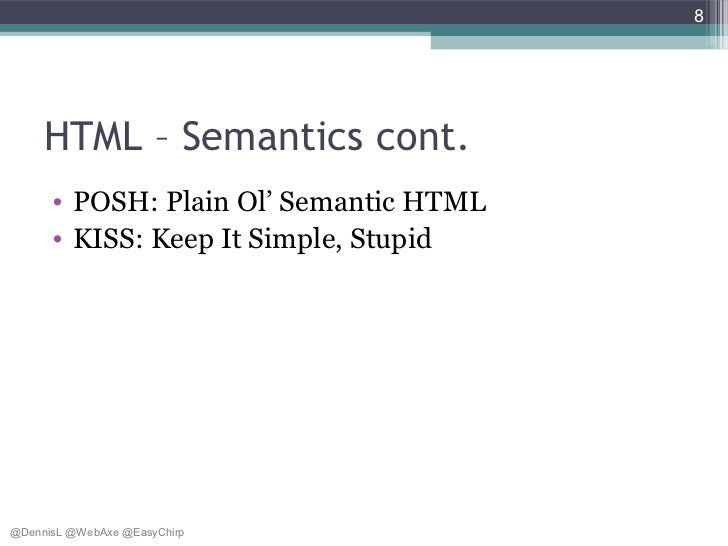

8     HTML – Semantics cont.      • POSH: Plain Ol’ Semantic HTML      • KISS: Keep It Simple, Stupid@DennisL @WebAxe @Eas...

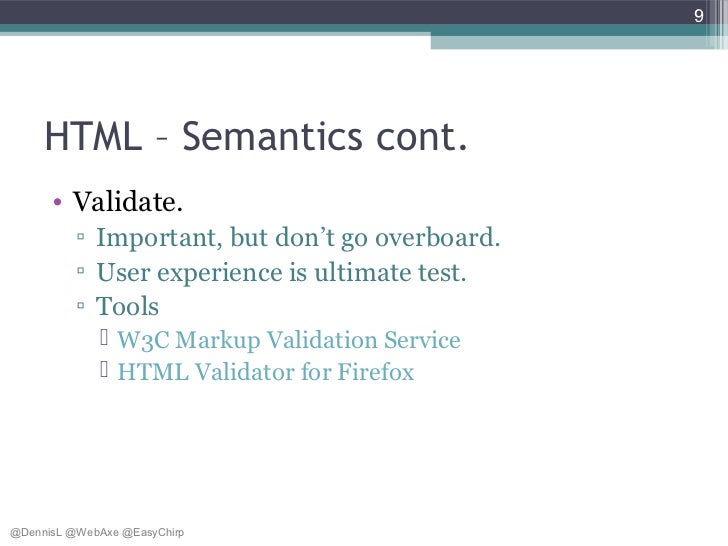

9     HTML – Semantics cont.      • Validate.          ▫ Important, but don’t go overboard.          ▫ User experience is ...

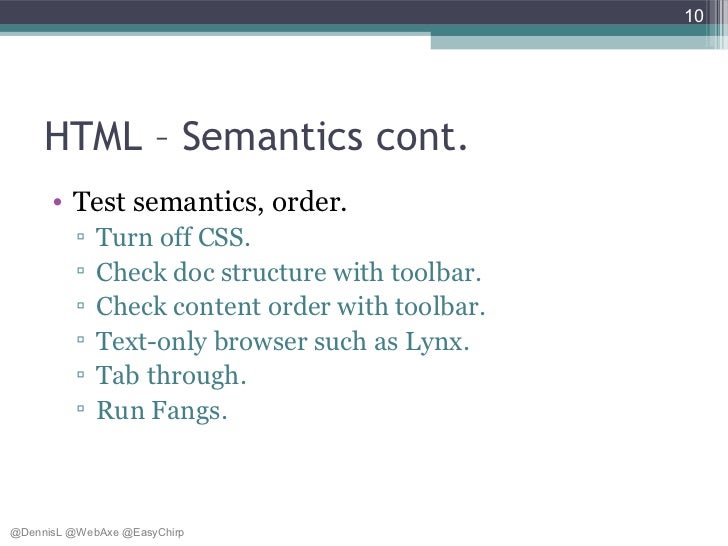

10     HTML – Semantics cont.      • Test semantics, order.          ▫   Turn off CSS.          ▫   Check doc structure wi...

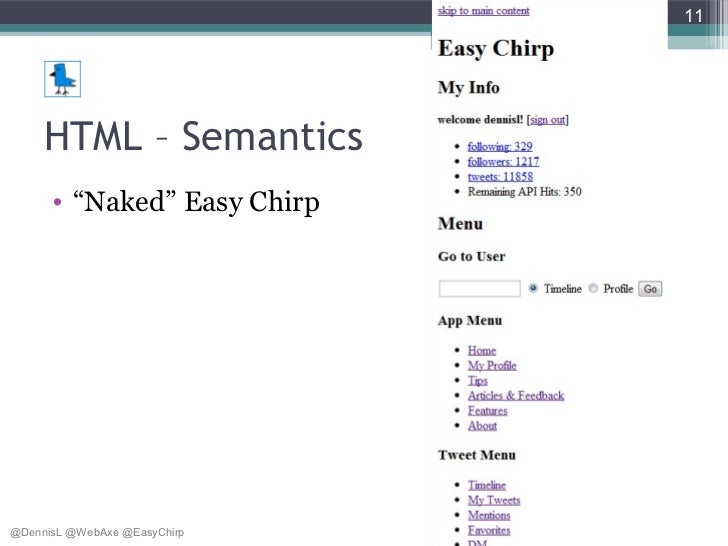

11     HTML – Semantics      • “Naked” Easy Chirp@DennisL @WebAxe @EasyChirp
12     HTML – Headings      •   One H1, for now.      •   Brief, succinct text.      •   Nicely nested.      •   Ensure in...

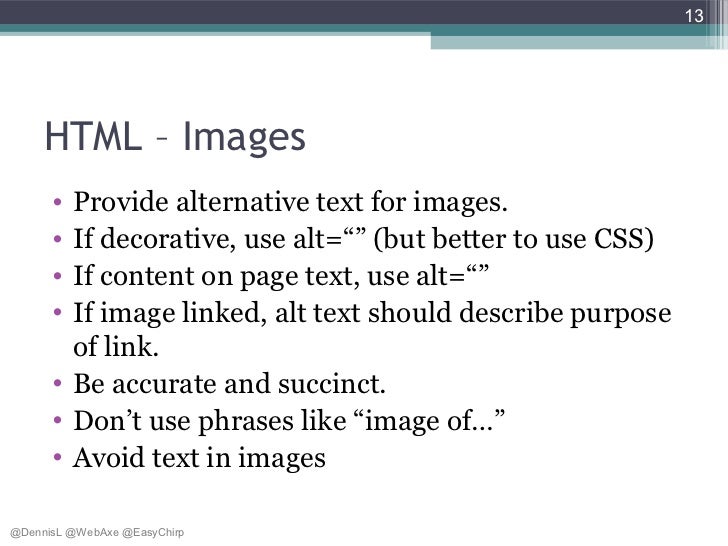

13     HTML – Images      • Provide alternative text for images.      • If decorative, use alt=“” (but better to use CSS) ...

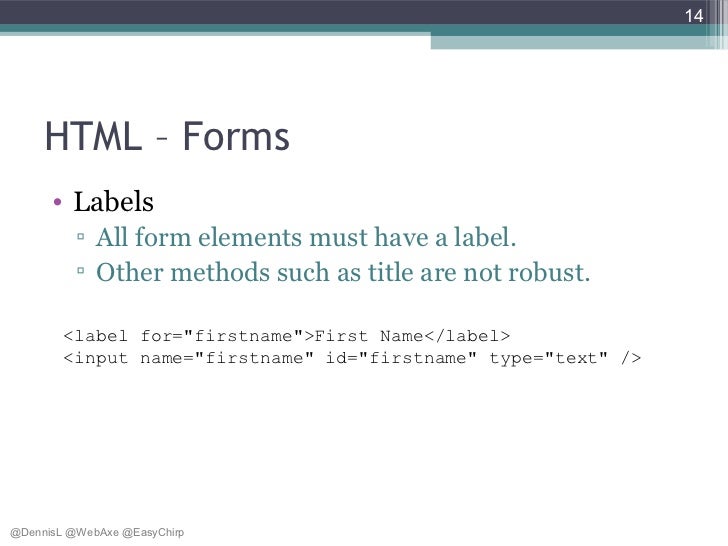

14     HTML – Forms      • Labels          ▫ All form elements must have a label.          ▫ Other methods such as title a...

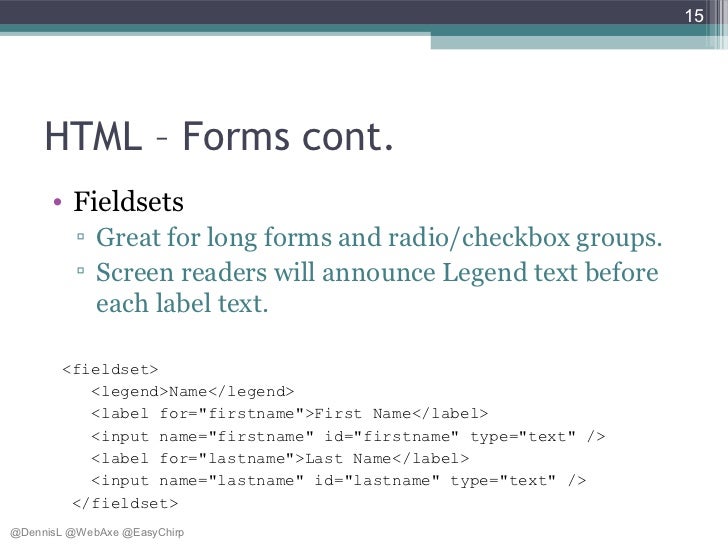

15     HTML – Forms cont.      • Fieldsets          ▫ Great for long forms and radio/checkbox groups.          ▫ Screen re...

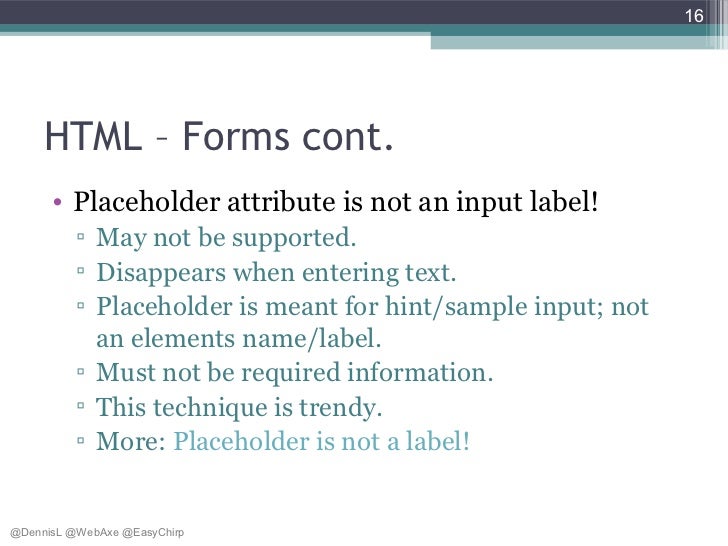

16     HTML – Forms cont.      • Placeholder attribute is not an input label!          ▫ May not be supported.          ▫ ...

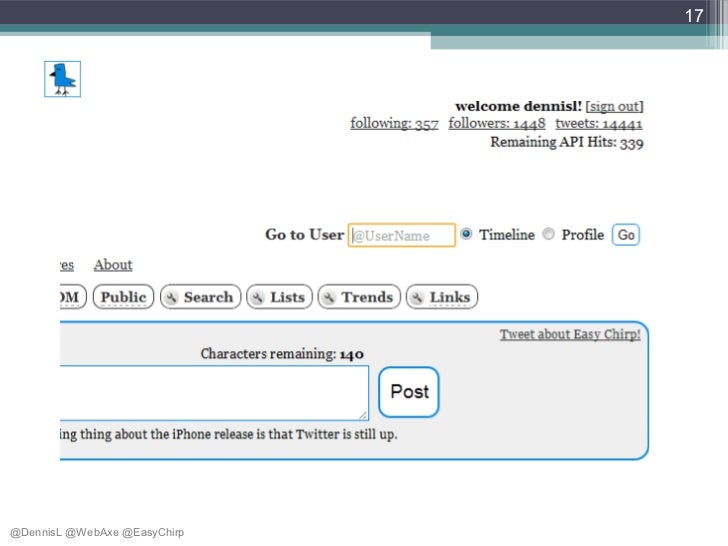

17@DennisL @WebAxe @EasyChirp

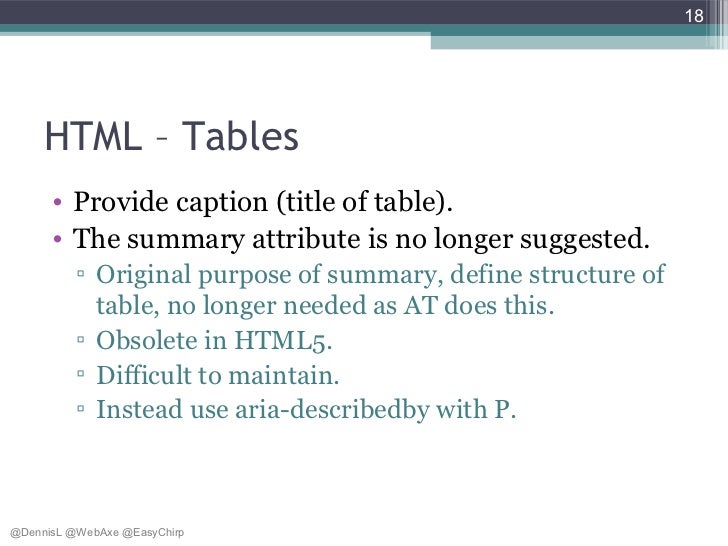

18     HTML – Tables      • Provide caption (title of table).      • The summary attribute is no longer suggested.        ...

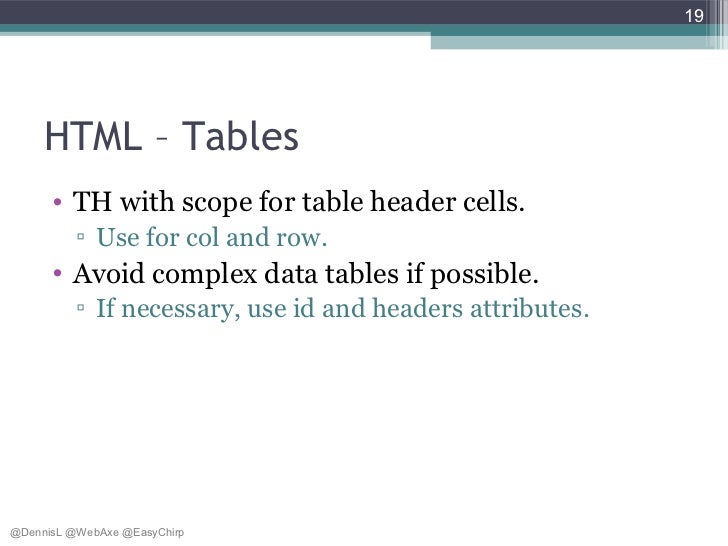

19     HTML – Tables      • TH with scope for table header cells.          ▫ Use for col and row.      • Avoid complex dat...

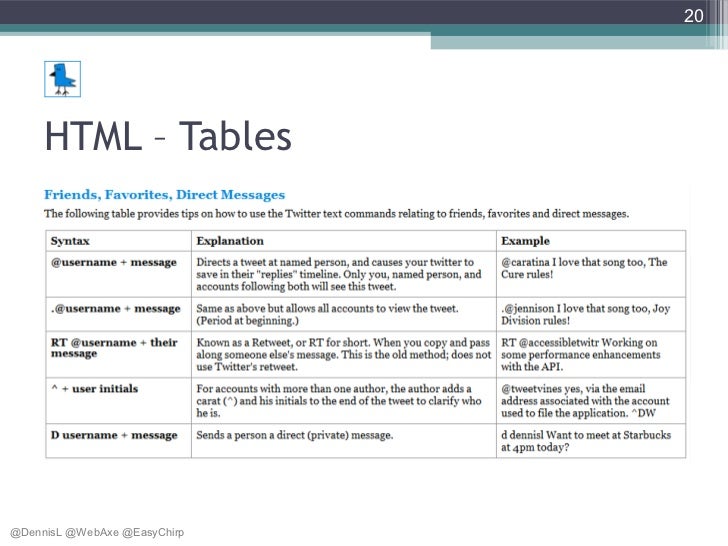

20     HTML – Tables@DennisL @WebAxe @EasyChirp

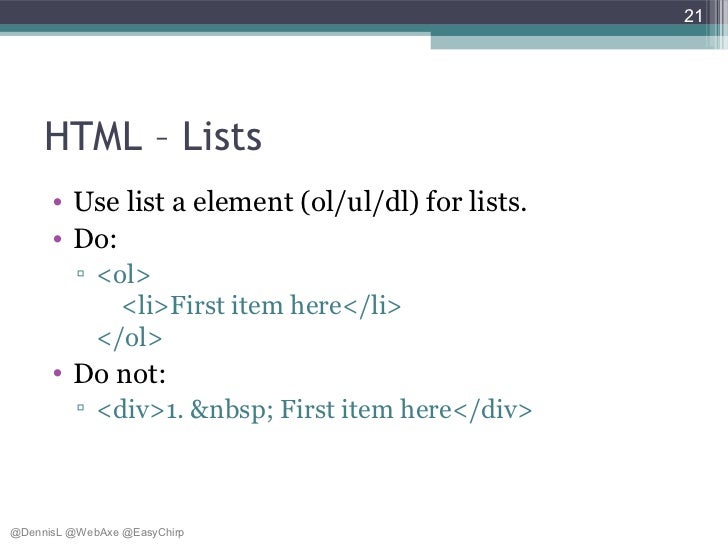

21     HTML – Lists      • Use list a element (ol/ul/dl) for lists.      • Do:          ▫ <ol>              <li>First item...
22     HTML – Title attribute      •   No keyboard support (silly browser vendors!)      •   No mouseover support on touch...
23@DennisL @WebAxe @EasyChirp

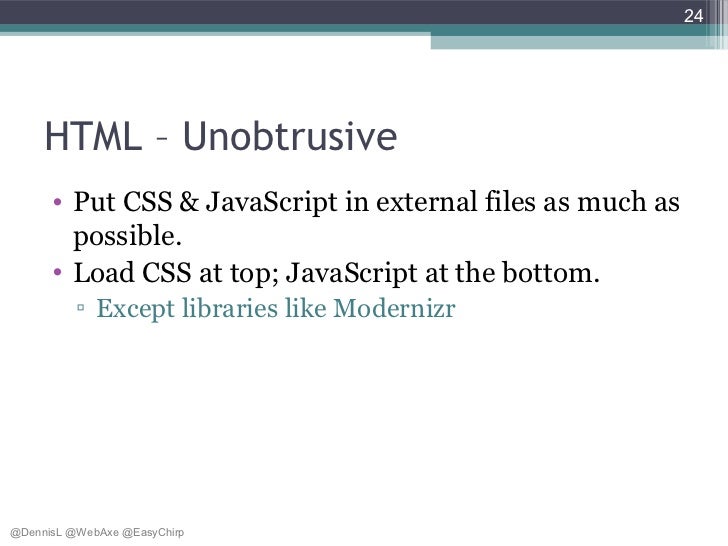

24     HTML – Unobtrusive      • Put CSS & JavaScript in external files as much as        possible.      • Load CSS at top...
25     HTML5      • HTML5          ▫   More native power          ▫   Lighter code          ▫   Good support on mobile    ...

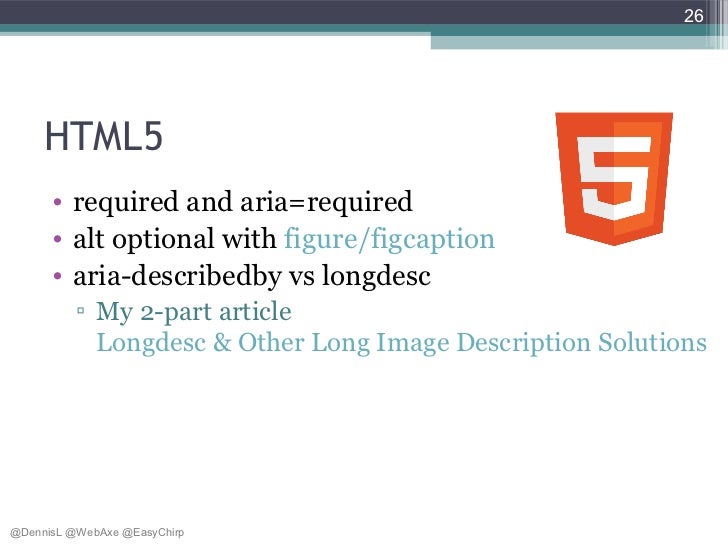

26     HTML5      • required and aria=required      • alt optional with figure/figcaption      • aria-describedby vs longd...

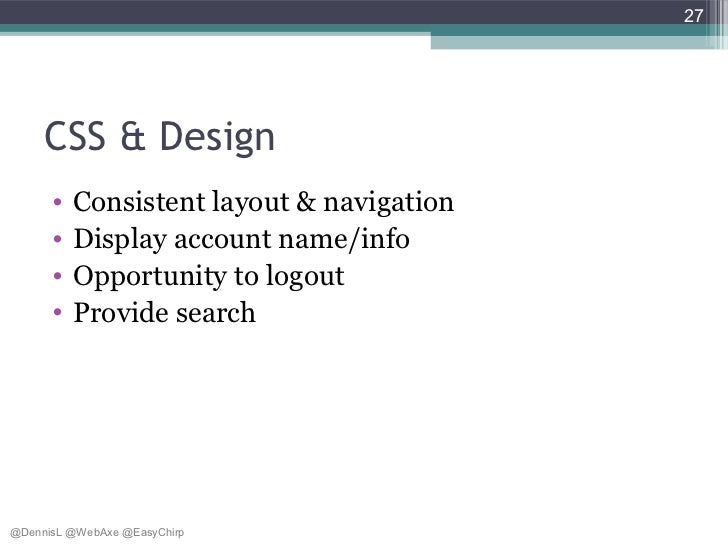

27     CSS & Design      •   Consistent layout & navigation      •   Display account name/info      •   Opportunity to log...

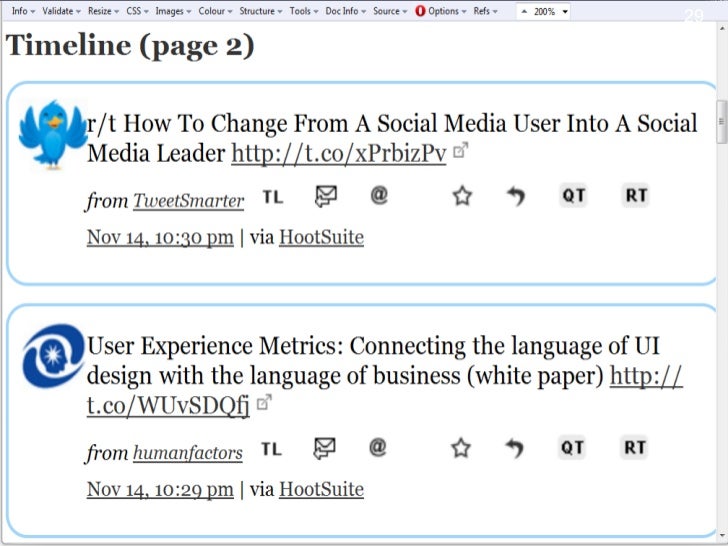

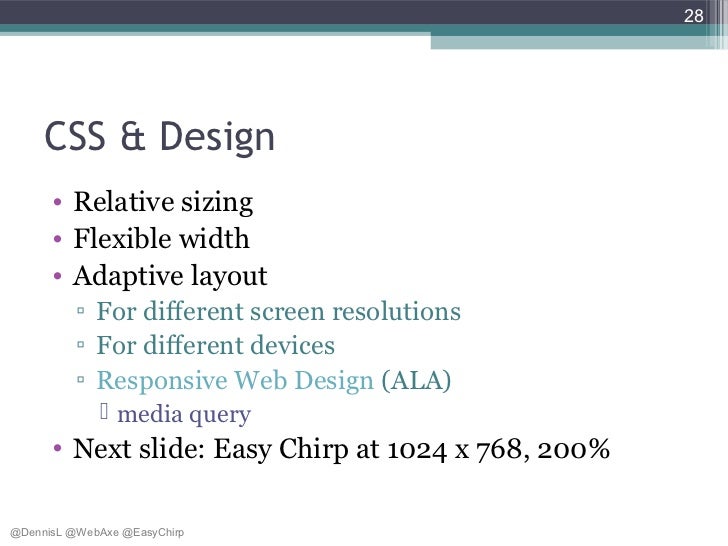

28     CSS & Design      • Relative sizing      • Flexible width      • Adaptive layout          ▫ For different screen re...
29@DennisL @WebAxe @EasyChirp
30     CSS & Design      • Sufficient text size.          ▫ 16 PIXELS For Body Copy. Anything Less Is A            Costly ...

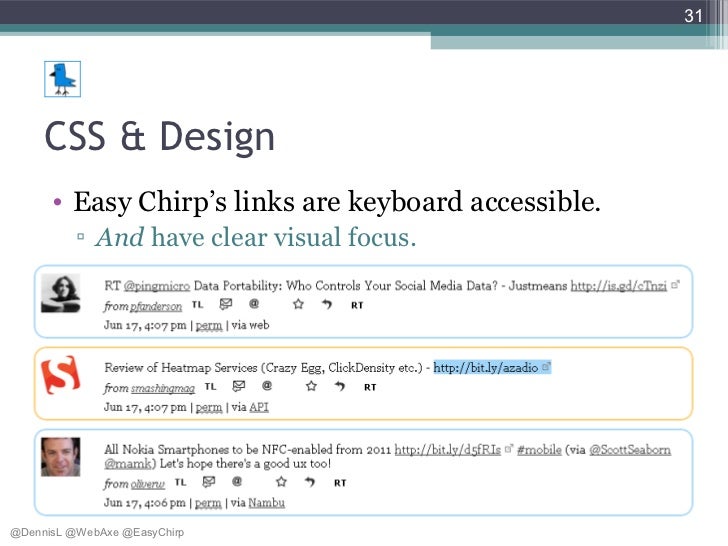

31     CSS & Design      • Easy Chirp’s links are keyboard accessible.          ▫ And have clear visual focus.@DennisL @We...

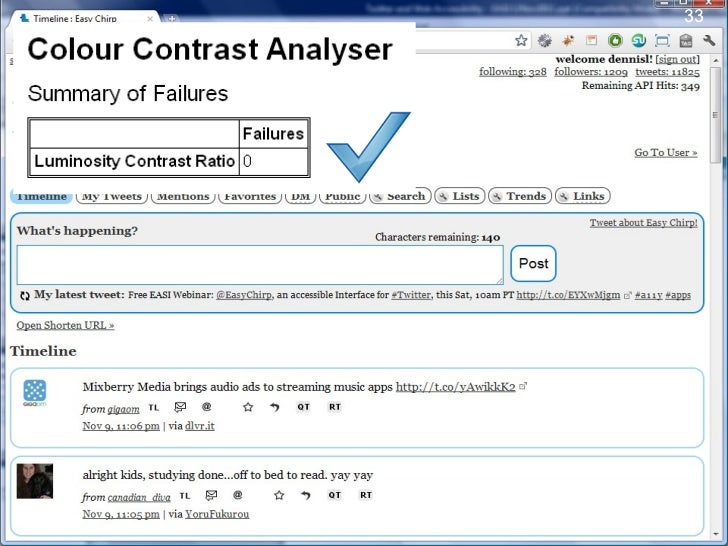

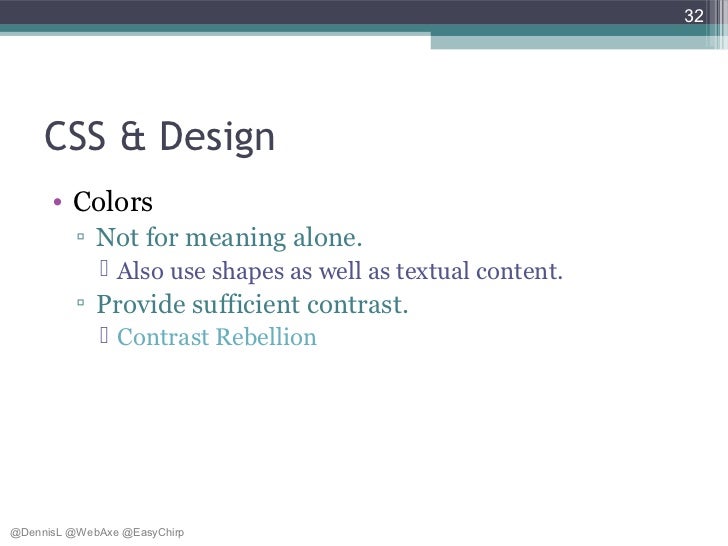

32     CSS & Design      • Colors          ▫ Not for meaning alone.              Also use shapes as well as textual conte...
33@DennisL @WebAxe @EasyChirp
34     CSS & Design      • Hide content with discretion.        ▫ Labeling a form element that has meaning conveyed       ...

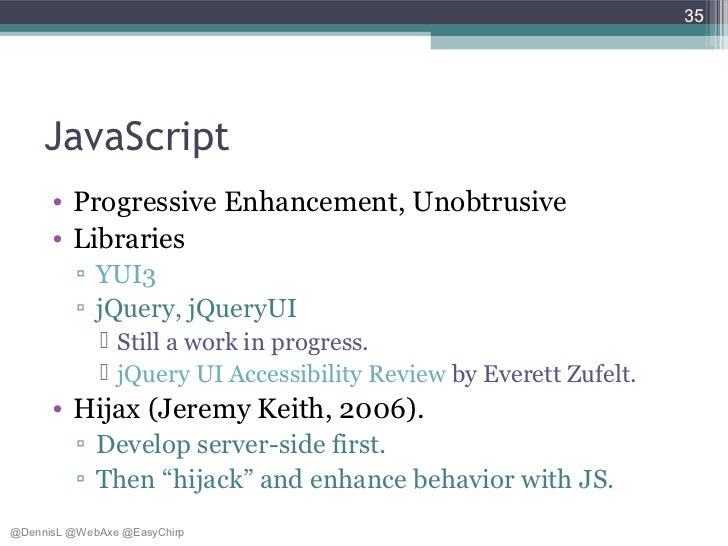

35     JavaScript      • Progressive Enhancement, Unobtrusive      • Libraries          ▫ YUI3          ▫ jQuery, jQueryUI...

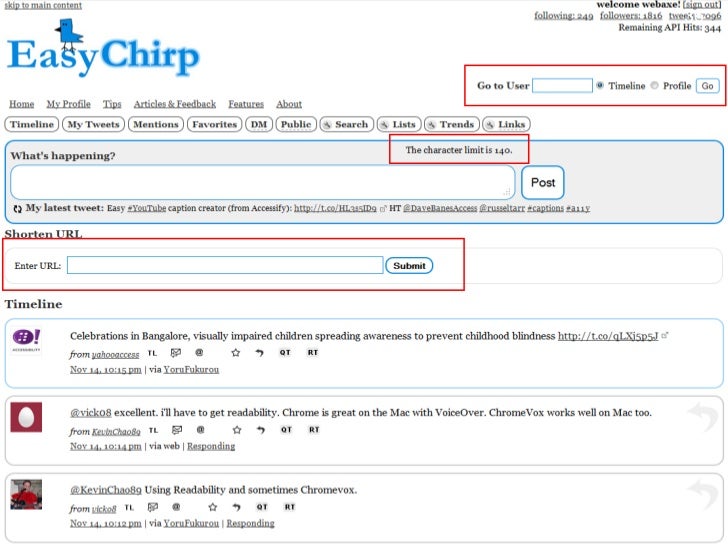

36@DennisL @WebAxe @EasyChirp

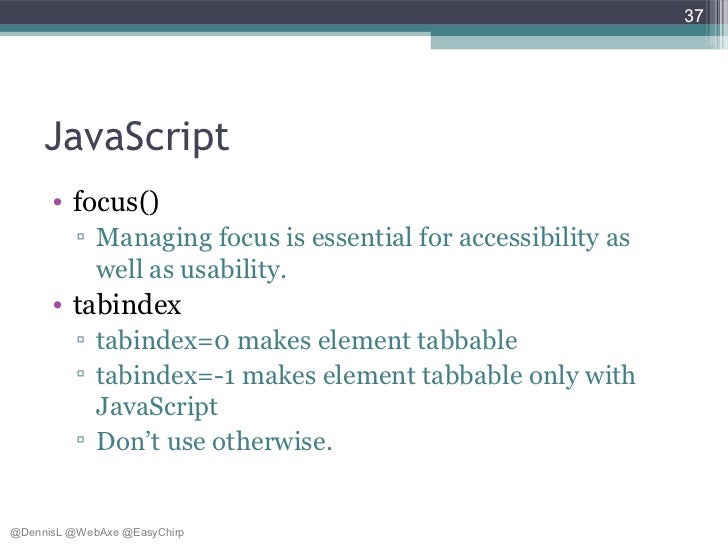

37     JavaScript      • focus()          ▫ Managing focus is essential for accessibility as            well as usability....

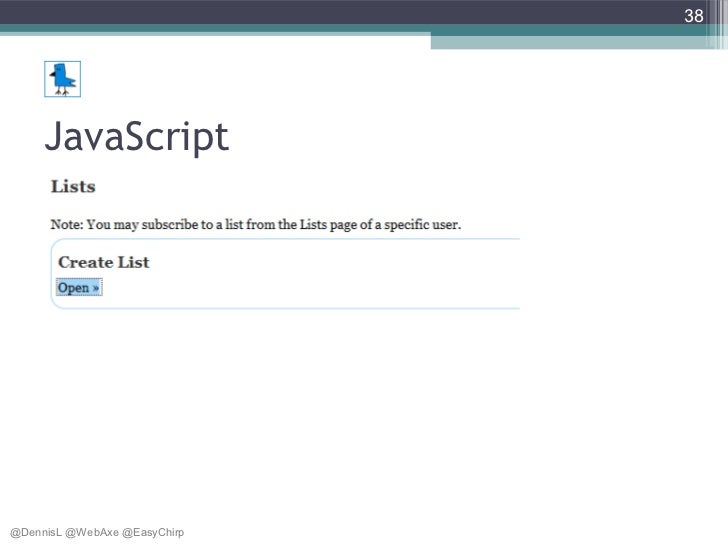

38     JavaScript@DennisL @WebAxe @EasyChirp
39     JavaScript@DennisL @WebAxe @EasyChirp

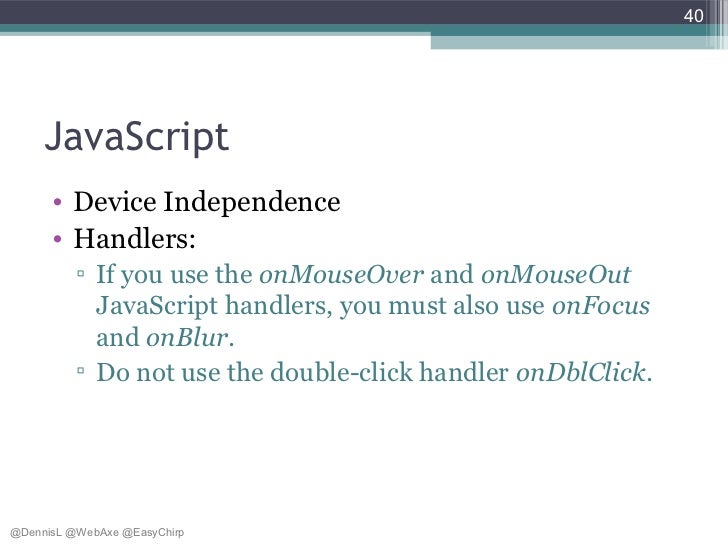

40     JavaScript      • Device Independence      • Handlers:          ▫ If you use the onMouseOver and onMouseOut        ...

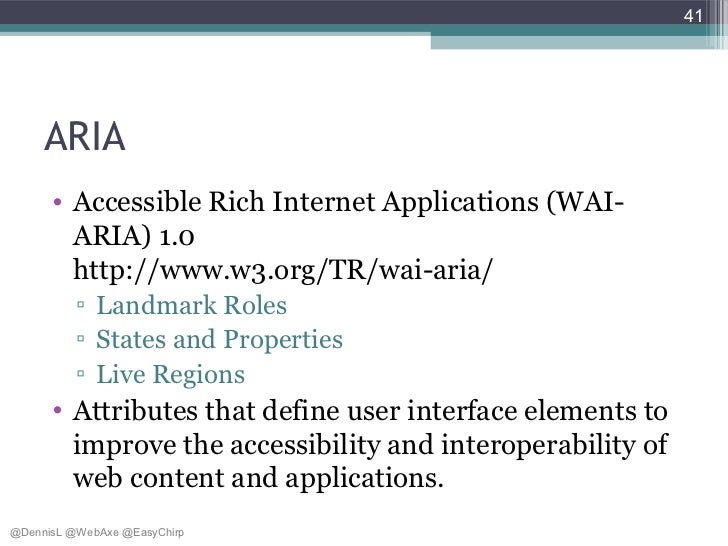

41     ARIA      • Accessible Rich Internet Applications (WAI-        ARIA) 1.0        http://www.w3.org/TR/wai-aria/     ...

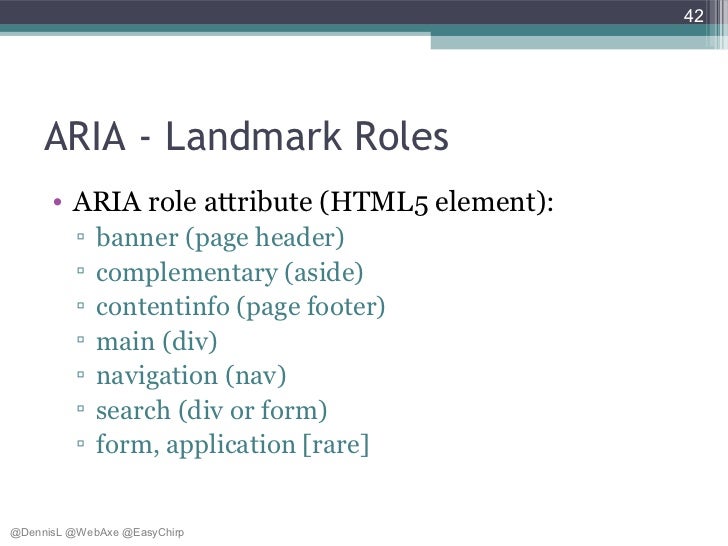

42     ARIA - Landmark Roles      • ARIA role attribute (HTML5 element):          ▫   banner (page header)          ▫   co...

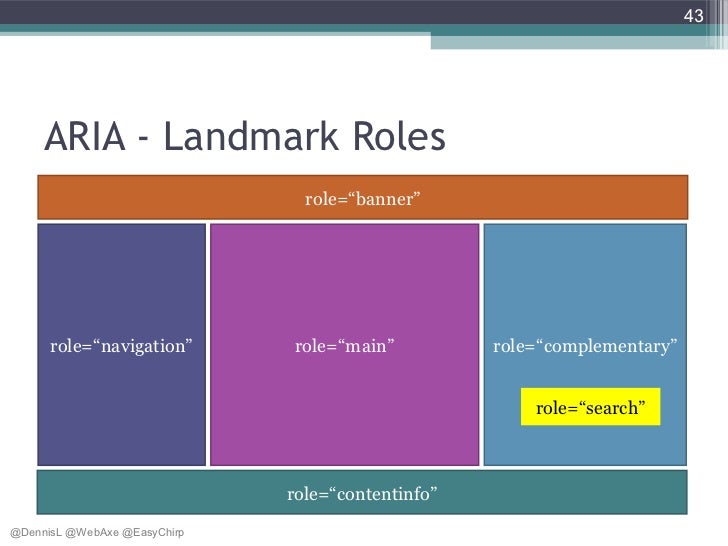

43     ARIA - Landmark Roles                                role=“banner”      role=“navigation”        role=“main”       ...

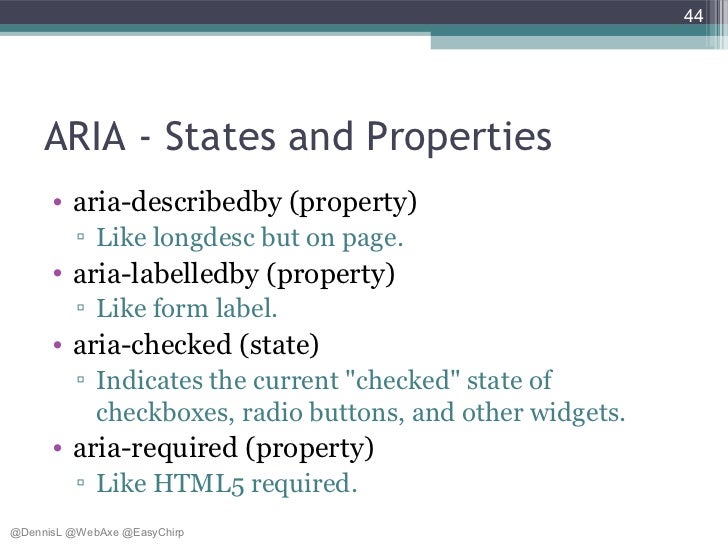

44     ARIA - States and Properties      • aria-describedby (property)          ▫ Like longdesc but on page.      • aria-l...

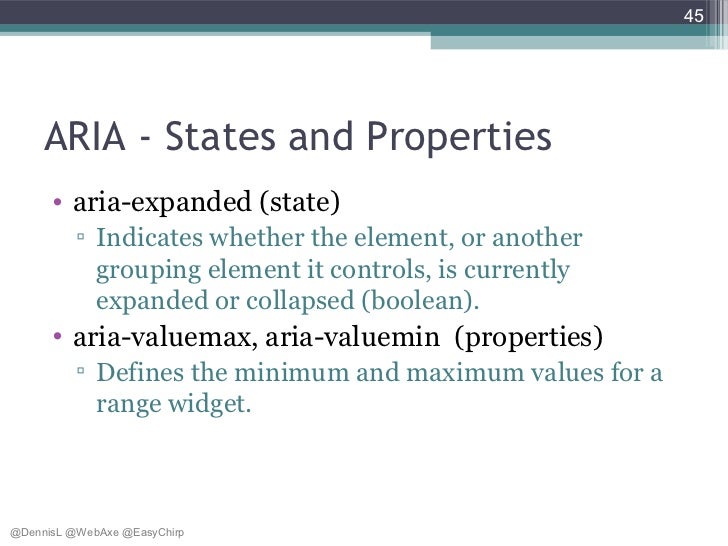

45     ARIA - States and Properties      • aria-expanded (state)          ▫ Indicates whether the element, or another     ...

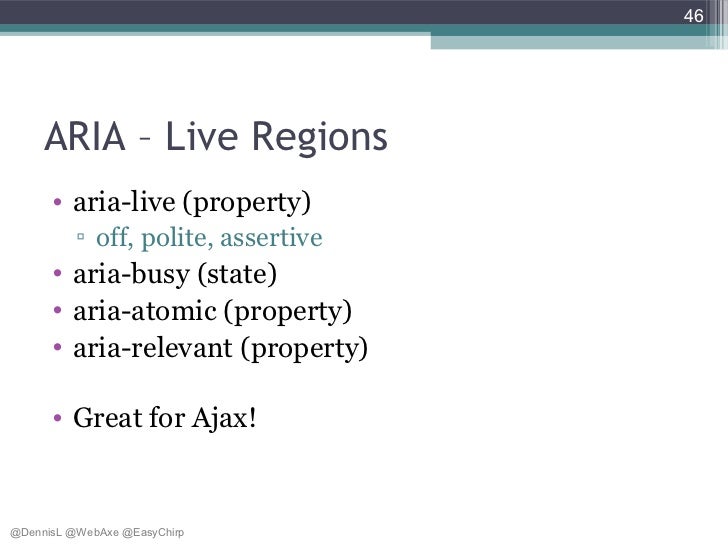

46     ARIA – Live Regions      • aria-live (property)          ▫ off, polite, assertive      • aria-busy (state)      • a...

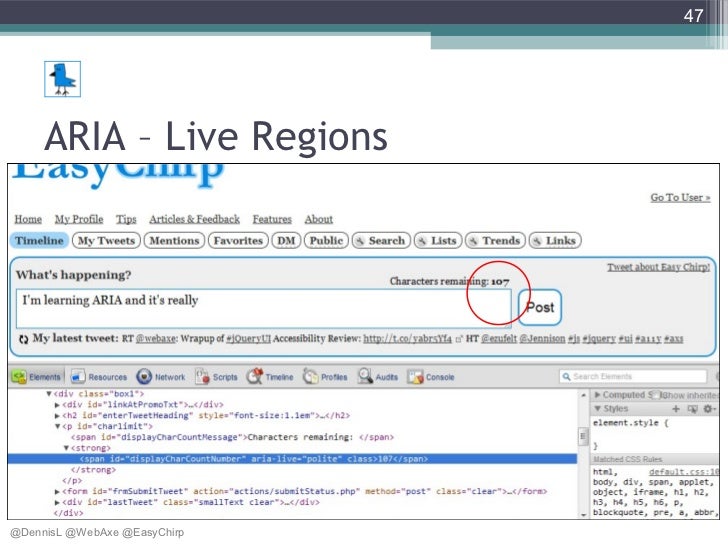

47     ARIA – Live Regions@DennisL @WebAxe @EasyChirp

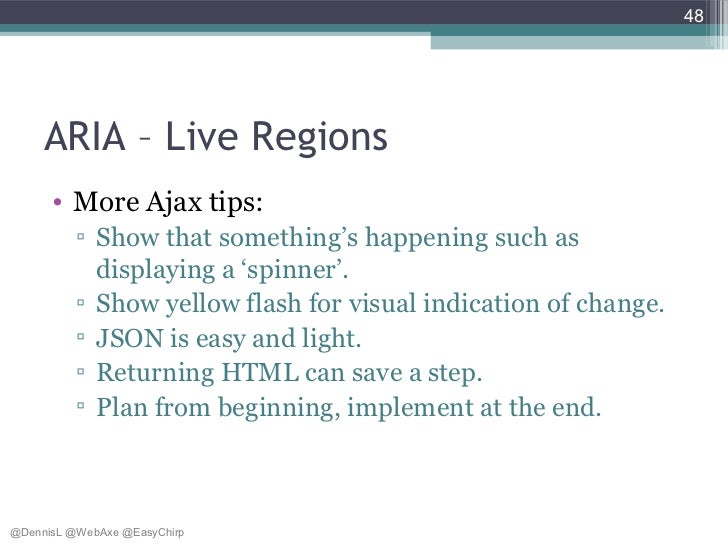

48     ARIA – Live Regions      • More Ajax tips:          ▫ Show that something’s happening such as            displaying...

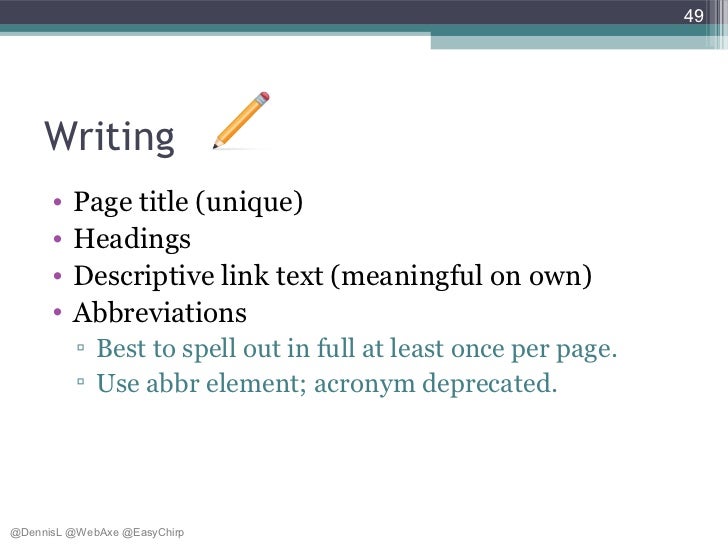

49     Writing      •   Page title (unique)      •   Headings      •   Descriptive link text (meaningful on own)      •   ...

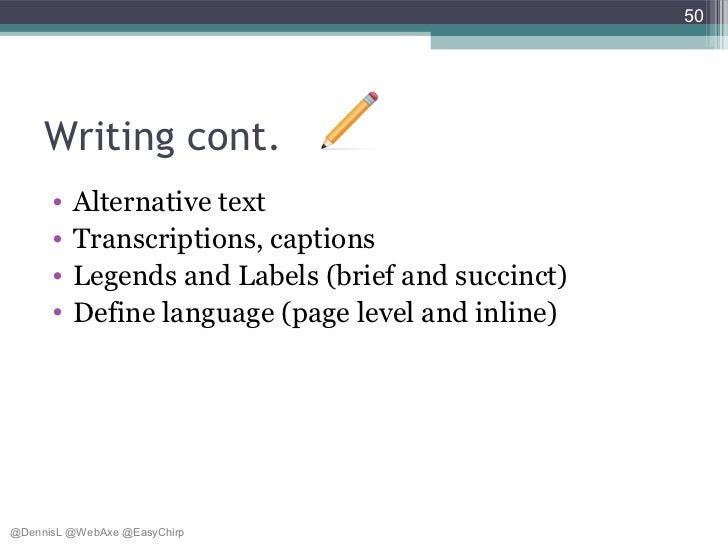

50     Writing cont.      •   Alternative text      •   Transcriptions, captions      •   Legends and Labels (brief and su...
51     Tips      • Plan accessibility from the very start.      • Small file sizes (low-band, mobile).      • NVDA is free...
52     Results      • Easy Chirp works with        ▫ All operating systems        ▫ All major browsers        ▫ No JavaScr...
53                                   Konquerer (Linux)     Results      • Robust          Kindle (first release)          ...

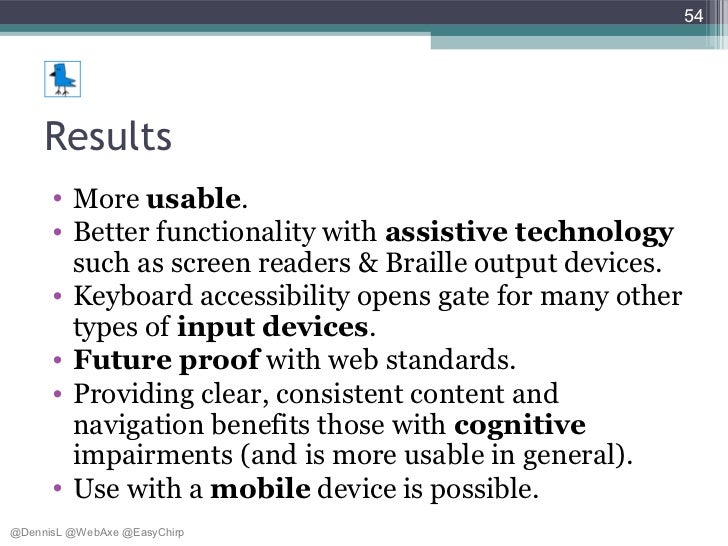

54     Results      • More usable.      • Better functionality with assistive technology        such as screen readers & B...

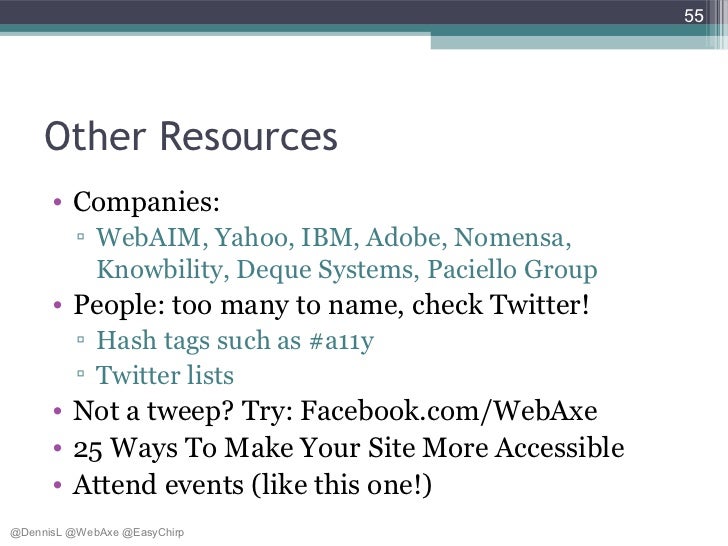

55     Other Resources      • Companies:          ▫ WebAIM, Yahoo, IBM, Adobe, Nomensa,            Knowbility, Deque Syste...

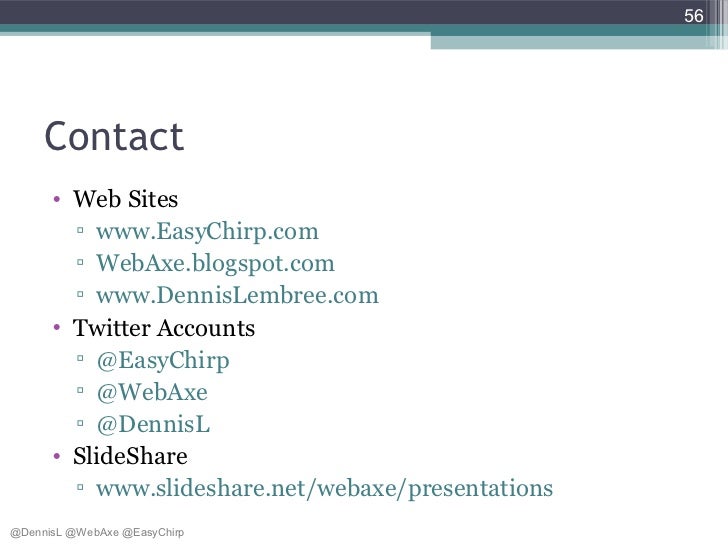

56     Contact      • Web Sites        ▫ www.EasyChirp.com        ▫ WebAxe.blogspot.com        ▫ www.DennisLembree.com    ...

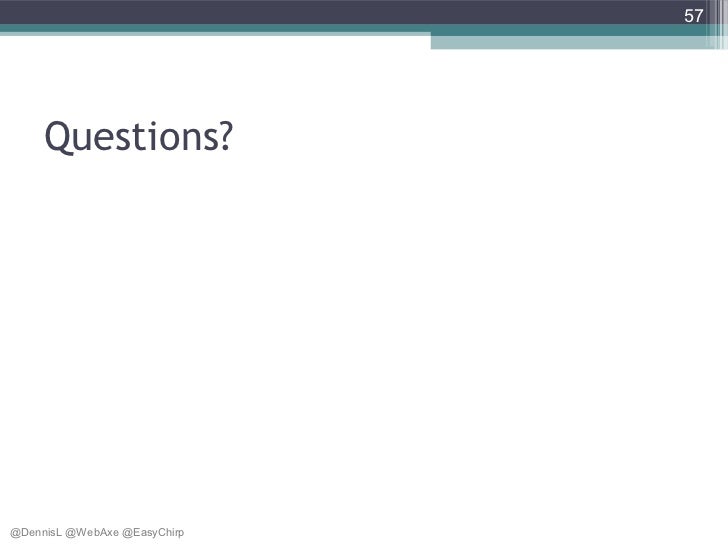

57     Questions?@DennisL @WebAxe @EasyChirp
