5TH ANNUAL BUSINESS PROCESS EXCELLENCE SUMMIT DUBAI, UAE, 2009 CREATING SYNERGY BETWEEN BPM AND EA IN AN E-GOVERNMENT ENVI...
About me <ul><li>An enterprise solutions architect </li></ul><ul><ul><li>From a programmer to a systems architect  </li></...
<ul><li>Unlimited life-cycle </li></ul><ul><ul><li>unpredictable and incremental evolution </li></ul></ul><ul><li>Socio-te...
<ul><li>The architecture must provide a high level of adaptability to </li></ul><ul><ul><li>policies and priorities of the...
<ul><li>Different estimations of the development/maintenance life-cycle cost ratio </li></ul>Need for adaptive architectur...
<ul><ul><li>top managers </li></ul></ul><ul><ul><li>enterprise architects </li></ul></ul><ul><ul><li>business line manager...
Process-oriented view of an enterprise 2009-05-31 Creating synergy between BPM and EA in an e-government
<ul><li>Dynamic set of artefacts </li></ul><ul><li>Artefacts are interconnected and interdependent </li></ul><ul><li>We ha...
<ul><li>Business artefacts </li></ul><ul><ul><li>Events </li></ul></ul><ul><ul><li>Processes </li></ul></ul><ul><ul><li>Ac...
<ul><li>All artefacts must be  versionable  throughout their life-cycle </li></ul><ul><li>All artefacts must be evolved to...
<ul><li>More knowledge about functioning of the enterprise </li></ul><ul><li>More predictable results </li></ul><ul><li>Mo...
<ul><li>Who ( roles ) is doing What ( business objects ), When ( coordination of activities ), Why ( business rules ), How...
<ul><li>Main technologies </li></ul><ul><ul><li>Business Process Management (BPM) </li></ul></ul><ul><ul><li>Service-Orien...
BPM is a tool for improving enterprise business performance    2009-05-31 Creating synergy between BPM and EA in an e-gove...
<ul><li>Natural evolution of methodologies  for improving enterprise  business performance  </li></ul><ul><ul><li>Process ...
<ul><li>Definition </li></ul><ul><ul><li>architectural approach for constructing software-intensive systems from a set of ...
<ul><li>BPM, by revealing the artefacts and the relationships between them, provides the necessary context (e.g. granulari...
<ul><li>Definition </li></ul><ul><ul><li>–  coherent and proven set of principles, recommendations, rules, practices, and ...
<ul><li>“ enterprise genotype” (a full  nomenclature of enterprise  artefacts) – classic EA </li></ul><ul><li>“ enterprise...
“ Administration en Ligne” (AeL)   2009-05-31 Creating synergy between BPM and EA in an e-government AeL 10 first services...
Existing applications for e-government Government Partners Internal  existing application Application 1 Internal  existing...
Draft architecture for e-government  (initial state) Government Partners Internal  existing application Coordination and i...
Draft architecture for e-government  (initial state) Government Partners Internal  existing application Coordination and i...
Draft architecture for e-government  (future state) Government Partners service Coordination and integration (BPM/SOA-base...
<ul><li>Formed at the federal level in Autumn 2008 </li></ul><ul><li>Open to 26 cantons (highly autonomous) and more than ...
Functional Scope Level 0 and Level 1 Creating synergy between BPM and EA in an e-government Services Scope:  Partners inte...
<ul><li>Be legal </li></ul><ul><li>Be an enabler </li></ul><ul><li>Be effective </li></ul><ul><li>Be flexible </li></ul><u...
<ul><li>Three layers:  </li></ul><ul><ul><li>services/infrastructure </li></ul></ul><ul><ul><li>language </li></ul></ul><u...
<ul><li>Use of architecture to reduce the complexity  </li></ul><ul><li>BPM reference model </li></ul><ul><li>Attention to...
Thank you! <ul><li>Contact information: </li></ul><ul><li>Alexander   Samarin </li></ul><ul><li>[email_address] </li></ul>...
Upcoming SlideShare
Loading in...5
×

Creating synergy between BPM and EA in an e-government environment

1,655

Published on

Published in: Technology, Business
0 Comments
4 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,655
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
137
Comments
0
Likes
4
Embeds 0
No embeds

No notes for slide
  • Transcript of "Creating synergy between BPM and EA in an e-government environment"

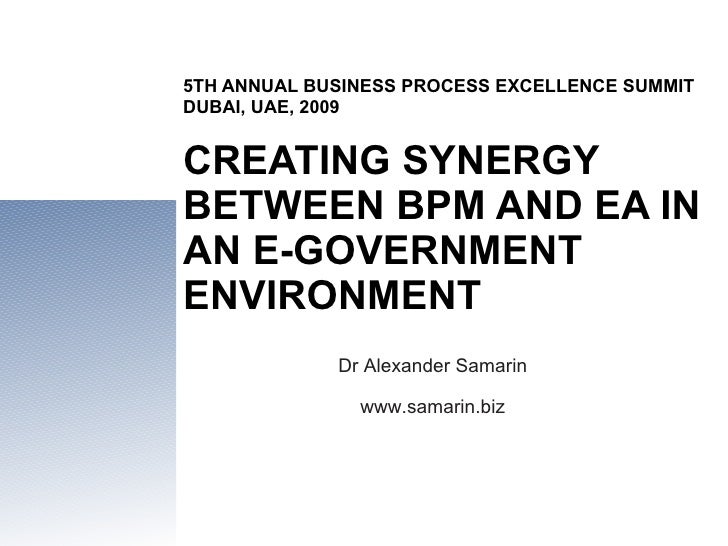

    1. 1. 5TH ANNUAL BUSINESS PROCESS EXCELLENCE SUMMIT DUBAI, UAE, 2009 CREATING SYNERGY BETWEEN BPM AND EA IN AN E-GOVERNMENT ENVIRONMENT Dr Alexander Samarin www.samarin.biz
