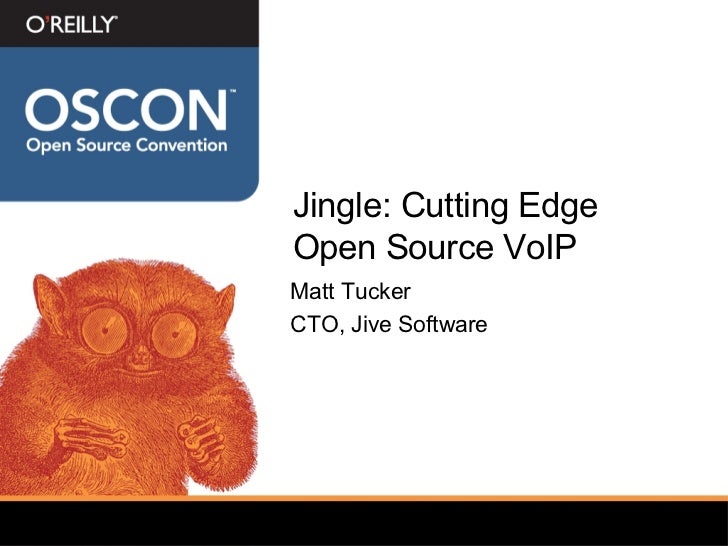

  1. 1. Jingle: Cutting Edge Open Source VoIP <ul><li>Matt Tucker </li></ul><ul><li>CTO, Jive Software </li></ul>
  2. 2. I like XMPP
  3. 3. The Vision: <ul><li>People wouldn’t stop asking for voice chat to be added to XMPP. </li></ul><ul><li>or </li></ul><ul><li>Worldwide federated network that combines messaging, presence and voice. Ensure there are Open Source tools for all of it. </li></ul>
  4. 4. Current approaches don’t work <ul><li>Skype </li></ul><ul><ul><li>Closed network </li></ul></ul><ul><ul><li>Proprietary protocol </li></ul></ul><ul><li>SIP </li></ul><ul><ul><li>Poor protocol for IM and presence </li></ul></ul><ul><ul><li>Very little world-wide federation </li></ul></ul><ul><ul><li>Most implementations don’t do Skype-type p2p </li></ul></ul>
  5. 5. In this talk <ul><li>XMPP Overview </li></ul><ul><li>All about Jingle </li></ul><ul><ul><li>Protocol flow </li></ul></ul><ul><ul><li>NAT traversal (ICE) </li></ul></ul><ul><ul><li>Open Source implementations </li></ul></ul><ul><ul><li>Others uses for Jingle </li></ul></ul>
  6. 6. XMPP <ul><li>eXtensible Messaging and Presence Protocol </li></ul><ul><li>Open standard approved by the IETF as RFC 3920 and 3921, maintained and extended by the XMPP Standards Foundation </li></ul><ul><li>Countless servers and clients deployed in an open federation. </li></ul><ul><li>XMPP already won as the open standard for IM </li></ul>
  7. 7. XMPP Protocol Basics <ul><li>XML based, making it very easy to use and extend </li></ul><ul><li>Strong security (TLS) and identity protection built-in Secure Communications with Jabber Peter Saint-Andre Time: 11:35AM - 12:20PM Location:  D137-138 </li></ul><ul><li>Major packet types: Message, Presence and IQ </li></ul>
  8. 8. Sample XMPP Message <ul><li><message to='matt@jivesoftware.com' </li></ul><ul><li>from='gato@igniterealtime.org' type='chat'> </li></ul><ul><li><thread>thread1</thread> </li></ul><ul><li><body>How's that presentation going?</body> </li></ul><ul><li></message> </li></ul>
  9. 9. XEPs: XMPP Extension Protocols <ul><li>Core RFC’s are extended through an open process by the XSF </li></ul><ul><li>Key extensions cover multi-user chat, file transfer, avatars, publish-subscribe </li></ul><ul><li>Jingle is a set of XEPs </li></ul>
  10. 10. Example packet extension <ul><ul><li><message to='player@igniterealtime.org' </li></ul></ul><ul><ul><li>from='dealer@igniterealtime.org'> </li></ul></ul><ul><ul><li><body>Blackjack!</body> </li></ul></ul><ul><ul><li><gameData xmlns='casino:blackjack'> </li></ul></ul><ul><ul><li><card1 rank='ace' suit='diamonds'/> </li></ul></ul><ul><ul><li><card2 rank='jack' suit='spades'/> </li></ul></ul><ul><ul><li></gameData> </li></ul></ul><ul><ul><li></message> </li></ul></ul>
  11. 11. Jingle <ul><li>Many attempts at VoIP were tried – stream initiation, TINS, etc. None of them worked very well. </li></ul><ul><li>Google launched their XMPP network with voice support, then joined the standards effort to define Jingle. </li></ul><ul><li>Covered by several XMPP extensions: XEP-166: Jingle XEP-167: Jingle Audio via RTP XEP-176: Jingle ICE Transport XEP-177: Jingle Raw UDP Transport XEP-180: Jingle Video via RTP XEP-181: Jingle DTMF XEP-183: Jingle Telepathy Transport Method XEP-208: Bootstrapping Implementation of Jingle XEP-215: STUN Server Discovery for Jingle </li></ul><ul><li>Acronym soup: ICE, STUN, TURN </li></ul>
  12. 12. Jingle in three easy steps <ul><li>Do you want a session? Session Negotiation </li></ul><ul><li>What kind of session do you want to negotiate? (voice, video, file transfer?) Content Negotiation </li></ul><ul><li>How are we going to make this session work? (direct connect, ICE, media proxy?) Transport Negotiation </li></ul>
  13. 13. <ul><li><iq from='romeo@montague.net/orchard‘ to='juliet@capulet.com/balcony‘ id='jingle1‘ type='set'> <jingle xmlns='http://www.xmpp.org/extensions/xep-0166.html#ns‘ action='session-initiate‘ initiator='romeo@montague.net/orchard‘ sid='a73sjjvkla37jfea‘> <content creator='romeo@montague.net‘ name='this-is-the-audio-content'> <description xmlns='http://www.xmpp.org/extensions/xep-0167.html#ns'> <payload-type id='96' name='speex' clockrate='16000'/> <payload-type id='97' name='speex' clockrate='8000'/> </description> <transport xmlns='http://www.xmpp.org/extensions/xep-0177.html#ns'> <candidate .../> <candidate ip='10.1.1.104' port='13540' generation='0'/> </transport> </content> </jingle> </li></ul><ul><li></iq> </li></ul>Jingle packet example
  14. 14. SIP packet example <ul><li>INVITE sip:bob@biloxi.example.com SIP/2.0 Via: SIP/2.0/TCP client.atlanta.example.com:5060;branch=z9hG4bK74bf9 Max-Forwards: 70 From: Alice <sip:alice@atlanta.example.com>;tag=9fxced76sl To: Bob <sip:bob@biloxi.example.com> Call-ID: 3848276298220188511@atlanta.example.com CSeq: 2 INVITE Proxy-Authorization: Digest username=&quot;alice&quot;, realm=&quot;atlanta.example.com&quot;, nonce=&quot;wf84f1ceczx41ae6cbe5aea9c8e88d359&quot;, opaque=&quot;&quot;, uri=&quot;sip:bob@biloxi.example.com&quot;, response=&quot;42ce3cef44b22f50c6a6071bc8“ Contact: <sip:alice@client.atlanta.example.com;transport=tcp> Content-Type: application/sdp Content-Length: 151 v=0 o=alice 2890844526 2890844526 IN IP4 client.atlanta.example.com s=- c=IN IP4 192.0.2.101 t=0 0 m=audio 49172 RTP/AVP 0 a=rtpmap:0 PCMU/8000 </li></ul>
  15. 15. Transport approaches <ul><li>Always use the server to transport media </li></ul><ul><ul><li>Pro: always works (we’re using the server to send XMPP packets already) </li></ul></ul><ul><ul><li>Con: overloads the server, may be too slow for real-time protocols like voice/video. (~2000 concurrent users max) </li></ul></ul><ul><li>Try to go peer to peer </li></ul><ul><ul><li>Pro: scales forever. Best way to build a worldwide network. </li></ul></ul><ul><ul><li>Con: gets really complicated with firewalls and NATs. </li></ul></ul>
  16. 16. Making peer to peer work <ul><li>Step 1: try direct connect between IP addresses. (typically only works inside a local network) </li></ul><ul><li>Step 2: if #1 fails, the parties are probably behind a firewall or NAT. Do some “crazy stuff” to punch through. (can work up to 90% of the time) </li></ul><ul><li>Step 3: if #2 fails, there’s a pretty strict firewall in place so failover to using the server (media relay) (catch the other 10% or so) </li></ul><ul><li>The sum of these techniques is ICE, at the cutting edge of VoIP connectivity </li></ul>
  17. 17. Jingle connection architecture
  18. 18. What is NAT? <ul><li>Problem: the internet was running out of IPv4 addresses Whoops. In the same category as the fake Bill Gates quote: ”640K ought to be enough for anybody” </li></ul><ul><li>Solution: group a bunch of computers behind a single IP address using Network Address Translation You don’t know your public IP when behind a NAT. The NAT device dynamically assigns ports to internal hosts to keep all the network traffic going to the right places </li></ul><ul><li>Better Solution: IPv6 – bigger addresses (not being adopted worldwide anytime soon) 340,282,366,920,938,463,463,374,607,431,768,211,456 addresses, or enough to give multiple IP addresses to every grain of sand on the planet. Could run into problems when humans conquer multiple galaxies? </li></ul>
  19. 19. “ Crazy stuff”: punching through NATs <ul><li>Step 1: use a STUN server to find your public IP address </li></ul><ul><li>Me: Hey STUN server, I don’t know my IP Address. Can you help? NUTS (the STUN server): Looking at the packet you sent me, I see that the IP address of your NAT device is AAA.BBB.CCC.DDD Me: Sweet! </li></ul><ul><li>Step 2: figure out more stuff using the STUN server </li></ul><ul><li>Me: Ok, now I want to check to see what my NAT device does with ports. Does the public port change when I connect to different IP addresses? NUTS: Well, good question. I have another IP address you can connect to in order to try that. Me: Awesome, I tried that out and now I know more about my NAT device. Based on my local addresses, what you told me, plus what the other guy told me, I now have have a bunch of address/port options I can try with the other party. NUTS: No problem, glad to help! Buh-bye. </li></ul><ul><li>Step 3: connectivity checking to try to create a hole </li></ul><ul><li>Me: Can you hear me on this IP/port? You: … [Silence] Me: Hmm, the last one didn’t work. How about this one? You: … [Silence] Me: This is taking awhile… arg! How about this one? You: I hear you, I hear you! Yay, we found a hole. </li></ul><ul><li>(Punching holes works better with UDP vs. TCP) </li></ul>
  20. 20. Jingle Client Libraries <ul><li>libjingle from Google -- http://code.google.com/apis/talk/libjingle/index.html </li></ul><ul><li>Telepathy -- http://telepathy.freedesktop.org </li></ul><ul><li>Smack – http://www.igniterealtime.org </li></ul>
  21. 21. Jingle server support <ul><li>Openfire: an Open Source XMPP server with enhancements for Jingle. </li></ul><ul><li>Built-in media relay </li></ul><ul><ul><li>Without it, P2P calls won’t always complete </li></ul></ul><ul><li>Built-in STUN server </li></ul><ul><ul><li>Without it, you’ll have to use public STUN servers </li></ul></ul>
  22. 22. Jingle: not just for voice <ul><li>File transfer </li></ul><ul><li>Screen sharing </li></ul><ul><li>Video </li></ul><ul><li>Whiteboard </li></ul><ul><li>Anything else that uses a lot of bandwidth or that does streaming </li></ul>
  23. 23. Jingle: what’s missing <ul><li>Haven’t defined a way to do VoIP conferencing </li></ul><ul><li>Advanced call controls are missing (hold, transfer, etc). There’s a general consensus that this stuff shouldn’t be added to Jingle. Leave it to SIP. </li></ul><ul><li>Other Jingle content types (besides audio) are either not defined or immature </li></ul>
  24. 24. Current Jingle status <ul><li>Standards work on the fundamentals and audio content profile is wrapping up. </li></ul><ul><li>Waiting for Google to switch to official Jingle protocol. </li></ul><ul><li>Need interop work between different implementations. </li></ul><ul><li>Jingle is poised to fulfill its promise as an open standard for a federated, world-wide VoIP network. </li></ul>
  25. 25. Questions? <ul><li>Contact me via IM or email: </li></ul><ul><li>[email_address] </li></ul><ul><li>Resources </li></ul><ul><li>http://www.xmpp.org </li></ul><ul><li>http://www.igniterealtime.org </li></ul><ul><li>Secure Communications with Jabber Peter Saint-Andre Time: 11:35AM - 12:20PM Location:  D137-138 </li></ul>
