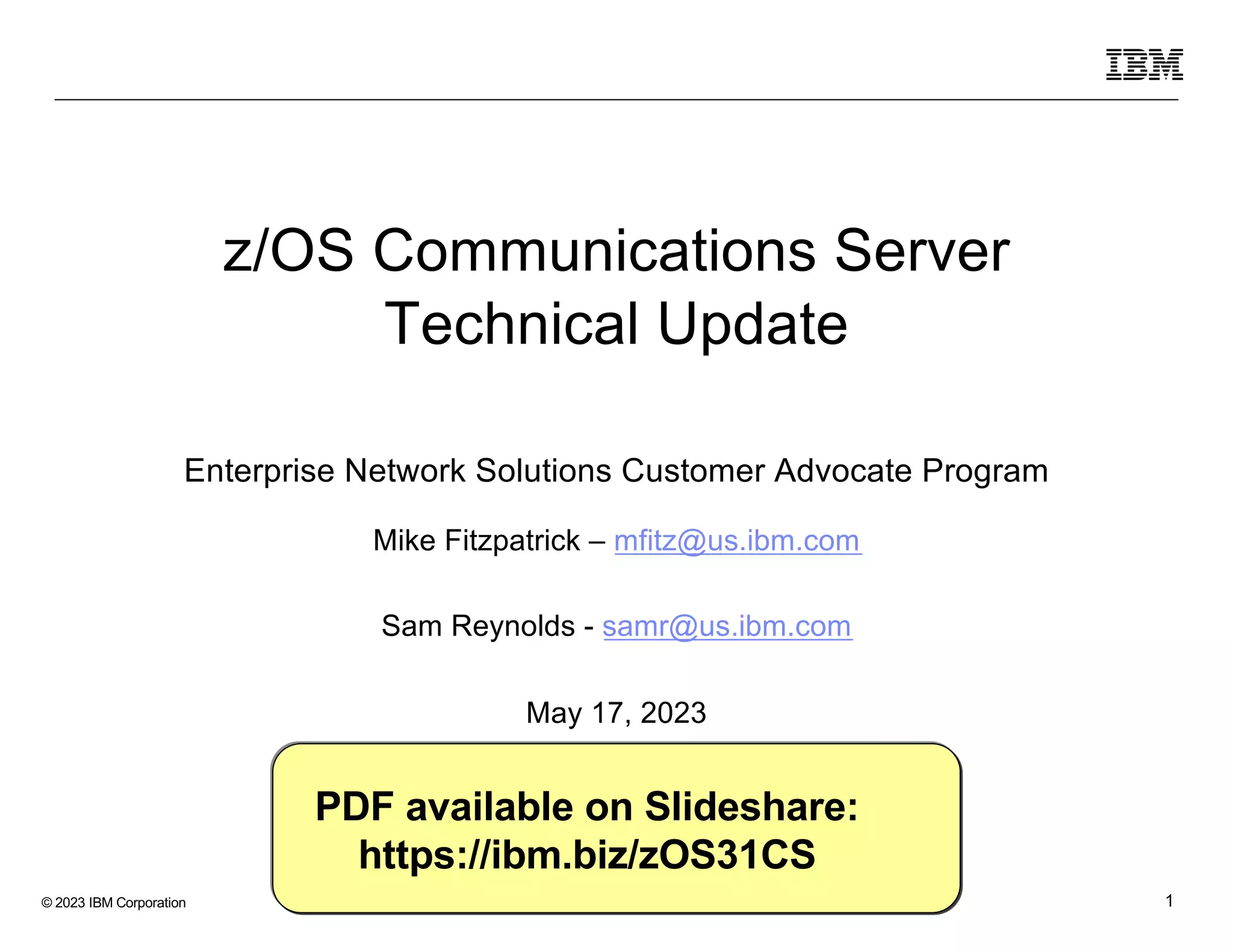

- 1. © 2023 IBMCorporation 1 z/OS Communications Server Technical Update Mike Fitzpatrick – mfitz@us.ibm.com Sam Reynolds - samr@us.ibm.com May 17, 2023 Enterprise Network Solutions Customer Advocate Program PDF available on Slideshare: https://ibm.biz/zOS31CS

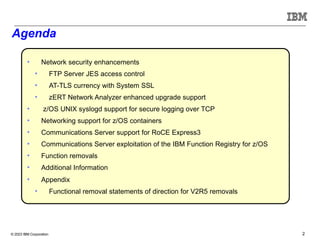

- 2. © 2023 IBMCorporation 2 Agenda • Network security enhancements • FTP Server JES access control • AT-TLS currency with System SSL • zERT Network Analyzer enhanced upgrade support • z/OS UNIX syslogd support for secure logging over TCP • Networking support for z/OS containers • Communications Server support for RoCE Express3 • Communications Server exploitation of the IBM Function Registry for z/OS • Function removals • Additional Information • Appendix • Functional removal statements of direction for V2R5 removals

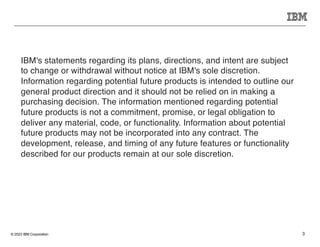

- 3. © 2023 IBMCorporation 3 IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code, or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remain at our sole discretion.

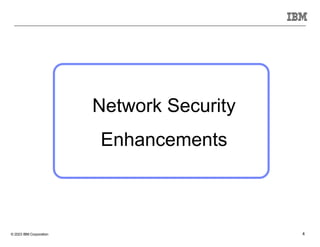

- 4. © 2023 IBMCorporation 4 Network Security Enhancements

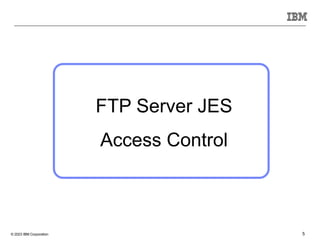

- 5. © 2023 IBMCorporation 5 FTP Server JES Access Control

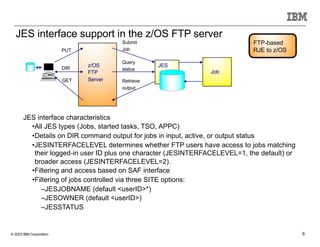

- 6. © 2023 IBMCorporation 6 JES interface support in the z/OS FTP server Submit Job Retrieve output Query status JES Job PUT DIR GET z/OS FTP Server JES interface characteristics •All JES types (Jobs, started tasks, TSO, APPC) •Details on DIR command output for jobs in input, active, or output status •JESINTERFACELEVEL determines whether FTP users have access to jobs matching their logged-in user ID plus one character (JESINTERFACELEVEL=1, the default) or broader access (JESINTERFACELEVEL=2). •Filtering and access based on SAF interface •Filtering of jobs controlled via three SITE options: –JESJOBNAME (default <userID>*) –JESOWNER (default <userID>) –JESSTATUS FTP-based RJE to z/OS

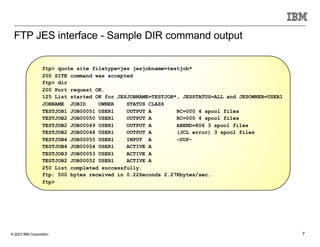

- 7. © 2023 IBMCorporation 7 FTP JES interface - Sample DIR command output ftp> quote site filetype=jes jesjobname=testjob* 200 SITE command was accepted ftp> dir 200 Port request OK. 125 List started OK for JESJOBNAME=TESTJOB*, JESSTATUS=ALL and JESOWNER=USER1 JOBNAME JOBID OWNER STATUS CLASS TESTJOB1 JOB00051 USER1 OUTPUT A RC=000 4 spool files TESTJOB2 JOB00050 USER1 OUTPUT A RC=000 4 spool files TESTJOB2 JOB00049 USER1 OUTPUT A ABEND=806 3 spool files TESTJOB2 JOB00048 USER1 OUTPUT A (JCL error) 3 spool files TESTJOB4 JOB00055 USER1 INPUT A -DUP- TESTJOB4 JOB00054 USER1 ACTIVE A TESTJOB3 JOB00053 USER1 ACTIVE A TESTJOB2 JOB00052 USER1 ACTIVE A 250 List completed successfully. ftp: 500 bytes received in 0.22Seconds 2.27Kbytes/sec. ftp>

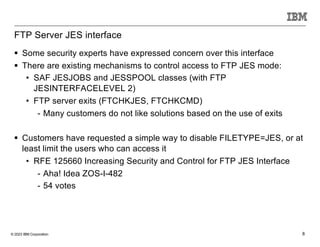

- 8. © 2023 IBMCorporation 8 FTP Server JES interface § Some security experts have expressed concern over this interface § There are existing mechanisms to control access to FTP JES mode: • SAF JESJOBS and JESSPOOL classes (with FTP JESINTERFACELEVEL 2) • FTP server exits (FTCHKJES, FTCHKCMD) - Many customers do not like solutions based on the use of exits § Customers have requested a simple way to disable FILETYPE=JES, or at least limit the users who can access it • RFE 125660 Increasing Security and Control for FTP JES Interface - Aha! Idea ZOS-I-482 - 54 votes
- 9. © 2023 IBMCorporation 9 FTP Server JES interface § A SERVAUTH class resource is added to z/OS V2R3-V2R5 via APAR PH42618 to explicitly control user access to FTP JES mode: § Permission to this resource allows a user to enter JES mode. Without it, any attempt to enter JES mode is rejected: § This new resource is NOT a replacement for the JESJOBS or JESSPOOL classes! Those classes (and FTP JESINTERFACELEVEL 2) should still be implemented as they control JES access well beyond FTP EZB.FTP.sysname.ftpdaemonname.ACCESS.JES 200 – User username is not allowed to use FILETYPE=JES

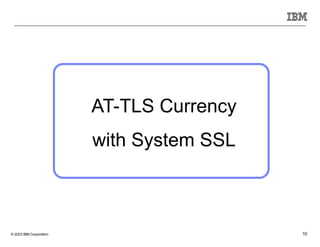

- 10. © 2023 IBMCorporation 10 AT-TLS Currency with System SSL

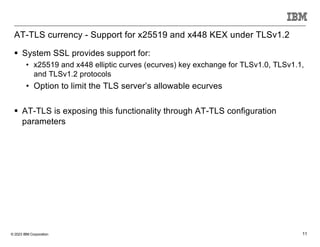

- 11. © 2023 IBMCorporation 11 AT-TLS currency - Support for x25519 and x448 KEX under TLSv1.2 § System SSL provides support for: • x25519 and x448 elliptic curves (ecurves) key exchange for TLSv1.0, TLSv1.1, and TLSv1.2 protocols • Option to limit the TLS server’s allowable ecurves § AT-TLS is exposing this functionality through AT-TLS configuration parameters

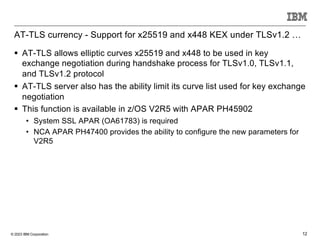

- 12. © 2023 IBMCorporation 12 AT-TLS currency - Support for x25519 and x448 KEX under TLSv1.2 … § AT-TLS allows elliptic curves x25519 and x448 to be used in key exchange negotiation during handshake process for TLSv1.0, TLSv1.1, and TLSv1.2 protocol § AT-TLS server also has the ability limit its curve list used for key exchange negotiation § This function is available in z/OS V2R5 with APAR PH45902 • System SSL APAR (OA61783) is required • NCA APAR PH47400 provides the ability to configure the new parameters for V2R5

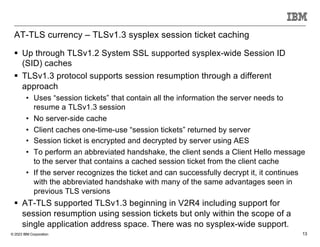

- 13. © 2023 IBMCorporation 13 AT-TLS currency – TLSv1.3 sysplex session ticket caching § Up through TLSv1.2 System SSL supported sysplex-wide Session ID (SID) caches § TLSv1.3 protocol supports session resumption through a different approach • Uses “session tickets” that contain all the information the server needs to resume a TLSv1.3 session • No server-side cache • Client caches one-time-use “session tickets” returned by server • Session ticket is encrypted and decrypted by server using AES • To perform an abbreviated handshake, the client sends a Client Hello message to the server that contains a cached session ticket from the client cache • If the server recognizes the ticket and can successfully decrypt it, it continues with the abbreviated handshake with many of the same advantages seen in previous TLS versions § AT-TLS supported TLSv1.3 beginning in V2R4 including support for session resumption using session tickets but only within the scope of a single application address space. There was no sysplex-wide support.

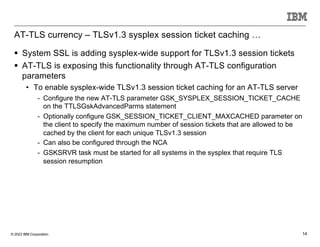

- 14. © 2023 IBMCorporation 14 AT-TLS currency – TLSv1.3 sysplex session ticket caching … § System SSL is adding sysplex-wide support for TLSv1.3 session tickets § AT-TLS is exposing this functionality through AT-TLS configuration parameters • To enable sysplex-wide TLSv1.3 session ticket caching for an AT-TLS server - Configure the new AT-TLS parameter GSK_SYSPLEX_SESSION_TICKET_CACHE on the TTLSGskAdvancedParms statement - Optionally configure GSK_SESSION_TICKET_CLIENT_MAXCACHED parameter on the client to specify the maximum number of session tickets that are allowed to be cached by the client for each unique TLSv1.3 session - Can also be configured through the NCA - GSKSRVR task must be started for all systems in the sysplex that require TLS session resumption
- 15. © 2023 IBMCorporation 15 zERT Network Analyzer Enhanced Upgrade Support
- 16. © 2023 IBMCorporation 16 Background: Encrypting TCP/IP network traffic on z/OS z/OS provides 4 mechanisms to cryptographically protect TCP/IP traffic: TLS/SSL direct usage • Application is explicitly coded to use these • Configuration and auditing is unique to each application • Per-session protection • TCP only Application Transparent TLS (AT-TLS) • TLS/SSL applied in TCP layer as defined by policy • Configured in AT-TLS policy via Configuration Assistant • Auditing through SMF 119 records • Typically transparent to application • TCP/IP stack is user of System SSL services Virtual Private Networks using IPSec and IKE • “Platform to platform” encryption • IPSec implemented in IP layer as defined by policy • Auditing via SMF 119 records at tunnel level only • Completely transparent to application • Wide variety (any to all) of traffic is protected • IKE negotiates IPSec tunnels dynamically Secure Shell using z/OS OpenSSH • Mainly used for sftp on z/OS, but also offers secure terminal access and TCP port forwarding • Configured in ssh configuration file and on command line • Auditing via SMF 119 records • TCP only TCP/IP Comm Server z/OS Application JSSE DB2, CICS, IMS Connect, Guardium, FTP, TN3270, JES/NJE, RACF RRSF, …. AT-TLS Protected Protected TLS/SSL System SSL System SSL 1 2 IPSec Systems Protected Any application or subsystem VPN IKE IPSec 3 Open SSH SSH Protected 4 MQ, CICS, Connect:Direct, … WAS, Java applications 1 2 3 4 sftp, TCP appls (port forwarding)
- 17. © 2023 IBMCorporation 17 Background (cont) Given all these mechanisms, configuration methods and variation in audit detail… § How can I tell… • Which traffic is being protected (and which is not)? • How is that traffic being protected? - Security protocol? - Protocol version? - Cryptographic algorithms? - Key lengths? - …and so on • Who does on the traffic belong to in case I need to follow up with them? § How can I ensure that new configurations adhere to my company’s security policies? § Once I’ve answered the above questions, how can I provide the information to my auditors or compliance officers? § Many factors driving these questions: • Regulatory compliance (corporate, industry, government) • Vulnerabilities in protocols and algorithms • Internal audits • …and so on TCP/IP Comm Server z/OS Application DB2, CICS, IMS Connect, Guardium, FTP, TN3270, JES/NJE, RACF RRSF, …. AT-TLS Protected Protected TLS/SSL System SSL 2 IPSec Systems Protected Any application or subsystem VPN IKE IPSec 3 Open SSH SSH Protected 4 MQ, CICS, Connect:Direct, … WAS, Java applications sftp, TCP appls (port forwarding) JSSE System SSL 1

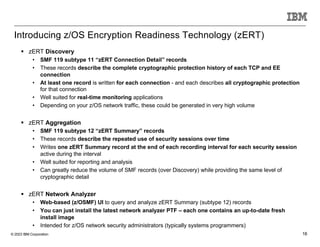

- 18. © 2023 IBMCorporation 18 § zERT Discovery • SMF 119 subtype 11 “zERT Connection Detail” records • These records describe the complete cryptographic protection history of each TCP and EE connection • At least one record is written for each connection - and each describes all cryptographic protection for that connection • Well suited for real-time monitoring applications • Depending on your z/OS network traffic, these could be generated in very high volume § zERT Aggregation • SMF 119 subtype 12 “zERT Summary” records • These records describe the repeated use of security sessions over time • Writes one zERT Summary record at the end of each recording interval for each security session active during the interval • Well suited for reporting and analysis • Can greatly reduce the volume of SMF records (over Discovery) while providing the same level of cryptographic detail § zERT Network Analyzer • Web-based (z/OSMF) UI to query and analyze zERT Summary (subtype 12) records • You can just install the latest network analyzer PTF – each one contains an up-to-date fresh install image • Intended for z/OS network security administrators (typically systems programmers) Introducing z/OS Encryption Readiness Technology (zERT)

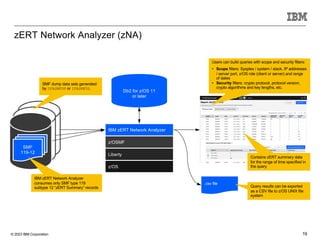

- 19. © 2023 IBMCorporation 19 zERT Network Analyzer (zNA) SMF SMF SMF Db2 for z/OS 11 or later IBM zERT Network Analyzer z/OSMF Liberty z/OS SMF 119-12 .csv file SMF dump data sets generated by IFASMFDP or IFASMFDL IBM zERT Network Analyzer consumes only SMF type 119 subtype 12 “zERT Summary” records Users can build queries with scope and security filters: • Scope filters: Sysplex / system / stack, IP addresses / server port, z/OS role (client or server) and range of dates • Security filters: crypto protocol, protocol version, crypto algorithms and key lengths, etc. Contains zERT summary data for the range of time specified in the query Query results can be exported as a CSV file to z/OS UNIX file system

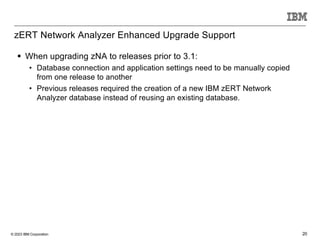

- 20. © 2023 IBMCorporation 20 zERT Network Analyzer Enhanced Upgrade Support § When upgrading zNA to releases prior to 3.1: • Database connection and application settings need to be manually copied from one release to another • Previous releases required the creation of a new IBM zERT Network Analyzer database instead of reusing an existing database.
- 21. © 2023 IBMCorporation 21 zERT Network Analyzer Enhanced Upgrade Support … § z/OS 3.1 will provide easier migration of the zNA settings and database • New panel to reset or import zNA application settings from a prior release - Prior to 3.1, application settings needed to be manually copied from one release to another. • New panel to import zNA database connection settings from a prior release - Prior to 3.1, database connection settings needed to be manually copied from one release to another. • New DDL templates to facilitate migrating IBM zERT Network Analyzer database to a current schema level
- 22. © 2023 IBMCorporation 22 z/OS Encryption Readiness Technology - Enforce local network encryption standards for TCP traffic in real-time. - Policy-based rules you build in the Network Configuration Assistant describe acceptable or unacceptable levels of cryptographic protection along with the actions to take when TCP connections match those rules. zERT policy-based enforcement – new in z/OS V2R5 Visit Things you should know about zERT on IBM Community and discover blogs, product documentation, videos, event information, webinar, and presentations about zERT. - “We're building self-serve capability for each business unit with zERT data as the basis for monitoring security of the mainframe.” - “We use zERT data for compliance checks.” - “zERT has given us the upper hand in monitoring mainframe connection security.” What are users saying about zERT? Scan the QR code to visit z/OS Communications Server on IBM Community. (https://ibm.biz/cscommunity)
- 23. © 2023 IBMCorporation 23 z/OS UNIX syslogd support for secure logging over TCP

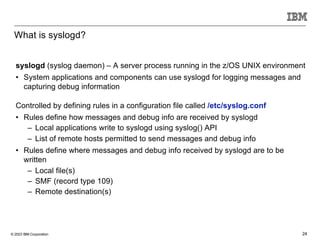

- 24. © 2023 IBMCorporation 24 What is syslogd? syslogd (syslog daemon) – A server process running in the z/OS UNIX environment • System applications and components can use syslogd for logging messages and capturing debug information Controlled by defining rules in a configuration file called /etc/syslog.conf • Rules define how messages and debug info are received by syslogd – Local applications write to syslogd using syslog() API – List of remote hosts permitted to send messages and debug info • Rules define where messages and debug info received by syslogd are to be written – Local file(s) – SMF (record type 109) – Remote destination(s)

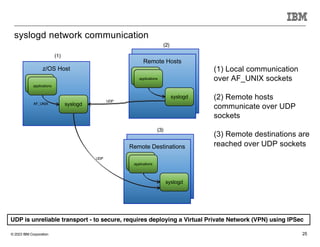

- 25. © 2023 IBMCorporation 25 syslogd network communication (1) Local communication over AF_UNIX sockets (2) Remote hosts communicate over UDP sockets (3) Remote destinations are reached over UDP sockets z/OS Host syslogd applications applications AF_UNIX Remote Hosts syslogd applications applications UDP Remote Destinations syslogd applications applications UDP (1) (2) (3) UDP is unreliable transport - to secure, requires deploying a Virtual Private Network (VPN) using IPSec

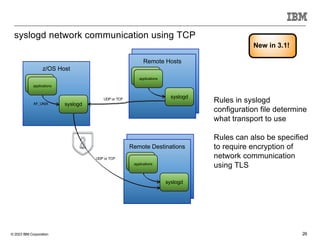

- 26. © 2023 IBMCorporation 26 syslogd network communication using TCP Rules in syslogd configuration file determine what transport to use Rules can also be specified to require encryption of network communication using TLS z/OS Host syslogd applications applications AF_UNIX Remote Hosts syslogd applications applications UDP or TCP Remote Destinations syslogd applications applications UDP or TCP New in 3.1!
- 27. © 2023 IBMCorporation 27 Networking Support for z/OS Containers
- 28. © 2023 IBMCorporation 28 z/OS Containers Disclaimer § Communications Server support for z/OS Containers is a post-3.1 GA deliverable § All content being discussed is subject to change

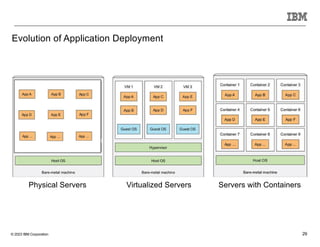

- 29. © 2023 IBMCorporation 29 29 Evolution of Application Deployment Physical Servers Virtualized Servers Servers with Containers

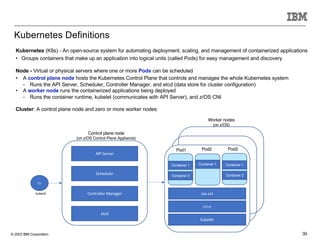

- 30. © 2023 IBMCorporation 30 Kubernetes Definitions Kubernetes (K8s) - An open-source system for automating deployment, scaling, and management of containerized applications • Groups containers that make up an application into logical units (called Pods) for easy management and discovery Node - Virtual or physical servers where one or more Pods can be scheduled • A control plane node hosts the Kubernetes Control Plane that controls and manages the whole Kubernetes system − Runs the API Server, Scheduler, Controller Manager, and etcd (data store for cluster configuration) • A worker node runs the containerized applications being deployed − Runs the container runtime, kubelet (communicates with API Server), and z/OS CNI Cluster: A control plane node and zero or more worker nodes API Server Scheduler Controller Manager etcd CLI kubectl cri-o kubelet Pod1 Pod2 Pod3 Container 1 Container 2 Container 1 Container 1 Container 2 zos-cni Worker nodes (on z/OS) Control plane node (on z/OS Control Plane Appliance)

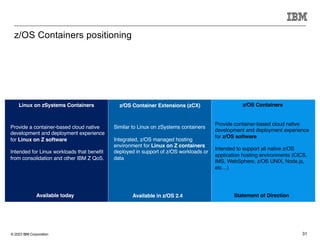

- 31. © 2023 IBMCorporation 31 z/OS Containers positioning Linux on zSystems Containers z/OS Container Extensions (zCX) z/OS Containers Similar to Linux on zSystems containers Integrated, z/OS managed hosting environment for Linux on Z containers deployed in support of z/OS workloads or data Provide a container-based cloud native development and deployment experience for Linux on Z software Intended for Linux workloads that benefit from consolidation and other IBM Z QoS. Available today Available in z/OS 2.4 Statement of Direction Provide container-based cloud native development and deployment experience for z/OS software Intended to support all native z/OS application hosting environments (CICS, IMS, WebSphere, z/OS UNIX, Node.js, etc…)

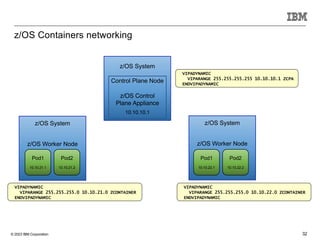

- 32. © 2023 IBMCorporation 32 z/OS Containers networking z/OS System z/OS Worker Node Pod1 10.10.21.1 z/OS System z/OS Worker Node z/OS System Control Plane Node z/OS Control Plane Appliance 10.10.10.1 Pod2 10.10.21.2 Pod1 10.10.22.1 Pod2 10.10.22.2 VIPADYNAMIC VIPARANGE 255.255.255.255 10.10.10.1 ZCPA ENDVIPADYNAMIC VIPADYNAMIC VIPARANGE 255.255.255.0 10.10.22.0 ZCONTAINER ENDVIPADYNAMIC VIPADYNAMIC VIPARANGE 255.255.255.0 10.10.21.0 ZCONTAINER ENDVIPADYNAMIC

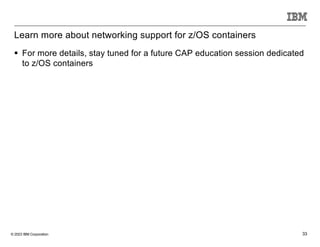

- 33. © 2023 IBMCorporation 33 Learn more about networking support for z/OS containers § For more details, stay tuned for a future CAP education session dedicated to z/OS containers

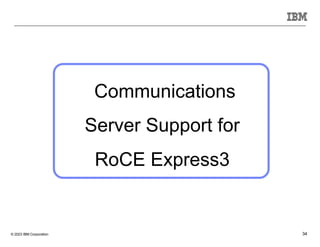

- 34. © 2023 IBMCorporation 34 Communications Server Support for RoCE Express3

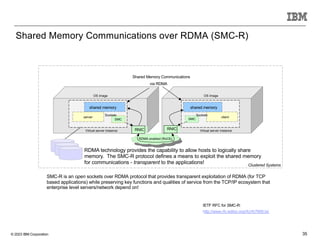

- 35. © 2023 IBMCorporation 35 Shared Memory Communications over RDMA (SMC-R) 35 OS image OS image Virtual server instance server client RNIC RDMA technology provides the capability to allow hosts to logically share memory. The SMC-R protocol defines a means to exploit the shared memory for communications - transparent to the applications! Shared Memory Communications via RDMA SMC SMC RDMA enabled (RoCE) RNIC Clustered Systems SMC-R is an open sockets over RDMA protocol that provides transparent exploitation of RDMA (for TCP based applications) while preserving key functions and qualities of service from the TCP/IP ecosystem that enterprise level servers/network depend on! IETF RFC for SMC-R: http://www.rfc-editor.org/rfc/rfc7609.txt Virtual server instance shared memory shared memory Sockets Sockets
- 36. © 2023 IBMCorporation 36 OSA ROCE TCP IP Interface Sockets Middleware/Application z/OS System B SMC-R OSA ROCE TCP IP Interface Sockets Middleware/Application z/OS System A SMC-R Dynamic Transition from TCP/IP to SMC-R TCP connection establishment over IP IP Network (Ethernet) RDMA Network RoCE TCP connection transitions to SMC-R allowing application data to be exchanged using RDMA Dynamic (in-line) negotiation for SMC-R is initiated by presence of TCP Options TCP syn flows (with TCP Options indicating SMC-R capability) data exchanged using RDMA data exchanged using RDMA

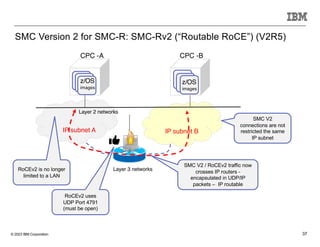

- 37. © 2023 IBMCorporation 37 IP subnet A IP subnet B Layer 3 networks SMC Version 2 for SMC-R: SMC-Rv2 (“Routable RoCE”) (V2R5) Layer 2 networks SMC V2 connections are not restricted the same IP subnet SMC V2 / RoCEv2 traffic now crosses IP routers - encapsulated in UDP/IP packets – IP routable RoCEv2 is no longer limited to a LAN RoCEv2 uses UDP Port 4791 (must be open) CPC -A CPC -B z/OS images z/OS images

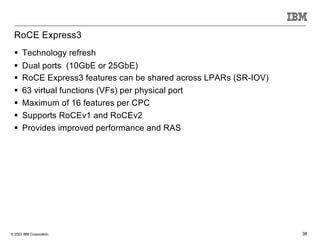

- 38. © 2023 IBMCorporation 38 RoCE Express3 § Technology refresh § Dual ports (10GbE or 25GbE) § RoCE Express3 features can be shared across LPARs (SR-IOV) § 63 virtual functions (VFs) per physical port § Maximum of 16 features per CPC § Supports RoCEv1 and RoCEv2 § Provides improved performance and RAS

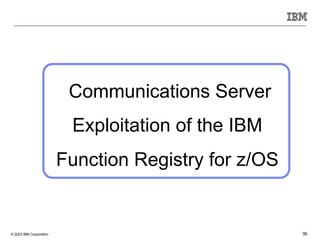

- 39. © 2023 IBMCorporation 39 Communications Server Exploitation of the IBM Function Registry for z/OS

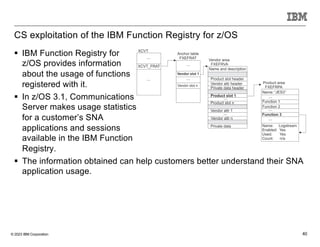

- 40. © 2023 IBMCorporation 40 CS exploitation of the IBM Function Registry for z/OS § IBM Function Registry for z/OS provides information about the usage of functions registered with it. § In z/OS 3.1, Communications Server makes usage statistics for a customer’s SNA applications and sessions available in the IBM Function Registry. § The information obtained can help customers better understand their SNA application usage.

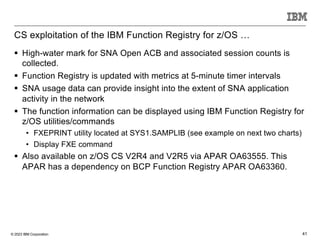

- 41. © 2023 IBMCorporation 41 CS exploitation of the IBM Function Registry for z/OS … § High-water mark for SNA Open ACB and associated session counts is collected. § Function Registry is updated with metrics at 5-minute timer intervals § SNA usage data can provide insight into the extent of SNA application activity in the network § The function information can be displayed using IBM Function Registry for z/OS utilities/commands • FXEPRINT utility located at SYS1.SAMPLIB (see example on next two charts) • Display FXE command § Also available on z/OS CS V2R4 and V2R5 via APAR OA63555. This APAR has a dependency on BCP Function Registry APAR OA63360.

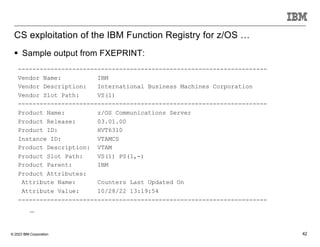

- 42. © 2023 IBMCorporation 42 CS exploitation of the IBM Function Registry for z/OS … --------------------------------------------------------------------- Vendor Name: IBM Vendor Description: International Business Machines Corporation Vendor Slot Path: VS(1) --------------------------------------------------------------------- Product Name: z/OS Communications Server Product Release: 03.01.00 Product ID: HVT6310 Instance ID: VTAMCS Product Description: VTAM Product Slot Path: VS(1) PS(1,-) Product Parent: IBM Product Attributes: Attribute Name: Counters Last Updated On Attribute Value: 10/28/22 13:19:54 --------------------------------------------------------------------- … § Sample output from FXEPRINT:

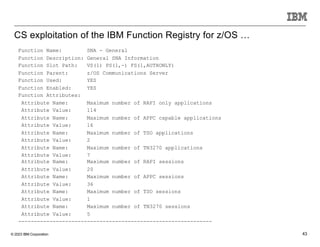

- 43. © 2023 IBMCorporation 43 CS exploitation of the IBM Function Registry for z/OS … Function Name: SNA - General Function Description: General SNA Information Function Slot Path: VS(1) PS(1,-) FS(1,AUTHONLY) Function Parent: z/OS Communications Server Function Used: YES Function Enabled: YES Function Attributes: Attribute Name: Maximum number of RAPI only applications Attribute Value: 114 Attribute Name: Maximum number of APPC capable applications Attribute Value: 16 Attribute Name: Maximum number of TSO applications Attribute Value: 2 Attribute Name: Maximum number of TN3270 applications Attribute Value: 7 Attribute Name: Maximum number of RAPI sessions Attribute Value: 20 Attribute Name: Maximum number of APPC sessions Attribute Value: 36 Attribute Name: Maximum number of TSO sessions Attribute Value: 1 Attribute Name: Maximum number of TN3270 sessions Attribute Value: 5 --------------------------------------------------------------
- 44. © 2023 IBMCorporation 44 Function Removals

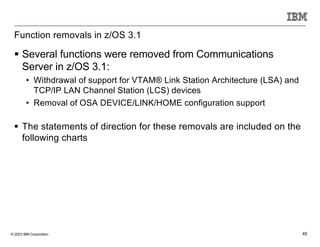

- 45. © 2023 IBMCorporation 45 Function removals in z/OS 3.1 § Several functions were removed from Communications Server in z/OS 3.1: • Withdrawal of support for VTAM® Link Station Architecture (LSA) and TCP/IP LAN Channel Station (LCS) devices • Removal of OSA DEVICE/LINK/HOME configuration support § The statements of direction for these removals are included on the following charts

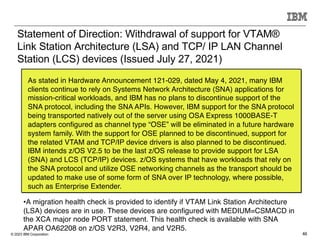

- 46. © 2023 IBMCorporation 46 Statement of Direction: Withdrawal of support for VTAM® Link Station Architecture (LSA) and TCP/ IP LAN Channel Station (LCS) devices (Issued July 27, 2021) As stated in Hardware Announcement 121-029, dated May 4, 2021, many IBM clients continue to rely on Systems Network Architecture (SNA) applications for mission-critical workloads, and IBM has no plans to discontinue support of the SNA protocol, including the SNA APIs. However, IBM support for the SNA protocol being transported natively out of the server using OSA Express 1000BASE-T adapters configured as channel type “OSE” will be eliminated in a future hardware system family. With the support for OSE planned to be discontinued, support for the related VTAM and TCP/IP device drivers is also planned to be discontinued. IBM intends z/OS V2.5 to be the last z/OS release to provide support for LSA (SNA) and LCS (TCP/IP) devices. z/OS systems that have workloads that rely on the SNA protocol and utilize OSE networking channels as the transport should be updated to make use of some form of SNA over IP technology, where possible, such as Enterprise Extender. •A migration health check is provided to identify if VTAM Link Station Architecture (LSA) devices are in use. These devices are configured with MEDIUM=CSMACD in the XCA major node PORT statement. This health check is available with SNA APAR OA62208 on z/OS V2R3, V2R4, and V2R5.

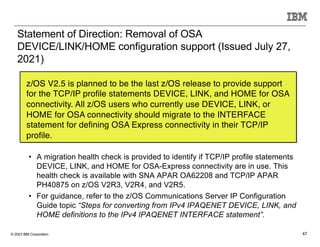

- 47. © 2023 IBMCorporation 47 Statement of Direction: Removal of OSA DEVICE/LINK/HOME configuration support (Issued July 27, 2021) z/OS V2.5 is planned to be the last z/OS release to provide support for the TCP/IP profile statements DEVICE, LINK, and HOME for OSA connectivity. All z/OS users who currently use DEVICE, LINK, or HOME for OSA connectivity should migrate to the INTERFACE statement for defining OSA Express connectivity in their TCP/IP profile. • A migration health check is provided to identify if TCP/IP profile statements DEVICE, LINK, and HOME for OSA-Express connectivity are in use. This health check is available with SNA APAR OA62208 and TCP/IP APAR PH40875 on z/OS V2R3, V2R4, and V2R5. • For guidance, refer to the z/OS Communications Server IP Configuration Guide topic “Steps for converting from IPv4 IPAQENET DEVICE, LINK, and HOME definitions to the IPv4 IPAQENET INTERFACE statement”.

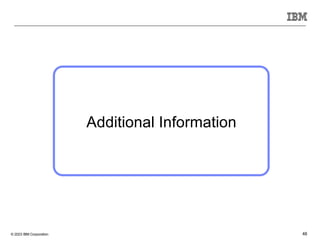

- 48. © 2023 IBMCorporation 48 Additional Information

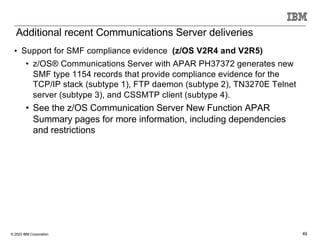

- 49. © 2023 IBMCorporation 49 • Support for SMF compliance evidence (z/OS V2R4 and V2R5) • z/OS® Communications Server with APAR PH37372 generates new SMF type 1154 records that provide compliance evidence for the TCP/IP stack (subtype 1), FTP daemon (subtype 2), TN3270E Telnet server (subtype 3), and CSSMTP client (subtype 4). • See the z/OS Communication Server New Function APAR Summary pages for more information, including dependencies and restrictions Additional recent Communications Server deliveries

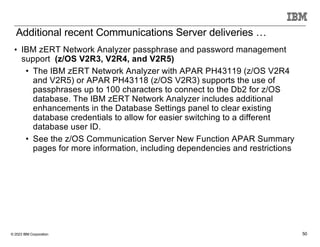

- 50. © 2023 IBMCorporation 50 • IBM zERT Network Analyzer passphrase and password management support (z/OS V2R3, V2R4, and V2R5) • The IBM zERT Network Analyzer with APAR PH43119 (z/OS V2R4 and V2R5) or APAR PH43118 (z/OS V2R3) supports the use of passphrases up to 100 characters to connect to the Db2 for z/OS database. The IBM zERT Network Analyzer includes additional enhancements in the Database Settings panel to clear existing database credentials to allow for easier switching to a different database user ID. • See the z/OS Communication Server New Function APAR Summary pages for more information, including dependencies and restrictions Additional recent Communications Server deliveries …
- 51. © 2023 IBMCorporation 51 The IBM Ideas Portal § A New Way to Submit Ideas The IBM Ideas Portal provides a new way for customers, business partners and IBMers to suggest changes to our products and services, replacing the Request for Enhancements (RFE) process. § Why is it changing? The IBM Ideas Portal is a single, company-wide portal, which will improve your experience by providing you with: a single view into your ideas an easier way to track them the ability to collaborate with users, partners and IBMers around the world. § For more details about the migration, visit www.ibm.com/ideas The new IBM Software Ideas portal for mainframe hardware and operating systems: https://ibm-z-hardware-and-operating-systems.ideas.ibm.com/?project=ZOS § Use ideas.ibm.com to: - Submit new ideas - View the status of ideas you have previously submitted - Vote, comment or subscribe to others’ ideas - View the status of ideas you have previously voted or commented on, or subscribed to

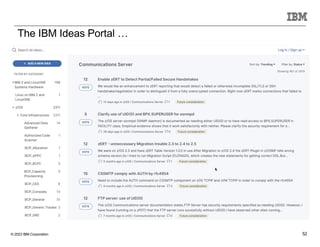

- 52. © 2023 IBMCorporation 52 The IBM Ideas Portal …

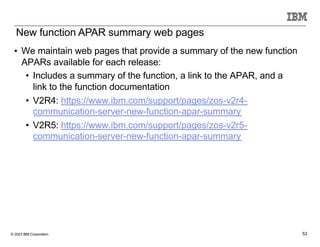

- 53. © 2023 IBMCorporation 53 • We maintain web pages that provide a summary of the new function APARs available for each release: • Includes a summary of the function, a link to the APAR, and a link to the function documentation • V2R4: https://www.ibm.com/support/pages/zos-v2r4- communication-server-new-function-apar-summary • V2R5: https://www.ibm.com/support/pages/zos-v2r5- communication-server-new-function-apar-summary New function APAR summary web pages
- 54. © 2023 IBMCorporation 54 New function APAR summary web pages - Example

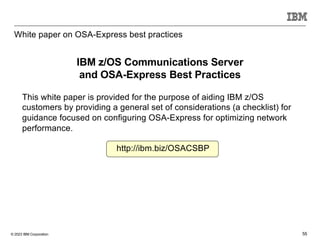

- 55. © 2023 IBMCorporation 55 White paper on OSA-Express best practices http://ibm.biz/OSACSBP This white paper is provided for the purpose of aiding IBM z/OS customers by providing a general set of considerations (a checklist) for guidance focused on configuring OSA-Express for optimizing network performance. IBM z/OS Communications Server and OSA-Express Best Practices
- 56. © 2023 IBMCorporation 56 V2R5: z/OS Communications Server Performance Summary Report https://ibm.biz/zcsv2r5perfsummary z/OS CS Performance Summary Reports for all releases are available, in the “z/OS Communications Server Performance Index” at: https://www.ibm.com/support/pages/zos-communications-server- performance-index

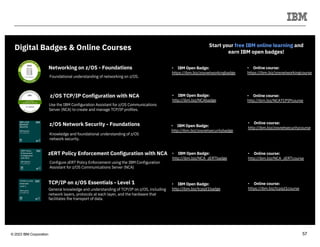

- 57. © 2023 IBMCorporation 57 Start your free IBM online learning and earn IBM open badges! Digital Badges & Online Courses Networking on z/OS - Foundations • IBM Open Badge: https://ibm.biz/zosnetworkingbadge z/OS TCP/IP Configuration with NCA • IBM Open Badge: http://ibm.biz/NCAbadge z/OS Network Security - Foundations • IBM Open Badge: http://ibm.biz/zosnetsecuritybadge zERT Policy Enforcement Configuration with NCA • IBM Open Badge: http://ibm.biz/NCA_zERTbadge Use the IBM Configuration Assistant for z/OS Communications Server (NCA) to create and manage TCP/IP profiles. Foundational understanding of networking on z/OS. • Online course: https://ibm.biz/zosnetworkingcourse • Online course: http://ibm.biz/NCATCPIPcourse Knowledge and foundational understanding of z/OS network security. • Online course: http://ibm.biz/zosnetsecuritycourse Configure zERT Policy Enforcement using the IBM Configuration Assistant for z/OS Communications Server (NCA) • Online course: http://ibm.biz/NCA_zERTcourse • IBM Open Badge: http://ibm.biz/tcpipl1badge • Online course: https://ibm.biz/tcpipl1course TCP/IP on z/OS Essentials - Level 1 General knowledge and understanding of TCP/IP on z/OS, including network layers, protocols at each layer, and the hardware that facilitates the transport of data.
- 58. © 2023 IBMCorporation 58 Join Us on the IBM Community! Scan the QR code to visit the z/OS Communications Server home page on IBM Community. The z/OS Communications Server page on the IBM Community provides rich and up-to-date technical content including blogs, videos, and event information. Join us at our new home: https://www.ibm.com/community/z/software/comm-server/
- 59. © 2023 IBMCorporation 59 Thank You! Any Questions? Mike Fitzpatrick STSM, CPO for Communications Server, Lead Architect Multi-site Workload Lifeline. Performance & Design mfitz@us.ibm.com Sam Reynolds Enterprise Networking Solutions - Architecture, Design, and Strategy samr@us.ibm.com PDF available on Slideshare: https://ibm.biz/zOS31CS

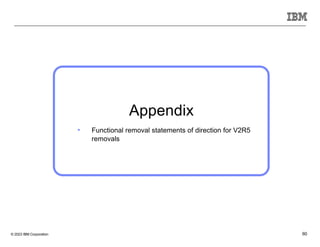

- 60. © 2023 IBMCorporation 60 Appendix • Functional removal statements of direction for V2R5 removals

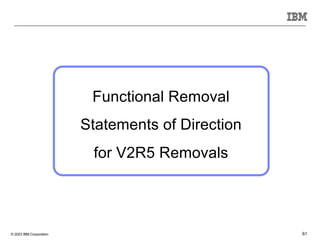

- 61. © 2023 IBMCorporation 61 Functional Removal Statements of Direction for V2R5 Removals

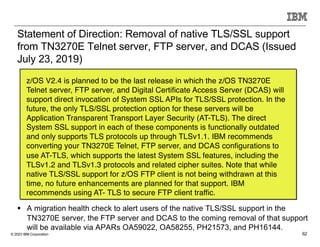

- 62. © 2023 IBMCorporation 62 Statement of Direction: Removal of native TLS/SSL support from TN3270E Telnet server, FTP server, and DCAS (Issued July 23, 2019) z/OS V2.4 is planned to be the last release in which the z/OS TN3270E Telnet server, FTP server, and Digital Certificate Access Server (DCAS) will support direct invocation of System SSL APIs for TLS/SSL protection. In the future, the only TLS/SSL protection option for these servers will be Application Transparent Transport Layer Security (AT-TLS). The direct System SSL support in each of these components is functionally outdated and only supports TLS protocols up through TLSv1.1. IBM recommends converting your TN3270E Telnet, FTP server, and DCAS configurations to use AT-TLS, which supports the latest System SSL features, including the TLSv1.2 and TLSv1.3 protocols and related cipher suites. Note that while native TLS/SSL support for z/OS FTP client is not being withdrawn at this time, no future enhancements are planned for that support. IBM recommends using AT- TLS to secure FTP client traffic. § A migration health check to alert users of the native TLS/SSL support in the TN3270E server, the FTP server and DCAS to the coming removal of that support will be available via APARs OA59022, OA58255, PH21573, and PH16144.

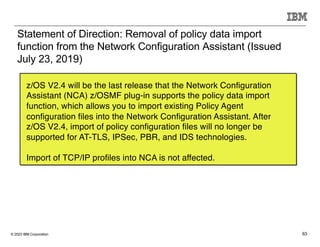

- 63. © 2023 IBMCorporation 63 Statement of Direction: Removal of policy data import function from the Network Configuration Assistant (Issued July 23, 2019) z/OS V2.4 will be the last release that the Network Configuration Assistant (NCA) z/OSMF plug-in supports the policy data import function, which allows you to import existing Policy Agent configuration files into the Network Configuration Assistant. After z/OS V2.4, import of policy configuration files will no longer be supported for AT-TLS, IPSec, PBR, and IDS technologies. Import of TCP/IP profiles into NCA is not affected.

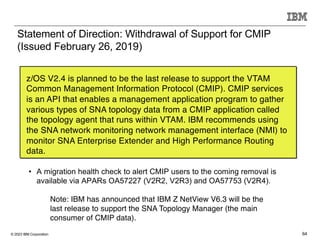

- 64. © 2023 IBMCorporation 64 Statement of Direction: Withdrawal of Support for CMIP (Issued February 26, 2019) z/OS V2.4 is planned to be the last release to support the VTAM Common Management Information Protocol (CMIP). CMIP services is an API that enables a management application program to gather various types of SNA topology data from a CMIP application called the topology agent that runs within VTAM. IBM recommends using the SNA network monitoring network management interface (NMI) to monitor SNA Enterprise Extender and High Performance Routing data. • A migration health check to alert CMIP users to the coming removal is available via APARs OA57227 (V2R2, V2R3) and OA57753 (V2R4). Note: IBM has announced that IBM Z NetView V6.3 will be the last release to support the SNA Topology Manager (the main consumer of CMIP data).

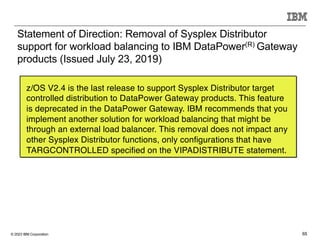

- 65. © 2023 IBMCorporation 65 Statement of Direction: Removal of Sysplex Distributor support for workload balancing to IBM DataPower(R) Gateway products (Issued July 23, 2019) z/OS V2.4 is the last release to support Sysplex Distributor target controlled distribution to DataPower Gateway products. This feature is deprecated in the DataPower Gateway. IBM recommends that you implement another solution for workload balancing that might be through an external load balancer. This removal does not impact any other Sysplex Distributor functions, only configurations that have TARGCONTROLLED specified on the VIPADISTRIBUTE statement.

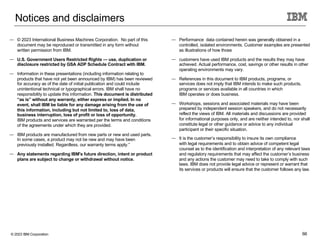

- 66. © 2023 IBMCorporation 66 Notices and disclaimers — © 2023 International Business Machines Corporation. No part of this document may be reproduced or transmitted in any form without written permission from IBM. — U.S. Government Users Restricted Rights — use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM. — Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. This document is distributed “as is” without any warranty, either express or implied. In no event, shall IBM be liable for any damage arising from the use of this information, including but not limited to, loss of data, business interruption, loss of profit or loss of opportunity. IBM products and services are warranted per the terms and conditions of the agreements under which they are provided. — IBM products are manufactured from new parts or new and used parts. In some cases, a product may not be new and may have been previously installed. Regardless, our warranty terms apply.” — Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice. — Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those — customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary. — References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. — Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation. — It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer follows any law.
- 67. © 2023 IBMCorporation 67 Notices and disclaimers — Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products about this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM expressly disclaims all warranties, expressed or implied, including but not limited to, the implied warranties of merchantability and fitness for a purpose. — The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual property right. — IBM, the IBM logo, ibm.com and [names of other referenced IBM products and services used in the presentation] are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml

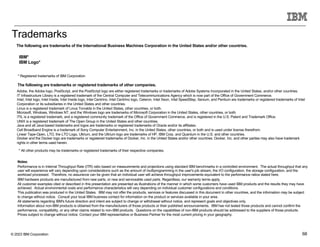

- 68. © 2023 IBMCorporation 68 Trademarks The following are trademarks of the International Business Machines Corporation in the United States and/or other countries. The following are trademarks or registered trademarks of other companies. * Registered trademarks of IBM Corporation * All other products may be trademarks or registered trademarks of their respective companies. Notes: Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. All customer examples cited or described in this presentation are presented as illustrations of the manner in which some customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics will vary depending on individual customer configurations and conditions. This publication was produced in the United States. IBM may not offer the products, services or features discussed in this document in other countries, and the information may be subject to change without notice. Consult your local IBM business contact for information on the product or services available in your area. All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. Information about non-IBM products is obtained from the manufacturers of those products or their published announcements. IBM has not tested those products and cannot confirm the performance, compatibility, or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. Prices subject to change without notice. Contact your IBM representative or Business Partner for the most current pricing in your geography. IBM* IBM Logo* Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries. IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency which is now part of the Office of Government Commerce. Intel, Intel logo, Intel Inside, Intel Inside logo, Intel Centrino, Intel Centrino logo, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. ITIL is a registered trademark, and a registered community trademark of the Office of Government Commerce, and is registered in the U.S. Patent and Trademark Office. UNIX is a registered trademark of The Open Group in the United States and other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. Cell Broadband Engine is a trademark of Sony Computer Entertainment, Inc. in the United States, other countries, or both and is used under license therefrom. Linear Tape-Open, LTO, the LTO Logo, Ultrium, and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U.S. and other countries. Docker and the Docker logo are trademarks or registered trademarks of Docker, Inc. in the United States and/or other countries. Docker, Inc. and other parties may also have trademark rights in other terms used herein.
