1. Your Path to Edge Computing
- Akraino Edge Stack Update
Monday, September 30 • 6:40 - 7:20 pm
Tina Tsou – TSC, Co-Chair

2. What is Akraino Edge Stack Blueprint?
2
Benefits: Low Cost Large Scale
Zero Touch
Provisioning
Industry
Adoption
Use Case Based Fully Integrated End to
End Solution (CI / CD)
Proven and Tested by
Community
Production QualityCommunity Life Cycle
Support
Akraino Blueprints
OCP
Whitebox/OEM
H/W
Community Integrated, tested, deployable, end to end Edge Stack

3. 33
Gateways(Thin and Thick) Industrial/ Telco
Radio Edge
Appliances/HCI
MDCEdge On-Prem DC
Edge
Telco/Cloud
Edge
ELIOT
IOTGW/uCPE
Radio EdgeCloud
(REC)
Network Cloud
(Unicycle, Rover)
IEC
(Type 1 & 2)
Far Edge
StarlingX
Provider AccessEdge(PAE)
› Delivered 10 Blueprints for
variety of Edge Use Case in
June,2019
› Addressed Telco, Enterprise
and IOT Edge Use Cases.
› All Blueprints were CI/CD
tested in lab.

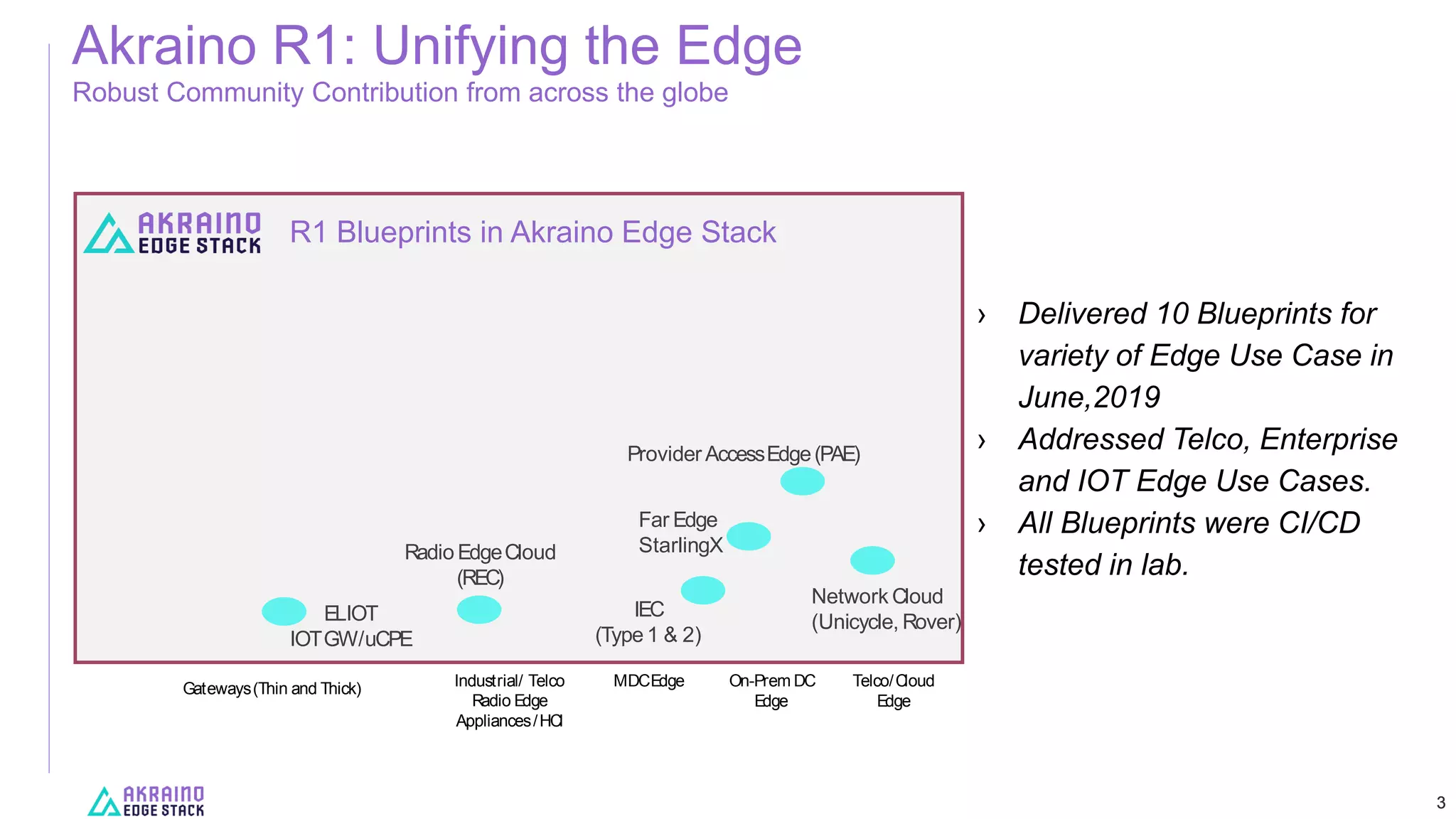

Akraino R1: Unifying the Edge
R1 Blueprints in Akraino Edge Stack
Robust Community Contribution from across the globe

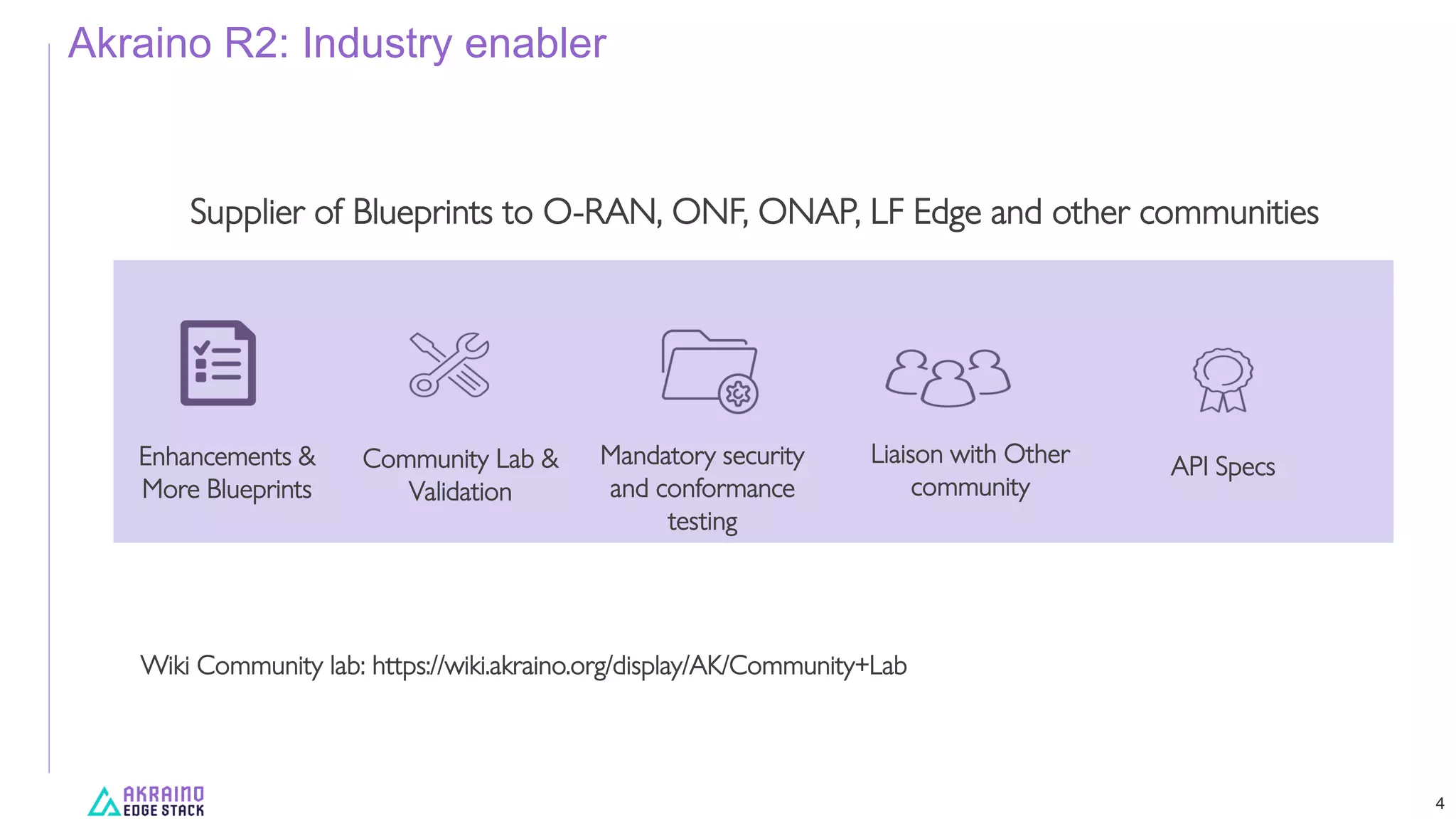

4. Akraino R2: Industry enabler
4
Enhancements &
More Blueprints
Community Lab &
Validation
Mandatory security
and conformance
testing
API SpecsLiaison with Other
community
Supplier of Blueprints to O-RAN, ONF, ONAP, LF Edge and other communities
Wiki Community lab: https://wiki.akraino.org/display/AK/Community+Lab

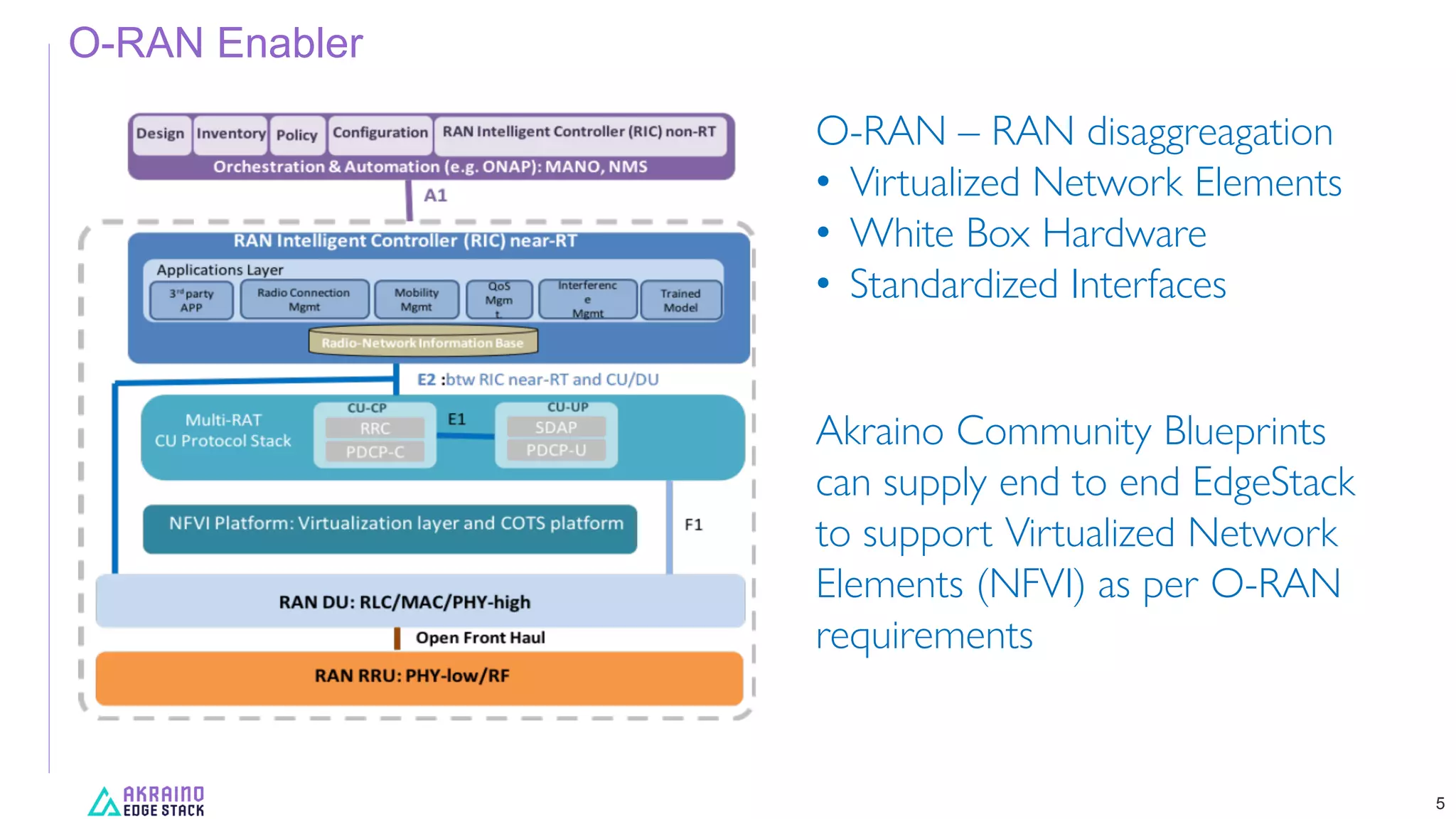

5. O-RAN Enabler
5
O-RAN – RAN disaggreagation
• Virtualized Network Elements
• White Box Hardware
• Standardized Interfaces
Akraino Community Blueprints
can supply end to end EdgeStack
to support Virtualized Network
Elements (NFVI) as per O-RAN
requirements

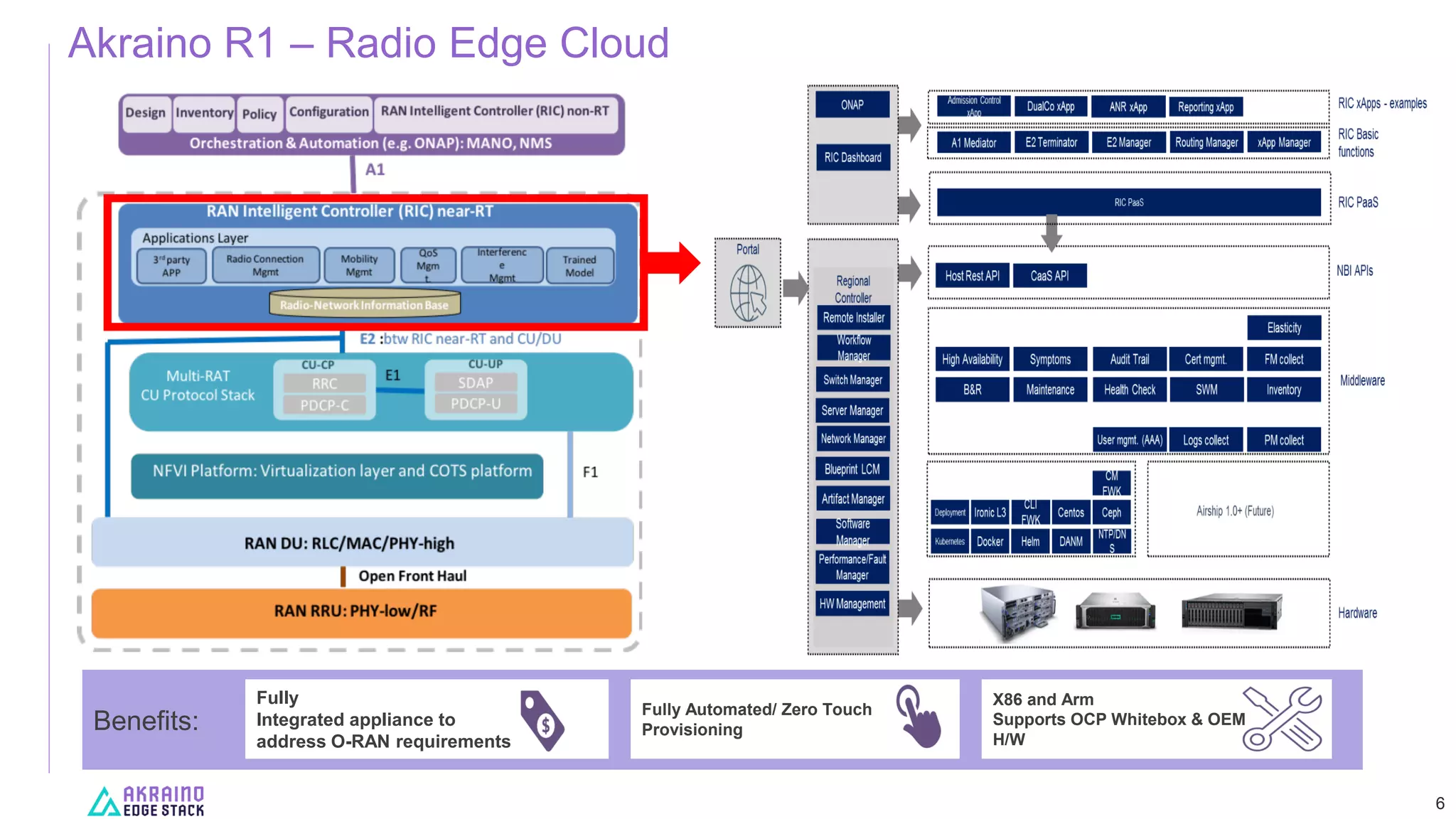

6. Akraino R1 – Radio Edge Cloud
6
Benefits:
Fully
Integrated appliance to
address O-RAN requirements
Fully Automated/ Zero Touch
Provisioning
X86 and Arm
Supports OCP Whitebox & OEM
H/W

7. 7
Requirements and
Specifications
O-RAN WG (s)
Wiki/Jira
LF Community Wiki/Jira
Akraino Community
Blueprint (s)
Akraino
Blueprint validated/ lab tested/delivered
O-RAN SC (INF/INT)
O-RAN Code
Integration Upstream
Integration
S/W (K8, ONAP,etc.,) H/w
(OCP, OEM)
Additional integration in
Users
Feedback loop
O-RAN TIFG
E2E Certification

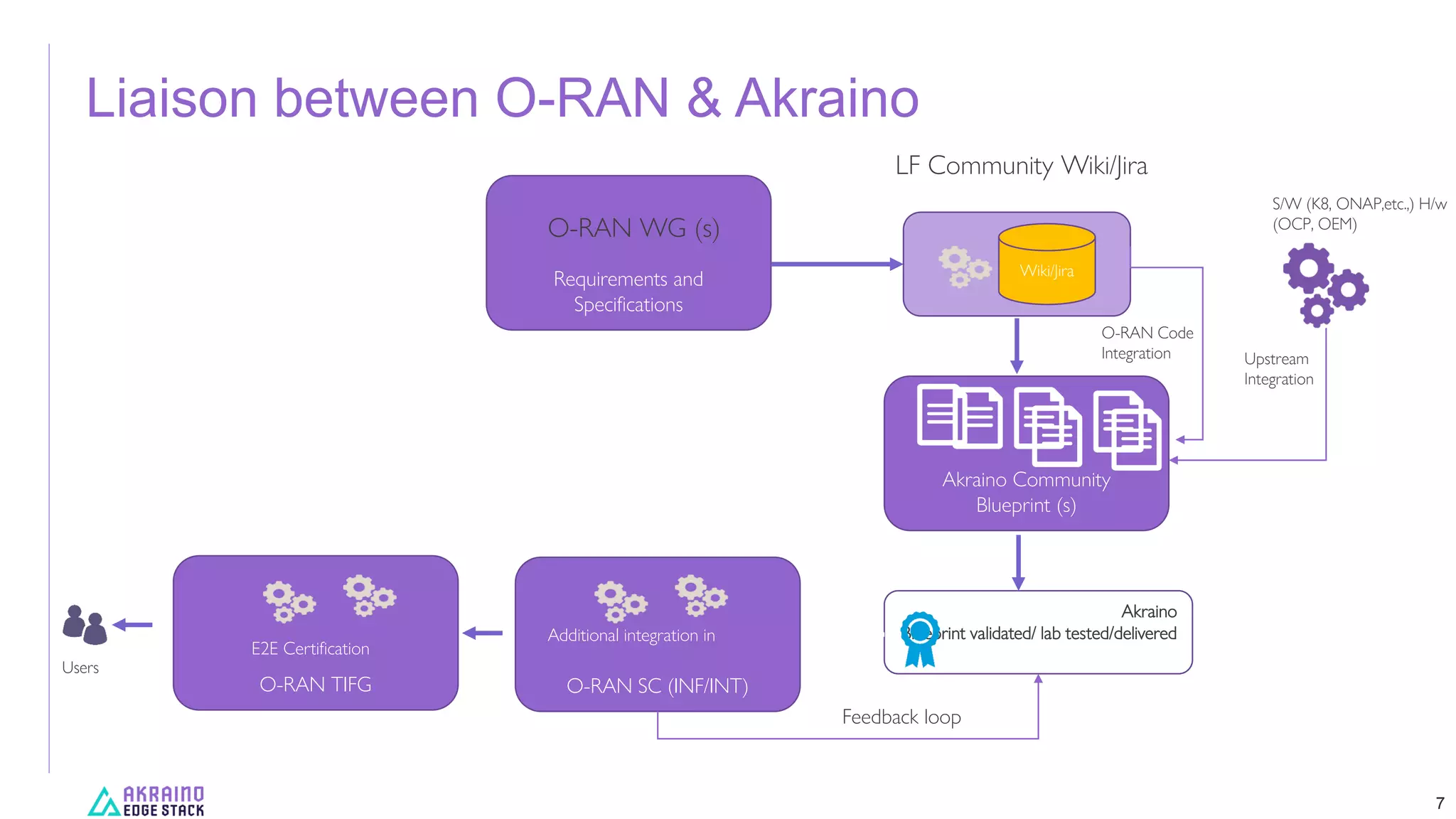

Liaison between O-RAN & Akraino

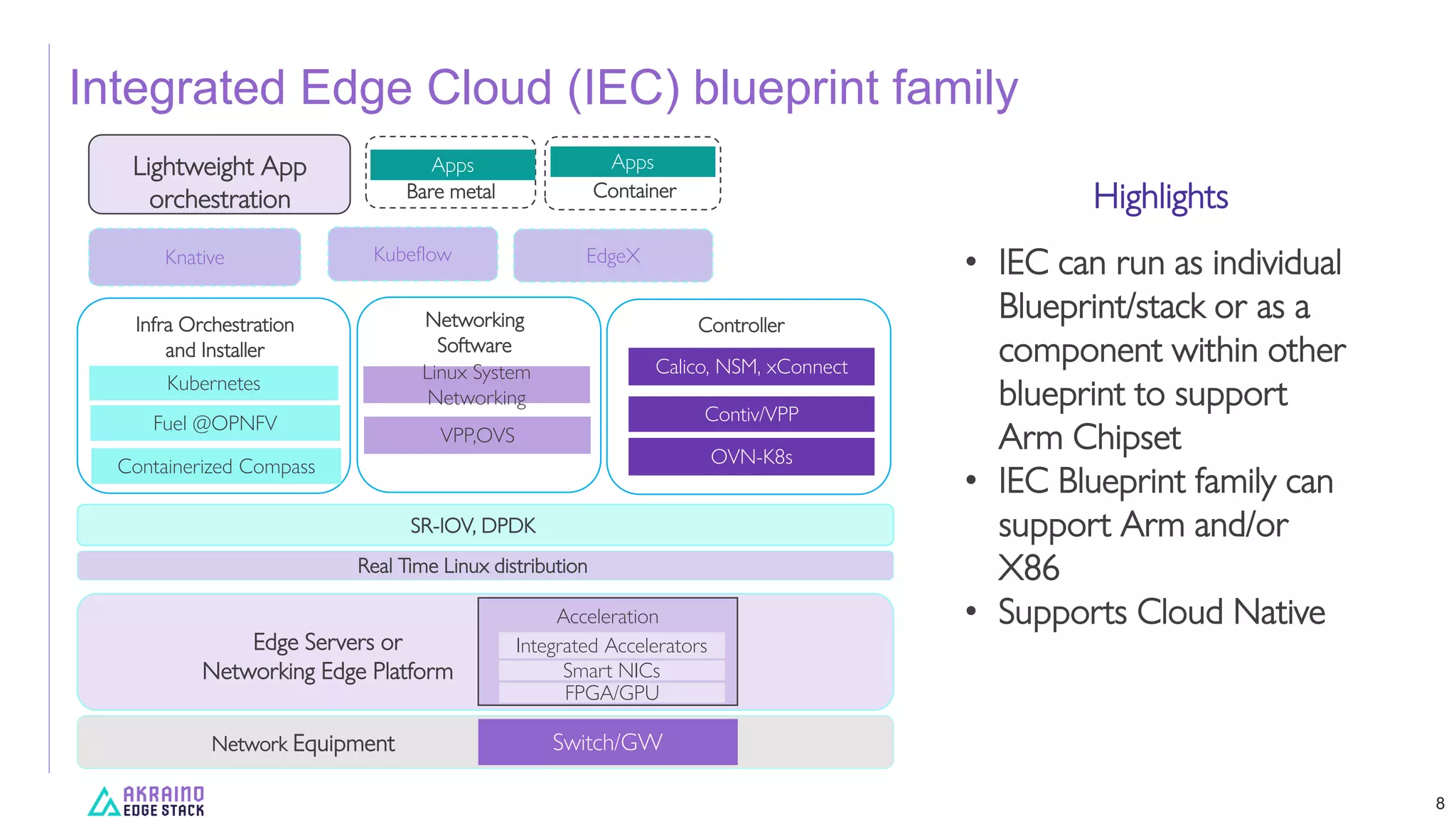

8. 8
Integrated Edge Cloud (IEC) blueprint family
Highlights
• IEC can run as individual
Blueprint/stack or as a
component within other
blueprint to support
Arm Chipset
• IEC Blueprint family can
support Arm and/or
X86
• Supports Cloud Native
Network Equipment Switch/GW
Edge Servers or
Networking Edge Platform
Acceleration
Smart NICs
FPGA/GPU
Integrated Accelerators
Controller
Calico, NSM, xConnect
Contiv/VPP
Lightweight App
orchestration
Real Time Linux distribution
SR-IOV, DPDK
Infra Orchestration
and Installer
Kubernetes
Fuel @OPNFV
VPP,OVS
Networking
Software
Apps Apps
Bare metal Container
Linux System
Networking
OVN-K8s
Knative Kubeflow EdgeX
Containerized Compass

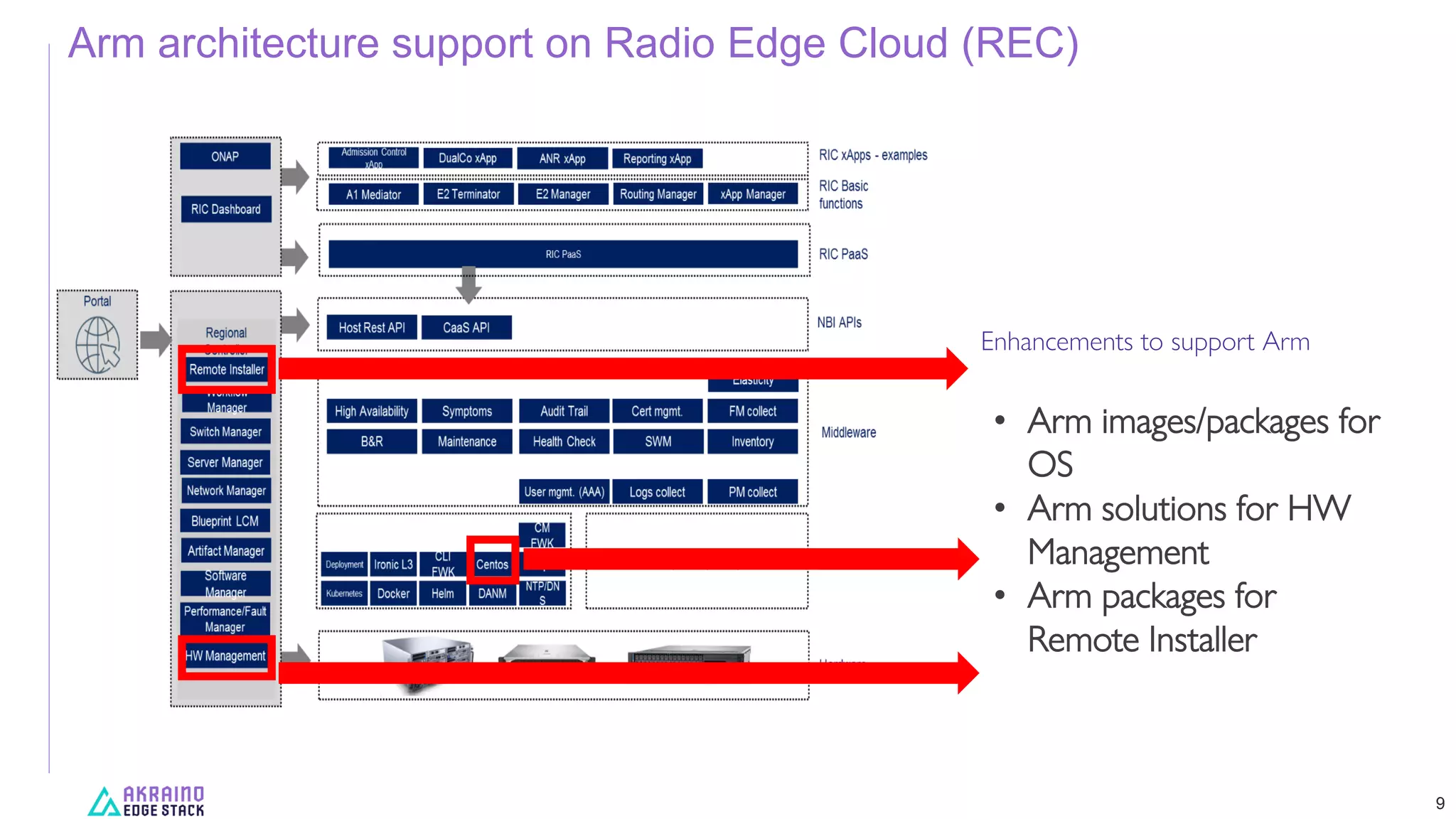

9. Arm architecture support on Radio Edge Cloud (REC)
9
Enhancements to support Arm
• Arm images/packages for
OS
• Arm solutions for HW
Management
• Arm packages for
Remote Installer

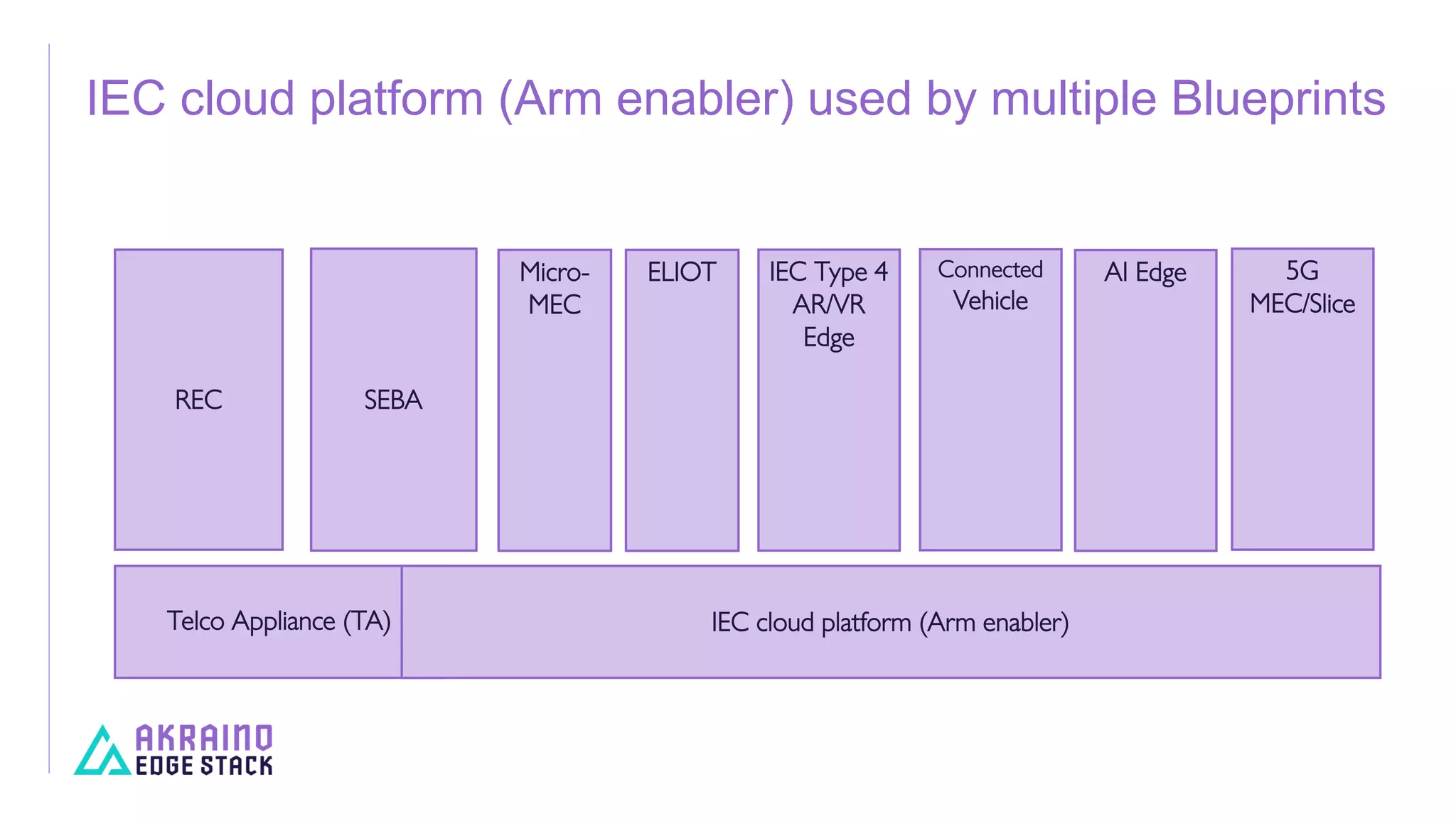

10. IEC cloud platform (Arm enabler) used by multiple Blueprints
Micro-
MEC
Telco Appliance (TA)
SEBA
IEC cloud platform (Arm enabler)
REC
5G
MEC/Slice
AI EdgeConnected
Vehicle
IEC Type 4
AR/VR
Edge
ELIOT

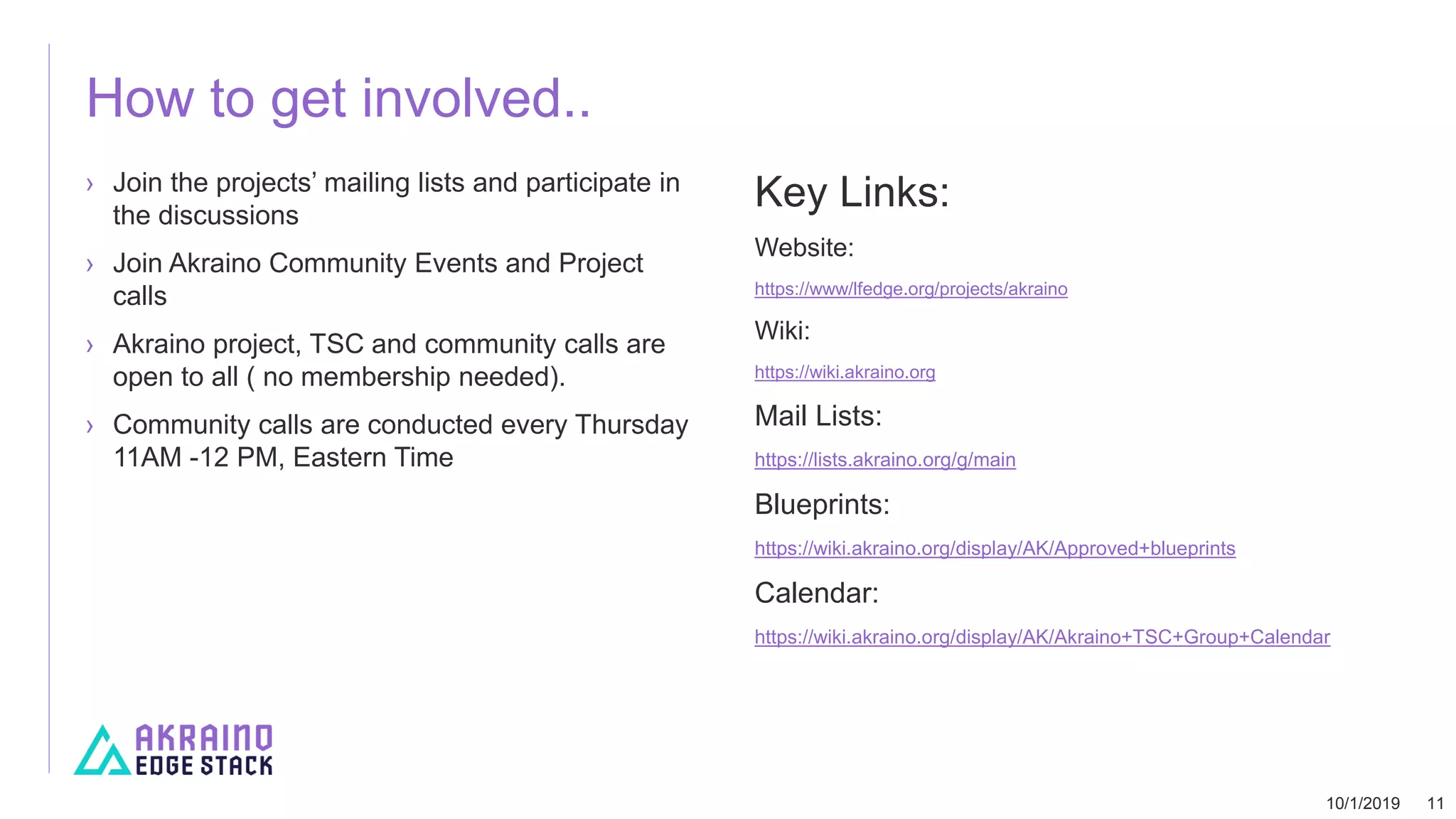

11. How to get involved..
› Join the projects’ mailing lists and participate in
the discussions
› Join Akraino Community Events and Project
calls
› Akraino project, TSC and community calls are
open to all ( no membership needed).
› Community calls are conducted every Thursday
11AM -12 PM, Eastern Time
Key Links:
Website:
https://www/lfedge.org/projects/akraino
Wiki:
https://wiki.akraino.org
Mail Lists:
https://lists.akraino.org/g/main
Blueprints:
https://wiki.akraino.org/display/AK/Approved+blueprints
Calendar:
https://wiki.akraino.org/display/AK/Akraino+TSC+Group+Calendar
10/1/2019 11
