XMPP Academy #3
The document discusses ejabberd's support for push notifications and various aspects of XMPP, including its impact on chat performance and configurations for both iOS and Android. It outlines the prerequisites for implementing push services, the structure of push notifications, and the relationship between ejabberd push support and XEP-0357. Additionally, it highlights considerations for message archiving and the efficiencies of using WebSocket compared to BOSH for XMPP communication.
More Related Content
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
XMPP Academy #3
- 1. Academy #3 16th November2015 Mickaël Rémond, @mickael

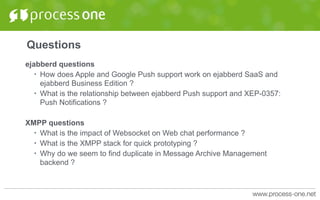

- 2. Questions ejabberd questions • Howdoes Apple and Google Push support work on ejabberd SaaS and ejabberd Business Edition ? • What is the relationship between ejabberd Push support and XEP-0357: Push Notifications ? XMPP questions • What is the impact of Websocket on Web chat performance ? • What is the XMPP stack for quick prototyping ? • Why do we seem to find duplicate in Message Archive Management backend ?

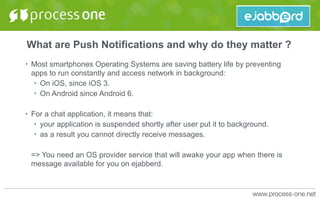

- 3. What are PushNotifications and why do they matter ? • Most smartphones Operating Systems are saving battery life by preventing apps to run constantly and access network in background: • On iOS, since iOS 3. • On Android since Android 6. • For a chat application, it means that: • your application is suspended shortly after user put it to background. • as a result you cannot directly receive messages. => You need an OS provider service that will awake your app when there is message available for you on ejabberd.
- 4.

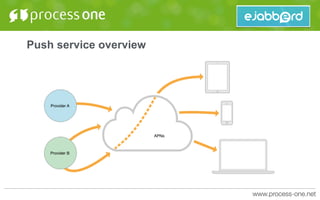

- 5.

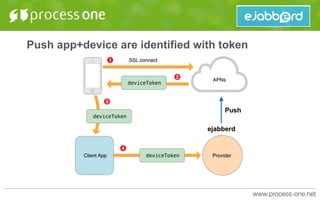

- 6. Push app+device areidentified with token ejabberd Push

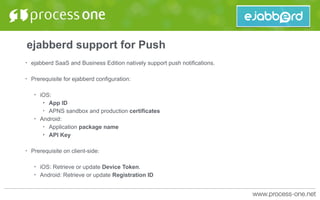

- 7. ejabberd support forPush • ejabberd SaaS and Business Edition natively support push notifications. • Prerequisite for ejabberd configuration: • iOS: • App ID • APNS sandbox and production certificates • Android: • Application package name • API Key • Prerequisite on client-side: • iOS: Retrieve or update Device Token. • Android: Retrieve or update Registration ID

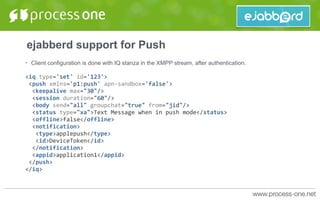

- 8. ejabberd support forPush • Client configuration is done with IQ stanza in the XMPP stream, after authentication. <iq type='set' id='123'> <push xmlns='p1:push' apn-sandbox='false'> <keepalive max="30"/> <session duration="60"/> <body send="all" groupchat="true" from="jid"/> <status type="xa">Text Message when in push mode</status> <offline>false</offline> <notification> <type>applepush</type> <id>DeviceToken</id> </notification> <appid>application1</appid> </push> </iq>

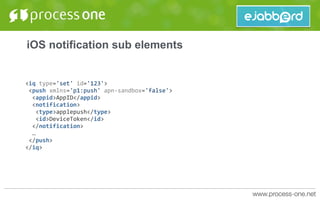

- 9. iOS notification subelements <iq type='set' id='123'> <push xmlns='p1:push' apn-sandbox='false'> <appid>AppID</appid> <notification> <type>applepush</type> <id>DeviceToken</id> </notification> … </push> </iq>

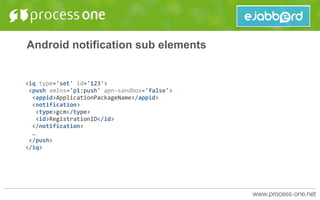

- 10. Android notification subelements <iq type='set' id='123'> <push xmlns='p1:push' apn-sandbox='false'> <appid>ApplicationPackageName</appid> <notification> <type>gcm</type> <id>RegistrationID</id> </notification> … </push> </iq>
- 11. ejabberd push triggers •Message received while session is detached or user is offline. • Groupchat messages while user session is running and possibly detached (optional) • Badges: Automatic support for message counts. Auto reset on login.
- 12.

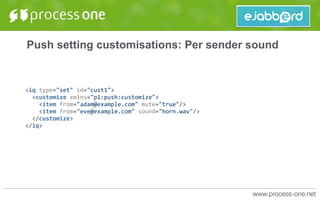

- 13. Push setting customisations:Per sender sound <iq type="set" id="cust1"> <customize xmlns="p1:push:customize"> <item from="adam@example.com" mute="true"/> <item from="eve@example.com" sound="horn.wav"/> </customize> </iq>

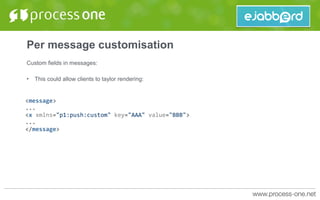

- 14. Per message customisation Customfields in messages: • This could allow clients to taylor rendering: <message> ... <x xmlns="p1:push:custom" key="AAA" value="BBB"> ... </message>
- 15. Per message customisation Permessage sound customization: <message type="chat" from="peer@example.com"> <body>Hello!</body> <customize xmlns="p1:push:customize" sound="2.wav"/> </message> Or mute: <message type="chat" from="peer@example.com"> <body>System message: ...</body> <customize xmlns="p1:push:customize" mute="true"/> </message>

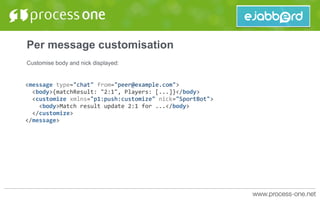

- 16. Per message customisation Customisebody and nick displayed: <message type="chat" from="peer@example.com"> <body>{matchResult: "2:1", Players: [...]}</body> <customize xmlns="p1:push:customize" nick="SportBot"> <body>Match result update 2:1 for ...</body> </customize> </message>

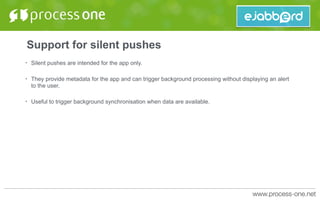

- 17. Support for silentpushes • Silent pushes are intended for the app only. • They provide metadata for the app and can trigger background processing without displaying an alert to the user. • Useful to trigger background synchronisation when data are available.

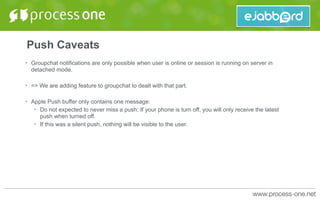

- 18. Push Caveats • Groupchatnotifications are only possible when user is online or session is running on server in detached mode. • => We are adding feature to groupchat to dealt with that part. • Apple Push buffer only contains one message: • Do not expected to never miss a push: If your phone is turn off, you will only receive the latest push when turned off. • If this was a silent push, nothing will be visible to the user.

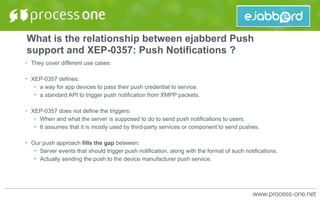

- 19. What is therelationship between ejabberd Push support and XEP-0357: Push Notifications ? • They cover different use cases: • XEP-0357 defines: • a way for app devices to pass their push credential to service. • a standard API to trigger push notification from XMPP packets. • XEP-0357 does not define the triggers: • When and what the server is supposed to do to send push notifications to users. • It assumes that it is mostly used by third-party services or component to send pushes. • Our push approach fills the gap between: • Server events that should trigger push notification, along with the format of such notifications. • Actually sending the push to the device manufacturer push service.

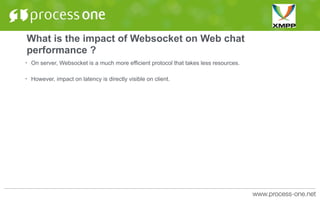

- 20. What is theimpact of Websocket on Web chat performance ? • On server, Websocket is a much more efficient protocol that takes less resources. • However, impact on latency is directly visible on client.

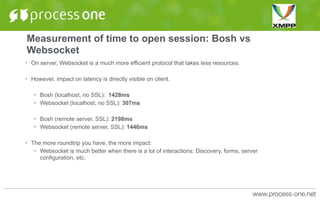

- 22. Measurement of timeto open session: Bosh vs Websocket • On server, Websocket is a much more efficient protocol that takes less resources. • However, impact on latency is directly visible on client. • Bosh (localhost, no SSL): 1428ms • Websocket (localhost, no SSL): 307ms • Bosh (remote server, SSL): 2198ms • Websocket (remote server, SSL): 1446ms • The more roundtrip you have, the more impact: • Websocket is much better when there is a lot of interactions: Discovery, forms, server configuration, etc.

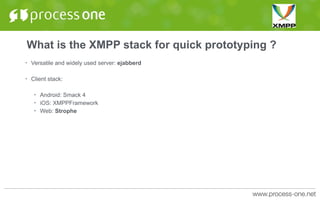

- 23. What is theXMPP stack for quick prototyping ? • Versatile and widely used server: ejabberd • Client stack: • Android: Smack 4 • iOS: XMPPFramework • Web: Strophe

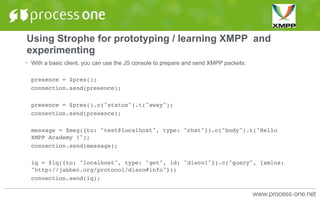

- 24. Using Strophe forprototyping / learning XMPP and experimenting • With a basic client, you can use the JS console to prepare and send XMPP packets: presence = $pres(); connection.send(presence); presence = $pres().c("status").t("away"); connection.send(presence); message = $msg({to: "test@localhost", type: "chat"}).c("body").t("Hello XMPP Academy !"); connection.send(message); iq = $iq({to: "localhost", type: "get", id: "disco1"}).c("query", {xmlns: "http://jabber.org/protocol/disco#info"}); connection.send(iq);
- 26. Why do weseem to find duplicate in Message Archive Management backend ? • When thinking about XMPP protocol, you need to think in federated context: • Two XMPP domains can connect have have user chat between both domains. • Message is stored once per user as archive can be managed independently (delete entry, etc)

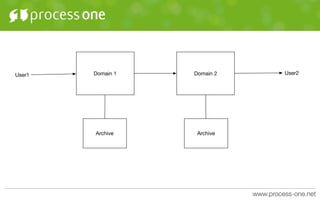

- 27. Domain 1 Archive Archive Domain2User1 User2
- 28. See you atnext
