Archipel is a virtualization orchestrator that provides a real-time, modular platform to manage virtual machines across various hypervisors like KVM, Xen, and VirtualBox. It emphasizes user communication, efficient resource management, and an open-source approach, featuring a user-friendly interface and numerous functionalities such as live migration and real-time statistics. The platform utilizes technologies like XMPP and Python to facilitate communication and scalability in managing virtual environments.

1. h t t p : / / a r c h i p e l p r o j e c t . o r g

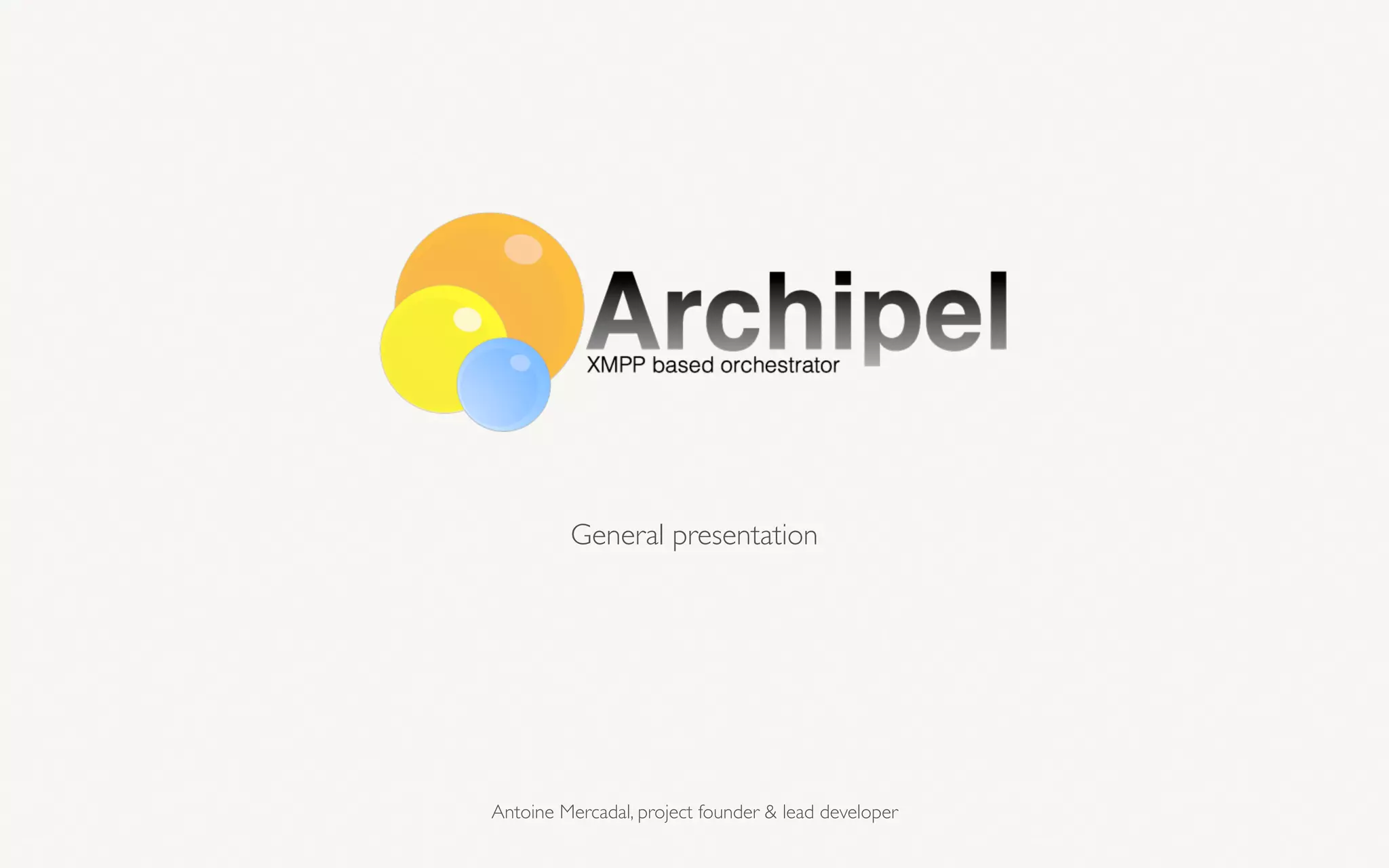

2. General presentation
Antoine Mercadal, project founder & lead developer

3. V i r t u a l i z a t i o n
r e m i n d e r s
Is it really
mandatory ?

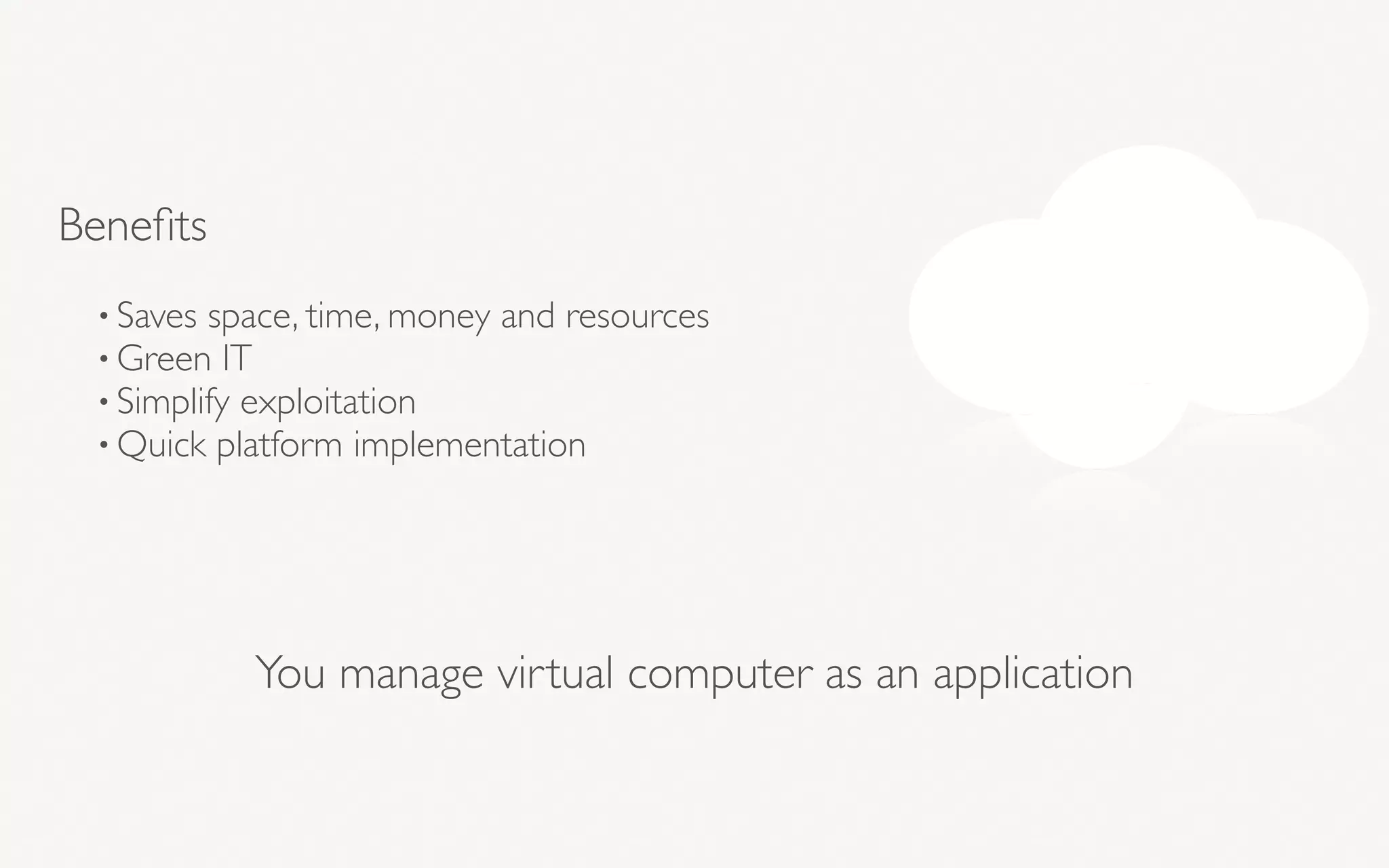

4. Benefits
• Saves space, time, money and resources
• Green IT
• Simplify exploitation
• Quick platform implementation
You manage virtual computer as an application

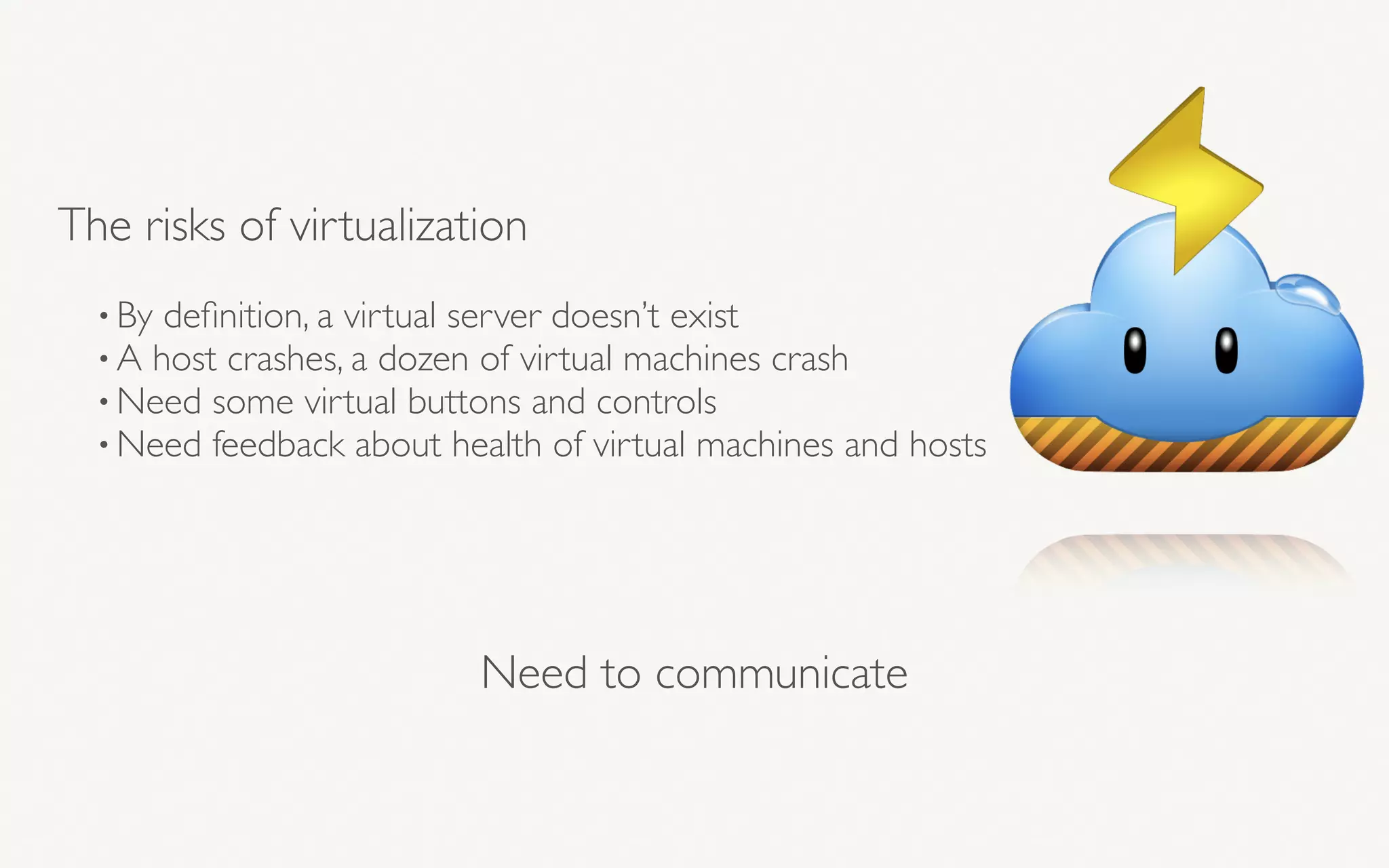

5. The risks of virtualization
• By definition, a virtual server doesn’t exist
• A host crashes, a dozen of virtual machines crash
• Need some virtual buttons and controls
• Need feedback about health of virtual machines and hosts
Need to communicate

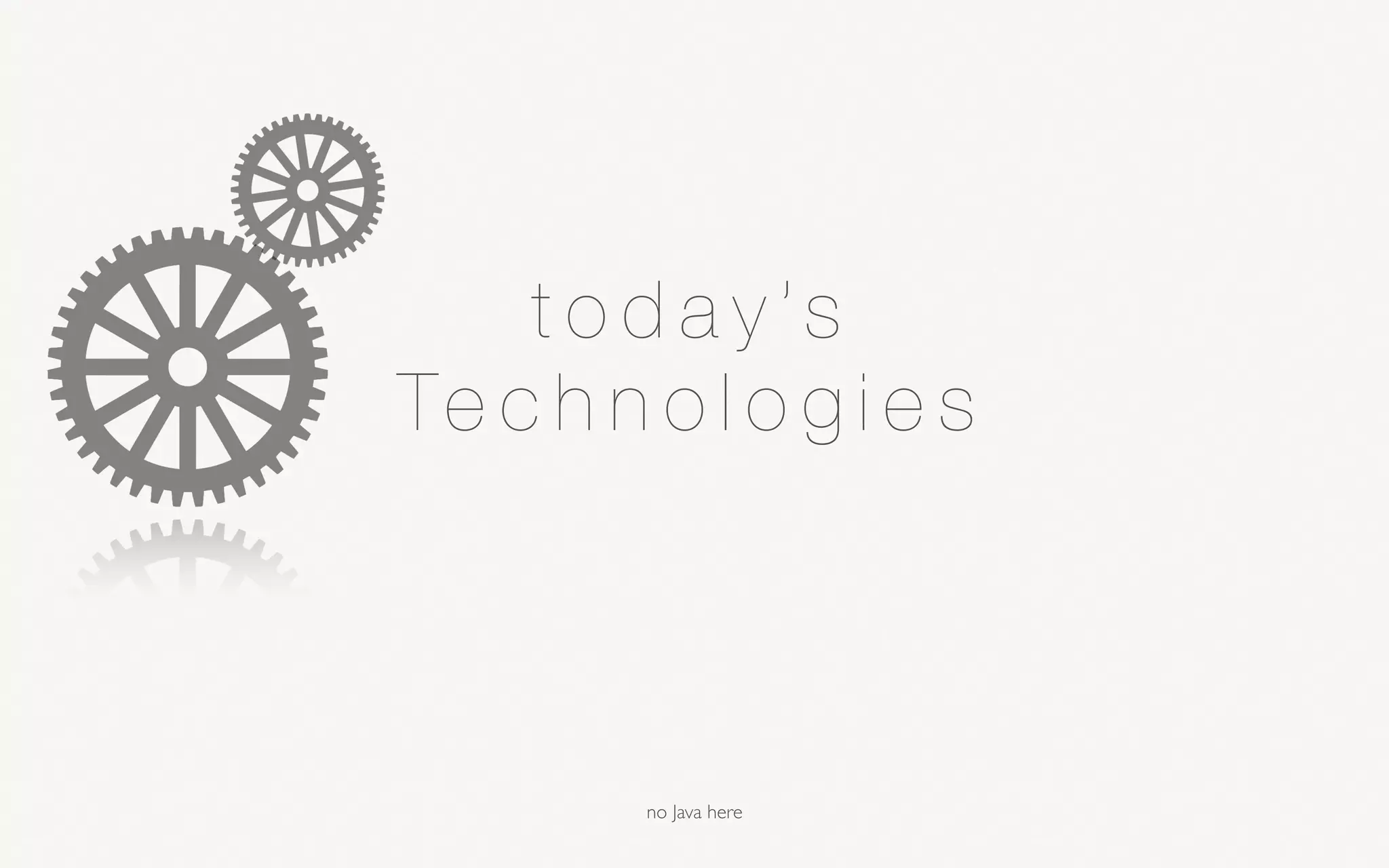

6. t o d a y ’s
Te c h n o l o g i e s
no Java here

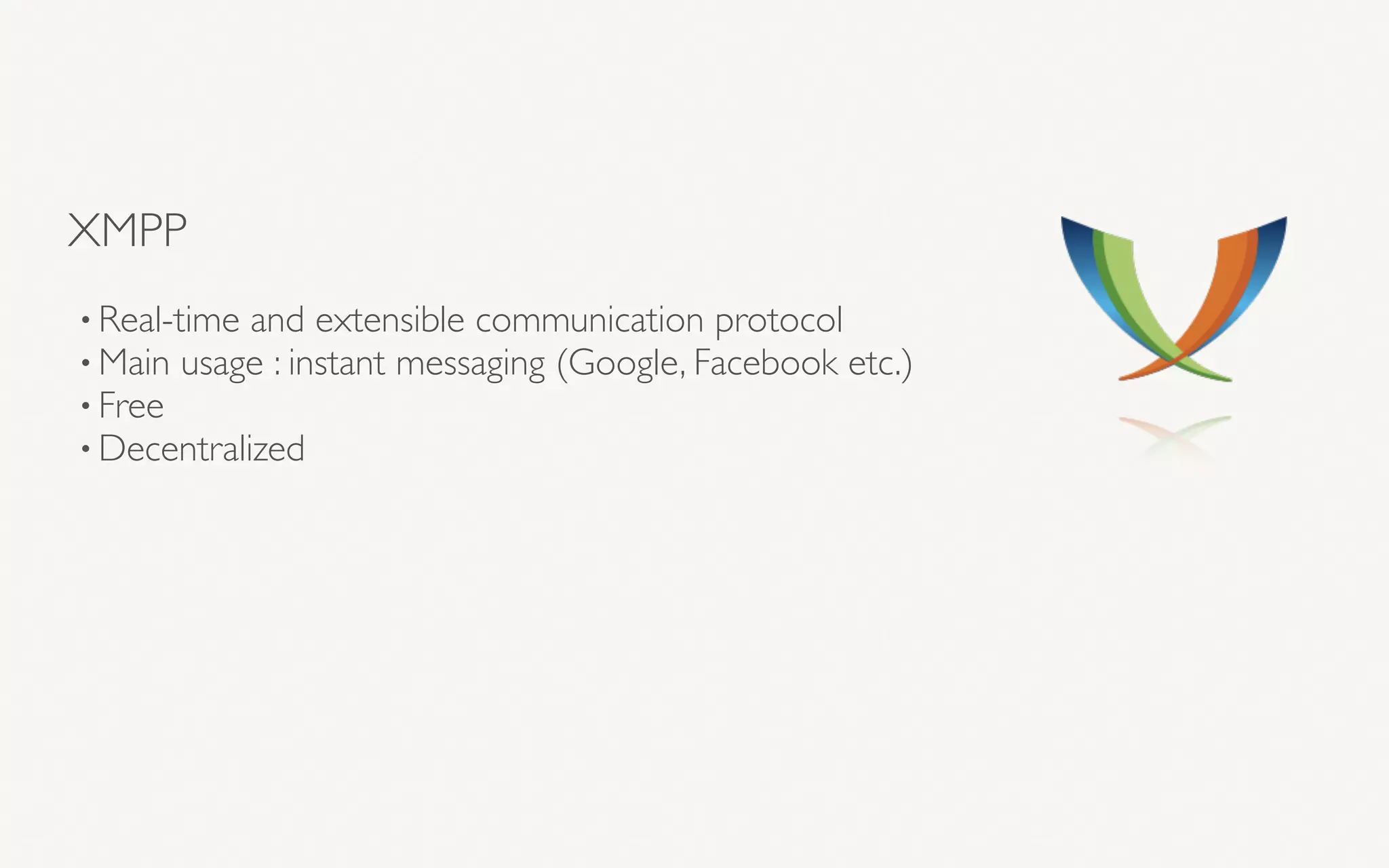

7. XMPP
• Real-time and extensible communication protocol
• Main usage : instant messaging (Google, Facebook etc.)
• Free
• Decentralized

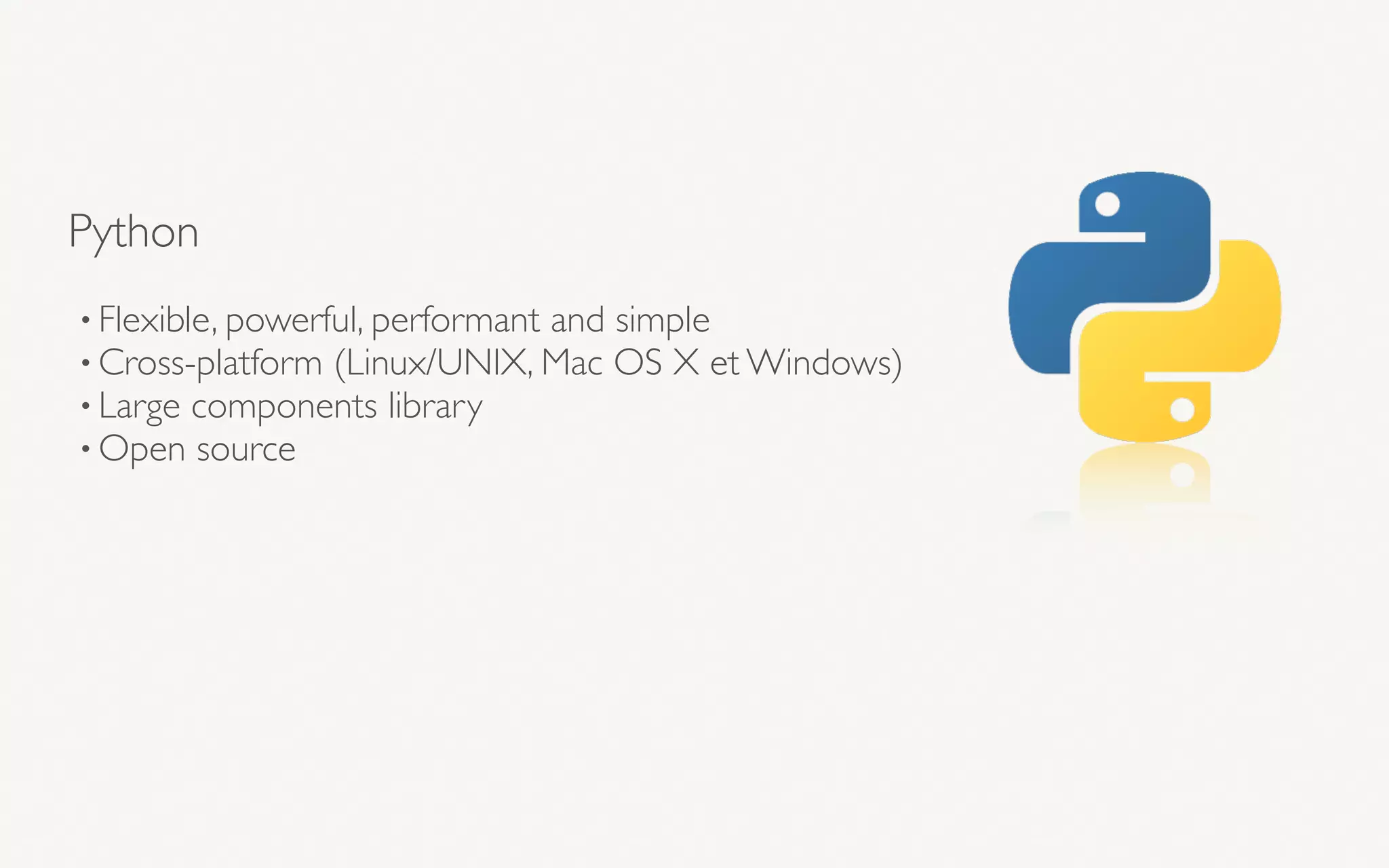

8. Python
• Flexible, powerful, performant and simple
• Cross-platform (Linux/UNIX, Mac OS X et Windows)
• Large components library
• Open source

9. Cappuccino / Objective-J
• Cocoa for Javascript, right from your browser
• Allow to build powerful web application
• Abstraction of underlaying javascript code
• Very good performance
• Open source

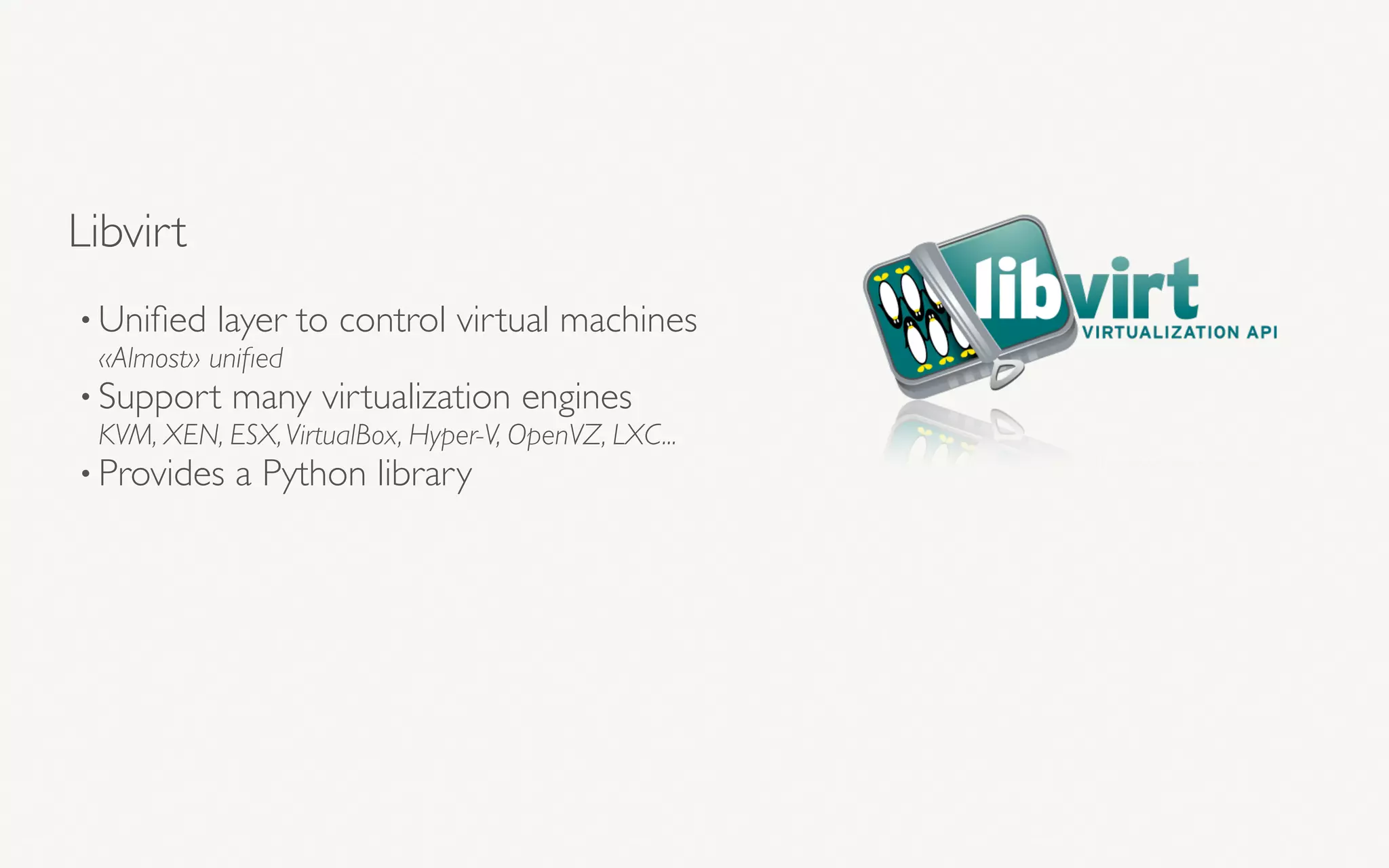

10. Libvirt
• Unified layer to control virtual machines
«Almost» unified
• Support many virtualization engines
KVM, XEN, ESX,VirtualBox, Hyper-V, OpenVZ, LXC...
• Provides a Python library

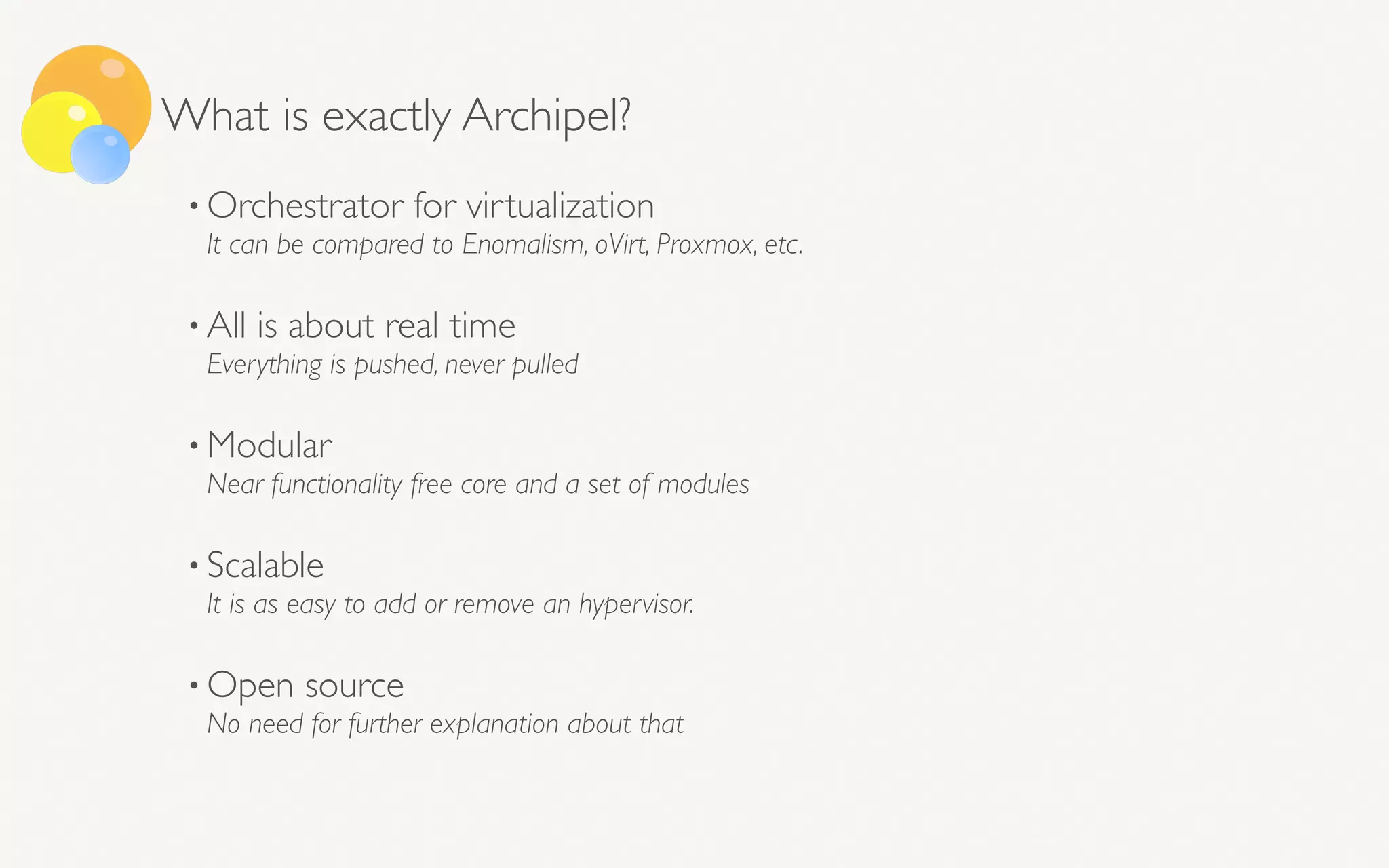

12. What is exactly Archipel?
• Orchestrator for virtualization
It can be compared to Enomalism, oVirt, Proxmox, etc.
• All is about real time
Everything is pushed, never pulled
• Modular
Near functionality free core and a set of modules
• Scalable
It is as easy to add or remove an hypervisor.
• Open source
No need for further explanation about that

13. Live migration
Virtual machine creation
PAE / ACPI / APIC
huge pages
User-to-user chat
User-to-VM chat and control
VNC to access virtual machines
Packaging
VMCasts registrationReal time statistics
Beautiful GUI interface
Cross platform
Snapshotting
VMCasts publication
Cloning
Virtual disk management
Shared cd/dvd isos
easy installation
Live memory adjustment
Hot CPU plug
Avatar selection
Group management
Virtual machine autostart
Virtual networks
Lifecycle Logs
Modular
Features overview ?

14. I’m sure I know this ship...
A r c h i t e c t u r e

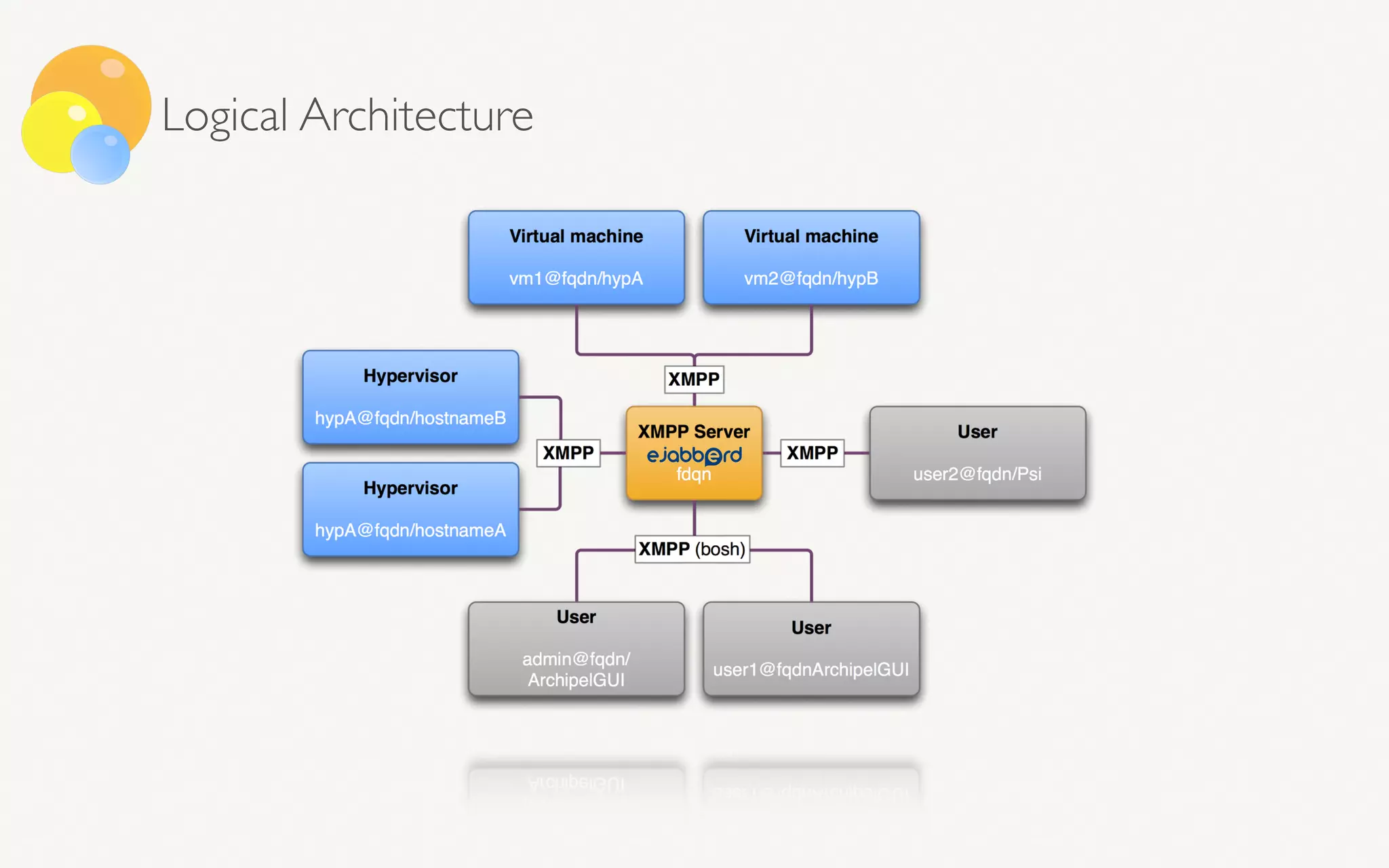

15. Logical Architecture

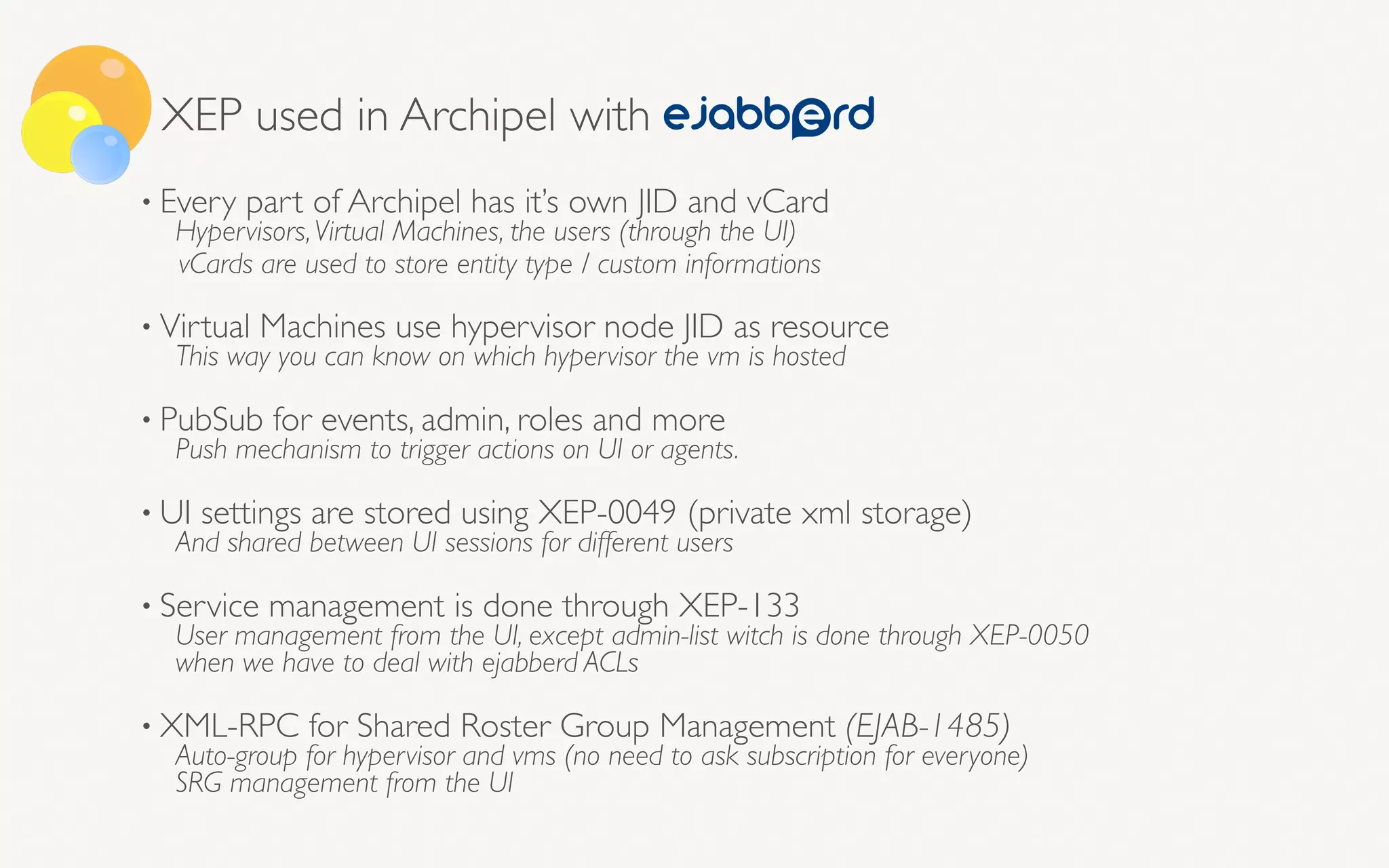

16. XEP used in Archipel with
• Every part of Archipel has it’s own JID and vCard
Hypervisors,Virtual Machines, the users (through the UI)
vCards are used to store entity type / custom informations
• Virtual Machines use hypervisor node JID as resource
This way you can know on which hypervisor the vm is hosted
• PubSub for events, admin, roles and more
Push mechanism to trigger actions on UI or agents.
• UI settings are stored using XEP-0049 (private xml storage)
And shared between UI sessions for different users
• Service management is done through XEP-133
User management from the UI, except admin-list witch is done through XEP-0050
when we have to deal with ejabberd ACLs
• XML-RPC for Shared Roster Group Management (EJAB-1485)
Auto-group for hypervisor and vms (no need to ask subscription for everyone)
SRG management from the UI

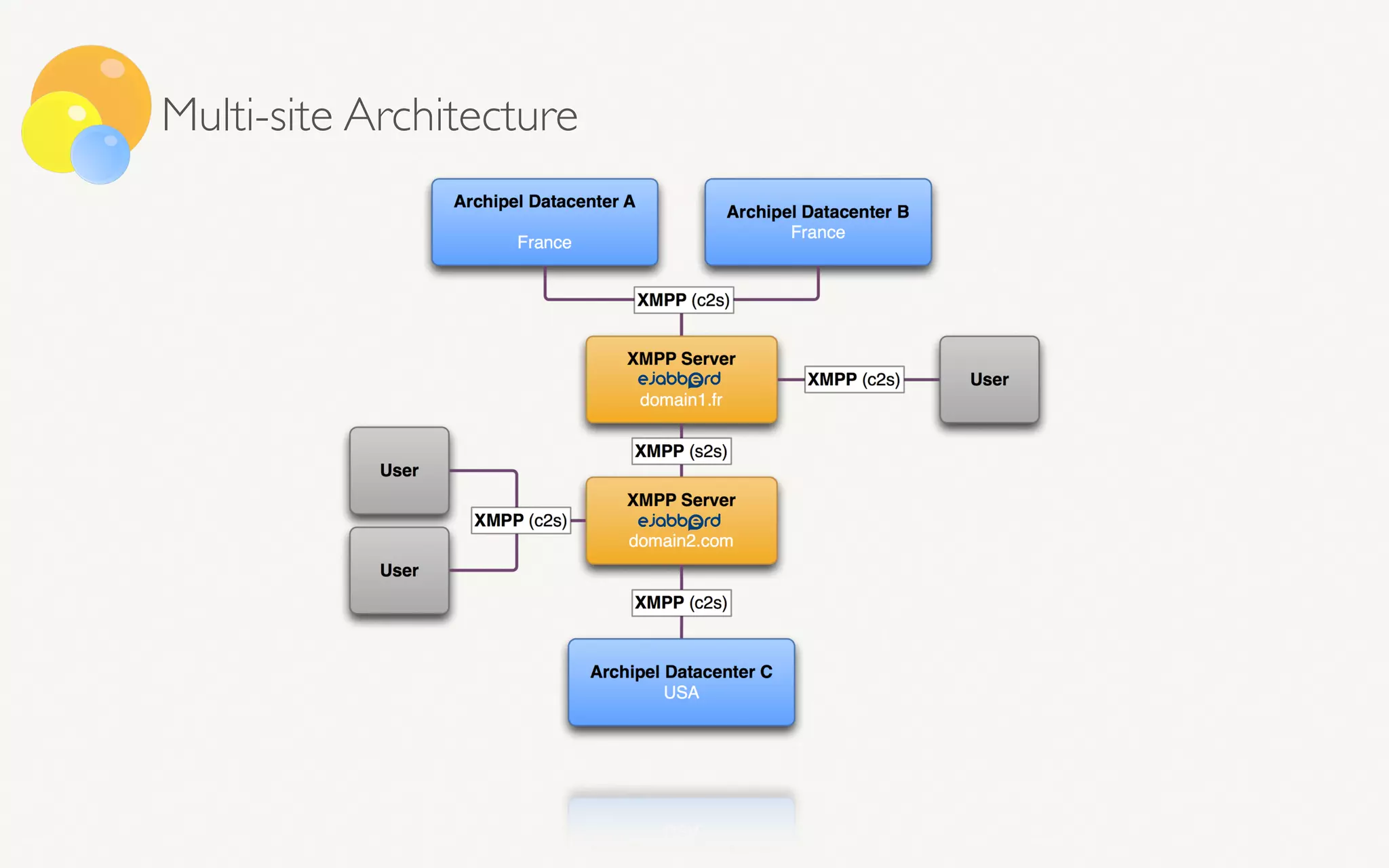

17. Multi-site Architecture

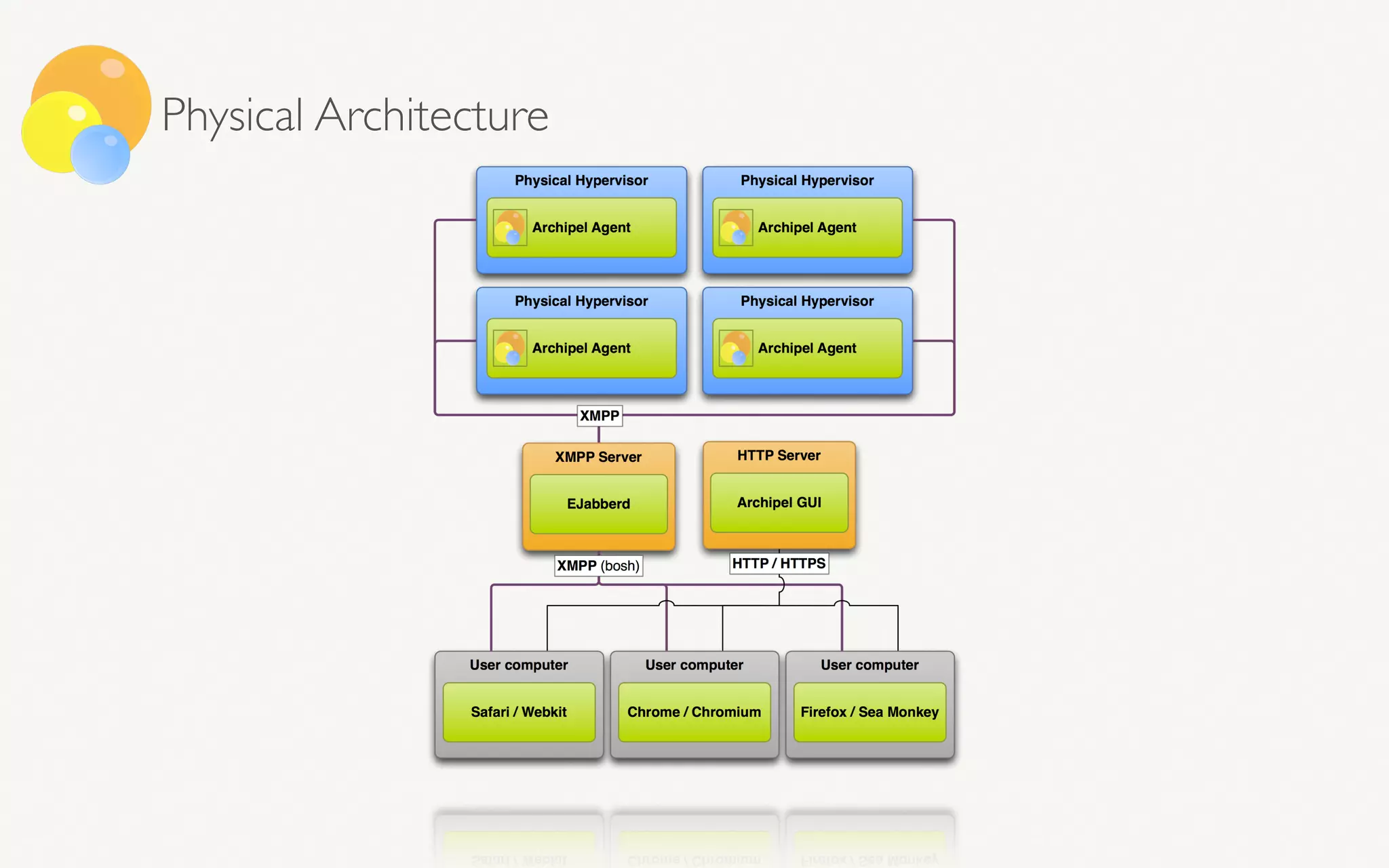

18. Physical Architecture

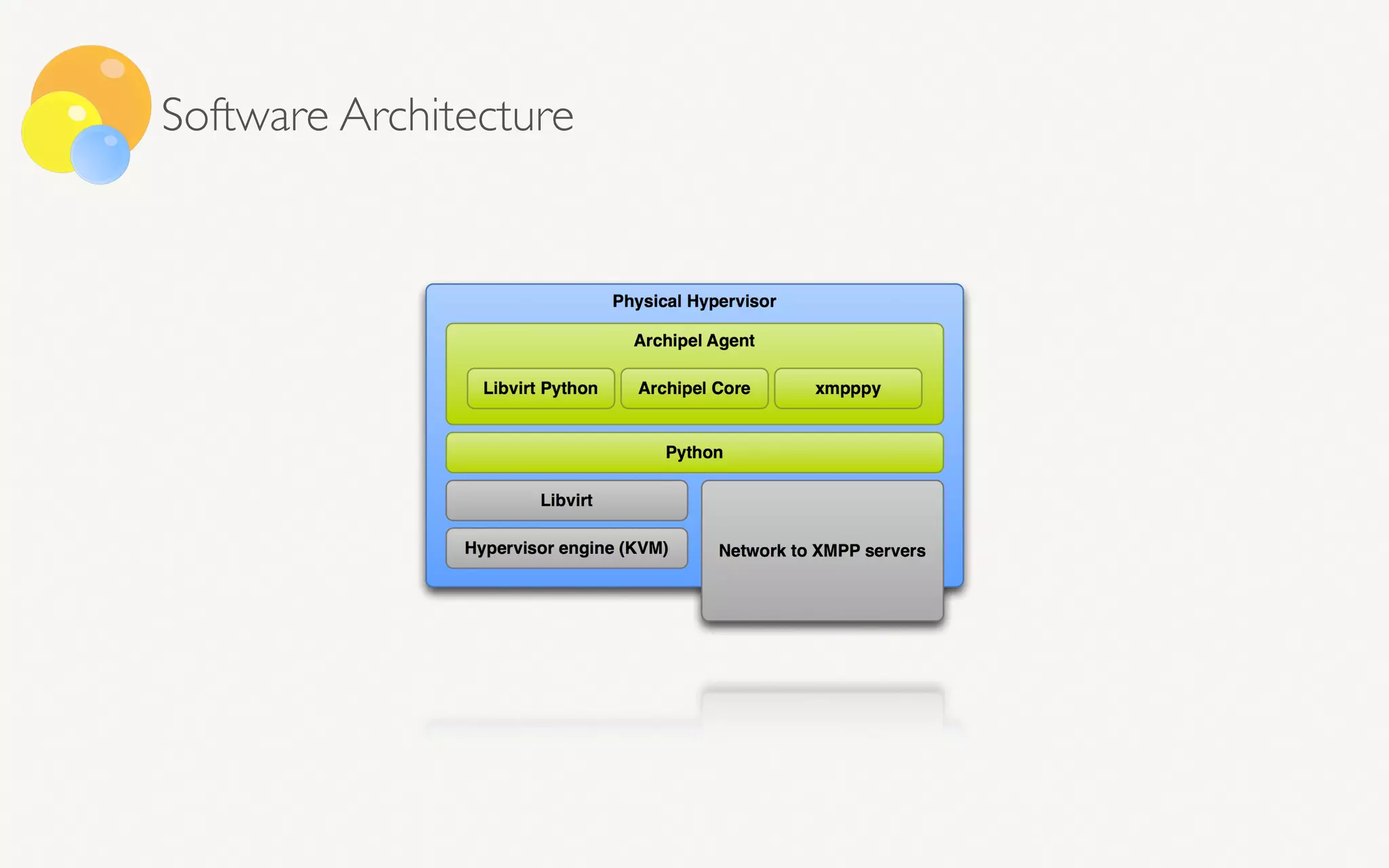

19. Software Architecture

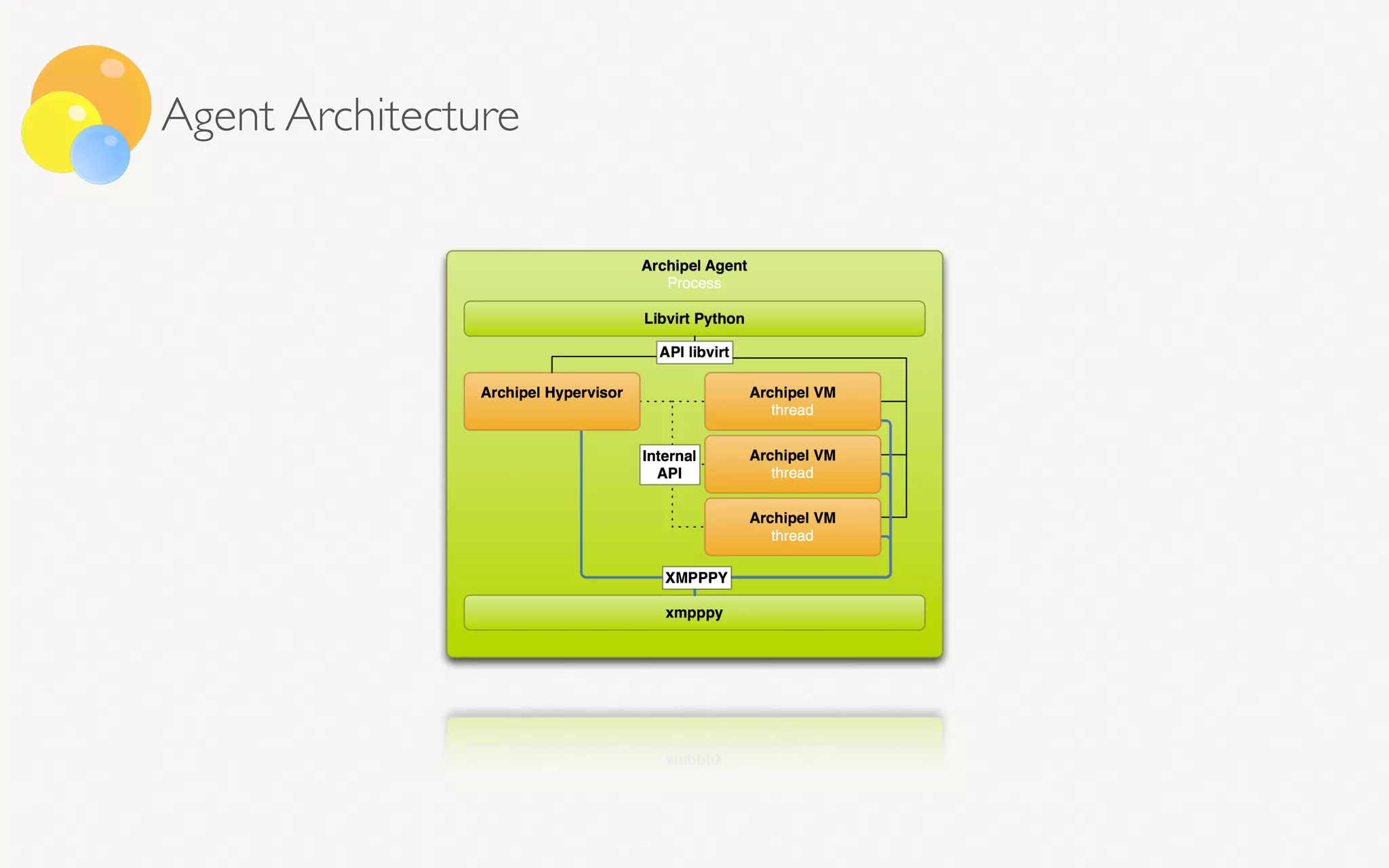

20. Agent Architecture

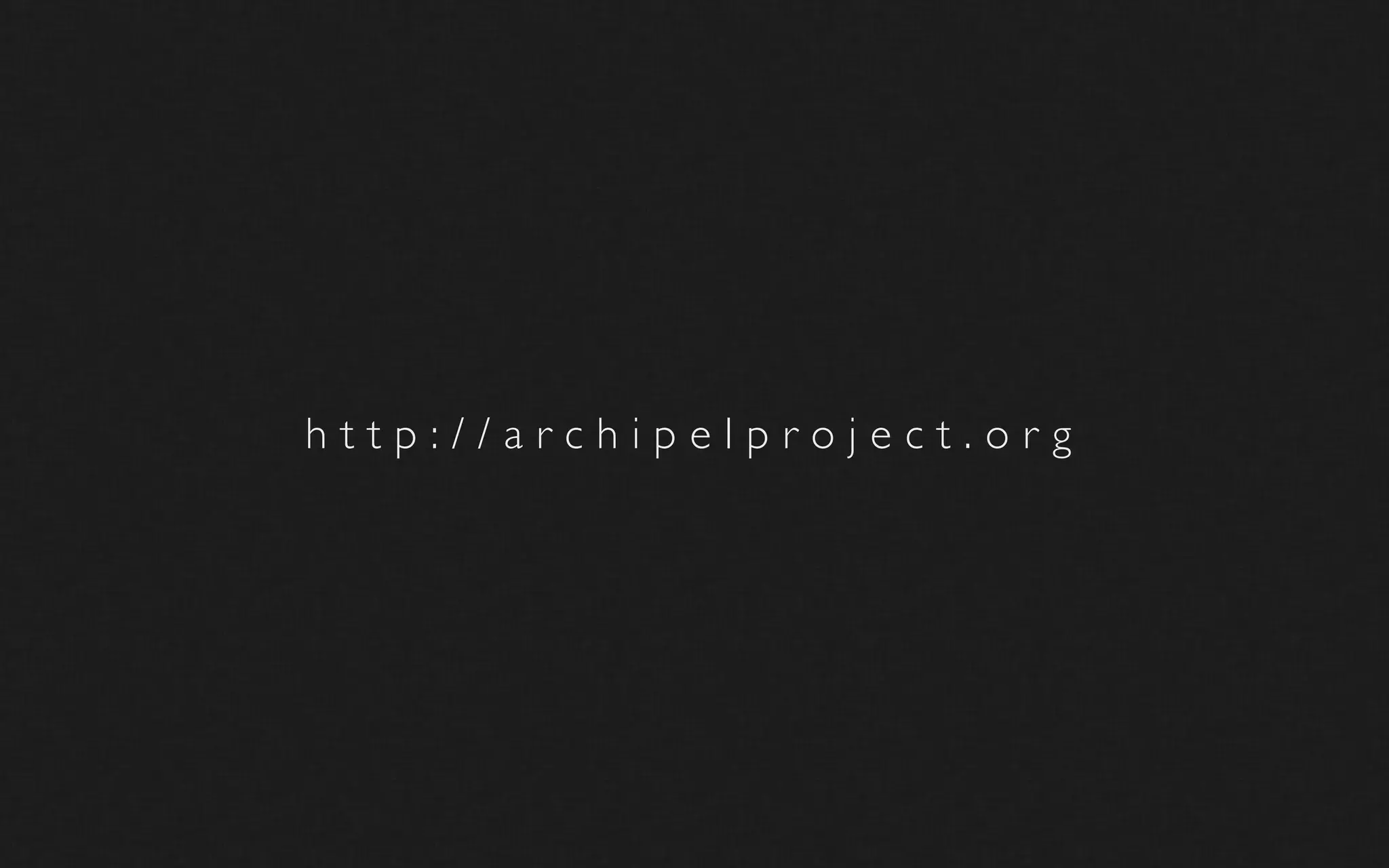

21. h t t p : / / a r c h i p e l p r o j e c t . o r g
