1. Technocracy Pvt. Ltd. manufactures a xenon lamp weather resistance test chamber (model ACM-X1137) that uses a xenon lamp to simulate sunlight and test how products withstand destructive environmental conditions. 2. The chamber has a double-walled stainless steel body with polyurethane foam insulation. It can maintain temperatures from 10°C to 70°C with ±3°C uniformity and 95% relative humidity. 3. The chamber is used for quality control, product development, and scientific research in industries like electronics, automobiles, and aerospace.

1. TECHNOCRACY PVT. LTD.
XENON LAMP WEATHER
RESISTANCE TEST CHAMBER
MODEL NO. - ACM- X1137
R

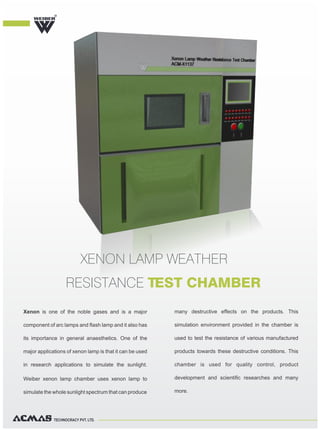

2. TECHNOCRACY PVT. LTD.
Xenon is one of the noble gases and is a major
component of arc lamps and flash lamp and it also has
its importance in general anaesthetics. One of the
major applications of xenon lamp is that it can be used
in research applications to simulate the sunlight.
Weiber xenon lamp chamber uses xenon lamp to
simulate the whole sunlight spectrum that can produce
many destructive effects on the products. This
simulation environment provided in the chamber is
used to test the resistance of various manufactured
products towards these destructive conditions. This
chamber is used for quality control, product
development and scientific researches and many
more.
XENON LAMP WEATHER
RESISTANCE TEST CHAMBER
R

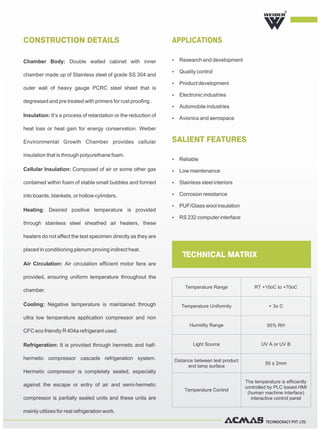

3. TECHNOCRACY PVT. LTD.
Chamber Body: Double walled cabinet with inner
chamber made up of Stainless steel of grade SS 304 and
outer wall of heavy gauge PCRC steel sheet that is
degreased and pre treated with primers for rust proofing .
Insulation: It’s a process of retardation or the reduction of
heat loss or heat gain for energy conservation. Weiber
Environmental Growth Chamber provides cellular
insulation that is through polyurethane foam.
Cellular Insulation: Composed of air or some other gas
contained within foam of stable small bubbles and formed
into boards, blankets, or hollow cylinders.
Heating: Desired positive temperature is provided
through stainless steel sheathed air heaters, these
heaters do not affect the test specimen directly as they are
placed in conditioning plenum proving indirect heat.
Air Circulation: Air circulation efficient motor fans are
provided, ensuring uniform temperature throughout the
chamber.
Cooling: Negative temperature is maintained through
ultra low temperature application compressor and non
CFC eco friendly R 404a refrigerant used.
Refrigeration: It is provided through hermetic and half-
hermetic compressor cascade refrigeration system.
Hermetic compressor is completely sealed, especially
against the escape or entry of air and semi-hermetic
compressor is partially sealed units and these units are
mainly utilizes for real refrigeration work.
CONSTRUCTION DETAILS
SALIENT FEATURES
R
TECHNICAL MATRIX
Temperature Range RT +10oC to +70oC
Temperature Uniformity + 3o C
Humidity Range 95% RH
Light Source UV A or UV B
Distance between test product
and lamp surface
50 ± 2mm
Temperature Control
The temperature is efficiently
controlled by PLC based HMI
(human machine interface)
interactive control panel
Ÿ Reliable
Ÿ Low maintenance
Ÿ Stainless steel interiors
Ÿ Corrosion resistance
Ÿ PUF/Glass wool insulation
Ÿ RS 232 computer interface
APPLICATIONS
Ÿ Research and development
Ÿ Quality control
Ÿ Product development
Ÿ Electronic industries
Ÿ Automobile industries
Ÿ Avionics and aerospace

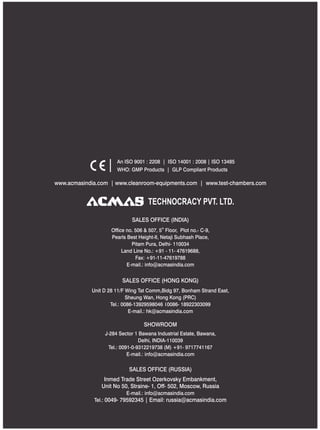

4. SALES OFFICE (HONG KONG)
