The document describes an Environmental Control Chamber model ACM-4232E. It can control temperature, humidity, lighting and other functions from one device using latest technologies. The chamber has a stainless steel exterior, coved floor, insulated doors, adjustable shelves and meets cleanroom standards. It features an ECON controller, high intensity lighting, security options and a microprocessor controlled PID controller. Temperature can be controlled from 7-44°C and humidity from +/- 0.5%. The chamber isolates light, sound and provides 815 cubic feet of interior space. It is fabricated from stainless steel to rigorous quality standards.

1. TECHNOCRACY PVT. LTD.
ENVIRONMENTAL
CONTROL CHAMBERS
MODEL NO. ACM-4232E
R

2. TECHNOCRACY PVT. LTD.
The Environment Control Chamber is designed to provide inert and dry measurement environment at ambient
pressure and controlled environment. Weiber is dedicated to providing reliable, cost effective Environmental
Control Chamber. Temperature, Humidity, Lighting, and many other functions can be controlled from one device,
with all of the latest technologies employed. Chamber construction of stainless steel exterior front, stainless steel
coved floor, solid, polyurethane insulated doors, key lock on all doors, 3 shelves per door adjustable on 1"
increments.
Weiber uses lake water to both cool and heat control rooms. Weiber employs the use of ECON controller which is
compatible with varied and different purpose temperature and humidity chamber. This chamber fully isolates light
and attenuates sounds originating both internally and externally. This chamber is fabricated to meet rigorous
standards for cleanliness and durability. It offers high sensitive touch screen with high resolution LCD display.
ENVIRONMENTAL CONTROL CHAMBERS
R

3. TECHNOCRACY PVT. LTD.

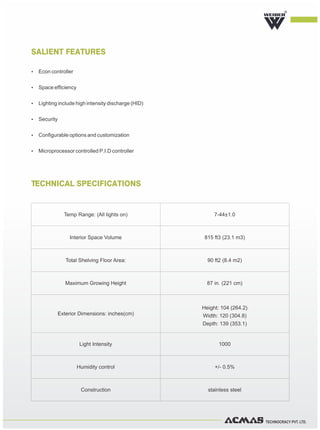

TECHNICAL SPECIFICATIONS
R
SALIENT FEATURES
Ÿ Econ controller
Ÿ Space efficiency
Ÿ Lighting include high intensity discharge (HID)
Ÿ Security
Ÿ Configurable options and customization
Ÿ Microprocessor controlled P.I.D controller
Temp Range: (All lights on) 7-44±1.0
Interior Space Volume 815 ft3 (23.1 m3)
Total Shelving Floor Area: 90 ft2 (8.4 m2)
Maximum Growing Height 87 in. (221 cm)
Exterior Dimensions: inches(cm)
Height: 104 (264.2)
Width: 120 (304.8)
Depth: 139 (353.1)
Light Intensity 1000
Humidity control +/- 0.5%
Construction stainless steel
