1. Cloud Native Middleware as a Programming Language
September 2019
Lakmal Warusawithana, Senior Director - Developer Relations, WSO2
@lakwarus

4. (Almost)
Every programmer is
using and/or creating
APIs

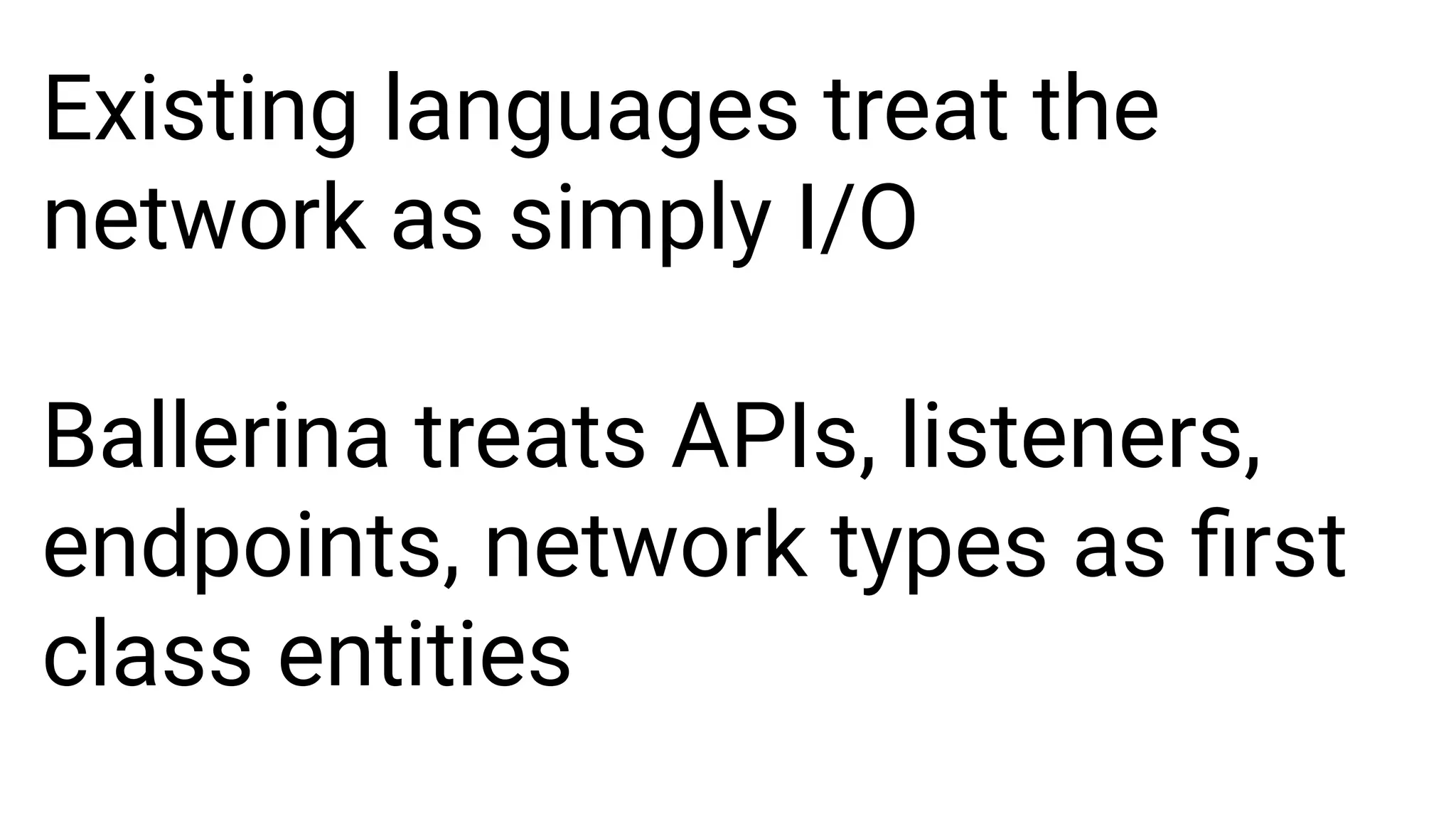

5. Existing languages treat the
network as simply I/O
Ballerina treats APIs, listeners,
endpoints, network types as first
class entities

6. Ballerina is a modern, compiled, type safe,
concurrent programming language
Open Source implementations,
Apache Licensed
Open Specification,
Creative Commons Licensed

7. Hello World

9. Annotations

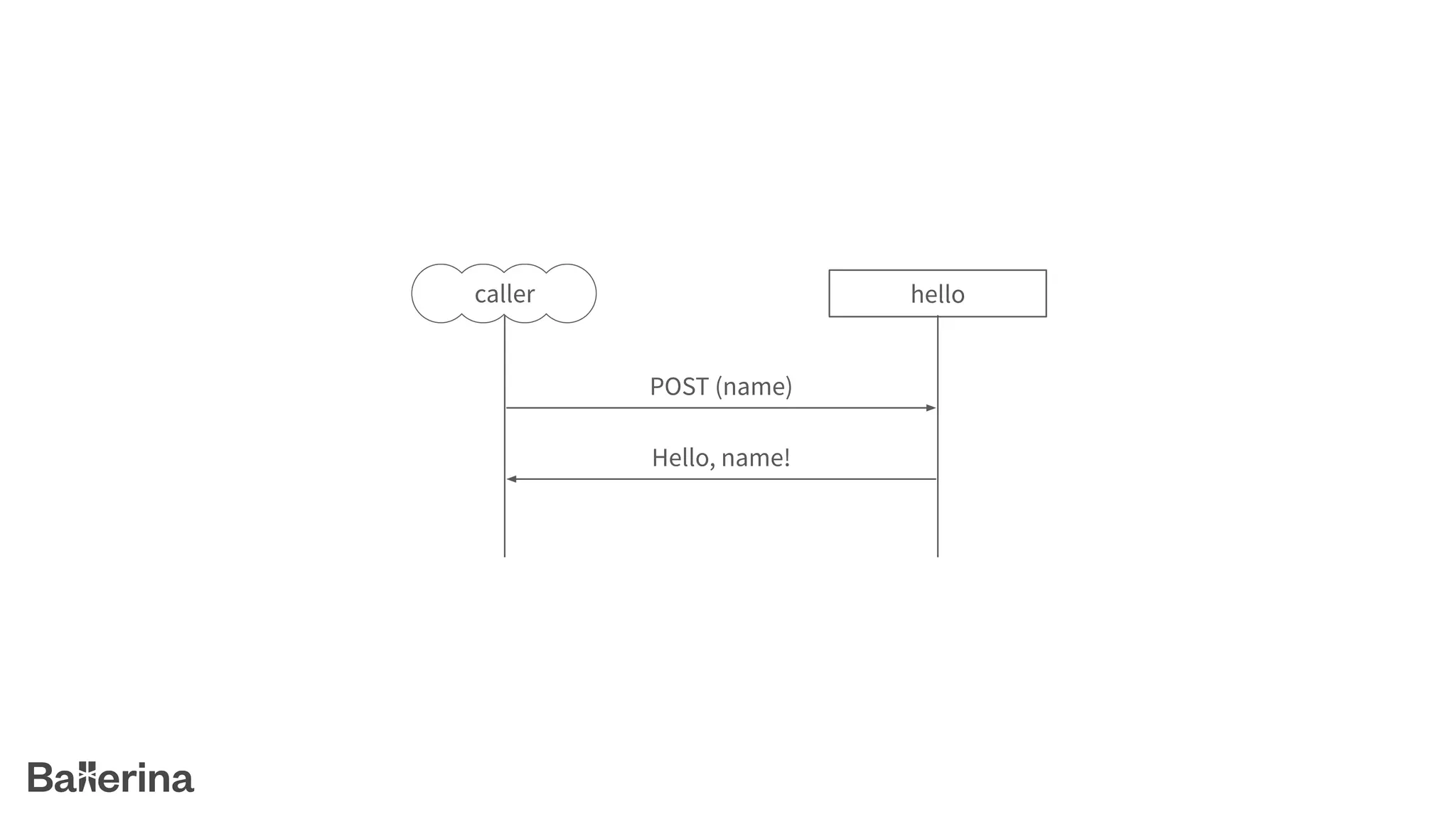

10. caller hello
POST (name)
Hello, name!

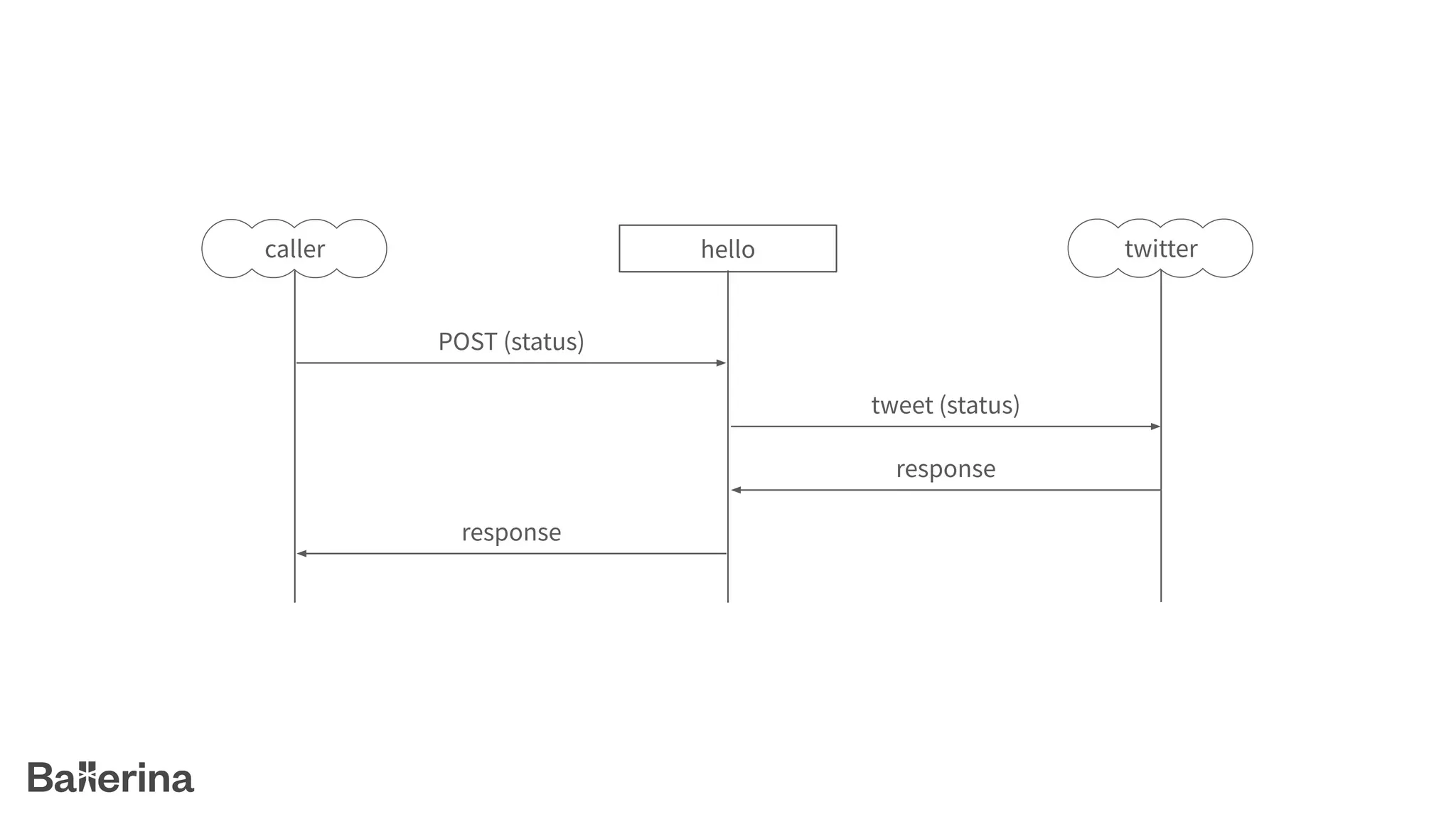

12. caller hello
POST (status)
response
twitter
tweet (status)
response

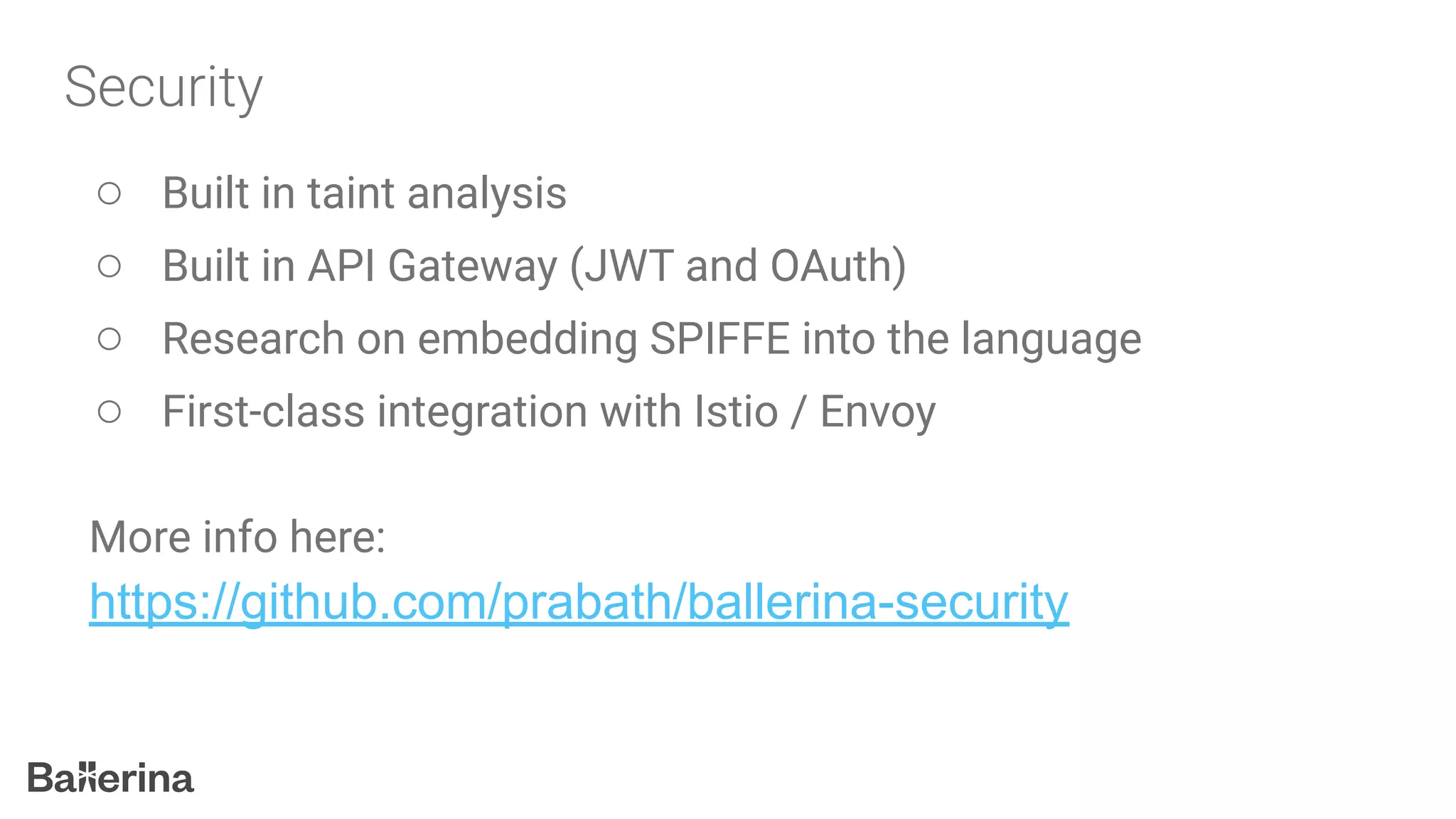

13. ○ Built in taint analysis
○ Built in API Gateway (JWT and OAuth)
○ Research on embedding SPIFFE into the language
○ First-class integration with Istio / Envoy
More info here:
https://github.com/prabath/ballerina-security

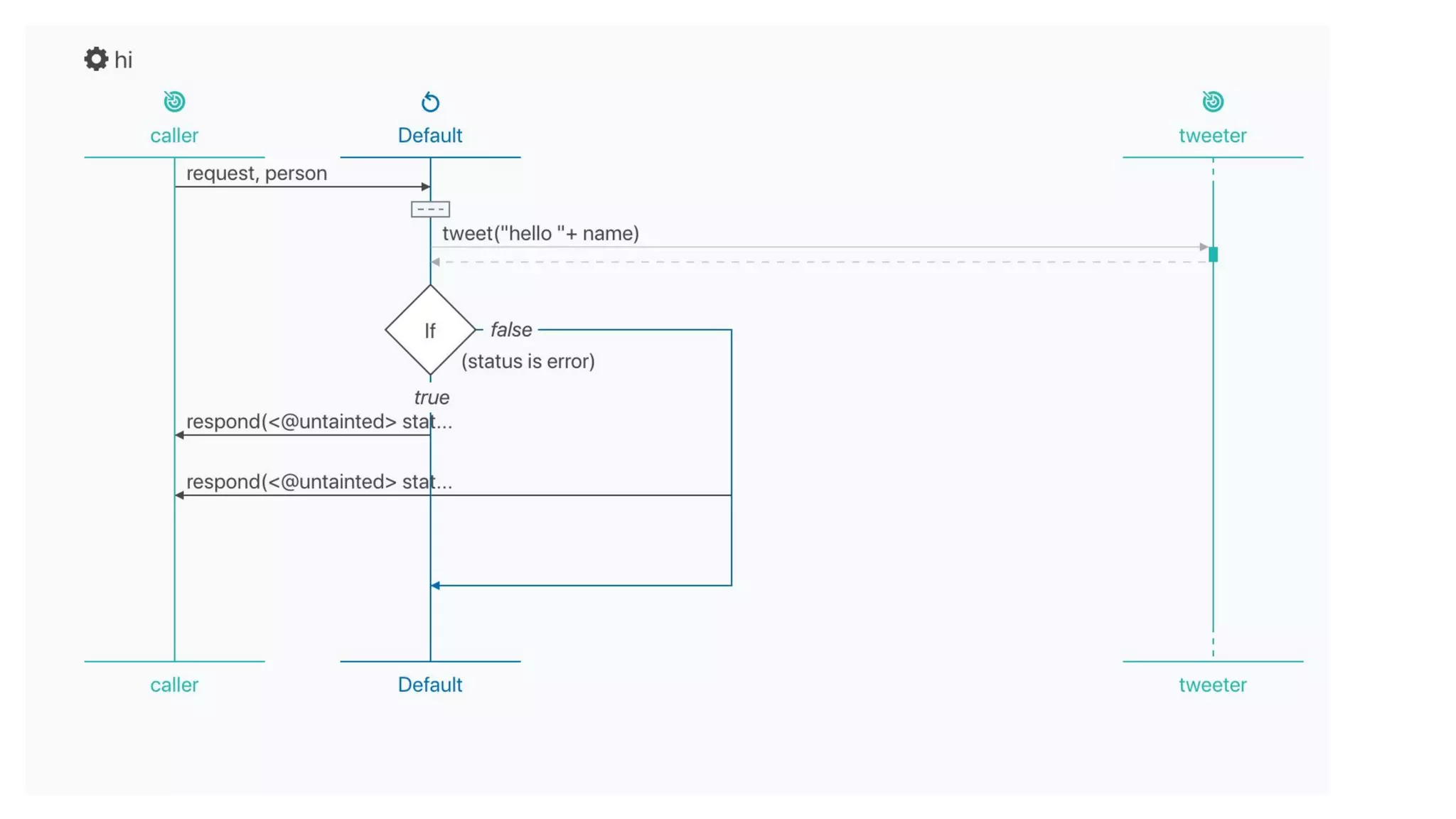

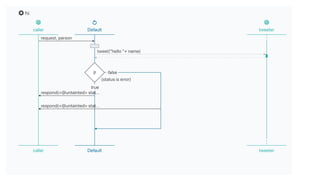

14. Based on sequence diagrams

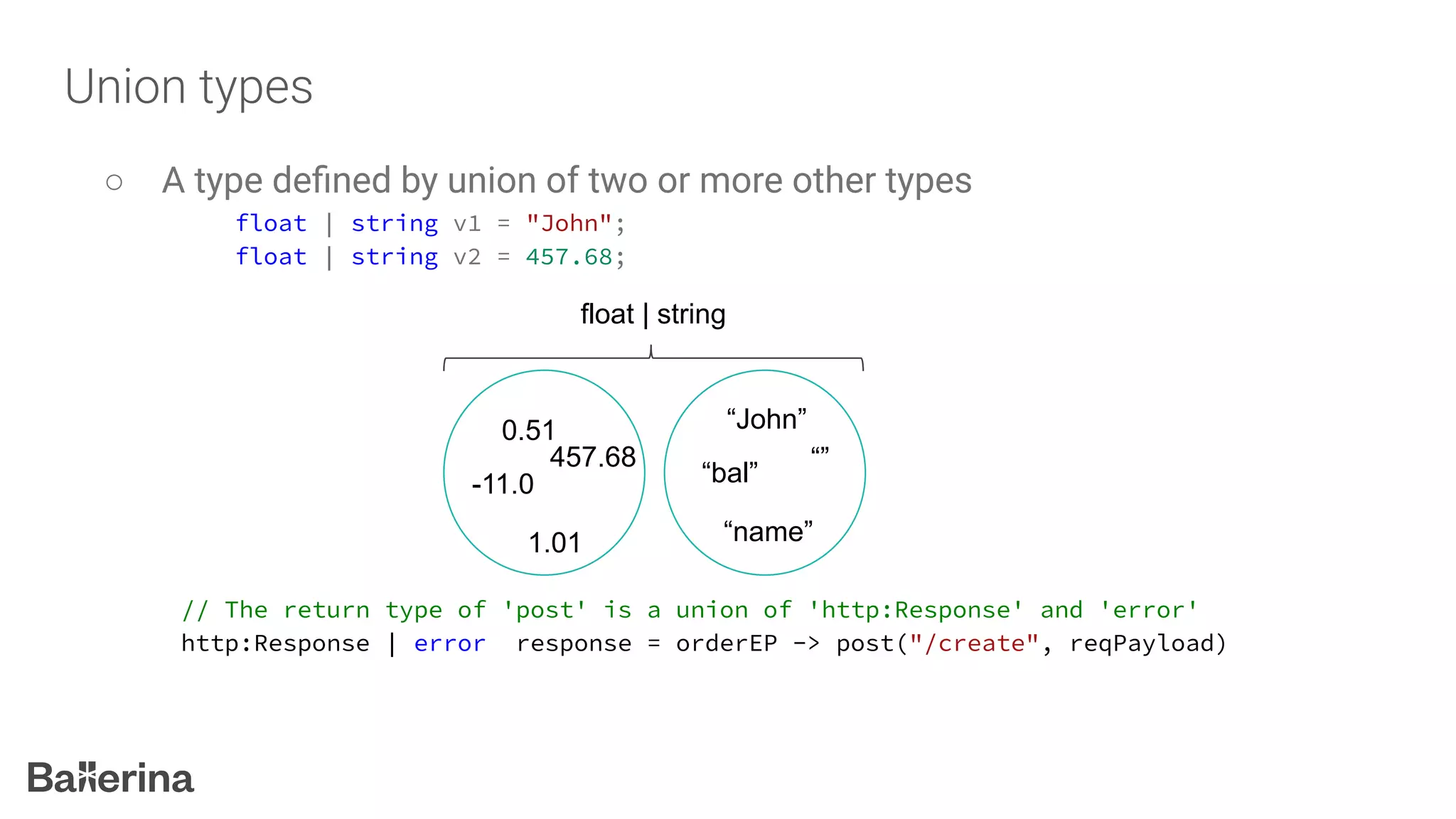

18. ○ A type defined by union of two or more other types
float | string v1 = "John";
float | string v2 = 457.68;
float | string
0.51
1.01
457.68
-11.0
“John”
“name”
“”
“bal”
// The return type of 'post' is a union of 'http:Response' and 'error'
http:Response | error response = orderEP -> post("/create", reqPayload)

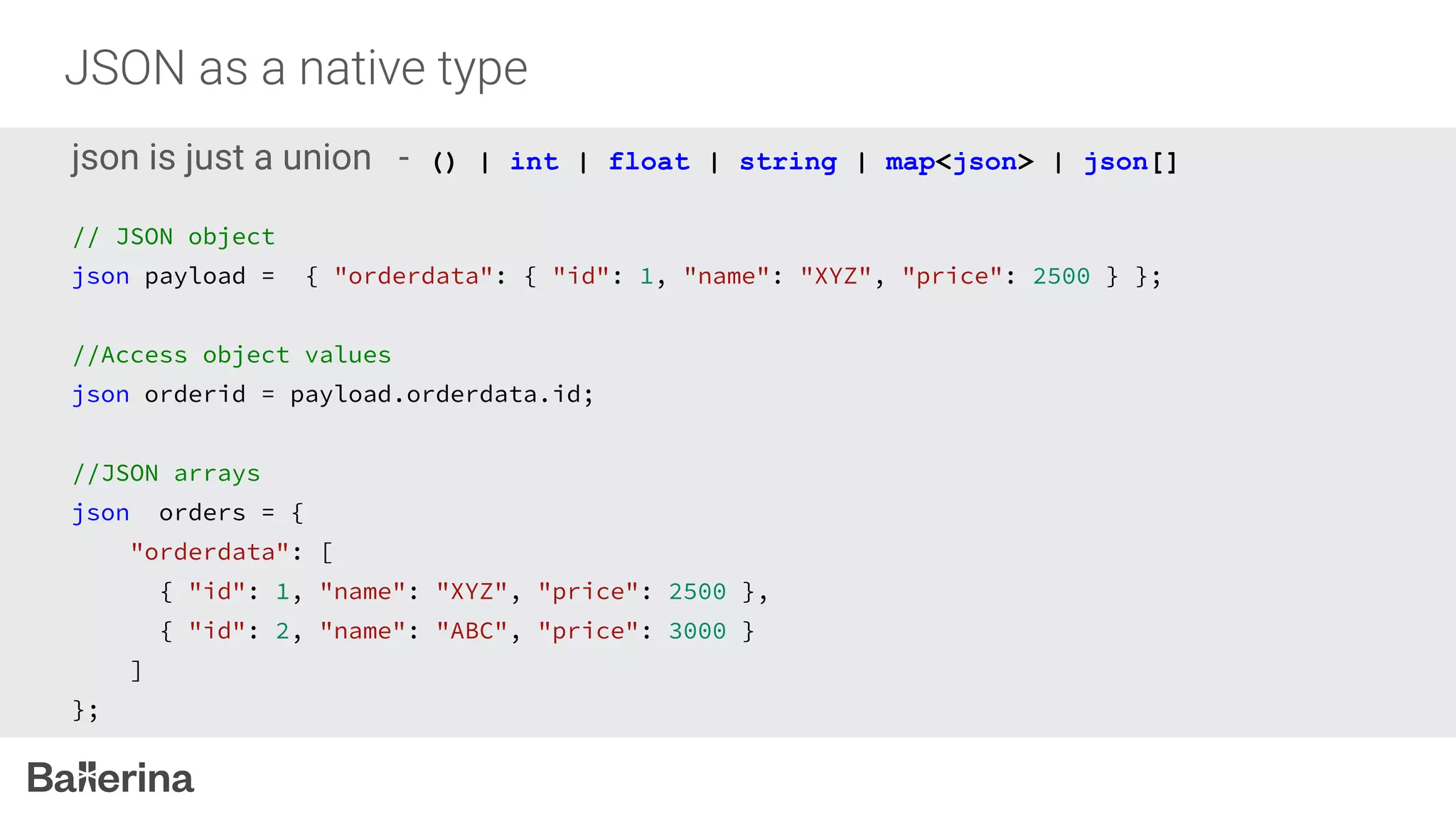

20. json is just a union - () | int | float | string | map<json> | json[]
// JSON object
json payload = { "orderdata": { "id": 1, "name": "XYZ", "price": 2500 } };
//Access object values
json orderid = payload.orderdata.id;
//JSON arrays
json orders = {
"orderdata": [
{ "id": 1, "name": "XYZ", "price": 2500 },
{ "id": 2, "name": "ABC", "price": 3000 }
]
};

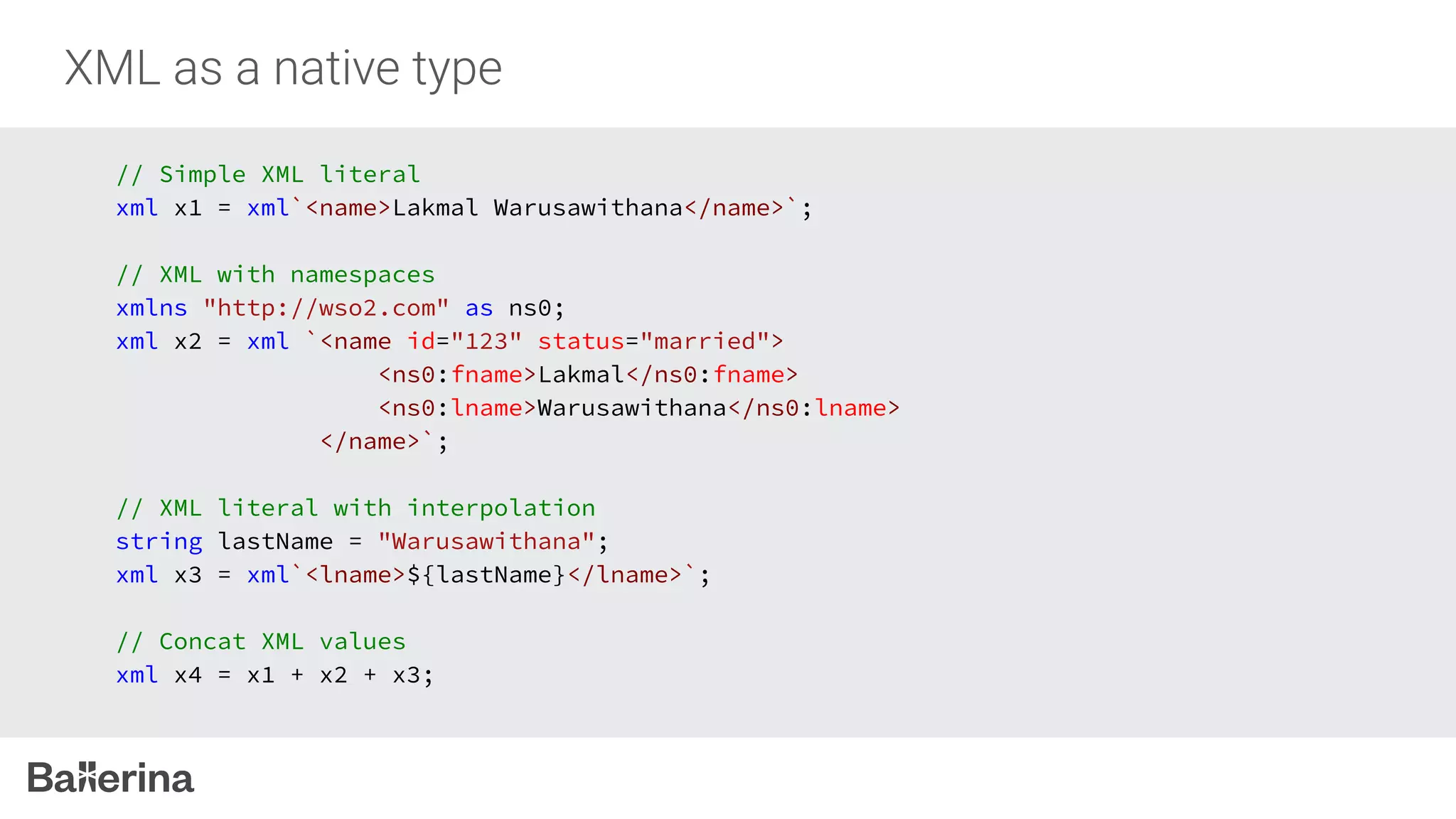

21. // Simple XML literal
xml x1 = xml`<name>Lakmal Warusawithana</name>`;
// XML with namespaces
xmlns "http://wso2.com" as ns0;
xml x2 = xml `<name id="123" status="married">
<ns0:fname>Lakmal</ns0:fname>
<ns0:lname>Warusawithana</ns0:lname>
</name>`;
// XML literal with interpolation
string lastName = "Warusawithana";
xml x3 = xml`<lname>${lastName}</lname>`;
// Concat XML values
xml x4 = x1 + x2 + x3;

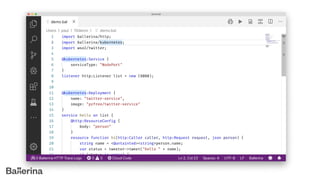

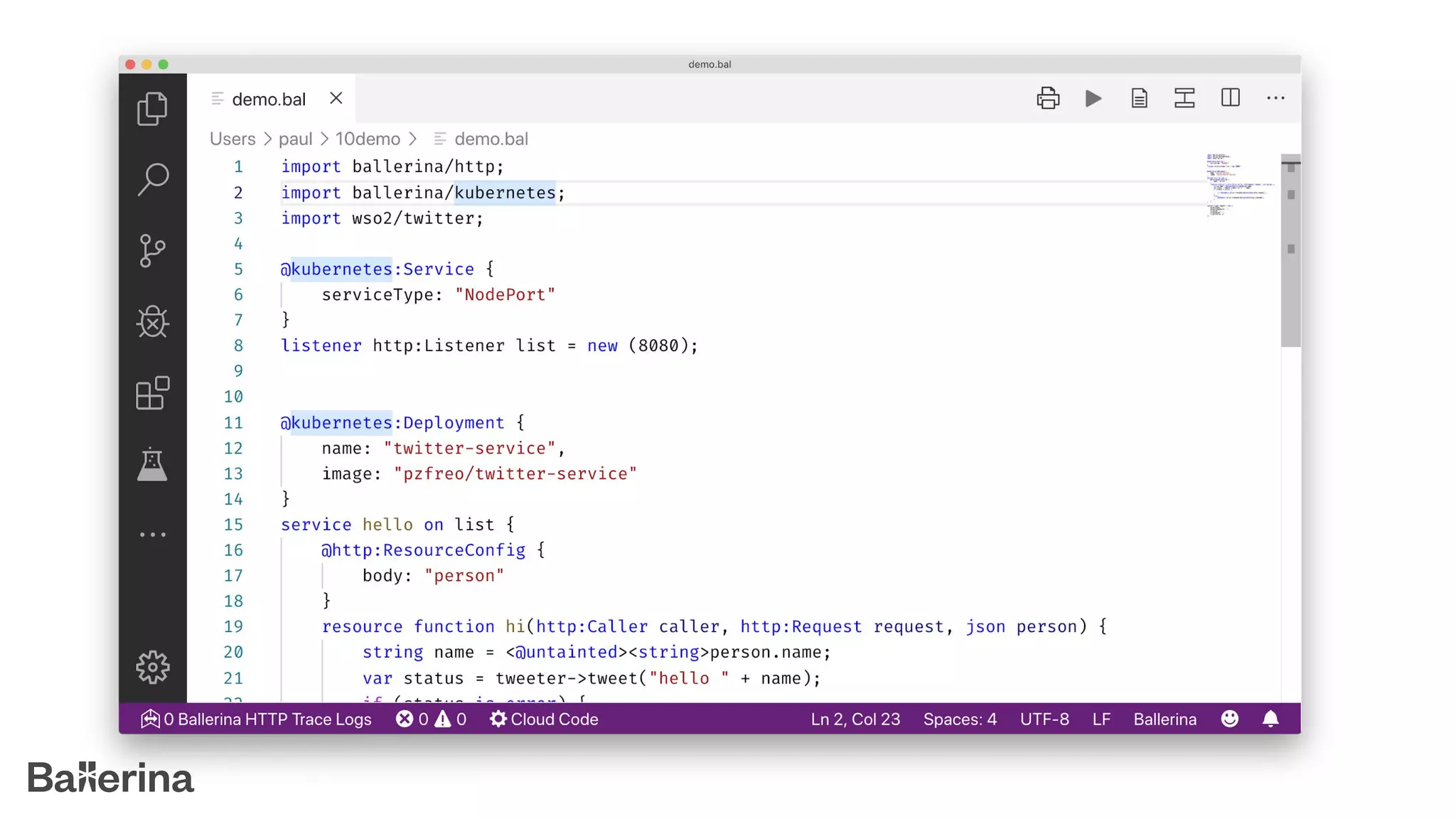

22. Cloud native

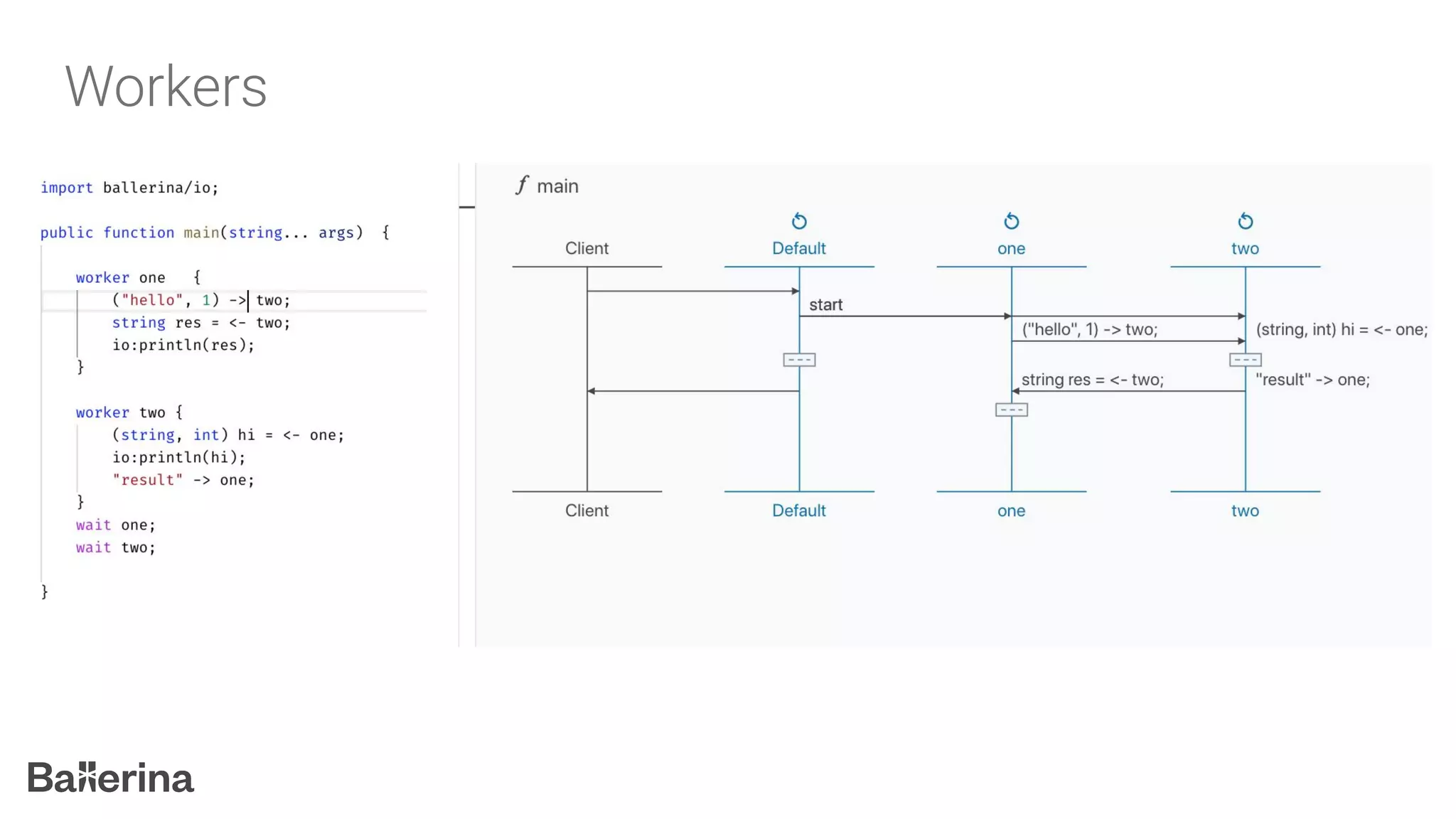

24. Concurrency

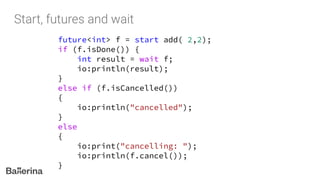

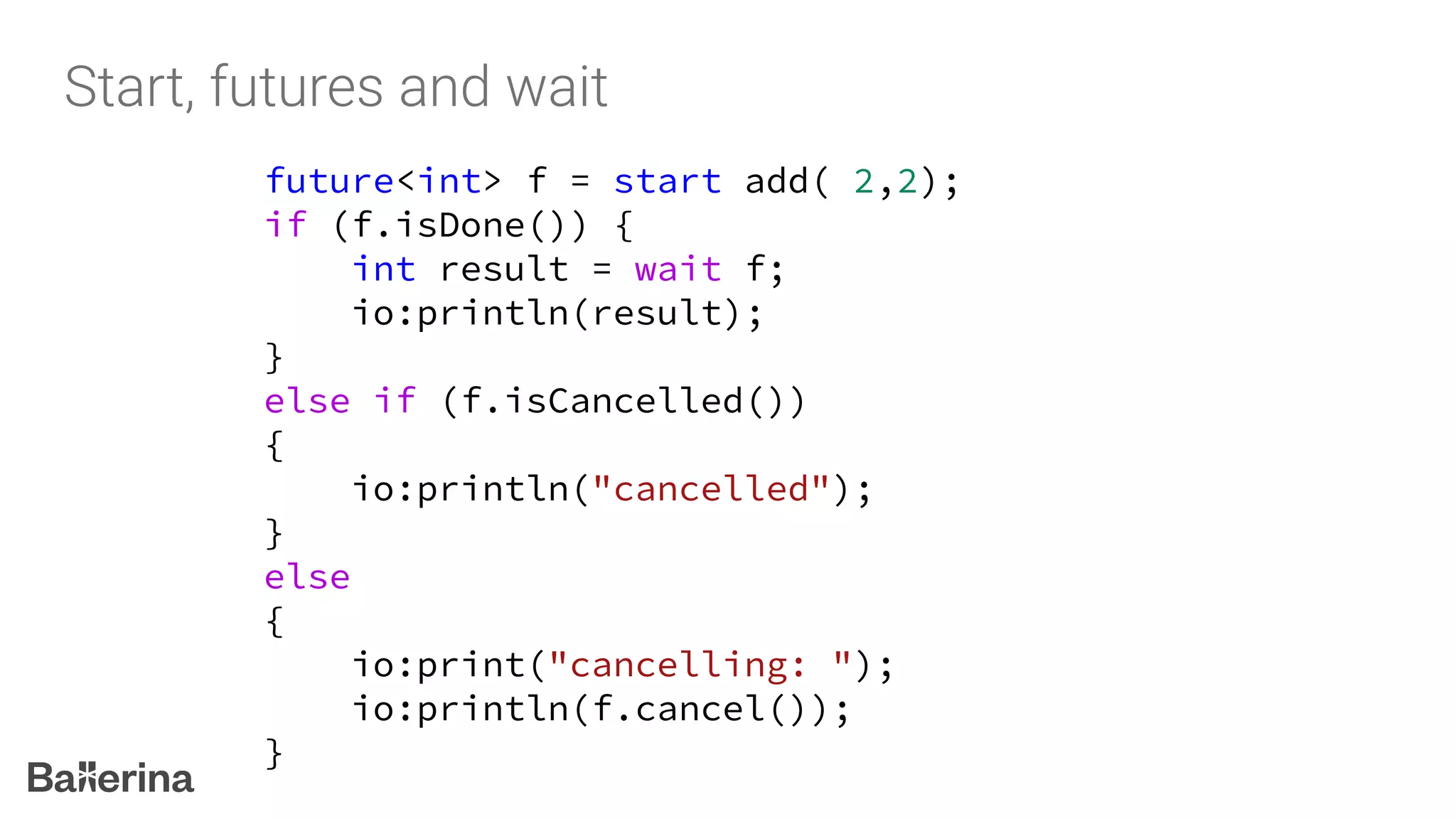

26. future<int> f = start add( 2,2);
if (f.isDone()) {
int result = wait f;
io:println(result);
}
else if (f.isCancelled())
{
io:println("cancelled");
}
else
{
io:print("cancelling: ");
io:println(f.cancel());
}

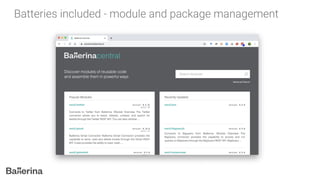

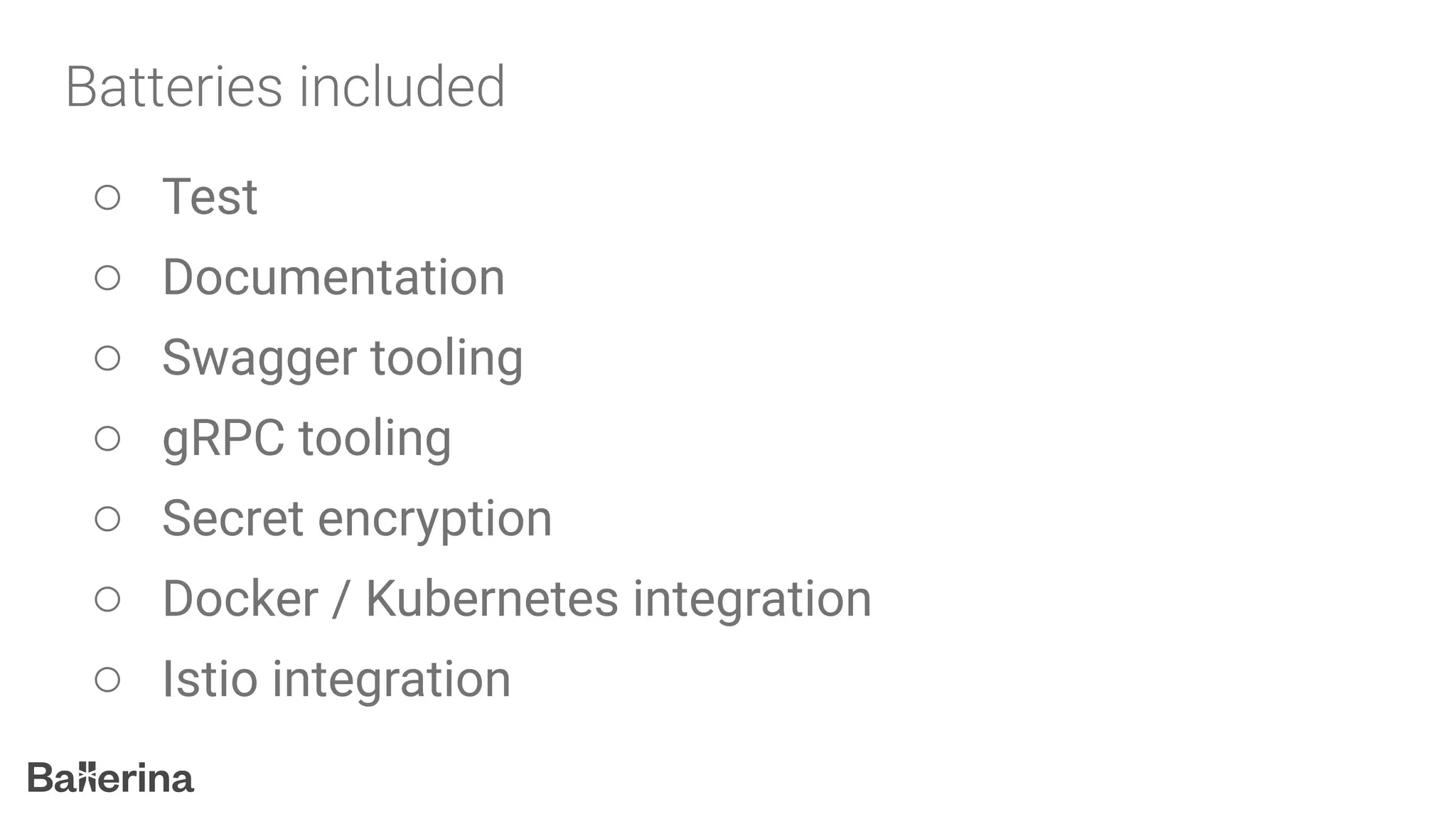

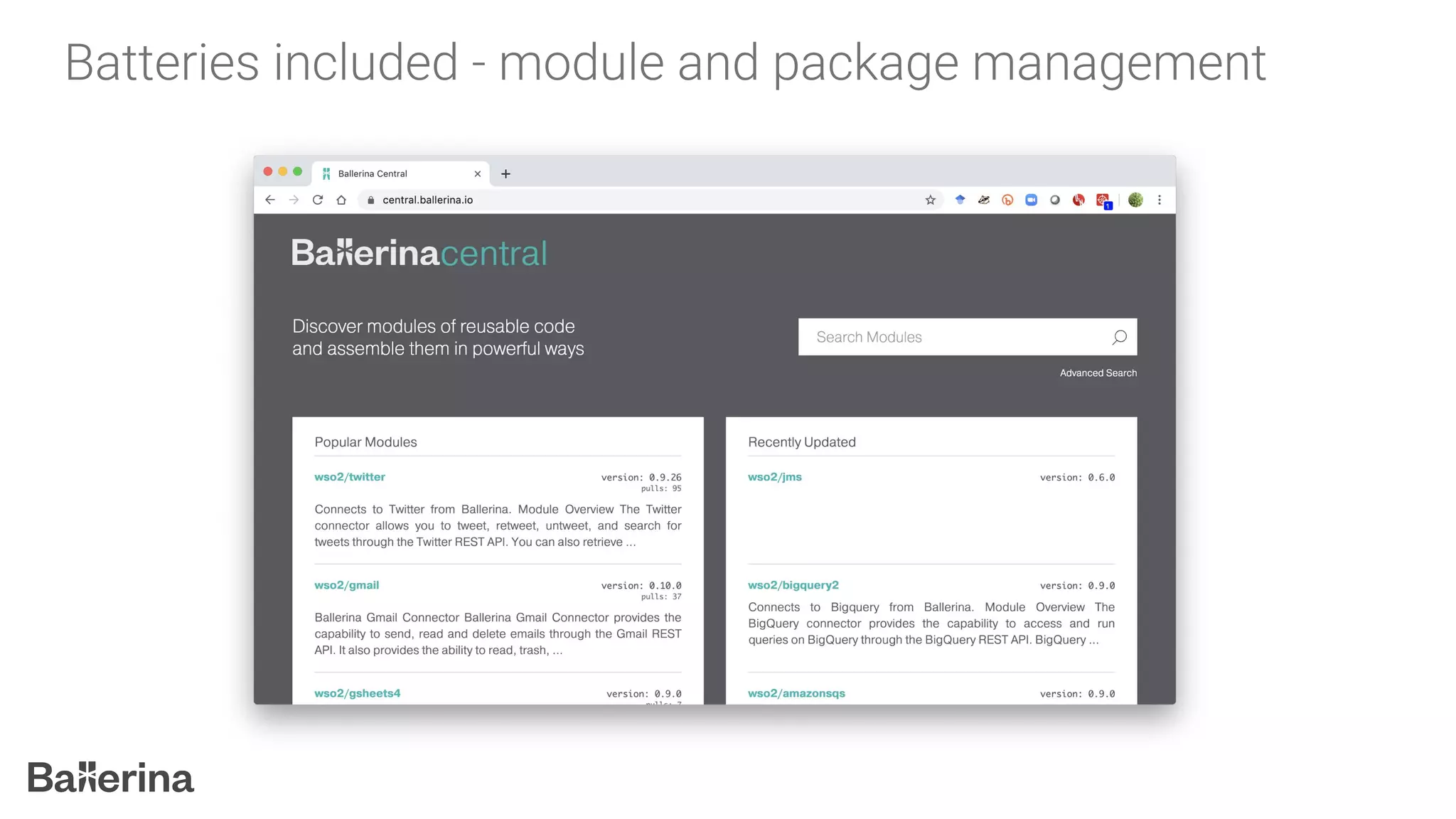

27. Batteries included

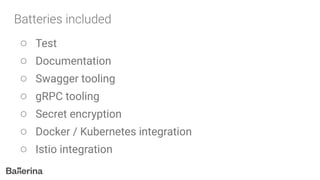

29. ○ Test
○ Documentation
○ Swagger tooling
○ gRPC tooling
○ Secret encryption
○ Docker / Kubernetes integration
○ Istio integration

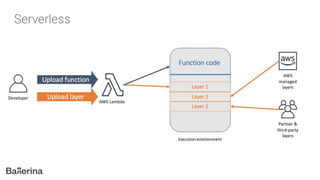

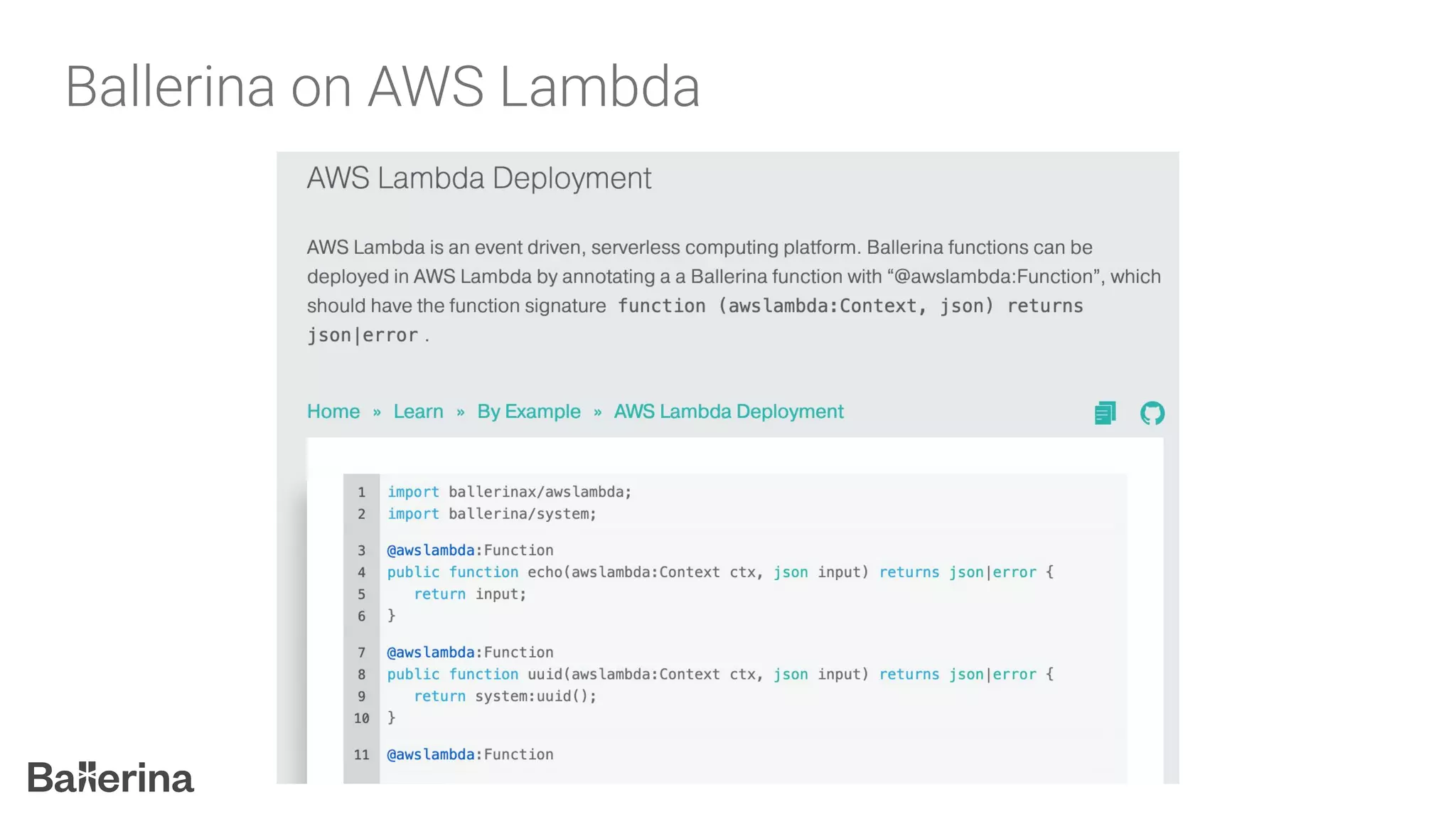

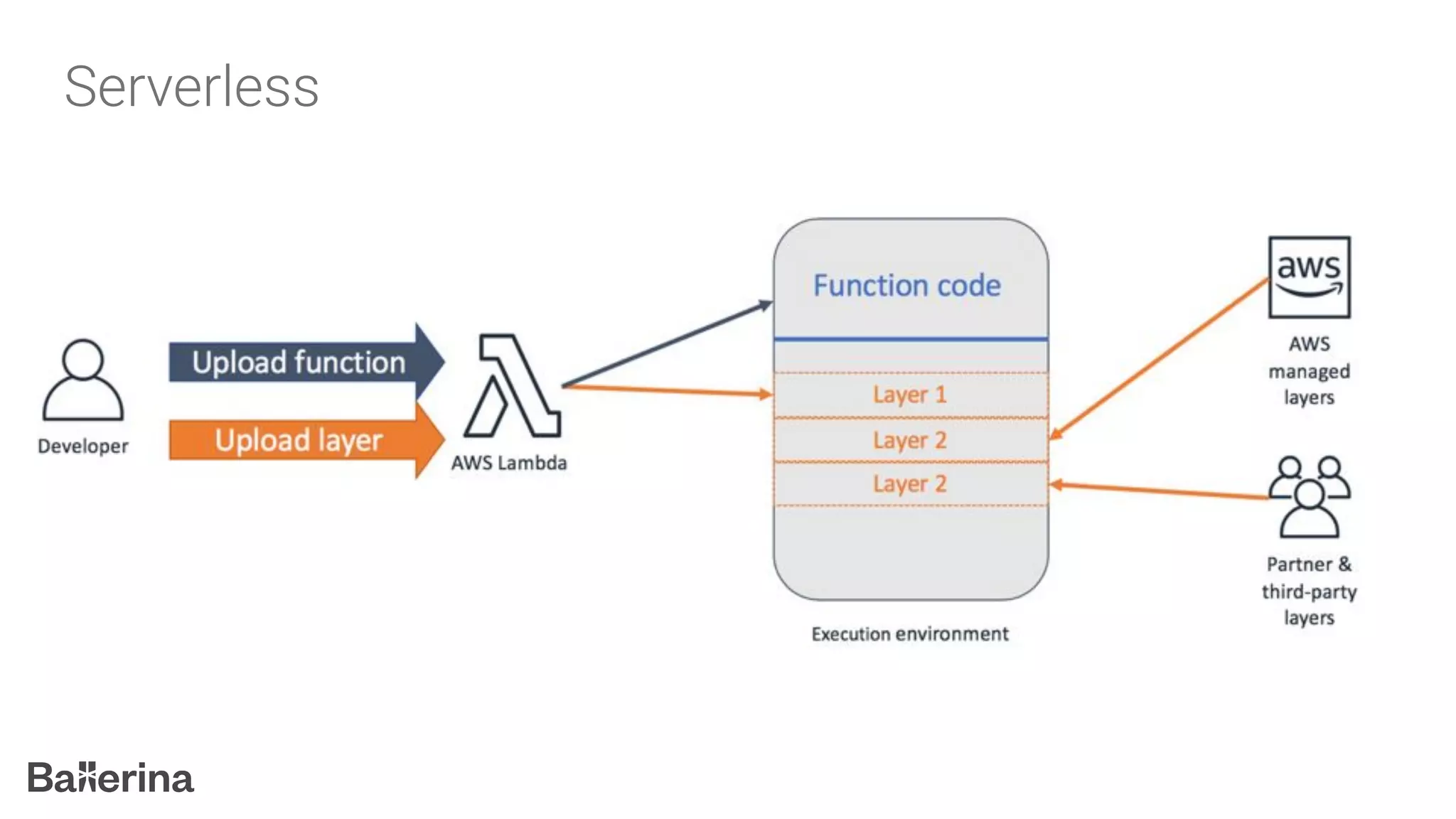

31. Serverless

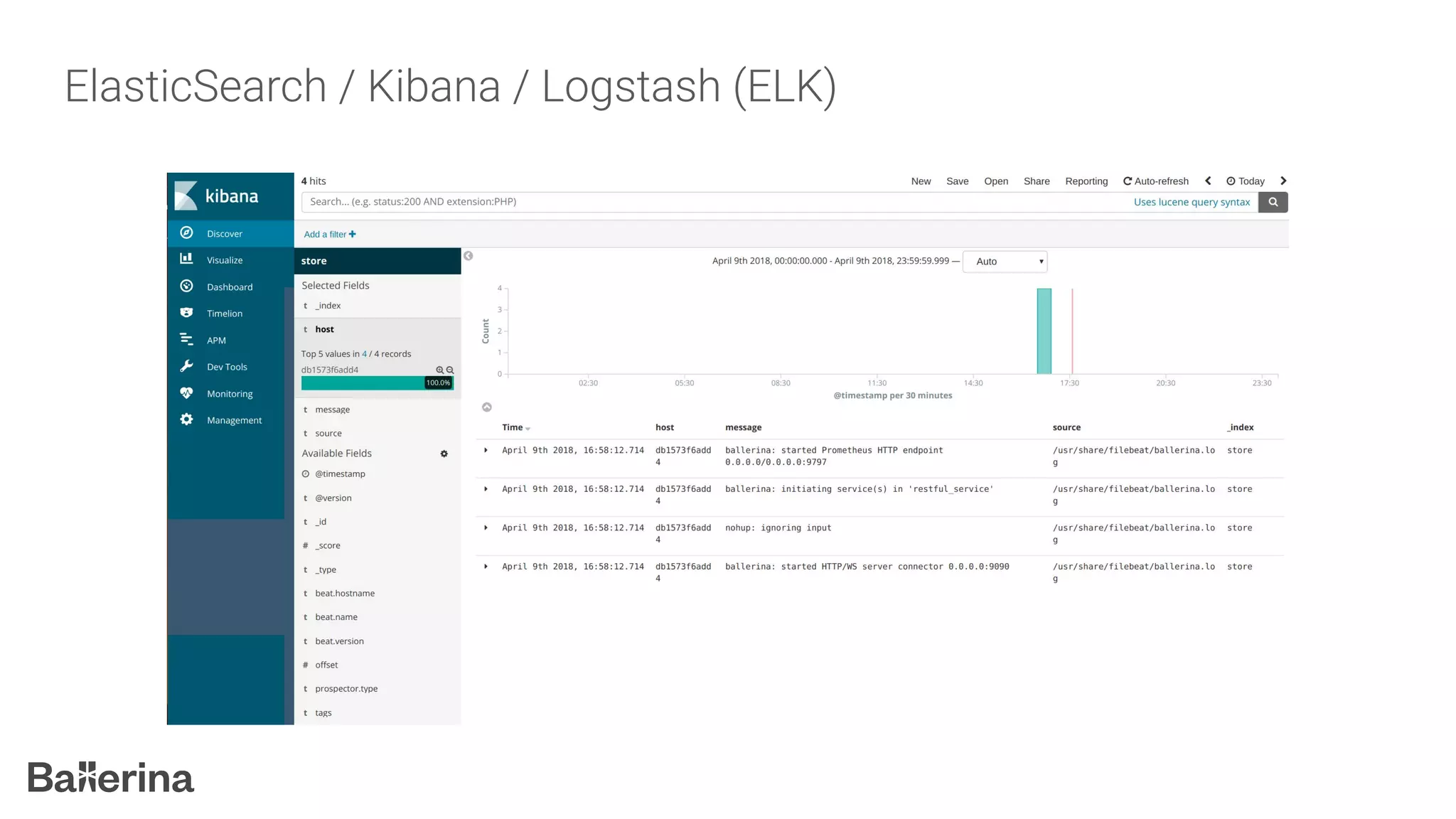

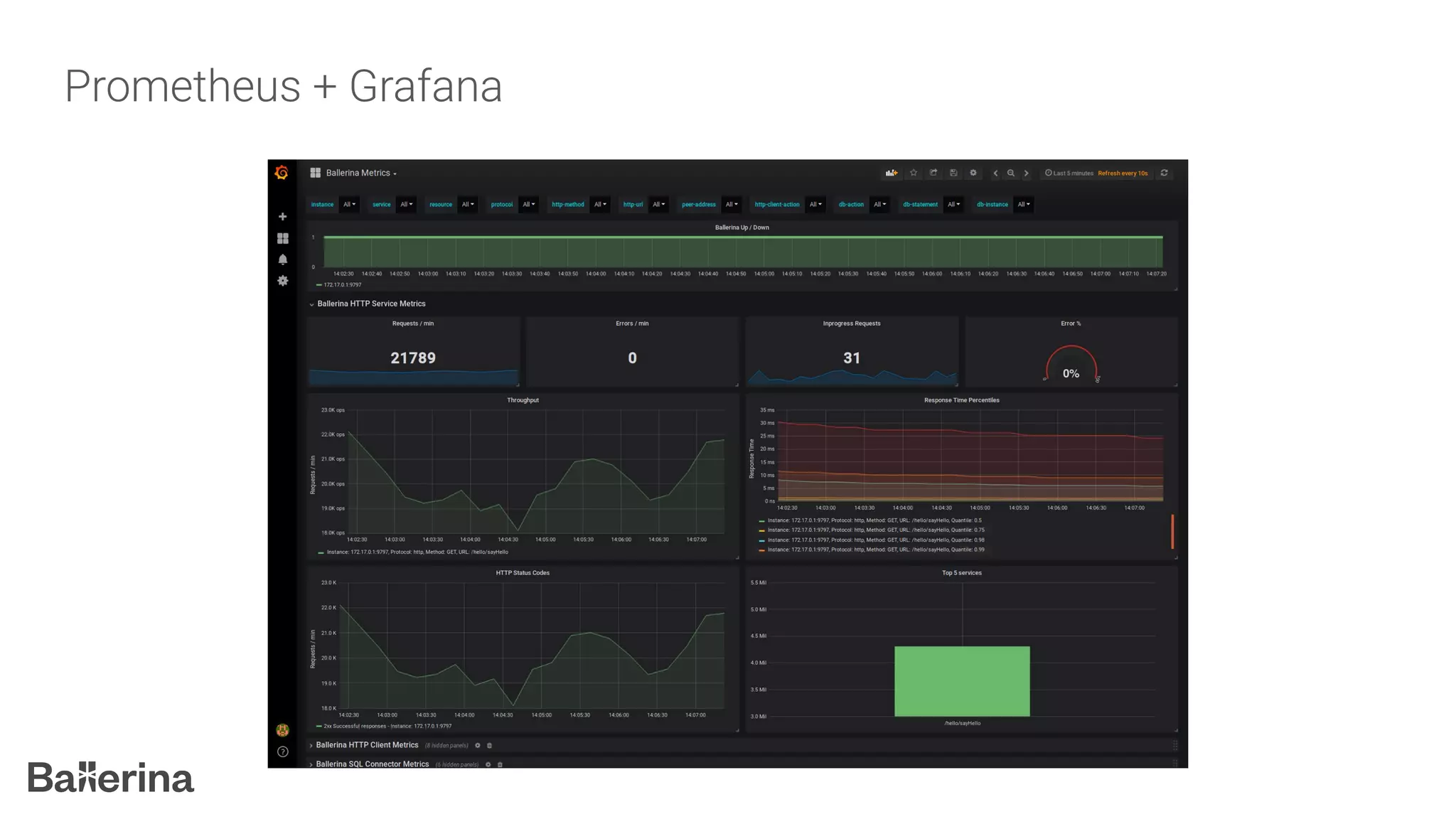

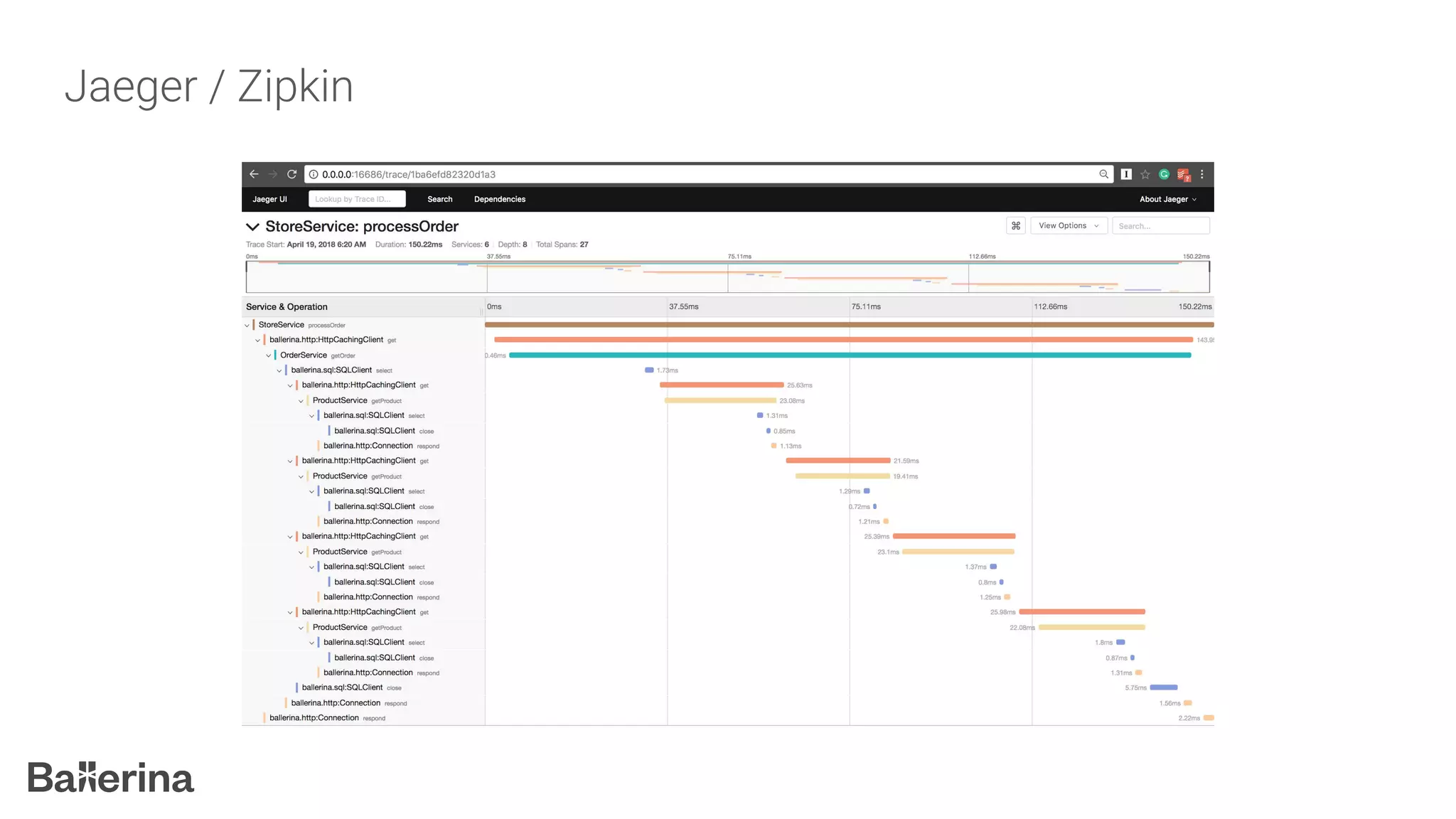

34. Observability

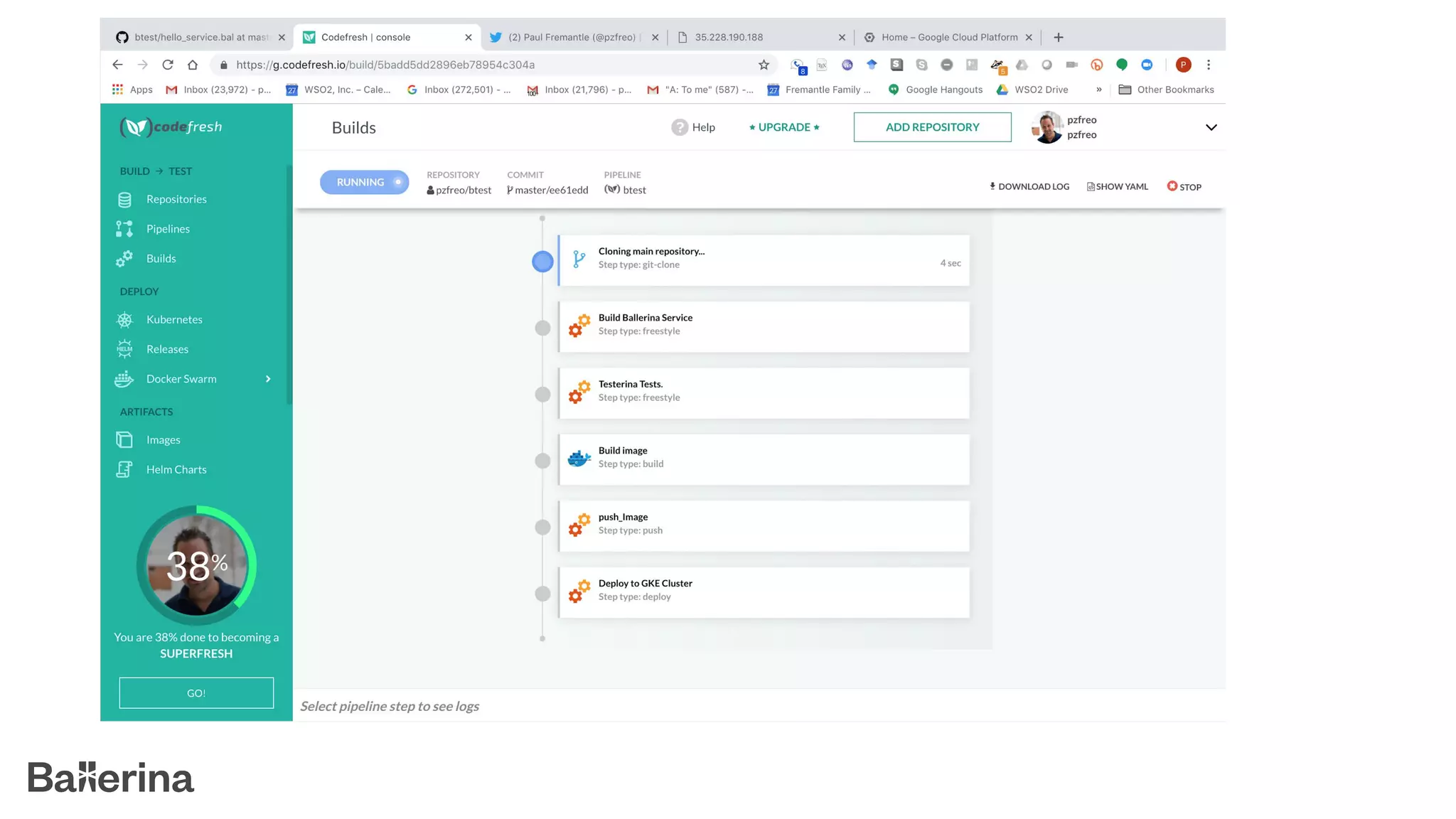

38. Continuous Integration

40. gRPC and ProtoBuf

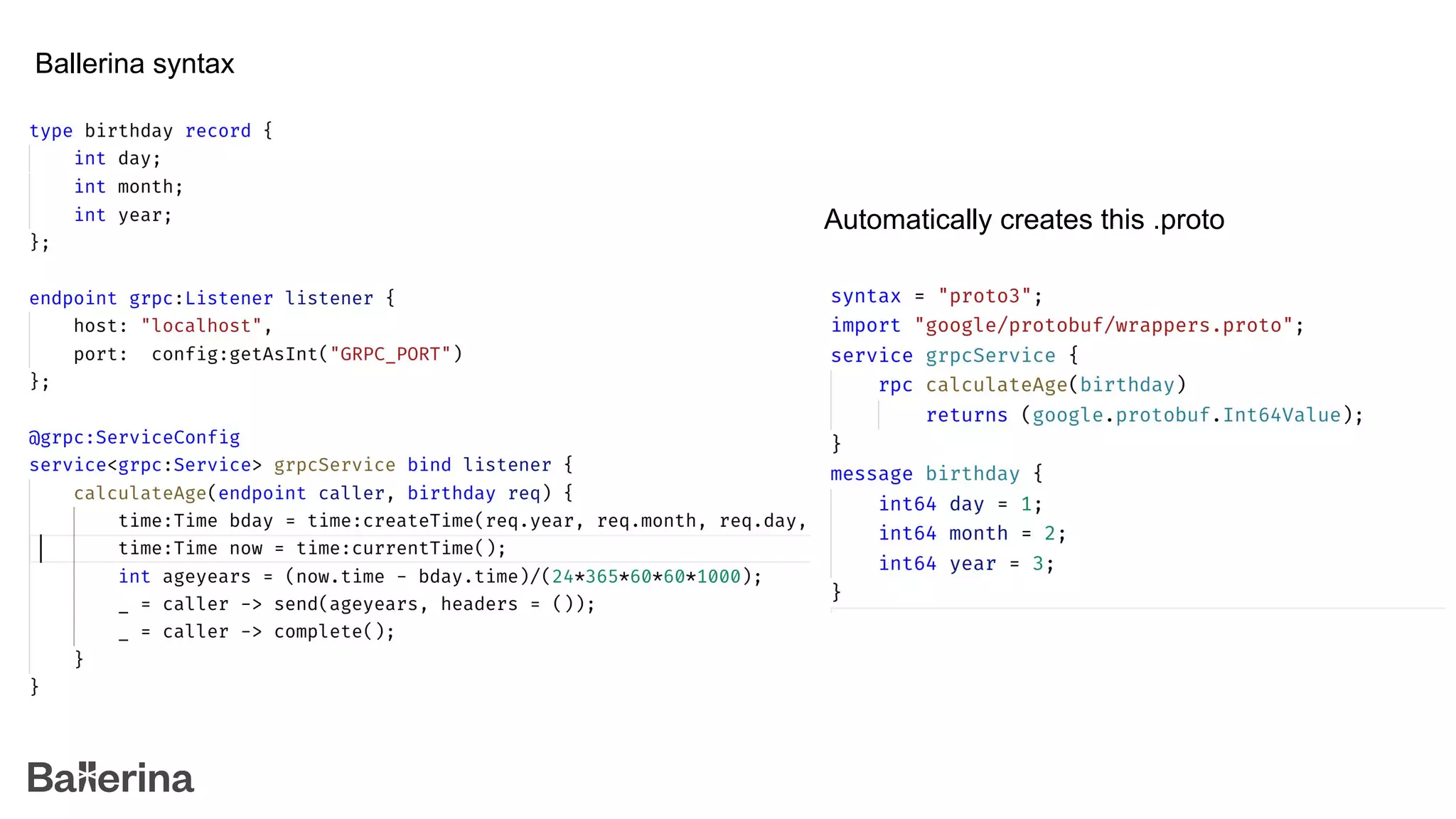

41. Ballerina syntax
Automatically creates this .proto

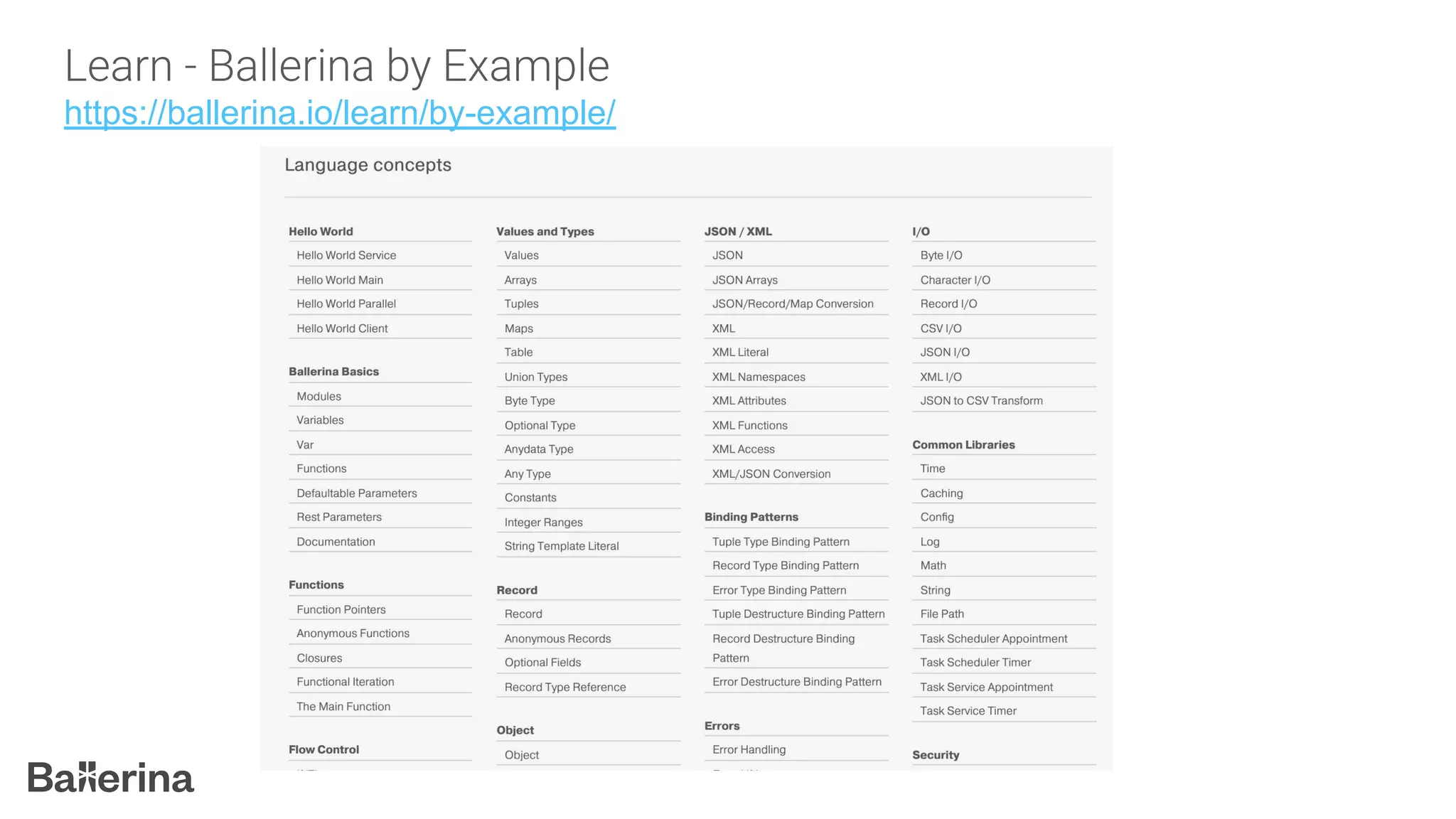

42. https://ballerina.io/learn/by-example/

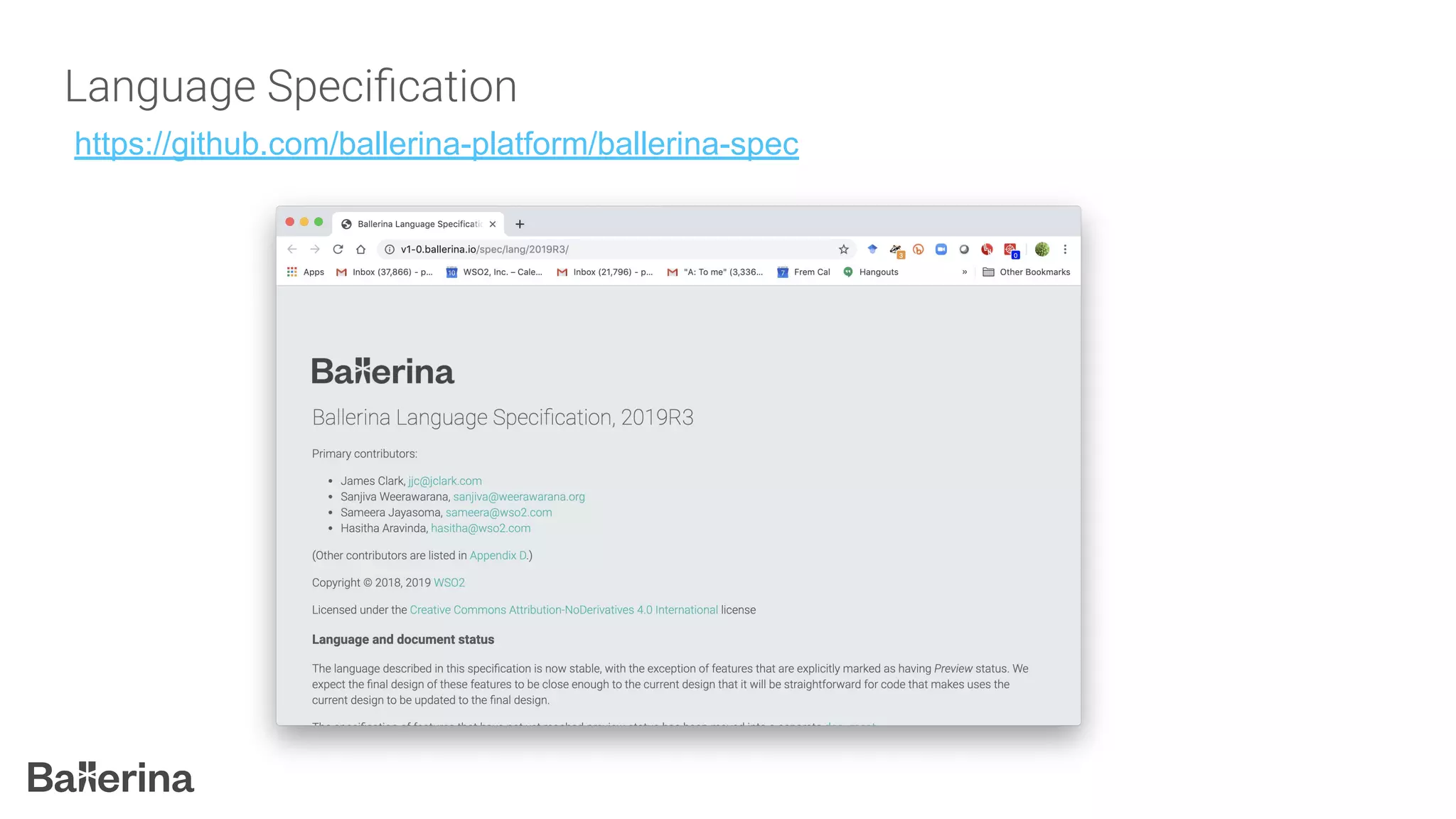

43. https://github.com/ballerina-platform/ballerina-spec

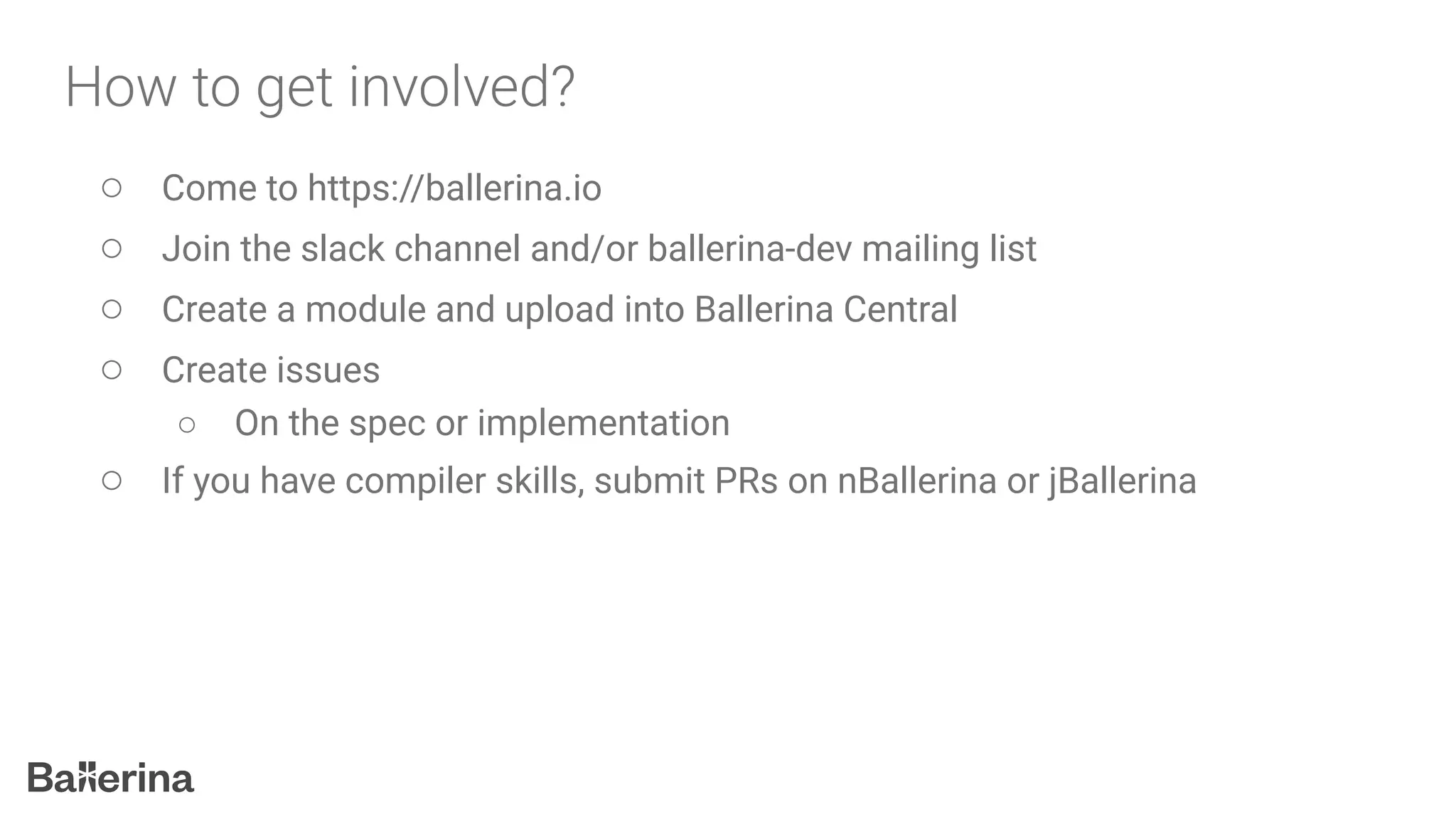

44. ○ Come to https://ballerina.io
○ Join the slack channel and/or ballerina-dev mailing list
○ Create a module and upload into Ballerina Central
○ Create issues
○ On the spec or implementation
○ If you have compiler skills, submit PRs on nBallerina or jBallerina

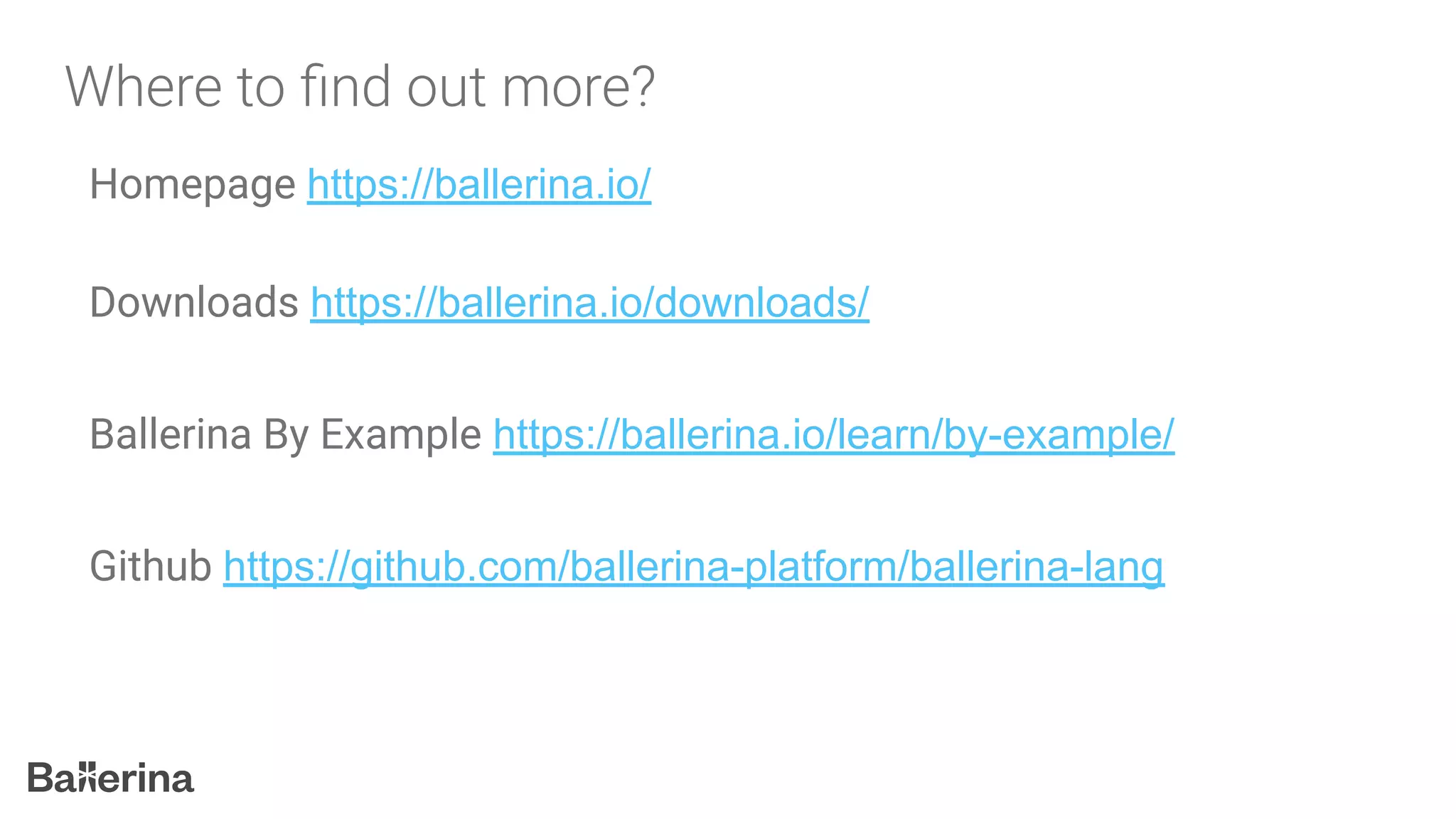

45. Homepage https://ballerina.io/
Downloads https://ballerina.io/downloads/
Ballerina By Example https://ballerina.io/learn/by-example/
Github https://github.com/ballerina-platform/ballerina-lang
