Deepak H B provides contact information and an overview of networking in Ruby. Ruby uses sockets for networking rather than core classes. Sockets allow reading and writing data to other computers like files. Simple client and server examples are provided using TCPSocket and TCPServer classes. Datagrams can also be used with UDPSocket for lower overhead communication. Multiplexing servers are discussed that allow serving multiple clients simultaneously using Kernel.select. Finally, prebuilt libraries are mentioned for implementing protocols like HTTP, FTP, SMTP, POP and IMAP.

1. Deepak H B
Full-Stack Developer
Gmail: deepakhb2@gmail.com
Linkedin: http://in.linkedin.com/in/deepakhb
GitHub: https://github.com/deepakhb2

2. Networking

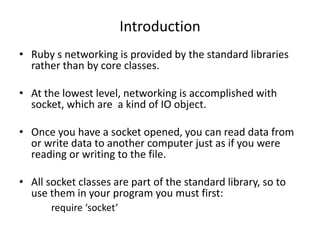

3. Introduction
• Ruby s networking is provided by the standard libraries
rather than by core classes.
• At the lowest level, networking is accomplished with
socket, which are a kind of IO object.
• Once you have a socket opened, you can read data from
or write data to another computer just as if you were
reading or writing to the file.
• All socket classes are part of the standard library, so to
use them in your program you must first:
require ‘socket’

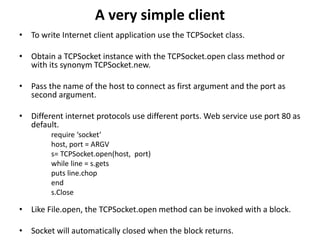

4. A very simple client
• To write Internet client application use the TCPSocket class.
• Obtain a TCPSocket instance with the TCPSocket.open class method or
with its synonym TCPSocket.new.
• Pass the name of the host to connect as first argument and the port as
second argument.
• Different internet protocols use different ports. Web service use port 80 as
default.
require ‘socket’
host, port = ARGV
s= TCPSocket.open(host, port)
while line = s.gets
puts line.chop
end
s.Close
• Like File.open, the TCPSocket.open method can be invoked with a block.
• Socket will automatically closed when the block returns.

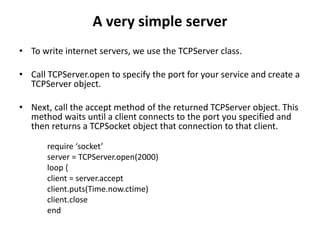

5. A very simple server
• To write internet servers, we use the TCPServer class.
• Call TCPServer.open to specify the port for your service and create a
TCPServer object.
• Next, call the accept method of the returned TCPServer object. This
method waits until a client connects to the port you specified and
then returns a TCPSocket object that connection to that client.
require ‘socket’
server = TCPServer.open(2000)
loop {
client = server.accept
client.puts(Time.now.ctime)
client.close
end

6. Datagrams
• Most internet protocols are implemented using
TCPSocket and TCPServer as shown earlier.
• A lower overhead alternative is to use UDP datagrams
with the UDPSocket class.
• UDP allows computers to send individual packets of
data to other computer without the overhead of
establishing a persistent connection.
• The client sends a datagram containing a string of text
to a specified host and port.

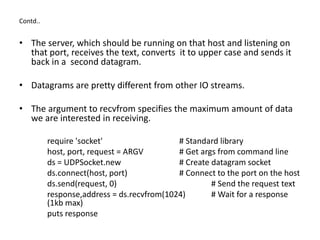

7. Contd..
• The server, which should be running on that host and listening on
that port, receives the text, converts it to upper case and sends it
back in a second datagram.
• Datagrams are pretty different from other IO streams.
• The argument to recvfrom specifies the maximum amount of data
we are interested in receiving.
require 'socket' # Standard library
host, port, request = ARGV # Get args from command line
ds = UDPSocket.new # Create datagram socket
ds.connect(host, port) # Connect to the port on the host
ds.send(request, 0) # Send the request text
response,address = ds.recvfrom(1024) # Wait for a response
(1kb max)
puts response

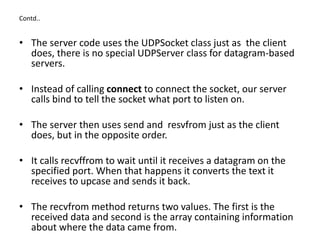

8. Contd..
• The server code uses the UDPSocket class just as the client
does, there is no special UDPServer class for datagram-based
servers.
• Instead of calling connect to connect the socket, our server
calls bind to tell the socket what port to listen on.
• The server then uses send and resvfrom just as the client
does, but in the opposite order.
• It calls recvffrom to wait until it receives a datagram on the
specified port. When that happens it converts the text it
receives to upcase and sends it back.
• The recvfrom method returns two values. The first is the
received data and second is the array containing information
about where the data came from.

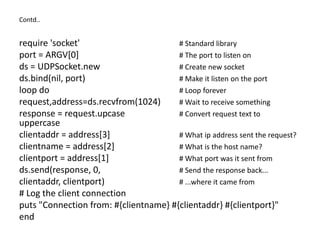

9. Contd..
require 'socket' # Standard library
port = ARGV[0] # The port to listen on
ds = UDPSocket.new # Create new socket
ds.bind(nil, port) # Make it listen on the port
loop do # Loop forever
request,address=ds.recvfrom(1024) # Wait to receive something
response = request.upcase # Convert request text to
uppercase
clientaddr = address[3] # What ip address sent the request?
clientname = address[2] # What is the host name?
clientport = address[1] # What port was it sent from
ds.send(response, 0, # Send the response back...
clientaddr, clientport) # ...where it came from
# Log the client connection
puts "Connection from: #{clientname} #{clientaddr} #{clientport}"
end

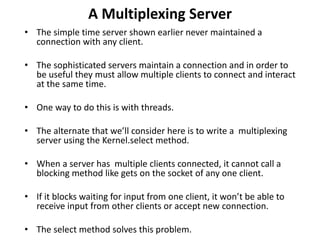

10. A Multiplexing Server
• The simple time server shown earlier never maintained a
connection with any client.
• The sophisticated servers maintain a connection and in order to
be useful they must allow multiple clients to connect and interact
at the same time.
• One way to do this is with threads.
• The alternate that we’ll consider here is to write a multiplexing
server using the Kernel.select method.
• When a server has multiple clients connected, it cannot call a
blocking method like gets on the socket of any one client.
• If it blocks waiting for input from one client, it won’t be able to
receive input from other clients or accept new connection.
• The select method solves this problem.

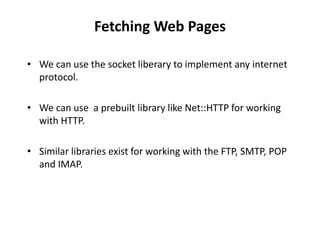

11. Fetching Web Pages
• We can use the socket liberary to implement any internet
protocol.
• We can use a prebuilt library like Net::HTTP for working
with HTTP.
• Similar libraries exist for working with the FTP, SMTP, POP
and IMAP.
