1. Worst Practices in Data Warehouse
Design
Kent Graziano
Data Warrior LLC
Twitter @KentGraziano

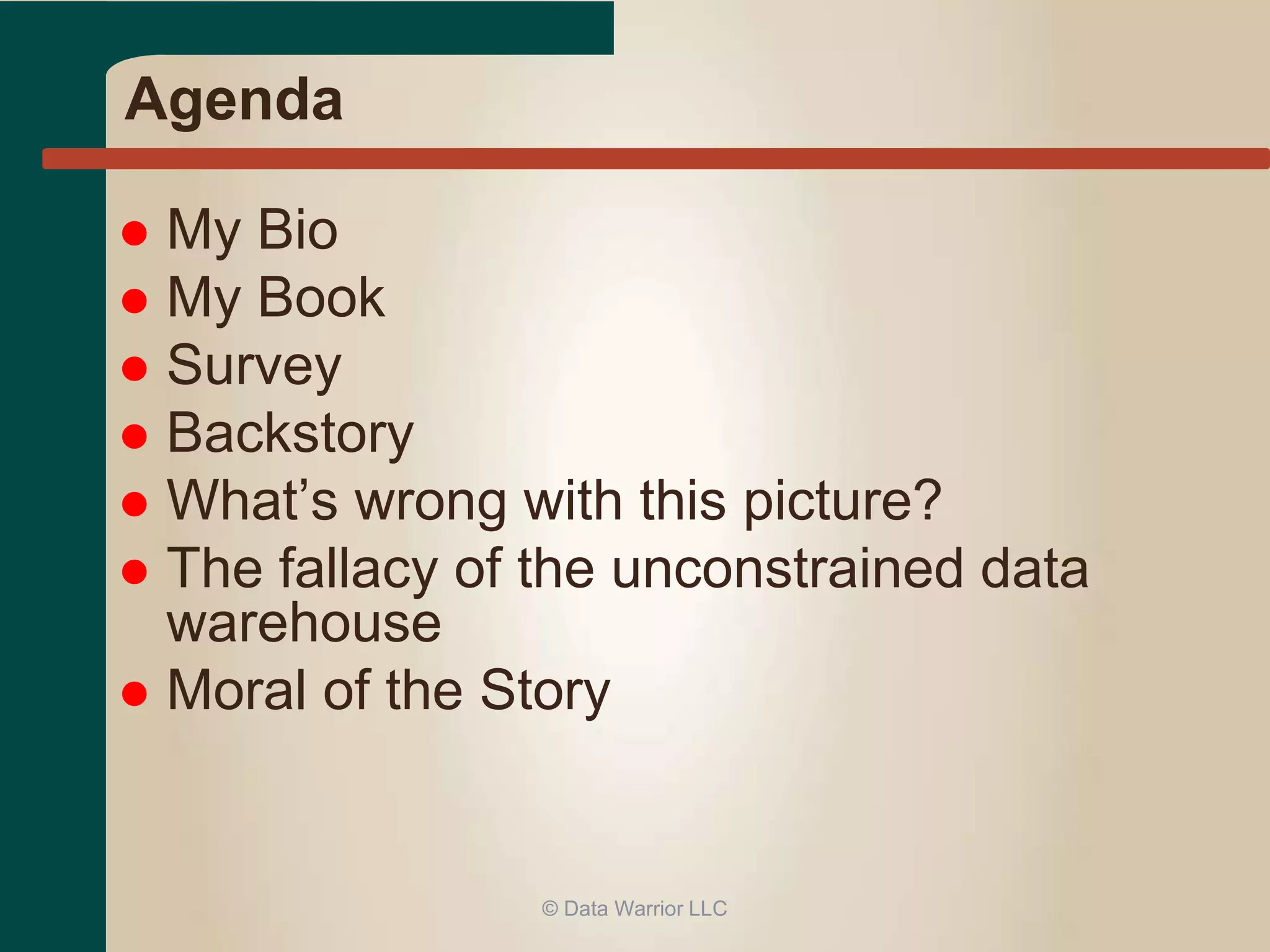

2. Agenda
 My Bio
 My Book
 Survey
 Backstory
 What’s wrong with this picture?
 The fallacy of the unconstrained data
warehouse
 Moral of the Story
© Data Warrior LLC

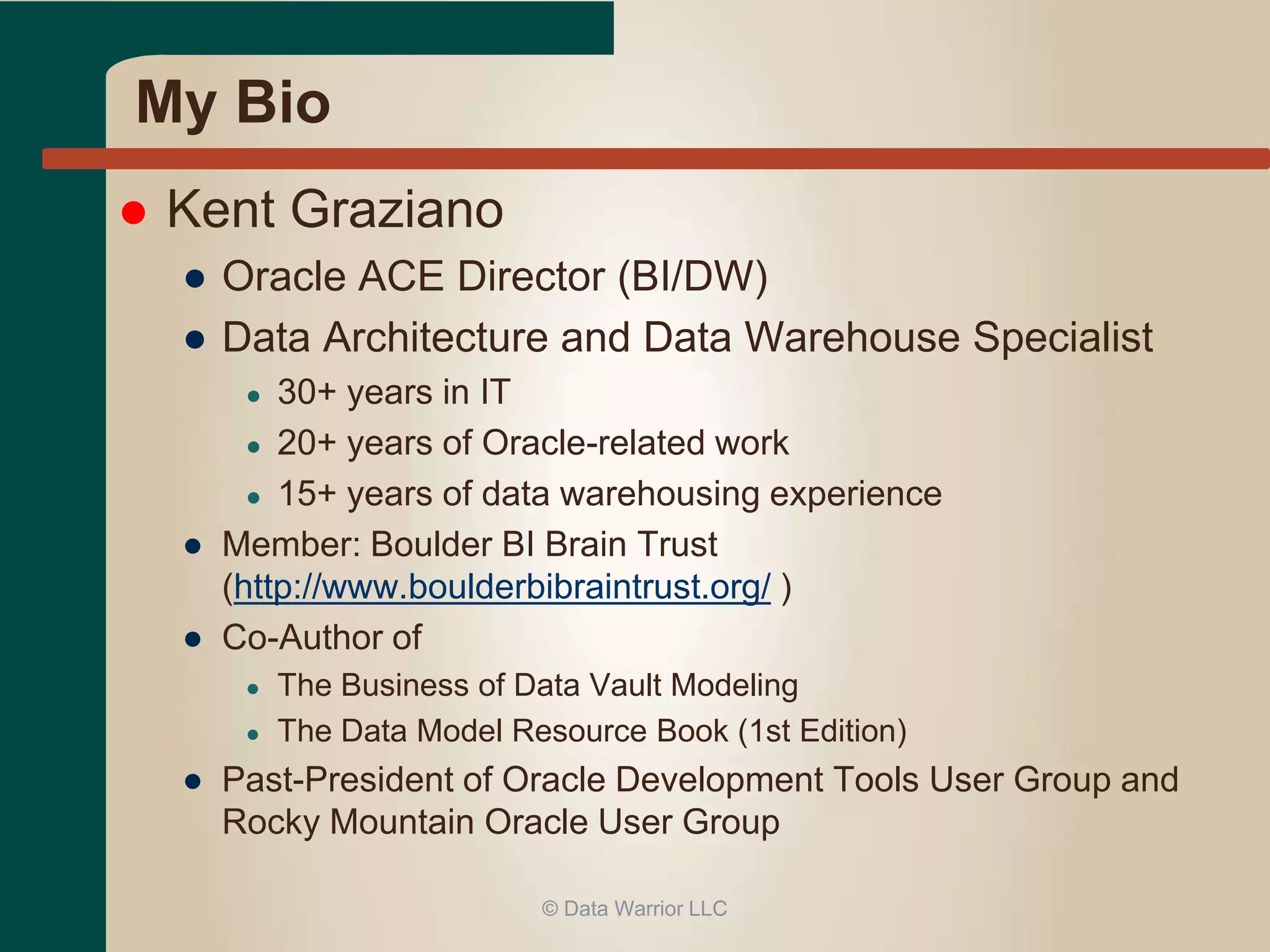

3. My Bio
 Kent Graziano
● Oracle ACE Director (BI/DW)
● Data Architecture and Data Warehouse Specialist
● 30+ years in IT
● 20+ years of Oracle-related work
● 15+ years of data warehousing experience
● Member: Boulder BI Brain Trust
(http://www.boulderbibraintrust.org/ )
● Co-Author of
● The Business of Data Vault Modeling
● The Data Model Resource Book (1st Edition)
● Past-President of Oracle Development Tools User Group and
Rocky Mountain Oracle User Group
© Data Warrior LLC

4. Most recent book:
http://www.amazon.com/Check-Doing-Design-Reviews-ebook/dp/B008RG9L5E/

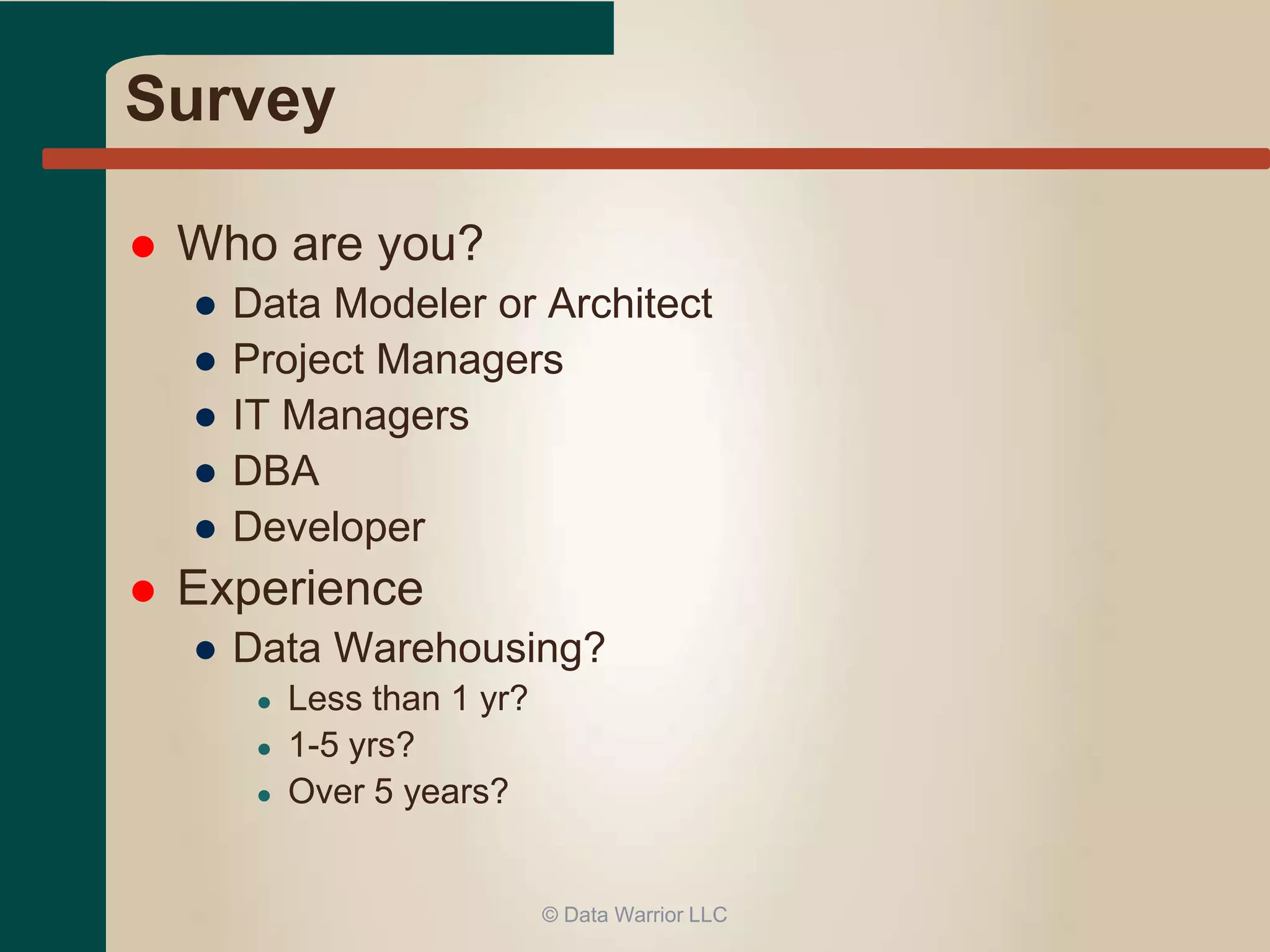

5. Survey
 Who are you?
● Data Modeler or Architect
● Project Managers
● IT Managers
● DBA
● Developer
 Experience
● Data Warehousing?
● Less than 1 yr?
● 1-5 yrs?
● Over 5 years?
© Data Warrior LLC

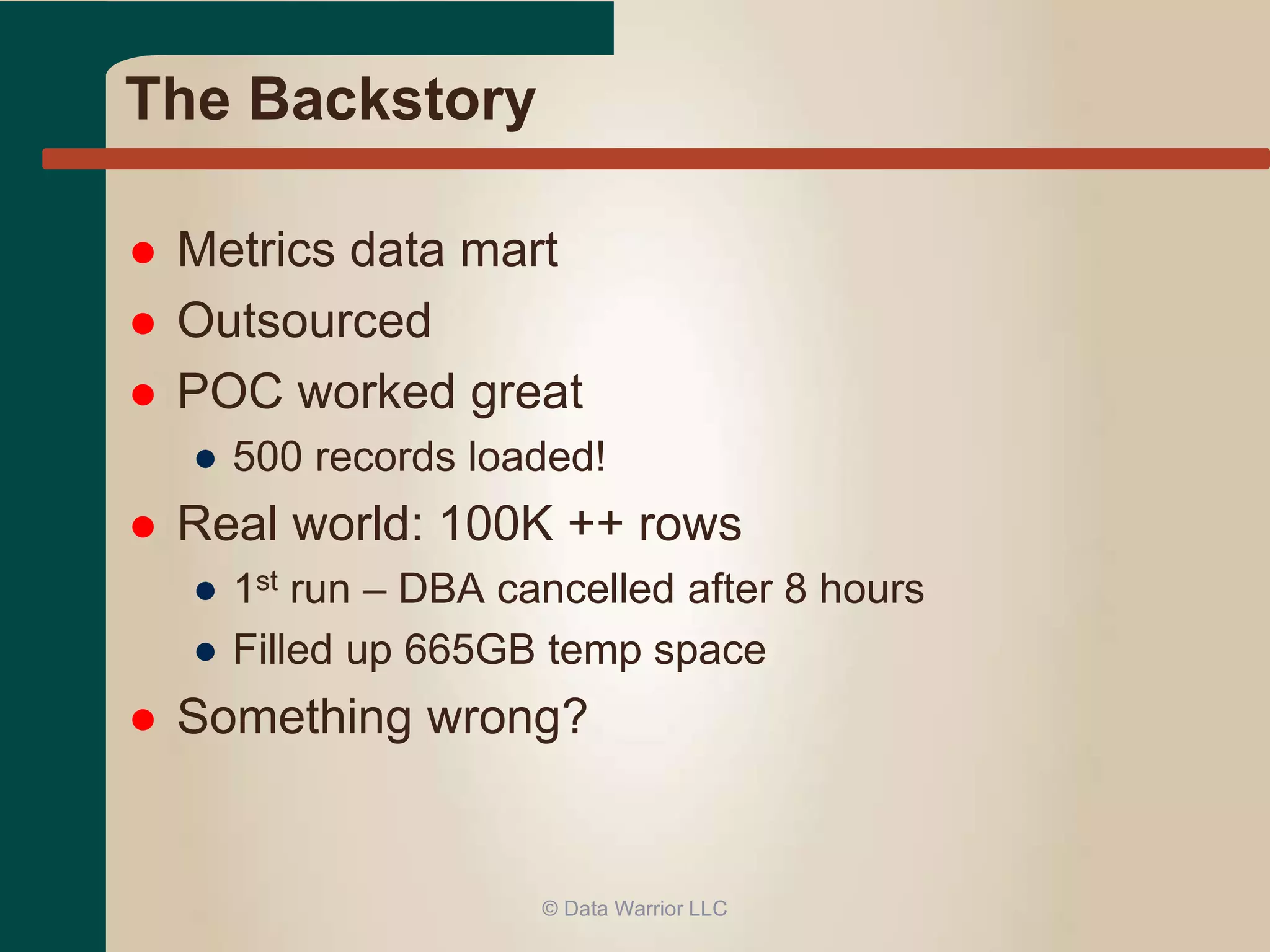

6. The Backstory
 Metrics data mart
 Outsourced
 POC worked great
● 500 records loaded!
 Real world: 100K ++ rows
● 1st run – DBA cancelled after 8 hours
● Filled up 665GB temp space
 Something wrong?
© Data Warrior LLC

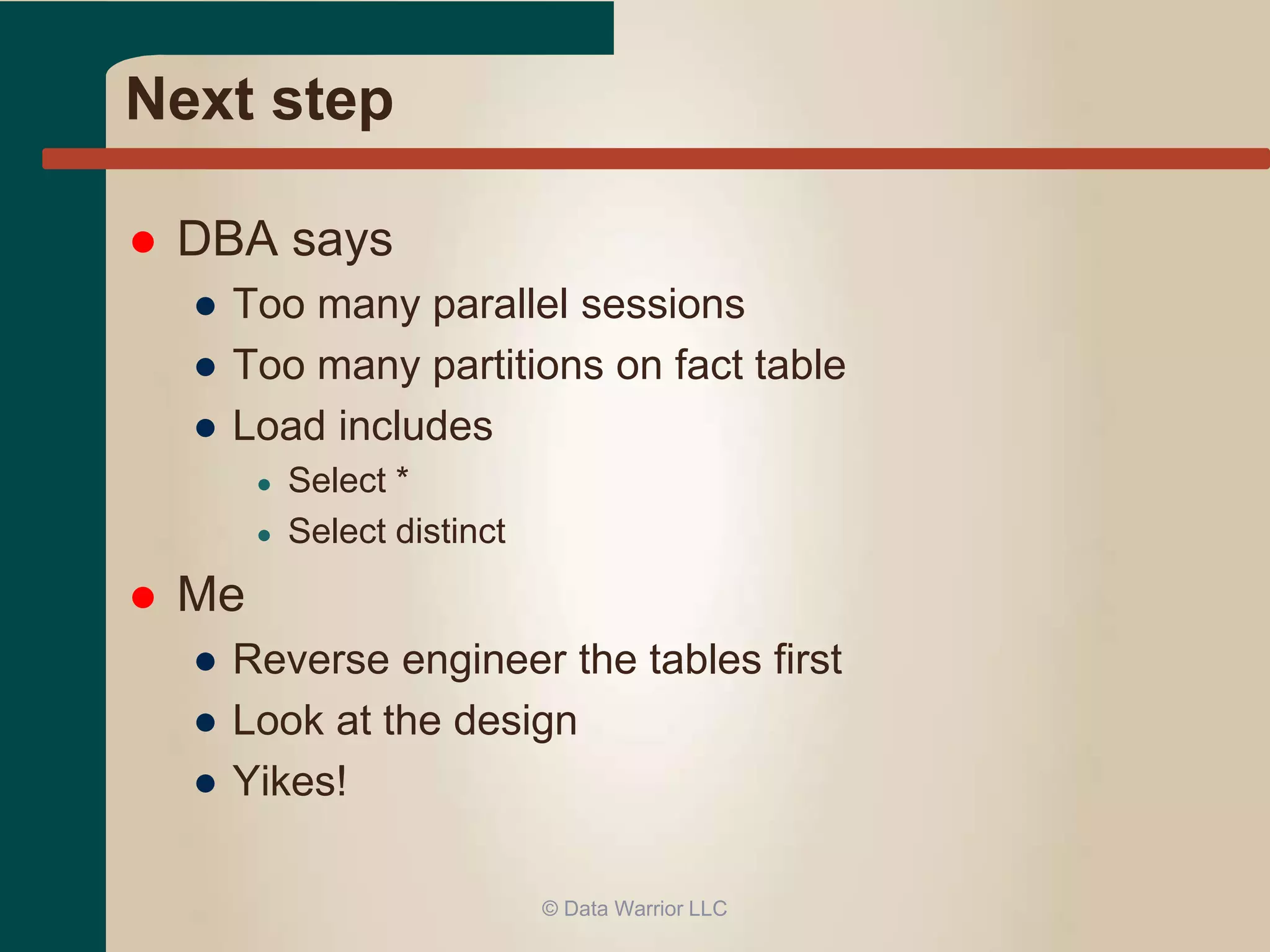

7. Next step
 DBA says
● Too many parallel sessions
● Too many partitions on fact table
● Load includes
● Select *
● Select distinct
 Me
● Reverse engineer the tables first
● Look at the design
● Yikes!
© Data Warrior LLC

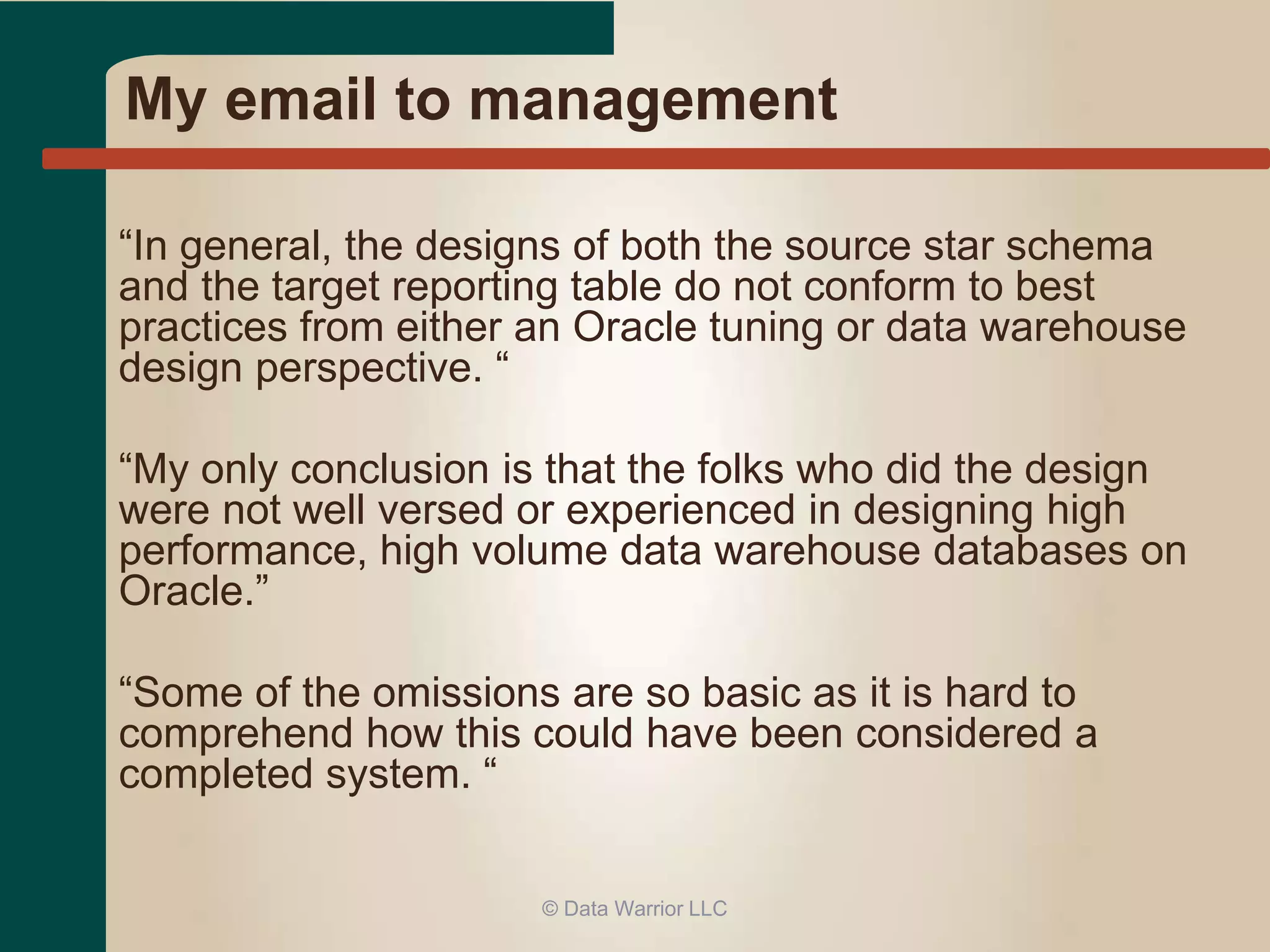

8. My email to management
“In general, the designs of both the source star schema
and the target reporting table do not conform to best
practices from either an Oracle tuning or data warehouse
design perspective. “
“My only conclusion is that the folks who did the design
were not well versed or experienced in designing high
performance, high volume data warehouse databases on
Oracle.”
“Some of the omissions are so basic as it is hard to
comprehend how this could have been considered a
completed system. “
© Data Warrior LLC

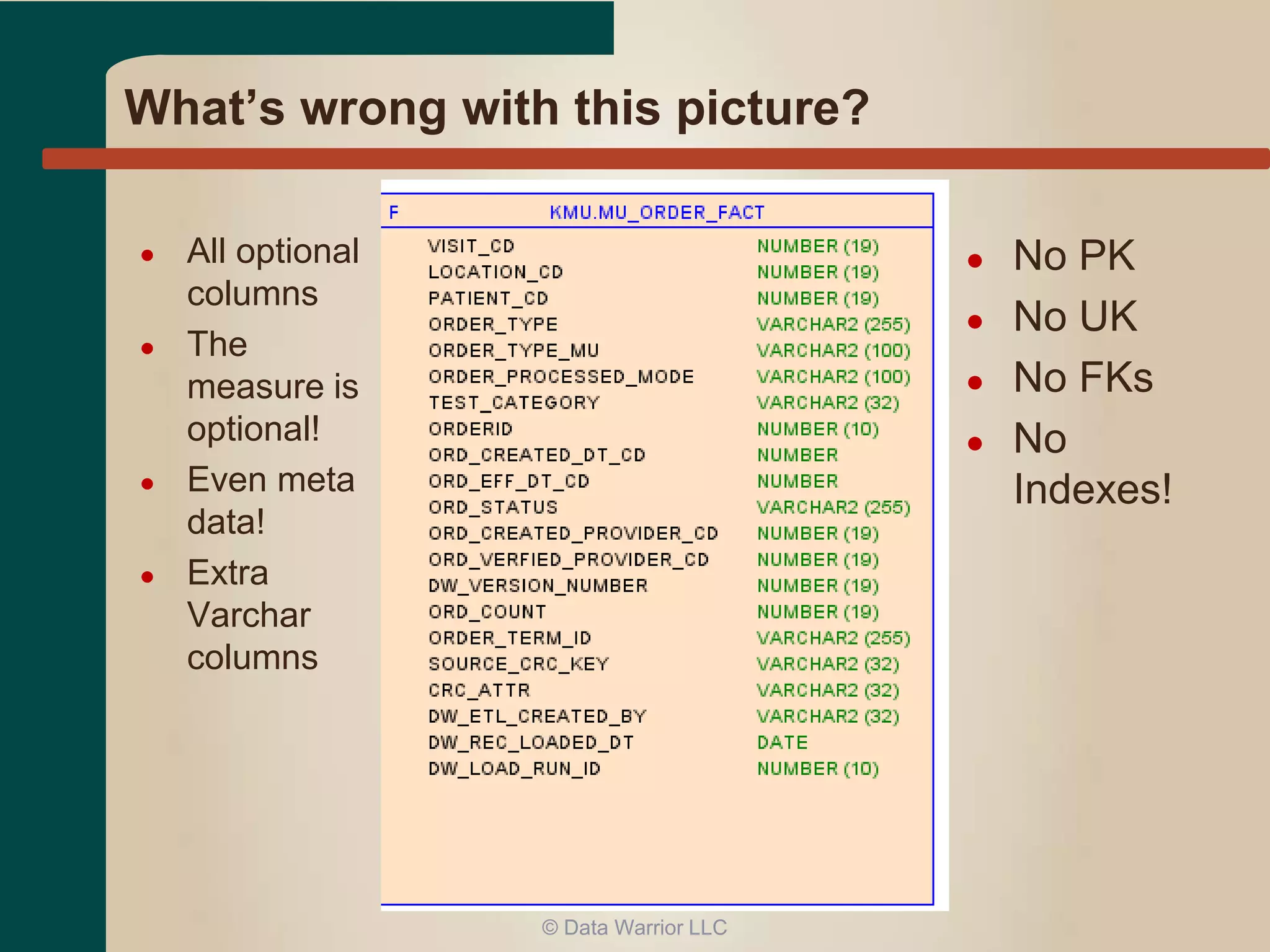

9. What’s wrong with this picture?
● All optional
columns
● The
measure is
optional!
● Even meta
data!
● Extra
Varchar
columns
● No PK
● No UK
● No FKs
● No
Indexes!
© Data Warrior LLC

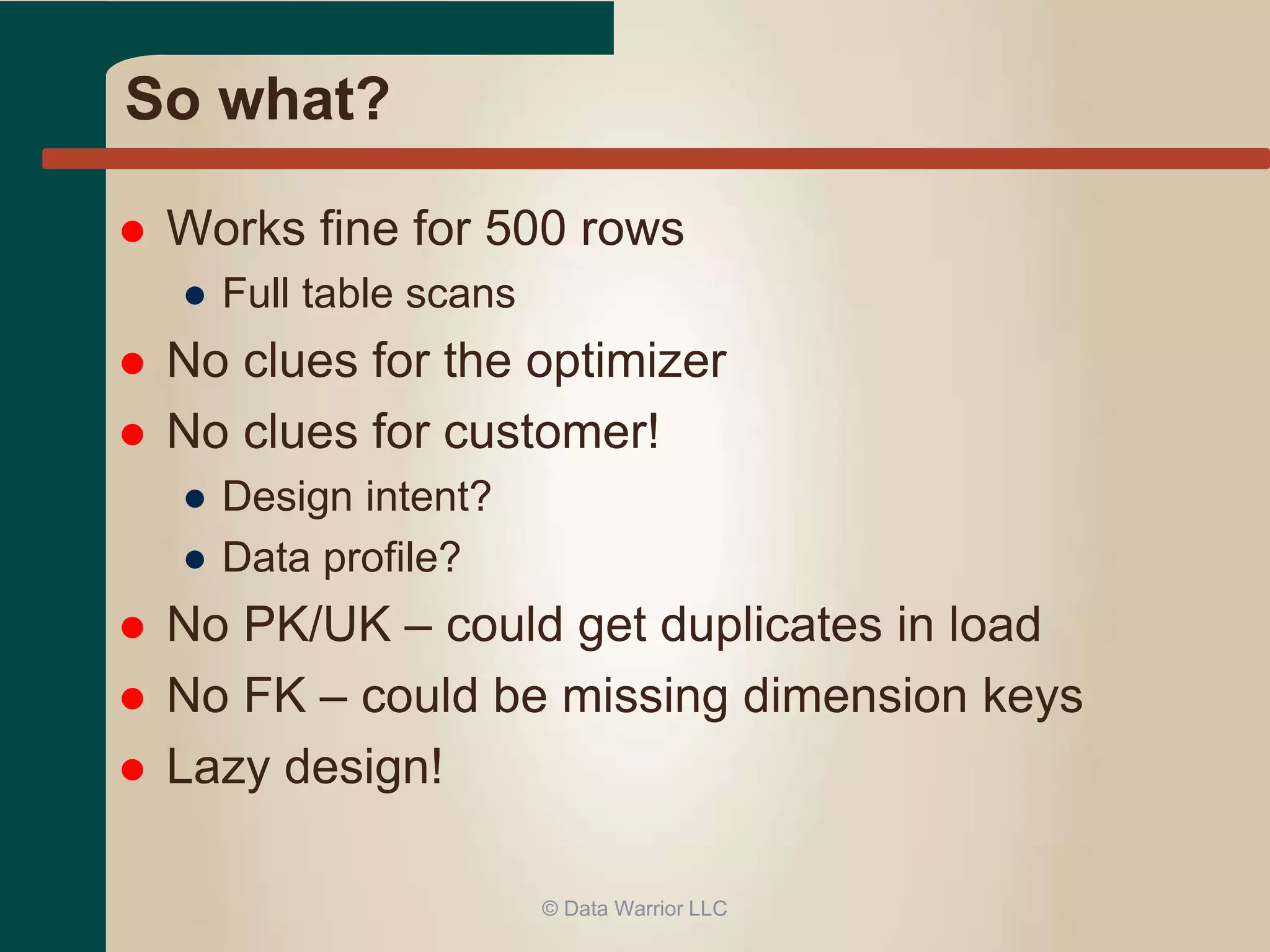

10. So what?
 Works fine for 500 rows
● Full table scans
 No clues for the optimizer
 No clues for customer!
● Design intent?
● Data profile?
 No PK/UK – could get duplicates in load
 No FK – could be missing dimension keys
 Lazy design!
© Data Warrior LLC

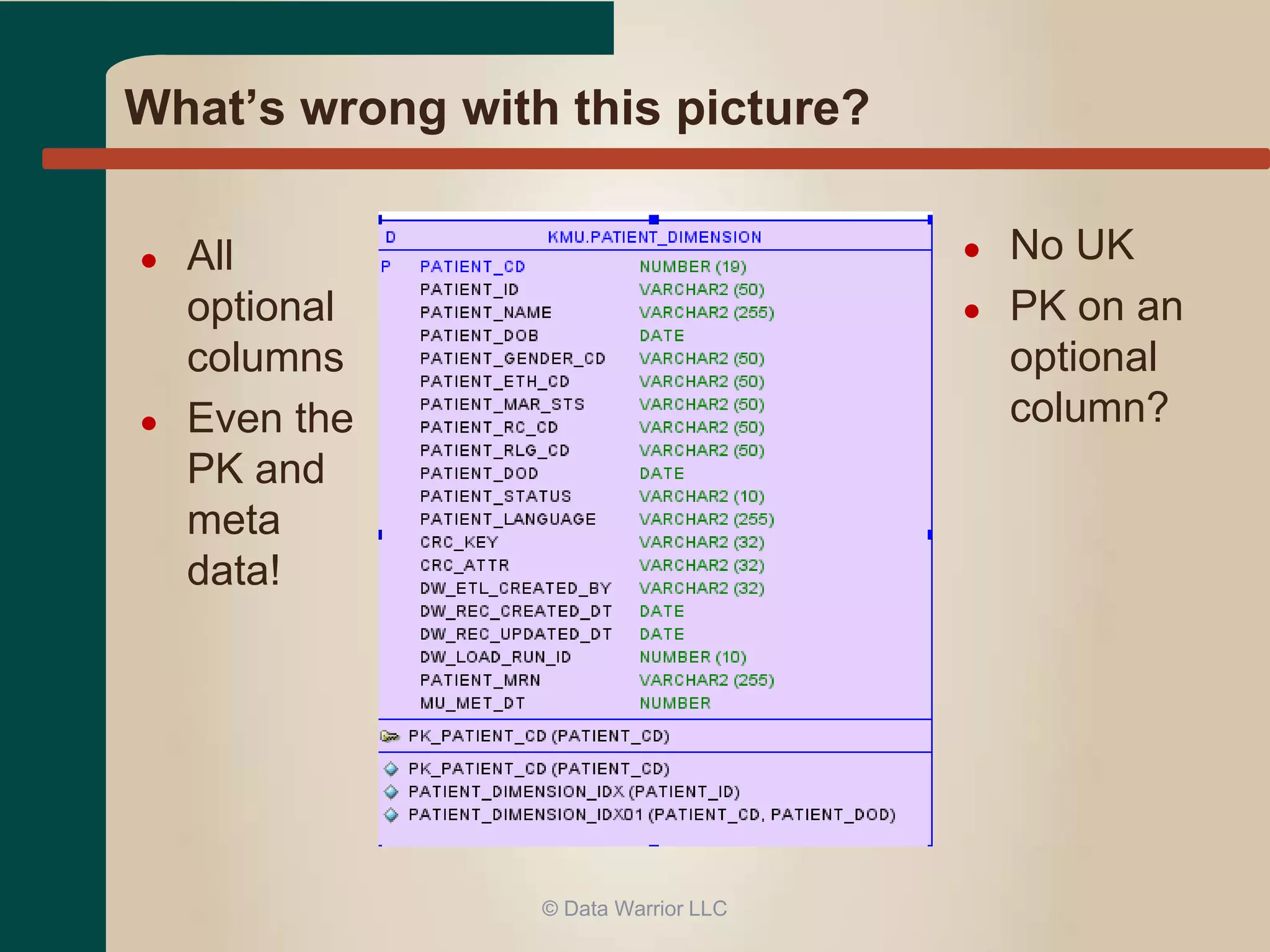

11. What’s wrong with this picture?
● All
optional
columns
● Even the
PK and
meta
data!
● No UK
● PK on an
optional
column?
© Data Warrior LLC

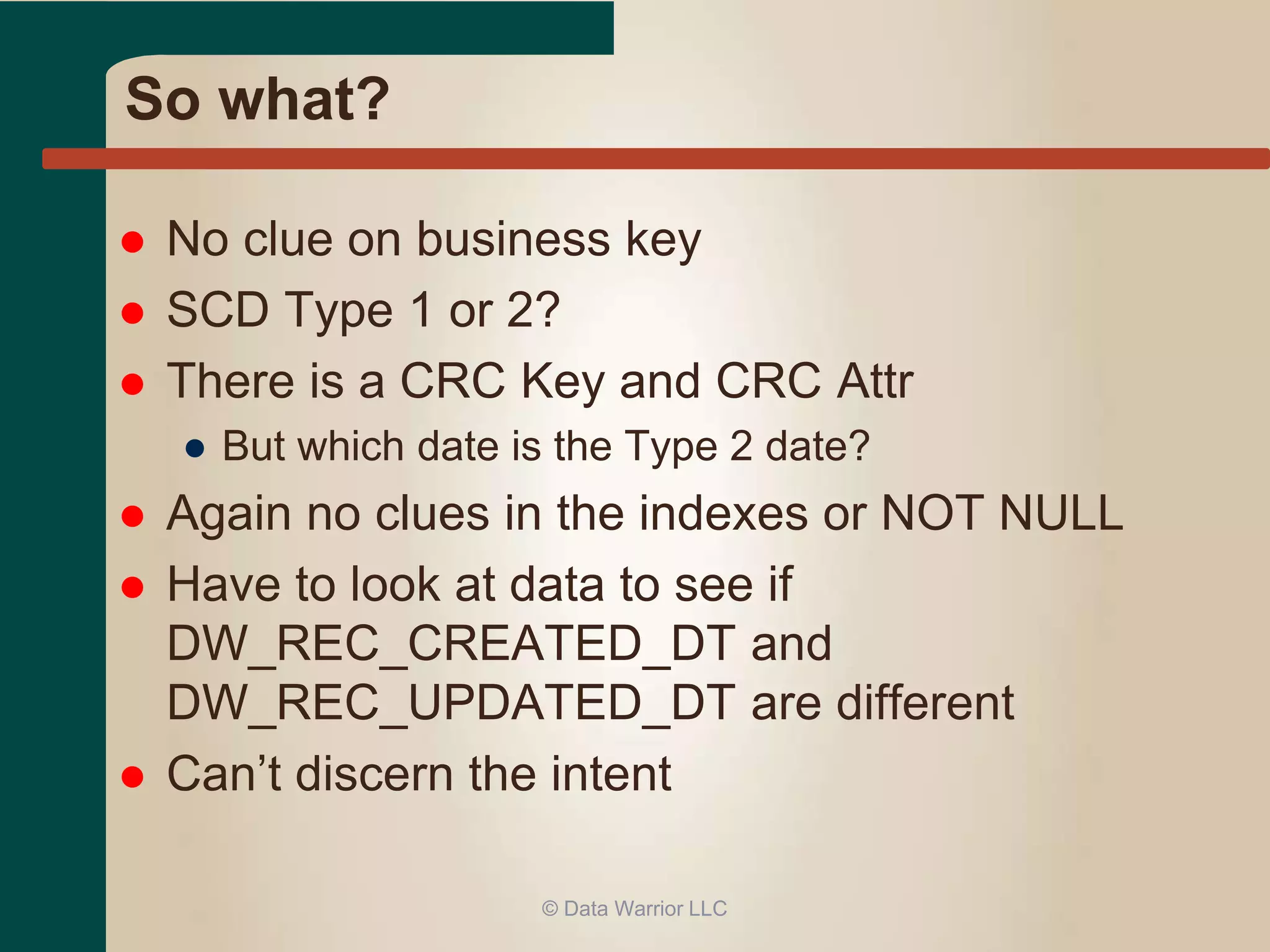

12. So what?
 No clue on business key
 SCD Type 1 or 2?
 There is a CRC Key and CRC Attr
● But which date is the Type 2 date?
 Again no clues in the indexes or NOT NULL
 Have to look at data to see if
DW_REC_CREATED_DT and
DW_REC_UPDATED_DT are different
 Can’t discern the intent
© Data Warrior LLC

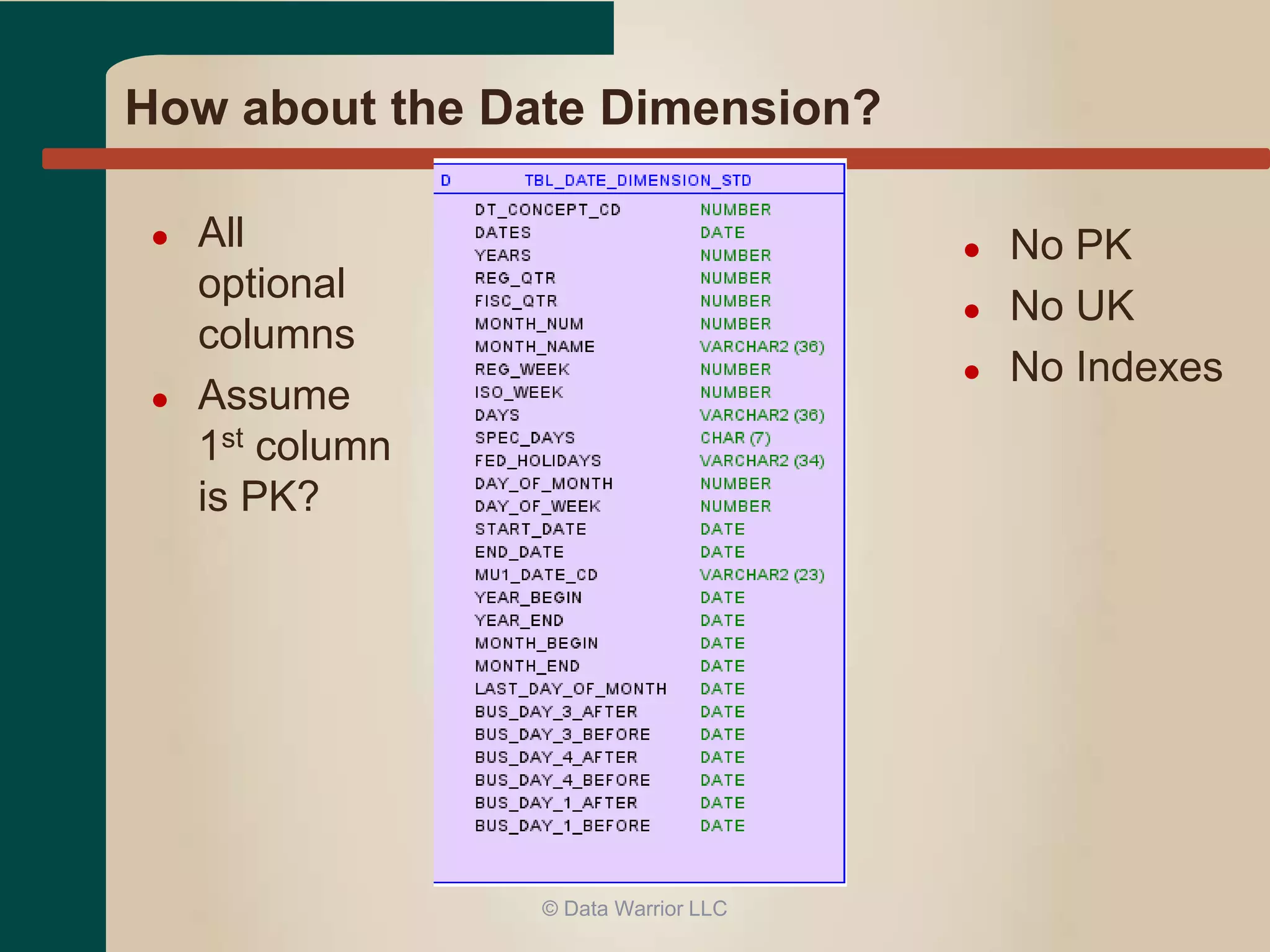

13. How about the Date Dimension?
● All
optional
columns
● Assume
1st column
is PK?
● No PK
● No UK
● No Indexes
© Data Warrior LLC

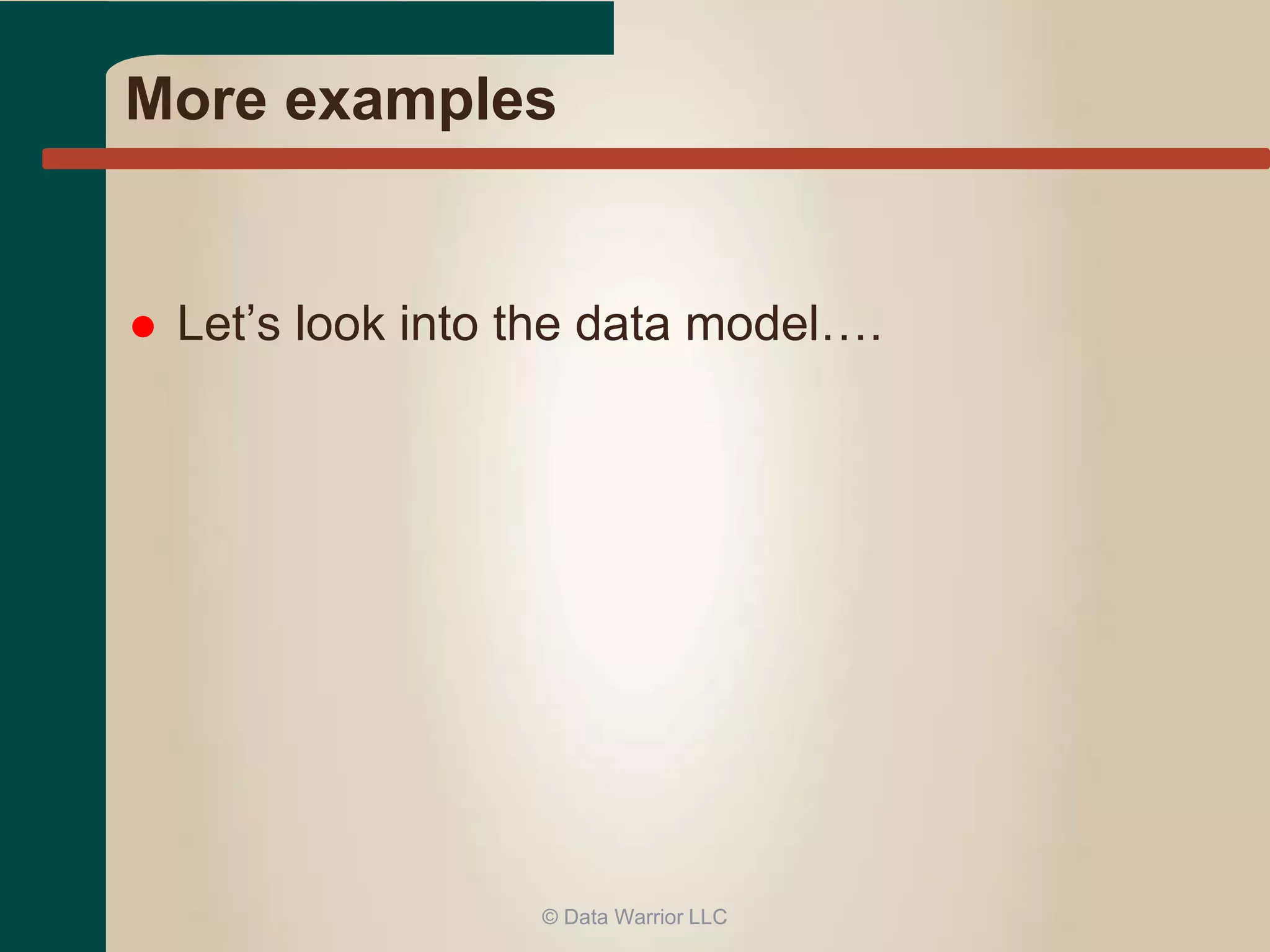

14. More examples
 Let’s look into the data model….
© Data Warrior LLC

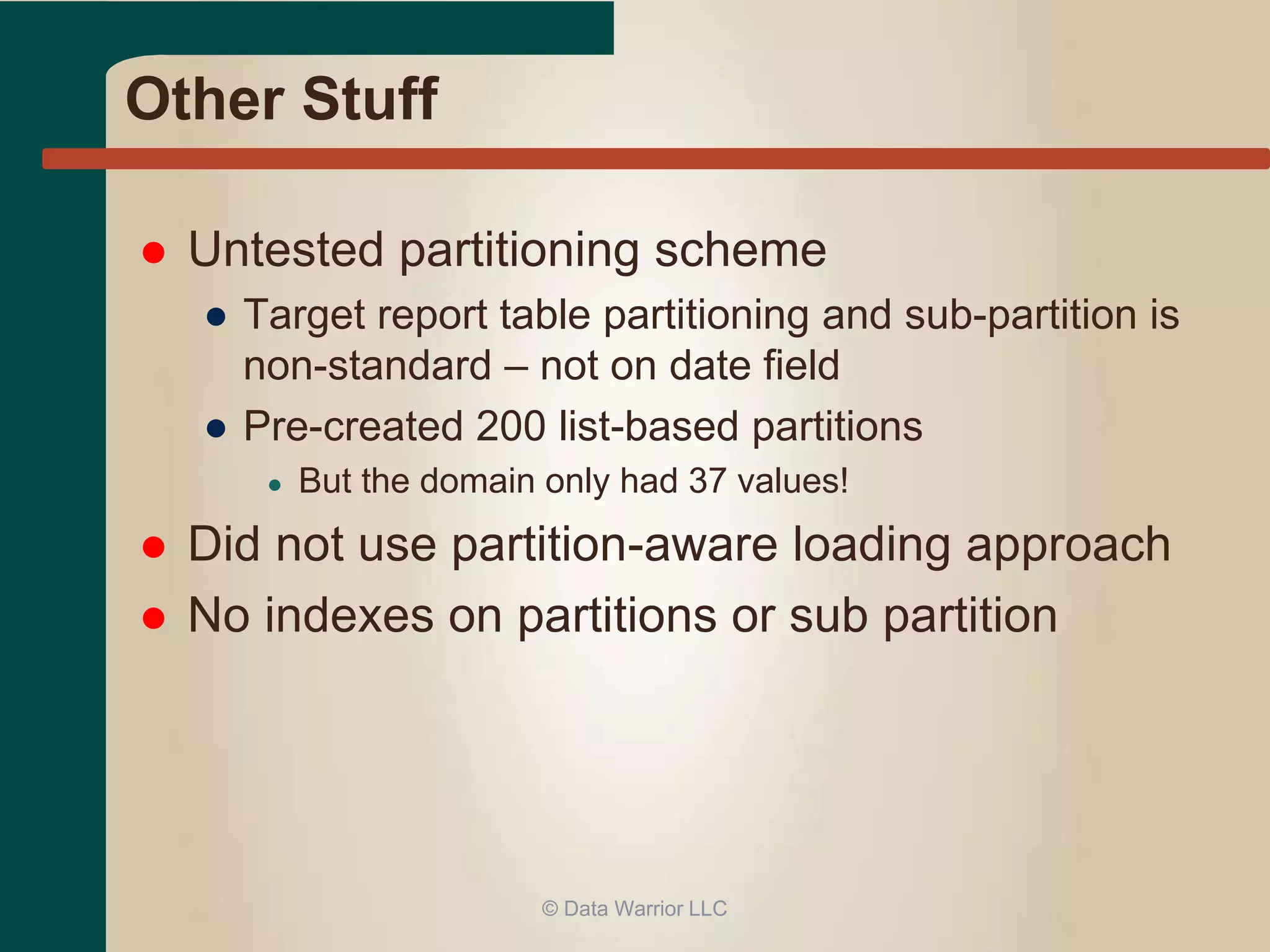

15. Other Stuff
 Untested partitioning scheme
● Target report table partitioning and sub-partition is
non-standard – not on date field
● Pre-created 200 list-based partitions
● But the domain only had 37 values!
 Did not use partition-aware loading approach
 No indexes on partitions or sub partition
© Data Warrior LLC

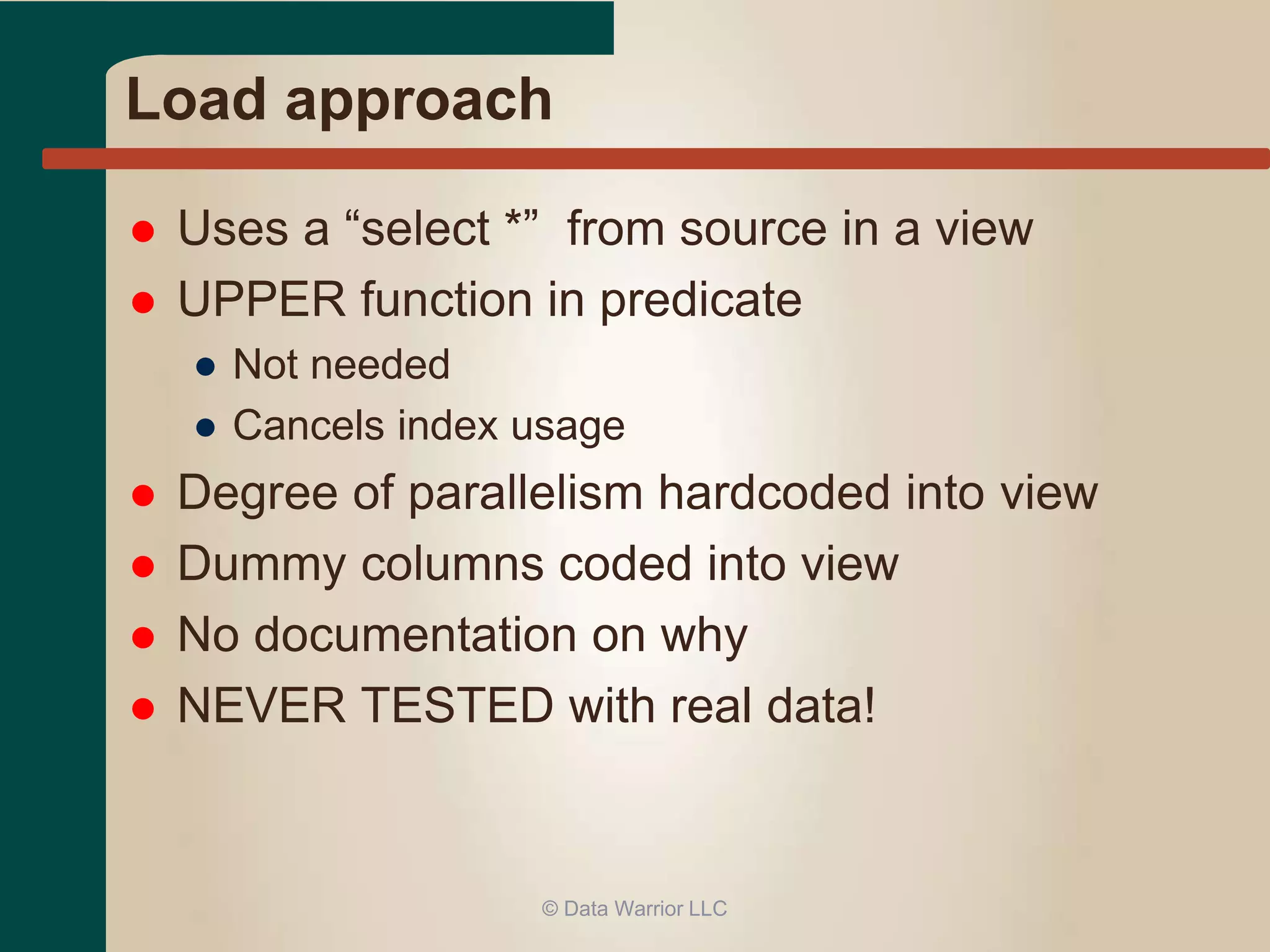

16. Load approach
 Uses a “select *” from source in a view
 UPPER function in predicate
● Not needed
● Cancels index usage
 Degree of parallelism hardcoded into view
 Dummy columns coded into view
 No documentation on why
 NEVER TESTED with real data!
© Data Warrior LLC

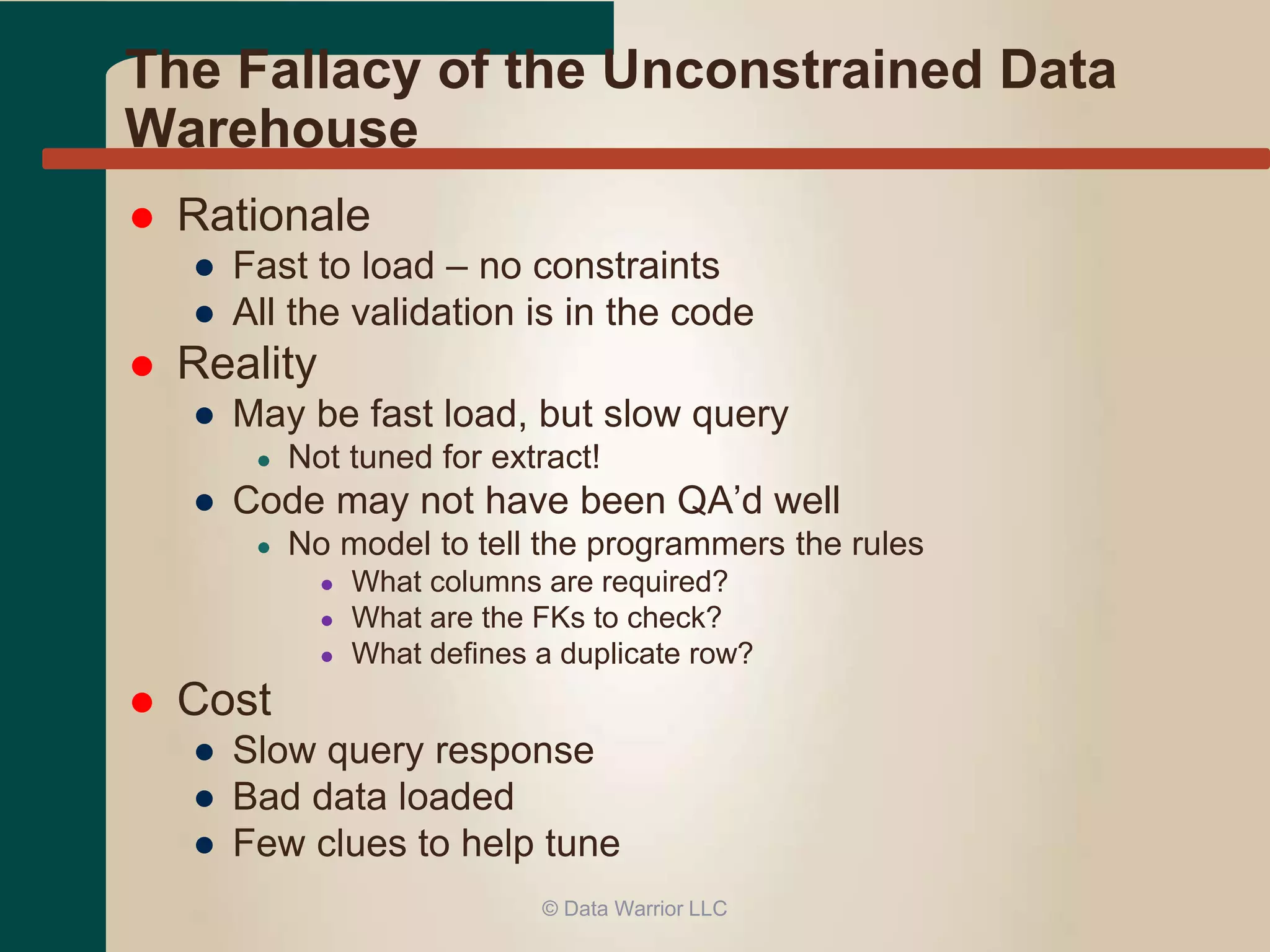

17. The Fallacy of the Unconstrained Data
Warehouse
 Rationale
● Fast to load – no constraints
● All the validation is in the code
 Reality
● May be fast load, but slow query
● Not tuned for extract!
● Code may not have been QA’d well
● No model to tell the programmers the rules
● What columns are required?
● What are the FKs to check?
● What defines a duplicate row?
 Cost
● Slow query response
● Bad data loaded
● Few clues to help tune
© Data Warrior LLC

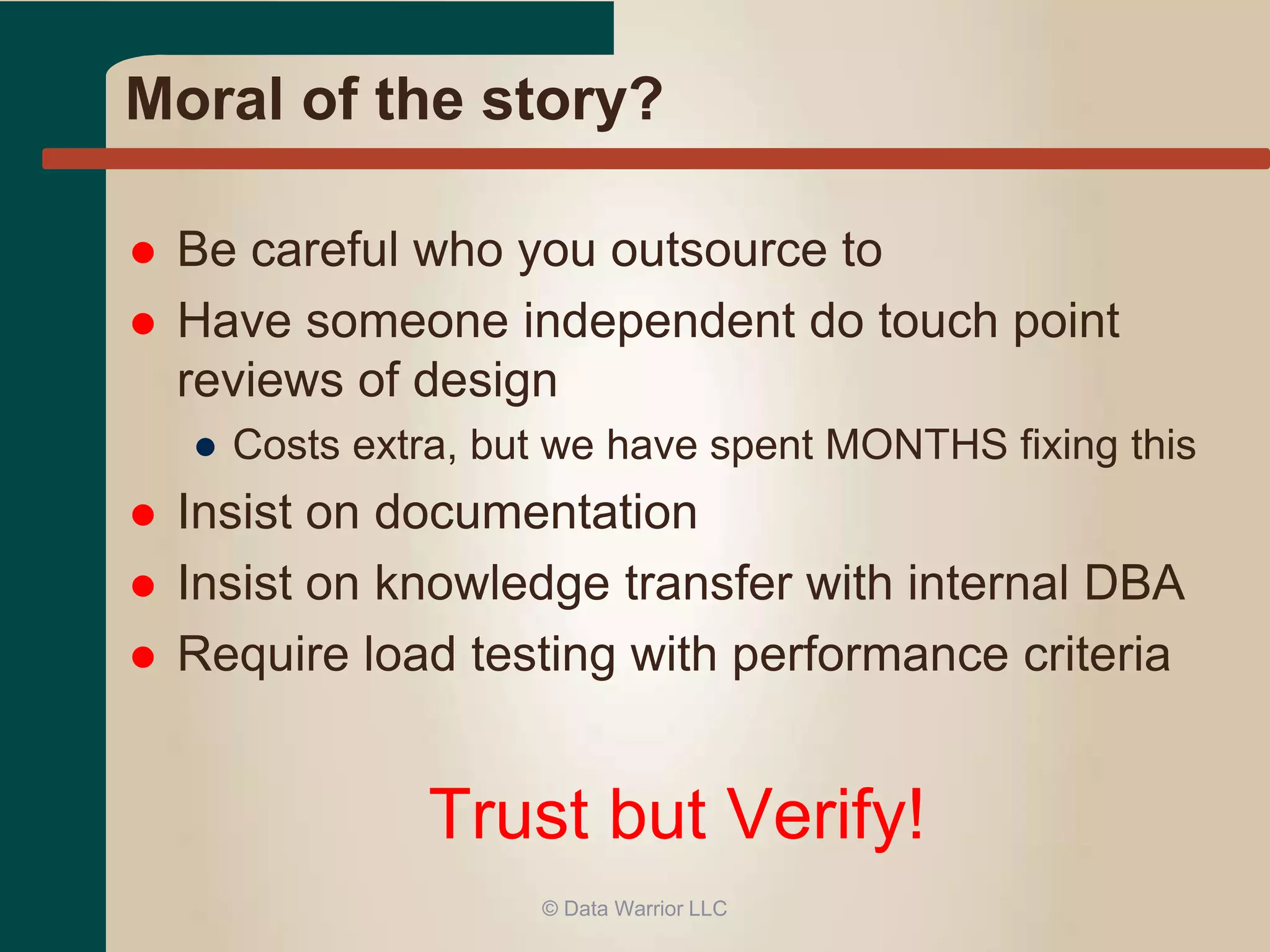

18. Moral of the story?
 Be careful who you outsource to
 Have someone independent do touch point
reviews of design
● Costs extra, but we have spent MONTHS fixing this
 Insist on documentation
 Insist on knowledge transfer with internal DBA
 Require load testing with performance criteria
Trust but Verify!
