1. Data Quality: A Raising Data
Warehousing Concern
Presented by: Chowdhury, Mohammad Aminul Hoque
http://aminchowdhury.info

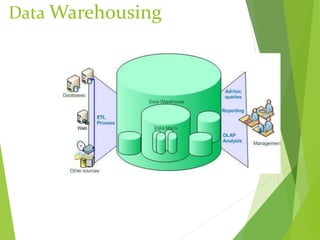

2. Data Warehousing

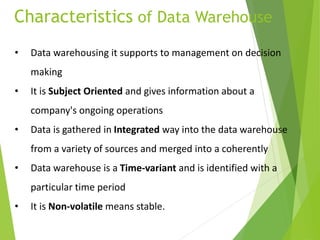

3. Characteristics of Data Warehouse
• Data warehousing it supports to management on decision
making
• It is Subject Oriented and gives information about a
company's ongoing operations
• Data is gathered in Integrated way into the data warehouse
from a variety of sources and merged into a coherently
• Data warehouse is a Time-variant and is identified with a
particular time period
• It is Non-volatile means stable.

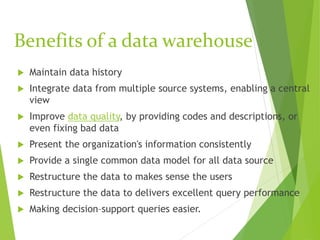

4. Benefits of a data warehouse
 Maintain data history
 Integrate data from multiple source systems, enabling a central
view
 Improve data quality, by providing codes and descriptions, or
even fixing bad data
 Present the organization's information consistently
 Provide a single common data model for all data source
 Restructure the data to makes sense the users
 Restructure the data to delivers excellent query performance
 Making decision–support queries easier.

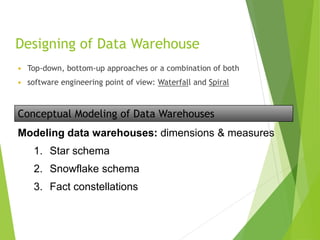

5. Designing of Data Warehouse
 Top-down, bottom-up approaches or a combination of both
 software engineering point of view: Waterfall and Spiral
Conceptual Modeling of Data Warehouses
Modeling data warehouses: dimensions & measures
1. Star schema
2. Snowflake schema
3. Fact constellations

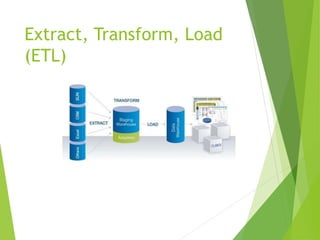

6. Extract, Transform, Load
(ETL)

7. Extract
 ETL process involves extracting the data from
the source systems.
 ETL Architecture Pattern
 Most data warehousing projects consolidate
data from different source systems
 Each separate system may also use a different
data organization and/or format
 The goal of the extraction phase is to convert
the data into a single format appropriate for
transformation processing.

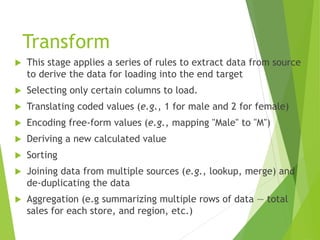

8. Transform
 This stage applies a series of rules to extract data from source
to derive the data for loading into the end target
 Selecting only certain columns to load.
 Translating coded values (e.g., 1 for male and 2 for female)
 Encoding free-form values (e.g., mapping "Male" to "M")
 Deriving a new calculated value
 Sorting
 Joining data from multiple sources (e.g., lookup, merge) and
de-duplicating the data
 Aggregation (e.g summarizing multiple rows of data — total
sales for each store, and region, etc.)

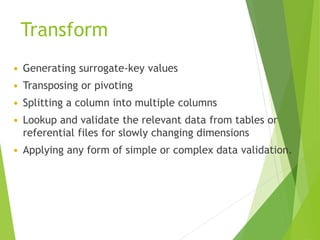

9. Transform
 Generating surrogate-key values
 Transposing or pivoting
 Splitting a column into multiple columns
 Lookup and validate the relevant data from tables or
referential files for slowly changing dimensions
 Applying any form of simple or complex data validation.

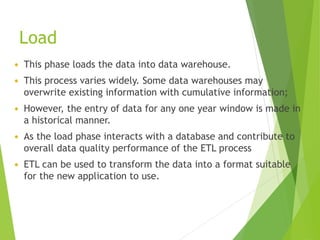

10. Load
 This phase loads the data into data warehouse.
 This process varies widely. Some data warehouses may
overwrite existing information with cumulative information;
 However, the entry of data for any one year window is made in
a historical manner.
 As the load phase interacts with a database and contribute to
overall data quality performance of the ETL process
 ETL can be used to transform the data into a format suitable
for the new application to use.

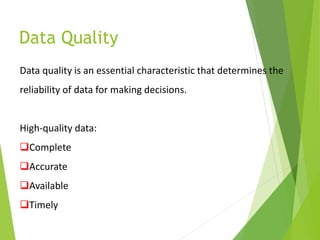

11. Data Quality
Data quality is an essential characteristic that determines the
reliability of data for making decisions.
High-quality data:
Complete
Accurate
Available
Timely

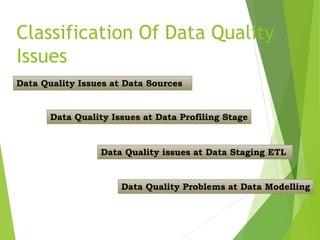

12. Classification Of Data Quality
Issues
Data Quality Issues at Data Sources
Data Quality Issues at Data Profiling Stage
Data Quality issues at Data Staging ETL
Data Quality Problems at Data Modelling

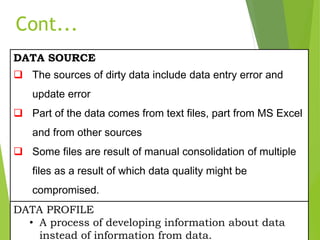

13. DATA SOURCE
 The sources of dirty data include data entry error and
update error
 Part of the data comes from text files, part from MS Excel
and from other sources
 Some files are result of manual consolidation of multiple
files as a result of which data quality might be
compromised.
DATA PROFILE
• A process of developing information about data
instead of information from data.
Cont...

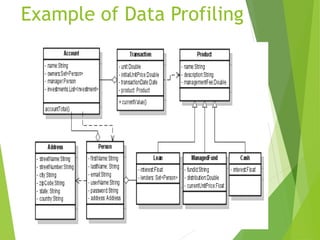

14. Example of Data Profiling

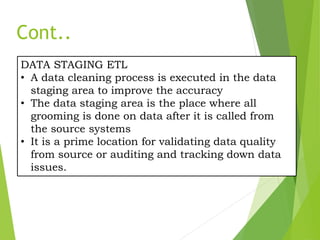

15. DATA STAGING ETL
• A data cleaning process is executed in the data
staging area to improve the accuracy
• The data staging area is the place where all
grooming is done on data after it is called from
the source systems
• It is a prime location for validating data quality
from source or auditing and tracking down data
issues.
Cont..

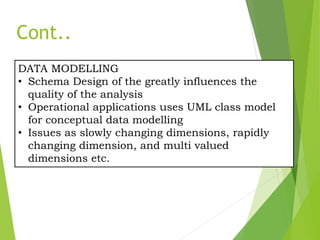

16. DATA MODELLING
• Schema Design of the greatly influences the
quality of the analysis
• Operational applications uses UML class model
for conceptual data modelling
• Issues as slowly changing dimensions, rapidly
changing dimension, and multi valued
dimensions etc.
Cont..

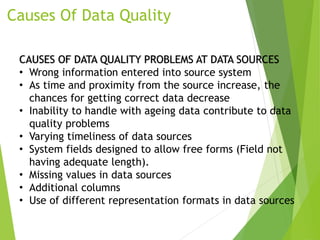

17. Causes Of Data Quality
CAUSES OF DATA QUALITY PROBLEMS AT DATA SOURCES
• Wrong information entered into source system
• As time and proximity from the source increase, the
chances for getting correct data decrease
• Inability to handle with ageing data contribute to data
quality problems
• Varying timeliness of data sources
• System fields designed to allow free forms (Field not
having adequate length).
• Missing values in data sources
• Additional columns
• Use of different representation formats in data sources

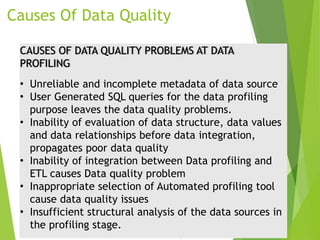

18. Causes Of Data Quality
CAUSES OF DATA QUALITY PROBLEMS AT DATA
PROFILING
• Unreliable and incomplete metadata of data source
• User Generated SQL queries for the data profiling
purpose leaves the data quality problems.
• Inability of evaluation of data structure, data values
and data relationships before data integration,
propagates poor data quality
• Inability of integration between Data profiling and
ETL causes Data quality problem
• Inappropriate selection of Automated profiling tool
cause data quality issues
• Insufficient structural analysis of the data sources in
the profiling stage.

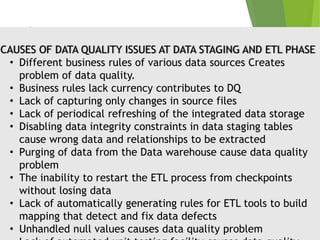

19. Cont..
CAUSES OF DATA QUALITY ISSUES AT DATA STAGING AND ETL PHASE
• Different business rules of various data sources Creates
problem of data quality.
• Business rules lack currency contributes to DQ
• Lack of capturing only changes in source files
• Lack of periodical refreshing of the integrated data storage
• Disabling data integrity constraints in data staging tables
cause wrong data and relationships to be extracted
• Purging of data from the Data warehouse cause data quality
problem
• The inability to restart the ETL process from checkpoints
without losing data
• Lack of automatically generating rules for ETL tools to build
mapping that detect and fix data defects
• Unhandled null values causes data quality problem

20. Cont..
CAUSES OF DATA QUALITY ISSUES AT DATA WAREHOUSE SCHEM A DESIGN
• Incomplete or wrong requirement analysis of the project lead to poor
schema design
• Lack of currency in business rules cause poor requirement analysis
• Choice of dimensional modelling
(STAR,SNOWFLAKE,FACTCONSTALLATION) schema contribute to data
quality.
• Late identification of slowly changing dimensions contribute to data
quality problems.
• Late arriving dimensions cause DQ Problems.
• Multi valued dimensions cause DQ problems
• Incomplete/Wrong identification of facts/dimensions, bridge tables or
relationship tables or their
• Inability to support database schema refactoring cause data quality
problems

21. DQ TOOLS

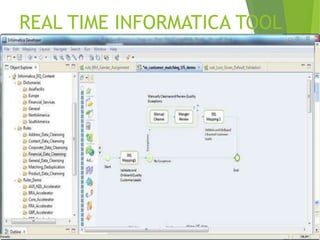

22. REAL TIME INFORMATICA TOOL

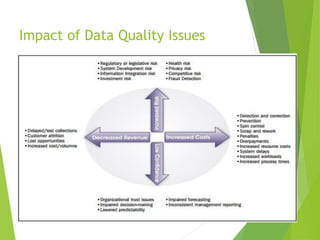

23. Impact of Data Quality Issues

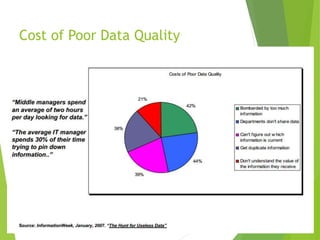

24. Cost of Poor Data Quality

25. Confidence and Satisfaction-
based impacts
 Bad quality of data results in low confidence in
forecasting, inconsistent operational and management
reporting.
 Its will cause delayed or improper decisions.
 It impacts satisfaction of customer, employee, or
supplier which leads to decreased organizational trust.
 Ex : An international bank, for example, could not meet
its customer satisfaction goals because agents in its 23
contact centres all followed different operational
processes, using up to 18 different apps — many of which
contained duplicate data — to serve a single customer.

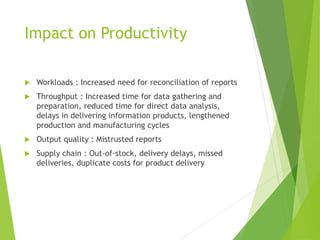

26. Impact on Productivity
 Workloads : Increased need for reconciliation of reports
 Throughput : Increased time for data gathering and
preparation, reduced time for direct data analysis,
delays in delivering information products, lengthened
production and manufacturing cycles
 Output quality : Mistrusted reports
 Supply chain : Out-of-stock, delivery delays, missed
deliveries, duplicate costs for product delivery

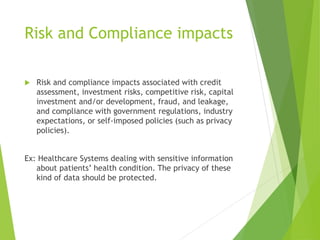

27. Risk and Compliance impacts
 Risk and compliance impacts associated with credit
assessment, investment risks, competitive risk, capital
investment and/or development, fraud, and leakage,
and compliance with government regulations, industry
expectations, or self-imposed policies (such as privacy
policies).
Ex: Healthcare Systems dealing with sensitive information
about patients’ health condition. The privacy of these
kind of data should be protected.

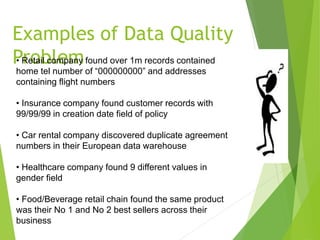

28. Examples of Data Quality
Problem• Retail company found over 1m records contained
home tel number of “000000000” and addresses
containing flight numbers
• Insurance company found customer records with
99/99/99 in creation date field of policy
• Car rental company discovered duplicate agreement
numbers in their European data warehouse
• Healthcare company found 9 different values in
gender field
• Food/Beverage retail chain found the same product
was their No 1 and No 2 best sellers across their
business

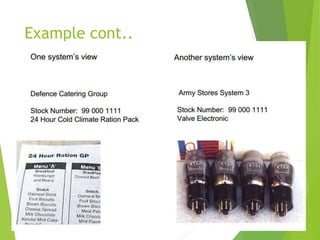

30. Example cont..

31. Example cont..

32. Example cont..

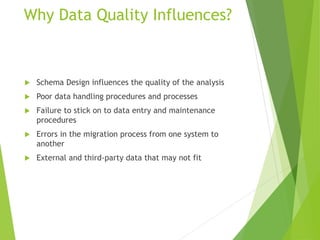

33. Why Data Quality Influences?
 Schema Design influences the quality of the analysis
 Poor data handling procedures and processes
 Failure to stick on to data entry and maintenance
procedures
 Errors in the migration process from one system to
another
 External and third-party data that may not fit

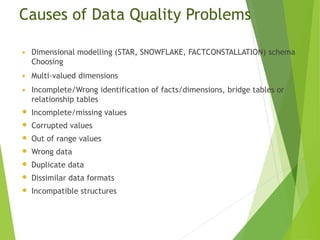

34. Causes of Data Quality Problems
 Dimensional modelling (STAR, SNOWFLAKE, FACTCONSTALLATION) schema
Choosing
 Multi-valued dimensions
 Incomplete/Wrong identification of facts/dimensions, bridge tables or
relationship tables
 Incomplete/missing values
 Corrupted values
 Out of range values
 Wrong data
 Duplicate data
 Dissimilar data formats
 Incompatible structures

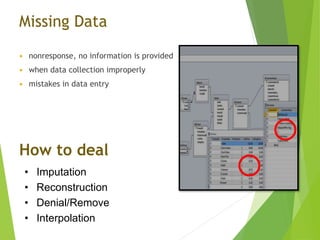

35. Missing Data
 nonresponse, no information is provided
 when data collection improperly
 mistakes in data entry
How to deal
• Imputation
• Reconstruction
• Denial/Remove
• Interpolation

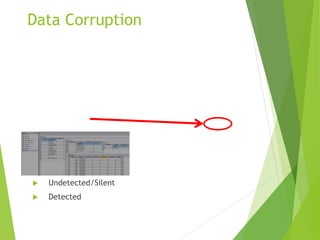

36. Data Corruption
 Undetected/Silent
 Detected

37. Out of Range error

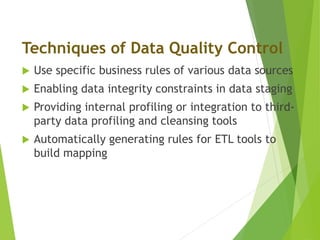

38.  Use specific business rules of various data sources
 Enabling data integrity constraints in data staging
 Providing internal profiling or integration to third-
party data profiling and cleansing tools
 Automatically generating rules for ETL tools to
build mapping
Techniques of Data Quality Control

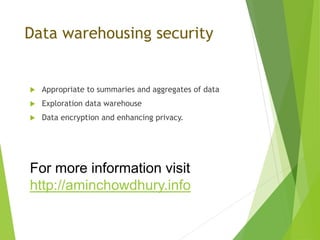

39. Data warehousing security
 Appropriate to summaries and aggregates of data
 Exploration data warehouse
 Data encryption and enhancing privacy.
For more information visit
http://aminchowdhury.info
