2. Collaborative Design with
Oracle SQL Developer Data
Modeler
Jeff Smith, Product Manager
Jeff.d.smith@oracle.com
@thatjeffsmith

3. Legal
The following is intended to outline our general product direction. It is
intended for information purposes only, and may not be incorporated
into any contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied upon in making purchasing
decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole
discretion of Oracle.
3
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

4. Agenda
 Brief functional overview
 Using Subversion to Version Your Designs
– Team collaboration
 Resources
Hint: Click on the blue text for more info
4
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

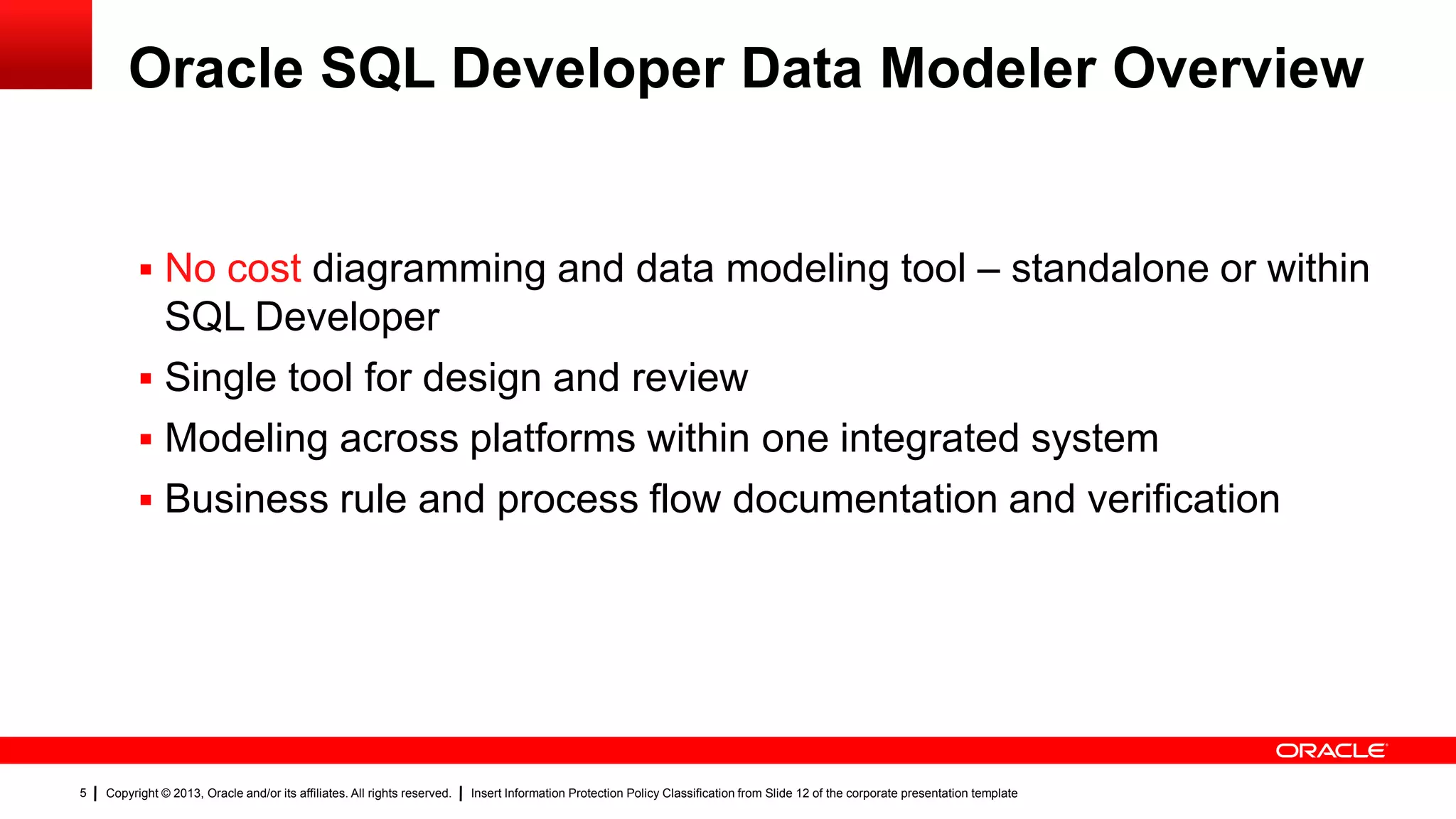

5. Oracle SQL Developer Data Modeler Overview
 No cost diagramming and data modeling tool – standalone or within
SQL Developer
 Single tool for design and review
 Modeling across platforms within one integrated system
 Business rule and process flow documentation and verification
5
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

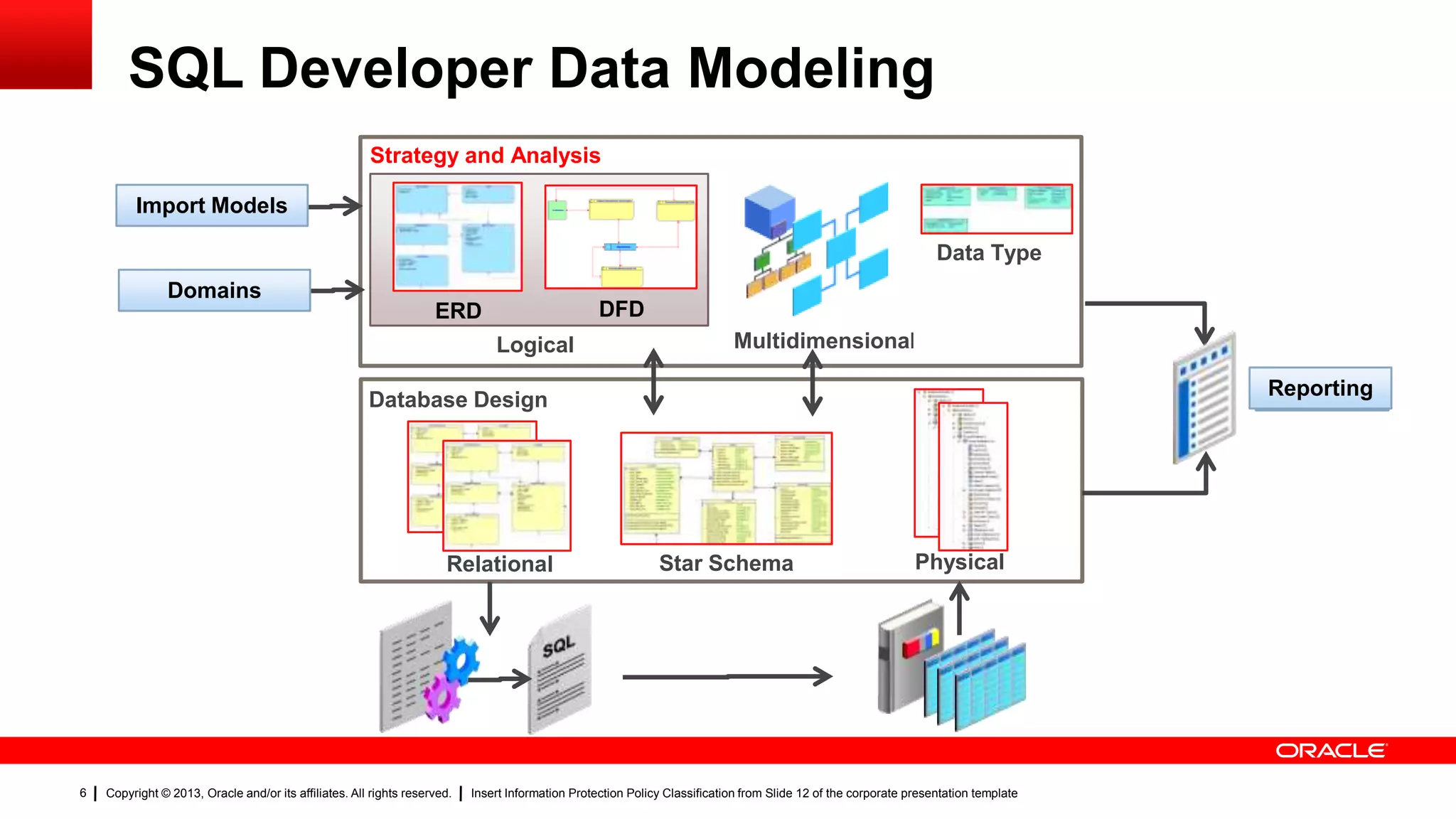

6. SQL Developer Data Modeling
Strategy and Analysis
Import Models
Data Type
Domains
DFD
ERD
Logical
Multidimensional
Reporting
Database Design
Relational
6
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Star Schema
Physical
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

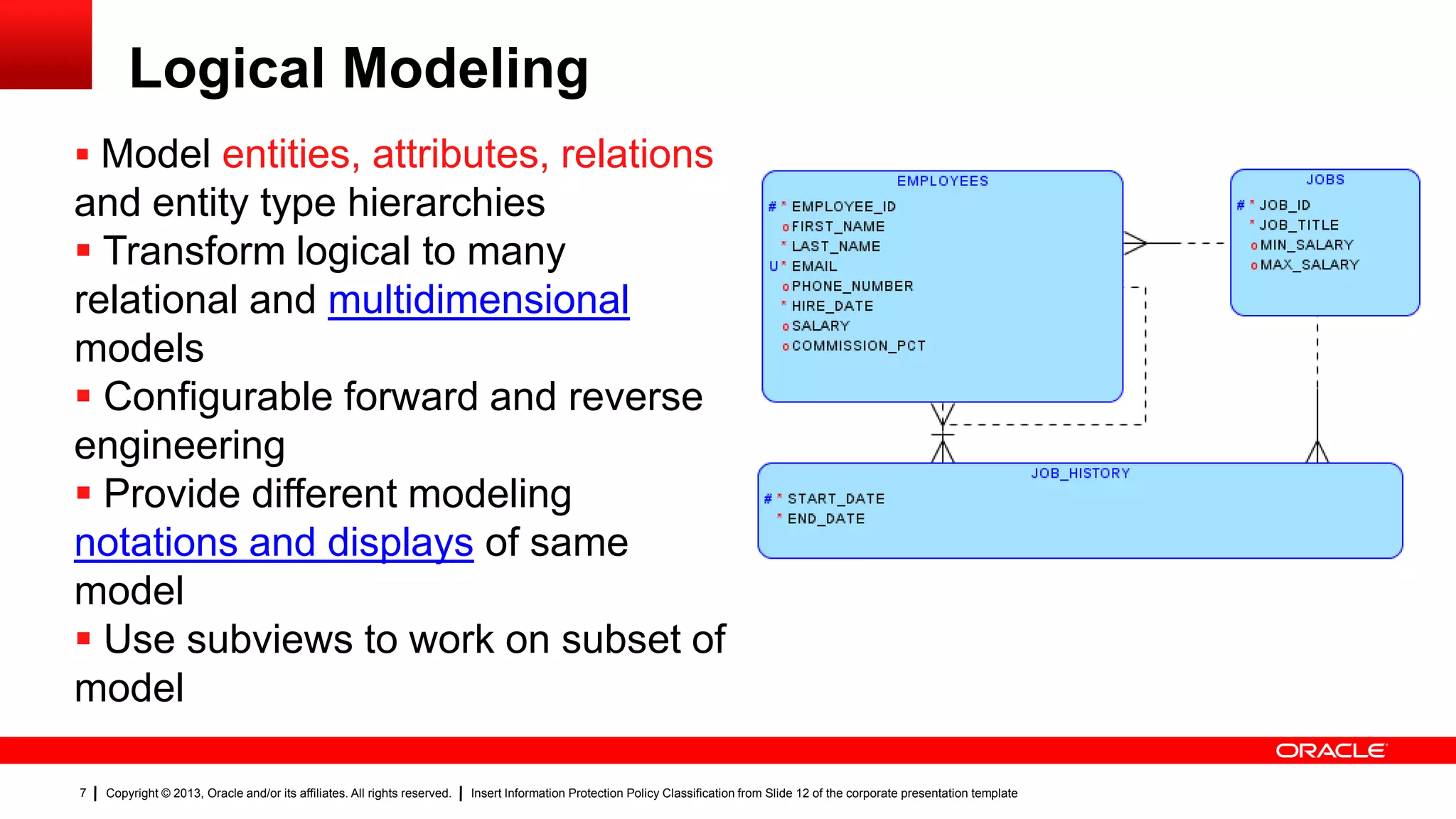

7. Logical Modeling
 Model entities, attributes, relations
and entity type hierarchies
 Transform logical to many
relational and multidimensional
models
 Configurable forward and reverse
engineering
 Provide different modeling
notations and displays of same
model
 Use subviews to work on subset of
model
7
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

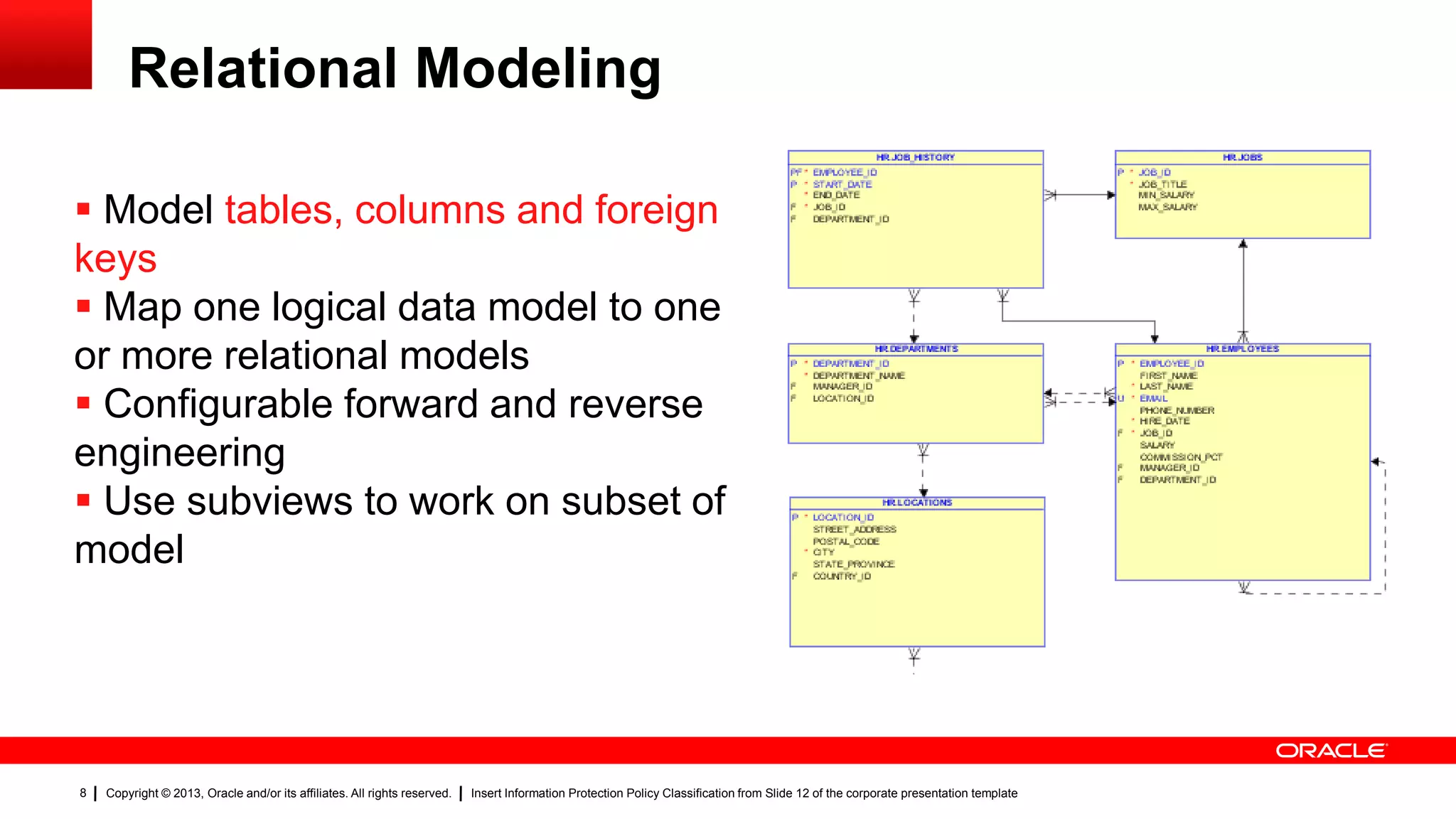

8. Relational Modeling
 Model tables, columns and foreign
keys
 Map one logical data model to one
or more relational models
 Configurable forward and reverse
engineering
 Use subviews to work on subset of
model
8
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

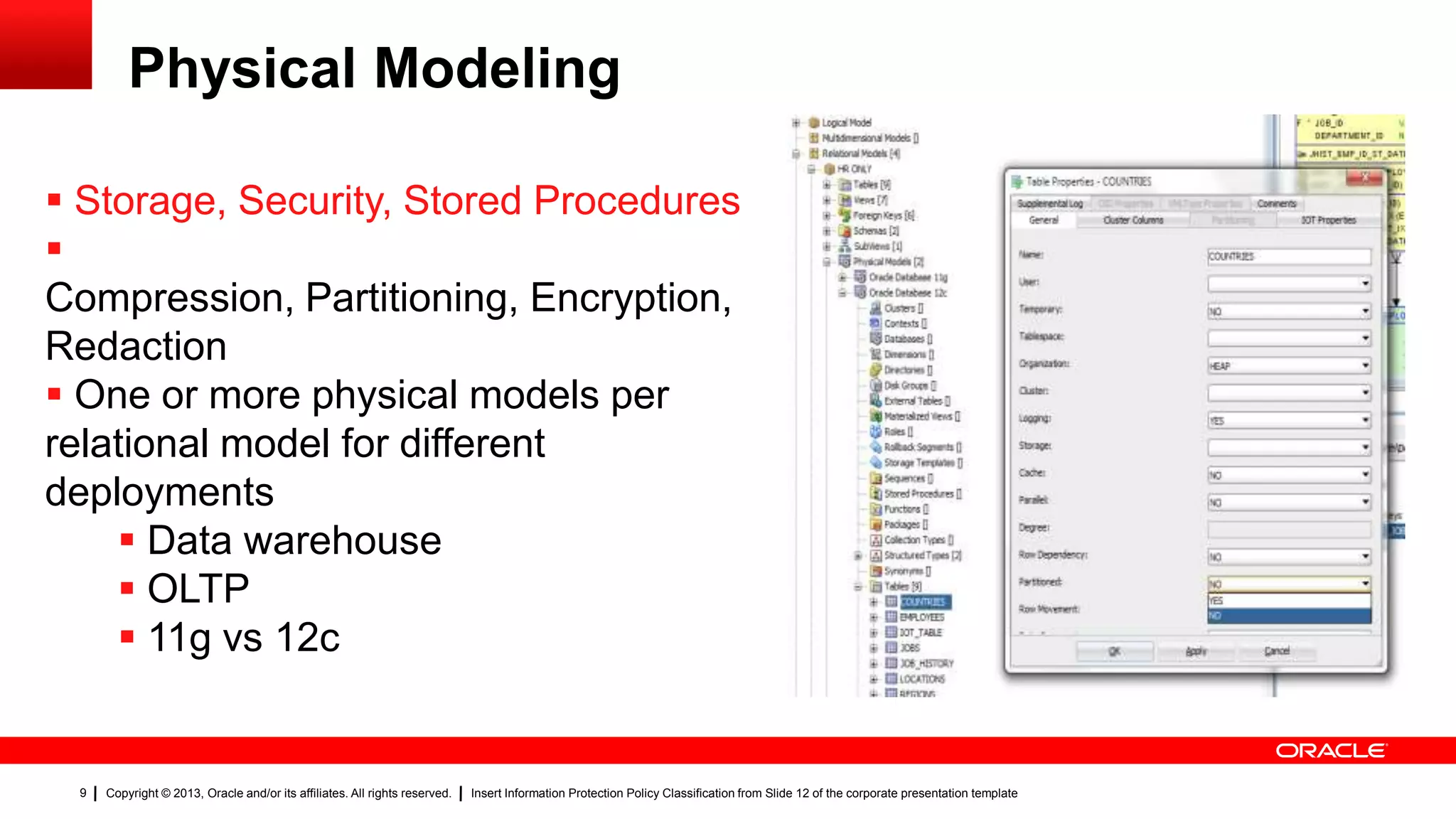

9. Physical Modeling
 Storage, Security, Stored Procedures

Compression, Partitioning, Encryption,
Redaction
 One or more physical models per
relational model for different
deployments
 Data warehouse
 OLTP
 11g vs 12c
9
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

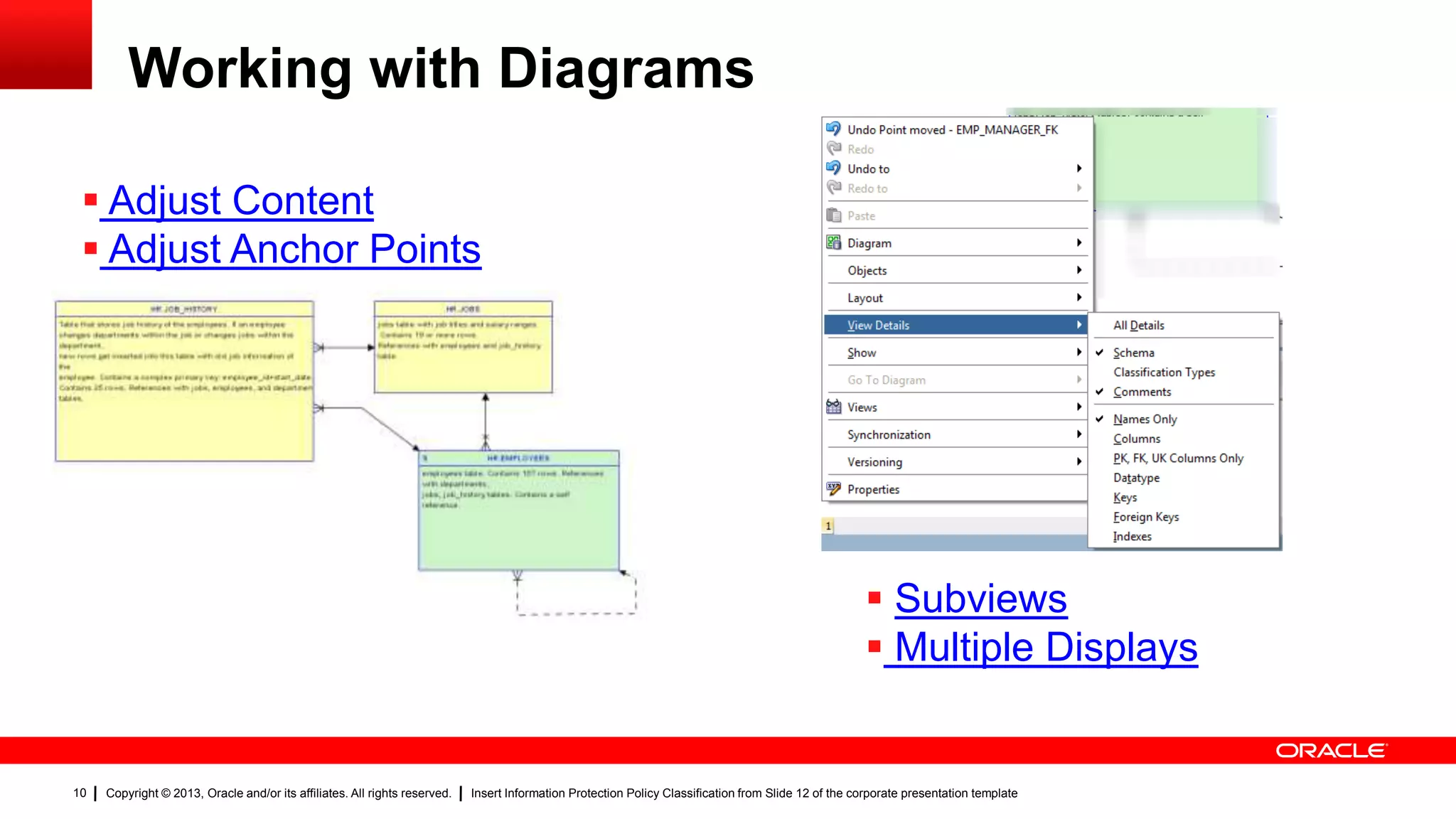

10. Working with Diagrams
 Adjust Content
 Adjust Anchor Points
 Subviews
 Multiple Displays
10
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

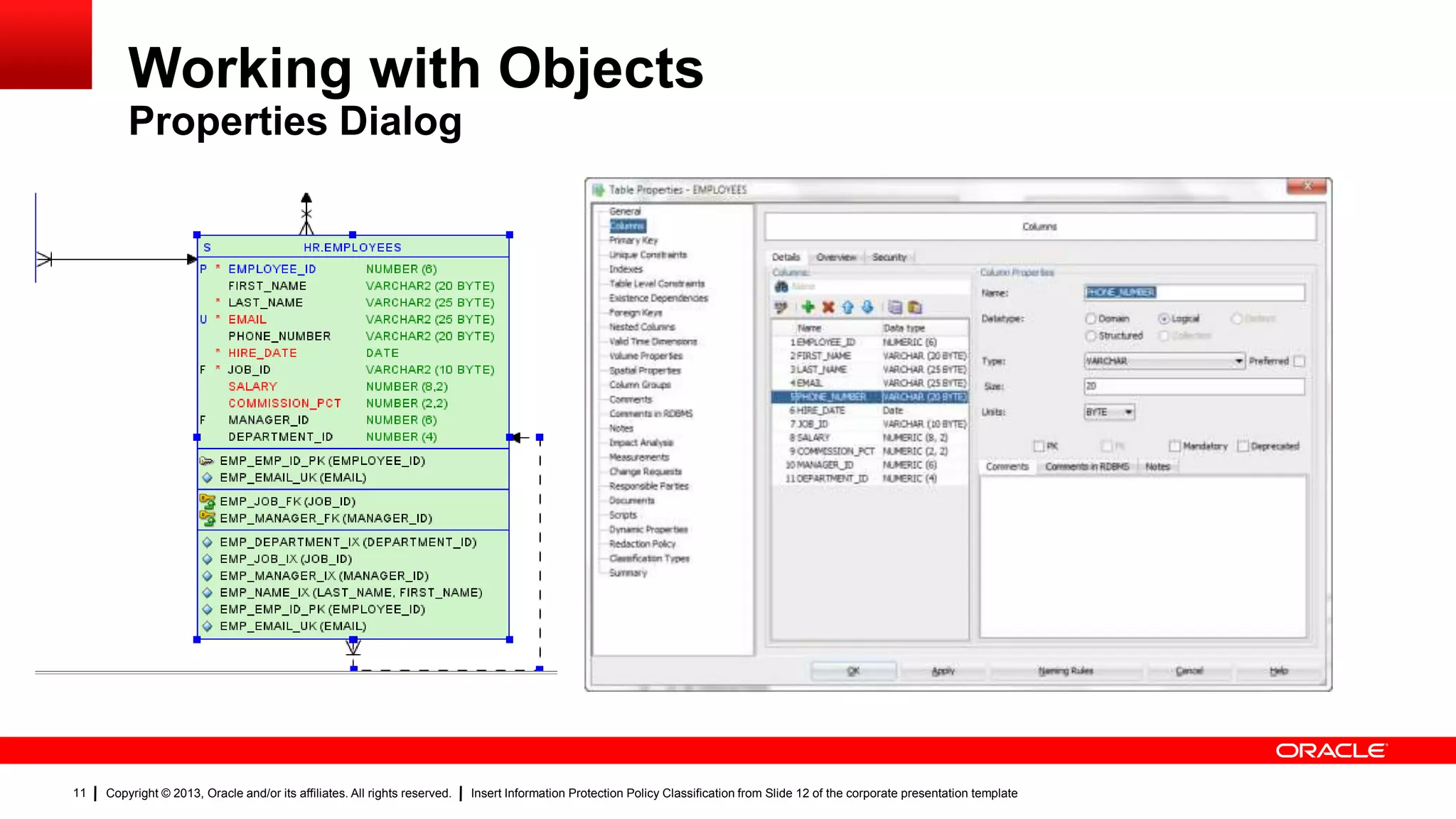

11. Working with Objects
Properties Dialog
11
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

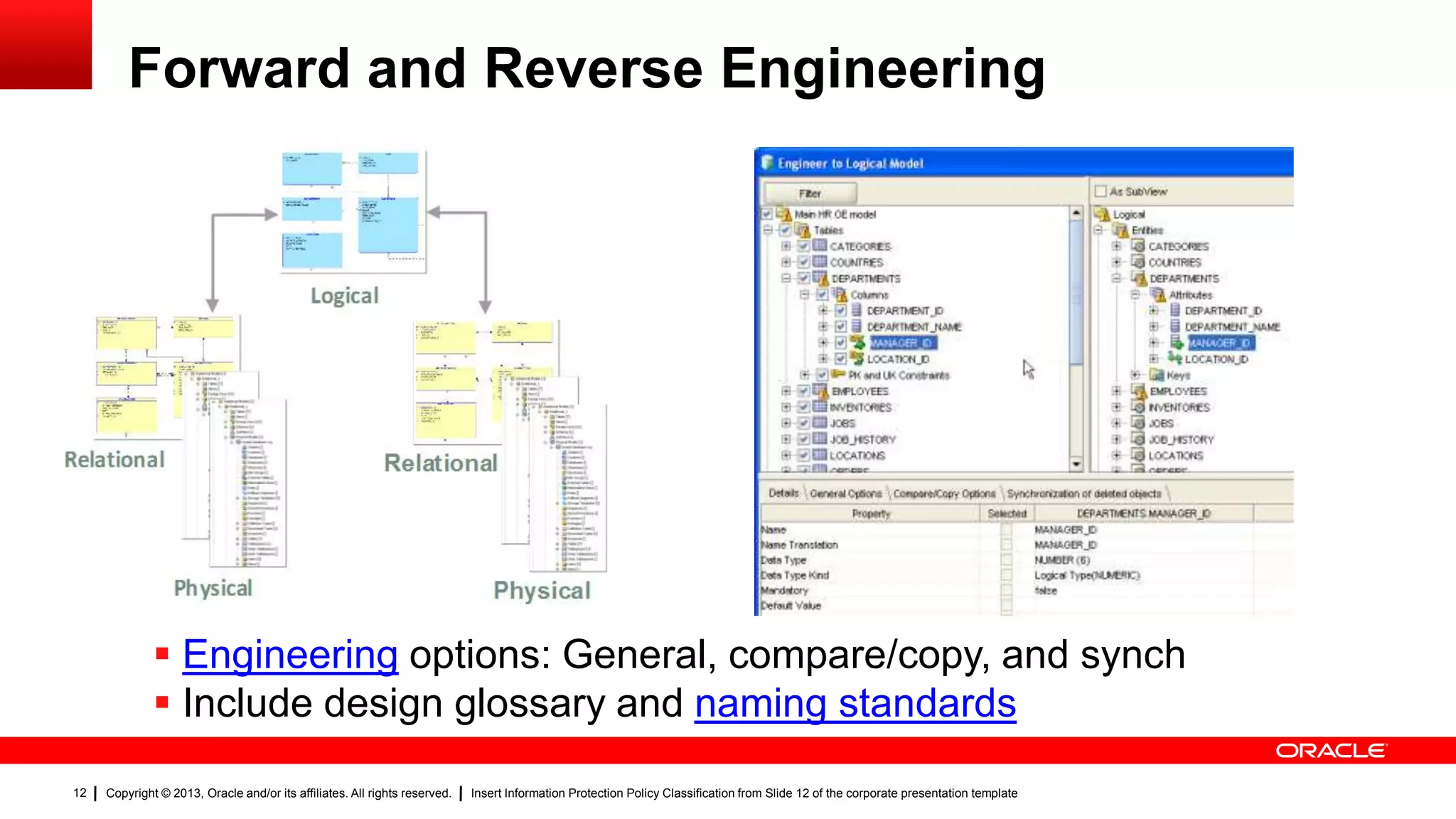

12. Forward and Reverse Engineering
 Engineering options: General, compare/copy, and synch
 Include design glossary and naming standards
12
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

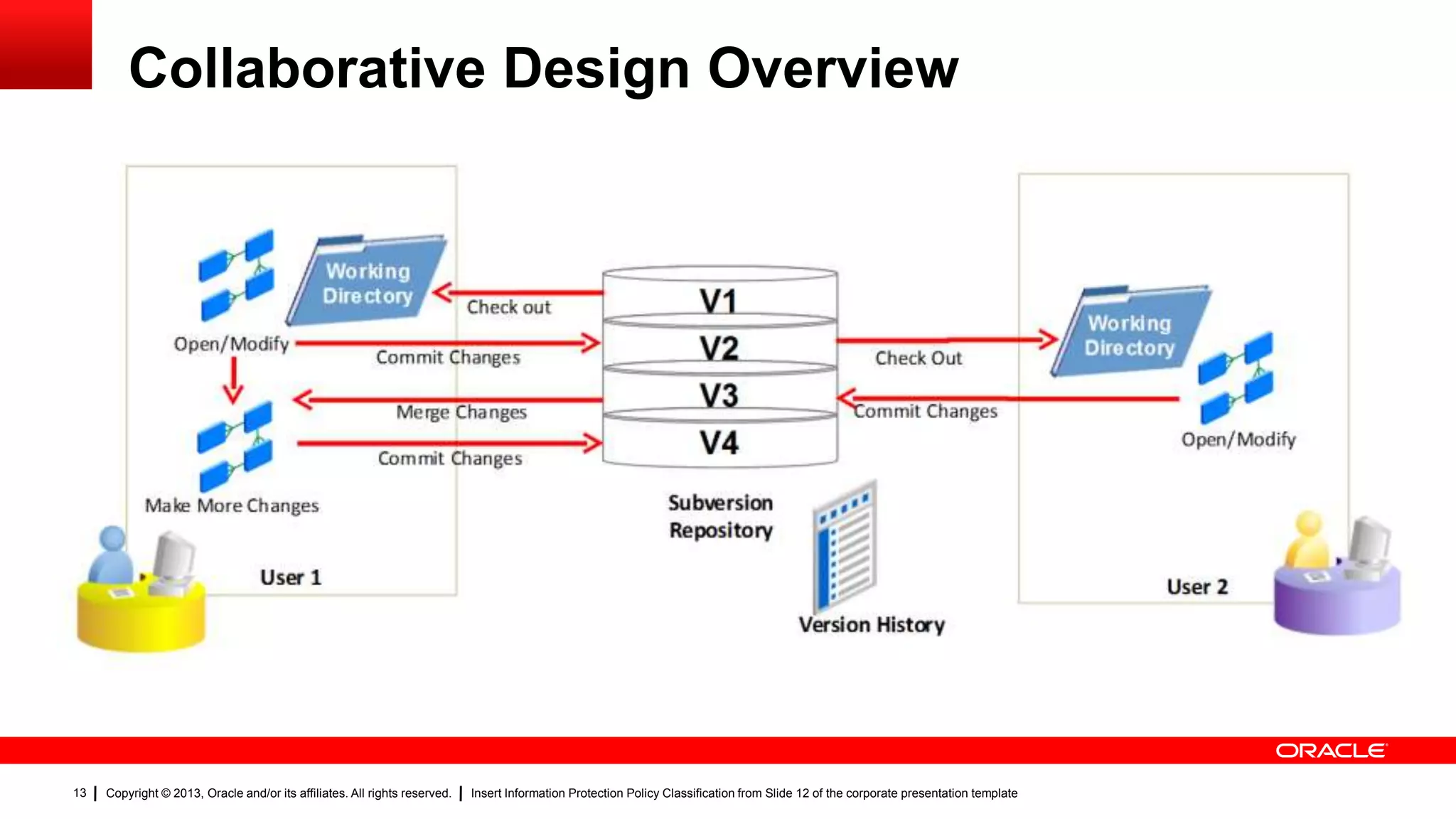

13. Collaborative Design Overview
13
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

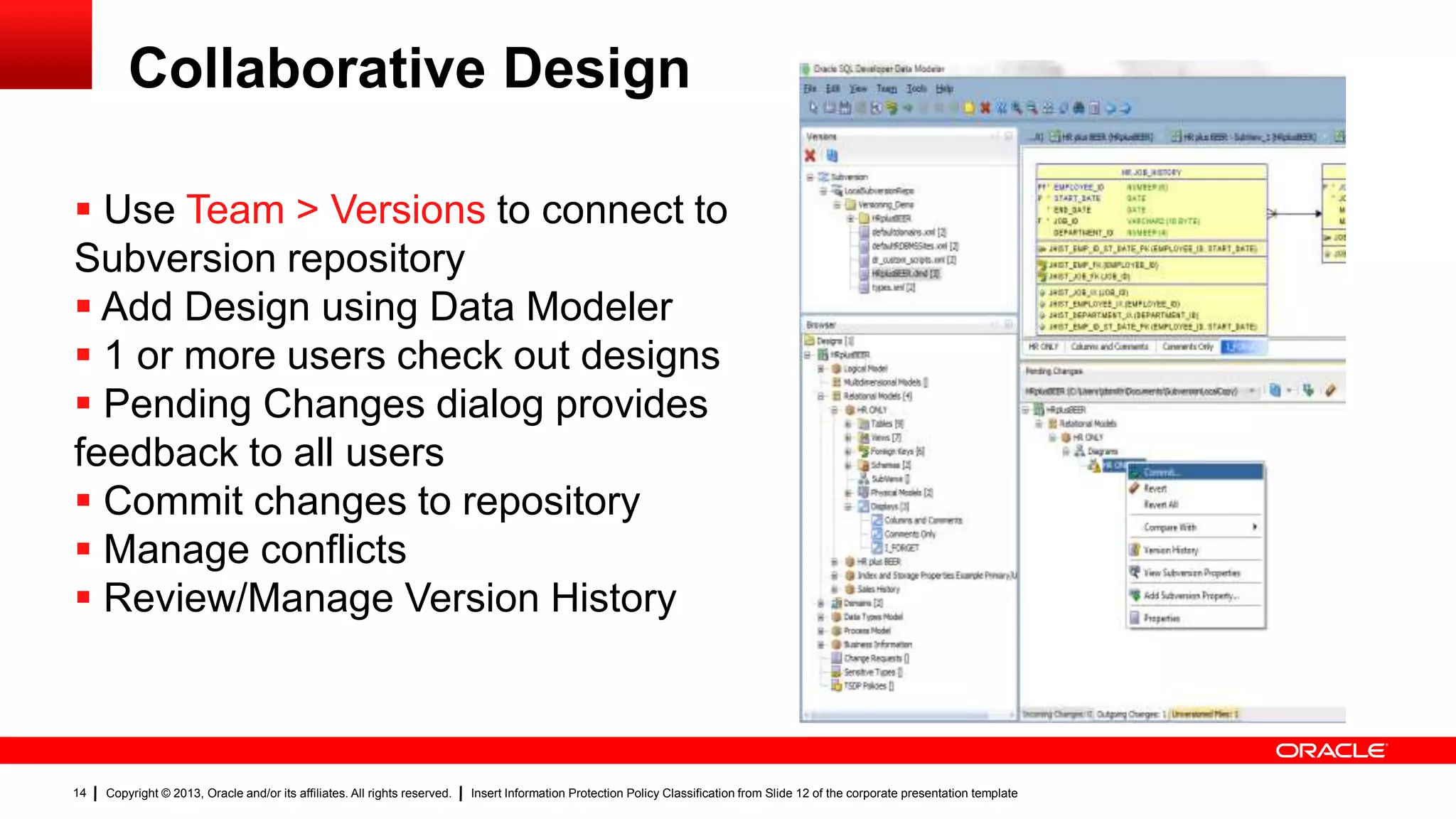

14. Collaborative Design
 Use Team > Versions to connect to
Subversion repository
 Add Design using Data Modeler
 1 or more users check out designs
 Pending Changes dialog provides
feedback to all users
 Commit changes to repository
 Manage conflicts
 Review/Manage Version History
14
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

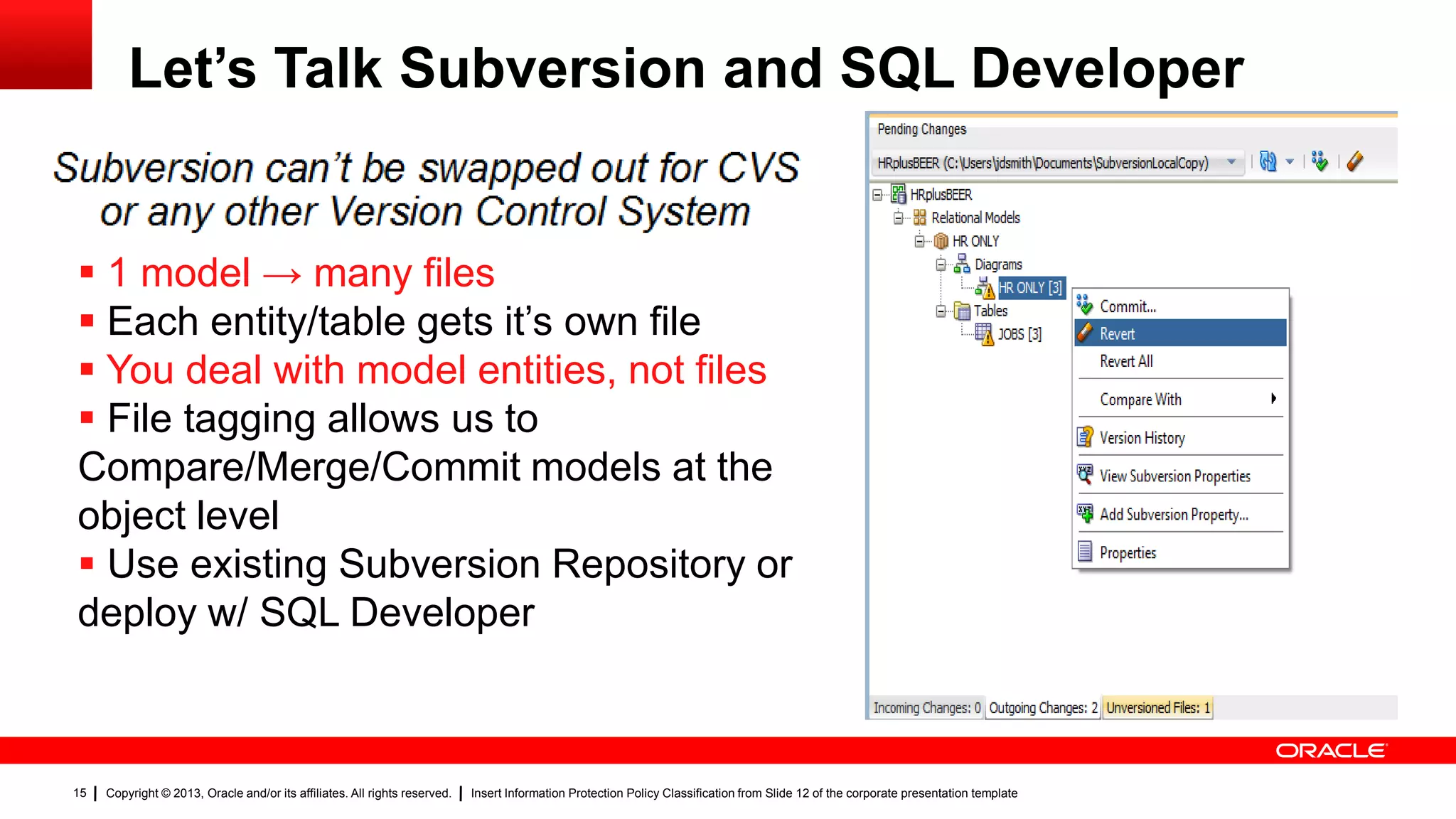

15. Let’s Talk Subversion and SQL Developer
 1 model → many files
 Each entity/table gets it’s own file
 You deal with model entities, not files
 File tagging allows us to
Compare/Merge/Commit models at the
object level
 Use existing Subversion Repository or
deploy w/ SQL Developer
15
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

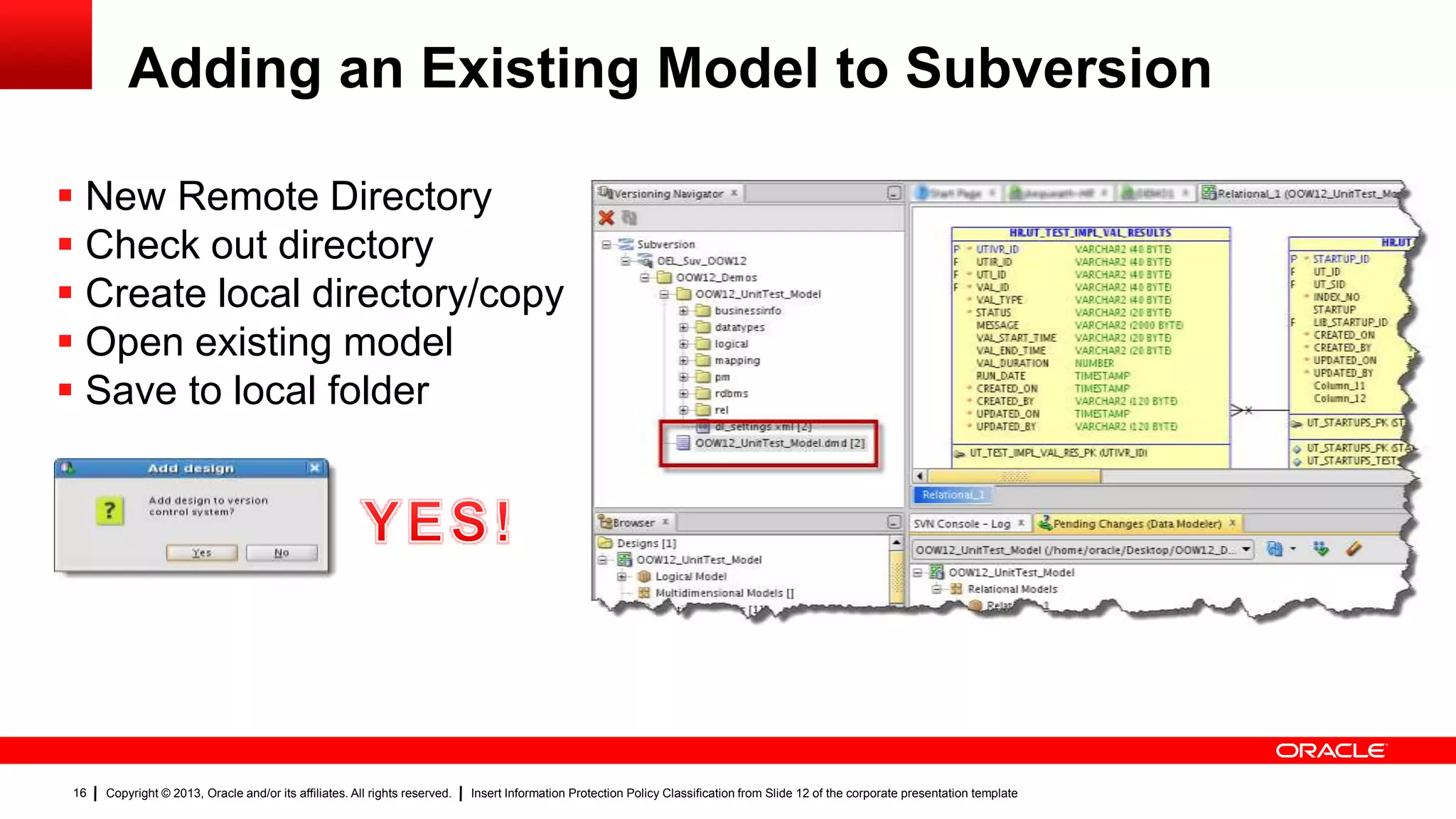

16. Adding an Existing Model to Subversion
 New Remote Directory
 Check out directory
 Create local directory/copy
 Open existing model
 Save to local folder
16
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

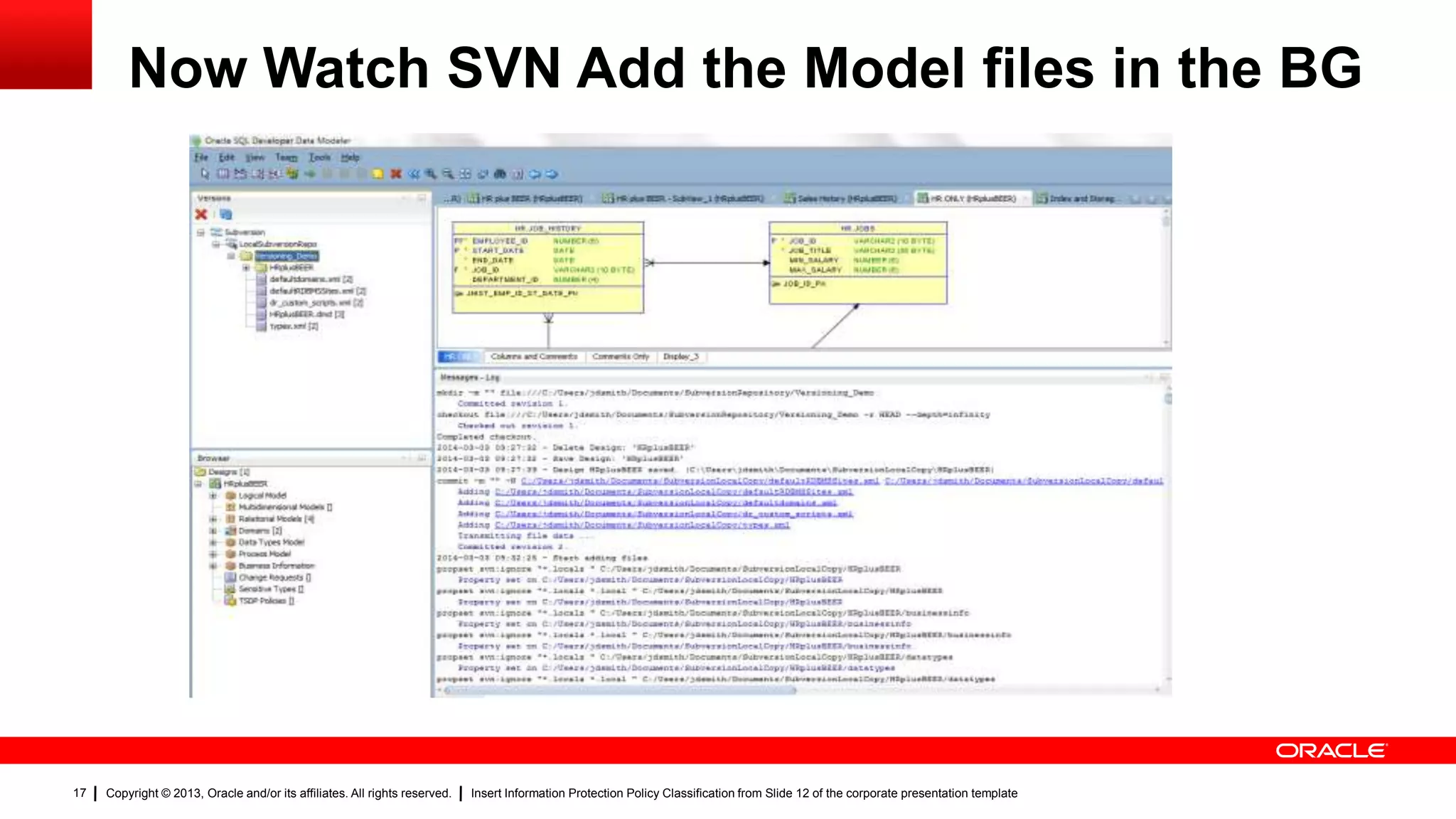

17. Now Watch SVN Add the Model files in the BG
17
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

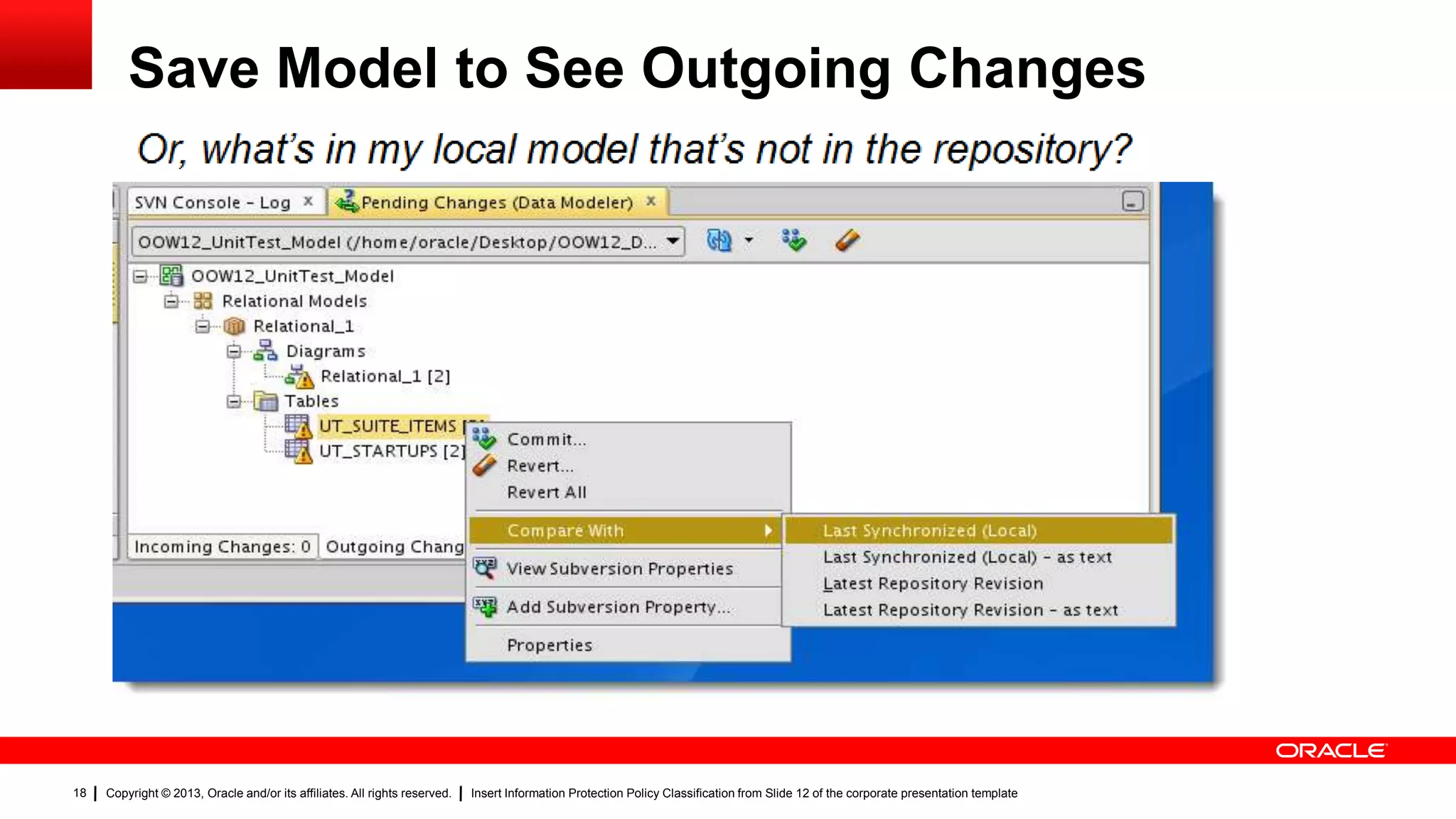

18. Save Model to See Outgoing Changes
18
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

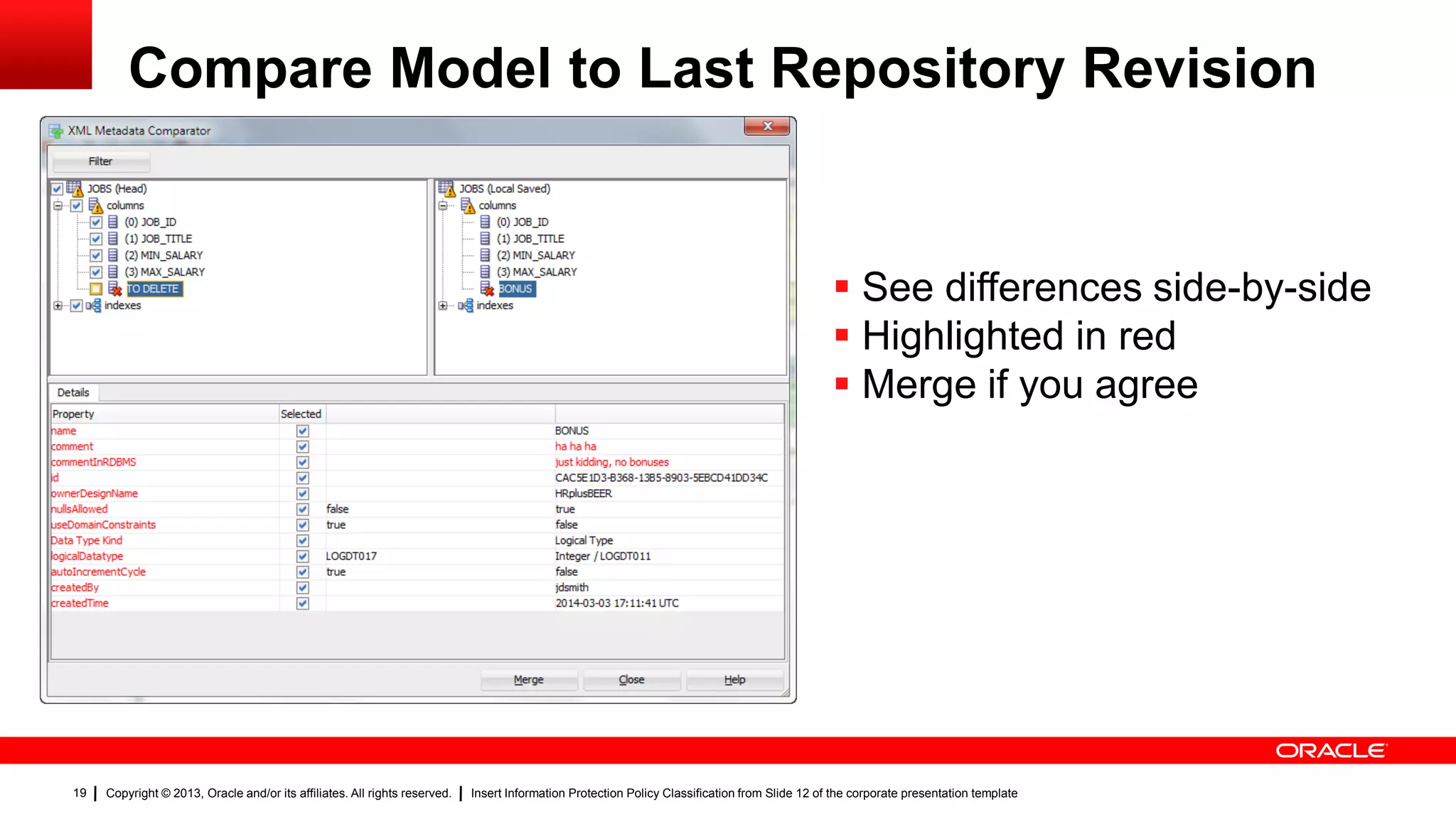

19. Compare Model to Last Repository Revision
 See differences side-by-side
 Highlighted in red
 Merge if you agree
19
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

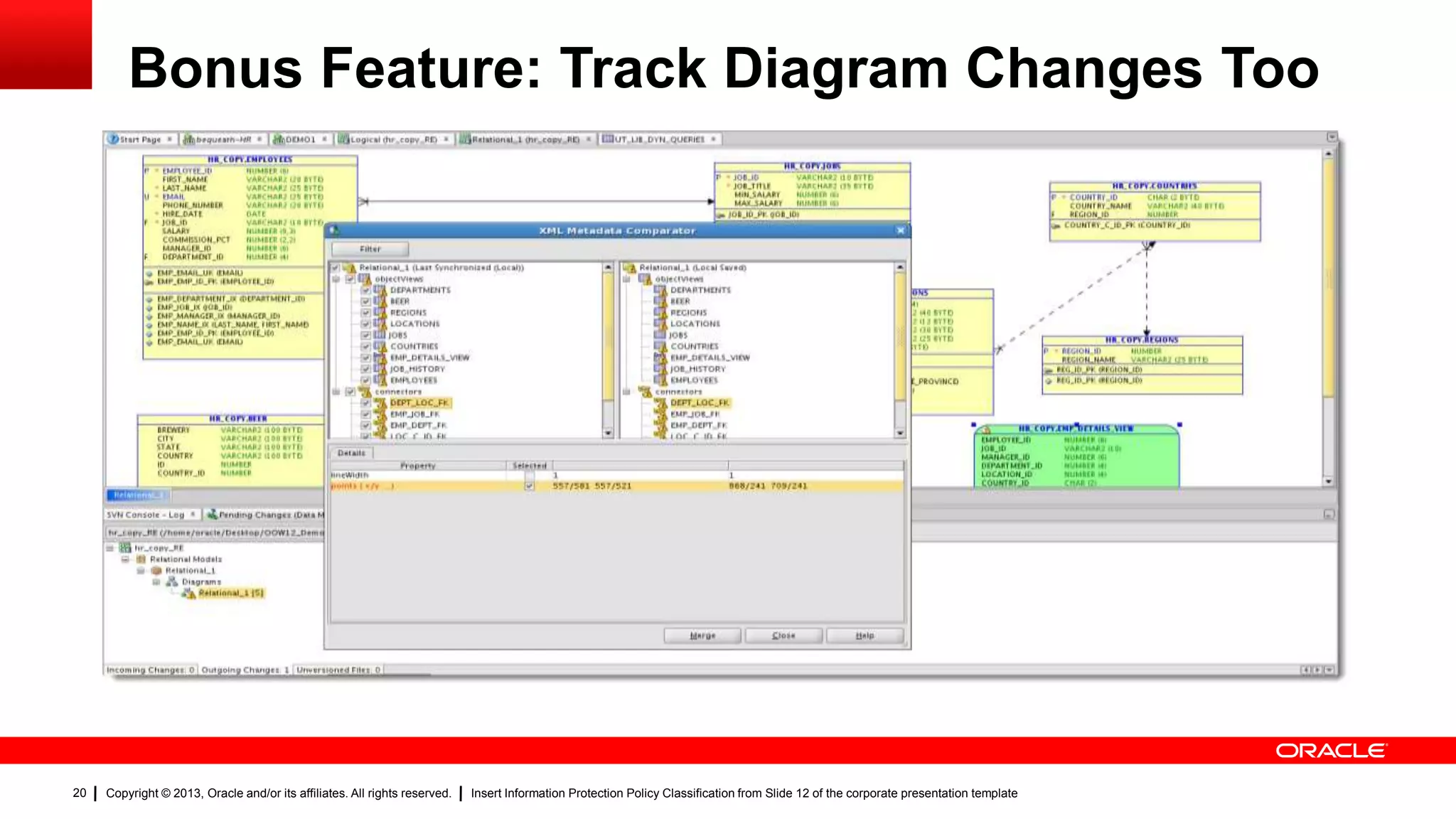

20. Bonus Feature: Track Diagram Changes Too
20
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

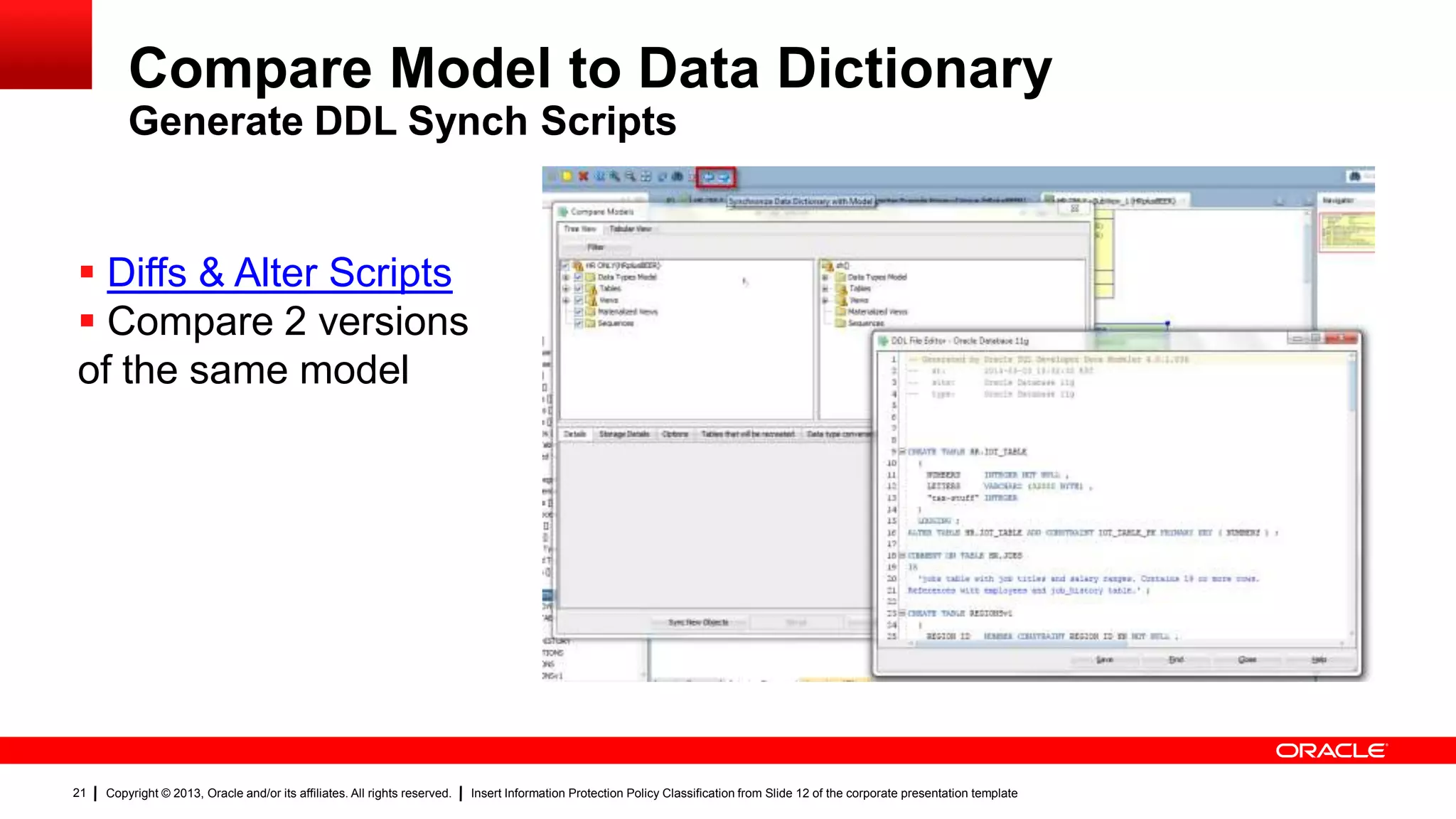

21. Compare Model to Data Dictionary
Generate DDL Synch Scripts
 Diffs & Alter Scripts
 Compare 2 versions
of the same model
21
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template

22. Thanks!
Download SQL Developer Data Modeler
Product Forums
YouTube Channel
22
