Washing Machine      WML 15105 D
      ฀         ฀    WML 15085 D
    ฀           ฀    WML 15065 D
Automatická pračka
1 Warnings                                             by classifying according to waste
                                                       directives.
General Safety
• Never place your machine on a                   Intended use
  carpet covered floor. Otherwise,                • This product has been designed for
  lack of airflow from below of your                home use.
  machine may cause electrical parts to           • The appliance may only be used for
  overheat. This may cause problems                 washing and rinsing of textiles that
  with your washing machine.                        are marked accordingly.
• If the power cable or mains plug is             Safety instructions
  damaged you must call Authorized                • This appliance must be connected to
  Service for repair.                               an earthed outlet protected by a fuse
• Fit the drain hose into the discharge             of suitable capacity.
  housing securely to prevent any                 • The supply and draining hoses must
  water leakage and to allow machine                always be securely fastened and
  to take in and discharge water as                 remain in an undamaged state.
  required. It is very important that the         • Fit the draining hose to a washbasin
  water intake and drain hoses are not              or bathtub securely before starting up
  folded, squeezed, or broken when                  your machine. There may be a risk of
  the appliance is pushed into place                being scalded due to high washing
  after it is installed or cleaned.                 temperatures!
• Your washing machine is designed                • Never open the loading door or
  to continue operating in the event of             remove the filter while there is still
  a power interruption. Your machine                water in the drum.
  will not resume its program when                • Unplug the machine when it is not in
  the power restores. Press the                     use.
  “Start/Pause/Cancel” button for 3               • Never wash down the appliance with
  seconds to cancel the program (See,               a water hose! There is the risk of
  Canceling a Program)                              electric shock!
• There may be some water in your                 • Never touch the plug with wet hands.
  machine when you receive it. This is              Do not operate the machine if the
  from the quality control process and              power cord or plug is damaged.
  is normal. It is not harmful to your            • For malfunctions that cannot be
  machine.                                          solved by information in the operating
• Some problems you may encounter                   manual:
  may be caused by the infrastructure.            • Turn off the machine, unplug it,
  Press "Start/Pause/Cancel" button                 turn off the water tap and contact
  for 3 seconds to cancel the program               an authorized service agent. You
  set in your machine before calling the            may refer to your local agent or
  authorized service.                               solid waste collection center in your
First Use                                           municipality to learn how to dispose
• Carry out your first washing process              of your machine.
  without loading your machine and                If there are children in your
  with detergent under “Cottons 90°C”             house...
  program.                                        • Keep children away from the machine
• Ensure that the cold and hot water                when it is operating. Do not let them
  connections are made correctly when               tamper with the machine.
  installing your machine.                        • Close the loading door when you
• If the current fuse or circuit breaker is         leave the area where the machine is
  less than 16 Amperes, please have                 located.
  a qualified electrician install a 16
  Ampere fuse or circuit breaker.
• While using with or without a
  transformer, do not neglect to have
  the grounding installation laid by a
  qualified electrician. Our company
  shall not be liable for any damages
  that may arise when the machine is
  used on a line without grounding.
• Keep the packaging materials out
  of reach of children or dispose them
                                              2 - EN

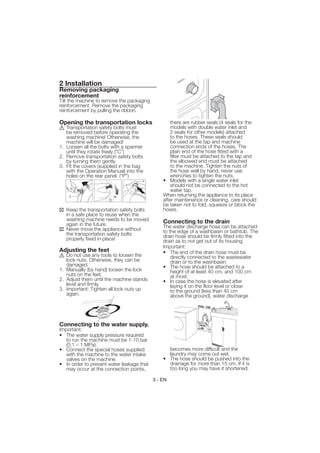

2 Installation
Removing packaging
reinforcement
Tilt the machine to remove the packaging
reinforcement. Remove the packaging
reinforcement by pulling the ribbon.

Opening the transportation locks                   there are rubber seals (4 seals for the
   Transportation safety bolts must                models with double water inlet and
   be removed before operating the                 2 seals for other models) attached
   washing machine! Otherwise, the                 to the hoses. These seals should
   machine will be damaged!                        be used at the tap and machine
1. Loosen all the bolts with a spanner             connection ends of the hoses. The
   until they rotate freely (“C”)                  plain end of the hose fitted with a
2. Remove transportation safety bolts              filter must be attached to the tap and
   by turning them gently.                         the elbowed end must be attached
3. Fit the covers (supplied in the bag             to the machine. Tighten the nuts of
   with the Operation Manual) into the             the hose well by hand; never use
   holes on the rear panel. (“P”)                  wrenches to tighten the nuts.
                                               • Models with a single water inlet
                                                   should not be connected to the hot
                                                   water tap.
                                               When returning the appliance to its place
                                               after maintenance or cleaning, care should
                                               be taken not to fold, squeeze or block the
   Keep the transportation safety bolts        hoses.
   in a safe place to reuse when the
   washing machine needs to be moved           Connecting to the drain
   again in the future.                        The water discharge hose can be attached
   Never move the appliance without            to the edge of a washbasin or bathtub. The
   the transportation safety bolts             drain hose should be firmly fitted into the
   properly fixed in place!                    drain as to not get out of its housing.
                                               Important:
Adjusting the feet                             • The end of the drain hose must be
   Do not use any tools to loosen the              directly connected to the wastewater
   lock nuts. Otherwise, they can be               drain or to the washbasin.
   damaged.                                    • The hose should be attached to a
1. Manually (by hand) loosen the lock              height of at least 40 cm, and 100 cm
   nuts on the feet.                               at most.
2. Adjust them until the machine stands        • In case the hose is elevated after
   level and firmly.                               laying it on the floor level or close
3. Important: Tighten all lock nuts up             to the ground (less than 40 cm
   again.                                          above the ground), water discharge




Connecting to the water supply.
Important:
• The water supply pressure required
   to run the machine must be 1-10 bar
   (0,1 – 1 MPa).
• Connect the special hoses supplied             becomes more difficult and the
   with the machine to the water intake          laundry may come out wet.
   valves on the machine.                      • The hose should be pushed into the
• In order to prevent water leakage that         drainage for more than 15 cm. If it is
   may occur at the connection points,           too long you may have it shortened.

                                           3 - EN
• The maximum length of the                       Correct load capacity
  combined hoses must not be longer                    Please follow the information in the
  than 3.2 m.                                          “Program Selection Table”. Washing
                                                       results will degrade when the
Electrical connection                                  machine is overloaded.
Connect the machine to an earthed outlet          Loading door
protected by a fuse of suitable capacity.         The door locks during program operation
Important:                                        and the Door Locked Symbol (Figure 3-13i)
• Connection should comply with                   lights up. The door can be opened when
   national regulations.                          the symbol fades out.
• The voltage and the allowed fuse
   protection are specified in the section        Detergents and softeners
   “Technical Specifications”.                    Detergent Drawer
• The specified voltage must be equal             The detergent drawer is composed of three
   to your mains voltage.                         compartments:
• Connection via extension cords or               The detergent dispenser may be in two
   multi-plugs should not be made.                different types according to the model of
   A damaged power cable must be                  your machine.
   replaced by a qualified electrician.
   The appliance must not be operated             – (I) for prewash
   unless it is repaired! There is the risk       – (II) for main wash
   of electric shock!                             - (III) siphon
                                                  – ( ) for softener



3 Initial preparations for
washing
Preparing clothes for washing
Laundry items with metal attachments such
as, bras, belt buckles and metal buttons
will damage the machine. Remove metal             Detergent, softener and other cleaning
attachments or place the items in a clothing      agents
bag, pillow case, or something similar.           Add detergent and softener before starting
• Sort the laundry according to type              the washing program.
    of fabric, color, and degree of soiling       Never open the detergent dispenser drawer
    and permissible water temperature.            while the washing program is running!
    Always follow the advice on the               When using a program without pre-wash,
    garment labels.                               no detergent should be put into the pre-
• Place small items like infants’ socks           wash compartment (Compartment no. I).
    and nylon stockings, etc. in a laundry
    bag, pillow case or something similar.        Detergent quantity
    This will also save your laundry from         The amount of washing detergent to be
    getting lost.                                 used depends on the amount of laundry, the
• Wash “machine washable” or “hand                degree of soiling and water hardness.
    washable” labeled products only with
    an appropriate program.                       • Do not use amounts exceeding
• Do not wash colors and whites                      the quantities recommended on
    together. New, dark colored cottons              the package to avoid problems of
    may release a lot of dye. Wash them              excessive foam, poor rinsing, financial
    separately.                                      savings and finally, environmental
• Use only dyes/color changers and                   protection.
    lime removers suitable for machine            • Never exceed the (> max <) level
    wash. Always follow the instructions             marking; otherwise, the softener will
    on the packaging.                                be wasted without being used.
• Wash trousers and delicate clothes              • Do not use liquid detergent if you
    turned inside out.                               want to wash using the time delay
                                                     feature.

                                              4 - EN

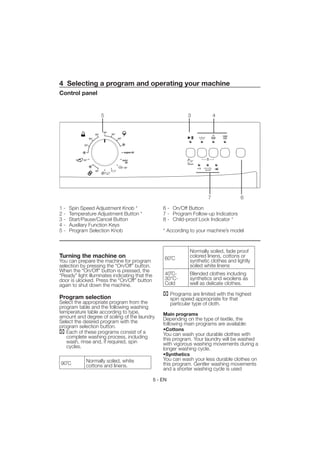

4 Selecting a program and operating your machine
Control panel


                              5                                        3            4


                              90°
                        60°         60°
                                                                                        1000
                  40°                     40°                                            500


            30°




           30°                                                           3’’
                                                                      Reset
                                                30°
                        40°




                                                                                7               6

1-   Spin Speed Adjustment Knob *                         6 - On/Off Button
2-   Temperature Adjustment Button *                      7 - Program Follow-up Indicators
3-   Start/Pause/Cancel Button                            8 - Child-proof Lock Indicator *
4-   Auxiliary Function Keys
5-   Program Selection Knob                               * According to your machine’s model



                                                                        Normally soiled, fade proof
Turning the machine on                                     60˚C         colored linens, cottons or
You can prepare the machine for program                                 synthetic clothes and lightly
selection by pressing the “On/Off” button.                              soiled white linens
When the “On/Off” button is pressed, the
“Ready” light illuminates indicating that the              40˚C-        Blended clothes including
door is ulocked. Press the “On/Off” button                 30°C-        synthetics and woolens as
again to shut down the machine.                            Cold         well as delicate clothes.

                                                               Programs are limited with the highest
Program selection                                              spin speed appropriate for that
Select the appropriate program from the                        particular type of cloth.
program table and the following washing
temperature table according to type,                      Main programs
amount and degree of soiling of the laundry.              Depending on the type of textile, the
Select the desired program with the                       following main programs are available:
program selection button.
                                                          •Cottons
   Each of these programs consist of a                    You can wash your durable clothes with
   complete washing process, including                    this program. Your laundry will be washed
   wash, rinse and, if required, spin                     with vigorous washing movements during a
   cycles.                                                longer washing cycle.
                                                          •Synthetics
             Normally soiled, white                       You can wash your less durable clothes on
90˚C         cottons and linens.                          this program. Gentler washing movements
                                                          and a shorter washing cycle is used

                                                      5 - EN
compared to the “Cottons” program. It is
recommended for your synthetic clothes          Spin Speed selection
(such as shirts, blouses, synthetic/cotton      You can have your clothes spun at the
blended garments, etc.). For curtains and       maximum rpm selection on your machine
lace, the “Synthetic 40” program with pre-      by using the selection knob in models
wash and anti-creasing functions selected is    equipped with an rpm selection knob. In
recommended.                                    order to protect your clothes, your machine
•Delicates                                      will not spin above 800 rpm on synthetic
You can wash your delicate clothes              programs and 600 rpm on woolens
on this program. It has more sensitive          program. Furthermore, if you want to skip
washing movements and does not make             the spin cycle and take your clothes out,
intermediate spinning compared to               turn the rpm selection knob to “no spin”
“Synthetic” program.                            position.
•Woolens                                        In machines not equipped with a spin speed
You can wash your machine-washable              selection knob, the machine will spin in the
woolen garments on this program. Wash           maximum possible rpm in the default setting
by selecting the proper temperature             of the selected program.
according to the labels of your clothes.
It is recommended to use appropriate
detergents for woolens.
•Hand Wash
You can wash your woolen/delicate clothes
that bear “not machine- washable” labels
for which hand wash is recommended on
this program. It washes the laundry with
very tender washing movements without
damaging your clothes.

Additional programs
For special cases, there are also extra
programs available:
   Additional programs may differ
   according to the model of your
   machine.
• Super
This program washes for a longer period
at 40°C and gives the same result as the
"Cottons 60°C" program, thus it saves
energy. It is suitable for clothes for which
you cannot use the "Cotton 60°C" program.
• Mini
This program is used to quickly wash (30
minutes) a small amount of lightly soiled
cotton garments.

Special programs
For specific applications, you can select any
of the following programs:
• Rinse
This program is used when you want to
rinse or starch separately.
• Pump + Spin
This program spins with maximum possible
rpm in the default setting after the water
drains from the machine.
   You should use a lower spin speed
   for delicate laundries.


                                            6 - EN
Program selection and consumption table




                                         Programme Duration (~min)




                                                                                              Energy Consumption (kWh)
                                                                     Water Consumption (l)




                                                                                                                                                             Spin speed reduction
                        Max. Load (kg)


    Programme




                                                                                                                                                Rinse Hold
                                                                                                                                   Rinse Plus
                                                                                                                         Prewash




                                                                                                                                                                                              No Heat
                                                                                                                                                                                    No Spin
Cottons          90     5                133                         45                      1.65                        •         •            •             •                     •         •
Cottons         60**    5                140                         45                      0.95                        •         •            •             •                     •         •

Cottons          40     5                142                         45                      0.69                        •         •            •             •                     •         •

Super            40     5                182                         45                      0.78                                                             •                     •         •
Synthetics       60    2.5               113                         52                      0.92                        •         •            •             •                     •         •

Synthetics       40    2.5               104                         52                      0.56                        •         •            •             •                     •         •

Synthetics       30    2.5               95                          52                      0.30                        •         •            •             •                     •         •
Delicate         30     2                77                          45                      0.36                                  •            •             •                     •         •

Woollens         40    1.5               70                          45                      0.36                                  •            •             •                     •         •

Hand wash        30     1                45                          32                      0.21                                                             •                     •         •

Mini             30    2.5               30                          43                      0.17                                                             •                     •         •




• : Selectable
* : Automatically selected, not cancellable.
**: Energy Label programme (EN 60456)

Water and power consumption and programme duration may differ from the table
shown, subject to changes in water pressure, water hardness and temperature, ambient
temperature, type and amount of laundry, selection of auxiliary functions, and fluctuations in
the supply voltage.

   The auxiliary functions in the table may differ according to the model of your
   machine.

                                                                                             7 - EN

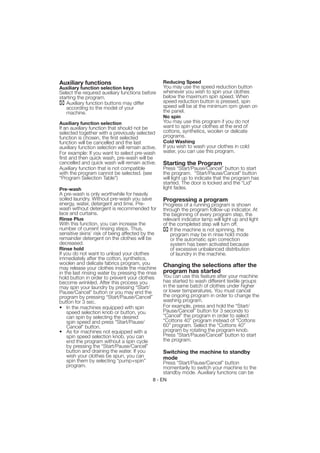

Auxiliary functions                                Reducing Speed
Auxiliary function selection keys                  You may use the speed reduction button
Select the required auxiliary functions before     whenever you wish to spin your clothes
starting the program.                              below the maximum spin speed. When
   Auxiliary function buttons may differ           speed reduction button is pressed, spin
   according to the model of your                  speed will be at the minimum rpm given on
   machine.                                        the panel.
                                                   No spin
Auxiliary function selection                       You may use this program if you do not
If an auxiliary function that should not be        want to spin your clothes at the end of
selected together with a previously selected       cottons, synthetics, woolen or delicate
function is chosen, the first selected             programs.
function will be cancelled and the last            Cold Washing
auxiliary function selection will remain active.   If you wish to wash your clothes in cold
For example: If you want to select pre-wash        water, you can use this program.
first and then quick wash, pre-wash will be
cancelled and quick wash will remain active.       Starting the Program
Auxiliary function that is not compatible          Press “Start/Pause/Cancel” button to start
with the program cannot be selected. (see          the program. “Start/Pause/Cancel” button
“Program Selection Table”)                         will light up to indicate that the program has
                                                   started. The door is locked and the “Lid”
Pre-wash                                           light fades.
A pre-wash is only worthwhile for heavily
soiled laundry. Without pre-wash you save          Progressing a program
energy, water, detergent and time. Pre-            Progress of a running program is shown
wash without detergent is recommended for          through the program follow-up indicator. At
lace and curtains.                                 the beginning of every program step, the
Rinse Plus                                         relevant indicator lamp will light up and light
With this function, you can increase the           of the completed step will turn off.
number of current rinsing steps. Thus,                 If the machine is not spinning, the
sensitive skins’ risk of being affected by the         program may be in rinse hold mode
remainder detergent on the clothes will be             or the automatic spin correction
decreased.                                             system has been activated because
Rinse hold                                             of excessive unbalanced distribution
If you do not want to unload your clothes              of laundry in the machine.
immediately after the cotton, synthetics,
woolen and delicate fabrics program, you           Changing the selections after the
may release your clothes inside the machine
in the last rinsing water by pressing the rinse    program has started
hold button in order to prevent your clothes       You can use this feature after your machine
become wrinkled. After this process you            has started to wash different textile groups
may spin your laundry by pressing “Start/          in the same batch of clothes under higher
Pause/Cancel” button or you may end the            or lower temperatures. You must cancel
program by pressing “Start/Pause/Cancel”           the ongoing program in order to change the
button for 3 sec.                                  washing program.
• In the machines equipped with spin               For example, press and hold the “Start/
    speed selection knob or button, you            Pause/Cancel” button for 3 seconds to
    can spin by selecting the desired              “Cancel” the program in order to select
    spin speed and press "Start/Pause/             “Cottons 40” program instead of “Cottons
    Cancel" button.                                60” program. Select the “Cottons 40”
• As for machines not equipped with a              program by rotating the program knob.
    spin speed selection knob, you can             Press "Start/Pause/Cancel" button to start
    end the program without a spin cycle           the program.
    by pressing the “Start/Pause/Cancel”
    button and draining the water. If you          Switching the machine to standby
    wish your clothes be spun, you can             mode
    spin them by selecting “pump+spin”             Press “Start/Pause/Cancel” button
    program.                                       momentarily to switch your machine to the
                                                   standby mode. Auxiliary functions can be
                                              8 - EN

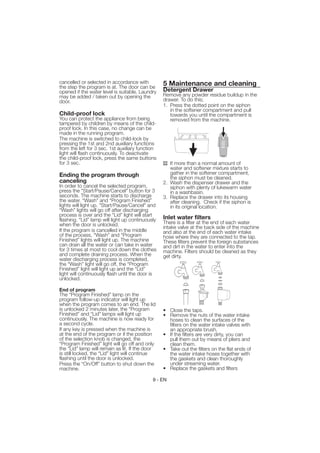

cancelled or selected in accordance with          5 Maintenance and cleaning
the step the program is at. The door can be
opened if the water level is suitable. Laundry    Detergent Drawer
may be added / taken out by opening the           Remove any powder residue buildup in the
door.                                             drawer. To do this;
                                                  1. Press the dotted point on the siphon
                                                     in the softener compartment and pull
Child-proof lock                                     towards you until the compartment is
You can protect the appliance from being             removed from the machine.
tampered by children by means of the child-
proof lock. In this case, no change can be
made in the running program.
The machine is switched to child-lock by
pressing the 1st and 2nd auxiliary functions
from the left for 3 sec. 1st auxiliary function
light will flash continuously. To deactivate
the child-proof lock, press the same buttons
for 3 sec.                                           If more than a normal amount of
                                                     water and softener mixture starts to
Ending the program through                           gather in the softener compartment,
                                                     the siphon must be cleaned.
canceling                                         2. Wash the dispenser drawer and the
In order to cancel the selected program,             siphon with plenty of lukewarm water
press the "Start/Pause/Cancel" button for 3          in a washbasin.
seconds. The machine starts to discharge          3. Replace the drawer into its housing
the water. “Wash” and “Program Finished”             after cleaning. Check if the siphon is
lights will light up. "Start/Pause/Cancel" and       in its original location.
“Wash” lights will go off after discharging
process is over and the “Lid” light will start
flashing. “Lid” lamp will light up continuously   Inlet water filters
when the door is unlocked.                        There is a filter at the end of each water
                                                  intake valve at the back side of the machine
If the program is cancelled in the middle         and also at the end of each water intake
of the process, “Wash” and “Program               hose where they are connected to the tap.
Finished” lights will light up. The machine       These filters prevent the foreign substances
can drain all the water or can take in water      and dirt in the water to enter into the
for 3 times at most to cool down the clothes      machine. Filters should be cleaned as they
and complete draining process. When the           get dirty.
water discharging process is completed,
the “Wash” light will go off, the “Program
Finished” light will light up and the “Lid”
light will continuously flash until the door is
unlocked.

End of program
The “Program Finished” lamp on the
program follow-up indicator will light up
when the program comes to an end. The lid
is unlocked 2 minutes later, the “Program         • Close the taps.
Finished” and “Lid” lamps will light up           • Remove the nuts of the water intake
continuously. The machine is now ready for          hoses to clean the surfaces of the
a second cycle.                                     filters on the water intake valves with
If any key is pressed when the machine is           an appropriate brush.
at the end of the program or if the position      • If the filters are very dirty, you can
of the selection knob is changed, the               pull them out by means of pliers and
“Program Finished” light will go off and only       clean them.
the “Lid” lamp will remain as lit. If the door    • Take out the filters on the flat ends of
is still locked, the “Lid” light will continue      the water intake hoses together with
flashing until the door is unlocked.                the gaskets and clean thoroughly
Press the “On/Off” button to shut down the          under streaming water.
machine.                                          • Replace the gaskets and filters

                                             9 - EN

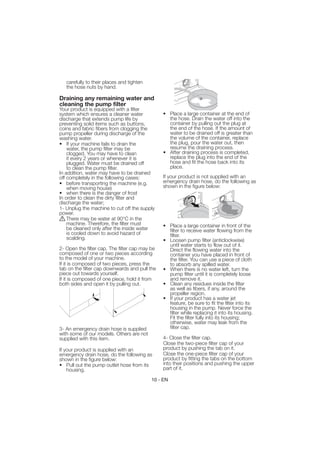

carefully to their places and tighten
   the hose nuts by hand.

Draining any remaining water and
cleaning the pump filter
Your product is equipped with a filter
system which ensures a cleaner water            • Place a large container at the end of
discharge that extends pump life by               the hose. Drain the water off into the
preventing solid items such as buttons,           container by pulling out the plug at
coins and fabric fibers from clogging the         the end of the hose. If the amount of
pump propeller during discharge of the            water to be drained off is greater than
washing water.                                    the volume of the container, replace
• If your machine fails to drain the              the plug, pour the water out, then
    water, the pump filter may be                 resume the draining process.
    clogged. You may have to clean              • After draining process is completed,
    it every 2 years or whenever it is            replace the plug into the end of the
    plugged. Water must be drained off            hose and fit the hose back into its
    to clean the pump filter.                     place.
In addition, water may have to be drained
off completely in the following cases:          If your product is not supplied with an
• before transporting the machine (e.g.         emergency drain hose, do the following as
    when moving house)                          shown in the figure below:
• when there is the danger of frost
In order to clean the dirty filter and
discharge the water;
1- Unplug the machine to cut off the supply
power.
    There may be water at 90°C in the
    machine. Therefore, the filter must         • Place a large container in front of the
    be cleaned only after the inside water        filter to receive water flowing from the
    is cooled down to avoid hazard of             filter.
    scalding.                                   • Loosen pump filter (anticlockwise)
                                                  until water starts to flow out of it.
2- Open the filter cap. The filter cap may be     Direct the flowing water into the
composed of one or two pieces according           container you have placed in front of
to the model of your machine.                     the filter. You can use a piece of cloth
If it is composed of two pieces, press the        to absorb any spilled water.
tab on the filter cap downwards and pull the    • When there is no water left, turn the
piece out towards yourself.                       pump filter until it is completely loose
If it is composed of one piece, hold it from      and remove it.
both sides and open it by pulling out.          • Clean any residues inside the filter
                                                  as well as fibers, if any, around the
                                                  propeller region.
                                                • If your product has a water jet
                                                  feature, be sure to fit the filter into its
                                                  housing in the pump. Never force the
                                                  filter while replacing it into its housing.
                                                  Fit the filter fully into its housing;
                                                  otherwise, water may leak from the
3- An emergency drain hose is supplied            filter cap.
with some of our models. Others are not
supplied with this item.                        4- Close the filter cap.
                                                Close the two-piece filter cap of your
If your product is supplied with an             product by pushing the tab on it.
emergency drain hose, do the following as       Close the one-piece filter cap of your
shown in the figure below:                      product by fitting the tabs on the bottom
• Pull out the pump outlet hose from its        into their positions and pushing the upper
    housing.                                    part of it.

                                           10 - EN

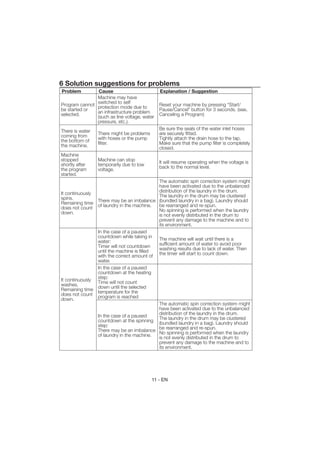

6 Solution suggestions for problems
Problem         Cause                         Explanation / Suggestion
               Machine may have
Program cannot switched to self               Reset your machine by pressing “Start/
be started or  protection mode due to         Pause/Cancel” button for 3 seconds. (see,
selected.      an infrastructure problem      Canceling a Program)
               (such as line voltage, water
               pressure, etc.).
There is water                                Be sure the seals of the water inlet hoses
coming from      There might be problems      are securely fitted.
the bottom of    with hoses or the pump       Tightly attach the drain hose to the tap.
the machine.     filter.                      Make sure that the pump filter is completely
                                              closed.
Machine
stopped          Machine can stop             It will resume operating when the voltage is
shortly after    temporarily due to low
the program      voltage.                     back to the normal level.
started.
                                            The automatic spin correction system might
                                            have been activated due to the unbalanced
It continuously                             distribution of the laundry in the drum.
                                            The laundry in the drum may be clustered
spins.          There may be an imbalance (bundled laundry in a bag). Laundry should
Remaining time of laundry in the machine.   be rearranged and re-spun.
does not count                              No spinning is performed when the laundry
down.                                       is not evenly distributed in the drum to
                                            prevent any damage to the machine and to
                                            its environment.
                In the case of a paused
                countdown while taking in The machine will wait until there is a
                water:                      sufficient amount of water to avoid poor
                Timer will not countdown
                until the machine is filled washing results due to lack of water. Then
                with the correct amount of the timer will start to count down.
                water.
                In the case of a paused
                countdown at the heating
                step:
It continuously Time will not count
washes.
Remaining time down until the selected
does not count temperature for the
                program is reached
down.
                                            The automatic spin correction system might
                                            have been activated due to the unbalanced
                                            distribution of the laundry in the drum.
                In the case of a paused
                countdown at the spinning The laundry in the drum may be clustered
                step:                       (bundled laundry in a bag). Laundry should
                There may be an imbalance be rearranged and re-spun.
                of laundry in the machine.  No spinning is performed when the laundry
                                            is not evenly distributed in the drum to
                                            prevent any damage to the machine and to
                                            its environment.




                                           11 - EN

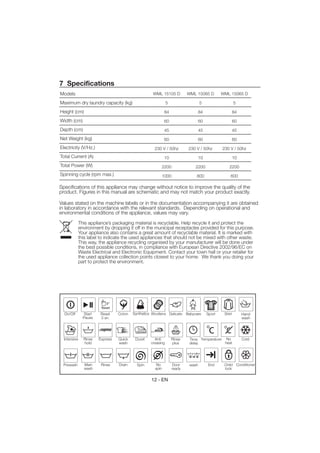

7 Specifications
Models                                                WML 15105 D            WML 15085 D          WML 15065 D

Maximum dry laundry capacity (kg)                               5                    5                     5

Height (cm)                                                   84                     84                    84

Width (cm)                                                    60                     60                    60
Depth (cm)                                                    45                     45                    45
Net Weight (kg)                                               60                     60                    60
Electricity (V/Hz.)                                    230 V / 50hz           230 V / 50hz        230 V / 50hz
Total Current (A)                                             10                     10                    10
Total Power (W)                                               2200                2200                2200
Spinning cycle (rpm max.)                                     1000                800                  600

Specifications of this appliance may change without notice to improve the quality of the
product. Figures in this manual are schematic and may not match your product exactly.

Values stated on the machine labels or in the documentation accompanying it are obtained
in laboratory in accordance with the relevant standards. Depending on operational and
environmental conditions of the appliance, values may vary.
              This appliance’s packaging material is recyclable. Help recycle it and protect the
              environment by dropping it off in the municipal receptacles provided for this purpose.
              Your appliance also contains a great amount of recyclable material. It is marked with
              this label to indicate the used appliances that should not be mixed with other waste.
              This way, the appliance recycling organised by your manufacturer will be done under
              the best possible conditions, in compliance with European Directive 2002/96/EC on
              Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for
              the used appliance collection points closest to your home. We thank you doing your
              part to protect the environment.




                             3’’
                          Reset                                                            8
  On/Off         Start   Reset     Coton   Synthetics Woollens Delicate      Babycare     Sport    Shirt        Hand
                Pause    3 sn.                                                                                  wash




  Intensive     Rinse    Express   Quick    Duvet      Anti         Rinse     Time Temperature No               Cold
                hold               wash              creasing       plus      delay            heat




 Prewash        Main      Rinse    Drain     Spin       No           Door     wash        End      Child Conditioner
                wash                                   spin          ready                         lock


                                                     12 - EN

More Related Content

What's hot

Jet hand dryer mitsubushi catalog
 Jet hand dryer mitsubushi  catalog  Jet hand dryer mitsubushi  catalog
Jet hand dryer mitsubushi catalog
INSHA EXPORTS PVT LTD

Kent wet dry vacuum cleaner-manual
Kent wet dry vacuum cleaner-manualKent wet dry vacuum cleaner-manual
Kent wet dry vacuum cleaner-manual
RonyKumar2

Ip wireless handset phones
Ip wireless handset phonesIp wireless handset phones
Ip wireless handset phones
logenatech

H2O Mop X5 User Guide / English
H2O Mop X5 User Guide / EnglishH2O Mop X5 User Guide / English
H2O Mop X5 User Guide / English
SpotlessClean

1 Pdfsam Download File
1 Pdfsam Download File1 Pdfsam Download File
1 Pdfsam Download File
guestacbd5ab

Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...
Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...
Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...
smartwash world

Multi-format Video Switcher
Multi-format Video SwitcherMulti-format Video Switcher
Multi-format Video Switcher
AV ProfShop

Inventa_Comprehensive_2015
Inventa_Comprehensive_2015Inventa_Comprehensive_2015
Inventa_Comprehensive_2015
Vaneeta Saini

Padgett Instruments Cleaning Instructions
Padgett Instruments Cleaning InstructionsPadgett Instruments Cleaning Instructions
Padgett Instruments Cleaning Instructions
Schuco

Капсульные кофемашины Keurig Lavazza от Stockist Italy
Капсульные кофемашины Keurig Lavazza от Stockist Italy Капсульные кофемашины Keurig Lavazza от Stockist Italy
Капсульные кофемашины Keurig Lavazza от Stockist Italy
P.L.T. Forniture Industriali S.r.l.

Samsung PowerBot VR9000
Samsung PowerBot VR9000 Samsung PowerBot VR9000
Samsung PowerBot VR9000
Saima Ashiq

4 Channel Video Mixer
4 Channel Video Mixer4 Channel Video Mixer
4 Channel Video Mixer
AV ProfShop

Samsung fjm installation manual
Samsung fjm installation manualSamsung fjm installation manual
Samsung fjm installation manual
Rui Caçoete

109173RevARNHPUC
109173RevARNHPUC109173RevARNHPUC
109173RevARNHPUC
Andrea Wall

User Instructions W10200356
User Instructions   W10200356User Instructions   W10200356
User Instructions W10200356
guest301b87a

Carrier inverter Split System
Carrier inverter Split System Carrier inverter Split System
Carrier inverter Split System
Carrier Air Conditioning


What's hot (16)

Jet hand dryer mitsubushi catalog
 Jet hand dryer mitsubushi  catalog  Jet hand dryer mitsubushi  catalog
Jet hand dryer mitsubushi catalog

Kent wet dry vacuum cleaner-manual
Kent wet dry vacuum cleaner-manualKent wet dry vacuum cleaner-manual
Kent wet dry vacuum cleaner-manual

Ip wireless handset phones
Ip wireless handset phonesIp wireless handset phones
Ip wireless handset phones

H2O Mop X5 User Guide / English
H2O Mop X5 User Guide / EnglishH2O Mop X5 User Guide / English
H2O Mop X5 User Guide / English

1 Pdfsam Download File
1 Pdfsam Download File1 Pdfsam Download File
1 Pdfsam Download File

Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...
Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...
Smartwash | Smart Toilets | Buy Online Bathroom Accessories | Smartwash-UserM...

Multi-format Video Switcher
Multi-format Video SwitcherMulti-format Video Switcher
Multi-format Video Switcher

Inventa_Comprehensive_2015
Inventa_Comprehensive_2015Inventa_Comprehensive_2015
Inventa_Comprehensive_2015

Padgett Instruments Cleaning Instructions
Padgett Instruments Cleaning InstructionsPadgett Instruments Cleaning Instructions
Padgett Instruments Cleaning Instructions

Капсульные кофемашины Keurig Lavazza от Stockist Italy
Капсульные кофемашины Keurig Lavazza от Stockist Italy Капсульные кофемашины Keurig Lavazza от Stockist Italy
Капсульные кофемашины Keurig Lavazza от Stockist Italy

Samsung PowerBot VR9000
Samsung PowerBot VR9000 Samsung PowerBot VR9000
Samsung PowerBot VR9000

4 Channel Video Mixer
4 Channel Video Mixer4 Channel Video Mixer
4 Channel Video Mixer

Samsung fjm installation manual
Samsung fjm installation manualSamsung fjm installation manual
Samsung fjm installation manual

109173RevARNHPUC
109173RevARNHPUC109173RevARNHPUC
109173RevARNHPUC

User Instructions W10200356
User Instructions   W10200356User Instructions   W10200356
User Instructions W10200356

Carrier inverter Split System
Carrier inverter Split System Carrier inverter Split System
Carrier inverter Split System


Viewers also liked

Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...
Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...
Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...
ABIM Foundation

De Digitale Windtunnel 01
De Digitale Windtunnel 01De Digitale Windtunnel 01
De Digitale Windtunnel 01
hannessanders

The Coming of Holy Spirit - Chafer, Walvoord
The Coming of Holy Spirit - Chafer, WalvoordThe Coming of Holy Spirit - Chafer, Walvoord
The Coming of Holy Spirit - Chafer, Walvoord
Richard Chamberlain

Sap gheit iv2
Sap gheit iv2Sap gheit iv2
Sap gheit iv2
stephengarywilliams

Mgt 350 final exam guide 19) According to the Executive Ethical Leadership R...
Mgt 350 final exam guide  19) According to the Executive Ethical Leadership R...Mgt 350 final exam guide  19) According to the Executive Ethical Leadership R...
Mgt 350 final exam guide 19) According to the Executive Ethical Leadership R...
ramyasribanu

Tangonan
TangonanTangonan
Tangonan
jboydus

Ce Spun Pisicile Cand Le Faci Baie
Ce Spun Pisicile Cand Le Faci BaieCe Spun Pisicile Cand Le Faci Baie
Ce Spun Pisicile Cand Le Faci Baie
Betty Budeanu

Lab 42 E Reader Results (December 2009) Erin
Lab 42   E Reader Results (December 2009) ErinLab 42   E Reader Results (December 2009) Erin
Lab 42 E Reader Results (December 2009) Erin
jpirc


Viewers also liked (8)

Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...
Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...
Transforming the Culture of a Large Academic Medical Center: Where We’ve Been...

De Digitale Windtunnel 01
De Digitale Windtunnel 01De Digitale Windtunnel 01
De Digitale Windtunnel 01

The Coming of Holy Spirit - Chafer, Walvoord
The Coming of Holy Spirit - Chafer, WalvoordThe Coming of Holy Spirit - Chafer, Walvoord
The Coming of Holy Spirit - Chafer, Walvoord

Sap gheit iv2
Sap gheit iv2Sap gheit iv2
Sap gheit iv2

Mgt 350 final exam guide 19) According to the Executive Ethical Leadership R...
Mgt 350 final exam guide  19) According to the Executive Ethical Leadership R...Mgt 350 final exam guide  19) According to the Executive Ethical Leadership R...
Mgt 350 final exam guide 19) According to the Executive Ethical Leadership R...

Tangonan
TangonanTangonan
Tangonan

Ce Spun Pisicile Cand Le Faci Baie
Ce Spun Pisicile Cand Le Faci BaieCe Spun Pisicile Cand Le Faci Baie
Ce Spun Pisicile Cand Le Faci Baie

Lab 42 E Reader Results (December 2009) Erin
Lab 42   E Reader Results (December 2009) ErinLab 42   E Reader Results (December 2009) Erin
Lab 42 E Reader Results (December 2009) Erin


Similar to Wml15105 eng

C100 zone1 en
C100 zone1 enC100 zone1 en
C100 zone1 en
Scott Brownlee

Bosch
BoschBosch
AVR3310CIEC_IM_006A.pdf
AVR3310CIEC_IM_006A.pdfAVR3310CIEC_IM_006A.pdf
AVR3310CIEC_IM_006A.pdf
fernando182576

Buddy High Volume Filling and Capping Machines
Buddy High Volume Filling and Capping Machines Buddy High Volume Filling and Capping Machines
Buddy High Volume Filling and Capping Machines
RogerQi2

Mfl70259902 01 s_170807
Mfl70259902 01 s_170807Mfl70259902 01 s_170807
Mfl70259902 01 s_170807
Meamona2015

Sagemcom F@ST Plug 501P Powerline Adapter User Guide
Sagemcom F@ST Plug 501P Powerline Adapter User GuideSagemcom F@ST Plug 501P Powerline Adapter User Guide
Sagemcom F@ST Plug 501P Powerline Adapter User Guide
Telephones Online

Generic user guide
Generic user guideGeneric user guide
Generic user guide
morasilva

sr6007_owners_manual.pdf
sr6007_owners_manual.pdfsr6007_owners_manual.pdf
sr6007_owners_manual.pdf
luckwill

Hawkins Contracting Electrical Safety in Construction
Hawkins Contracting Electrical Safety in ConstructionHawkins Contracting Electrical Safety in Construction
Hawkins Contracting Electrical Safety in Construction
NickHawkins19

E8e23164 8ba8-41b2-a4c8-e6cec41f4602
E8e23164 8ba8-41b2-a4c8-e6cec41f4602E8e23164 8ba8-41b2-a4c8-e6cec41f4602
E8e23164 8ba8-41b2-a4c8-e6cec41f4602
Buu TRUONG

Instruction manual-espressomat
Instruction manual-espressomatInstruction manual-espressomat
Instruction manual-espressomat
thghghg

Eureka Upright Vacuum Cleaner Owner's Guide- 4870 Series
Eureka Upright Vacuum Cleaner Owner's Guide- 4870 SeriesEureka Upright Vacuum Cleaner Owner's Guide- 4870 Series
Eureka Upright Vacuum Cleaner Owner's Guide- 4870 Series
Sergei Paleichuk

As5110 5100 3100 Eng Olm 0425
As5110 5100 3100 Eng Olm 0425As5110 5100 3100 Eng Olm 0425
As5110 5100 3100 Eng Olm 0425
guestdee8e1

User manual sde-3001-3003-english_web-0720
User manual sde-3001-3003-english_web-0720User manual sde-3001-3003-english_web-0720
User manual sde-3001-3003-english_web-0720
sophin12

Mwhe manual
Mwhe manualMwhe manual
Mwhe manual
Quang Bách

350 Se
350 Se350 Se
350 Se
guest361b01e

JVC DT-R17L4D 17-insch HD monitor
JVC DT-R17L4D 17-insch HD monitorJVC DT-R17L4D 17-insch HD monitor
JVC DT-R17L4D 17-insch HD monitor
AV ProfShop

Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual
Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manualAvtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual
Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual
Avtron

John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)
fsjefjskekmm

John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)
fusjefjskekmem


Similar to Wml15105 eng (20)

C100 zone1 en
C100 zone1 enC100 zone1 en
C100 zone1 en

Bosch
BoschBosch
Bosch

AVR3310CIEC_IM_006A.pdf
AVR3310CIEC_IM_006A.pdfAVR3310CIEC_IM_006A.pdf
AVR3310CIEC_IM_006A.pdf

Buddy High Volume Filling and Capping Machines
Buddy High Volume Filling and Capping Machines Buddy High Volume Filling and Capping Machines
Buddy High Volume Filling and Capping Machines

Mfl70259902 01 s_170807
Mfl70259902 01 s_170807Mfl70259902 01 s_170807
Mfl70259902 01 s_170807

Sagemcom F@ST Plug 501P Powerline Adapter User Guide
Sagemcom F@ST Plug 501P Powerline Adapter User GuideSagemcom F@ST Plug 501P Powerline Adapter User Guide
Sagemcom F@ST Plug 501P Powerline Adapter User Guide

Generic user guide
Generic user guideGeneric user guide
Generic user guide

sr6007_owners_manual.pdf
sr6007_owners_manual.pdfsr6007_owners_manual.pdf
sr6007_owners_manual.pdf

Hawkins Contracting Electrical Safety in Construction
Hawkins Contracting Electrical Safety in ConstructionHawkins Contracting Electrical Safety in Construction
Hawkins Contracting Electrical Safety in Construction

E8e23164 8ba8-41b2-a4c8-e6cec41f4602
E8e23164 8ba8-41b2-a4c8-e6cec41f4602E8e23164 8ba8-41b2-a4c8-e6cec41f4602
E8e23164 8ba8-41b2-a4c8-e6cec41f4602

Instruction manual-espressomat
Instruction manual-espressomatInstruction manual-espressomat
Instruction manual-espressomat

Eureka Upright Vacuum Cleaner Owner's Guide- 4870 Series
Eureka Upright Vacuum Cleaner Owner's Guide- 4870 SeriesEureka Upright Vacuum Cleaner Owner's Guide- 4870 Series
Eureka Upright Vacuum Cleaner Owner's Guide- 4870 Series

As5110 5100 3100 Eng Olm 0425
As5110 5100 3100 Eng Olm 0425As5110 5100 3100 Eng Olm 0425
As5110 5100 3100 Eng Olm 0425

User manual sde-3001-3003-english_web-0720
User manual sde-3001-3003-english_web-0720User manual sde-3001-3003-english_web-0720
User manual sde-3001-3003-english_web-0720

Mwhe manual
Mwhe manualMwhe manual
Mwhe manual

350 Se
350 Se350 Se
350 Se

JVC DT-R17L4D 17-insch HD monitor
JVC DT-R17L4D 17-insch HD monitorJVC DT-R17L4D 17-insch HD monitor
JVC DT-R17L4D 17-insch HD monitor

Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual
Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manualAvtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual
Avtron IR Bullet Camera Aa 4544-6044 p-fsr2-manual

John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)

John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)John deere e gator utility vehicle service repair manual (tm1766)
John deere e gator utility vehicle service repair manual (tm1766)


Recently uploaded

Look at our July library display on Mining
Look at our July library display on MiningLook at our July library display on Mining
Look at our July library display on Mining
NZSG

Cracking the Corporate Social Responsibilty Code.pptx
Cracking the Corporate Social Responsibilty Code.pptxCracking the Corporate Social Responsibilty Code.pptx
Cracking the Corporate Social Responsibilty Code.pptx
Workforce Group

20240716_ TJ Communications Credentials.pdf
20240716_ TJ Communications Credentials.pdf20240716_ TJ Communications Credentials.pdf
20240716_ TJ Communications Credentials.pdf
tjcomstrang

upGrad_Case_Study_by_Himanshu_Singh.pptx
upGrad_Case_Study_by_Himanshu_Singh.pptxupGrad_Case_Study_by_Himanshu_Singh.pptx
upGrad_Case_Study_by_Himanshu_Singh.pptx
himanshubclubofgsv

Top five predictions today, .
Top five predictions today,            .Top five predictions today,            .
Top five predictions today, .
Rupasingh82

HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...
HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...
HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...
pranjalgarg474

The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptxThe-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
Jindal Global University, Sonipat Haryana 131001

Path to the next normal collection McKinsey
Path to the next normal collection McKinseyPath to the next normal collection McKinsey
Path to the next normal collection McKinsey
MajIman2

YouTube Automation Step-by-step Guide.pdf
YouTube Automation Step-by-step Guide.pdfYouTube Automation Step-by-step Guide.pdf
YouTube Automation Step-by-step Guide.pdf
grizzyhuncho

Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptx
Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptxBenefits of Hiring Gen X Compared to Gen Z and Millennials.pptx
Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptx
Brian Frerichs

WAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdfWAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdf
Western Alaska Minerals Corp.

Solution manual for canadian income taxation 20222023 25th edition by william...
Solution manual for canadian income taxation 20222023 25th edition by william...Solution manual for canadian income taxation 20222023 25th edition by william...
Solution manual for canadian income taxation 20222023 25th edition by william...
stanslausnzuki569

DPI Playbook for MOSIP MIS framework India
DPI Playbook for MOSIP MIS framework IndiaDPI Playbook for MOSIP MIS framework India
DPI Playbook for MOSIP MIS framework India
Zaheer Parvez

Steps to Register Company in Dubai Mainland.pptx
Steps to Register Company in Dubai Mainland.pptxSteps to Register Company in Dubai Mainland.pptx
Steps to Register Company in Dubai Mainland.pptx
blackswanbss

Business Lessons From Emmanuel Katto Uganda
Business Lessons From Emmanuel Katto UgandaBusiness Lessons From Emmanuel Katto Uganda
Business Lessons From Emmanuel Katto Uganda
OliviaCox14

ShotOniPhone campaign by Vancy macwan.pptx
ShotOniPhone campaign by Vancy macwan.pptxShotOniPhone campaign by Vancy macwan.pptx
ShotOniPhone campaign by Vancy macwan.pptx
macwanvancy

India's 5 Most Promising E-Mobility Companies 2024.pdf
India's 5 Most Promising E-Mobility Companies  2024.pdfIndia's 5 Most Promising E-Mobility Companies  2024.pdf
India's 5 Most Promising E-Mobility Companies 2024.pdf
insightssuccess2

What's your strategy? Getting tactical about being strategic.
What's your strategy? Getting tactical about being strategic.What's your strategy? Getting tactical about being strategic.
What's your strategy? Getting tactical about being strategic.
Doug Hall

IRDAI's Regulatory Sandbox - Transforming Insurance Sector in India
IRDAI's Regulatory Sandbox - Transforming Insurance Sector in IndiaIRDAI's Regulatory Sandbox - Transforming Insurance Sector in India
IRDAI's Regulatory Sandbox - Transforming Insurance Sector in India
Enterslice


Recently uploaded (20)

Look at our July library display on Mining
Look at our July library display on MiningLook at our July library display on Mining
Look at our July library display on Mining

Cracking the Corporate Social Responsibilty Code.pptx
Cracking the Corporate Social Responsibilty Code.pptxCracking the Corporate Social Responsibilty Code.pptx
Cracking the Corporate Social Responsibilty Code.pptx

20240716_ TJ Communications Credentials.pdf
20240716_ TJ Communications Credentials.pdf20240716_ TJ Communications Credentials.pdf
20240716_ TJ Communications Credentials.pdf

upGrad_Case_Study_by_Himanshu_Singh.pptx
upGrad_Case_Study_by_Himanshu_Singh.pptxupGrad_Case_Study_by_Himanshu_Singh.pptx
upGrad_Case_Study_by_Himanshu_Singh.pptx

Top five predictions today, .
Top five predictions today,            .Top five predictions today,            .
Top five predictions today, .

HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...
HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...
HiFi Girls Call Surat 000XX00000 Provide Best And Top Girl Service And No1 in...

The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptxThe-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx

Path to the next normal collection McKinsey
Path to the next normal collection McKinseyPath to the next normal collection McKinsey
Path to the next normal collection McKinsey

DEMO_Aboveground Storage Tank Inspection.pdf
DEMO_Aboveground Storage Tank Inspection.pdfDEMO_Aboveground Storage Tank Inspection.pdf
DEMO_Aboveground Storage Tank Inspection.pdf

YouTube Automation Step-by-step Guide.pdf
YouTube Automation Step-by-step Guide.pdfYouTube Automation Step-by-step Guide.pdf
YouTube Automation Step-by-step Guide.pdf

Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptx
Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptxBenefits of Hiring Gen X Compared to Gen Z and Millennials.pptx
Benefits of Hiring Gen X Compared to Gen Z and Millennials.pptx

WAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdfWAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdf

Solution manual for canadian income taxation 20222023 25th edition by william...
Solution manual for canadian income taxation 20222023 25th edition by william...Solution manual for canadian income taxation 20222023 25th edition by william...
Solution manual for canadian income taxation 20222023 25th edition by william...

DPI Playbook for MOSIP MIS framework India
DPI Playbook for MOSIP MIS framework IndiaDPI Playbook for MOSIP MIS framework India
DPI Playbook for MOSIP MIS framework India

Steps to Register Company in Dubai Mainland.pptx
Steps to Register Company in Dubai Mainland.pptxSteps to Register Company in Dubai Mainland.pptx
Steps to Register Company in Dubai Mainland.pptx

Business Lessons From Emmanuel Katto Uganda
Business Lessons From Emmanuel Katto UgandaBusiness Lessons From Emmanuel Katto Uganda
Business Lessons From Emmanuel Katto Uganda

ShotOniPhone campaign by Vancy macwan.pptx
ShotOniPhone campaign by Vancy macwan.pptxShotOniPhone campaign by Vancy macwan.pptx
ShotOniPhone campaign by Vancy macwan.pptx

India's 5 Most Promising E-Mobility Companies 2024.pdf
India's 5 Most Promising E-Mobility Companies  2024.pdfIndia's 5 Most Promising E-Mobility Companies  2024.pdf
India's 5 Most Promising E-Mobility Companies 2024.pdf

What's your strategy? Getting tactical about being strategic.
What's your strategy? Getting tactical about being strategic.What's your strategy? Getting tactical about being strategic.
What's your strategy? Getting tactical about being strategic.

IRDAI's Regulatory Sandbox - Transforming Insurance Sector in India
IRDAI's Regulatory Sandbox - Transforming Insurance Sector in IndiaIRDAI's Regulatory Sandbox - Transforming Insurance Sector in India
IRDAI's Regulatory Sandbox - Transforming Insurance Sector in India


Wml15105 eng

  • 1. Washing Machine WML 15105 D ฀ ฀ WML 15085 D ฀ ฀ WML 15065 D Automatická pračka
  • 2. 1 Warnings by classifying according to waste directives. General Safety • Never place your machine on a Intended use carpet covered floor. Otherwise, • This product has been designed for lack of airflow from below of your home use. machine may cause electrical parts to • The appliance may only be used for overheat. This may cause problems washing and rinsing of textiles that with your washing machine. are marked accordingly. • If the power cable or mains plug is Safety instructions damaged you must call Authorized • This appliance must be connected to Service for repair. an earthed outlet protected by a fuse • Fit the drain hose into the discharge of suitable capacity. housing securely to prevent any • The supply and draining hoses must water leakage and to allow machine always be securely fastened and to take in and discharge water as remain in an undamaged state. required. It is very important that the • Fit the draining hose to a washbasin water intake and drain hoses are not or bathtub securely before starting up folded, squeezed, or broken when your machine. There may be a risk of the appliance is pushed into place being scalded due to high washing after it is installed or cleaned. temperatures! • Your washing machine is designed • Never open the loading door or to continue operating in the event of remove the filter while there is still a power interruption. Your machine water in the drum. will not resume its program when • Unplug the machine when it is not in the power restores. Press the use. “Start/Pause/Cancel” button for 3 • Never wash down the appliance with seconds to cancel the program (See, a water hose! There is the risk of Canceling a Program) electric shock! • There may be some water in your • Never touch the plug with wet hands. machine when you receive it. This is Do not operate the machine if the from the quality control process and power cord or plug is damaged. is normal. It is not harmful to your • For malfunctions that cannot be machine. solved by information in the operating • Some problems you may encounter manual: may be caused by the infrastructure. • Turn off the machine, unplug it, Press "Start/Pause/Cancel" button turn off the water tap and contact for 3 seconds to cancel the program an authorized service agent. You set in your machine before calling the may refer to your local agent or authorized service. solid waste collection center in your First Use municipality to learn how to dispose • Carry out your first washing process of your machine. without loading your machine and If there are children in your with detergent under “Cottons 90°C” house... program. • Keep children away from the machine • Ensure that the cold and hot water when it is operating. Do not let them connections are made correctly when tamper with the machine. installing your machine. • Close the loading door when you • If the current fuse or circuit breaker is leave the area where the machine is less than 16 Amperes, please have located. a qualified electrician install a 16 Ampere fuse or circuit breaker. • While using with or without a transformer, do not neglect to have the grounding installation laid by a qualified electrician. Our company shall not be liable for any damages that may arise when the machine is used on a line without grounding. • Keep the packaging materials out of reach of children or dispose them 2 - EN
  • 3. 2 Installation Removing packaging reinforcement Tilt the machine to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon. Opening the transportation locks there are rubber seals (4 seals for the Transportation safety bolts must models with double water inlet and be removed before operating the 2 seals for other models) attached washing machine! Otherwise, the to the hoses. These seals should machine will be damaged! be used at the tap and machine 1. Loosen all the bolts with a spanner connection ends of the hoses. The until they rotate freely (“C”) plain end of the hose fitted with a 2. Remove transportation safety bolts filter must be attached to the tap and by turning them gently. the elbowed end must be attached 3. Fit the covers (supplied in the bag to the machine. Tighten the nuts of with the Operation Manual) into the the hose well by hand; never use holes on the rear panel. (“P”) wrenches to tighten the nuts. • Models with a single water inlet should not be connected to the hot water tap. When returning the appliance to its place after maintenance or cleaning, care should be taken not to fold, squeeze or block the Keep the transportation safety bolts hoses. in a safe place to reuse when the washing machine needs to be moved Connecting to the drain again in the future. The water discharge hose can be attached Never move the appliance without to the edge of a washbasin or bathtub. The the transportation safety bolts drain hose should be firmly fitted into the properly fixed in place! drain as to not get out of its housing. Important: Adjusting the feet • The end of the drain hose must be Do not use any tools to loosen the directly connected to the wastewater lock nuts. Otherwise, they can be drain or to the washbasin. damaged. • The hose should be attached to a 1. Manually (by hand) loosen the lock height of at least 40 cm, and 100 cm nuts on the feet. at most. 2. Adjust them until the machine stands • In case the hose is elevated after level and firmly. laying it on the floor level or close 3. Important: Tighten all lock nuts up to the ground (less than 40 cm again. above the ground), water discharge Connecting to the water supply. Important: • The water supply pressure required to run the machine must be 1-10 bar (0,1 – 1 MPa). • Connect the special hoses supplied becomes more difficult and the with the machine to the water intake laundry may come out wet. valves on the machine. • The hose should be pushed into the • In order to prevent water leakage that drainage for more than 15 cm. If it is may occur at the connection points, too long you may have it shortened. 3 - EN
  • 4. • The maximum length of the Correct load capacity combined hoses must not be longer Please follow the information in the than 3.2 m. “Program Selection Table”. Washing results will degrade when the Electrical connection machine is overloaded. Connect the machine to an earthed outlet Loading door protected by a fuse of suitable capacity. The door locks during program operation Important: and the Door Locked Symbol (Figure 3-13i) • Connection should comply with lights up. The door can be opened when national regulations. the symbol fades out. • The voltage and the allowed fuse protection are specified in the section Detergents and softeners “Technical Specifications”. Detergent Drawer • The specified voltage must be equal The detergent drawer is composed of three to your mains voltage. compartments: • Connection via extension cords or The detergent dispenser may be in two multi-plugs should not be made. different types according to the model of A damaged power cable must be your machine. replaced by a qualified electrician. The appliance must not be operated – (I) for prewash unless it is repaired! There is the risk – (II) for main wash of electric shock! - (III) siphon – ( ) for softener 3 Initial preparations for washing Preparing clothes for washing Laundry items with metal attachments such as, bras, belt buckles and metal buttons will damage the machine. Remove metal Detergent, softener and other cleaning attachments or place the items in a clothing agents bag, pillow case, or something similar. Add detergent and softener before starting • Sort the laundry according to type the washing program. of fabric, color, and degree of soiling Never open the detergent dispenser drawer and permissible water temperature. while the washing program is running! Always follow the advice on the When using a program without pre-wash, garment labels. no detergent should be put into the pre- • Place small items like infants’ socks wash compartment (Compartment no. I). and nylon stockings, etc. in a laundry bag, pillow case or something similar. Detergent quantity This will also save your laundry from The amount of washing detergent to be getting lost. used depends on the amount of laundry, the • Wash “machine washable” or “hand degree of soiling and water hardness. washable” labeled products only with an appropriate program. • Do not use amounts exceeding • Do not wash colors and whites the quantities recommended on together. New, dark colored cottons the package to avoid problems of may release a lot of dye. Wash them excessive foam, poor rinsing, financial separately. savings and finally, environmental • Use only dyes/color changers and protection. lime removers suitable for machine • Never exceed the (> max <) level wash. Always follow the instructions marking; otherwise, the softener will on the packaging. be wasted without being used. • Wash trousers and delicate clothes • Do not use liquid detergent if you turned inside out. want to wash using the time delay feature. 4 - EN
  • 5. 4 Selecting a program and operating your machine Control panel 5 3 4 90° 60° 60° 1000 40° 40° 500 30° 30° 3’’ Reset 30° 40° 7 6 1- Spin Speed Adjustment Knob * 6 - On/Off Button 2- Temperature Adjustment Button * 7 - Program Follow-up Indicators 3- Start/Pause/Cancel Button 8 - Child-proof Lock Indicator * 4- Auxiliary Function Keys 5- Program Selection Knob * According to your machine’s model Normally soiled, fade proof Turning the machine on 60˚C colored linens, cottons or You can prepare the machine for program synthetic clothes and lightly selection by pressing the “On/Off” button. soiled white linens When the “On/Off” button is pressed, the “Ready” light illuminates indicating that the 40˚C- Blended clothes including door is ulocked. Press the “On/Off” button 30°C- synthetics and woolens as again to shut down the machine. Cold well as delicate clothes. Programs are limited with the highest Program selection spin speed appropriate for that Select the appropriate program from the particular type of cloth. program table and the following washing temperature table according to type, Main programs amount and degree of soiling of the laundry. Depending on the type of textile, the Select the desired program with the following main programs are available: program selection button. •Cottons Each of these programs consist of a You can wash your durable clothes with complete washing process, including this program. Your laundry will be washed wash, rinse and, if required, spin with vigorous washing movements during a cycles. longer washing cycle. •Synthetics Normally soiled, white You can wash your less durable clothes on 90˚C cottons and linens. this program. Gentler washing movements and a shorter washing cycle is used 5 - EN
  • 6. compared to the “Cottons” program. It is recommended for your synthetic clothes Spin Speed selection (such as shirts, blouses, synthetic/cotton You can have your clothes spun at the blended garments, etc.). For curtains and maximum rpm selection on your machine lace, the “Synthetic 40” program with pre- by using the selection knob in models wash and anti-creasing functions selected is equipped with an rpm selection knob. In recommended. order to protect your clothes, your machine •Delicates will not spin above 800 rpm on synthetic You can wash your delicate clothes programs and 600 rpm on woolens on this program. It has more sensitive program. Furthermore, if you want to skip washing movements and does not make the spin cycle and take your clothes out, intermediate spinning compared to turn the rpm selection knob to “no spin” “Synthetic” program. position. •Woolens In machines not equipped with a spin speed You can wash your machine-washable selection knob, the machine will spin in the woolen garments on this program. Wash maximum possible rpm in the default setting by selecting the proper temperature of the selected program. according to the labels of your clothes. It is recommended to use appropriate detergents for woolens. •Hand Wash You can wash your woolen/delicate clothes that bear “not machine- washable” labels for which hand wash is recommended on this program. It washes the laundry with very tender washing movements without damaging your clothes. Additional programs For special cases, there are also extra programs available: Additional programs may differ according to the model of your machine. • Super This program washes for a longer period at 40°C and gives the same result as the "Cottons 60°C" program, thus it saves energy. It is suitable for clothes for which you cannot use the "Cotton 60°C" program. • Mini This program is used to quickly wash (30 minutes) a small amount of lightly soiled cotton garments. Special programs For specific applications, you can select any of the following programs: • Rinse This program is used when you want to rinse or starch separately. • Pump + Spin This program spins with maximum possible rpm in the default setting after the water drains from the machine. You should use a lower spin speed for delicate laundries. 6 - EN
  • 7. Program selection and consumption table Programme Duration (~min) Energy Consumption (kWh) Water Consumption (l) Spin speed reduction Max. Load (kg) Programme Rinse Hold Rinse Plus Prewash No Heat No Spin Cottons 90 5 133 45 1.65 • • • • • • Cottons 60** 5 140 45 0.95 • • • • • • Cottons 40 5 142 45 0.69 • • • • • • Super 40 5 182 45 0.78 • • • Synthetics 60 2.5 113 52 0.92 • • • • • • Synthetics 40 2.5 104 52 0.56 • • • • • • Synthetics 30 2.5 95 52 0.30 • • • • • • Delicate 30 2 77 45 0.36 • • • • • Woollens 40 1.5 70 45 0.36 • • • • • Hand wash 30 1 45 32 0.21 • • • Mini 30 2.5 30 43 0.17 • • • • : Selectable * : Automatically selected, not cancellable. **: Energy Label programme (EN 60456) Water and power consumption and programme duration may differ from the table shown, subject to changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions, and fluctuations in the supply voltage. The auxiliary functions in the table may differ according to the model of your machine. 7 - EN
  • 8. Auxiliary functions Reducing Speed Auxiliary function selection keys You may use the speed reduction button Select the required auxiliary functions before whenever you wish to spin your clothes starting the program. below the maximum spin speed. When Auxiliary function buttons may differ speed reduction button is pressed, spin according to the model of your speed will be at the minimum rpm given on machine. the panel. No spin Auxiliary function selection You may use this program if you do not If an auxiliary function that should not be want to spin your clothes at the end of selected together with a previously selected cottons, synthetics, woolen or delicate function is chosen, the first selected programs. function will be cancelled and the last Cold Washing auxiliary function selection will remain active. If you wish to wash your clothes in cold For example: If you want to select pre-wash water, you can use this program. first and then quick wash, pre-wash will be cancelled and quick wash will remain active. Starting the Program Auxiliary function that is not compatible Press “Start/Pause/Cancel” button to start with the program cannot be selected. (see the program. “Start/Pause/Cancel” button “Program Selection Table”) will light up to indicate that the program has started. The door is locked and the “Lid” Pre-wash light fades. A pre-wash is only worthwhile for heavily soiled laundry. Without pre-wash you save Progressing a program energy, water, detergent and time. Pre- Progress of a running program is shown wash without detergent is recommended for through the program follow-up indicator. At lace and curtains. the beginning of every program step, the Rinse Plus relevant indicator lamp will light up and light With this function, you can increase the of the completed step will turn off. number of current rinsing steps. Thus, If the machine is not spinning, the sensitive skins’ risk of being affected by the program may be in rinse hold mode remainder detergent on the clothes will be or the automatic spin correction decreased. system has been activated because Rinse hold of excessive unbalanced distribution If you do not want to unload your clothes of laundry in the machine. immediately after the cotton, synthetics, woolen and delicate fabrics program, you Changing the selections after the may release your clothes inside the machine in the last rinsing water by pressing the rinse program has started hold button in order to prevent your clothes You can use this feature after your machine become wrinkled. After this process you has started to wash different textile groups may spin your laundry by pressing “Start/ in the same batch of clothes under higher Pause/Cancel” button or you may end the or lower temperatures. You must cancel program by pressing “Start/Pause/Cancel” the ongoing program in order to change the button for 3 sec. washing program. • In the machines equipped with spin For example, press and hold the “Start/ speed selection knob or button, you Pause/Cancel” button for 3 seconds to can spin by selecting the desired “Cancel” the program in order to select spin speed and press "Start/Pause/ “Cottons 40” program instead of “Cottons Cancel" button. 60” program. Select the “Cottons 40” • As for machines not equipped with a program by rotating the program knob. spin speed selection knob, you can Press "Start/Pause/Cancel" button to start end the program without a spin cycle the program. by pressing the “Start/Pause/Cancel” button and draining the water. If you Switching the machine to standby wish your clothes be spun, you can mode spin them by selecting “pump+spin” Press “Start/Pause/Cancel” button program. momentarily to switch your machine to the standby mode. Auxiliary functions can be 8 - EN
  • 9. cancelled or selected in accordance with 5 Maintenance and cleaning the step the program is at. The door can be opened if the water level is suitable. Laundry Detergent Drawer may be added / taken out by opening the Remove any powder residue buildup in the door. drawer. To do this; 1. Press the dotted point on the siphon in the softener compartment and pull Child-proof lock towards you until the compartment is You can protect the appliance from being removed from the machine. tampered by children by means of the child- proof lock. In this case, no change can be made in the running program. The machine is switched to child-lock by pressing the 1st and 2nd auxiliary functions from the left for 3 sec. 1st auxiliary function light will flash continuously. To deactivate the child-proof lock, press the same buttons for 3 sec. If more than a normal amount of water and softener mixture starts to Ending the program through gather in the softener compartment, the siphon must be cleaned. canceling 2. Wash the dispenser drawer and the In order to cancel the selected program, siphon with plenty of lukewarm water press the "Start/Pause/Cancel" button for 3 in a washbasin. seconds. The machine starts to discharge 3. Replace the drawer into its housing the water. “Wash” and “Program Finished” after cleaning. Check if the siphon is lights will light up. "Start/Pause/Cancel" and in its original location. “Wash” lights will go off after discharging process is over and the “Lid” light will start flashing. “Lid” lamp will light up continuously Inlet water filters when the door is unlocked. There is a filter at the end of each water intake valve at the back side of the machine If the program is cancelled in the middle and also at the end of each water intake of the process, “Wash” and “Program hose where they are connected to the tap. Finished” lights will light up. The machine These filters prevent the foreign substances can drain all the water or can take in water and dirt in the water to enter into the for 3 times at most to cool down the clothes machine. Filters should be cleaned as they and complete draining process. When the get dirty. water discharging process is completed, the “Wash” light will go off, the “Program Finished” light will light up and the “Lid” light will continuously flash until the door is unlocked. End of program The “Program Finished” lamp on the program follow-up indicator will light up when the program comes to an end. The lid is unlocked 2 minutes later, the “Program • Close the taps. Finished” and “Lid” lamps will light up • Remove the nuts of the water intake continuously. The machine is now ready for hoses to clean the surfaces of the a second cycle. filters on the water intake valves with If any key is pressed when the machine is an appropriate brush. at the end of the program or if the position • If the filters are very dirty, you can of the selection knob is changed, the pull them out by means of pliers and “Program Finished” light will go off and only clean them. the “Lid” lamp will remain as lit. If the door • Take out the filters on the flat ends of is still locked, the “Lid” light will continue the water intake hoses together with flashing until the door is unlocked. the gaskets and clean thoroughly Press the “On/Off” button to shut down the under streaming water. machine. • Replace the gaskets and filters 9 - EN
  • 10. carefully to their places and tighten the hose nuts by hand. Draining any remaining water and cleaning the pump filter Your product is equipped with a filter system which ensures a cleaner water • Place a large container at the end of discharge that extends pump life by the hose. Drain the water off into the preventing solid items such as buttons, container by pulling out the plug at coins and fabric fibers from clogging the the end of the hose. If the amount of pump propeller during discharge of the water to be drained off is greater than washing water. the volume of the container, replace • If your machine fails to drain the the plug, pour the water out, then water, the pump filter may be resume the draining process. clogged. You may have to clean • After draining process is completed, it every 2 years or whenever it is replace the plug into the end of the plugged. Water must be drained off hose and fit the hose back into its to clean the pump filter. place. In addition, water may have to be drained off completely in the following cases: If your product is not supplied with an • before transporting the machine (e.g. emergency drain hose, do the following as when moving house) shown in the figure below: • when there is the danger of frost In order to clean the dirty filter and discharge the water; 1- Unplug the machine to cut off the supply power. There may be water at 90°C in the machine. Therefore, the filter must • Place a large container in front of the be cleaned only after the inside water filter to receive water flowing from the is cooled down to avoid hazard of filter. scalding. • Loosen pump filter (anticlockwise) until water starts to flow out of it. 2- Open the filter cap. The filter cap may be Direct the flowing water into the composed of one or two pieces according container you have placed in front of to the model of your machine. the filter. You can use a piece of cloth If it is composed of two pieces, press the to absorb any spilled water. tab on the filter cap downwards and pull the • When there is no water left, turn the piece out towards yourself. pump filter until it is completely loose If it is composed of one piece, hold it from and remove it. both sides and open it by pulling out. • Clean any residues inside the filter as well as fibers, if any, around the propeller region. • If your product has a water jet feature, be sure to fit the filter into its housing in the pump. Never force the filter while replacing it into its housing. Fit the filter fully into its housing; otherwise, water may leak from the 3- An emergency drain hose is supplied filter cap. with some of our models. Others are not supplied with this item. 4- Close the filter cap. Close the two-piece filter cap of your If your product is supplied with an product by pushing the tab on it. emergency drain hose, do the following as Close the one-piece filter cap of your shown in the figure below: product by fitting the tabs on the bottom • Pull out the pump outlet hose from its into their positions and pushing the upper housing. part of it. 10 - EN
  • 11. 6 Solution suggestions for problems Problem Cause Explanation / Suggestion Machine may have Program cannot switched to self Reset your machine by pressing “Start/ be started or protection mode due to Pause/Cancel” button for 3 seconds. (see, selected. an infrastructure problem Canceling a Program) (such as line voltage, water pressure, etc.). There is water Be sure the seals of the water inlet hoses coming from There might be problems are securely fitted. the bottom of with hoses or the pump Tightly attach the drain hose to the tap. the machine. filter. Make sure that the pump filter is completely closed. Machine stopped Machine can stop It will resume operating when the voltage is shortly after temporarily due to low the program voltage. back to the normal level. started. The automatic spin correction system might have been activated due to the unbalanced It continuously distribution of the laundry in the drum. The laundry in the drum may be clustered spins. There may be an imbalance (bundled laundry in a bag). Laundry should Remaining time of laundry in the machine. be rearranged and re-spun. does not count No spinning is performed when the laundry down. is not evenly distributed in the drum to prevent any damage to the machine and to its environment. In the case of a paused countdown while taking in The machine will wait until there is a water: sufficient amount of water to avoid poor Timer will not countdown until the machine is filled washing results due to lack of water. Then with the correct amount of the timer will start to count down. water. In the case of a paused countdown at the heating step: It continuously Time will not count washes. Remaining time down until the selected does not count temperature for the program is reached down. The automatic spin correction system might have been activated due to the unbalanced distribution of the laundry in the drum. In the case of a paused countdown at the spinning The laundry in the drum may be clustered step: (bundled laundry in a bag). Laundry should There may be an imbalance be rearranged and re-spun. of laundry in the machine. No spinning is performed when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its environment. 11 - EN
  • 12. 7 Specifications Models WML 15105 D WML 15085 D WML 15065 D Maximum dry laundry capacity (kg) 5 5 5 Height (cm) 84 84 84 Width (cm) 60 60 60 Depth (cm) 45 45 45 Net Weight (kg) 60 60 60 Electricity (V/Hz.) 230 V / 50hz 230 V / 50hz 230 V / 50hz Total Current (A) 10 10 10 Total Power (W) 2200 2200 2200 Spinning cycle (rpm max.) 1000 800 600 Specifications of this appliance may change without notice to improve the quality of the product. Figures in this manual are schematic and may not match your product exactly. Values stated on the machine labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the appliance, values may vary. This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment. 3’’ Reset 8 On/Off Start Reset Coton Synthetics Woollens Delicate Babycare Sport Shirt Hand Pause 3 sn. wash Intensive Rinse Express Quick Duvet Anti Rinse Time Temperature No Cold hold wash creasing plus delay heat Prewash Main Rinse Drain Spin No Door wash End Child Conditioner wash spin ready lock 12 - EN
