1. Winning Governance Strategies for the Technology Disruptions of our
Time
ISACA South Florida Annual GRC Conference
June 22, 2018
Patrick Hannah, VP of Engineering, CloudHesive

2. About Me
• Who am I?
• What’s my background?

3. About CloudHesive
• Professional Services
– Assessment (Current environment, datacenter or cloud footprint)
– Strategy (Getting to the future state)
– Migration (Environment-to-cloud, Datacenter-to-cloud)
– Implementation (Point solutions)
– Support (Break/fix and ongoing enhancement)
• DevOps Services
– Assessment
– Strategy
– Implementation (Point solutions)
– Management (Supporting infrastructure, solutions or ongoing
enhancement)
– Support (Break/fix and ongoing enhancement)
• Managed Security Services (SecOps)
– Encryption as a Service (EaaS) – encryption at rest and in flight
– End Point Security as a Service
– Threat Management
– SOC II Type 2 Validated
• Next Generation Managed Services
– Leveraging our Professional, DevOps and Managed Security Services
– Single payer billing
– Intelligent operations and automation
– AWS Audited

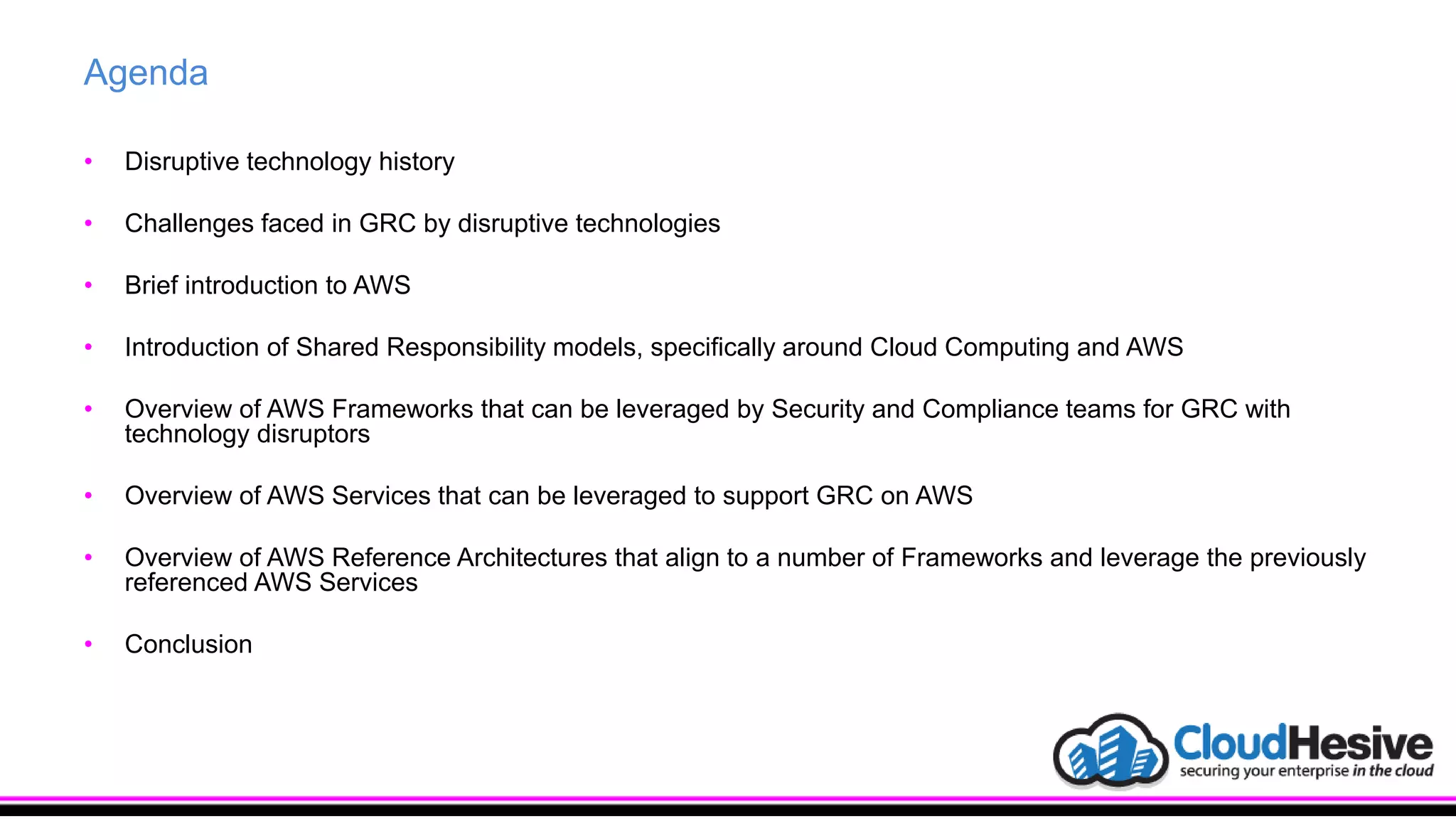

4. Agenda
• Disruptive technology history
• Challenges faced in GRC by disruptive technologies
• Brief introduction to AWS
• Introduction of Shared Responsibility models, specifically around Cloud Computing and AWS
• Overview of AWS Frameworks that can be leveraged by Security and Compliance teams for GRC with
technology disruptors
• Overview of AWS Services that can be leveraged to support GRC on AWS
• Overview of AWS Reference Architectures that align to a number of Frameworks and leverage the previously
referenced AWS Services
• Conclusion

5. Disruptive Technology History
• Then
– Storage
– Communications
– Computing
– Transportation
– Manufacturing
– Discreet Components
• Now
– Social
– Mobile
– Analytics/Big Data/AI
– Cloud
– Smart Things/IoT
– Blockchain

6. Challenges faced in GRC by disruptive technologies
• Endpoints
– From a single, non network connected computing device to multiple (desktops, laptops, tablets, mobile
phones), mixed platforms
– Smart Appliances (Kitchen, TV, etc.), Consumer IoT (Smart Home, Alexa, Dash, etc.),
Commercial/Industrial IoT (Environmental, Manufacturing, etc.), also mixed platforms
• Data
– Wider breadth of sources, formats, and technologies to ingest, process, store, retrieve, analyze and
display
– Growth in the four v’s (volume, variety, velocity and veracity)
• Policy
– Attempting to apply legacy policies to disruptive technologies
– Looked at as not agile/slow to adopt disruptive technologies/slow to apply to disruptive technologies
• Shadow IT
– The nature of disruptive technologies supports the adoption of them by non IT users
– Disruptive technologies tend to be enablers to avoid traditional methods of acquisition

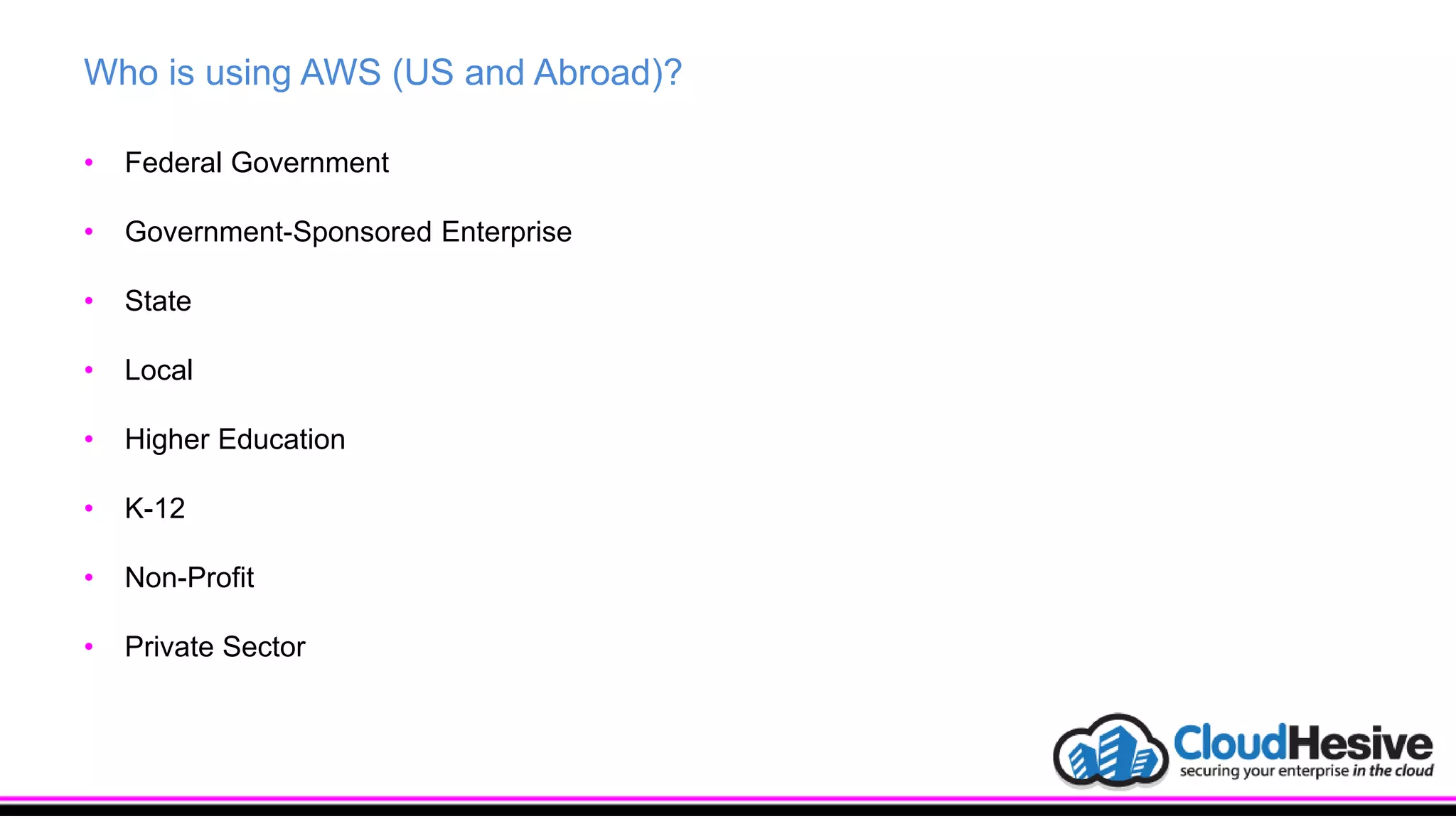

7. Who is using AWS (US and Abroad)?
• Federal Government
• Government-Sponsored Enterprise
• State
• Local
• Higher Education
• K-12
• Non-Profit
• Private Sector

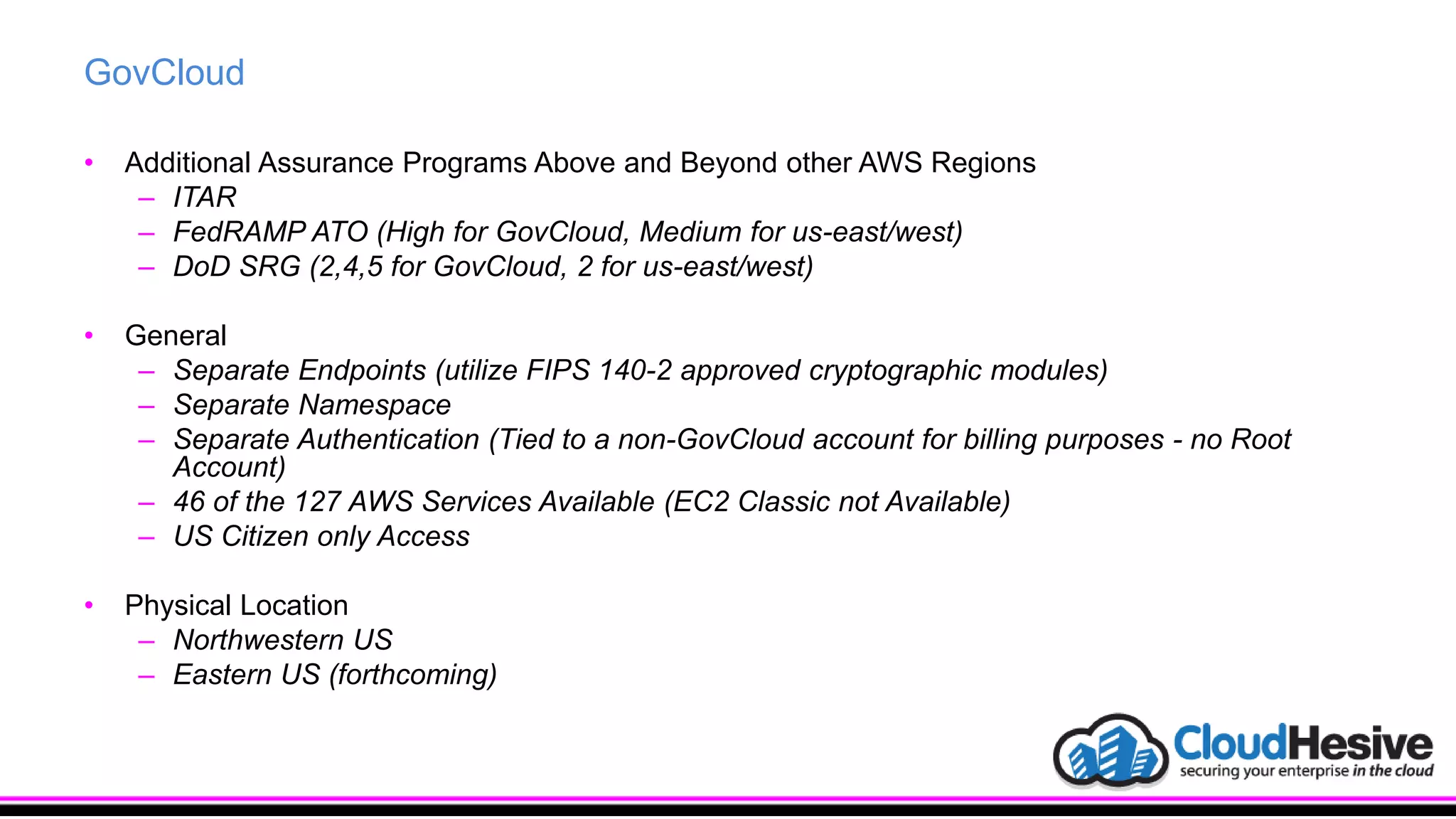

8. GovCloud
• Additional Assurance Programs Above and Beyond other AWS Regions
– ITAR
– FedRAMP ATO (High for GovCloud, Medium for us-east/west)
– DoD SRG (2,4,5 for GovCloud, 2 for us-east/west)
• General
– Separate Endpoints (utilize FIPS 140-2 approved cryptographic modules)
– Separate Namespace
– Separate Authentication (Tied to a non-GovCloud account for billing purposes - no Root
Account)
– 46 of the 127 AWS Services Available (EC2 Classic not Available)
– US Citizen only Access
• Physical Location
– Northwestern US
– Eastern US (forthcoming)

9. AWS Shared Responsibility Model

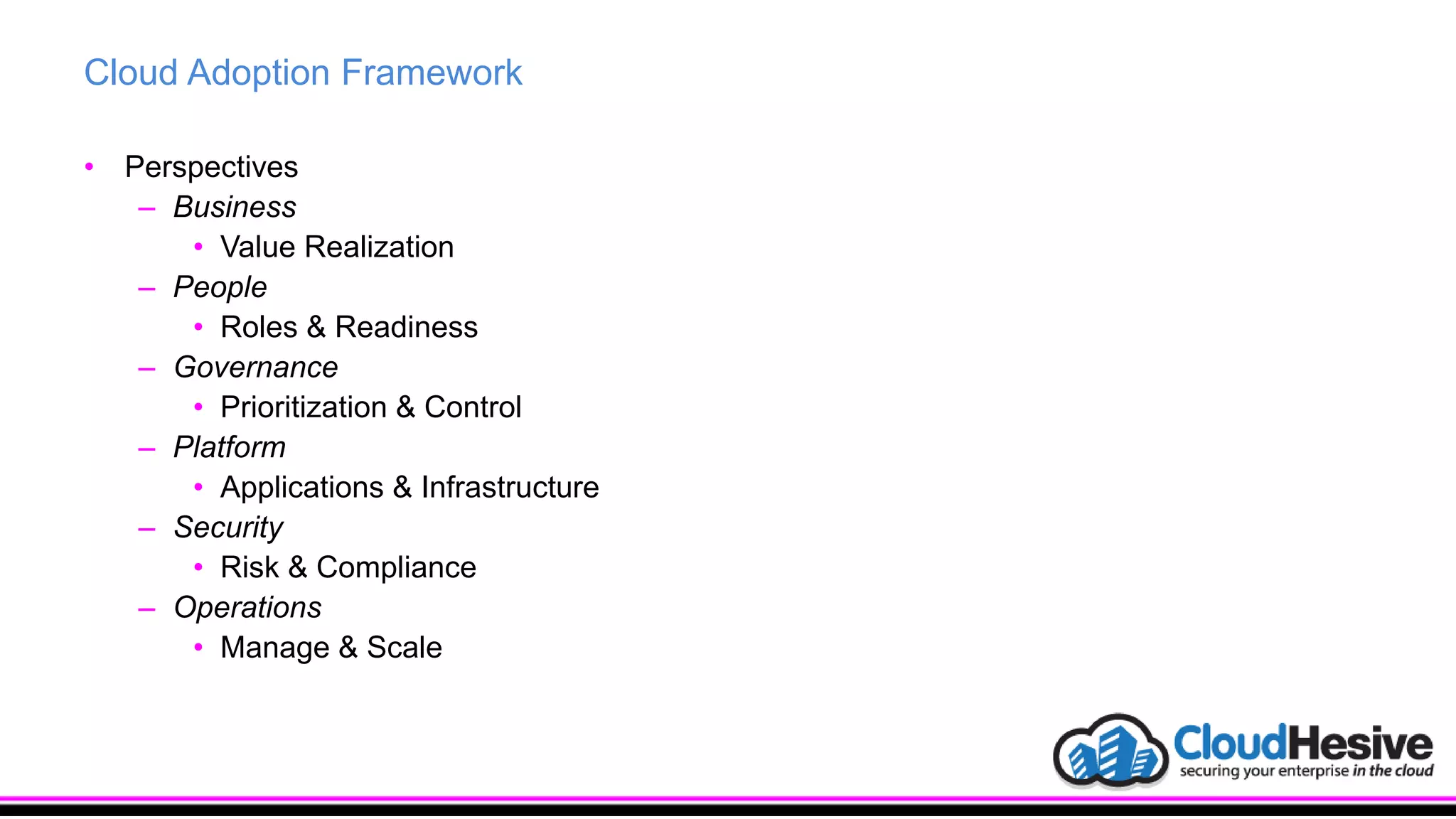

10. Cloud Adoption Framework
• Perspectives
– Business
• Value Realization
– People
• Roles & Readiness
– Governance
• Prioritization & Control
– Platform
• Applications & Infrastructure
– Security
• Risk & Compliance
– Operations
• Manage & Scale

11. Well Architected Framework
• Operational Excellence
• Security
• Reliability
• Performance Efficiency
• Cost Optimization

12. General Design Principles
• Stop guessing your capacity needs
• Test systems at production scale
• Automate to make architectural experimentation easier
• Allow for evolutionary architectures
• Drive architectures using data
• Improve through game days

13. Operational Excellence
• Design Principles
– Perform operations as code
– Annotate documentation
– Make frequent, small, reversible changes
– Refine operations procedures frequently
– Anticipate failure
– Learn from all operational failures
• Best Practices
– Prepare
– Operate
– Evolve

14. Security
• Design Principles
– Implement a strong identity foundation
– Enable traceability
– Apply security at all layers
– Automate security best practices
– Protect data in transit and at rest
– Prepare for security events
• Best Practices
– Identity and Access Management
– Detective Controls
– Infrastructure Protection
– Data Protection
– Incident Response

15. Reliability
• Design Principles
– Test recovery procedures
– Automatically recover from failure
– Scale horizontally to increase aggregate system availability
– Stop guessing capacity
– Manage change in automation
• Best Practices
– Foundations
– Change Management
– Failure Management

16. Performance Efficiency
• Design Principles
– Democratize advanced technologies
– Go global in minutes
– Use serverless architectures
– Experiment more often
– Mechanical sympathy
• Best Practices
– Selection
– Review
– Monitoring
– Tradeoffs

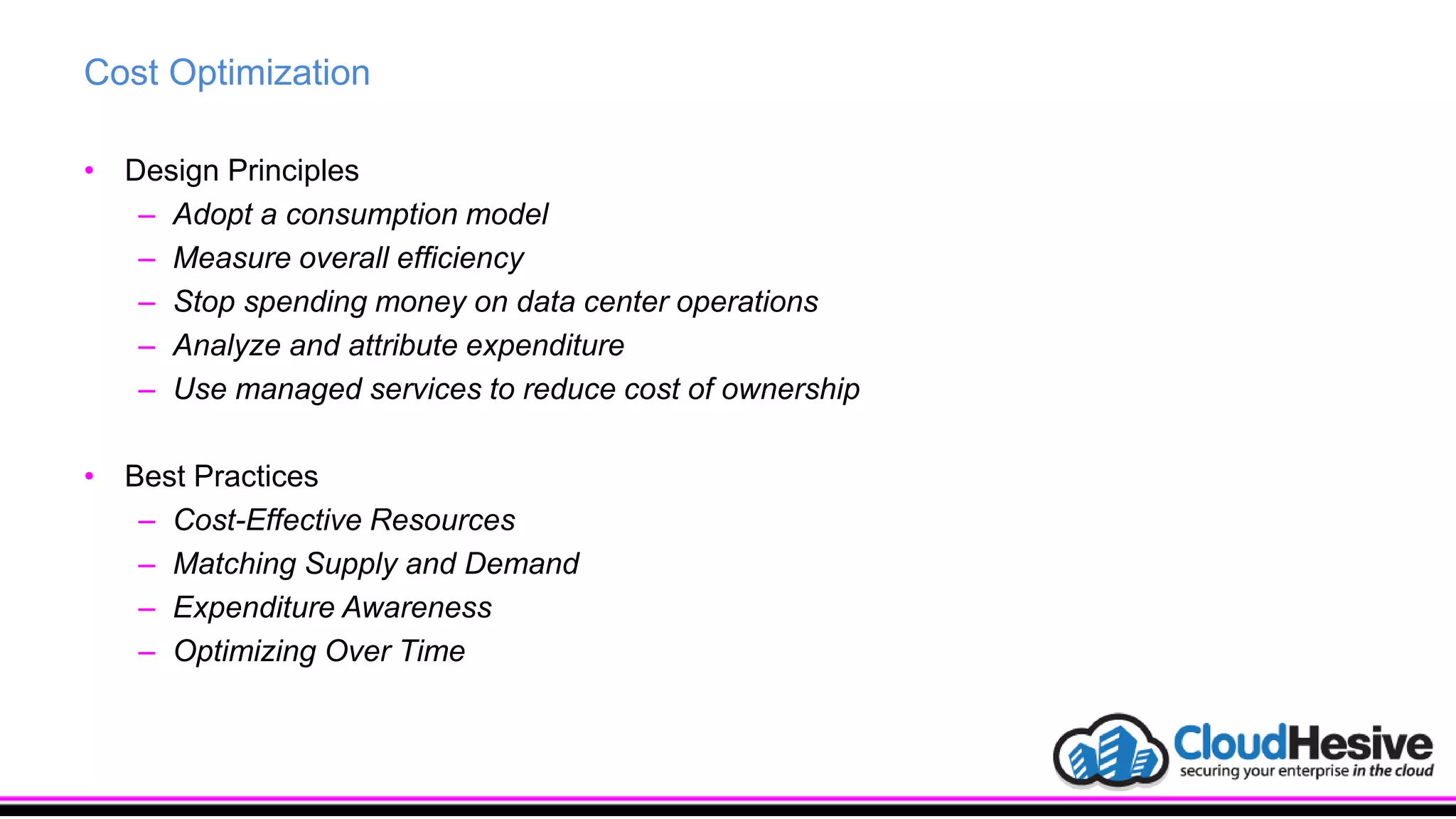

17. Cost Optimization
• Design Principles
– Adopt a consumption model
– Measure overall efficiency
– Stop spending money on data center operations
– Analyze and attribute expenditure
– Use managed services to reduce cost of ownership
• Best Practices
– Cost-Effective Resources
– Matching Supply and Demand
– Expenditure Awareness
– Optimizing Over Time

18. Sample Implementation
• “NIST Quickstart”
• Based on Cybersecurity
Framework, SP 800-53, SP 800-37
• Corresponding Guide + Controls
Matrix
• CIS and PCI Variants Available
• Good starting point

19. Supporting Services
• VPC: Security Groups (Stateful Firewall) + NACLs (Stateless Firewall)
• VPC: Flow Logs (NetFlow)
• VPC: VGW (Point to Point and IPSEC Connectivity) + Peering (VPC to VPC Connectivity) +
Endpoints (Private Connectivity to AWS Services)
• VPC: NAT Gateway (Private to Public IP Address NAT’ing)
• EC2: Patch Manager (OS and above patching + auditing)
• EC2: Parameter Store (Secure Storage of Service Accounts)

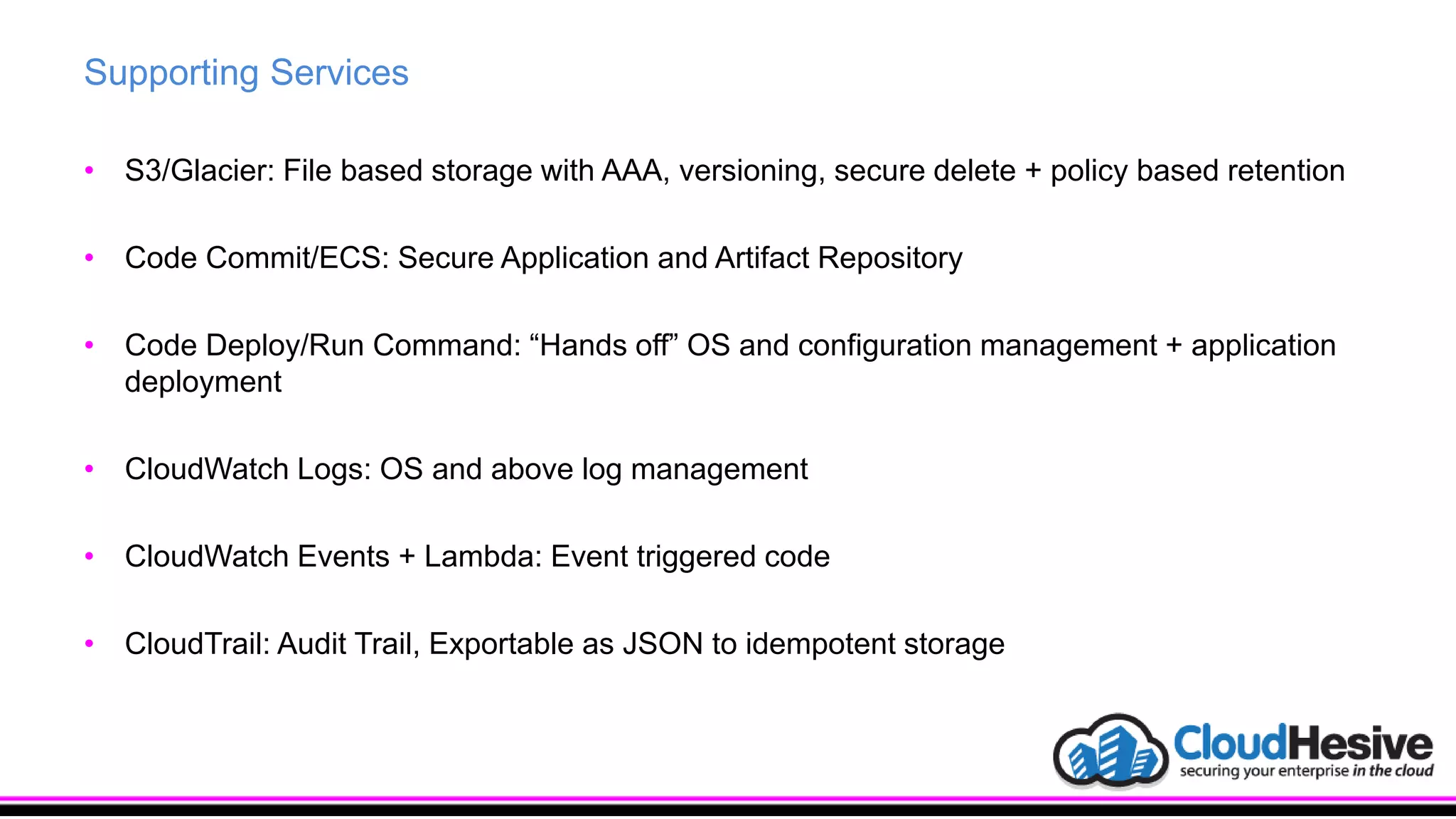

20. Supporting Services
• S3/Glacier: File based storage with AAA, versioning, secure delete + policy based retention
• Code Commit/ECS: Secure Application and Artifact Repository
• Code Deploy/Run Command: “Hands off” OS and configuration management + application
deployment
• CloudWatch Logs: OS and above log management
• CloudWatch Events + Lambda: Event triggered code
• CloudTrail: Audit Trail, Exportable as JSON to idempotent storage

21. Supporting Services
• Config: Point in time snapshots of configuration items, Exportable as JSON to idempotent
storage
• OpsWorks + Elastic Beanstalk: “Hands off” infrastructure management
• CloudFormation: Infrastructure automation described as JSON/YAML, Version Controllable
• IAM + Directory Service + SSO: Standalone and Federated AAA
• KMS: FIPS 140-2 Certified cryptographic module with integration to various AWS services,
provides expiration and ability to provide self-generated cryptographic material
• CloudHSM: FIPS 140-2 Certified cryptographic module with PKCS11 and JCE Interfaces

22. Supporting Services
• Certificate Manager: Secure Certificate Store
• Workspaces: Secure Bastion
• WAF: Layer 7 WAF
• Shield + AutoScaling + ELB + Cloud Front: DoS/DDoS Protection
• Artifact: AWS Audit Reports available on demand
• Tags: Built-in asset + inventory marking and tracking on configuration items
• Service Catalog: Predefined configurations available to end users, can be integrated to ITSM
system

23. Enforcement
• AWS
– Guard Duty
– Inspector
– Macie
– Trusted Advisor
– Config Rules
– Various “Widgets”
• Third Party
– CIS CAT
– CloudCheckr
– AlertLogic
– Tenable

24. Conclusion
• AWS provides a number of services to support your frameworks + controls, in addition to
core infrastructure (server + storage) capabilities.
• AWS provides guidance (in the form of the CAF and WAF) for organizations which do not
have an existing framework to base their cloud adoption model on.
• Getting started on AWS is easy; with the free tier, you can experiment with a number of
services without incurring significant cost.
• Adoption of AWS in your organization can be as easy or as hard as you want to make it; start
simple and iterate.

25. Recommended Reading
• AWS Well Architected Framework
– https://aws.amazon.com/architecture/well-architected/
• AWS Cloud Adoption Framework
– https://aws.amazon.com/professional-services/CAF/
• AWS Cloud Transformation Maturity Model
– https://d0.awsstatic.com/whitepapers/AWS-Cloud-Transformation-Maturity-Model.pdf
• Shared Responsibility Model
– https://aws.amazon.com/compliance/shared-responsibility-model/
• Operational Checklists for AWS
– https://d1.awsstatic.com/whitepapers/aws-operational-checklists.pdf
• Introduction to Auditing the Use of AWS
– https://d1.awsstatic.com/whitepapers/compliance/AWS_Auditing_Security_Checklist.pdf

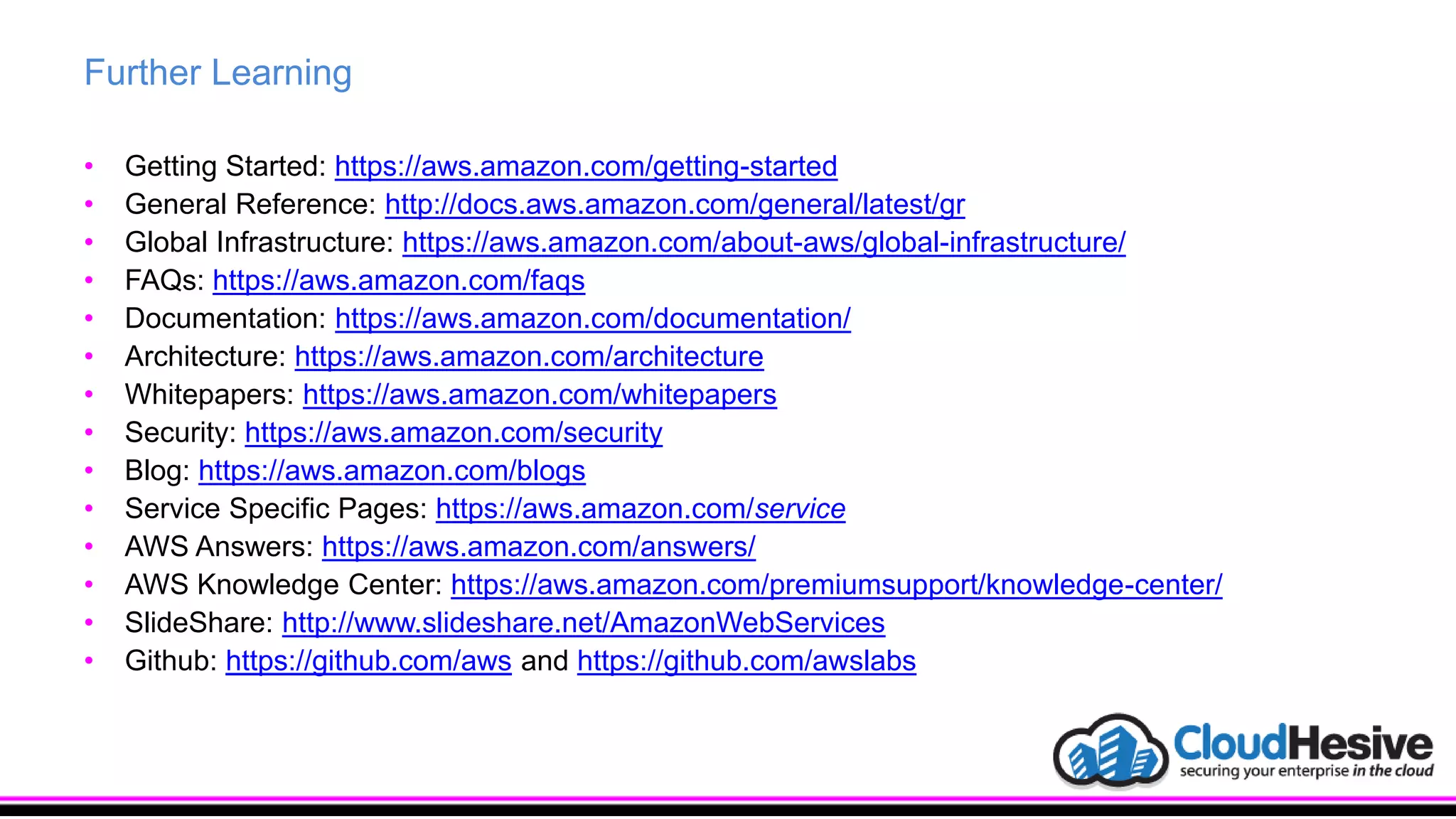

26. Further Learning
• Getting Started: https://aws.amazon.com/getting-started
• General Reference: http://docs.aws.amazon.com/general/latest/gr
• Global Infrastructure: https://aws.amazon.com/about-aws/global-infrastructure/
• FAQs: https://aws.amazon.com/faqs
• Documentation: https://aws.amazon.com/documentation/
• Architecture: https://aws.amazon.com/architecture
• Whitepapers: https://aws.amazon.com/whitepapers
• Security: https://aws.amazon.com/security
• Blog: https://aws.amazon.com/blogs
• Service Specific Pages: https://aws.amazon.com/service
• AWS Answers: https://aws.amazon.com/answers/
• AWS Knowledge Center: https://aws.amazon.com/premiumsupport/knowledge-center/
• SlideShare: http://www.slideshare.net/AmazonWebServices
• Github: https://github.com/aws and https://github.com/awslabs

27. Further Learning – Security
• http://blogs.aws.amazon.com/security/post/Tx71TWXXJ3UI14/Enabling-Federation-to-AWS-using-Windows-Active-
Directory-ADFS-and-SAML-2-0
• http://blogs.aws.amazon.com/security/post/Tx1LDN0UBGJJ26Q/How-to-Implement-Federated-API-and-CLI-
Access-Using-SAML-2-0-and-AD-FS
• http://blogs.aws.amazon.com/security/post/Tx2KL0TCWFBBAB1/How-to-Use-a-Single-IAM-User-to-Easily-Access-
All-Your-Accounts-by-Using-the-AWS
• http://blogs.aws.amazon.com/security/post/Tx1XWZ93EAFL9C4/How-to-Switch-Easily-Between-AWS-Accounts-by-
Using-the-AWS-Management-Console-an
• http://blogs.aws.amazon.com/security/post/Tx4BUZIS3E2QG2/Make-a-New-Year-s-Resolution-Adhere-to-IAM-Best-
Practices
• http://blogs.aws.amazon.com/security/post/TxASQFTVGZ5HMT/How-to-Receive-Alerts-When-Your-IAM-
Configuration-Changes
• http://blogs.aws.amazon.com/security/post/Tx3PSPQSN8374D/How-to-Receive-Notifications-When-Your-AWS-
Account-s-Root-Access-Keys-Are-Used
• http://blogs.aws.amazon.com/security/post/Tx3NVS2JAL7KWOM/How-to-Help-Prepare-for-DDoS-Attacks-by-
Reducing-Your-Attack-Surface
• http://blogs.aws.amazon.com/security/post/Tx280RX2WH6WUD7/Remove-Unnecessary-Permissions-in-Your-IAM-
Policies-by-Using-Service-Last-Access
• http://www.slideshare.net/AmazonWebServices/network-security-and-access-control-within-aws-54456790
• http://www.slideshare.net/AmazonWebServices/cloud-security-guidance-from-cesg-and-aws

28. Meetups
• Boca Raton: https://www.meetup.com/awsflorida/
• Doral: https://www.meetup.com/AWSUserGroupDoral/
• Fort Lauderdale: https://www.meetup.com/South-Florida-Amazon-Web-Services-Meetup/
• Jacksonville: https://www.meetup.com/AWS-User-Groups-of-Florida-Jacksonville/
• Miami: https://www.meetup.com/Miami-AWS-Users-Group/
• Miami Beach: https://www.meetup.com/aws-user-group-miami/
• Orlando: https://www.meetup.com/Orlando-AWS-Users-Group/
• Palm Beach Gardens: https://www.meetup.com/AWS-Users-Group-of-Florida-Palm-Beach-
Gardens/
• Tampa: https://www.meetup.com/Tampa-AWS-Users-Group/
• Montevideo, Uruguay: https://www.meetup.com/Meetup-de-Amazon-Web-Services-AWS-en-
Montevideo/
• Asuncion, Paraguay: https://www.meetup.com/Meetup-de-Amazon-Web-Services-en-Asuncion/
• South Florida Jenkins Area Meetup: https://www.meetup.com/South-Florida-Jenkins-Area-Meetup/
