This document introduces Windows Phone 8 development. It discusses the new Windows Phone 8 hardware featuring multicore processors and increased RAM. It explains that Windows Phone 8 and Windows 8 share many operating system components. It outlines the .NET, Windows Phone Runtime, XNA, and DirectX APIs available for developing Windows Phone 8 apps. It also discusses options for converting existing Windows Phone 7 apps and code to Windows Phone 8.

1. WINDOWS PHONE 8
Introducing Windows Phone 8 Development

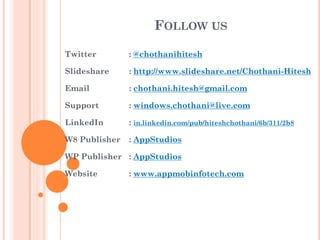

2. FOLLOW US
Twitter
: @chothanihitesh
Slideshare
: http://www.slideshare.net/Chothani-Hitesh
Email
: chothani.hitesh@gmail.com
Support
: windows.chothani@live.com
LinkedIn
: in.linkedin.com/pub/hiteshchothani/6b/311/2b8
W8 Publisher
: AppStudios
WP Publisher : AppStudios
Website
: www.appmobinfotech.com

3. INTRODUCING WINDOWS PHONE 8 APP
DEVELOPMENT | PART 1

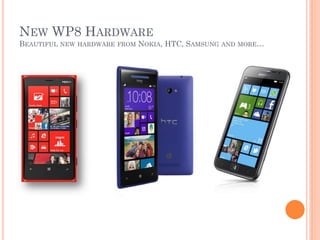

4. NEW WP8 HARDWARE
BEAUTIFUL
NEW HARDWARE FROM
NOKIA, HTC, SAMSUNG
AND MORE…

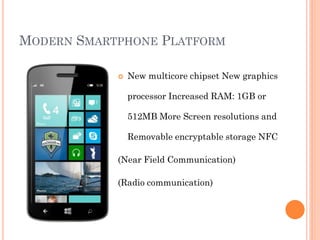

5. MODERN SMARTPHONE PLATFORM

New multicore chipset New graphics
processor Increased RAM: 1GB or
512MB More Screen resolutions and
Removable encryptable storage NFC
(Near Field Communication)
(Radio communication)

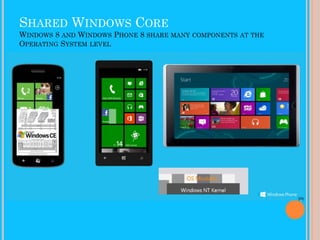

6. SHARED WINDOWS CORE
WINDOWS 8 AND WINDOWS PHONE 8 SHARE MANY COMPONENTS
OPERATING SYSTEM LEVEL
AT THE

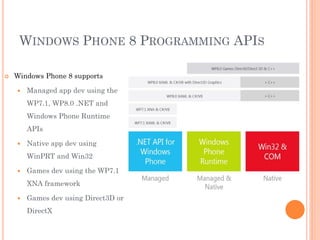

7. WINDOWS PHONE 8 PROGRAMMING APIS

Windows Phone 8 supports

Managed app dev using the
WP7.1, WP8.0 .NET and
Windows Phone Runtime
APIs

Native app dev using
WinPRT and Win32

Games dev using the WP7.1
XNA framework

Games dev using Direct3D or
DirectX

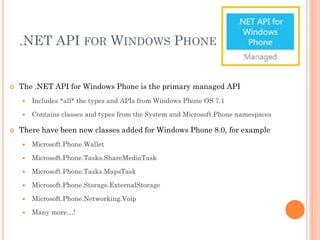

8. .NET API FOR WINDOWS PHONE

The .NET API for Windows Phone is the primary managed API



Includes *all* the types and APIs from Windows Phone OS 7.1
Contains classes and types from the System and Microsoft.Phone namespaces
There have been new classes added for Windows Phone 8.0, for example

Microsoft.Phone.Wallet

Microsoft.Phone.Tasks.ShareMediaTask

Microsoft.Phone.Tasks.MapsTask

Microsoft.Phone.Storage.ExternalStorage

Microsoft.Phone.Networking.Voip

Many more…!

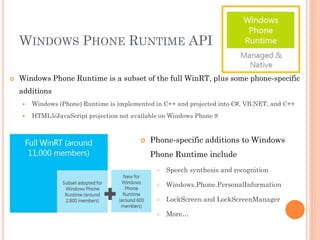

9. WINDOWS PHONE RUNTIME API

Windows Phone Runtime is a subset of the full WinRT, plus some phone-specific
additions

Windows (Phone) Runtime is implemented in C++ and projected into C#, VB.NET, and C++

HTML5/JavaScript projection not available on Windows Phone 8

Phone-specific additions to Windows
Phone Runtime include

Speech synthesis and recognition

Windows.Phone.PersonalInformation

LockScreen and LockScreenManager

More…

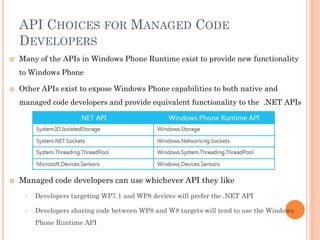

10. API CHOICES FOR MANAGED CODE
DEVELOPERS

Many of the APIs in Windows Phone Runtime exist to provide new functionality
to Windows Phone

Other APIs exist to expose Windows Phone capabilities to both native and
managed code developers and provide equivalent functionality to the .NET APIs

Managed code developers can use whichever API they like
•
Developers targeting WP7.1 and WP8 devices will prefer the .NET API
•
Developers sharing code between WP8 and W8 targets will tend to use the Windows
Phone Runtime API

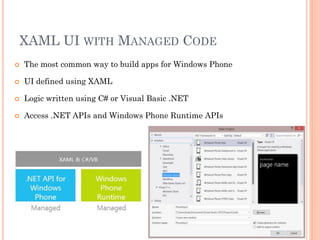

11. XAML UI WITH MANAGED CODE

The most common way to build apps for Windows Phone

UI defined using XAML

Logic written using C# or Visual Basic .NET

Access .NET APIs and Windows Phone Runtime APIs

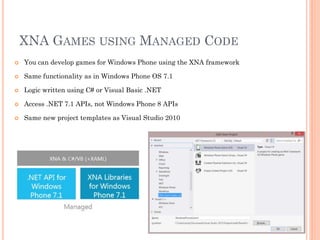

12. XNA GAMES USING MANAGED CODE

You can develop games for Windows Phone using the XNA framework

Same functionality as in Windows Phone OS 7.1

Logic written using C# or Visual Basic .NET

Access .NET 7.1 APIs, not Windows Phone 8 APIs

Same new project templates as Visual Studio 2010

13. DIRECT3D APP

Direct3D app written entirely in native
code, and which use only Direct3D for
its UI

Games development – significant
sharing of code base with a PC version

Access Windows Phone Runtime APIs –
significant subset of the Windows 8
SDK

Easier to share native components such
as compute engines, graphic libraries
and API sets

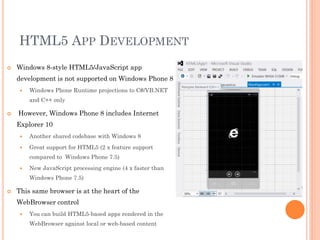

14. HTML5 APP DEVELOPMENT

Windows 8-style HTML5/JavaScript app
development is not supported on Windows Phone 8

Windows Phone Runtime projections to C#/VB.NET
and C++ only

However, Windows Phone 8 includes Internet
Explorer 10

Another shared codebase with Windows 8

Great support for HTML5 (2 x feature support
compared to Windows Phone 7.5)

New JavaScript processing engine (4 x faster than
Windows Phone 7.5)

This same browser is at the heart of the
WebBrowser control

You can build HTML5-based apps rendered in the
WebBrowser against local or web-based content

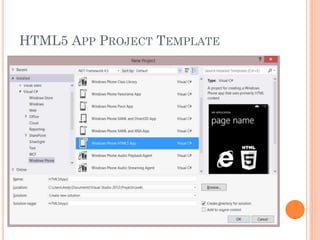

15. HTML5 APP PROJECT TEMPLATE

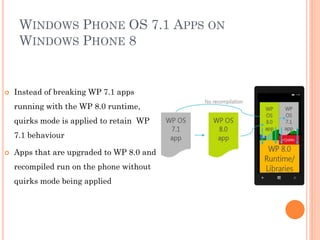

16. WINDOWS PHONE OS 7.1 APPS ON
WINDOWS PHONE 8

Instead of breaking WP 7.1 apps
running with the WP 8.0 runtime,
quirks mode is applied to retain WP
7.1 behaviour

Apps that are upgraded to WP 8.0 and
recompiled run on the phone without
quirks mode being applied

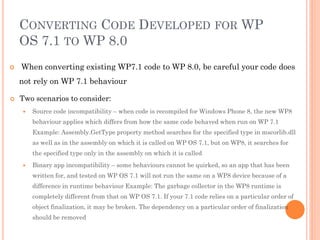

17. CONVERTING CODE DEVELOPED FOR WP
OS 7.1 TO WP 8.0

When converting existing WP7.1 code to WP 8.0, be careful your code does
not rely on WP 7.1 behaviour

Two scenarios to consider:

Source code incompatibility – when code is recompiled for Windows Phone 8, the new WP8
behaviour applies which differs from how the same code behaved when run on WP 7.1
Example: Assembly.GetType property method searches for the specified type in mscorlib.dll
as well as in the assembly on which it is called on WP OS 7.1, but on WP8, it searches for
the specified type only in the assembly on which it is called

Binary app incompatibility – some behaviours cannot be quirked, so an app that has been
written for, and tested on WP OS 7.1 will not run the same on a WP8 device because of a
difference in runtime behaviour Example: The garbage collector in the WP8 runtime is
completely different from that on WP OS 7.1. If your 7.1 code relies on a particular order of
object finalization, it may be broken. The dependency on a particular order of finalization
should be removed

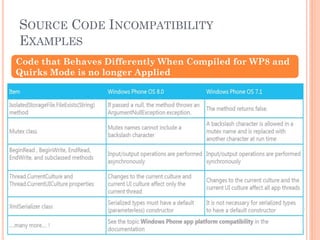

18. SOURCE CODE INCOMPATIBILITY
EXAMPLES
Code that Behaves Differently When Compiled for WP8 and
Quirks Mode is no longer Applied
