This document summarizes the details of a cable terminal machine. The machine can crimp various terminal types with high precision of 0.05mm using servo motors and visual controls. It has a crimping speed of 20,000 pieces per hour and can operate continuously for 24 hours. The machine also has features like full automation, low operation costs, foolproof functions, and a 10 year lifespan for main parts.

1. www.smthelp.com

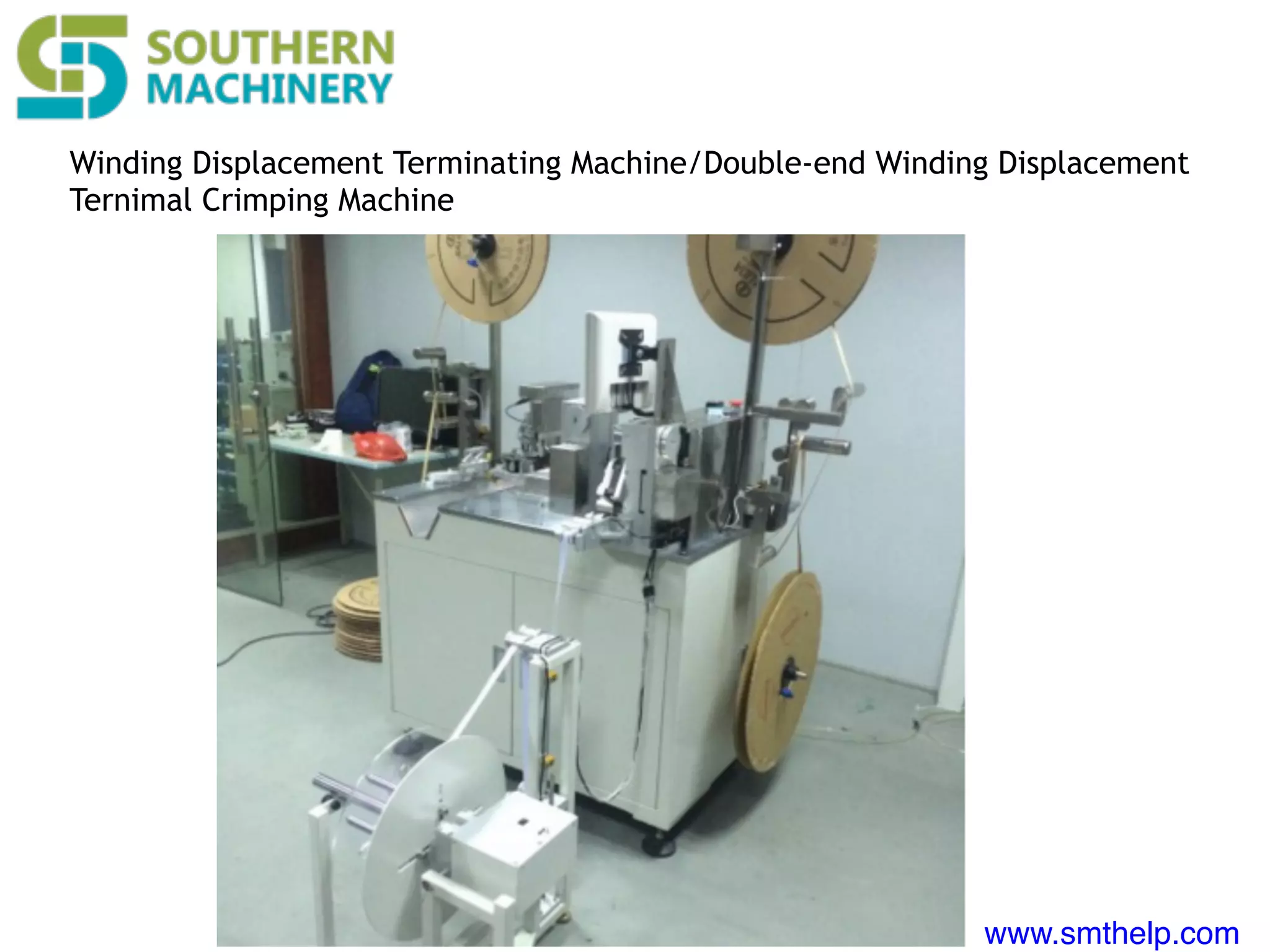

Winding Displacement Terminating Machine/Double-end Winding Displacement
Ternimal Crimping Machine

2. www.smthelp.com

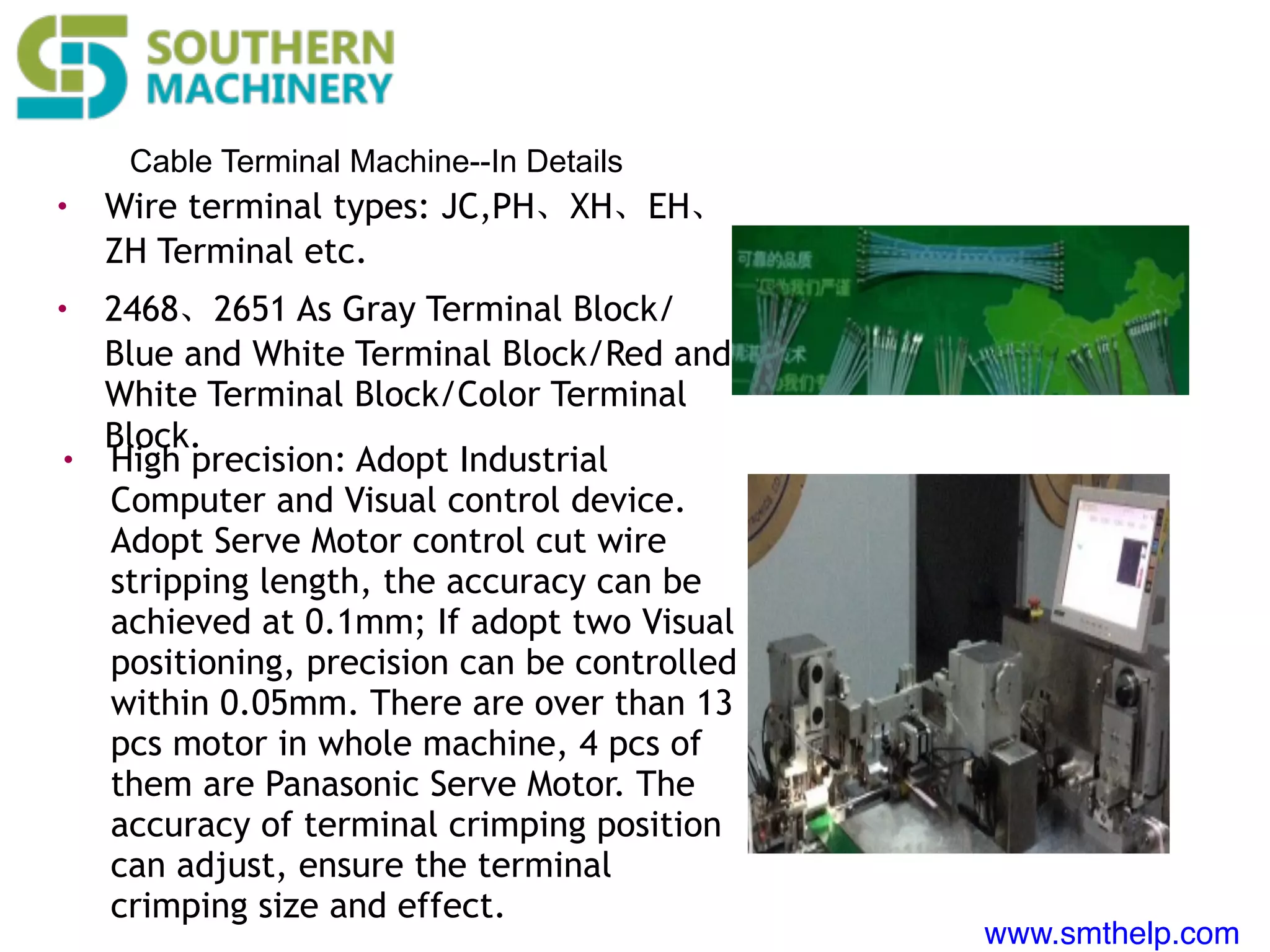

Cable Terminal Machine--In Details
• Wire terminal types: JC,PH、XH、EH、
ZH Terminal etc.
• 2468、2651 As Gray Terminal Block/
Blue and White Terminal Block/Red and
White Terminal Block/Color Terminal
Block.
• High precision: Adopt Industrial
Computer and Visual control device.
Adopt Serve Motor control cut wire
stripping length, the accuracy can be
achieved at 0.1mm; If adopt two Visual
positioning, precision can be controlled
within 0.05mm. There are over than 13
pcs motor in whole machine, 4 pcs of
them are Panasonic Serve Motor. The
accuracy of terminal crimping position
can adjust, ensure the terminal
crimping size and effect.

3. www.smthelp.com

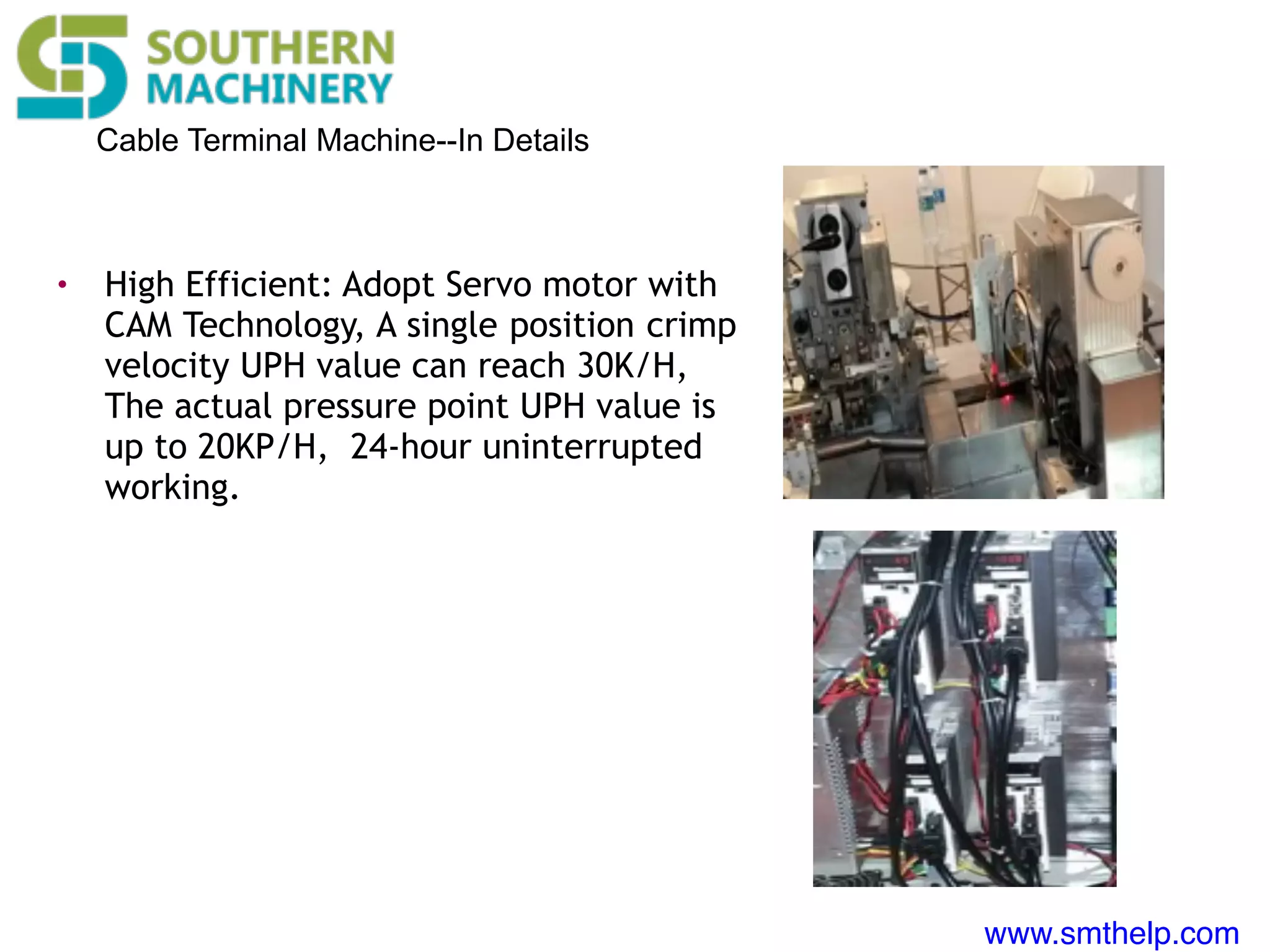

Cable Terminal Machine--In Details
• High Efficient: Adopt Servo motor with
CAM Technology, A single position crimp
velocity UPH value can reach 30K/H,
The actual pressure point UPH value is
up to 20KP/H, 24-hour uninterrupted
working.

4. www.smthelp.com

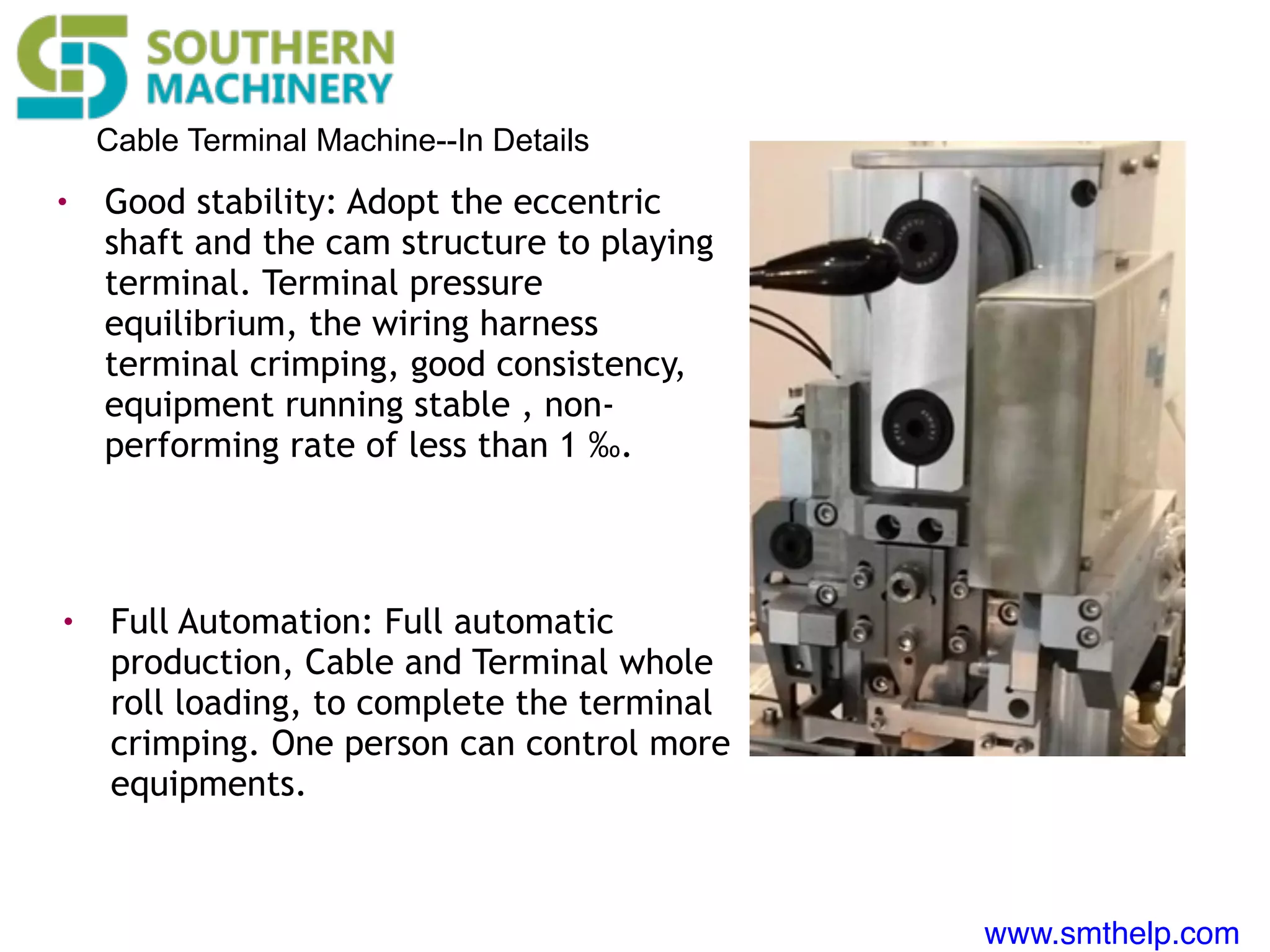

Cable Terminal Machine--In Details
• Good stability: Adopt the eccentric
shaft and the cam structure to playing
terminal. Terminal pressure
equilibrium, the wiring harness
terminal crimping, good consistency,
equipment running stable , non-
performing rate of less than 1 ‰.
• Full Automation: Full automatic
production, Cable and Terminal whole
roll loading, to complete the terminal
crimping. One person can control more
equipments.

5. www.smthelp.com

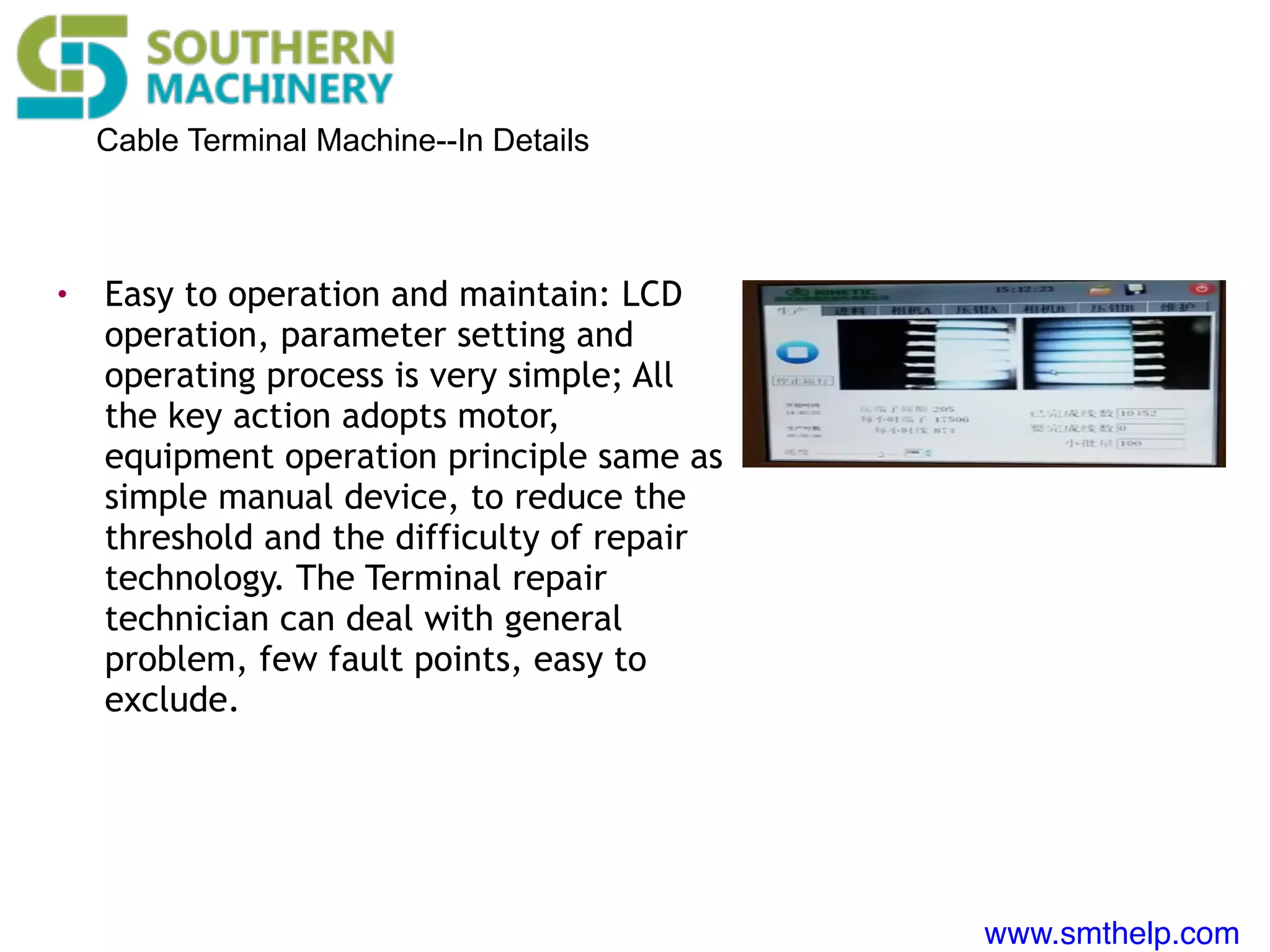

Cable Terminal Machine--In Details
• Easy to operation and maintain: LCD
operation, parameter setting and
operating process is very simple; All
the key action adopts motor,
equipment operation principle same as
simple manual device, to reduce the
threshold and the difficulty of repair
technology. The Terminal repair
technician can deal with general
problem, few fault points, easy to
exclude.

6. www.smthelp.com

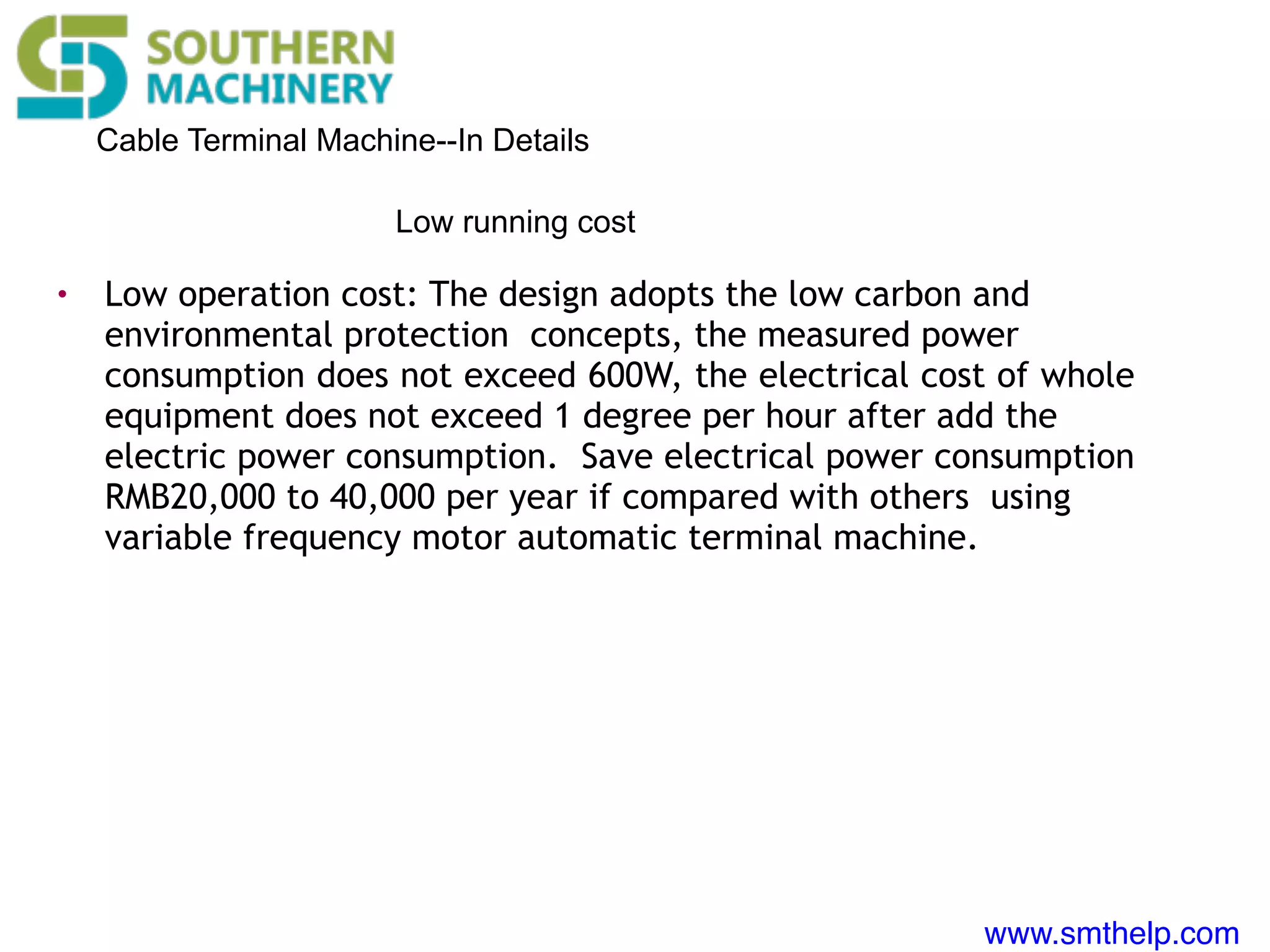

Cable Terminal Machine--In Details
• Low operation cost: The design adopts the low carbon and
environmental protection concepts, the measured power
consumption does not exceed 600W, the electrical cost of whole
equipment does not exceed 1 degree per hour after add the
electric power consumption. Save electrical power consumption
RMB20,000 to 40,000 per year if compared with others using
variable frequency motor automatic terminal machine.
Low running cost

7. www.smthelp.com

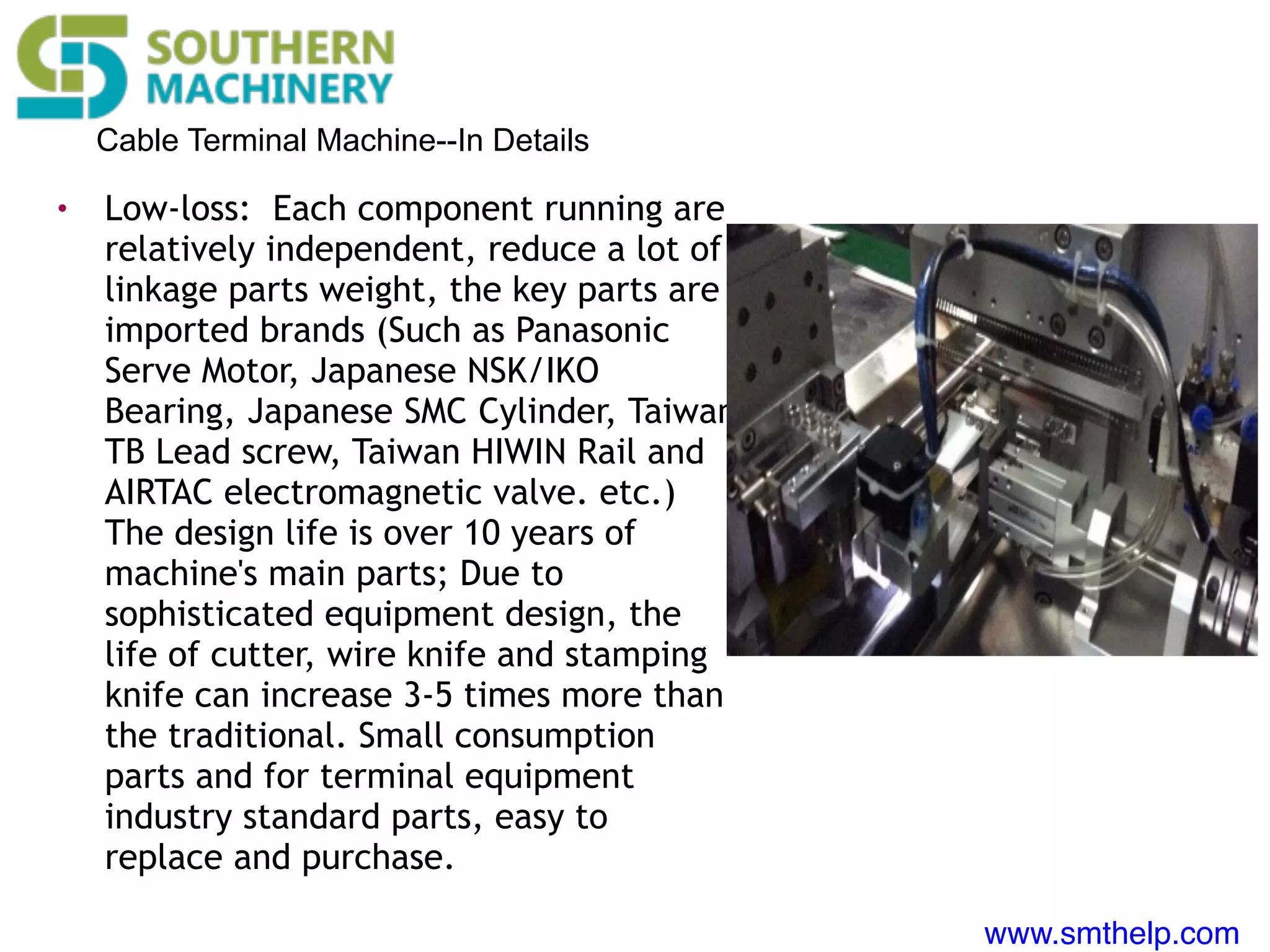

Cable Terminal Machine--In Details
• Low-loss: Each component running are
relatively independent, reduce a lot of
linkage parts weight, the key parts are
imported brands (Such as Panasonic
Serve Motor, Japanese NSK/IKO
Bearing, Japanese SMC Cylinder, Taiwan
TB Lead screw, Taiwan HIWIN Rail and
AIRTAC electromagnetic valve. etc.)
The design life is over 10 years of
machine's main parts; Due to
sophisticated equipment design, the
life of cutter, wire knife and stamping
knife can increase 3-5 times more than
the traditional. Small consumption
parts and for terminal equipment
industry standard parts, easy to
replace and purchase.

8. www.smthelp.com

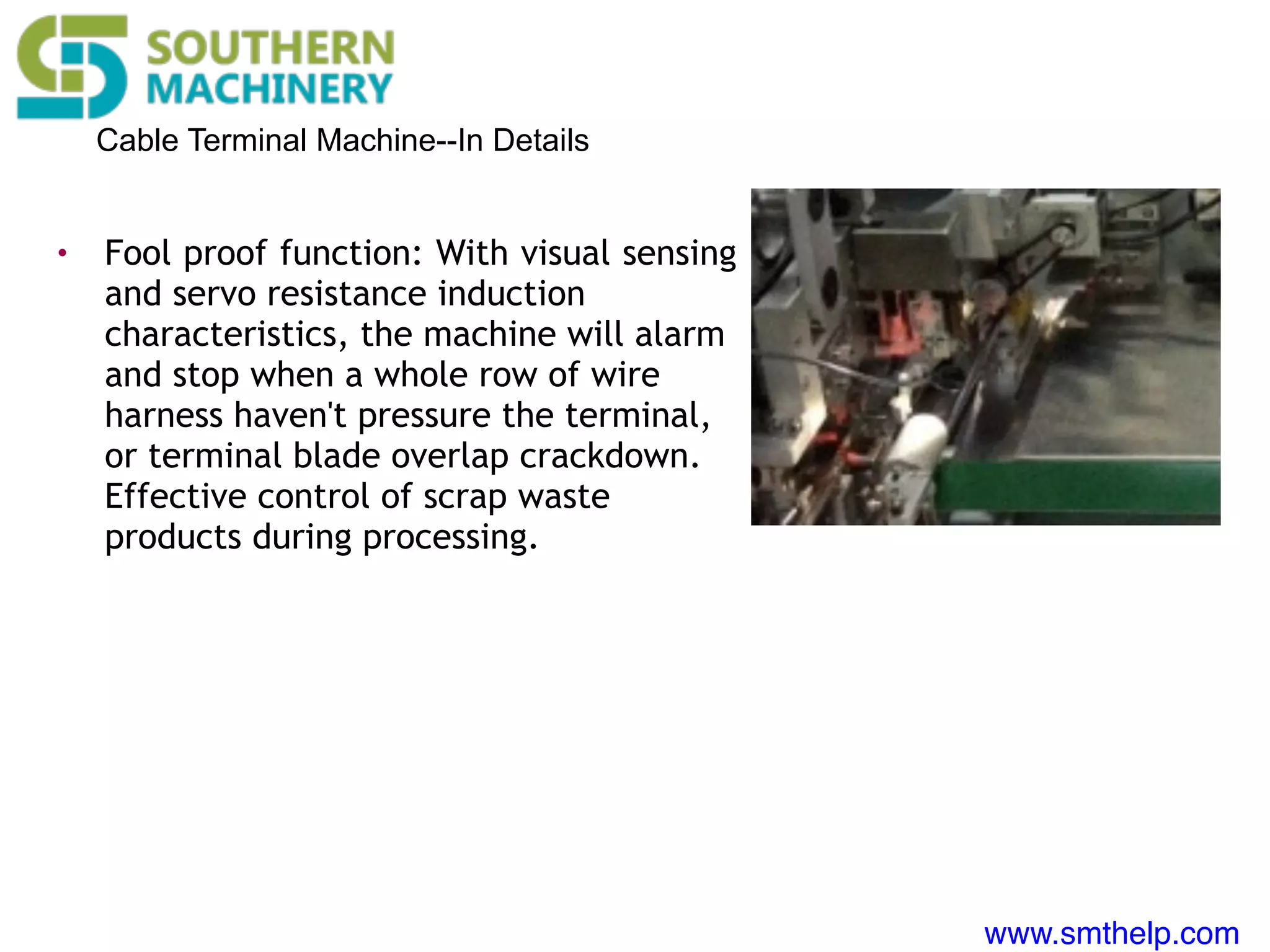

Cable Terminal Machine--In Details
• Fool proof function: With visual sensing
and servo resistance induction
characteristics, the machine will alarm
and stop when a whole row of wire
harness haven't pressure the terminal,
or terminal blade overlap crackdown.
Effective control of scrap waste
products during processing.

9. www.smthelp.com

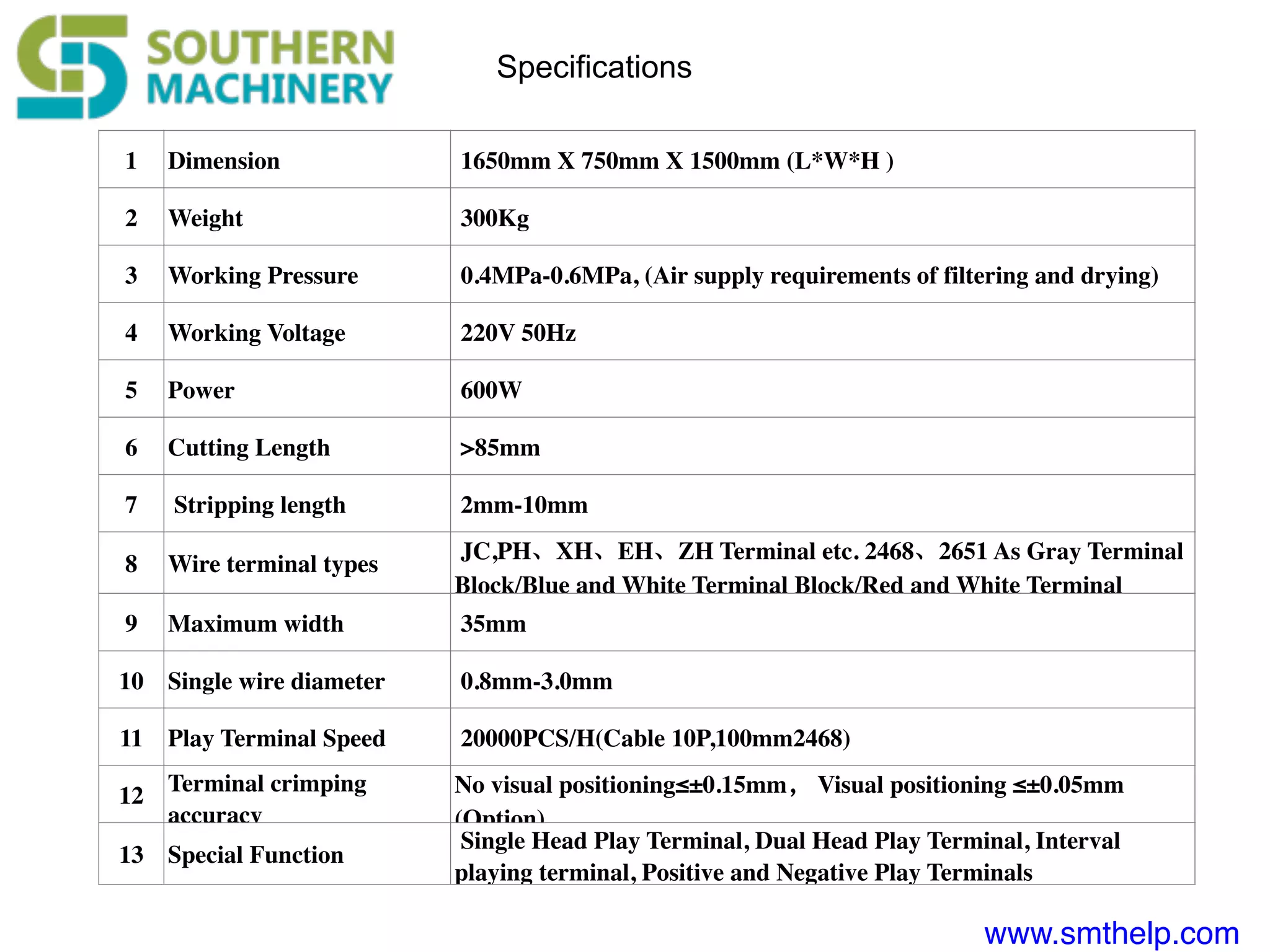

Specifications
1 Dimension 1650mm X 750mm X 1500mm (L*W*H )
2 Weight 300Kg
3 Working Pressure 0.4MPa-0.6MPa, (Air supply requirements of filtering and drying)
4 Working Voltage 220V 50Hz
5 Power 600W
6 Cutting Length >85mm
7 Stripping length 2mm-10mm
8 Wire terminal types
JC,PH、XH、EH、ZH Terminal etc. 2468、2651 As Gray Terminal
Block/Blue and White Terminal Block/Red and White Terminal
9 Maximum width 35mm
10 Single wire diameter 0.8mm-3.0mm
11 Play Terminal Speed 20000PCS/H(Cable 10P,100mm2468)
12
Terminal crimping
accuracy
No visual positioning≤±0.15mm， Visual positioning ≤±0.05mm
(Option)
13 Special Function
Single Head Play Terminal, Dual Head Play Terminal, Interval
playing terminal, Positive and Negative Play Terminals

10. www.smthelp.com

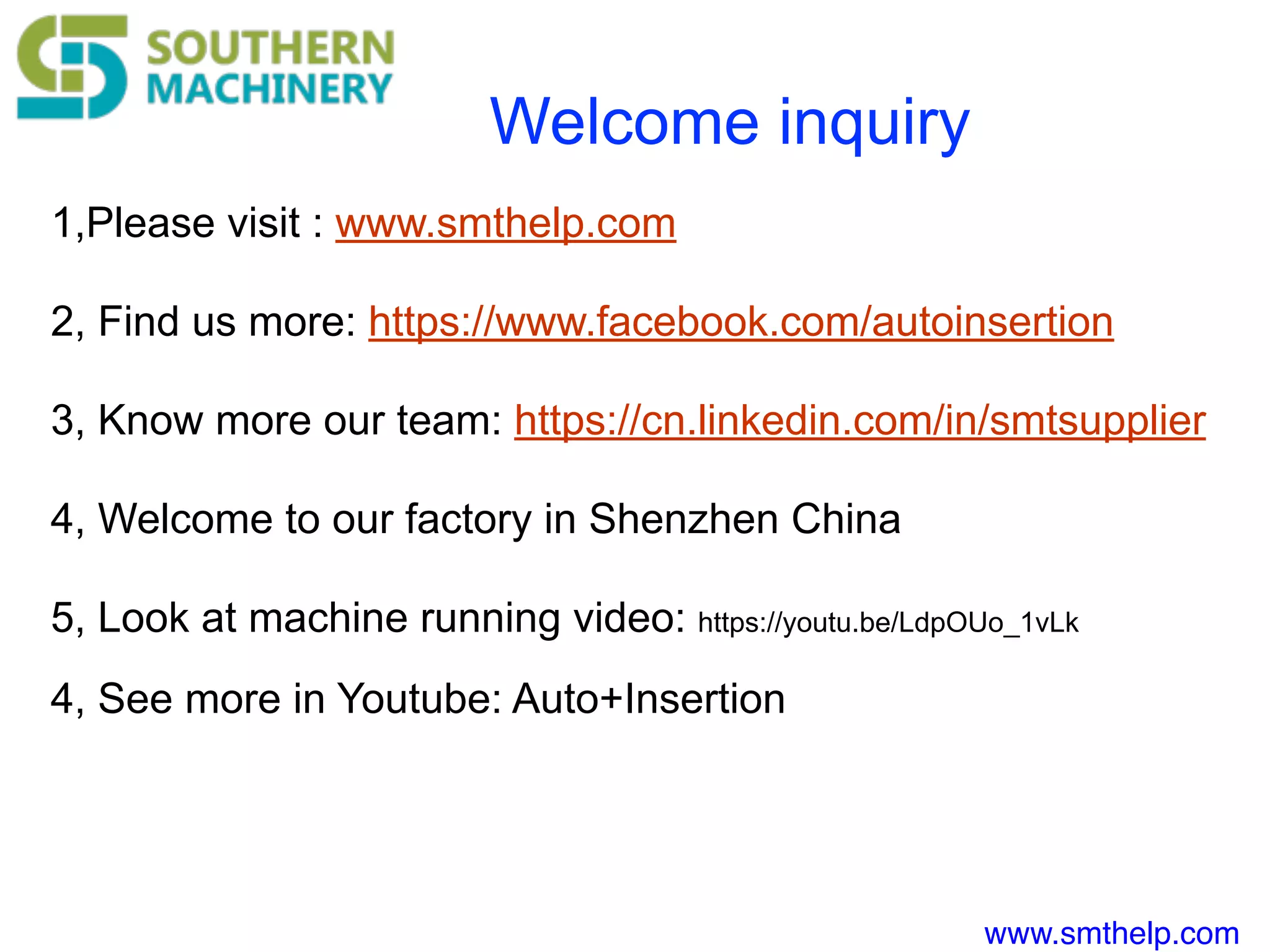

Welcome inquiry
